Search Results (7)

Laser weld quality remains a critical priority across nearly all industries. However, identifying optimal laser parameter sets continues to be highly challenging, often relying on costly, time-consuming trial-and-error experiments. This difficulty is largely attributed to the severe fluctuations and instabilities inherent in laser welding, particularly keyhole instabilities. This study examines the impact of laser power modulation parameters, which, when properly applied, have been found effective in controlling and minimizing process instabilities. The investigated parameters include different pulse shapes (sinusoidal and cosinusoidal) and their associated characteristics, namely frequency (100–800 Hz) and amplitude (1000–4000 W). The impact of these modulation parameters on keyhole mode laser spot welding performance in aluminum is investigated. Using a Taguchi experimental design, a series of tests were developed, focusing on eight key welding responses, including keyhole dimensions, mean temperature, and the variability of instability-inducing forces and related factors affecting process stability. Grey relational analysis (GRA) combined with analysis of variance (ANOVA) is applied to identify the optimal combinations of laser parameters. The results indicate that low amplitude (1000 W), low to intermediate frequencies (100–400 Hz), and cosinusoidal waveforms significantly enhance weld quality by improving process stability and balancing penetration depth. Among the factors, amplitude has the greatest impact, accounting for over 50% of the performance variation, followed by frequency and pulse shape. The findings provide clear guidance for optimizing laser welding parameters to achieve stable, high-quality aluminum welds. Full article

In the domain of new energy vehicles, the control of welding deformation in aluminum alloy battery systems poses substantial challenges. The existing methodologies for diminishing welding deformation, such as laser segmented skip welding, alteration of welding path sequences, numerical simulation prediction, and post-weld heat treatment, still possess room for further optimization when applied to intricate welding structures. In this research, a novel adjustable-ring-mode laser in conjunction with the oscillation welding technique was employed to explore the impacts of fiber core diameter, laser light field brightness distribution, and process parameters on weld formation. The regulation of welding deformation was achieved through optimizing the welding process and adjusting the welding path. The results indicate that when the fiber core diameter is 50/150 µm and the light field brightness distribution is H, the weld size exhibits the highest stability. Under the conditions of process parameters p = 5300 W, v = 5.4 m/min, A = 1.6 mm, f = 120 Hz, and θ = 40°, and with the spot position located at the bottom of the side of the upper substrate, the optimal weld formation is obtained. After optimizing the welding path, the maximum Z-direction deformation of the weld is 1.403 mm, representing a reduction of 1.702 mm compared to the previous value. This work is capable of providing novel theoretical guidance and technical insights for the control of welding deformation in thin aluminum alloy plates. Full article

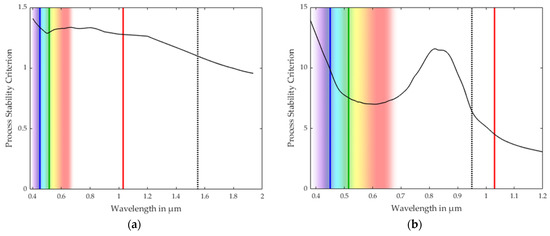

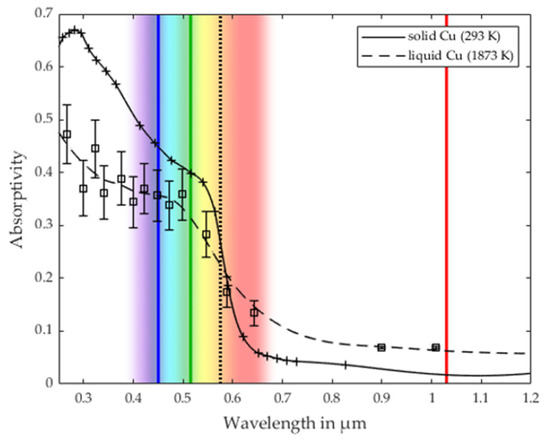

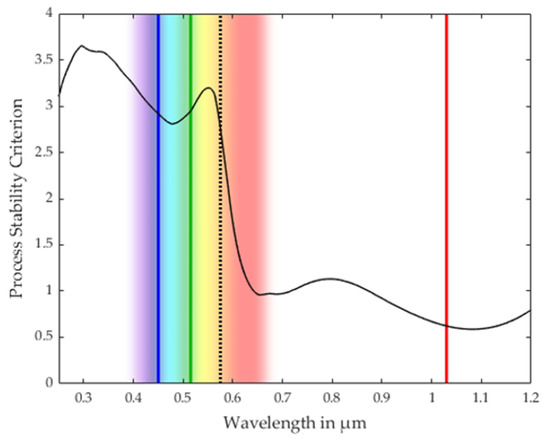

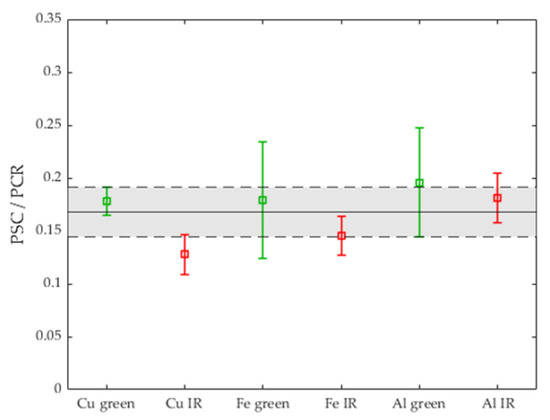

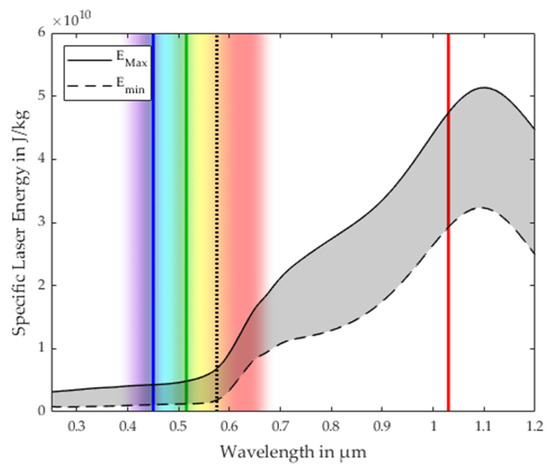

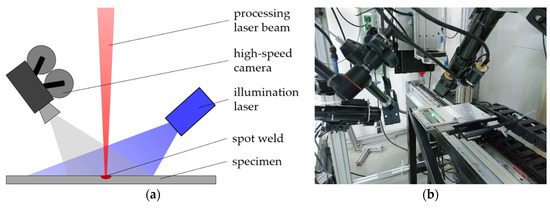

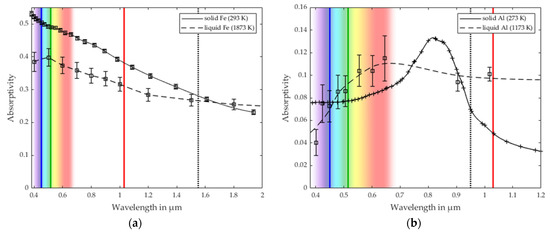

With its excellent automation capability and localized energy input enabling precise, reproducible welds, laser beam welding represents a preferred industrial joining technology. Electro-mobility drastically increases the need for defect-free and automatable copper joining technologies. However, copper welds that are produced with state-of-the-art infrared lasers often suffer from spattering and porosity. Recent publications show distinct improvements using novel beam sources at visible wavelengths, attributing them to increased absorptivity. Nevertheless, this cannot fully explain the steadier process behavior. This wavelength-dependent process stability has not yet been investigated sufficiently. Therefore, we have developed a predictive material-dependent criterion indicating process stability based on the example of copper heat-conduction spot welding. For this purpose, we combined energy balances with thermo-physical material properties, taking into account the wavelength and temperature dependence of the optical properties. This paper presents the key mechanism that we identified as decisive for process stability. The criterion revealed that X-points (unique, material-specific wavelengths) represent critical stability indicators. Our calculations agree very well with experimental results on copper, steel and aluminum using two different wavelengths and demonstrate the decisive, material-dependent wavelength impact on process stability. This knowledge will help guide manufacturers and users to choose and develop beam sources that are tailored to the material being processed. Full article

The feasibility of using laser-cold metal transfer (CMT) misaligned hybrid welding to join an X80 line-pipe steel in a narrow gap configuration was investigated. The laser beam interacted with the sidewall and its bottom at a small angle, while the CMT arc acted on the backside of the laser beam. The influence of the distance parameter between the laser spot and the tip of the welding wire on the formation and defects of the filled weld were investigated. Narrow gap bevel welds were performed, and the joints were tensile and had a satisfactory Charpy impact score. The tensile fracture is located in the base metal, and the impact fracture is a ductile fracture. Under this condition, the heat input could be efficiently reduced, preventing the formation of defects such as lack of fusion and reducing the number of pores. Additionally, welds with a narrow heat affect zone (HAZ) could be obtained. The results reveal that the hybrid process, as a low-heat input method, is suitable for narrow gap welding. Full article

In our previous studies, we have developed a wet process, denoted as laser surface implanting (LSI), to synthesize a copper/single-walled carbon nanotube (Cu–SWCNT) metal nanocomposite. The nanostructure of this Cu–SWCNT composite was shown to contain discernable SWCNT clusters in nanosizes inside the copper matrix. Its hardness could achieve up to three times that of pure copper, verified by micro-hardness and nano-hardness tests. A focus ion beam bombardment test and a plane strain compression test show 2.5 times toughness improvement for the Cu-SWCNT composite. Based on these strength improvements, two potential applications for the Cu-SWCNT nanocomposite are proposed and their feasibilities are verified using specially design test rigs. The first application is related to creating long lasting electric contacts. The result shows that the Cu-SWCNT nanocomposite is highly wear-resistant. The contact area of the simulated electric contacts increases after repeated impact loading, which potentially could lower the contact resistance. The second application is to use the Cu-SWCNT implants as high strength spot weld for joining copper foils. A smaller weld with a higher strength reduces the power requirement of the laser and, consequently, the thermal distortion for higher-dimensional precision. The specially designed test rig for the weld strength characterization is a new contribution, providing a new testing capability for small and non-homogeneous samples not suitable for a standard tensile test machine. Full article

In the current research, the use of tailor-welded blanks (TWBs) comprising Usibor^® 1500-AS laser welded to more ductile Ductibor^® 500-AS is considered. The TWBs were hot stamped to form top-hat cross-section channels with axially tailored properties. Axial crush rails were assembled by spot welding together two of these hot stamped channels along their flanges. The tailored rails were crush tested under dynamic (crash) and quasi-static conditions using an 855 kg crash sled facility at 10.6 m/s impact speed, and a 670 kN servo-hydraulic press at 0.5 mm/s, respectively. Non-tailored channels composed entirely of Ductibor^® 500-AS were also tested for base material characterization and as a comparison to the tailored conditions. Numerical models of the crash experiments were developed. The material models include measured fracture loci using the generalized incremental stress state dependent damage model (GISSMO), with rate sensitive constitutive behavior. Spot weld failure was also considered based on tests of spot welded coupons. The accuracy of the predicted force-displacement and energy absorption response, extent of parent metal cracking, and extent of weld failure are evaluated in comparison to the experiments. The difference in response between quasi-static and dynamic testing is also evaluated. Full article

In this paper a novel laser impact spot welding (LISW) method is described, in which a hump was formed on the flyer plate on the intended welding spot location by local pre-forming. When the flyer and base plates were placed together to perform welding, the two plates kept in contact over their entire surfaces except at the hump, where a local air gap was enough to guarantee the impact velocity and collision angle to achieve spot welding using laser pulse energy. The presented approach was implemented to join thin titanium foils to copper foils under low laser energy system. Joints with regular shapes were obtained. The microstructure in the weld interface was studied with scanning electron microscopy (SEM) and energy dispersive spectroscopy (EDS). It was found that the jetting occurred at the central region of the weld spots due to oblique impact. Wave features were observed in the weld interfaces. The impact energy was found to have significant influence on the wave’s characteristics. Moreover, SEM images and EDS analysis did not show apparent element diffusion across the weld interface. Besides, the lap shearing test was used to characterize the mechanical properties of the spot welded joints. Full article
