Due to high responsivity and wide spectral sensitivity, metal halide perovskite photodiodes have a wide range of applications in the fields of visible light and near-infrared photodetection. Specific detectivity is an important quality factor for high-performance perovskite-based photodiodes, while one of the keys to achieving high detectivity is to reduce dark current. Here, 3-fluoro phenethylammonium iodide (3F-PEAI) was used to passivate the perovskite surface and form the two-dimensional (2D) perovskite on the three-dimensional (3D) perovskite surface. The as-fabricated passivated perovskite photodiodes with 2D/3D hybrid-dimensional perovskite heterojunctions showed two orders of magnitude smaller dark current, larger open circuit voltage and faster photoresponse, when compared to the control perovskite photodiodes. Meanwhile, it maintained almost identical photocurrent, achieving a high specific detectivity up to 2.4 × 10¹² Jones and over the visible-near-infrared broadband photodetection. Notably, the champion photoresponsivity value of 0.45 A W⁻¹ was achieved at 760 nm. It was verified that the 2D capping layers were able to suppress trap states and accelerate photocarrier collection. This work demonstrates strategic passivation of surface iodine vacancies, offering a promising pathway for developing ultrasensitive and low-power consumption photodetectors based on metal halide perovskites. Full article

The research considered in this publication aims to contribute to developing perovskite-based technologies by conducting basic research on perovskite materials. The materials described in the paper are thin films of hybrid perovskite MEAPbI₃ made using the PVco-D method in three different compositions—perovskite samples differ in the percentage of organic methylammonium and inorganic iodide parts. This publication discusses the influence of the composition of the thin perovskite layer on its structural and optical properties and the influence of the temperature of the environment of the perovskite thin film on optical properties. To answer these questions, the surface topography was analyzed using the AFM method, spectroscopic measurements were carried out in the UV-Vis-NIR range, and photoluminescence measurements were performed in a wide temperature range—from about 80 K to 310 K. The results indicate that the composition changes the surface topography, forming increasingly higher crystallites (up to 606%) with increasing methylammonium content. The transition temperature from the orthorhombic to the tetragonal phase was determined for each composition at about 140 K. For the composition of 30% MEAI + 70% PbI2, the phase transition temperature from tetragonal to cubic was determined at a temperature close to RT. Full article

Hybrid organohalide perovskites have received considerable attention due to their exceptional photovoltaic (PV) conversion efficiencies in optoelectronic devices. In this study, we report the development of a highly sensitive, self-powered perovskite-based photovoltaic photodiode (PVPD) fabricated by incorporating a poly(amic acid)-polyimide (PAA-PI) copolymer as an interfacial layer between a methylammonium lead iodide (CH₃NH₃PbI₃, MAPbI₃) perovskite light-absorbing layer and a poly(3,4-ethylenedioxythiophene)-poly(styrene sulfonate) (PEDOT: PSS) hole injection layer. The PAA-PI interfacial layer effectively suppresses carrier recombination at the interfaces, resulting in a high power conversion efficiency (PCE) of 11.8% compared to 10.4% in reference devices without an interfacial layer. Moreover, applying the PAA-PI interfacial layer to the MAPbI₃ PVPD significantly improves the photodiode performance, increasing the specific detectivity by 49 times to 7.82 × 10¹⁰ Jones compared to the corresponding results of reference devices without an interfacial layer. The PAA-PI-passivated MAPbI₃ PVPD also exhibits a wide linear dynamic range of ~103 dB and fast response times, with rise and decay times of 61 and 18 µs, respectively. The improved dynamic response of the PAA-PI-passivated MAPbI₃ PVPD enables effective weak-light detection, highlighting the potential of advanced interfacial engineering with PAA-PI interfacial layers in the development of high-performance, self-powered perovskite photovoltaic photodetectors for a wide range of optoelectronic applications. Full article

The noteworthy stability of Dion–Jacobson (DJ) phase two-dimensional perovskites marks them as potential contenders for use in optoelectronic applications. Nonetheless, their proliferation is considerably stymied by the constrained charge transport properties inherent to them. This bottleneck is adeptly navigated by deploying 2D-DJ perovskite top layers, seamlessly integrated on 3D perovskite films. We unveil a novel organic cation salt, 4-(Aminomethyl)piperidine (4AMP), as a potent facilitator for treating perovskite photovoltaic films. By employing the annealing technique, we facilitated the in situ creation of a hybrid 2D/3D architecture. Contrasted with conventional 3D architectures, the delineated perovskite heterojunctions with a 2D/3D structure exhibit superior enhanced charge separation, and mitigate photovoltaic losses by proficiently passivating intrinsic defects. The size-graded perovskite 2D/3D structure engineered herein significantly elevates the charge transfer performance, concurrently attenuating the excess lead iodide induced by bulk defects. This precise method resulted in a significant increase in Power Conversion Efficiency, reaching 23.08%, along with an open-circuit voltage (Voc) of 1.17 V. Remarkably, the unpackaged modified device robustly retains 92% of its initial PCE post a 3000 h sojourn under ambient conditions. This discourse propounds a novel paradigm for constructing stable planar PSC 2D/3D heterojunctions, thereby enriching the blueprint for advanced perovskite-based photovoltaic systems. Full article

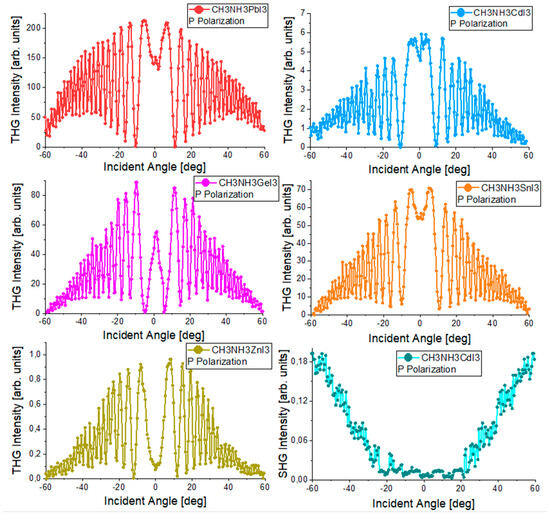

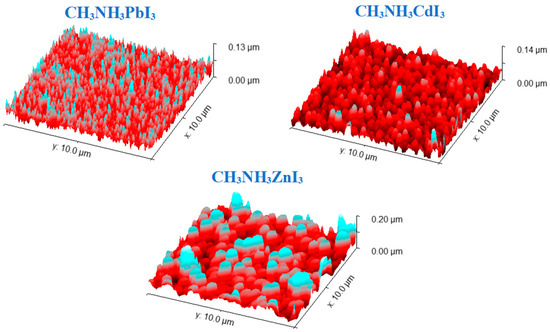

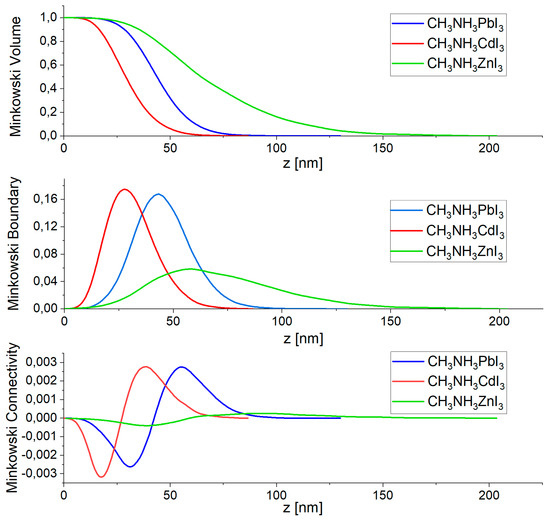

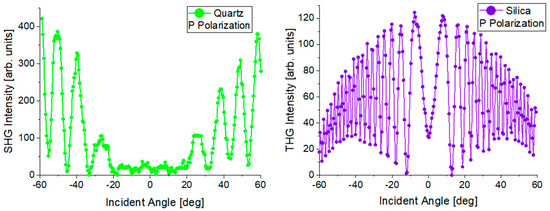

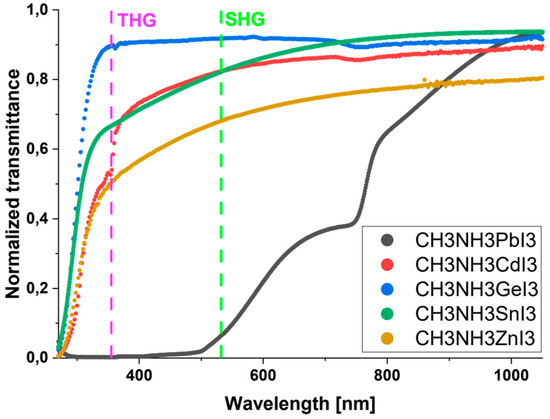

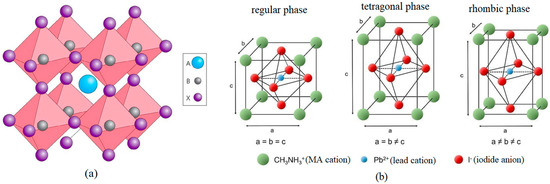

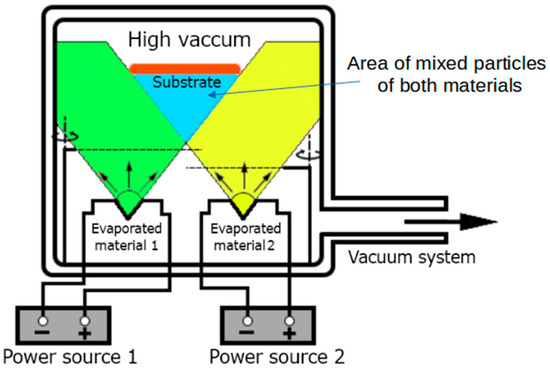

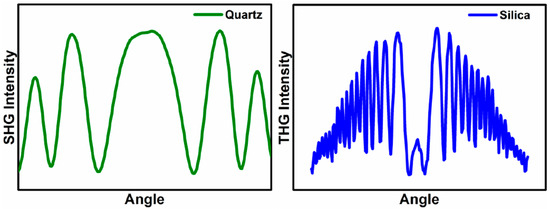

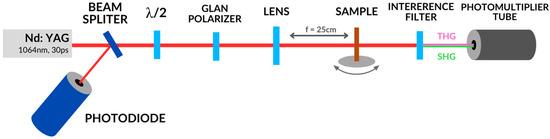

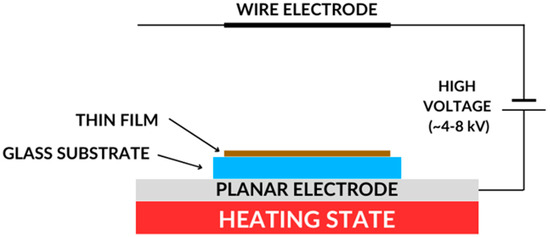

This article covers selected properties of organic–inorganic thin films of hybrid perovskites with the summary formulas CH₃NH₃MI₃, where M = Pb, Cd, Ge, Sn, Zn. The paper discusses not only the history, general structure, applications of perovskites and the basics of the theory of nonlinear optics, but also the results of experimental research on their structural, spectroscopic, and nonlinear optical properties. The samples used in all presented studies were prepared in the physical vapor deposition process by using co-deposition from two independent thermal sources containing the organic and inorganic parts of individual perovskites. Ultimately, thin layers with a thickness of the order of nanometers were obtained on glass and crystalline substrates. Their structural properties were characterized by atomic force microscopy imaging. Spectroscopic tests were used to confirm the tested films’ transmission quality and determine previously unknown physical parameters, such as the absorption coefficient and refractive index. Experimental results of the nonlinear optical properties were obtained by studying the second and third harmonic generation processes and using initial sample polarization in the so-called Corona poling process. The obtained experimental results allowed us to determine the second- and third-order nonlinear optical susceptibility of the tested materials. Full article

A hybrid tin-based (GA${}_{0.2}$FA${}_{0.78}$SnI${}_3$-1% EDAI${}_2$) perovskite solar cell (PSC) with a p-i-n inverted structure has been reported to pass all the rigorous standard tests successfully and achieve a certified power conversion efficiency (PCE) of 8.3%. Our previous numerical study showed that this PCE could be considerably increased to 24.1% by engineering and controlling the interfaces of the cell. The aim of the current study is to compare the performance of a conventional n-i-p structure with its inverted p-i-n analog quantitatively, and demonstrate that, by improving the conventional structure, it can achieve a PCE score approximately equal to the inverted p-i-n structure. To that end, the absorber layer was chosen to be GA${}_{0.2}$FA${}_{0.78}$SnI${}_3$-1% EDAI${}_2$, while four ETL (electron transport layer) materials (TiO${}_2$, WS${}_2$, SnO${}_2$, and ZnOS), and four HTL (hole transport layer) materials (PEDOT:PSS, Cu${}_2$O, CuSCN, and CuI) were considered. Most used ETL/HTL combinations have been rigorously investigated with the aim of finding the ultimate configuration, providing the highest photovoltaic properties. Additionally, the effect of the layers’ thicknesses and their doping concentrations were inspected, and their impact on the photovoltaic properties of the PSC was investigated. The optimized structure with CuI (copper iodide) as the HTL and ZnOS (zinc oxysulphide) as the ETL scored a PCE of 24.1%, which is comparable to the value found with the inverted structure (26%). The current numerical simulation on GA${}_{0.2}$FA${}_{0.78}$SnI${}_3$-1% EDAI${}_2$ could be considered as a milestone in its chances for commercial development. Full article

The technology of perovskite solar cells (PSC) is getting close to breaching the consumer market. Yet, one of the current challenges is to reduce the toxicity during their fabrication by reducing the use of the toxic solvents involved in the perovskite fabrication process. A good solubilization of lead halides used in hybrid perovskite preparation is required, and it is only possible with polar solvents. A mixture of dimethylformamide (DMF) and dimethyl sulfoxide (DMSO) is the most popular solvent combination for a perovskite precursor solution. DMF is necessary to ensure a good dissolution of lead iodide, but it is also the most toxic solvent. In this paper, we study the replacement of the dimethylformamide with presumably less toxic alternatives, such as N-methyl-2-Pyrrolidone (NMP) and ethyl acetate (EA), for the preparation of the K_0.1FA_0.7MA_0.2PbI_2.8Cl_0.2 (KFAMA) hybrid perovskite. The perovskite thin films were investigated by various characterization techniques: X-ray diffraction, atomic force microscopy, scanning electron microscopy, and UV–vis spectroscopy, while the photovoltaic parameters were determined by measuring the IV curves of the corresponding solar cells. The present study shows that by keeping the same deposition parameters as when only DMF solvent is used, the partial solvent substitution with NMP and EA gives promising results for reducing the toxicity of the fabrication process of KFAMA-based PSCs. Thus, with no specific optimization of the deposition process, and for the maximum possible partial substitution of DMF with NMP and EA solvents, the loss in the power conversion efficiency (PCE) value is only 35% and 18%, respectively, associated with the more structural defects promoted by NMP and EA. Full article

Organic diammonium cations are a promising component of both layered (2D) and conventional (3D) hybrid halide perovskites in terms of increasing the stability of perovskite solar cells (PSCs). We investigated the crystallization ability of phase-pure 2D perovskites based on 1,4-butanediammonium iodide (BDAI₂) with the layer thicknesses n = 1, 2, 3 and, for the first time, revealed the presence of a persistent barrier to obtain BDA-based layered compounds with n > 1. Secondly, we introduced BDAI₂ salt into 3D lead–iodide perovskites with different cation compositions and discovered a threshold-like nonmonotonic dependence of the perovskite microstructure, optoelectronic properties, and device performance on the amount of diammonium additive. The value of the threshold amount of BDAI₂ was found to be ≤1%, below which bulk passivation plays the positive effect on charge carrier lifetimes, fraction of radiative recombination, and PSCs power conversion efficiencies (PCE). In contrast, the presence of any amount of diammonium salt leads to the sufficient enhancement of the photothermal stability of perovskite materials and devices, compared to the reference samples. The performance of all the passivated devices remained within the range of 50 to 80% of the initial PCE after 400 h of continuous 1 sun irradiation with a stabilized temperature of 65 °C, while the performance of the control devices deteriorated after 170 h of the experiment. Full article

Due to their exceptional properties, the study of hybrid perovskite (HyP) structures and applications dominate current photovoltaic prospects. Methylammonium lead tri-iodide perovskite (MAPI) is the model compound of the HyP class of materials that, in a few years, achieved, in photovoltaics, a power conversion efficiency of 25%. The attention on HyP has recently moved to large single crystals as emerging candidates for photovoltaic application because of their improved stability and optoelectronic properties compared to polycrystalline films. To control the quality and symmetry of the large MAPI single crystals, we proposed an original method that consisted of adding short-chain carboxylic acids to the inverse temperature crystallization (ICT) of MAPI in γ-butyrolactone (GBL). The crystals were characterized by single-crystal X-ray diffraction (SC-XRD), X-ray powder diffraction (XRPD) and Raman spectroscopy. Based on SC-XRD analysis, MAPI crystals grown using acetic and trifluoroacetic acids adopt a tetragonal symmetry “I4cm”. MAPI grown in the presence of formic acid turned out to crystallize in the orthorhombic “Fmmm” space group demonstrating the acid’s effect on the crystallization of MAPI. Full article

A hybrid tin-based perovskite solar cell with p-i-n inverted structure is modeled and simulated using SCAPS. The inverted structure is composed of PEDOT:PSS (as hole transport layer—HTL)/GA${}_{0.2}$FA${}_{0.78}$SnI${}_3$-1% EDAI${}_2$ (as perovskite absorber layer)/C60-fullerene (as electron transport layer—ETL). Previous experimental studies showed that unlike conventional tin-based perovskite solar cells (PSC), the present hybrid tin-based PSC passes all harsh standard tests and generates a power conversion efficiency of only $8.3\%$. Despite the high stability that this material exhibits, emphasis on enhancing its power conversion efficiency (PCE) is crucial. To that end, various ETL and HTL materials have been rigorously investigated. The impact of energy level alignment between HTL/absorber and absorber/ETL interfaces have been elucidated. Moreover, the thickness and the doping concentration of all the previously mentioned layers have been varied to inspect their effect on the photovoltaic performance of the PSC. The optimized structure with CuI (copper iodide) as HTL and ZnOS (zinc oxysulphide) as ETL scored a PCE of $26\%$, which is more than three times greater than the efficiency of the initial structure. The current numerical simulation on GA${}_{0.2}$FA${}_{0.78}$SnI${}_3$-1% EDAI${}_2$ could greatly increase its chance for commercial development. Full article

Perovskite materials offer high-efficiency low-cost solar cells and applications versatility. We report on cesium-based hybrid perovskite solar cells with wavelength-selective properties ranging from 500 nm (UV-VIS) to 800 nm (IR). The band gap tuning was achieved through composition changes of mainly lead(II) iodide PbI₂ and lead(II) bromide PbBr_2. The optical spectra of the developed materials were studied, including the photoluminescence (PL), optical transparency, X-ray diffraction and external quantum efficiency for samples prepared under different compositions. It was found that a high content of iodine displayed a photoluminescence (PL) peak at 790 nm, whereas a high content of bromine showed a PL peak at 548 nm. The combined composition mixture of PbI₂ and PbBr₂ can be fine-tuned to prepare materials that absorbed light in the visible range (640–660 nm) or other selective wavelengths in the range from 500 to 800 nm. The illuminated current-voltage characteristics of the solar cells were carried out under the AM 1.5 condition using an ABET solar simulator with a reference solar cell for comparison and control. The average efficiency of the fabricated solar cells ranged from 3.5% to 15.5%, depending on perovskite composition. Wavelength-selective solar cells have potential applications in smart windows, building of integrated PVs and solar-operated greenhouses. Full article

The quality and the performance of hybrid perovskite (HP)’s films strongly depend on the complete conversion into MAPbI₃ of a spin-coated solution of methylammonium iodide (MAI) and PbI₂. Highly crystalline PbI₂ on a substrate limits such a conversion and, consequently, the HP’s solar cell performances. We investigate for the first time the use of short-chain organic acids as additives in a non-complexing solvent like γ-butyrolactone (GBL), that can retard retard the crystallization of PbI₂. Based on XRD analyses of the spin coated films, the acetic acid is the most effective additive in retarding the PbI₂ crystallization, making Pb²⁺ available for a subsequent reaction with MAI. These results open a new experimental path for fabricating perovskite films by single or sequential step methods involving acid additives. Full article

Hybrid organic–inorganic perovskite (HOIP) photovoltaics have emerged as a promising new technology for the next generation of photovoltaics since their first development 10 years ago, and show a high-power conversion efficiency (PCE) of about 29.3%. The power-conversion efficiency of these perovskite photovoltaics depends on the base materials used in their development, and methylammonium lead iodide is generally used as the main component. Perovskite materials have been further explored to increase their efficiency, as they are cheaper and easier to fabricate than silicon photovoltaics, which will lead to better commercialization. Even with these advantages, perovskite photovoltaics have a few drawbacks, such as their stability when in contact with heat and humidity, which pales in comparison to the 25-year stability of silicon, even with improvements are made when exploring new materials. To expand the benefits and address the drawbacks of perovskite photovoltaics, perovskite–silicon tandem photovoltaics have been suggested as a solution in the commercialization of perovskite photovoltaics. This tandem photovoltaic results in an increased PCE value by presenting a better total absorption wavelength for both perovskite and silicon photovoltaics. In this work, we summarized the advances in HOIP photovoltaics in the contact of new material developments, enhanced device fabrication, and innovative approaches to the commercialization of large-scale devices. Full article

In 2015, a class of unconventional semiconductors, Chalcogenide perovskites, remained projected as possible solar cell materials. The MAPbI₃ hybrid lead iodide perovskite has been considered the best so far, and due to its toxicity, the search for potential alternatives was important. As a result, chalcogenide perovskites and perovskite-based chalcohalide have recently been considered options and potential thin-film light absorbers for photovoltaic applications. For the synthesis of novel hybrid perovskites, dimensionality tailoring and compositional substitution methods have been used widely. The study focuses on the optoelectronic properties of chalcogenide perovskites and perovskite-based chalcohalide as possibilities for future photovoltaic applications. Full article

Lead halide perovskites have emerged as promising materials for various optoelectronic applications. For photovoltaics, the reference compound is the 3D perovskite (MA)PbI₃ (MA⁺ = methylammonium). However, this material suffers from instabilities towards humidity or light. This makes the search of new stable 3D lead halide materials very relevant. A strategy is the use of intermediate size cations instead of MA, which are not suitable to form the 3D ABX₃ perovskites or 2D perovskites. Here, we report on a novel 3D metal halide hybrid material based on the intermediate size cation hydroxypropylammonium (HPA⁺), (HPA)₆(MA)Pb₅I₁₇. We will see that extending the carbon chain length from two CH₂ units (in the hydroxylethylammonium cation, HEA+) to three (HPA⁺) precludes the formation of a perovskite network as found in the lead and iodide deficient perovskite (HEA,MA)_1+xPb_xI_3−x. In (HPA)₆(MA)Pb₅I₁₇ the 3D lead halide network results from a 2D perovskite subnetworks linked by a PbI₆ octahedra sharing its faces. DFT calculations confirm the direct band gap and reveal the peculiar band structure of this 3D network. On one hand the valence band has a 1D nature involving the p orbitals of the halide. On the other, the conduction band possesses a clear 2D character involving hybridization between the p orbitals of the metal and the halide. Full article
