Search Results (7)

Wood, steel, and concrete constitute the three predominant structural materials employed in contemporary commercial and residential construction. In composite applications, bond interfaces between these materials represent critical structural junctures that frequently exhibit a reduced load-bearing capacity, rendering them susceptible to the initiation of cracks. To elucidate the fracture propagation mechanisms at composite material interfaces, this study implements the cohesive zone method (CZM) to numerically simulate interfacial cracking behavior in two material systems: glued laminated timber (GLT) and reinforced concrete (RC). The adopted CZM framework utilizes a progressive delamination approach through cohesive elements governed by a bilinear traction–separation constitutive law. This methodology enables the simulation of interfacial failure through three distinct fracture modes: mode I (pure normal separation), mode II (pure in-plane shear), and mixed-mode (mode m) failure. Numerical models were developed for GLT beams, RC beams, and RC slab structures to investigate the propagation of interfacial cracks under monotonic loading conditions. The simulation results demonstrate strong agreement with experimental cracking observations in GLT structures, validating the CZM’s efficacy in characterizing both mechanical behavior and crack displacement fields. The model successfully captures transverse tensile failure (mode I) parallel to wood grain, longitudinal shear failure (mode II), and mixed-mode failure (mode m) in GLT specimens. Subsequent application of the CZM to RC structural components revealed a comparable predictive accuracy in simulating the interfacial mechanical response and crack displacement patterns at concrete composite interfaces. These findings collectively substantiate the robustness of the proposed CZM framework in modeling complex fracture phenomena across diverse construction material systems. Full article

Studies on mode II fracture have promoted the establishment of the delamination theory for unidirectional composite laminates at room temperature. However, under thermal conditions, the fracture behavior of composite laminates will exhibit certain differences. The delamination theory should be extended to consider the temperature effect. To achieve this goal, in this study, the mode II static delamination growth behavior of an aerospace-grade T800/epoxy composite is investigated at 23 °C, 80 °C and 130 °C. The mode II fracture resistance curve (R-curve) is experimentally determined. A fractographic study on the fracture surface is performed using a scanning electron microscope (SEM), in order to reveal the failure mechanism. In addition, a numerical framework based on the cohesive zone model with a bilinear constitutive law is established for simulating the mode II delamination growth behavior at the thermal condition. The effects of the interfacial parameters on the simulations are investigated and a suitable value set for the interfacial parameters is determined. Good agreements between the experimental and numerical load–displacement responses illustrate the applicability of the numerical model. The research results provide helpful guidance for the design of composite laminates and an effective numerical method for the simulation of mode II delamination growth behavior. Full article

Recycled aggregate concrete (RAC) is a kind of five-phase composite material at the meso-level. It has a more complex interfacial transition zone (ITZ) than ordinary aggregate concrete (NAC), which is an important factor affecting the meso-failure of RAC. In addition, the maximum aggregate size plays an important role in the nonlinear mechanical behavior of concrete, which is closely related to the size effect. In this paper, a 2D random aggregate model of RAC is established based on meso-mechanics. The mechanical properties and failure modes of RAC under uniaxial compression are simulated using a plastic damage constitutive model. Through variable parameter analysis, the effects of the properties and thickness of ITZ on the elastic modulus and peak stress of RAC are studied, and the effect of the maximum aggregate size on the size effect of the compressive strength of RAC is discussed. The results show that the ITZ strength has a positive linear correlation with the peak stress and elastic modulus of RAC, while the ITZ thickness has a negative linear correlation with the peak stress and elastic modulus of RAC. Under the same specimen size (D = 100 mm, 150 mm, 200 mm, 300 mm), with an increase in the maximum aggregate size (d_max =20 mm, 25 mm, 30 mm, 35 mm), the nominal compressive strength of RAC increases by 6–10%, and the size effect is gradually weakened. When the maximum aggregate size reaches 30 mm, a decrease in the size effect tends to slow down compared with the maximum aggregate size of 20 mm. The classical Bažant size effect law is applicable to describe the compressive properties of RAC under different maximum aggregate sizes, and has a certain guiding significance for the prediction of the size effect of RAC in practical engineering. Full article

The objective of this study is to conduct a finite-element (FE) numerical study to assess the effect of size on the shear resistance of reinforced concrete (RC) beams strengthened in shear with externally bonded carbon fibre-reinforced polymer (EB-CFRP). Although a few experimental studies have been done, there is still a lack of FE studies that consider the size effect. Experimental tests are time-consuming and costly and cannot capture all the complex and interacting parameters. In recent years, advanced numerical models and constitutive laws have been developed to predict the response of laboratory tests, particularly for issues related to shear resistance of RC beams, namely, the brittle response of concrete in shear and the failure modes of the interface layer between concrete and EB-CFRP (debonding and delamination). Numerical models have progressed in recent years and can now capture the interfacial shear stress along the bond and the strain profile along the fibres and the normalized main diagonal shear cracks. This paper presents the results of a nonlinear FE numerical study on nine RC beams strengthened in shear using EB-CFRP composites that were tested in the laboratory under three series, each containing three sizes of geometrically similar RC beams (small, medium, and large). The results reveal that numerical studies can predict experimental results with good accuracy. They also confirm that the shear strength of concrete and the contribution of CFRP to shear resistance decrease as the size of beams increases. Full article

The present paper shows the results of three-dimensional (3D) meso-scale numerical simulations that were performed on unconfined and Carbon Fibre Reinforced Polymer (CFRP)-confined concrete specimens under uniaxial compression. The numerical results are compared with available experimental data. The meso-scale structure of concrete is composed by two phases, namely: the coarse aggregate and the mortar matrix. The presence of Interfacial Transition Zone (ITZ) is neglected. A simple generation procedure is used to randomly place the coarse aggregate inside the concrete specimens. The finite element code MASA is used to perform the three-dimensional (3D) Finite Element meso-scale simulations. The constitutive laws for mortar and epoxy resin are based on the microplane model, while an elastic-brittle behavior is assumed for the fibers. Aggregate in concrete is considered to be linear elastic. The adopted meso-scale model for concrete can realistically reproduce the mechanical behavior of both unconfined and CFRP-confined specimens. However, in the case of small corner radius, the effect of confinement predicted by the model is overestimated with respect to the experimental results. This is partially related to the simplifications introduced in the model in terms of aggregate volumetric fraction (10%) and aggregate size distribution. It is shown that a more detailed meso-scale model, which is characterized by 30% of the coarse aggregate and realistic aggregate size distribution, can better capture the interaction between the concrete heterogeneity and the confining effect provided by CFRP. Full article

Frictional interfaces are abundant in natural and engineering systems, and predicting their behavior still poses challenges of prime scientific and technological importance. At the heart of these challenges lies the inherent coupling between the interfacial constitutive relation—the macroscopic friction law—and the bulk elasticity of the bodies that form the frictional interface. In this feature paper, we discuss the generic properties of a minimal macroscopic friction law and the many ways in which its coupling to bulk elasticity gives rise to rich spatiotemporal frictional dynamics. We first present the widely used rate-and-state friction constitutive framework, discuss its power and limitations, and propose extensions that are supported by experimental data. We then discuss how bulk elasticity couples different parts of the interface, and how the range and nature of this interaction are affected by the system’s geometry. Finally, in light of the coupling between interfacial and bulk physics, we discuss basic phenomena in spatially extended frictional systems, including the stability of homogeneous sliding, the onset of sliding motion and a wide variety of propagating frictional modes (e.g., rupture fronts, healing fronts and slip pulses). Overall, the results presented and discussed in this feature paper highlight the inseparable roles played by interfacial and bulk physics in spatially extended frictional systems. Full article

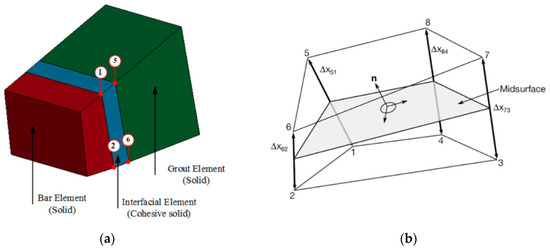

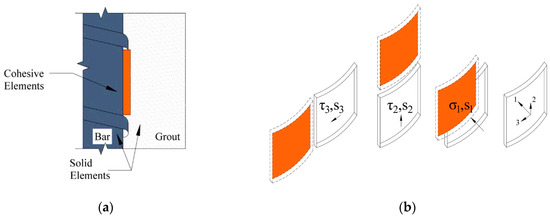

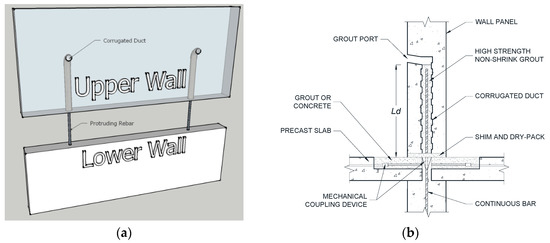

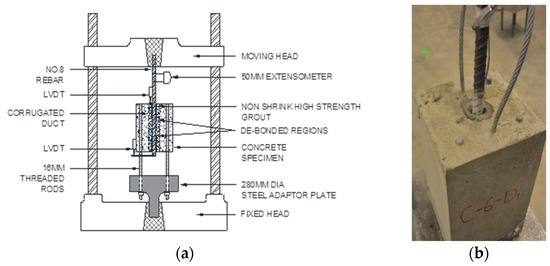

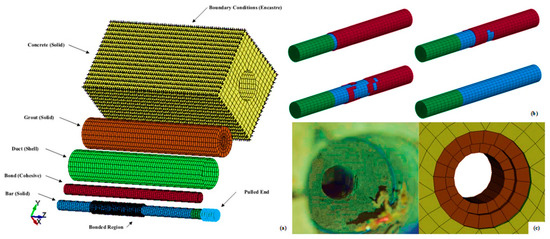

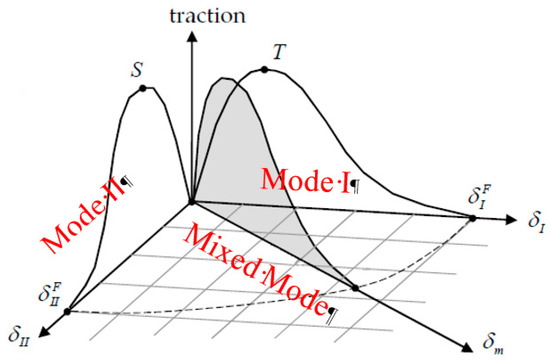

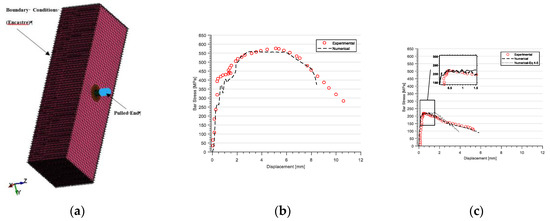

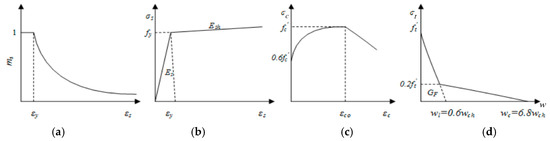

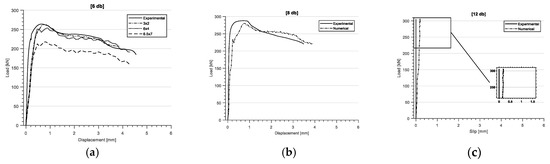

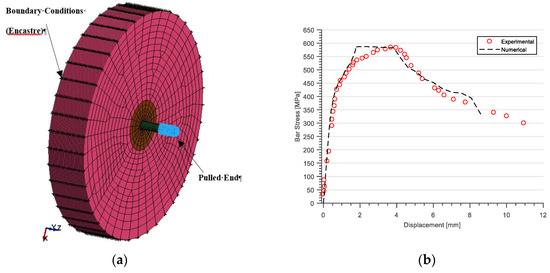

Grouted dowel connections are used extensively in precast load bearing walls owing to their simple construction and forgiving tolerances. Current design guidelines do not adequately consider the composite nature of such connections. Moreover, robust numerical models for these connections are yet to be developed. Therefore, a finite element model of grouted dowel connections was developed in this paper. The model adopts a phenomenological bond–slip constitutive law to predict the load versus slip response of grouted bars and considers tensile yielding of the reinforcement. The local bond–slip law used was generated from carefully designed experiments to eliminate spurious effects associated with bond testing. The model was validated using experimental results on grouted connections, as well as data retrieved from the open literature. Excellent agreement between experimental and numerical results was observed, highlighting the accuracy of the model in depicting interfacial stresses of the assembly. The model requires simple calibration, is computationally efficient, and can accurately simulate the failure behavior of bars embedded in grouted connections. Full article
