Search Results (21)

Eucalyptus-based glued laminated timber (glulam) was produced to determine the feasibility of a non-destructive method (drilling resistance) to predict the properties of structural elements and add value to lower-quality hardwood species. Glulam was manufactured with formaldehyde (Resorcinol), reference condition, and bio-based (Castor oil-based) adhesives in two assembly schemes, the core composed either of two continuous lamellae each 105 cm long, or of two formed by the juxtaposition of shorter boards (35 and 55 cm). The shear strength of the glue line (f_v0), modulus of elasticity (E_c90), and strength (f_c90) in compression perpendicular to the grain; delamination (DL); and main and extended glue line thicknesses were evaluated. The Resistograph equipment was used to perform the perforation perpendicular to the glue line (samples extracted from the glulam elements) to correlate the properties. The results of this research demonstrate that the scheme of the boards had little effect on the physical and mechanical properties evaluated (except the main glue line and delamination), and the drilling resistance (DR) presents a significant correlation with practically all properties evaluated (variations in density values and other properties are explained by variations in DR values), making it possible to estimate E_c90 and f_c90 with desired precision (R²_adj ≈ 80%). This highlights the feasibility of using this methodology in the quality control of glulam elements. It is concluded that regardless of the adhesive, elements comprising a 105 cm-length core and external lamellae (T1 and control) are indicated for external use, presenting low delamination. Short-length central lamellae adhesively glued with PUR (T2) are not recommended for external applications due to their susceptibility to delamination. However, T2 is indicated for internal environments due to its low production cost. This study also proved the efficiency of using models based on drilling resistance to estimate wood density and its resistance to compression perpendicular to the fiber. Full article

Nowadays, the increasing necessity of consolidating and renewing buildings represents a big challenge for engineers. Structural consolidation using composite materials glued on the damaged surface using high-performance adhesives could be a viable technical solution. In this context, this article’s aim is twofold. First, it presents the experimental results of the investigations performed on three types of reinforced concrete (RC) beams—without consolidation (G1), consolidated with carbon fibre-reinforced polymer (CFRP) lamella of SikaCarboDur (G2), and consolidated with CFRP fabrics (G3)—to determine their behavior under different loads. Second, a numerical study was performed using Finite Element Analysis (FEA) to compare and confirm the experimental results (stress, displacement). The numerical simulation shows that the stress in the areas covered by wraps is approximately 20% lower than in those without wraps. Full article

The transport of living fish is an important part of the fish farming process. The transport usually causes fish stress. This study evaluated the effects of transport temperature and vibration frequency on water quality, blood biochemical parameters, gill histomorphology, oxidative stress, and meat quality of pearl gentian groupers after transport. First, 1-year-old groupers (450 ± 25 g) were transported in plastic bags for 48 h, including the following treatments: no shaking, transported at 15 °C, shaking at 70 rpm, transported at 15 °C (15 °C/70 rpm); shaking at 120 rpm, transported at 15 °C (15 °C/120 rpm); no shaking, transported at 25 °C; shaking at 70 rpm, transported at 25 °C (25 °C/70 rpm); and shaking at 120 rpm, transported at 25 °C (25 °C/120 rpm). Serum, liver, gill, and muscle samples were collected for testing at 0, 12, 24, 36, and 48 h of exposure. During the 48 h transport, total ammonia nitrogen (TAN), superoxide dismutase (SOD), catalase (CAT), glutathione peroxidase (GSH-PX), and malondialdehyde (MDA) were significantly increased in the transport group compared to the control group. In the early stage of transportation, aspartate aminotransferase (AST), alanine aminotransferase (ALT), cortisol (COR), lactate dehydrogenase (LDH), and glucose (GLU) in the transportation groups were significantly higher than those in the control group, while the water quality pH and dissolved oxygen (DO) levels decreased significantly. Compared with untransported fish, the total free amino acid (TFAA) content increased by 40.27% and 31.74% in the 25 °C/70 rpm and 25 °C/120 rpm groups, respectively. In addition, the results of hematoxylin–eosin staining and scanning electron microscopy showed that the epithelial cells in the high-speed group were swollen, the gill lamella was severely curved, and a large amount of mucus was secreted. This study explores the basic information of transportation, which will help to select the conditions that are more suitable for the successful transportation of pearl gentian groupers. Full article

The aim of this work was to verify the behavior of hybrid hardwood glue-laminated beams and the possibility of replacing Norway spruce (Picea abies) construction elements, especially in roof and ceiling structures. The samples were six lamellae homogeneous beech (Fagus sylvatica) beams and six-lamellae hybrid beech-poplar (Fagus sylvatica–Poplar spp.) beams; each beam had a cross-section of 60 × 120 mm and was glued with polyurethane adhesive. The samples were loaded using destructive four-point bending tests according to EN 408; the obtained bending strength and modulus of elasticity were statistically evaluated and compared to each other in both types of samples. The results showed that the examined properties of the hybrid beams (with a 16% weight reduction) are comparable to the properties of homogeneous beech glue-laminated beams. Based on the obtained data, the timber elements that are currently used can be successfully replaced by hardwood glue-laminated elements. Based on their higher load-bearing capacity, the cross-section depth can be reduced compared to a larger cross-section depth in spruce beams; this means that hardwood could be suitable in building renovations. Full article

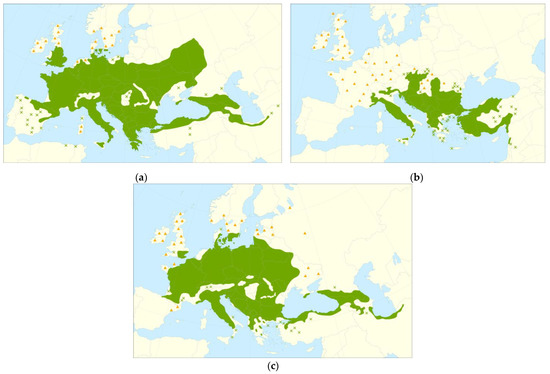

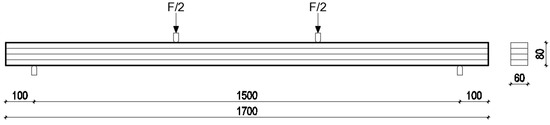

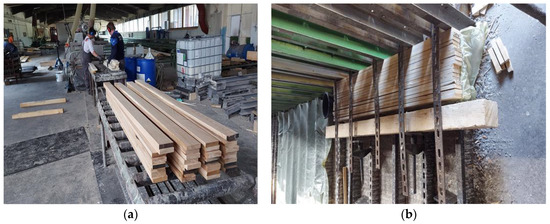

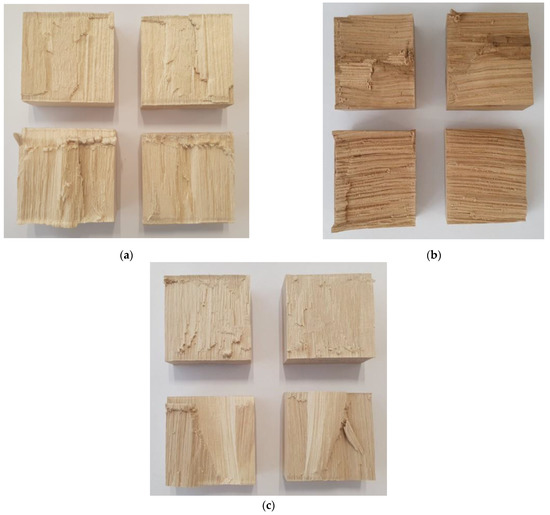

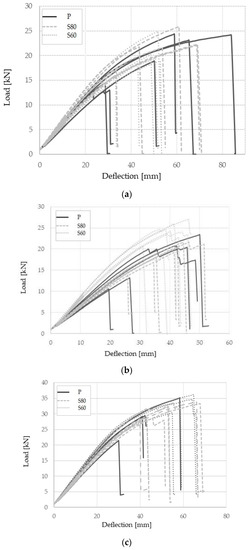

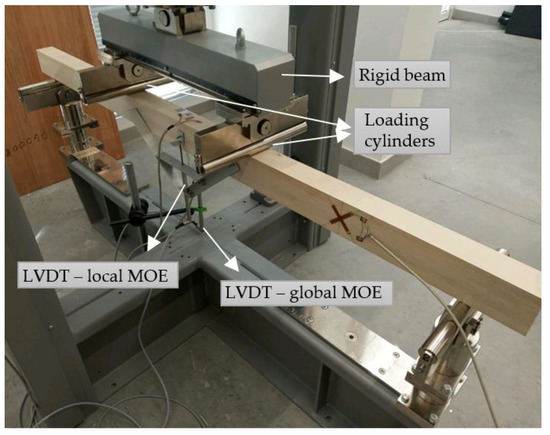

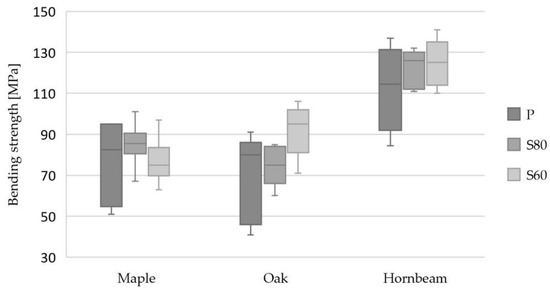

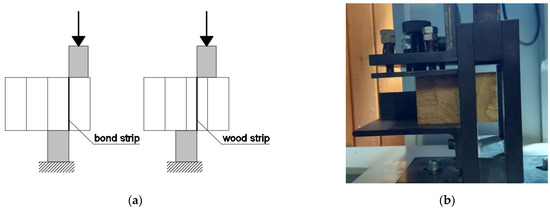

The aim of this study was to assess the potential of hardwoods harvested in Croatian forests for the production of glued laminated timber (glulam), mainly of those species for which there is no published performance assessment. Nine sets of glulam beams were produced: three sets using lamellas from European hornbeam, three sets from Turkey oak, and three sets from maple. Each set was characterized by a different hardwood species and surface preparation method. The surface preparation methods included planing, planing followed by sanding with fine grit, and planing followed by sanding with coarse grit. The experimental investigations included shear tests of the glue lines in dry conditions and bending tests of the glulam beams. The shear tests showed satisfactory performance of the glue lines for the Turkey oak and European hornbeam, but not for the maple. The results of the bending tests showed superior bending strength of the European hornbeam compared to the Turkey oak and maple. Planing followed by rough sanding of the lamellas was shown to have a significant influence on the bending strength and stiffness of the glulam from Turkey oak. Full article

Strengthening can increase or recover the bearing capacity of steel constructions of buildings and structures in operation. Besides well-known strengthening techniques, including an increase in the sectional area by means of attaching steel plates, angles, channels, pipes etc. to a strengthened element, other methods, that involve the use of carbon fiber-reinforced composite materials, have strong prospects. So far, the structural behaviour of steel constructions, strengthened with carbon fiber-reinforced composite materials, is understudied, and this fact restrains the practical application of this strengthening method. The article presents the results of complex experimental, theoretical and numerical studies of the features of the operation of steel-stretched elements reinforced with glued carbon fiber. The emphasis is on the load-bearing capacity of the reinforced element, and not on the mechanism of destruction of the glue. This is due to the use of an adhesive joint performed using the glue and gluing technology recommended by the manufacturer of carbon fiber. It has been experimentally established that, in this case, the stresses in carbon fiber cannot exceed a certain value. Theoretical dependences for the calculation of CFRP-reinforced steel stretched elements are proposed. The scientific novelty of this research project is a set of basic principles and methods, developed to identify the bearing capacity of steel rods, strengthened with carbon fiber-reinforced composite materials, taking into account the joint strength performance of a steel rod and adhesively bonded carbon-fiber-reinforced composite material, as well as the new findings thus obtained, such as the theoretical dependencies needed to identify the bearing capacity of steel rods strengthened with carbon-fiber-reinforced composite materials; experimental data on the joint strength performance of carbon-fiber-reinforced composite lamellas attached to a steel rod by an adhesive; experimental data on the performance and the bearing capacity of steel rods strengthened with carbon-fiber-reinforced composite lamellas; development of finite element models of steel rods strengthened with carbon-fiber-reinforced composite materials, and computational studies of steel rods strengthened with carbon fiber-reinforced composite materials. Full article

Glued laminated (glulam) beams are used in the roofs, ceilings and walls of buildings as well as in bridges and towers. At present, with the limitation of tree harvesting, the production of glulam beams from recycled wood sources is implemented with the proviso that their mechanical properties and resistance to pests, fire and weathering will not be aggravated. This work deals with the primary effect of aging Norway spruce wood (Picea abies Karst. L.) lamellas on the moduli of rupture (MOR) and elasticity (MOE) in bending of three-layer glulam beams composed of sound and aged lamellas and polyurethane (PUR) glue. Three methods of lamella aging were used: (A) natural, lasting 60 years in the form of roof trusses with a greater or lesser degree of bio-attack by woodworm (Anobium punctatum De Geer); (B) artificial, caused by increased temperatures from 160 to 220 °C for 4 h; (C) artificial, caused by 2% water solutions of inorganic preservatives, namely, CuSO₄ × 5H₂O, ZnCl₂, H₃BO₃ or (NH₄)₂SO₄, for 28 days. The lowest MOR values were determined for glulam beams in which all three lamellas or two surface lamellas had a greater degree of bio-attack (60.5 MPa, a decrease of 25.9%) or were exposed to primary aging at 220 °C (62.6 MPa, a decrease of 23.3%). On the contrary, the exposure of lamellas to 160 or 180 °C did not significantly influence the MOR of beams (76.0–82.7 MPa, an average decrease of 1.6%). The MOE of glulam beams ranged from 7540 to 10,432 MPa without an obvious influence of the method of lamella aging or their location in the beams. Linear correlations between the MOR or MOE of glulam beams and the shear strength (σ) of glued joints, if both composite types consisted of similarly aged lamellas, were only slightly significant or insignificant. Full article

Changes in the condition of existing timber structures can be caused by fatigue or biological attack, among other things. Replacing damaged timber is still very expensive, so it seems more advisable to repair or reinforce damaged elements. Therefore, in order to improve the static performance analysis of timber structures, reinforcement applications in timber elements are necessary. In this experimental study, technical-scale glulam beams measuring 82 × 162 × 3650 mm, which were reinforced with carbon strands and carbon laminates, were tested in flexure. A four-point bending test was used to determine the effectiveness of the reinforcement used in the timber beams. Internal strengthening (namely, glued carbon cords placed into cut grooves in the last and penultimate lamella) and an external surface of near-surface mounted (NSM) carbon laminates glued to the bottom surface of the beam were used to reinforce the laminated ashlar beams. As a result of this study, it was found that the bending-based mechanical properties of ash wood beams reinforced with carbon fibre-reinforced polymer composites were better than those of the reference beams. In this work, the beams were analysed in terms of the reinforcement variables used and the results were compared with those for the beams tested without reinforcement. This work proves the good behaviour of carbon fibre reinforced plastic (CFRP—Carbon fibre reinforced polymer) cords when applied to timber beams and carbon laminates. This study illustrated the different reinforcement mechanisms and showed their structural properties. Compared to the reference samples, it was found that reinforcement with carbon strings or carbon laminates increased the load-bearing capacity, flexural strength and modulus of elasticity, and reduced the amount of displacement of the timber materials, which is an excellent alternative to the use of ashlar and, above all, inferior grade materials due to the current shortage of choice grade. Experimental results showed that, with the use of carbon fibre (carbon cords SikaWrap^® FX-50 C—Sika Poland Sp. z o.o., Warsaw), the load bearing capacity increased by 35.58%, or with carbon cords SikaWrap^® FX-50 C and carbon laminates S&P C-Laminate type HM 50/1.4 - S&P Poland Sp. z o.o., Malbork, by 45.42%, compared to the unreinforced beams. Full article

This study aimed to evaluate the mechanical properties determined in a 4-point bending test of beams made of lumber from which knots had been locally removed and the resulting loss replaced with sound wood. Three sets of beams were prepared, which differed in the number of layers/lamellas and the position of the lamellas from which edge knots were removed. All the lamellas used in the tests were subjected to a modulus of elasticity assessment. In addition to the distribution of defects, it determined the position of a given piece in the beam structure. The tests showed that high mechanical properties could characterise the beams produced in this way, i.e., a modulus of elasticity close to 12 kN/mm² and a strength above 40 N/mm², if the lamellas without knots were located below the outer tension lamella. Significantly better results were obtained when PUR glue was used in the inserts rather than MUF. In this case, beams with an improved outer lamella in the tension zone using semi-circular inserts glued with PUR glue had an average strength of 34.6 N/mm². Full article

The paper attempts to estimate the profitability of combining wood and CFRP into a composite (BSH-CFRP), intended to be used in load-bearing beams, including mechanical performance and prices of constituent materials. Prices of glue laminated timber (BSH) and CFRP tapes over the years were provided by ABIES Poland Ltd. and S&P Poland Ltd. companies. Referring to the uncertainty of wood prices on the market, two levels of BSH prices were adopted. A prediction of the beams’ mechanical behaviour was made based on the analytical model prepared by the author. The calculated members varied in width, height and length and included twelve types of CFRP tapes (different thickness, width and modulus of elasticity) glued between wooden lamellas. The total cost of each BSH-CFRP beam was compared to the total cost of the corresponding BSH beam in GL24h class, which led to calculating a cost multiplier. Consecutively, the multiplier was referred to the standard class improvement of BSH according to the bending stiffness and load-bearing capacity. A cloud of points got from many analyses resulted in obtaining exponential approximating functions. The averaged results led to general conclusions that at the assumed price level, improving the BSH standard class by using CFRP tapes was associated with a 1.86 BSH cost in the case of expensive wood or 2.81 in the case of cheap wood. Improving class by two was connected with the 3.55 BSH cost for expensive wood, and 6.79 for cheap wood. At present, the profits from composing wood with CFRP appear to be not very high in terms of their price. However, they can radically increase, especially when wood cutting limits are imposed on manufacturing companies, which significantly reduce the available timber for construction use. Full article

Fire safety greatly contributes to feeling safe, and it is a key parameter for the selection of building materials. The combustibility of timber is one of the main reasons to have the strict restriction on timber for use as a building material, especially for multistory buildings. Therefore, the main prerequisite for the use of timber in buildings is to ensure adequate fire resistance, using passive and active fire protection measures. This article contains the results of mechanical and fire experimental tests of both normal and innovative hollow glued laminated timber beams. A total of 10 timber beams were tested at ambient temperature, and 3 timber beams in fire conditions, which differed in cross-section type but also in the applied fire protection. The first beam was a normal GL beam without fire protection, the second a hollow beam covered by intumescent paint, while the third was also hollow, additionally protected by mineral wool infill inside the holes. The load-carrying capacity of the hollow beam in ambient conditions was estimated at 65% of the load-carrying capacity of a normal GL beam. Fire tests indicated that hollow timber beams with both intumescent paint and mineral wool infill failed at a similar time as a normal GL beam without fire protection. One-dimensional β₀ and notional charring rates β_n were obtained. Time to the protective material failure was 17 min. The main cause of failure of hollow beams was the appearance of delamination due to the reduction of the lamella bonding surface. Full article

The main strength and elastic properties of structural timber products, such as glued laminated timber (glulam; GLT) and cross-laminated timber (CLT), are usually described via load-bearing models, which use the tensile properties parallel to the grain of the base material boards and finger joints as input parameters. These load-bearing models assume that the strength-graded boards will retain their full dimensions in the final product. In some applications or use cases, however, the structural timber products are split lengthwise, e.g., split/resawn glulam, or comprise a random share of in width randomly lengthwise split lamellas. As a result of splitting, the material properties assigned to these boards during the grading process in their full cross-sections are no longer valid. Examples of such structural timber products are the novel flex_GLT-beams which are cut out from large dimensional multi-laminated timber panels. In the following paper, the bending properties and system effects of resawn glulam and flex_GLT-beams are described by means of a 3D stochastic-numerical beam model that uses probabilistic models to create the input values for unsplit and split boards as well as finger joints. The models are successfully validated by our own tests and tests from literature and applied in numerous parameter studies. Full article

Glulam beams are increasingly used in the construction industry because of their high strength and the possibility of using round timber with smaller cross-sections. The load-bearing capacity of beams is strongly related to the quality of the outer layers and, in the case of wood, especially the tension zones. For these reasons, this study decided to replace the outer lamella with tensile plywood. The produced beams were subjected to static bending strength and modulus of elasticity evaluation. It was shown that the best static bending strength values were obtained for beams containing plywood in the tension layer. However, the change in structure in the tension zone of beams made of glued laminated timber results not only in an increase in the load capacity of elements produced in this way but also in a decrease in the range/range of the obtained results of bending strength. This way of modifying the construction of glued laminated beams allows a more rational use of available pine timber. Full article

Numerous studies have shown that the geometry of micro-joints significantly affects the strength of the so joined timber element. The bending strength increases by creating a larger bonding area by increasing the length of the wedge joint. Although this type of joint has been successfully used for many years, it can still be troublesome to make. For these reasons, the present study investigated an easy-to-fabricate wedge joint, which we folded during the beams’ formation and glued with the same adhesive as the individual lamellas. Although the research has not fully answered all the questions relevant to both scientific and technological curiosity, it indicates the great potential of this solution. Following the principle adopted in the ongoing wood optimisation work, we concluded that the beams of the target cross-section should be produced, and it should only be possible to cut them to a certain length. In this approach, we only removed defects at critical points for the beam structure and, in this way, up to 30% of the timber processed could be saved or better utilised. Full article

This study investigates the effect of the enzymatic polymerization of lignosulfonate for the formulation of a lignosulfonate-based adhesive. For this, beech lamellas were glued together and tested according to the EN 302-1 standard. The results showed that the laccase-polymerized lignosulfonate-based wood adhesives (LS-p) had similar mechanical properties as a standard carpenter’s glue (PVAc-based D3 class white glue), as no significant difference in tensile shear strength between these two adhesive types was found. However, carpenter’s glue showed almost 100% wood failure, while with the lignosulfonate-based wood glue, the samples failed, mainly in the glueline. Pre-polymerization of LS-p is the most critical factor to achieve the required viscosity, which is also connected to the wetting properties and the resulting tensile shear strength. The longer the pre-polymerization, the higher the viscosity of the LS-p adhesive, with the tensile shear strength reaching a plateau. The presented data show the potential of using enzymatically pre-polymerized lignosulfonate as a well-performing wood adhesive. Further development and optimization of the pre-polymerization process is required, which is also important to push towards upscaling and practical applications. Full article
