Search Results (994)

To investigate the performance degradation patterns and underlying damage mechanisms of permeable concrete under freeze–thaw cycles in cold regions, permeable concrete with varying porosities was selected as the research subject. A total of 120 rapid low-temperature freeze–thaw cycles were conducted. The evolution of porosity, mass loss, skid resistance, permeability, and compressive strength was systematically analyzed. Exploratory numerical simulations, conducted under idealized assumptions, suggest that rising porosity may reduce effective thermal conductivity, extend phase-change duration, and amplify internal temperature gradients—trends that are consistent with the observed porosity-dependent frost damage but require experimental temperature validation for quantitative confirmation. With the increase in freeze–thaw cycles, mass loss and porosity continuously increase, while compressive strength and permeability gradually decrease. After 120 cycles, the mass loss of all specimen groups was below 1%, with compressive strength decreasing by 5.5% to 12.9%. Despite this, the specimens maintained good permeability and skid resistance. Numerical simulations indicate that permeable concrete exhibits a three-stage temperature response during both freezing and thawing processes. An increase in porosity reduces the material’s effective thermal conductivity, prolongs the phase transition duration, and intensifies the internal temperature gradient, thereby amplifying the thermo–mechanical coupling damage effects. Therefore, optimizing the pore structure is crucial for improving the long-term service performance of permeable pavements in cold regions. Full article

To investigate the corrosion resistance and service life of water-based epoxy-coated reinforcing bars under severe environmental conditions, HRB400 ribbed reinforcing bars were used as the substrate. Four types of water-based epoxy-coated reinforcing bars were prepared, containing 0.3% graphene–polyaniline (PAG), 0.3% iron oxide, 10% zinc phosphate, and 10% zinc–iron powder, respectively, with a bare reinforcing bar control group also included. In accordance with standards such as the ‘Design Standard for Durability of Concrete Structures’, durability tests were conducted under various conditions, including long-term immersion in marine chloride solutions, wet–dry cycling, de-icing salt freeze–thaw cycles, baking and immersion in saline soil, and concrete mixed with seawater. Corrosion current density (I_corr) was monitored using a three-electrode system and the linear polarisation method, and service life was predicted based on the Wiener process. The results indicate that, under all severe environmental conditions, the corrosion current density of the coated reinforcing bars was significantly lower than that of the bare reinforcing bars (BRBs). After 70 cycles of marine wet–dry cycling, the corrosion current density of the bare reinforcing bars reached 0.4569 μA·cm⁻², whilst that of the 0.3% PAG coating was 0.1103 μA·cm⁻², substantially lower than that of the bare bars (0.4569 μA·cm⁻²); after 110 freeze–thaw cycles in a de-icing salt environment, the corrosion current density of the bare reinforcing bars was 0.4480 μA·cm⁻², whilst that of the PAG-coated bars was 0.1003 μA·cm⁻². After 80 cycles of baking and immersion in a saline soil environment, the corrosion current density of the graphene–polyaniline-coated steel increased from 4.97 × 10⁻³ μA·cm⁻² to 0.1021 μA·cm⁻² (approximately a 20-fold increase), whilst that of the bare steel rose to 0.4489 μA·cm⁻². In concrete mixed with seawater, the corrosion current density of bare reinforcing bars reached as high as 8.60 μA·cm⁻² after 120 days, whereas that of coated reinforcing bars was 0.24 μA·cm⁻², markedly lower than 8.60 μA·cm⁻² for the bare bars. Lifespan predictions indicate that, provided that the specifications for concrete strength and protective layer thickness are met, water-based epoxy coatings have the potential to delay the onset of severe corrosion (I_corr ≥ 1 μA·cm⁻²) beyond the 50-year design threshold in seawater wet–dry cycling zones and saline soil environments, and are projected to meet the 100-year design requirements in de-icing salt environments. It should be noted that these projections are based on accelerated tests and require validation through long-term field performance data. Graphene-containing polyaniline nanocomposite coatings exhibited the best overall protective performance, whilst zinc phosphate coatings demonstrated outstanding stability in high-chloride environments. For the specific formulations tested in this study, the enhanced corrosion resistance is attributed to the synergistic combination of the epoxy matrix, inorganic fillers (TiO₂ and BaSO₄) and functional additives; these components collectively provide physical shielding, chemical passivation and dynamic pore-blocking effects. Within the scope of this study, the nanocomposite coating containing 0.3 per cent PAG exhibited the best overall protective performance. Full article

The reuse of construction and demolition waste in cementitious materials supports the development of sustainable low-carbon composites and circular economy strategies. This study investigated the influence of recycled ceramic fine aggregate (RCerFA) and recycled concrete fine aggregate (RConFA) on the mechanical properties, freeze–thaw durability, pozzolanic potential, and environmental performance of cement mortars prepared with different cement types. Mortars containing 20% and 40% replacement of natural sand with recycled aggregates were evaluated through strength testing and freeze–thaw resistance assessment, while SEM analysis and pozzolanic potential were assessed on separate mortars in which 25% of the cement binder was replaced with the recycled materials, alongside carbon footprint calculations based on global warming potential (GWP), using the recycled materials directly after the crushing process without additional grinding. The results showed that mortars containing recycled concrete fine aggregate generally maintained satisfactory mechanical performance and freeze–thaw resistance, particularly at the 20% replacement level. In contrast, 40% RCerFA reduced mechanical performance and freeze–thaw resistance. Neither recycled material demonstrated confirmed pozzolanic reactivity in its unground state. Although one RConFA mixture exceeded the 75% compressive strength index criterion, this result alone was insufficient to confirm a chemical pozzolanic reaction. Environmental assessment demonstrated that cement type had a greater influence on carbon footprint than recycled aggregate incorporation. The study confirms the potential applicability of recycled fine aggregates in sustainable low-carbon cement mortars and explores their possible use as low-energy supplementary cementitious components. Full article

Rock–ice avalanches and repeated freeze–thaw cycles pose coupled challenges to baffle-type mitigation structures in high-altitude cold regions. This study used controlled small-scale pull-out tests to quantify changes in baffle–soil friction over 0–30 freeze–thaw cycles and then calibrated a discrete element method (DEM) model to the terminal 30-cycle condition to evaluate baffle geometry, particle size, interparticle cohesion, and pull-out velocity. Moisture redistribution approached equilibrium after approximately 7–10 cycles, whereas the friction response stabilized only after approximately 16 cycles, indicating that hydraulic stabilization preceded mechanical and interfacial stabilization. The friction coefficient decreased from 0.83 before cycling to 0.48 after 30 cycles, corresponding to an attenuation of 42.17%, and the friction force decreased from 130 to 75 N. The decay showed three stages: limited change over 0–3 cycles, accelerated degradation over 3–16 cycles, and a near-plateau thereafter. The DEM results indicate that lateral prop-root projections can increase pull-out resistance by enlarging the mobilized soil volume and enhancing mechanical interlocking; the response also depends nonlinearly on particle size and cohesion. The proposed baffle is therefore presented as a preliminary structural concept rather than a field-ready design. Because the experiments were not performed under complete geometric, kinematic, or dynamic similitude and the DEM calibration represents only one post-freeze–thaw state, the numerical values should be interpreted as laboratory-scale comparative results. Full article

The substitution of conventional materials with alternative resources is a significant approach for enhancing the engineering performance and sustainability of foamed concrete (FC). While supplementary cementitious materials, volcanic materials, and waste-derived materials have been extensively investigated, the use of obsidian as an alternative aggregate in FC systems remains largely unexplored, and the combined, systematic comparative use of obsidian, waste ceramic powder (WCP), and recycled concrete powder (RCP) within a unified experimental framework has not been previously investigated. This paper evaluates the use of obsidian, WCP, and RCP as alternative aggregates in hydroxypropyl methylcellulose (HPMC)-stabilized FC by replacing standard sand at 25%, 50%, and 100% levels. The thermal, durability and mechanical characteristics of the mixtures were assessed through density, compressive strength (CS), ultrasonic pulse velocity (UPV), water absorption (WA), elevated temperature resistance (200 °C, 400 °C, 600 °C and 800 °C), freeze–thaw performance, thermal conductivity (TC), and scanning electron microscopy coupled with energy-dispersive X-ray spectroscopy (SEM–EDS) and X-ray diffraction (XRD) analyses. The results showed that the 28-day CS increased from 0.545 MPa in the control mixture to a maximum value of 2.590 MPa in the obsidian-based FC. Moreover, WA decreased markedly from 117.7% to 46.9% in the obsidian-based FC. The UPV varied from 1355 to 1795 m/s due to the incorporation of RCP, WCP and obsidian at different replacement ratios in the mixture designs. The lowest TC of 0.08185 W/(m·K) was recorded in the obsidian-based FC at 50% substitution level. Under elevated-temperature exposure, the mixture with 100% obsidian replacement retained a compressive strength of 0.5936 MPa at 800 °C. To conclude, the use of obsidian, WCP and RCP as alternative aggregates in FC shows promising potential for the development of durable, thermally efficient, and sustainable lightweight construction materials. Full article

Cement production is associated with substantial carbon dioxide (CO₂) emissions due to the high material and energy intensity of Portland clinker manufacture. Partial clinker replacement with supplementary cementitious materials is one of the most promising strategies for reducing the carbon footprint of cement; however, the thermal activation of aluminosilicate raw materials does not always yield highly reactive products. In this study, a pillaring approach is proposed as a controlled method for modifying the structure of clays and unlocking their latent reactivity. Different clay types—namely, kaolinitic, montmorillonitic, and illite–chlorite clays—were sequentially treated with an aluminum sulfate solution and calcined at 650 °C. Their phase composition and microstructure were characterized by X-ray diffraction (XRD), Fourier-transform infrared spectroscopy (FTIR), and scanning electron microscopy (SEM), while specific surface area was determined by BET analysis and pozzolanic activity. The results showed that pillaring doubled the specific surface area of montmorillonitic (2:1) and illite–chlorite (2:1:1) clays. Replacing 30% of clinker with pillared clays and limestone increased the compressive strength to 86.5 MPa and the flexural strength to 34.6 MPa. The developed low-carbon composite cements also exhibited high durability: the density of the hardened cement mortar increased to 2.410 g/cm³, the strength loss after 200 freeze–thaw cycles decreased to ≤5.5%, and the sulfate resistance coefficient (Ks) increased to 0.98 (with minimal expansion of the samples <0.02%). The proposed approach makes it possible to reduce the carbon footprint of cement by 25–30% while enabling the use of locally available raw materials for the production of competitive low-carbon green cements. Reported reductions of this order are broadly consistent with the known effect of lowering clinker content through supplementary cementitious materials in blended cement systems. Full article

Reducing asphalt mixture production temperatures and partially replacing virgin aggregates with industrially derived materials are potential pathways toward more sustainable pavement technologies. This study evaluated the effects of steel slag (SS) aggregate and air-cooled blast furnace slag (ACBFS) aggregate on the properties of asphalt concrete for pavement binder courses produced as warm-mix asphalt (WMA) using water-foamed bitumen. The reference hot-mix asphalt (HMA) and WMA mixtures were compared with WMA variants in which 20% or 40% of the virgin aggregate was replaced by SS or ACBFS. The slag aggregates were characterized by physical and mechanical properties, surface morphology, and local elemental composition. Mixture performance was evaluated based on air voids content, indirect tensile strength, water and freeze–thaw resistance, dynamic modulus, and rutting resistance, followed by statistical analysis. Slag type and replacement level affected the properties differently. Increasing slag content increased air voids content, whereas slag-containing mixtures showed a lower relative loss of tensile strength after conditioning than the reference mixtures. Compared with SS, ACBFS resulted in lower dynamic modulus and poorer rutting resistance. The mixture containing 20% SS satisfied all adopted technical requirements. The results support the use of SS at this replacement level, whereas ACBFS mixtures require further optimization. Full article

Flexible gel sensors can lose mechanical compliance and electrical stability at low temperature or during solvent loss. A poly(vinyl alcohol) (PVA)/sodium alginate (SA)/graphene oxide (GO) composite gel was prepared by freeze–thaw cycling and post-treated in either aqueous NaCl or a NaCl-containing water/glycerol mixture (1:2, v/v). The water/glycerol–NaCl-treated gel (F-G/S/P/G) exhibited a maximum tensile stress of 428 ± 27 kPa and an elongation at break of 432 ± 27% at room temperature (n = 3), and remained visibly deformable after 24 h at −20 °C. During ambient storage, it retained approximately 89% of its initial mass after 35 days. The cycle-averaged peak ΔR/R₀ increased from 0.135 at 20% strain to 1.142 at 250% strain, and the 20–60% linear region gave a gauge factor of 1.01 (R² = 0.9988). Three independently prepared sensing elements gave a peak ΔR/R₀ of 0.710 ± 0.019 at 100% strain, with response and recovery times of 1.22 ± 0.07 and 1.04 ± 0.06 s, respectively. After 500 cycles at 100% strain, the normalized peak response retained 95.1% of its initial value. Overall, F-G/S/P/G combined low-temperature deformability, ambient-storage mass retention, and repeatable resistance sensing. Full article

Foamed concrete is susceptible to drying shrinkage and environmental deterioration because of its porous structure. This study evaluated the effects of fly ash–ground granulated blast-furnace slag blends and polyvinyl alcohol fibres on the dimensional stability and durability of FC. Sixteen mixtures with SCM replacement levels of 0–35% and PVA fibre contents of 0–0.3 vol.% were tested for accelerated drying shrinkage, freeze–thaw resistance, sulfate wet–dry resistance, chloride penetration, and visible pore structure. A normalised multi-criteria evaluation was used to compare the mixtures across five performance indicators, with sensitivity analysis performed for six weighting schemes. Increasing SCM replacement generally increased the drying shrinkage but reduced the chloride penetration depth by 26.7%, 33.3%, and 56.7% at 15%, 25%, and 35% replacement, respectively. At 25% SCM replacement, PVA fibres reduced freeze–thaw-induced compressive strength loss by 62.12–98.48% relative to the corresponding fibre-free mixture. Optical microscopy identified a local stratified region in one of three C0.3 specimens, which was not considered a systematic feature. C0.3 achieved the highest overall score under equal weighting and remained among the top three mixtures under all six weighting schemes. Within the investigated mixture range, C0.3 showed consistently high overall performance, although longer-term durability assessment is required. Full article

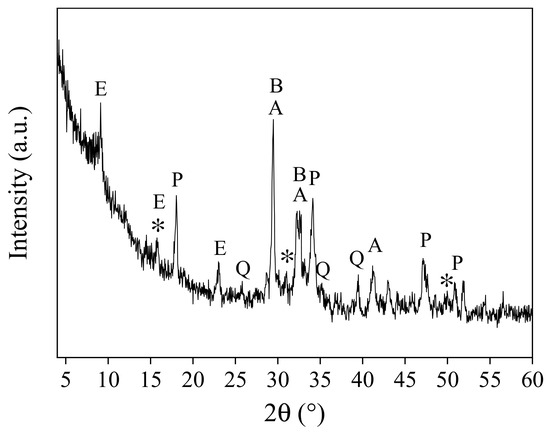

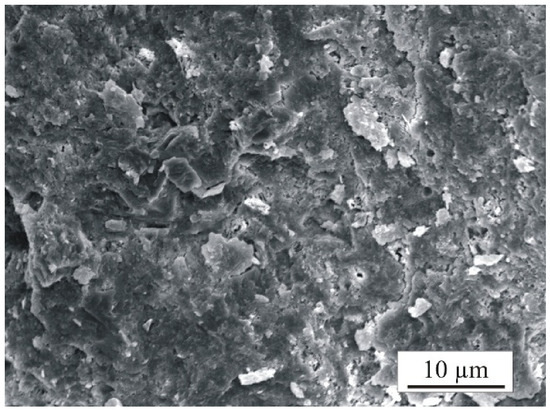

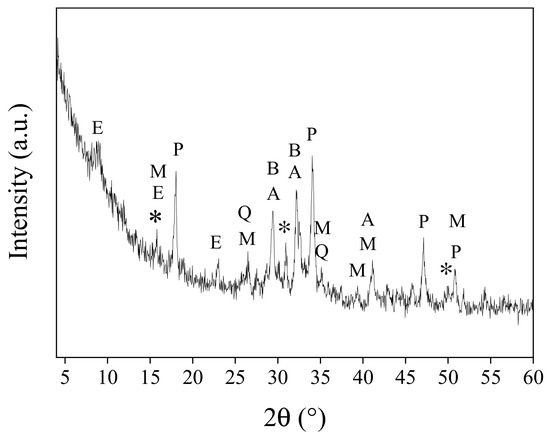

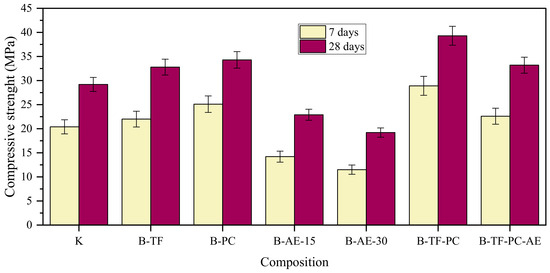

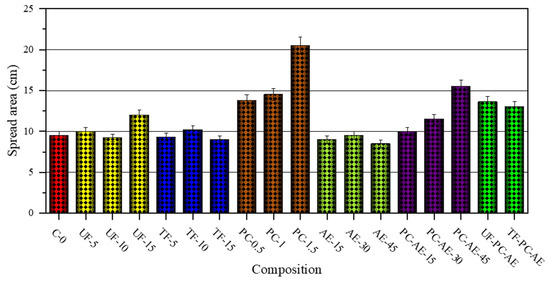

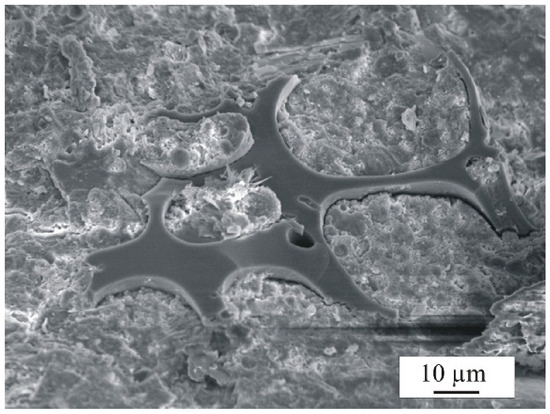

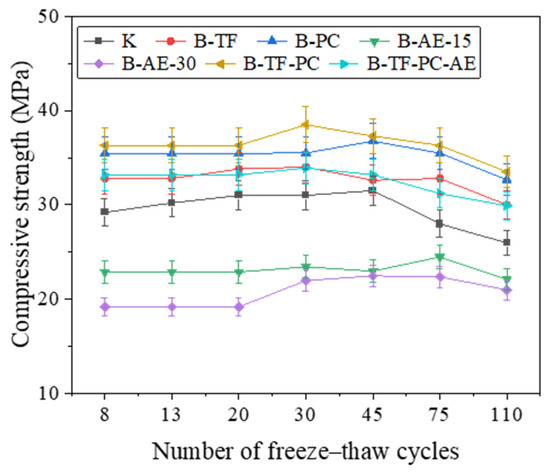

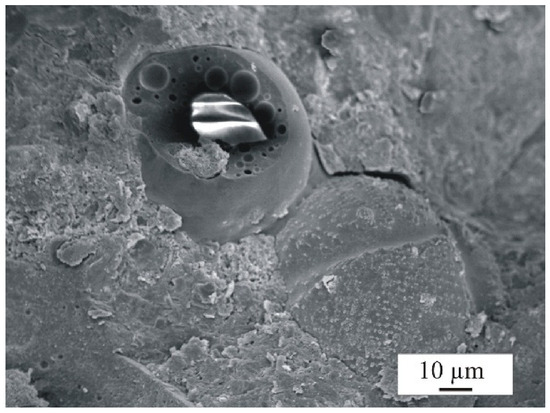

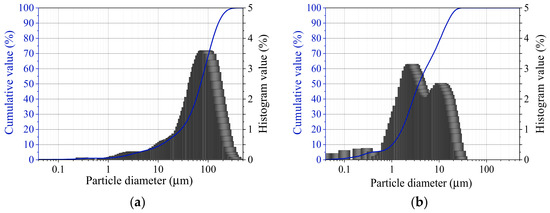

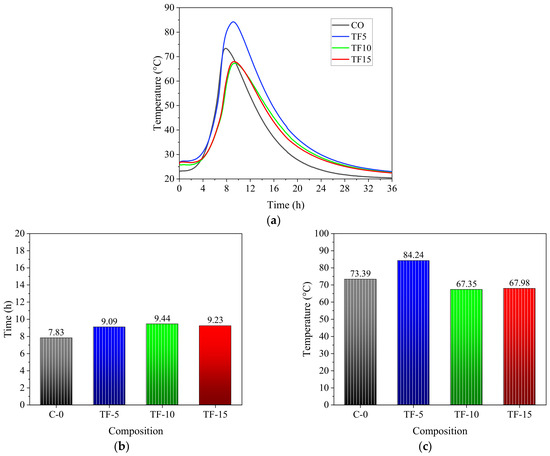

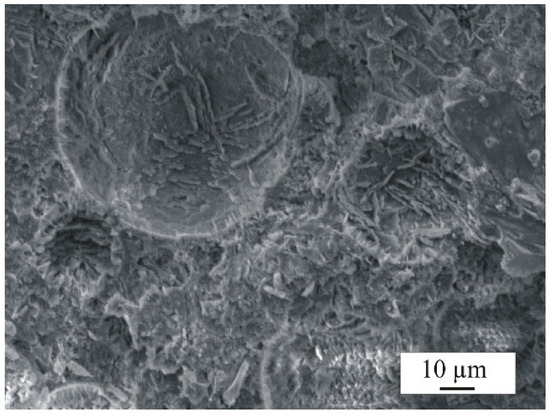

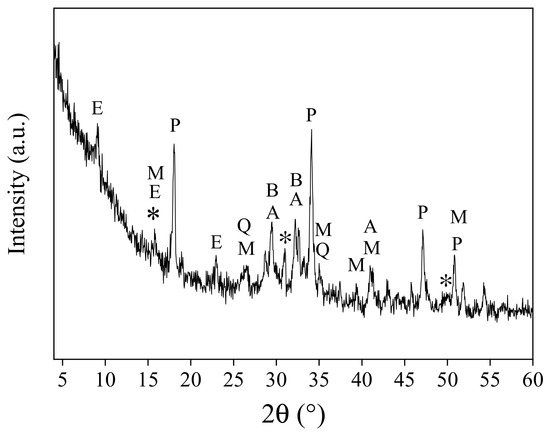

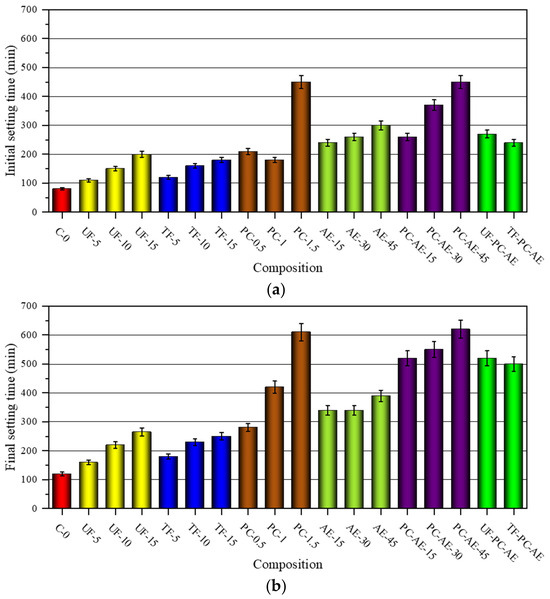

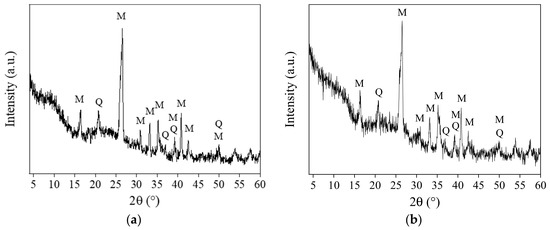

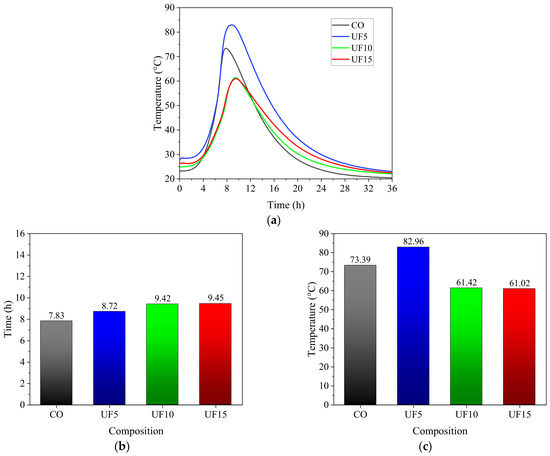

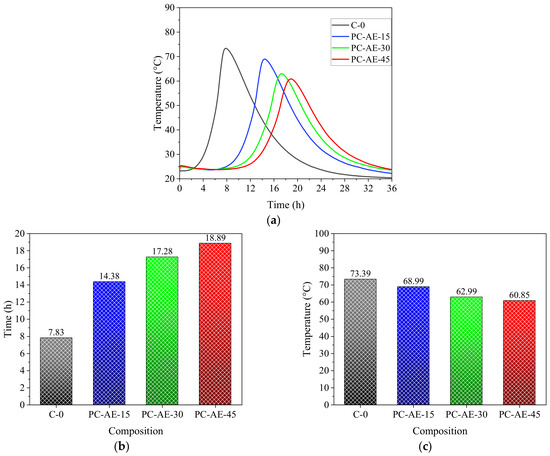

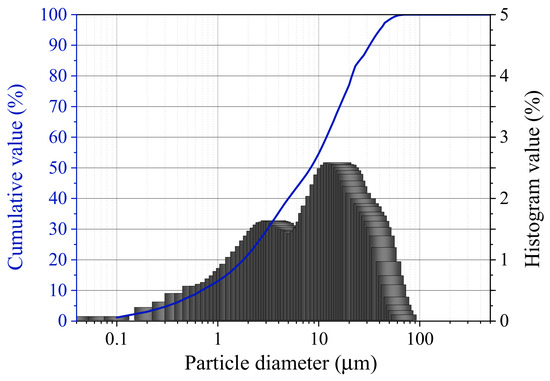

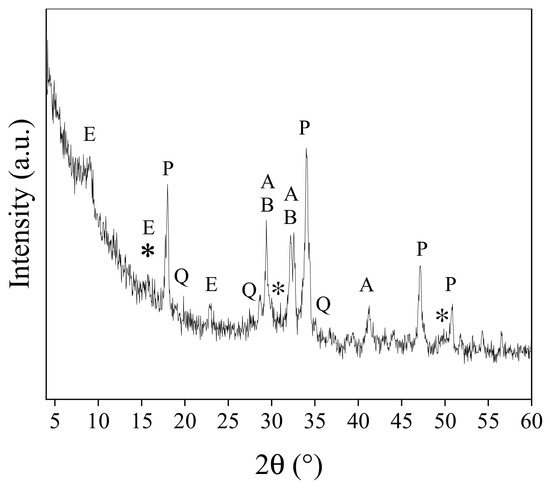

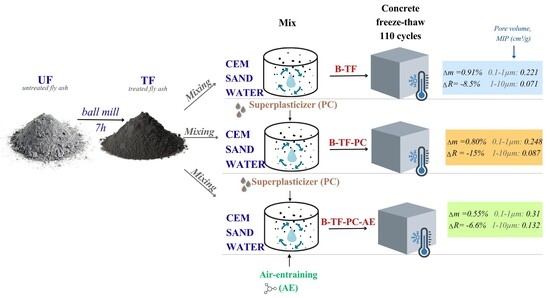

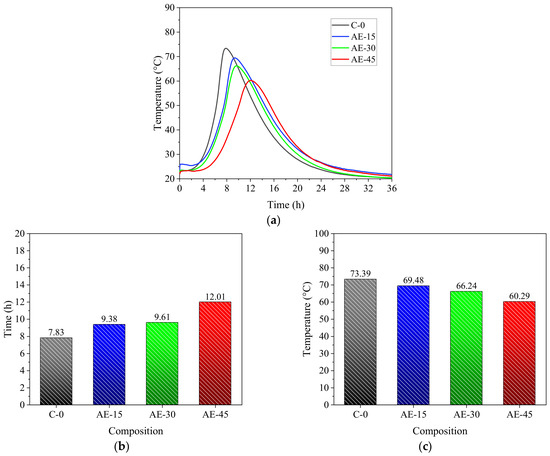

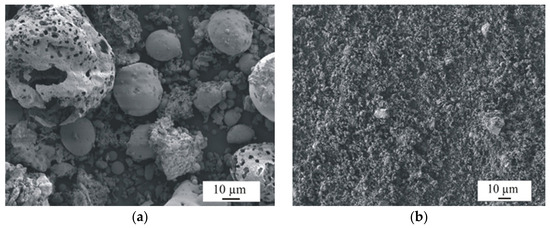

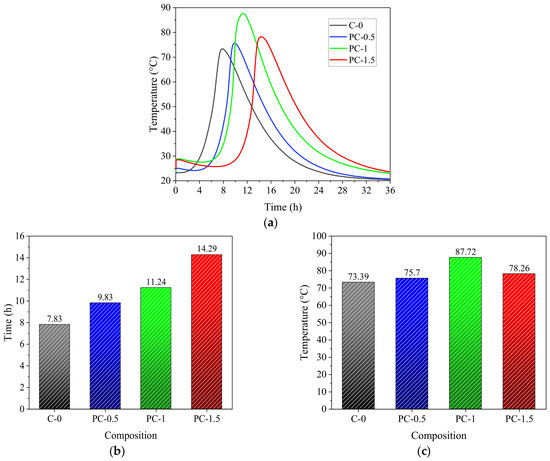

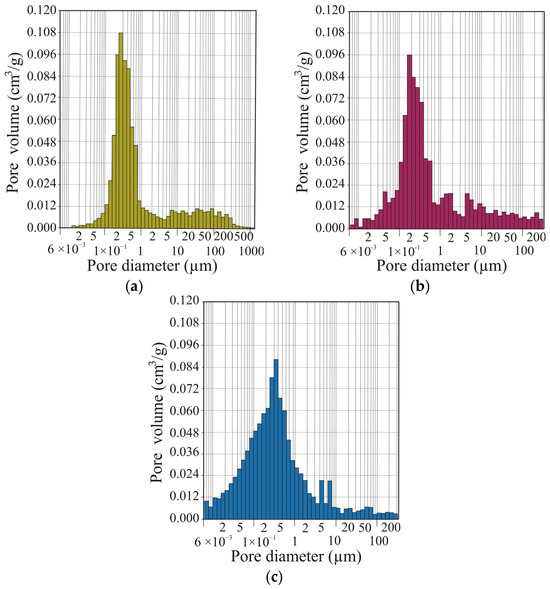

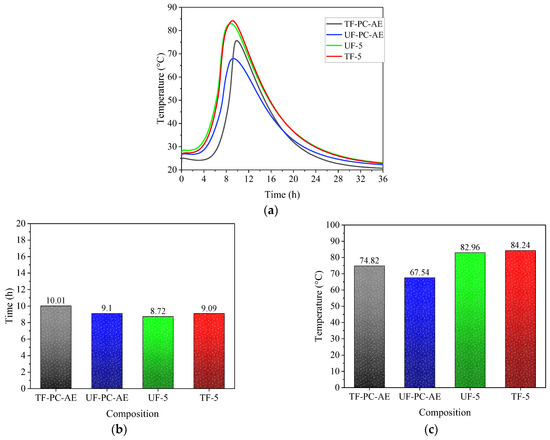

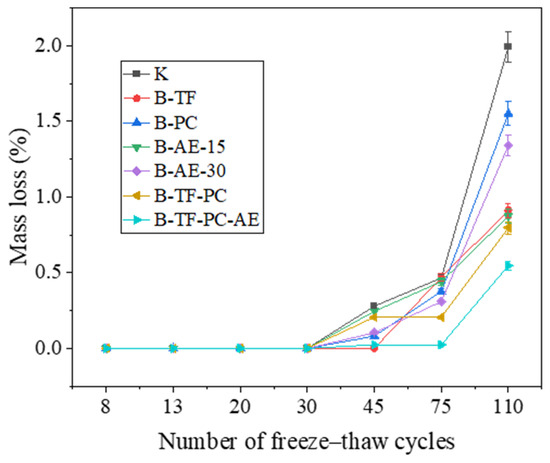

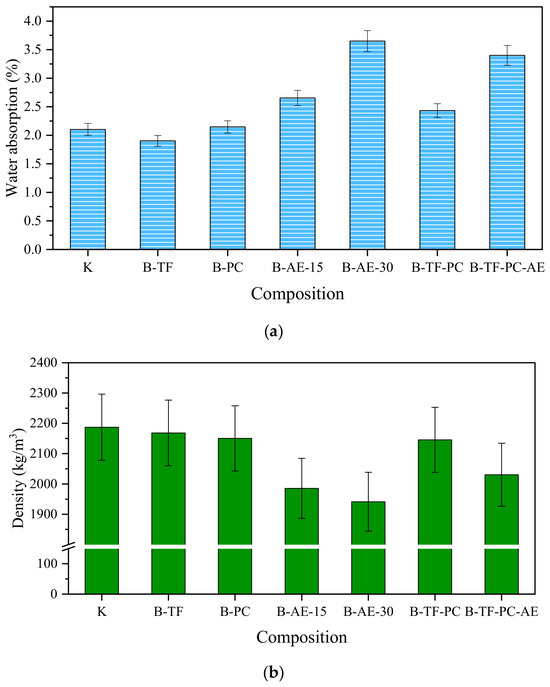

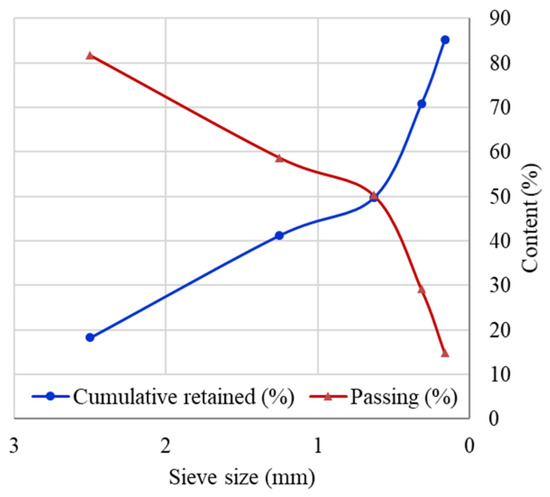

This study examines how mechanically activated fly ash (TF), a polycarboxylate superplasticizer (PC), and an air-entraining admixture (AE) affect the hydration, microstructure, pore structure, mechanical properties, and freeze–thaw resistance of fine-grained concrete. Mechanical activation increased the specific surface area of the untreated ash (UF) from 3710 to 6450 cm²/g and reduced its mean particle size to 6.06 μm. Replacing 5 wt.% of cement with TF accelerated the nucleation of hydration products and densified the microstructure, as confirmed by exothermic profiling, XRD, and SEM. PC delayed the exothermic peak yet produced the highest heat-release intensity, indicating more efficient wetting and dispersion of reactive surfaces. The TF–PC system reached 39.3 MPa at 28 days, while the ternary TF–PC–AE composition achieved 33.2 MPa with a refined pore-size distribution (mercury intrusion porosimetry). The combined use of PC and AE tripled the pore volume in the 0.01–0.10 μm range and increased it by 28.7% (0.1–1 μm) and 46.21% (1.0–10 μm). The calculated potential freeze–thaw resistance rose from 54.25 to 61.97 and 72.83, confirming the beneficial role of 3–10 μm pores. After 110 accelerated freeze–thaw cycles, the optimized ternary composition lost only 0.55% of its mass. Full article

To investigate freeze–thaw damage evolution and mix proportion effects in PVA fiber–fly ash–slag powder composite concrete (PVA-FA-SPC), nine composite concrete mixtures were designed using an L₉(3³) orthogonal array at a water to binder ratio of 0.45, with plain concrete serving as the reference, and subjected to 200 rapid freeze–thaw cycles. Freeze–thaw resistance was evaluated using surface deterioration, the mass loss rate, and the relative dynamic elastic modulus. Within the investigated factor levels, PVA fiber volume content exhibited the strongest main effect trend, followed by the total mineral admixture replacement rate and the fly ash to slag powder mass ratio. T20R1:2P0.3, containing 20% total mineral admixture replacement, a fly ash to slag powder mass ratio of 1:2, and 0.3% PVA fiber, showed the best measured performance, retaining a relative dynamic elastic modulus of 79.18% after 200 cycles. A two-parameter Weibull function was used as a phenomenological description of the damage evolution; compared with the classical exponential model, the average RMSE decreased from 0.032 to 0.019 and the average MAPE decreased from 5.07% to 2.98%. Because only nine independent orthogonal mixtures were available for parameter mapping, a common shape parameter of α₀ = 2.1403 was adopted, and a parsimonious equation for the scale parameter β was selected using the small-sample-corrected Akaike Information Criterion (AICc) together with leave-one-mixture-out cross-validation (LOMO-CV). LOMO-CV yielded R² = 0.886, RMSE = 0.034, MAE = 0.025, and WMAPE = 19.98%; however, T20R1:2P0.3 exhibited a node WMAPE of 72.75%, indicating a local limitation of the reduced order mapping. Three non-orthogonal mixtures within the same material system yielded R² = 0.943, RMSE = 0.026, and WMAPE = 15.36%. The proposed model is therefore intended for local trend analysis and preliminary mix screening within the calibrated material system and parameter range rather than for universal service life prediction. Full article

Continuous monitoring of permafrost dynamics remains challenging in remote high-mountain environments due to logistical constraints, harsh climatic conditions, and the limited availability of spatially distributed observations. In addition to direct temperature observations in boreholes, Autonomous Electrical Resistivity Tomography (A-ERT) offers significant potential for long-term monitoring by providing high temporal resolution observations of subsurface electrical properties, which are highly sensitive to freeze/thaw processes. This study presents the field validation of a low-power A-ERT system designed for long-term autonomous operation in extreme environments. The system was deployed at a high-altitude permafrost site near the Kumtor gold mine in the Central Tien Shan, Kyrgyzstan, representing the first application of continuous A-ERT monitoring in the Central Asian mountain ranges. The system operated continuously under harsh environmental conditions with air temperatures as low as −30 °C. Data quality remained consistently high throughout the monitoring period, with less than 1% of measurements removed during filtering, and inversion results with root-mean-square errors generally ranging between 3% and 4%. Time-lapse resistivity observations revealed strong seasonal freeze–thaw dynamics within the active layer and continued seasonal resistivity variations within the underlying permafrost despite permanently frozen conditions. Analysis of depth-dependent resistivity–temperature relationships revealed increasingly pronounced hysteresis behavior below the active layer, indicating that subsurface electrical properties were not controlled solely by temperature. This behavior likely reflects variations in unfrozen water content and pore connectivity within the fine-grained permafrost, where liquid water can persist at sub-zero temperatures. The results demonstrate the capability of the A-ERT system for reliable long-term autonomous monitoring in remote permafrost environments and investigation of coupled thermal and hydrological processes in permafrost systems. Full article

Problematic fine-grained soils exhibit low strength and inadequate durability, highlighting the need for sustainable stabilization using eco-friendly binders. This study examined the strength development and durability of a natural CH soil (NSs) stabilized with fly ash (FA) based geopolymer exposed to sulfate attack and freeze–thaw (F–T) cycles. The effects of FA content (0–40%) and NaOH molarity (0–10 M) on unconfined compressive strength (UCS) were evaluated after 1, 7, 28 and 56 days of curing. Durability was assessed separately under accelerated laboratory conditions after 1, 3, 5, 7 and 11 F–T cycles and 7, 28 and 56 days of sulfate exposure. In non-activated specimens, FA contents of up to 30% enhanced the UCS primarily through the microfiller effect and possible time-dependent pozzolanic reactions. Alkali activation promoted the development of a compact binding matrix through the dissolution and polycondensation of aluminosilicate precursors, with the microstructural and chemical observations being consistent with the possible formation of C-(A)-S-H and/or N-A-S-H-type reaction products. F30M8 exhibited the highest strength, reaching a 56-day UCS of 1488.58 kPa compared with 282.46 kPa for untreated NSs. F30M8 retained approximately 94% of its UCS after 11 F–T cycles and 92% after 56 days of sulfate exposure. XRD, FTIR, and SEM-EDX analyses provided evidence of aluminosilicate restructuring and the development of a dense microstructure under alkaline activation. This refined matrix may have contributed to limiting sulfate- and ice-crystal-induced deterioration, thereby helping to preserve the structural integrity of the FA-based geopolymer-stabilized NS specimens, whereas untreated and non-activated FA-stabilized specimens disintegrated under sulfate exposure. These findings indicate that FA-based geopolymer stabilization has considerable potential for natural CH soil under the laboratory exposure conditions investigated in this study. Full article

Grouted anchors made of glass fiber-reinforced polymer (GFRP) have gained popularity in cold-region construction projects, primarily owing to their resistance to corrosion and low density. Although prior research has addressed the bond–slip characteristics of FRP-to-concrete joints, a theoretical formulation that links cumulative freeze–thaw damage of the mortar matrix to the progressive loss of bond strength at the GFRP bar–mortar interface is still lacking. This work provides a combined experimental and theoretical examination of how the bonding capacity of ribbed GFRP bars in cement mortar declines after 0, 30, 60, and 90 FTCs. Compression and splitting tension tests were carried out on mortar cubes, while pullout specimens were used to assess the interfacial bond strength. Two mortar grades commonly used in anchorage practice (M25 and M35) and two bar diameters (12 mm and 16 mm) were selected as test variables. After 90 FTCs, the maximum bond strength fell by as much as 64.1%, whereas the post-peak residual bond strength suffered an even more pronounced drop of up to 79.3%. Meanwhile, the residual-to-peak-bond-strength ratio decreased steadily with the number of FTCs, marking a shift from a mechanically interlocked interface to a friction-governed one. The higher-grade mortar (M35) experienced clearly superior resistance to freeze–thaw attack compared to M25, while the larger-diameter bars (16 mm) degraded faster. An analytical model for estimating the bond-strength degradation is proposed, where an exponential environmental factor was introduced and the decay constants were calibrated via nonlinear regression against the bond-strength retention ratios at 0, 30, 60, and 90 FTCs. The proposed models are calibrated empirical relationships that reproduce the measured degradation well within the tested parameter ranges and indicate reasonable internal stability under leave-one-group-out cross-validation. This study provides two theoretical provisions: the freeze–thaw degradation of the GFRP–mortar bond can be effectively described by a single exponential damage law whose decay constant quantifies the rate at which the interfacial capacity is exhausted, and the residual-to-peak-bond-strength ratio serves as a mechanistic indicator of the transition from mechanical interlock to friction-controlled failure. These provisions quantitatively link mortar degradation to interfacial capacity loss, thereby providing a theoretical basis for durability design of GFRP grouted anchors in cold regions. Full article

The widespread application of fly ash ceramsite as a lightweight aggregate in high-performance concrete is restricted by its inherent defects, including high porosity, high water absorption rate and weak interfacial transition zone (ITZ). In this study, a surface pre-treatment strategy is proposed, in which the ceramsite granules are pre-coated prior to mixing, followed by concrete preparation with the modified aggregates. A pre-coating formulation of micro–nano silica fume and modified acrylate emulsion was applied to improve the interfacial characteristics and mechanical/durability performance. The results show that the coating treatment improved 28-day compressive, flexural–tensile, and axial tensile strengths by 21.2%, 16.0%, and 20.6%, respectively, along with the elastic modulus and ultimate tensile strain. The coated concrete achieved an impermeability grade exceeding W14, retained over 85% of relative dynamic elastic modulus after 150 freeze–thaw cycles, and maintained compressive strength above 90.0% after 20 wetting–drying cycles, with a corresponding relative dynamic elastic modulus of 67.24%. Microstructural observation, pore parameter analysis, and microzone mechanical testing were performed to reveal the underlying mechanisms. The performance improvement is mainly attributed to the strengthening of the traditionally weak interfacial transition zone (ITZ). Additionally, the coating refines the pore structure, stabilizes its distribution, and acts as a physical barrier, further enhancing resistance to freeze–thaw and wetting–drying cycles. Full article
