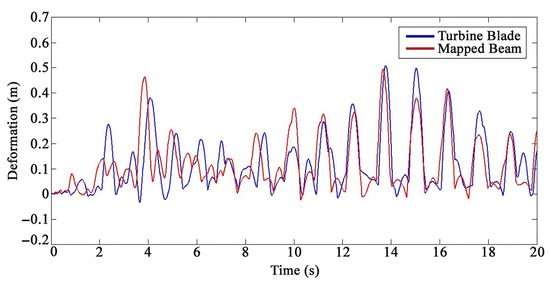

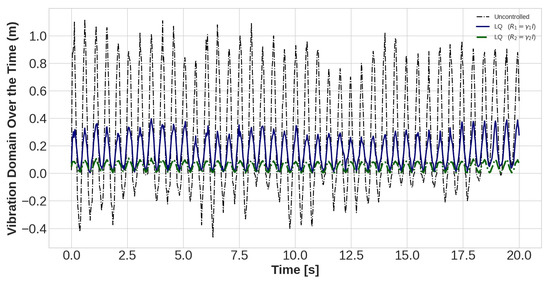

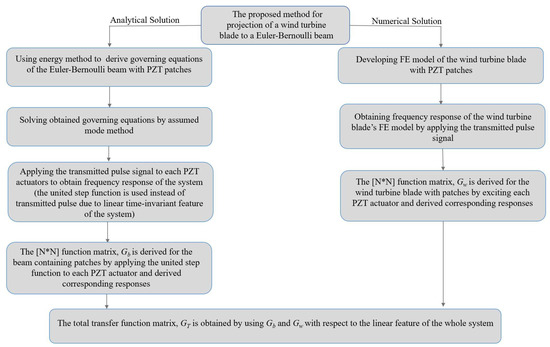

A smart active vibration control (AVC) system containing piezoelectric (PZT) actuators, jointly with a linear quadratic regulator (LQR) controller, is proposed in this article to control transverse deflections of a wind turbine (WT) blade. In order to apply controlling rules to the WT blade, a state-of-the-art semi-analytical solution is developed to obtain WT blade lateral displacement under external loadings. The proposed method maps the WT blade to a Euler–Bernoulli beam under the same conditions to find the blade’s vibration and dynamic responses by solving analytical vibration solutions of the Euler–Bernoulli beam. The governing equations of the beam with PZT patches are derived by integrating the PZT transducer vibration equations into the vibration equations of the Euler–Bernoulli beam structure. A finite element model of the WT blade with PZT patches is developed. Next, a unique transfer function matrix is derived by exciting the structures and achieving responses. The beam structure is projected to the blade using the transfer function matrix. The results obtained from the mapping method are compared with the counter of the blade’s finite element model. A satisfying agreement is observed between the results. The results showed that the method’s accuracy decreased as the sensors’ distance from the base of the wind turbine increased. In the designing process of the LQR controller, various weighting factors are used to tune control actions of the AVC system. LQR optimal control gain is obtained by using the state-feedback control law. The PZT actuators are located at the same distance from each other an this effort to prevent neutralizing their actuating effects. The LQR shows significant performance by diminishing the weights on the control input in the cost function. The obtained results indicate that the proposed smart control system efficiently suppresses the vibration peaks along the WT blade and the maximum flap-wise displacement belonging to the tip of the structure is successfully controlled. Full article

This paper explores a concept for dynamic amplification of piezoelectric actuator motion using repeated impacts between the active transducer and a compliant amplification mechanism. The design shows good performance in amplifying vibration of a lead–zirconate–titanate (PZT) bimorph while down-converting the output frequency of motion from more than 150 Hz to less than 20 Hz. A simple dynamic model is used to identify the conceptual opportunities for impact-based amplification of PZT displacement. Experimental results are gathered from a prototype system with dimensions 55 mm × 22 mm × 1 mm. PZT displacement is amplified by a factor of more than 100 with near-periodic output oscillations at select input frequencies. Implications for leveraging the low-frequency output oscillations in small mobile robots are briefly discussed. Full article

Fatigue cracks are one of the common failure types of key aircraft components, and they are the focus of prognostics and health management (PHM) systems. Monitoring and prediction of fatigue cracks show great application potential and economic benefit in shortening aircraft downtime, prolonging service life, and enhancing maintenance. However, the fatigue crack growth process is a non-linear non-Gaussian dynamic stochastic process, which involves a variety of uncertainties. Actual crack initiation and growth sometimes deviate from the results of fracture mechanics analysis. The Lamb wave-particle filter (LW-PF) fatigue-crack-life prediction based on piezoelectric transducer (PZT) sensors has the advantages of simple modeling and on-line prediction, making it suitable for engineering applications. Although the resampling algorithm of the standard particle filter (PF) can solve the degradation problem, the discretization error still exists. To alleviate the accuracy decrease caused by the discretization error, a Lamb wave-minimum sampling variance particle filter (LW-MSVPF)-based fatigue crack life prediction method is proposed and validated by fatigue test of the attachment lug in this paper. Sampling variance (SV) is used as a quantitative index to analyze the difference of particle distribution before and after resampling. Compared with the LW-PF method, LW-MSVPF can increase the prediction accuracy with the same computational cost. By using the minimum sampling variance (MSV) resampling method, the original particle distribution is retained to a maximum degree, and the discretization error is significantly reduced. Furthermore, LW-MSVPF maintains the characteristic of dimensional freedom, which means a broader application in on-line prognosis for more complex structures. Full article

Embedded Lead Zirconate Titanate (PZT) transducers have been widely used in research related to monitoring the health status of concrete structures. This paper presents a dynamic model of an embeddable PZT transducer with a waterproof layer and a protecting layer. The proposed model is verified by finite-element method (FEM). Based on the proposed model, the factors influencing the dynamic property of the embeddable PZT transducers, which include the material and thickness of the protecting layer, the material and thickness of the waterproof layer, and the thickness of the PZT, are analyzed. These analyses are further validated by a series of dynamic stress transfer experiments on embeddable PZT transducers. The results show that the excitation frequency can significantly affect the stress transfer of the PZT transducer in terms of both amplitude and signal phase. The natural frequency in the poling direction for the PZT transducer is affected by the material properties and the thickness of the waterproof and protecting layers. The studies in this paper will provide a scientific basis to design embeddable PZT transducers with special functions. Full article

To accurately determine the dynamic response of a structure is of relevant interest in many engineering applications. Particularly, it is of paramount importance to determine the Frequency Response Function (FRF) for structures subjected to dynamic loads in order to avoid resonance and fatigue problems that can drastically reduce their useful life. One challenging case is the experimental determination of the FRF of submerged and confined structures, such as hydraulic turbines, which are greatly affected by dynamic problems as reported in many cases in the past. The utilization of classical and calibrated exciters such as instrumented hammers or shakers to determine the FRF in such structures can be very complex due to the confinement of the structure and because their use can disturb the boundary conditions affecting the experimental results. For such cases, Piezoelectric Patches (PZTs), which are very light, thin and small, could be a very good option. Nevertheless, the main drawback of these exciters is that the calibration as dynamic force transducers (relationship voltage/force) has not been successfully obtained in the past. Therefore, in this paper, a method to accurately determine the FRF of submerged and confined structures by using PZTs is developed and validated. The method consists of experimentally determining some characteristic parameters that define the FRF, with an uncalibrated PZT exciting the structure. These parameters, which have been experimentally determined, are then introduced in a validated numerical model of the tested structure. In this way, the FRF of the structure can be estimated with good accuracy. With respect to previous studies, where only the natural frequencies and mode shapes were considered, this paper discuss and experimentally proves the best excitation characteristic to obtain also the damping ratios and proposes a procedure to fully determine the FRF. The method proposed here has been validated for the structure vibrating in air comparing the FRF experimentally obtained with a calibrated exciter (impact Hammer) and the FRF obtained with the described method. Finally, the same methodology has been applied for the structure submerged and close to a rigid wall, where it is extremely important to not modify the boundary conditions for an accurate determination of the FRF. As experimentally shown in this paper, in such cases, the use of PZTs combined with the proposed methodology gives much more accurate estimations of the FRF than other calibrated exciters typically used for the same purpose. Therefore, the validated methodology proposed in this paper can be used to obtain the FRF of a generic submerged and confined structure, without a previous calibration of the PZT. Full article
