Search Results (10)

Haemorrhage control during surgery and following traumatic injury remains a critical, life-saving challenge. Cellulose products are already employed in commercially available haemostatic dressings. This work explores sourcing cellulose from sugarcane trash pulp to produce micro- and nanosized fibres with hydroxyl, carboxylic acid, and trimethylamine functional groups, resulting in either positive or negative surface charges. This paper assesses the influence of these fibres on multiple blood clotting parameters in both dispersed solutions and dry gauze applications. In vitro blood clotting studies demonstrated the significant haemostatic potential of cellulose fibres derived from sugarcane waste to initiate clotting. Plasma absorbance assays showed that the 0.25 mg/mL cellulose microfibre dispersion had the highest clotting performance. It was observed that no single property of surface charge, functionality, or fibre morphology exclusively controlled the clotting initiation measured. Instead, a combination of these factors affected clot formation, with negatively charged cellulose microfibres comprising hydroxyl surface groups providing the most promising result, accelerating the coagulation cascade mechanism by 67% compared to the endogenous activity. This difference in clot initiation shows the potential for the non-wood agricultural waste source of cellulose in haemostatic wound healing applications, contributing to the broader understanding of cellulose-based materials’ versatility and their applications in biomedicine. Full article

Aminopolysaccharide chitin is one of the main structural biopolymers in sponges that is responsible for the mechanical stability of their unique 3D-structured microfibrous and porous skeletons. Chitin in representatives of exclusively marine Verongiida demosponges exists in the form of biocomposite-based scaffolds chemically bounded with biominerals, lipids, proteins, and bromotyrosines. Treatment with alkalis remains one of the classical approaches to isolate pure chitin from the sponge skeleton. For the first time, we carried out extraction of multilayered, tube-like chitin from skeletons of cultivated Aplysina aerophoba demosponge using 1% LiOH solution at 65 °C following sonication. Surprisingly, this approach leads not only to the isolation of chitinous scaffolds but also to their dissolution and the formation of amorphous-like matter. Simultaneously, isofistularin-containing extracts have been obtained. Due to the absence of any changes between the chitin standard derived from arthropods and the sponge-derived chitin treated with LiOH under the same experimental conditions, we suggest that bromotyrosines in A. aerophoba sponge represent the target for lithium ion activity with respect to the formation of LiBr. This compound, however, is a well-recognized solubilizing reagent of diverse biopolymers including cellulose and chitosan. We propose a possible dissolution mechanism of this very special kind of sponge chitin. Full article

Three-dimensional printing (3DP) allows production of novel fast dissolving oral films (FDFs). However, mechanical properties of the films may not be desirable when certain excipients are used. This work investigated whether adding chitosan micro-ribbons or cellulose microfibres will achieve desired FDFs by fused deposition modelling 3DP. Filaments containing polyvinyl alcohol (PVA) and paracetamol as model drug were manufactured at 170 °C. At 130 °C, filaments containing polyvinylpyrrolidone (PVP) and paracetamol were also created. FDFs were printed with plain or mesh patterns at temperatures of 200 °C (PVA) or 180 °C (PVP). Both chitosan micro-ribbons and cellulose micro-fibres improved filament mechanical properties at 1% w/w concentration in terms of flexibility and stiffness. The filaments were not suitable for printing at higher concentrations of chitosan micro-ribbons and cellulose micro-fibres. Furthermore, mesh FDFs containing only 1% chitosan micro-ribbons disintegrated in distilled water within 40.33 ± 4.64 s, while mesh FDFs containing only 7% croscarmellose disintegrated in 55.33 ± 2.86 s, and croscarmellose containing films showed signs of excipient scorching for PVA polymer. Cellulose micro-fibres delayed disintegration of PVA mesh films to 108.66 ± 3.68 s at 1% w/w. In conclusion, only chitosan micro-ribbons created a network of hydrophilic channels within the films, which allowed faster disintegration time at considerably lower concentrations. Full article

Agricultural waste-based cellulose fibers have gained significant interest for a myriad of applications. Grewia optiva (G. optiva), a plant species, has been widely used for feeding animals, and the small branches’ bark is used for making rope. Herein, we have extracted cellulose fibers from the bark of G. optiva species via chemical treatments (including an alkaline treatment and bleaching). The gravimetric analysis revealed that the bark of G. Optiva contains cellulose (63.13%), hemicellulose (13.52%), lignin (15.13%), and wax (2.8%). Cellulose microfibre (CMF) has been synthesized from raw fibre via chemical treatment methods. The obtained cellulose fibers were crosslinked and employed as the matrix to encapsulate the bioactive plant extracts derived from the root of Catharanthus roseus (C. roseus). The microscopic images, XRD, FTIR, and antibacterial/antioxidant activity confirmed the encapsulation of natural extracts in the cellulose microfiber. The microscopic images revealed that the encapsulation of the natural extracts slightly increased the fiber’s diameter. The XRD pattern showed that the extracted cellulose microfiber had an average crystalline size of 2.53 nm with a crystalline index of 30.4% compared to the crystalline size of 2.49 nm with a crystalline index of 27.99% for the plant extract incorporated membrane. The water uptake efficiency of the synthesized membrane increased up to 250%. The antimicrobial activity of the composite (the CMF-E membrane) was studied via the zone inhibition against gram-positive and gram-negative bacteria, and the result indicated high antibacterial activity. This work highlighted G. optiva-derived cellulose microfiber as an optimum substrate for antimicrobial scaffolds. In addition, this paper first reports the antimicrobial/antioxidant behavior of the composite membrane of the C. roseus extract blended in the G. optiva microfiber. This work revealed the potential applications of CMF-E membranes for wound healing scaffolds. Full article

A membrane-based enthalpy exchanger is a device used for heat and humidity recovery in ventilated buildings. The energy-saving potential of such a device is dependent on the parameters responsible for heat and moisture recovery. The trend is toward composite membranes, which are custom produced, and their parameters can be adjusted for a given application; therefore, the diffusion and sorption characteristics of such membranes are unknown. In order to obtain the values of the water vapor diffusivity of three investigated handmade membranes, a serial resistance model using a Field and Laboratory Emission Cell (FLEC) is proposed. Experiments were conducted to identify the resistance in each step of the moisture transfer process to extract the moisture diffusivity in the membranes. The calculated moisture diffusivities in the membranes were 8.99 × 10⁻¹² (m²/s) for the membranes from cellulose acetate, 1.9 × 10⁻¹⁰ (m²/s) for the microporous PE/PUR membranes, and 1.53 × 10⁻¹¹ (m²/s) for the PET/PUR microfibrous membranes. The obtained membrane diffusivities were then used in the proposed effectiveness-NTU-based model of an exchanger with a cross-flow arrangement to predict performance under various operating conditions. The results show that the highest latent effectiveness was found for the exchanger core made from the PE/PUR membrane and the lowest was for the one with the PE/PUR membrane core. Full article

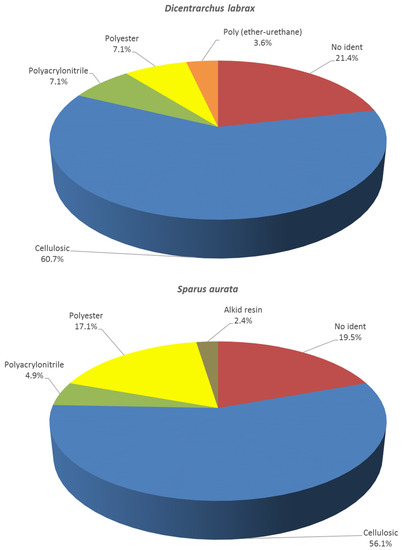

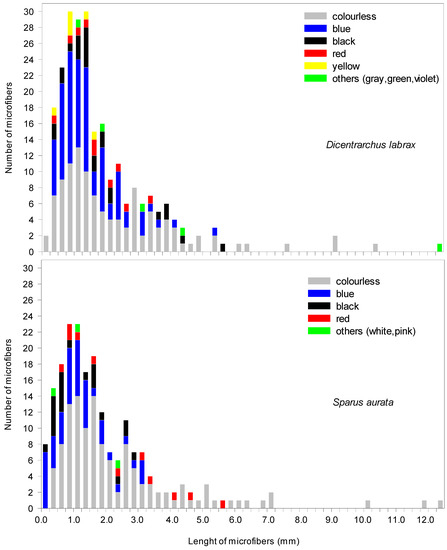

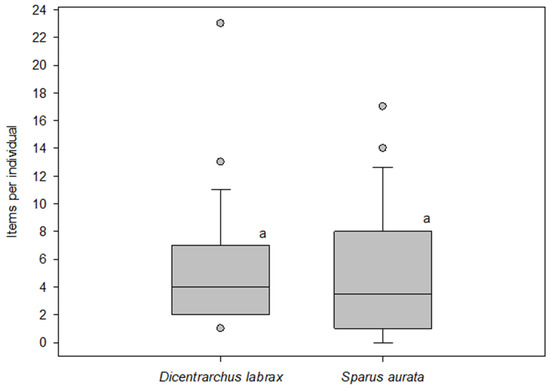

Microplastic pollution has an extremely widespread distribution, to the extent that microplastics could be ingested by aquatic organisms, including species of commercial importance for fisheries and aquaculture. In this work, the anthropogenic particles content of the gastrointestinal tracts of 86 individuals of cultivated European sea bass (Dicentrarchus labrax, n = 45) and gilt-head sea bream (Sparus aurata, n = 41) from Tenerife (Canary Islands, Spain) was determined. Samples were bought at local markets and directly transported to the laboratory. After the dissection of the fishes and digestion of the gastrointestinal tracts in 10% KOH (w/v) at 60 °C for 24 h, the digests were filtered (50 µm stainless-steel mesh) and visualized under a stereomicroscope, finding that most of the items were colourless (47.7% for Dicentrarchus labrax and 60.9% for Sparus aurata) and blue (35.3% vs. 24.8%) microfibers, with an average length of 1957 ± 1699 µm and 1988 ± 1853 µm, respectively. Moreover, 15.3% of the microfibres were analysed by Fourier transform infrared spectroscopy, showing the prevalence of cellulosic fibres together with polyester, polyacrylonitrile, and poly(ether-urethane). This pattern (microplastics shapes, colours, sizes, and composition) clearly agrees with previous studies carried out in the Canary Islands region regarding the determination of microplastics in the marine environment. Full article

In this paper, nano/microfibrils were applied to enhance the mechanical and hydrophobic properties of the sugarcane bagasse fiber films. The successful preparation of nano/microfibrils was confirmed by scanning electron microscope (SEM), X-ray diffraction (XRD), fiber length analyzer (FLA), and ion chromatography (IC). The transparency, morphology, mechanical and hydrophobic properties of the cellulose films were evaluated. The results show that the nanoparticle was formed by the hemicellulose diffusing on the surface of the cellulose and agglomerating in the film-forming process at 40 °C. The elastic modulus of the cellulose film was as high as 4140.60 MPa, and the water contact angle was increased to 113°. The micro/nanostructures were formed due to hemicellulose adsorption on nano/microfilament surfaces. The hydrophobicity of the films was improved. The directional crystallization of nano/microfibrous molecules was found. Cellulose films with a high elastic modulus and high elasticity were obtained. It provides theoretical support for the preparation of high-performance cellulose film. Full article

Developing robust and biodegradable biopolymer films based on macroalgae is a challenging task because of its inadequate mechanical strength and poor moisture barrier attribute to its hydrophilic nature. A promising and sustainable approach to overcome this challenge is to reinforce the biopolymer film with polysaccharide microfibre (microcrystalline cellulose) derived from Gigantochloa levis bamboo (GL-MCC). Eucheuma cottonii macroalgae were used for the development of biopolymer films without further extraction and purification, which was considered economical and easy. The mechanical, water contact angle (WCA), water absorption capacity (WSC), and thermal behaviour of macroalgae-based biopolymer films revealed that the inclusions of GL-MCC significantly enhanced the durability, moisture barrier, and thermal stability of the biopolymer films. The enhancement is ascribed to the interaction between macroalgae and GL-MCC due to high compatibility. Moreover, the incorporation of GL-MCC successfully increased the rigidity of the macroalgae-based biopolymer films against microorganism and moisture attack, but remain biodegradable and environmental-friendly. The developed biodegradable macroalgae/GL-MCC biopolymer films can potentially be used as packaging materials. Full article

The mechanical properties of dental acrylic resins have to be improved in the case of a thin denture plate. This can be achieved by cellulose addition, playing the role of active filler. But to provide the excellent dispersion of cellulose microfibres within the hydrophobic polymer matrix, its surface has to be modified. Cellulose microfibres with average length from 8 to 30 μm were modified with octyltriethoxysilane and (3-methacryloxypropyl)methyldimethoxysilane. The latter also participated in the polymerisation reaction of methyl methacrylate. Dental composites were prepared following the general procedure provided by the supplier. The successful modification of the microfibres led to the improved compatibility of the cellulose and poly(methyl methacrylate). The fibres after modification were uniformly distributed within the matrix, resulting in the improved mechanical performance of obtained materials. Cellulose microfibres are good candidates for the dental materials to be used as the active filler. The simple and straightforward approach for the cellulose modifications with silanes provides good potential for its future practical application. Full article

In this study a largely available lignocellulose feedstock hemp (Cannabis sativa), obtained as an industrial waste, was used for cellulose extraction. The extraction of cellulose microfibres from hemp biomass was conducted by alkaline treatment and an acidification process. The extracted cellulose microfibres were characterised using Fourier-transformed infrared spectroscopy (FTIR), Scanning electron microscopy (SEM), thermogravimetric analysis (TGA) and X-ray diffraction (XRD). The viability of the study was determined by growing human fibroblasts on the preparation which resulted in being non-toxic; indicating its potential in preparing biological scaffolds. Upon enzymatic hydrolysis of the cellulose microfibre using cellulase from Trichoderma reesei, a maximum of 909 mg/g of reducing sugars were obtained, which endorses its suitability for biofuel production. Full article
