Search Results (16)

The rheological behavior of cementitious paste plays a pivotal role in determining the workability, pumpability, and uniformity of fresh concrete. Classical rheological models often struggle to capture the complex flocculation and hydration effects inherent in cement-based systems, and they typically depend on parameters that are difficult to measure directly, limiting their practical utility. This study presents a novel composition-based constitutive model that introduces a virtual maximum packing fraction (${\varphi }_{max}$) to account for interparticle flocculation and entrapped water effects. By establishing quantitative relationships between powder characteristics—such as particle size and specific surface area—and rheological parameters, the model enables physically interpretable and measurable predictions of yield stress and plastic viscosity. Our validation against 65 paste formulations with varying water-to-binder ratios, mineral admixture types and dosages, and superplasticizer contents demonstrates strong predictive accuracy (R² > 0.98 for plain pastes and >0.85 for blended systems). The influence of superplasticizers is effectively captured through modifications to ${\varphi }_{max}$, allowing the model to remain both robust and parameter efficient. This framework supports forward prediction of paste rheology from raw material properties, offering a valuable tool for intelligent mix design in high-performance concrete applications such as self-consolidating and 3D-printed concrete. Full article

The high-hydrolysis reactivity cement clinker powder in cement plays a major role in cement’s cementation, while low-hydrolysis reactivity mineral admixture powders, such as slag, m mainly serve as a filler. Through optimizing the particle matching of cement clinker powder and slag powder, the mechanical properties of cement can be enhanced. In this study, clinker and slag with differing levels of fineness were obtained by separate grinding, and the particle gradation of clinker powder and slag powder in the cement was optimized. Fine clinker particles were mixed with coarse slag particles to systematically explore their effects on the rheology of cement paste, the formation of hydration products, the evolution of the pore structure, and the material’s mechanical properties. Through experimental tests and microscopic analysis, the mechanism whereby particle gradation is regulated by separate grinding was revealed. The findings of the study are as follows: with the same amount of cinder, finer clinker requires a higher water content of standard consistency. The addition of coarse cinder effectively reduces the standard-consistency water requirement of the blended cement. Fine grinding of coal cinder fails to enhance cement strength effectively but markedly raises the standard-consistency water demand. Thus, the specific surface area of coal cinder should be maintained at approximately 210 m²/kg. Full article

Rice husk ash (RHA) is agricultural waste with high silica content that has exhibited proven technical feasibility as a pozzolanic material since the 1970s. Notwithstanding, its use in mortars and concrete is limited by the standards currently utilized in some countries where RHA production is high and the aforementioned pozzolanic material is not standardized. This is the case in Spain, one of the main rice producers in Europe. Nowadays, the high pressure placed on the Portland cement production sector to reduce its energy use and CO₂ emissions has given rise to a keen interest in mineral admixtures for cement manufacturing. In this research, we intended to establish the contributions of different RHA types to the final blended Portland cement properties (“H” is used to identify RHA in standardized cements). The experimental results demonstrated that RHA with good pozzolanic properties (large specific surface and high amorphous silica content) had to be limited to 10% cement replacement because of the severe reduction in workability at higher replacement percentages. RHA with lower reactivity, such as crystalline RHA, or fly ash (FA) can be used to prepare binary and ternary blended cements with reactive RHA. It is possible to design the following cements: CEM II/A-H and CEM II/A-(H-V). It would also be possible to design cement (CEM II/B-(H-V) with replacement values of up to 30% and the same 28-day mechanical performance as observed for the Portland cement without mineral addition. Full article

The effective utilization rate of river-dredged silt was extremely low, and common disposal methods such as dumping it into the ocean have already threatened the ecological environment. To demonstrate that dredged silt can be used as a mineral admixture to modify magnesium potassium phosphate cement (MKPC), the mechanical properties and hydration degree of sintered silt ash (SSA)-blended MKPC in the early stage of hydration were studied systematically in this paper, with MKPC as the reference group. The mechanical experiment results showed that in the process of increasing the SSA content to 25%, the compressive strength first increased and then decreased. Among the samples, the compressive strength of cement aged by 1d and 3d with 15% content was the highest, which increased by 11.5% and 17.2%, respectively, compared with the reference group. The setting time experiment found that with the increase in SSA content, the hydration reaction rate of MKPC slowed down significantly. Its effect of delaying hydration was most obvious when the SSA content was 10–15%. The X-ray diffraction pattern showed that there was no large amount of new crystalline substances formed in the hydration product. The results obtained by scanning electron microscopy show that the microstructure tended to be denser and the hydration products tended to be plump when the SSA content was in the range of 0–15%. The non-contact electrical resistivity experiment showed that the addition of SSA delayed the early hydration of MKPC. Combined with the above experiment results, it was found that when the content of SSA was less than 15%, it not only delayed the early hydration of MKPC, but also deepened its hydration degree. Full article

Blended cement is commonly used for producing sustainable concretes. This paper presents an experimental study and an optimization design of a low-CO₂ quaternary binder containing calcined clay, slag, and limestone using the response surface method. First, a Box–Behnken design with three influencing factors and three levels was used for the combination design of the quaternary composite cement. The lower limit of the mineral admixtures was 0%. The upper limits of slag, calcined clay, and limestone powder were 30%, 20%, and 10%, respectively. The water-to-binder ratio (water/binder) was 0.5. Experimental works to examine workability and strength (at 3 and 28 days) were performed for the composite cement. The CO₂ emissions were calculated considering binder compositions. A second-order polynomial regression was used to evaluate the experimental results. In addition, a low-CO₂ optimization design was conducted for the composite cement using a composite desirability function. The objectives of the optimization design were the target 28-day strength (30, 35, 40, and 45 MPa), target workability (160 mm flow), and low CO₂ emissions. The trends of the properties of optimal combinations were consistent with those in the test results. In summary, the proposed optimization design can be used for designing composite cement considering strength, workability, and ecological aspects. Full article

Using phosphogypsum (PG) as a raw material to prepare calcium sulphoaluminate cement (CAS) is an effective way of treating phosphogypsum. In order to meet the different application requirements of CSA cement and promote the application of CAS cement, it is necessary to add mineral admixtures to adjust the performance of cement. This paper incorporated two minerals, gypsum dihydrate (C$H₂) and calcium hydroxide (CH), into cement clinker prepared from phosphogypsum. The compressive strength and hydration process of the mixtures with different blending levels were investigated around the C₄A₃$-C$H₂ system (SC) and the C₄A₃$-C$H₂-CH system (SCC). The optimum dosing level was determined on the basis of the strength and hydration properties. In the SC system, adding C$H₂ promoted the hydration of C₄A₃$. The compressive strength of the cement was highest at a C$H₂/C₄A₃$ molar ratio of 1.5, with a 7-day compressive strength of 56.5 MPa. AFt was mostly needle-rod and columnar and was tightly cemented to the gel phase, improving the denseness of the matrix. When the molar ratio was 2, the strength of the cement was inverted, and the shape of the AFt changed from needle and rod to columnar, the size of the grains increased, and it could not be filled with the AH₃ phase in an excellent staggered manner. At the same time, C$H₂ was not fully reacted, increasing matrix porosity and inversion of strength. In the SCC system, adding CH reduced the cement’s compressive strength, and the compressive strength reduction increased with the increase in admixture. According to the experimental results, CH inhibited the formation of AFt, resulting in the appearance of new hydration products, AFm. As the amount of CH increased, the amount of hydration products, AFm, increased, while the amount of AFt and AH₃ decreased. However, adding CH raised the paste’s pH and later facilitated the development of strength. The optimum admixture of CH/C₄A₃$ was 0.5 mol. Full article

The presented research is focused on the complex assessment of three different types of diatomaceous earth and evaluation of their ability for application as pozzolana active admixtures applicable in the concrete industry and the production of repair mortars applicable for historical masonry. The comprehensive experimental campaign comprised chemical, mineralogical, microstructural, and physical testing of raw materials, followed by the analyses and characterization of pozzolanic activity, rheology and heat evolution of fresh blended pastes, and testing of macrostructural and mechanical parameters of the hardened 28-days and 90-days samples. The obtained results gave evidence of the different behavior of researched diatomaceous earth when mixed with water and Portland cement. The differences in heat evolution, initial and final setting time, porosity, density, and mechanical parameters were identified based on chemical and phase composition, particle size, specific surface, and morphology of diatomaceous particles. Nevertheless, the researched mineral admixtures yielded a high strength activity index (92.9% to 113.6%), evinced their pozzolanic activity. Three fundamental factors were identified that affect diatomaceous earth’s contribution to the mechanical strength of cement blends. These are the filler effect, the pertinent acceleration of OPC hydration, and the pozzolanic reaction of diatomite with Portland cement hydrates. The optimum replacement level of ordinary Portland cement by diatomaceous earth to give maximum long-term strength enhancement is about 10 wt.%., but it might be further enhanced based on the properties of pozzolan. Full article

In this research, Ni-Fe slag powder and mineral powder are blended into mineral admixtures and added to soil cement, with the aim of investigating the mechanical property of soil cement under a dynamic environment, and the dynamic properties of Ni-Fe slag powder soil cement after impact compression are obtained by conducting split-Hopkinson pressure bar (SHPB) test. The results show that under the same age and different admixture conditions, the dynamic stress of Ni-Fe slag powder soil cement increases first and then decreases and reaches the maximum when the admixture ratio is 40%, and the dynamic stresses at 7 d, 28 d and 60 d were 5.10 MPa, 9.73 MPa and 13.51 MPa, respectively. Under the same admixture ratio, Ni-Fe slag powder soil cement shows an increasing trend in dynamic stress with age, and its growth rate at the curing age from 7 d and 28 d is significantly higher than that at the curing age from 28 d to 60 d. After comparison, it is concluded that the best admixture ratio for Ni-Fe slag powder is 40%, which is close to the maximum value of 45% for mineral admixtures to replace cement as specified in the national standard. Full article

As the cement industry is responsible for 7% of the global CO₂ emissions, locally and abundantly available materials are vastly valorized, and their use is assuming a significant role in this domain. Over the last few decades, significant research in the development of supplementary cementitious materials (SCMs) derived from industrial wastes, such as fly ash (FA), has been conducted. However, facing environmental pressures, coal power plants are closing across the planet. Hence there is an urgent need to identify sustainable SCMs that can replace FA in the concrete industry. Furthermore, the usage of FA in cement-based composites does not often produce satisfactory results from the aspect of certain properties, such as freeze–thaw durability. Therefore, the application of natural zeolites (NZs) for these purposes has emerged as an area of interest in the civil engineering practice. This paper presents the results of experimental research regarding the influence of NZ, as a mineral admixture, on the basic physical and mechanical properties of cement mortars, with a focus on frost resistance and drying shrinkage. The amount of NZ was varied from 10 to 30% in relation to cement mass. The findings indicate that NZ positively influences the drying shrinkage reduction regardless of the replacement level, while the best results concerning frost resistance can be achieved in cement blends with 10% NZ. Full article

At present, reducing carbon emissions is an urgent problem that needs to be solved in the cement industry. This study used three mineral admixtures materials: limestone powder (0–10%), metakaolin (0–15%), and fly ash (0–30%). Binary, ternary, and quaternary pastes were prepared, and the specimens’ workability, compressive strength, ultrasonic pulse speed, surface resistivity, and the heat of hydration were studied; X-ray diffraction and attenuated total reflection Fourier transform infrared tests were conducted. In addition, the influence of supplementary cementitious materials on the compressive strength and durability of the blended paste and the sustainable development of the quaternary-blended paste was analyzed. The experimental results are summarized as follows: (1) metakaolin can reduce the workability of cement paste; (2) the addition of alternative materials can promote cement hydration and help improve long-term compressive strength; (3) surface resistivity tests show that adding alternative materials can increase the value of surface resistivity; (4) the quaternary-blended paste can greatly reduce the accumulated heat of hydration; (5) increasing the amount of supplementary cementitious materials can effectively reduce carbon emissions compared with pure cement paste. In summary, the quaternary-blended paste has great advantages in terms of durability and sustainability and has good development prospects. Full article

A cement paste or mortar is composed of a mineral skeleton with micron to millimeter-sized grains, surrounded by water filaments. The cohesion or shear resistance in the cement paste and mortar is caused by capillary forces of action. In the case of mortar mixes, there is friction between the particles. Therefore, the mortar mixture shows both friction between particles and cohesion, while the paste shows only cohesion, and the friction between particles is negligible. The property of the cement paste is greatly influenced by the rheological characteristics like cohesion and internal angle friction. It is also interesting that when studying the rheology of fresh concrete, the rheological behavior of cement paste and mortar has direct applicability. In this paper, the rheological characteristics of cement paste and mortar with and without mineral admixtures, that is, fly ash and ground granulated blast-furnace slag (GGBS), were studied. A cement mortar mix with a cement-to-sand ratio of 1:3 was investigated, including fly ash replacement from 10% to 40%, and GGBS from 10% to 70% of the weight of the cement. A suitable blend of fly ash, GGBS, and ordinary Portland cement (OPC) was also selected to determine rheological parameters. For mortar mixtures, the flow table was conducted for workability studies. The flexural and split tensile strength tests were conducted on various mortar mixtures for different curing times. The results indicate that in the presence of a mineral mixture of fly ash and GGBS, the rheological behavior of paste and mortar is similar. Compared with OPC-GGBS-based mixtures, both cement with fly ash and ternary mixtures show less shear resistance or impact resistance. The rheological behavior of the mortar also matches the rheological behavior in the flow table test. Therefore, it is easy to use the vane shear test equipment to conduct cohesion studies to understand the properties of cement paste and mortar using mineral admixtures. The strength results show that the long-term strength of GGBS-based mixtures and ternary mixed mixtures is better than that of fly-ash-based mixtures. For all mixtures, the strength characteristics are greatest at a w/b ratio of 0.6. Full article

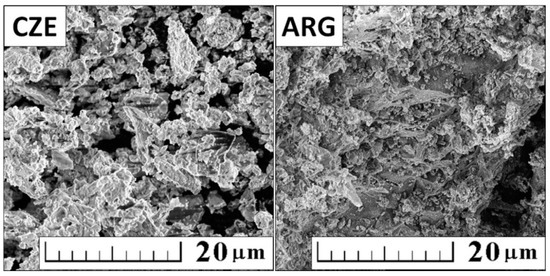

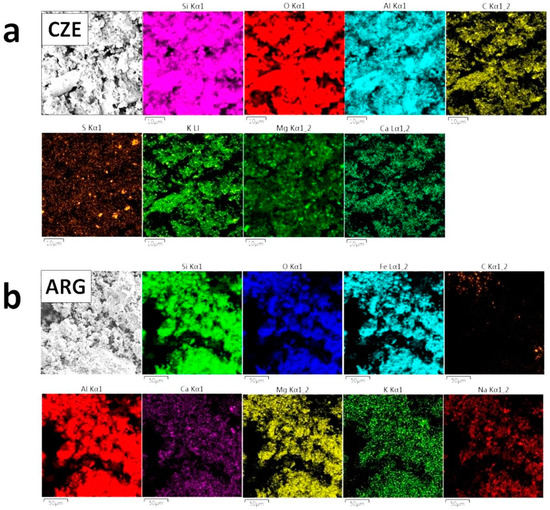

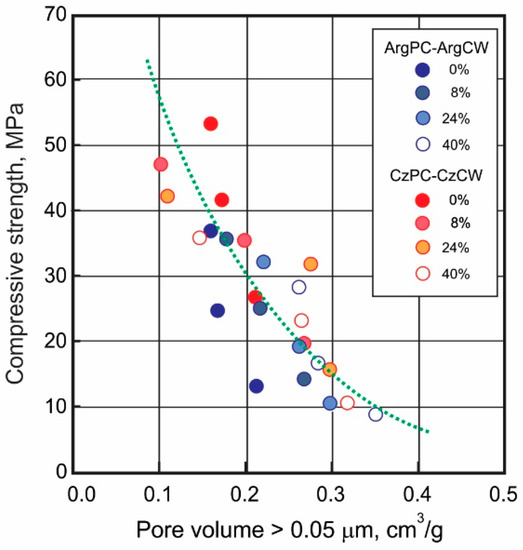

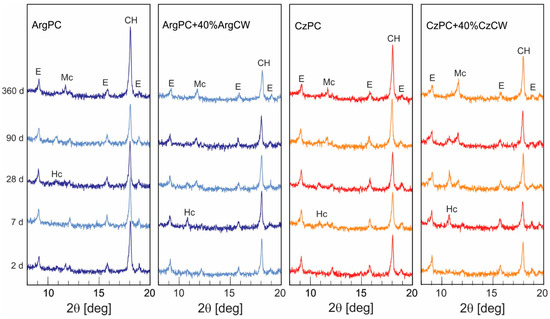

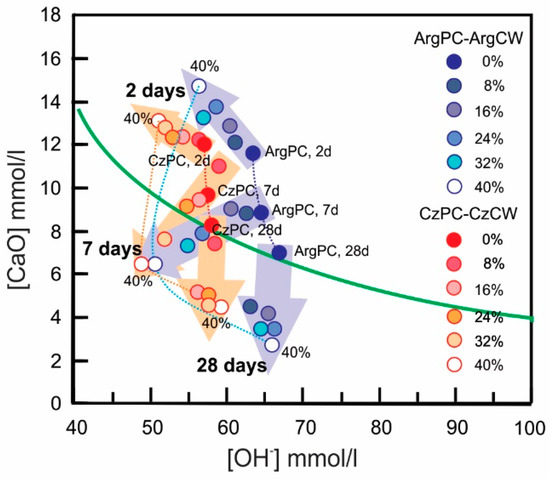

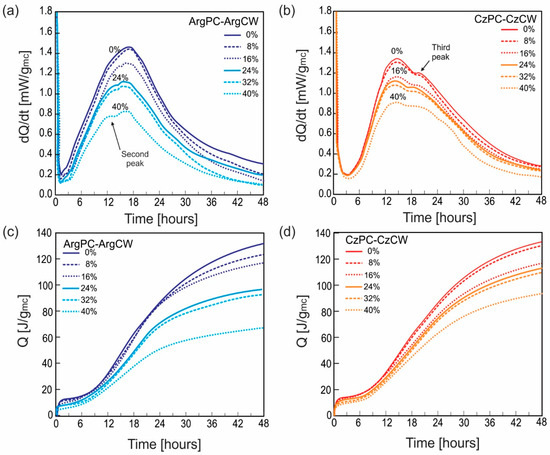

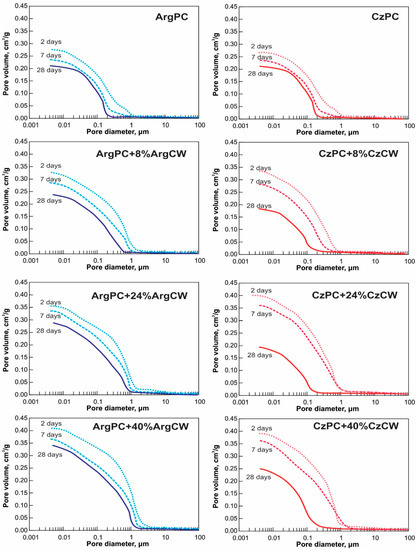

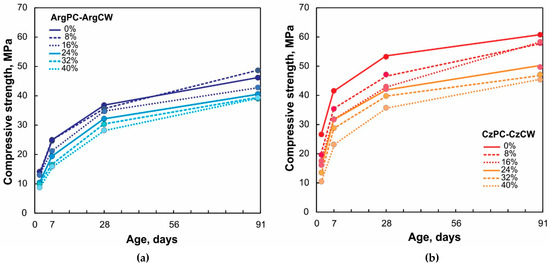

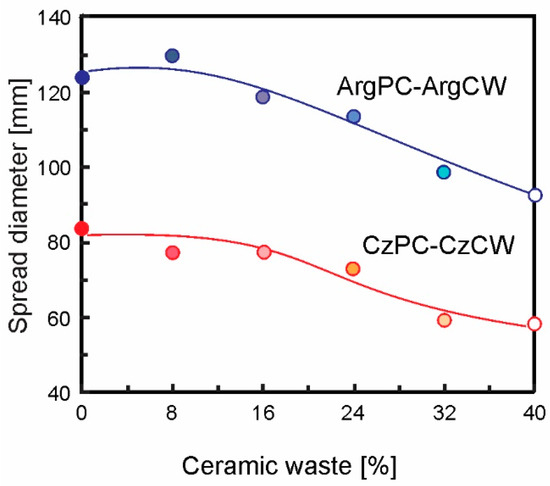

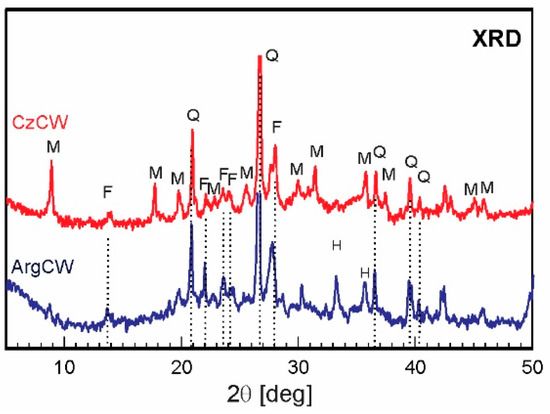

Two waste fired brick powders coming from brick factories located in Argentine and Czech Republic were examined as alternative mineral admixtures for the production of blended cements. In pastes composition, local Portland cements (Argentine and Czech) were substituted with 8–40%, by mass, with powdered ceramic waste. For the ceramic waste-Portland cement system, workability, the heat released, pozzolanity, specific density, compressive strength, hydrated phases, porosity, and pore size distribution were tested. The relevance of the dilution effect, filler effect, and pozzolanic activity was analyzed to describe the general behavior of the pozzolan/cement system. The properties and performance of cement blends made with finely ground brick powder depended on the composition of ceramic waste and its reactivity, the plain cement used, and the replacement level. Results showed that the initial mini-slump was not affected by a low ceramic waste replacement (8% and 16%), and then it was decreased with an increase in the ceramic waste content. Brick powder behaved as a filler at early ages, but when the hydration proceeded, its pozzolanic activity consumed partially the calcium hydroxide and promoted the formation of hydrated calcium aluminates depending on the age and present carbonates. Finally, blended cements with fired brick powder had low compressive strength at early ages but comparable strength-class at later age. Full article

During the production of concrete, cement, water, aggregate, and chemical and mineral admixtures will be used, and a large amount of carbon dioxide will be emitted. Conversely, during the decades of service life of reinforced concrete structures, carbon dioxide in the environment can ingress into concrete and chemically react with carbonatable constitutes of hardened concrete, such as calcium hydroxide and calcium silicate hydrate. This chemical reaction process is known as carbonation. Carbon dioxide will be absorbed into concrete due to carbonation. This article presents a numerical procedure to quantitatively evaluate carbon dioxide emissions and the absorption of ground granulated blast furnace slag (GGBFS) blended concrete structures. Based on building scales and drawings, the total volume and surface area of concrete are calculated. The carbon dioxide emission is calculated using the total volume of concrete and unit carbon dioxide emission of materials. Next, using a slag blended cement hydration model and a carbonation model, the carbonation depth is determined. The absorbed carbon dioxide is evaluated using the carbonation depth of concrete, the surface area of concrete structures, and the amount of carbonatable materials. The calculation results show that for the studied structure with slag blended concrete, for each unit of CO₂ produced, 4.61% of carbon dioxide will be absorbed during its 50 years of service life. Full article

High-calcium fly ash (FH) is the combustion residue from electric power plants burning lignite or sub-bituminous coal. As a mineral admixture, FH can be used to produce high-strength concrete and high-performance concrete. The development of chemical and mechanical properties is a crucial factor for appropriately using FH in the concrete industry. To achieve sustainable development in the concrete industry, this paper presents a theoretical model to systematically evaluate the property developments of FH blended concrete. The proposed model analyzes the cement hydration, the reaction of free CaO in FH, and the reaction of phases in FH other than free CaO. The mutual interactions among cement hydration, the reaction of free CaO in FH, and the reaction of other phases in FH are also considered through the calcium hydroxide contents and the capillary water contents. Using the hydration degree of cement, the reaction degree of free CaO in FH, and the reaction degree of other phases in FH, the proposed model evaluates the calcium hydroxide contents, the reaction degree of FH, chemically bound water, porosity, and the compressive strength of hardening concrete with different water to binder ratios and FH replacement ratios. The evaluated results are compared to experimental results, and good consistencies are found. Full article

Ground granulated blast furnace slag is widely used as a mineral admixture to replace partial Portland cement in the concrete industry. As the amount of slag increases, the late-age compressive strength of concrete mixtures increases. However, after an optimum point, any further increase in slag does not improve the late-age compressive strength. This optimum replacement ratio of slag is a crucial factor for its efficient use in the concrete industry. This paper proposes a numerical procedure to analyze the optimum usage of slag for the compressive strength of concrete. This numerical procedure starts with a blended hydration model that simulates cement hydration, slag reaction, and interactions between cement hydration and slag reaction. The amount of calcium silicate hydrate (CSH) is calculated considering the contributions from cement hydration and slag reaction. Then, by using the CSH contents, the compressive strength of the slag-blended concrete is evaluated. Finally, based on the parameter analysis of the compressive strength development of concrete with different slag inclusions, the optimum usage of slag in concrete mixtures is determined to be approximately 40% of the total binder content. The proposed model is verified through experimental results of the compressive strength of slag-blended concrete with different water-to-binder ratios and different slag inclusions. Full article
