Arc scanning synthetic aperture radar (ArcSAR) can achieve high-resolution panoramic imaging and retrieve submillimeter-level deformation information. To monitor buildings in a city scenario, ArcSAR must be lightweight; have a high resolution, a mid-range (around a hundred meters), and low power consumption; and be cost-effective. In this study, a novel high-resolution wide-beam single-chip millimeter-wave (mmwave) ArcSAR system, together with an imaging algorithm, is presented. First, to handle the non-uniform azimuth sampling caused by motor motion, a high-accuracy angular coder is used in the system design. The coder can send the radar a hardware trigger signal when rotated to a specific angle so that uniform angular sampling can be achieved under the unstable rotation of the motor. Second, the ArcSAR’s maximum azimuth sampling angle that can avoid aliasing is deducted based on the Nyquist theorem. The mathematical relation supports the proposed ArcSAR system in acquiring data by setting the sampling angle interval. Third, the range cell migration (RCM) phenomenon is severe because mmwave radar has a wide azimuth beamwidth and a high frequency, and ArcSAR has a curved synthetic aperture. Therefore, the fourth-order RCM model based on the range-Doppler (RD) algorithm is interpreted with a uniform azimuth angle to suit the system and implemented. The proposed system uses the TI 6843 module as the radar sensor, and its azimuth beamwidth is 64°. The performance of the system and the corresponding imaging algorithm are thoroughly analyzed and validated via simulations and real data experiments. The output image covers a 360° and 180 m area at an azimuth resolution of 0.2°. The results show that the proposed system has good application prospects, and the design principles can support the improvement of current ArcSARs. Full article

Microwave radar has advantages in detection accuracy and robustness, and it is an area of active research in unmanned ground vehicles. However, the existing conventional automotive corner radar, which employs real-aperture antenna arrays, has limitations in terms of observable angle and azimuthal resolution. This paper proposes a novel 3D ArcSAR method to address this issue, which combines rotational synthetic aperture radar (SAR) and direction estimation algorithms. The method aims to reconstruct 3D images of 360° scenes and offers distinctive advantages in both azimuthal and altitudinal sensing. Nevertheless, due to the unique structural characteristics of vehicle SAR, it is limited to receiving only a single snapshot signal for 3D sensing. We propose a resolution algorithm based on ArcSAR and the iterative adaptive approach (IAA) to resolve the limitation. Furthermore, the errors in altitude angle estimation of the proposed algorithm and conventional algorithms are analyzed under various conditions, including different target spacing and signal-to-noise ratio (SNR). Finally, we design and implement a prototype of the 3D ArcSAR sensing system, which utilizes a millimeter-wave MIMO radar system and a rotating scanning mechanical system. The experimental results obtained from this prototype effectively validate the effectiveness of the proposed method. Full article

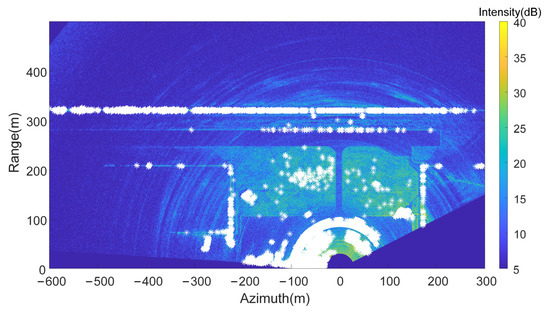

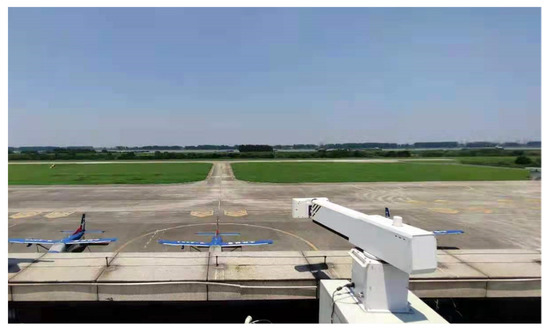

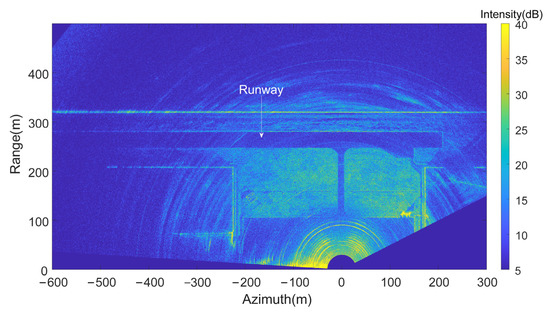

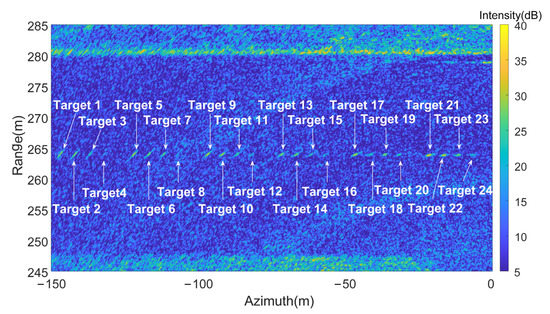

Arc-scanning synthetic aperture radar (AS-SAR) is an emerging technical means for detecting foreign object debris (FOD). Most FOD are small and appear as weak targets with a low signal-to-noise ratio (SNR) in AS-SAR images. Therefore, image noise is a fundamental challenge in detecting FOD on airport runways that leads to many false alarms. A weak scattering denoising method is proposed to aim at the noise caused by speckle and rough surface scattering. To enhance FOD detection, a transformation parameter concept is offered and adopted, which has different characteristics for the target and background. This paper estimates the transformation parameter through logarithms, normalization, and morphological erosion and optimizes them with edge-preserving filtering. The results show that despeckling and runway scattering suppression can be simultaneously implemented, and that field experiments validate the performance of this method. Full article

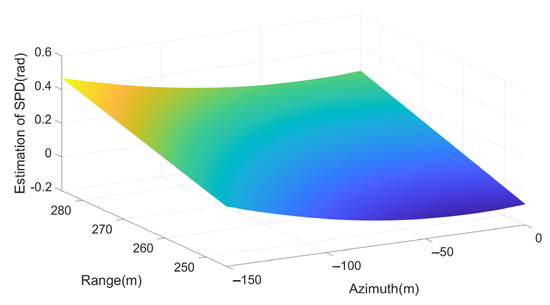

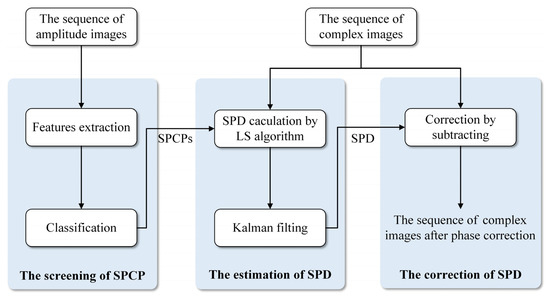

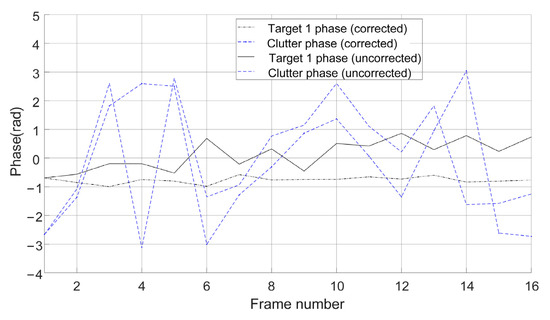

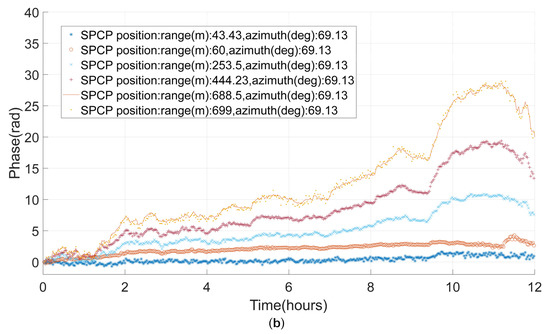

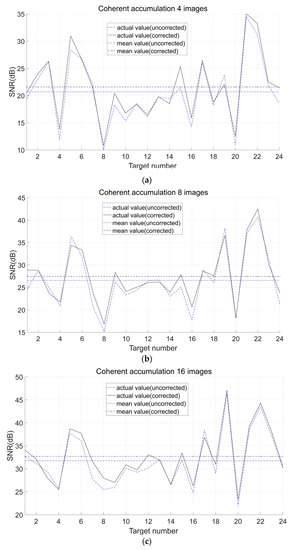

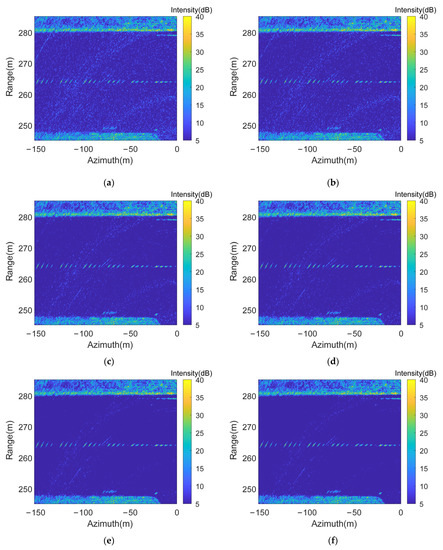

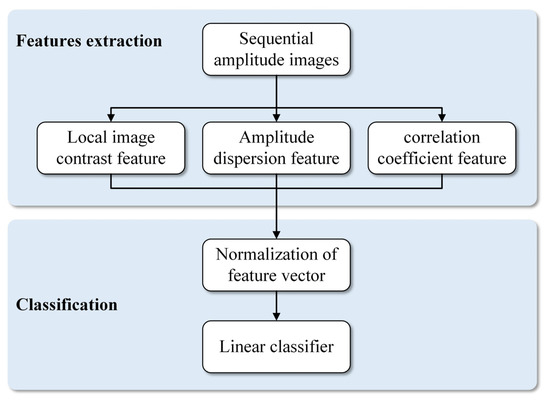

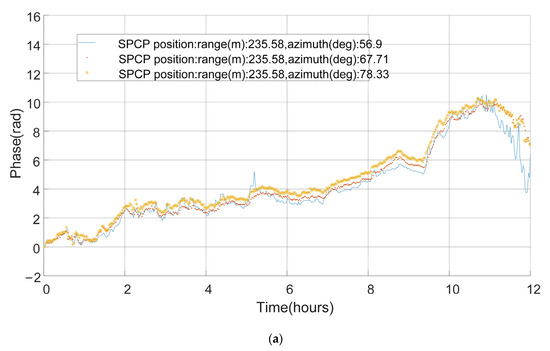

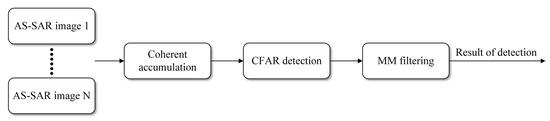

Due to the small size and various types of foreign object debris (FOD), radar detection of FOD on airport runways is a great challenge, and there are often a large number of false alarms in the detection results. Arc-scanning synthetic aperture radar (AS-SAR) is an emerging method for detecting FOD targets, which achieves omnidirectional coverage with a very high azimuth resolution. However, this method faces a similar challenge. A direct way to reduce false alarms is to increase the detection threshold based on enhancing the target signal-to-noise ratio (SNR), and in this paper, the coherent accumulation of multiple images is used to improve the target SNR. The stable phase is also an important feature of the target distinguishing background. Therefore, it is important to maintain the stability of the target phase. Aiming at the systematic phase drift (SPD) caused by atmospheric disturbance and system hardware, a spatial and temporal model is established, a corresponding correction approach is proposed, and the performance of the correction approach is validated by field experiments. Full article

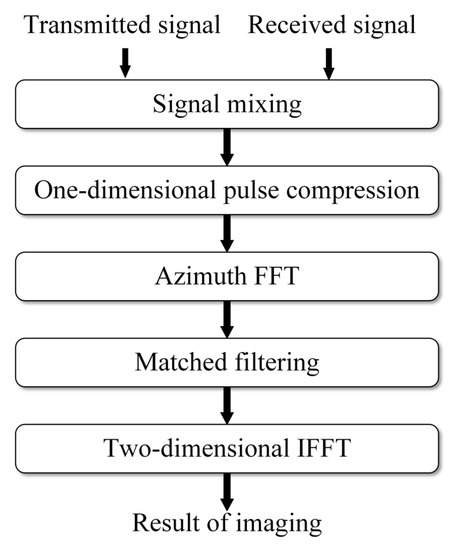

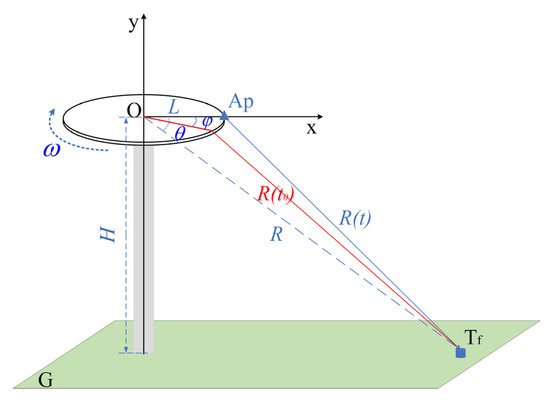

The ground-based arc-scanning synthetic aperture radar (ArcSAR) is capable of 360° scanning of the surroundings with the antenna fixed on a rotating arm. ArcSAR has much wider field of view when compared with conventional ground-based synthetic aperture radar (GBSAR) scanning on a linear rail. It has already been used in deformation monitoring applications. This paper mainly focuses on the accurate and fast imaging algorithms for ArcSAR. The curvature track makes the image focusing challenging and, in the classical frequency domain, fast imaging algorithms that are designed for linear rail SAR cannot be readily applied. This paper proposed an efficient frequency domain imaging algorithm for ArcSAR. The proposed algorithm takes advantage of the angular shift-invariant property of the ArcSAR signal, and it deduces the accurate matched filter in the angular-frequency domain, so panoramic images in polar coordinates with wide swath can be obtained at one time without segmenting strategy. When compared with existing ArcSAR frequency domain algorithms, the proposed algorithm is more accurate and efficient, because it has neither far range nor narrow beam antenna restrictions. The proposed method is validated by both simulation and real data. The results show that our algorithm brings the quality of image close to the time domain back-projection (BP) algorithm at a processing efficiency about two orders of magnitude better, and it has better image quality than the existing frequency domain Lee’s algorithm at a comparable processing speed. Full article

Ground-based arc-scanning synthetic aperture radar (ArcSAR) is the novel ground-based synthetic aperture radar (GBSAR). It scans 360-degree surrounding scenes by the antenna attached to rotating boom. Therefore, compared with linear scanning GBSAR, ArcSAR has larger field of view. Although the feasibility of ArcSAR has been verified in recent years, its imaging algorithm still presents difficulties. The imaging accuracy of ArcSAR is affected by terrain fluctuation. For rotating scanning ArcSAR, even if targets in scenes have the same range and Doppler with antenna, if the heights of targets are different, their range migration will be different. Traditional ArcSAR imaging algorithms achieve imaging on reference plane. The height difference between reference plane and target in scenes will cause the decrease of imaging quality or even image defocusing because the range migration cannot be compensated correctly. For obtaining high-precision ArcSAR image, we propose interferometric DEM (digital elevation model)-assisted high precision imaging method for ArcSAR. The interferometric ArcSAR is utilized to acquire DEM. With the assist of DEM, target in scenes can be imaged on its actual height. In this paper, we analyze the error caused by ArcSAR imaging on reference plane. The method of extracting DEM on ground range for assisted ArcSAR imaging is also given. Besides, DEM accuracy and deformation monitoring accuracy of proposed method are analyzed. The effectiveness of the proposed method was verified by experiments. Full article
