Search Results (7)

As a key component of the Tempcore process, the Tempcore cooler plays a critical role in enhancing the cooling efficiency of steel bars. A cylindrical corrugated tube designed specifically for the Tempcore cooling process of large diameter steel bars, where the corrugated surface induces turbulence to enhance cooling efficiency. The influence of its structural parameters on the cooling performance was investigated through a combination of numerical simulations and experimental validation. First, based on the law of mass conservation, the influence of structural parameters of the corrugated tube on their internal flow field was analyzed. Then, a simulation model of the Tempcore cooler was developed to explore the variation in steel bar cooling efficiency under different structural parameters. The results show that increasing the maximum inner diameter of the corrugated tube enhances cooling efficiency, which subsequently tends to stabilize. With increasing minimum inner diameter and pitch, the cooling efficiency of the bars first increases and then decreases. And based on the influence of individual parameters, an orthogonal simulation was performed to identify the optimal corrugated tube structural configuration for achieving maximum cooling efficiency. The minimum inner diameter was identified as a critical factor influencing the heat transfer efficiency of the steel bar. Finally, based on the results of orthogonal simulations, five corrugated tubes were fabricated and integrated into the Tempcore cooler for experimental validation. The accuracy of the simulation was verified through microstructural analysis of the produced steel bars, which exhibited a 38% increase in martensite volume fraction. The designed corrugated tubes significantly improve the cooling efficiency of the Tempcore process without requiring an upgrade to the water supply system capacity. Full article

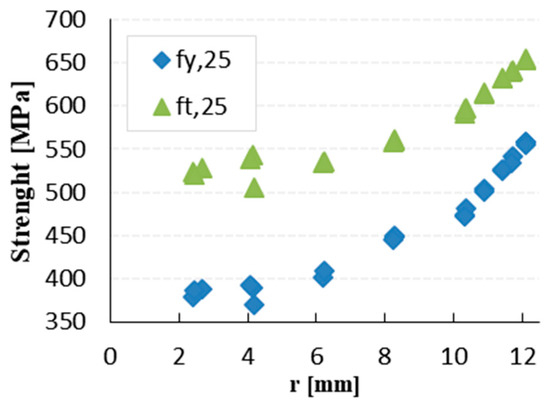

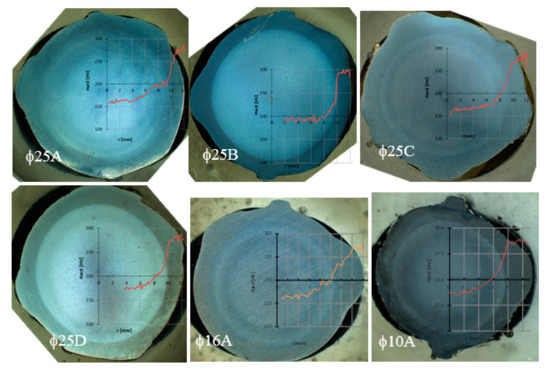

Due to the production process, reinforcing steel bars possess an inhomogeneous microstructure associated with different material properties over the cross-section (e.g., hardness, ductility or strength). Furthermore, the surface required for the bond has a negative effect on the fatigue behavior. The first investigations were carried out in the 1970s and detected the fillet radius r as a key influencing factor. Until now, few studies had been carried out that investigate the quantification of the surface properties on the fatigue behavior, and none of them compared these properties with the local strengths of the material. The current paper presents the first results of a reverse-engineered reinforcing steel bar based on a previously performed laser scanning process. The rebar models were used to calculate the notch stress factors for different diameters based on von Mises stresses taken from FEM simulations. The notch stress factors showed a functional relationship with the fillet radius, which was already shown in the literature. Further experimental investigations on the fatigue and tensile behavior of the structural components in the investigated Tempcore^® rebars were carried out on microstructure specimens eroded by WEDM. The results of the tensile tests were used to derive a yield and tensile strength distribution in the cross-section. Depending on the microstructure, a yield strength between 415 N/mm² (ferrite/pearlite core) and 690 N/mm² (tempered martensite surface) was found. The acting notch stresses show a logarithmic dependency of the fillet radius, but do not reach the material strength of the surface. Full article

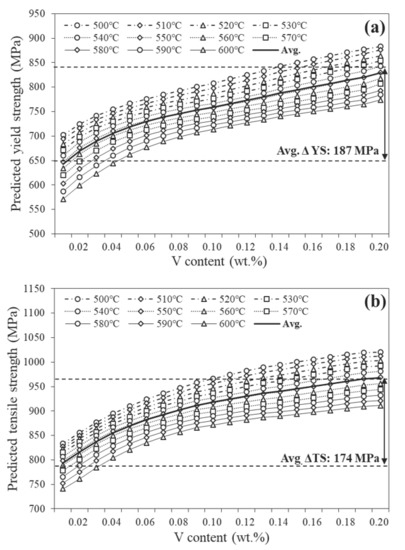

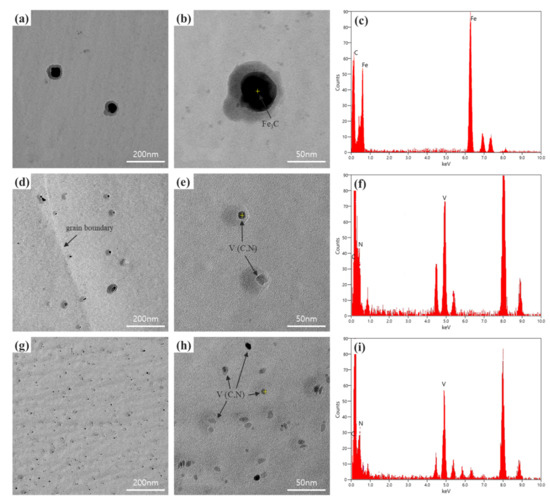

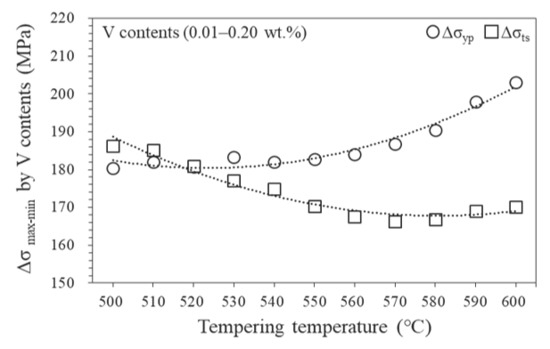

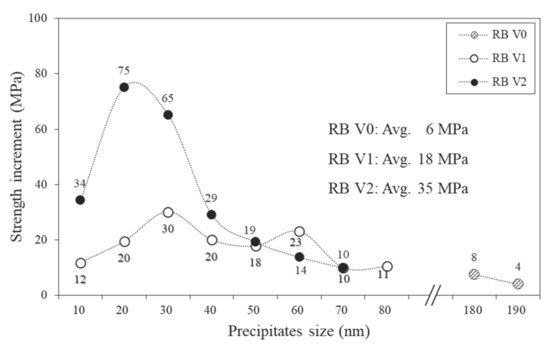

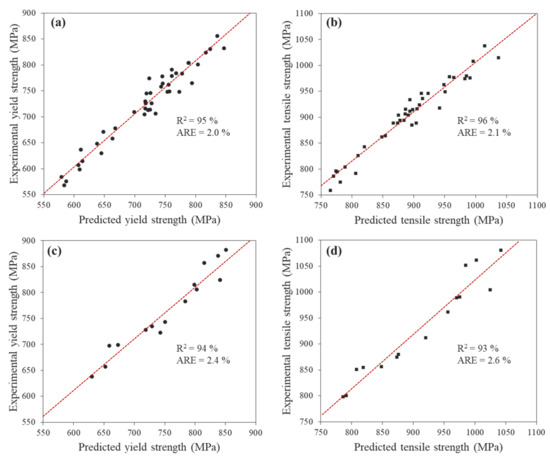

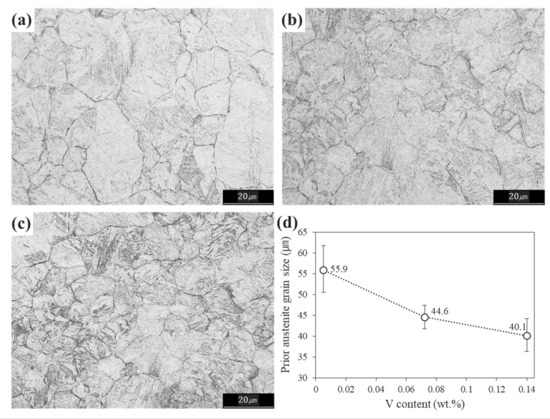

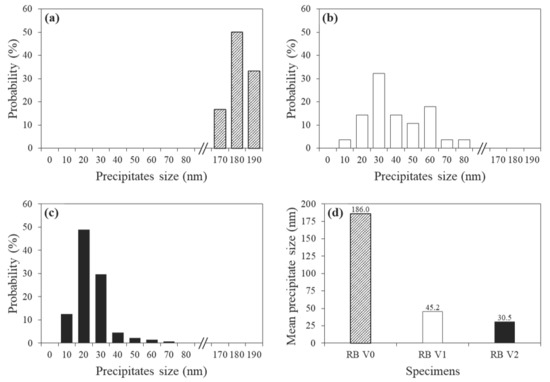

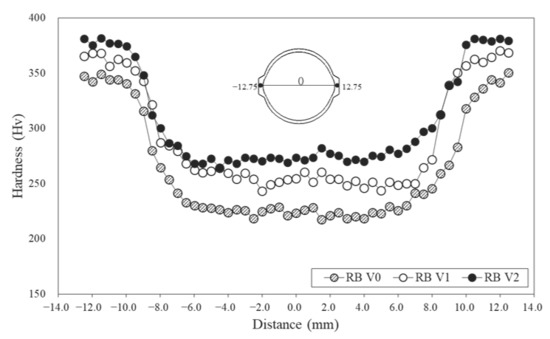

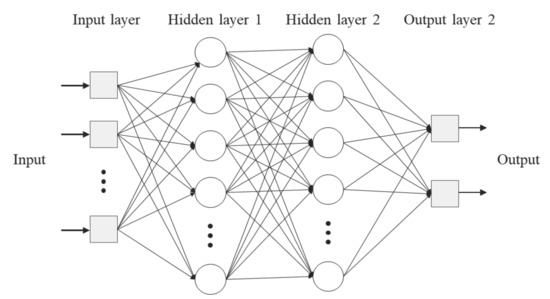

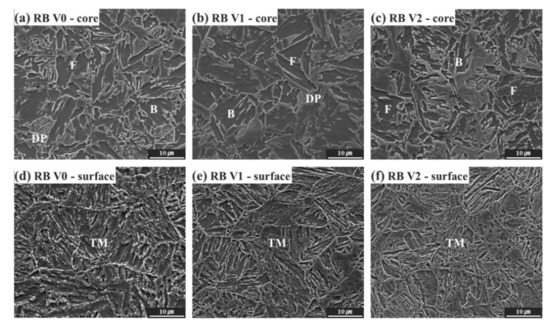

In high-strength rebar, the various microstructures obtained by the Tempcore process and the addition of V have a complex effect on the strength improvement of rebar. This study investigated the mechanism of strengthening of high-strength Tempcore rebars upon the addition of vanadium through artificial neural network (ANN) modelling. Various V contents (0.005, 0.072 and 0.14 wt.%) were investigated, and a large amount of bainite and V(C, N) were precipitated in the core of the Tempcore rebar in the high-V specimens. In addition, as the V content increased, the number of these fine precipitates (10–30 nm) increased. The precipitation strengthening proposed by the Ashby–Orowan model is a major contributing factor to the yield-strength increase (35 MPa) of the Tempcore rebar containing 0.140 wt.% V. The ANN model was developed to predict the yield and tensile strengths of Tempcore rebar after the addition of various amounts of V and self-tempering at various temperatures, and it showed high reproducibility compared to the experimental values (R-square was 93% and the average relative error was 2.6%). ANN modelling revealed that the yield strength of the Tempcore rebar increased more significantly with increasing V content (0.01–0.2 wt.%.) at relatively high self-tempering temperatures (≥530 °C). These results provide guidelines for selecting the optimal V content and process conditions for manufacturing high-strength Tempcore rebars. Full article

Two B400B-R and B500B grade rebars were industrially produced through a Tempcore process. The standard chemical composition of B500B grade was additionally alloyed with 0.067 wt.% V to enhance its mechanical properties. A set of optimized processing parameters were applied to manufacture two different diameters D20 (Ø 20 mm) and D32 (Ø 32 mm). The microstructure -mechanical properties relationships were evaluated using optical and scanning electron microscopes, hardness, and tensile testing. In addition, a thermal model was developed to define the thermal cycle evolution during cooling in the quenching & tempering box (QTB) to simulate the kinetics of V(C,N) precipitation. The microstructure observations showed a typical graded microstructure consisting of ferrite-pearlite core and outer tempered martensite ring for both grades of both diameters. The optimized processing parameters for B400B-R of D32 (compared with D20) resulted in softening of the core (from 160 to 135 HV10) and tempered martensite surface (from 220 to 200 HV10) as well as in decreasing the yield strength (from 455 to 413 MPa) and tensile strength (from 580 to 559 MPa). On the contrary, an increase in hardness of the core (from 165 to 175 HV10) and the outer tempered martensite (from 240 to 270 HV10), in addition to an increase in yield strength (from 510 to 537 MPa) at almost the same level of tensile strength of 624–626 MPa are observed for B500B grade D32 compared with D20. The modeling and simulation calculations suggest that the manufacturing D32 rebars of B500B grade involves longer quenching time in the QTB which allow deeper tempered martensite surface along with a relatively higher core temperature that renders faster kinetics and larger volume fraction of V(C,N) precipitates. The current study demonstrates that the full potential of V-alloying can be exploited when a sufficient quenching time at the equalization temperature is achieved, which is valid for D32 rebars. Full article

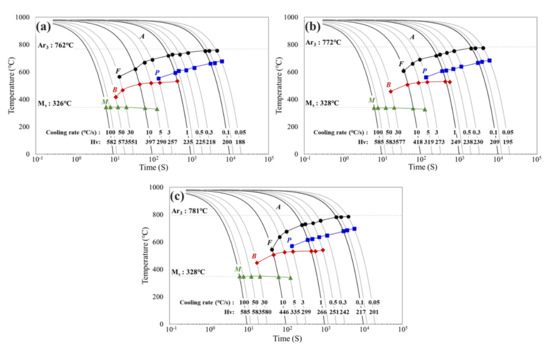

Reinforcing steel bars (rebars) are widely manufactured using the Tempcore™ process. Several studies have been conducted analyzing the effect of the heat treatment route on the strength and corrosion resistance of rebars, but knowledge of its effects on the residual stresses of the finished product are largely lacking. This paper presents experimental investigations to identify the material parameters necessary to simulate the Tempcore™ process using thermo-elasto-plastic constitutive modeling in order to study the generation of residual stresses during the manufacturing process. Mechanical parameters such as yield strength at elevated temperatures and elastic constants were determined experimentally. A continuous cooling transformation diagram needed to model the phase transformations was also identified and is presented here. Residual stress distributions in the surface region of the rebar were characterized using X-ray diffraction. Further characterizations of microstructure, chemical composition, and hardness were carried out. The constitutive modeling approach for the numerical simulation is briefly described for which the experimentally determined parameters are required as input. Full article

Tempcore process simulator (TPS) has been developed in this study to analyze the microstructural evolution of quenched and tempered rebar. There has been an increasing need to relate the complex microstructures to the resulting properties of quenched and tempered rebar. However, information on such relationships typically requires precise thermal histories imposed on the workpiece. Therefore, TPS, capable of simulating the Tempcore process, has been developed to produce high-fidelity data. TPS mainly consists of a vacuum induction furnace, pilot rolling mill, box furnace, and cooling unit to simulate shop floor operations. A series of experimental tests were successfully carried out with various parameters, such as reheating temperature, water flow, water pressure, and cooling time. The effects of chemical compositions and cooling time on the microstructural evolution and mechanical properties of quenched and tempered rebar have been analyzed to validate the performance of TPS. The results show that TPS can simulate the Tempcore process with a high degree of fidelity and reliability. Full article

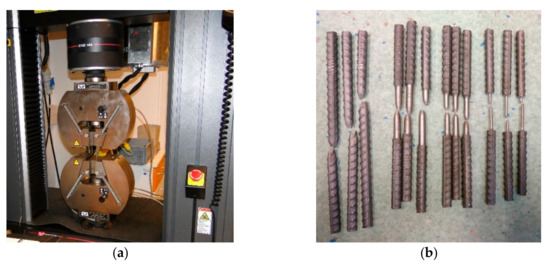

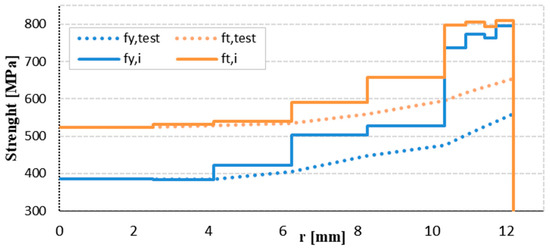

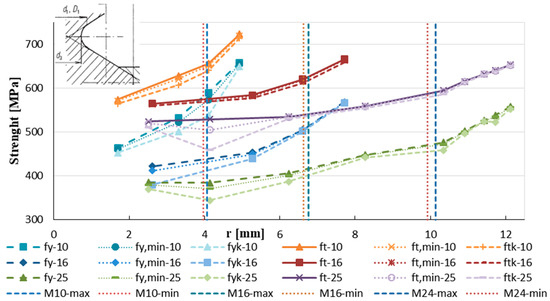

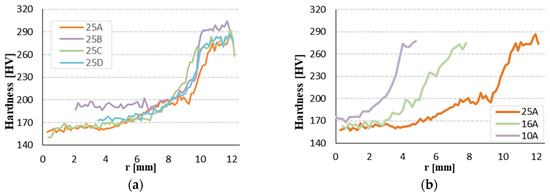

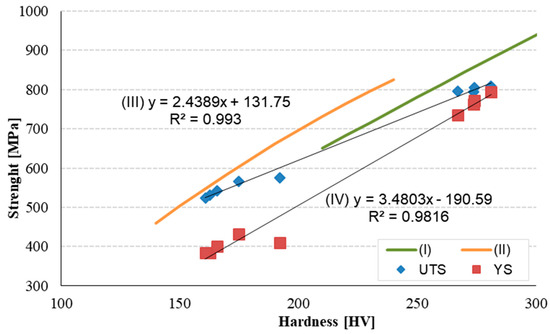

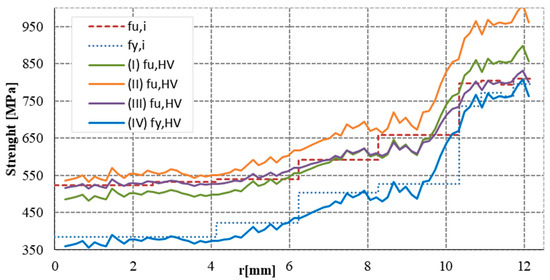

The tempcore process is implemented in rolling mills to produce high strength reinforcing steel. Besides being used as reinforcement, rebars are also used as the base material for the manufacturing of anchor bolts. The mechanical properties of reinforcement bars used in Europe are assessed in accordance with Eurocode without the recommendations for cast-in anchor bolts. The material properties of Tempcore rebars are not homogenous over the bar cross section. The European Assessment Document (EAD) for the cast-in anchor bolts does not exactly specify the mechanical properties of the thread part. The aim of these experiments is to show the different mechanical properties of rebars and their thread parts. The experiments were performed on rebars modified by peeling to characterize the reduction of diameter in a thread part. As a possible way to predict mechanical properties in a non-destructive way, the hardness tests were performed. Next, the application of the correlation relationship between hardness and tensile strength has been determined. The paper formulates preliminary recommendations for assessment of the cast-in anchor bolts in practice. Full article
