Search Results (48)

In order to investigate the influence of graphene/rubber powder compound modified asphalt on the low-temperature cracking resistance of drainage asphalt mixtures, graphene/rubber powder compound modified asphalt mixtures were prepared using graphene/rubber powder compound modified asphalt for drainage asphalt mixtures, and compared with SBS-modified asphalt and rubber powder-modified asphalt, and the low-temperature cracking resistance of graphene/rubber powder compound modification asphalt mixtures was investigated through the Marshall Stability Test, Semi-circular Bending Test (SCB), and Freeze–Thaw Split Test. Research was carried out. At the same time, a scanning electric microscope (SEM) was adopted to analyze the micro-mechanism of the graphene/rubber powder compound modified asphalt mixtures under the microscopic condition. The findings showed that graphene dispersed the aggregation of rubber powder effectively in the microscopic state and improved the stability of the composite modified asphalt. The addition of graphene improved the fracture energy of rubber powder composite modified asphalt by 15.68% under the condition of −15 °C to 0 °C, which effectively slowed down the decrease of fracture energy; at −15 °C and −10 °C, the largest stresses were improved by 7.50% and 26.71%, respectively, compared to the drainage asphalt mixtures prepared as rubber powder-modified asphalt and SBS-modified asphalt. After a freeze–thaw cycle, the maximum stress decrease of graphene/rubber powder compound modified asphalt was 21.51% and 10.37% at −15 °C and 0 °C, respectively. When compared to rubber powder-modified asphalt, graphene/rubber powder compound modified asphalt significantly improved the low-intensity cracking resistance of drainage asphalt mixtures at low temperatures, slowed down the decrease of the maximum stress, and its low-temperature cracking resistance was more stable. Full article

Foamed asphalt cold recycled mixtures can provide an effective approach for the reutilization of reclaimed asphalt pavement (RAP), but conventional asphalt foaming technology primarily exploits matrix asphalt as the raw material. To address this issue, this study explores rubberized asphalt with cold recycling technology to develop a foamed rubber asphalt cold recycled mixture (FRCM). The semi-circular bending (SCB) test was employed to investigate its cracking resistance. Load–crack mouth opening displacement (CMOD)–time curves under various temperatures were analyzed, and digital image technique was resorted to monitor crack propagation and growth rates. Fracture toughness, fracture energy, and flexibility index were compared with those of traditional foamed matrix asphalt cold recycled mixture (FMCM). The results show that, under the same test temperature, the FRCM exhibits slower crack propagation; larger peak load; and higher fracture toughness, fracture energy, and flexibility index in comparison with the FMCM. These improvements are more pronounced at low temperatures. For both mixtures, fracture toughness and fracture energy are decreased with increasing the temperature, while the flexibility index shows the opposite trend. The rigid zone accounts for a larger portion of fracture energy at low temperatures. The findings provide technical references for improving the cracking resistance of cold recycled asphalt layers using rubberized asphalt. Full article

Asphalt concrete has a unique low-temperature fracture mechanism due to the complex interaction between macro- and micro-cracks. This study investigated the toughening effect of micro-cracks on the crack propagation behavior of asphalt concrete at low temperatures. The Taylor model was applied to establish a modulus damage model of asphalt concrete. In combination with the discrete element method (DEM), a 2D microstructure damage model of asphalt concrete with heterogeneity (aggregate, mortar, and voids) and multi-level (aggregate gradation) characteristics was constructed. A virtual semi-circular bending (SCB) test was performed to reveal the toughening effect of the micro-cracks in terms of macroscopic and microscopic parameters, such as the modulus damage variable, dynamic parameters associated with the main crack propagation, and stress field distribution, laying a foundation for predicting the propagation behavior and path of macroscopic cracks in asphalt concrete. The results showed that (1) the proposed modulus damage model based on the Taylor model produced results that were in good agreement with the numerical simulation (virtual SCB test) results. With an increase in the micro-crack density, the influence of the main cracks on the modulus damage of asphalt concrete gradually reduced, indicating that the micro-cracks exhibited a toughening effect on the main crack propagation; (2) At the meso-scale, the toughening effect of the micro-cracks extended the duration of the crack propagation stage and macro-crack formation stage; that is, the toughening effect of the micro-cracks had a shielding effect on the main crack propagation; (3) The toughening effect could inhibit the shear stress field, contributing to preventing the deterioration in the modulus of asphalt concrete. Full article

Salts can have detrimental effects on asphalt pavements, leading to permanent damage that compromises their durability and sustainability. This study investigates the damage mechanisms of asphalt pavements under coupled salt–thermal–mechanical effects using multi-scale modeling. Pull-off and semicircular bending (SCB) tests were conducted to determine material parameters and validate numerical models. Experimental data demonstrated that after 48 h of salt treatment at −10 °C, specimens exhibited reductions in cohesive strength ranging from 23.5% to 26% and adhesive strength decreasing by 25% to 44% compared to untreated controls. More severe degradation was observed at 0 °C, with cohesive strength diminishing by up to 63.8% and adhesive strength declining by up to 71.6%. A multi-scale finite element (FE) pavement model incorporating cohesive zone modeling (CZM) was developed to simulate damage behavior within asphalt concrete. Salt diffusion analysis revealed limited penetration depth within short exposure periods, and results showed that salt penetration reached only about 10 mm into the pavement layers after 48 h. Results indicated significant reductions in adhesive and cohesive strengths due to salt exposure, with damage susceptibility increasing under combined thermal fluctuations and mechanical loading. Additionally, the effects of moving load magnitude and speed on pavement damage were examined, showing higher damage accumulation at lower speeds and heavier loads. This research provides insights into pavement deterioration mechanisms, contributing to improved durability and maintenance strategies for asphalt pavements in salt environments. Full article

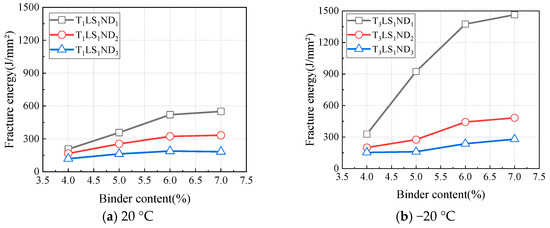

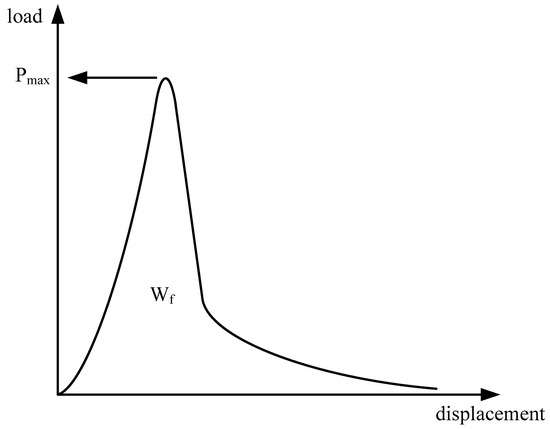

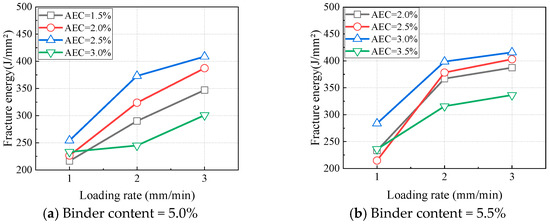

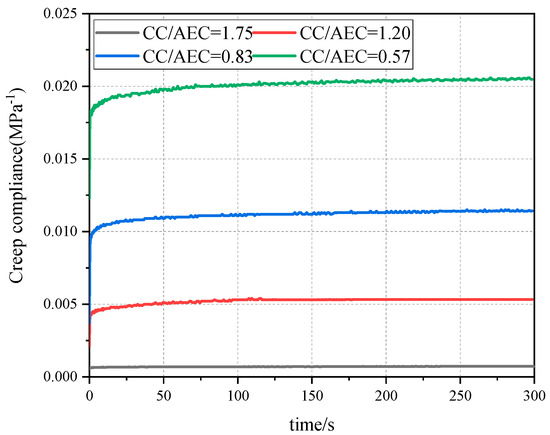

Cement asphalt emulsion mixture (CAEM) is a composite material composed of asphalt emulsion, cement, and graded aggregates. Currently, CAEM is primarily applied as a base course material for highways to improve the cracking resistance of pavement structures. To achieve this goal, the fracture performance of CAEM plays a crucial role. Experimental studies have demonstrated that the fracture behavior of CAEM exhibits a significant correlation with the amount of asphalt emulsion and binder used. The influence of asphalt emulsion and binder content on the fracture parameters of CAEM was investigated through semi-circular bending (SCB) tests, combined with analyses of peak load and fracture energy. Furthermore, the influences of temperature, loading rate, and notch depth on fracture performance were evaluated. The microstructure of the cured binder was characterized by scanning electron microscopy (SEM), while the deformation behavior of CAEM was assessed through creep tests. The experimental results indicate that, to ensure satisfactory fracture resistance in CAEM, the optimal content of asphalt emulsion should be controlled within the range of 2.0~3.0%, with a corresponding binder content of 6.0%. This study provides theoretical and practical guidance for the material design optimization of CAEM, with a specific focus on enhancing fracture resistance performance. Full article

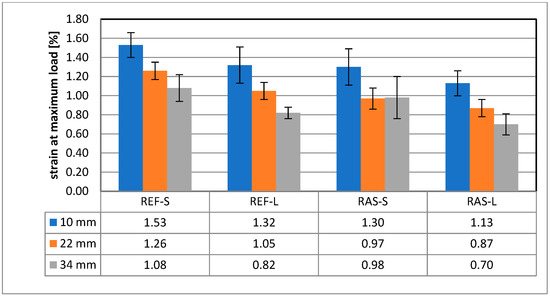

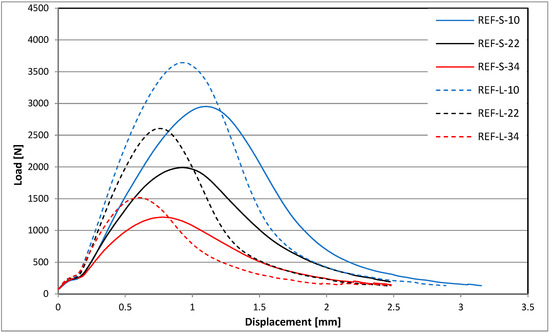

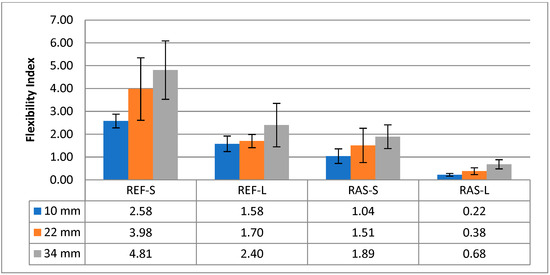

The semi-circular bending method (SCB) is a useful test for evaluating the cracking resistance of asphalt mixtures with added reclaimed asphalt shingles. A mixture of the asphalt concrete AC 16 with 50/70 paving bitumen was used for the binder course test as a reference mix. The purpose of the paper is to evaluate two aging conditions (short-term and long-term) of the above-mentioned asphalt mixtures in relation to their fracture properties. Laboratory experiments are enhanced with the application of image processing techniques (digital image correlation and image segmentation) that account for the asphalt mixture heterogeneity. Consequently, they can provide a more detailed description of the specimen performance. Statistical analyses of the laboratory results indicate that the best sensitivity in terms of differentiating the tested mixtures, especially taking into account the aging conditions of the mixtures, was observed for the post-peak parameters such as the flexibility index (FI), toughness index (TI), and, above all, cracking resistance index (CRI), for which the average coefficient of the result variability is approximately 10%, while for the FI and TI parameters it is approximately 30%. Digital image correlation analyses provided a confirmative illustration of the aforementioned observation. Full article

This paper presents gradations of both Hot In-place Recycling (HIR) and Cold In-place Recycling (CIR) and analysis of cores collected from CIR/Hot Mix Asphalt (HMA) overlay sections in Iowa. Milling samples were obtained from an HIR recycling project on IA 22 in Wellman, Iowa. It was concluded that the average gradation of HIR millings was coarser than that of CIR millings by retaining the original aggregate gradations. Cores were then extracted from CIR pavement with foamed asphalt overlaid by HMA at the right wheel path and between wheel paths at eight locations on US 34 in Mills and Wapello Counties. The cores were cut into discs to isolate the pavement layers, and the discs were fabricated into semicircular bending test specimens. Based on the Semicircular Bending (SCB) tests performed on both CIR and HMA specimens, CIR specimens with higher asphalt binder contents exhibited higher flexibility index values. Since CIR pavement layers were found to be more flexible than the HMA overlay layers, it can be speculated that CIR layers may serve as a stress-relieving layer and mitigate reflective cracking. Full article

Cracks in asphalt mixtures compromise the structural integrity of roads, increase maintenance costs, and shorten pavement lifespan. These cracks allow for water infiltration, accelerating pavement deterioration and jeopardizing vehicle safety. This research aims to evaluate the impact of synthetic fibers, specifically glass fiber (GF) and polypropylene fiber (PPF), on the crack resistance of Hot-Mix Asphalt (HMA). An optimal asphalt binder content of 5% was used in all sample designs. Using the dry mixing technique, GFs and PPFs were incorporated into the HMA at dosages of 0.50%, 1.00%, and 1.50% by weight of the aggregate. The effects of these fibers on the mechanical fracture properties of the HMA were assessed using Semi-Circular Bending (SCB), Indirect Tensile Asphalt Cracking Tests (IDEAL-CTs), and Three-Point Bending (3-PB) tests. This study focused on fracture parameters such as fracture work, peak load, fracture energy, and crack indices, including the Flexibility Index (FI) and Crack Resistance Index (CRI). The results from the SCB and IDEAL-CT tests showed that increasing GF content from 0.5% to 1.5% significantly enhances the flexibility and crack resistance of HMA, with FI, CRI, and CT Index values increasing by 247.5%, 55%, and 101.35%, respectively. Conversely, increasing PPF content increases the mixture’s stiffness and reduces its crack resistance. The PP-1 mixture exhibited higher FI and CT Index values, with increases of 31.1% and 10%, respectively, compared to the PP-0.5 mixture, based on SCB and IDEAL-CT test results. The SCB, IDEAL-CT, and 3-PB test results concluded that fibers significantly influence the fracture properties of bituminous mixtures, with a 1% reinforcement dosage of both PPFs and GFs being optimal for enhancing performance across various applications. Full article

The effect of moisture on the fracture resistance of asphalt concrete is a significant concern in pavement engineering. To investigate the effect of the water vapor concentration on the fracture properties of asphalt concrete, this study first designed a humidity conditioning program at the relative humidity (RH) levels of 2%, 50%, 80%, and 100% for the three types of asphalt concrete mixtures (AC-13C, AC-20C, and AC-25C).The finite element model was developed to simulate the water vapor diffusion and determine the duration of the conditioning period. The semi-circular bending (SCB) test was then performed at varying temperatures of 5 °C, 15 °C, and 25 °C to evaluate the fracture energy and tensile strength of the humidity-conditioned specimens. The test results showed that the increasing temperature and the RH levels resulted in a lower peak load but greater displacement of the mixtures. Both the fracture energy and tensile strength tended to diminish with the rising temperature. It was also found that moisture had a significant effect on the tensile strength and fracture energy of asphalt concrete. Specifically, as the RH level increased from 2% to 100% (i.e., the water vapor concentration rose from 0.35 g/m³ to 17.27 g/m³), the tensile strength of the three types of mixtures was reduced by 34.84% on average, which revealed that the water vapor led to the loss of adhesion and cohesion within the mixture. The genetic expression programming (GEP) model was developed to quantify the effect of water vapor concentrations and temperature on the fracture indices. Full article

Fatigue cracking is one of the primary distresses of asphalt pavements, which significantly affects the asphalt pavement performance. The fatigue behavior of the asphalt mixture observed in the laboratory test can vary depending on the type of fatigue test and the dimension and shape of the test specimen. The variations can make it difficult to accurately evaluate the fatigue properties of the field asphalt concrete. Accordingly, this study proposed a reliable method to evaluate the fatigue behavior of the asphalt field cores based on discrete element modeling (DEM). The mesoscopic geometric model was built using discrete element software PFC (Particle Flow Code) and CT scan images of the asphalt field cores. The virtual fatigue test was simulated in accordance with the semi-circular bending (SCB) test. The mesoscopic parameters of the contacting model in the virtual test were determined through the uniaxial compression dynamic modulus test and SCB test. Based on the virtual SCB test, the displacement, contact forces, and crack growth were analyzed. The test results show that the fatigue life simulated in the virtual test was consistent with that of the SCB fatigue test. The fatigue cracks in the asphalt mixture were observed in three stages, i.e., crack initiation, crack propagation, and failure. It was found that the crack propagation stage consumes a significant portion of the fatigue life since the tensile contact forces mainly increase in this stage. Full article

This study experimentally investigates the influence of metal chips and glass fibers on the mode I fracture toughness, energy absorption, and tensile strength of polymer concretes (PCs) manufactured by waste aggregates. A substantial portion of the materials employed in manufacturing and enhancing the tested polymer concrete are sourced from waste material. To achieve this, semi-circular bend (SCB) samples were fabricated, both with and without a central crack, to analyze the strength and fracture behavior of the composite specimens. The specimens incorporated varying weight percentages comprising 50 wt% coarse mineral aggregate, 25 wt% fine mineral aggregate, and 25 wt% epoxy resin. Metal chips and glass fibers were introduced at 2, 4, and 8 wt% of the PC material to enhance its mechanical response. Subsequently, the specimens underwent 3-point bending tests to obtain tensile strength, mode I fracture toughness, and energy absorption up to failure. The findings revealed that adding 4% brass chips along with 4% glass fibers significantly enhanced energy absorption (by a factor of 3.8). However, using 4% glass fibers alone improved it even more (by a factor of 10.5). According to the results, glass fibers have a greater impact than brass chips. Introducing 8% glass fibers enhanced the fracture energy by 92%. However, in unfilled samples, aggregate fracture and separation hindered crack propagation, and filled samples presented added barriers, resulting in multiple-site cracking. Full article

This manuscript presents a comprehensive study on the sustainable optimization of asphalt mixtures tailored for regions prone to flooding. The research addresses the challenges associated with water damage to asphalt pavements by incorporating innovative additives. The study centers on incorporating recycled Low-Density Polyethylene (LDPE) and a tailored Carnauba–Soybean Oil Additive, advancing asphalt mixtures with a Control mix, LDPE (5%) + Control, and LDPE (5%) + 3% Oil + Control. A critical aspect of the research involves subjecting these mixtures to 30 wetting and drying cycles, simulating the conditions prevalent in tropical flood-prone areas. The incorporation of innovative additives in asphalt mixtures has demonstrated significant improvements across various performance parameters. Tensile Strength Ratio (TSR) tests revealed enhanced tensile strength, with the LDPE (5%) + 3% Oil-modified mixture exhibiting an impressive TSR of 85.7%. Dynamic Modulus tests highlighted improved rutting resistance, showcasing a remarkable increase to 214 MPa in the LDPE (5%) with a 3% Oil-modified mixture. The Semi-Circular Bending (SCB) test demonstrated increased fracture resistance and energy absorption, particularly in the LDPE (5%) with 3% Oil-modified mixture. Hamburg Wheel-Tracking (HWT) tests indicated enhanced moisture resistance and superior rutting resistance at 20,000 cycles for the same mixture. Cantabro tests underscored improved aggregate shatter resistance, with the LDPE (5%) + 3% Oil-modified mixture exhibiting the lowest weight loss rate at 9.820%. Field tests provided real-world insights, with the LDPE (5%) + 3% Oil mixture displaying superior stability, a 61% reduction in deflection, and a 256% improvement in surface modulus over the control mixture. This research lays the groundwork for advancing the development of sustainable, high-performance road pavement materials, marking a significant stride towards resilient infrastructure in flood-prone areas. Full article

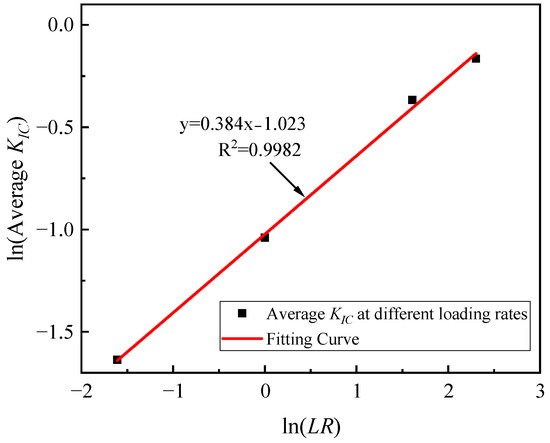

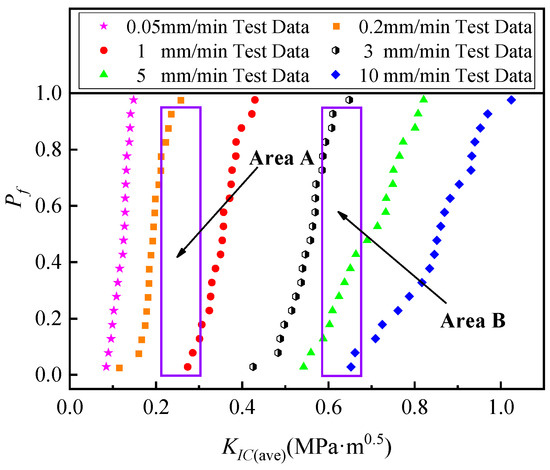

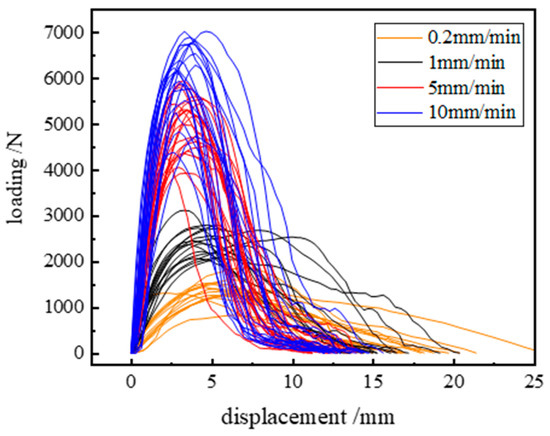

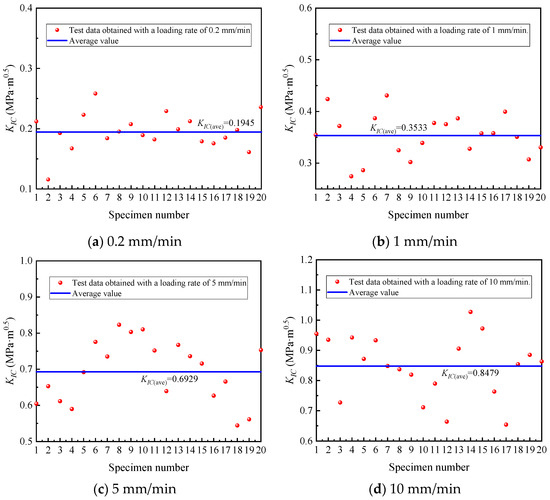

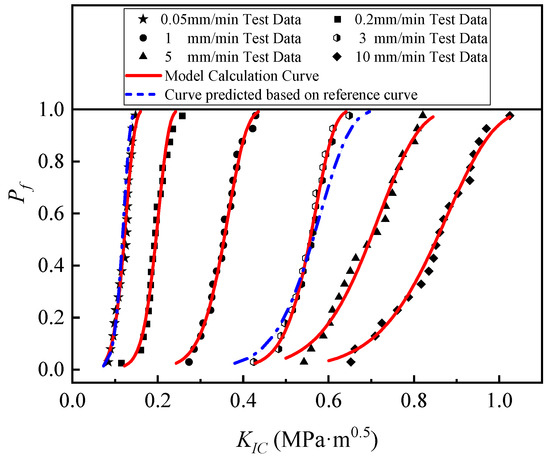

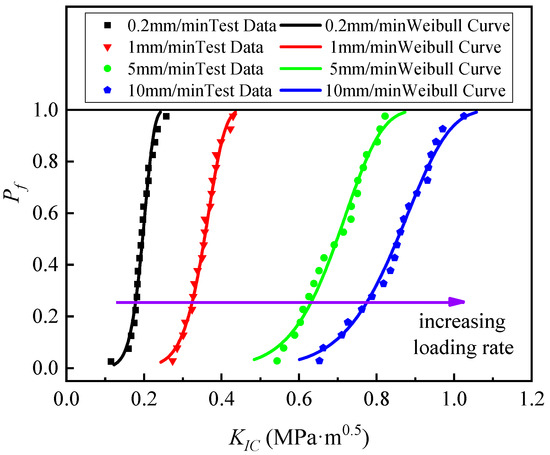

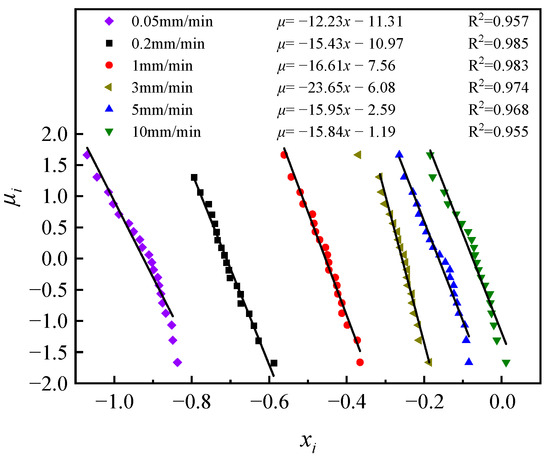

The cracking problem of asphalt concrete panels is a crucial consideration in the design of hydraulic asphalt concrete seepage control bodies. Panels experiencing uneven rises or falls of water levels during impoundment may exhibit loading rate effects. Investigating the fracture toughness value of asphalt concrete under varying loading rates is essential. This study employs a statistical method to calculate the fracture index K_IC, using the semi-circular bending test (SCB) to examine the effect of loading rates on the Type I fracture mode of hydraulic asphalt concrete. The data are analyzed using the two-parameter Weibull distribution curve, offering insights into the minimum number of K_IC test specimens. The results indicate an increase in K_IC with loading rate, with greater data dispersion at faster rates. The Weibull distribution curve successfully fits the fracture behavior under different loading rates, providing valuable predictions. This study estimates the minimum number of SCB test specimens to be nine, based on a confidence level of 0.95 and a relative deviation not exceeding 5%. Full article

In order to study the modification mechanisms of a warm-mixing agent and high dosage on rubber-powder-modified asphalt, as well as the influence of salt freeze–thaw cycling on the mechanism of warm-mixed high-dosage-rubber-powder-modified asphalt, macro- and micro-experimental methods were used to analyze the low-temperature crack resistance performance of six types of rubber-powder-modified asphalt mixtures under salt freeze–thaw cycling. By using digital image processing (DIC) technology to record and analyze the loading processes of specimens in semicircular three-point bending (SCB) tests, combined with atomic force microscopy (AFM) tests, the low-temperature crack resistance of the asphalt mixtures was explored, and it was inferred that the micro-mechanical performance indicators of the asphalt were correlated with the low-temperature crack resistance performance indicators of the asphalt mixtures. The results indicate that the salt solution caused greater damage to the asphalt than water. The addition of more rubber powder improved the low-temperature cracking resistance of the asphalt mixtures. There was a significant correlation between the micro-mechanical properties of the asphalt and the low-temperature crack resistance of the asphalt mixtures, and a dynamic mechanical thermal analyzer (DMT) showed a stronger correlation with the strain derivative ($E^{\prime }\left(t\right)$) than the adhesion force index. The SDYK-type warm-mixing agent had a better effect on the low-temperature cracking resistance of the asphalt mixtures than the EM-type warm-mixing agent. Full article

To better reveal the performance development of bitumen emulsion-based cold in-place recycling (BE-CIR) mixture over curing, a semi-sealed laboratory curing method was proposed in this research to simulate the in situ moisture evaporation process and cracking resistance of the BE-CIR specimen at different depths during a curing time of 28 days, which was also investigated by the semi-circular bending (SCB) test. The influencing factors of cement content (1.5% to 2.5%), initial moisture content (3.5% to 4.5%), curing temperature (25 °C to 45 °C) and relative humidity were investigated, and the significance of different factors affecting the performance development was also analyzed. The results indicate significant variations in cracking performance parameters at different depths, with the top part exhibiting notably higher tensile strength and fracture energy compared to the bottom part, and a gradient index (GI) is proposed to describe the difference. Cement content affected early tensile strength and fracture energy, while the initial moisture content affected the development rate of the performance. The influence of curing temperature was extensive, and as the temperature increased beyond 40 °C, the strength of the effect decreased. High humidity during the early stage of curing inhibited the strength formation and development of fracture energy. The performance development of the BE-CIR mixture is more significantly influenced by the moisture migration process, which is governed by curing temperature and relative humidity, as opposed to the cement content and initial moisture content. Full article
