Search Results (7)

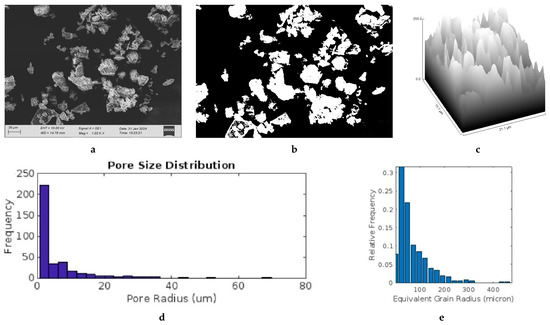

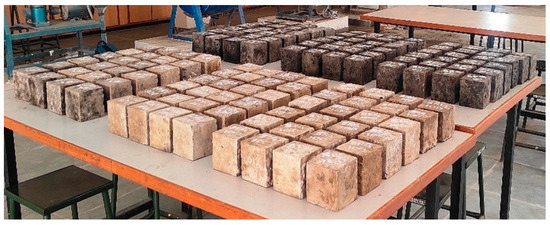

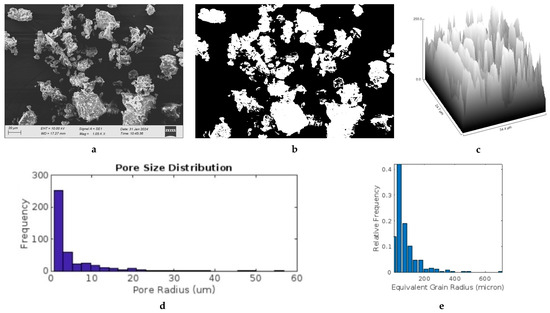

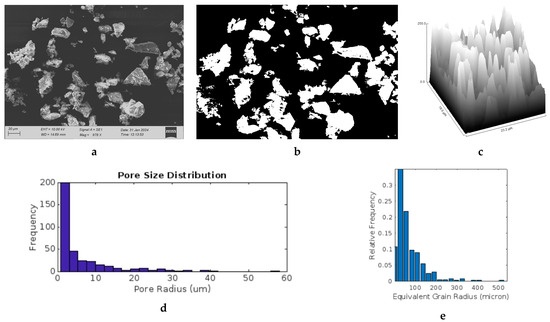

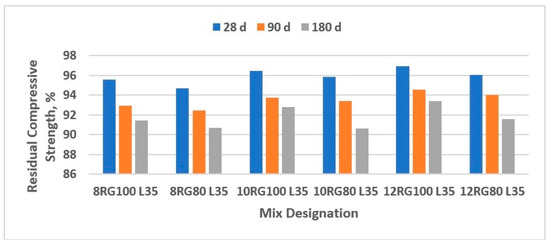

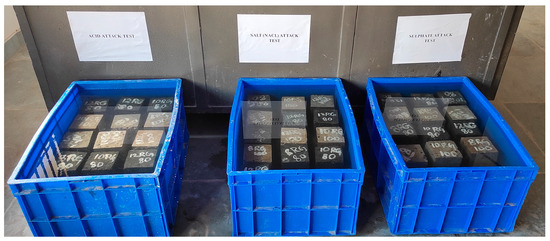

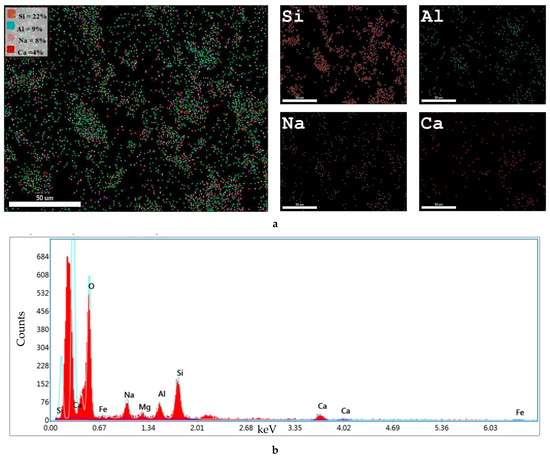

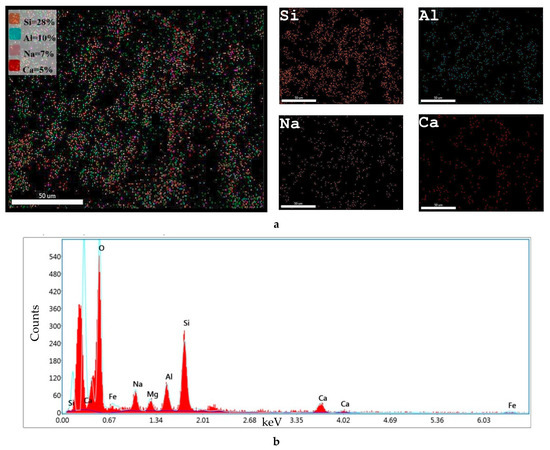

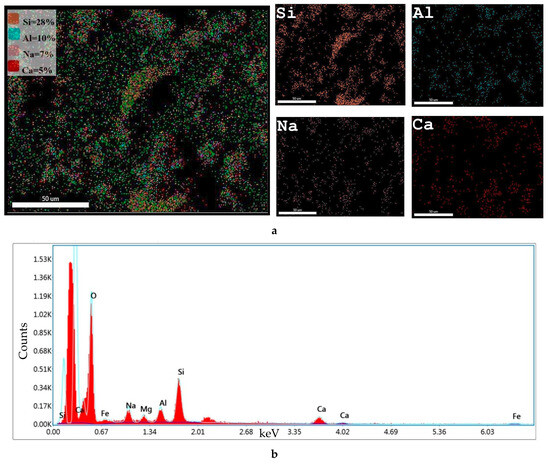

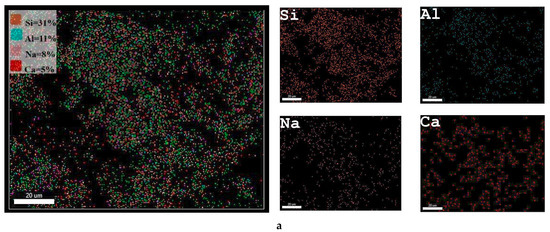

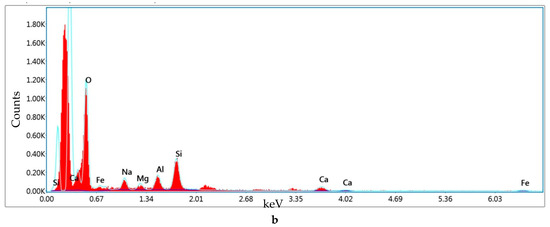

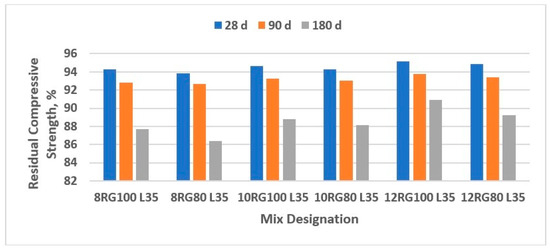

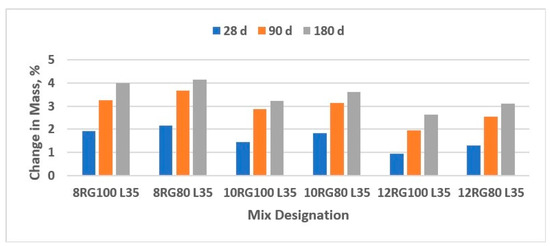

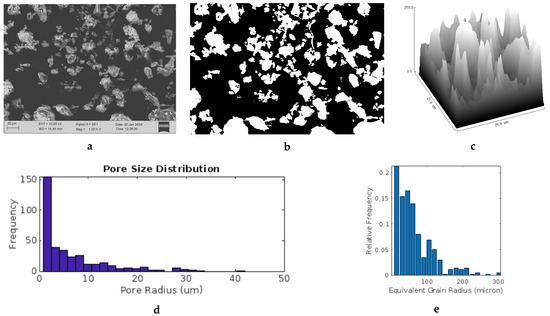

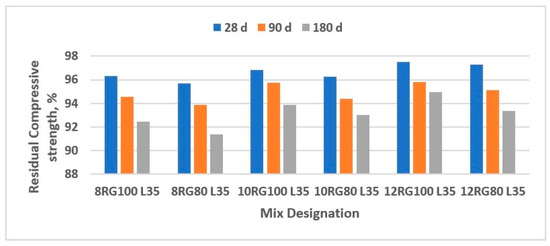

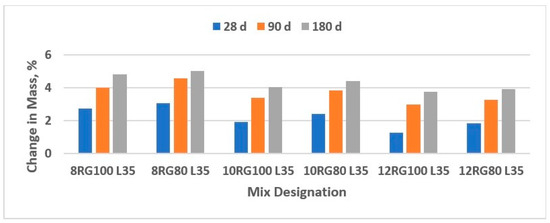

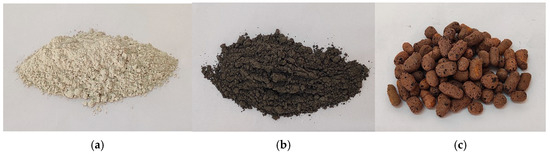

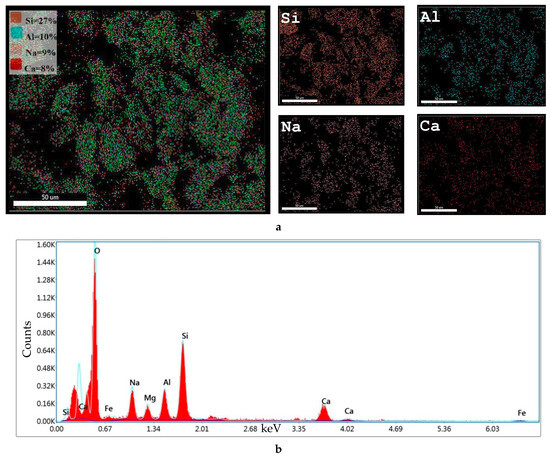

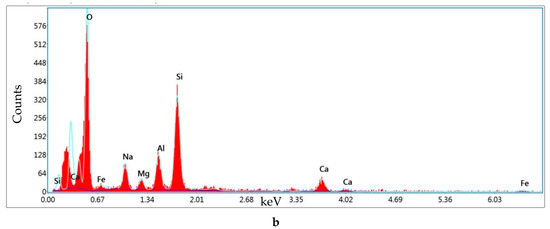

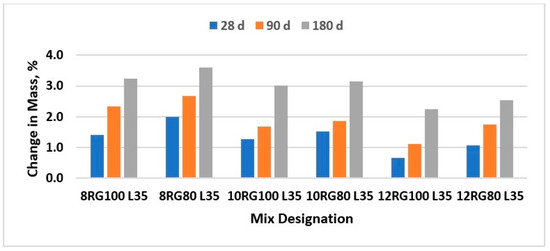

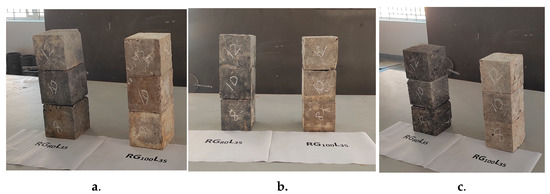

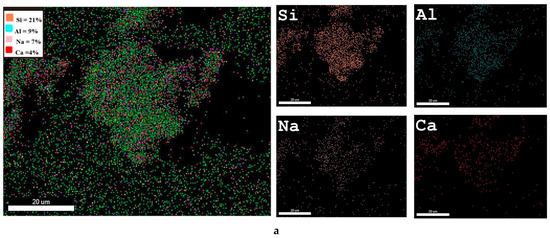

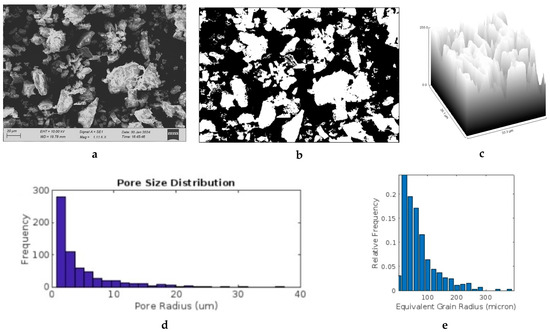

The durability of geopolymer concrete containing Ground Granulated Blast Furnace Slag (GGBS) and Rice Husk Ash (RHA), along with Lightweight Expanded Clay Aggregate (LECA), was investigated. Six different LWGPC mixtures were made with NaOH molarities of 8, 10, and 12M. For each molarity, two combinations of source materials were selected: 100% GGBS (G) and 80% GGBS with 20% RHA (RG). In all the mixtures, coarse aggregate was substituted with 35% LECA. LWGPC mixtures were exposed to 3% HCl, 5% MgSO₄, and 3.5% NaCl for studying the durability properties. The test results demonstrate that 100% GGBS with 12M NaOH (12G) outperformed all other mixtures. The residual compressive strength of 12G mix LWGPC specimens after six months of exposure was found to be 86.4% in an acid environment, 90.6% in a sulfate environment, and 91.4% in a salt environment. The elemental composition analyzed using EDAX reveals that silica, alumina, calcium, and sodium are the predominant elements that form a dense microstructure with N-A-S-H, C-A-S-H, and C-S-H. Further, the inner properties of the specimens exposed to chemicals were examined using MATLAB R2023b and ImageJ 1.54f based on SEM images. The SEM image showed that the porosity of LWGPC specimens ranged from 0.5194 to 0.6748 µm, signifying an enhanced durability performance. The experimental results and microstructural analysis show that the LWGPC incorporating RHA and GGBS with LECA offers a superior performance, making it a promising solution for sustainable and durable construction. Full article

Fully utilizing solid waste as supplementary cementitious materials (SCMs) while ensuring the mechanical properties of cement-based materials is one of the pathways for carbon reduction in the cement industry. Understanding the effects of the two solid wastes-limestone powder (LP) and rice husk ash (RHA) on the mechanical properties of cement-based materials is of great significance for their application in concrete. This study investigates the impact of LP and RHA on the strength of cement mortar at various ages and the microhardness of hardened cement paste. The results suggest that two materials have a certain synergistic effect on the mechanical properties of the cementitious materials. The addition of RHA effectively addresses the issues of slow strength development, insufficient late-stage strength of the cementitious material, and the low strength blended with a large amount of LP, while a suitable amount of LP can promote the strength increase in the cement-RHA system. Based on the comprehensive analysis of compressive strength and microhardness, the optimal solution for achieving high mechanical properties in composite cementitious materials is to use 10% each of LP and RHA, resulting in a 9.5% increase in 28 d strength compared to a pure cement system. The higher the content of LP, the greater the increase caused by 10% RHA in compressive strength of the composite system, which makes the strength growth rate of cementitious material mixed with 10% LP at 3–56 d 62.1%. When the LP content is 20% and 30%, the addition of 10% RHA increases the 28 d strength by 44.8% and 38.8%, respectively, with strength growth rates reaching 109.8% and 151.1% at 3–56 d. Full article

Withstanding extreme events is increasingly a significant challenge for the construction industry. Where civil infrastructures remain using traditional concrete, which has low tensile strength, poor durability, and weak crack resistance, in this regard, ultra-high-performance concrete (UHPC), with its outstanding mechanical properties and high strength, offers the prospect of wide application. This advanced technology allows for the fabrication of thin and light-dimensional structures to accelerate construction while increasing corrosion resistance to minimize maintenance intervention and extend the service life of the infrastructures. Despite this, UHPC is less eco-friendly due to consuming more cement than the usual material, which requires replacement materials, such as silica fume (SF) and rice husk ash (RHA), which are readily available from other local material production. This study proposes an experimental approach to assess the influence of SF and RHA content on the properties of UHPC. Different SF and RHA compositions will be adjusted to analyze their effects on slump flow, compressive strength, flexural strength, tensile strength, and the stress–strain relationship in UHPC tension testing. Based on the results, the most effective ratio is RHA replacing 50% of the SF in the UHPC mixture. Specialized tensile experiments reveal enhanced tensile strength with judicious RHA incorporation at 5-day and 28-day stages, particularly in initial crack and damage conditions. Stress–strain curves for 5% to 15% RHA samples show increased ductility, indicating that optimal RHA-SF ratios enhance UHPC cracking characteristics. Based on the results, a discussion on the appropriate proportions for utilizing most local materials will be derived, especially for regions of Vietnam. It is evaluated as a feasible and promising solution to reduce greenhouse gas emissions threatening global climate change. Full article

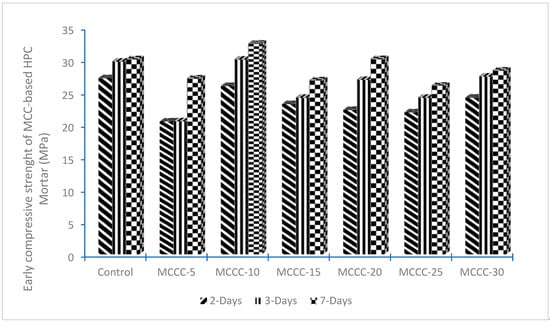

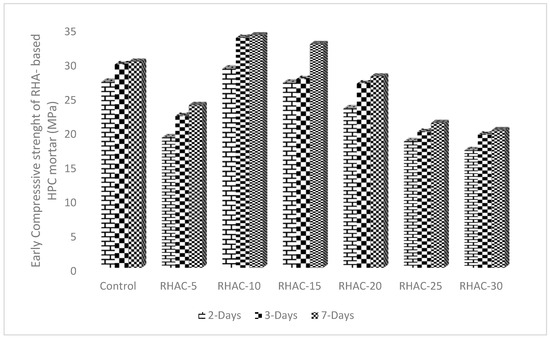

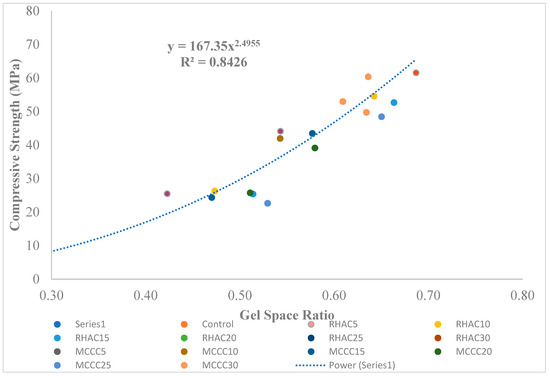

Supplementary cementitious materials (SCMs) have been widely used to enhance both the microscopic and macroscopic properties of the Portland cement (PC)–SCM composite matrix. Few studies have been undertaken to establish the gel/space ratio of meta-illite calcined clay (MCC) and rice husk ash (RHA)-based high-performance concrete (HPC) mortar. This experimental paper describes a conventional degree of hydration (non-evaporable water) and porosity routes of establishing a link amid the gel/space ratio and compressive strength of a sieved mortar from Class 1 (50–75 MPa) HPC at an early age. Using the non-evaporable water method, this paper predicted the gel/space ratio of the hardened MCC/RHA-based HPC mortars and curved fitted into Powers’ exponent equation. The results from this study revealed that MCC or RHA additions (5–30% by weight of PC) to the PC-SCM matrix led to a moderate decline in the compressive strength of the low water-binder ratio (W/B) HPC mortar. The modification aimed at void volume (superabsorbent polymers, SAP, and air) applying Bolomey’s formula and Powers’ gel/space ratio developed a suitable fitting into the Powers’ model. This experimental procedure shows feasibility to predict the MCC and RHA outcome on the compressive strength of HPC. Full article

The present study examines the durability properties of Class 1 (50–75 MPa) high-performance concrete (HPC) blended with rice husk ash (RHA) as a partial replacement of CEM II B-L, 42.5 N. Six HPC mixes were prepared with RHA and used as 5%, 10%, 15%, 20%, 25%, and 30% of CEM II alone and properties are compared with control mix having only CEM II. The binders (CEM II and RHA) were investigated for particle size distribution (PSD), specific surface area (SSA), oxide compositions, mineralogical phases, morphology, and functional groups using advanced techniques of laser PSD, Brunauer–Emmett–Teller (BET), X-ray fluorescence (XRF), X-ray diffraction (XRD), scanning electron microscopy (SEM), and Fourier transform infrared/attenuated total reflection (FTIR/ATR), respectively, to understand their import on HPC. Durability properties, including water absorption, sorptivity, and chemical attack of the HPC samples, were investigated to realise the effect of RHA on the HPC matrix. The findings revealed that the durability properties of RHA-based HPCs exhibited an acceptable range of values consistent with relevant standards. The findings established that self-produced RHA would be beneficial as a cement replacement in HPC. As the RHA is a cost-effective agro-waste, a scalable product of RHA would be a resource for sustainable technology. Full article

In the last few decades, the demand for cement production increased and caused a massive ecological issue by emitting 8% of the global CO₂, as the making of 1 ton of ordinary Portland cement (OPC) emits almost a single ton of CO₂. Significant air pollution and damage to human health are associated with the construction and cement industries. Consequently, environmentalists and governments have ordered to strongly control emission rates by using other ecofriendly supplemental cementing materials. Rice husk is a cultivated by-product material, obtained from the rice plant in enormous quantities. With no beneficial use, it is an organic waste material that causes dumping issues. Rice husk has a high silica content that makes it appropriate for use in OPC; burning it generates a high pozzolanic reactive rice husk ash (RHA) for renewable cement-based recyclable material. Using cost-effective and commonly obtainable RHA as mineral fillers in concrete brings plentiful advantages to the technical characteristics of concrete and to ensure a clean environment. With RHA, concrete composites that are robust, highly resistant to aggressive environments, sustainable and economically feasible can be produced. However, the production of sustainable and greener concrete composites also has become a key concern in the construction industries internationally. This article reviews the source, clean production, pozzolanic activity and chemical composition of RHA. This literature review also provides critical reviews on the properties, hardening conditions and behaviors of RHA-based concrete composites, in addition to summarizing the research recent findings, to ultimately produce complete insights into the possible applications of RHA as raw building materials for producing greener concrete composites—all towards industrializing ecofriendly buildings. Full article

There has been a significant movement in the past decades to develop alternative sustainable building material such as geopolymer cement/concrete to control CO₂ emission. Industrial waste contains pozzolanic minerals that fulfil requirements to develop the sustainable material such as alumino-silicate based geopolymer. For example, industrial waste such as red mud, fly ash, GBFS/GGBS (granulated blast furnace slag/ground granulated blast furnace slag), rice husk ash (RHA), and bagasse ash consist of minerals that contribute to the manufacturing of geopolymer cement/concrete. A literature review was carried out to study the different industrial waste/by-products and their chemical composition, which is vital for producing geopolymer cement, and to discuss the mechanical properties of geopolymer cement/concrete manufactured using different industrial waste/by-products. The durability, financial benefits and sustainability aspects of geopolymer cement/concrete have been highlighted. As per the experimental results from the literature, the cited industrial waste has been successfully utilized for the synthesis of dry or wet geopolymers. The review revealed that that the use of fly ash, GBFS/GGBS and RHA in geopolymer concrete resulted high compressive strength (i.e., 50 MPa–70 MPa). For high strength (>70 MPa) achievement, most of the slag and ash-based geopolymer cement/concrete in synergy with nano processed waste have shown good mechanical properties and environmental resistant. The alkali-activated geopolymer slag, red mud and fly ash based geopolymer binders give a better durability performance compared with other industrial waste. Based on the sustainability indicators, most of the geopolymers developed using the industrial waste have a positive impact on the environment, society and economy. Full article
