Search Results (9)

The integration of clean energy generation with wastewater treatment holds promise for addressing both environmental and energy concerns. Focusing on photocatalytic hydrogen production and wastewater treatment, this study introduces PdIn/TiO₂ catalysts for the simultaneous removal of the pharmaceutical contaminant paracetamol (PTM) and hydrogen production. Physicochemical characterization showed a high distribution of Pd and In on the support as well as a high interaction with it. The Pd and In deposition enhance the light absorption capability and significantly improve the hydrogen evolution reaction (HER) in the absence and presence of paracetamol compared to TiO₂. On the other hand, the photoelectroxidation of PTM at TiO₂ and PdIn/TiO₂ follows the full mineralization path and, accordingly, is limited by the adsorption of intermediate species on the electrode surface. Thus, PdIn-doped TiO₂ stands out as a promising photoelectrocatalyst, showcasing enhanced physicochemical properties and superior photoelectrocatalytic performance. This underscores its potential for both environmental remediation and sustainable hydrogen production. Full article

Catalytic oxidation of low concentrations of ethanol was investigated in dry and humid air streams at low temperature (60 °C) over manganese oxide-based catalysts supported on a meso–macrostructured TiO₂ using ozone as the oxidant. Ethanol was selected as a representative model VOC present in indoor air, and its concentration was fixed to 10 ppm. For that purpose, a series of Mn/TiO₂ powder and monolithic catalysts was prepared, some doped with 0.5 wt% Pd. Whatever the catalyst, the presence of water vapor in the gas phase had a beneficial effect on the conversion of ethanol and ozone. The Pd–Mn/TiO₂ catalyst containing 0.5 wt% Pd and 5 wt% Mn exhibited superior oxidation efficiency to the Mn/TiO₂ counterparts by increasing ozone decomposition (77%) while simultaneously increasing the selectivity to CO₂ (85%). The selectivity to CO₂ approached nearly 100% by increasing the amount of catalyst from 20 to 80 mg. In a further step, alumina wash-coated cordierite honeycomb monoliths were coated with the 0.5Pd–5Mn/TiO₂ catalyst. Full conversion of ethanol to CO₂ without residual O₃ emitted (less than 10 ppb) could be attained, thereby demonstrating that the proposed Pd–Mn/TiO₂ monolithic catalyst fulfills the specifications required for onboard systems. Full article

Hydrogen (H₂) is considered as an ideal fuel for the future. The photo-electrochemical (PEC) water splitting employing semiconducting materials and induced irradiation, preferably of solar spectrum, presents a viable route for H₂ production. In this work, self-ordered chromium-doped TiO₂ nanotube (CT) was fabricated using in-situ electro-anodization. CT surface modification was then performed by photo-deposition of Pt and Pd particles, producing Pt-CT and Pd-CT catalysts, respectively. Their morphological features, crystallinity, surface composition, and optical absorption have been inspected by scanning electron microscopy (SEM), X-ray diffraction (XRD), energy dispersive X-ray spectroscopy (EDX), Raman, and UV–vis absorption spectroscopy. Linear sweep voltammetry, chronoamperometry, and open circuit potential methods have been applied to study PEC activities of Pt-CT and Pd-CT catalysts in a form of electrodes. It was found that Pt-CT and Pd-CT electrodes possess excellent photo-generated electron/hole (e⁻/h⁺) separation and transport properties. The enhanced photocurrent responses of 4 and 3 times more than that of CT are revealed for Pt-CT and Pd-CT, respectively. The activity of as-prepared Pt-CT and Pd-CT catalysts was then tested for H₂ generation. The maximum amount of the evolved H₂ followed decreasing order: 1.08 > 0.65 > 0.26 mL cm⁻² h⁻¹ for Pt-CT, Pd-CT, and CT electrodes, respectively, clearly showing the positive contribution of photo-deposited (nano)particles onto CT surface. Full article

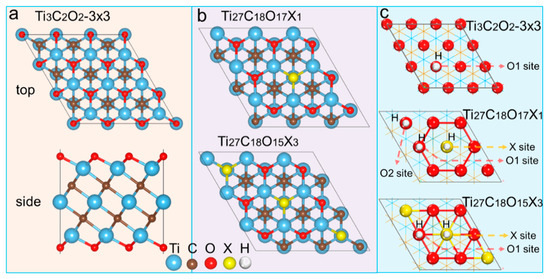

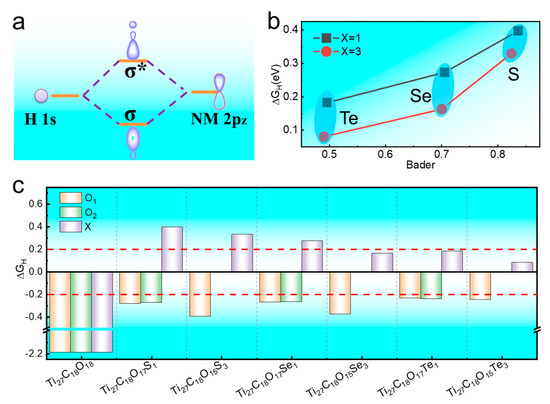

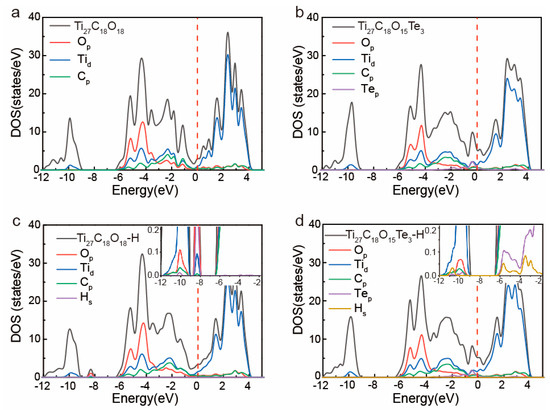

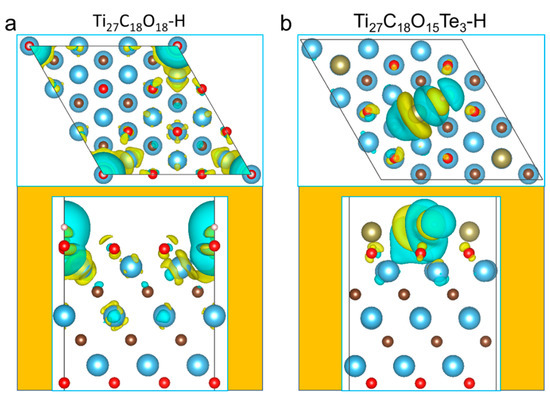

As a typical two-dimensional (2D) MXene, Ti₃C₂O₂ has been considered as a potential material for high-performance hydrogen evolution reaction (HER) catalyst, due to its anticorrosion and hydrophilic surface. However, it is still a challenge to improve the Ti₃C₂O₂ surficial HER catalytic activity. In this work, we investigated the HER activity of Ti₃C₂O₂ after the surface was doped with S, Se, and Te by the first principles method. The results indicated that the HER activity of Ti₃C₂O₂ is improved after being doped with S, Se, Te because the Gibbs free energy of hydrogen adsorption (ΔG_H) is increased from −2.19 eV to 0.08 eV. Furthermore, we also found that the ΔG_H of Ti₃C₂O₂ increased from 0.182 eV to 0.08 eV with the doping concentration varied from 5.5% to 16.7%. The HER catalytic activity improvement of Ti₃C₂O₂ is attributed to the local crystal structure distortion in catalytic active sites and Fermi level shift leads to the p-d orbital hybridization. Our results pave a new avenue for preparing a low-cost and high performance HER catalyst. Full article

This work highlights new insights into the performance of TiO₂ doped with noble metal catalysts for the photocatalytic degradation of organic water pollutants. Different samples of titanium dioxide doped with noble metals (Au and Pd) were successfully synthesized via incipient wet impregnation (IWI) and ultrasound-assisted impregnation (US) methods. X-ray diffraction, scanning electron microscopy and UV-Vis reflectance spectroscopy were used for the characterization of the obtained materials. Their photocatalytic efficiency was investigated in aqueous suspension thorough a series of laboratory tests performed under ultraviolet (UV-A) irradiation conditions using 2,4 dinitrophenol (2,4 DNP) as a target molecule. The results clearly show that the method used for the catalyst synthesis affects its photocatalytic activity. It was found that the samples prepared by the IWI method exhibited high photocatalytic activity, and the removal rate obtained with TiO₂-Pd/IWI was higher than that found for TiO₂-Au/IWI. Furthermore, for the best catalyst, some extra photocatalytic experiments were conducted with rhodamine 6G (R6G), a highly stable molecule with a very different chemical structure to 2,4 DNP, in order to check the reactivity of this material. Moreover, the recycling experiments carried out with TiO₂-Pd/IWI clearly demonstrated the high photocatalytic stability of this material for the degradation of 2,4 DNP. All of the collected data confirmed the interesting photocatalytic potential of the selected catalyst in the elimination of organic pollutants with no obvious change in its reactivity after four reaction cycles, which is very promising for promoting future applications in water depollution. Full article

The objective of this work is to improve the efficiency of TiO₂ photocatalysts by activation treatments and by modification with palladium nanoparticles and doping with SiO₂. The influence of the additive loading was explored, and two activation treatments were performed: UV exposition and H₂ reduction. TiO₂/SiO₂/Pd photocatalysts were synthesized by an original cogelation method: a modified silicon alkoxide, i.e., [3-(2-aminoethyl)aminopropyl]trimethoxysilane (EDAS), was used to complex the palladium ions, thanks to the ethylenediamine group, while the alkoxide groups reacted with TiO₂ precursors. Pure TiO₂ was also synthesized by the sol–gel process for comparison. X-ray diffraction evidenced that the crystallographic structure of TiO₂ was anatase and that Pd was present, either in its oxidized form after calcination, or in its reduced form after reduction. The specific surface area of the samples varied from 5 to 145 m² g^-1. Transmission electron microscopy allowed us to observe the homogeneous dispersion and nanometric size of Pd particles in the reduced samples. The width of the band gap for pure TiO₂ sample, measured by UV/Visible diffuse reflectance spectroscopy at approximately 3.2 eV, corresponded to that of anatase. The band gap for the TiO₂/SiO₂/Pd composite samples could not be calculated, due to their high absorption in visible range. The photocatalytic activity of the various catalysts was evaluated by the degradation of a methylene blue solution under UV radiation. The results showed that the photocatalytic activity of the catalysts was inversely proportional to the content of silica present in the matrix. A small amount of silica improved the photocatalytic activity, as compared to the pure TiO₂ sample. By contrast, a high amount of silica delayed the crystallization of TiO₂ in its anatase form. The activation treatment under UV had little influence on photocatalytic efficiency. The introduction of Pd species increased the photocatalytic activity of the samples because it allowed for a decrease in the rate of electron–hole recombinations in TiO₂. The reduction treatment improved the activity of photocatalysts, whatever the palladium content, thanks to the reduction of Ti⁴⁺ into Ti³⁺, and the formation of defects in the crystallographic structure of anatase. Full article

A series of Pd-TiO₂/Pd-Ce/TiO₂ catalysts were prepared by an equal volume impregnation method. The effects of different Pd loadings on the catalytic activity of chlorobenzene (CB) were investigated, and the results showed that the activity of the 0.2%-0.3% Pd/TiO₂ catalyst was optimal. The effect of Ce doping enhanced the catalytic activity of the 0.2% Pd-0.5% Ce/TiO₂ catalyst. The characterization of the catalysts using BET, TEM, H₂-TPR, and O₂-TPD showed that the oxidation capacity was enhanced, and the catalytic oxidation efficiency was improved due to the addition of Ce. Ion chromatography and Gas Chromatography-Mass Spectrometer results showed that small amounts of dichlorobenzene (DCB) and trichlorobenzene (TCB) were formed during the decomposition of CB. The results also indicated that the calcination temperature greatly influenced the catalyst activity and a calcination temperature of 550 °C was the best. The concentration of CB affected its decomposition, but gas hourly space velocity had little effect. H₂-TPR indicated strong metal–support interactions and increased dispersion of PdO in the presence of Ce. HRTEM data showed PdO with a characteristic spacing of 0.26 nm in both 0.2% Pd /TiO₂ and 0.2% Pd-0.5% Ce/TiO₂ catalysts. The average sizes of PdO nanoparticles in the 0.2% Pd/TiO₂ and 0.2% Pd-0.5% Ce/TiO₂ samples were 5.8 and 4.7 nm, respectively. The PdO particles were also deposited on the support and they were separated from each other in both catalysts. Full article

Three-dimensionally ordered macroporous (3DOM) TiO₂-supported AuPd alloy (xAu_yPd/3DOM TiO₂ (x = 0.87–0.91 wt%; y = 0.51–1.86)) catalysts for trichloroethylene (TCE) oxidation were prepared using the polymethyl methacrylate-templating and polyvinyl alcohol-protected reduction methods. The as-prepared materials possessed a good-quality 3DOM structure and a surface area of 49–53 m²/g. The noble metal nanoparticles (NPs) with a size of 3–4 nm were uniformly dispersed on the surface of 3DOM TiO₂. The 0.91Au_0.51Pd/3DOM TiO₂ sample showed the highest catalytic activity with the temperature at a TCE conversion of 90% being 400 °C at a space velocity of 20,000 mL/(g h). Furthermore, the 0.91Au_0.51Pd/3DOM TiO₂ sample possessed better catalytic stability and moisture-resistant ability than the supported Au or Pd sample. The partial deactivation induced by H₂O introduction of 0.91Au_0.51Pd/3DOM TiO₂ was reversible, while that induced by CO₂ addition was irreversible. No significant influence on TCE conversion was observed after introduction of 100 ppm HCl to the reaction system over 0.91Au_0.51Pd/3DOM TiO₂. The lowest apparent activation energy (51.7 kJ/mol) was obtained over the 0.91Au_0.51Pd/3DOM TiO₂ sample. The doping of Au to Pd changed the TCE oxidation pathway, thus reducing formation of perchloroethylene. It is concluded that the high adsorbed oxygen species concentration, good low-temperature reducibility, and strong interaction between AuPd NPs and 3DOM TiO₂ as well as more amount of strong acid sites were responsible for the good catalytic activity, stability, and water- and HCl-resistant ability of 0.91Au_0.51Pd/3DOM TiO₂. We believe that 0.91Au_0.51Pd/3DOM TiO₂ may be a promising catalyst for the oxidative elimination of chlorine-containing volatile organics. Full article

In the following work, the catalytic behavior of Pd catalysts prepared using different oxides as support (Al₂O₃, CeO₂ and TiO₂) in the catalytic combustion of propene, in low concentration in excess of oxygen, to mimic the conditions of catalytic decomposition of a volatile organic compound of hydrocarbon-type is reported. In addition, the influence of different promoters (Ce, Ti, Fe and Mn) when added to a Pd/Al₂O₃ catalyst was analyzed. Catalysts were prepared by the impregnation method and were characterized by ICP-OES, N₂ adsorption, temperature-programmed reduction, temperature-programmed oxidation, X-ray diffraction, X-ray photoelectron spectroscopy and transmission electron microscopy. Catalyst prepared using CeO₂ as the support was less easily reducible, due to the stabilization effect of CeO₂ over the palladium oxides. Small PdO particles and, therefore, high Pd dispersion were observed for all of the catalysts, as confirmed by XRD and TEM. The addition of Ce to the Pd/Al₂O₃ catalysts increased the metal-support interaction and the formation of highly-dispersed Pd species. The addition of Ce and Fe improved the catalytic behavior of the Pd/Al₂O₃ catalyst; however, the addition of Mn and Ti decreased the catalytic activity in the propene oxidation. Pd/TiO₂ showed the highest catalytic activity, probably due to the high capacity of this catalyst to reoxidize Pd into PdO, as has been found in the temperature-programmed oxidation (TPO) experiments. Full article
