Surface Modifications of 2D-Ti₃C₂O₂ by Nonmetal Doping for Obtaining High Hydrogen Evolution Reaction Activity: A Computational Approach

Abstract

As a typical two-dimensional (2D) MXene, Ti₃C₂O₂ has been considered as a potential material for high-performance hydrogen evolution reaction (HER) catalyst, due to its anticorrosion and hydrophilic surface. However, it is still a challenge to improve the Ti₃C₂O₂ surficial HER catalytic activity. In this work, we investigated the HER activity of Ti₃C₂O₂ after the surface was doped with S, Se, and Te by the first principles method. The results indicated that the HER activity of Ti₃C₂O₂ is improved after being doped with S, Se, Te because the Gibbs free energy of hydrogen adsorption (ΔG_H) is increased from −2.19 eV to 0.08 eV. Furthermore, we also found that the ΔG_H of Ti₃C₂O₂ increased from 0.182 eV to 0.08 eV with the doping concentration varied from 5.5% to 16.7%. The HER catalytic activity improvement of Ti₃C₂O₂ is attributed to the local crystal structure distortion in catalytic active sites and Fermi level shift leads to the p-d orbital hybridization. Our results pave a new avenue for preparing a low-cost and high performance HER catalyst.

1. Introduction

Environmental pollution and the energy crisis are two tough issues in human development. Therefore, it is exigent to search for green and clean energy, which not only can reduce the production of pollution gas, but is also helpful to realize the sustainable development of economy. As a green energy, hydrogen energy has been widely considered, and electrocatalytic decompose water has been treated as an effective way for hydrogen production [1,2,3]. Generally, Pt is the primary catalyst for hydrogen evolution reaction (HER); however, the high cost and rarity heavily limit its widespread application [4,5,6]. Therefore, it is desired to explore a low-cost, abundant, and outstanding catalytic activity HER catalyst [2,4,5,6].

Ti₃C₂X_x is a two-dimensional (2D) MXene materials which evolved from bulk MAX (M = transition metals, such as Ti, V, Cr; X = C or N) [7,8]. Interestingly, Ti₃C₂O₂ shows excellent stability in acid conditions after being etched by hydrofluoric acid (HF). In addition, in the process of etching, the surface dangling bonds of Ti₃C₂O₂ can combine with the functional groups from solution. Among them, 2D-Ti₃C₂O₂ shows most stable structure and excellent hydrophilicity [9]. The benefit of the above merits is that 2D-Ti₃C₂O₂ has the potential become a high performance HER catalyst [10,11]. Unlike traditional HER catalysts, such as 2D MoS₂, the active sites of 2D-Ti₃C₂O₂ are mainly concentrated at the surface, which lead to catalytic activity lower than Pt [12,13,14,15,16]. Previous theoretical studies have shown that element loading or doping at the transition metal surface can effectively improve the catalytic activity, but these results need to be further verified by actual experiments [4,5,6]. Fortunately, we found that 2D-Ti₃C₂O₂ doped with other elements has been prepared in practical experiments [17], but their HER properties still have not been studied. Doping of nonmetal elements has been proven as an effective means to regulate HER catalytic activity. Therefore, it is necessary to carry out theoretical studies on the HER catalytic activity and complex mechanism of 2D-Ti₃C₂O₂ after being doped with S, Se, and Te.

In this work, we carefully studied the ΔG_H of 2D-Ti₃C₂O₂ after being doped with S, Se, Te on the surface by first principles density functional theory (DFT). The results indicate that the HER activity of Ti₃C₂O₂ is effectively improved after being doped with Te. Furthermore, we also studied the effect of doping concentration on HER catalytic activity and found that the ΔG_H increased from 0.182 eV to 0.08 eV with the doping ratio varying from 5.5% to 16.7%. The improvement of HER catalytic activity is ascribed to the local crystal structure distortion of catalytic active site and Fermi level shift leading to the p-d orbital hybridization, which provides an effective theoretical model for experimental preparation.

2. Results and Discussion

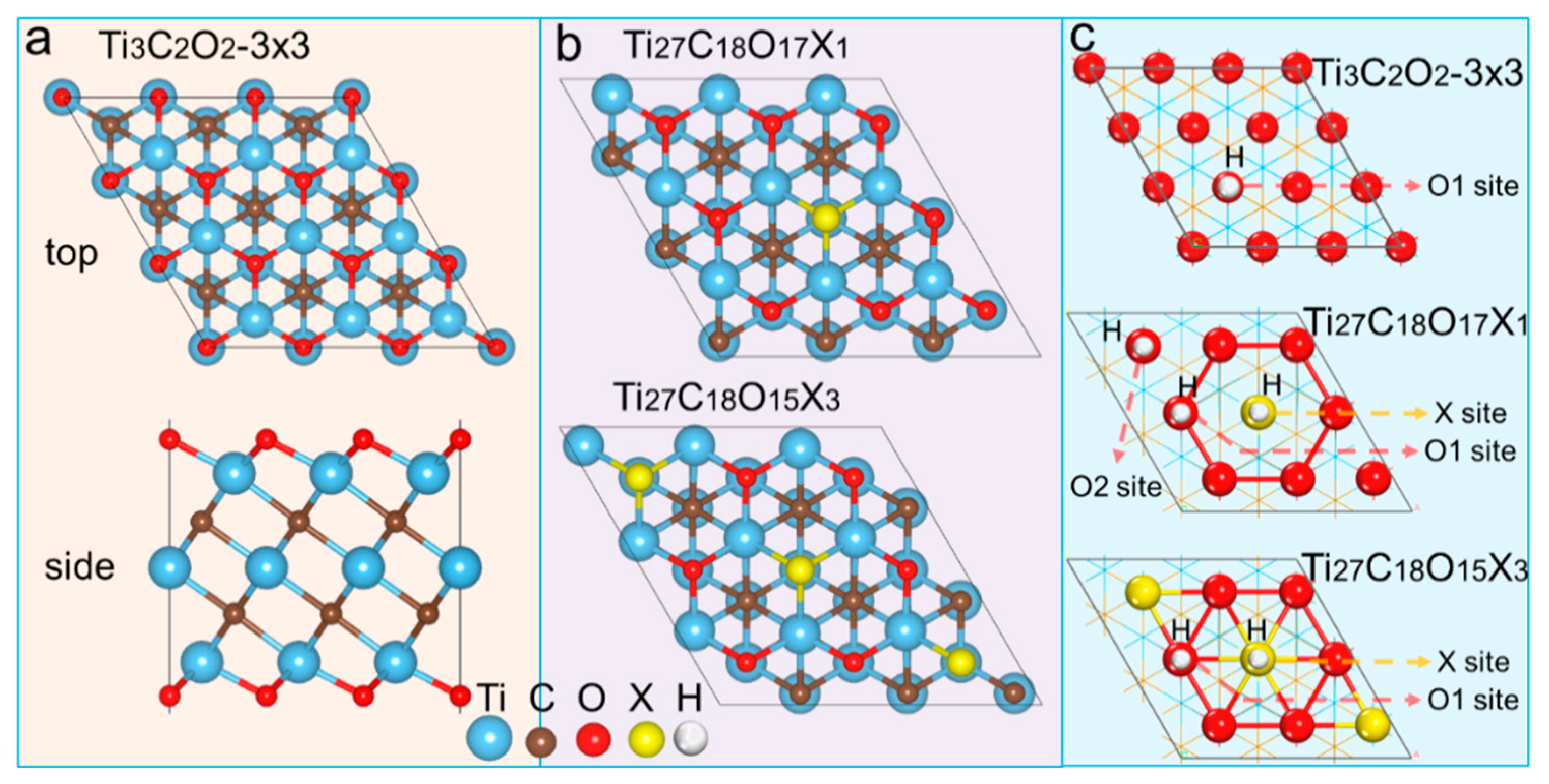

Previous studies have demonstrated that the 2D-Ti₃C₂O₂ surface properties can be modified by doping S, Se, and Te; however, the doping concentration is usually low. Therefore, based on the interesting results, we took 2D-Ti₃C₂O₂ 3 × 3 supercell as the research model to study the HER catalytic activity of 2D-Ti₃C₂O₂ after being doped with X (X = S, Se, and Te) as shown in Figure 1a. As a result, there are three kinds of H adsorption sites X, O₁, and O₂ when Ti₂₇C₁₈O₁₇X is doped with low concentration, and two kinds of H adsorption sites, X and O₁, are found in high concentration Ti₂₇C₁₈O₁₇X₃.

Figure 1b shows the ΔG_H of 2D-Ti₃C₂O₂ after being doped with X. It is clear that the adsorption strength of O for H was significantly changed after being X-doped, indicating that the catalytic activity was regulated. More interestingly, a new active site X appeared at the surface, which was favorable for improving the HER catalytic activity. Following this, we calculated the difference of the Gibbs free energy for adsorbed H (∆G_H*) according to Equation (5) to evaluate their HER activity. It should be noticed that an optimal HER activity of 2D-Ti₃C₂O₂ can be achieved when the absolute value of ∆G_H* (|∆G_H*|) is close to zero, meaning that the Gibbs free energy of adsorbed H is close to that of the reactant or product. Large negative ∆G_H* will cause bonding of adsorbed H too strong to be extracted from the catalyst surface, while more positive ∆G_H* will make the protons bond to the surface of catalyst too weak and difficult, both leading to slow HER kinetics. Generally, |∆G_H*| < 0.2 eV is a classical rule to evaluate whether a material possesses HER activity. The ΔG_H of Ti₂₇C₁₈O₁₇Se₃, Ti₂₇C₁₈O₁₇Te₁, and Ti₂₇C₁₈O₁₇Te₃ are 0.163 eV, 0.182 eV, and 0.081 eV, respectively. These comforting results manifested nonmetal doping can effectively improve the 2D-Ti₃C₂O₂ catalytic activity, which is also helpful for designing high-performance HER catalyst.

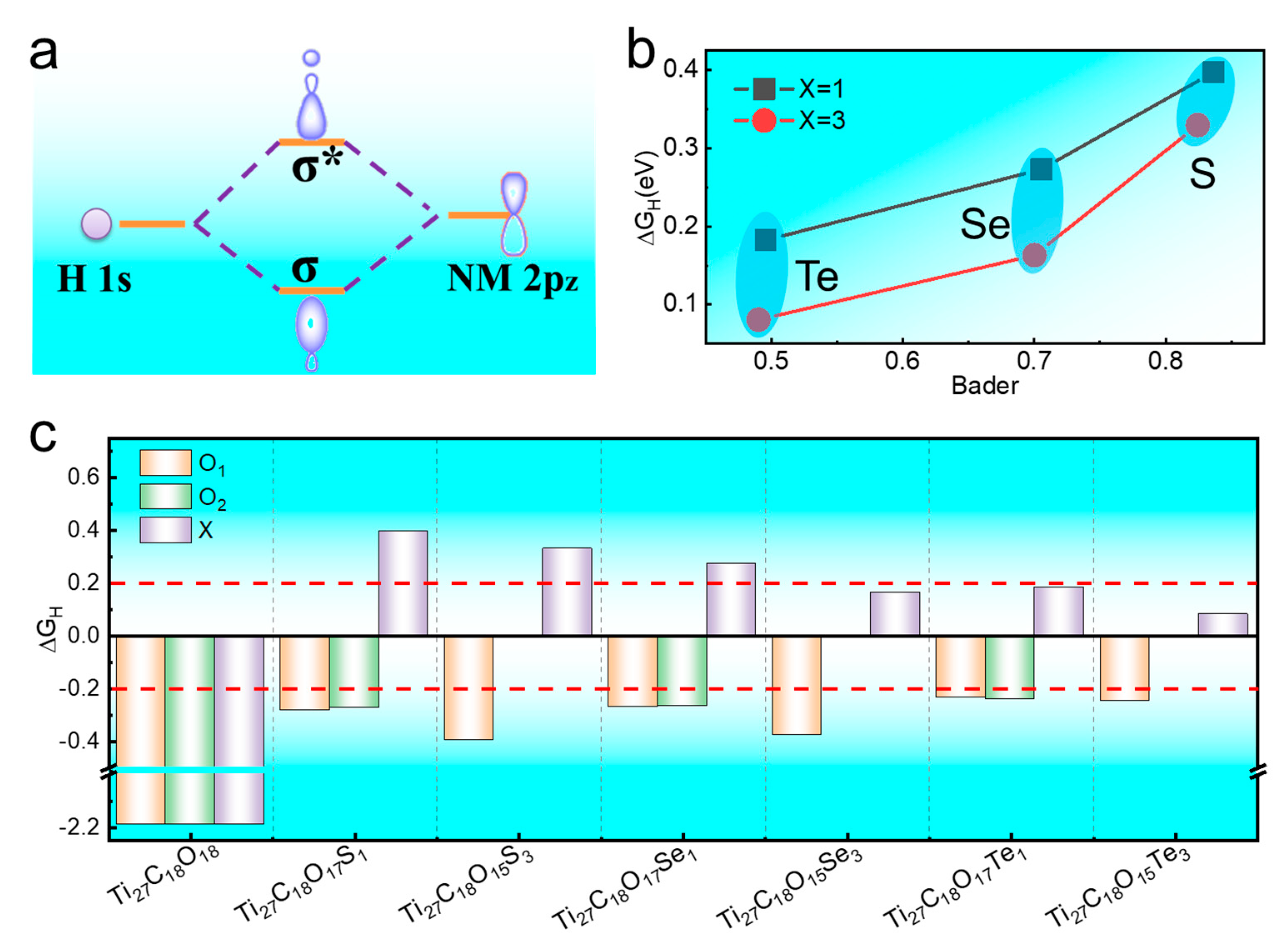

We added the principle of hydrogen atom adsorption on nonmetallic elements (Figure 2a) and the relationship between the catalytic activity and Bader charge transfer of doped X (Figure 2b). It was found that the decreasing electronegativity of X result in the ability of 2D-Ti₃C₂O₂ to obtain charge (Bader charge transfer) decreased after being doped with X. From Figure 2b, we can see that relationship between Bader charge and catalytic activity (ΔG_H) was inverse proportional, and the ΔG_H value was positively correlated with the doping concentration of X. The intrinsic relationship between the catalytic activity and the doping elements provides a theoretical basis for the design and synthesis of new MXene catalysts for hydrogen evolution.

Figure 3 shows the bond length, charge transfer, and first-order differential charge density in 2D-Ti₃C₂O₂ and 2D-Ti₂₇C₁₈O₁₇X₁. It was clear that the local structure became distorted and electronic structure space redistributed after being doped with X, which are main reasons for the improvement of HER activity. Taking 2D-Ti₃C₂O₂ and Ti₂₇C₁₈O₁₇X₁ as examples, the bond length of Ti-X gradually increased when O substituted by X, in detail, 1.969 Å for Ti-O, 2.394 Å for Ti-S, 2.532 Å for Ti-Se, and 2.756 Å for Ti-Te. With the increasing of bond length and the decreasing of electronegativity of Ti-X, the interaction between Ti and X was gradually weakened. From the analysis of charge transfer in Ti-X, the charges transferred from Ti to X gradually decreased from O to Te, and the charges transfer from O to O was Δe = 1.109 eV, S was Δe = 0.836 eV, Se was Δe = 0.705 eV, and that of Te was Δe = 0.496 eV, which is exactly opposite to the Ti-X bonds’ length. In addition, the changes of local lattice structure and electronic structure caused by X doping are also displayed in the charge decomposition density diagram as shown in Figure 3 bottom images. By calculating and analyzing the deformation charge density, the properties of charge movement and polarization direction during bonding and bonding electron coupling can be clearly obtained. First of all, bottom image in Figure 3a shows the change of electronic structure distribution of 2D-Ti₃C₂O₂ relative to isolated atoms. After being doped with X, there were obvious changes occurring at both distribution intensity and spatial configuration between Ti and X. It can be seen that the interaction strength from S to Te bonding with Ti decreased, which is consistent with the previous analysis of bond length and charge transfer.

The structural instability of 2D-Ti₃C₂O₂ after being doped with X can be seen from the local structural distortion caused by bonds length change of Ti-X. Electronegativity and atomic radius of X are two main factors for the change of bond length. The atomic radius enlarged and electronegativity decreased with the X atomic number increasing. The weakened and enlarged bonds length of Ti-X led to the decrease of structural stability. Furthermore, the phenomenon can also be verified by the charge transfer between X and the subsurface Ti. As shown in Figure 3, with the increasing of the local distortion between X and the subsurface Ti, the Bader charge transfer became smaller, which is obviously consistent with the increasing of local distortion and the decreasing of the charge transfer.

We calculated and added the spin density of 2D-Ti₂₇C₁₈O₁₈ before and after being doped with X in the supplementary material Figure S1. It was found that there were fewer spin down charges on the surface O atoms in the system Ti₂₇C₁₈O₁₈ without X doping. As shown in Figure S1b–d, after being X doped, there was obvious spin up charge in the doped element, which is obviously different from the surface O atom, and this will further affect the adsorption and catalytic activity of H.

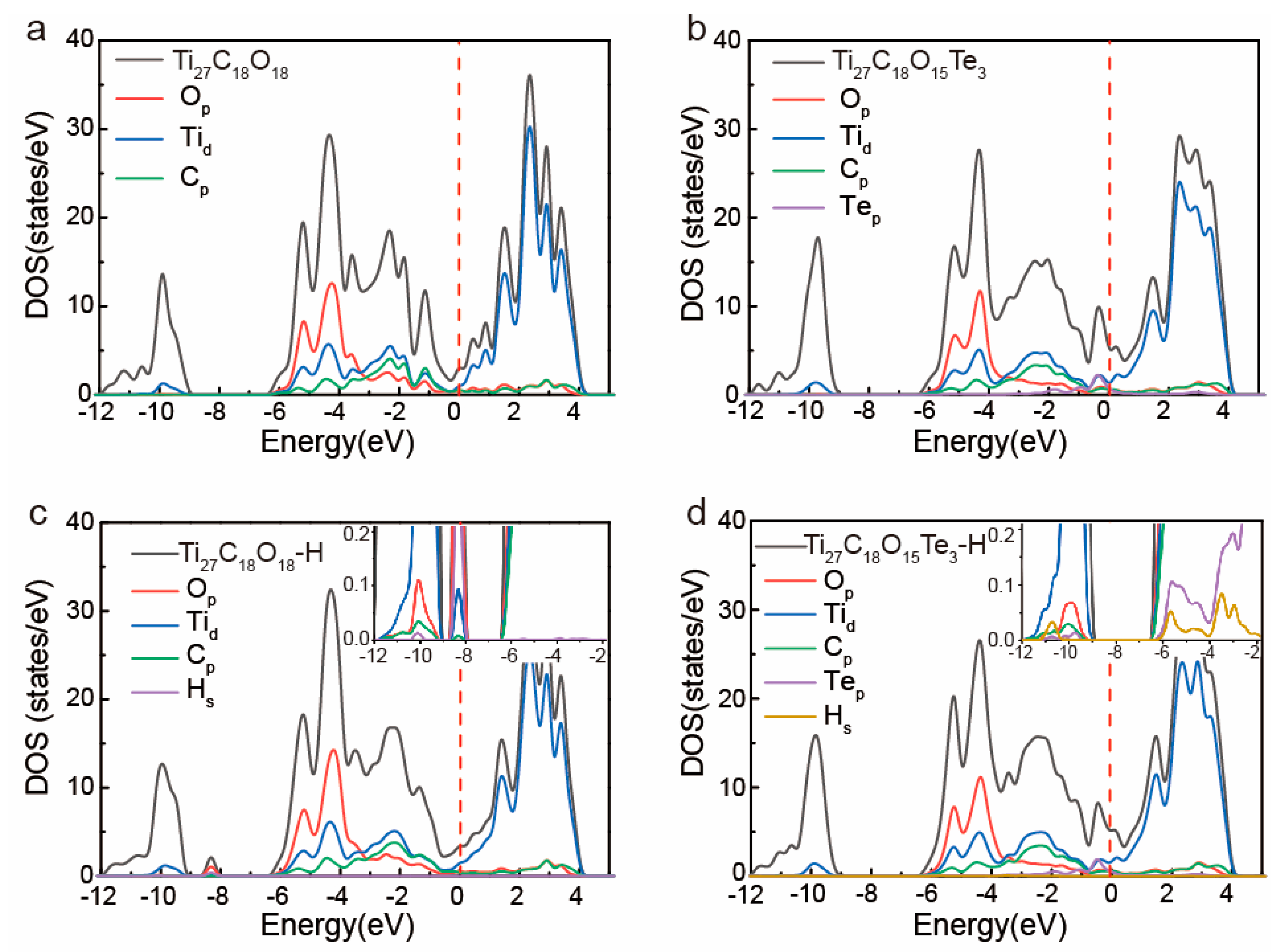

Through doping X, the catalytic activity of 2D-Ti₃C₂O₂ was regulated by adjusting the local crystal structure and electronic structure around the doping position. Figure 4a,b show the electronic density of states analysis (DOS) of 2D-Ti₂₇C₁₈O₁₈ and Ti₂₇C₁₈O₁₇Te₃. It is shown that nonmetal doping caused the hybridization between p-orbitals of Te and d-orbitals of Ti, which led to the rearrangement of the electronic structures near the Fermi level. From −4 eV to Fermi level, the new p-orbital of Te was hybridized with the d-orbital of Ti not only changing the electronic total density of states analysis (TDOS), but also leading to the Fermi level increasing from −2.043 eV to −1.522 eV, and weakening the obtained electrons ability of Ti₂₇C₁₈O₁₇Te₃. Furthermore, the electronic density of states at Fermi level increased after being doped with Te, which is beneficial to electron conduction in 2D-Ti₂₇C₁₈O₁₈. After adsorbing H atoms, due to the hybridization of s-p orbitals between H-O and H-Te, a new peak was generated near −10 eV below the Fermi level as shown in Figure 4c,d. From insets of Figure 3c,d, we can see that hybridization degree of O-H was significantly stronger than Te-H. In other words, the doping of Te changed the orbital electron hybridization, increased the Fermi energy level, and weakened the ability of capture electrons when interacting with H. As a result, the ΔG_H of 2D-Ti₂₇C₁₈O₁₈ decreased from −2.193 eV to 0.081 eV for excellent HER catalytic activity.

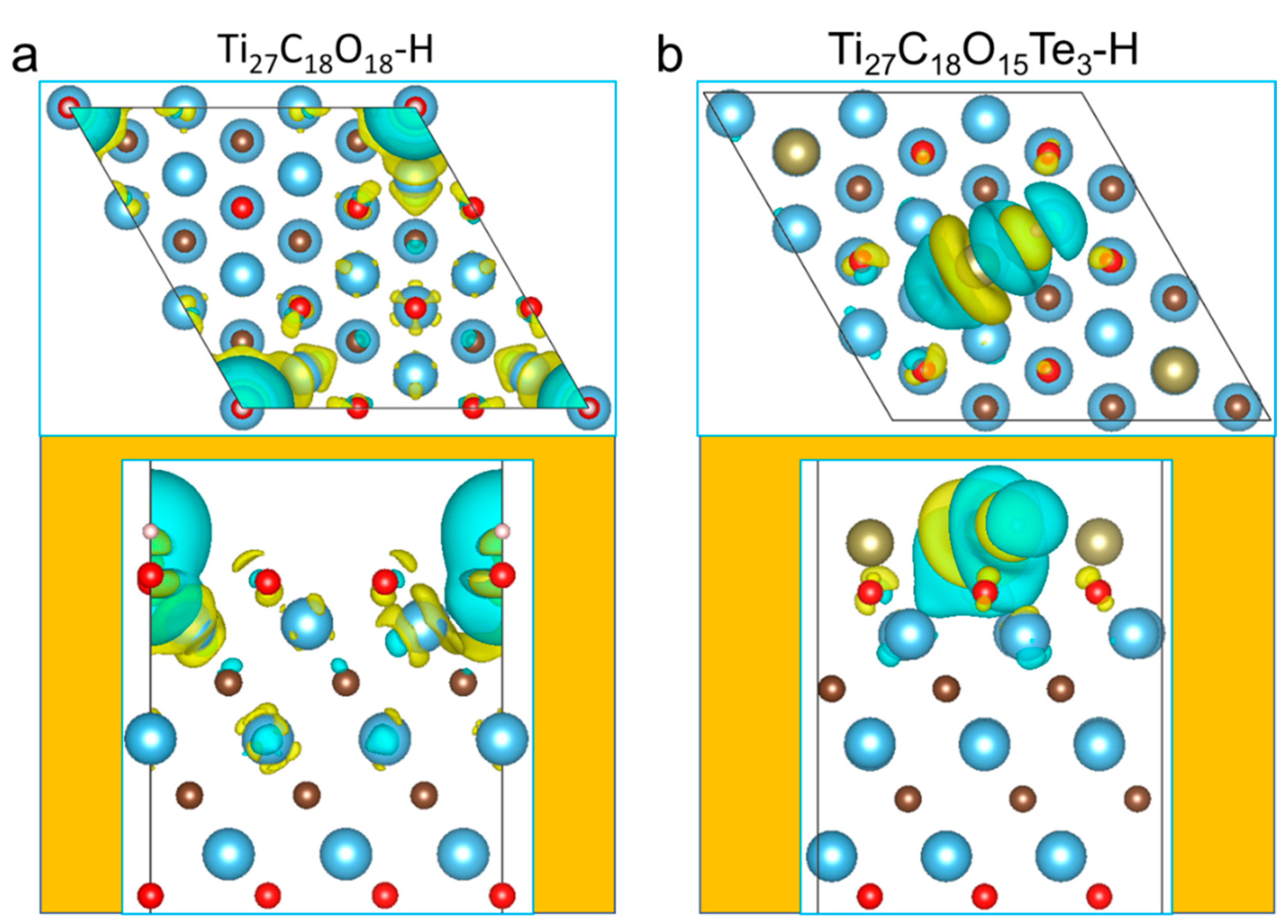

Figure 5 showed the charge density of 2D-Ti₂₇C₁₈O₁₈ before and after doped with X. Compared with pure 2D-Ti₂₇C₁₈O₁₈, the interaction between X and H was obviously weakened after being doped with X. Hydrogen atoms were adsorbed on the oxygen atoms’ surface. The interaction between 2D-Ti₂₇C₁₈O₁₈ and H did not merely derive from the charge transfer between O and H on the surface, the Ti and C atoms in the structure also participated in the H adsorption due to the strong interaction. Moreover, Ti in the middle layer was also involved in the charge redistribution. In contrast, for Ti₂₇C₁₈O₁₇Te₃, the interaction with H was weakened due to the Fermi energy occurred shift after doped with Te. Because of the weak surface adsorption and asymmetric local environment, H atoms were preferred to be adsorbed on the surface, and only the surface atoms were involved in the adsorption, which verified the rationality of the previous local adsorption position and electronic structure analysis.

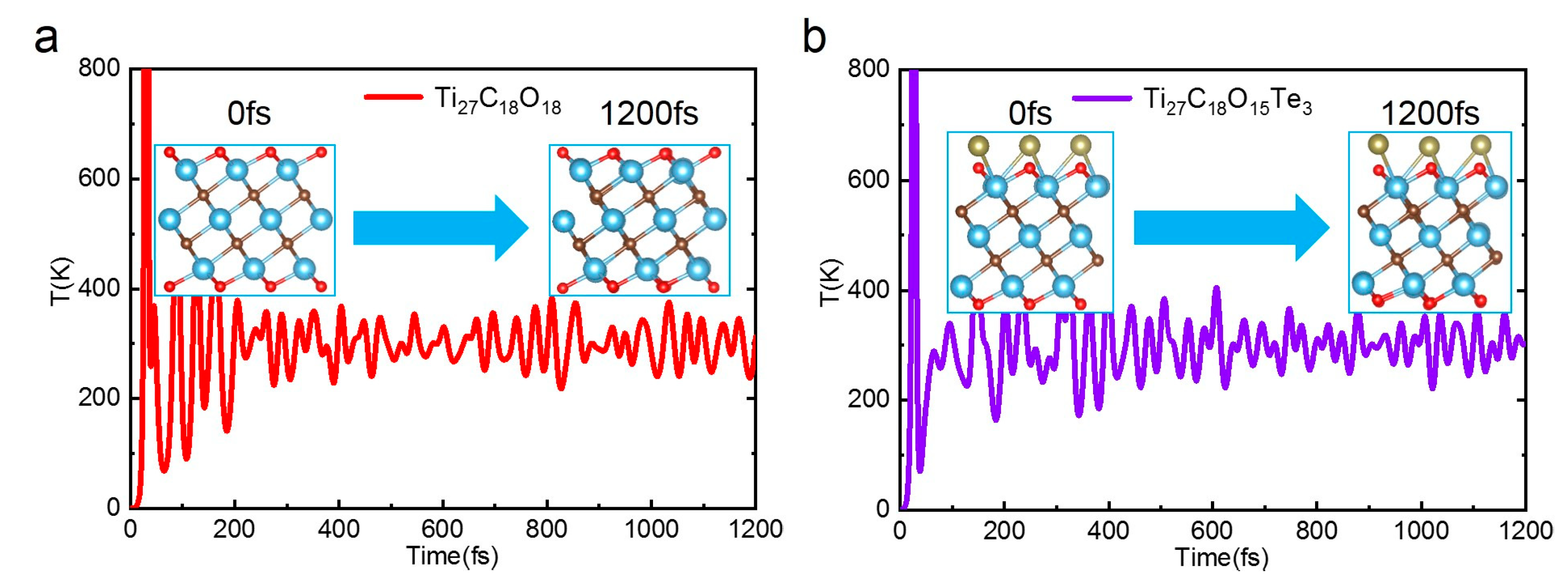

Stability is an important indicator to evaluate the catalyst. To analyze the thermal stability of Ti₂₇C₁₈O₁₈ and Ti₂₇C₁₈O₁₇Te₃, we conducted an ab initio molecular dynamics (AIMD) study at 300 K of canonical ensemble (NVT ensemble) as shown in Figure 6. Both 2D-Ti₂₇C₁₈O₁₈ and Ti₂₇C₁₈O₁₇Te₃ showed stable structure and steady temperature fluctuation after running 1200 fs. Although the local structure changed slightly, the overall morphology remained good. The result shows that 2D-Ti₂₇C₁₈O₁₈ and Ti₂₇C₁₈O₁₇Te₃ can stably exist at room temperature, which is conducive to the experimental synthesis.

3. Computational Methodology

Spin-polarized density functional theory (DFT) was conducted in the Vienna ab initio simulation package (version vasp5.3, 2015) [18,19]. We adopted potentials in the projected augmented-wave method (PAW) and the exchange-correlation energy in the general gradient approximation (GGA) in the scheme proposed by Perdew–Burke–Ernzerh (PBE) [20,21]. The cut-off kinetic energies for the plane waves were set to 450 eV for all the calculations. The convergence tolerance of energy and force on each atom during structure relaxation was less than 10⁻⁵ eV and 0.02 eV/Å. A set of Monkhorst–Pack mesh K points of 9 × 9 × 1 and 11 × 11 × 1 were used to sample the Brillouin zone for geometry optimization and electronic structural calculations. A vacuum layer of 20 Å was set up to avoid interactions between two periods. The semiempirical dispersion-corrected DFT force-field approach (DFT-D3) was adopted to describe the weak interaction involved in the calculations [22]. DFT + U calculation should be considered in transition metal compounds considering the strong correlation between electrons. Previous studies demonstrated that + U does not affect the catalytic activity of 2D-Ti₃C₂O₂. Therefore, in our work, U was not adopted [23,24,25]. Ab initio molecular dynamics (AIMD) simulations containing large-enough super-cells were used to evaluate the thermal stability of 2D-Ti₃C₂O₂ after S, Se, and Te doped structures [26]. The systems were stabilized at 300 K for 1.2 ps with a time step of 1 fs, where the algorithm of Nosè was used to control the temperature.

To evaluate the electrocatalytic HER activity, the Gibbs free energy of hydrogen adsorption $\mathrm{\Delta }{\mathrm{G}}_{\mathrm{H}}$ was a key descriptor and defined as [4,24]

$$\mathrm{\Delta }{\mathrm{G}}_{\mathrm{H}\ast }=\mathrm{\Delta }{\mathrm{E}}_{\mathrm{H}}+\mathrm{\Delta }{\mathrm{E}}_{\mathrm{ZPE}}-\mathrm{T}\mathrm{\Delta }{\mathrm{S}}_{\mathrm{H}}$$

(1)

where ΔE_H is the adsorption energy for adding one H atom onto the Ti₂CO₂ catalysts.

$$\mathrm{\Delta }{\mathrm{E}}_{\mathrm{H}}={\mathrm{E}}_{\mathrm{H}\ast }-\mathrm{E}-1/2{\mathrm{E}}_{{\mathrm{H}}_2}$$

(2)

where ${\mathsf{\Delta }\mathrm{E}}_{\mathrm{H}\ast }$, $\mathsf{\Delta }\mathrm{E}$ and ${ \mathrm{E}}_{{\mathrm{H}}_2}$ are total energies of the catalyst with adsorbed H atom, the catalyst without adsorbed H atom, and H₂ for gas phase, respectively. $\mathrm{\Delta }{\mathrm{E}}_{\mathrm{ZPE}}$ and $\mathrm{T}\mathrm{\Delta }{\mathrm{S}}_{\mathrm{H}}$ are the zero-point energy and entropy differences between the adsorbed system and gas phase, respectively.$\mathrm{\Delta }{\mathrm{E}}_{\mathrm{ZPE}}$ can be calculated using Equation

$$\mathrm{\Delta }{\mathrm{E}}_{\mathrm{ZPE}}={\mathrm{E}}_{\mathrm{ZEP}}^{\mathrm{H}\ast }-{\mathrm{E}}_{\mathrm{ZPE}}-1/2{\mathrm{E}}_{\mathrm{ZEP}}^{{\mathrm{H}}_2}$$

(3)

where ${\mathrm{E}}_{\mathrm{ZPE}}^{\mathrm{H}\ast }$ represent zero-point energy with a H atom adsorbed on the surface of catalyst, ${\mathrm{E}}_{\mathrm{ZPE}}^{{\mathrm{H}}_2}$ represents zero-point energy of isolate H₂ molecule.

The $\mathrm{\Delta }{\mathrm{S}}_{\mathrm{H}}$ can be approximated as

$$\mathrm{\Delta }{\mathrm{S}}_{\mathrm{H}}\approx 1/2{\mathrm{S}}_{{\mathrm{H}}_2}^0$$

(4)

due to the fact that the vibrational entropy in the adsorbed state is small according to previous studies [24], and ${\mathrm{S}}_{{\mathrm{H}}_2}^0$ is the entropy of H₂ gas under the standard conditions [21]. Here, the values of $\mathrm{\Delta }{\mathrm{E}}_{\mathrm{ZPE}}$ and $\mathrm{T}\mathrm{\Delta }{\mathrm{S}}_{\mathrm{H}}$ are referenced from Ref. [8]. Therefore, Equation (5) can be written as [25]

$$\mathrm{\Delta }{\mathrm{G}}_{\mathrm{H}\ast }=\mathrm{\Delta }{\mathrm{E}}_{\mathrm{H}}+0.3 \mathrm{eV}$$

(5)

$\mathrm{\Delta }{\mathrm{G}}_{\mathrm{H}}$ as a descriptor of catalytic activity trend is a necessary and insufficient condition. If other conditions remain unchanged, when $\mathrm{\Delta }{\mathrm{G}}_{\mathrm{H}}$ approaches 0, the potential barrier for adsorption and desorption is smaller and the corresponding catalytic activity is better. Therefore, we used $\mathrm{\Delta }{\mathrm{G}}_{\mathrm{H}}$ as a descriptor to study the regulation of nonmetal doping on the catalytic hydrogen evolution of 2D MXenes [23,24,27] The optimal $\mathrm{\Delta }{\mathrm{G}}_{\mathrm{H}}$ value for HER is close to 0 eV, which means that the smaller the value is $\left|\mathrm{\Delta }{\mathrm{G}}_{\mathrm{H}}\right|$, the better the HER performance of the catalyst will be.

4. Conclusions

In summary, we studied the HER catalytic activity of 2D-Ti₃C₂O₂ after being doped with X by density functional theory. The calculation of ΔG_H shows that X doping can effectively promote the catalytic activity by changing the bond length and electrical structure of the adsorption sites. Ti₂₇C₁₈O₁₇Te₃ showed the best catalytic activity for HER. The hybridization of p-d orbitals led to the shift of Fermi level and weakened the interaction with H, which was verified by DOS and difference charge density. Moreover, AIMD analysis showed that the doped system maintained stability, which forebode the materials can be successfully prepared in experiment. This work not only screens out the 2D-Ti₂₇C₁₈O₁₇Te₃ as high-performance catalyst for HER from the theoretical study, but also provides theoretical guidance for the design of other 2D-MXenes electrocatalytic HER materials and their successful synthesis in experiment.
