Search Results (8)

This study aims to verify the adaptability of a crack width evaluation method for fiber-reinforced cementitious composite (FRCC) proposed by the authors to various combinations of fiber-reinforced polymer (FRP) bars and FRCCs. As this evaluation method requires bond constitutive laws between FRP bars and FRCC, bond tests between FRP and FRCCs were conducted. The FRP and FRCC combinations used in the bond tests were spiral-type CFRP and GFRP bars with PVA-FRCC, as well as strand-type CFRP bars with aramid–FRCC. The maximum bond stress tended to increase as the rib–height ratio of the spiral-type bars increased. When the rib–height ratio increased by 50%, the maximum bond stress of the CFRP and GFRP bars increased by 11% and 33%, respectively. For aramid–FRCC, the average maximum bond stress in the FRCC with a 0.25% volume fraction was 1.67 times that in mortar, and that in 0.50% was 2.01 times that in mortar. The bond constitutive laws were modeled using the trilinear model. Verifications of the method’s adaptability were conducted using tension tests on prisms made of spiral-type CFRP and GFRP bars with PVA-FRCC. As a result of the tension tests, when the FRP strain reached approximately 0.3%, the crack width was about 0.2 mm for CFRP bars and about 0.1 mm for GFRP bars. Verifications were also conducted using four-point bending tests on strand-type CFRP bar beams with aramid–FRCC. The crack width at the same FRP strain tended to become smaller as the fiber volume fraction of FRCC increased. When the FRP strain reached approximately 0.2%, the average crack width of the mortar specimen was around 0.25 mm, whereas it was about 0.15 mm in FRCC with a 0.25% volume fraction and about 0.10 mm at 0.5%. The test results for FRP strain versus crack width relationships were compared with the calculations using the crack width prediction formula. The test results and calculation results were in good agreement. Full article

This study investigates the influence of fiber dimensions on the bridging performance of polyvinyl alcohol fiber-reinforced cementitious composite (PVA-FRCC) through an experimental and analytical program. Bending tests, bridging law calculations, and section analysis are conducted. Bending tests of notched specimens of PVA-FRCC with six different PVA fiber dimensions are performed to determine the load–deflection (LPD) and bending moment–crack mouth opening displacement (CMOD) relationships. The fiber volume fraction for all PVA-FRCCs is set to 2%. It is found that the load capacity of PVA-FRCC with a 27 μm diameter fiber is much higher than that of the other fibers, and the load capacity decreases as the fiber diameter increases. The study proposes parameters for the characteristic points of the tri-linear model for the single-fiber pullout model as functions of diameter, bond fracture energy, elastic modulus, cross-sectional area, and perimeter of the fiber. These findings provide valuable insights into the behavior of PVA-FRCC under different fiber dimensions. Bridging law calculations are conducted to obtain tensile stress–crack width relationships using the developed single-fiber pullout models. The Popovics model for the complete tensile stress–crack width relationship is adopted to obtain a better fit with the bridging law calculation, and then section analysis is conducted. The bridging law calculation results show that the maximum tensile stress decreases as the fiber diameter increases. It is also determined that most of the smaller-diameter fibers ruptured, whereas the larger fiber diameters pulled out from the matrix. The section analysis results show good agreement with the maximum bending moments obtained from the bending test. Full article

Based on multi-scale characteristics inherent in the cracking process of cementitious composites, fibers with different geometric dimensions are simultaneously used to restrain the formation and development of cracks at different scales. Accordingly, hybrid fiber-reinforced cementitious composites (HyFRCCs) exhibit excellent bond behavior and deformation capacity in terms of tension and compression, accompanied by higher damage tolerance. Using these benefits of the mechanical properties of HyFRCCs, the structural performance of HyFRCC structures under complex loading conditions can be improved. To objectively evaluate the contributions of all fibers to the mechanical properties of HyFRCCs, steel macro-fibers, and polyvinyl alcohol (PVA) micro-fibers were used to design several reinforced cementitious composites. Four of the specimens were mono-fibrous cementitious composites, three specimens were cementitious composites reinforced with hybrid fibers, and one was a non-fibrous cementitious composite. The synergy effect of the steel and PVA fibers was analyzed using various fiber combinations. The results indicated a significant enhancement of the bonding properties of HyFRCCs through the incorporation of PVA and steel fibers. Specifically, the peak bond strength, peak slip displacement, and residual bond strength exhibited increments ranging from 31.0% to 41.7%, 60.6% to 118.4%, and 34.6% to 391.3%, respectively, in comparison to the reference test block. Notably, the combined presence of the PVA and steel fibers consistently demonstrated a positive confounding effect on the residual bond strength. However, negative confounding effects were observed in terms of the peak bond strength and peak slip displacement, particularly with 1.0% steel fiber content and 0.5% PVA fiber content. Full article

Easy maintenance and high durability are expected in structures made with fiber-reinforced cementitious composite (FRCC) reinforced with fiber-reinforced polymer (FRP) bars. In this study, we focused on the bond and cracking characteristics of polyvinyl alcohol (PVA)-FRCC reinforced with braided AFRP bars (AFRP/PVA-FRCC). Pullout tests on specimens with varying bond lengths were conducted. Beam specimens were also subjected to four-point bending tests. In the pullout tests, experimental parameters included the cross-sectional dimensions and the fiber volume fractions of PVA-FRCC. A trilinear model for the bond constitutive law (bond stress–loaded-end slip relationship) was proposed. In the pullout bond test with specimens of long bond length, bond strength was found to increase with increases in both the fiber volume fraction and the cross-sectional dimension of the specimens. Bond behavior in specimens of long bond length was analyzed numerically using the proposed bond constitutive law. The calculated average bond stress–loaded-end slip relationships favorably fitted the test results. In bending tests with AFRP/PVA-FRCC beam specimens, high ductility was indicated by the bridging effect of fibers. The number of cracks increased with increases in the fiber volume fraction of PVA-FRCC. In specimens with a fiber volume fraction of 2%, the load reached its maximum value due to compression fracture of the FRCC. The crack width in PVA-FRCC calculated by the predicted formula, considering the bond constitutive law and the fiber bridging law, showed good agreement with the reinforcement strain–crack width relationship obtained from the tests. Full article

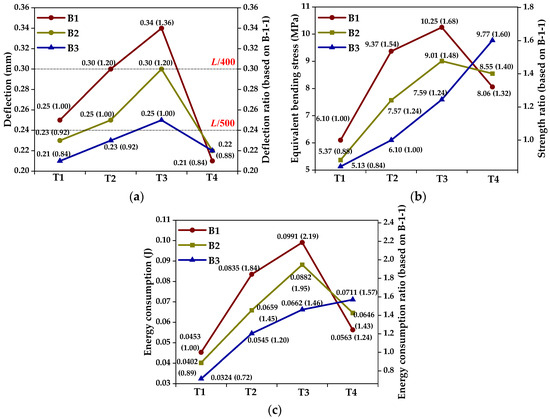

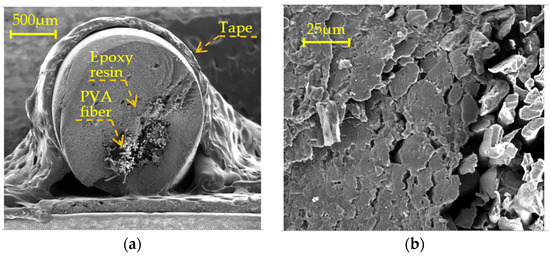

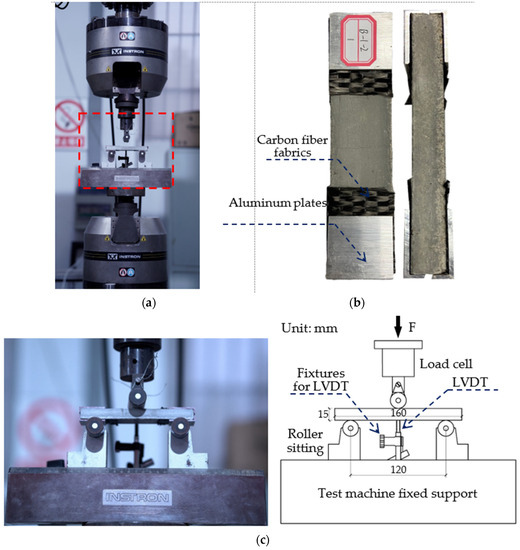

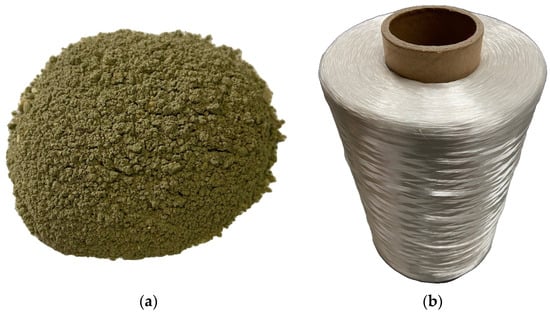

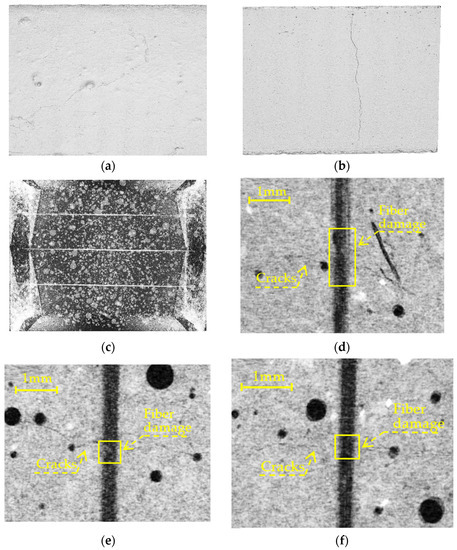

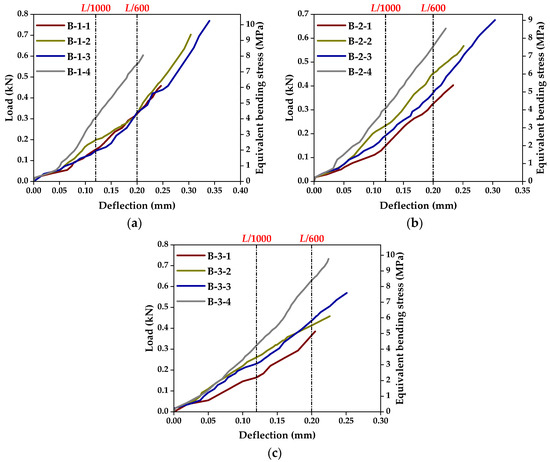

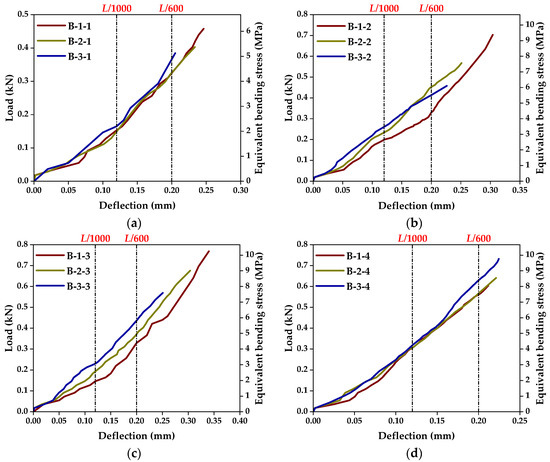

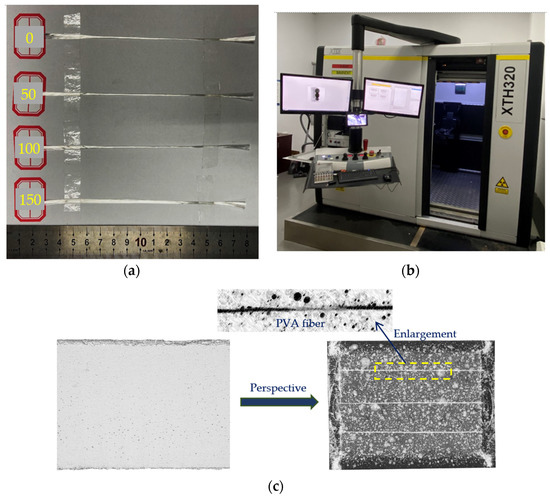

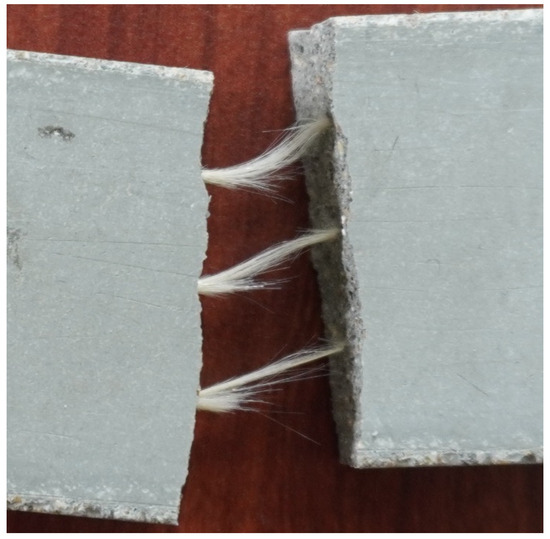

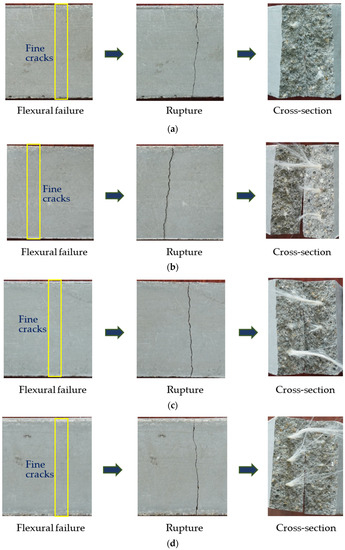

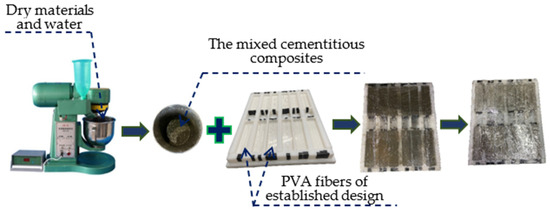

Fiber-reinforced cementitious composites (FRCCs) have made significant progress in improving the tensile and flexural properties of concrete members. Studies have shown that polyvinyl alcohol (PVA) fibers can effectively enhance the toughness of FRCCs, but the haphazard distribution of short-cut fibers makes it difficult to give full play to the high tensile strength of the fibers, and it is difficult for bundled fibers to effectively bond with the concrete substrate, which has become a challenge in the study of changing materials. Twisting the fibers by a physical process to improve the bonding performance of PVA fibers with FRCC substrate is a safe and feasible solution. However, research on silicate cementitious composites reinforced with twisted PVA fibers is limited. In this study, the interaction mechanism of through-length twisted PVA FRCCs with different twist factors and fiber bundle numbers was investigated. A concrete matrix material configured from silicate cement, fly ash, silica fume, and medium sand, in which PVA fibers with different twist factors were pre-incorporated, was used for the tests. Three-point bending tests were carried out on specimens with different twist factors (0, 50, 100, and 150 twists per meter) and fiber bundle numbers 1, 2, and 3. Compared to the untwisted PVA fiber specimens, the twist factor of 100 and the single fiber bundle specimens showed significant improvements in the bending properties, including a 36% increase in deflection, a 68% increase in the equivalent bending stress, and a 119% increase in energy consumption. Micro-X-ray computed tomography scans showed improved bending properties and energy consumption capabilities due to enhanced bonding properties as a result of the increased fiber–matrix interaction area and surface toughness. Full article

The mechanical properties of cementitious composites before and after exposure to high temperature are affected by calcium–silicate–hydrate (C–S–H) gels. To evaluate the effects of high temperature, plyvinyl alcohol (PVA) fiber content, and the cooling method on properties of cementitious composites, physical, mechanical, and microscopic tests were performed in this study. The target temperatures were 25, 100, 200, 300, 400, 600, and 800 °C. The PVA fiber contents were 0.0, 0.3, 0.6, 0.9, 1.2, and 1.5 vol%. The high-temperature resistance of PVA fiber-reinforced cementitious composite (PVA-FRCC) specimens was investigated through changes in their appearance, mass loss, compressive strength, splitting tensile strength, flexural strength, and microstructure. The results showed that PVA fibers reduced the probability of explosion spalling in the PVA-FRCC specimens exposed to high temperatures. The mass loss rate of samples exposed to temperatures below 200 °C was small and lower than 5%, whereas a significant mass loss was observed at 200 °C to 800 °C. A small rise in the cubic compressive and splitting tensile strengths of samples was found at 400 °C and 300 °C, respectively. Below 400 °C, the fibers were beneficial to the mechanical strength of the PVA-FRCC specimens. Nevertheless, when the temperature was heated above 400 °C, melted fibers created many pores and channels, which caused a decrease in the strength of the specimens. The method of cooling with water could aggravate the damage to the cementitious composites exposed to temperatures above 200 °C. High temperature could lead to the decomposition of the C–S–H gels of the PVA-FRCC samples, which makes C–S–H gels lose their bonding ability. From the perspective of the microstructure, the structure of PVA-FRCC samples exposed to 600 °C and 800 °C became loose and the number of microcracks increased, which confirmed the reduction in macro-mechanical properties. Full article

The objective of this study is to investigate the flexural characteristics of functionally graded fiber-reinforced cementitious composite (FG-FRCC) concerning the fiber volume fraction (V_f) varying in layers and the layered effect in bending specimens. The FG-FRCC specimens, in which V_f increases from 0% in the compression zone to 2% in the tensile zone, are three-layered specimens using polyvinyl alcohol (PVA) FRCC that are fabricated and tested by a four-point bending test. The maximum load of the FG-FRCC specimens exhibits almost twice that of homogeneous specimens, even when the average of the fiber volume fraction in the whole specimen is 1%. The result of the section analysis, in which the stress–strain models based on the bridging law (tensile stress–crack width relationship owned by the fibers) consider the fiber orientation effect, shows a good adaptability with the experiment result. Full article

Various types of fiber reinforced cementitious composites (FRCCs) were experimentally studied to evaluate their self-healing capabilities regarding their watertightness and mechanical properties. Cracks were induced in the FRCC specimens during a tensile loading test, and the specimens were then immersed in static water for self-healing. By water permeability and reloading tests, it was determined that the FRCCs containing synthetic fiber and cracks of width within a certain range (<0.1 mm) exhibited good self-healing capabilities regarding their watertightness. Particularly, the high polarity of the synthetic fiber (polyvinyl alcohol (PVA)) series and hybrid fiber reinforcing (polyethylene (PE) and steel code (SC)) series showed high recovery ratio. Moreover, these series also showed high potential of self-healing of mechanical properties. It was confirmed that recovery of mechanical property could be obtained only in case when crack width was sufficiently narrow, both the visible surface cracks and the very fine cracks around the bridging of the SC fibers. Recovery of the bond strength by filling of the very fine cracks around the bridging fibers enhanced the recovery of the mechanical property. Full article
