Search Results (9)

High-entropy alloys (HEAs) exhibit superior properties for extreme environments, yet the effects of laser scanning speed on the microstructure and performance of laser-clad NiAlNbTiV HEA coatings remain unclear. This study systematically investigates NiAlNbTiV coatings on 316 stainless steel fabricated at scanning speeds of 800–1100 mm/min via laser cladding. Characterizations via XRD, SEM/EDS, microhardness testing, high-temperature wear testing, and electrochemical measurements reveal that increasing scanning speed enhances the cooling rate, promoting γ-(Ni, Fe) solid solution formation, intensifying TiV peaks, and reducing Fe-Nb intermetallics. Higher speeds refine grains and needle-like crystal distributions but introduce point defects and cracks at 1100 mm/min. Microhardness decreases from 606.2 HV (800 mm/min) to 522.4 HV (1100 mm/min). The 800 mm/min coating shows optimal wear resistance (wear volume: 0.0117 mm³) due to dense eutectic hard phases, while higher speeds degrade wear performance via increased defects. Corrosion resistance follows a non-linear trend, with the 900 mm/min coating achieving the lowest corrosion current density (1.656 μA·cm⁻²) due to fine grains and minimal defects. This work provides parametric optimization guidance for laser-clad HEA coatings in extreme-condition engineering applications. Full article

Novel multicomponent Nb–Ni–Ti–Zr–Co alloys with 20–55 at.% Nb were synthesized from metal powders by arc melting. The resulting alloys consist primarily of Nb-rich and eutectic body-centered (BCC) phases. The content of the eutectic BCC phase is highest for an equimolar composition, while the content of the Nb-rich BCC phase increases with Nb content in the alloy. The content of secondary phases is the highest for the alloy with 32 at.% Nb. According to ab initio calculations, hydrogen occupies tetrahedral interstitial sites in the Nb-rich phase and octahedral sites in the eutectic BCC phase. For different Nb concentrations, hydrogen-binding energies were calculated. An increase in the Nb-rich phase leads to softening of multicomponent alloys. The alloys with 20 and 32 at.% Nb demonstrate high hydrogen permeability (1.05 and 0.96 × 10⁻⁸ molH₂m⁻¹s⁻¹Pa^−0.5, respectively) at 400 °C, making them promising for hydrogen purification membrane application. Multicomponent alloys with a high Nb content (55 at.%) have low resistance to hydrogen embrittlement. Full article

At present, the V-Ti-Co phase diagram is not established, which seriously hinders the subsequent development of this potential hydrogen permeation alloy system. To this end, this article constructed the first phase diagram of the V-Ti-Co system by using the CALculation of PHAse Diagrams (CALPHAD) approach as well as relevant validation experiments. On this basis, hydrogen-permeable V_xTi₅₀Co_50−x (x = 17.5, 20.5, …, 32.5) alloys were designed, and their microstructure characteristics and hydrogen transport behaviour were further studied by XRD, SEM, EDS, and so on. It was found that six ternary invariant reactions are located in the liquidus projection, and the phase diagram is divided into eight phase regions by their connecting lines. Among them, some alloys in the TiCo phase region were proven to be promising candidate materials for hydrogen permeation. Typically, V_xTi₅₀Co_50−x (x = 17.5–23.5) alloys, which consist of the primary TiCo and the eutectic {bcc-(V, Ti) and TiCo} structure, show a high hydrogen permeability without hydrogen embrittlement. In particular, V_23.5Ti₅₀Co_26.5 exhibit the highest permeability of 4.05 × 10⁻⁸ mol H₂ m⁻¹s⁻¹Pa^−0.5, which is the highest value known heretofore in the V-Ti-Co system. The high permeability of these alloys is due in large part to the simultaneous increment of hydrogen solubility and diffusivity, and is closely related to the composition of hydrogen permeable alloys, especially the Ti content in the (V, Ti) phase. The permeability of this alloy system is much higher than those of Nb-TiCo and/or Nb-TiNi alloys. Full article

TiNi intermetallic alloys were prepared with 2, 4 and 6 at.% niobium (Nb) addition. The mechanical properties and microstructures of the alloys were investigated under both static (1 × 10⁻¹ to 1 × 10⁻³ s⁻¹) and dynamic (4 × 10³ to 6 × 10³ s⁻¹) loading conditions. The intermetallic alloy structures and surface morphologies of the alloys were examined by X-ray diffraction (XRD) and scanning electron microscopy (SEM), respectively. In addition, the fracture morphologies were observed by optical microscopy (OM). It was shown that the addition of 2 to 4 at.% Nb increased the strength of the TiNi alloy. However, as the level of Nb addition was further increased to 6 at.%, a significant reduction in strength occurred. For a constant Nb addition, the plastic flow stress and strain rate sensitivity increased with increasing strain rate under both loading conditions (static and dynamic). The XRD and SEM results showed that the original surface morphologies were composed primarily of dendritic structures and fine β-Nb + TiNi eutectic systems. Moreover, the OM results showed that the alloys underwent a transition from a brittle fracture mode to a ductile fracture mode as the level of Nb addition increased. Full article

This paper presents the results of selective laser melting (SLM) process of a nitinol-based NiTiNb shape memory alloy. The eutectic alloy Ni₄₅Ti₄₅Nb₁₀ with a shape memory effect was obtained by SLM in-situ alloying using a powder mixture of NiTi and Nb powder particles. Samples with a high relative density (>99%) were obtained using optimized process parameters. Microstructure, phase composition, tensile properties, as well as martensitic phase transformations temperatures of the produced alloy were investigated in as-fabricated and heat-treated conditions. The NiTiNb alloy fabricated using the SLM in-situ alloying featured the microstructure consisting of the NiTi matrix, fine NiTi+β-Nb eutectics, as well as residual unmelted Nb particles. The mechanical tests showed that the obtained alloy has a yield strength up to 436 MPa and the tensile strength up to 706 MPa. At the same time, in-situ alloying with Nb allowed increasing the hysteresis of martensitic transformation as compared to the alloy without Nb addition from 22 to 50 °C with an increase in A_f temperature from −5 to 22 °C. Full article

Ti-23Nb (at.%) coatings on an NiTi alloy with metallurgical bonding were prepared by laser cladding (LC) technology using Ti-Nb mixture powders. The effects of laser processing parameters on the microstructure and mechanical properties of the coatings were systematically investigated and the corrosion resistance of the coatings was assessed. The coatings were composed of TiNb, (Ti, Nb)₂Ni, and β-Nb phases. The coatings increased the hardness of the NiTi alloy by a combined strengthening effect of the eutectics and fine microstructure. The corrosion resistance of the coated part was improved. The coatings with great corrosion resistance could keep the coated parts inert in an aggressive environment, and effectively restrain the release of toxic Ni ions, which means that the Ti-Nb alloy coatings are likely to be used as a biomaterial for medical applications. Full article

In this paper two Nb-silicide-based alloys with nominal compositions (at.%) Nb-12Ti-18Si-6Ta-2.5W-1Hf-2Sn-2Ge (JZ1) and Nb-12Ti-18Si-6Ta-2.5W-1Hf-5Sn-5Ge (JZ2) were studied. The alloys were designed using the alloy design methodology NICE to meet specific research objectives. The cast microstructures of both alloys were sensitive to solidification conditions. There was macro-segregation of Si in JZ1 and JZ2. In both alloys the βNb₅Si₃ was the primary phase and the Nb_ss was stable. The A15-Nb₃X (X = Ge,Si,Sn) was stable only in JZ2. The Nb_ss+βNb₅Si₃ eutectic in both alloys was not stable as was the Nb₃Si silicide that formed only in JZ1. At 800 °C both alloys followed linear oxidation kinetics and were vulnerable to pesting. At 1200 °C both alloys exhibited parabolic oxidation kinetics in the early stages and linear kinetics at longer times. The adhesion of the scale that formed on JZ2 at 1200 °C and consisted of Nb and Ti-rich oxides, silica and HfO₂ was better than that of JZ1. The microstructure of JZ2 was contaminated by oxygen to a depth of about 200 μm. There was no Ge or Sn present in the scale. The substrate below the scale was richer in Ge and Sn where the NbGe₂, Nb₅(Si_1-xGe_x)₃, W-rich Nb₅(Si_1-xGe_x)₃, and A15-Nb₃X compounds (X = Ge,Si,Sn) were formed in JZ2. The better oxidation behavior of JZ2 compared with JZ1 correlated well with the decrease in VEC and increase in δ parameter values, in agreement with NICE. For both alloys the experimental data for Si macrosegregation, vol.% Nb_ss, chemical composition of Nb_ss and Nb₅Si₃, and weight gains at 800 and 1200 °C was compared with the calculations (predictions) of NICE. The agreement was very good. The calculated creep rates of both alloys at 1200 °C and 170 MPa were lower than that of the Ni-based superalloy CMSX-4 for the same conditions but higher than 10⁻⁷ s⁻¹. Full article

The addition of Nb can form a eutectic phase with a NiTi matrix in a NiTi-based shape memory alloy, improving the transition hysteresis of the NiTi alloy. A Ni₄₄Ti₄₄Nb₁₂ ingot was prepared using the vacuum induction melting technique. Under compression deformation, the yield strength of the NiTi–Nb alloy is about 1000 MPa, the maximum compressive strength and strain can reach 3155 MPa and 43%, respectively. Ni₄₄Ti₄₄Nb₁₂ exhibited a superelastic recovery similar to that of the as-cast NiTi₅₀. Meanwhile, the loading–unloading cycle compression shows that the superelastic recovery strain reached a maximum value (2.32%) when the total strain was about 15%, and the superelasticity tends to rise first and then decrease as the strain increases. Full article

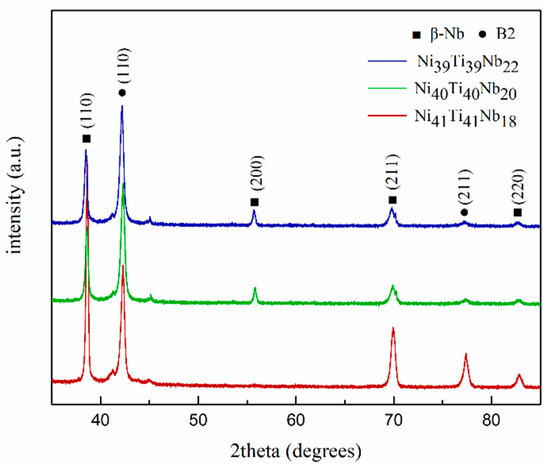

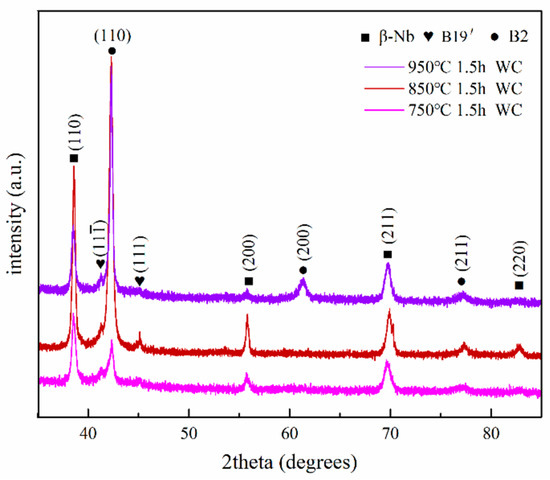

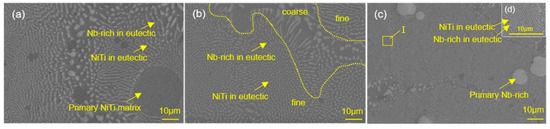

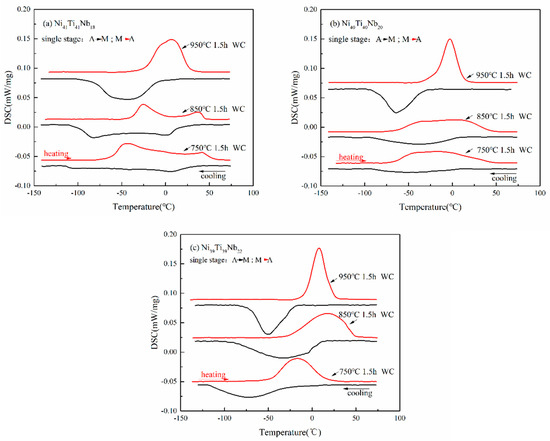

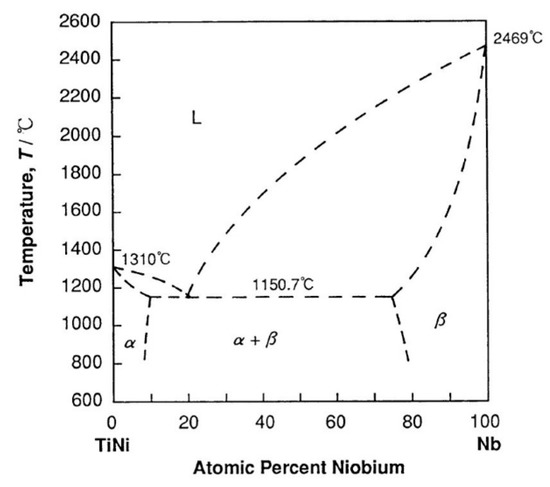

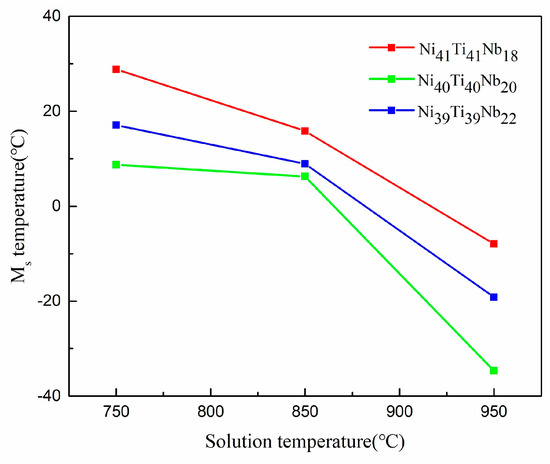

In the present work, three NiTiNb alloys with nominal compositions of Ni50–x/2Ti50–x/2Nbx (x = 18, 20 and 22, at.%) were prepared. The microstructure, thermal-induced phase transformation, and phase components of NiTiNb hypoeutectic, eutectic, and hypereutectic alloys were investigated by scanning electron microscopy coupled with energy dispersive spectrometer (SEM/EDS), differential scanning calorimetry (DSC), and X-ray diffraction (XRD), respectively. Two peaks occurred in the DSC curves of Ni41Ti41Nb18 solution at 750 and 850 °C. The different microstructures of NiTiNb hypoeutectic, eutectic and hypereutectic alloys, the occurrence of two peaks in the DSC curves, and the characteristic of martensite transformation temperature were analyzed and discussed. The results show that different Nb content leads to different microstructures of Ni50–x/2Ti50–x/2-Nbx alloys. Moreover, the difference of Ni/Ti ratio between the primary NiTi matrix and NiTi in eutectic structure strongly influenced the phase transformation behavior that the DSC curves of Ni41Ti41Nb18 alloy show two peaks. Furthermore, under the same solution treatment, the Ni40Ti40Nb20 alloy has a lower Ms than the other two alloys. The Ms has a tendency to decrease with an increase in solution temperature. Full article
