Search Results (48)

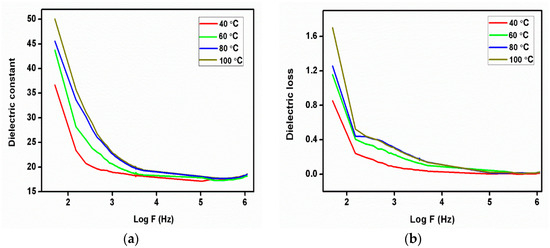

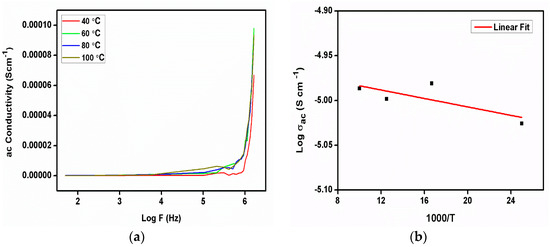

A BaF₂ single crystal co-doped with Er³⁺ and Yb³⁺ was grown by the vertical Bridgman technique and investigated for its optical and dielectric properties. Judd–Ofelt analysis yielded intensity parameters Ω₂ = 0.59, Ω₄ = 0.38, and Ω₆ = 0.27 (×10⁻²⁰ cm²), with a quality factor χ = 1.41, indicating strong radiative transitions. Under UV and near-UV excitation, emissions at 321, 405, 518, and 536 nm were observed, with radiative lifetimes ranging from 1.1 to 3.4 ms. A single dielectric relaxation process was identified, with activation energy of 0.58 eV and associated with trigonal NNN dipoles. The NNN dipole concentration was estimated at ~2.5 × 10¹⁸ cm⁻³. These results support the suitability of Er³⁺,Yb³⁺ co-doped BaF₂ crystals for luminescent and dielectric applications in advanced photonic materials. Full article

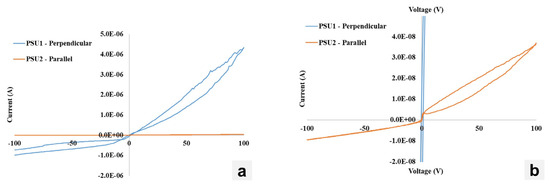

Using the Bridgman technique, GaSe single crystals were obtained which were mechanically split into plane-parallel plates with a wide range of thicknesses. By heat treatment in air at 820 °C and 900 °C, for 30 min and 6 h, micro- and nanocomposite layers of Ga₂Se₃–Ga₂O₃ and β–Ga₂O₃ (native oxide) with surfaces made of nanowires/nanoribbons were obtained. The obtained composite Ga₂Se₃–Ga₂O₃ and nanostructured β–Ga₂O₃ are semiconductor materials with band gaps of 2.21 eV and 4.60 eV (gallium oxide) and photosensitivity bands in the green–red and ultraviolet-C regions that peaked at 590 nm and 262 nm. For an applied voltage of 50 V, the dark current in the photodetector based on the nanostructured β–Ga₂O₃ layer was of 8.0 × 10⁻¹³ A and increased to 9.5 × 10⁻⁸ A upon 200 s excitation with 254 nm-wavelength radiation with a power density of 15 mW/cm². The increase and decrease in the photocurrent are described by an exponential function with time constants of τ_1r = 0.92 s, τ_2r = 14.0 s, τ_1d = 2.18 s, τ_2d = 24 s, τ_1r = 0.88 s, τ_2r = 12.2 s, τ_1d = 1.69 s, and τ_2d = 16.3 s, respectively, for the photodetector based on the Ga₂Se₃–Ga₂S₃–GaSe composite. Photoresistors based on the obtained Ga₂Se₃–Ga₂O₃ composite and nanostructured β–Ga₂O₃ layers show photosensitivity bands in the spectral range of electronic absorption bands of ozone in the same green–red and ultraviolet-C regions, and can serve as ozone sensors (detectors). Full article

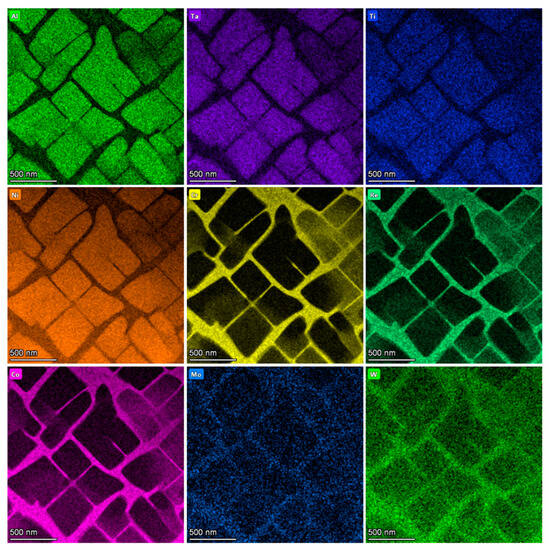

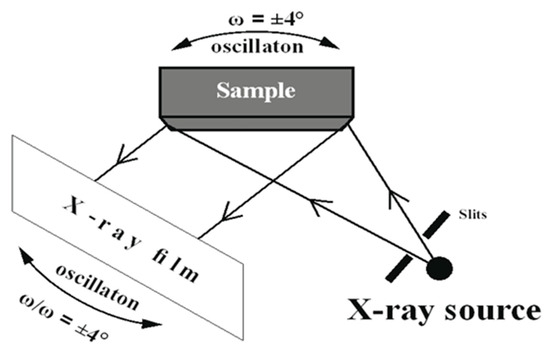

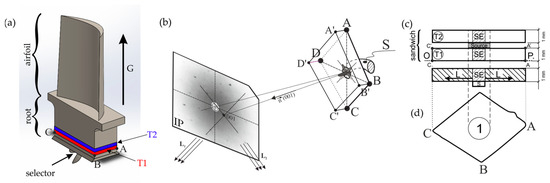

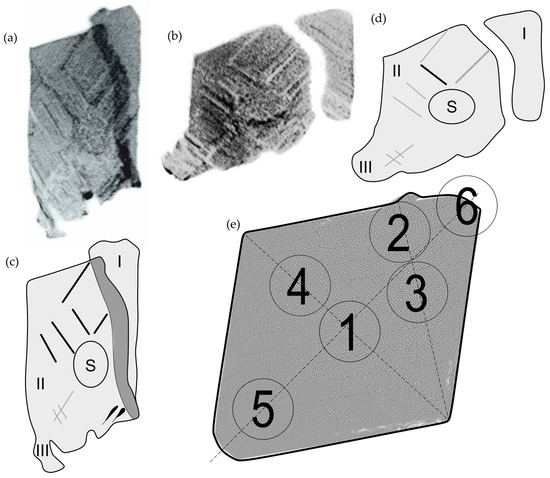

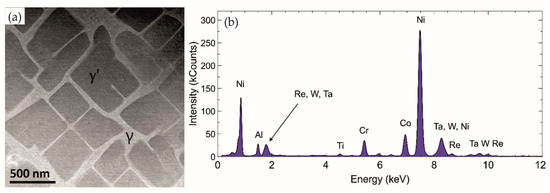

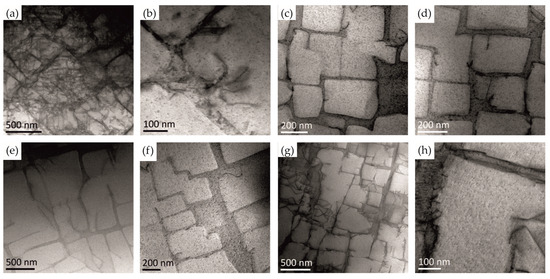

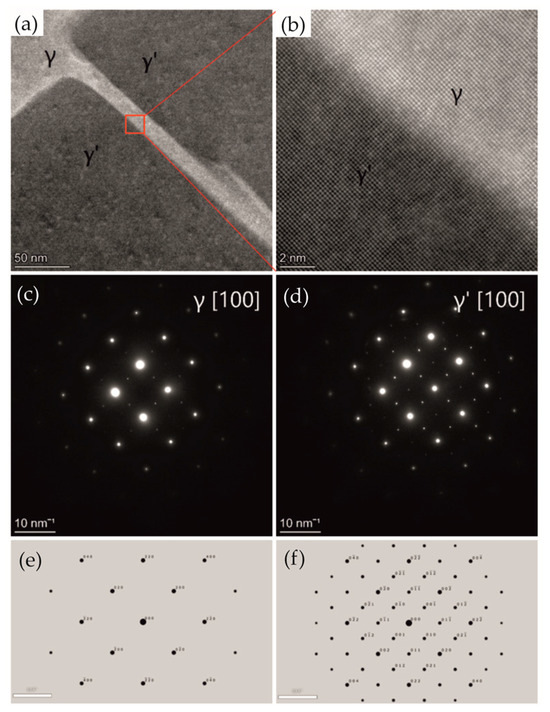

An analysis of defects creation in the vicinity of the selector-root connection plane in single-crystalline turbine blades made of CMSX-4 Ni-base superalloy was performed using several experimental methods. A coupling of scanning electron microscopy and X-ray diffraction topography allowed the visualization of dendritic arrays and surface defects in the root part of the blades. As a result, contrast inversions and areas where internal stresses occur were observed. The defects on a microscopic scale were characterized using positron annihilation lifetime spectroscopy and transmission electron microscopy. The registered positron lifetimes, above 0.5 ns, beyond the range characteristic for defects generally reported in metals and their alloys suggest the presence extremely large void type defects. Herein, we have identified large defects, ca. 2–5 nm in diameter, formed due to the contraction of fluid metal, captured in inter-dendritic regions during the liquid-to-solid transition. This work is a precursor to the almost untouched area of the discussion of lifetimes characteristic for positron bound states, called positronium (>0.5 ns) in relation to the morphology of void-type defects in single-crystalline superalloys. Full article

The Bridgman method for single-crystal growth enables the formation of crystals at the lower end of the molten material by cooling it under a precisely controlled temperature gradient. This makes it particularly suitable for producing high-quality single-crystal materials. Over the years, the Bridgman technique has become widely adopted for growing single crystals of semiconductors, oxides, sulfides, fluorides, as well as various optoelectronic, magnetic, and piezoelectric materials. Recently, there has been growing interest in metal halide materials, with the growth of high-quality metal halide single crystals emerging as a major focus for both the scientific community and industry. However, traditional solution-based single-crystal growth methods have several limitations, such as slow growth rates, inconsistent crystal quality, challenges in solvent selection, and difficulties in controlling saturation levels. These issues present significant obstacles, particularly when large, defect-free, high-quality single crystals are needed for certain high-performance materials. As a result, the Bridgman method has emerged as an effective solution to overcome these challenges. This review provides an overview of various categories of metal halide single-crystal systems grown using the Bridgman method in recent years. The systems are classified based on their dimensionality into three-dimensional, two-dimensional, and zero-dimensional metal halide structures. Furthermore, we highlight novel metal halide single crystals developed through the Bridgman technique. Additionally, we offer a brief introduction to the structures, properties, and applications of these single crystals, underscoring the crucial role of the Bridgman method in advancing research in this field. Full article

This study reviews the advanced anti-counterfeiting applications of CsCdCl₃, a lead-free all-inorganic perovskite crystal exhibiting dynamic luminescent properties responsive to temperature and UV light. Using synthesis methods such as Bridgman and hydrothermal techniques and incorporating dopants like bromine and tellurium, this research achieves improved luminescent stability, spectral diversity, and afterglow characteristics in CsCdCl₃. The crystal demonstrates extended afterglow, photochromic shifts, and temperature-sensitive luminescence, enabling applications in 4D encoding for secure data encryption and in cold-chain temperature monitoring for pharmaceuticals. Despite these promising attributes, the challenges related to photostability, batch consistency, and environmental resilience persist, necessitating further exploration into the optimized synthesis and doping strategies to enhance material stability. These findings underscore the potential of CsCdCl₃ for high-security information storage, pharmaceutical anti-counterfeiting, and real-time environmental sensing, positioning it as a valuable material for the next generation of secure, intelligent packaging solutions. Full article

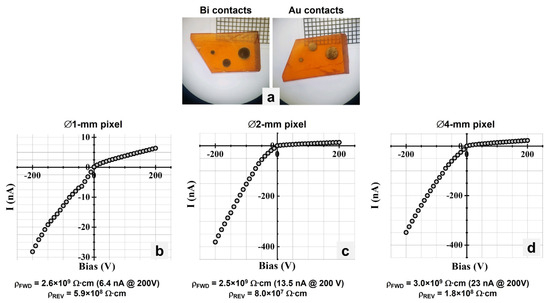

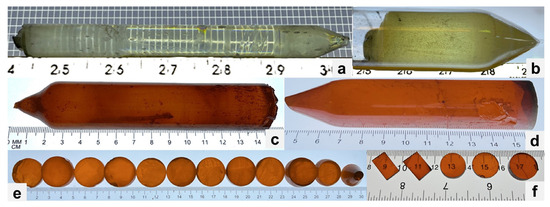

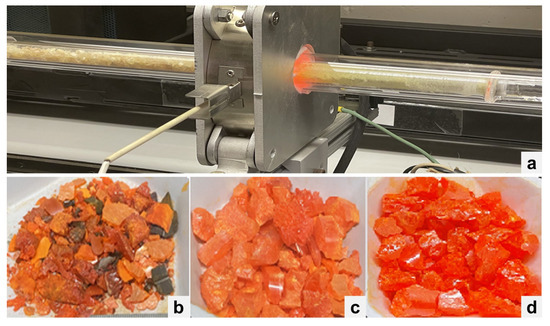

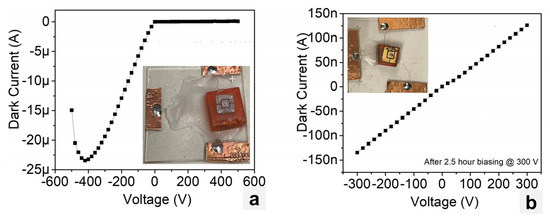

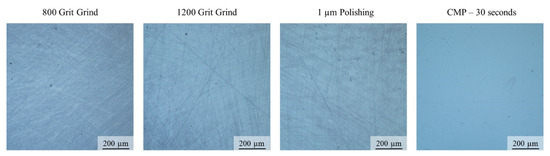

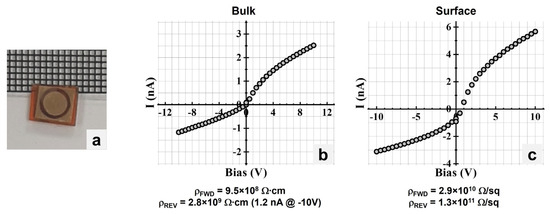

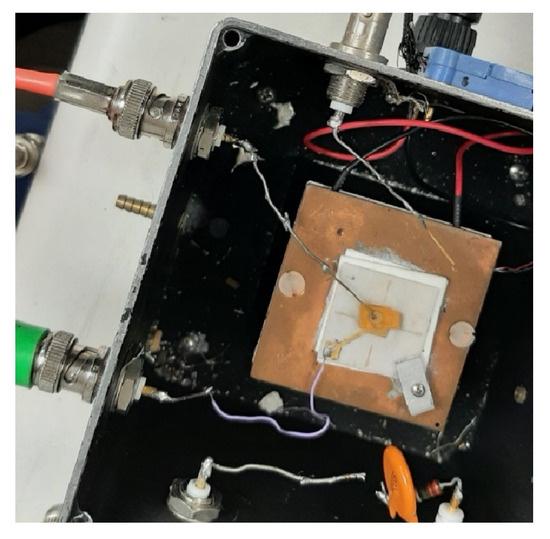

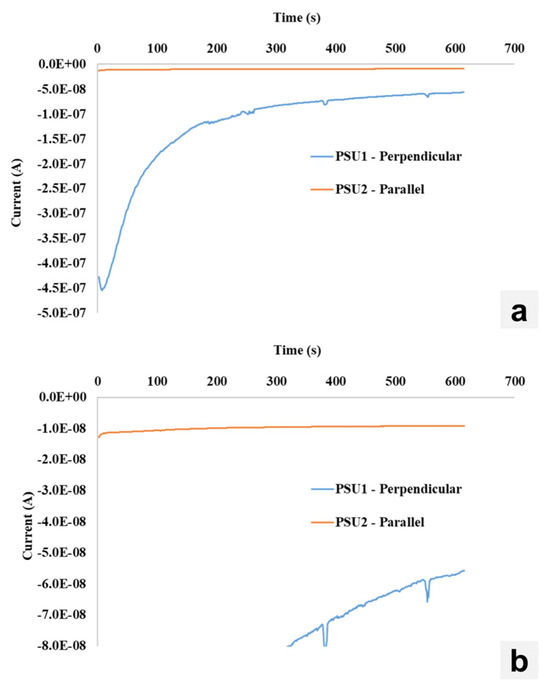

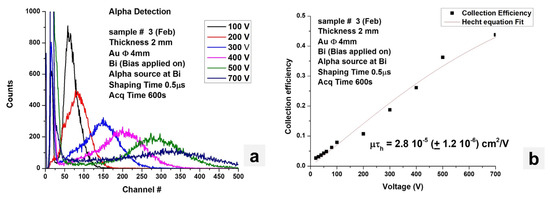

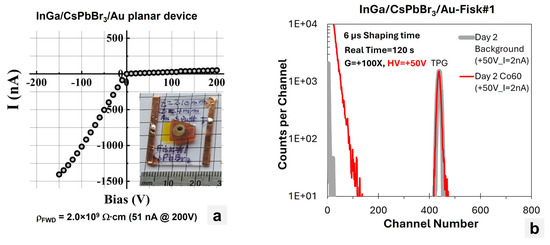

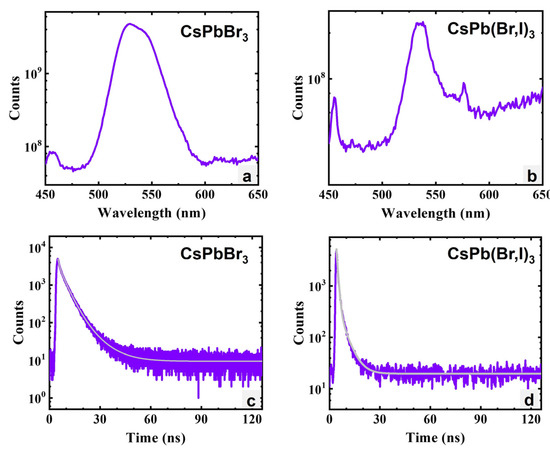

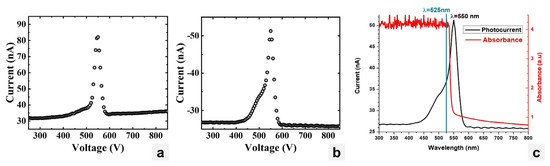

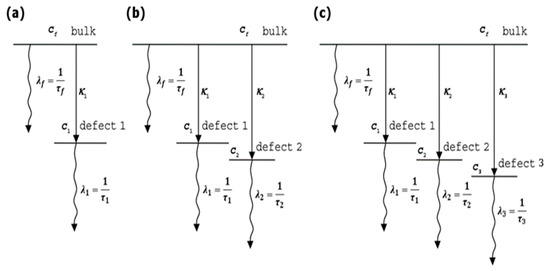

The material family halide perovskites has been critical in recent room-temperature radiation detection semiconductor research. Cesium lead bromide (CsPbBr₃) is a halide perovskite that exhibits characteristics of a semiconductor that would be suitable for applications in various fields. In this paper, we report on the correlations between material purification and crystal material properties. Crystal boules of CsPbX₃ (where X = Cl, Br, I, or mixed) were grown with the Bridgman growth method. We describe in great detail the fabrication techniques used to prepare sample surfaces for contact deposition and sample testing. Current–voltage measurements, UV–Vis and photocurrent spectroscopy, as well as photoluminescence measurements, were carried out for material characterization. Bulk resistivity values of up to 3.0 × 10⁹ Ω∙cm and surface resistivity values of 1.3 × 10¹¹ Ω/□ indicate that the material can be used for low-noise semiconductor detector applications. Preliminary radiation detectors were fabricated, and using photocurrent measurements we have estimated a value of the mobility–lifetime product for holes (μτ)_h of 2.8 × 10⁻⁵ cm²/V. The results from the sample testing can shed light on ways to improve the crystal properties for future work, not only for CsPbX₃ but also other halide perovskites. Full article

The problem of intensification of the melt crystal growth process has been analyzed using CdTe as an actual material. Numerical simulation of 100 mm diameter CdTe crystal growth using the VGF technique has been carried out. The heat–mass transfer was controlled by introducing low-frequency oscillating baffle into the melt, which is a so-called axial vibrational control (AVC) technique. The baffle configuration has been optimized to destroy solid “tails”, which were formed near the crucible walls at high cooling rates due to the low thermoconductivity and the corresponding latent heat. Analysis of CdTe homogeneity range showed that during fast crystal cooling, Te micro precipitations were formed, resulting from the decay of oversaturated Cd-rich nonstoichiometric solid solution during the Bridgman crystal growth technique. After full crystallization, a VGF-grown CdTe crystal stays inside the phase field of the high-temperature wurtzite polymorph. This makes it possible to go through the polymorph transition without Te micro-precipitating using the advantages of the VGF-specific feature of very slow cooling. Full article

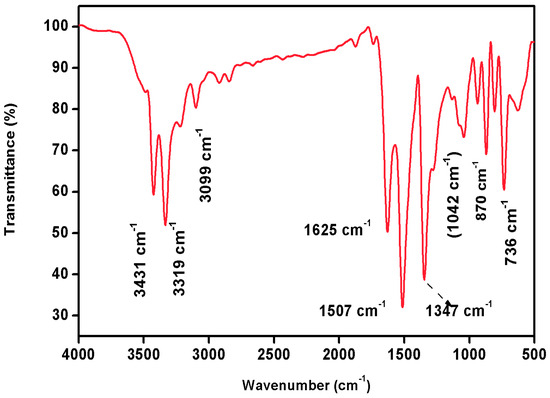

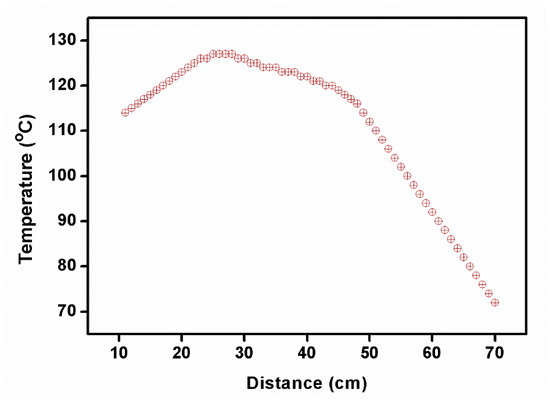

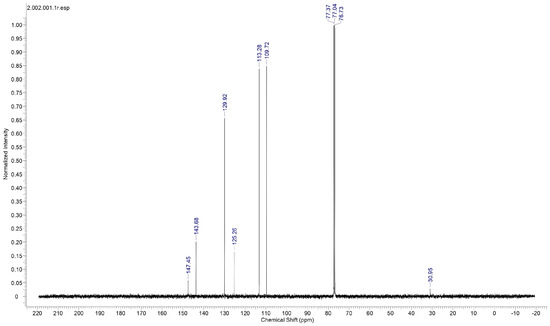

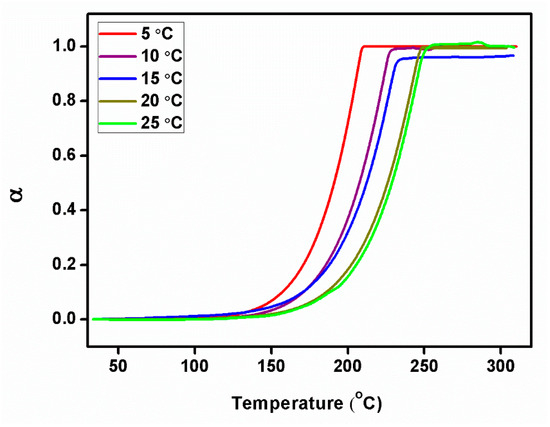

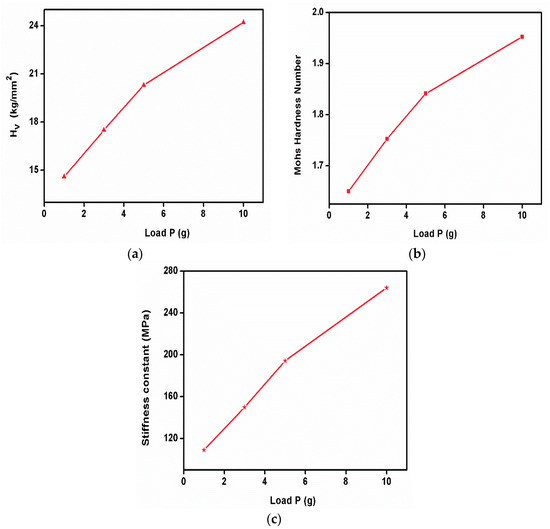

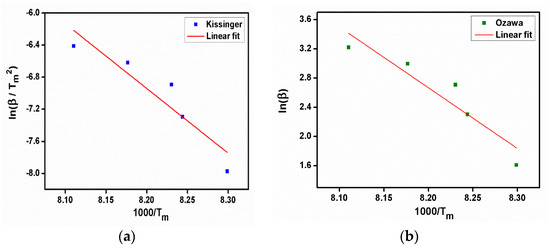

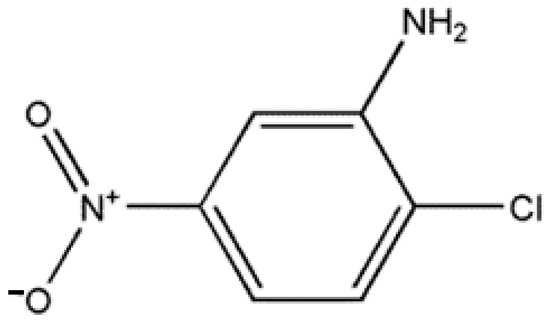

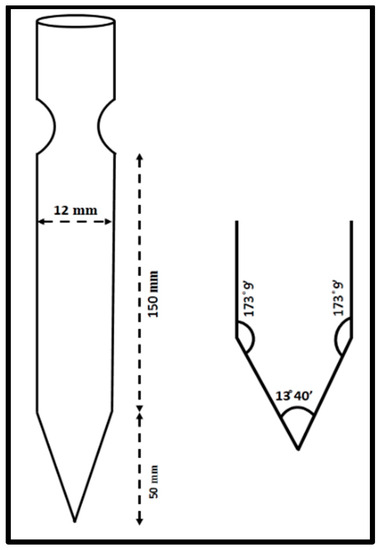

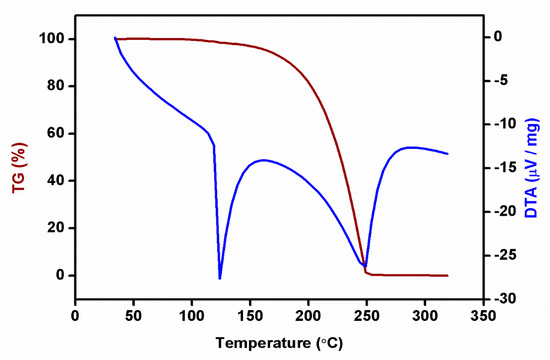

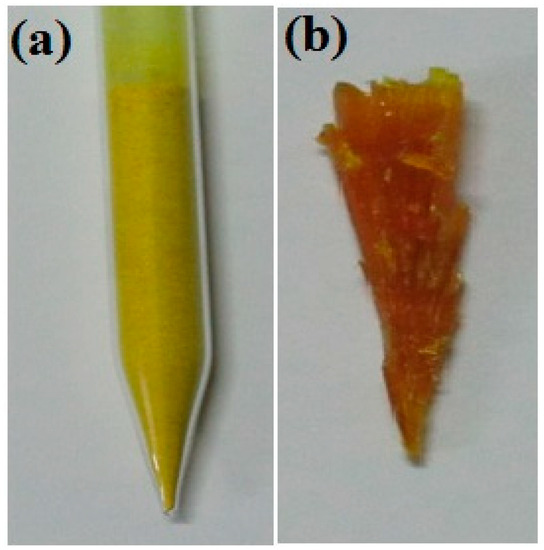

In this article, we discuss the preparation of organic 2-chloro-5 nitroaniline (2C5NA) crystals and their different kinds of physical, chemical, and mechanical properties. The vertical Bridgman approach was used to effectively produce the bulk organic 2C5NA crystal. To produce a good-quality bulk crystal, the shape, dimensions, and cone angle of the ampoule were optimized. Also, the temperature profile was set for the 2C5NA crystal. The growth atmosphere and the lowering rate were identified to obtain a homogeneous mixture of the compounds and initiate the nucleation process. Single-crystal X-ray diffraction (XRD), powder XRD, proton Fourier transform nuclear magnetic resonance (FT-NMR), and Fourier transform infrared investigations were used to confirm the crystal structure, molecular structure, and presence of functional groups in the formed crystal. The formed crystal has a monoclinic crystal structure with the space group P21/c, according to single-crystal XRD analysis. The thermal stability and kinetic parameters were examined using thermogravimetric analysis and differential thermal curves. From dielectric analysis, the electrical conductivity and dielectric behavior of 2C5NA were investigated with variations in frequency and temperature. The organic 2-chloro-5-nitroaniline crystal demonstrates that the indentation size effect is observed in the Vickers micro-hardness test, which was also carried out. Full article

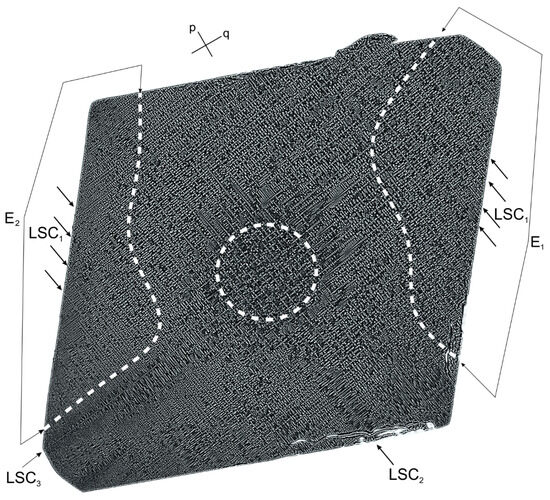

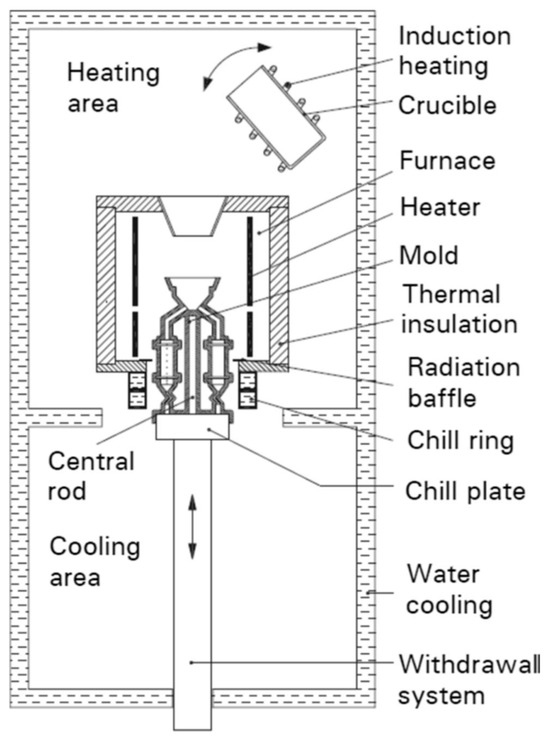

The nucleation and the growth of misoriented micro-structure components in single crystals depend on various process parameters and alloy compositions. Therefore, in this study, the influence of different cooling rates on carbon-free, as well as carbon-containing, nickel-based superalloys was investigated. Castings were carried out using the Bridgman and Bridgman–Stockbarger techniques under industrial and laboratory conditions, respectively, to analyze the impact of temperature gradients and withdrawing rates on six alloy compositions. Here, it was confirmed that eutectics could assume a random crystallographic orientation due to homogeneous nucleation in the residual melt. In carbon-containing alloys, eutectics also nucleated at low surface-to-volume ratio carbides due to the accumulation of eutectic-forming elements around the carbide. This mechanism occurred in alloys with high carbon contents and at low cooling rates. Furthermore, micro-stray grains were formed by the closure of residual melt in Chinese-script-shaped carbides. If the carbide structure was open in the growth direction, they could expand into the interdendritic region. Eutectics additionally nucleated on these micro-stray grains and consequently had a different crystallographic orientation compared with the single crystal. In conclusion, this study revealed the process parameters that induced the formation of misoriented micro-structures, which prevented the formation of these solidification defects by optimizing the cooling rate and the alloy composition. Full article

Investigated in this work, Cd_1−xZn_xSe-mixed ternary compounds were grown by the Bridgman method. Several compounds with zinc content varying in the range 0 < x < 1 were produced between two binary parents, CdSe and ZnSe crystals. Using the SEM/EDS technique, the accurate composition of formed crystals was determined along the growth axis. Thanks to that, the grown crystals’ axial and radial uniformity were determined. Characterization of the optical and thermal properties was undertaken. The energy gap was measured using photoluminescence spectroscopy for different compositions and temperatures. The bowing parameter describing the behavior of the fundamental gap with composition for this compound was found to be 0.416 ± 0.06. The thermal characteristics of grown Cd_1−xZn_xSe alloys were systematically studied. The thermal diffusivity and effusivity of the crystals under investigation were experimentally determined, allowing the calculation of the thermal conductivity. We applied the semi-empirical model that Sadao Adachi developed to analyze the results. Thanks to that, it was possible to estimate the contribution arising from chemical disorder to the crystal’s total resistivity. Full article

Crystal materials are prone to cracking during growth, which is a key problem leading to slow growth and difficulty in forming large-size crystals. In this study, based on the commercial finite element software COMSOL Multiphysics, the transient finite element simulation of the multi-physical field, including fluid heat transfer—phase transition—solid equilibrium—damage coupling behaviors, is performed. The phase-transition material properties and maximum tensile strain damage variables are customized. Using the re-meshing technique, the crystal growth and damage are captured. The results show the following: The convection channel at the bottom of the Bridgman furnace greatly influences the temperature field inside the furnace, and the temperature gradient field significantly influences the solidification and cracking behaviors during crystal growth. The crystal solidifies faster when it enters the higher-temperature gradient region and is prone to cracking. The temperature field inside the furnace needs to be properly adjusted so that the crystal temperature decreases relatively uniformly and slowly during the growth process to avoid crack formation. In addition, the crystal growth orientation also significantly affects the nucleation and growth direction of cracks. Crystals grown along the a-axis tend to form long cracks starting from the bottom and growing vertically, while crystals grown along the c-axis induce the laminar cracks from the bottom in a horizontal direction. The numerical simulation framework of the damage during crystal growth, which can accurately simulate the process of crystal growth and crack evolution and can be used to optimize the temperature field and crystal growth orientation in the Bridgman furnace cavity, is a reliable method to solve the crystal cracking problem. Full article

Nd³⁺ (0.3 mol.%), Yb³⁺ (0, 1, 2, 3 and 5 mol.%): LiYF₄ phosphors were grown by the Bridgman–Stockbarger technique. The luminescence intensity ratio (LIR) of Nd³⁺ (⁴F_3/2–⁴I_9/2, ~866 nm) and Yb³⁺ emission (²F_5/2–²F_7/2, ~980 nm) was taken as a parameter. The energy exchange between ⁴F_3/2 (Nd³⁺) and ²F_5/2 (Yb³⁺) occurs via phonons, which elucidates the LIR temperature dependence. The influence of the cross-relaxation process on the temperature sensitivity was estimated as negligible. The LIR function depends on the Yb³⁺ concentration at a fixed 0.3 mol.% Nd³⁺. The maximum S_a and S_r value were reached for Nd³⁺ (0.3%), Yb³⁺ (1.0%): LiYF₄ (S_a = 0.007 K⁻¹ at 320 K) and Nd³⁺ (0.3%), Yb³⁺ (5.0%): LiYF₄ (S_r = 1, 1.03%*K⁻¹ at 260 K), respectively. Full article

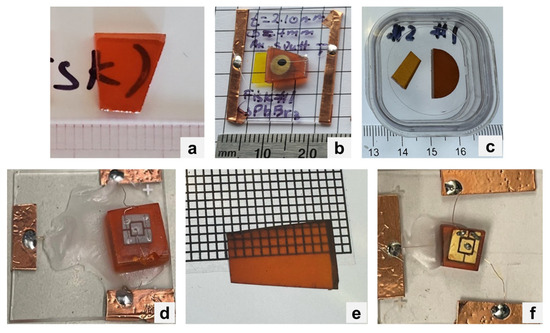

The spectroscopic and imaging performance of energy-resolved photon counting detectors, based on new sub-millimetre boron oxide encapsulated vertical Bridgman cadmium zinc telluride linear arrays, are presented in this work. The activities are in the framework of the AVATAR X project, planning the development of X-ray scanners for contaminant detection in food industry. The detectors, characterized by high spatial (250 µm) and energy (<3 keV) resolution, allow spectral X-ray imaging with interesting image quality improvements. The effects of charge sharing and energy-resolved techniques on contrast-to-noise ratio (CNR) enhancements are investigated. The benefits of a new energy-resolved X-ray imaging approach, termed window-based energy selecting, in the detection of low- and high-density contaminants are also shown. Full article

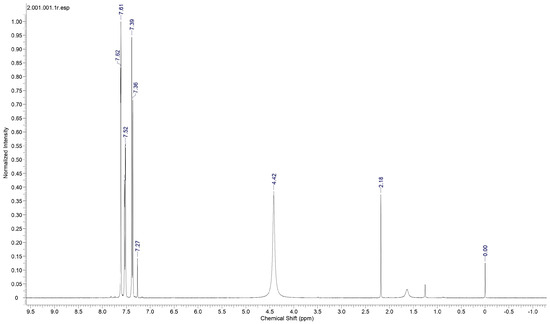

High-quality pentacene-doped p-terphenyl bulk crystals were grown by the selective self-seeding vertical Bridgman technique (SSVBT). The lattice structure and crystal properties of the samples of different doping concentrations and their relations with p-terphenyl single crystals were tested and analyzed. The doping effects of pentacene doping at different concentrations in p-terphenyl molecular crystals are discussed. The powder X-ray diffraction, FTIR, and ¹H NMR studies show that no additional peaks (except for p-terphenyl) are observed in the spectra of two doped crystals. The results indicate that guest molecules appear as defects in the form of irregularly oriented molecules which do not significantly change the crystal structures. As the doping concentration increases, the average crystallite size decreases, and the crystallinity declines. The ultraviolet–visible absorption and fluorescence spectra show that with added pentacene molecules, the characteristic peak intensities decrease in the spectra owing to the p-terphenyl molecular transition. Meanwhile, characteristic peaks appear due to the pentacene molecular transition. Moreover, with the increase of doping concentration, the intensities of characteristic peaks of host molecules decrease continuously, and those of guest molecules increase accordingly. Full article

To date, ³He gas has been commonly used to detect thermal neutrons because of their high chemical stability and low sensitivity to γ-rays, owing to their low density and large neutron capture cross-section. However, the depletion of ³He gas prompts the development of a new solid scintillator for thermal neutron detection to replace ³He gas detectors. Solid scintillators containing ⁶Li are commonly used to detect thermal neutrons. However, they are currently used in single crystals only, and their ⁶Li concentration is defined by their chemical composition. In this study, ⁶Li-containing eutectic scintillators were developed. CeCl₃ was selected as the scintillator phase because of its low density (3.9 g/cm³); high light yield (30,000 photons/MeV); and fast decay time with four components of 4.4 ns (6.6%), 23.2 ns (69.6%), 70 ns (7.5%) and >10 μs (16.3%), owing to the Ce³⁺ 5d-4f emission peak at approximately 360 nm. Crystals of the CeCl₃, LiCl and CaCl₂ ternary eutectic were fabricated by the vertical Bridgman technique. The grown eutectic crystals exhibited Ce³⁺ 5d-4f emission with a peak at 360 nm. The light yield was 18,000 photons/neutron, and the decay time was 10.5 ns (27.7%) and 40.1 ns (72.3%). Therefore, this work demonstrates optimization by combining a scintillator phase and Li-rich matrix phase for high Li content, fast timing, high light yield and low density. Full article
