Search Results (22)

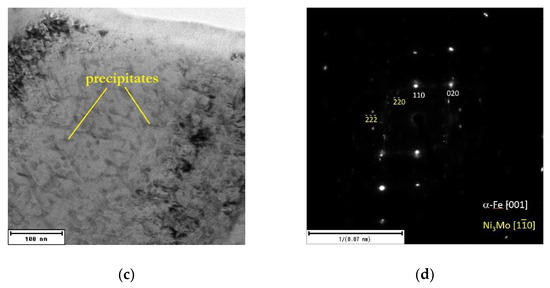

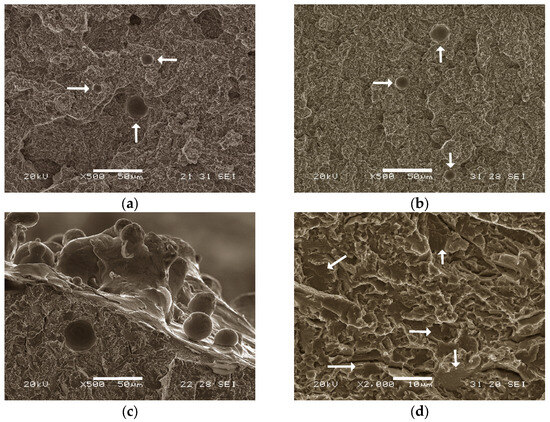

This study systematically explores the synergistic effects of direct aging treatment (480 °C for 6 h) combined with cryogenic treatment (−196 °C for 8 h) on the mechanical properties and microstructural evolution of 18Ni300 maraging steel fabricated via selective laser melting (SLM). Three conditions were investigated: as-built, direct aging (AT6), and direct aging plus cryogenic treatment (AT6C8). Microstructural characterization was performed using optical microscopy (OM), scanning electron microscopy (SEM), transmission electron microscopy (TEM), and X-ray diffraction (XRD), while the mechanical properties were evaluated via microhardness and tensile testing. The results show that the AT6C8 sample achieved the highest microhardness (635 HV_0.5) and tensile strength (2180 MPa), significantly exceeding the as-built (311 HV_0.5, 1182 MPa) and AT6 (580 HV_0.5, 2012 MPa) samples. Cryogenic treatment induced a notable phase transformation from retained austenite (γ phase) to martensite (α phase), with the peak relative intensity ratio ranging from 1.42 (AT6) to 1.58 (AT6C8) in the XRD results. TEM observations revealed that cryogenic treatment refined lath martensite from 0.75 μm (AT6) to 0.24 μm (AT6C8) and transformed reversed austenite into thin linear structures at the martensite boundaries. The combination of direct aging and cryogenic treatment effectively enhances the mechanical properties of SLM-fabricated 18Ni300 maraging steel through martensite transformation, microstructural refinement, and increased dislocation density. This approach addresses the challenge of balancing strength improvement and residual stress relaxation. Full article

To solve the problem of inadequate plasticity of traditional processing routes in improving the plasticity of novel Co-saving 18Ni (300) maraging steel, a cold deformation-cycle solution treatment process was developed. Through systematic characterization and tensile property testing, the study focuses on elucidating the impact of the number of solution treatments on the microstructure and mechanical behavior. The results showed that with a 30% cold deformation, three times of solution treatment at 860 °C for 10 min refined the original austenite grains (equivalent circle radius: 3.3 μm) and martensite structure (length and width: 7 μm and 1.3 μm, respectively) to the utmost extent. The grains became uniformly equiaxed, and the texture was eliminated, and a moderate content (4.5%) of retained austenite was formed. At this time, the material achieves the best match between strength (tensile strength of 1240 MPa) and plasticity (elongation of 9.93%), which are increased by 15.3% and 94.3%, respectively, compared with the traditional process. Mechanistic analysis revealed that grain refinement and uniform equiaxialization were the primary drivers for enhancing strength and plasticity. This study has demonstrated that the cold deformation-cyclic solution treatment process is an effective methodology for tailoring the microstructure and mechanical properties of maraging steel. Full article

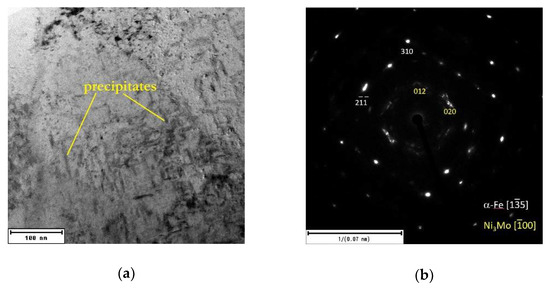

Welding of maraging steels leads to a microstructural gradient from base material (BM) to weld metal (WM). During post-weld heat treatment (PWHT) the precipitation and reverted austenite (γ_r) reactions will occur defining the mechanical properties. These reactions are affected by the microstructure and local chemical composition of each zone in the “as welded” (AW) condition. This effect has not been clearly described yet nor the evolution of the microstructure. The objective of this work was to analyse the phase transformations at the different zones of the welded joint during the PWHT to explain the microstructure obtained at each zone. Samples of C250 maraging steel were butt-welded by GTAW-P (Gas Tungsten Arc Welding—Pulsed) process without filler material. The AW condition showed an inhomogeneous microhardness profile, associated with a partial precipitation hardening in the subcritical heat affected zone (SC-HAZ) followed by a softening in the intercritical (IC-HAZ) and recrystallized heat affected zone (R-HAZ). A loop-shaped phase was observed between low temperature IC-HAZ and SC-HAZ, associated with γ_r, as well as microsegregation at the weld metal (WM). The microstructural evolution during PWHT (480 °C) was evaluated on samples treated to different times (1–360 min). Microhardness profile along the welded joint was mostly homogeneous after 5 min of PWHT due to precipitation reaction. The microhardness in the WM was lower than in the rest of the joint due to the depletion of Ni, Ti and Mo in the martensite matrix related with the γ_r formation. The isothermal kinetics of precipitation reaction at 480 °C was studied using Differential Scanning Calorimetry (DSC), obtaining a JMAK expression. The average microhardness for each weld zone was proposed for monitoring the precipitation during PWHT, showing a different behaviour for the WM. γ_r in the WM was also quantified and modelled, while in the IC-HAZ tends to increase with PWHT time, affecting the microhardness. Full article

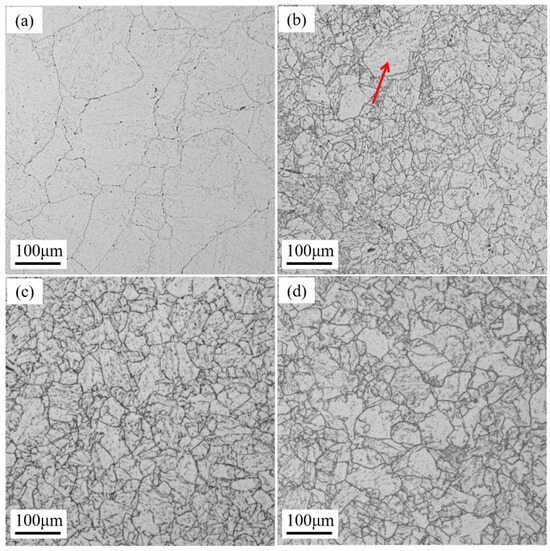

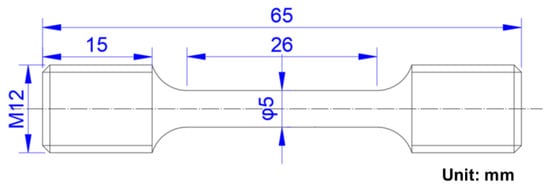

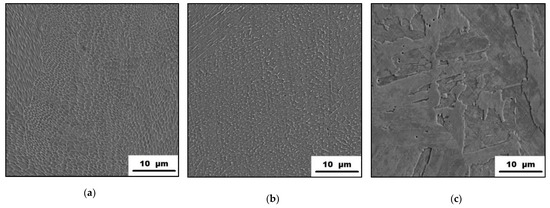

The microstructure and tensile properties of 18Ni-300 maraging steel manufactured by selective laser melting (SLM) were investigated after different heat treatments and compared to the original samples. Heat treatment alters the microscopic morphology of the original sample, and the differences in the cross-sectional and longitudinal sectional morphology of the original sample become indistinguishable after heat treatment. Cellular and long strip structures can be observed in the original and aged samples. After solution aging, the cellular and long strip structures completely disappeared, being transformed into parallel and almost equal-length plate martensite. Additionally, inverted austenite and Ni₃(Ti, Al, Mo) precipitates were present. The microhardness increased from 310 HV to 710 HV, the nanohardness rose to 7.7 GPa, tensile strength reached 2068 MPa, and elongation to fracture improved to 4.5%. These optimal properties were achieved with solution treatment at 820 °C for 2 h and aging at 490 °C for 7 h. Full article

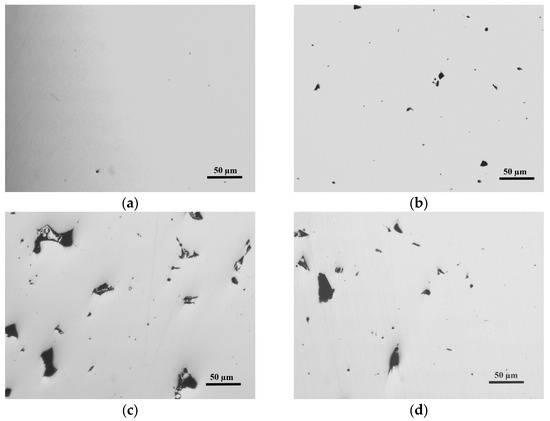

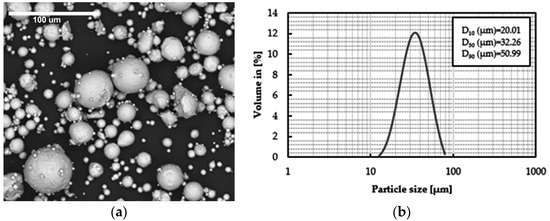

Additive manufacturing (AM) has brought new possibilities to the moulding industry, particularly regarding the use of high-performance materials as maraging steels. This work explores 18Ni300 maraging steel reinforced with 4.5 vol.% TiC nanoparticles, fabricated by Selective Laser Melting (SLM), addressing the effect of post-fabrication aging treatment on both thermal and mechanical properties. Design of Experiments (DoE) was used to generate twenty-five experimental groups, in which laser power, scanning speed, and hatch distance were varied across five levels, with the aim of generating conclusions on optimal fabrication conditions. A comprehensive analysis was performed, starting with the nanocomposite feedstock and then involving the microstructural, mechanical, and thermal characterisation of SLM-fabricated nanocomposites. Nanocomposite relative density varied between 92.84% and 99.73%, and the presence of martensite, austenite, and TiC was confirmed in the as-built and heat-treated conditions. Results demonstrated a hardness of 411 HV for the as-built 18Ni300-TiC nanocomposite, higher than that of the non-reinforced steel, and this was further increased by performing aging treatment, achieving a hardness of 673 HV. Thermal conductivity results showed an improvement from ~12 W/m·K to ~19 W/m·K for nano-TiC-reinforced 18Ni300 when comparing values before and after heat treatment, respectively. Results showed that the addition of TiC nanoparticles to 18Ni300 maraging steel led to a combined thermal and mechanical performance suited for applications in which heat extraction is required, as in injection moulding. Full article

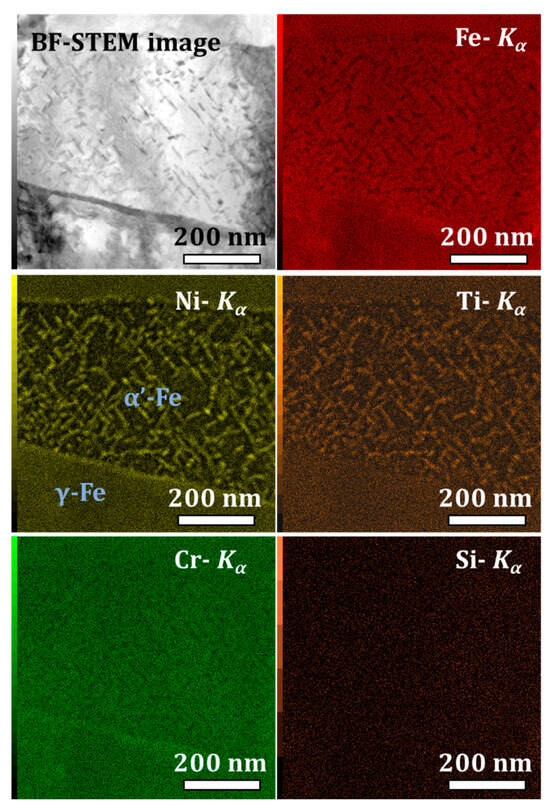

The strength of ultra-low carbon maraging stainless steels can be significantly enhanced by precipitating nanoscale intermetallic secondary phases. Retained or reversed austenite in the steel can improve its toughness, which is key to achieving an ideal combination of strength and toughness. Ti and Al are often used as cost-effective strengthening elements in maraging stainless steels but the synergistic toughening and strengthening mechanisms of Ti and Al have not been studied. To investigate the synergistic toughening and strengthening mechanisms of Ti and Al in Co-free maraging stainless steels, this paper focuses on the microstructure and mechanical properties of three alloys: Fe-12Cr-11Ni-1.7Al-0.5Ti (Steel A), Fe-12Cr-11Ni-0.5Ti (Steel B), and Fe-12Cr-11Ni-1.7Al (Steel C). The impact of Ti and Al on the microstructure and mechanical properties was investigated using X-ray diffraction (XRD), high-resolution transmission electron microscopy (TEM), and thermodynamic simulations. The relationship between microstructure, strength, and toughness is also discussed. The results indicated that Steel A, containing both Al and Ti, exhibited the highest strength level after solution treatment at 900 °C, with an ultimate tensile strength reaching 1571 MPa after aging at 540 °C. This is attributed to the simultaneous precipitation of spherical β-NiAl and rod-shaped η-Ni₃Ti phases. Steel B, with only Ti, formed a significant amount of Ni-rich reversed austenite during aging, reducing its ultimate tensile strength to 1096 MPa. Steel C, with only Al, showed a high strength–toughness combination, which was achieved by forming dispersive nano-sized intermetallic precipitates of β-NiAl in the martensitic matrix with a slight amount of austenite. It is highlighted that Al has superior toughening and strengthening effects compared to Ti in the alloy system. Full article

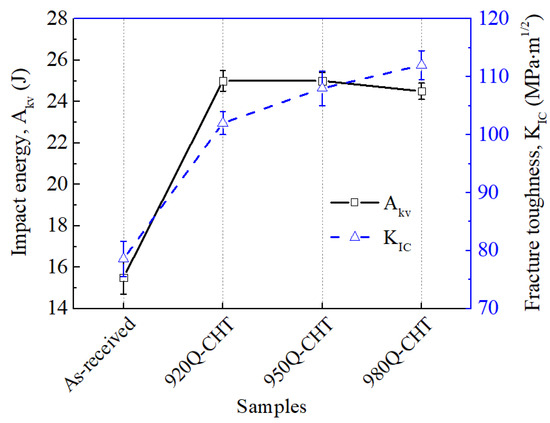

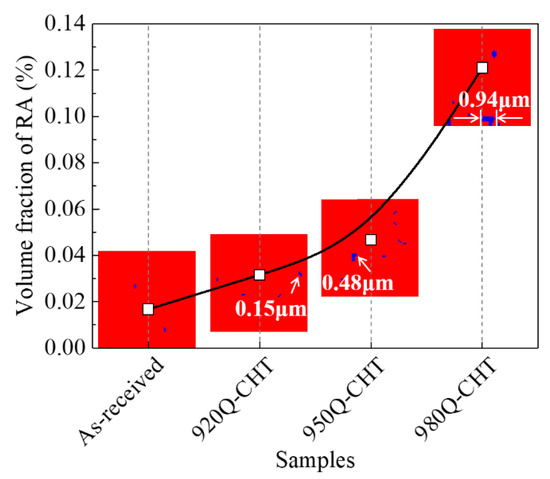

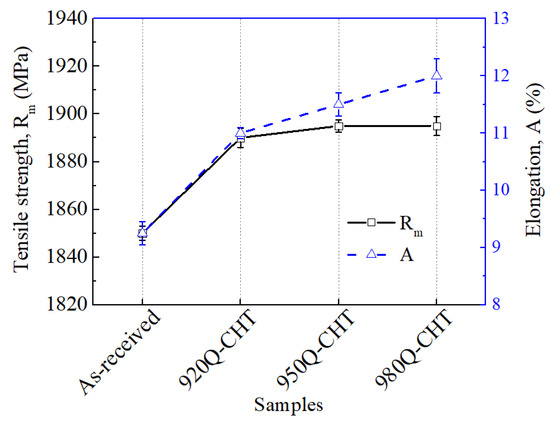

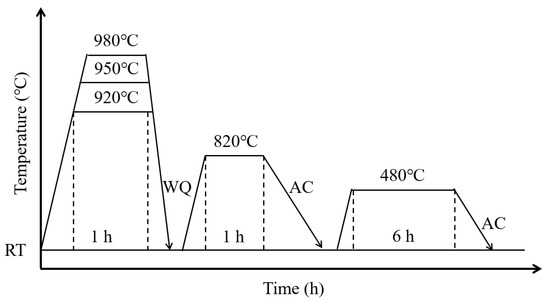

Cyclic heat treatment is an effective approach for enhancing the mechanical properties of 18Ni(C250) maraging steel, and the selection of cyclic heat treatment temperature is a key factor. In this study, a cyclic heat treatment process with a two-step solution treatment is employed to investigate the influence of cyclic heat treatment temperature, specifically the first solution treatment temperature (920 °C, 950 °C, and 980 °C), on the microstructure and mechanical properties of 18Ni(C250) maraging steel. The results indicate that with an increase in the cyclic heat treatment temperature, the average grain size of the 18Ni(C250) maraging steel decreases initially and then increases. When the cyclic heat treatment temperature reaches 950 °C, the grain size is at its minimum, exhibiting optimal grain uniformity. Additionally, the increase in cyclic heat treatment temperature results in a reduction in the size of martensitic lath with the same orientation inside the grains, along with an increase in the relative quantity of low-angle grain boundaries. Furthermore, the volume fraction and size of retained austenite show a monotonous increase with the rise in the temperature of the cyclic heat treatment, and the rate of increase becomes notably larger when the temperature is raised from 950 °C to 980 °C. Based on the observed microstructural changes, the variation in the mechanical properties of the 18Ni(C250) maraging steel was analyzed. Specifically, as the cyclic heat treatment temperature increases, the tensile strength of the 18Ni(C250) maraging steel initially increases and then stabilizes, while the elongation and fracture toughness exhibit a monotonic increase. Full article

Additive manufacturing technologies for metallic materials based on powder bed fusion have enormous industrial potential. In this study, we manufactured 18Ni-300 maraging steel using the powder bed fusion (PBF) process and investigated the effects of annealing temperatures of 430 °C, 490 °C, and 550 °C for 3 h on its microstructure, tensile fracture mechanism, and wear properties compared with the as-built specimen. The results show that annealing heat treatment effectively improved the dry sliding friction, wear properties, and room temperature tensile properties compared to the as-built specimen. Compared to other aging-treated samples, specimens that underwent heat treatment in optimal settings had superior properties. With optimal heat treatment, while melt pool boundaries remained, the cellular and columnar structures became finer compared to the un-treated specimens, and the number of dimples decreased. Consequently, the hardness and tensile strength improved by approximately 56.17% and 40.63%, respectively. The 18Ni-300 maraging steel sample that underwent heat treatment at optimal settings exhibited a coefficient of friction approximately 33.33% lower than the as-built alloy. Full article

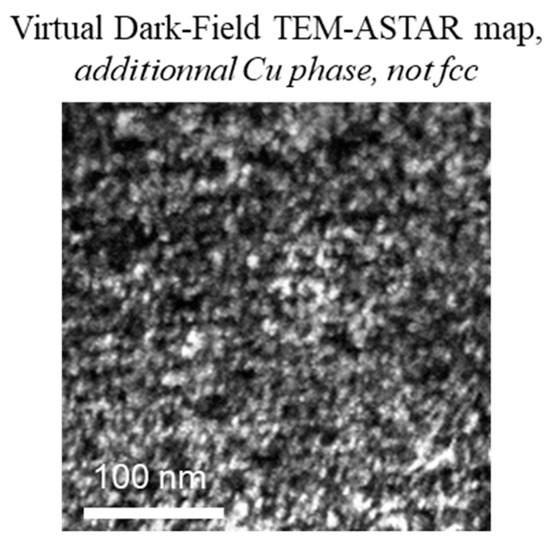

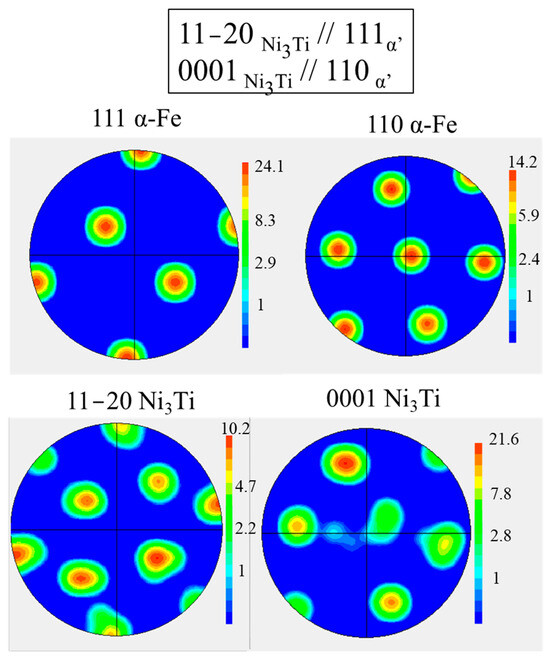

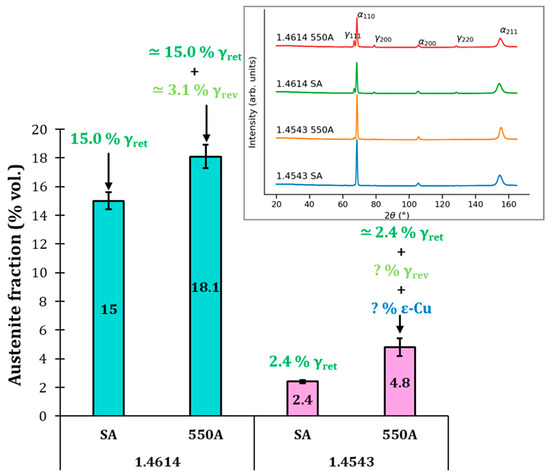

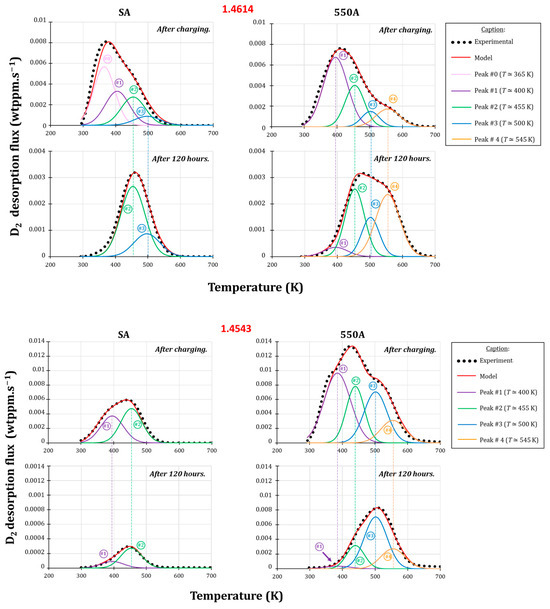

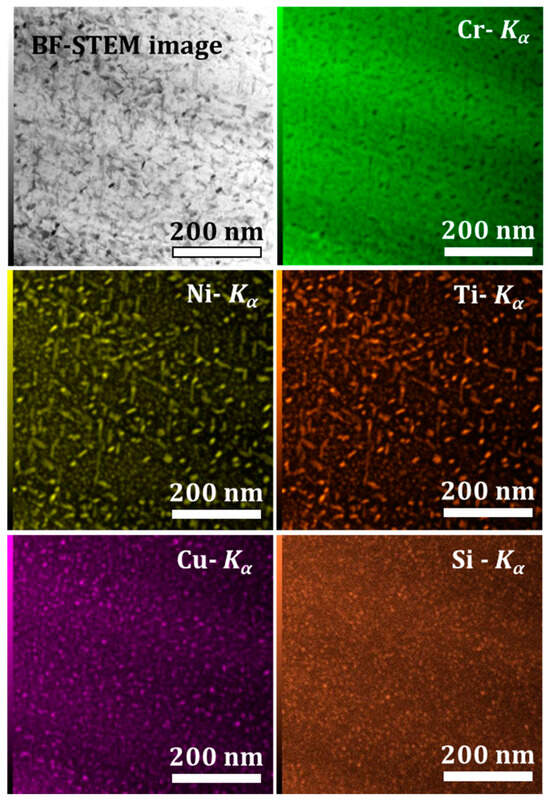

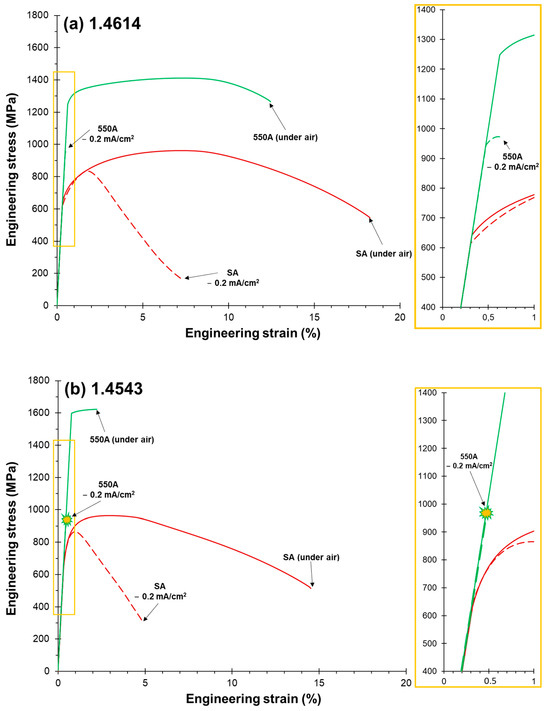

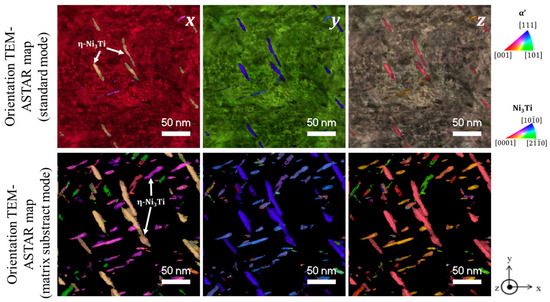

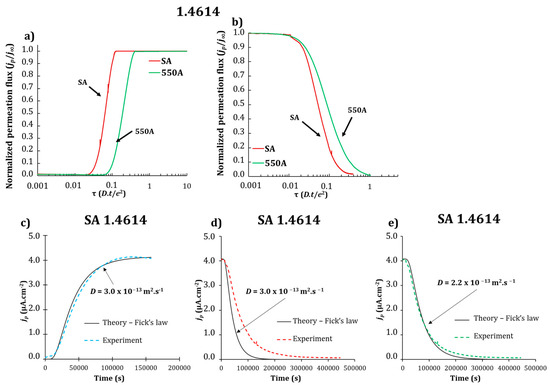

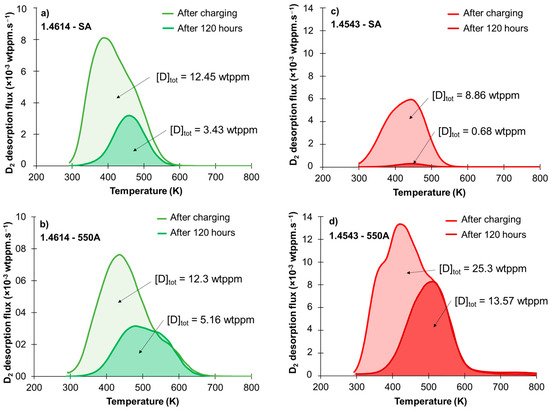

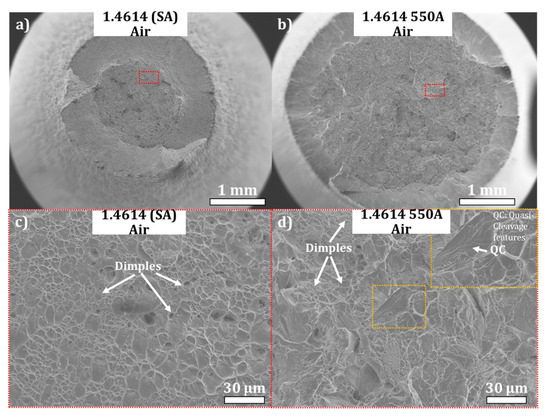

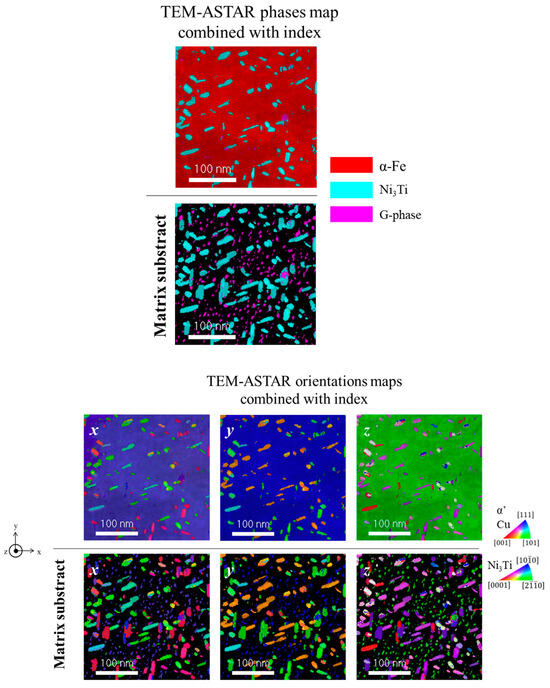

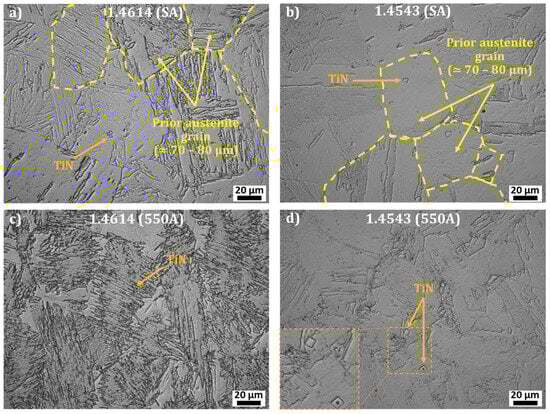

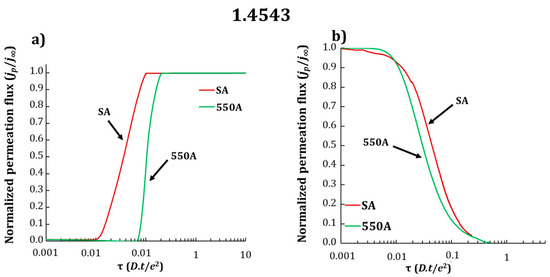

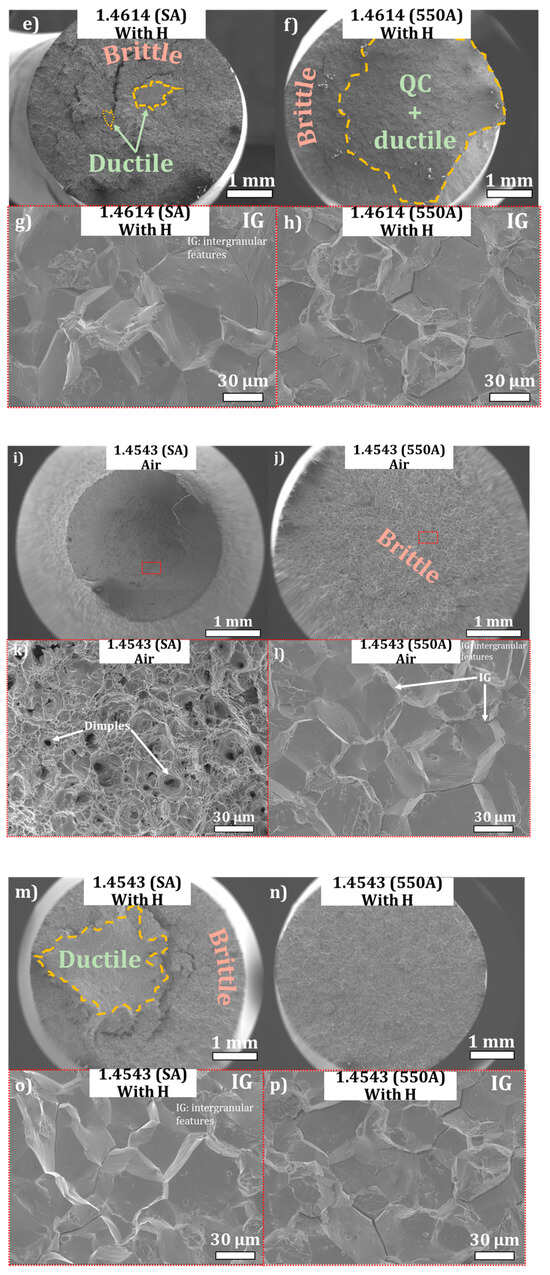

Hydrogen embrittlement (HE) of 1.4614 and 1.4543 maraging stainless steels is characterized with fine structural TEM-ASTAR, hydrogen electrochemical permeation, thermodesorption and tensile testing (with slow strain rate during H cathodic charging) experiments. Both solutions annealed and 550 °C aged states are studied. When aged, 1.4614 grade contains nanometric hexagonal N_i3Ti precipitates whereas 1.4543 grade contains three families of nanometric precipitates, namely, hexagonal Ni₃Ti, non fcc-rich Cu and G-phase rich in Si, Ti and Ni with cube-cube relations with martensite. From the permeation and thermodesorption results, it appears that austenite and nanometric precipitates seem to constitute deep traps for hydrogen in both grades. From tensile tests with in situ H charging, 1.4614 and 1.4543 maraging grades show a high susceptibility to HE with relative reduction of area (RRA) strictly superior to 80% for both metallurgical states. The presence of retained austenite does not seem to bring any HE resistance because of its transformation into martensite during deformation. Full article

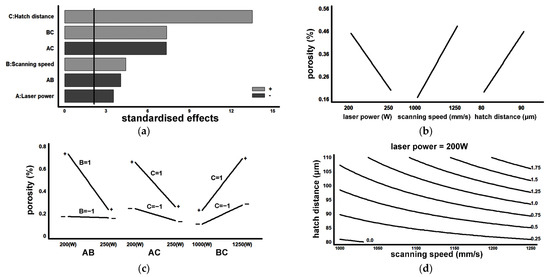

The aim of this paper was to optimise the manufacturing parameters of a new maraging steel alloy with 8% Cr, reduced Ni content (7%), and no Co or Mo. This alloy was developed by ArcelorMittal and its trade name is LeanSi. The alloy was produced using the selective laser melting (SLM) process. In the as-built state, the microstructure of the alloy was fully martensitic. The optimisation of the manufacturing parameters was determined via a multivariate factorial design of experiments including 12 experiments and three factors. The factors (i.e., the fabrication parameters) analysed were laser power, scanning speed, and hatch distance. The objective was to eliminate porosity and maximise density. It was concluded that, to achieve this, the laser power should be set at 250 W, the scanning speed at 1000 mm/s, and the hatch distance at 80 microns. The porosity obtained under these manufacturing parameters was 0.06 ± 0.03% with a confidence level of 95%. If these manufacturing parameters were modified, the material exhibited a defective interlayer bond with the formation of “balling” and high porosity. The tensile specimens tested in the as-built state showed plastic deformation. However, all the aged specimens showed brittle fracture behaviour, evidenced by the presence of very small micro-cavities (where the fracture energy consumed was very small) and small cleavage planes. The specimens produced with the manufacturing parameters at their optimum levels and aged at 480 °C for 2 h achieved tensile strength values that averaged 1430 MPa. The porosity of these specimens was reduced by more than 85%. Reverse austenite was detected at ageing temperatures of 540 °C upwards. Full article

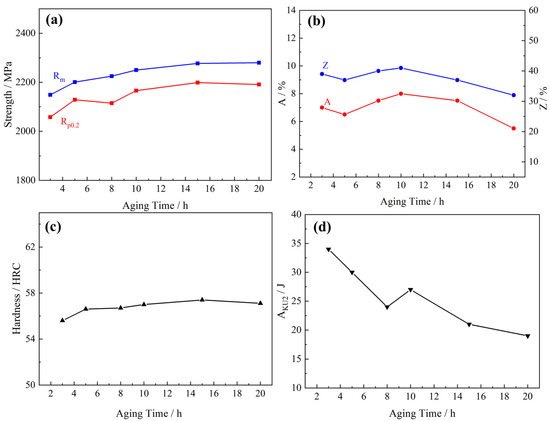

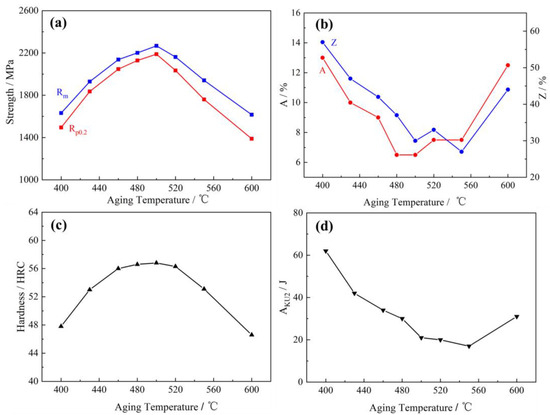

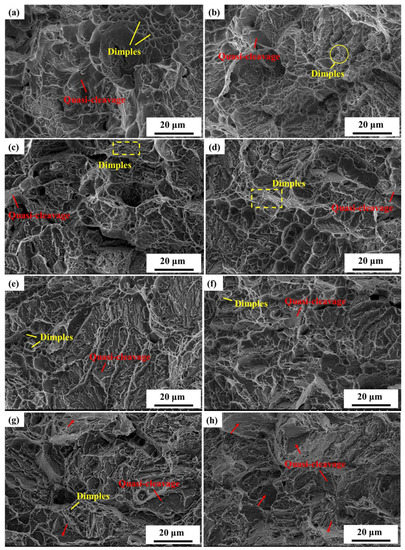

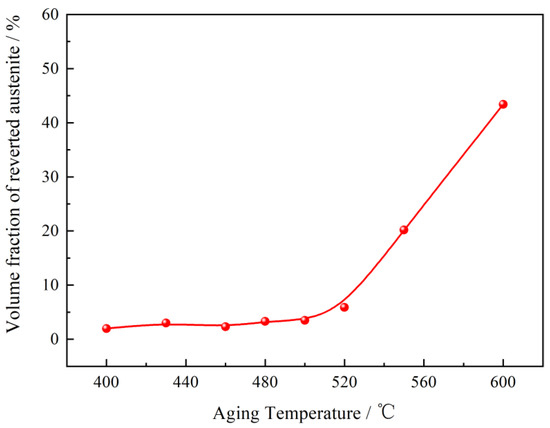

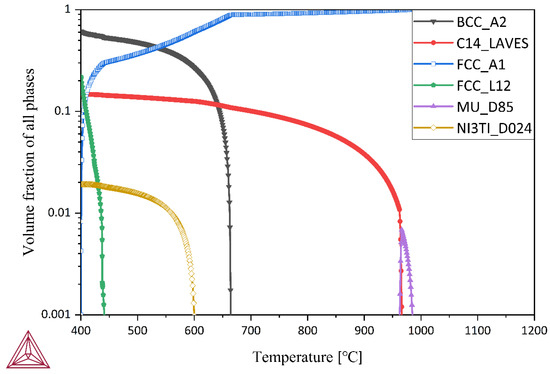

Maraging steel is a prominent category of ultrahigh-strength steel (UHSS) characterized by excellent comprehensive properties, and it finds wide applications in manufacturing load-bearing structural components. In this study, a novel tungsten-containing maraging steel, C-250W, was designed. The effects of aging treatments on the mechanical properties, microstructure, precipitations, and reverted austenite of C-250W steel were investigated. The results revealed that the optimal combination of strength and toughness could be achieved through an aging treatment of C-250W steel carried out for 5 h at 480 °C after solution treatment at 1000 °C for 1 h. As the aging temperature increased, the proportion of dimples in the impact fracture gradually decreased while that of quasi-cleavage increased, leading to a reduction in Charpy impact energy. The boundary of martensitic lath decomposed gradually as the aging temperature increased, and it disappeared entirely at temperatures higher than 550 °C. Moreover, the aging process resulted in the formation of phases, including spherical Fe₂M (M represents Mo, W) and thin strip-shaped Ni₃N (N represents Mo, Ti) precipitates. These precipitates coarsened from 5 nm to 50–200 nm with increasing aging temperature. Additionally, the content of reverted austenite increased with the aging temperature. Within the temperature range of 400 °C to 500 °C for aging treatment, the content of film-shaped reverted austenite was approximately 3%, primarily distributed at the boundary of martensite lath. When the aging temperature exceeded 550 °C, the content of reverted austenite reached 20.2%, and its morphology changed from film-shaped to block-shaped, resulting in a decline in strength and toughness. Full article

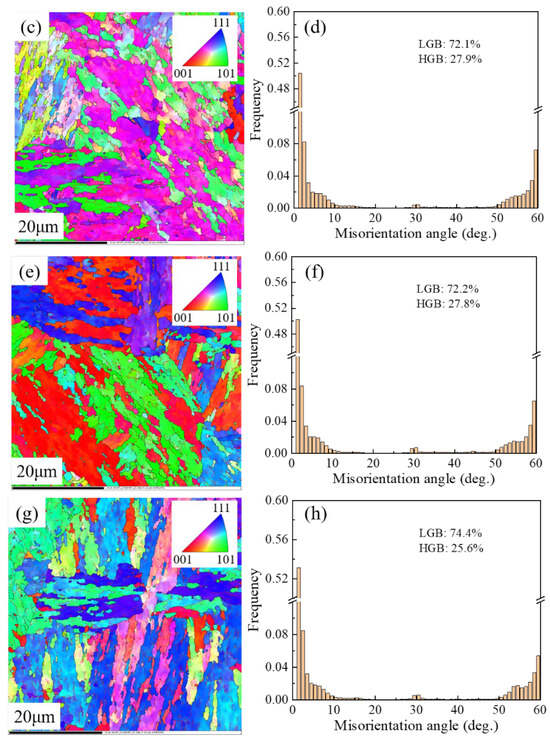

In this article, hot compression tests on the additively produced 18Ni-300 maraging steel 18Ni-300 were carried out on the Gleeble thermomechanical simulator in a wide temperature range (900–1200 °C) and at strain rates of 0.001 10 s⁻¹. The samples were microstructurally analysed by light microscopy and scanning electron microscopy with electron backscatter diffraction (EBSD). This showed that dynamic recrystallization (DRX) was predominant in the samples tested at high strain rates and high deformation temperatures. In contrast, dynamic recovery (DRV) dominated at lower deformation temperatures and strain rates. Subsequently, the material constants were evaluated in a constitutive relationship using the experimental flow stress data. The results confirmed that the specimens are well hot workable and, compared with the literature data, have similar activation energy for hot working as the conventionally fabricated specimens. The findings presented in this research article can be used to develop novel hybrid postprocessing technologies that enable single-stage net shape forging/forming of AM maraging steel parts at reduced forming forces and with improved density and mechanical properties. Full article

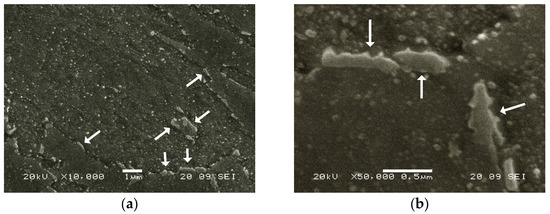

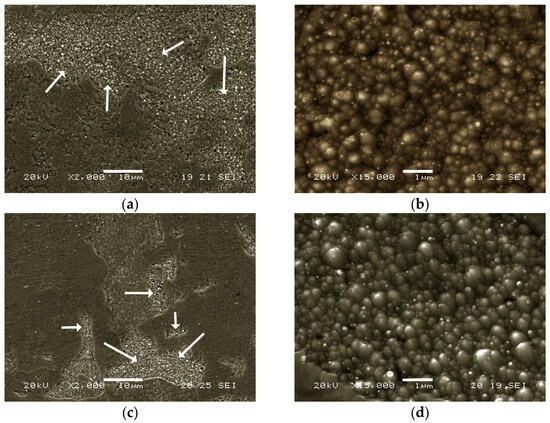

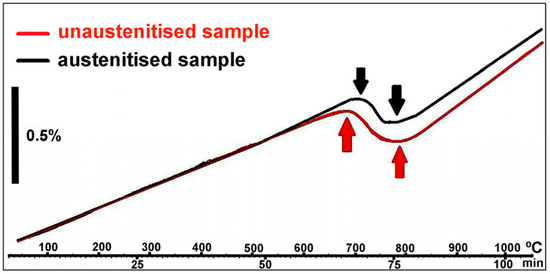

Maraging steels are precipitation hardening alloys that can achieve an ultra-high yield strength (~3 GPa), however associated with low toughness. During exposure to high temperatures, an oxidation process occurs on the surface of these steels, generally, the oxides formed are hematite and/or magnetite. The aim of this study was to investigate oxidation on a maraging 13Ni15Co10Mo at annealing temperature of 900 °C. The bulk microstructure was investigated by several complementary techniques and the oxidized surface was characterized by Scanning Electron Microscopy (SEM), Energy Dispersive X-ray Spectroscopy (EDS) and X-ray Diffraction (XRD). The results showed that the bulk microstructure, at annealed condition, consists of a lath martensite with a hardness of round 400 HV. The most external and oxidized surface contains the oxides hematite, magnetite and kamiokite. Finally, the presence of austenite was detected in the first 2 μm below the surface. Chemical microanalysis indicated that the austenite is stable at room temperature in this region due a composition gradient that makes this region rich in nickel and cobalt. The composition gradient is due atom diffusion during oxides formation. Austenite near to the surface is very convenient as it could avoid crack initiation and propagation, improving toughness. Full article

The effect of long-term ageing (1000, 2000, and 3000 h) at 475 °C on mechanical properties, microstructure, and substructure of CUSTOM 465^® maraging stainless steel was studied. The additional precipitation of nanometric particles of η-Ni₃Ti phase in partly recovered lath martensite and decomposition of the BCC solid solution accompanied by the formation of nanometric Cr-rich α’particles were identified. The fraction of reverted austenite in the final microstructure gradually increased with time of ageing at 475 °C. Ageing resulted in a gradual slight decline (up to 10%) in yield strength, ultimate tensile strength, and hardness. On the other hand, for all ageing, dwells ductility and impact energy values remained almost unchanged. The reason for this phenomenon lies in the gradual increase in the fraction of reverted austenite during long-term ageing at 475 °C and at the same time in the sluggish kinetics of microstructural changes in lath martensite. No susceptibility to 475 °C embrittlement was proved. Full article

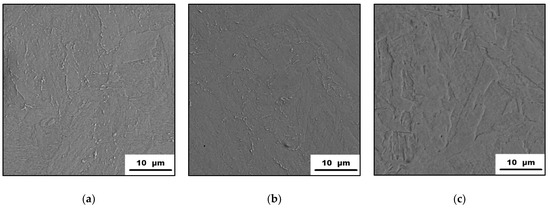

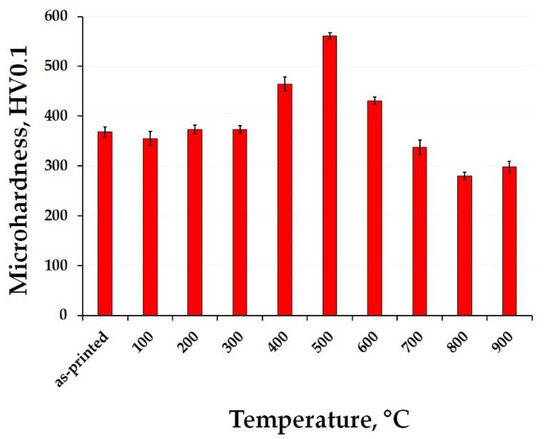

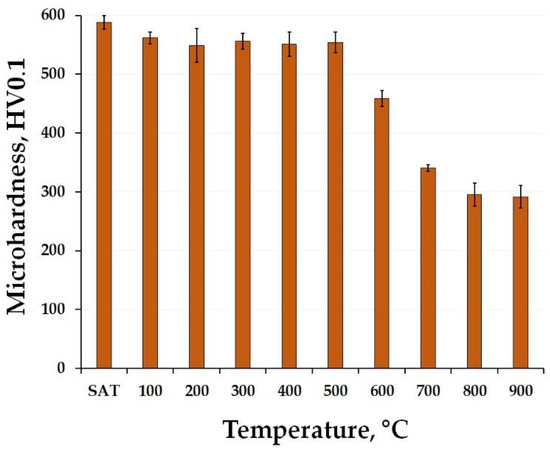

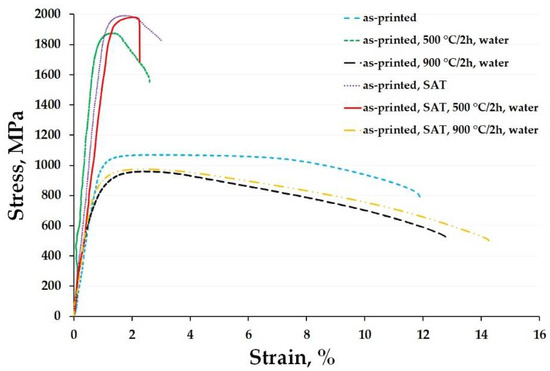

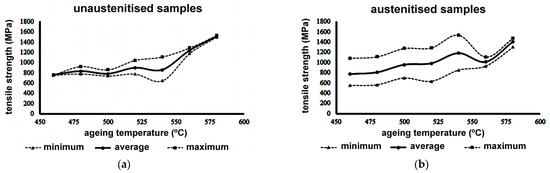

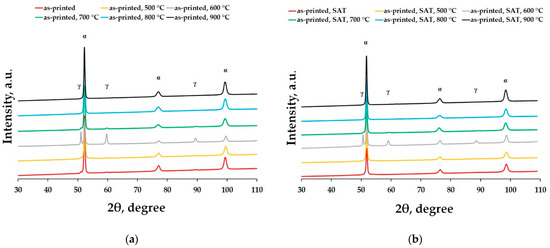

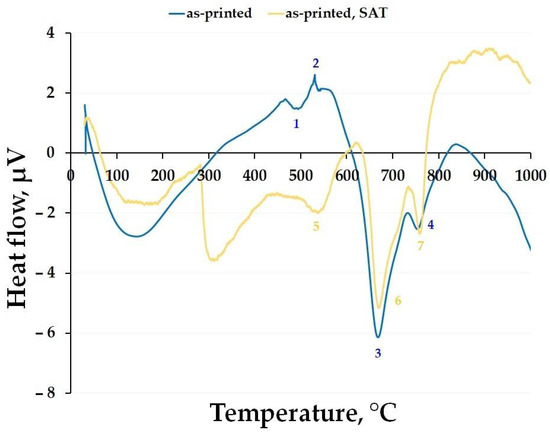

The present work describes the influence of different temperatures on mechanical properties and microstructure of additively manufactured high-strength 1.2709 maraging steel. For this purpose, samples produced by selective laser melting technology were used in their as-printed as well as their heat-treated state. Both samples were than exposed to temperatures ranging between 100 °C to 900 °C with a total dwell time of 2 h followed by water-cooling. The microhardness of the as-printed material reached its maximum (561 ± 6 HV0.1) at 500 °C, which corresponded to the microstructural changes. However, the heat-treated material retained its initial mechanical properties up to 500 °C. As the temperature increased, the microhardness of both the materials reduced, reaching their minimum at 900 °C. This phenomenon was accompanied by a change in the microstructure by forming coarse-grained martensite. This also resulted in a significant decrease in the ultimate tensile strength and an increase in the plasticity. TEM analysis confirmed the formation of Ni₃Mo intermetallic phases in the as-printed material when exposed to a temperature of 500 °C. It was found that the same phase was present in the heat-treated sample and it remained stable up to a temperature of 500 °C. Full article
