Intelligent Packaging for Real-Time Monitoring of Food-Quality: Current and Future Developments

by
Andrea Dodero
,
Andrea Escher
,
Simone Bertucci
,
Maila Castellano
and
Paola Lova
*
Department of Chemistry and Industrial Chemistry, Università degli Studi di Genova, Via Dodecanso 31, 16146 Genova, Italy
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(8), 3532; https://doi.org/10.3390/app11083532
Submission received: 17 March 2021 / Revised: 9 April 2021 / Accepted: 13 April 2021 / Published: 15 April 2021
(This article belongs to the Special Issue Stimuli Responsive Materials)
Browse Figures
Versions Notes

Abstract

Food packaging encompasses the topical role of preserving food, hence, extending the shelf-life, while ensuring the highest quality and safety along the production chain as well as during storage. Intelligent food packaging further develops the functions of traditional packages by introducing the capability of continuously monitoring food quality during the whole chain to assess and reduce the insurgence of food-borne disease and food waste. To this purpose, several sensing systems based on different food quality indicators have been proposed in recent years, but commercial applications remain a challenge. This review provides a critical summary of responsive systems employed in the real-time monitoring of food quality and preservation state. First, food quality indicators are briefly presented, and subsequently, their exploitation to fabricate intelligent packaging based on responsive materials is discussed. Finally, current challenges and future trends are reviewed to highlight the importance of concentrating efforts on developing new functional solutions.

1. Introduction

According to the World Health Organization, every year, more than 600 million cases of illness are related to supplies of contaminated food and more than 400,000 people die due to foodborne contamination [1]. Indeed, even in highly developed countries, foodborne illnesses are still a serious cause of sickness and lead to several deaths per year [2]. Generally speaking, food quality can be identified by a broad number of factors including healthiness, consumer standards, nutritional values, and stability [3,4]. Hence, these factors represent a topical indicator to assess the effect of food on consumer health. In this sense, the food industry has recently started to pay great attention to evaluating food quality [5,6]. Nowadays, expiration dates are commonly employed for this purpose and to define product recall times. However, despite the existence of strict standard regulations, the complete lack of real-time monitoring of food preservation state is a threat to consumer health [7,8]. With these premises, it is not surprising that the worldwide food industry urges for the development of systems that can be easily incorporated into food packaging and are able to provide real-time quality insights. The efforts made in recent years have led to a promising emerging field, comprised of innovative packaging technologies showing the potential to substitute conventional materials [9,10,11].
Traditionally, common packaging technologies consist of the use of passive, inactive, and inert barriers with the function to prevent moisture, oxygen, and contaminants from becoming in contact with the food products. Hence, their main action is to maintain food quality over a certain period of time, protecting it against diverse physicochemical stresses [12,13]. On the contrary, innovative food packages may present one or multiple active functions able to play an active role in food preservation and quality indication. In this sense, the number of functionalities that can be embedded in smart packages is rapidly growing. These new materials promise to cover a topical role in improving food safety, enhancing food quality, and minimizing food waste.
Several terms such as “smart”, “active”, and “intelligent” are commonly employed to describe novel packaging technologies. Despite these terms being used interchangeably in the literature, they are representative of different concepts [14]. Specifically, intelligent packages do not directly act on food products, but only monitor their condition, whereas active packages have the role to increase the food shelf-life by acting on the environment surrounding the food. Remarkably, intelligent and active packaging may work in synergy, creating what is nowadays indicated as smart packaging [10,15]. Generally speaking, given the properties shown by actives packaging materials, these can be simply considered an extension of the traditional food packaging systems and are nowadays broadly employed in several commercial products [16,17]. Conversely, the purpose of intelligent packages is the real-time quality evaluation of food products and/or the surrounding environment through a variety of signals [13,18,19,20]. Specifically, diverse quality indicators (e.g., pH, humidity, temperature, specific chemicals, etc.) can be exploited for this purpose [7,21,22,23,24,25]. However, even though several food quality monitoring devices have been developed in the past and the number of scientific articles on the topic has been quickly increasing in the past decade, excluding temperature-based sensing systems (see Section 3.5), intelligent packages able to ensure real-time monitoring on a large commercial scale are still far from being achieved [26]. The main problems of such systems encompass the high cost, the requirement of sophisticated instrumentations, and the difficult integration in existing packaging materials. Thereby, as already pointed out by several reviews published in recent years, despite the fact that these sensing technologies allow for detecting food spoilage with high sensitivity, they are not yet suitable for industrial applications [27,28,29]. In this term, optical sensors have been increasingly investigated and show great potential for the food packaging sectors. Indeed, these systems are low-cost, do not require electronic connections or read-out devices, and are suitable for use by untrained operators, represented by the distribution chain operators and the consumers. Such sensors can be based on several working principles including colorimetric assay, fluorogenic receptors, photonic structures, and plasmonic particles. In all cases, one of the main advantages of these sensors is the response that is easy-to-read using the naked-eye due to the simple color variations.
With this in mind, this review aims to provide a concise but comprehensive summary of the recent developments concerning the real-time monitoring of food products via innovative packaging technologies mostly based on optical detection systems. Hence, we first briefly introduce the main indicators of food quality and how they can be exploited to perform real-time monitoring. Subsequently, we report a detailed description of the efforts made in developing “optical” intelligent packages that can be directly employed for monitoring food quality. Finally, a short summary of the current challenges and future perspectives is reported.

2. Food Quality Indicators

Specific indicators able to indicate the quality state of food products are usually connected to physical or chemical modifications that occur in a certain product, such as changes the in food consistency (e.g., thinning or thickening of sauces), in the food color (e.g., browning due to oxidation reactions), and in the food flavor and odor (e.g., rancidity due to pH variations) [30,31]. The detection of such indicators can effectively reduce the risks connected to the consumption of unsafe food, consequently limiting foodborne illnesses. Table 1 summarizes the main food quality and safety indicators and their applications in real-time monitoring, whereas a brief introduction of such indicators is presented in the following section.

2.1. Oxygen and Carbon Dioxide

Regulating the contact between oxygen and carbon dioxide in the context of food is important to avoid degradation and proliferation of micro-organisms. Oxygen can, indeed, trigger browning and other oxidative processes in meat, fish, cheese, and pigments in a variety of fresh foods [32,33,34]. Conversely, carbon dioxide inhibits the growth of bacteria and fungi, owing to both its capability to establish an anaerobic environment and decrease the pH of the environment of food [35,36]. Therefore, controlling the amount of O2 and CO2 represents an important strategy to extend the shelf-life of food and several modified atmosphere packages have been developed for non-respiring food products (i.e., products in which the initial atmosphere composition must be controlled to ensure optimal preservation) [37,38]. As a consequence, monitoring any change in the gas concentration and/or composition may indicate the conservation state of food [39,40,41].

2.2. Humidity

Constant humidity values are essential for preserving the condition and texture of food. Indeed, low humidity values can dry the edibles, while an excess of moisture can provide the ideal environment to foster microbic and fungi growth [42,43]. Common packaging technologies are supposed to not be permeable to moisture [44,45,46]. As a matter of fact, the level of humidity inside food packages can undergo significant variations due to accidental breakage of the package as a consequence of improper manipulation and prolonged exposure to significant temperature fluctuations. Therefore, humidity is a key factor to be considered in food quality assessment as it can provide useful information as regards improper storage conditions.

2.3. pH Changes

During food storage, certain types of both aerobic and anaerobic microorganisms can proliferate, generating organic acids (e.g., lactic acid and acetic acid) that can decrease the pH of food. Additionally, carbon dioxide, which is a product of microbial growth, may dissolve in food products and produce carbonic acid, which further decreases the pH value [47,48]. Hence, pH-sensitive sensors have been widely explored to evaluate food freshness and safety [49,50,51].

2.4. Temperature

Temperature is another important indicator related to food spoilage, with high values and significant fluctuations with a strong impact on the shelf-life of refrigerated food [14,52,53]. Indeed, temperature rising can easily trigger microbial proliferation and subsequent product deterioration. Specifically, since temperature fluctuations may occur at any point in the distribution chain, real-time monitoring is essential for certain food products, such as fish, for which the temperature broadly affects the microbial activity rate.

2.5. Nitrogen Related Compounds

Animal-derived food products, such as meat, fish, and dairy, represent a class of consumables that are highly susceptible to the undesired proliferation of pathogenic microorganisms, which causes their rapid degradation and the creation of biogenic amines [54,55,56]. Generally speaking, the increase in the total volatile basic nitrogen (TVB-N) concentration is known to be an indicator of food spoilage and the formation of compounds that are hazardous to health, such as histamine, cadaverine, and putrescine [57,58,59]. Thus, TVB-N and related compounds are a promising figure of merit for the continuous assessment of the quality of fresh protein-based products.

3. Methods for Real-Time Food Monitoring

The European Commission has defined intelligent food packages as “materials and articles that monitor the condition of packaged food or the environment surrounding the food” [60]. Generally speaking, intelligent packaging can be explained as a combination of science and technology able to enhance the shelf-life, improve safety, guarantee the quality, and warn about any harmful changes occurring in the packages [18,21,49,61,62,63,64]. Specifically, intelligent packaging makes use of the internal or external package environment to monitor the food quality status [13,19,65]. A summary of the most common methods currently employed for the real-time monitoring of food samples based on the indicator nature is discussed in the following.

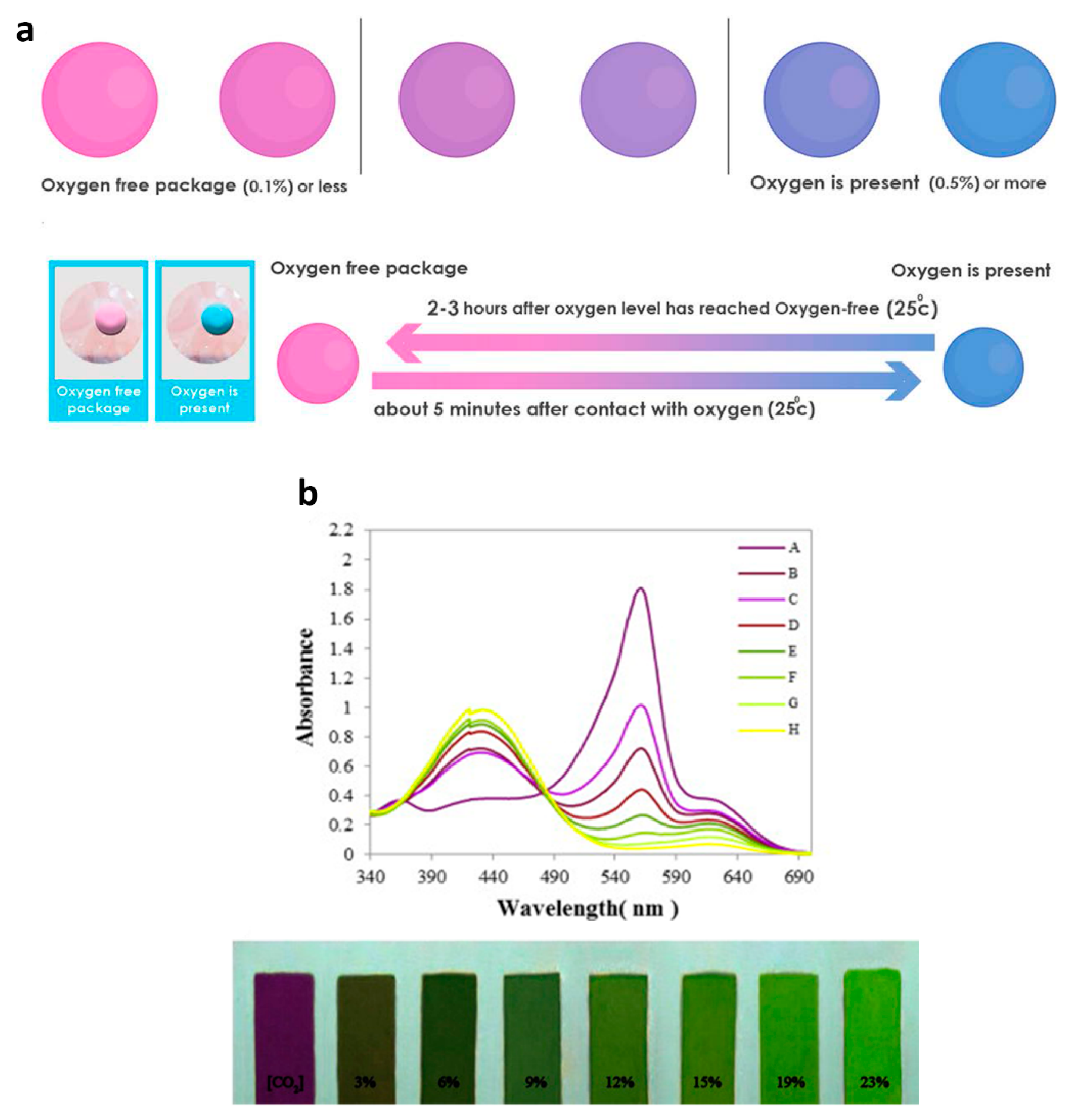

3.1. O2 Detectors

Modified atmosphere packages (MAPs) have been broadly employed to prolong the shelf-life of various edible products [66,67]. In a typical MAP, the product is sealed in a gas mixture where oxygen, nitrogen, and carbon dioxide concentrations are controlled. In this regard, different sensors able to monitor the concentration of oxygen within MAPs have been developed [39,40,68,69]. Luminescence-based indicator systems based on fluorogenic molecules embedded in a polymer film that is permeable to gas and/or ions, (e.g., silicon rubber, poly(vinyl chloride), etc.) modify their photoluminescence upon oxygen exposure. However, when photo-excited with environmental light sources, this kind of sensor lacks a response that is significantly discernible by the naked human eye, thereby requiring intense photo-excitation sources (e.g., light-emitting diodes or lasers) and apposite detectors [70,71,72]. Alternatively, colorimetric redox sensors exploiting simple reversible redox chemistry [73,74,75,76] and consisting of a redox dye (e.g., methylene blue) and a strong reducing agent (e.g., glucose in an alkaline environment) are able to change color upon small oxygen variations (i.e., 0.1%). Figure 1a schematizes the color variation achievable in a commercial system upon the presence of oxygen [77]. The sensor changes its color from pink to blue within a few hours upon oxygen exposure. Despite their high sensitivity and easy transduction, most of these sensors require to be stored and handled in anaerobic conditions, which considerably reduces their large-scale applicability in MAPs. Nevertheless, when in contact with high moisture environments typical of food packages, these redox dyes may be released from the water-insoluble polymer matrix in which they are embedded and diffuse into the packaging, hence posing health concerns. In this sense, the cation-binding capability of alginate, a polysaccharide extracted from brown algae and widely exploited in biomedical, pharmaceutical, wastewater remediation, and food applications [78,79,80,81,82,83], has been used to prevent dye leaching [84].

3.2. CO2 Detectors

Two main groups of optical sensors have been mainly reported for CO2 monitoring in food packages. The first group is based on luminescent dyes which modify their fluorescence upon CO2 exposure, while the second is based on colorimetric indicators sensitive to the pH changes induced by CO2 hydrolysis in the sensor matrix [47,85,86,87,88,89]. Luminescent dyes are characterized by performing extreme sensing capabilities, but they require sophisticated instruments, both for excitation and sensing, and are not suitable for consumer use. One of the first devices of this type was developed by embedding 8-hydroxypyrene-1,3,5-trisulfonic acid within a polymeric film, obtaining a response and a recovery of less than 10 s [90]. Such a system was further developed by first immobilizing the fluorophore molecule on a silica matrix [88] and then adding a dual fluorophore referencing system [47]. However, since the chemicals required for the sensor production are not food-grade, it is, hence, of fundamental importance that they do not become in contact with the products. To develop CO2 sensors with actual applicability in large-scale packages, recent efforts have been devoted to the exploitation of colorimetric indicators. These generally have a lower sensitivity with respect to luminescent dyes but are much cheaper, safer, and provide a response that is discernible by the human eye without the need for any instrumentation [47,91,92,93]. For example, the m-cresol purple dye has been broadly employed to fabricate colored polymer films sensible to protonation and deprotonation [94,95,96,97,98], as schematically shown in Figure 1b, which reports a colorimetric detector based on a mixture of bromothymol blue, bromocresol green and phenol red [85]. The absorbance spectrum of the mixture in a CO2-free environment (top panel of Figure 1a, purple line) shows a maximum in the green region, corresponding to a purple color, as depicted in the bottom panel of the same figure. Upon CO2 exposure, the previously mentioned peak is quenched and a second one arises in the blue and violet spectral regions. Thereby, such a variation allows the color of the system to visibly turn from purple to green upon CO2 exposure. Additionally, both a good shelf-life and functional design have been demonstrated by using food-grade formulations comprised of L-lysine, poly L-lysine, and anthocyanins [47].

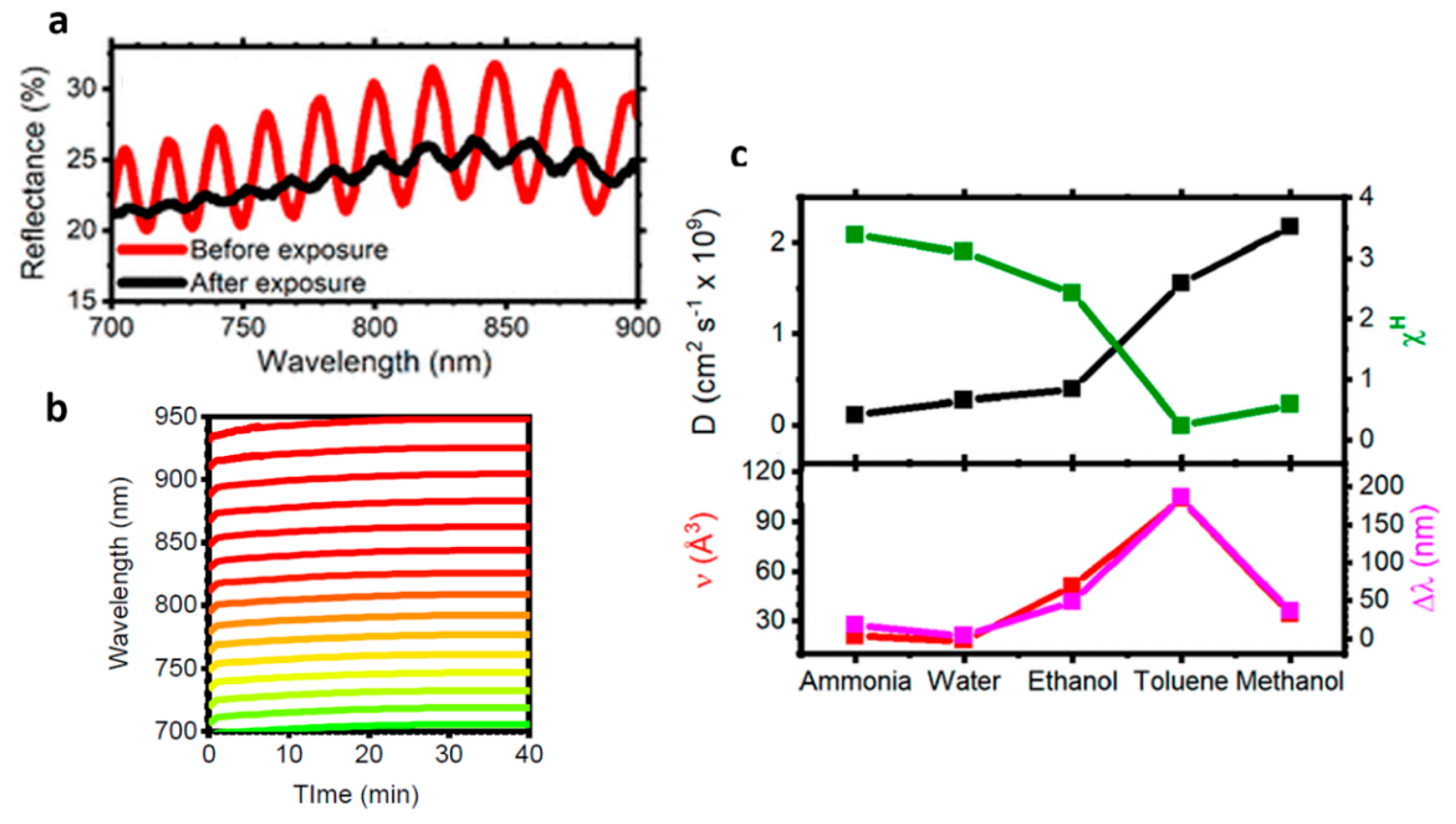

3.3. Specific Chemicals and pH Changes

During food spoilage, several chemical modifications may occur in the packaging environment related to specific microorganism growth, especially for meat and fish products [55]. Thereby, as described below, different types of colorimetric assays exploiting chemical indicators have been vastly used to monitor food quality owing to their accuracy, simplicity, low cost, rapidity, and reliability [99,100,101,102,103]. As an example, polyaniline-based films embedded within the packaging lead to visible color changes in the presence of biogenic amines [104]. This sensor exploits the unique capability of polyaniline to change conductivity and color as a consequence of pH variation. The colorimetric assay has also been demonstrated by exploiting 16 different chemosensitive compounds that are able to detect several chemical species including trimethylamine, dimethylamine, cadaverine, and putrescine [105]. Remarkably, since food spoilage is diversified depending on both the sample type and world location, such a sensor acts as a universal system displaying great versatility in detecting a wide range of compound varieties [106,107,108]. Alternatively, electrochemical sensors, which are based on the redox reaction of a certain species on an electrode surface generating an electrical signal, have been broadly explored for the detection of volatile amine compounds during food deterioration, especially in the case of animal-derived products (i.e., meat and fish) [48,109,110,111,112]. In this regard, a wireless sensor was recently fabricated by using a hydrogel-coated pH-electrode sensor sensible to the environmental amount of volatile amine with a detection limit of 0.001 mg/L [113]. These sensors have the main advantage of providing a rapid and highly sensitive response to food spoilage, while also providing information as regards the concentration of the analyte species. On the other hand, due to their greater sophistication with respect to colorimetric sensors, it is noteworthy that electrochemical sensors are much harder to implement in packaging systems. Additionally, several meat spoilage sensors have been developed by means of pH-responsive materials directly incorporated within the packages [114,115]. Again, the simple optical determination of vapor diffusion in thin polymeric films has been demonstrated as being a useful tool for food monitoring applications [23], as shown in Figure 2. The detection system exploits the optical interference of a commercial cling-wrap film (Figure 2a, red line). Upon exposure to different vapor phase analytes, the wrap increases its thickness, and its interference pattern is modified (Figure 2a, black line). Recording the dynamics of these variations (Figure 2b), it is possible to assess the diffusion coefficient of the diffusing species (Figure 2c, top panel) and relate the spectral shift of the interference pattern to the van der Waals volume of the analyte (Figure 2c, bottom panel). Yet, photonic crystals have also been shown to be able to act as indicators of food spoilage, owing to their capability to provide an easily discernible optical response to nitrogen-derived compounds [116,117,118].

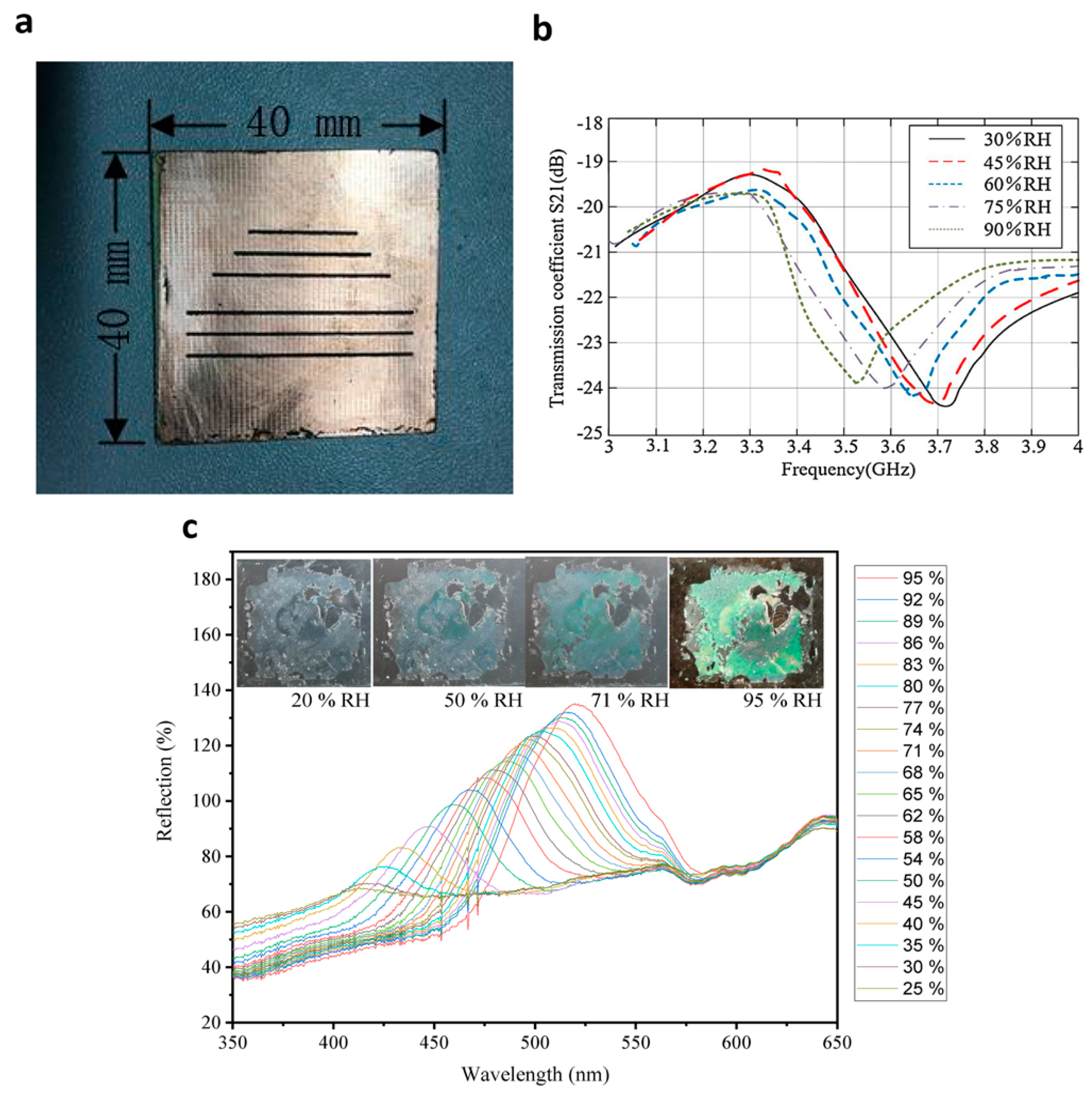

3.4. Humidity Sensors

Several humidity sensors have been explored in recent years for real-time packaging monitoring purposes [119,120,121,122]. As described in detail below, these sensors have the advantage of being simple and easily implemented in food packages. For instance, a low-cost wireless humidity sensor, which can be easily introduced inside packages, was developed using a planar inductor and capacitor fixed on a paper substrate [123]. Generally speaking, using a paper substrate ensures a cheap platform, high sensitivity, and a reasonable response time. Indeed, when the humidity within the packaging increases, this substrate adsorbs water, hence, modifying the capacitance of the capacitor [124,125]. Humidity sensors coupled with a radio frequency identification (RFID) tag have also been reported [126,127,128,129]. These usually consist of two planar inductor-capacitor resonators (Figure 3a), with one of them encoding the ID data and the other one working as the humidity sensor [126]. Figure 3b reports the measured signal of a sensor unit at room temperature: a higher humidity value corresponds to a lower resonance frequency. Alternatively, RFID humidity sensors comprising of a printed spiral inductor working as an antenna can be developed [130]. However, humidity-based sensing materials based on photonic crystals have been widely investigated as a valid system for the real-time monitoring of food packaging owing to their high sensitivity, low cost, and high productivity rate [131,132,133]. For example, Figure 3c shows the red-shift of the photonic band-gap of a synthetic opal hydrogel. The opal consists of highly monodisperse polystyrene microspheres self-assembled on a glass substrate and infiltrated with a poly(acrylamide-co-acrylic acid) hydrogel network. By increasing the relative humidity (RH), the hydrogel swells, modifying the lattice periodicity and in turn, the optical response of the opal [134].
Humidity sensors, such as those described above, find potential applications in dry food packages, which require the avoidance of any contact with moisture and maintaining a very low humidity level to avoid degradation. Due to their ease of fabrication and cheap cost, such systems are promising candidates for commercial applications on a large scale, however their long-term stability still needs to be optimized.

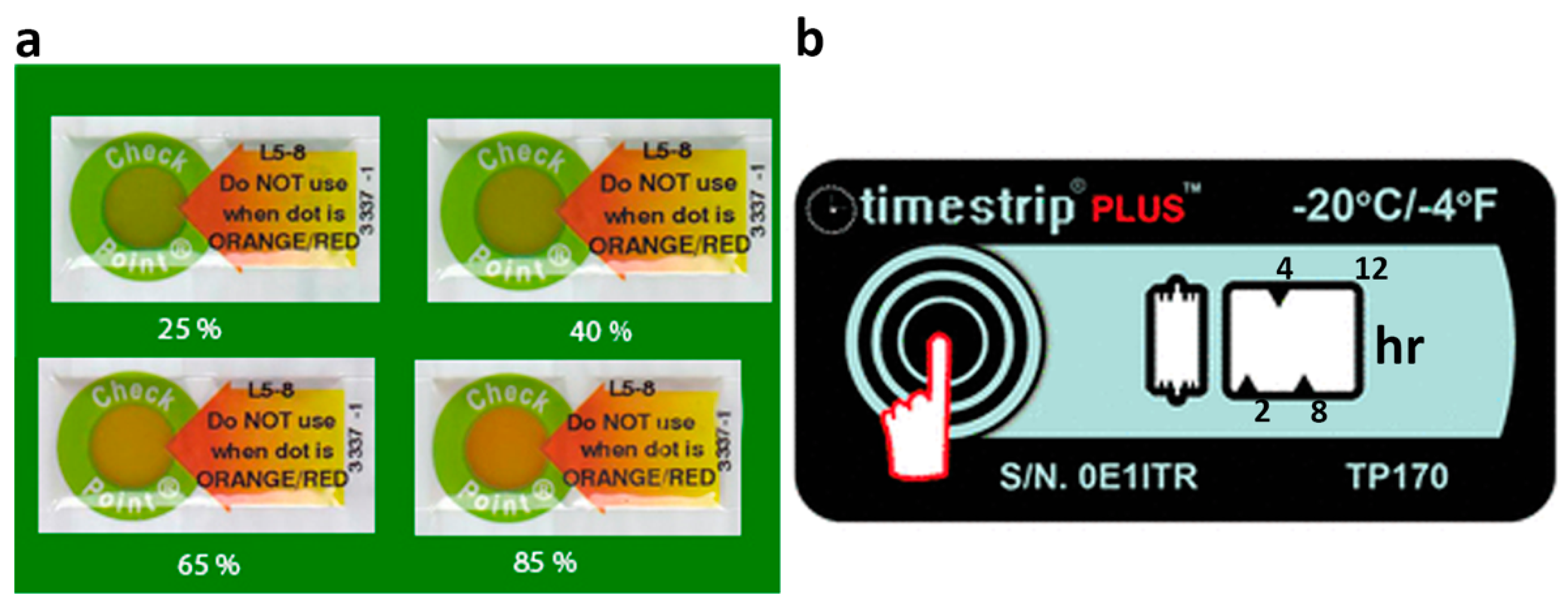

3.5. Time-Temperature Sensors

Sensors based on temperature detection consist of devices in direct contact with the food products [135,136,137,138]. As these variations typically result in significant mechanical, chemical, electrochemical, enzymatic, or microbiological changes in the food samples, temperature sensors are extremely useful in spoilage monitoring [139,140,141,142,143,144]. Time–temperature indicator (TTIs) systems can be divided into three main groups: critical temperature indicators, critical time–temperature indicators, and full history indicators [12]. In detail, critical temperature indicators can only provide information in regard to deterioration and changes in food organoleptic properties due to the occurrence of temperature dissimilarities with respect to a reference value for a certain time. Usually, this kind of sensor exploits irreversible but visible changes in the color of the indicator. For instance, Figure 4a shows a critical temperature sensing system based on an enzymatic reaction with a sensitive spot that changes color under thermal exposure (i.e., orange color indicates that the product has been compromised) [145]. Critical time–temperature indicators supply indications associated with the cumulative effect of time and temperature on product quality or safety when these have been exposed to a temperature above the reference one for a certain period. By way of example, Figure 4b reports a commercially available critical TTIs system for the monitoring of frozen food products. A blue color appears in the viewing window if a breach of the threshold temperature has occurred. The duration of one or more breaches is shown by how far the blue color has progressed along with the time markers [146]. Finally, full history indicators continuously monitor the temperature changes to which a sample is subjected, with the data being recorded in terms of irreversible changes that explain food safety and quality to consumers. Generally speaking, temperature-based sensors are, nowadays, the only ones exploited in the food industry, owing to their relatively small size, low cost, and simplicity compared to other food monitoring devices [147,148,149,150,151].

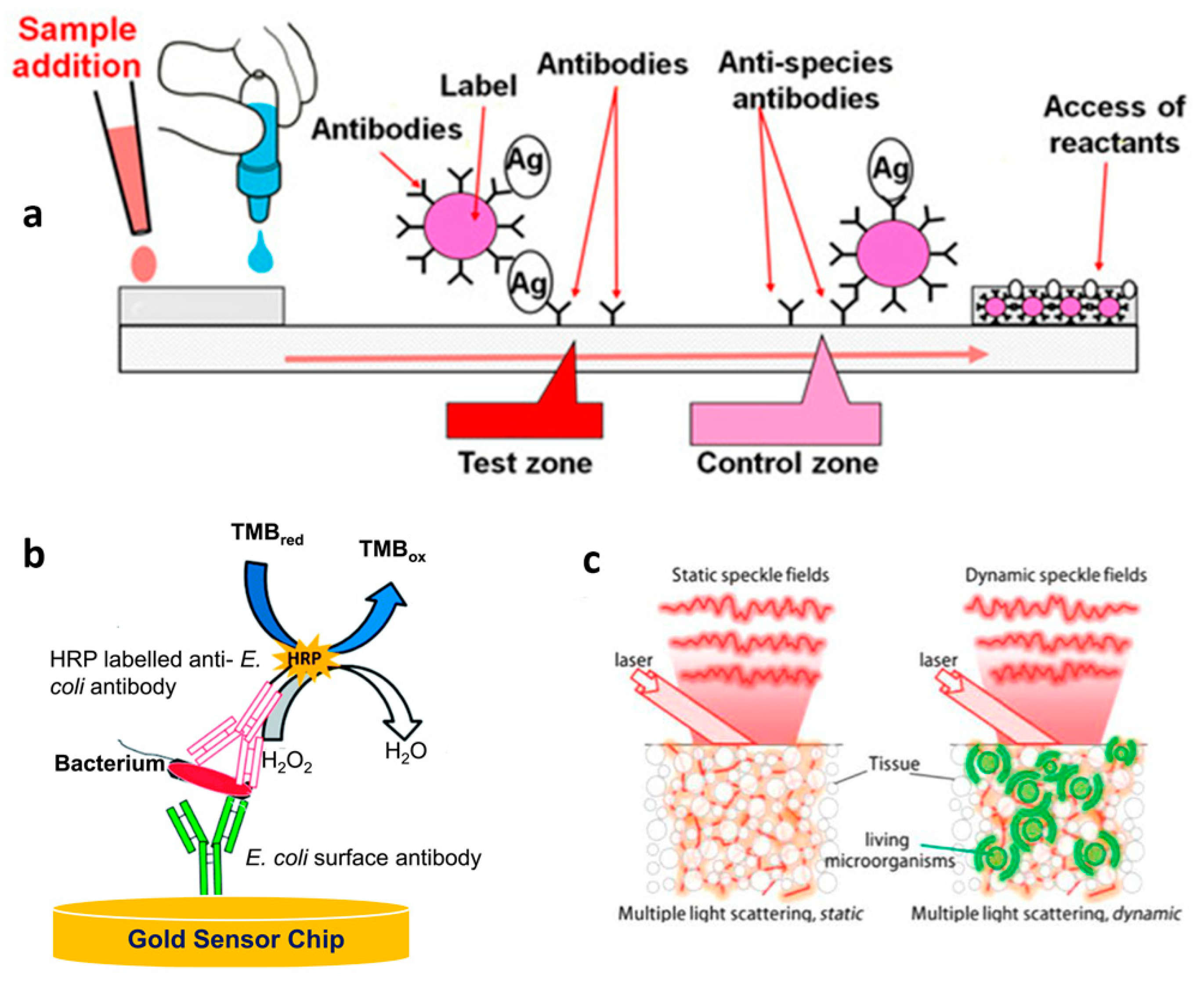

3.6. Biosensors for Bacteria Detection

Among others, bacteria are one of the primary food contaminants associated with disease and death [152]. The growth of microorganisms in food may affect product quality in two different ways. On the one hand, non-pathogenic microorganisms normally present in the food supply chain can induce food spoilage and determine a quality issue. On the other hand, pathogens deriving from contamination at a certain point of the supply chain represent a serious health risk [5,152,153]. With these premises, it is not surprising that bacteria are an extremely important target in food safety monitoring. However, commonly employed approaches make use of expensive, time-consuming, and sophisticated analytical techniques that are not suitable for large-scale applications [153,154,155,156]. Accessibility problems have been solved via devices that do not require significant user intervention and that are not destructive [157]. For instance, the presence of microorganisms in various food packages has been detected via lateral-flow strip (LFTS) assays [158,159,160], in which gold colloidal nanoparticles labeled with antibodies directed against specific microorganisms are deposited on a chromatographic test strip as schematically shown in Figure 5a. A sample containing the bacterium is then inserted at one side of the strip via a proper solution. The solution runs along the strip until it encounters the functionalized particles with the specific antibodies that interact with the bacteria. In the test zone, a detection line bringing receptors for the bacterium–gold complex interacts with the latter and induces particle accumulation that gives rise to a colored line. At the same time, the essay also has a control line aimed at assessing the chromatographic process. This line brings a receptor that interacts with a second group of gold nanoparticles that are opportunely functionalized.

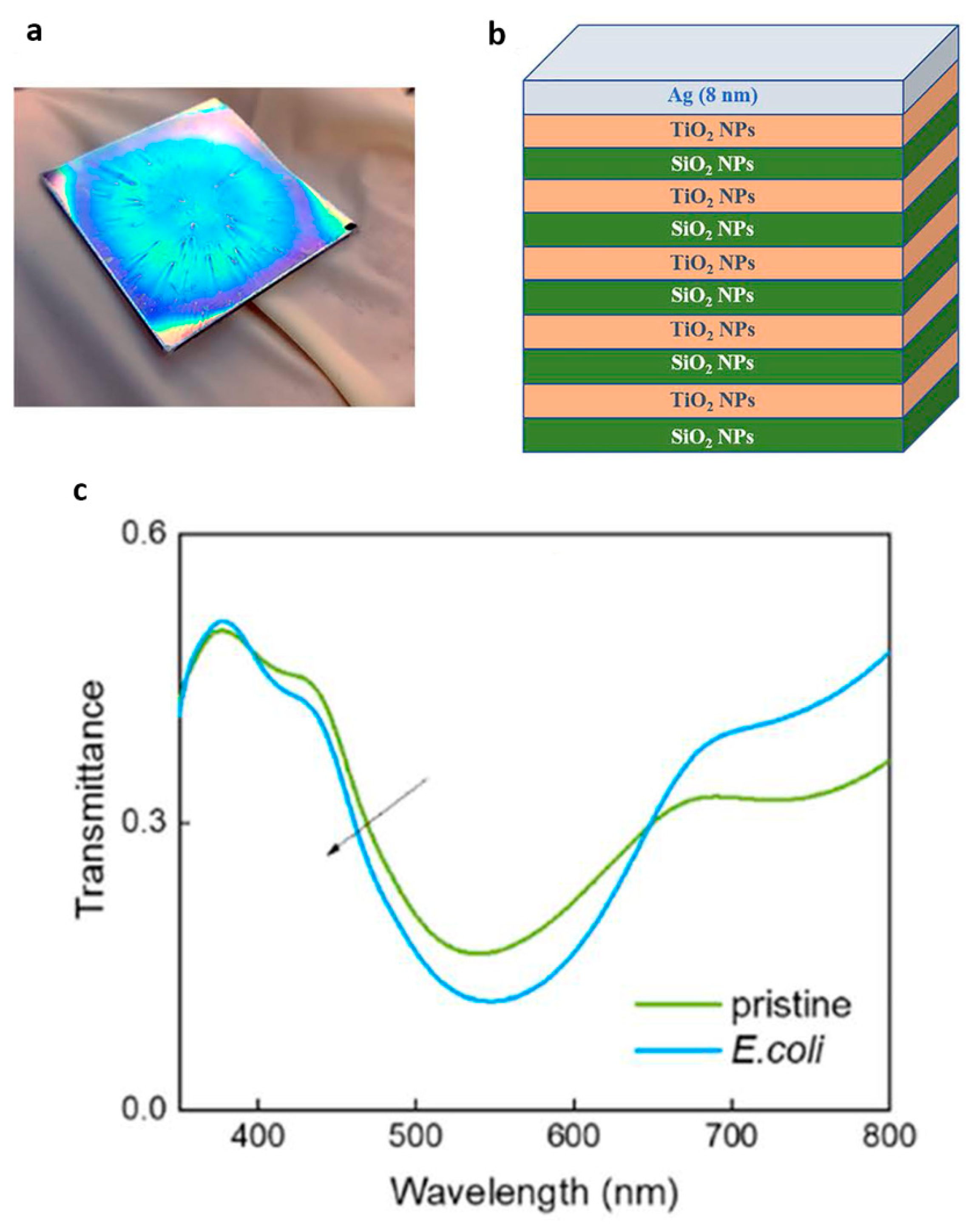

Another type of bacteria sensor has been fabricated by using portable microfluidic devices containing specific antibodies, which are able to respond to different bacteria and can be integrated with sensor chips [161,162,163,164]. For example, Figure 5b schematizes the working principle of a completely automated microfluidic-based electrochemical biosensor able to detect E. coli bacteria with high sensitivity (i.e., detection limit of 50 cfu/mL) and specificity [164]. Specifically, such a biosensor relies on the enzymatic reaction between horseradish peroxidase (HRP) labeled E. coli antibodies and 3,3′,5,5′-tetramethylbenzidine (TMB). Additionally, the detection of bacteria for intelligent food packaging applications via graphene flexible sheets operating as electrodes [165], via the aggregation of paramagnetic silica beads [166], or via laser speckle decorrelation (Figure 5c) [167,168] has been demonstrated. Despite these sensor systems allowing for the real-time monitoring of microorganisms in packages and the fact that they may be suitable for large-scale usage, it is noteworthy that they still require sophisticated instruments.
To tackle the issues related to complex detection techniques or lack of on-site monitoring possibilities, photonic crystal-based sensors have started to assume a major role in microorganism detection for food packaging [170,171]. Figure 6a,b reports a photograph and a schematic of a silica-titania multi-layered photonic crystal covered by a plasmonic Ag film. The system can selectively interact with the E. coli bacterium modifying its transmittance spectrum (Figure 6c) [172,173]. Devices based on photonic crystals and optical microcavities [174,175] can be easily embedded in food packages, even though their large-scale fabrication has only been reported for polymer planar structures [176].

4. Future Perspectives and Concluding Remarks

Nowadays, the market for active, intelligent, and smart food packaging is rapidly increasing with more than USD 38 billion worth of packages being sold in 2020 and about USD 50 billion expected by 2026 [177]. However, such systems are still scarcely applied due to their high cost compared to traditional packaging materials and the limited possibility of integration within the existing packages [178,179,180]. In this sense, the recent developments in chemistry, microelectronics, materials science, engineering, biotechnology, and nanotechnology may help in the design and fabrication of efficient, novel packaging solutions suitable for large-scale applications. For instance, food quality optical detection systems based on colorimetric sensors display great potential to overcome the current challenges, including the high cost and the requirement of sophisticated instruments. Such systems may, indeed, provide a simple and easily readable indication concerning food quality over a long time period. Additionally, the sensitivity of such colorimetric devices and sensors may be even enhanced by integrating them with an RFID, aiming to achieve improved safety and quality, while reducing food waste and limiting costs [181,182,183,184]. Specifically, on one side, colorimetric systems allow for easy read-out by any kind of user, including the consumers. On the other, the continuous advances in printed electronics via the deposition of conductive inks on various substrates are expected to favor the integration of intelligent sensors in packaging materials [185,186]. Nevertheless, it is noteworthy that the lack of standardized and comprehensive toxicity evaluation methods, as well as the often limited stability of the so far developed sensors that could generate the migration of substances in the food products, has generated confused and frequently inconsistent data as far as health and safety concerns are considered. Thus, this poses a challenge in the large-scale fabrication and use of intelligent packages [187,188]. Hence, the development and validation of standardized tests concerning the safety of future intelligent packages represents one of the main issues to be addressed before their effective large-scale usability. Moreover, it is critical to ensure that intelligent packaging is sustainable in terms of application, design, and production [189,190,191,192]. This is vital not only to improve the management of the food supply chain, but also to reduce global food waste and environmental pollution [27,193]. Specifically, the growing environmental burden related to petroleum-derived plastics imposes the enrichment of packaging products with eco-friendly features. However, to date, intelligent devices such as colorimetric and optical tags and especially RFDI and sensors are often not yet designed in respect of recyclability and/or sustainability mechanisms, since their main purpose is to improve food shelf-life by being as cheap and functional as possible. Hence, naturally occurring polymers based on renewable resources, such as cellulose and chitosan, may represents considerable areas of innovation and exciting opportunities for the inexpensive, safe, and sustainable fabrication of eco-friendly intelligent packaging materials.
In conclusion, this review critically discusses the most common optical approaches and emerging technologies for real-time food monitoring and addresses topics related to their future development for large-scale food packaging applications. These are usually based on different types of food quality indicators (i.e., pH, O2, CO2, temperature, etc.) and can provide information for consumers as regards product safety.

Funding

This research has been founded by University of Genova (FRA 2020).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
