Air Pollution Tolerance Index and Heavy Metals Accumulation of Tree Species for Sustainable Environmental Management in Megacity of Lahore

Department of Environmental Sciences, The University of Lahore, Lahore 54590, Pakistan
Department of Artificial Intelligence, Sejong University, Seoul 05006, Republic of Korea
Department of Civil Engineering, COMSATS University Islamabad, Sahiwal Campus, Sahiwal 57000, Pakistan
Research Institute for Advanced Industrial Technology, College of Science and Technology, Korea University, Sejong 30019, Republic of Korea
Authors to whom correspondence should be addressed.
Air 2023, 1(1), 55-68;
Submission received: 6 September 2022 / Revised: 13 October 2022 / Accepted: 29 November 2022 / Published: 7 December 2022


Urban air and soil quality has been deteriorating during the past few years due to urbanization, industrialization and increased number of vehicles. The goal of the current study was to assess the Air Pollution Tolerance Index (APTI) and heavy metal absorption (Pb, Cd, Zn, and Ni) potential by ten selected trees planted along the roadside in the metropolitan city of Lahore, Pakistan. APTI was estimated on the basis of biochemical parameters (chlorophyll content, ascorbic acid, pH and relative water contents) of plant extract, while heavy metals (HMs) accumulation potential was measured by a digestion method. The highest APTI was estimated in P. longifolia (78.9), followed by A. scholarils (75.9) and M. indica (71.9). Overall, these three species have significant closeness among the higher pollution-tolerance results. The poor APTI result was determined in F. religiosa (19.5) and E. citriodora (14.9). The highest Pb contents were observed in P. longifolia and M. indica i.e., 135 and 132 mg/kg, respectively. Similarly, the highest Zn contents were found in P. longifolia and S. cumini with 130 and 132 mg/kg, respectively. The Ni concentration was observed highest in P. longifolia (34 mg/kg), but in the remaining species, it is almost the same trend of Ni accumulation. Combining these trees can be useful for fostering green-belt growth along roadsides to reduce air and soil pollution and achieve environmental sustainability. But unfortunately, these species are not planted well across the roadside as they have very little biodiversity index, as compared to other species. These species should be planted in urban areas to enhance biodiversity in the urban ecosystem and make them sustainable cities and communities.

1. Introduction

In recent years, urbanization has been increasing rapidly and emitting CO2 emissions, pollution load and toxic heavy metals (HMs) into the environment. In the context of highly urbanized and industrialized regions, Pakistan, as the most urbanized nation of South Asia, contributes very little to global warming but is extremely susceptible to climate change. Urban air pollution is mainly caused by the release of gaseous pollutants from urban transportation and industrial activities containing heavy metals, air pollution, including SOx, NOx, CO, heavy metals and especially particulate matter (PM). In the soil, organic materials, carbonates, and minerals frequently absorb heavy metals. Therefore, emissions from industrial facilities and automotive exhaust could have an impact on the composition of the soil and air [1,2,3]. This leads to a rise in soil pollution along with air pollution; therefore, monitoring air quality is a significant indicator to enhance urban life and shift towards sustainable urban development [4].
The Air Quality Index (AQI), which is based on the measurement of main pollutants (ground-level ozone, CO, NO2, PM2.5, PM10, and SO2), states that the air quality in Lahore is among the worst in the world and reaches unhealthy levels on most days. Lahore is ranked as the second-most polluted city in the world in terms of PM2.5 and PM10, according to pollution level [5]. Road traffic is also the main cause of severe air pollution in Lahore city as reported by [6]. Road traffic was found to be closely linked with particulate matter (PM). Heavy traffic on the road causes emissions of nitrogen oxides (NO2) and carbon monoxide (CO). The city of Lahore’s air quality has been declining with each passing year. Therefore, it is essential that all key institutions and stakeholders work together to find a solution before the problem develops into permanent harm to both people and the environment [7].
Roadside trees offer many environmental advantages which include the safety of nearby watersheds, improvement of hurricane water management, mitigation of the city heat island effect, reduction of noise pollution and supplying social benefits [8,9,10]. Roadside vegetation absorbs nine times greater pollution than avenue-remote timber and converts harmful gases back into oxygen [11]. Therefore, the right mechanism with careful interest is needed in deciding for selection of suitable trees along roadsides for greenbelt development [12,13,14,15]. Air Pollution Tolerance Index (APTI) is a critical parameter for contamination alleviation and it depends on the biochemical constituent of plants, such as pH, chlorophyll substance, relative water content and ascorbic corrosive. APTI communicates the capacity of plants to counter the unfavorable impacts of air contamination. Moreover, APTI is helpful to screen and identify the plant species that are more suitable for the mitigation of air pollutants, as to balance the social-aesthetic aspect [16,17,18,19,20]. In a study, APTI of various tree species was studied, out of which the Peepal tree was found to be most tolerant to PM10 [21]. APTI value shows the capacity of plants to counter air pollutants. Air-contamination control is complex than managing other ecological problems. No physical or compound strategy is known for controlling air contamination. Appropriate choices might be utilized to foster an organic technique by developing green belts in and around metropolitan regions [22].
Trees are known to be bio-monitors, especially in urban areas which monitor the concentration of heavy metals by accumulating them in various organelles present in roots, fruits, barks and leaves. Trees can improve the mental health of communities and relieve stress [23,24]. Apart from this, plants are also capable of absorbing the metal contaminants in soil into their aboveground biomass [25]. However, different species of the plant offer the varying potential for heavy-metal accumulation, and thus, determination of the exact plants capable of heavy metal accumulation in an area is necessary. For instance, in a study, Zinc (Zn), Copper (Cu), Lead (Pb) and Cadmium (Cd) were identified as bio-accumulators through leaves of various selected tree species [26,27]. HMs accumulation by trees can give valuable data for checking networks and can streamline the logical assurance of HMs. Also, trees can reflect the aggregate effects of HMs pollution on the surrounding air and soil. The presence of heavy metals is crucial for the growth of plants, but their extreme quantity employs toxic impact on trees [28]. No doubt, a major tactic to reduce air pollution is to properly plant trees along roadways and across industrial zones. However, throughout the previous ten years, the air quality in metropolitan places around the world has been progressively worse. After a significant scientific discussion over the best tree species for pollution mitigation, there is a lack of maintained trees that meet the recommendations.
In light of environmental sustainability, the objective of the current study was to assess the Air Pollution Tolerance Index (APTI) and heavy-metal-accumulation potential of ten selected tree species planted along the roadsides of five major roads of a highly urbanized and polluted city of Lahore. A comparison was conducted to identify the best species towards the three-pollution monitoring and mitigation parameters; thus, the plantation in urban areas with similar climatic conditions, such as the study area, can be properly managed with more focus on planting appropriate species for pollution mitigation rather than a plantation of random species. This study will be significant and useful for policymakers and urban planners in recommending relevant and suitable tree species for sustainable urban development.

2. Materials and Methods

The current study was carried out in Lahore, Pakistan’s second-largest metropolis after Karachi and the capital of the Punjab province. Lahore has an extremely hot, semi-arid climate (Köppen BSh), with a diverse spectrum of public outdoor places. In Lahore, the average yearly temperature is 30 °C. June is the hottest month of the year, with an average temperature of 37 °C. January is often the coldest month in Lahore, with an average temperature of 21 °C. The temperature difference between the warmest month, June, and the coldest month, January, is 16 °C. Lahore has a semi-dry climate, with an average annual precipitation of 838.8 mm. Lahore’s air-quality index is 161, with PM2.5 as the predominant pollutant, and the air is considered bad by the US AQI. Lahore’s air pollution is generated by a combination of automobile and industrial pollutants, as well as smoking [29]. Lahore is a fast-growing city having a huge population and a network of forty-two major and busy roads across the city [30]. Based on traffic volume, five major roads were chosen where the majority of vehicles travel and release hazardous substances, such as CO2, CO, NOx and SOx, as well as some heavy metals including, Pb, Cd, Zn and Ni, which are harmful to the environment. There are no large industrial enterprises in the urban areas (study area) of Lahore. Trees were taken into account because these are the most vulnerable to air pollution. Figure 1 explains the GIS map of the study area, and selected roads with sampling sites are presented, while Table 1 comprises the selected target tree species for the present study. Moreover, among all the selected tree species, most of the species are exotic, while three species (Sheesham, Safaida and Peepal) are invasive and are planted along the major roads of Lahore.

2.1. Sampling of Plants’ Leaves and Soil

Plants’ leaves of ten target species were collected for biochemical analysis at five sites approximately 5–10 m from all selected roads. Samples were taken in triplicates (including facing the road and hidden from the road) from around 7 feet of the plants’ height. All target tree species were close to each other at each sampling site. Before the biochemical examination, samples of plants were rinsed with distilled water to eliminate dust particles.
Soil samples were taken in triplicates at depths of 0 to 15 cm. The five locations were chosen at a distance of 5 m from each of the target roads. Samples were kept in a plastic bag. Soil samples were prepared for chemical analysis in the laboratory.

2.2. Evaluation of Air Pollution Tolerance Index

The values of APTI of plants were calculated using various biochemical parameters, such as total chlorophyll (T), ascorbic acid (A), relative water content (R) and leaf extract pH (P) in the following formula [31,32,33].
Air Pollution Tolerance Index = (A (T + P) + R)/10
where ‘A’ is ascorbic acid (mg g−1), ‘T’ is total chlorophyll (mg g−1), ‘P’ is the pH of leaf extract and “R” is the relative water contents of the leaf (%). Based on APTI, the plants were categorized into tolerant (30–100 APTI), intermediate (17–29 APTI), sensitive (1–16 APTI) and very sensitive (<1 APTI) plant species.

2.3. Plants’ Leaves Samples Analysis

The same places where the soil samples were collected also yielded samples of plant leaves. The leaves were collected, twice rinsed in deionized water to remove adhering materials and dirt, and then put into distinct paper bags with labels on them. The leaf samples were kept in a 70 °C oven until completely dry. In order to prepare dried-plant samples for further analysis, the leaves were grounded into a fine powder using a clean electronic grinder. A 2 g sample of powdered leaves was placed in a Pyrex beaker with 10 mL of pure HNO3 and left overnight at room temperature. The sample was then heated on a hot plate, dried out heated again, and chilled, and 5 mL of HClO4 was added. The digested sample was filtered into a new volumetric flask, double-deionized water was added, and the volume was increased to 50 mL. Using an atomic-absorption spectrophotometer, the concentrations of heavy metals, such as Cd, Ni, Pb and Zn, in the acid extracts were determined (AAS) (Analytik Jena AG—novAA® 300, Germany). The analyses were performed in triplicates under standard-optimum conditions and the results were compared with standard values [34].

2.4. Soil Sample Analysis

Soil sampling was conducted in the research area at three sample sites at depths ranging from 0 to 25 cm using a stainless-steel auger. These subsamples were extensively mixed together to form a composite sample [35]. The samples were transported to the laboratory in polyethylene bags, air-dried, mechanically grounded, and passed through a 2 mm filter before being carefully stored for further analysis. The soil samples were digested using the FAO/SIDA technique [36]. In a pyrex beaker, 1 g of air-dried and powdered soil sample was placed, and 15 mL of aqua regia was added. It was left overnight before being cooked on the hotplate until there were no brown odors. Then, 5 mL of concentrated HClO4 was added and the solution was cooked on low heat until it was nearly dry. The extracts were filtered, and a final amount of 50 mL of doubly de-ionized water was prepared. The amounts of heavy metals, such as Cd, Cu, Ni, Pb and Zn, in the acid extracts were measured using an atomic-absorption spectrophotometer (Perkin-Elmer A700). Under conventional-optimal settings, the analyses were carried out in triplicates by measuring the standard deviation; the findings of HMs were compared by the [37] permissible limits of HMs concentration in the soil.

2.5. Data Analysis

Mean values of heavy metals in soil samples and plant leaves samples were estimated using MS-excel. The standard deviation for all means was also calculated and represented in graphs. Concentrations of heavy metals in soil samples were compared with WHO guideline values.

3. Results

3.1. Air Pollution Tolerance Index (APTI)

APTI values of selected tree species are shown in Figure 2A. The highest APTI (78.9 ± 2.6) was estimated in P. longifolia followed by A. scholars (75.9 ± 2.6). M. indica was also observed at a higher APTI content (71.9 ± 1.1). Overall, these three species have significant closeness among the higher pollution-tolerance results. The poor APTI result was determined in F. religiosa (19.5 ± 1.0) and E. citriodora (14.9 ± 0.4) respectively, but the whole trend indicates that all the ten tree species performed better regarding air-pollution-abatement results. The APTI results of all the species uncovered the inconstancy among different plant species regarding the vulnerability to air contamination. Findings clearly show that the plants shift their reactions to comparative air pollution, and variety in air- contamination resistance might happen because of the variety in any of the four biochemical boundaries used to work out the APTI. Air Pollution Tolerance Index (APTI) is a significant parameter for pollution mitigation, and it is based on the biochemical parameters of plants, such as pH, chlorophyll contents, relative water content and ascorbic acid. Equation (1) was used to calculate the APTI results of all the tree species. The higher APTI value represents the high tolerance of air contaminants from the plants. Ascorbic acid (A) is an antioxidant that is found in new components of the plant and prevents plants from oxidative harm. It is a vital pointer to determine the APTI values in the plants. It provides protection from unfavorable climatic conditions and, is therefore, valued by plants. Increased ascorbic acid levels in plants indicate a high resistance to air pollution. The higher levels of ascorbic acid in stressful conditions protect the chloroplasts against SO2-induced H2O2, O2 and OH accumulation. It is an antioxidant whose concentration is increased with auto exhaust and industrial-pollution rates [38,39,40]. Pollutants are made more difficult to enter an area with high chlorophyll content. Under conditions of water stress, the total chlorophyll content (T) decreases the generation of reactive oxygen species (ROSs) in the chloroplast (ROS is a very low reactive molecule that may cause damage to cellular bodies during environmental stress). The defense against ROS produced by the photosynthetic machinery is aided by higher chlorophyll concentrations [41,42,43]. Due to the fact that different pH (P) ranges are necessary for the enzymes to operate properly, the physiological and biochemical activities of the plant are dependent on pH (P). Hexose sugar is controlled by pH level to produce ascorbic acid, which aids in its ability to withstand harsh environmental conditions. Numerous researchers claim that pH has a substantial influence on how effectively plants use light for photosynthesis; in other words, low pH causes plants to use less light for photosynthesis [15,44]. As a result, a higher pH value in the leaf extract improves the ability to tolerate pollution. Because water governs numerous physiological processes under high stress from pollutants, relative water content is another crucial factor in a plant’s ability to withstand pollution.

3.2. Heavy Metal Concentration in Soil and Plant Leaves

Heavy metals in the soil as well as in plants are significantly present due to massive traffic flow across the urban area. Each site’s value showed significant variations in the concentration of HMs studied. Figure 3 shows the soil concentrations of Pb, Cd, Zn and Ni at each of the study sites i.e., S1, S2, S3, S4 and S5 at each road. The highest concentration of lead and cadmium was 151.56 and 75.45 mg/kg, respectively, found in Multan Road, while Canal Road was the most contaminated with nickel varying from 20.37 to 25.68 ± 3 mg/kg at 0–50 m from the roadside. All zinc values were below the [45] allowable limit, except for the Raiwind road of 60.40 mg/kg. The heavy metal-content sequences in the soil sample were found in the following order: Pb > Cd > Ni > Zn. With respect to the permissible limits of heavy metals in soil and according to the WHO, the contents of Pb and Cd were above the limits at all five locations along each road, ranging from 88.42 to 151.56 mg/kg, and from 36.97 to 75.45 mg/kg, respectively, relative to the WHO requirements of 85 and 0.8 mg kg−1. However, the concentration of Zn, except for the Raiwind Road, was found to be within the recommended limit of 60.40 mg/kg, compared to the WHO limit (50 mg/kg). In contrast with the WHO value (10 mg/kg), Canal Road was the most polluted with nickel varying from 14.97–25.68 mg/kg. The roadside soil is a major source of heavy metal related to traffic. The soils and plants found along roadsides are frequently contaminated with heavy metals, especially Pd and Cd, according to recent and prior studies. The vehicular emissions can change soil-quality parameters, including metal concentrations. The findings indicated that the amount of traffic had a significant impact on the concentrations of heavy metals in roadside soils because Cd and Pd concentrations in roadside soils may be influenced by vehicle emissions from the burning of fuel and diesel as well as auto shops [32,46,47]. In contrast, Zn and Ni are necessary heavy metals that are needed in modest amounts for a plant’s regular growth. In excess, they might be fatal [48,49]. These metals could have come from a variety of sources, including the burning of fossil fuels, tyre wear and tear, metals used in catalysts and the deterioration of other car parts, particularly paints [50,51,52,53,54]. Long-term exposure of transport pollutants to heavy metals could be caused by higher concentrations of Pb, Cd, Zn and Ni in soils near the roadside. Meteorological factors, such as rainfall, tides, profiles or traffic volume impact the dispersion of pollutants.
The mean concentrations of Pb, Cd, Zn and Ni in plant leaves, as obtained from ten species of plants, such as D. sissoo, C. fistula, P. longifolia, Eucalyptus, M. indica, M. azedarach, S. cumini, F. religiosa, B. variegate and A. schlorais, are shown in Figure 4. Dalbergia sissoo, at Canal Road, absorbed the highest cadmium content of 25 ± 3 (mg/kg) followed by P. longifolia 12 ± 1.5. M. indica and C. fistula also accumulated Cd contents. The highest Pb contents were observed in three species i.e., P. longifolia, M. indica, and Eucalyptus, respectively, while the lower contents were found in Ficus religiosa across all the roads. The highest Pb contents were observed in P. longifolia and M. indica i.e., 135 ± 5 and 132 ± 2 mg/kg, respectively. Similarly, the highest Zn contents were found in P. longifolia and S. cumini with 130 ± 4 and 132 ± 3, respectively. The Ni concentration was observed the highest in P. longifolia (34 ± 2.5) but in the remaining species, it is almost the same trend of Ni accumulation. All of these selected species of plants have a natural absorbance capacity of HMs, as shown in the above.
The effects of heavy metals are supposed to be due to the rise in the number of vehicles in Lahore after 2000, which in turn increased traffic activity and environmental pollution [55,56]. The World Health Organization reports that, due to lead poisoning, 15–18 million children in developed countries suffer from irreversible brain damage. Lead has been used in gasoline for many years until now, and lead has a long half-life, so lead concentrations are expected to be high, which can cause environmental pollution [57,58]. In view of its toxic nature for creatures and individuals, cadmium may be a serious metal that is harmful to the environment. Cadmium comes into the environment via mechanical waste types, such as electroplating, plastic delivery, mining, paint shades, composite planning, metal-containing batteries, and anthropogenic pathways. Its high quality, and thus, low concentration indicate the extreme effects on plants. It is found that HMs (Cd, Pb, Zn, and Ni) are richly present in the soil along each of the roads caused by vehicular movement as per the permissible limit of WHO standards. These toxic HMs, especially Cd, have varied impacts on human health. Furthermore, it has also been categorized as carcinogenic for human beings [59,60,61]. HMs emissions from vehicles are mainly caused by the large utilization during the mechanized-working processes that release after ignition. Concentrations of HMs may also be present in the biotic (organisms) and abiotic (water and sediment) components of aquatic habitats [62]. HMs may be an insignificant component that adversely affects the development and progress of plants. In their ability to absorb substantial metals, plant species differ. The high accumulation of important metals and also the metal magnitude relationship depend on the morph-physiological characteristics of the plant. The concentration of heavy metals from previous research has been shown to decrease in both soil and plant leaves as the distance from the road increases. This has shown that these pollutants are caused by road-traffic emissions.

3.3. Correlation of APTI and Heavy Metals Uptake by Plants

Figure 5 depicts the relationship between HMs (Cd, Pb, Zn and Ni), and the APTI. The higher the APTI score, the more tolerant the plants are to air pollution. The APTI of tree species is influenced by biological variables (Ascorbic acid, total chlorophyll, pH and the relative water contents). The values of these factors have an impact on the APTI of all tree species. Similarly, the degree of HMs uptake by plants is related to these biochemical characteristics based on the APTI values of the tree species. Figure 5 shows that when the APTI values increase, so does the degree of Cd uptake. The R2 value indicates the favorable correlation between APTI and Cd uptake by tree species. Similarly, Pb and Ni have a favorable relationship between APTI and HMs uptake by trees. However, the association between Zn and APTI was found to be slightly poor, with an R2 value of 0.26. This demonstrates that APTI and Zn have very little connection. From the correlation results, it is concluded that in both cases, seven out of ten species were estimated to be good outcomes. These are also foreign species, but owing to poor implementation planning and an intense research inclusion method across the study region, the population density (Figure 6) of these important species is not in a good percentage, as detailed below.

3.4. Species Distribution of Trees along the Selected Roads

The population density (%) of all the identified tree species along each road was calculated to estimate the diversity of selected species, as indicated by Figure 6. The highest-density population (%) and lowest-density population (%) were of P. longifolia (17%) and Bauhinia variegate (7%), respectively. Further C. fistula and M. azedarach scored 12% and 11%, respectively, and are the second and third in the most abundant species along the roadside throughout the urban area of Lahore. Fortunately, P. longifolia has the highest abundance across all roads. Moreover, it is among the top three best species. S. cumini and M. indica abundance is nearly 10% along the roadside which is not a positive sign for the environmental quality of the urban area.
The air pollution tolerance index (APTI) of plant species was evaluated with the help of analysis of some biochemical parameters, and used to measure the heavy-metals accumulation capacity in their leaves and their levels of tolerance in a polluted environment. Plant leaves are utilized as a bioindicator for seasonal air pollution. To identify species that are tolerant of varying pollution loads and polluted sites, leaves are mostly used as bioindicators of traffic pollution. It will be advised to adopt plants in shelterbelt development and a man-made afforestation program to reduce air pollution based on the APTI and average HMs concentration value [18,63,64,65].
Results show the maximum percentage is P. longifolia (17%), followed by M. azedarach (11%). It should be the main challenge for the administrative authorities to enhance the diversity of such kind of best species regarding pollution mitigation and making the green economy for the area. By building community parks and gardens, the PHA and Government must support urban forestation. It is necessary to increase the vegetation proportion and green belts in urban areas for mitigation of air pollution.

4. Conclusions

APTI and HMs accumulation potential of the tree species depends on the socioeconomic factors as well as the overall appearance of the tree species. Based on these factors, tree species are regarded as useful tools for developing green belts in and around metropolitan areas. Trees that are useful for pollution control are less along the roadside, reflecting improper urban environmental management. P. longifolia and M. indica species absorbed heavy metal lead. Heavy metal Zn was absorbed by the two plant species: P. longifolia and S. cumini. It is recommended that these plant species or the combination of these species could be an effective tool to mitigate environmental pollution. This will be helpful not only in the absorption of pollutants but also in the increase in resilience against increasing temperatures and changing climate in urban areas. It is important to perform research on the ability of various plant species to absorb heavy metals in Lahore.

Author Contributions

R.N.: Conceptualization & Supervision, M.A.I. and I.N.; Soil & Plants Sampling, Samples Analysis, M.A.I. and I.N.; Methodology, R.N. and M.A.I.; Writing—original draft, S.A.; Data validation, M.A.and F.H., Review & Editing, M.L.; Review & Editing, F.H.; Conceptualization, R.N.; Review & Supervision. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not Applicable.

Data Availability Statement

All data have been provided.


Authors acknowledge the University of Lahore, Lahore, Pakistan for supporting and faciliting this research work.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Miri, M.; Shendi, M.R.A.; Ghaffari, H.R.; Aval, H.E.; Ahmadi, E.; Taban, E.; Azari, A. Investigation of outdoor BTEX: Concentration, variations, sources, spatial distribution, and risk assessment. Chemosphere 2016, 163, 601–609. [Google Scholar] [CrossRef]
  2. Liptzin, D.; Ashton, P. Early-successional dynamics of single-aged mixed hardwood stands in a southern New England forest, USA. For. Ecol. Manag. 1999, 116, 141.e150. [Google Scholar] [CrossRef]
  3. Sawidis, T.; Breuste, J.; Mitrovic, M.; Pavlovic, P.; Tsigaridas, K. Trees as bioindicator of heavy metal pollution in three European cities. Environ. Pollut. 2011, 159, 3560–3570. [Google Scholar] [CrossRef]
  4. Sarwar, N.; Imran, M.; Shaheen, M.R.; Ishaque, W.; Kamran, M.A.; Matloob, A.; Hussain, S. Phytoremediation strategies for soils contaminated with heavy metals: Modifications and future perspectives. Chemosphere 2017, 171, 710–721. [Google Scholar] [CrossRef] [PubMed]
  5. Sheikh, H.A.; Maher, B.A.; Karloukovski, V.; Lampronti, G.I.; Harrison, R.J. Biomagnetic characterization of air pollution particulates in Lahore, Pakistan. Geochem. Geophys. Geosyst. 2022, 23, e2021GC010293. [Google Scholar] [CrossRef]
  6. Parveen, R.; Ahmad, A. Public behavior in reducing urban air pollution: An application of the theory of planned behavior in Lahore. Environ. Sci. Pollut. Res. 2020, 27, 17815–17830. [Google Scholar] [CrossRef] [PubMed]
  7. Anjum, M.S.; Ali, S.M.; Subhani, M.A.; Anwar, M.N.; Nizami, A.S.; Ashraf, U.; Khokhar, M.F. An emerged challenge of air pollution and ever-increasing particulate matter in Pakistan; a critical review. J. Hazard. Mater. 2021, 402, 123943. [Google Scholar] [CrossRef] [PubMed]
  8. Wolf, K.L. Urban trees and traffic safety: Considering the US roadside policy and crash data. Arboricult. Urban For. 2006, 32, 170–179. [Google Scholar] [CrossRef]
  9. Nowak, D.J.; Crane, D.E.; Stevens, J.C. Air pollution removal by urban trees and shrubs in the United States. Urban For. Urban Green 2006, 4, 115–123. [Google Scholar] [CrossRef]
  10. Leghari, S.K.; Akbar, A.; Qasim, S.; Ullah, S.; Asrar, M.; Rohail, H.; Ali, I. Estimating Anticipated Performance Index and Air Pollution Tolerance Index of Some Trees and Ornamental Plant Species for the Construction of Green Belts. Pol. J. Environ. Stud. 2019, 28, 1759–1769. [Google Scholar] [CrossRef] [PubMed]
  11. Burden, D. The Durability of Concrete Containing High Levels of Fly Ash (No. PCA R&D Serial No. 2989). Master’s Thesis, Department of Civil Engineering, University of New Brunswick, Fredericton, NB, Canada, 2006. [Google Scholar]
  12. Nayak, D.; Patel, D.P.; Thakare, H.S.; Satashiya, K.; Shrivastava, P.K. Evaluation of air pollution tolerance index of trees. Res. Environ. Life Sci. 2015, 8, 7–10. [Google Scholar]
  13. Pathak, V.; Tripathi, B.D.; Mishra, V.K. Evaluation of anticipated performance index of some tree species for green belt development to mitigate traffic generated noise. Urban For. Urban Green 2011, 10, 61–66. [Google Scholar] [CrossRef]
  14. Das, S.; Prasad, P. Seasonal variation in air pollution tolerance indices and selection of plant species for industrial areas of Rourkela. Indian J. Environ. Prot. 2010, 30, 978–988. [Google Scholar]
  15. Liu, Y.; Ding, H. Variation in Air Pollution Tolerance Index of Plant near a Steel Factory; Implications for Landscape-plant Species Selection for Industrial Areas. WSEAS Trans. Environ. Dev. 2008, 4, 24–30. [Google Scholar]
  16. Lohe, R.N.; Tyagi, B.; Singh, V.; Kumar, P.T.; Khanna, D.R.; Bhutiani, A. Comparative Study for Air Pollution Tolerance Index of Some Terrestrial Plant Species. Glob. J. Environ. Sci. Manag. 2015, 1, 315. [Google Scholar]
  17. Manjunath, B.T.; Reddy, J. Comparative Evaluation of Air Pollution Tolerance of Plants from Polluted and Non-polluted Regions of Bengaluru. J. Appl. Biol. Biotechnol. 2019, 7, 63–68. [Google Scholar] [CrossRef] [Green Version]
  18. Molnar, V.É.; Simon, E.; Tothmeresz, B.; Ninsawat, S.; Szabó, S. Air Pollution Induced Vegetation stress–The Air Pollution Tolerance Index as a Quick Tool for City Health Evaluation. Ecol. Indic. 2020, 113, 106234. [Google Scholar] [CrossRef]
  19. Ogunkunle, C.O.; Oyedeji, S.; Adeniran, I.F.; Olorunmaiye, K.S.; Atoba, P.O. Thuja occidentalis and Duranta repens as indicators of urban air pollution in industrialized areas of southwest Nigeria. Agric. Conspec. Sci. 2018, 84, 193–202. [Google Scholar]
  20. Rai, P.K. Particulate matter tolerance of plants (APTI and API) in a biodiversity hotspot located in a tropical region: Implications for eco-control. Part. Sci. Technol. 2020, 38, 193–202. [Google Scholar] [CrossRef]
  21. Erum FKazi, H.; Kulkarni, S. APTI (air pollution tolerance index) of trees in lohagaon area in Pune city in different seasons. EPRA Int. J. Econ. Bus. Rev. 2020, 8, 44–49. [Google Scholar] [CrossRef]
  22. Bux, R.K.; Haider, S.I.; Batool, M.; Solangi, A.R.; Shah, Z.; Karimi-Maleh, H.; Sen, F. Assessment of heavy metal contamination and its sources in urban soils of district Hyderabad, Pakistan using GIS and multivariate analysis. Int. J. Environ. Sci. Technol. 2021, 19, 7901–7913. [Google Scholar] [CrossRef]
  23. Sevik, H.; Ahmaida, E.A.; Cetin, M. Change of the air quality in the urban open and green spaces: Kastamonu sample. Ecol. Plan. Des. 2017, 31, 409–422. [Google Scholar]
  24. Liang, J.; Fang, H.L.; Zhang, T.L.; Wang, X.X.; Liu, Y.D. Heavy metal in leaves of twelve plant species from seven different areas in Shanghai, China. Urban For. Urban Green. 2017, 27, 390–398. [Google Scholar] [CrossRef]
  25. Brunner, I.; Luster, J.; Günthardt-Goerg, M.S.; Frey, B. Heavy metal accumulation and phytostabilisation potential of tree fine roots in a contaminated soil. Environ. Pollut. 2008, 152, 559–568. [Google Scholar] [CrossRef] [PubMed]
  26. Alahabadi, A.; Ehrampoush, M.H.; Miri, M.; Aval, H.E.; Yousefzadeh, S.; Ghaffari, H.R.; Hosseini-Bandegharaei, A. A comparative study on capability of different tree species in accumulating heavy metals from soil and ambient air. Chemosphere 2017, 172, 459–467. [Google Scholar] [CrossRef]
  27. Roy, A.; Bhattacharya, T.; Kumari, M. Air pollution tolerance, metal accumulation and dust capturing capacity of common tropical trees in commercial and industrial sites. Sci. Total Environ. 2020, 722, 137622. [Google Scholar] [CrossRef] [PubMed]
  28. Khan, Z.I.; Ugulu, I.; Zafar, A.; Mehmood, N.; Bashir, H.; Ahmad, K.; Sana, M. Biomonitoring of heavy metals accumulation in wild plants growing at Soon valley, Khushab, Pakistan. Pak. J. Bot. 2020, 53, 247–252. [Google Scholar] [CrossRef] [PubMed]
  29. Climatological Normals of Lahore, Hong Kong Observatory. Available online: (accessed on 6 May 2010).
  30. Punjab Portal. Government of Punjab. Archived from the Original on 25 June 2014. Available online: (accessed on 7 July 2014).
  31. Irshad, M.A.; Nawaz, R.; Ahmad, S.; Arshad, M.; Rizwan, M.; Ahmad, N.; Ahmed, T. Evaluation of anticipated performance index of tree species for air pollution mitigation in Islamabad, Pakistan. J. Environ. Sci. Manag. 2020, 23, 50–59. [Google Scholar] [CrossRef]
  32. Achakzai, K.; Khalid, S.; Adrees, M.; Bibi, A.; Ali, S.; Nawaz, R.; Rizwan, R. Air Pollution Tolerance Index of Plants around Brick Kilns in Rawalpindi, Pakistan. J. Environ. Manag. 2017, 190, 252–258. [Google Scholar] [CrossRef]
  33. Ahmad, I.; Abdullah, B.; Dole, J.M.; Shahid, M.; Ziaf, K. Evaluation of the Air Pollution Tolerance Index of Ornamental Growing in an Industrial Area compared to a Less Polluted Area. Hortic. Environ. Biotechnol. 2019, 60, 595–601. [Google Scholar] [CrossRef]
  34. Hu, Y.; Wang, D.; Wei, L.; Zhang, X.; Song, B. Bioaccumulation of heavy metals in plant leaves from Yan׳an city of the Loess Plateau, China. Ecotoxicol. Environ. Saf. 2014, 110, 82–88. [Google Scholar] [CrossRef] [PubMed]
  35. Wu, Y.G.; Xu, Y.N.; Zhang, J.H.; Hu, S.H. Evaluation of ecological risk and primary empirical research on heavy metals in polluted soil over Xiaoqinling gold mining region, Shaanxi, China. Trans. Nonferrous Met. Soc. China 2010, 20, 688–694. [Google Scholar] [CrossRef]
  36. FAO/SIDA. Part 9. Analysis of metals and organochlorine in fish. In Manual of Methods in Aquatic Environment Research; Food & Agriculture Org: Rome, Italy, 1983. [Google Scholar]
  37. World Health Organization (WHO). Permissible Limits of Heavy Metals in Soil and Plants; World Health Organization: Geneva, Switzerland, 1996. [Google Scholar]
  38. Bharti, S.K.; Trivedi, A.; Kumar, N. Air pollution tolerance index of plants growing near an industrial site. Urban Clim. 2018, 24, 820–829. [Google Scholar] [CrossRef]
  39. Aghajanzadeh, T.; Hawkesford, M.J.; de Kok, L.J. Atmospheric H2S and SO2 as Sulfur Sources for Brassica juncea and Brassica rapa: Regulation of Sulfur Uptake and Assimilation. Environ. Exp. Bot. 2016, 124, 1–10. [Google Scholar] [CrossRef]
  40. Nadgorska-Socha, A.; Kandziora-Ciupa, M.; Trzęsicki, M.; Barczyk, G. Air Pollution Tolerance Index and Heavy Metal Bioaccumulation in Selected Plant Species from Urban Biotopes. Chemosphere 2017, 183, 471–482. [Google Scholar] [CrossRef] [PubMed]
  41. Khan, M.N.; Zhang, J.; Luo, T.; Liu, J.; Rizwan, M.; Fahad, S.; Hu, L. Seed priming with melatonin coping drought stress in rapeseed by regulating reactive oxygen species detoxification: Antioxidant defense system, osmotic adjustment, stomatal traits and chloroplast ultrastructure perseveration. Ind. Crops Prod. 2019, 140, 111597. [Google Scholar] [CrossRef]
  42. Qi, J.; Song, C.P.; Wang, B.; Zhou, J.; Kangasjärvi, J.; Zhu, J.K.; Gong, Z. Reactive oxygen species signaling and stomatal movement in plant responses to drought stress and pathogen attack. J. Integr. Plant Biol. 2018, 60, 805–826. [Google Scholar]
  43. Shafiq, M.; Iqbal, M. Effect of Auto Exhaust Emission on Germination and Seedling Growth of An Important Arid Tree Cassia siamea Lamk. Emirates. J. Food Agric. 2012, 24, 234–242. [Google Scholar]
  44. WHO. Geneva, World Health Organization (Environmental Health Criteria, No. 134); World Health Organization: Geneva, Switzerland, 1996. [Google Scholar]
  45. Skorbiłowicz, M.; Skorbiłowicz, E.; Rogowska, W. Heavy Metal Concentrations in Roadside Soils on the Białystok-Budzisko Route in Northeastern Poland. Minerals 2021, 11, 1290. [Google Scholar] [CrossRef]
  46. Szwalec, A.; Mundała, P.; Kędzior, R.; Pawlik, J. Monitoring and assessment of cadmium, lead, zinc and copper concentrations in arable roadside soils in terms of different traffic conditions. Environ. Monit. Assess. 2020, 192, 1–12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Gucel, S.; Gherghel, D.; Bona, E. Determination of Cadmium in Roadside Soil and Plants in Erbil, Iraq. J. Adv. Lab. Res. Biol. 2020, 11, 24–27. [Google Scholar]
  48. Rout, G.R.; Das, P. Effect of metal toxicity on plant growth and metabolism: I. Zinc. Agronomie 2003, 23, 3–11. [Google Scholar] [CrossRef]
  49. Noman, A.; Ali, Q.; Maqsood, J.; Iqbal, N.; Javed, M.T.; Rasool, N.; Naseem, J. Deciphering physio-biochemical, yield, and nutritional quality attributes of water-stressed radish (Raphanus sativus L.) plants grown from Zn-Lys primed seeds. Chemosphere 2018, 195, 175–189. [Google Scholar] [CrossRef] [PubMed]
  50. Ozaki, I.; Watanabe, I.; Kuno, K. As, Sb and Hg distribution and pollution sources in the roadside soil and dust around Kamikochi, Chubu Sangaku National Park, Japan. Geochem. J. 2004, 38, 473–484. [Google Scholar] [CrossRef]
  51. Suzuki, K.; Yabuki, T.; Ono, Y. Roadside Rhododendron pulchrum leaves as bioindicators of heavy metal pollution in traffic areas of Okayama, Japan. Environ. Monit Assess 2009, 149, 133–141. [Google Scholar] [CrossRef]
  52. Yola, M.L.; Eren, T.; İlkimen, H.; Atar, N.; Yenikaya, C. A sensitive voltammetric sensor for determination of Cd(II) in human plasma. J. Mol. Liq. 2014, 197, 58–64. [Google Scholar] [CrossRef]
  53. Göde, C.; Yola, M.L.; Yilmaz, A.; Atar, N.; Wang, S. A novel electrochemical sensor based on calixarene functionalized reduced graphene oxide: Application to simultaneous determination of Fe(III), Cd(II) and Pb(II) ions. J. Colloid Interface Sci. 2017, 508, 525–531. [Google Scholar] [CrossRef] [PubMed]
  54. Khalid, N.; Noman, A.; Aqeel, M.; Masood, A.; Tufail, A. Phytoremediation potential of Xanthium strumarium for heavy metals contaminated soils at roadsides. Int. J. Environ. Sci. Technol. 2019, 16, 2091–2100. [Google Scholar] [CrossRef]
  55. Bityukova, V.R.; Mozgunov, N.A. Spatial features transformation of emission from motor vehicles in Moscow. Geography, Environment. Sustainability 2019, 12, 57–73. [Google Scholar]
  56. Abilov, A.Z.; Anzorova, M.A.; Bityukova, V.R.; Makhrova, A.G.; Khojikov, A.A.; Yaskevich, V.V. Vladimir and Yaskevich. Planning Structure As A Road Traffic Pollution Differentiation Factor: A Case Study Of Nur-Sultan. Geography, Environment. Sustainability 2021, 14, 6–13. [Google Scholar]
  57. Järup, L. Hazards of heavy metal contamination. Br. Med. Bull. 2003, 68, 167–182. [Google Scholar] [CrossRef] [PubMed]
  58. Cheng, H.; Hu, Y. Lead (Pb) isotopic fingerprinting and its applications in lead pollution studies in China: A review. Environ. Pollut. 2010, 158, 1134–1146. [Google Scholar] [CrossRef] [PubMed]
  59. Irshad, M.A.; Shakoor, M.B.; Ali, S.; Nawaz, R.; Rizwan, M. Synthesis and application of titanium dioxide nanoparticles for removal of cadmium from wastewater: Kinetic and equilibrium study. Water Air Soil Pollut. 2019, 230, 1–10. [Google Scholar] [CrossRef]
  60. Rizwan, M.; Ali, S.; Abbas, T.; Adrees, M.; Zia-ur-Rehman, M.; Ibrahim, M.; Nawaz, R. Residual effects of biochar on growth, photosynthesis and cadmium uptake in rice (Oryza sativa L.) under Cd stress with different water conditions. J. Environ. Manag. 2018, 206, 676–683. [Google Scholar] [CrossRef] [PubMed]
  61. Ozkan, M.H.; Gurkan, R.; Ozkan, A.; Akcay, M. Determination of manganese and lead in roadside soil samples by FAAS with ultrasound assisted leaching. J. Anal. Chem. 2005, 60, 469–474. [Google Scholar] [CrossRef]
  62. Salinitro, M. Plants Dealing with Heavy Metals: Bioindication Potential, Physiological Responses and Stress Assessment Techniques; Università di Bologna: Bologna, Italy, 2020. [Google Scholar]
  63. Amini, H.; Hoodaji, M.; Najafi, P.; Kar, S. Evaluation of some tree species for heavy metal biomonitoring and pollution tolerance index in urban zone in Isfahan. In Proceedings of the 46th Croatian and 6th International Symposium on Agriculture, Opatija, Croatia, 14–18 February 2011; pp. 53–56. [Google Scholar]
  64. Karmakar, D.; Padhy, P.K. Air pollution tolerance, anticipated performance, and metal accumulation indices of plant species for greenbelt development in an urban industrial area. Chemosphere 2019, 237, 124522. [Google Scholar] [CrossRef] [PubMed]
  65. Mondal, S.; Singh, G. Air pollution tolerance, anticipated performance, and metal accumulation capacity of common plant species for green belt development. Environ. Sci. Pollut. Res. 2021, 29, 25507–25518. [Google Scholar] [CrossRef] [PubMed]
Figure 1. GIS-covered area map of Lahore showing selected roads with sampling points (Location Area, LA) in green circles.
Figure 1. GIS-covered area map of Lahore showing selected roads with sampling points (Location Area, LA) in green circles.
Air 01 00004 g001
Figure 2. Air pollution tolerance index (APTI) of all tree species. Values are mean ± SD at n = 3. The letters show the values are significantly different at p < 0.05.
Figure 2. Air pollution tolerance index (APTI) of all tree species. Values are mean ± SD at n = 3. The letters show the values are significantly different at p < 0.05.
Air 01 00004 g002
Figure 3. Soil HMs contents at various sites along each road in which (a) concentration of Pb, (b) concentration of Cd, (c) concentration of Zn, and (d) represents the concentration of Ni. Further, results are also compared with the WHO Standards (red line) for soil with the red line indicating, respectively.
Figure 3. Soil HMs contents at various sites along each road in which (a) concentration of Pb, (b) concentration of Cd, (c) concentration of Zn, and (d) represents the concentration of Ni. Further, results are also compared with the WHO Standards (red line) for soil with the red line indicating, respectively.
Air 01 00004 g003

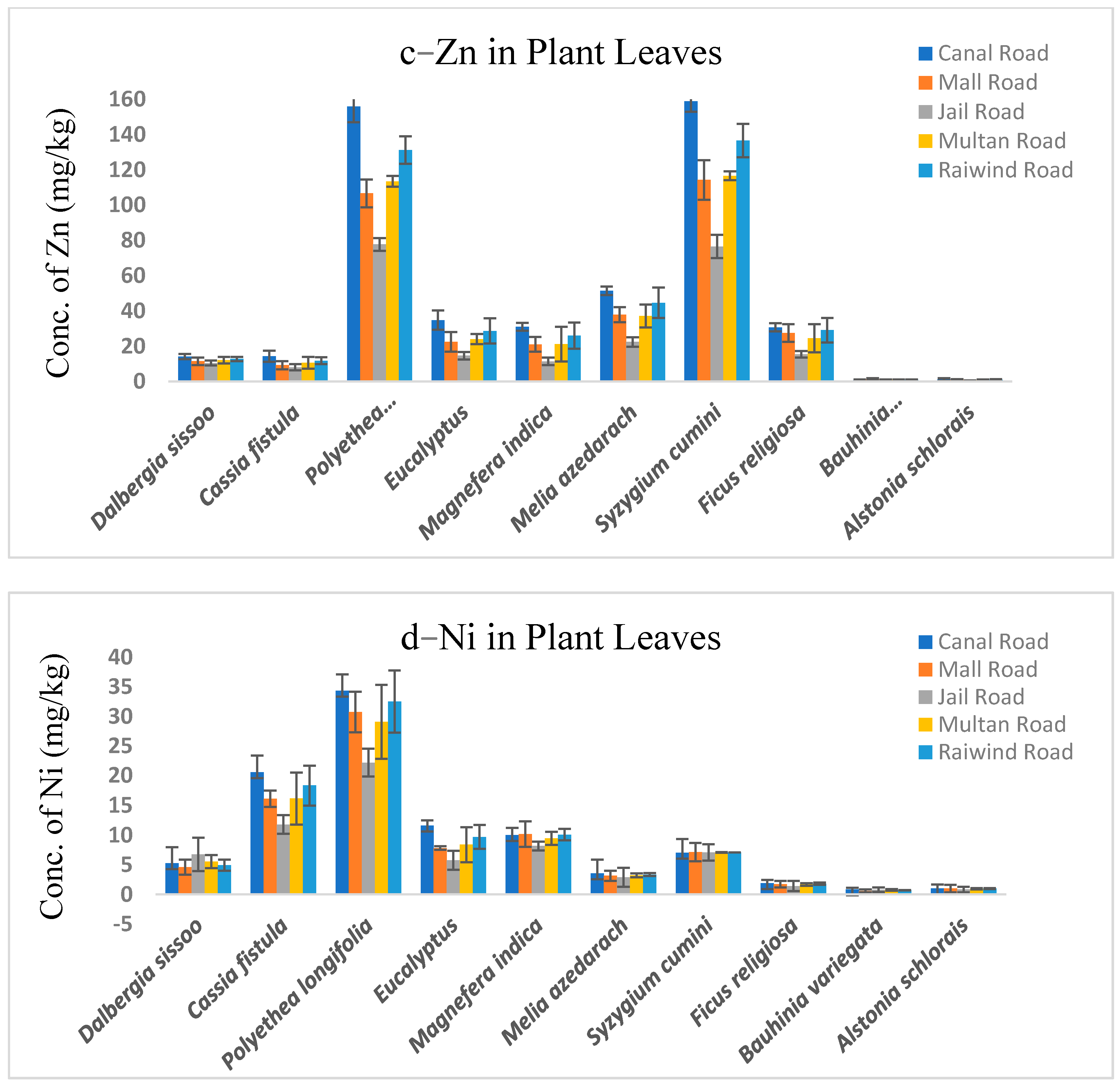

Figure 4. Heavy metals accumulation by selected tree species along each roadside. (a) represents the maximum accumulation of Cd by D. sisso followed by P. longifolia, (b) represents the maximum accumulation of Pb by P. longifolia, Eucalyptus, M. indica and A. scholaris, (c) represents the maximum accumulation of Zn by P. longifolia and S. cumini and (d) represents the maximum accumulation of Ni by C. fistula and P. longifolia, respectively.
Figure 4. Heavy metals accumulation by selected tree species along each roadside. (a) represents the maximum accumulation of Cd by D. sisso followed by P. longifolia, (b) represents the maximum accumulation of Pb by P. longifolia, Eucalyptus, M. indica and A. scholaris, (c) represents the maximum accumulation of Zn by P. longifolia and S. cumini and (d) represents the maximum accumulation of Ni by C. fistula and P. longifolia, respectively.
Air 01 00004 g004aAir 01 00004 g004b
Figure 5. Correlation between HMs uptake and tree species APTI. (a) Cd and APTI (b) Pb and APTI (c) Zn and APTI, and (d) Ni and APTI correlation, respectively.
Figure 5. Correlation between HMs uptake and tree species APTI. (a) Cd and APTI (b) Pb and APTI (c) Zn and APTI, and (d) Ni and APTI correlation, respectively.
Air 01 00004 g005
Figure 6. Percent distribution of all the tree species throughout the study area (selected roads).
Figure 6. Percent distribution of all the tree species throughout the study area (selected roads).
Air 01 00004 g006
Table 1. Commonly selected tree species with family and genus according to the guideline provided by Parks and Horticulture Authority (PHA), Lahore.
Table 1. Commonly selected tree species with family and genus according to the guideline provided by Parks and Horticulture Authority (PHA), Lahore.
Sr. NoCommon NameBotanical NameFamilyGenus
1SheeshamDalbergia sissooFabaceaeDalbergia
2AmaltasCassia fistulaFabaceaeCassia
3AshokaPolyalthia longifoliaAnnonaceaePolyalthia
5MangoMagnefera indicaAnacardiaceaeMagnefera
6DharaikMelia azedarachMeliaceaeMelia
7JamanSyzygium cuminiMyrtaceaeSyzygium
8PepalFicus religiosaMoraceaeFicus
9KachnarBauhinia variegateFabaceaeBauhinia
10Devil treeAlstonia schloraisApocynaceaeAlestonia
