Combination of Milimeter Wave Spectroscopy, Ultrasonic Testing Techniques to Monitor Curing Evolution of TRC Plates †

1
Department of Mechanics of Materials and Constructions, Faculty of Engineering, Vrije Universiteit Brussel, 1050 Brussels, Belgium
2
Department of Electronics and Informatics ETRO-IR, Faculty of Engineering, Vrije Universiteit Brussel, 1050 Brussels, Belgium
*
Author to whom correspondence should be addressed.
Presented at the 19th International Conference on Experimental Mechanics, Kraków, Poland, 17–21 July 2022.
Phys. Sci. Forum 2022, 4(1), 17; https://doi.org/10.3390/psf2022004017
Published: 8 August 2022
(This article belongs to the Proceedings of The 19th International Conference on Experimental Mechanics)

Abstract

:
Non-destructive testing (NDT) techniques are used to study the mechanical properties of the materials without destroying, nor compromising, such properties. This paper focuses on two types of NDT methods in order to follow the curing process of textile-reinforced cementitious (TRC) composites and their cementitious matrix for the first 24 h after hydration. Millimeter wave (MMW) spectroscopy has shown sensitivity to the chemical reactions involving water, whereas ultrasonic testing (UT) following the longitudinal wave velocity, as documented in the literature, is able to follow the development of stiffness.

1. Introduction

Textile-reinforced cementitious (TRC) composites are advanced cement-based materials in which the fabrics (usually made of glass, carbon, aramid fibers), used as reinforcements, have several advantages including: the ability to carry substantial tension loads, corrosion resistance and reduced weight [1,2]. The ability to resist corrosion, besides playing a key role in the durability of the composite, allows for thinner cementitious covers and therefore a reduced energy consumption and environmental impact [3,4]. In order to obtain an efficient composite behavior, an adequate bond is required between the cementitious matrix and the textiles [5]. The mechanical properties of different TRC designs have been widely investigated in the literature [6,7,8].
At an early age, the cement matrix is liquid; however, strength soon develops due to the cement hydration process, which shows the highest activity in the first days after casting. By monitoring this process, it is possible to speed up the production process of TRC structural elements by calculating the needed strength to remove the molds. NDTs have been widely used by monitoring phenomena related to mechanical or physical changes in materials and structural elements. During the hardening and setting of cement, the TRC matrix presents chemical, physical, thermal, mechanical and electrical changes that can be monitored with different NDT inspection techniques [9,10,11,12,13,14].
The physico-mechanical changes are monitored with UPV, a well-established elastic wave-based NDT, in which the wave velocity is related to the development of stiffness inside the material and the electromagnetic response is monitored with MMW spectrometry, for the first time in these frequencies.

2. Materials and Methods

2.1. Materials and Specimen Preparation

In this study, CEM I 52.5 N from Holcim, a commercial brand commonly used in Belgium, was selected. River sand from Cobo Garden was sieved at an aperture of 0.875 mm and added in the cementitious mixture. Glass fiber SITgrid200 textile reinforcement was used with an effective fiber volume fraction of 1.11%. Additional details of the cementitious matrix composition are shown in Table 1.
The specimens dedicated on MMW inspection were cast in 80 × 80 × 10 mm3 molds (see Figure 1b) by manually placing the textiles during the pouring of mortar, the samples were vibrated for 60 s. The specimens for UPV monitoring were fabricated by pre-fixing the textiles and pouring the mortar through the top in the mold shown in Section 2.3 and vibrated for 60 s.

2.2. MMW Spectroscopy

MMW spectroscopy (setup in Figure 1a) due to the nature of the technique, provides contactless measurements, allowing correlations between the two NDT techniques. This novel NDT technique—by means of electromagnetic transmission and reflection, measures through a frequency sweep in the frequency band corresponding to the millimeter wavelengths—monitors the physical and chemical parameters, and specifically the changes during curing, showing sensitivity to the chemical processes in particular at the level of intermolecular forces and motion. In addition, it is influenced by the absorption or evaporation of water due to either the exothermal chemical processes during cement hydration (initial exothermal reaction, acceleratory period, or due to cement bleeding), or attributed to changes on the external environmental conditions [15,16].
The calibration procedure consisted of measuring S11air, and S21air, simulating the maximum transmission of 1, and minimum reflection. Later, an aluminum sheet was placed, and S11metal, and S21metal, were measured, simulating an ideal reflection coefficient of −1, and minimum transmission. The results obtained by calibration analysis are normalized following Equations (1) and (2):
S 11 N = ( S 11 meas S 11 air ) ( S 11 metal S 11 air )
S 21 N = ( S 21 meas S 21 metal ) ( S 21 air S 21 metal )

2.3. UPV

At regular intervals of 60 s, ultrasonic pulses were applied to the samples (cast inside the mold shown in Figure 2) through an emitter transducer and caught by a receiver, both standing on a fixed distance. By measuring the wave transit time through the material, the UPV of the material is calculated. For the purpose of this research, an Agilent 20 MHz wave generator was programmed to emit a single sinusoidal wave of 150 kHz with an amplitude of 10 V every minute. The wave is emitted and received by AE sensors with resonant response at 150 kHz. The data were registered with a Micro II PCI-8 board provided by Mistras Group (Princeton, NJ, USA). The evolution of the pulse velocity is related to the development of stiffness as it increases with time due to curing.
The dynamic Young’s modulus was calculated from the following Equation:
E = ρ * ( 1 + ν ) * ( 1 2 * ν ) ( 1 ν ) * V l 2
where ρ is the density, ν is the Poisson’s ratio, and V l is the longitudinal wave velocity.

3. Results and Discussion

3.1. Curing Monitoring by MMW Spectroscopy

Figure 3a shows the electromagnetic reflection response (S11) for a TRC sample immediately after casting, and 24 h later for frequencies ranging from 45 to 65 GHz. The S11 response shows good sensitivity of the technique to track the hydration of the cementitious matrix of TRC, evidenced by a reduction in the amplitude of the reflected waves (in this frequency range). On the other hand, Figure 3b shows the EM transmission response (S21) for the same sample, evidencing an increase in transmission during the first 24 h of hydration and curing. Additionally, Figure 3b exhibits a frequency dependence of the transmitted EM wave, with higher attenuation for higher frequencies.
In order to follow the evolution of S11 and S21 in time, a single frequency of 52.5 GHz was selected. Figure 3c,d show this change. Figure 3c depicts small changes in the first 5 h, followed by rapid changes 7 to 24 h after casting. On the other hand, the change in S21 seems to start at 7 h after casting followed by an accelerated amplitude rise. Clearly, TRC and mortar inspection trends present differences, especially in magnitude, which is attributed to the presence of non-reactive textile reinforcement. In any case, it is evident that the EM response, both in transmission, and reflection mode for TRC is driven by the physico-chemical changes produced by the hydration of the cementitious matrix.

3.2. UPV

Figure 4a shows the development of UPV the first 24 h of hydration and curing for both a TRC and a mortar sample. The first 3 h, both samples exhibit a dormant period, followed by a rapid increase in velocity, and after 7 h, the velocity keeps increasing with a decelerated tendence. Additionally, the similarity of both the TRC and mortar sample implies that the changes in the velocity of TRC are mainly affected by the hydration of the cementitious matrix.
Figure 4b shows the development of stiffness (Young’s modulus) for both a mortar and a TRC sample, as obtained from Equation (3). As expected, the increase in stiffness shows a similar behavior to the increase in UPV, reaching approximately 22 GPa for the mortar, and 19 GPa for the TRC.

4. Conclusions

A multi-modal approach for monitoring the hydration of TRC and mortar was attempted. Results show high sensitivity of the techniques to the physico-chemical changes occurring due to the hydration of the cementitious matrix:
  • MMW shows high sensitivity to the chemical reactions of mortar in transmission and in reflection. It is clear that the EM response in the millimeter wavelengths of TRC and mortar during the first 24 h of hydration and curing are time- and frequency-dependent.
  • Ultrasound pulse velocity shows a good sensitivity to the hydration of the cementitious matrix of TRC, being the main contributor to the change in velocity and development of Young’s modulus on fresh state.

Author Contributions

Conceptualization, D.G.A. and J.H.S.; methodology, N.O.; software, N.O.; validation, N.O., D.G.A., E.T. and A.P.; formal analysis, H.A., N.O.; resources, D.G.A., J.H.S., E.T.; data curation, H.A., E.T.; writing—original draft preparation, N.O.; writing—review and editing, E.T.; visualization, A.P.; supervision, D.G.A. and J.H.S.; funding acquisition, D.G.A. and J.H.S. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge the Fonds Wetenschappelijk Onderzoek-Vlaanderen, FWO for the grants G.0337.19.N, and 12J7720 N, Vrije Universiteit Brussel (VUB) through the SRP-project M3D2, the ETRO-IOF project IOF3016, the OZR-VUB for the OZR3251 Medium scale measurement infrastructure project related to Vector network analyzers. Innoviris-Brussels through the D-Stream project BRGRD32, and Differential Smooth Transient Radar Method, BRGSOIB5, TRM4aSF.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available under request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Colombo, I.G.; Magri, A.; Zani, G.; Colombo, M.; di Prisco, M. Textile Reinforced Concrete: Experimental investigation on design parameters. Mater. Struct. Constr. 2013, 46, 1933–1951. [Google Scholar] [CrossRef]
  2. Alrshoudi, F.A.S. Textile Reinforced Concrete: Design Methodology and Novel Reinforcement. Ph.D. Thesis, University of Leeds, Leeds, UK, 2015. [Google Scholar]
  3. Mehta, K. Reducing the Environmental Impact of Concrete. Concr. Int. 2001, 23, 61–66. [Google Scholar]
  4. Williams, N.; Lundgren, K.; Wallbaum, H.; Malaga, K. Sustainable potential of textile-reinforced concrete. J. Mater. Civ. Eng. 2015, 27, 04014207. [Google Scholar] [CrossRef]
  5. Wolfgang Brameshuber. Textile Reinforced Concrete—Report 36—RILEM; RILEM Publications S.A.R.L.: Paris, France, 2006. [Google Scholar]
  6. Hegger, J.; Will, N.; Bruckermann, O.; Voss, S. Load-bearing behaviour and simulation of textile reinforced concrete. Mater. Struct. Constr. 2006, 39, 765–776. [Google Scholar] [CrossRef]
  7. Blom, J.; el Kadi, M.; Wastiels, J.; Aggelis, D.G. Bending fracture of textile reinforced cement laminates monitored by acoustic emission: Influence of aspect ratio. Constr. Build. Mater. 2014, 70, 370–378. [Google Scholar] [CrossRef]
  8. Butler, M.; Mechtcherine, V.; Hempel, S. Durability of textile reinforced concrete made with AR glass fibre: Effect of the matrix composition. Mater. Struct. Constr. 2010, 43, 1351–1368. [Google Scholar] [CrossRef]
  9. Malik, W.U.; Gupta, D.R.; Gupta, H.O.; Gupta, R.S.; Masood, I. Changes in Electrical Properties during Hydration and Setting of Cements. Trans. Indian Ceram. Soc. 1984, 43, 130–144. [Google Scholar] [CrossRef]
  10. Papanicolaou, C.G. Applications of Textile-Reinforced Concrete in the Precast Industry; WoodHead Publishing, Elsevier Ltd.: Sawston, UK, 2016. [Google Scholar]
  11. Zhang, J.; Qin, L.; Li, Z. Hydration monitoring of cement-based materials with resistivity and ultrasonic methods. Mater. Struct. Constr. 2009, 42, 15–24. [Google Scholar] [CrossRef]
  12. Maruyama, I.; Igarashi, G. Cement reaction and resultant physical properties of cement paste. J. Adv. Concr. Technol. 2014, 12, 200–213. [Google Scholar] [CrossRef] [Green Version]
  13. Beaudoin, J.; Odler, I. Hydration, Setting and Hardening of Portland Cement, 5th ed.; Elsevier Ltd.: Oxford, UK, 2019. [Google Scholar]
  14. Hu, J.; Ge, Z.; Wang, K. Influence of cement fineness and water-to-cement ratio on mortar early-age heat of hydration and set times. Constr. Build. Mater. 2014, 50, 657–663. [Google Scholar] [CrossRef]
  15. Pourkazemi, A.; Pandey, G.; Assaf, J.; Bismpas, P.; Tsangouri, E.; Stiens, J.; Angelis, D. Combination of Acoustic Emission and Millimeter Wave Spectroscopy techniques to investigate damage on cementitious materials. In Proceedings of the 2nd International RILEM/COST Conference on Early Age Cracking and Serviceability in Cement-Based Materials and Structures-EAC2, Brussels, Belgium, 12–14 September 2017; Volume 1, pp. 155–160. [Google Scholar]
  16. Committee, R.T. Non-Destructive Assessment of Concrete Structures: Reliability and Limits of Single and Combined Techniques; Springer: Dordrecht, The Netherlands, 2012. [Google Scholar]

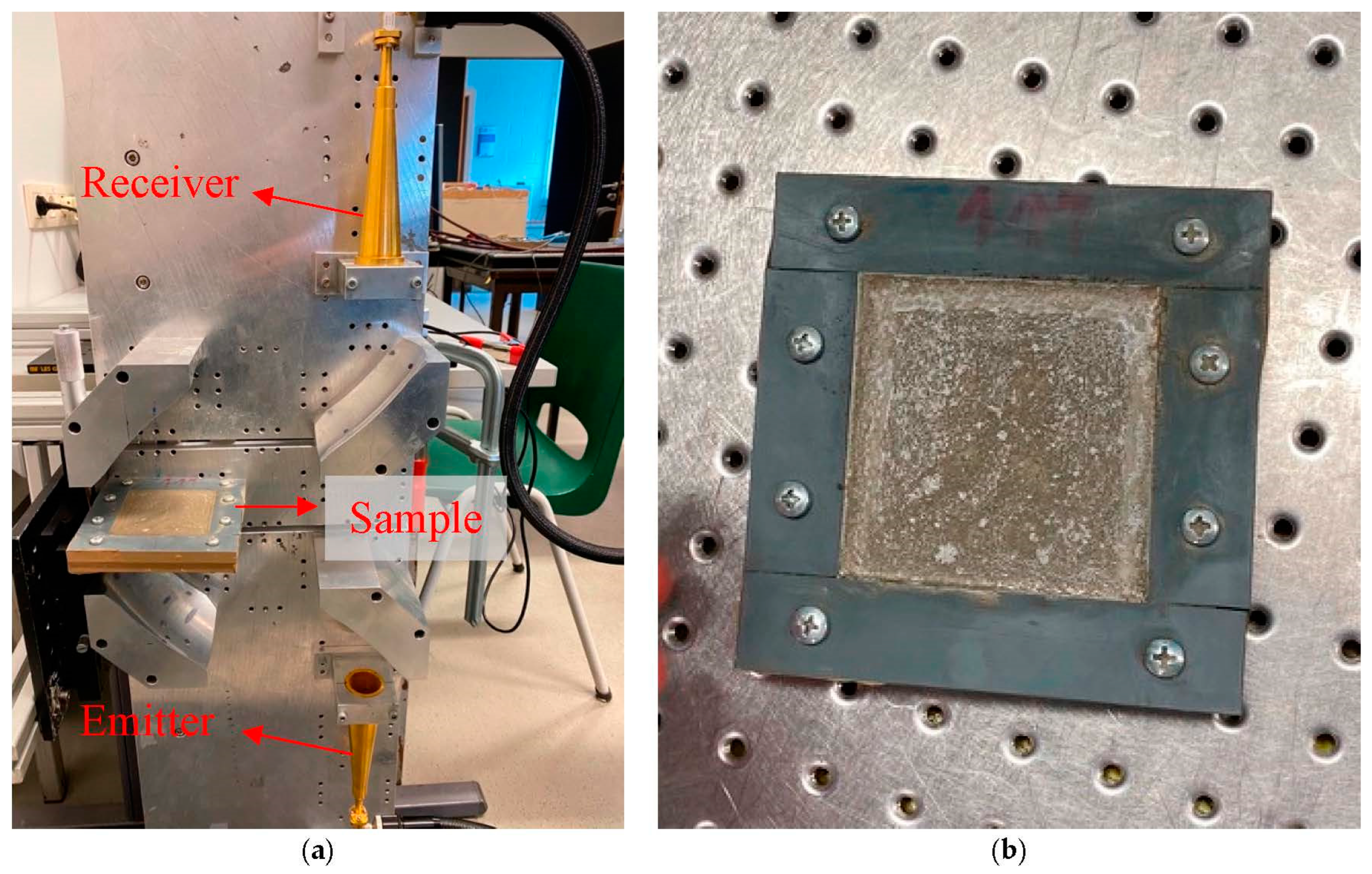

Figure 1. (a) MMW spectroscopy setup; (b) sample.
Figure 1. (a) MMW spectroscopy setup; (b) sample.
Psf 04 00017 g001
Figure 2. UPV mold dimension.
Figure 2. UPV mold dimension.
Psf 04 00017 g002
Figure 3. TRC (a) S11 and (b) S21 immediately after casting, and at 24 h after casting. Change in (c) S11 and (d) S21 in time for a TRC and a mortar sample for a frequency of 52.5 GHz.
Figure 3. TRC (a) S11 and (b) S21 immediately after casting, and at 24 h after casting. Change in (c) S11 and (d) S21 in time for a TRC and a mortar sample for a frequency of 52.5 GHz.
Psf 04 00017 g003
Figure 4. (a) Pulse velocity and (b) Young’s modulus of a mortar and a TRC sample.
Figure 4. (a) Pulse velocity and (b) Young’s modulus of a mortar and a TRC sample.
Psf 04 00017 g004
Table 1. Mortar composition.
Table 1. Mortar composition.
MaterialRatio (by Weight)
CEM 52.5 N1
Riversand2
Water0.45
Superplasticizer0.5%
