Detection of Respiratory Diseases Based on Poultry Vocalizations Using Deep Learning ^†

Abstract

In this study, we design a deep learning-based intelligent recognition method capable of accurately distinguishing abnormal chicken vocalizations among complex sound signals. Our proposed framework is based on the wavelet scattering transform (WST) and a Long Short-Term Memory (LSTM) network, and uses preprocessed chicken vocalizations processed through a denoising scheme, adopting an audio image generation model (AIGM) based on rectified STFT (Short-Term Fourier Transform). We have used a public chicken language dataset that consists of a total of segments for each of the two categories (Healthy or Sick), totaling 4000 five-second audio clips from actual farming environments, which are labeled by veterinary experts. The proposed method achieves promising performance, outperforming state-of-the-art methods for detecting poultry respiratory diseases and enabling poultry personnel to accurately assess the health and well-being of the chickens.

1. Introduction

In large-scale poultry farming, respiratory diseases affect the health of chickens, declining the quality and yield of both meat and eggs. Effective monitoring of the respiratory diseases is crucial to reduce their impact in order to enhance the quality and yield of the poultry products. At present, monitoring methods mostly rely on manual monitoring of the chicken vocalizations as it is time-consuming, labor-intensive, and requires specialized personnel. Existing intelligent methods are often limited to laboratory environments where individual chickens are monitored separately. These approaches do not meet the industrial and commercial requirements of poultry farms, which require capturing a diverse set of complex auditory signals. These audio signals include not only chicken vocalizations but also complex noises from cages, human activities, mechanical ventilation systems, and other background noises.

Most of the existing acoustical poultry health monitoring methods are based on some traditional machine learning techniques. In [1], an acoustical method is developed to detect Bronchitis and Newcastle diseases using the recorded calls from broilers. Five features, including MFCC, energy of mel sub bands, wavelet energy, wavelet entropy, and spectral flatness, are extracted, followed by using an SVM (Support Vector Machine) classifier to identify the two types of diseases. As shown in [1], the best performance is achieved using the wavelet entropy. A study in [2], evaluates a voice activity detection (VAD) algorithm for chicken calls. First, the algorithm applies short-term energy (STE) to separate silence from the sound segments and then classifies the sound activity into vocal and non-vocal, based on the values of Wiener Entropy (WE) and Cepstral Peak Prominence (CPP). The results shown in [2] show that the classification accuracy decreases with the increase of boiler age due to higher false rejection (FR) for the detection of voice calls as unvoiced calls. A deep learning-based Newcastle disease (ND) detection method is proposed in [3], which uses an improved multi-window spectral estimation algorithm for denoising, followed by chicken vocalization endpoint detection using MFCC features. The final step of the method is the ND poultry vocalization classification using a BiLSTM (Bidirectional Long Short-Term Memory) recurrent neural network (RNN) [3]. In [4], the study proposes a novel end-to-end model (ResNet18-TF) based on ResNet18 and a time-frequency attention mechanism (TFBlock) to automatically recognize chicken’s cough and snore. As in [4], the results reveal that LogFbank features outperform the MFCC features in the task of chicken sound recognition. The incorporation of the first-order and the second-order delta features into LogFbank features further improves the recognition accuracy of the model, and better performance is achieved by the proposed ResNet18-TF model in terms of accuracy, precision, recall, and F1-score than that of the MobileViTv3-TF, EfficientNetV2-TF models [4]. The work in [5] introduces SmartEars to automatically recognize sick chicken vocalizations, allowing users to easily assess the chicken’s health status. Furthermore, a recognition algorithm is developed in [5] based on RegNet to integrate into the SmartEars device, which not only monitors sound but is also computationally efficient, allowing simultaneous monitoring and decision-making. Once connected to the network, the device transmits its results to the cloud to display on the poultry health monitoring website.

2. Dataset

We have used an open-access dataset [5] consists of a total of 4000 distinct chicken calls of 5-s duration with labels of ‘healthy’ or ‘sick’ having a sampling rate of 44.1 kHz.

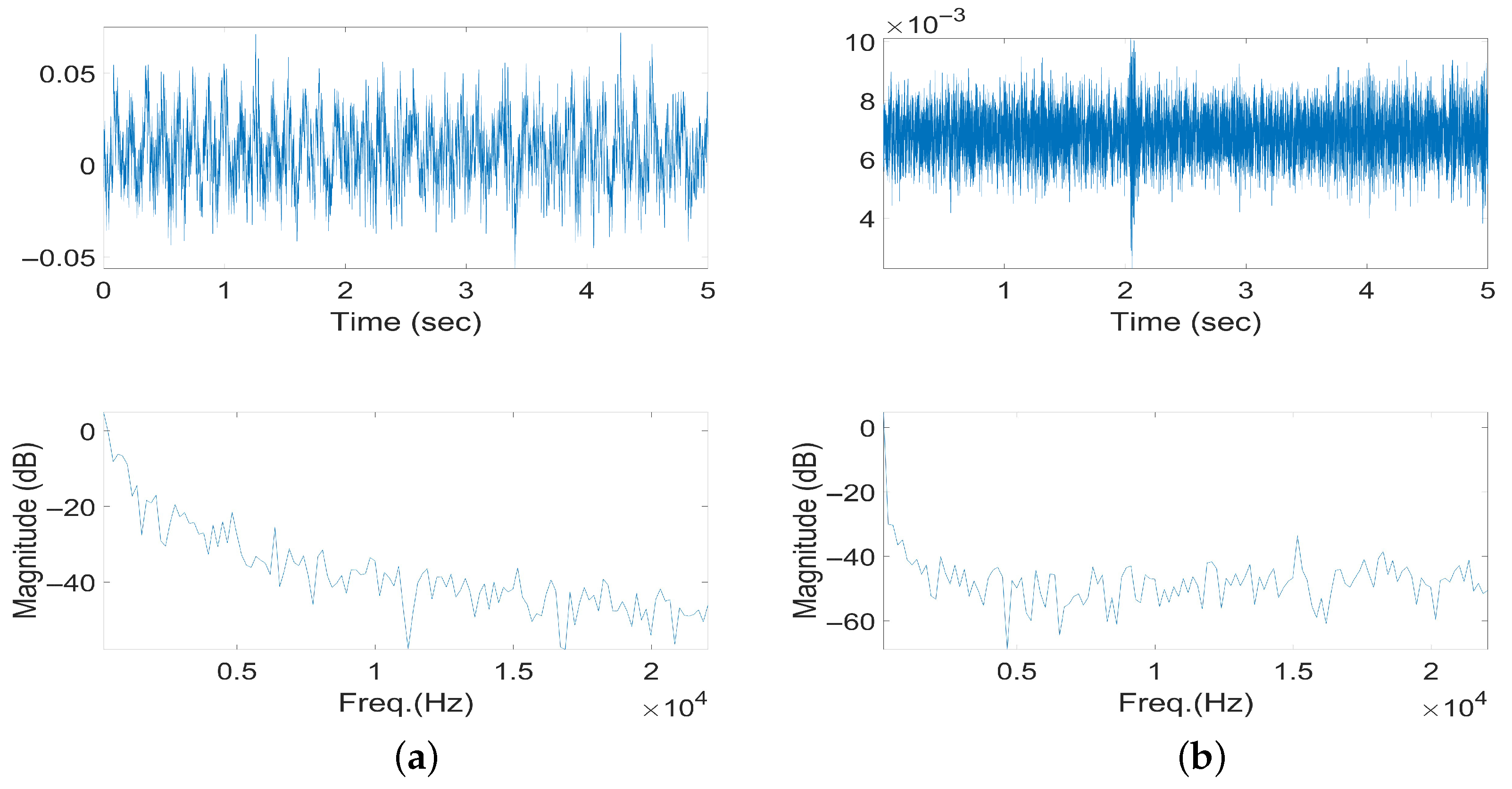

For illustration, the chicken calls referring to two types of ‘healthy’ and ‘sick’, are presented in Figure 1a,b, respectively. It looks like there are some outliers and an energy drop for the ‘sick’ calls compared to the ‘healthy’ calls, as shown in Figure 1a,b.

3. Proposed Method

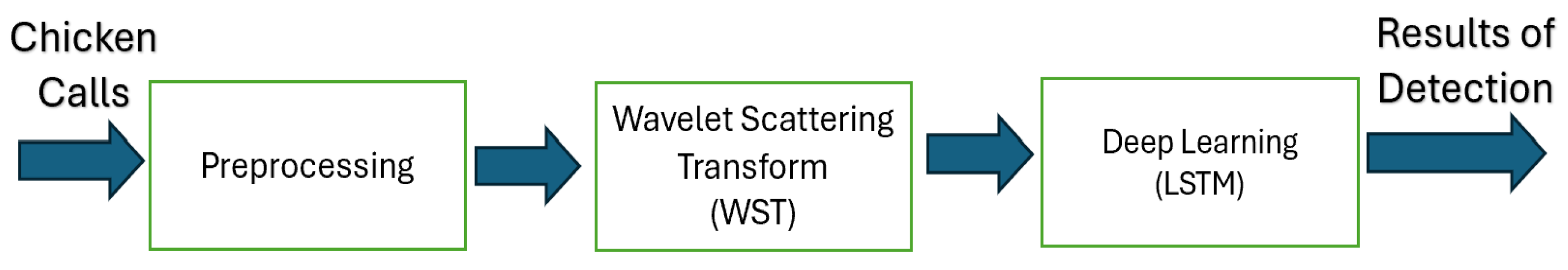

Figure 2 shows an overall block diagram of the proposed method. It consists of preprocessing for denoising, the wavelet scattering transform for feature set generation, and deep learning-based detection. The input chicken calls are first passed through an image generation model based on rectified STFT for denoising. Then the enhanced calls are processed with the wavelet scattering transform (WST) and used as input to an LSTM (Long Short-Term Memory), a recurrent neural network (RNN), for deep learning, yielding detection of chicken calls as output.

3.1. Preprocessing

The preprocessing of the chicken calls is performed through an image generation model (IGM) based on rectified STFT (Short-Term Fourier Transform) [6].

The rectified STFT is a defined as

$$X_w{(n,k)}^{\prime }=X_w^r{(n,k)}^{\prime }+i{X}_w^i{(n,k)}^{\prime }$$

(1)

such that

$$\begin{array}{c}{X}_w^r{(n,k)}^{\prime }=X_w^r(n,k),\\ X_w^i{(n,k)}^{\prime }=X_w^i(n,k)\end{array};\mathrm{if} \mathrm{A}=0 \mathrm{or} \mathrm{A}=1.$$

(2)

$$\begin{array}{c}{X}_w^r{(n,k)}^{\prime }=X_w^r(n,k)/\sqrt{2A(n,k)},\\ X_w^i{(n,k)}^{\prime }=X_w^i(n,k)/\sqrt{2(1-A(n,k)}\end{array};\mathrm{otherwise}.$$

(3)

where

$$\begin{array}{c}A(n,k)=0.5+0.5\mathbb{R}\left\{B\right(n,k\left)\right\},\hfill \\ B(n,k)=w{\left(o\right)}^2+2\sum _{m=1}^{(L-1)/2}w{\left(m\right)}^{2}cos(4\pi km/(L+Z))\hfill \end{array}$$

(4)

In Equations (1)–(4), $X_w^r{(n,k)}^{\prime }$ and $X_w^i{(n,k)}^{\prime }$ are the real and imaginary parts of $X_w{(n,k)}^{\prime }$, respectively, $w\left(m\right)$ is an energy normalized window of length L, Z is the zero padding, which gives K = $(L+Z)$ frequency bins.

We then mask the rectified STFT, $X_w{(n,k)}^{\prime }$ along frequency by considering a masking parameter $m_f$:

$$X_w{(n,1:m_f)}^{\prime }=zeros(n,1:m_f)$$

(5)

Lastly, we apply the inverse STFT to the masked $X_w{(n,k)}^{\prime }$ to get the denoised chicken calls.

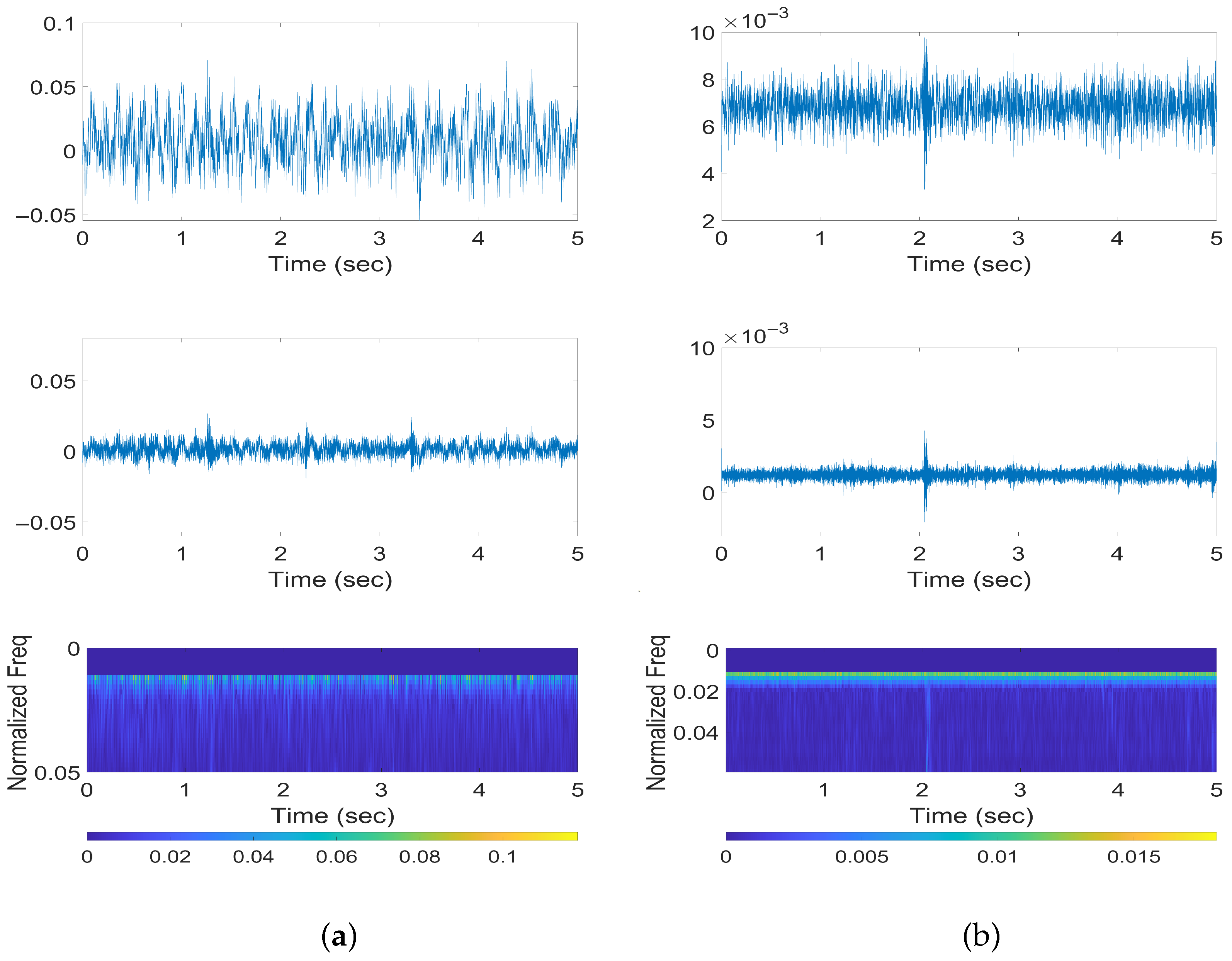

For illustrative purposes, the plots of the input data samples in Figure 1 together with the corresponding preprocessed signals and the rectified STFTs are displayed in Figure 3a,b.

3.2. Wavelet Scattering Transform

The wavelet scattering transform (WST) coefficients are utilized here for feature extraction [7,8]. The 1-D WST is computed by cascading wavelet transforms along with nonlinear complex modulus operations, followed by average filtering. The WST of a 1-D signal $z\left(t\right)$ can be represented as

$$S_{J}z=[S_J^{\left(0\right)}z,S_J^{\left(1\right)}z,S_J^{\left(2\right)}z],$$

(6)

where

$$S_J^{\left(0\right)}z\left(t\right)=z\ast P_J,$$

$$S_J^{\left(1\right)}z(t,L)=|z\ast P_L^{\left(1\right)}|\ast P_J,$$

$$S_J^{\left(2\right)}z(t,L,M)=\left|\right|z\ast P_L^{\left(1\right)}|\ast P_M^{\left(2\right)}|\ast P_J.$$

In Equation (6), ‘∗’ denotes the convolution operator, $P_L^{\left(1\right)}$ and $P_M^{\left(2\right)}$ are the filters representing complex wavelets having center frequencies L and M, whereas $P_J\left(t\right)$ is a real lowpass filter with zero-mean frequency.

The 1D scattering transform is implemented using a given set of wavelet filters, with their parameter values specified initially. Hence, the wavelets are fixed; however, there might be changes for other parameters, for instance, whether all of $S_J^{\left(0\right)}z$, $S_J^{\left(1\right)}z$, and $S_J^{\left(2\right)}z$, or just $S_J^{\left(0\right)}z$ and $S_J^{\left(1\right)}z$ would be computed.

For a given input signal of length N, the largest scale of the WST is set to $2^J$. The other issues are the time-frequency resolutions of the wavelets, which are set as Q = 8 wavelets per octave for the first-order wavelets, $P_L^{\left(1\right)}$ and Q = 1, i.e., one wavelet per octave for the second-order wavelets $P_M^{\left(2\right)}$. Note that postprocessing is performed for the scattering coefficients by taking the logarithm values of the scattering sequences for the first-order and second-order wavelets.

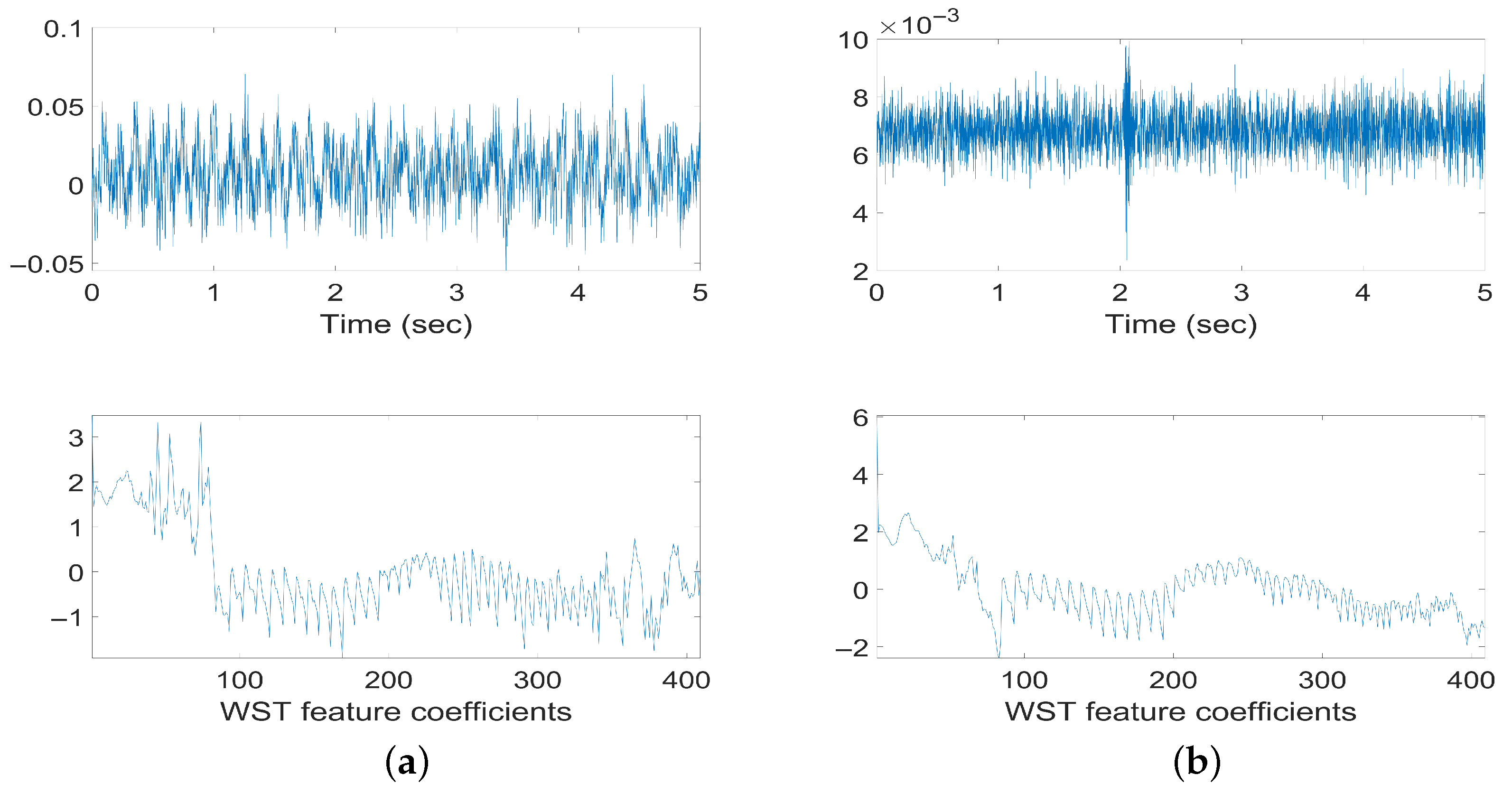

Figure 4a,b demonstrates the WST feature coefficients for the input data samples, as depicted in Figure 1a,b.

3.3. Deep Learning—LSTM

The detection is performed using Long Short-Term Memory (LSTM) [8,9], which is a recurrent neural network (RNN) containing input gate, forget gate, output gate, temporal forward pass, and backpropagation. The input gate, forget gate, and output gate responses at time t denoted by $i^t$, $o^t$, and $f^t$, respectively, are associated with the forward pass in an LSTM architecture and can be expressed as follows:

$$i^t=\mathit{Sigmoid}(W_{ih}{h}^{(t-1)}+W_{ix}{x}^t+b_i)$$

(7)

$$o^t=\mathit{Sigmoid}(W_{oh}{h}^{(t-1)}+W_{ox}{x}^t+b_o)$$

(8)

$$f^t=\mathit{Sigmoid}(W_{fh}{h}^{(t-1)}+W_{fx}{x}^t+b_f)$$

(9)

The following formulations are also associated with the forward pass:

$$d^t=\mathit{Tanh}(W_{dh}{h}^{(t-1)}+W_{dx}{x}^t+b_d)$$

(10)

$$c^t=f^t\odot c^{(t-1)}+i^t\odot d^t$$

(11)

$$h^t=o^t\odot Tanh\left(c^t\right)$$

(12)

$$L^t=P\left(h^t\right)$$

(13)

$$L=\sum _{t=1}^T{L}^t$$

(14)

where $d^t$ stands for the distorted input to the memory cell at time t, $W_{dh}$ is the weight associated with $h^{(t-1)}$ and $b_d$ is the corresponding bias vector, $Tanh(·)$ is the activation function, $c^t$ refers to the state of the memory cell at time t, $h^t$ denotes the hidden state at time t, ‘⊙’ stands for point-wise multiplication. Also, in Equation (13), P maps the hidden state to the network loss $L^t$ at time t. Then the total network loss L is found by adding each individual network loss $L^t$ over time, as depicted in Equation (14).

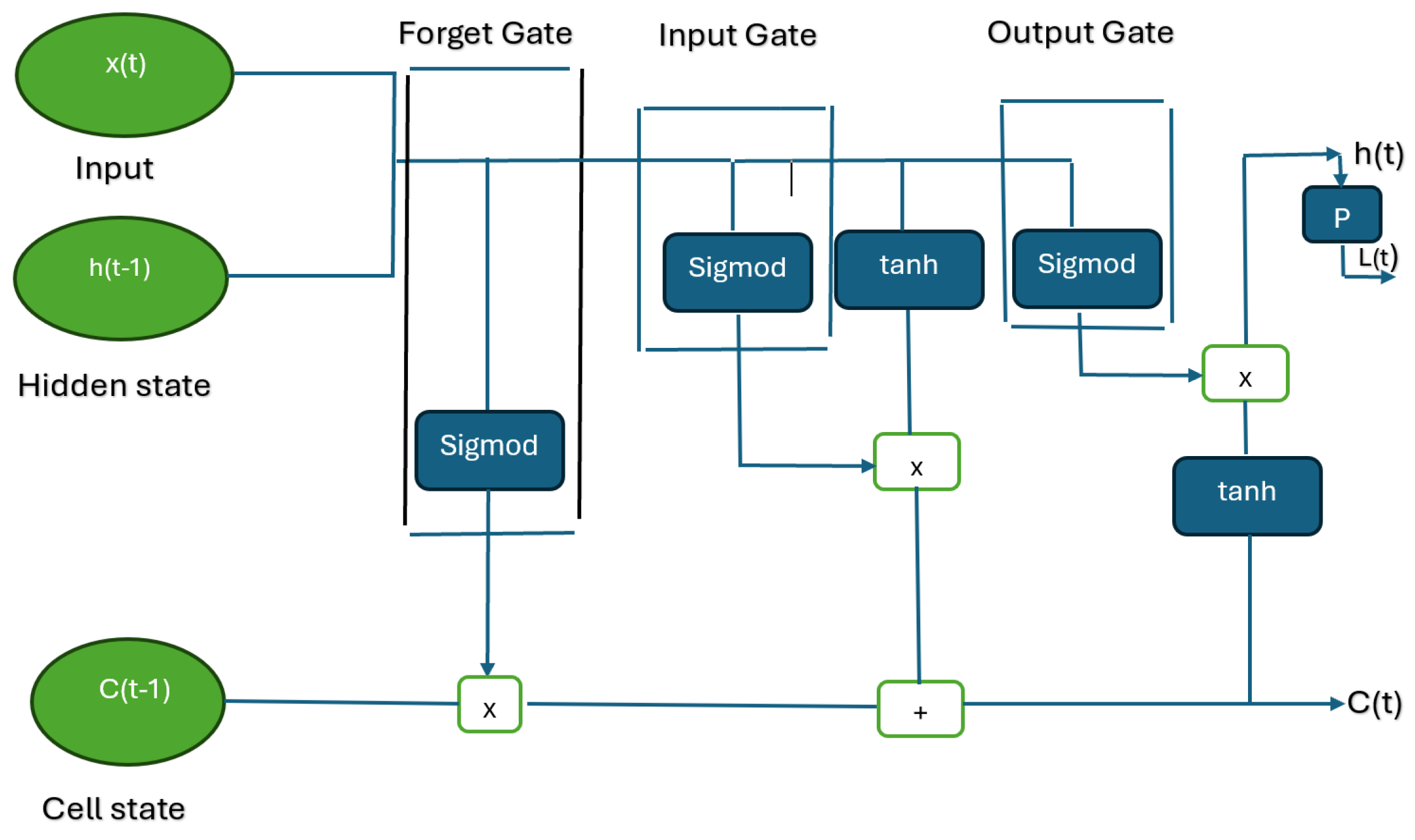

A graphical representation of Equations (7)–(13) is presented in Figure 5 [10].

4. Results

The experimental setup and the detection results of the proposed method are presented here.

4.1. Experimental Setup

The dataset consists of 2000 recordings of ‘healthy’ chicken calls and 2000 recordings of ‘sick’ chicken calls, sampled at 44.1 kHz. For training and testing, the input WST sequences are partitioned into two subsets, namely the training WST set and the test WST set; 70% of the dataset is used for training, and 30% of the dataset is used for testing. The WST sequences are normalized to zero mean and unit variance before being fed into the LSTM network for detection. The results are reported as binary classification accuracies (%) over five different trials. For each trial, we have used different training and test datasets with randomly changing configurations.

We used a three-layer WST and Morlet (Gabor) wavelets [11], which are commonly used complex wavelets due to their simple mathematical representation. The framework has two filter banks when the number of layers is three. The quality factor (i.e., the number of wavelet filters per octave) for the first and the second filter banks is set to Q = 8 and 1, respectively. It can be noted that we resampled the input signal from 44.1 kHz to 8 kHz. For an input signal of length N = 40,000 samples (5 s duration) and the Q values as above, the framework provides a feature matrix with size (205 × 8 × 2) as output. The feature matrix is then generated by 205 scattering paths and 8 scattering windows for both the real and imaginary parts of the signal. Hence, the feature set contains 409 feature vectors of dimension 8, excluding those for path 1. In our training process, we have chosen the following parameters for the LSTM classifier: number of hidden layers = 512, learning rate = 0.0001, batch size = 32, ‘adm’ optimization, and number of epochs = 100. The whole process is implemented in MATLAB 2023b.

4.2. Detection Performance

The performances of the proposed method are evaluated in terms of 2-class classification accuracy (%) as well as sensitivity (%) and specificity (%), as shown below:

$$\mathrm{Accuracy}={\displaystyle \frac{\mathrm{T}\mathrm{P}+\mathrm{T}\mathrm{N}}{\mathrm{T}\mathrm{P}+\mathrm{F}\mathrm{P}+\mathrm{T}\mathrm{N}+\mathrm{F}\mathrm{N}}}$$

(15a)

$$\mathrm{Sensitivity}={\displaystyle \frac{\mathrm{T}\mathrm{P}}{\mathrm{T}\mathrm{P}+\mathrm{F}\mathrm{N}}}$$

(15b)

$$\mathrm{Specificity}={\displaystyle \frac{\mathrm{T}\mathrm{N}}{\mathrm{T}\mathrm{N}+\mathrm{F}\mathrm{P}}}$$

(15c)

where TP, TN, FP, and FN denote the true positive, true negative, false positive, and false negative, respectively.

The confusion matrix for a trial with accuracy (%) is shown in

Table 1. The confusion matrix of the proposed method (the accuracy (%) is indicated in bold face and calculated as a ratio of the sum of diagonal values to the sum of all values ×100).

		Predicted Class
		Healthy	Sick	Sensitivity (%)
True class	Healthy	462	134	85
	Sick	82	522	80
	Specificity (%)	80	85	82

.

The accuracies (%) of five trials are depicted in

Table 2. The accuracies (%) for different trials.

Trial #	Accuracy (%)
1	83.42
2	83.08
3	82.16
4	82.75
5	81.67

with mean accuracy of 82.67% ± 0.70.

Moreover, the results are compared with those of the state-of-the-art methods [12,13]. The method in [12] considers feature patterns in spectrogram images and uses a CNN for two-class classification, whereas the study in [13] uses the cepstrum as a feature vector, followed by a deep neural network (LSTM network) for identification. The confusion matrices for the comparative methods are presented in

Table 3. The confusion matrix for the comparative method in [12] (the accuracy (%) is indicated in bold face and calculated as a ratio of the sum of diagonal values to the sum of all values ×100).

		Predicted Class
		Healthy	Sick	Sensitivity (%)
True class	Healthy	546	14	47
	Sick	613	27	66
	Specificity (%)	66	47	53

and

Table 4. The confusion matrix for the comparative method in [13] (the accuracy (%) is indicated in bold face and calculated as a ratio of the sum of diagonal values to the sum of all values ×100).

		Predicted Class
		Healthy	Sick	Sensitivity (%)
True class	Healthy	436	163	82
	Sick	96	503	75
	Specificity (%)	75	82	78

, showing the classification accuracies of the $53\%$ and $78\%$, respectively. These comparative results also quantitatively demonstrate the impacts of the rectified STFT over the conventional spectrogram being used in [12] and the WST coefficients over the popular cepstrum coefficients as applied in [13].

5. Conclusions

In this paper, the preliminary results are presented, which look promising for detecting the ‘healthy’ chicken and ‘sick’ chickens from their acoustical calls. This would be helpful for the veterinarian in early detection of poultry diseases, managing the large-scale poultry farming efficiently to improve the quality and yield of both meat and eggs. Leveraging the detection of the spectral outliers through WST and the anomalies inferring the contextual changes in temporal data using LSTM, this method could be extended to identify the severe poultry diseases like Newcastle Disease (ND) and Bronchitis [14]. Further, we would like to expand this work by considering data on ‘no’ calls in complex noise environments to make the proposed method more robust, by introducing a learned wavelet scattering transform and optimizing the LSTM network’s model parameters. In this study, the proposed denoising scheme can effectively handle low-frequency background noise. However, to account for the complex background noise in the future, we would like to improve the proposed denoising method by incorporating an adaptive masking scheme based on clustering approaches [15,16] to handle multicomponent, highly nonstationary background noise.
