Halo Vest Usage Trend, Past and Present: Is It Still a Choice of Treatment?

Abstract

Background/Objectives: In the past few decades, there have been advancements in surgical techniques, improved understanding of spinal biomechanics, and awareness of complications associated with halo vest (HV) use with resultant surgical treatment of various pathologies that cause acute or chronic atlantoaxial instability. The purpose of this study was to see how HV usage has changed over time. Methods: A retrospective analysis of the North American Clinical Trials Network database. Patients with cervical spinal cord injury from 2006 through 2019 were identified and the trend of HV use was analyzed. Results: The mean age of patients who received HV was 37.4 years and 50 for those treated with other options, p < 0.0001. Its use consistently declined after 2009. After 2015 this decline reached nil in the database (p < 0.0001). Patients between 45 and 59 years (3.4%) and Above 60 years (2.8%) group had the least treatment using HV. Fall accident (4.7%, p = 0.0295) and central cord syndrome (4.6%, p = 0.0004) were associated with low HV use. Pulmonary complications were higher (89.4%) with HV use (vs. 65.9% with no HV), p = 0.0008. Pulmonary complications with HV decreased after 2012. Conclusions: HV as treatment option for conditions involving the cervical spine has decreased. This declining trend is attributable to decreased use in older individuals due to higher rates of complications and unfavorable outcomes with its use. The decreasing trend appears to coincide with published data showing better outcomes with surgical treatment and unfavorable outcomes with HV use.

1. Introduction

The halo vest (HV) has been a widely used option of management to stabilize the cervical spine since its advent in 1959 [1]. Particularly, it is used in the stabilization of the occipital-atlantoaxial junction to treat cervical spine fractures and dislocation [1,2,3,4]. Believed to be the most effective external stabilization method for the cervical spine, with success rates as high as 85% [2], reported specific success rates of fracture fusion as high as 94.6%, and overall clinical success of 89% [4].

In the past few decades, there have been advancements in surgical techniques for various pathologies that cause acute or chronic atlantoaxial instability and would have been treated with HV in previous times [5,6,7,8,9,10,11,12]. There has also been improved understanding of spinal biomechanics, showing the presence of cumulative cervical motion despite HV use and better stability with surgical immobilization using screw fixation [13,14,15,16]. In addition, there is a growing awareness of HV-associated complications like non-union, pin loosening or penetration of dura, pneumonia, orbital fracture and skin irritation, to name few [17,18,19,20], that may affect the use of this technique.

Despite the mentioned advances, there is lack of long-term real-world data on HV utilization trend. Therefore, it is of interest to see how the actual HV usage rate has changed over time. Here, we present the trends in HV utilization among the North American Clinical Trials Network (NACTN) group using information from the NACTN database in order to inform clinicians of its use pattern in our times.

2. Materials and Methods

A retrospective analysis of the North American Clinical Trials Network (NACTN) database was performed. The NACTN is a syndicate of university-affiliated clinical centers (8 centers currently) equipped with expertise and resources in SCI management with the goal to advance quality of life for people with SCI through clinical trials of promising therapies [21]. Patients who had SCI between the years 2006 and 2019 were selected. Of the patients with SCI, those with cervical-level SCI were further identified. Data points consisted of age, sex, race, comorbidities, category of injury, mechanism of injury (MOI), spinal level of injury and American Spinal Injury Association (ASIA) impairment scale (AIS). Data points with incomplete variables were excluded from the calculation involving the specific variable. Total number of patients with recorded data that were included in the analysis is given in the tabular display of variables (

Table 1. General descriptive studies of the cohort (cervical SCI) using different variables. ASIA—American Spinal Injury Association; GI/GU—gastrointestinal/genitourinary; MVA—Motor Vehicle Accident, n—Total number of patients with record for the variable.

Mean Age (SD, range)	48.9 (17.8, 14.7–88.4) years
	Count	%	95% CI
Halo Vest Use (n = 516)
Yes	47	9.1	6.9–11.9
No	469	90.9	88.1–93.1
Age Category (n = 516)
Pediatric (0–18)	1	0.2	0–1.1
Young Adult (19–25)	64	12.4	9.8–15.5
Adult (26–44)	119	23.1	19.6–26.9
Middle Aged (45–59)	147	28.5	24.8–32.5
Above 60	142	27.5	23.8–31.5
Unknown	43	8.3	6.2–11.0
Sex (n = 483)
Male	381	78.9	75–82.3
Female	102	21.1	17.7–25
Race (n = 472)
Caucasian	332	70.3	66.1–74.3
Black	94	19.9	16.6–23.8
Other	46	9.7	7.4–12.8
Type of Injury (n = 516)
Blunt	460	89.1	86.2–91.5
Crush	32	6.2	4.4–8.6
Penetrating	10	1.9	1.1–3.5
Other	14	2.7	1.6–4.5
Mechanism of Injury (n = 503)
MVA	184	36.6	32.5–40.9
Fall	214	42.5	38.3–46.9
Sport/Recreation	69	13.7	11.0–17.0
Assault	18	3.6	2.3–5.6
Other	18	3.6	2.3–5.6
Neurologic Level of Injury (n = 516)
C1	17	3.3	2.1–5.2
C2	35	6.8	4.9–9.3
C3	122	23.6	20.2–27.5
C4	96	18.6	15.5–22.2
C5	133	25.8	22.2–29.7
C6	94	18.2	15.1–21.8
C7	19	3.7	2.4–5.7
ASIA Impairment Scale (n = 390)
A	142	36.4	31.8–41.3
B	48	12.3	9.4–15.9
C	59	15.1	11.9–19.0
D	141	36.2	31.5–41
Central Cord Syndrome (n = 388)	174 1	44.8	40.0–49.8
Comorbidities (n = 497)
Hypertension	166	33.3	29.3–37.5
Diabetes	133	26.8	23.1–30.9
Myocardial Infarction	19	3.8	2.5–5.9
Pulmonary co-morbidities	114	23	19.5–26.9
Cerebrovascular Accident	0	0
Malignancy	8	1.6	0.8–3.2
Tobacco	10	2	1.1–3.7
Drug Abuse	47	9.5	7.2–12.4
Complications (n = 516)
Cardiac	173 2	33.5	29.6–37.7
GI/GU	210 2	40.7	36.5–45.0
Pulmonary	351 2	68	63.9–71.9
Skin	71 2	16.2	11.1–17.0

¹ N = 388 is the total number of patients that had record for Central Cord Syndrome and not all who had central cord syndrome. ² Some patients may have more than 1 complication and the sum may add up to be more than the total number of patients.

and

Table 2. Comparison of halo vest and no-halo vest cohort. ASIA—American Spinal Injury Association; GI/GU—gastrointestinal/genitourinary; MVA—Motor Vehicle Accident.

	Halo Vest			No-Halo Vest			p-Value
Mean Age (SD, range)	37.4 (17.4, 19.9–83.5)			50.0 (17.5, 14.7–88.4)			<0.0001
	Count	%	95% CI	Count	%	95% CI
Age Category (n = 516)
Pediatric (0–18)	0	0	0.0–94.9	1	100	5.1–100	<0.0001
Young Adult (19–25)	13	20.3	12.3–31.7	51	79	68.3–87.7
Adult (26–44)	19	16	10.5–23.6	100	84	76.4–89.5
Middle Aged (45–59)	5	3.4	1.5–7.7	142	96.6	92.3–98.5
Above 60	4	2.8	1.1–7.0	138	97.2	93.0–98.9
Unknown	6	14	6.6–27.3	37	86	72.7–93.4
Sex (n = 483)
Male	33	8.7	6.2–11.9	348	91.3	6.9–19.4	0.3402
Female	12	11.8	6.9–19.4	90	88.2	80.6–88.2
Race (n = 472)
Caucasian	302	9.0	6.4–12.6	30	91.0	87.4–93.6	0.4236
Black	82	12.8	7.5–21	12	87.2	79.0–92.5
Other	43	6.5	2.2–17.5	3	93.5	82.5–97.8
Type of Injury (n = 516)
Blunt	44	9.6	7.2–12.6	416	90.4	87.4–92.8	0.6286
Crush	1	3.1	0.2–15.7	31	96.9	84.3–99.8
Penetrating	1	10.0	0.5–40.4	9	90.0	59.6–99.5
Other	1	7.1	0.4–31.5	13	92.9	68.5–99.6
Mechanism of Injury (n = 503)
MVA	24	13.0	8.9–18.7	160	87.0	81.3–91.1	0.0295
Fall	10	4.7	2.6–8.4	204	95.3	91.6–97.4
Sport/Recreation	8	11.6	6.0–21.2	61	88.4	78.8–94.0
Assault	2	11.1	2.0–32.8	16	88.9	67.2–98.0
Other	1	5.6	0.3–25.8	17	94.4	74.2–99.7
Neurologic Level of Injury (n = 516)
C1	1	5.9	0.3–27.0	16	94.1	73.0–99.7	0.078
C2	6	17.1	8.1–32.7	29	82.9	67.3–91.9
C3	5	4.1	1.8–9.2	117	95.9	90.8–98.2
C4	6	6.3	2.9–13.0	90	93.8	87.0–97.1
C5	16	12.0	7.5–18.6	117	88.0	81.4–92.5
C6	12	12.8	7.5–21.0	82	87.2	79.0–92.5
C7	1	5.3	0.3–24.6	18	94.7	75.4–99.7
ASIA Impairment Scale (n = 390)
A	16	11.3	7.1–17.5	126	88.7	82.5–92.9	0.2714
B	4	8.3	3.3–19.6	44	91.7	80.4–96.7
C	5	8.5	3.7–18.4	54	91.5	81.6–96.3
D	7	5.0	2.4–9.9	134	95.0	90.1–97.6
Central Cord Syndrome (n = 388)	8	4.6	2.3–8.8	166	95.4	91.2–97.7	0.0004
Comorbidities (n = 497)
Hypertension	19	11.4	7.5–17.2	147	88.6	82.8–92.5	0.1878
Diabetes	6	4.5	2.1–9.5	127	95.5	90.5–97.9	0.0339
Myocardial Infarction	2	10.5	1.9–31.4	17	89.5	68.6–98.1	0.6871
Pulmonary Co-morbidities	13	11.4	6.8–18.5	101	88.6	81.5–93.2	0.3535
Cerebrovascular Accident	-	-	-	-	-	-	-
Malignancy	0	0.0	0.0–32.4	8	100.0	67.6–100	> 0.9999
Tobacco	1	10.0	0.5–40.4	9	90.0	59.6–99.5	> 0.9999
Drug Abuse	3	6.4	2.2–17.2	44	93.6	82.8–97.8	0.6043
Complications (n = 516) *
Cardiac	18	38.3	25.8–52.6	155	33.0	28.9–37.4	0.5174
GI/GU	25	53.2	39.2–66.7	185	39.4	33.3–60.8	0.086
Pulmonary	42	89.4	77.4–95.4	309	65.9	61.5–70.0	0.0008
Skin	9	19.1	10.4–32.5	62	13.2	10.5–16.6	0.2671

Bold number: p-value < 0.05, indicates statistical significance. * Some patients may have more than 1 complication and the sum may add up to be more than the total number of patients.

). Age was assessed as a continuous as well as categorical variable. For categorical assessment of age, patients were classified as Pediatric (0–18 years), Young Adult (18–25 years), Adult (26–44 years), Middle Aged (45–59 years), and Above 60 for >60 years [22]. Gender was classified as either Male or Female. Category of injury included blunt, crush, penetrating and other as labeled in the database. MOI was categorized into Motor Vehicle Accident (MVA), fall, Sport/Recreation, Assault (gunshot wound, stabbing, or blunt trauma), and other. Comorbidities and complications of treatment recorded in the data were also identified and described accordingly. Initially the cohort containing cervical SCI patients was described. Afterwards, patients within the cohort were stratified into those that had and had not received HV after injury. Trend for HV usage per year was analyzed for the study period. Descriptive statistics, Student’s t-test and Mann–Whitney U test were calculated for continuous variables depending on normality of distribution. Categorical variables were analyzed using proportions with 95% confidence interval and bivariate correlation studies, where Pearson’s chi-square and Fisher’s exact tests were used to assess statistical significance. Findings are summarized in a tabular and figure format. Statistical significance was determined for p-values < 0.05. All statistical calculations were performed using GraphPad Prism version 10.4.1 for Windows, GraphPad Software, Boston, MA, USA, www.graphpad.com.

3. Results

3.1. General Cohort

There were a total of 1030 spine trauma patients within the NACTN registry. Of these, 516 patients (50.1%) had cervical SCI. In total 47/516 (9.1%) SCI patients were treated with an HV. Table 1 summarizes the cohort using different variables. The mean age (SD, range) of was 48.9 (17.8, 14.7–88.4) years. Middle Aged individuals (45–59 yrs) comprised the highest proportion (28.5%) closely followed by the Above 60 years age group (27.5%) and Adults (26–44) making up 23.1% of the total cohort. Young Adults (19–25) comprised 12.4% and in 8.3% the age was not documented. Males comprised 78.9% and females 21.1%. The cohort is predominantly composed of Caucasian subject (70.3%) followed by Black subjects (19.9%). Race is recorded as “Other” in 9.7%. Fall accident was the most common cause of injury (42.5%) followed by MVA (36.6%). Sports and recreation accounted for (13.7%). Most of the injuries were categorized as blunt (89%) while the categories of crush and penetrating injuries accounted for 6.2% and 1.9%, respectively. The most common levels of injury were C5 (25.8%), C3 (23.6%), C4 (18.6%) and C6 (18.2%). C1, C2 and C7 accounted for 3.3%, 6.8% and 3.7%, respectively. AIS A and D were the most common injury grades, accounting for 36.4% and 36.2%, respectively. AIS C accounted for 15.1% and AIS B 12.3%. Table 1 shows count and proportion of variables including comorbidities within the cohort.

3.2. Comparison of Patients Treated with Halo Vest to No Halo Vest

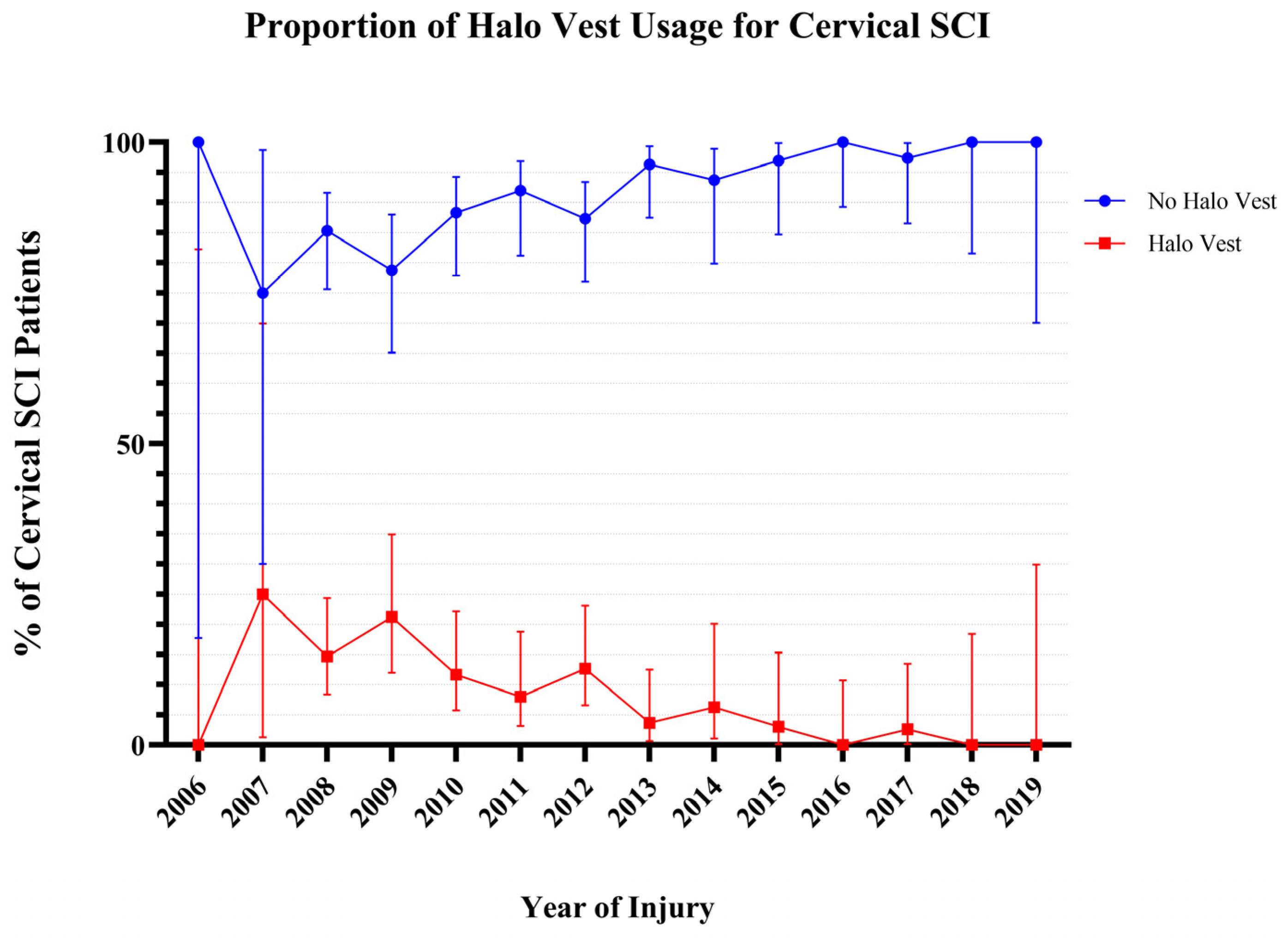

The highest number for halo vest usage was in 2008 but proportion wise 2007 had the highest percentage of HV use (Figure 1). As reflected in the figure the use of HV consistently declined after 2009, and after 2015 this decline stabilized (p < 0.0001). Table 2 summarizes the cohort by differentiating it based on HV usage. The mean age (SD, range) of patients who received HV was 37.4 (17.4, 19.9–83.5), the mean for those not treated with HV was 50 (17.5, 14.7–88.4) years p < 0.0001. The highest utilization of HV was noted in the Young Adult age group (20.3%) followed by the Adult group (16%) p < 0.0001. Another prominent finding is that patients in the Middle Aged and elderly group were the ones that had the least treatment using HV, 3.4% and 2.8%, respectively. HV was more frequently used in Females (11.8%), and Black subjects (12.8%) in the cohort, however with no statistical significance. Based on injury type, similar proportions of patients with penetrating (10%) and blunt (9.6%) types of injuries were treated with HV, the findings being statistically insignificant. Compared to other injuries, MVA had the highest association with HV usage (13%) followed by Sport/Recreation and Assault injuries, that had similar (11.6% and 11.1%, respectively) percent of associated usage. Injury at C2 had the highest percentage (17.1%) of HV usage compared to injury at other cervical spine levels. Other levels of injury associated with higher usage of HV included C6 (12.8%) and C5 (12%). The association of vertebra level of injury to HV use shows close to a statistical significance (p = 0.078). It appears more severe injuries were associated with more frequent use of HV as displayed in the table, but not to a level of statistical significance. The presence of central cord syndrome was associated with a 4.6% use of an HV, p = 0.0004. Pulmonary complications were present in 89.4% of patients treated with HV versus 65.9% in those not treated with HV, p = 0.0008. A post hoc analysis regarding pulmonary complications within the cohort revealed a decreasing trend after 2012 (Figure 2). The highest occurrence of pulmonary complications was in the Adult (26–44) age group (30.2%), followed by the Middle Aged and Young Adult groups, 25.9% and 24.6% respectively. Pulmonary complications were recorded in 16.2% of patients in the Above 60 group (

Table 3. Pulmonary complication occurrence by age group. Fisher’s exact test shows near but no statistical significance (p = 0.0673).

Age Group	No	%	95% CI	Yes	%	95% CI
Pediatric (0–18)	1	100.0	5.1–100	0	0.0	0.0–94.9
Young Adult (19–25)	46	75.4	63.3–84.5	15	24.6	15.5–36.7
Adult (26–44)	81	69.8	60.9–77.4	35	30.2	22.6–39.1
Middle Aged (45–59)	103	74.1	66.2–80.7	36	25.9	19.3–33.8
Above 60	114	83.8	76.7–89.1	22	16.2	10.9–23.3
Unknown	36	85.7	72.2–93.3	6	14.3	6.7–27.8

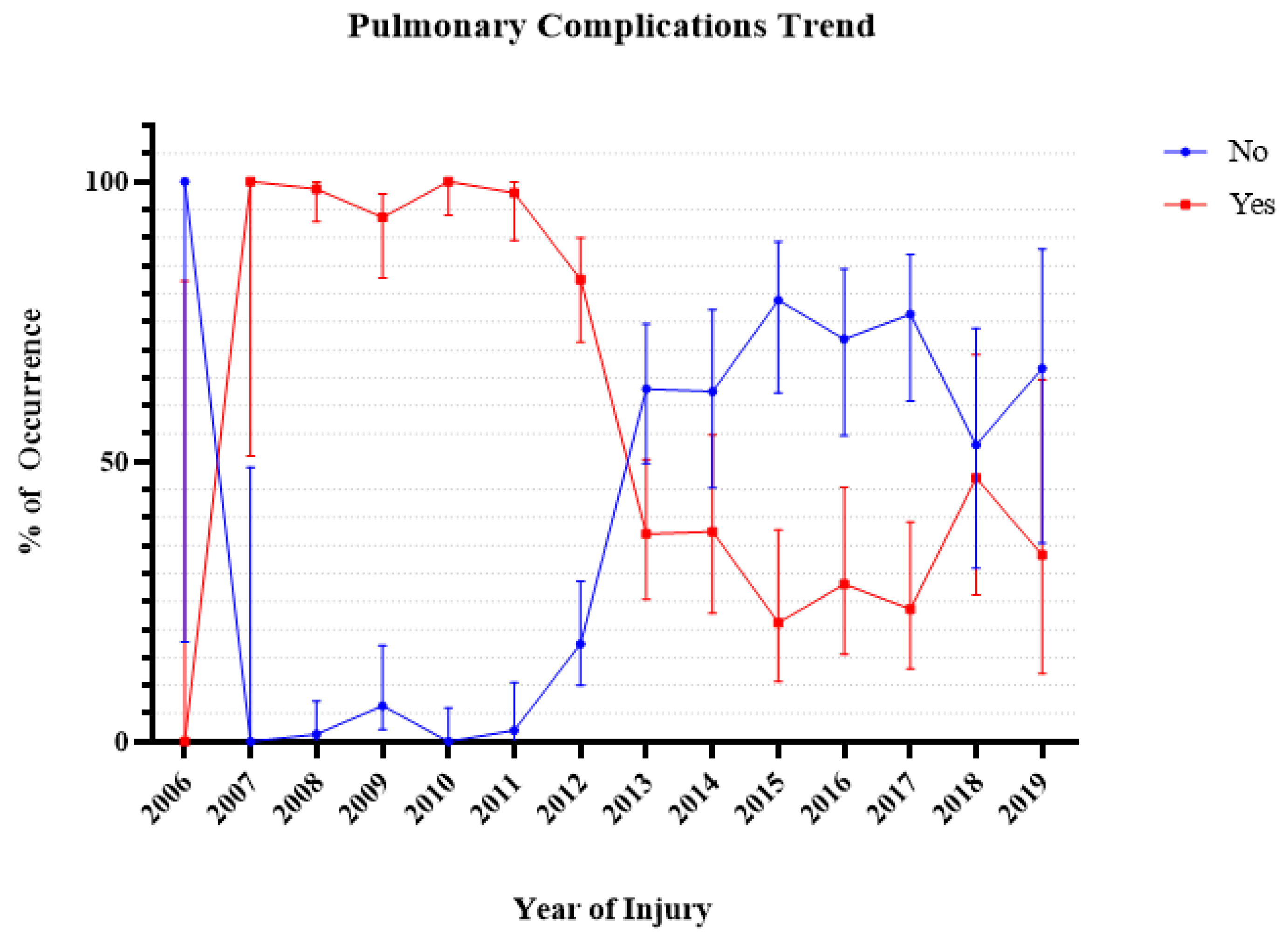

). Nonetheless, the finding of age group and pulmonary complications occurrence was nearly but not statistically significant (p = 0.0673). Supplementary Figures S1–S3 show cardiac, GI/GU and skin complication trends for the study period.

4. Discussion

The findings of this study show the declining trend of using HV as a treatment for cervical spine injuries within the NACTN institutes. C2 injuries had the highest proportion of HV use, possibly indicating odontoid fractures. Comparison of patients treated with HV and alternative treatment shows there is no significant difference except in age categories, mechanism of injury, presence of central cord syndrome, diabetes and pulmonary complications. A close look into the findings (Table 1) shows older age groups (Middle aged and Above 60 years) and the presence of variables associated with older age groups, like fall accidents, diabetes and central cord syndrome [23,24], are relatively lower in proportion for the group treated with HV. On the contrary, there is a relatively higher proportion of measures for variables associated with younger patients like motor vehicle accidents, sports injuries and assaults in the HV group. Another finding is a statistically significant higher pulmonary complication in patients treated with HV. We believe the decreasing trend in HV usage has in part to do with the occurrence of pulmonary complications in older patients. This is further supported by the findings of lower pulmonary complication occurrence that coincide with the decreasing trend of HV use (Figure 2). In addition, there is a relatively lower occurrence of pulmonary complications in the Above 60 years group within the cohort, although not to a statistically significant level (Table 3).

Initially HV was used as a head stabilizing technique in patients with neck muscle paralysis due to poliomyelitis and it was described in 1959 [1]. Later, it was used for early stabilizing of the neck in patients with cervical spine injury [3]. However, its use came under scrutiny and was associated with complications, hence promoting safer and more effective treatments for cervical spine injury. The works by Garfin et al. [25] and Glaser et al. [26] in the mid-80s are some of the early well-organized reviews on complications with the use of HV. Eventually, a study based on a database from the state of New York identified a decreasing trend of HV use in 2020 [27].

The literature shows that complications surrounding HV are higher in older patients, including morbidity and mortality [28,29,30,31,32,33]. Aside from the case series regarding sporadic complications that have been reported [34,35,36], there were also reviews showing more frequent complications with HV use. In their study about HV indications and complications, Lee et al. [37], reviewed complications from thirteen studies and identified orbital roof fracture, orbital cellulitis, sub-orbital nerve injury, intracranial penetration, liquorrhea, pneumocephalus, epileptic seizure, dysphagia/aspiration, pin-site infection, persistent instability, loss of subluxation reduction, halo ring dislocation, decubitus ulcer, fracture non-union, graft subsidence, non-specific respiratory problems, pneumonia, and death as commonly reported complications. The authors noted complications ranged between 11 and 92% mostly within the 30–50% range.

Harrop et al. [30] in 2010, in a meta-analysis of thirty-eight papers found out non-union in elderly patients, after HV treatment of type II/III odontoid fractures (OF), reached up to 78%, unlike surgical treatment that had a non-union rate of 0% to 65.5%. Their conclusion was weak recommendation of surgery for type II OF and hard collar in type III OF. Even more concerning from some studies within this meta-analysis was the issue of morbidity and mortality with the use of HV. One of the studies by Tashjian et al. [38] in 2006 found a complication rate of 66% (versus 36% for no HV) and mortality of 42% (versus 20% for no HV) in elderly patients treated with HV. Again, Taitsman et al. [39] in 2008 reported 55% complication rate with 23% having severe respiratory complication. Majercik et al. [33] in 2005 reported 40% mortality in patients >65 years old on HV compared to 2% for those <65 years old, in addition to 6% and 12% mortality for patients >65 years old who had surgery and cervical collar, respectively. This finding made the authors liken HV use in the elderly to a death sentence.

Notably, in our study the respiratory complication in the HV group is significantly higher (89.4% vs. 65.9%). Such high numbers possibly indicate other underlying co-morbidities or injuries, as Malnik et al. [19] reported that low GCS and high injury severity scores were highly associated with pneumonia. The authors also found 86% of patients with GCS < 12 had pneumonia and all patients who had pneumonia were on mechanical ventilation sometime during their care. Although we do not have details as to why the rate of pulmonary injury is high, we can see such high numbers are a possibility from other studies.

Vaccaro et al. [40] in 2013 published the results of a prospective study comparing surgical and non-surgical treatment of dens fractures showing significantly better outcome in neck disability index and Short-Form 36v2 as well as a lower rate of non-union (5% vs. 21%) for the surgically treated group. Besides these benefits, the study also showed less mortality (14% vs. 26%) for the surgical group at twelve-month follow-up. These findings led them to recommend that elderly patients with type II dens fracture be treated surgically if they are healthy enough for general anesthesia. In addition, Ivancic et al. [13] showed screw fixation was favored for Type II dens fracture after assessing motion reduction at C1/2 using HV combined with screw fixation and comparing it to an earlier report of screw and wiring in reducing C1/C2 motion reduction. The timeline of these findings matches the timeline in our finding where HV usage rate started to flatten (2013) and non-HV treatment started to trend upwards, the findings perhaps sparking a global application of surgical treatment in all age groups for cervical spine fractures/instability.

Despite these findings, recent studies from Italy still suggest that HV is a viable treatment option in younger patients but admittedly oppose its indication in older patients [4,41]. Other studies also show HV use is common in pediatric age groups as a transient bridge to or as a definitive means of treatment [42]. Our analysis contained only one pediatric patient who was not treated with HV. However, Young Adults (19–25 years) and Adults (26–44 years) had the highest use of HV. Internal analysis of our data showed HV usage in these groups of patients mostly occurred before 2012, when use of HV for definitive treatment was common in NACTN centers. The trend for all age groups is like the rest of the findings otherwise, showing a decreasing trend after 2013 and a lack of use after 2017 (Supplementary Figure S4). According to the experience of the authors and external experts, in contemporary trauma practice, HV is still routinely applied acutely as a bridging measure when surgery must be delayed—for example, due to hemodynamic instability, coagulopathy, need for cardiac workup, or inter-facility transfer. At other times it is used after operation [43]. Unfortunately, the NACTN database does not distinguish between temporary versus definitive treatment of HV use. Future studies to describe the trend of such use are warranted.

Our study is not without limitations. First, the specific diagnosis of the condition that was treated is not specified within the data, so we are not able to further define in what situations HV was used versus surgical treatment and only know level-specific data. It is also not within the scope of this study to find out what the indications of HV use are but to define the trend of its use, which it clearly depicted. Second, the database is from the NACTN study group and the practice pattern in other centers outside this group are not explored to get a more general picture. However, combined with the decent number of patients and these centers being specialized Level I trauma centers within the US and Canada, the practice pattern can be representative to similar institutes, if not to community hospitals and resource limited settings. Future directions should aim to prospectively identify which injuries and patient groups are most amenable to HV application, include more institutes to get a broader understanding, and possibly survey physicians involved in the care of such patients to identify why they prefer or not HV use. There is also a need to further validate surgical interventions that are replacing HV use for atlantoaxial instability.

5. Conclusions

The use of HV as treatment option for conditions involving the cervical spine has decreased. The decreasing trend is highly attributable to decreased use in older individuals. Higher rates of complications and unfavorable outcomes with HV use and better outcomes with surgical treatment appear to drive the decreasing trend from clinical and more precise perspectives. The decreasing trend appears to coincide with published data showing better outcomes with surgical treatment and unfavorable outcomes with HV use.
