Resurgence of Electron Quantum Tunneling Sensors

Aishwaryadev Banerjee
Carlos H. Mastrangelo
Department of Electrical and Computer Engineering, University of Utah, Salt Lake City, UT 84112, USA
Author to whom correspondence should be addressed.
Micro 2022, 2(4), 679-698;
Submission received: 3 November 2022 / Revised: 29 November 2022 / Accepted: 1 December 2022 / Published: 13 December 2022


Quantum tunneling sensors are typically ultra-sensitive devices that have been specifically designed to convert a stimulus into an electronic signal using the wondrous principles of quantum mechanical tunneling. In the early 1990s, William Kaiser developed one of the first micromachined quantum tunneling sensors as part of his work with the NASA Jet Propulsion Laboratory. Since then, there have been scattered attempts at utilizing this phenomenon for the development of a variety of physical and chemical sensors. Although these devices demonstrate unique characteristics, such as high sensitivity, the principle of quantum tunneling often acts as a double-edged sword and is responsible for certain drawbacks of this sensor family. In this review, we briefly explain the underlying working principles of quantum tunneling and how they are used to design miniaturized quantum tunneling sensors. We then proceed to describe an overview of the various attempts at developing such sensors. Next, we discuss their current necessity and recent resurgence. Finally, we describe various advantages and shortcomings of these sensors and end this review with an insight into the potential of this technology and prospects.

1. Introduction to Electron Quantum Tunneling

Quantum tunneling is a phenomenon predominantly observed in nanoscale devices where a particle can pass or “tunnel” through a barrier potentially greater than its energy. This is in direct contradiction with classical mechanics which states that any physical body cannot surmount a potential barrier greater than its own energy. Figure 1a. shows the schematic representation of an electron wave tunneling through a classically forbidden energy barrier.
The concept of quantum tunneling was a result of studies on radioactivity and one of its first occurrences was reported by Robert Francis Earhart, who in 1921 noticed an unexpected conduction regime when he was trying to understand the conduction of gases between closely placed electrodes [1]. In 1926, Franz Rother used a sensitive platform galvanometer to study field emission currents between closely spaced electrodes in high vacuum [2]. However, it was in a paper published in 1927 by Friedrich Hund named “Zur Deutung der Molekelspektren”, which roughly translated means “To the interpretation of the molecular spectra”, where he discussed the phenomenon of quantum tunneling to explain the outer electron moving in atomic potential with two or more minima in potential energy separated by a classically impenetrable potential barrier [3]. The next major milestone in the history of quantum tunneling was achieved by Lothar Nordheim, with the help of Ralph Fowler, where he calculated the transmission probability of an electron wavefunction across a steep potential and showed that either reflection or transmission of the wave could occur with nonzero probabilities, whereas classically either one of the two can occur [4]. This is famously known as the Nordheim–Fowler regime of electron tunneling where an electron wave tunnels through a triangular barrier under a high bias voltage. Later in 1927, Oppenheimer, and also in March 1928, Fowler and Nordheim, provided the analysis of the transmission rate of an electron across a triangular barrier and proved the exponential dependence of tunneling probability on both barrier width and height. It was in the year 1930 that quantum tunneling proved most critical, when Oscar Rice interpreted the tunneling phenomenon as an analogy to alpha decay [5]. Rutherford, who was until then confused by the results he obtained from his scattering experiments (he observed that the α-particles that were emitted from U-238 were known to possess an energy of 4.2 MeV whereas the Coulomb potential was greater than 8.57 MeV), would eventually thank George Gamow, Ronald Gurney and Edward Condon who explained the phenomenon of alpha particle decay using quantum tunneling. About three decades later, Leo Esaki, Yuriko Kurose and Takashi Suzuki invented the tunnel diode (also known as the Esaki diode) which exploited the quantum tunneling phenomenon and displayed negative differential resistance (NDR) [6]. These were used as oscillators and high-frequency trigger devices and were noted for their extreme longevity. Devices fabricated in the 1950s are still functional. A few years later in 1963, John G. Simmons provided an analytical model describing the tunneling current between two metal electrodes separated by a thin dielectric film [7]. This mathematical model has been widely used to describe tunneling currents in solid-state devices and can also mathematically describe the working of quantum tunneling sensors. The modern-day world has much to thank Hund for regarding his efforts in discovering the mystical phenomenon of quantum tunneling. Scanning Tunneling Microscopy (STM), Attenuated Total Reflection (ATR) spectroscopy method and Flash-memory are just some of the precious gifts of quantum tunneling.

2. Electron Quantum Tunneling Sensors—Generalized Working Principle, Beginnings and a Brief Survey

At the heart of the working principle of any electron quantum tunneling sensor (QTS) lies the exponential dependency of tunneling current density on potential energy barrier width and barrier height. Therefore, even a very slight change in either of these parameters results in an extremely high change in tunneling current density. All QTSs are therefore carefully designed so that upon detection of a specific stimulus, intended transduction leads to a change in barrier width/height which gives rise to a very high modulation of tunneling current. Accurate measurement of this current can therefore provide ultra-sensitive measurements of the causal stimulus. For example, in the IR-QTS designed by Kaiser and his team, the tunneling current between a gold-coated silicon tip and a suspended membrane is measured as a function of membrane displacement, which, in turn, is caused due to expansion upon exposure to an oscillating IR source. Alternatively, one can measure the tunneling current, compare it to a reference value and apply correction signals to an electromechanical actuator in order to maintain a constant tunneling current value. This is achieved by applying forces to the moving sensor element so as to keep the tip–element gap constant (which is essentially the force-rebalance design). If the gain of the transducer, circuit and actuator is sufficient, the tunneling current will be maintained in the presence of external disturbances. By monitoring the feedback signals produced by the control circuit, one can detect the signal forces applied to the sensor element. Figure 1b shows the working principle schematic of the some of the physical quantum tunneling sensors designed by Kaiser. The next section provides some details into the design and implementation of the first generation of QTSs.
Tunneling across a vacuum barrier was investigated by Binnig and Rohrer as part of their work which led to the invention of the Scanning Tunneling Microscope [8]. The device consisted of a piezo element which had a metal-tip fixed at the end. The tip was brought very close (in the z-direction) to the surface under observation which resulted in electrons tunneling across the vacuum and a measurable tunneling current. A control unit applied a voltage to the piezo element to maintain the tunneling current while the tip scanned the surface in the x and y direction. Therefore, assuming the barrier height to remain constant, the applied voltage that was required to maintain the tunneling current was a function of the topography.
In the early 1990s, as part of his work with the NASA Jet Propulsion Laboratory (JPL), Dr. William Kaiser developed a new class of micromachined sensor technology based on similar principles to quantum tunneling. Taking inspiration from the STM, he wanted to exploit the exponential dependence of tunneling current on potential barrier height and tunneling distance. In principle, this would allow these sensors to display much higher sensitivities than their capacitive or piezoresistive counterparts. As part of this work, Dr. Kaiser built the world’s first micromachined tunneling accelerometers and tunneling IR sensors [9,10,11,12] as shown in Figure 1b. Essentially, the accelerometer device consists of a tip-ended micromachined cantilever suspended on top of strategically placed electrodes. The cantilever is electrostatically pulled down by applying an appropriate bias voltage on one of the bottom electrodes. When the distance between the tip and the other lower electrode is near ~1 nm, the tunneling current can be measured and detected by a feedback circuit. This feedback system controls the deflection voltage to maintain the position of the suspended cantilever. When the device experiences acceleration, the bias voltage (controlled by the feedback loop) maintains the relative position between the tip and the lower electrode. This bias voltage is recorded as the output signal for the accelerometer.
The tunneling bolometer device consists of a small chamber filled with gas at atmospheric pressure. The chamber lies between a pair of thin Si3N4 membranes and consists of a suspended IR absorber membrane in the middle. Before exposure to IR radiation, a tunneling bias is applied to bring the deflection electrodes towards the tip. At a tip distance of ~1 nm, a small tunneling current of ~1.5 nA is measured. When IR radiation is incident on this device, it enters through the thin top membrane and gets absorbed by the membrane. This heats the air which expands and tries to lower the membrane to deflect closer to the tip, as shown in the schematic. A feedback system ensures that the tunneling current remains 1.5 nA by appropriately controlling the deflection voltage. This deflection voltage is the transducer output and is a measure of the IR radiation. Similar to such devices, Richard Colton built a tunneling magnetometer [13]. The operation of the device was similar to those described above. In this device, a magnetostrictive ribbon (Metglas 2605SC) was used to detect small changes in magnetic fields. The tunneling current between the ribbon and the metallic tip was maintained at a constant value by applying an appropriate displacement voltage. This voltage was the output signal for the magnetometer. The voltage required to maintain a constant tunneling current is essentially the “sensor output” and was used for measuring the appropriate stimulus.
These devices are some of the first and premier efforts in utilizing quantum tunneling for highly sensitive transduction and were mainly physical sensors which were used as motion sensors or IR detectors. However, the physical structure of these devices made it extremely difficult to batch fabricate them on the micro/nanoscale which restricted their use to highly specialized applications and they were therefore not deployed for general purpose. Additionally, these devices required an initial high bias voltage (greater than 120 V) for device operation. In addition to this, sensor operation also required a sophisticated feedback system to ensure proper working of the device. Finally, the working principle and device design also suggest that they might be susceptible to temperature fluctuations.
As an alternative to a suspended tip-based design, one can also look towards nanogap electrodes for building tunneling sensors.

3. Nanogap Electrodes for Molecular Electronics

Nanogap electrodes can be defined as a pair of electrodes, separated by a gap of just a few nanometers. These can be essentially considered as metal-insulator-metal (MIM) devices, which have been widely used in the field of molecular electronics mainly for investigating the electrical properties of organic molecules. Although, in principle, one can also realize a nanogap electrode system with semiconductors instead of metals. One of the first methods to realize a nanogap was the Mechanically Controllable Break junction (MCB) technique, which was used by M.A Reed when he was investigating the conductive properties of di-thiol molecules [14]. In an MCB junction, a notched metallic wire is glued to an elastic substrate. The substrate is bent with a piezoelectric element which causes the wire to fracture. After this, the distance between the two wire segments can be brought closer together by the piezo element to form a nanogap between the wires. Electrochemical methods are a simple way to fabricate nanogap electrodes. In this method, nanogaps are reversibly formed by controlled chemical deposition of specific atoms on lithographically defined nanogap electrodes to close down the gap between them. Dolan [15] established the oblique angle shadow evaporation method in which an elevated mask in combination with an angled metal deposition is used to define metal leads with nanometer spacing. Electromigration, which has been infamously identified as a failure mode in the electronic industry, has been successfully used to fabricate nanogap electrodes [16]. In this method, a large current is passed through an e-beam lithographically (EBL) defined metal nanowire, which leads to electromigration of the metal atoms and the eventual breakdown and fracture of the thin wire, leading to the formation of a nanogap. Hatzor [17] introduced a new method where they used mercaptoalkanoic acids to pattern nanowires. Here, subsequent coatings of metal–organic resist on top of EBL metal patterns lead to a controlled gap between neighboring mercaptoalkanoic layers. Metal evaporation into the gap and the subsequent lift-off of the resist layer leads to a well-defined metal pattern, thereby forming a nanogap.
While nanogap electrodes fabricated by each of these methods have resulted in valuable results, which have gone a long way into understanding essentials of charge transport across break junctions, there are also certain fundamental disadvantages in using them [18]. For example, the MCB method is too cumbersome for high-density circuit applications since it requires macroscopic piezoelectric components for nanogap formation. Electrochemical methods require precise feedback mechanisms in real-time to monitor and accurately fabricate the electrodes with a precise nanogap between them. The oblique angle shadow method requires very low-temperature conditions for metal evaporation resulting in small metal grain sizes (thereby ensuring a uniform control of the nanogap between the electrodes). Electromigration essentially requires joule heating to form the nanogap, which means that there is also a high chance of undesired melting of metal. Additionally, electromigration sometimes leads to the deposition of debris at the critical junction. Other methods involve expensive fabrication techniques such as EBL and Molecular Beam Epitaxy (MBE) for consistent results. Most importantly, the nanogap features formed using these methods can be nonuniform in nature, which makes it difficult to use them for measuring the tunneling current accurately.
To realize robust, uniform and CMOS-compatible molecular tunnel junctions that can cater to the detection of a variety of organic molecules, sidewall etched nanogap tunneling electrodes were introduced in 2006 [19,20,21]. Essentially, these devices consist of a top and bottom pair of electrodes electrically isolated by a thin insulating dielectric spacer layer, which is partially etched away along the edges. To use this structure as a chemical sensor, the device is then functionalized, and organic molecules end up covalently attached to the electrode pair at the nanogap site. These newly attached molecules provide additional electrical pathways for charge conduction between the electrodes. Therefore, this allows for inspection into the charge transport across the molecular junction with and without conduction paths introduced by the foreign molecules, effectively decoupling the electrical characteristics of the covalently bonded molecules and the platform device. An example of such a nanogap system is illustrated in the schematic of Figure 2. The functional molecules (for example a SAM of thiols) can be localized to desired locations between the nanogap electrodes to form the metal–molecule–metal junctions.
Indeed, such nanogap electrode-based biosensors have been previously demonstrated in the field of molecular nanoelectronics. For example, Choi et al. fabricated an ultrasensitive nanogap junction for label-free biomolecular detection and were able to detect DNA hybridization for 10 µM and 10 fM concentrations of target DNA [22,23]. The authors also described a batch-fabrication process for parallel fabrication of sub-10-nm features [24,25]. However, the fundamental working principle behind these nanogap sensors was the detection of a change in dielectric constant upon successful detection of analyte within the nanogap metal-insulator-metal (MIM) structure. Using similar devices, Schlecht et al. developed a nanogap impedance biosensor for the detection of thrombin using antibodies and RNA-aptamers as receptors [26,27].
Previous efforts related to such nanogap electrodes were mainly confined for studying the electrical properties of organic molecules or for biosensing purposes. While these are extremely interesting devices, which can be batch-fabricated, and have provided noteworthy advancements in the field of molecular electronics, they do not completely exploit the fascinating properties of quantum tunneling (which was so wonderfully accomplished by Kaiser). Therefore, in order to realize highly sensitive devices which can be batch-fabricated with reasonable uniformity and can be integrated with low-power sensor networks, Kim and Mastrangelo very recently demonstrated the use of nanogap electrodes as highly sensitive gas sensors which consume very little power for continuous operation. Before describing these sensors in some detail, we will briefly describe the need for low-power sensors and sensor networks, and why current sensor technology cannot be utilized for this purpose.

4. Advancement of IoT and the Need of Ultra-Low-Power Sensor Networks

In today’s world of ever-increasing power-hungry applications, inexpensive, portable devices that consume low power are crucial in building a truly interconnected and ‘smart’ civilization. With the advent of the Internet of Things (IoT), we seem to be inching closer towards realizing such a society. The IoT is a concept which describes an interconnected system of physical devices which communicate with each other over the internet and can be remotely monitored and controlled [28]. The first internet connected appliance was a Coke vending machine at Carnegie Mellon University that could report if the drinks loaded inside the machine were cold or not. Since then, devices intended to be part of the IoT have evolved greatly. The number of devices which constitute the IoT network exceeded the world population way back in 2008. It is projected that this number will reach 50 billion in the year 2020 and the IoT market will surpass the markets of the PC, tablet and phone combined. The potential growth of this industry is extremely high since only 0.06% of all possible devices have been optimized for the IoT [29]. These devices include consumer electronics such as ‘smart thermostats’, which allow consumers to remotely control the temperature settings of their house, as well as sophisticated MEMS sensors deployed in vehicles which provide driving assistance, optimized logistics and predictive maintenance. Since these devices must be remotely present across the IoT network grid, it is critical that they fulfill certain requirements. First and most importantly, they need to consume low power. Many IoT applications involve remote air quality monitoring and asset tracking. Such applications require the devices to be battery operated and deployed to remote areas of the world. Therefore, low power consumption is of utmost importance. Second, these devices also need to be highly portable. Consumer electronic products such as the ‘smart-watch’, or applications such as remote-monitoring of pacemaker implants, require the communicating devices to be as small as possible. Hence, large and bulky devices are not suitable for such applications. Third, these devices need to provide accurate and legitimate information for precise data collection and further analysis. For example, in remote sensing and medical applications, the employed devices cannot partake in faulty measurements. Since most of these devices are no longer implemented as a part of ‘stand-alone’ functionalities, failure of one device will inevitably lead to a cascading failure of another. This domino effect needs to be prevented at all costs.

5. Current Sensor Technology and Their Drawbacks of w.r.t IoT Applications

Existing sensor technologies can be divided into mainly five categories: conductivity-based, solid-state, optical, piezoelectric and polymer swelling-induced gas sensors. Figure 3 shows the working principles of some of these sensors.
Conductivity-based sensors: In these types of sensors, the conductivity of the analyte-sensitive material changes when exposed to the analyte. Most common realizations of these devices include the use of conducting polymer composites [30], conducting polymers [31,32] and metal oxides [31] as the sensing material. When the sensing layer comprised of a conductive polymer composite such as PEDOT:PSS or polypyrrole is exposed to the analyte, the polymer film absorbs the vapor which causes it to swell. This expansion causes a reduction in current conduction paths along the polymer which leads to an increase in resistance of the polymer film. Intrinsically conductive polymers such as polyaniline are also used as gas sensitive materials for such sensors. The principle of operation is the same as described above: exposure to a gaseous analyte leads to an expansion of the polymer which causes a change in electron density of the polymer chains and this changes the resistance of the polymer itself. Metal-oxide (MOX) based gas sensors work on the principle that the oxide (either p-type which respond to oxidizing gases or n-type which respond to reducing gases) reacts with the appropriate gas which leads to an excess of majority charge carriers (holes or electrons in p-type or n-type sensors). These excess charge carriers lead to augmented current conduction. Commonly used MOX sensors employ tin dioxide, zinc oxide, nickel oxide, cobalt oxide and iron (III) oxide as part of their sensing layer. These devices have certain inherent advantages, for example, conductive polymer-based sensors display reasonable selectivity in sensor response, they are relatively cheap to prepare and show linear response for a wide range of target analytes. MOX sensors show fast response and recovery times. However, the major disadvantage of these sensors is that they require high operating temperatures to function properly and hence cannot be used for low power applications.
Solid-state gas sensors: In these sensors, the threshold voltage of the semiconductor device [33,34] (typically a MOSFET or PolFET) changes when exposed to a target analyte. This is because the interface of the catalytic metal (gate electrode) and the oxide layer becomes polarized when exposed to the gaseous analyte and this changes the work-function of the metal and oxide layer. To facilitate a reaction between the analyte and the metal–insulator interface, usually a porous gas-sensitive gate metal, such as Pd, or a suspended gate design is used to provide access to the metal–insulator interface. These devices can be microfabricated using standard CMOS techniques which makes them highly compatible with existing CMOS circuitry and means they are cheap to manufacture. However, the major drawbacks of these types of sensors are that they suffer from baseline drift and instability. They require complicated packaging and can function well only if the surrounding environment is controlled. Hence, they cannot be deployed for remote sensing purposes.
Optical gas sensors: In optical gas sensors, an optical fiber is coated with a fluorescent dye such as Pyranine or HPTS. This is encapsulated within a polymer matrix. When the optical fiber interacts with the target gas, the optical properties of the dye, such as intensity, spectrum or wavelength, change [35]. The sensitivity of the sensor depends on the type of dye and the polymer in which the dye is imbedded. Typically, adsorbents such as Al2O3 are often added to the polymer for improving detection limits [36]. The major advantages of these devices are that they have extremely fast response times and are immune to electromagnetic interference. However, to use them, one needs to implement complicated electronics and postprocessing software algorithms which makes them impractical for IoT-based applications. Additionally, these sensors are also susceptible to photobleaching which can render them ineffective. Therefore, these sensors cannot be a part of the IoT framework.
Piezoelectric gas sensors: In piezoelectric gas sensors, the resonant frequency of the output signal changes when exposed to the target analyte. A typical surface acoustic wave (SAW) device includes two interdigitated transducers on a piezoelectric substrate (e.g., ZnO or Lithium niobate) with a polymeric gas-sensitive coating in between [37]. An AC signal applied at the input electrode produces two-dimensional waves which travel along the surface of the substrate. When the device is exposed to the analyte, the coating adsorbs the analyte molecules and this change in mass of the gas-sensitive coating changes the frequency of the traveling surface wave, which is then sensed at the output electrode. Similar to the SAW devices, quartz crystal microbalance (QCM) devices [38] operate on the principle that exposure to certain analytes leads to an increase in the mass of the gas-sensitive material, which is deposited on a quartz crystal. This change in mass leads to a change in resonant frequency of the crystal and is used for detecting the presence of analytes. The advantages of these devices are that they offer high sensitivity and fast response times. However, they require complex and expensive circuitry to function. Additionally, batch-to-batch reproducibility and low SNR add to the list of disadvantages of these devices.
Polymer swelling-induced gas sensors: MEMS cantilevers have been widely used as gas sensors for more than a decade. In a typical MEMS-based humidity sensor [39], a Si free-standing cantilever is coated with a patch of polyimide, which is a moisture-sensitive polymer. The cantilever is suspended at a small distance on top of another electrode. When the device is exposed to a change in ambient moisture, the polymer swells, which causes a differential strain in the polymer–Si bimorph cantilever. This causes the cantilever to bend, thereby reducing the distance between the top cantilever and bottom electrode. The change in this distance causes the capacitance to increase which is a measure of the absorbed humidity. Such sensors have been widely used since they typically consume very low power and can be batch-fabricated. However, they are extremely temperature-sensitive and display a lack of selectivity amongst different analytes [40]. Pattern recognition algorithms have been used to significantly improve the selectivity of these sensors. More examples of such sensors can be found here [41,42,43,44,45,46].

6. Previous Efforts in Developing Sensor Technology for IoT Applications

Considering the various disadvantages mentioned in the preceding sections, most of the modern-day sensor technologies are not feasible to be used for IoT-based applications. The commercially available gas sensors used for such purposes are used mostly for air-quality monitoring in manufacturing, agriculture and health industries and include devices which can detect analytes such as CO2, CO, H2, O3 and O2 [47]. These are usually electrochemical, photoionization and semiconductor-based sensors [48]. However, many of them require complicated circuits with multiple operational amplifiers for optimum performance. Correct sensor output is limited to operational temperatures <40 °C and the devices are cross-sensitive to multiple commonly found gases.
There is considerable research going on in the field of low power gas sensing. Laubhan [49] proposed a low power IoT framework where they used multiple sensor chips as part of a wireless sensor network with configurable nodes which can be used to analyze motion detection, perform air quality inspection and measure humidity and temperature. Gogoi et al. [50,51] also developed batch-fabricated multisensor platforms on a single chip which are probable candidates to be used for IoT-based applications. Novel sensing mechanisms implemented by Chikkadi [52], Choi [53], Park [54], Woo [55] and Shim [56] have gone a long way in developing sensors for low-power applications. However, to more effectively develop sensor node systems for such applications, active research is being carried out to develop gas sensors which consume even less power and demonstrate higher selectivity/sensitivity. To accomplish this, very recently, a new family of nanogap gas sensors which work on the fundamental principles of quantum tunneling has been developed. The following sections will briefly describe these devices and provide a commentary on their advantages and roadblocks to their realization as the next generation sensor for the IoT.

7. Nanogap Electrode-Based Quantum Tunneling Gas Sensors

As mentioned before, Mastrangelo and Kim present a new family of chemiresistive nanogap gas sensors that are based on electron quantum mechanical tunneling between two metal electrodes separated by nanogap junctions. As part of this research, they first developed a new batch-fabrication method of nanogap tunneling junctions and performed exhaustive characterization of the uniformity of the spacer layer, inspected tunneling current characteristics and determined the potential barrier of the thin spacer layer, as well as the maximum operating voltage for the device. After this, the nanogap electrodes are chemically functionalized by coating them with a self-assembled monolayer (SAM) of thiol molecules. When the functionalized devices are exposed to the target molecules, they get “captured” by the SAM. The captured molecules form a molecular bridge across the junction producing an augmented electrical transport between the electrodes, along this bridge. This essentially reduces the barrier potential height for electron tunneling and exponentially increases the junction current density. This is the fundamental working principle of the nanogap electrode-based gas sensors and can be utilized for the electrical detection of bridging target molecules. The significant increase in the tunneling current upon target capture results in highly sensitive detection and the very low leakage current prior to capture ensures extremely low power consumption. These devices are therefore potential candidates for low-power, portable and highly sensitive sensor applications. In this device, shown in the schematic of Figure 4, two gold electrodes separated by a ~6 nm thick gap are coated with a self-assembled monolayer (SAM) of conjugated thiols. The resulting SAM-coated gap is designed such that if no gas is captured, the tunneling resistance is high, in the order of 109 Ω corresponding to the device’s “OFF” state. If, however, the SAM captures target gas molecules, the resulting metal–SAM–molecule–SAM–metal junction forms a molecular bridge between the otherwise electrically isolated electrodes. Figure 4 shows a schematic of the sensor action focusing on the device structure and target capture corresponding to an electrical switch that is “OFF” and then turns “ON”, respectively.
In addition to these static nanogap electrode designs, they also presented the working of a new type of microfabricated quantum tunneling hygrometer that is able to provide large output range and a low temperature dependence. Figure 5 shows the schematic explaining the working principle of the humidity sensor. The device utilizes the expansion of a polymer that swells when exposed to humidity as in a polymer swelling-based capacitive humidity sensor, but it produces a resistive output that measures the polymer expansion through the tunneling current across a humidity-dependent, thermally stabilized nanogap. The tunneling current changes many orders of magnitude providing similar output to the resistive type device, but with a negligible temperature dependence. The following sections provide a brief description of this new family of gas sensors, with a focus on device design, fabrication, characterization and sensor performance.

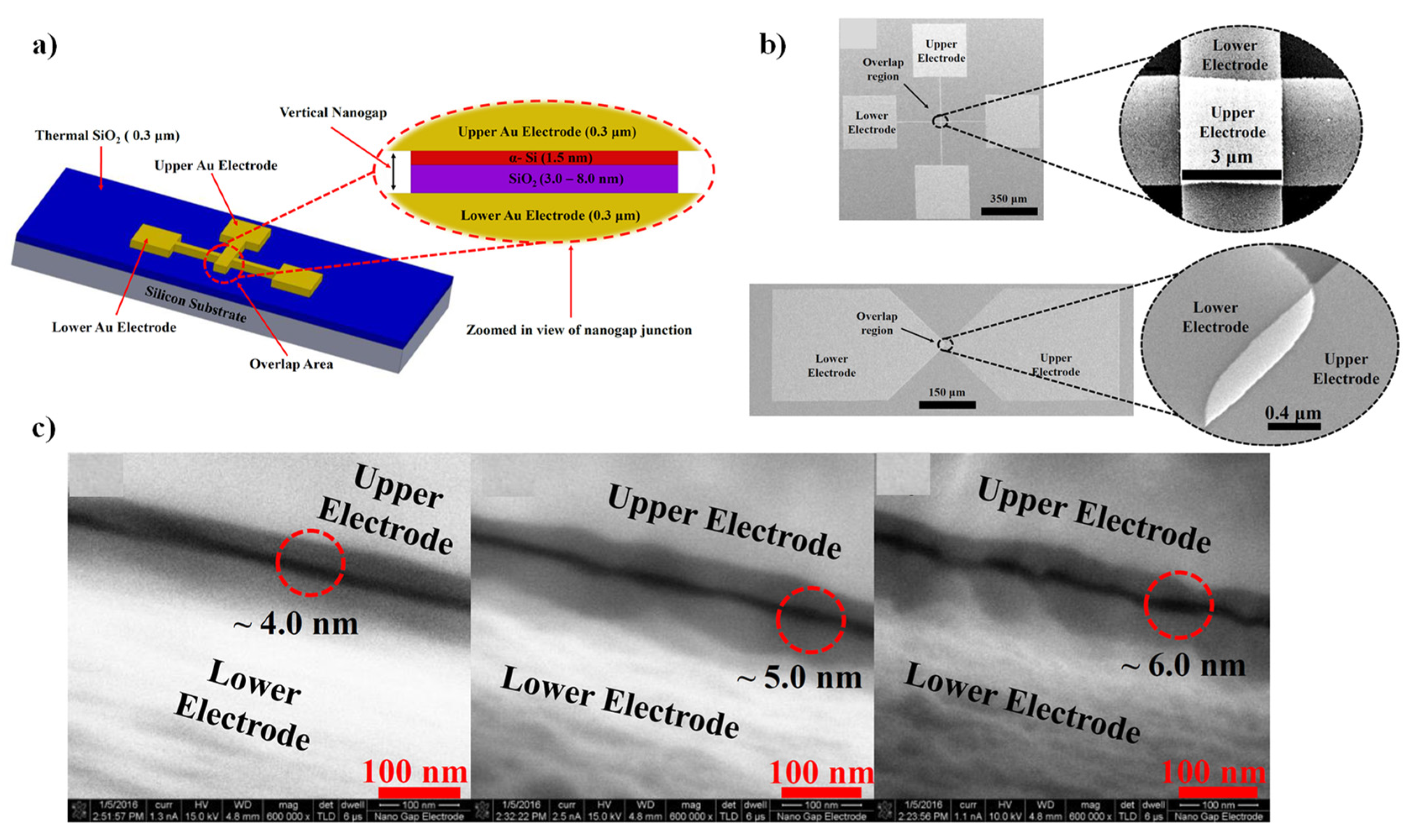

7.1. Batch Fabrication of Nanogap Tunneling Junctions: Device Structure, Design and Fabrication

The nanogap electrode assembly consists of a partially etched spacer film, sandwiched between two thin electrically isolated gold electrodes. The spacer is a sacrificial stack of a very thin dielectric layer of SiO2 deposited using a plasma-enhanced ALD method, which provides excellent electrical insulation and an ultra-thin layer of sputtered α-Si, which acts as an adhesive layer between the top gold electrode and the dielectric material. A sacrificial plasma etch of the spacer layer creates a nanogap along the edges of the upper gold electrode. A schematic of the fabricated two-layer nanogap design is shown in Figure 6a. Since these nanogap devices will eventually be used for low-power and remote gas sensing, it is essential that the leakage current during device operation be kept to a minimum so that the parasitic DC power consumption is extremely low, and since the junction leakage current is directly proportional to the overlap area of the electrodes, an electrode design with a low overlap area should generally ensure a lower leakage current. Therefore, the authors chose two design architectures with relatively low electrode overlap areas—a “square-overlap” layout (having an overlap area of ~16 μm2), which is essentially a perpendicular arrangement of two thin metal wires, and a “point-overlap” layout (having an overlap area of ~0.24 μm2), which is a very low-overlap arrangement of lithographically patterned pointed tip-ends of patterned electrodes. This also allowed for measurement of current conduction characteristics as a function of the overlap area. Figure 6b,c shows SEM images of the fabricated devices and nanogaps.
The fabrication process of the nanogap electrode assembly can be briefly explained as follows. They start by growing ~300 nm of SiO2 on a Si wafer. This is followed by DC sputtering 25 nm of Cr and 200 nm of Au and subsequent patterning by traditional lithographic techniques to define the lower gold electrodes. The chemical solution Transene Au etchant TFA was used to selectively etch away the gold. Next, a desired thickness of dielectric material (SiO2) was deposited for various time intervals, from 17 to 188 cycles of plasma-enhanced ALD process at a substrate temperature of 200 °C with the commercially available metal-organic precursors tris[dimethylamino]silane (3DMAS) on separate samples to fabricate nanogap electrodes with different spacer thicknesses. Then, an ultra-thin layer of α-Si was sputtered for 17 s at 50 W to get a ~1.5 nm film on each sample. Without breaking vacuum, another layer of ~200 nm of Au is sputtered and lithographically patterned to form the top electrodes. Finally, the samples are dry etched in an inductively coupled plasma etcher (Oxford 100 ICP) with SF6 plasma for 40 s at an ICP forward power of 250 W with 45 sccm of SF6 flow rate to partially remove the α-Si and SiO2, thereby forming a nanogap along the edges of the top electrode.
After fabrication, a self-assembled monolayer (SAM) linker solution is prepared by dissolving about 20 mg of the linker chemical in a solution of about 4 mL dimethyl sulfoxide (DMSO) and 10 mL of ethanol. The fabricated devices were cleaned by treating them with O2 RF plasma for one minute and then immediately immersed into the linker solution to avoid any contamination. The exposed gold surface was functionalized by immersing the device in the proper linker solution for about 48 h which ensured perfect formation of the SAM on all exposed gold surfaces, including those sandwiching the nanogap between them. After proper functionalization, the bare gold surface was coated by a self-assembled-monolayer of (4-((4-((4-mercaptophenyl)ethynyl)phenyl)ethynyl)benzoic acid).

7.2. Sensor Action

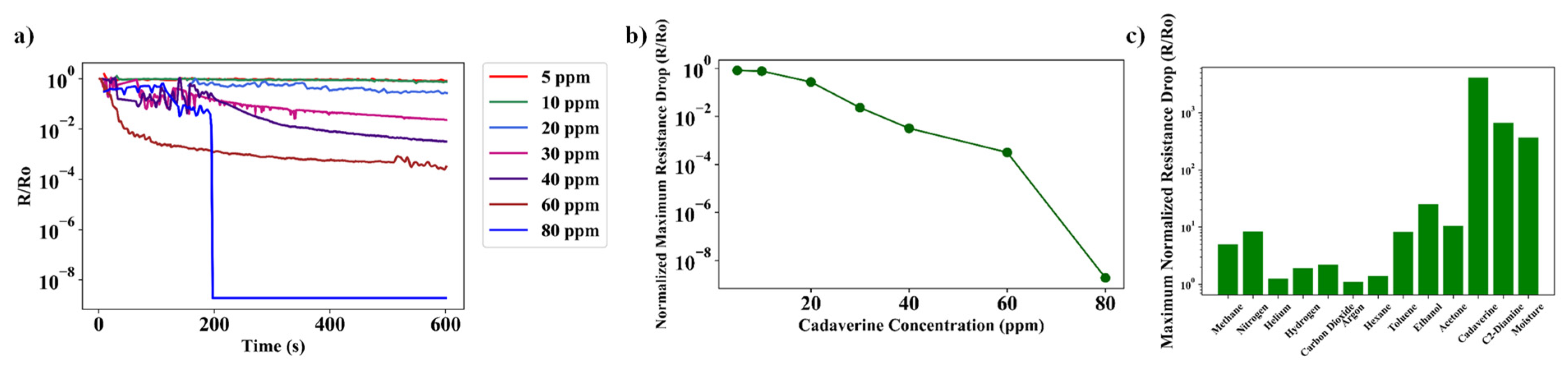

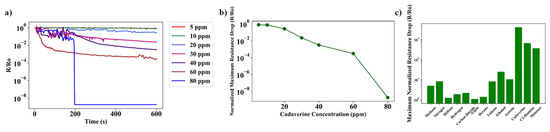

Figure 7a shows the response of the nanogap device when exposed to different concentrations of cadaverine. As evident from the plot, exposure to 30–80 ppm of cadaverine leads to a reduction of junction resistance by ~2–8 orders of magnitude, respectively. The standby power consumption of the sensor was measured to be less than 15.0 pW. If successful switching is defined to demonstrate an ON/OFF ratio of ~two orders of magnitude or more, we can conclude that the threshold for switching the nanogap devices ‘ON’ is ~30 ppm of analyte concentration in the testing chamber. Figure 7b shows the normalized maximum resistance drop of the nanogap sensor when it is exposed to different concentrations of cadaverine. To investigate the cross-sensitivity of the sensor, the device was also exposed to commonly encountered VOCs such as acetone, ethanol and hexane, as well as gases such as Helium, Nitrogen and CO2. The authors define the sensor response as the normalized junction resistance drop after exposure to the analyte. Figure 7c shows the resistance ratio of the nanogap sensor when exposed to these analytes as compared to the ratio when exposed to the intended target gas, cadaverine. Measurements reveal a ROFF/RON ratio of more than four orders of magnitude when exposed to only 40 ppm concentration of cadaverine, whereas they reveal a maximum ROFF/RON ratio of ~two orders of magnitude when exposed to much higher concentrations of the other analytes. The concentration levels of the VOCs were maintained at greater than 10,000 ppm. To measure the device response in the presence of other gases, we flooded the test chamber with the specific test gas and then monitored the resistance drop of the sensor. These results suggest a highly selective sensor action against most commonly found VOCs. More details regarding these devices can be found here [57,58,59,60,61,62,63,64,65,66,67].

7.3. Temperature Compensated Quantum Tunneling Hygrometer

In addition to sidewall-etched vertical nanogap quantum gas sensors, the authors also demonstrated a highly sensitive, temperature-stabilized humidity sensor working on the principles of quantum tunneling. The unique feature of this device was that in addition to ultra-high sensitivity and very low power consumption, the device also featured a passive temperature compensation scheme, which ensured that the device would demonstrate an output signal only in the presence of changing humidity and not due to unwarranted temperature fluctuations.
Working Principle: The device consists of a pair of upper and lower electrodes, separated by an air gap of ~2.5 nm as shown in Figure 5, illustrating the basic sensing mechanism.
The upper electrode rests at a fixed height. The bottom electrode rests on top of a hygroscopic polymer, a polyimide that swells when humidity is absorbed, thus reducing the gap between the two electrodes. The swelling of the polyimide with humidity is linear, corresponding to its humidity coefficient of expansion or CHE, which is 60–75 ppm/% RH [68]. Figure 5 also shows the electron band diagram across the nanogap. If the nanogap is very small electrons can tunnel from one electrode to the other establishing a conductive path. The magnitude of the tunneling current is exponentially dependent on the gap. In the simple configuration shown in the figure, the gap Δ is also affected by the thermal expansion of the polyimide, which makes the coefficient A and the resistance of the device strongly dependent on the ambient temperature.
To eliminate this strong temperature dependence, they utilize the differential device arrangement, as shown in the schematic of Figure 8a, where the two electrodes rest on polyimide patches of equal thickness; hence in the absence of humidity, the nanogap distance is constant and independent of temperature fluctuations. However, only one of these patches can absorb humidity, thus producing a humidity-induced nanogap change. The differential device assembly consists of an upper Al electrode and a lower Cr electrode separated by an air gap of ~2.5 nm, standing on separate patches of 1.5 μm thick polyimide. As shown in Figure 8a, the polyimide patch under the upper electrode is covered with ~8 nm of ALD-deposited Al2O3 diffusion barrier, whereas that under the lower electrode is exposed to ambient atmosphere.
Thus, nanogap temperature stabilization was achieved by using cancelation of a common mode thermal expansion of both patches and humidity signal extraction by differential response to humidity between the two patches. Since both the top and bottom electrodes are standing on near identical polyimide patches, any increase in ambient temperature would lead to both the patches expanding almost equally. This ensures that in the event of temperature fluctuation, the nanogap distance between the top and bottom electrode will remain unchanged and the electrical response will be negligible in comparison to sensor response.
Device fabrication: The fabrication process started by growing ~1 μm of thermal SiO2 on a 4 inch Si wafer. Polyimide was then diluted by dissolving uncured HD4104 polyimide (purchased from HD Microsystems) in N-Methyl-2-pyrrolidone (NMP) solvent in a ratio of 1:0.5 (wt/wt). This mixture was then dissolved by stirring it with a magnetic stirrer at 300 rpm for 2 h to ensure perfect mixing of the polyimide and the NMP solvent. This mixture was then spin-coated on the sample at 2000 rpm following the standard procedures for polyimide processing. For curing the polyimide, the sample was kept in a nitrogenized environment oven for three hours at a temperature of 300 °C. This procedure resulted in polyimide thickness of ~1.5 μm. Following this, we sputtered and patterned 200 nm of Al on the sample at 50 W and used it as a hardmask to pattern the underlying polyimide. O2 plasma dry etching for 10 min at 100 W was sufficient to remove the unwanted polyimide from the sample. Next, the remnant Al was stripped off by using commercially available aluminum etchant. Following this, we sputtered ~100 nm of Cr at 50 W on the sample and lithographically patterned it to define the lower electrodes. After this, we deposited about 2.5 μm of PECVD α-Si on the sample to form the sacrificial bridging supports for the upper electrode. This was followed by thermal ALD of ~8 nm Al2O3 and its lithographic patterning using BOE. Then, we sputtered ~2.5 nm of α-Si on the sample at 50 W to pattern the sacrificial spacer layer to define the thickness of the eventual nanogap between the electrodes. We next deposited ~1 μm of Al on the sample and patterned it to form the upper electrode. Finally, we sacrificially etched away the α-Si using XeF2. A total of 1200 min of etching was required to completely etch away the sacrificial Si and release the upper electrode. SEM images of the fabricated device are shown in Figure 8b.
Sensor action: After the device is fabricated, the upper and lower electrodes are separated by an air gap of ~ 2.5 nm. Therefore, the current flow across the nanogap junction involves conducting electrons tunneling through 2.5 nm of air gap. However, when the device is exposed to an increase in humidity, only the unprotected patch of polyimide, which is beneath the lower electrode, absorbs water vapor molecules and swells. This is because the Al2O3 acts as a diffusion barrier and prevents the polyimide patch under the upper electrode from absorbing water molecules [15]. This differential swelling of the polyimide patches results in the inter-electrode distance reducing below 2.5 nm. Therefore, after the absorption of water vapor molecules, the tunneling distance for the conduction electrons reduces. Since the tunneling current exhibits exponential dependence on tunneling distance, increases in humidity levels lead to an exponential increase in the tunneling current. In other words, junction resistance decreases exponentially when exposed to increased humidity levels.

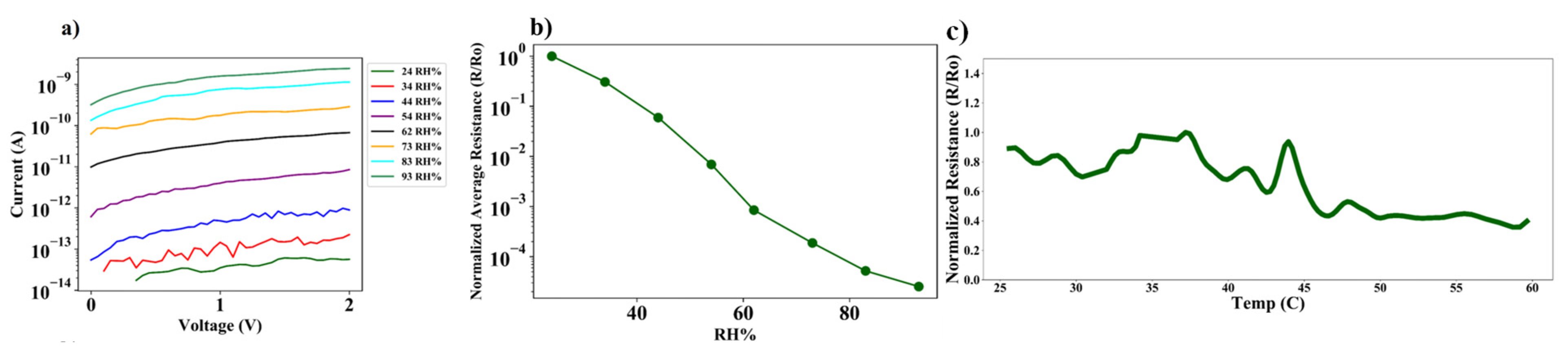

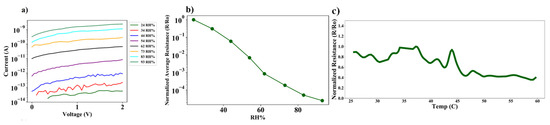

Figure 9a shows the IV curves of the device when exposed to an increasing RH% from ~20–90 RH%. As evident from the IV plots, the increasing RH% leads to an increase in magnitude of current flow for the same voltage bias. Figure 9b is a plot of normalized average resistance vs. RH%. These plots are a clear indication of exponential reduction of junction resistance with increasing RH%.
Temperature compensation: Figure 9c shows the temperature response of the device when subjected to a temperature change from 25–60 °C. As evident from the plot, the junction reduces <5 times when subjected to temperature changes. This is ~0.05% of the maximum resistance drop of the junction resistance when exposed to changes in humidity. Therefore, it is clear that the device displays sufficient temperature compensation. Details of these tunneling hygrometers can be found here [68,69,70].

8. Roadblocks

As mentioned above, the exponential dependence of the tunneling current on potential barrier height/width results in such high sensitivity of quantum tunneling sensors. However, it is this very dependency which prevents widespread usage of such sensors and restricts them to only specialized applications. Unavoidable variations due to fabrication errors can generally lead to non-uniformities of at least a couple of nanometers in thin-film dimensions, and by extension, potential barrier dimensions as well. While this may seem negligible for most MEMS devices, which essentially operate in the micrometer scale, it can cause significant variation in quantum tunneling currents across the barrier which would inevitably lead to issues such as low repeatability and significant variation in device performance across a batch-fabricated set of devices.
For example, such issues have been often observed in nano-biosensors which comprise of either carbon nanotubes (CNT), nanoparticles, quantum dot structures, nanowires or nanorods. The unique properties of these nanomaterials/nanostructures can be exploited depending upon the specific analyte to be sensed [71]. For example, CNTs have been demonstrated to have an improved enzyme loading, ability to be functionalized and low impedance for better electrical conduction. Quantum dots have been utilized for their excellent fluorescence properties and quantum confinement of charge carriers, as well as tunable band energy. Nanoparticles aid in immobilization and enable better loading of bioanalytes, as well as possessing good analytic properties. Nanowires and nanorods are extensively used for biosensing purposes due to their compatibility with conventional MEMS processes as well as their high electrical conductivity. However, these nanosensors suffer from an alarmingly high varying response when exposed to identical analytes, which has been the most dominant roadblock in their path to practical and commercial usage. For example, when Choi et al. [72] developed a single-walled CNT (SWCNT) for detection of Staphylococcus aureus, the sensor demonstrated a significantly high average variance (standard deviation) in measured resistance change of the biosensor when reacting with Staphylococcus aureus. Figure 10a shows the resistance change of the SWCNT-based biosensors exposed to an increasing concentration of Staphylococcus aureus. As is clearly evident from Figure 10a, the error bars in the sensor response plot covey a significant variance in sensor output for the same exposed concentration of Staphylococcus aureus, and, additionally, exposure to a varying concentration of Staphylococcus aureus also resulted in overlapping values of sensor output. Although most scientific articles offer limited explanations of this phenomenon, the root cause of the variance lies in the structural variations among synthesized CNTs despite being synthesized using identical methods. The three most common methods of preparing CNTs are arc discharge, laser ablation and CVD. The literature suggests that CNTs synthesized using these methods display an average diameter variance of ~30 nm. Additionally, there remains a significant structural variance within a single CNT. The working principle of most CNT-based biosensors depends on the modulation of electron conduction through the CNTs upon interaction with target analytes. The electrical properties of CNTs are heavily dependent on the diameter and chirality of the specific CNT and they can be either metallic or semiconductors. Assuming a negligible voltage drop at the junction between two CNTs, the quantum tunneling conductance of CNT junctions formed between two carbon nanotubes can be approximated using the Landauer theory, where the conductance, G, is given by:
G = e 2 π ħ m , n t m n 2
where tmn is the transmission coefficient between the incident channel n and outgoing channel m. The exponential dependence of transmission probability in quantum tunneling-assisted current conduction has been extensively discussed in the literature and the generalized expression for transmission coefficient can be written as:
t = 1 c o s h 2 β L + γ / 2 2 × s i n h 2 β L
where L is the thickness of the barrier. In the context of current conduction through CNT junctions, the thickness of the barrier is approximately equivalent to the diameter of the CNT nanostructure, and therefore, a variance in CNT diameter directly translates to an exponential variance in electrical characteristics of CNT junctions. Hence, a variance in CNT dimensions is most likely to cause a variance in CNT-based biosensor output when exposed to same concentrations of target analyte. Indeed, there has been widespread reported variation in CNT-based biosensors. Figure 10b,c shows the error bars in sensor output plots of various CNT based biosensors.
Similar variance in sensor outputs has also been observed in biosensors based on either nanoparticles, nanorods or quantum dots. For example, Ermini et al. developed peptide-functionalized gold nanoparticles (AuNP) for the detection of carcinoembryonic antigen in blood plasma [73]. The reported size of the synthesized nanoparticles was 30 nm ± 6 nm. The variance in the sensor output of NP-based biosensors ranged from ~40% at lower analyte concentrations to ~20% at higher analyte concentrations. Since the current conduction mechanism between the aggregated nanoparticles is also quantum tunneling in nature, a variance in nanoparticle dimensions will also lead to an augmented variance in sensor output.
Additionally, biosensors based on batch-fabricated electrical nanogap devices have been developed in the last couple of decades for their excellent CMOS compatibility and their ability to enable direct electrical inspection of organic molecules. The gap between the electrodes can be suitably engineered to trap biomolecules of similar sizes which can be detected based on studying their electrical properties. To improve selectivity of the trapped biomolecules, these nanogap electrodes are often functionalized to enable specific binding of the target analyte. Figure 11a,b shows the SEM of a fabricated nanogap electrode system. As is evident from the SEM images, the dimensions of the fabricated nanogaps display significant non-uniformities. The dimensions of the gap between the electrode are crucial in determining its characteristics and performance. Due to the quantum tunneling nature of electron transport in these devices, non-uniformities in nanogap dimensions often lead to a significant variance in electrical characteristics of the fabricated nanogap electrodes. Banerjee et al. recently demonstrated the variance in electrical characteristics of batch-fabricated vertical nanogap tunneling junctions [57]. Figure 11c shows the variance in sacrificial layer deposition thicknesses which were used to define the dimensions of the nanogap between the electrodes. Therefore, it is but an inevitability that biosensors based on similar nanogap devices will also display some variation in sensor output. This variance in sensor performance and batch-to-batch irreproducibility presents a significant roadblock to the widespread and commercial use of quantum tunneling sensors.

9. Conclusions and Future Prospects

Quantum tunneling is one of the most intriguing phenomena observed in the natural world. Utilizing the exponential dependency of tunneling currents on potential barrier height and barrier width, one can design sensors which can cause a change in either of the two parameters upon successful analyte detection, and in turn, cause an exponential change in tunneling current, which can be accordingly measured. The primary applications of such sensors include the development of very low power consuming and ultra-high sensitivity sensors and sensor systems. Traditionally, these devices had been developed mainly for specialized applications such as highly sensitive accelerometers/bolometers, etc. Very recently, batch-fabricated nanogap electrode designs have been used to exploit these quantum properties and develop quantum tunneling gas sensors, which are extremely sensitive to analyte concentration change and consume very low power. The versatility of these devices has also been demonstrated when similar devices were functionalized with a different SAM and used to detect ultra-low concentrations of plant-emitted hormones [77,78]. These devices are ideal for integration with a “wake-up” sensor network, where the active device only consumes electrical power in the presence of the analyte and remains in a dormant state otherwise.
However, as explained above, the quantum nature of current conduction in this device also poses significant challenges in its widespread usage. Unavoidable non-uniformities in current fabrication techniques inevitably lead to major variation in device performance and repeatability. Although the utilization of specialized techniques such as Pulsed Laser Deposition and Epitaxial Growth processes have been shown to deposit thin films with remarkable uniformity, the process speed is highly reduced compared to other thin-film deposition techniques such as sputtering and evaporation. Therefore, for successful practical and widespread implementation of quantum gas sensors, one has to thoroughly optimize process parameters for device fabrication. Alternatively, one can also utilize artificial intelligence and machine learning-based algorithms to develop a sensor system which compensates for the non-uniformities of the device properties. We feel that a combination of approaches including optimized process parameters and artificial intelligence will enable widespread utilization of quantum tunneling sensors and help usher in a new era of solid-state sensors with ultra-high sensitivity and very low power consumption features.

Author Contributions

A.B.: Conceptualization and Manuscript Preparation; C.H.M.: Conceptualization, Funding procurement and Manuscript proof-reading. All authors have read and agreed to the published version of the manuscript.


This work made use of University of Utah USTAR shared facilities supported, in part, by the MRSEC Program of NSF under Award No. DMR-1121252. This work was sponsored under cooperative agreement HR0011-15-2-0049 of the DARPA N-ZERO program. This research work was also generously funded by the cooperative agreement of DE-AR0001064 of the ARPAE OPEN 2018 program.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Razavy, M. Quantum Theory of Tunneling, 1st ed.; World Scientific Publishing Company: Hackensack, NJ, USA, 2003. [Google Scholar]
  2. Rother, F. Über den Austritt von Elektronen aus kalten Metallen. Ann. Phys. 1926, 386, 317–372. [Google Scholar] [CrossRef]
  3. Hund, F. Zur Deutung der Molekelspektren. I. Z. Phys. 1927, 40, 742–764. [Google Scholar] [CrossRef]
  4. Ralph, H.F.; Nordheim, L. Electron emission in intense electric fields. Proc. R. Soc. Lond. Ser. A Contain. Pap. A Math. Phys. Character 1928, 119, 173–181. [Google Scholar] [CrossRef]
  5. Merzbacher, E. The Early History of Quantum Tunneling. Phys. Today 2002, 55, 44–49. [Google Scholar] [CrossRef]
  6. Esaki, L. New Phenomenon in Narrow Germanium pn Junctions. Phys. Rev. 1958, 109, 603–604. [Google Scholar] [CrossRef]
  7. Simmons, J.G. Generalized Formula for the Electric Tunnel Effect between Similar Electrodes Separated by a Thin Insulating Film. J. Appl. Phys. 1963, 34, 1793–1803. [Google Scholar] [CrossRef] [Green Version]
  8. Binnig, G.; Rohrer, H. Scanning Tunneling Microscopy. Surf. Sci. 1983, 126, 236–244. [Google Scholar] [CrossRef]
  9. Kenny, T.W.; Reynolds, J.K.; Podosek, J.A.; Vote, E.C.; Miller, L.M.; Rockstad, H.K.; Kaiser, W.J. Micromachined infrared sensors using tunneling displacement transducers. Rev. Sci. Instrum. 1996, 67, 112–128. [Google Scholar] [CrossRef]
  10. Kenny, T.W.; Kaiser, W.J.; Podosek, J.A.; Rockstad, H.K.; Reynolds, J.K.; Vote, E.C. Micromachined tunneling displacement transducers for physical sensors. J. Vac. Sci. Technol. A Vac. Surf. Film. 1993, 11, 797–802. [Google Scholar] [CrossRef]
  11. Kenny, T.W.; Kaiser, W.J.; Waltman, S.B.; Reynolds, J.K. Novel infrared detector based on a tunneling displacement transducer. Appl. Phys. Lett. 1991, 59, 1820–1822. [Google Scholar] [CrossRef]
  12. VanZandt, T.R.; Kenny, T.W.; Kaiser, W.J. Novel position sensor technologies for microaccelerometers. In Sensors and Sensor Systems for Guidance and Navigation II; SPIE: Orlando, FL, USA, 1992; pp. 165–172. [Google Scholar] [CrossRef]
  13. DiLella, D.; Whitman, L.J.; Colton, R.J.; Kenny, T.W.; Kaiser, W.J.; Vote, E.C.; Podosek, J.A.; Miller, L.M. A micromachined magnetic-field sensor based on an electron tunneling displacement transducer. Sens. Actuators A Phys. 2000, 86, 8–20. [Google Scholar] [CrossRef]
  14. Reed, M.A.; Zhou, C.; Muller, C.J.; Burgin, T.P.; Tour, J.M. Conductance of a Molecular Junction. Science 1979, 278, 252–254. [Google Scholar] [CrossRef] [Green Version]
  15. Dolan, G.J. Offset masks for lift-off photoprocessing. Appl. Phys. Lett. 1977, 31, 337–339. [Google Scholar] [CrossRef]
  16. Valladares, L.D.L.S.; Felix, L.L.; Dominguez, A.B.; Mitrelias, T.; Sfigakis, F.; Khondaker, S.I.; Barnes, C.H.; Majima, Y. Controlled electroplating and electromigration in nickel electrodes for nanogap formation. Nanotechnology 2010, 21, 445304. [Google Scholar] [CrossRef] [Green Version]
  17. Hatzor, A.; Weiss, P.S. Molecular Rulers for Scaling Down Nanostructures. Science 2001, 291, 1019–1020. [Google Scholar] [CrossRef] [Green Version]
  18. Li, T.; Hu, W.; Zhu, D. Nanogap Electrodes. Adv. Mater. 2010, 22, 286–300. [Google Scholar] [CrossRef]
  19. Ashwell, G.J.; Wierzchowiec, P.; Bartlett, C.J.; Buckle, P.D. Molecular electronics: Connection across nano-sized electrode gaps. Chem. Commun. 2007, 12, 1254–1256. [Google Scholar] [CrossRef]
  20. Tyagi, P.; Li, D.; Holmes, S.M.; Hinds, B.J. Molecular Electrodes at the Exposed Edge of Metal/Insulator/Metal Trilayer Structures. J. Am. Chem. Soc. 2007, 129, 4929–4938. [Google Scholar] [CrossRef]
  21. Howell, S.W.; Dirk, S.M.; Childs, K.; Pang, H.; Blain, M.; Simonson, R.J.; Tour, J.M.; Wheeler, D.R. Mass-fabricated one-dimensional silicon nanogaps for hybrid organic/nanoparticle arrays. Nanotechnology 2005, 16, 754–758. [Google Scholar] [CrossRef]
  22. Nevill, J.T.; di Carlo, D.; Liu, P.; Jeong, K.H.; Lee, L.P. Detection of protein conformational changes with a nanogap biosensor. In Proceedings of the 13th International Conference on Solid-State Sensors, Actuators and Microsystems, 2005. Digest of Technical Papers. TRANSDUCERS ‘05, Seoul, Republic of Korea, 5–9 June 2005. [Google Scholar]
  23. Lee, L.P.; Oh, S.; Choi, Y.; Lee, J.S.; Sensor, B.; Center, A. Molecular Nanoelectronics for Label Free DNA Analysis. In Proceedings of the 2002 International Microprocesses and Nanotechnology Conference, 2002. Digest of Papers, Tokyo, Japan, 6–8 November 2002. [Google Scholar]
  24. Porath, D.; Bezryadin, A.; De Vries, S.; Dekker, C. Direct measurement of electrical transport through DNAmolecules. Nature 2000, 403, 635. [Google Scholar] [CrossRef]
  25. Choi, Y.-K.; Lee, J.S.; Zhu, J.; Somorjai, G.A.; Lee, L.P.; Bokor, J. Sublithographic nanofabrication technology for nanocatalysts and DNA chips. J. Vac. Sci. Technol. B Microelectron. Nanometer Struct. 2003, 21, 2951. [Google Scholar] [CrossRef] [Green Version]
  26. Schlecht, U.; Malavé, A.; Gronewold, T.M.A.; Tewes, M.; Löhndorf, M. Detection of Rev peptides with impedance-sensors-Comparison of device-geometries. Biosens. Bioelectron. 2007, 22, 2337–2340. [Google Scholar] [CrossRef] [PubMed]
  27. Schlecht, U.; Malavé, A.; Gronewold, T.; Tewes, M.; Löhndorf, M. Comparison of antibody and aptamer receptors for the specific detection of thrombin with a nanometer gap-sized impedance biosensor. Anal. Chim. Acta 2006, 573–574, 65–68. [Google Scholar] [CrossRef] [PubMed]
  28. Sharma, V.; Tiwari, R. A review paper on ‘IOT’ & It’s Smart Applications. IJSETR 2016, 5, 472–477. [Google Scholar]
  29. Lafond, A. 4 Barriers to Building an IoT Solution—And How to Overcome Them! Available online: (accessed on 2 November 2022).
  30. Muñoz, B.C.; Steinthal, G.; Sunshine, S. Conductive polymer-carbon black composites-based sensor arrays for use in an electronic nose. Sens. Rev. 1999, 19, 300–305. [Google Scholar] [CrossRef] [Green Version]
  31. Pearce, T.C.; Schiffman, S.S.; Nagle, H.T.; Gardner, J.W. Handbook of Machine Olfaction: Electronic Nose Technology; Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
  32. Heeger, A.J. Semiconducting and Metallic Polymers: The Fourth Generation of Polymeric Materials. J. Phys. Chem. B 2001, 105, 8475–8491. [Google Scholar] [CrossRef]
  33. Hatfield, J.V.; Covington, J.A.; Gardner, J.W. GasFETs incorporating conducting polymers as gate materials. Sens. Actuators B Chem. 2000, 65, 253–256. [Google Scholar] [CrossRef]
  34. Nagle, H.T.; Gutierrez-Osuna, R.; Schiffman, S.S. The how and why of electronic noses. IEEE Spectr. 1998, 35, 22–31. [Google Scholar] [CrossRef]
  35. Grattan, K.T.V.; Sun, T. Fiber optic sensor technology: An overview. Sens. Actuators A Phys. 2000, 82, 40–61. [Google Scholar] [CrossRef]
  36. Arshak, K.; Moore, E.; Lyons, G.M.; Harris, J.; Clifford, S. A review of gas sensors employed in electronic nose applications. Sens. Rev. 2004, 24, 181–198. [Google Scholar] [CrossRef]
  37. Khlebarov, Z.P.; Stoyanova, A.I.; Topalova, D.I. Surface acoustic wave gas sensors. Sens. Actuators B Chem. 1992, 8, 33–40. [Google Scholar] [CrossRef]
  38. Schaller, E.; Bosset, J.O.; Escher, F. ‘Electronic Noses’ and Their Application to Food. LWT Food Sci. Technol. 1998, 31, 305–316. [Google Scholar] [CrossRef] [Green Version]
  39. Lee, C.-Y.; Lee, G.-B. MEMS-based humidity sensors with integrated temperature sensors for signal drift compensation. In Proceedings of the IEEE Sensors 2003 (IEEE Cat. No.03CH37498), Toronto, ON, Canada, 22–24 October 2003; pp. 384–388. [Google Scholar] [CrossRef]
  40. Lange, D.; Brand, O.; Baltes, H. CMOS Cantilever Sensor Systems; Springer: Berlin/Heidelberg, Germany, 2002. [Google Scholar] [CrossRef]
  41. Banerjee, A.; Ghosh, C.; Khan, S.U.H.; Deshpande, A.; Pourshaban, E.; Karkhanis, M.U.; Noh, S.; Kim, H.; Mastranoelo, C.H. Chemocapacitive Detection of Ethylene Using Potassium Permanganate/Polyimide Composite Thin-Films. In Proceedings of the 2021 21st International Conference on Solid-State Sensors, Actuators and Microsystems (Transducers), Orlando, FL, USA, 20–24 June 2021; pp. 851–854. [Google Scholar] [CrossRef]
  42. Likhite, R.; Banerjee, A.; Majumder, A.; Karkhanis, M.; Kim, H.; Mastrangelo, C.H. VOC sensing using batch-fabricated temperature compensated self-leveling microstructures. Sens. Actuators B Chem. 2020, 311, 127817. [Google Scholar] [CrossRef] [Green Version]
  43. Likhite, R.; Banerjee, A.; Majumder, A.; Karkhanis, M.; Kim, H.; Mastrangelo, C.H. Parametrically Amplified Low-Power MEMS Capacitive Humidity Sensor. Sensors 2019, 19, 3954. [Google Scholar] [CrossRef] [Green Version]
  44. Likhite, R.; Banerjee, A.; Kim, H.; Mastrangelo, C.H. Self-Leveling Micromechanical Gas Sensors. In Proceedings of the 2018 IEEE SENSORS, New Delhi, India, 28–31 October 2018; pp. 1–4. [Google Scholar] [CrossRef]
  45. Likhite, R.; Pandey, S.S.; Banerjee, A.; Kim, H.; Mastrangelo, C.H. Amplified chemomechanical comb gas sensor. In Proceedings of the 2016 IEEE SENSORS, Orlando, FL, USA, 30 October–3 November 2016; pp. 1–3. [Google Scholar] [CrossRef]
  46. Pandey, S.S.; Banerjee, N.; Banerjee, A.; Hasan, N.; Kim, H.; Mastrangelo, C.H. High-sensitivity parametrically amplified chemo-mechanical vapor sensors. In Proceedings of the 2015 IEEE SENSORS, Busan, Republic of Korea, 1–4 November 2015; pp. 1–4. [Google Scholar] [CrossRef]
  47. Top 15 Sensor Types Being Used in IoT. Available online: (accessed on 12 October 2021).
  48. Importance of Sensors in the Internet of Things. Available online: (accessed on 28 May 2018).
  49. Laubhan, K.; Talaat, K.; Riehl, S.; Aman, M.S.; Abdelgawad, A.; Yelamarthi, K. A low-power IoT framework: From sensors to the cloud. In Proceedings of the 2016 IEEE International Conference on Electro Information Technology (EIT), Grand Forks, ND, USA, 19–21 May 2016; pp. 0648–0652. [Google Scholar] [CrossRef]
  50. Banerjee, N.; Banerjee, A.; Hasan, N.; Pandey, S.S.; Gogoi, B.P.; Mastrangelo, C.H. A Monolithically Integrated Multisensor Platform. IEEE Sens. J. 2016, 16, 8854–8860. [Google Scholar] [CrossRef]
  51. Banerjee, N.; Banerjee, A.; Hasan, N.; Pandey, S.S.; Gogoi, B.P.; Mastrangelo, C.H. A monolithically integrated multi-sensor platform. In Proceedings of the 2015 IEEE SENSORS, Busan, Republic of Korea, 1–4 November 2015; pp. 1–4. [Google Scholar] [CrossRef]
  52. Chikkadi, K.; Muoth, M.; Maiwald, V.; Roman, C.; Hierold, C. Ultra-low power operation of self-heated, suspended carbon nanotube gas sensors. Appl. Phys. Lett. 2013, 103, 223109. [Google Scholar] [CrossRef]
  53. Choi, S.-W.; Katoch, A.; Kim, J.-H.; Kim, S.S. Prominent Reducing Gas-Sensing Performances of n -SnO 2 Nanowires by Local Creation of pn Heterojunctions by Functionalization with p -Cr 2 O 3 Nanoparticles. ACS Appl. Mater. Interfaces 2014, 6, 17723–17729. [Google Scholar] [CrossRef]
  54. Park, S.; Sun, G.-J.; Jin, C.; Kim, H.W.; Lee, S.; Lee, C. Synergistic Effects of a Combination of Cr 2 O 3 -Functionalization and UV-Irradiation Techniques on the Ethanol Gas Sensing Performance of ZnO Nanorod Gas Sensors. ACS Appl. Mater. Interfaces 2016, 8, 2805–2811. [Google Scholar] [CrossRef]
  55. Woo, H.-S.; Na, C.W.; Kim, I.-D.; Lee, J.-H. Highly sensitive and selective trimethylamine sensor using one-dimensional ZnO–Cr 2 O 3 hetero-nanostructures. Nanotechnology 2012, 23, 245501. [Google Scholar] [CrossRef]
  56. Shim, Y.S.; Jeong, H.Y.; Kim, Y.H.; Nahm, S.H.; Kang, C.Y.; Kim, J.S.; Lee, W.; Jang, H.W. Utilization of both-side metal decoration in close-packed SnO2 nanodome arrays for ultrasensitive gas sensing. Sens. Actuators B Chem. 2015, 213, 314–321. [Google Scholar] [CrossRef]
  57. Banerjee, A.; Khan, S.U.H.; Broadbent, S.; Likhite, R.; Looper, R.; Kim, H.; Mastrangelo, C.H. Batch-Fabricated α-Si Assisted Nanogap Tunneling Junctions. Nanomaterials 2019, 9, 727. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Banerjee, A.; Khan, S.U.H.; Broadbent, S.; Bulbul, A.; Kim, K.H.; Noh, S.; Looper, R.; Mastrangelo, C.H.; Kim, H. Molecular bridge-mediated ultralow-power gas sensing. Microsyst. Nanoeng. 2021, 7, 27. [Google Scholar] [CrossRef] [PubMed]
  59. Banerjee, A.; Farhoudi, N.; Ghosh, C.; Mastrangelo, C.H.; Kim, H.; Broadbent, S.J.; Looper, R. Picowatt gas sensing and resistance switching in tunneling nano-gap electrodes. In Proceedings of the 2016 IEEE SENSORS, Orlando, FL, USA, 30 October–3 November 2016; pp. 1–3. [Google Scholar] [CrossRef]
  60. Ghosh, C.; Khan, S.H.; Broadbent, S.J.; Hsieh, H.C.; Noh, S.; Banerjee, A.; Farhoudi, N.; Mastrangelo, C.H.; Looper, R.; Kim, H. Nano-gap vapor sensor. In Proceedings of the 2017 IEEE SENSORS, Glasgow, UK, 29 October–1 November 2017; pp. 1–3. [Google Scholar] [CrossRef]
  61. Khan, S.U.H.; Banerjee, A.; Broadbent, S.; Kairy, P.D.; Kim, K.H.; Mastrangelo, C.H.; Looper, R.; Kim, H. Molecular Length Based Target Identification using a Nano-Gap Sensor. In Proceedings of the 2019 IEEE 32nd International Conference on Micro Electro Mechanical Systems (MEMS), Seoul, Republic of Korea, 27–31 January 2019; pp. 460–463. [Google Scholar] [CrossRef]
  62. Khan, S.U.H.; Banerjee, A.; Broadbent, S.; Bulbul, A.; Simmons, M.C.; Kim, K.H.; Mastrangelo, C.H.; Looper, R.; Kim, H. Statistics-Based Gas Sensor. In Proceedings of the 2019 IEEE 32nd International Conference on Micro Electro Mechanical Systems (MEMS), Seoul, Republic of Korea, 27–31 January 2019; pp. 137–140. [Google Scholar] [CrossRef]
  63. Khan, S.U.H.; Banerjee, A.; Kim, K.H.; Salvant, J.; Looper, R.; Mastrangelo, C.H.; Kim, H. Threshold Point Modulation of a Wake-Up Nano-Gap Gas Sensor. In Proceedings of the 2020 IEEE 33rd International Conference on Micro Electro Mechanical Systems (MEMS), Vancouver, BC, Canada, 18–22 January 2020; pp. 733–736. [Google Scholar] [CrossRef]
  64. Truong, S.K.M.; Kim, K.H.; Khan, S.U.H.; Salvant, J.; Banerjee, A.; Looper, R.; Mastrangelo, C.H.; Kim, H. Demonstration of 155. In 1 μW Wake-Up Gas Sensor Node Toward 8 Month Lifetime. In Proceedings of the 2020 IEEE 33rd International Conference on Micro Electro Mechanical Systems (MEMS), Vancouver, BC, Canada, 18–22 January 2020; pp. 622–625. [Google Scholar] [CrossRef]
  65. Khan, S.U.H.; Banerjee, A.; Broadbent, S.; Noh, S.; Kim, K.H.; Bulbul, A.; Looper, R.E.; Mastrangelo, C.H.; Kim, H. Characterization of a Wake-Up Nano-Gap Gas Sensor for Ultra Low Power Operation. J. Microelectromechanical Syst. 2022, 31, 791–801. [Google Scholar] [CrossRef]
  66. Khan, S.H.; Jung, Y.J.; Hsieh, H.C.; Wu, T.; Mastrangelo, C.H.; Kim, H.; Broadbent, S.J.; Looper, R. Ultra-low-power chemical sensor node. In Proceedings of the GOMAC Tech, Washington, DC, USA, 9 January 2018. [Google Scholar]
  67. Banerjee, A.; Ghosh, T.; Likhite, R.; Hasan, N.; Kim, H.; Mastrangelo, C.G. Electrical detection of proteins using batch-fabricated vertical metal nanogap break-junctions. In Proceedings of the 20th International Conference on Miniaturized Systems for Chemistry and Life Sciences, MicroTAS, Dublin, Ireland, 9–13 October 2016. [Google Scholar]
  68. Banerjee, A.; Likhite, R.; Kim, H.; Mastrangelo, C.H. Quantum Tunneling Hygrometer with Temperature Stabilized Nanometer Gap. Sci. Rep. 2020, 10, 4440. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Schroth, A.; Sager, K.; Gerlach, G.; Häberli, A.; Boltshauser, T.; Baltes, H. A resonant poliyimide-based humidity sensor. Sens. Actuators B Chem. 1996, 34, 301–304. [Google Scholar] [CrossRef]
  70. Banerjee, A.; Likhite, R.; Kim, H.; Mastrangelo, C. An ultra-low power highly-sensitive vapor sensor based on quantum tunneling. In Proceedings of the The 23rd International Conference onMiniaturized Systems for Chemistry and Life Sciences MicroTAS, Basel, Switzerland, 27–31 October 2019. [Google Scholar]
  71. Banerjee, A.; Maity, S.; Mastrangelo, C.H. Nanostructures for Biosensing, with a Brief Overview on Cancer Detection, IoT, and the Role of Machine Learning in Smart Biosensors. Sensors 2021, 21, 1253. [Google Scholar] [CrossRef]
  72. Choi, H.-K.; Lee, J.; Park, M.-K.; Oh, J.-H. Development of Single-Walled Carbon Nanotube-Based Biosensor for the Detection of Staphylococcus aureus. J. Food Qual. 2017, 2017, 5239487. [Google Scholar] [CrossRef] [Green Version]
  73. Ermini, M.L.; Song, X.C.; Špringer, T.; Homola, J. Peptide Functionalization of Gold Nanoparticles for the Detection of Carcinoembryonic Antigen in Blood Plasma via SPR-Based Biosensor. Front. Chem. 2019, 7, 40. [Google Scholar] [CrossRef] [Green Version]
  74. Yamada, K.; Kim, C.T.; Kim, J.H.; Chung, J.H.; Lee, H.G.; Jun, S. Single walled carbon nanotube-based junction biosensor for detection of escherichia coli. PLoS ONE 2014, 9, e105767. [Google Scholar] [CrossRef] [Green Version]
  75. Luo, X.; Shi, W.; Yu, H.; Xie, Z.; Li, K.; Cui, Y. Wearable carbon nanotube-based biosensors on gloves for lactate. Sensors 2018, 18, 3398. [Google Scholar] [CrossRef] [Green Version]
  76. Ah, C.S.; Yun, Y.J.; Lee, J.S.; Park, H.J.; Ha, D.H.; Yun, W.S. Fabrication of integrated nanogap electrodes by surface-catalyzed chemical deposition. Appl. Phys. Lett. 2006, 88, 133116. [Google Scholar] [CrossRef]
  77. Khan, S.U.H.; Tope, S.; Dolpati, R.; Kim, K.H.; Noh, S.; Bulbul, A.; Mural, R.V.; Banerjee, A.; Schnable, J.C.; Ji, M.; et al. Development of a Gas Sensor for Green Leaf Volatile Detection. In Proceedings of the 2021 21st International Conference on Solid-State Sensors, Actuators and Microsystems (Transducers), Orlando, FL, USA, 20–24 June 2021; pp. 250–253. [Google Scholar] [CrossRef]
  78. Khan, S.U.H.; Karkhanis, M.; Hatasaka, B.; Tope, S.; Noh, S.; Bulbul, A.; Banerjee, A.; Ji, M.; Mastrangelo, C.H.; Kim, H.; et al. Field Deployment of A Nanogap Gas Sensor For Crop Damage Detection. In Proceedings of the 2022 IEEE 35th International Conference on Micro Electro Mechanical Systems Conference (MEMS), Tokyo, Japan, 9–13 January 2022; pp. 720–723. [Google Scholar] [CrossRef]

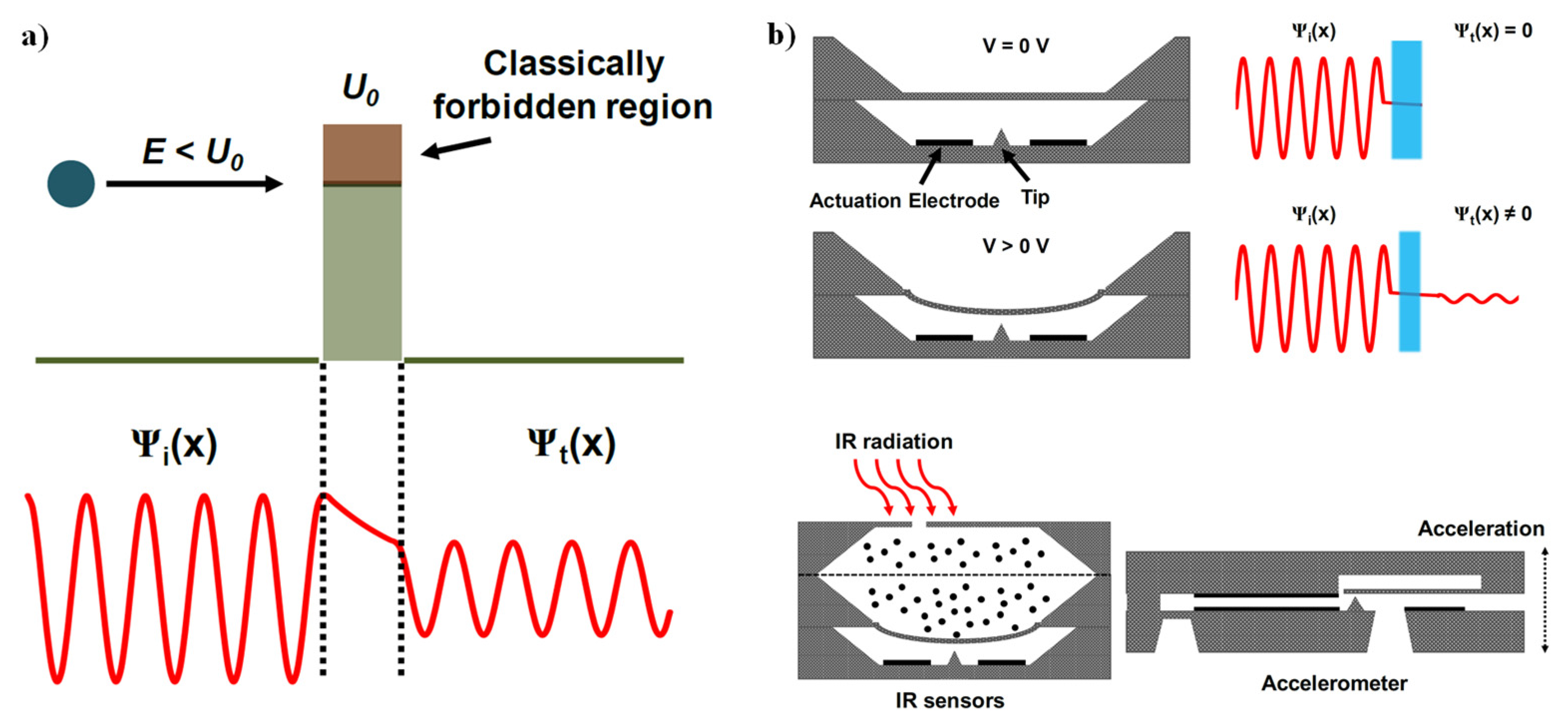

Figure 1. Schematic representation of quantum tunneling (a) of an electron wave across an energy barrier (b) early MEMS-based quantum tunneling physical sensors.
Figure 1. Schematic representation of quantum tunneling (a) of an electron wave across an energy barrier (b) early MEMS-based quantum tunneling physical sensors.
Micro 02 00046 g001

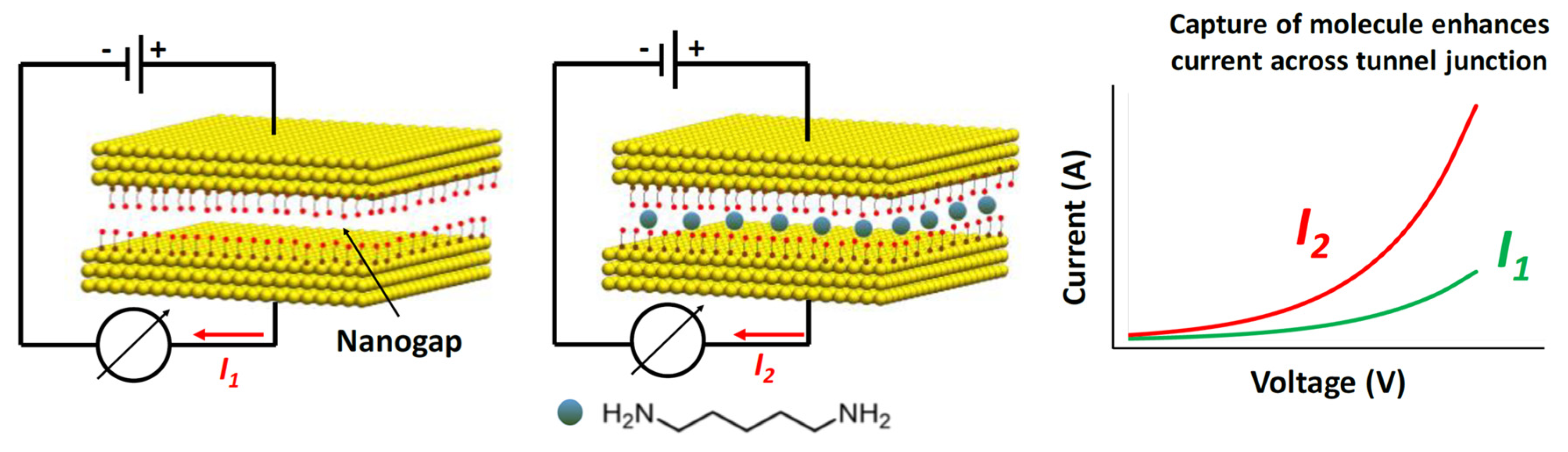

Figure 2. Schematic showing functionalized nanogap electrodes demonstrating augmented tunneling current after target capture.
Figure 2. Schematic showing functionalized nanogap electrodes demonstrating augmented tunneling current after target capture.
Micro 02 00046 g002

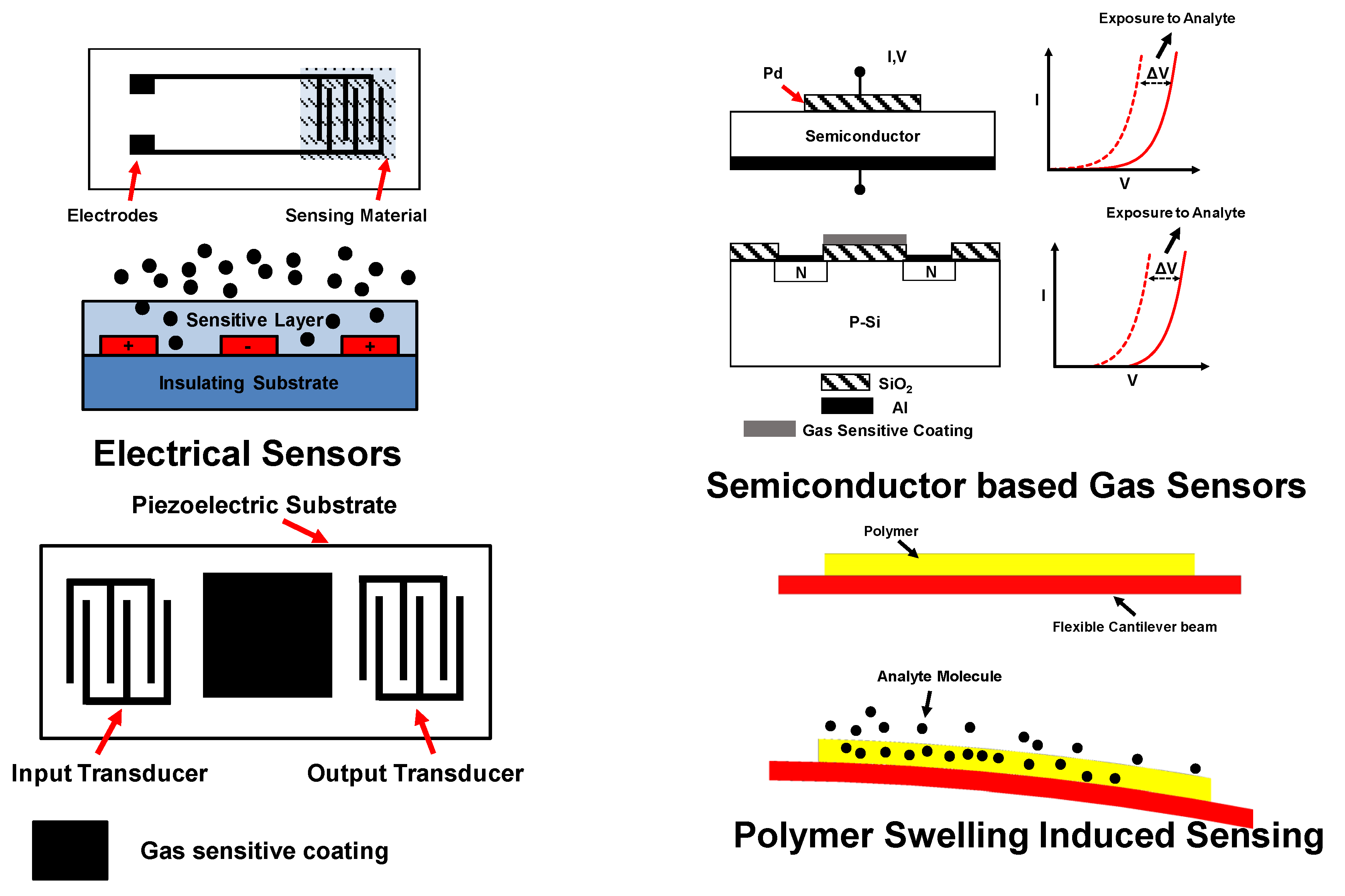

Figure 3. Different sensor types and their working principle.
Figure 3. Different sensor types and their working principle.
Micro 02 00046 g003
Figure 4. Schematic depicting the fundamental working principle of the nanogap electrode-based gas sensors.
Figure 4. Schematic depicting the fundamental working principle of the nanogap electrode-based gas sensors.
Micro 02 00046 g004

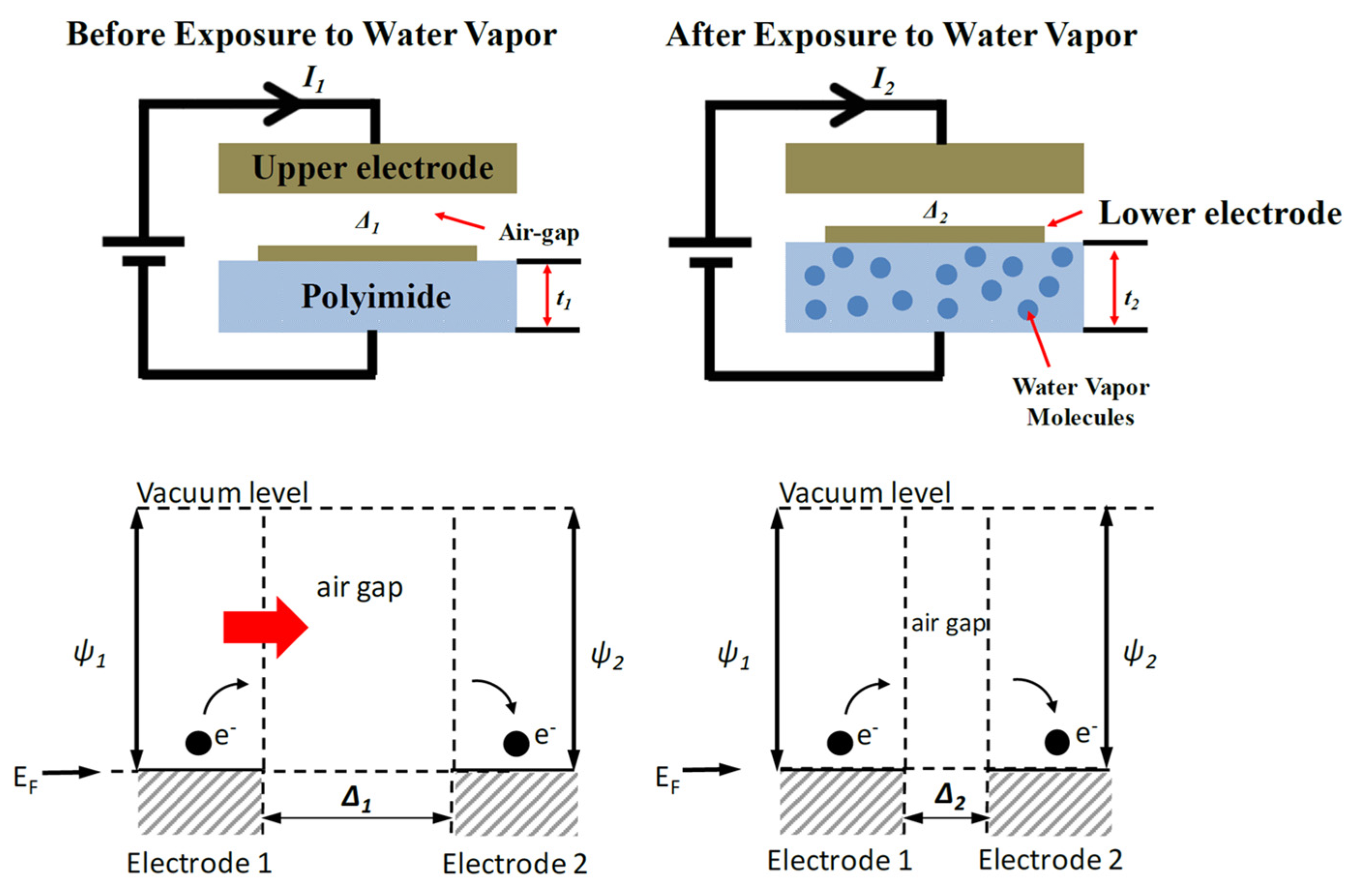

Figure 5. Fundamental working principle of quantum tunneling hygrometer.
Figure 5. Fundamental working principle of quantum tunneling hygrometer.
Micro 02 00046 g005
Figure 6. (a) Schematic of nanogap device structure and high-resolution SEM imaging of (b) top-view of the nanogap electrode pair and (c) nanometer-sized air gap between the fabricated electrodes. Reprinted/adapted with permission from Ref. [57].
Figure 6. (a) Schematic of nanogap device structure and high-resolution SEM imaging of (b) top-view of the nanogap electrode pair and (c) nanometer-sized air gap between the fabricated electrodes. Reprinted/adapted with permission from Ref. [57].
Micro 02 00046 g006
Figure 7. Sensor response against target analyte as a (a) function of time (b) various concentrations of analyte and (c) selectivity measurements. Reprinted/adapted with permission from Ref. [58].
Figure 7. Sensor response against target analyte as a (a) function of time (b) various concentrations of analyte and (c) selectivity measurements. Reprinted/adapted with permission from Ref. [58].
Micro 02 00046 g007

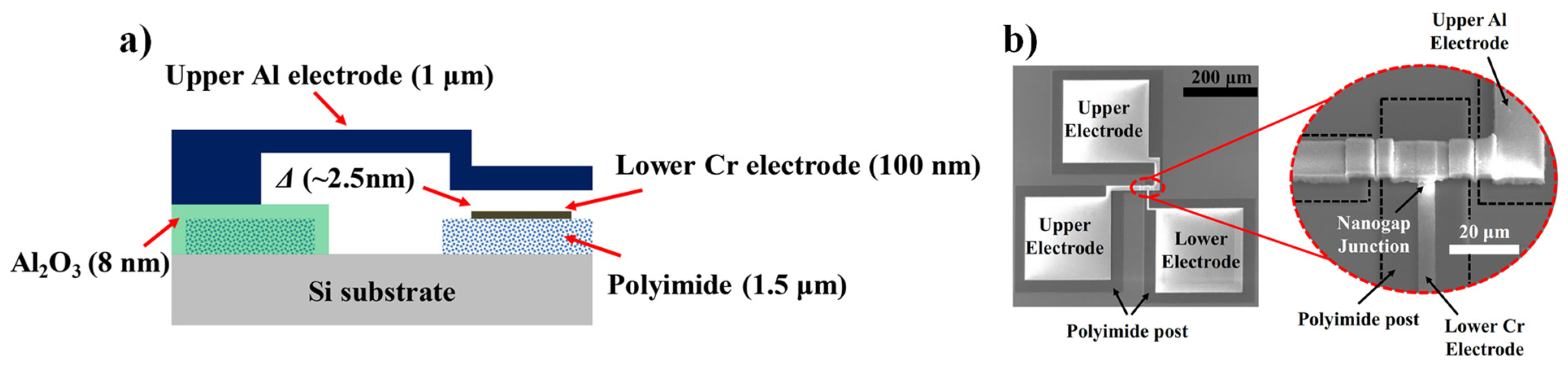

Figure 8. (a) Cross-section schematic of the tunneling hygrometer and (b) high-resolution SEM imaging of fabricated device. Reprinted/adapted with permission from Ref. [68].
Figure 8. (a) Cross-section schematic of the tunneling hygrometer and (b) high-resolution SEM imaging of fabricated device. Reprinted/adapted with permission from Ref. [68].
Micro 02 00046 g008
Figure 9. (a,b) Sensor for different RH% and (c) temperature response of the device.
Figure 9. (a,b) Sensor for different RH% and (c) temperature response of the device.
Micro 02 00046 g009

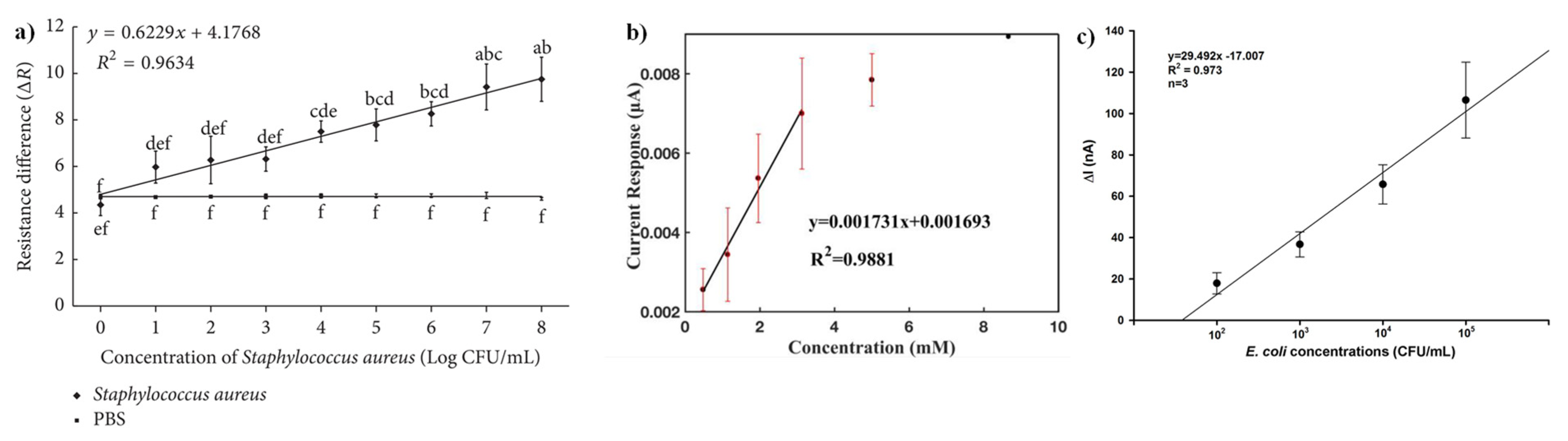

Figure 10. Sensor output of some CNT-based biosensors showcasing the overlapping std. deviations for different analyte concentrations of (a) Staphylococcus aureus, (b) lactate and (c) E. coli, thereby clearly demonstrating limited accuracy in such sensors. Reprinted/adapted with permission from Refs. [73,74,75,76].
Figure 10. Sensor output of some CNT-based biosensors showcasing the overlapping std. deviations for different analyte concentrations of (a) Staphylococcus aureus, (b) lactate and (c) E. coli, thereby clearly demonstrating limited accuracy in such sensors. Reprinted/adapted with permission from Refs. [73,74,75,76].
Micro 02 00046 g010

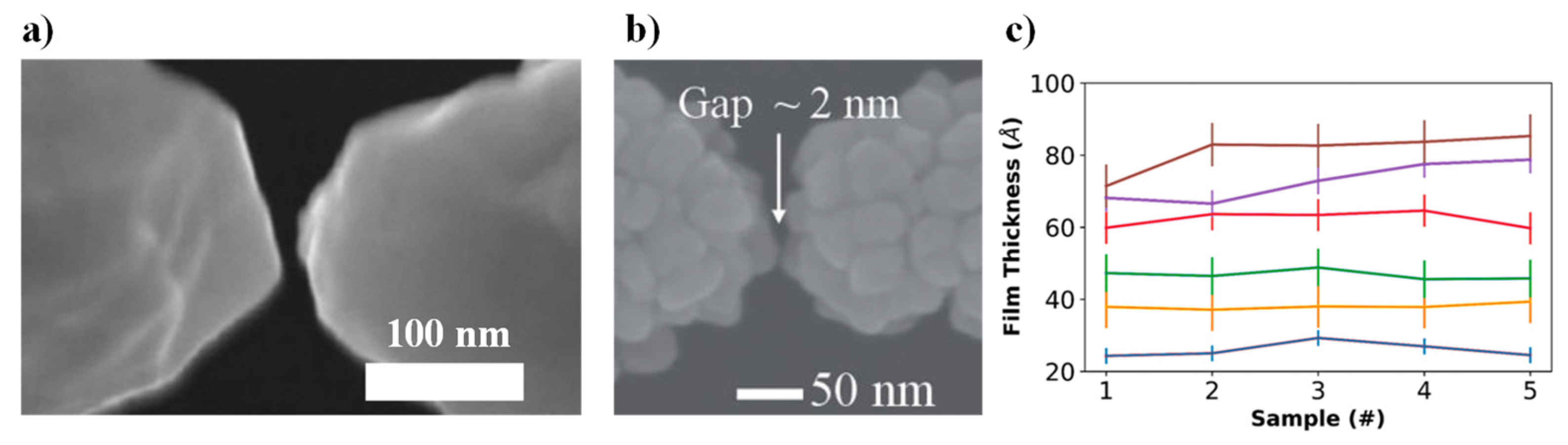

Figure 11. (a,b) High resolution SEM images of fabricated nanogap electrodes demonstrating the non-uniformity of nanogap dimensions and (c) variation in sacrificial layer thickness across multiple deposition cycles, also leading to nonuniformity in nanogap [72].
Figure 11. (a,b) High resolution SEM images of fabricated nanogap electrodes demonstrating the non-uniformity of nanogap dimensions and (c) variation in sacrificial layer thickness across multiple deposition cycles, also leading to nonuniformity in nanogap [72].
Micro 02 00046 g011
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Banerjee, A.; Mastrangelo, C.H. Resurgence of Electron Quantum Tunneling Sensors. Micro 2022, 2, 679-698.

AMA Style

Banerjee A, Mastrangelo CH. Resurgence of Electron Quantum Tunneling Sensors. Micro. 2022; 2(4):679-698.

Chicago/Turabian Style

Banerjee, Aishwaryadev, and Carlos H. Mastrangelo. 2022. "Resurgence of Electron Quantum Tunneling Sensors" Micro 2, no. 4: 679-698.

Article Metrics

Back to TopTop
