Combining LLMs and Knowledge Graphs to Reduce Hallucinations in Biomedical Question Answering

Abstract

Advancements in natural language processing (NLP), particularly Large Language Models (LLMs), have greatly improved how we access knowledge. However, in critical domains like biomedicine, challenges like hallucinations—where language models generate information not grounded in data—can lead to dangerous misinformation. This paper presents a hybrid approach that combines LLMs with Knowledge Graphs (KGs) to improve the accuracy and reliability of question-answering systems in the biomedical field. Our method, implemented using the LangChain framework, includes a query-checking algorithm that checks and, where possible, corrects LLM-generated Cypher queries, which are then executed on the Knowledge Graph, grounding answers in the KG and reducing hallucinations in the evaluated cases. We evaluated several LLMs, including several GPT models and Llama 3.3:70b, on a custom benchmark dataset of 50 biomedical questions. GPT-4 Turbo achieved 90% query accuracy, outperforming most other models. We also evaluated prompt engineering, but found little statistically significant improvement compared to the standard prompt, except for Llama 3:70b, which improved with few-shot prompting. To enhance usability, we developed a web-based interface that allows users to input natural language queries, view generated and corrected Cypher queries, and inspect results for accuracy. This framework improves reliability and accessibility by accepting natural language questions and returning verifiable answers directly from the knowledge graph, enabling inspection and reproducibility. The source code for generating the results of this paper and for the user-interface can be found in our Git repository: https://git.zib.de/lpusch/cyphergenkg-gui, accessed on 1 November 2025.

1. Introduction

Advances in natural language processing (NLP) have improved access to knowledge, allowing users to retrieve it in everyday language. In high-stakes areas like biomedicine, however, these advancements introduce new challenges, especially the risk of hallucinations [1,2,3,4], where models generate information unsupported by the underlying data. Inaccuracies in biomedical contexts can lead to harmful misinformation, such as incorrect treatments or diagnoses.

Biomedical databases, often organized as Knowledge Graphs (KGs), model complex data like diseases, drugs, and proteins, but remain challenging for non-experts to query due to specialized query languages. This paper addresses the challenge of reliable natural language question answering over biomedical KGs, focusing on reducing hallucinations. We propose a novel approach that integrates Large Language Models (LLMs) with KGs, enhancing the accuracy and reliability of responses by grounding answers in structured data.

Our method builds on the LangChain [5] framework to convert natural language into Cypher, the query language for graph databases like Neo4j. An important feature is a query-checking algorithm that validates LLM-generated Cypher queries to ensure they align with the KG’s schema, reducing errors and improving reliability. Validated queries are executed on the KG, and the results are used to generate a natural language response via retrieval-augmented generation (RAG) [6].

As an example, we applied our method to PrimeKG [7], a biomedical KG encompassing data on diseases, drugs, and proteins. Our system allows users to pose questions, view Cypher queries, and examine results through a user-friendly web interface. We evaluated this approach by doing a systematic comparison of LLMs and prompt strategies with a custom benchmark dataset of 50 biomedical questions, testing several LLMs, including GPT-4 Turbo, GPT-5, and Llama 3.3:70b. Results show that GPT-4 Turbo yields the most accurate queries, while the 70b Llama3 models lead the field of open source models tested in this benchmark.

In summary, our pipeline combines LLMs and KGs to address challenges such as hallucinations, providing accurate biomedical question answering and making advanced query capabilities accessible to non-experts.

Problem Statement and Research Goals

This paper addresses key challenges in using Large Language Models (LLMs) for accurate question answering over Knowledge Graphs, specifically tackling data gaps and hallucinations, where models produce ungrounded or incorrect information.

Our research focuses on these main objectives:

• Reducing Data Gaps and Hallucinations: We aim to decrease inaccuracies and fabrications in LLM responses by integrating them with Knowledge Graphs and using a query-checking algorithm that verifies and corrects Cypher queries generated by LLMs, targeting common syntactic and schema alignment issues. Additionally, we optimize prompts to guide LLMs in producing more accurate queries, enhancing response reliability.
• Evaluating LLM Performance: We assess the performance of several LLMs, including GPT-4 Turbo and Llama 3:70b, on a custom benchmark dataset to identify model strengths and weaknesses and explore improvements for open-source models via prompt engineering.
• Creating a Benchmark Dataset: We developed a dataset of 50 biomedical questions based on a subset of PrimeKG for evaluating LLMs’ ability to generate accurate Cypher queries for a specific biomedical Knowledge Graph, providing a foundation for future research in this domain.

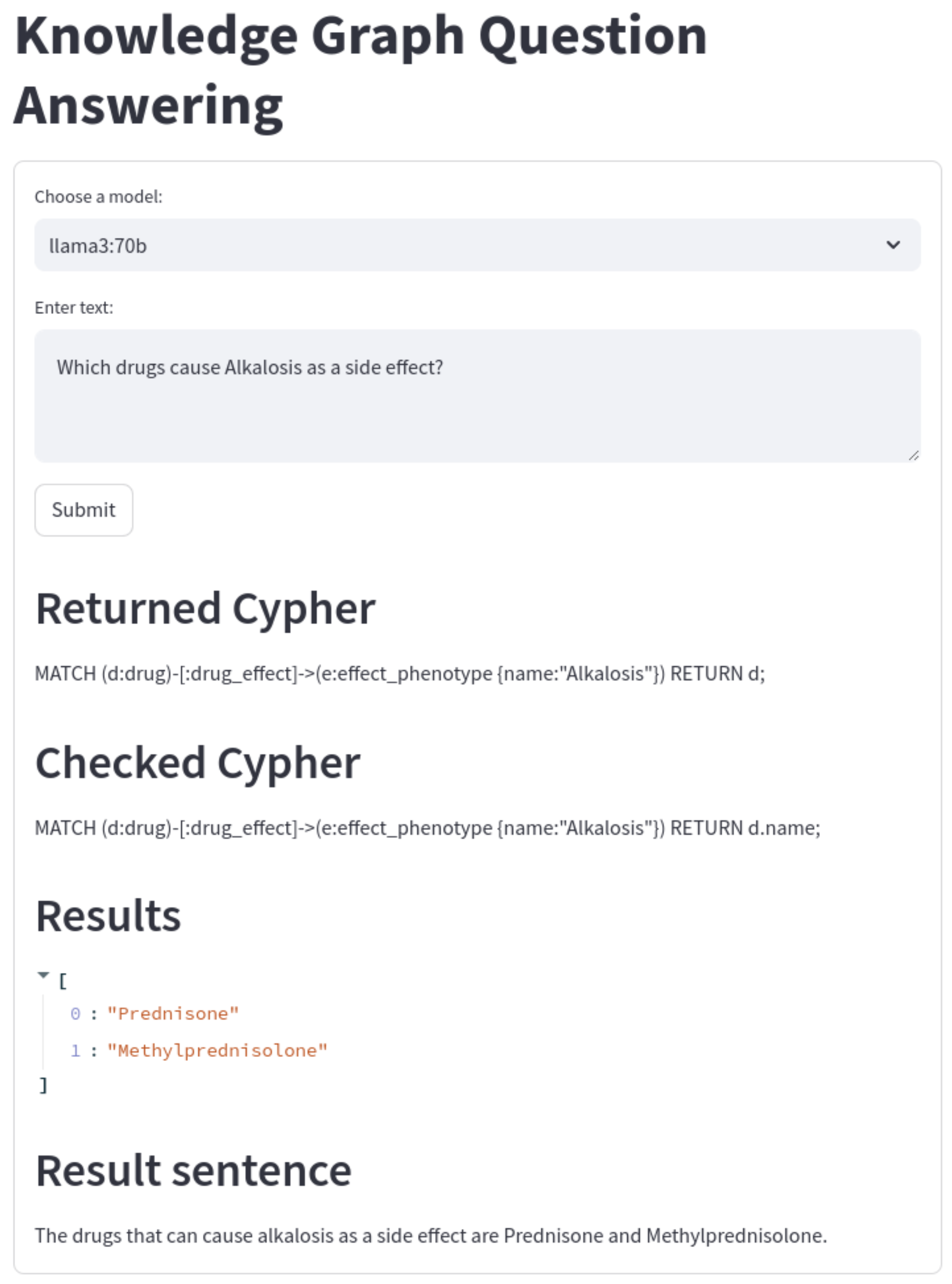

• Designing a User-Friendly Interface: To make the system accessible, we created a user-friendly web-based interface where users can input natural language queries, view generated and corrected Cypher queries, and inspect results.

Our overarching goal is to combine the accessibility of LLMs and the reliability of complex digital information systems, specifically, Knowledge Graphs, to enable non-expert users to benefit from them.

2. A New Approach for LLM-Based Knowledge Graph Queries

In this section, we introduce our approach designed to address the challenges associated with using Large Language Models (LLMs) for information retrieval.

The overall method consists of three main steps:

• The user’s question, along with the graph schema, is passed to the LLM, which generates a Cypher query.
• This generated query is then subjected to the query-checking algorithm for validation and potential correction.
• Finally, the validated query is executed on the Knowledge Graph, and the results are returned.

2.1. Step 1: Initial Cypher Query Generation

The initial Cypher query is generated by the LLM using a prompt that includes the user query and the full graph schema, which is created with LangChain Neo4jGraph [8]. We use exact matching by design to isolate reasoning-to-Cypher under a fixed schema. Adding semantic or fuzzy matching would change the construct to alias coverage and is out of scope for this evaluation. Consistent with this design, our study is a systematic comparison of LLMs and prompt strategies for KG querying under a fixed schema, not a global leaderboard across heterogeneous KGQA paradigms. All models are evaluated identically on the same KG snapshot and parsing pipeline. The LLM outputs a Cypher query to retrieve answers from the Knowledge Graph, choosing node and relationship types from the schema. More information about the prompts can be found in Section 5. If the message consisted of a single fenced Cypher code block, we used its contents after removing the fence. Otherwise, we extracted the first contiguous span starting at the first line containing MATCH and ending at the first line containing RETURN, discarding any text before or after that span. This procedure was applied identically across models. Outputs without a Cypher block or a MATCH…RETURN span were marked invalid.

2.2. Step 2: Query Checker

The query checker checks common schema and direction issues before execution and can correct near-miss errors; it is designed to improve validity, not to serve as a full verifier. This process involves three components, each targeting specific aspects of query validation.

Consider the example query: “What are the names of the drugs that are contraindicated when a patient has multiple sclerosis?” A typical LLM-generated Cypher query might look like this:

      MATCH (d:pathway {name:"multiple

      ⤷ sclerosis"})-[:contraindication]->(dr:drug)

      RETURN dr;

However, this translation has the following issues:

• “Name” attribute missing from the returned node: The output RETURN dr; would return the entire drug node, including all its properties, rather than just the drug names. Thus, the syntax checker would refine the query to RETURN dr.name;.
• Wrong node type: (d:pathway {name:“multiple sclerosis”}) The LLM incorrectly identifies “multiple sclerosis” as a pathway, instead of a disease. The node checker would correct this error by modifying the Cypher query to: (d:disease {name:“multiple sclerosis”}).
• Relationship direction error: The query incorrectly directs the “contraindication” relationship as -[:contraindication]->, pointing from the disease to the drug. The correct direction should have the relationship pointing from the drug to the disease. This will be corrected by the relation checker to: <-[:contraindication]-.

In summary, the query checker executes the following three steps:

• Syntax Node Checker: This component ensures that the output of the Cypher query returns the resulting node names by appending the .name property to each node in the return statement. It also verifies that any variables specified in the return clause are correctly associated with their respective node types in the MATCH statement, in the form of node: node_type.
• Node Checker: This checker validates the types of nodes referenced in the query, ensuring they are the correct type for the item that was extracted from the question. If an incorrect node type is identified, it automatically substitutes the correct type. It also evaluates whether the relationships involving the corrected node type are appropriate and adjusts them if necessary, unless no compatible relationships exist, in which case the step is skipped.
• Relation Checker: This component verifies the directionality of relationships between nodes, ensuring that they are oriented correctly within the query. If any relationships are found to be reversed, the Relation Checker automatically corrects their direction to maintain the integrity of the query’s logic.

2.3. Step 3: Querying the Knowledge Graph

The Cypher query, generated by the LLM and verified by the query checker, is executed on the Knowledge Graph using Neo4jGraph from LangChain. Then, an answer sentence can be generated by the LLM based on the returned list. This retrieval-augmented generation (RAG) grounds each answer in the Knowledge Graph.

3. Data

This section describes the data used in our experiments, including the Knowledge Graph and a custom set of questions and answers.

3.1. PrimeKG-Based Knowledge Graph

We used a subset of the biomedical Knowledge Graph PrimeKG [7], specifically a 2-hop subgraph around multiple sclerosis. This subset contains 44,348 triples, 22 unique relations, and 7413 entities, covering node types such as drug, disease, phenotype, gene/protein, anatomy, cellular component, pathway, molecular function, exposure, and biological process. To optimize query execution, we made all relations unidirectional (except self-connections). Further details can be found in Appendix A.

3.2. Tailored Question/Answer Set

Traditional question datasets often don’t adequately assess a pipeline’s performance in querying Knowledge Graphs, but rather the graph completeness, as they are not tailored to the graph in question. To address this, we developed a custom set of questions specifically tailored for the selected Knowledge Graph. These questions are directly answerable using the graph’s data (see Appendix B for the original set and Appendix C for the paraphrased set). Initially, we identified paths that met our structural criteria and included only those with non-empty result sets (to make it possible to automatically assess correctness based on the answers). Questions were created using 1, 2, and 3-hop paths, representing five distinct structures. In Knowledge Graphs, a ‘hop’ refers to the number of edges between nodes; a 1-hop represents a direct connection, while higher hops indicate more complex queries involving intermediate nodes and relationships. These different structures allowed us to test the pipeline’s ability to handle queries of varying complexity. The dataset is designed to test schema comprehension and query construction over 1-, 2-, and 3-hop patterns in PrimeKG, not recall of disease facts or entity-specific knowledge.

During testing, we found that LLMs sometimes identified alternate, valid paths for answering questions that weren’t initially considered. These alternative answers, validated through manual curation, showcased the models’ flexibility in navigating the Knowledge Graph.

The way we structured questions into five types based on 1, 2, or 3-hop paths is outlined below.

3.2.1. One-Hop

For 1-hop questions, there is a straightforward structure involving a direct relationship between two entities. This allows for simple, direct queries; see Figure 1.

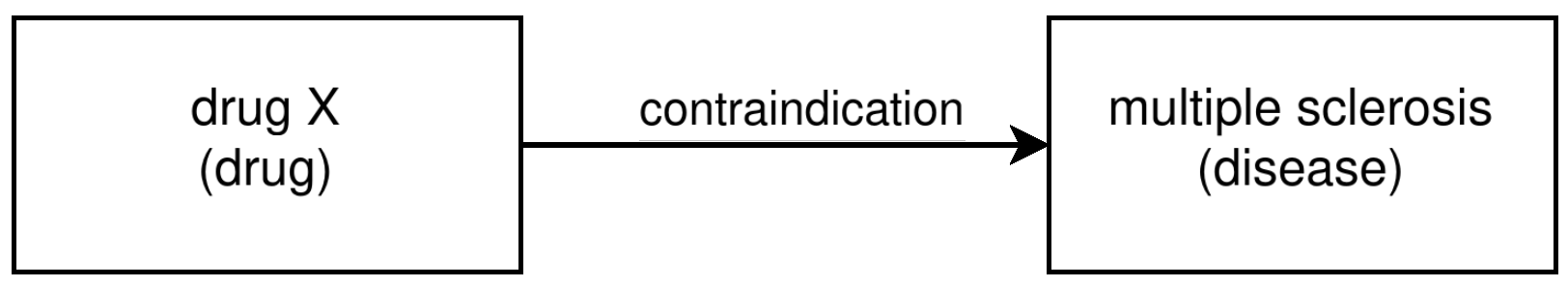

• Structure 1: A single, direct relationship between two nodes, typically excluding bidirectional relations. Example question: What are the names of the drugs that are contraindicated when a patient has multiple sclerosis?

3.2.2. Two-Hop

Two-hop questions allow for slightly more complex queries, involving either a single entity directly related to two others or a linear arrangement (chain) of three entities.

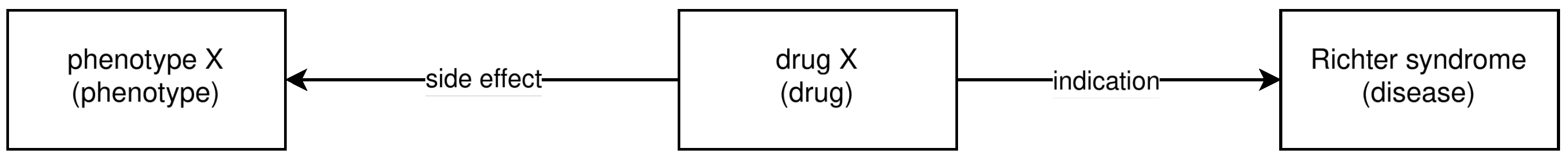

• Structure 2: One entity is directly connected to two other entities; see Figure 2. The question for this path was What side effects does a drug have that is indicated for Richter syndrome?

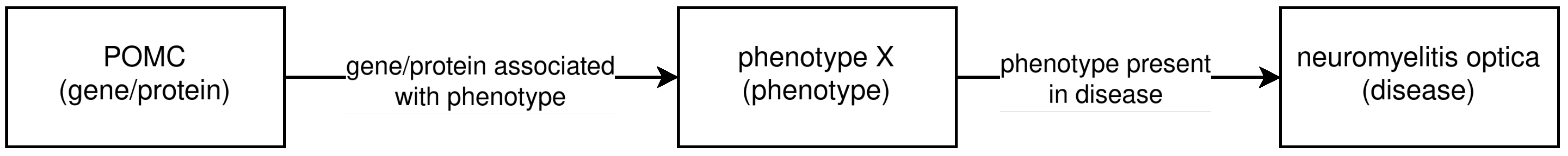

• Structure 3: A linear arrangement (chain) where one entity is connected to a second, which in turn is connected to a third; see Figure 3. The question for this path was What are phenotypes that gene POMC is associated with that also occur in neuromyelitis optica?

3.2.3. Three-Hop

Three-hop questions introduce the highest complexity, involving either a sequential chain of four items or a configuration where an entity interfaces with multiple others in a more extended arrangement.

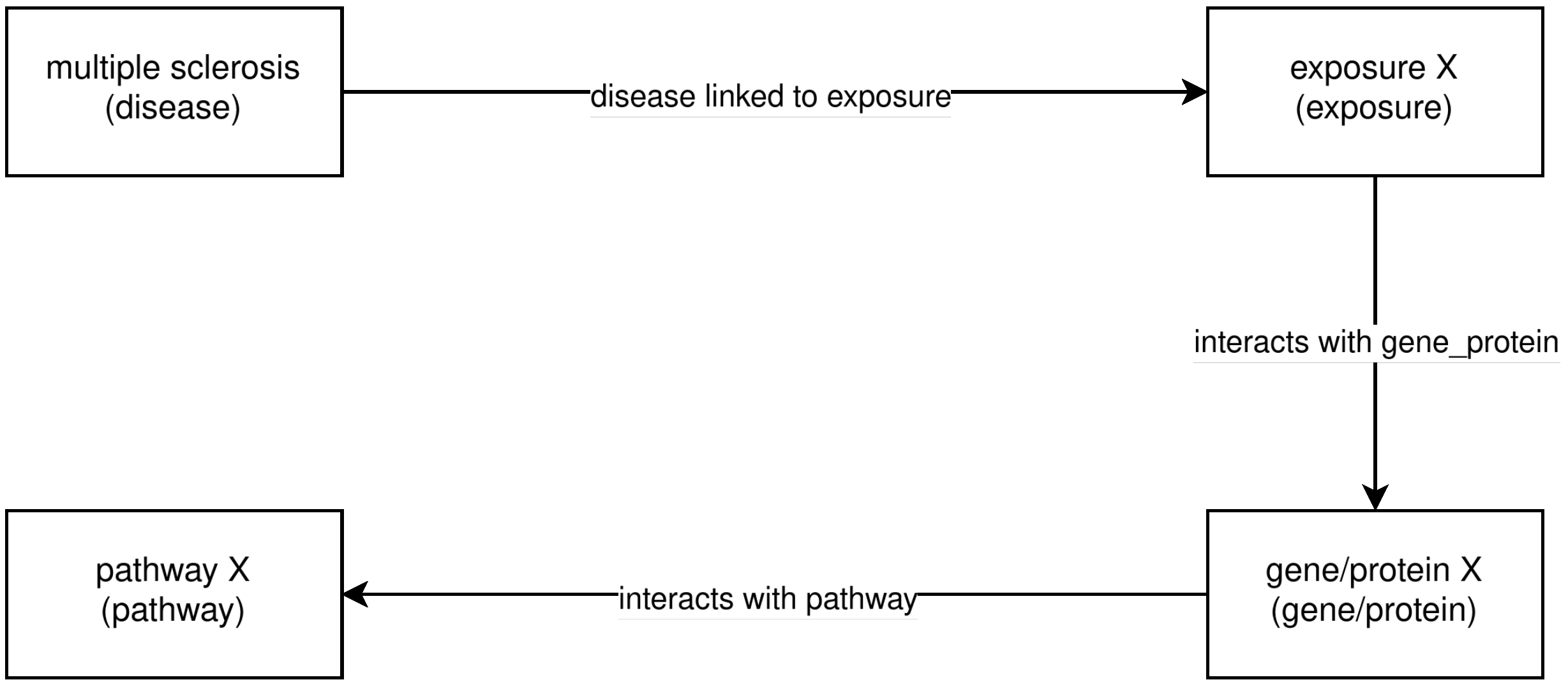

• Structure 4: A sequential chain of four connected items; see Figure 4. The question for this path was What pathways do the exposures that can lead to multiple sclerosis interact with?

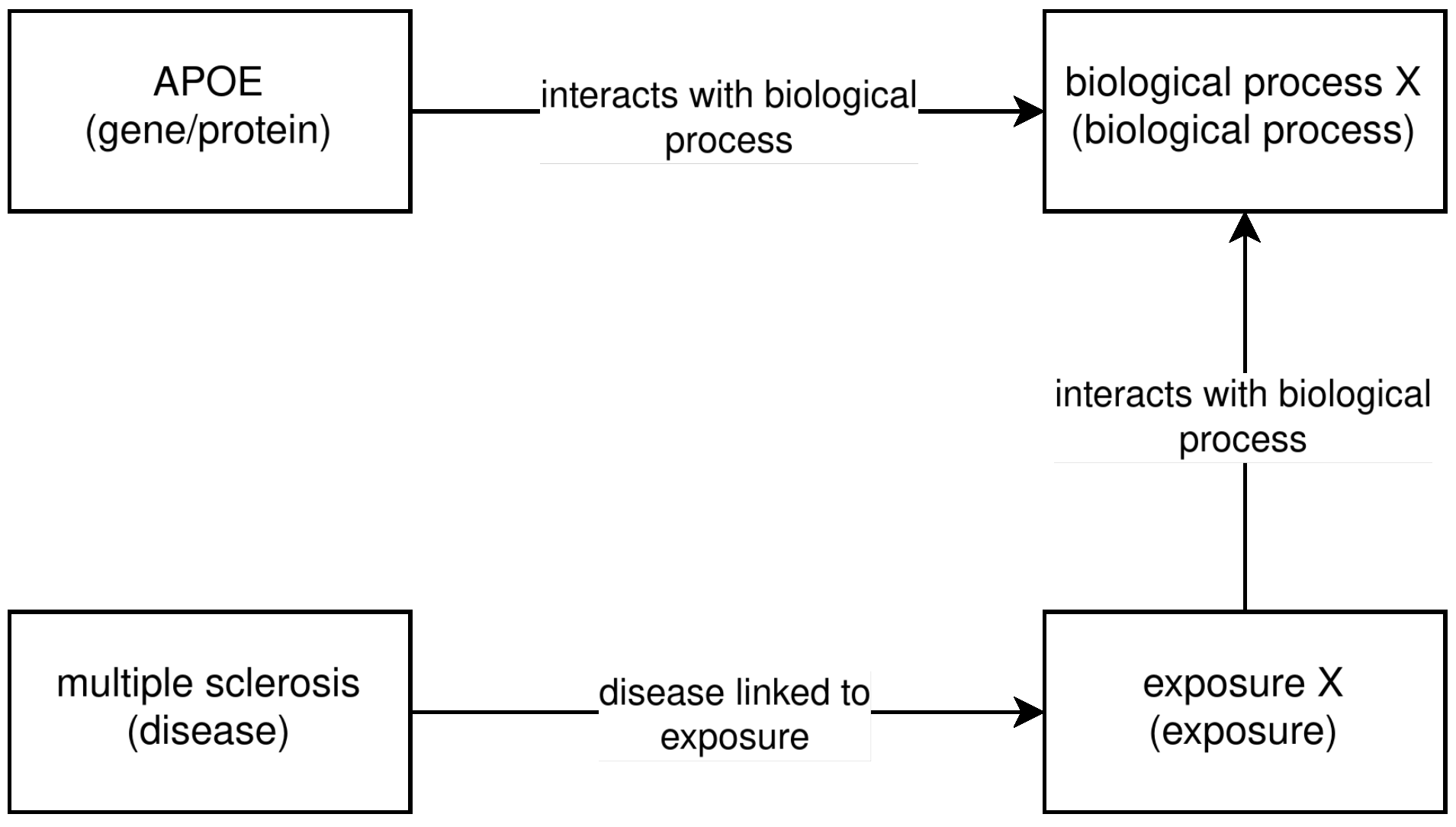

• Structure 5: An entity has relationships interfacing with two other entities, one of which interfaces with a fourth entity; see Figure 5. The question for this path was Which biological processes are affected by the gene APOE and are also affected by an exposure to something that is linked to multiple sclerosis?

4. Experimental Setup

The LLMs used in our experiments are detailed in

Table 1. Overview of the used LLMs.

LLM	Number of Parameters	Open/Closed Source	Context Length
bakllava:7b [10]	7b	open	32 K
dolphin-llama3:8b [11]	8b	open	8 K
dolphin-llama3:70b [11]	70b	open	8 K
falcon2:11b [12]	11b	open	2 K
gemma2:9b [13]	9b	open	8 K
goliath:120b [14]	120b	open	4 K
gpt-4 turbo [15]	unknown	closed	128 K
gpt-4o [16]	unknown	closed	128 K
gpt-5 [17]	unknown	closed	400 K
llama2:70b [18]	70b	open	4 K
llama3-chatqa:70b [19]	70b	open	8 K
llama3:70b [20]	70b	open	8 K
llama3:8b [20]	8b	open	8 K
llama3.3:70b [21]	70b	open	128 K
medllama2:7b [22]	7b	open	4 K
mistral:7b [23]	7b	open	32 K
mixtral:8x7b [24]	8x7b	open	32 K
orca-mini:70b [25]	70b	open	4 K
qwen:32b [26]	32b	open	32 K
qwen:110b [26]	110b	open	32 K
starling-lm:7b [27]	7b	open	8 K
vicuna:33b [28]	33b	open	2 K
wizardlm2:7b [29]	7b	open	32 K

. The core pipeline is built using the LangChain Expression Language (LCEL) [9]. GPT models were called via their official APIs (prices at experiment time: GPT-4o $2.50/1 M tokens input and $10/1 M tokens output; GPT-4 Turbo $10/1 M tokens input and $30/1 M tokens output; GPT-5 $1.25/1 M tokens input and $10/1 M tokens output). Open-source models ran on our in-house cluster via Ollama and incurred no external billing. Wall-clock runtime was not benchmarked because latency depends on deployment choices (such as hardware allocation and batching), which are outside this study’s scope, focused on correctness and the checker ablation.

Evaluation Metrics

We evaluated each LLM based on the number of correct answers across all 50 questions (Section 3.2) in our dataset. For each question, we fixed a ground-truth result set during benchmark construction. Assuming the KG is correct, a model is correct if its generated Cypher, executed verbatim on the same database snapshot, returns exactly the ground-truth set of results (order ignored).

5. Cypher Generation with Zero-Shot Prompting

In this experiment, we evaluated several LLMs’ abilities to generate Cypher queries from natural language inputs in a zero-shot setting, where no examples or demonstrations are provided to guide the LLM. Each LLM was prompted to generate Cypher queries for the 50 questions in our benchmark set (see Section 3.2), with schema information provided as described in Section 2.1. The shortened prompt was adapted from the LangChain Cypher Graph QA chain [30]. The full prompt can be found in Appendix D.1. The placeholders schema and question are replaced by the respective content before execution.

(Shortened) Zero-shot prompt:

      Task: Generate Cypher statement to query a graph database.

      Schema: {schema}

      The question is: {question}

To maintain consistency, each LLM had a temperature setting of 0 to reduce randomness, unless a custom temperature was not allowed. The generated Cypher queries were parsed to retain only relevant portions, removing non-Cypher content, and then processed by the query-checking algorithm (see Section 2.2) to correct common errors, including incorrect node types, relationship misdirections, and missing attributes.

5.1. Results

The proprietary GPT models, especially GPT-4 Turbo, often outperform the open-source models.

Table 2. The number of correct answers (out of 50 total), accuracy and Wilson 95% confidence intervals for all LLMs.

LLM	Number Correct	Accuracy	Wilson 95% CI
bakllava:7b	0	0	[0, 0.071]
medllama2:7b	0	0	[0, 0.071]
mistral:7b	9	0.18	[0.098, 0.31]
starling-lm:7b	0	0	[0, 0.071]
wizardlm2:7b	5	0.1	[0.043, 0.21]
dolphin-llama3:8b	8	0.16	[0.083, 0.29]
llama3:8b	11	0.22	[0.13, 0.35]
gemma2:9b	0	0	[0, 0.071]
falcon2:11b	0	0	[0, 0.071]
qwen:32b	20	0.4	[0.28, 0.54]
vicuna:33b	1	0.02	[0.0035, 0.1]
mixtral:8x7b	1	0.02	[0.0035, 0.1]
dolphin-llama3:70b	16	0.32	[0.21, 0.46]
llama2:70b	11	0.22	[0.13, 0.35]
llama3:70b	23	0.46	[0.33, 0.6]
llama3.3:70b	31	0.62	[0.48, 0.74]
llama3-chatqa:70b	8	0.16	[0.083, 0.29]
orca-mini:70b	15	0.3	[0.19, 0.44]
qwen:110b	18	0.36	[0.24, 0.5]
goliath:120b	19	0.38	[0.26, 0.52]
gpt-4 turbo	45	0.9	[0.79, 0.96]
gpt-4o	40	0.8	[0.67, 0.89]
gpt-5	42	0.84	[0.74, 0.94]

reports, for each LLM, the number correct out of 50, accuracy, and 95% Wilson CIs.

Table 3. Holm-adjusted McNemar pairwise comparisons of models (row-column); Green = Positive, Red = Negative. Bold and starred cells are significant ($\alpha =0.05$).

	llama3:8b	llama3:70b	starling_lm:7b	gpt-5	gpt4-turbo	dolphin_llama3:70b	llama3_chatqa:70b	wizardlm2:7b	mistral:7b	medllama2:7b	qwen:110b	llama3.3:70b	gemma:9b	dolphin_llama3:8b	bakllava:7b	falcon2:11b	llama2:70b	mixtral:8x7b	vicuna:33b	gpt-4o	orca_mini:70b	goliath:120b	qwen:32b
llama3:8b	-	$-0.24$	+0.22	−0.62 *	−0.68 *	$-0.10$	+0.06	+0.12	+0.04	+0.22	$-0.14$	−0.40 *	+0.22	+0.06	+0.22	+0.22	0.00	+0.20	+0.20	−0.58 *	$-0.08$	$-0.16$	$-0.18$
llama3:70b	+0.24	-	+0.46 *	−0.38 *	−0.44 *	+0.14	+0.30	+0.36 *	+0.28	+0.46 *	+0.10	$-0.16$	+0.46 *	+0.30 *	+0.46 *	+0.46 *	+0.24	+0.44 *	+0.44 *	$-0.34$	+0.16	+0.08	+0.06
starling_lm:7b	$-0.22$	−0.46 *	-	−0.84 *	−0.90 *	−0.32 *	$-0.16$	$-0.10$	$-0.18$	0.00	−0.36 *	−0.62 *	0.00	$-0.16$	0.00	0.00	$-0.22$	$-0.02$	$-0.02$	−0.80 *	−0.30 *	−0.38 *	−0.40 *
gpt-5	+0.62 *	+0.38 *	+0.84 *	-	$-0.06$	+0.52 *	+0.68 *	+0.74 *	+0.66 *	+0.84 *	+0.48 *	+0.22	+0.84 *	+0.68 *	+0.84 *	+0.84 *	+0.62 *	+0.82 *	+0.82 *	+0.04	+0.54 *	+0.46 *	+0.44 *
gpt4-turbo	+0.68 *	+0.44 *	+0.90 *	+0.06	-	+0.58 *	+0.74 *	+0.80 *	+0.72 *	+0.90 *	+0.54 *	+0.28	+0.90 *	+0.74 *	+0.90 *	+0.90 *	+0.68 *	+0.88 *	+0.88 *	+0.10	+0.60 *	+0.52 *	+0.50 *
dolphin_llama3:70b	+0.10	$-0.14$	+0.32 *	−0.52 *	−0.58 *	-	+0.16	+0.22	+0.14	+0.32 *	$-0.04$	$-0.30$	+0.32 *	+0.16	+0.32 *	+0.32 *	+0.10	+0.30 *	+0.30 *	−0.48 *	+0.02	$-0.06$	$-0.08$
llama3_chatqa:70b	$-0.06$	$-0.30$	+0.16	−0.68 *	−0.74 *	$-0.16$	-	+0.06	$-0.02$	+0.16	$-0.20$	−0.46 *	+0.16	0.00	+0.16	+0.16	$-0.06$	+0.14	+0.14	−0.64 *	$-0.14$	$-0.22$	$-0.24$
wizardlm2:7b	$-0.12$	−0.36 *	+0.10	−0.74 *	−0.80 *	$-0.22$	$-0.06$	-	$-0.08$	+0.10	−0.26 *	−0.52 *	+0.10	$-0.06$	+0.10	+0.10	$-0.12$	+0.08	+0.08	−0.70 *	$-0.20$	$-0.28$	$-0.30$
mistral:7b	$-0.04$	$-0.28$	+0.18	−0.66 *	−0.72 *	$-0.14$	+0.02	+0.08	-	+0.18	$-0.18$	−0.44 *	+0.18	+0.02	+0.18	+0.18	$-0.04$	+0.16	+0.16	−0.62 *	$-0.12$	$-0.20$	$-0.22$
medllama2:7b	$-0.22$	−0.46 *	0.00	−0.84 *	−0.90 *	−0.32 *	$-0.16$	$-0.10$	$-0.18$	-	−0.36 *	−0.62 *	0.00	$-0.16$	0.00	0.00	$-0.22$	$-0.02$	$-0.02$	−0.80 *	−0.30 *	−0.38 *	−0.40 *
qwen:110b	+0.14	$-0.10$	+0.36 *	−0.48 *	−0.54 *	+0.04	+0.20	+0.26 *	+0.18	+0.36 *	-	$-0.26$	+0.36 *	+0.20	+0.36 *	+0.36 *	+0.14	+0.34 *	+0.34 *	−0.44 *	+0.06	$-0.02$	$-0.04$
llama3.3:70b	+0.40 *	+0.16	+0.62 *	$-0.22$	$-0.28$	+0.30	+0.46 *	+0.52 *	+0.44 *	+0.62 *	+0.26	-	+0.62 *	+0.46 *	+0.62 *	+0.62 *	+0.40 *	+0.60 *	+0.60 *	$-0.18$	+0.32	+0.24	+0.22
gemma:9b	$-0.22$	−0.46 *	0.00	−0.84 *	−0.90 *	−0.32 *	$-0.16$	$-0.10$	$-0.18$	0.00	−0.36 *	−0.62 *	-	$-0.16$	0.00	0.00	$-0.22$	$-0.02$	$-0.02$	−0.80 *	−0.30 *	−0.38 *	−0.40 *
dolphin_llama3:8b	$-0.06$	−0.30 *	+0.16	−0.68 *	−0.74 *	$-0.16$	0.00	+0.06	$-0.02$	+0.16	$-0.20$	−0.46 *	+0.16	-	+0.16	+0.16	$-0.06$	+0.14	+0.14	−0.64 *	$-0.14$	$-0.22$	$-0.24$
bakllava:7b	$-0.22$	−0.46 *	0.00	−0.84 *	−0.90 *	−0.32 *	$-0.16$	$-0.10$	$-0.18$	0.00	−0.36 *	−0.62 *	0.00	$-0.16$	-	0.00	$-0.22$	$-0.02$	$-0.02$	−0.80 *	−0.30 *	−0.38 *	−0.40 *
falcon2:11b	$-0.22$	−0.46 *	0.00	−0.84 *	−0.90 *	−0.32 *	$-0.16$	$-0.10$	$-0.18$	0.00	−0.36 *	−0.62 *	0.00	$-0.16$	0.00	-	$-0.22$	$-0.02$	$-0.02$	−0.80 *	−0.30 *	−0.38 *	−0.40 *
llama2:70b	0.00	$-0.24$	+0.22	−0.62 *	−0.68 *	$-0.10$	+0.06	+0.12	+0.04	+0.22	$-0.14$	−0.40 *	+0.22	+0.06	+0.22	+0.22	-	+0.20	+0.20	−0.58 *	$-0.08$	$-0.16$	$-0.18$
mixtral:8x7b	$-0.20$	−0.44 *	+0.02	−0.82 *	−0.88 *	−0.30 *	$-0.14$	$-0.08$	$-0.16$	+0.02	−0.34 *	−0.60 *	+0.02	$-0.14$	+0.02	+0.02	$-0.20$	-	0.00	−0.78 *	−0.28 *	−0.36 *	−0.38 *
vicuna:33b	$-0.20$	−0.44 *	+0.02	−0.82 *	−0.88 *	−0.30 *	$-0.14$	$-0.08$	$-0.16$	+0.02	−0.34 *	−0.60 *	+0.02	$-0.14$	+0.02	+0.02	$-0.20$	0.00	-	−0.78 *	$-0.28$	−0.36 *	−0.38 *
gpt-4o	+0.58 *	+0.34	+0.80 *	$-0.04$	$-0.10$	+0.48 *	+0.64 *	+0.70 *	+0.62 *	+0.80 *	+0.44 *	+0.18	+0.80 *	+0.64 *	+0.80 *	+0.80 *	+0.58 *	+0.78 *	+0.78 *	-	+0.50 *	+0.42 *	+0.40 *
orca_mini:70b	+0.08	$-0.16$	+0.30 *	−0.54 *	−0.60 *	$-0.02$	+0.14	+0.20	+0.12	+0.30 *	$-0.06$	$-0.32$	+0.30 *	+0.14	+0.30 *	+0.30 *	+0.08	+0.28 *	+0.28	−0.50 *	-	$-0.08$	$-0.10$
goliath:120b	+0.16	$-0.08$	+0.38 *	−0.46 *	−0.52 *	+0.06	+0.22	+0.28	+0.20	+0.38 *	+0.02	$-0.24$	+0.38 *	+0.22	+0.38 *	+0.38 *	+0.16	+0.36 *	+0.36 *	−0.42 *	+0.08	-	$-0.02$
qwen:32b	+0.18	$-0.06$	+0.40 *	−0.44 *	−0.50 *	+0.08	+0.24	+0.30 *	+0.22	+0.40 *	+0.04	$-0.22$	+0.40 *	+0.24	+0.40 *	+0.40 *	+0.18	+0.38 *	+0.38 *	−0.40 *	+0.10	+0.02	-

shows Holm-adjusted McNemar pairwise tests, with significant results at $\alpha =0.05$ bold and starred. According to these results, GPT-4 Turbo and GPT-5 outperform all open-source models except Llama 3.3 70B, where the difference is not significant. GPT-4o also does not differ significantly from Llama 3 70B. The GPT models do not differ significantly among themselves. Within the open-source group, Llama 3.3 70B leads, outperforming 13 models, followed by Llama 3 70B, which outperforms 9.

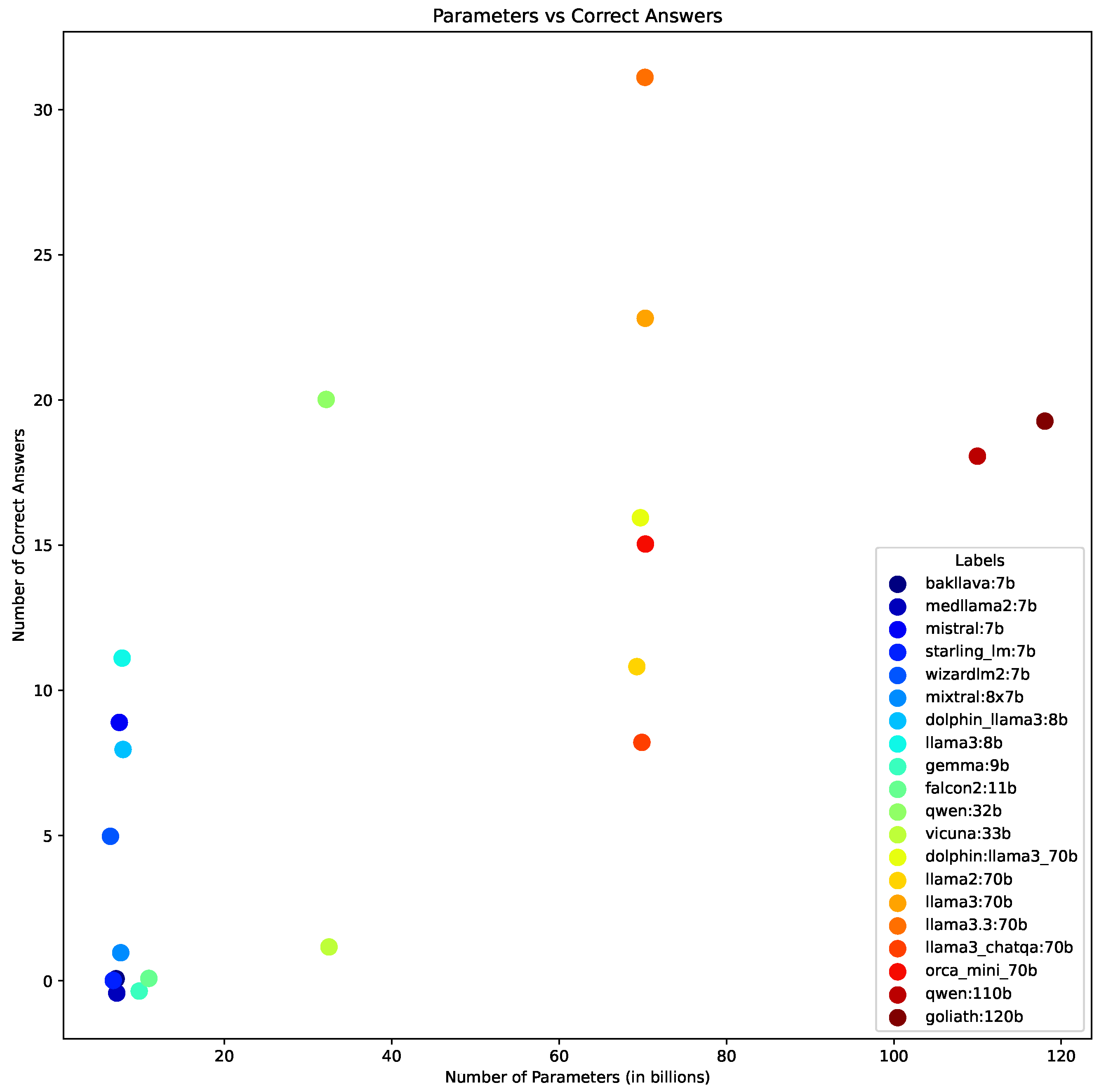

Figure 6 depicts the relationship between the number of parameters (in billions) and the number of correct answers. Although proprietary GPT models were excluded due to undisclosed parameter counts, a general trend indicates that models with more parameters tend to yield better results.

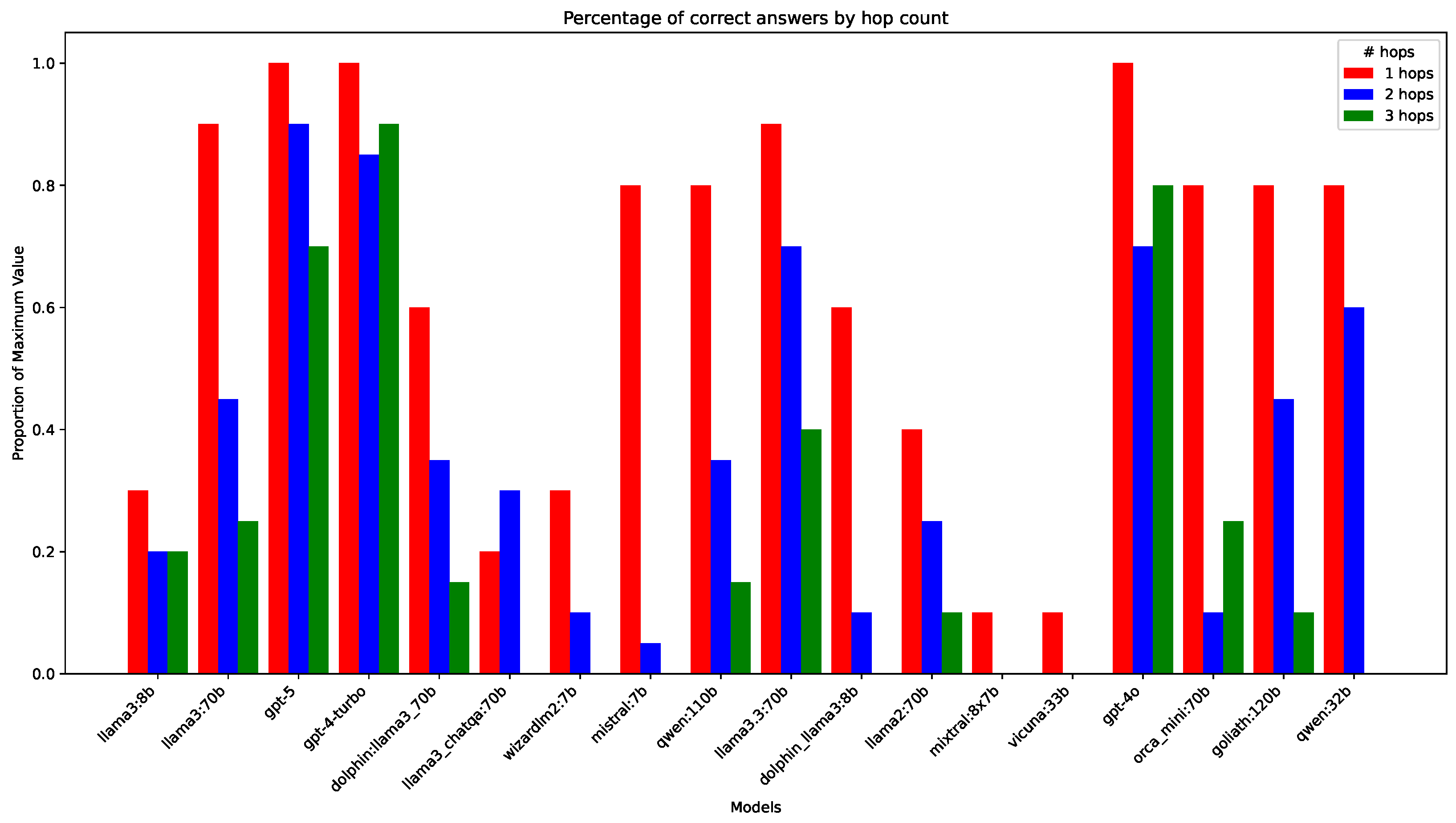

Figure 7 explores model performance based on query complexity, measured by the “hop” count between entities. Most models performed well on simpler, one-hop queries, but only the GPT models maintained high accuracy on both of the more complex two- and three-hop queries.

Overall, our findings indicate that for generating reliable Cypher queries from biomedical questions with a zero-shot prompt, the GPT variants are currently the most effective models within the proposed framework. Among them, GPT-4 Turbo and GPT-5 outperformed more open source variants than the GPT-4o model.

5.2. Influence of the Query Checker

We evaluate the checker by comparing, per model and item, correctness before vs. after applying it. The checker is monotone by design: as a rule-based algorithm, it never alters a correct query, and either fixes an error or leaves it unchanged. Across all 23 × 50 evaluations it corrected 172 of 999 items that were wrong pre-checker, for an overall help rate of 0.172 with a Wilson 95% CI of [0.15, 0.2] (Wilson 95% CI reported per model in

Table 4. Per-model pre/post query checker results on 50 items per model. Counts show items correct without the checker, corrected by the checker, still wrong (no checking opportunities or despite checking), and totals. Accuracy uplift is defined as the increase in accuracy when applying the checker. Help rate is the effectiveness on eligible errors with 95% Wilson CIs. Residual error rate is the remaining error rate after the checker.

Model	Correct w/o Checker	Corrected by Checker	Wrong, No Checking Opportunities	Wrong Despite Checking	Total Correct	Total False	Accuracy Uplift	Help Rate	Help Rate 95% Wilson CI	Residual Error Rate
llama3:8b	6	5	14	25	11	39	0.10	0.11	[0.05, 0.24]	0.78
llama3:70b	1	22	8	19	23	27	0.44	0.45	[0.32, 0.59]	0.54
starling_lm:7b	0	0	0	50	0	50	0.00	0.00	[0, 0.071]	1.00
gpt-4 turbo	34	11	4	1	45	5	0.22	0.69	[0.44, 0.86]	0.10
gpt-5	1	41	0	8	42	8	0.82	0.84	[0.71, 0.91]	0.16
dolphin_llama3:70b	10	6	8	26	16	34	0.12	0.15	[0.071, 0.29]	0.68
llama3_chatqa:70b	7	1	10	32	8	42	0.02	0.02	[0.0041, 0.12]	0.84
wizardlm2:7b	3	2	16	29	5	45	0.04	0.04	[0.012, 0.14]	0.90
mistral:7b	7	2	16	25	9	41	0.04	0.05	[0.013, 0.15]	0.82
medllama2:7b	0	0	19	31	0	50	0.00	0.00	[0, 0.071]	1.00
qwen:110b	13	5	10	22	18	32	0.10	0.14	[0.059, 0.28]	0.64
gemma2:9b	0	0	0	50	0	50	0.00	0.00	[0, 0.071]	1.00
dolphin_llama3:8b	7	1	29	13	8	42	0.02	0.02	[0.0041, 0.12]	0.84
bakllava:7b	0	0	0	50	0	50	0.00	0.00	[0, 0.071]	1.00
falcon2:11b	0	0	0	50	0	50	0.00	0.00	[0, 0.071]	1.00
llama2:70b	10	1	14	25	11	39	0.02	0.02	[0.0044, 0.13]	0.78
mixtral:8x7b	1	0	1	48	1	49	0.00	0.00	[0, 0.073]	0.98
vicuna:33b	0	1	23	26	1	49	0.02	0.02	[0.0035, 0.1]	0.98
gpt-4o	1	39	0	10	40	10	0.78	0.80	[0.66, 0.89]	0.20
orca_mini:70b	3	12	6	29	15	35	0.24	0.26	[0.15, 0.4]	0.70
goliath:120b	5	14	13	18	19	31	0.28	0.31	[0.2, 0.46]	0.62
qwen:32b	14	6	13	17	20	30	0.12	0.17	[0.079, 0.32]	0.60
llama3.3:70b	28	3	8	11	31	19	0.06	0.14	[0.047, 0.33]	0.38

). This yields an average accuracy uplift of +14.95 percentage points.

The effect is model-dependent. The checker amplifies strong models: GPT-5 shows a help rate of 0.84 [0.71, 0.91], GPT-4o 0.80 [0.66, 0.89], and GPT-4 Turbo 0.69 [0.44, 0.86], with sizable uplift and low residual error. Notably, without the checker, the first two models have few correct queries, yet they rank among the highest once checking is applied. In contrast, Llama 3.3:70b starts with many correct queries but achieves only a 0.14 help rate, suggesting its remaining errors are harder for the checker to repair. Mid-tier models benefit but retain significant residual error, for example, Llama 3:70b at 0.45 help and 0.54 residual, and Goliath:120b at 0.31 help and 0.62 residual. Low-baseline models rarely improve, often near 0 with Wilson upper bounds around 0.07. In conclusion, the checker helps most when the base model is already strong, gives moderate gains in the middle, and cannot rescue low-end failures.

The checker addresses schema/syntax issues (e.g., node names or relationship directions). It cannot repair conceptual errors or missing reasoning steps. Therefore, it helps most when the model’s queries are “almost right” and least when queries are structurally off or syntactically incorrect. A pooled one-sided binomial test on help rate confirms the checker does not fix a majority of errors overall (baseline p0 = 0.5), but it yields meaningful accuracy gains in aggregate due to the volume of eligible near-misses.

5.3. Influence of Paraphrased Questions

We tested whether paraphrasing affects pipeline performance by rewriting all 50 questions from Section 3.2 (Appendix C) and re-evaluating the two top models: GPT-4 Turbo (closed-source) and Llama 3.3 70B (open-source).

Table 5. The number of correct answers, accuracy and Wilson 95% confidence intervals for all LLMs.

LLM	Question Type	Correct	Number Total	Accuracy	Wilson 95% CI
gpt-4 turbo	normal	45	50	0.9	[0.79, 0.96]
llama3.3:70b	normal	31	50	0.62	[0.48, 0.74]
gpt-4 turbo	paraphrased	41	50	0.82	[0.69, 0.9]
llama3.3:70b	paraphrased	32	50	0.64	[0.5, 0.76]
gpt-4 turbo	both	86	100	0.86	[0.78, 0.91]
llama3.3:70b	both	63	100	0.63	[0.54, 0.72]

reports the number of correct answers, accuracy, and 95% Wilson CIs. Using McNemar tests with Holm correction,

Table 6. Holm-adjusted McNemar pairwise comparisons of GPT-4 Turbo and Llama 3.3:70b on both normal and paraphrased questions (row-column); Green = Positive, Red = Negative. Bold and starred cells are significant ($\alpha =0.05$).

	gpt-4 Turbo Normal	llama3.3:70b Normal	gpt-4 Turbo Paraphrased	llama3.3:70b Paraphrased
gpt-4 turbo normal	-	+0.28 *	+0.08	+0.26 *
llama3.3:70b normal	−0.28 *	-	$-0.20$	$-0.02$
gpt-4 turbo paraphrased	$-0.08$	+0.20	-	+0.18
llama3.3:70b paraphrased	−0.26 *	+0.02	$-0.18$	-

compares each model to itself across normal vs. paraphrased questions and compares the models to each other on each set. We find no significant within-model difference between normal and paraphrased questions. On the normal set, GPT-4 Turbo significantly outperforms Llama 3.3 70B; this contrast was not flagged in Table 3 because that table applies a more stringent correction across a larger family of comparisons. Finally,

Table 7. Holm-adjusted McNemar pairwise comparisons of GPT-4 Turbo and Llama 3.3:70b on normal and paraphrased questions together (row-column); Green = Positive, Red = Negative. Bold and starred cells are significant ($\alpha =0.05$).

	gpt-4 Turbo	llama3.3:70b
gpt-4 turbo	-	+0.23 *
llama3.3:70b	−0.23 *	-

aggregates normal and paraphrased questions and shows that GPT-4 Turbo remains significantly better than Llama 3.3 70B; total answer counts per model in this combined analysis are also reported in Table 5.

6. Cypher Generation with Optimized Prompting

In this experiment, we investigated how prompt optimization could improve the quality of Cypher queries generated by LLMs. Using the 50 questions from our benchmark dataset, we tested optimized prompts, including specific examples and tailored instructions, to help the LLMs produce more accurate Cypher queries.

This section presents results from experiments focused on optimizing prompts for the two models, GPT-4 Turbo and Llama 3:70b. We tested three prompting strategies (zero-shot, one-shot, and few-shot prompting) and explored various prompt crafting techniques to enhance initial Cypher query generation and improve overall pipeline performance.

6.1. Multi-Shot Prompts

Providing different numbers of examples in prompts can significantly affect model performance. To evaluate this effect, we compared zero-shot (no examples), one-shot (one example), and few-shot (multiple examples) prompting to assess their impact on Cypher query generation. Below are examples of these prompts; full versions with more hints for the LLM are available in Appendices Appendix D.2 and Appendix D.3.

(Shortened) One-Shot Prompt:

      Task:Generate Cypher statement to query a graph database.

      Schema: {schema}

      Follow these Cypher examples when Generating Cypher

      ⤷  statements:

      # How many actors played in Top Gun?

      MATCH (m:movie {{name:"Top Gun"}})<-[:acted_in]-(a:actor)

      RETURN a.name

      The question is:

      {question}

(Shortened) Few-Shot Prompt:

      Task:Generate Cypher statement to query a graph database.

      Schema: {schema}

      Follow these Cypher example when Generating Cypher

      ⤷  statements:

      # Which actors played in Top Gun?

      MATCH (m:movie {{name:"Top Gun"}})<-[:acted_in]-(a:actor)

      RETURN a.name

      # What town were the actors that played in Top Gun born in?

      MATCH (m:movie {{name:"Top

      ⤷  Gun"}})<-[:acted_in]-(a:actor)-[:born_in]->(t:town)

      RETURN t.name

      The question is:

      {question}

Table 8. n-shot comparison for GPT-4 Turbo and Llama 3:70b: the number of correct answers (out of 50 total), accuracy and Wilson 95% confidence intervals.

LLM	Zero-Shot			One-Shot			Few-Shot
	k	$\widehat{\mathit{p}}$	CI	k	$\widehat{\mathit{p}}$	CI	k	$\widehat{\mathit{p}}$	CI
gpt-4 turbo	45	0.9	[0.79, 0.96]	42	0.84	[0.71, 0.92]	42	0.84	[0.71, 0.92]
llama3:70b	23	0.46	[0.33, 0.6]	32	0.64	[0.5, 0.76]	35	0.7	[0.56, 0.81]

shows the total number of correct answers out of a maximum of 50, the accuracy and the Wilson 95% confidence intervals for GPT-4 Turbo and Llama 3:70b. When doing a Holm-adjusted McNemar pairwise comparison of the prompt types and models, as shown in

Table 9. Holm-adjusted McNemar pairwise comparisons of Zero-Shot, One-Shot and Few-Shot prompts for GPT-4 Turbo and Llama 3:70b; Green = Positive, Red = Negative. Bold and starred cells are significant ($\alpha =0.05$).

	llama3:70b Zero-Shot	llama3:70b One-Shot	llama3:70b Few-Shot	gpt-4 Turbo Zero-Shot	gpt-4 Turbo One-Shot	gpt-4 Turbo Few-Shot
llama3:70b Zero-Shot	—	$-0.18$	$-\mathbf{0.24}$ *	$-\mathbf{0.44}$ *	$-\mathbf{0.38}$ *	$-\mathbf{0.38}$ *
llama3:70b One-Shot	$+0.18$	—	$-0.06$	$-\mathbf{0.26}$ *	$-0.20$	$-0.20$
llama3:70b Few-Shot	$+\mathbf{0.24}$ *	$+0.06$	—	$-0.20$	$-0.14$	$-0.14$
gpt-4 turbo Zero-Shot	$+\mathbf{0.44}$ *	$+\mathbf{0.26}$ *	$+0.20$	—	$+0.06$	$+0.06$
gpt-4 turbo One-Shot	$+\mathbf{0.38}$ *	$+0.20$	$+0.14$	$-0.06$	—	0.00
gpt-4 turbo Few-Shot	$+\mathbf{0.38}$ *	$+0.20$	$+0.14$	$-0.06$	0.00	—

, we see that for GPT-4 Turbo, adding examples does not significantly change performance. However, for Llama 3:70b, few-shot prompting showed a significant improvement over zero-shot. One-shot does not lead to significant improvements. When comparing Llama 3:70b and GPT-4 Turbo, combining the GPT model with zero-shot prompting significantly outperforms all Llama 3 variants except Llama 3 Few-Shot. Moreover, every shot-combination coupled with a GPT model outperforms Llama 3 zero-shot prompting. This underscores the advantage of using few-shot prompting with a model like Llama 3:70b.

6.2. Promptcrafting

Prompt design can substantially influence model performance. To explore this, we tested different prompt formulations to measure their impact on Cypher query generation. Building on our initial prompts, we experimented with several variations:

• Simplified Prompt: Removed detailed instructions to evaluate the effect of minimal guidance (Appendix D.4).
• Syntax Emphasis Prompt: Added a sentence instructing the model to focus on correct syntax usage (Appendix D.5).
• Social Engineering Prompt: Introduced a scenario where the prompter could face consequences (e.g., being fired) if the LLM made mistakes (Appendix D.6).
• Expert Role Prompt: Positioned the LLM as a Cypher query expert to encourage more accurate query generation (Appendix D.7).

These variations were applied to both GPT-4 Turbo and Llama 3:70b.

Table 10. Promptcrafting comparison for GPT-4 Turbo and Llama 3:70b: the number of correct answers (out of 50 total), accuracy and Wilson 95% confidence intervals. The compared prompts are the standard prompt used in the experiment above, a simplified prompt with minimal guidance, a prompt with special emphasis on correct syntax, a social engineering prompt and a prompt positioning the LLM as an expert.

Prompt	gpt-4 Turbo			llama3:70b
	k	$\widehat{\mathit{p}}$	CI	k	$\widehat{\mathit{p}}$	CI
Standard	45	0.90	[0.79, 0.96]	23	0.46	[0.33, 0.6]
Simplified	34	0.68	[0.54, 0.79]	19	0.38	[0.26, 0.52]
Syntax Emphasis	45	0.9	[0.79, 0.96]	24	0.48	[0.35, 0.61]
Social Engineering	46	0.92	[0.81, 0.97]	29	0.58	[0.44, 0.71]
Expert Role	46	0.92	[0.81, 0.97]	26	0.52	[0.39, 0.65]

shows the total number of correct answers out of a maximum of 50, the accuracy and the Wilson 95% confidence intervals for GPT-4 Turbo and Llama 3:70b. When doing a Holm-adjusted McNemar pairwise comparison of the prompt types and models, as shown in

Table 11. Holm-adjusted McNemar pairwise comparisons of different prompt types for the best GPT-model (GPT-4 Turbo) and the best open source model (Llama 3:70b); Green = Positive, Red = Negative. Bold and starred cells are significant ($\alpha =0.05$).

	llama3:70b Standard	llama3:70b Simple	llama3:70b Syntax	llama3:70b Social	llama3:70b Expert	gpt-4 Turbo Standard	gpt-4 Turbo Simple	gpt-4 Turbo Syntax	gpt-4 Turbo Social	gpt-4 Turbo Expert
llama3:70b Standard	—	$+0.08$	$-0.02$	$-0.12$	$-0.06$	$-\mathbf{0.44}$ *	$-0.22$	$-\mathbf{0.44}$ *	$-\mathbf{0.46}$ *	$-\mathbf{0.46}$ *
llama3:70b Simple	$-0.08$	—	$-0.10$	$-0.20$	$-0.14$	$-\mathbf{0.52}$ *	$-\mathbf{0.30}$ *	$-\mathbf{0.52}$ *	$-\mathbf{0.54}$ *	$-\mathbf{0.54}$ *
llama3:70b Syntax	$+0.02$	$+0.10$	—	$-0.10$	$-0.04$	$-\mathbf{0.42}$ *	$-0.20$	$-\mathbf{0.42}$ *	$-\mathbf{0.44}$ *	$-\mathbf{0.44}$ *
llama3:70b Social	$+0.12$	$+0.20$	$+0.10$	—	$+0.06$	$-\mathbf{0.32}$ *	$-0.10$	$-\mathbf{0.32}$ *	$-\mathbf{0.34}$ *	$-\mathbf{0.34}$ *
llama3:70b Expert	$+0.06$	$+0.14$	$+0.04$	$-0.06$	—	$-\mathbf{0.38}$ *	$-0.16$	$-\mathbf{0.38}$ *	$-\mathbf{0.40}$ *	$-\mathbf{0.40}$ *
gpt-4 turbo Standard	$+\mathbf{0.44}$ *	$+\mathbf{0.52}$ *	$+\mathbf{0.42}$ *	$+\mathbf{0.32}$ *	$+\mathbf{0.38}$ *	—	$+0.22$	0.0	$-0.02$	$-0.02$
gpt-4 turbo Simple	$+0.22$	$+\mathbf{0.30}$ *	$+0.20$	$+0.10$	$+0.16$	$-0.22$	—	$-0.22$	$-\mathbf{0.24}$ *	$-\mathbf{0.24}$ *
gpt-4 turbo Syntax	$+\mathbf{0.44}$ *	$+\mathbf{0.52}$ *	$+\mathbf{0.42}$ *	$+\mathbf{0.32}$ *	$+\mathbf{0.38}$ *	0.0	$+0.22$	—	$-0.02$	$-0.02$
gpt-4 turbo Social	$+\mathbf{0.46}$ *	$+\mathbf{0.54}$ *	$+\mathbf{0.44}$ *	$+\mathbf{0.34}$ *	$+\mathbf{0.40}$ *	$+0.02$	$+\mathbf{0.24}$ *	$+0.02$	—	0.00
gpt-4 turbo Expert	$+\mathbf{0.46}$ *	$+\mathbf{0.54}$ *	$+\mathbf{0.44}$ *	$+\mathbf{0.34}$ *	$+\mathbf{0.40}$ *	$+0.02$	$+\mathbf{0.24}$ *	$+0.02$	$-0.00$	—

, we see that the simplified prompt was the worst choice for GPT, with the Social and Expert prompts being significantly better. For Llama 3:70b, the promptcrafting did not have a statistically significant impact on performance. When comparing GPT-4 Turbo and Llama 3:70b, it is notable that the GPT model performs significantly better, except for the Simple prompt, which only performs significantly better than Llama 3 combined with the same prompt.

7. User Interface

We created a web-based user interface (UI) for this system specifically designed for interacting with the Knowledge Graph described in Section 3 through natural language queries. A screenshot is shown in Figure 8. Using this UI, users can input questions, view the initial Cypher query generated by the LLM, and inspect the corrected query after validation by the query-checking algorithm, all within the same interface. This feature allows users to clearly compare the original and corrected queries and check which node and relationship types are being used in the query, providing transparency into the modifications made.

The GUI was developed using Streamlit [31]. It interfaces with Neo4j [32] and Ollama [33], making all downloaded LLMs and a Knowledge Graph available for question answering.

8. Related Work

Recent advancements in question answering over Knowledge Graphs (KGs) increasingly leverage large language models (LLMs) to enhance query generation and answer formulation. Approaches integrating LLMs with KGs include direct translation methods, prompt optimization, subgraph extraction, and entity matching. This section reviews these methods, highlighting their contributions to KG-based question answering. While we briefly compare non-LLM KGQA methods to contextualize the space, our experimental scope is limited to LLM-based KG querying and prompting under a shared KG and pipeline.

• Direct Translation and Fine-Tuning of Language Models

Several studies focus on directly translating natural language questions into SPARQL queries through fine-tuned LLMs. Wang et al. [34] introduced NLQxform, where a BART model is fine-tuned on SPARQL, avoiding ID hallucinations by using entity names rather than IDs and employing string matching for entity recognition. They construct a “logical form” as a query template based on the question, selecting results via template matching. Similarly, Luo et al. [35] proposed ChatKBQA, fine-tuning an LLM on pairs of questions and logical forms of SPARQL queries and generating queries by identifying the top-k similar entities and relations for each candidate form. Fine-tuning LLMs has proven effective for SPARQL generation, minimizing ID hallucinations and improving entity recognition through template matching.

• Chain-of-Thought Prompting and Few-Shot Learning

Chain-of-thought (CoT) prompting enhances LLMs’ reasoning in query generation. Zahera et al. [36] utilized CoT prompting and provided extracted entities and relations from the input question, along with few-shot examples that match the question’s structure. Their method leverages entity-linking and relation extraction libraries to inform the LLM. Avila et al. [37] match question-query pairs to the input question by similarity in question structure. They get passed to the LLM alongside entities and relations and the input question to perform few-shot prompting. Overall, CoT prompting and few-shot learning have been shown to enhance the reasoning capabilities of LLMs.

• Semantic Parsing and Template-Based Methods

Semantic parsing has been an important technique in transforming natural language into machine-understandable queries. Pérez et al. [38] explored semantic parsing for conversational question answering with two distinct approaches. The first involved creating a subgraph from identified KG entities and their one-hop neighborhoods, which, along with the question and context, was input into a semantic parser to generate SPARQL queries. The second approach used an encoder–decoder model to convert questions into logical form templates, predicting query structures and relations. Entity recognition and linking were facilitated by a dedicated model, and a graph attention network encoded the graph schema to fill in missing template parts. Agarwal et al. [39] presented a self-supervised program synthesis approach for zero-shot KGQA. They generated question-query pairs by traversing the KG and having the LLM formulate questions for the paths found. For real questions, similar pairs were retrieved based on the cosine similarity of sentence embeddings to serve as few-shot examples. Candidates were re-ranked by regenerating questions from queries to find the closest match. In essence, semantic parsing techniques and template-based methods offer a structured approach for question-answering.

• Subgraph Extraction and Contextualization

Efficient subgraph extraction can help to reduce token usage and focus the LLM on relevant information. Avila et al. [37] proposed a framework that retrieves a subgraph centered around the user’s question. They grouped triples by subject and property to form sentences, computed embeddings to identify those closest to the question, and reconstructed a connected subgraph. The LLM then generated multiple SPARQL queries, selected the best one based on the results, and formulated a natural language answer. Pliukhin and Rehm’s [40] method also involved subgraph extraction by deriving two-hop paths containing relevant objects, which were merged and used to prompt the LLM. They also passed a question-query pair that is similar to the question and validated the query by removing hallucinated symbols. Soman et al. [41] focused on biomedical KGs by extracting disease entities using an LLM and computing vector similarities with disease concept embeddings in SPOKE [42]. They fetched neighboring nodes, converted triples into sentences, and pruned the context by selecting sentences with high similarity scores to the input prompt. This pruned context, along with the question, was provided to the LLM. Pérez et al. [38] constructed a subgraph from KG entities identified in the question and their one-hop neighborhoods. Thus, subgraph extraction techniques that focus on constructing relevant subgraphs from KG entities allow LLMs to generate more accurate queries by providing concise and context-rich input.

• Entity and Relation Matching Techniques

Accurate entity and relation matching is important for the validity of generated queries. Zahera et al. [36] and Wang et al. [34] utilized entity-linking and relation extraction libraries with string matching techniques, respectively, to identify relevant KG components. Steinigen et al. [43] improved upon this by performing entity extraction to replace synonyms with the corresponding graph entities. Their work, Fact Finder, closely aligns with our approach by incorporating the KG schema and relation descriptions into the prompt for the LLM to generate Cypher queries. They also implemented query preprocessing steps such as formatting, lowercasing properties, synonym mapping, and fixing deprecated code issues. Jia et al. [44] leveraged LLMs for semantic query processing in a scholarly knowledge graph. Their approach involves the LLM generating a triple structure that could potentially answer the user’s question. All triples from the KG that fulfill this structure are then extracted. The LLM evaluates these triples to determine which ones answer the question effectively. Entity matching is performed by checking if lowercased labels of entities are contained within the input text, and relevance is assessed based on the frequency of entity labels appearing in clusters of triples. If no exact matches are found, they employ query relaxation by removing parts of the triple or substituting relations with similar ones. Luo et al. [35] enhanced entity and relation matching by calculating similarities for entities and relations in the logical forms and retrieving the top matches. In conclusion, entity and relation matching methods enhance query accuracy by leveraging string matching, synonym mapping, and semantic processing to align input questions with the corresponding graph entities and relations.

9. Conclusions

This research aimed to improve the accuracy and reliability of natural language question-answering systems by integrating Large Language Models (LLMs) with Knowledge Graphs, particularly in the biomedical domain. We developed a pipeline where LLMs generate Cypher queries, which are then validated and corrected using a query-checking algorithm. To evaluate our approach, we created a benchmark dataset of 50 biomedical questions and compared the performance of various LLMs, including GPT-4 Turbo, GPT-5 and Llama 3.3:70b.

Our results show that GPT-4 Turbo and GPT-5 consistently outperformed current open-source models in generating accurate Cypher queries. Although switching from zero-shot prompting to few-shot prompting notably improved the performance of the open-source model Llama 3:70b, it did not reach the accuracy and reliability levels achieved by GPT-4 Turbo. Promptcrafting also did not increase the performance of Llama 3:70b. These findings suggest that while prompt engineering can enhance open-source model performance, a gap remains between open-source and proprietary models in Cypher query generation. When analyzing whether paraphrasing the questions influences performance, we could find no difference for the models we used in the analysis, GPT-4 Turbo and Llama 3.3:70b.

This study also contributes a valuable dataset of 50 biomedical questions and answers tailored to a subset of PrimeKG, offering a resource for future benchmarking and inspiring similar datasets across other Knowledge Graphs.

10. Outlook

We identify several avenues to refine the pipeline. Expanding the question set may be informative but is not required for the present conclusions, which target schema-grounded NL-to-Cypher synthesis on 1- to 3-hop queries. A separate research track is entity linking and semantic matching. This targets surface-form resolution rather than query reasoning and can be studied independently on top of our system.

Future work includes integrating a second language model to assist with query validation or refinement. Longer-term, linking individual patient data to the knowledge graph could enable patient-specific querying. This would require data governance, consent, privacy-preserving processing, and harmonization across modalities (e.g., omics, labs, EKG), and sits beyond the present study’s scope.
