Anharmonic Effects in Ordered Kesterite-Type Cu₂ZnSnS₄

Abstract

We performed an in-depth investigation and analysis of the effect of temperature on the Raman-active A-modes of bulk kesterite-type Cu₂ZnSnS₄ within the 300–460 K temperature range. We acquired the individual contributions to each Raman mode, namely, the thermal expansion and anharmonic interactions terms responsible for the Raman shift and broadening with temperature. Our results indicate that the Raman shift with temperature is dominated by the thermal expansion term, whereas the broadening is mainly governed by three-phonon damping processes in this material. Considering relevant results from the literature, it appears that dimensionality is a key factor in regulating the dominant phonon decay mechanism.

1. Introduction

The quaternary semiconductor Cu₂ZnSnS₄ has received considerable attention in recent years due to its potential use as a solar absorber [1,2]. The promising photovoltaic properties of this material come from its almost optimal optical band gap (E_g~1.5 eV), its high absorption coefficient in the visible range (~10⁴ cm⁻¹), and its earth-abundant, low-cost, and nontoxic elemental constituents [2,3]. Moreover, the possibility for using this environmentally friendly material in thermoelectric applications has also emerged recently [4,5,6]. The current record for the thermoelectric figure of merit ZT = 1.6 has been achieved for Na-doped Cu₂ZnSnS₄ single crystals at 800 K [4], a rather promising and competitive value [7]. A critical component for determining the thermoelectric performance of a semiconducting material such as Cu₂ZnSnS₄ is the inherent anharmonic phonon–phonon interactions, which influence the lattice thermal conductivity. The latter is inversely proportional to ZT, such that an enhancement of ZT can be realized via the reduction in the lattice thermal conductivity contribution. Hence, the understanding of these anharmonic processes may lead to the optimization of the respective thermoelectric efficiency.

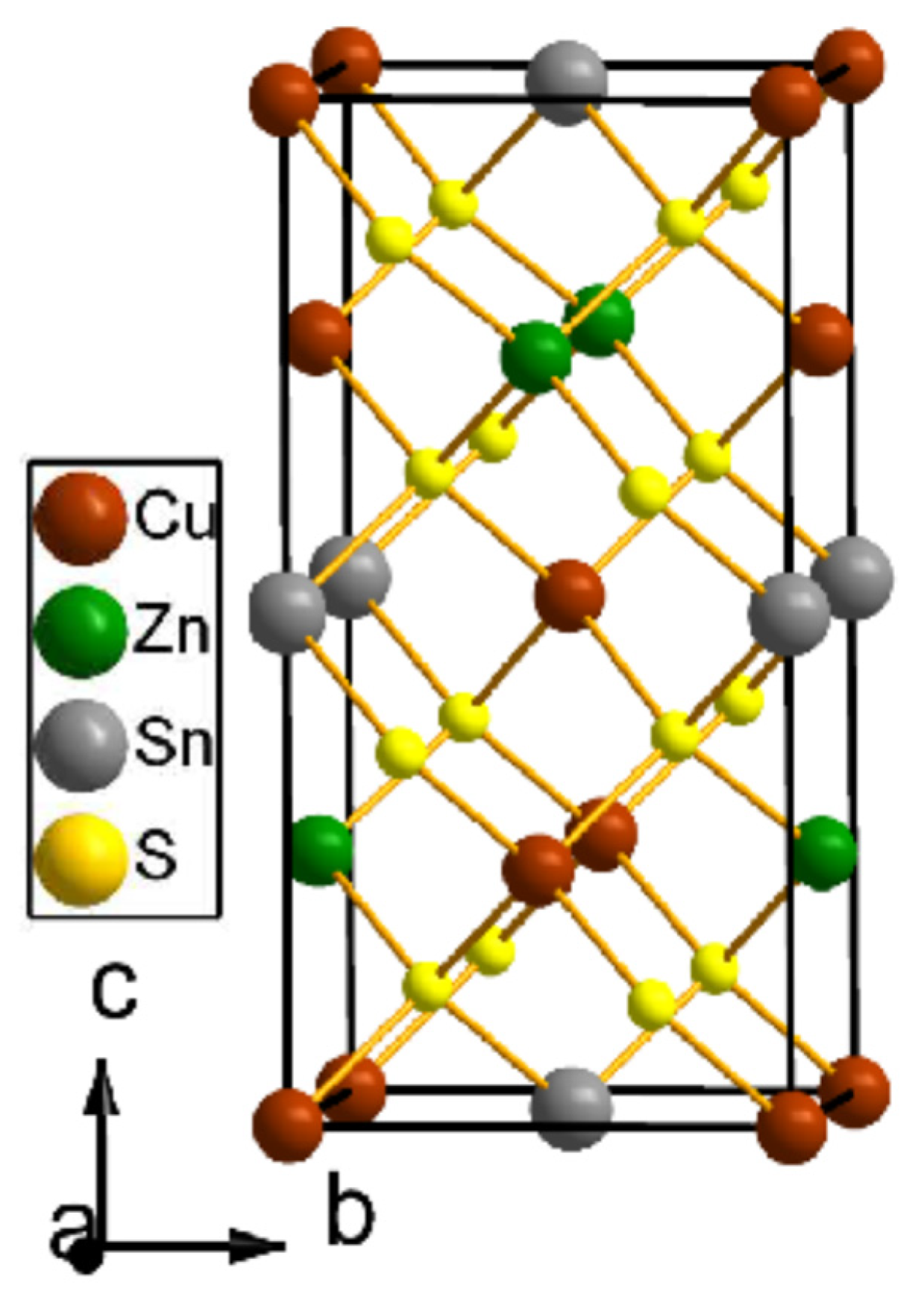

In terms of structure, Cu₂ZnSnS₄ adopts ideally an ordered kesterite-type (KS) phase in ambient conditions, with each metal cation adopting a specific (and unique) Wyckoff position (Figure 1) [8,9]. This phase is composed of alternating Cu/Zn and Cu/Sn layers stacked along the c-axis, with sulfur anions in between. Each of the metal cations is tetrahedrally coordinated with respect to the S²⁻ anions and is structurally derived from the well-known sphalerite/zinc-blende archetypal phase [10].

We should point out here that the synthesis of Cu₂ZnSnS₄ samples suffers from several issues such as cationic disorder, point defects, deviation from ideal stoichiometry, and appearance of secondary phases. Actually, several recent studies have been devoted to the identification and the classification of these intrinsic defects, as a means of finding the optimal synthesis conditions [11,12,13,14,15,16,17]. It is generally observed that, for example, the annealing temperature plays a major role in the stoichiometry of the final product. Moreover, inspection of the available literature reveals that the synthesis procedure is better controlled for bulk KS samples compared to their thin-film counterparts, yielding generally higher-quality (poly)crystalline products [13,14,18,19,20]. Nevertheless, we need to mention that the most common type of intrinsic disorder in KS Cu₂ZnSnS₄ is the anti-site cationic exchange of the Cu and Zn cations within the z = 1/4 and z = 3/4 cationic layers (Figure 1), leading to the adoption of a disordered kesterite phase [21]. This particular type of disorder is almost always evidenced in the KS structure, owing to the low activation energy barrier [15,17,22]. For more details, the interested reader is referred to the cited works. The aforementioned structural issues affect virtually every other property of the material, including its vibrational response [13,23].

Regarding the latter, one of the most simple and straightforward ways to monitor the anharmonic properties of a material is through separate high-temperature and high-pressure Raman scattering studies [24,25]. Given that we previously conducted high-pressure Raman investigations on a stoichiometric and ordered Cu₂ZnSnS₄ bulk sample at ambient temperature [26,27], we decided to expand our Raman investigations on the same sample with varying temperature at ambient pressure. This would allow us to model the anharmonicity of the KS Cu₂ZnSnS₄ Raman-active modes in a reliable and self-consistent manner [28,29] and acquire an in-depth understanding of the damping processes dominating the Raman-active phonons.

2. Materials and Methods

The investigated ordered Cu₂ZnSnS₄ sample was available in polycrystalline powder form. Synthesis and characterization details can be found elsewhere [30,32,33].

The temperature-dependent Raman measurements at ambient pressure were conducted using a Horiba Jobin Yvon LabRam HR800 VIS single-stage Raman spectrometer, equipped with a 1800 L/mm diffraction grating and a Peltier-cooled charged-coupled device (CCD). A blue diode-pumped solid-state laser (λ = 473 nm) served as the laser excitation source. The laser beam was focused on the sample surface with a 20× objective lens, with the incident laser power staying below ~1 mW in order to avoid any potential sample damage [34]. The measured frequency range was 100–600 cm⁻¹, and the collection time of each spectrum was set to three accumulations of 10 min each. The spectrometer resolution with this configuration is estimated at 1 cm⁻¹, considering the Rayleigh line. Heating of the sample was achieved with a Linkam THMS600 stage, and the sample chamber was purged continuously with argon gas. The thermocouple readout temperature was corrected with an empirical formula, derived from the melting points of different salts and the freezing point of water [35,36]. The Raman-relevant parameters were obtained from the fitting of the Raman spectra with Lorentzian functions, accompanied by linear background correction/subtraction.

3. Results

3.1. Temperature Dependence of the Raman-Active Modes in Cu₂ZnSnS₄

From group theory, a total sum of 15 Raman-active modes are predicted for the KS phase [37].

Γ = 3A + 6B + 6E.

(1)

We can readily observe that the KS Raman spectrum in ambient conditions is dominated by two Raman features lying at ~288 cm⁻¹ [A(1)] and ~338 cm⁻¹ [A(2)] (Figure 2), in agreement with results from the literature using blue laser light excitation [23,38]. Both of these Raman modes correspond to A symmetry vibrations and involve sulfur motions mainly along the tetragonal ab plane (288 cm⁻¹) and along the c-axis (338 cm⁻¹) [39]. Moreover, we detected an additional Raman mode close to 475 cm⁻¹, attributed to a Cu₂S impurity phase according to previous investigations on the same sample [26,27]. For the sake of completeness, we mention in passing that Cu₂S (chalcocite) undergoes a temperature-induced structural transition from the ambient temperature monoclinic phase to a high-temperature hexagonal modification close to ~370 K [40,41], most likely captured in our Raman spectra from the substantial intensity enhancement of the Cu₂S-related Raman feature around that temperature (Figure 2a).

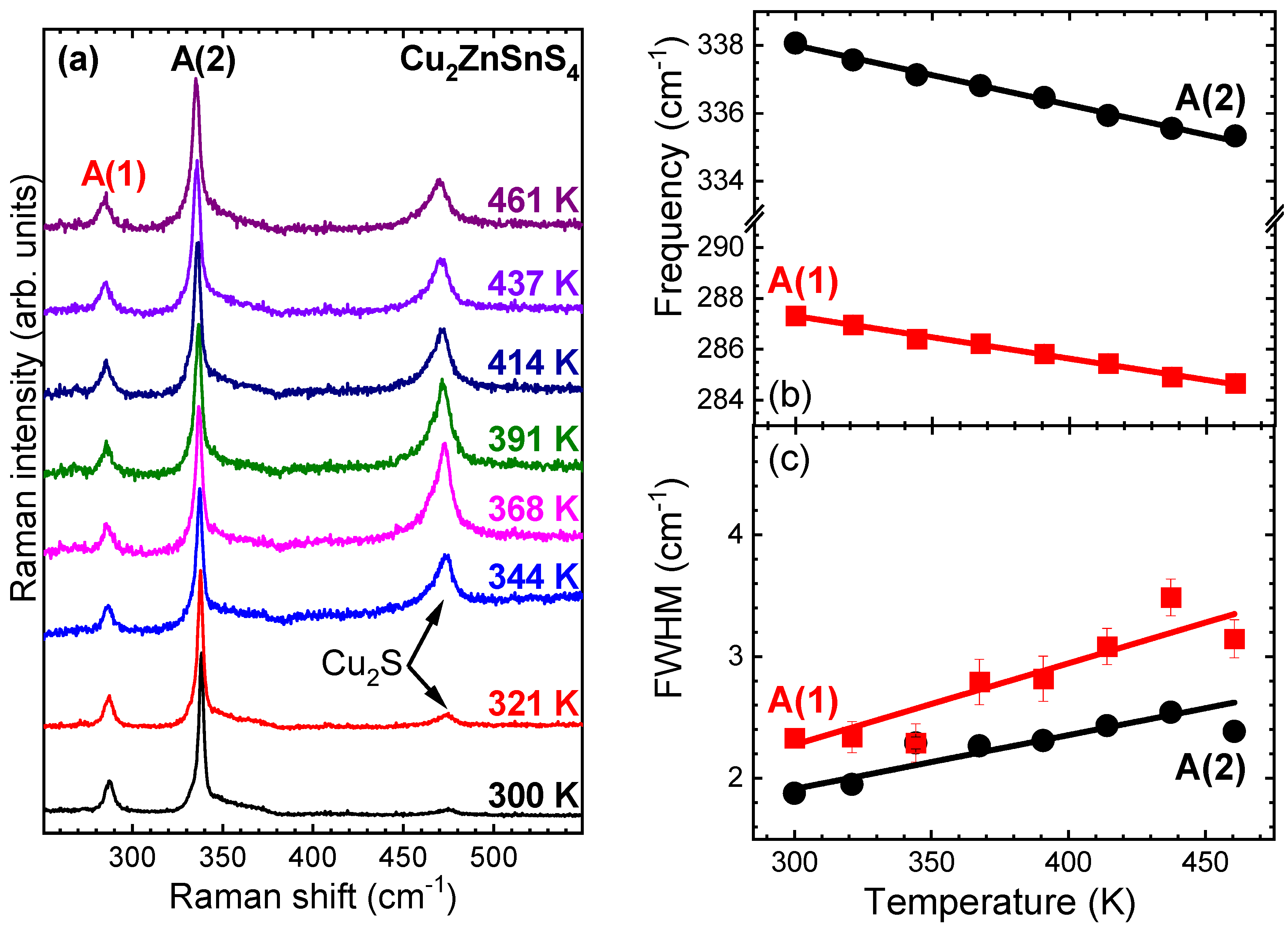

In Figure 2a, we plot the measured Raman spectra of the ordered Cu₂ZnSnS₄ modification at various temperatures. It becomes immediately clear that the Raman spectra do not show any substantial changes with varying temperature within the measured 300–460 K temperature range. The only notable effect taking place is the frequency downshift for both of the KS A modes with increasing temperature, as well as the increase in the respective full width at half maximum (FWHM) (Figure 2b). Both of these effects are consistent with the generic Raman-related behavior of solids upon heating [25].

Before proceeding any further, we should point out here that we restrict the analysis of the current set of Raman experiments up to 460 K, as further temperature increase resulted in the appearance of structural disorder and the subsequent altering of the KS Raman spectra; such temperature-induced order-to-disorder transition, stemming from the mutual anti-site Cu⁺ and Zn²⁺ cationic exchange within the respective crystal planes (Figure 1), is well documented in the literature [30,42]. As we are primarily interested in acquiring the KS anharmonic properties at this stage, for the sake of consistency, we confined our analysis within the temperature stability field of the KS phase.

Coming now to the analysis of the obtained data, the isobaric Raman mode frequency evolution of the Raman-active modes as a function of temperature can be expressed with the following equation:

$${\omega }_{\mathrm{i}}^P\left(T\right)={\omega }_{\mathrm{i}0}^P+{\left(\frac{\partial {\omega }_{\mathrm{i}}}{\partial T}\right)}_P\Delta T,$$

(2)

where ${\omega }_{{}_{i0}}^P$ is the (extrapolated) mode frequency at zero temperature and ambient pressure, ΔT is the temperature difference, and (∂ω_i/∂T)_P is the first-order temperature coefficient. Moreover, the isothermal mode Grüneisen parameters ${\gamma }_i^P$ can also be calculated with the following formula [25]:

$${\gamma }_i^P=-\frac{1}{{\alpha }_V{\omega }_{i0}^P}{\left(\frac{\partial {\omega }_i}{\partial T}\right)}_P\Delta T,$$

(3)

where α_V represents the volumetric thermal expansion coefficient. The latter value can be calculated from the in situ structural data for the 300–460 K temperature range [42]. The extracted results are tabulated in

Table 1. Raman-related temperature coefficients for the Raman modes of KS Cu₂ZnSnS₄.

KS Mode	${\mathit{\omega }}_{\mathit{i}0}^{\mathit{P}}$ (cm−1)	(∂ωi/∂T)P (cm−1/K)	${\mathit{\gamma }}_{\mathit{i}}^{\mathit{P}}$	${\mathbf{\Gamma }}_{\mathit{i}0}^{\mathit{P}}$ (cm−1)	(∂Γi/∂T)P (cm−1/K)
A(1)	292.3(2)	−0.0168(5)	1.93	0.3(4)	−0.007(1)
A(2)	343.3(2)	−0.0176(5)	1.72	0.6(2)	−0.0044(6)

.

In a similar fashion, the width of the KS Raman modes against temperature can also be fitted with a polynomial function (Figure 2c).

$${\mathsf{\Gamma }}_i\left(T\right)={\mathsf{\Gamma }}_{i0}^P+{\left(\frac{\partial {\mathsf{\Gamma }}_i}{\partial T}\right)}_P\Delta T,$$

(4)

where ${\Gamma }_{{}_{i0}}^{{}^P}$ is the (extrapolated) width at zero temperature and ambient pressure, ΔT is the temperature difference, and (∂Γ_i/∂T)_P is the first-order temperature coefficient. The respective fitting parameters are also tabulated in Table 1.

3.2. Modeling Phonon Anharmonicity in Cu₂ZnSnS₄

The shift of a Raman-active mode with varying temperature is generally attributed to thermal expansion (volumetric) and anharmonic effects, and it can be approximated by the following equation [25,29]:

$$\Delta \omega \left(T\right)={\omega }_i\left(T\right)-{\omega }_{i0}^P=\Delta {\omega }_E\left(T\right)+\Delta {\omega }_A\left(T\right).$$

(5)

The Δω_E(T) term indicates the volumetric thermal expansion contribution (implicit term), and the Δω_A(T) term describes the anharmonic phonon–phonon interactions (explicit term) to the mode-specific temperature dependence. The Δω_E(T) part is given by the following expression [24,29]:

$$\Delta {\omega }_E\left(T\right)={\omega }_{i0}^P\left[exp\left(-n{{\displaystyle \int }}_{300 K}^{460 K}{\gamma }_i^T{\alpha }_V\left(T^{\prime }\right)d{T}^{\prime }\right)-1\right],$$

(6)

where n denotes the degeneracy of the respective Raman-active vibration (n = 1 for the A mode symmetries examined here), and ${\gamma }_{{}_i}^T$ is the respective isothermal mode Grüneisen parameter (here taken from [27]). Assuming that ${\gamma }_{{}_i}^T$ is temperature-independent, we calculated the implicit part (CTE) of each KS Cu₂ZnSnS₄ A-mode’s frequency shift with temperature (Figure 3).

On the other hand, the anharmonic/explicit Δω_A(T) term can be expressed with the following equation [29]:

$$\Delta {\omega }_A\left(T\right)=A\left[1+\frac{2}{e^x-1}\right]+B\left[1+\frac{3}{e^y-1}+\frac{3}{{\left(e^y-1\right)}^2}\right],$$

(7)

where x = ħω_i0^P/2k_BT, y = ħω_i0^P/3k_BT, ħ is the reduced Planck’s constant, k_B is Boltzmann’s constant, and A and B are anharmonic constants used as fitting parameters. The A and B constants indicate the magnitude of the three-phonon (cubic) and four-phonon (quartic) processes, respectively, i.e., the decay of one particular optical Γ phonon (here the KS A-modes) into two (cubic) or three (quartic) phonons at different points of the KS Brillouin zone, according to energy and momentum conservation rules [28]. The respective calculated three-phonon (3-ph.) and four-phonon (4-ph.) contributions to the A mode frequency shifts with temperature are also shown in Figure 3.

We turn now to the modeling of the width Γ of the Cu₂ZnSnS₄ A-bands as a function of temperature. Generally, the behavior of Γ, which represents the lifetime of the respective phonon, can be accounted for by two physical processes [24].

$$\mathsf{\Gamma }\left(T\right)={\mathsf{\Gamma }}_0+{\mathsf{\Gamma }}^{EPC}\left(T\right)+{\mathsf{\Gamma }}^{an}\left(T\right),$$

(8)

where the temperature-independent Γ₀ term stands for the width contribution due to, e.g., the finite spectrometer resolution and/or other scattering mechanisms such as crystalline defects and impurities present in real samples [47], and the Γ^EPC and Γ^an factors denote contributions from the electron–phonon coupling (decay of the phonon into a hole–electron pair) and the anharmonic phonon–phonon scattering, respectively. The Γ^EPC term is relevant only in (semi)metallic systems [24,48] and can be neglected for the semiconducting Cu₂ZnSnS₄. On the other hand, the anharmonic Γ^an part can be expressed as follows [24,29]:

$${\mathsf{\Gamma }}^{an}\left(T\right)=C\left[1+\frac{2}{e^x-1}\right]+D\left[1+\frac{3}{e^y-1}+\frac{3}{{\left(e^y-1\right)}^2}\right],$$

(9)

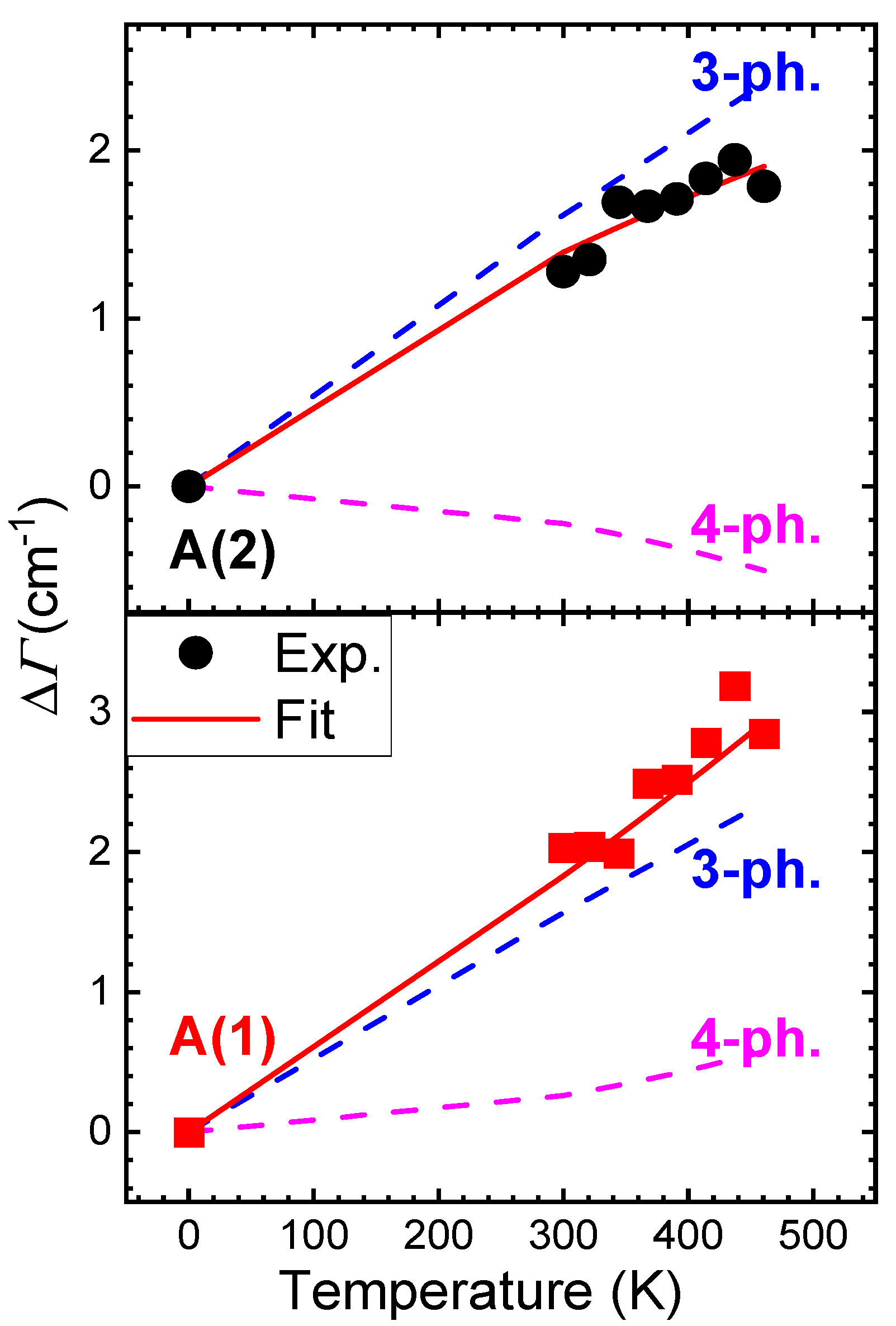

where x = ħω_i0^P/2k_BT, y = ħω_i0^P/3k_BT, and C and D are fitting parameters for the three- and four-phonon decay processes. The respective fittings are shown in Figure 4, with the calculated parameters listed in

Table 2. Fitting parameters derived from reproducing the Raman-active A-band frequency and width shift as a function of temperature in KS Cu₂ZnSnS₄, according to Equations (5)–(9). Literature data are also listed for comparison. The acronyms are explained as follows: CZSS, Cu₂ZnSnS₄; TF, thin film; CZSS-TF1 [43], thin film grown on fluorinated tin oxide coated glass; CZSS-TF2 [44], thin film grown on soda lime glass; CZSSe-TF^A [45], Cu₂ZnSnSe₄ thin film, Zn-rich and Sn-poor, grown on Ta foil; CZSSe-TF^B [45], Cu₂ZnSnSe₄ thin film, Zn-poor and Sn-rich, grown on Ta foil; CFSS [46], Cu₂FeSnS₄ (stannite structure); N/A, not available.

Compound	Mode	${\mathit{\omega }}_{\mathit{i}0}^{\mathit{P}}\left({{\mathbf{cm}}^{-}}^1\right)$	${\mathit{\gamma }}_{{}_{\mathit{i}}}^{\mathit{T}}$ [27]	A (cm−1)	B (cm−1)	${\mathbf{\Gamma }}_{\mathit{i}0}^{\mathit{P}}\left({{\mathbf{cm}}^{-}}^1\right)$	C (cm−1)	D (cm−1)	T Range (K)
CZSS-bulk	A(1)	292.3(2)	1.07	1.21	−0.006	0.3(2)	0.530	0.02	300–460
	A(2)	343.3(2)	1.03	2.06	−0.07	0.6(2)	0.630	−0.02	300–460
CZSS-TF1	A(2)	340.8	1.01	−1 × 10−22	−9.1 × 10−20	10.7	2 × 10−10	1.09 × 10−20	98–378
CZSS-TF2	A(2)	N/A	N/A	N/A	N/A	N/A	N/A	N/A	80–450
CZSSe-TFA	A(1)	174.5	N/A	2.762	−3.947	7.5	0.653	−0.007	24–290
CZSSe-TFA	A(2)	197.9	N/A	3.668	−4.936	3	0.068	−2.817 × 10−4	24–290
CZSSe-TFB	A(1)	175.8	N/A	3.471	−4.414	6.4	0.276	−0.002	24–290
CZSSe-TFB	A(2)	198.6	N/A	3.729	−4.274	2.3	−0.001	−2.727 × 10−4	24–290
CFSS-bulk	A(2)	325.4	5.1	−0.89	−1.2 × 10−9	3.5	6.000	N/A	10–300

.

4. Discussion

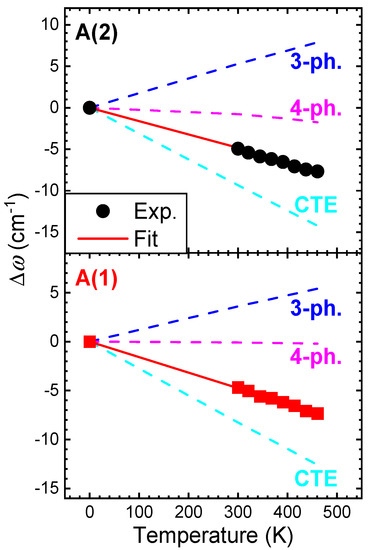

From the aforementioned rigorous analysis, it becomes clear that the frequency shift for both A modes of Cu₂ZnSnS₄ as a function of temperature is dominated by the thermal expansion term, whereas the four-phonon contribution is marginal within the investigated temperature range (Figure 3). Interestingly, the three-phonon term shows a clear increase with increasing temperature for both modes (positive A parameter in Table 2), a sign of up-conversion decay channels for both of these vibrations [49]. Nevertheless, it can be noted that the strength of the cubic and quartic phonon damping processes is significantly larger for the A(2) mode compared to the A(1) vibration, indicating the wider availability of decay channels for the former [37,50].

For the A-mode width temperature dependence, on the other hand, the three-phonon mechanism is clearly the dominant factor in determining the phonon lifetimes for both modes (Figure 4). Such a result is consistent with the general trend of semiconducting materials [24,51].

Comparison with the available literature data reveals some interesting traits. Our results are in stark contrast with a previous study on Cu₂ZnSnS₄ thin films, where the dominant damping mechanism was found to be four-phonon processes [43,44]. Possible reasons behind this discrepancy might be, e.g., differences in the studied temperature range (Table 2), sample stoichiometry, presence and type of defects, the presence of intrinsic and extrinsic strain, and dimensionality, as well as a possible influence of the underlying substrate in the Raman measurements [52]. Interestingly, the four-phonon process was also shown to be the major decay mechanism for the isostructural kesterite-type Cu₂ZnSnSe₄ thin films [45]. On the other hand, the thermal expansion term is the prevailing damping factor for the Raman-active phonons of the closely related stannite-type Cu₂FeSnS₄ [46]. Since the latter sample was investigated in bulk form, as our Cu₂ZnSnS₄ sample here, it appears that dimensionality strongly influences the exact phonon damping mechanism (at least within kesterite-type materials). Actually, the reduction in dimensionality, i.e., passing from the respective bulk compounds to thin films and nanomaterials, seemingly enhances the strength of both three- and four-phonon processes [48,53,54,55]. If that is indeed the case, one could also manipulate and even control the dominant phonon scattering processes in Cu₂ZnSnS₄ and, consequently, its thermoelectric performance by altering the material’s dimensions (e.g., thickness and number of layers for thin films). Indeed, the enhancement of a material’s thermoelectric performance via the reduction in lattice thermal conductivity, stemming in turn from the reduction in its dimensions, has received significant attention in recent years [56]. Follow-up experimental investigations are needed, however, in order to verify this possibility in both the Cu₂ZnSnS₄ compound and in other technologically important material families.

5. Conclusions

In summary, we investigated the effect of temperature on the Raman-active A-modes of kesterite-type Cu₂ZnSnS₄. We were able to extract the individual contributions to each Raman mode, i.e., the volumetric (thermal expansion) and anharmonic (phonon-phonon interactions) terms responsible for the Raman shift and broadening with temperature. Comparison with relevant systems indicates the significant role of dimensionality in determining the dominant phonon damping factor, thus opening the way for tuning the thermoelectric performance of this class of materials by appropriate growth conditions.
