Temperature Impact on Drinking Water Consumption ^†

Abstract

The production of water in a drinking water supply system (WSS) comprises all drinking water enter in the net, while the consumption of water generally comprises all billed amounts of water in a WSS. The production and consumption of water in a drinking WSS depend on different factors. Consumption rates depend on the consumer structure and habits, industrial demand, time of year, water pricing, climatic variables, secondary water losses and many other factors. One of the interesting factors is air temperature. It is especially important in the frame of climate change and global warming. Temperature impact on water consumption in a WSS is not uniform temporally (particularly throughout the year) and spatially (different climate regions and countries, different habits and different conditions in each WSS). Obtained correlations for the two biggest cities in Serbia (Belgrade and Niš) are presented in the paper and compared with some examples worldwide.

1. Introduction

It is well-known that abstracted water in one water supply system (WSS) is the sum amount of water abstracted by wells, from captured springs and/or by water intake structures. Produced water in one WSS (in International Water Association - IWA terminology, “entered in a WSS”) is the amount of water after water treatment. Some other terms are more fluid. Assuming that all flowmeters in a WSS work properly, and that “authorized unbilled” and “not authorized” consumption are negligible, the consumed amount of water in one WSS is the amount of water consumed by the categories (household, industry and city institutions) or by all categories in total. With these assumptions (relevant for this paper), water production (WP) in a WSS is the compound of the total water consumption (TWC) or “paid water“ in IWA terminology and primary water losses—in net, before consumer’s flowmeters (“real losses”). Primarily, water losses vary very much from country to country (from WSS to WSS in the same country, too) and, generally, are higher in less or medium-developed countries.

As noted, the total water consumption is made up of the consumption for household needs, including the watering of gardens (residential water use, which includes indoor and outdoor activities); consumption by industry (commercial) and city institution’s consumption (schools, hospitals, etc.), and vary from less than 50% to more than 90% of water production amounts. Consumption rates depend on the consumer structure and habits, industrial demand, water pricing, climatic variables, secondary water losses and many other factors, including the specific condition of any particular WSS.

Regarding the consumption pace of change, socioeconomic variables such as population, income, the price of water, housing characteristics, etc. can impose medium-term or long-term changes in water consumption patterns, while climatological variables such as precipitation and temperature induce short-term changes [1].

The impact of climatic parameters is not uniform temporally (particularly throughout the year) and spatially (different climate regions and countries and different habits). Geographic locations with cold winters and warm summers are especially sensitive. In such locations, two water consumption segments occur in the year: the warm part (spring-summer) and winter [2]. Cold temperatures, freezing precipitation and snow-covered ground surfaces, for example, tend to restrict water use to indoor activities in the winter. On the other hand, spring-summer warm temperatures and snow-free ground surfaces may induce significant increases in water consumption, both indoors and outdoors [3]. The main investigated climatic variables in the literature are temperature and precipitation, but others, such as wind or relative humidity or evaporation, also affect spring-summer water use. In a majority of cases, they are not considered because of the unavailability of data.

It would have been interesting to investigate different types of consumption as a function of the climatological variables, but the needed data are not available generally. More important (especially due to climate change) is how much the increase of temperature, or changes in precipitation, affect the TWC or WP in a WSS. The topic of this paper is the air temperature (T) impact on the TWC (or WP). Several examples of this impact are presented. It is not fully clear in these examples if some authors by the term “water consumption” maybe mean “water production” (this paper’s author’s remark).

2. Air Temperature Impact on Water Production in the Cities of Belgrade and Niš, Both in Serbia

Only daily averages during the warmer part of the year, from May to October, were analyzed. Given certain specific features of each of these months (varying uses of water for gardening, summer holidays, etc.), they were grouped into three periods that are analyzed and presented separately: (1) May and June, (2) July and August and (3) September and October. A linear trend was determined for each plot, and the respective equation and coefficient of determination were graphically represented. Then, the percent change in water production for the difference of 1 °C was computed [4].

2.1. Belgrade

A public water supply in Belgrade began in 1892 with some 40 L/s withdrawn from springs within the city and its environs for the 50,000 inhabitants at that time. Production peaking was at the beginning of the 21st century at an overall annual average rate of 7.5 m³/s. The efficiency of the system has been upgraded considerably in period 2002–2012 (

Table 1. Total water production in the Belgrade water supply system (WSS) in 2002 and from 2008 to 2012 year.

Year	2002	2008	2009	2010	2011	2012
Total water production (Mil. m3/year)	233	218	214	203	202	201

), such that the annual average production rate is up to 6.5 m³/s (200 million m³/year). Today, in the Belgrade WSS, six water treatment plants processed abstracted water. A distribution network that is some 3500-km-long delivers water to about 1.5 million inhabitants and numerous industries and institutions.

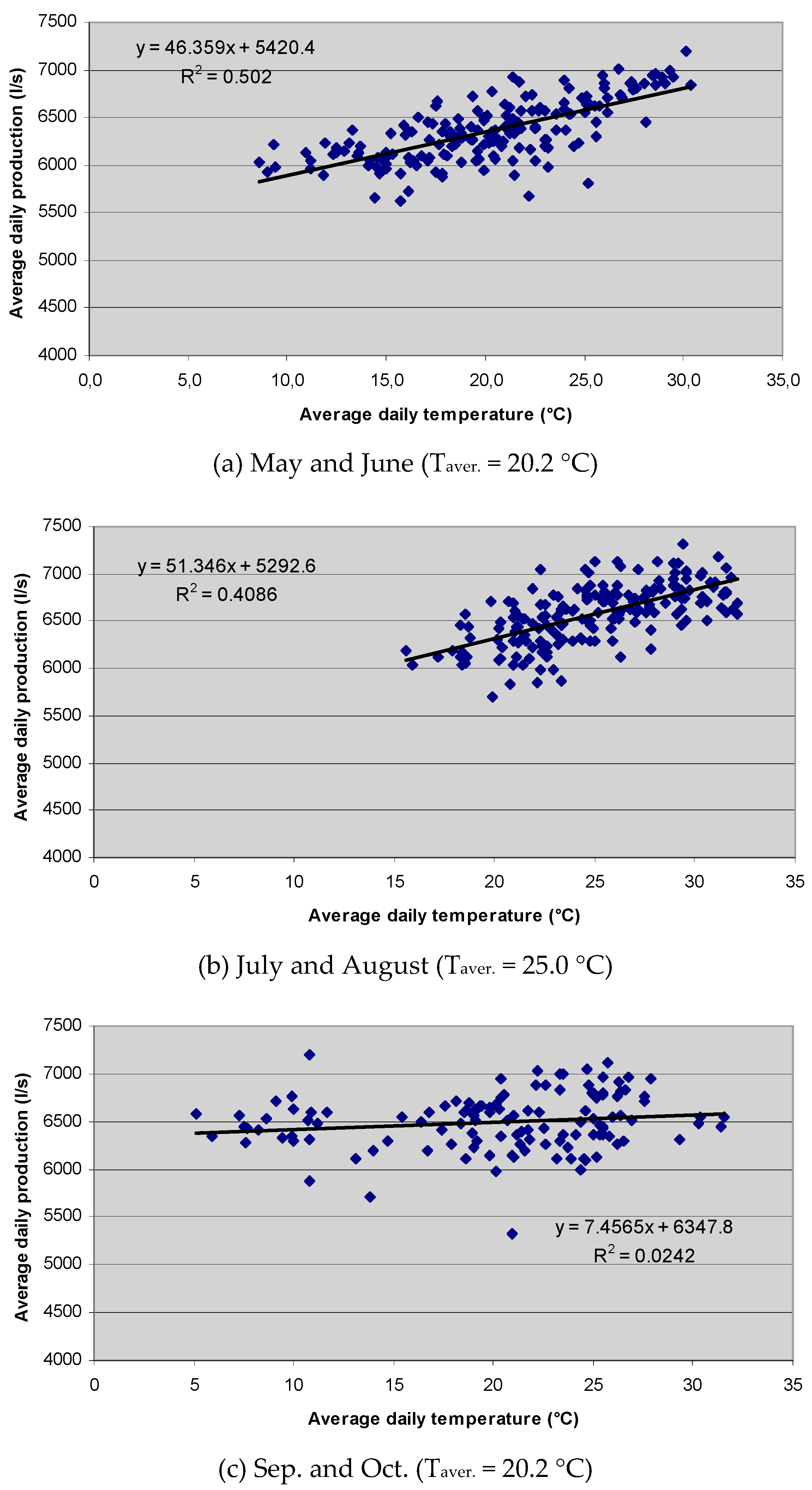

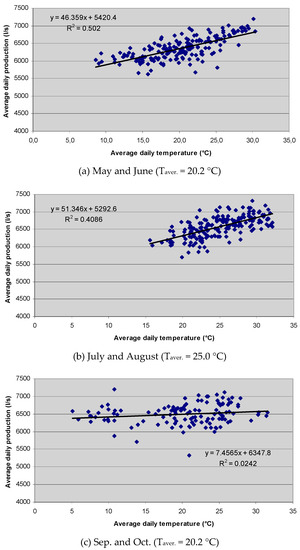

Figure 1, from (a) to (c), shows the correlation between the total water production in the Belgrade WSS and recorded daily temperatures for the months May/June, July/Aug and September/October during 2011–2013. Then the percent variation in the production rates (rate of WP) for 1 °C is computed.

• May and June:

  $$RW{P}_{1C}=\frac{46.359\cdot 100}{6358}\cdot 1 °\mathrm{C}=0.73\%$$

  (1)
• July and August:

  $$RW{P}_{1C}=\frac{51.346\cdot 100}{6577}\cdot 1 °\mathrm{C}=0.78\%$$

  (2)
• September and October:

  $$RW{P}_{1C}=\frac{7.4565\cdot 100}{6499}\cdot 1 °\mathrm{C}=0.11\%$$

  (3)

The highest average water production rate in Belgrade was recorded, as expected, in the warmest summer months, July/August (6577 L/s), followed by September/October (6499 L/s). The lowest was registered in the May/June (6358 L/s) months of the study period. The variation in WP as a function of T was similar in May/June and July/August, while it was much lower in September/October.

2.2. Niš

The city of Niš and its surroundings (total population about 260,000) receive drinking water from the regional WSS, called NIVOS. NIVOS comprises several different sources, about 30 pumping stations, some 30 water tanks, roughly 100 km of water mains and approx. 800 km of service pipes.

Water production and delivery have been continuously metered since 2003 (

Table 2. Average yearly total water production in NIVOS from 2003 to 2010.

Year	2003	2004	2005	2006	2007	2008	2009	2010
Average yearly production (L/s)	1268	1219	1201	1250	1203	1156	1158	1166

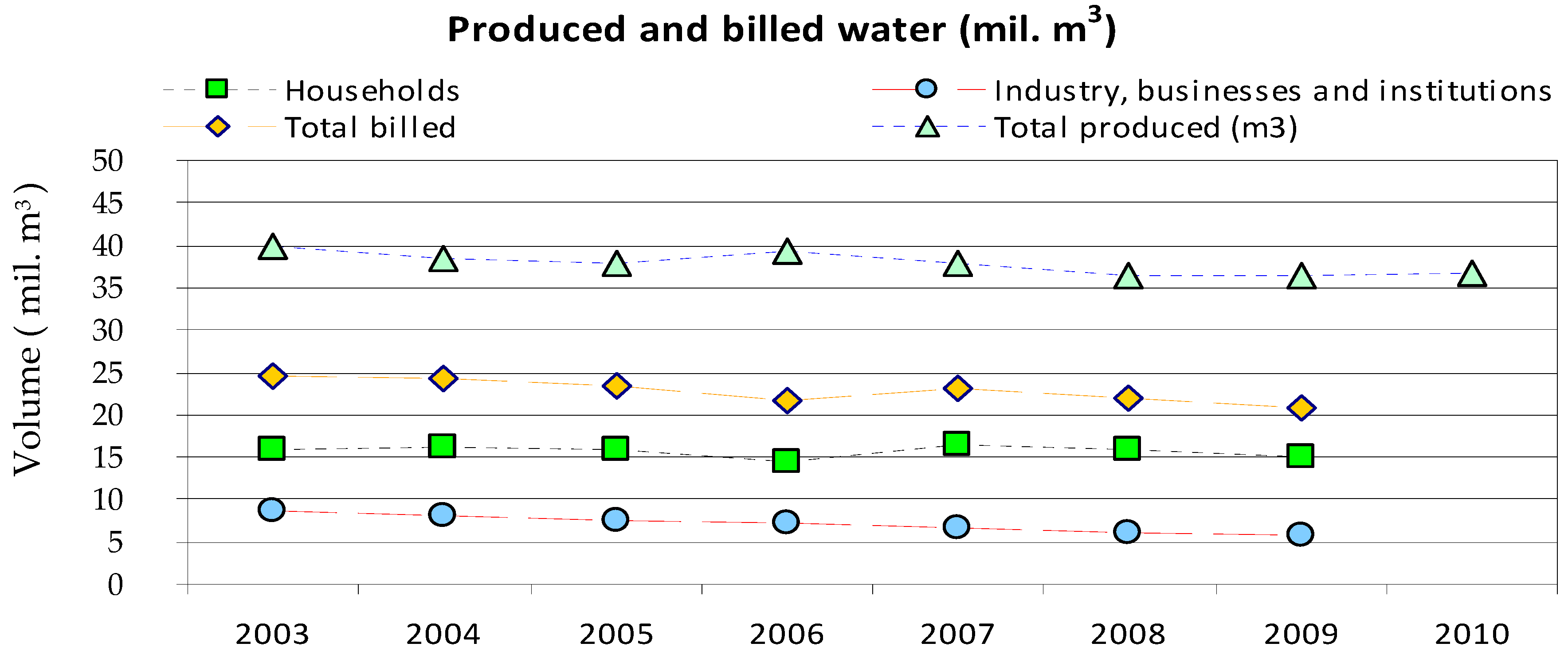

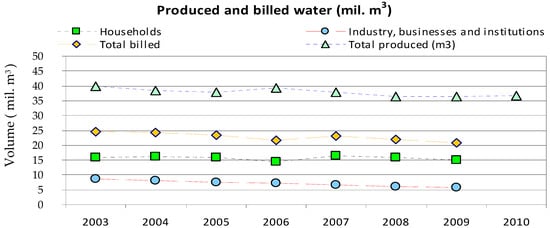

—total and Figure 2—by categories). Based on these data, NIVOS has provided about 1190 L/s on average.

The water supply has generally been stable in terms of quantity and quality (drinking water standards). Since 2003, water losses have varied from 36% to 43%. The proportions by consumer categories were: households 41%, industries and institutions 19% and unbilled consumption 40%.

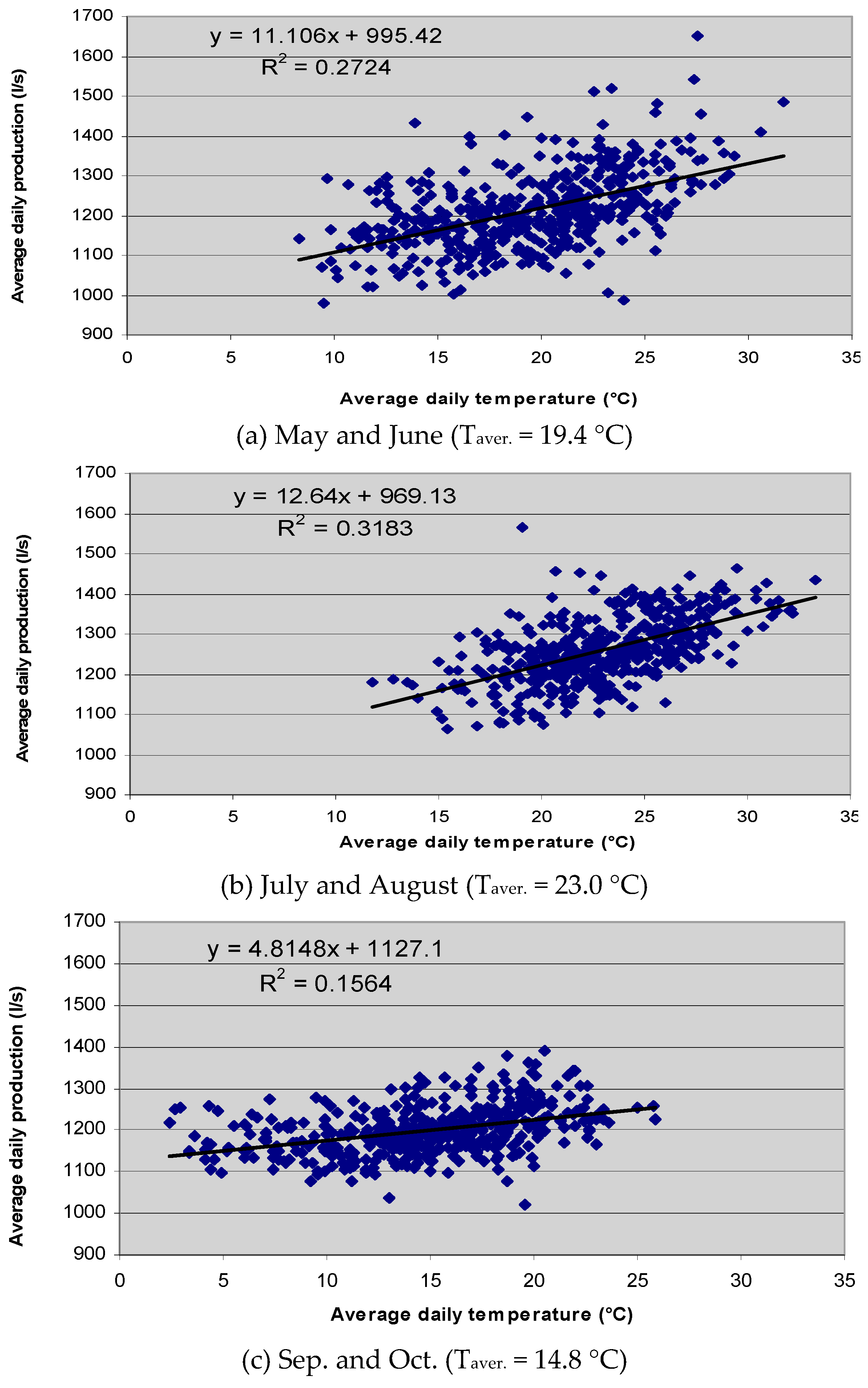

Figure 3, from (a) to (c), shows the correlation between the total water production and recorded daily temperatures for the months May/June, July/August and September/October during 2003–2010 at NIVOS. Then the percent variation in the production rates (rate of WP) for 1 °C is computed.

• May and June:

  $$RW{P}_{1C}=\frac{11.106\cdot 100}{1211}\cdot 1°\mathrm{C}=0.92\%$$

  (4)
• July and August:

  $$RW{P}_{1C}=\frac{12.64\cdot 100}{1260}\cdot 1 °\mathrm{C}=1.00\%$$

  (5)
• September and October:

  $$RW{P}_{1C}=\frac{4.8148\cdot 100}{1199}\cdot 1 °\mathrm{C}=0.40\%$$

  (6)

The highest average rate of water production at NIVOS was also recorded in the warmest summer months—July/August (1260 L/s), followed by May/June (1211 L/s). The lowest was registered in the months September/October (1199 L/s). The variation in WP as a function of T was similar for May/Jun and July/August, while it was again much lower in September/October.

In July/August, both systems recorded the highest average rates of WP, despite temporarily reduced populations. This is attributed to higher T during this period relative to the other two. NIVOS recorded a higher WP in May/June than in September/October, to which the watering of gardens was a contributing factor during this period. Belgrade reported a higher WP in September/October than in May/June as a result of a higher population count, while the average daily T were the same for the two periods (20.2 °C).

The slopes of the trend lines show that both systems exhibited a greater impact of T on the WP during the first two periods: May/June and July/August. As previously suggested, this was due to the watering of gardens and other green surfaces (even they are not too high) to a much greater extent than in the third period, September-October. For the first two periods, it appears that a T increase of 1 °C causes an average increase in the rate of WP of approximately 1%.

3. Air Temperature Impact on Water Consumption Worldwide—Examples

3.1. Example: The City of Calgary—Alberta (Canada)

The city of Calgary (approx. 1.4 million inhabitants) exhibits an impressive climate variability throughout the year [3]. The city has a cold climate, with a strong T contrast between day and night, as well as winter and summer. The summers are cool, with a mean daily T of 15 °C. Temperatures during the summer have the least variability and rarely exceed 32 °C. The primary objective was to examine the effects of the mean maximum weekly T on the weekly TWC per capita in the spring-summer season. The summer TWC per capita tends to be higher and, in some cases, is twice as much as the winter water use.

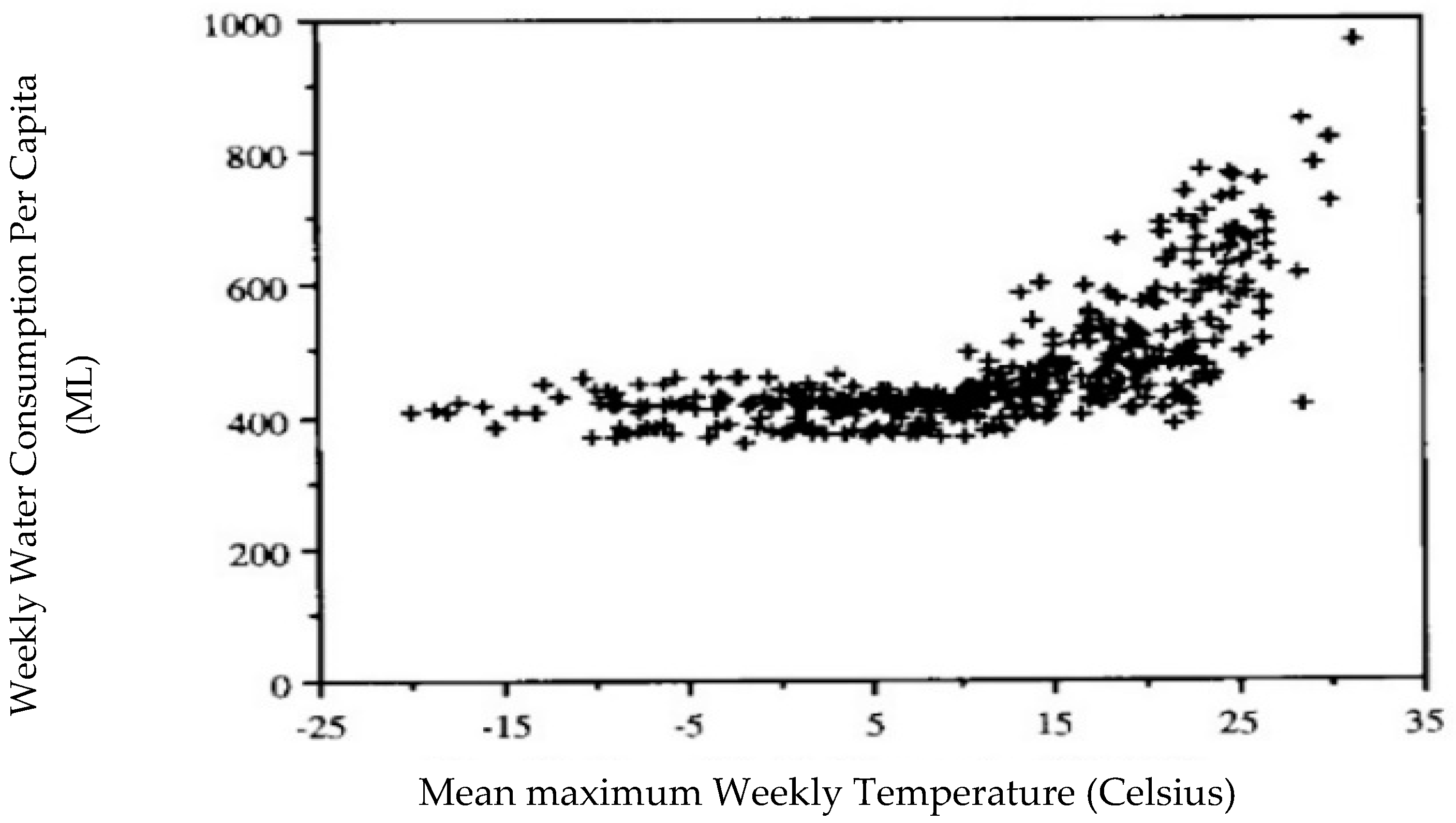

Figure 4 shows a plot of the mean maximum weekly T and weekly TWC per capita from January 1982 through December 1989. Two distinct segments can be discerned. The weekly TWC per capita seems to be fairly steady when the mean maximum weekly T is below 15 °C. In contrast to that, the TWC per capita increases with the increasing mean maximum weekly T when temperatures exceed 15 °C.

If a trend line would be put in Figure 4 for temperatures above 15 °C, the slope would show that T increases of 1 °C cause an average increase in the rate of the TWC of approximately 4%:

For T = 15 °C, the average weekly consumption per capita is approx. 430 ML.

For T = 30 °C, the average weekly consumption per capita is approx. 700 ML.

$$RW{C}_{1C}=\frac{700 \mathrm{ML}-430 \mathrm{ML}}{430 \mathrm{ML}}\cdot \frac{1 °\mathrm{C}}{30 °\mathrm{C}-15 °\mathrm{C}}\cdot 100\%=4.19\%/1°$$

(7)

Figure 4 demonstrates also that the weekly TWC per capita during the winter is virtually insensitive to changes in the mean maximum weekly T. Consumption sensitivity begins when the temperature exceeds 15 °C, and this normally begins from May, when the mean monthly maximum temperature is 16 °C.

3.2. Example: The City of Montreal (Canada)

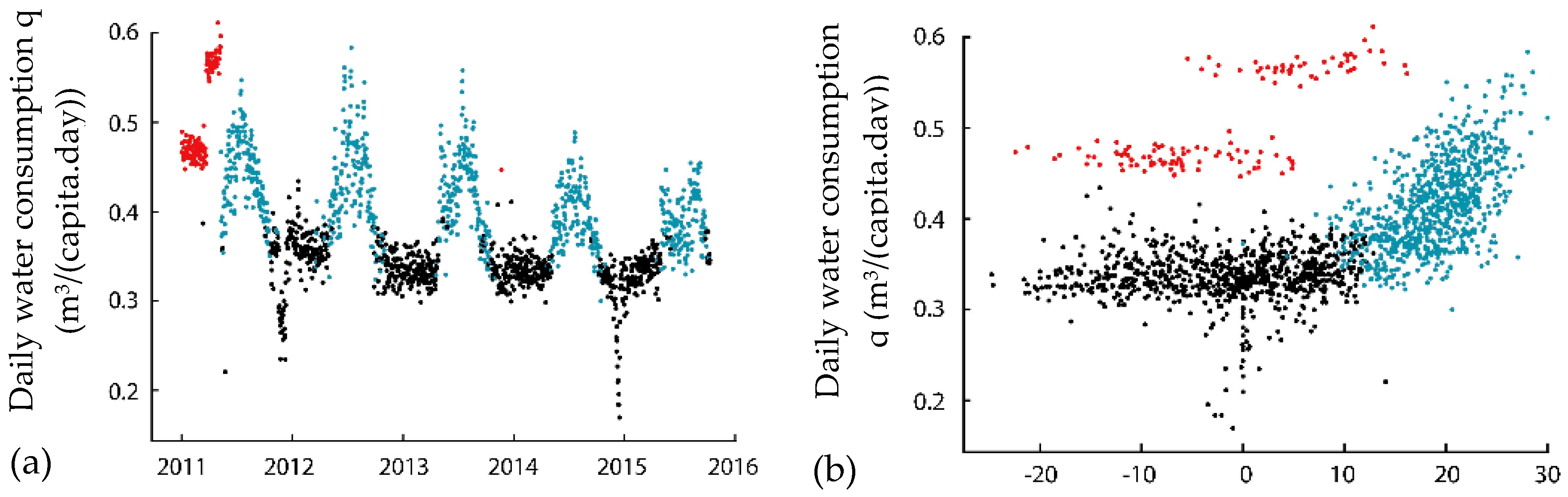

In the analyses of the observed drinking water consumption of the city of Montreal (approx. 1.8 million inhabitants), a clustering analysis of the daily data of the TWC and T were used [5]. It is proposed to split the observations of the daily TWC (period 2011–2016) into two main clusters (black and blue colors) and, additionally, some no-standard data in a separate cluster (red color). This choice is simple and works well to separate the base water use from the seasonal water use (Figure 5a,b).

If a trend line would be put in Figure 5b for T above 12 °C, the slope would show that T increases of 1 °C cause an average increase in the TWC of approximately 3%:

For T = 12 °C, the average daily consumption per capita is approx. 0.35 m³ = 350 L/per capita/per day.

For T = 27 °C, the average daily consumption per capita is approx. 0.50 m³ = 500 L/per capita/per day.

$$RW{C}_{1C}=\frac{500 \mathrm{L}-350 \mathrm{L}}{350 \mathrm{L}}\cdot \frac{1}{27 °\mathrm{C}-12 °\mathrm{C}}\cdot 100\%=2.86\%/1 °\mathrm{C}$$

(8)

3.3. Example: The City of Seoul (South Korea)

The relation between the daily weather variables and TWC were examined in the case study of the South Korea capital Seoul (app. 9.8 mil. inhabitants) [6]. Figure 6a shows the observed average monthly precipitation and T, and Figure 6b shows the monthly TWC per capita in Seoul in the period 2002–2007.

Similar to the majority of studies that investigate T impacts on the TWC, they found that the average daily T and maximum daily T are good predictors of the TWC (Figure 7a,b).

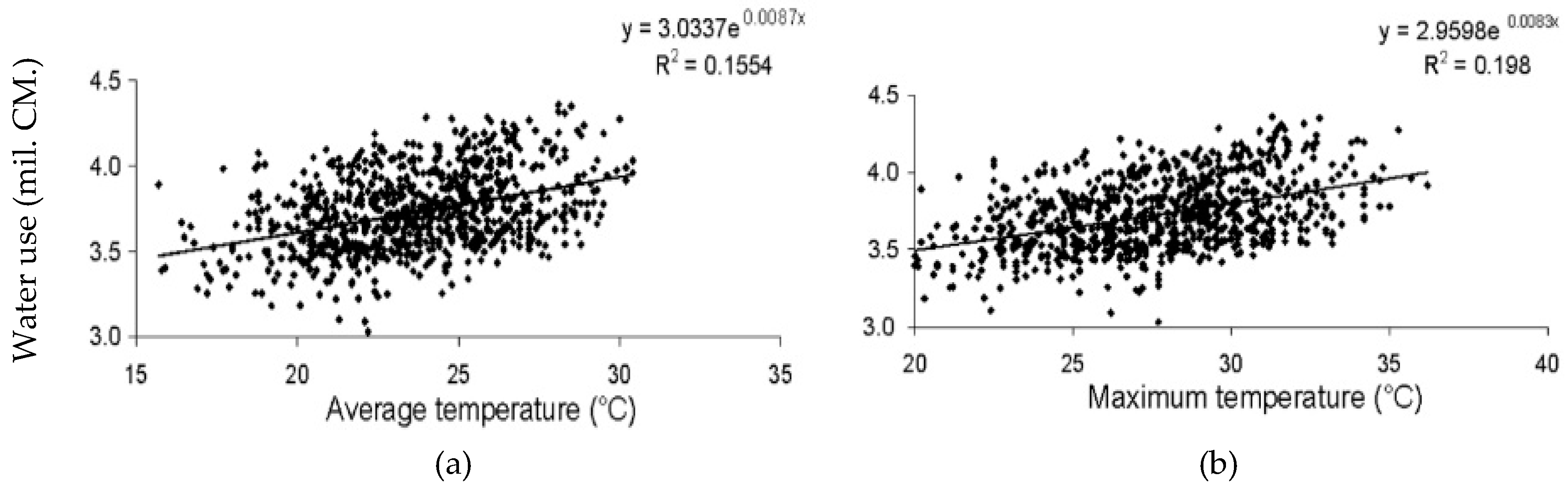

If it is calculated, the TWC base on the trend line in Figure 7a for temperatures above 15 °C, the slope would show that T increases of 1 °C cause an average increase in the rate of the TWC of approx. 1%:

For T = 15 °C, the average daily water use is 3.46 million CM

For T = 30 °C, the average daily water use is 3.94 million CM.

$$RW{C}_{1C}=\frac{3.94 \mathrm{mill}.\mathrm{CM}-3.46 \mathrm{mill}.\mathrm{CM}}{3.46 \mathrm{mill}.\mathrm{CM}}\cdot \frac{1}{30 °\mathrm{C}-15 °\mathrm{C}}\cdot 100\%=0.85\%/1 °\mathrm{C}$$

(9)

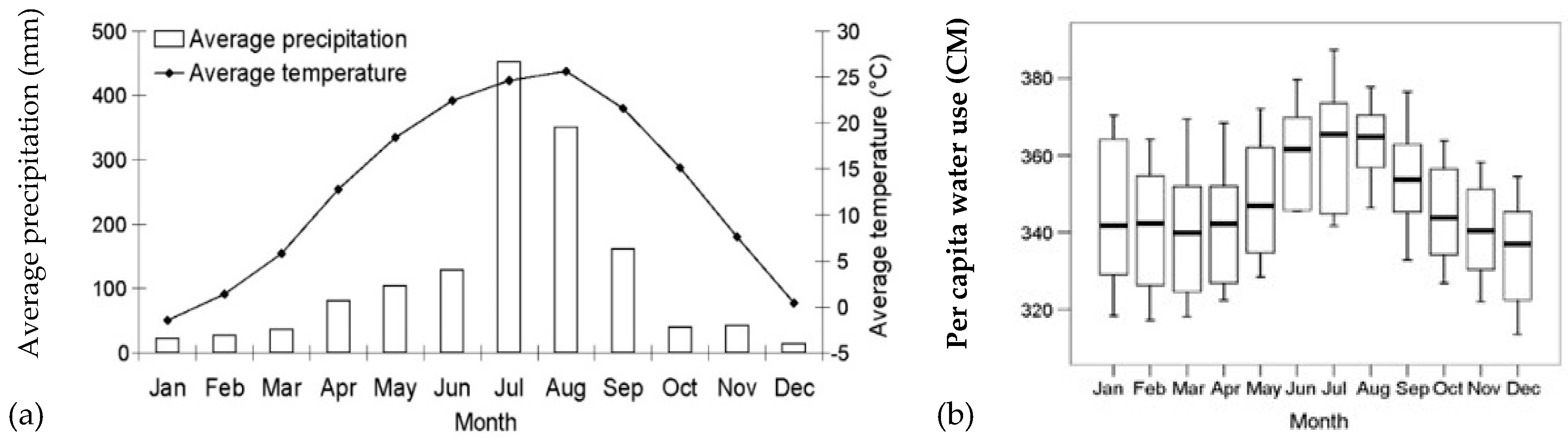

Very close results would be obtained if the TWC was calculated as the impact of the maximum T (Figure 7b) or based on the monthly averages from Figure 6a,b.

3.4. Example: Bahrain

The urban water management in Bahrain is under major stress and is being influenced by a multitude of driving forces, such as high population growth and urbanization rates, high water consumption per capita, high water losses and the limited availability of water resources [7].

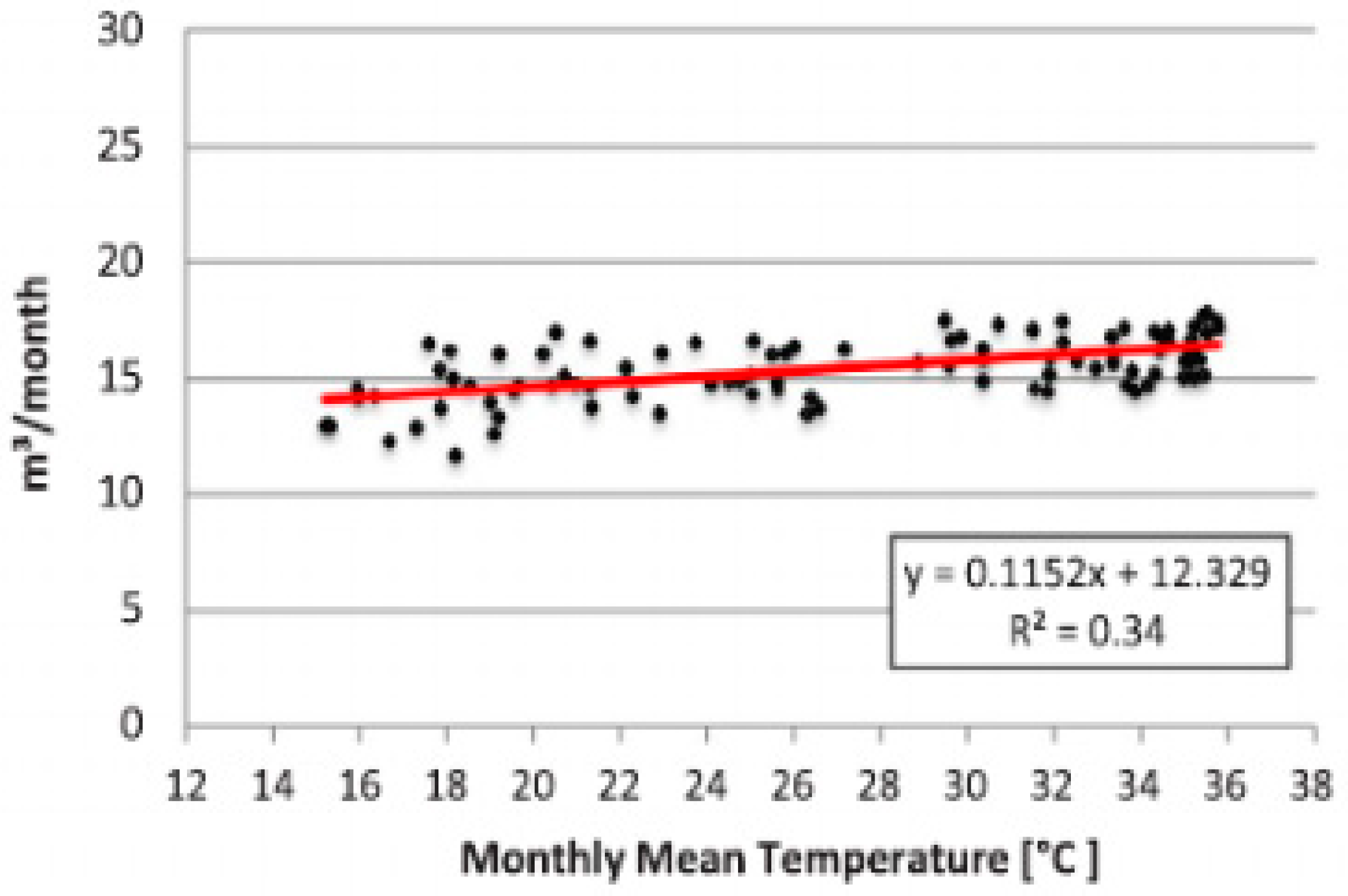

Observed data from the period 2005–2011 show an increase in monthly water consumption with increasing monthly mean temperature (Figure 8).

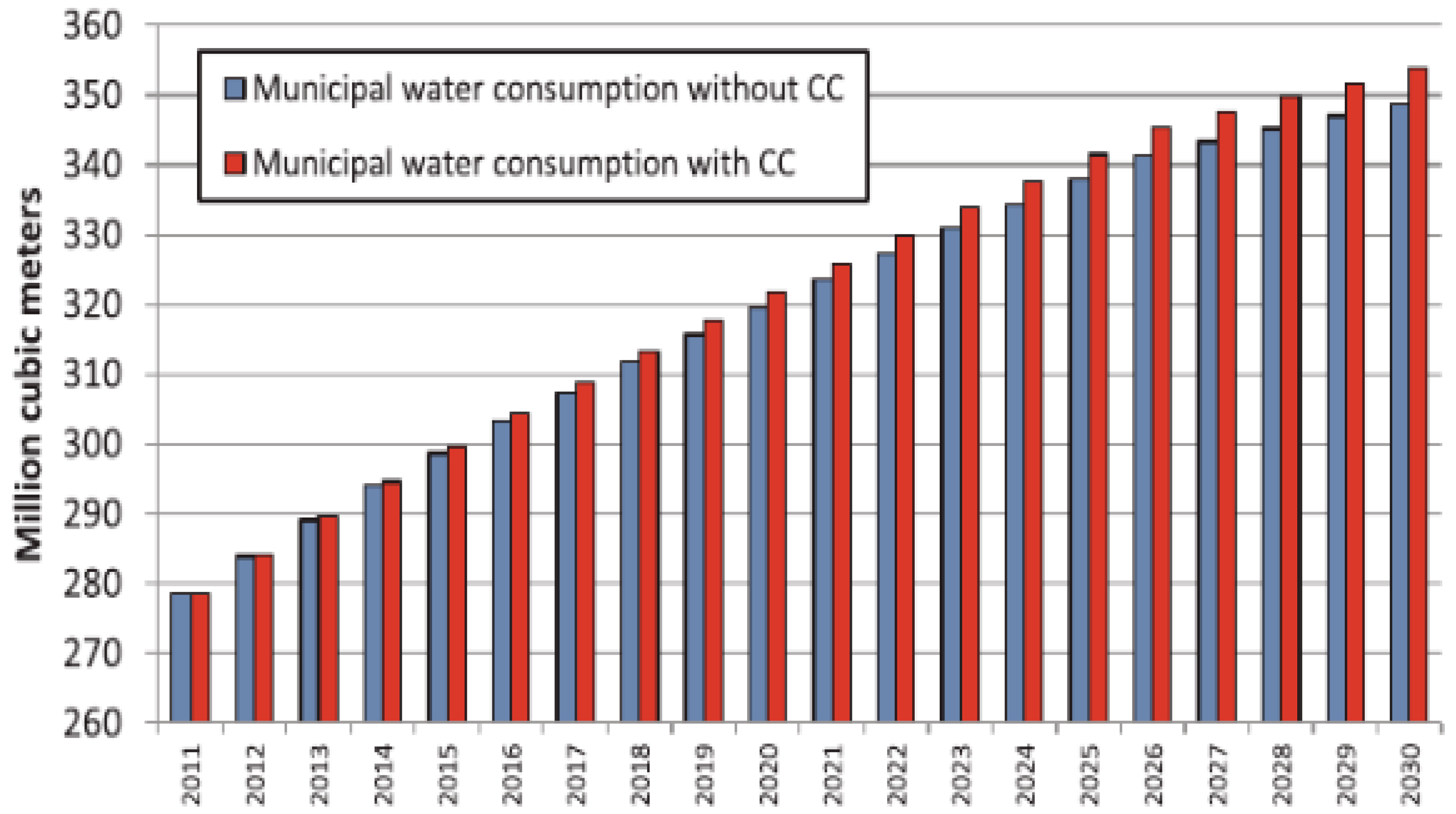

Climate changes additionally press this already stressed system. An assessment of the vulnerability of the municipal water management system to the impacts of climate changes (CC) in the future have been done, and results are presented on Figure 9.

The rate of water consumption for T increases of 1 °C could be calculated based on the trend line in Figure 8. For T between 16 °C and 36 °C, the slope shows that T increases of 1 °C cause an average increase in the rate of the TWC of approx. 1%:

For T = 16 °C, the average monthly TWC per capita is 14.0 m³.

For T = 36 °C, the average monthly TWC per capita is 16.5 m³.

$$RW{C}_{1C}=\frac{16.5-14.0}{14.0}\cdot \frac{1}{36 °\mathrm{C}-16 °\mathrm{C}}\cdot 100\%=0.89\%/1 °\mathrm{C}$$

(10)

3.5. Example: The Cities of Portland (Oregon) and Albuquerque (New Mexico), Both in the USA

3.5.1. Portland (Oregon—USA)

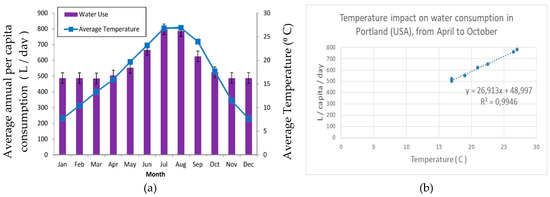

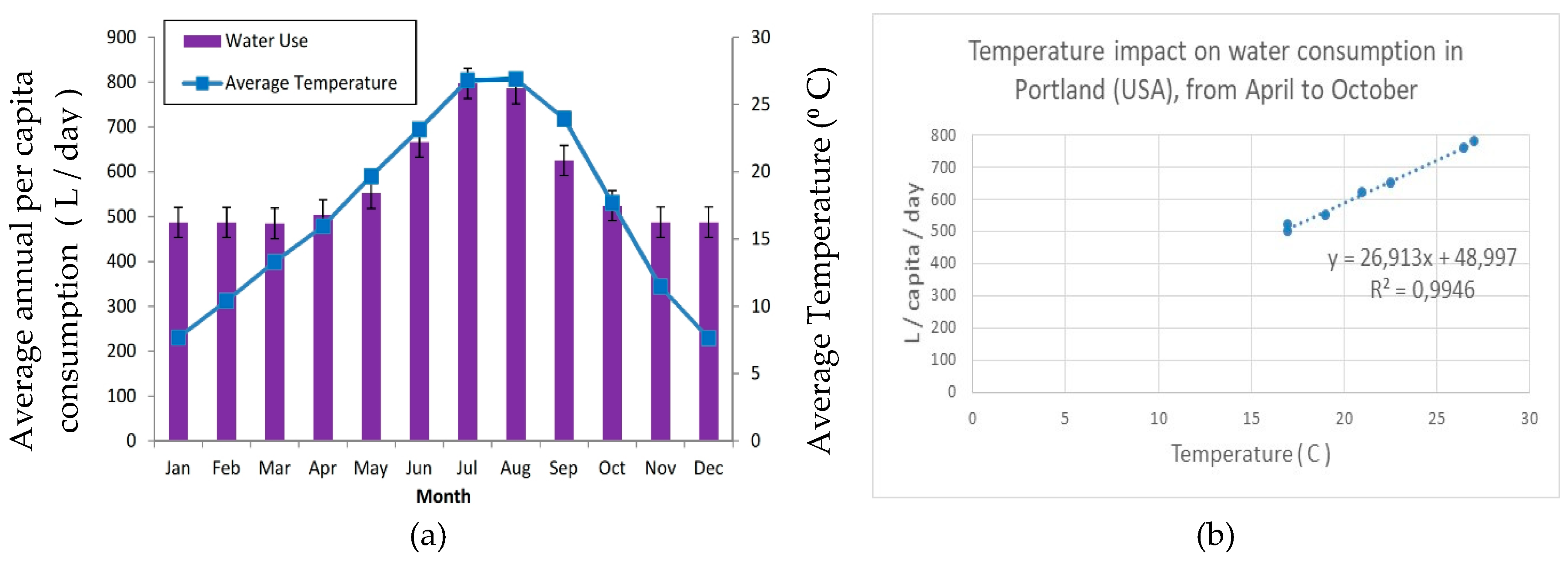

The city of Portland (approx. 0.7 million inhabitants) has water consumption that exhibits seasonal patterns (Figure 10a). During the wet, cooler period (November to April), the monthly average TWC is constant and low, with the lowest TWC occurring in February. During the dry, warm period (May to October), the monthly average TWC is high. The average monthly TWC of July, the peak month, is approximately two-thirds (66%) higher than that of February. The TWC during the summer months (from June to September) is nearly 41% of the annual TWC [8].

When the trend is put on (Figure 10b) for the months April-October, the slope shows that T increases of 1 °C cause an average increase in the rate of water consumption of approx. 5%:

For T = 16 °C, the average daily consumption per capita is approx. 500 L.

For T = 28 °C, the average daily consumption per capita is approx. 820 L.

$$RW{C}_{1C}=\frac{820 \mathrm{L}-500 \mathrm{L}}{500 \mathrm{L}}\cdot \frac{1}{28 °\mathrm{C}-16 °\mathrm{C}}\cdot 100\%=5.33\%/1 °\mathrm{C}$$

(11)

3.5.2. Albuquerque (New Mexico—USA) [9]

The water use in Albuquerque—New Mexico (approx. 0.6 million inhabitants) increases dramatically during the summer, principally due to increased outdoor water use [9]. Instead of the TWC, the residential water demand was correlated with the monthly average maximum T (Figure 11).

Residential use makes up, on average, 60% of the municipal, publicly supplied water in the USA [10]. It can be divided into base use, defined primarily as the indoor use lowly dependent of the influence of climate, and seasonal use, which is significantly climate-dependent. Seasonal water use refers to the mostly outdoor summer water use and, together with the climatically insensitive base use, makes up the total water use.

The outdoor water use can account for 22–65% of the annual residential use [11] and includes landscape irrigation, swimming pools, refreshing concrete surfaces and car washing. Depending on the fraction of municipal use that is used outdoors, as well as other potentially weather-sensitive uses of municipal water, such as commercial or institutional outdoor irrigation and water used in heating and cooling, the municipal water use is affected to varying degrees by the weather.

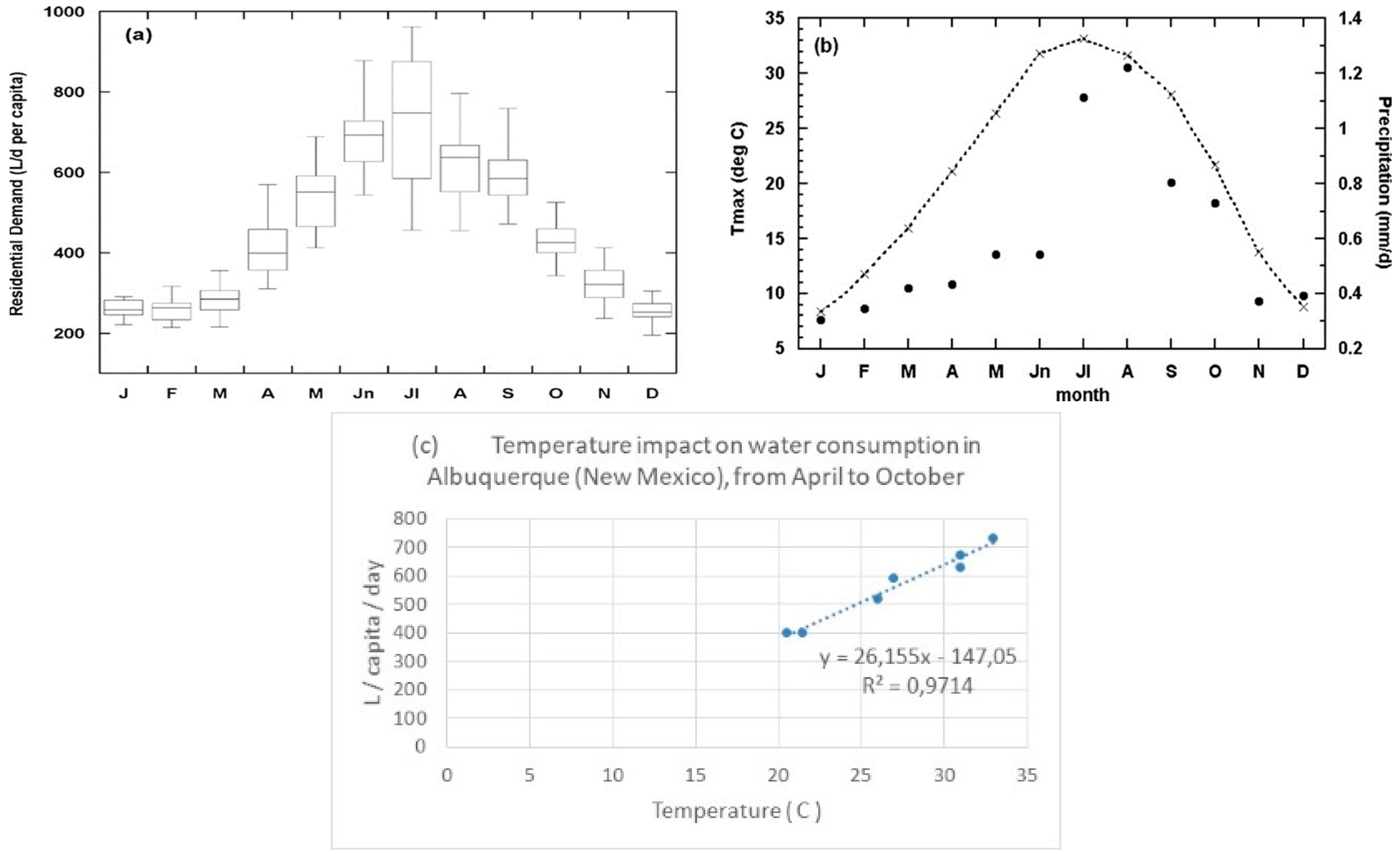

When the trend is put on (Figure 11c) for the months April-October, the slope shows that T increases of 1 °C cause an average increase in the rate of the WP of approx. 7%:

For T = 21.5 °C, the average daily consumption per capita is approx. 400 L.

For T = 32.5 °C, the average daily consumption per capita is approx. 700 L.

$$RW{C}_{1C}=\frac{700 \mathrm{L}-400 \mathrm{L}}{400 \mathrm{L}}\cdot \frac{1}{32.5 °\mathrm{C}-21.5 °\mathrm{C}}\cdot 100\%=6.82\%/1 °\mathrm{C}$$

(12)

4. Discussion and Conclusions

Water use (synonym for total water consumption—TWC) is influenced by a diverse set of climatic, socioeconomic, demographic, policy and landscape factors. Climatic variables could be the temperature (maximum daily, average daily, average monthly and minimum daily); precipitation (amount, frequency and duration); soil humidity; wind (speed intensity, frequency and duration); etc. In addition to climatic, the most important variables are demographic changes, the availability of water resources, income, the price of water, the WSS characteristics, people’s habits and several others.

Temperature impacts on the amount of drinking water consumption (or production) is the topic of this paper, with a focus on the percent of changes in the TWC (or WP) due to increases in the T. Even though consumption and production are not the same parameters, they are comparable due to their reactions to T increases in one WSS being almost the same. Different results are obtained for different regions in the world. Temperature and precipitation are the most used variables, since data are widely available and highly explanatory, particularly for estimating seasonal or summer-isolated water uses. In general, an increased TWC is related to a higher T and lower precipitation [9,12].

The daily base use could be sensitive to the days of the week, and daily seasonal uses exhibit a relation to certain temperature thresholds. Examples from the USA and Canada told us that the first threshold value is about 14 °C and can vary ±2 °C from WSS to WSS. Below this threshold, water use (base use) is almost independent of the T. Between the first and second threshold (approx. 30 °C, also ±2 °C from WSS to WSS), changes in water use as an impact of the T can be shown enough good linearly. Changes in water consumption at very high average daily temperatures, above the second threshold, can be much more severe (in some cases, even exponential dependency can occur) than below that value [13].

Temperature impacts on drinking water consumption for the spring-summer months (average daily temperatures between 14 °C and 30 °C) in the analyzed examples vary; T increases of 1 °C cause an average increase in the TWC from 1% (Serbia, South Korea and Bahrain) through 3% to 5% for cities in the USA and Canada. A noted extreme of 7% in New Mexico, USA is higher, likely due to that, in this town, the residential use was correlated instead the TWC. Higher impacts in the USA and Canada could be attributed to generally higher water availability and lower water losses, as well as a higher standard.

It should be concluded that the rate of the above correlations (temperature ÷ drinking water consumption), in addition to other climate parameters, depend on the water resource availability, water policy, water supply system conditions and habits of the people in such regions.
