Development of an IoT System for the Generation of a Database of Residential Water End-Use Consumption Time Series †
2. Materials and Methods
- Understanding the average and peak end-use water consumption volumes of different fixtures (shower, toilet, etc.) at hourly, daily, and monthly levels of resolution to improve planning processes;
- Evaluating daily water end-use patterns to identify trends and peaks in water consumption throughout time;
- Providing updated information on demand per capita that are not evaluable with traditional methods, which do not take into account social changes over time;
- Examining peak day demand to understand the types of household practices that drive peak usage; and
- Evaluating the seasonal impact of water usage.

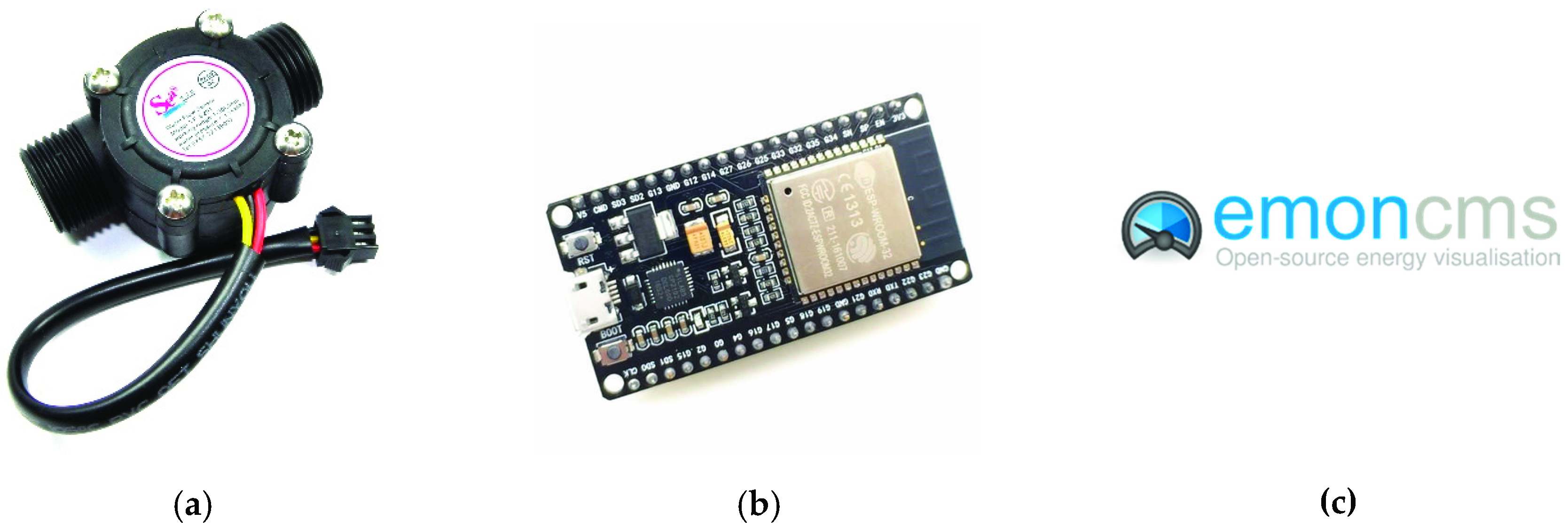

2.1. IoT Monitoring System Architecture

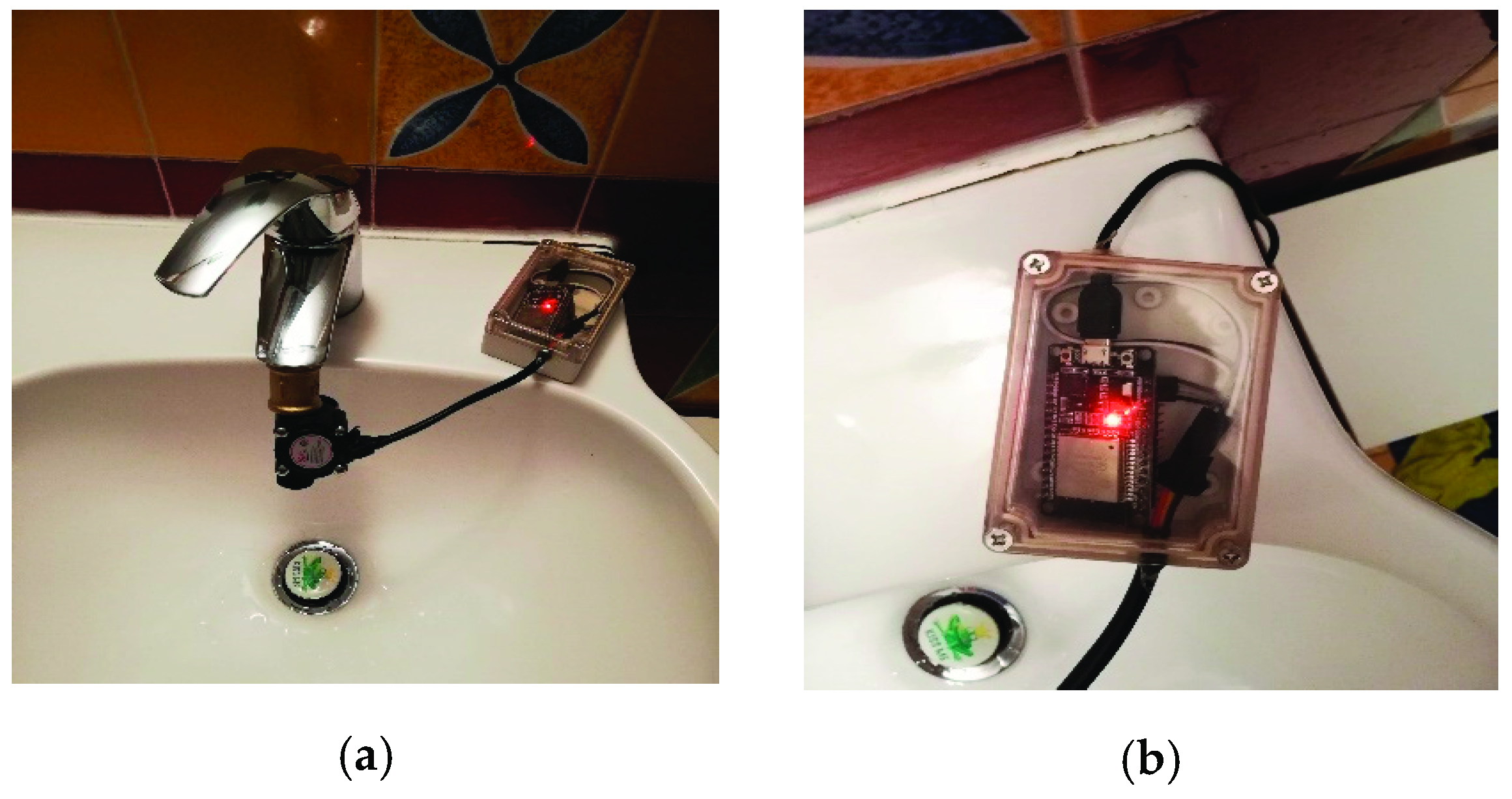

2.2. Case Study Setup
2.3. Data Collection
- Figure 3 shows the water end-use consumption and the duration that characterize usage events during day hours, which is evaluated across the entire period of observation. The first analysis of data allowed estimating the mean and the standard deviation of water consumption and duration of use per fixtures evaluated on all the events detected during 8 months of monitoring, as shown in Table 1:
- Figure 4 shows the distribution of probability related to the use of a fixture during weekdays. Specifically, in the case study, the distribution of probability expresses how often the event occurs on a particular day (that is, the ratio between the numbers of events that occurred on that day and the total number of events). In this case, the kitchen was illustrated. Figure 4a represents the average distribution of probability evaluated in the period of observation. It is relevant to observe in Figure 4b a significant change of such distribution relating to the user’s habits each month. It is obviously affected by climate/seasonal variability, different timings of use due to changes in personal practices, etc. To remark on this aspect, Figure 4c,d shows the variation of the distribution during April and August. It can be observed that the density is higher during the week beginning in April and moving toward the weekend in August.
- Figure 5 shows the number of uses during day hours for different fixtures evaluated on the entire dataset of consumption. The results highlight how uses are concentrated between 07:00 and 10:00 in the morning and after 20:00 in the evening, reflecting the profile of the user who is an employee and is generally at work during the day. Moreover, also in this case, the evaluation of the same trend within a single month allows the deepest knowledge of the user’s behaviors variability. In fact, using a kitchen faucet as an example, Figure 6 illustrates the changeability of the trend, taking into account the number of uses during April and August.
- Figure 6 indicates how habits clearly affect the use of water in a domestic environment. The figure represents the number of uses during day hours in a working month (April) and in a non-working month (August), revealing a more frequent use during the day hours in the working month, August.
Conflicts of Interest
- Swan, L.G.; Ugursal, V.I. Modeling of end-use energy consumption in the residential sector: A review of modeling techniques. Renew. Sust. Energy Rev. 2009, 13, 1819–1835. [Google Scholar] [CrossRef]
- Rathnayaka, K.; Malano, H.; Maheepala, S.; Nawarathna, B.; George, B.; Arora, M. Review of residential urban water end-use modelling. In Proceedings of the MODSIM 2011—19th International Congress on Modelling and Simulation—Sustaining Our Future: Understanding and Living with Uncertainty, Perth, Australia, 12–16 December 2011; pp. 3321–3327. [Google Scholar]
- Gato-Trinidad, S.; Jayasuriya, N.; Roberts, P. Understanding urban residential end uses of water. Water Sci. Technol. 2011, 64, 36–42. [Google Scholar] [CrossRef] [PubMed]
- Liu, A.; Giurco, D.; Mukheibir, P. Urban water conservation through customised water and end-use information. J. Clean. Prod. 2016, 112, 3164–3175. [Google Scholar] [CrossRef]
- Cary, J.W. Influencing attitudes and changing consumers’ household water consumption behaviour. Water Sci. Technol. Water Supply 2008, 8, 325–330. [Google Scholar] [CrossRef]
- Beal, C.D.; Stewart, R.A.; Fielding, K. A novel mixed method smart metering approach to reconciling differences between perceived and actual residential end use water consumption. J. Clean. Prod. 2013, 60, 116–128. [Google Scholar] [CrossRef]
- Kanoje, S.; Girase, S.; Mukhopadhyay, D. User Profiling Trends, Techniques and Applications. Int. J. Adv. Found. Res. Comput. 2014, 1, 2348–4853. [Google Scholar]
- Cufoglu, A. User Profiling—A Short Review. Int. J. Comput. Appl. 2014, 108, 1–9. [Google Scholar] [CrossRef]
- Godoy, D.; Amandi, A. A conceptual clustering approach for user profiling in personal information agents. AI Commun. 2006, 19, 207–227. [Google Scholar]
- Yannibelli, V.; Godoy, D.; Amandi, A. A genetic algorithm approach to recognise students’ learning styles. Interact. Learn. Environ. 2006, 14, 55–78. [Google Scholar] [CrossRef]
- Di Mauro, A.; Di Nardo, A.; Santonastaso, G.F.; Venticinque, S. An IoT system for monitoring and data collection of residential water end-use consumption. In Proceedings of the Proceedings—International Conference on Computer Communications and Networks ICCCN, Valencia, Spain, 29 July–1 August 2019. [Google Scholar]
- Beal, C.D.; Stewart, R.A. Identifying Residential Water End Uses Underpinning Peak Day and Peak Hour Demand. J. Water Resour. Plan. Manag. 2013, 140, 04014008. [Google Scholar] [CrossRef]
- Willis, R.M.; Stewart, R.A.; Giurco, D.P.; Talebpour, M.R.; Mousavinejad, A. End use water consumption in households: Impact of socio-demographic factors and efficient devices. J. Clean. Prod. 2013, 60, 107–115. [Google Scholar] [CrossRef]
- Fu, Y.; Wu, W. Behaviour interventions for water end use: An integrated model. In Proceedings of the 20th International Conference on Automation and Computing: Future Automation, Computing and Manufacturing ICAC, Savannah, GA, USA, 7–10 December 2014. [Google Scholar]
- Froehlich, J.E.; Larson, E.; Campbell, T.; Haggerty, C.; Fogarty, J.; Patel, S.N. HydroSense: Infrastructure-mediated single-point sensing of whole-home water activity. In Proceedings of the 11th International Conference on Ubiquitous Computing, Orlando, FL, USA, 30 September–3 October 2009. [Google Scholar]
- Beal, C.D.; Stewart, R.A.; Huang, T.; Rey, E. SEQ residential end use study. Smart Water Syst. Metering 2011, 38, 80–84. [Google Scholar]
- Suero, F.J.; Mayer, P.W.; Rosenberg, D.E. Estimating and Verifying United States Households’ Potential to Conserve Water. J. Water Resour. Plan. Manag. 2012, 138, 299–306. [Google Scholar] [CrossRef]
- Blokker, E.J.M.; Pieterse-Quirijns, E.J.; Vreeburg, J.H.G.; van Dijk, J.C. Simulating nonresidential water demand with a stochastic end-use model. J. Water Resour. Plan. Manag. 2011, 137, 511–520. [Google Scholar] [CrossRef]
- Cominola, A.; Giuliani, M.; Castelleti, A.; Abdallah, A.M.; Rosenberg, D.E. Developing a stochastic simulation model for the generation of residential water end-use demand time series. In Proceedings of the 8th International Congress on Environmental Modelling and Software, Toulouse, France, 10–14 July 2016. [Google Scholar]
- Carboni, D.; Gluhak, A.; McCann, J.A.; Beach, T.H. Contextualising water use in residential settings: A survey of non-intrusive techniques and approaches. Sensors (Switzerland) 2016, 1, 738. [Google Scholar] [CrossRef]
- Nguyen, K.; Zhang, H.; Stewart, R.A. Development of an intelligent model to categorise residential water end use events. J. Hydro-Environment Res. 2013, 7, 182–201. [Google Scholar] [CrossRef]
- Istituto Nazionale di Statistica ISTAT. 2020. Available online: https://www.istat.it/ (accessed on 12 February 2020).
|Water consumption per event [l]||4.5/3.5||6.3/4.9||21.2/13.4||4.4/3.9|
|Duration per event [m]||6.4/2.2||9.4/4.0||9.8/3.3||8.7/3.5|
