Long-Term Assessment of PurpleAir Low-Cost Sensor for PM_2.5 in California, USA ^†

Abstract

Regulatory monitoring networks are often too sparse to support community-scale PM_2.5 exposure assessment, while emerging low-cost sensors have the potential to fill in the gaps. Recent advances in air quality monitoring have produced portable, easy-to-use, low-cost, sensor-based monitors which have given a new dimension to air pollutant monitoring and have democratized the air quality monitoring process by making monitors and results directly available at the community level. This study used PurpleAir © sensors for PM_2.5 assessment in California, USA. The evaluation of PM_2.5 from sensors included Quality Assurance and quality control (QA/QC) procedures, assessment concerning reference-monitored PM_2.5 concentrations, and the formulation of a decision support system integrating these observations using geostatistical techniques. The hourly and daily average observed PM_2.5 concentrations from PurpleAir monitors followed the trends of observed PM_2.5 at regulatory monitors. PurpleAir monitors also captured the peak PM_2.5 concentrations due to incidents such as forest fires. In comparison with reference-monitored PM_2.5 levels, it was found that PurpleAir PM_2.5 concentrations were mostly higher. The most important reason for PurpleAir’s higher PM_2.5 concentrations was the inclusion of moisture or water vapor as an aerosol in contrast to measurements of PM_2.5 excluding water content in FEM/FRM and non-FEM/FRM monitors. Long-term assessment (2016–2023) revealed that R² values were between 0.54 and 0.86 for selected collocated PurpleAir sensors and regulatory monitors for hourly PM_2.5 concentrations. Past research studies that were conducted for mostly shorter periods resulted in higher R² values between 0.80 and 0.98. This study aims to provide reasonable estimations of PM_2.5 concentrations with high spatiotemporal resolutions based on statistical models using PurpleAir measurements. The methods of Kriging and IDW, geostatistical interpolation techniques, showed similar spatio-temporal patterns. Overall, this study revealed that low-cost, sensor-based PurpleAir sensors could be effective and reliable tools for episodic and long-term ambient air quality monitoring and developing mitigation strategies.

1. Introduction

Epidemiological studies have long established the impact of fine aerosols on human health worldwide [1,2]. PM_2.5 refers to the atmospheric particulate matter (PM) that has an aerodynamic diameter equal to or less than 2.5 μm, which is about 3% the diameter of a human hair [3]. Exposure to higher PM_2.5 concentrations is a greater threat to human health due to their higher levels of toxicity, stronger tendency towards deposition deep in the lungs, and longer lifetime in the lungs [2] linked to an increase in morbidity and mortality [4] and the central nervous system [5]. The influence of fine ambient aerosol concentrations may be seasonal or episodic, with higher concentrations during the winter. The emission sources of ambient PM_2.5 can be both natural (volcanic dust, windblown dust, sea salt, etc.) and anthropogenic, and may be both local and regional since PM_2.5 may be transported over long distances [6]. Thus, the PM_2.5 issue is a deeply critical matter and emission sources may even be global, generating local air pollution, which needs to be addressed in depth on both regional and local scales.

Until now, PM_2.5 attainment demonstrations and exposure assessments have used PM_2.5 concentration data from regulatory monitoring networks under the assumption that PM_2.5 concentrations measured at fixed observation sites reasonably reflect ambient air PM_2.5 concentrations in surrounding areas. However, research studies such as [7,8] have established that the spatial resolution of PM_2.5 concentrations may vary significantly within a region; therefore, PM_2.5 concentrations observed at regulatory sites may not accurately represent the PM_2.5 concentrations present near people who are concerned about their possible health effects.

The monitoring methods and procedures promulgated by the United States Environmental Protection Agency (U.S. EPA) called Federal Reference Methods (FRMs) and Federal Equivalent Methods (FEMs) are used by all states and other monitoring organizations to measure outdoor air pollutants accurately and reliably for the evaluation of implementation of measures needed to attain National Ambient Air Quality Standards (NAAQS) [9]. These regulatory monitoring networks are often too sparse to support community-scale PM_2.5 exposure and air quality assessments especially when communities are impacted by events such as wildfires [10]. Often, the sparse regulatory monitoring networks result in poor statistical air quality and exposure assessments. Recently emerging low-cost sensors enable individuals to monitor air quality at finer spatial and temporal resolutions of PM concentrations in local and regional areas [10,11,12,13,14]. Low-cost PM_2.5 sensors have the potential to fill in the gaps in regulatory monitoring networks and might overcome the limitations and improve the statistical assessments [15].

Recent advances in air quality monitoring have produced portable, easy-to-use, low-cost, sensor-based monitors. It has given a new dimension to air pollutant monitoring and democratized the air quality monitoring process by making monitors and results directly accessible at the community level in an efficient and cost-effective manner [15]. Sensor monitors can provide rich data for urban pollution monitoring at high spatiotemporal levels that may be used for regulating air quality [16]. Low-cost sensors are useful for the assessment of air quality models on finer scales as required for urban air quality [12]. One such low-cost, sensor-based extensive monitoring network, PurpleAir ©, Draper, Utah, USA (https://www2.purpleair.com) (accessed on 13 October 2023), provides PM_2.5 data to the public. It has over 10,000 monitors worldwide with a growth rate of ~30 per day in 2018 [13]. In 2020, California State has over ~8000 such active monitors, as shown in Figure 1. These sensors count suspended particles in sizes of 0.3, 0.5, 1.0, 2.5, 5.0, and 10 µm. Particle counts are processed by the sensors using a complex algorithm to calculate the PM_1.0, PM_2.5, and PM₁₀ mass concentrations in µg/m³.

There are limited studies, and only recent studies [17,18,19] have focused on the evaluation of low-cost PM_2.5 monitors with regulatory monitored PM_2.5 concentrations [20,21,22,23] and have emphasized that low-cost sensors sampling networks can be used to improve the spatio-temporal resolution of PM_2.5 concentrations, despite limitations.

Although still in their developing stages, sensor-based monitors are becoming more effective at measuring particulate matter. In a comprehensive analysis of eight months using two inexpensive sensors, the study [24] predicted seasonal variations in sensor performance, with poorer correlations during the wildfire season with regulatory monitors. The impact of environmental variability on elements such as temperature and relative humidity was considered using correction factors in previous long-term evaluations of sensor monitors [25], based on annual averages. In addition, the research study [26] scrutinized the long-term performance of seven inexpensive sensors for a period of seven months in Beijing, China, and showed substantial biases for high PM_2.5 concentrations during times of increasing relative humidity. Thus, the low-cost sensors were evaluated in the aforementioned research for relatively shorter time periods, spanning from one month to a year with varied responses.

This study was focused to assess long-term assessment of low-cost sensor monitors since their deployment and particularly uses PurpleAir monitored PM_2.5 concentrations for its assessment. Long-term assessment of PurpleAir monitored PM_2.5 (five years) will address the response of the sensors to varying meteorological conditions (relative humidity and temperature).

Thus, the reliability of the PurpleAir PM_2.5 monitored concentrations with respect to the reference monitor is still a question. Research studies have addressed the accuracy and precision issues related to these sensors-based PM_2.5 concentrations [21,23,27], highlighting the bias associated with sensor-based PM_2.5 levels. Since there are no established best procedures, practices, and guidelines on operation and maintenance available for these monitors, it becomes essential to conduct quality assurance and quality control (QA/QC) of the datasets before its application in fields of air quality assessments and integrated air quality decision support systems.

The aim of this study was to assess long-term PurpleAir PM_2.5 sensors with reference-monitored PM_2.5 concentrations at selected sites across California State (Figure 1) and to formulate a decision support system, integrating these observations using geostatistical techniques. California has four designated nonattainment areas for daily and/or yearly PM_2.5 National Ambient Air Quality Standards (NAAQS) [28,29]. Geostatistical interpolation techniques such as Inverse Distance Weight (IDW) [30] and Kriging [31] were applied to PurpleAir PM_2.5 concentrations to assess if these sensors can fill in the gaps of regulatory monitors. The geostatistically predicted and observed PM_2.5 concentrations were qualitatively and quantitatively evaluated. This study aimed to deepen understanding of behavior of PurpleAir PM_2.5 sensors over longer time periods and to assess if they provide reasonable estimations of PM_2.5 concentrations with high spatio-temporal resolutions over extended time periods. The sensor data were then integrated with data from reference monitors to understand the spatial distribution of PM_2.5 concentrations over state of California. Beyond evaluating sensor performance through different types of statistical correlations with reference monitors, this study also investigates the degree to which data from sensors can reproduce similar temporal patterns and episodic events such as wildfires in the long term, in comparison to high resolution reference monitors.

2. Methodology

2.1. PurpleAir PM_2.5 QA/QC

PurpleAir PM_2.5 5-min data were downloaded from the very first data record in August 2016 until 31 December 2021, from https://www2.purpleair.com/ (accessed on 13 October 2023), for the entire California State and neighboring States. This was only for sensors within 20 m of distance from FEM/FRM and non-FEM/FRM monitors data updated until 14 May 2023. The dataset was raw and without any correction adjustment. Therefore, quality assurance and quality check (QA/QC) routines of the data were developed and performed. PurpleAir monitors consist of two sensors for PM_2.5 channels A and B. Data were stored and transmitted through these channels, which provide measures for quality control of the data. Therefore, the data in this study were cleaned and considered valid if the differences between channels A and B were substantiated as discussed below. The 5-min averaged data for the years (2016–2023) were downloaded from online sensors, and were then processed using Python script and analyzed. The atmospheric PM_2.5 variable labeled as “pm2_5_atm” was used in this work. The three criteria used for QA/QC of Purple Air PM_2.5 for 5-min PurpleAir PM_2.5 data in case of all sensor monitors were as follows:

• 5-min PurpleAir PM_2.5 for all monitors
  • for PurpleAir channel A PM_2.5 ≤ 0.3 µg/m³: Invalid.
  • for PurpleAir channel A PM_2.5 between >0.3 and ≤100 µg/m³: if difference between channel A and B within ±10 µg/m³: Valid.
  • for PurpleAir channel A PM_2.5 > 100 µg/m³: if difference between Channel A and B within ±10 %: Valid.
  • for PurpleAir channel A PM_2.5 > 500 µg/m³: Invalid.
• The hourly average calculated with only valid 5-min data.
• Daily average calculated with only valid hourly averages with number of data availability for hours in a day ≥ 20 considered as valid.

Raw data inherit some peculiar challenges. As a result, the PurpleAir PM_2.5 monitors were also installed indoors. For a few of the PurpleAir monitors, the location labels ‘outdoor’ and ‘indoor’ were missing. For the monitors missing the location label, the tests below were performed and labelled accordingly. Only ‘outdoor’ monitors were considered in the analysis.

• Daily minimum and maximum temperature ‘temp_f’ were calculated from average hourly data.
• The difference between daily maximum and daily minimum temperature was calculated.
• Number of days with daily difference ‘temp_f’ of >10 F and ≤10 F were counted.
• For monitors with ‘number of days (daily difference) > 10 F’ greater than the ‘number of days (daily difference) ≤ 10 F’ were not considered.

Aside from that, another challenge is the particle count to mass conversion algorithm, which is not available to the public; the identity or ‘id’ number of the monitor remains the same, with changes in location or geo-coordinates. This happens when, for some reason, a monitor is moved from one corner of the building to another corner and/or from one building to another. After performing QA/QC on PurpleAir PM_2.5 concentrations, only valid data were used in this analysis. As of now, over 8000 outdoor PurpleAir monitors are in all counties across California State, as shown in Figure 1. Some sites had over 5 years of data, while others had data from a single week or season.

2.2. Geostatistical Interpolation

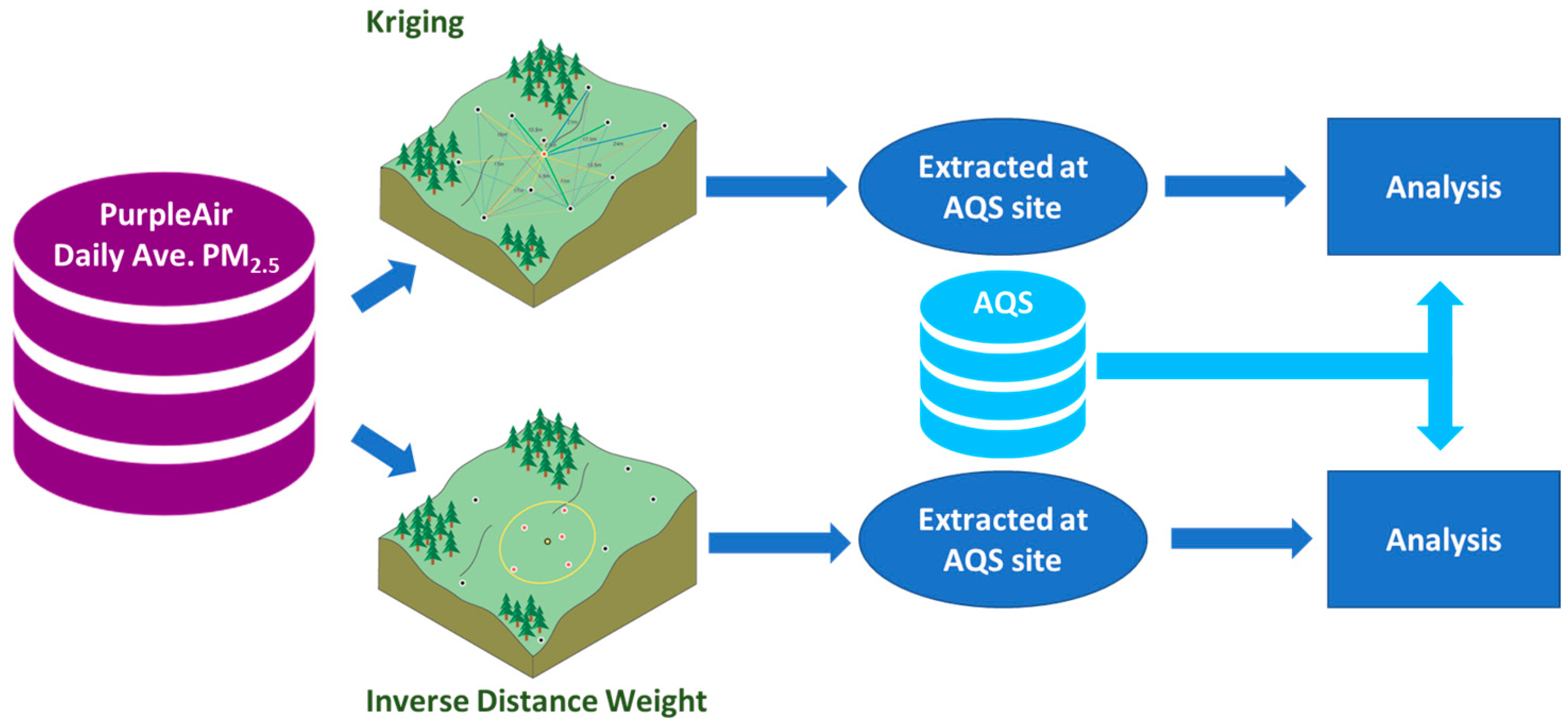

Two geo-statistical techniques, Inverse Distance Weighting (IDW) and Kriging methods, were used to estimate PM_2.5 concentrations at monitored and unmonitored locations. These two methods are briefly explained below. Figure 2 shows the flow diagram of the work in the study. Daily average PurpleAir PM_2.5 was used in Kriging and IDW to interpolate PM_2.5 concentrations across California State. The interpolated PM_2.5 was extracted at a few select FEM/FRM and non-FEM/FRM sites across California. Later, interpolated PM_2.5 concentrations were evaluated with observed daily average PM_2.5 from FEM/FRM and non-FEM/FRM available from U.S. EPA AQS system [32].

2.2.1. Kriging

Kriging is a geostatistical tool used for interpolation for which the interpolated values are modelled by a Gaussian process governed by prior covariances. Under suitable assumptions, Kriging gives the best linear, unbiased prediction of the intermediate values. The method is widely used in the domains of spatial analysis and computer experiments. Kriging determines the spatial structure of outputs with proven inputs represented by variogram/semi-variogram analysis, which is the variance/half variance of the difference between input data and represents a measure of association in geo-statistics [33]. To relate PurpleAir PM_2.5 to regulatory monitored PM_2.5, Kriging tool was used with PurpleAir monitored daily averaged PM_2.5 to estimate PM_2.5 concentrations at regulatory monitored PM_2.5 sites. The daily average PurpleAir PM_2.5 was calculated from hourly average PM_2.5 concentrations, as described earlier. The Kriged PM_2.5 concentrations at few regulatory monitors were extracted and evaluated with the observed PM_2.5.

2.2.2. Inverse Distance Weight

Inverse Distance Weight is a deterministic way of finding concentrations at unmonitored locations using PurpleAir PM_2.5 concentrations at the point of interest of regulatory monitors. The concentrations at regulatory monitors were calculated with a weighted average of the PurpleAir PM_2.5 available at the known points. The name given to this type of method was motivated by the weighted average applied, since it resorts to the inverse of the distance to each known point (“amount of proximity”) when assigning weights. The formula for the estimated concentration is:

$$P_{Est.}=\frac{{{\displaystyle \sum }}_{i=1}^n\frac{P_i}{d_i^p}}{{{\displaystyle \sum }}_{i=1}^n\frac{1}{d_i^p}}$$

(1)

where $P_{Est.}$ is the estimated concentration at the regulatory monitor, $d_i^p$ is the distance from the unmonitored location to the i monitored concentration points to the power of p, $P_i$ is the concentrations at i monitored locations. The better accuracy is achieved when the power p equals to 2. Due to the sparse network of existing air quality monitors, the maximum observed data points n was set to five. The nearest five PurpleAir monitors were identified at the regulatory monitoring sites for each day.

3. Results and Discussions

3.1. Observed PurpleAir and Regulatory PM_2.5

To ensure quality PM_2.5 data from PurpleAir, the developed QA/QC routine has eliminated about 15% of the 5-min PM_2.5 data for further analysis. It was imperative to evaluate and validate PurpleAir PM_2.5 with observed PM_2.5 at regulatory sites. Figure 1 also shows FEM/FRM and non-FEM/FRM-monitored PM_2.5 sites in California during 2016 and 2023. Details of these sites are in

Table 1. Statistical assessment of hourly average PurpleAir PM_2.5 at selected sites for the years 2016 and 2022 at FEM/FRM and non-FEM/FRM sites.

Site Name and AQS ID, POC	PurpleAir Sensor Index	Distance, mts	Dates Duration	Num. of Paired Observation (#)	R2	Mean Bias (µg/m3)	RMSE
FEM/FRM
El Rio-Rio Mesa Schl. 061113001, 3	9594	0.18	2 April 2016 to 31 August 2022	30,798	0.50	3.5	7.85
Fresno-Garland 060190011, 3	2358	1.87	31 July 2017 to 9 December 2019	17,194	0.83	5.7	11.85
Goleta-Fairview 060832011, 1	16,705	0	29 September 2018 to 30 June 2022	28,532	0.56	3.4	6.93
Lompoc 060832004, 1	16,703	0	29 September 2018 to 30 June 2022	28,482	0.60	2.1	6.21
non-FEM/FRM
Bakersfield 060290014, 3	2350	0.6	31 July 2017 to 8 March 2019	34,583	0.73	4.3	11.70
Calexico-Ethel Street 060250005, 3	1174	0.0	24 October 2017 to 2 February 2018	2486	0.89	3.5	11.60
Sacramento-T Street 060670010, 3	8440	2.1	2 February 2019 to 11 December 2020	14,797	0.86	4.2	10.20
Riverside 060658001, 9	1854	8.5	10 July 2017 to 31 December 2019	14,604	0.69	5.7	9.70

and

Table 2. All sensors daily average PM_2.5 summary over different regions in California for the year 2018.

	Bay Area	Sacramento Metro	San Diego	San Joaquin	South Coast
Observations	31,130	2219	2355	11,234	103,236
Minimum	0.31	0.36	0.51	0.31	0.32
Maximum	198	197	73	192	190
Mean	14.57	18.93	12.95	20.15	15.05
Std. Error of Mean	0.14	0.57	0.2	0.19	0.04
Median	6.59	10.97	10.72	12.78	12.04
Std. Deviation	24.3	26.7	9.6	20.1	11.4
Skewness	3.9	3.84	1.26	1.95	1.57
Std. Error of Skewness	0.01	0.05	0.05	0.02	0.01
Kurtosis	17.78	18	1.79	5.93	5.29
Std. Error of Kurtosis	0.03	0.1	0.1	0.05	0.02
Percentile 25	3	4	6	6	7
Percentile 50	7	11	11	13	12
Percentile 75	15	24	17	28	21
Percentile 90	31	38	27	47	31
Percentile 95	56	53	32	59	36

, and Supplementary Material Tables S1 and S2 with AQS ID, site name, PurpleAir monitor ID, and dates of monitoring. It also shows the approximate distance calculated between PurpleAir monitor and regulatory site. Regulatory monitor data were downloaded from EPA AQS Datamart from 2016 to 2022 [32]. The most recent PM_2.5 data are available until October 2022 and were used for the analysis. PurpleAir monitored PM_2.5 was graphically and statistically evaluated for both FEM/FRM and non-FEM/FRM monitored PM_2.5. All regulatory sites with PurpleAir monitor within 20 m were analysed. Time-series and scatter plots are shown only for four FEM/FRM, and four non-FEM/FRM sites were selected, covering the North to South of California for discussions.

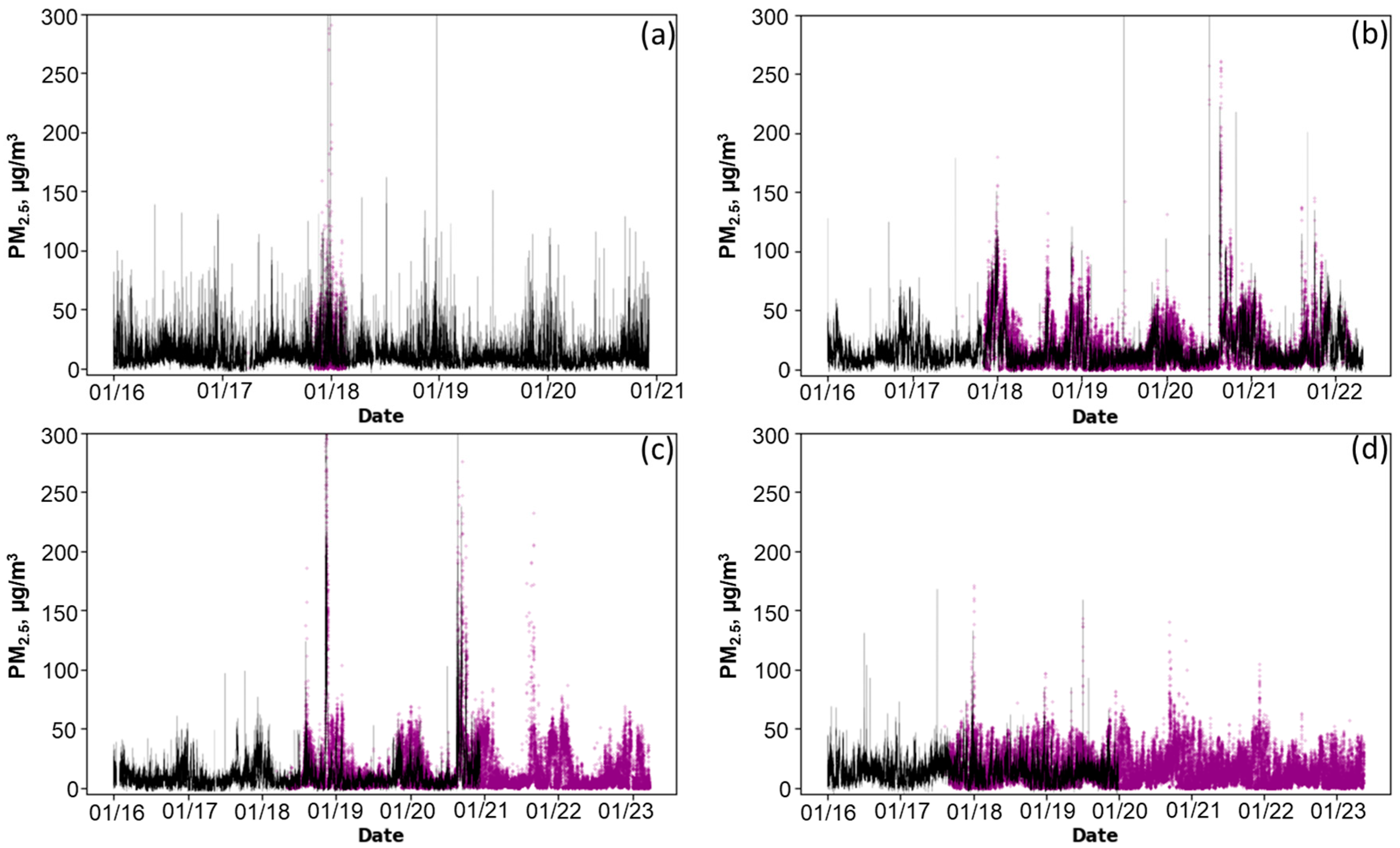

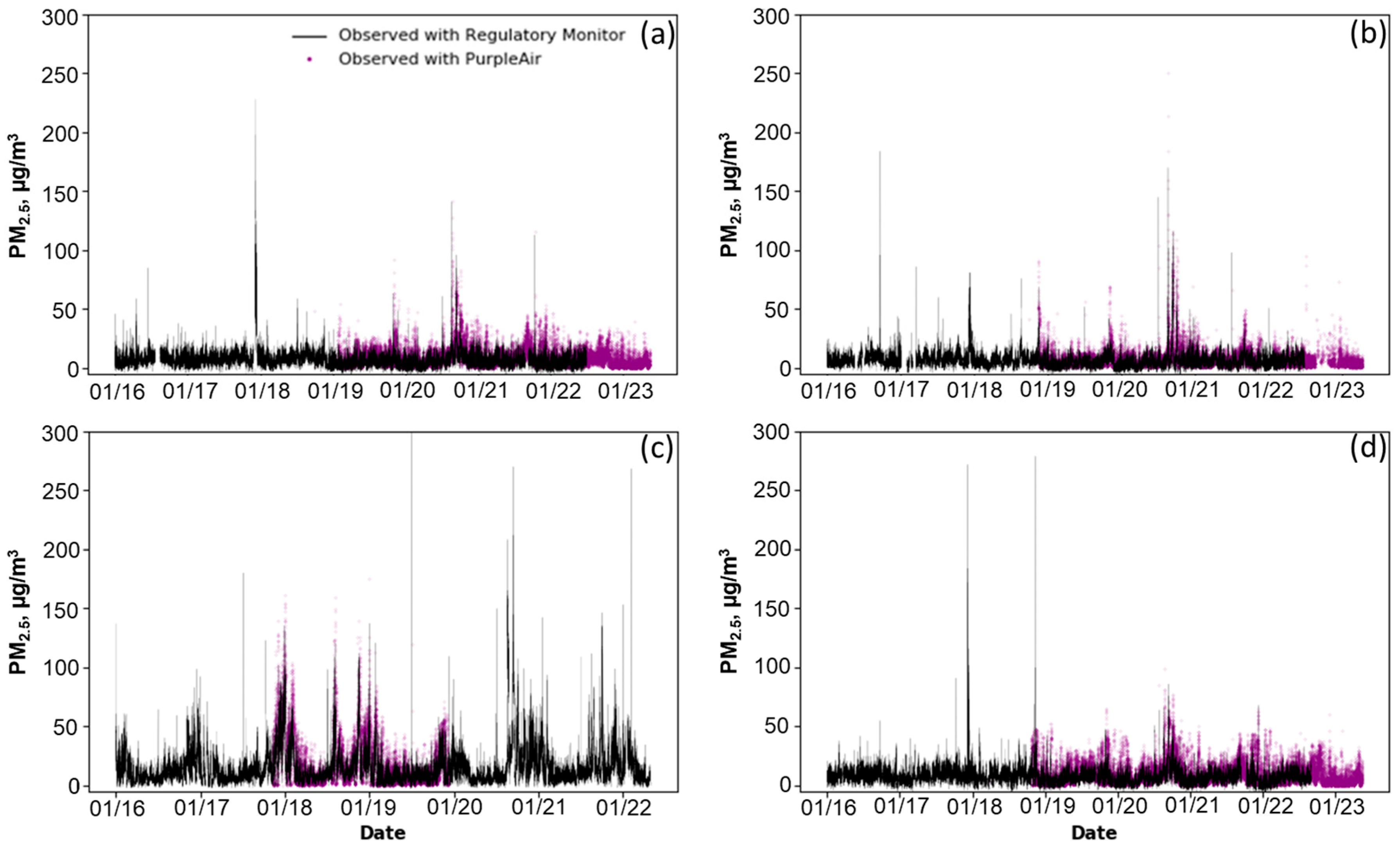

Figure 3 and Figure 4 show hourly average PM_2.5, in black lines, at four FEM/FRM and four non-FEM/FRM sites and PurpleAir PM_2.5 in purple dots (x-axis is in MM/YY format). From these figures, it is very clear that PurpleAir monitors captured the trend of PM_2.5 at regulatory monitors from 2016 to 2022. PurpleAir observed higher PM_2.5 concentrations for both FEM/FRM and non-FEM/FRM regulatory monitors. They also captured the PM_2.5 events due to forest fires along with regulatory monitors. PurpleAir PM_2.5 followed the trends of regulatory monitors for both less than 100 µg/m³ and greater than 100 µg/m³ PM_2.5 concentrations. PM_2.5 above 200 µg/m³ were captured by PurpleAir at Fresno-Garland (Figure 3c) and all non-FEM/FRM sites with the exception of one day spike at El Rio-El Rio Mesa School (Figure 3d). Spikes in PM_2.5 concentrations at Sacramento-T Street (Figure 4c) were observed due to forest fire and the trend can be seen by both regulatory and PurpleAir monitors. Thus, the sensors have been able to capture local and regional episodic events.

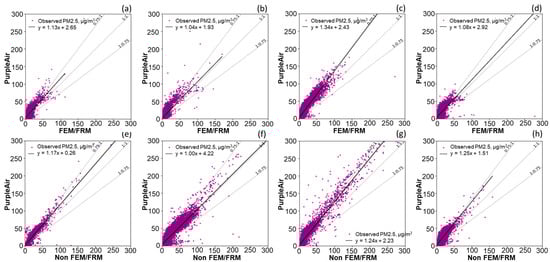

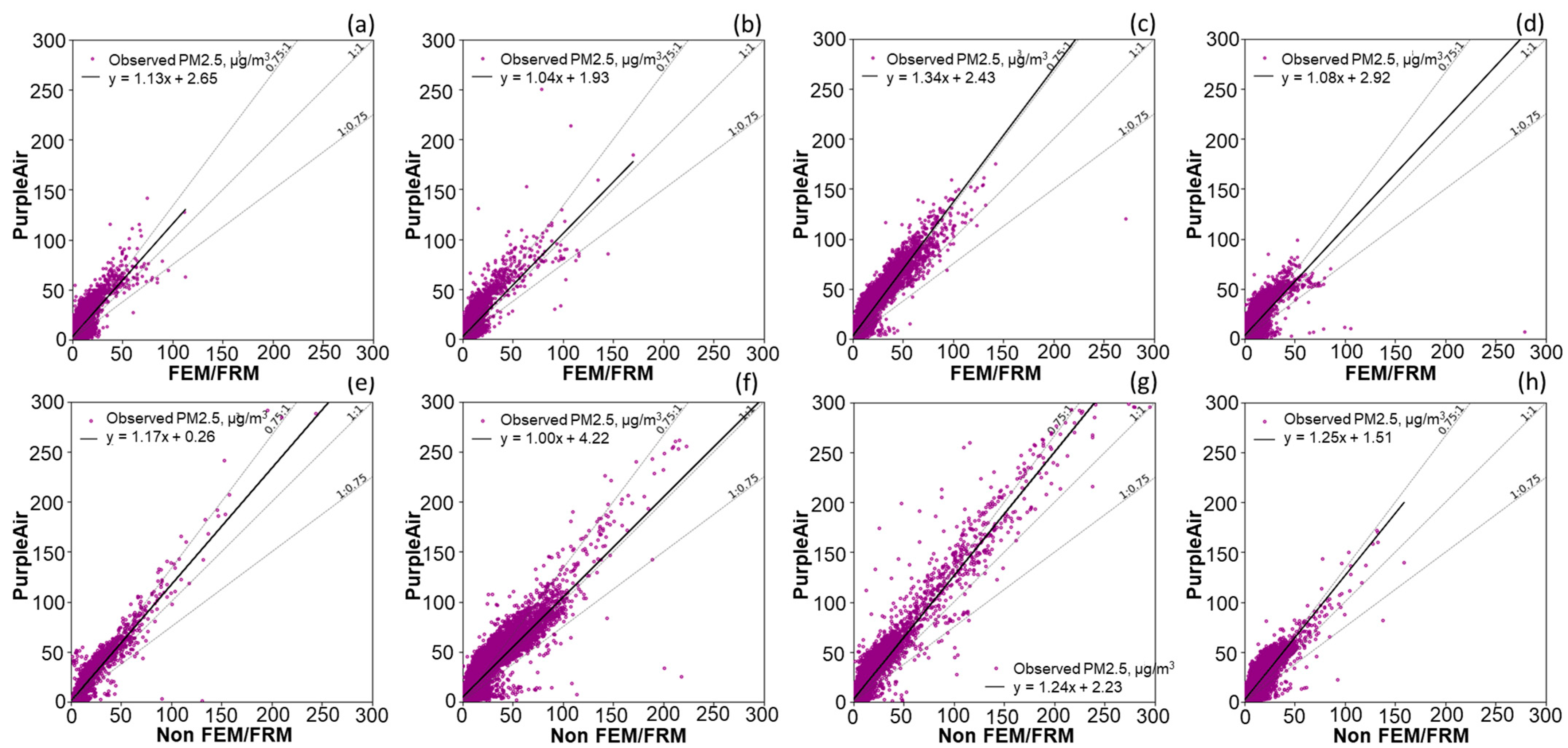

Figure 5 shows scatter plots with hourly average PurpleAir PM_2.5 concentrations on the y-axis and regulatory monitored PM_2.5 concentrations on x-axis. Detailed monitoring information can be found in Table 1. These plots show PurpleAir monitored higher concentrations than regulatory monitors for most of the time. Scatter plots also show +/−25% dotted lines and, for the majority of times, the scatter dots were out of +/−25% range with higher number of dots towards the y-axis or PurpleAir PM_2.5. The linear fit line for all sites is on the positive side of +25%. Only El Rio School site (Figure 5b) site has shown a one-to-one linear fit.

PurpleAir-monitored PM_2.5 were mostly higher than the regulatory monitored PM_2.5. This may be because PurpleAir monitors were calibrated by the manufacturer using particles with completely different properties than particulate matter in the ambient air [34], and the conversion of particle counts to mass is also unknown [15]. Aside from that, it was found that the ambient air also includes water droplets with aerodynamic particle size. Traditionally, both FEM/FRM and non-FEM/FRM monitors measure PM_2.5 by removing water content in the sample inlet. This was achieved by heating the sample air in the inlet pipe. However, on the contrary, PurpleAir sensors measure PM_2.5 concentrations without removing moisture content in aerosols. It is the water content in the ambient air that makes PM_2.5 measured by PurpleAir as an “Absolute PM_2.5” or, in context to regulatory monitors, as “Wet PM_2.5”. The adjustment of water content in the PurpleAir measured PM_2.5 during the conversion from particle count to mass is unknown. Therefore, even before the comparison between PurpleAir PM_2.5 with FEM/FRM and non-FEM/FRM monitored PM_2.5, the PurpleAir PM_2.5 concentrations will be greater than regulatory monitors most of the time.

Table 1 shows a statistical evaluation of PurpleAir monitors in comparison with regulatory monitors. For statistical evaluation of the PM_2.5 corelation coefficient (R²), mean bias (MB) and root mean square error (RMSE) were performed. Mean bias is primarily used to estimate the average bias between two variables. The coefficient of determination, R-squared (R²), determines how well data fit the regression model compared to observation data. The Root Mean Square Error (RMSE) is a frequently used measure of the difference between two actual measures and how much error there is between two variables. Equations of the evaluation indices are shown below:

$$\mathrm{MB}=\frac{1}{n}{{\displaystyle \sum }}_{i=1}^n\left(P_i-{\mathrm{R}}_i\right)$$

(2)

$$\mathrm{RMSE}=\sqrt{\frac{1}{n}{{\displaystyle \sum }}_{i=1}^n{\left(P_i-{\mathrm{R}}_i\right)}^2}$$

(3)

$${\mathrm{R}}^2={\left[\frac{{{\displaystyle \sum }}_{i=1}^n{P}_i{\mathrm{R}}_i-{{\displaystyle \sum }}_{i=1}^n{P}_i{{\displaystyle \sum }}_{i=1}^n{\mathrm{R}}_i}{\sqrt{\left[n{{\displaystyle \sum }}_{i=1}^n{P}_i{}^2-{({{\displaystyle \sum }}_{i=1}^n{P}_i)}^2\right]\left[n{{\displaystyle \sum }}_{i=1}^n{\mathrm{R}}_i{}^2-{({{\displaystyle \sum }}_{i=1}^n{\mathrm{R}}_i)}^2\right]}}\right]}^2$$

(4)

where P_i is PurpleAir PM_2.5 concentrations, R_i is regulatory PM_2.5 concentrations, $\overline{\mathrm{R}}$ is mean of R_i, $\overline{P}$ is mean of P_i, and n is the number of hourly samples.

For all FEM/FRM (Table 1 and Table S1), coefficient of determination, R² values were between 0.23 and 0.9 with an average of 0.62. For all non-FEM/FRM (Table 2 and Table S2), R² values were between 0.27 and 0.92 with an average of 0.74, which was lower than reported studies conducted for shorter durations [10,21,23]. The coefficient of determination, R², of Goleta, El Rio-El Rio School, and Lompoc-H Street has shown the lowest values of 0.56, 0.5, and 0.6, respectively. These three sites are along the coastlines of Southern California. It is expected that the moisture content in the coastal air will be higher than the inland area. This affirms that moisture content plays a significant role in PurpleAir PM_2.5 monitoring. Moisture in the air attracts PM due to its hygroscopic characteristics and results in higher concentrations. As of now, PurpleAir monitors do not heat inlet air compared to regulatory monitors. The rest of the sites, located inland, have shown higher R² of greater than 0.70. The mean bias is highest at Fresno-Garland of 9.62 µg/m³ followed by 6.93 µg/m³ at Sacramento-T Street, as shown in Supplementary Material Tables S1 and S2. The mean bias for all sites were positive, showing higher PM_2.5 from PurpleAir than FEM/FRM and non-FEM/FRM.

After validation of the performance of purple air sensors with observed daily average data, the sensor data were used to perform detailed summary statistics across different regions of California: from Bay Area Air Quality Management District (AQMD) (Bay Area), Sacramento Metropolitan AQMD (Sacramento), San Diego Air Pollution Control District (APCD) (San Diego), San Joaquin Valley APCD (San Joaquin), and South Coast AQMD (South Coast) according to the availability of data from sensors for recent years (2018–2020). After excluding poorly performing sensors (around 4%), all the purple air sensors were used in this statistical analysis. Table 2,

Table 3. All sensors daily average PM_2.5 summary over different regions in California for year 2019.

	Bay Area	Sacramento Metro	San Diego	San Joaquin	South Coast
Observations	184,662	8918	5239	24,497	115,764
Minimum	0.31	0.32	0.31	0.32	0.3
Maximum	185	100	62	155	185
Mean	7.26	9.99	10.91	12.63	13.28
Std. Error of Mean	0.02	0.13	0.12	0.1	0.03
Median	4.95	5.57	9.14	7.61	10.43
Std. Deviation	8	12.4	8.3	15	11.2
Skewness	3.49	2.78	1.84	3	2.22
Std. Error of Skewness	0.01	0.03	0.03	0.02	0.01
Kurtosis	21.7	9.84	5.06	11.89	9.38
Std. Error of Kurtosis	0.01	0.05	0.07	0.03	0.01
Percentile 25	2	3	5	4	5
Percentile 50	5	6	9	7	10
Percentile 75	8	11	14	14	17
Percentile 90	15	26	20	29	27
Percentile 95	22	36	27	44	34

and

Table 4. The daily average PM_2.5 summary of all sensors over different regions in California for the year 2020.

	Bay Area	Sacramento Metro	San Diego	San Joaquin	South Coast
Observations	457,924	27,377	14,124	31,743	155,801
Minimum	0.3	0.3	0.31	0.33	0.31
Maximum	200	198	187	199	195
Mean	14.58	21.89	14.14	26.53	16.48
Std. Error of Mean	0.03	0.17	0.11	0.17	0.04
Median	7.06	10.36	11.13	14.59	11.8
Std. Deviation	22.8	28.6	13.2	30.5	16.6
Skewness	4.11	2.77	2.93	2.31	2.96
Std. Error of Skewness	0	0.01	0.02	0.01	0.01
Kurtosis	21.05	9.81	14.46	6.87	15.12
Std. Error of Kurtosis	0.01	0.03	0.04	0.03	0.01
Percentile 25	3	4	6	6	6
Percentile 50	7	10	11	14	12
Percentile 75	15	30	18	38	21
Percentile 90	34	52	27	62	35
Percentile 95	50	72	37	82	46

show results from this analysis.

The sensor dataset revealed a wide range of PM_2.5 concentrations, with a maximum 24 h average concentration of about 200 µg/m³ measured in the Bay Area in 2020. Other northern Californian regions (Sacramento), which showed the next highest daily concentrations, were followed by the South Coast and San Diego, respectively. Dry weather [35] and forest management techniques over the past few decades have also contributed to a rise in the frequency and intensity of wildfire outbreaks in California, contributing to the severity of the 2020 fire season there. Even though they were less severe than in 2020, California experienced record-breaking wildfires in 2018, which also displayed comparable trends in all the aforementioned districts. San Diego was less affected by the wildfires. Residential fire burning and other incidents, such as fire starting from electric transmission lines, contributed to higher maximum PM_2.5 concentrations in Northern California in 2019. Land–sea breezes can significantly pollute Northern California’s coastal areas. The influence of a combination of wildfires and anthropogenic emissions was felt at South Coast as well, leading to higher concentrations in this region.

Additionally, across the entire state of California, the standard deviation ranged from 8 to 30 µg/m³ for the individual counties, with higher variabilities in the northern California regions most affected by fires. The median PM_2.5 concentration of the dataset was between 5 and 13 µg/m³, while the mean concentrations ranged from 7 to 30 µg/m³. Overall, the PM_2.5 measurements showed higher maxima and standard deviation values in 2020 compared to 2019 or 2018, which is commiserate with the fact that wildfire intensity peaked in 2020, as previously mentioned.

A region-wise inter-comparison (Bay Area, San Diego, Sacramento, San Joaquin, and South Coast) in the State of California of the daily average of sensor data for the years 2018–2020, as seen from Table 2, Table 3 and Table 4, revealed that areas in northern California, including Bay Area, Sacramento, and San Joaquin, had distinctly higher 95th and 75th percentile concentrations in comparison to South Coast during the year of extensive wildfires in 2020. This reemphasizes the importance of wildfire impact on air pollution in the Northern California. Therefore, 2020 may be considered the year of the highest daily PM_2.5 concentrations measured in California.

The number of sensors has also increased significantly, from around 369 in 2018 to around 773 sensors in 2020 in the Bay Area, a growth of a huge 110 percent. The other two areas, Sacramento and San Diego, exhibit a more modest growth of sensors (18 percent in San Diego and 94 percent in Sacramento) in comparison to the Bay Area. The southern part of California (South Coast) witnessed a growth of sensors from around 552 in 2018 to around 741 in 2020, a growth of 34 percent.

Table 5. Daily average observations and exceedances of all sensors in regions of California during years 2018–2020.

	Total Daily Observations	Total Daily Exceedances	Total Daily Observations	Total Daily Exceedances	Total Daily Observations	Total Daily Exceedances
	2020		2019		2018
Bay Area	457,924	43,383	184,662	3033	31,130	2699
Sacramento	27,377	5794	8918	482	2219	299
San Diego	14,124	795	5239	116	2355	0.78
San Joaquin	31,743	8764	24,497	1884	11,234	2152
South Coast	155,801	15,468	115,764	5548	103,236	6215

shows the total number of daily-average (or 24 h average) PM_2.5 of all sensors’ observations and exceedances in the regions of California. For all regions, in contrast to 3% in 2019 and 7% in 2018, the overall average percentage of exceedances over all regions of the state of California was almost 11% in 2020. In terms of overall exceedances in 2020, the Bay Area has the highest percentage of exceedances (58%), followed by the South Coast (21%), San Joaquin (12%), Sacramento (8%), and San Diego (1%). The South Coast had the largest percentage of exceedances in 2019 (51%), followed by the Bay Area (27%), San Joaquin (17%), Sacramento (4%), and San Diego (1%). 2018 saw the highest percentage of exceedances in the South Coast (54%), followed by the Bay Area (24%), San Joaquin (18%), and San Diego (0.7%). The analysis demonstrates the impact of COVID-19 in the South Coast in 2020, when anthropogenic emissions were lower than in 2018. However, the effects of the California wildfires were more noticeable in 2020.

To test the significance of the annual variations (2018–2020) in the distribution of daily mean PM_2.5 levels, as measured by the sensors across the state of California, the non-parametric Kruskal–Wallis test was performed to determine whether the distribution of daily means was identical to each other or showed any significant difference amongst them for the years (2018–2020). The null hypothesis that many samples were taken from the same population was tested using this non-parametric technique, which is arguably the most extensively used test for this purpose. Since the null hypothesis was rejected across the years for all the regions of California, a post hoc test Dunn’s test was conducted to perform a multi-comparison analysis across all years for all regions in California to find out which samples (years) were different from each other. The Dunn’s test results from Bay Area have been displayed below for the years 2018, 2019, and 2020 as a representative result in

Table 6. Dunn’s test for area in California for the years 2018–2020.

Sample Year 1-Sample Year 2	Test Statistic	Std. Error	Std. Test Statistic	Sig.
	Bay Area
2018–2019	−64,059.5	1197.3	−53.5	0.000
2019–2020	79,655.9	538.7	147.9	0.000
2018–2020	15,596.4	1144.6	13.6	0.000
	Sacramento Metro
2018–2019	−4862.3	263.8	−18.4	0.000
2019–2020	5418.8	135.6	40.0	0.000
2018–2020	556.5	245.4	2.3	0.023
	San Joaquin
2018–2019	−8310.5	226.9	−36.6	0.000
2019–2020	10,625.7	169.3	62.8	0.000
2018–2020	2315.2	218.6	10.6	0.000
	South Coast
2018–2019	−21,381.8	499.1	−42.8	0.000
2019–2020	17,860.4	452.4	39.5	0.000
2018–2020	−3521.3	467.9	−7.5	0.000
	San Diego
2018–2019	−1272.6	157.0	−8.1	0.000
2019–2020	1495.3	102.4	14.6	0.000
2018–2020	222.7	140.9	1.6	0.114

.

The tables show that the differences in concentrations were significant across all years at the 95th confidence level (Table 4) since p = 0.00 < p = 0.05. In the case of San Diego, the differences in daily mean concentrations for 2018 and 2019, and between 2019 and 2020 were significant (p = 0.00) but there were no significant differences between 2019 and 2020 (p > 0.05). For South Coast, there were significant differences in daily mean concentrations of PM_2.5 across all the years considered (p = 0.00). For San Joaquin, the differences in daily average PM_2.5 concentrations over the years were significant. For Sacramento, the differences were not significant for the years 2018 and 2020 (p > 0.05) but were significant across the other years.

3.2. Geostatistically Predicted and Observed PM_2.5

The regulatory monitoring network is too sparse to support community-scale PM_2.5 exposure assessments. PurpleAir monitoring network provides more dense monitors up to community-scale and spatially across California State compared to the existing regulatory monitoring network. Geostatistical interpolation techniques—Kriging and IDW using PurpleAir PM_2.5—might help to bridge the gap between PurpleAir and regulatory monitored PM_2.5. Interpolation was conducted using the daily average PurpleAir PM_2.5 for the years 2018 and 2020 as the PurpleAir monitoring began in California in 2016, and fewer monitors were in operation until the end of 2017. Figure 6 shows statistically interpolated PurpleAir, FEM/FRM, and non-FEM/FRM daily average PM_2.5 on 16 November 2018, by Kriging and IDW. Both statistical interpolation techniques have captured the smoke dispersion from CAMP fire started on 8 November 2018 [36]. The difference in spatially interpolated daily average PurpleAir PM_2.5 in the northern part of California was due to a difference in interpolation approaches by Kriging and IDW. For both years, the interpolated sensor data provided a realistic representation of daily PM_2.5 concentrations and thus may reduce the uncertainty introduced by interpolation errors due to a sparse observational network of FRM and non-FRM monitors for effective decision-making. However, although the sensor data are subject to some uncertainty, as discussed earlier, the interpolated PM_2.5 from PurpleAir has shown a better representation of PM_2.5 due to the dense number of PM_2.5 monitors for interpolation in comparison to the thinly distributed network of FEM/FRM and non-FEM/FRM monitors. For further analysis, four regulatory sites across California State without monitors were selected for its assessment. The reason for not selecting collocated monitored sites was to avoid the influence of monitored PurpleAir PM_2.5 at the same location.

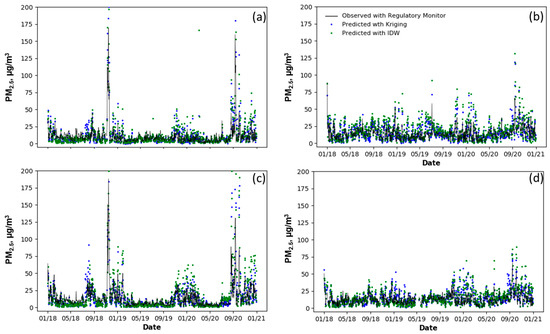

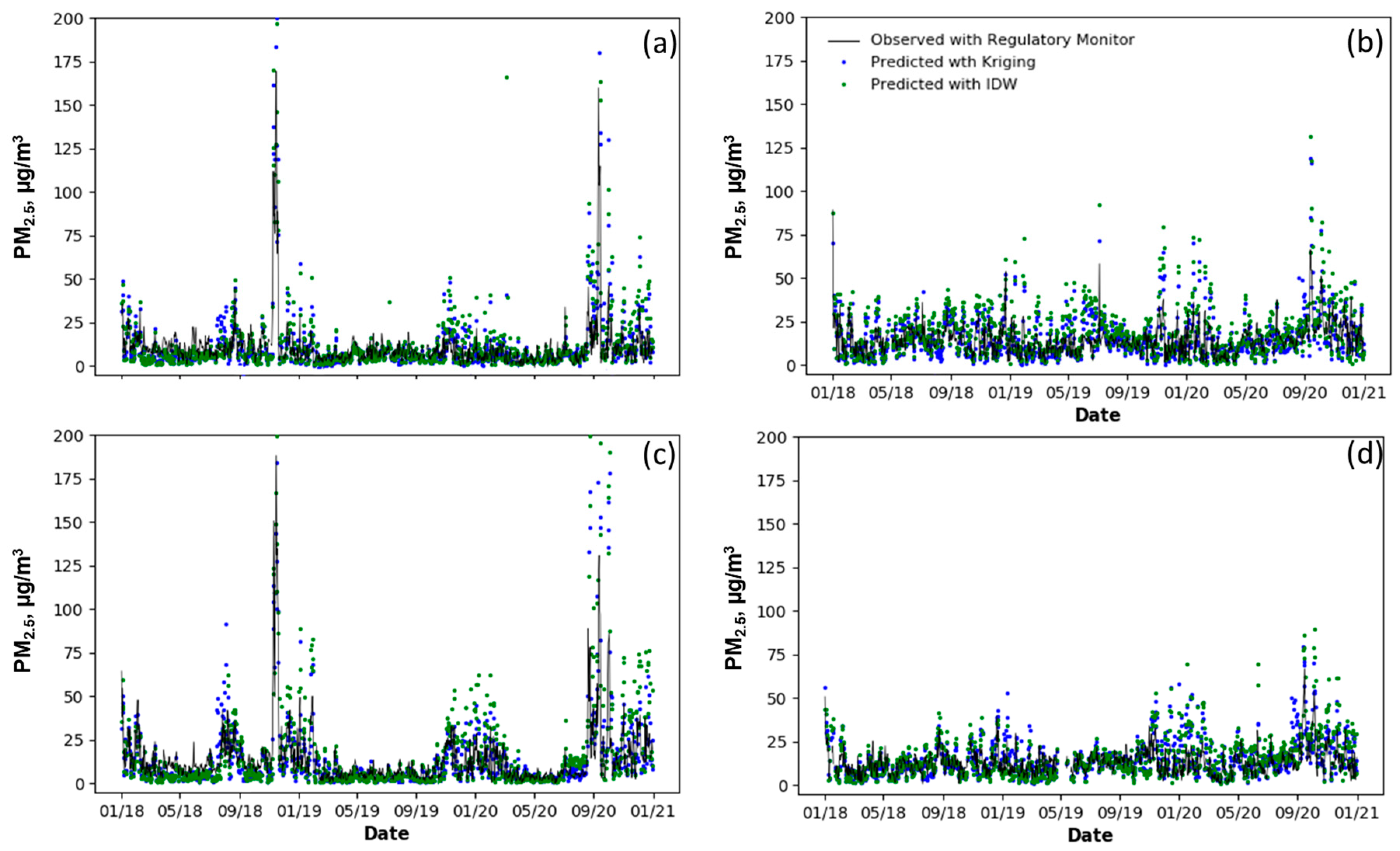

Figure 7 shows observed daily average PM_2.5 concentrations in black lines and interpolated PM_2.5 concentrations at the four above-mentioned regulatory monitoring sites (x-axis is in MM/YY format). The time-series plots show a good agreement between observed and interpolated PM_2.5. Both IDW and Kriging methods captured the peaks of observed PM_2.5. However, for many days, Kriging and IDW over-predicted the PM_2.5, as shown in Figure 7. The reason of the over prediction can be due to higher observed PM_2.5 by PurpleAir monitors. Scatter plots with interpolated PM_2.5 on y-axis and regulatory on x-axis show good agreement, and most of the interpolated falls between +/−25%. Both Kriging and IDW geo-statistically demonstrated that these can be used to interpolated daily average PurpleAir PM_2.5 at unmonitored locations for exposure and air quality assessments. The agreement between geo-statistically interpolated PurpleAir and observed daily average PM_2.5 gives confidence in using PurpleAir PM_2.5 with regulatory monitors to estimate PM_2.5 at unmonitored locations. This demonstrates that low-cost PM_2.5 sensors have a potential to fill in the gaps in the regulatory monitoring networks and might be useful to overcome the limitations and improve the air quality assessments and other scientific assessments. These PurpleAir PM_2.5 can be integrated and used with observed regulatory PM_2.5 to formulate a decision support system using geostatistical techniques, but before that, the uncertainty due to sensor measurements should be minimized prior to their usage to supplement regulatory monitors.

Table 7. Performance evaluation of statistically predicted and observed PM_2.5 concentrations at selected sites in California.

	Oakland-West		Stockton-Haz.		Mira Loma		Otay Mesa
	IDW	Kriging	IDW	Kriging	IDW	Kriging	IDW	Kriging
No. of Pairs	1084	1084	1079	1079	1083	1083	1052	1052
Mean Bias (µg/m3)	2.48	1.30	3.46	0.78	4.53	1.04	2.89	2.35
RMSE	12.49	11.54	15.77	13.19	9.78	7.72	8.38	7.94
R2	0.82	0.83	0.79	0.77	0.69	0.63	0.59	0.50

shows a statistical evaluation of interpolated daily averaged PurpleAir PM_2.5, using Kriging and IDW techniques, with daily averaged observed PM_2.5 concentrations. The interpolated PM_2.5 by Kriging has lower Root Mean Square Error (RMSE) and Mean Bias (MB) values than IDW. Corelation co-efficient values for the Oakland-West and Stockton-Hazelton sites were above 0.76 and were lower for the Mira Loma and Otay Mesa sites.

4. Conclusions

Recently emerged low-cost sensor-based monitoring technology has given a new dimension to air quality monitoring. Due to their portability and low-cost, sensors have made community-based micro-environment monitoring of air pollutants possible by providing access to local community members and enabling them to be a part of the air quality monitoring process. Currently, PurpleAir monitoring network is the densest sensor-based PM_2.5 monitoring network that exists on a global scale. This sensor-based network has successfully achieved the objectives of educating the community about air pollution and helped alert the community for higher PM_2.5 concentrations due to incidents such as forest fires on account of its high density of air quality sensors. However, due to the lack of best operational procedures, practices, and guidelines, this publicly available dataset cannot be used without QA/QC for air quality and other scientific assessments. The evaluation of PurpleAir PM_2.5 for California State conducted in this study included QA/QC procedures, assessment with reference to monitored PM_2.5 concentrations, and the formulation of a decision support system integrating these sensor-based observations using geostatistical techniques.

The hourly and daily average observed PM_2.5 concentrations from PurpleAir monitors generally followed the trends of observed PM_2.5 levels at regulatory monitors. PurpleAir monitored PM_2.5 also captured essential peaks of PM_2.5 concentrations due to incidents such as forest fires over the fire-year period. In comparison with reference-monitored PM_2.5 levels, it was found that PurpleAir PM_2.5 concentrations were mostly higher. For longer time periods, the correlation coefficient R² values were between 0.54 and 0.86 for selected collocated PurpleAir for both FEM/FRM and non-FEM/FRM monitors.

PurpleAir monitors can fill in a void in the data representation of PM_2.5 predictions on a localized scale. The methods of Kriging and IDW show similar patterns on spatial and temporal interpolation from PurpleAir PM_2.5, but before that, the uncertainty due to sensor measurements should be minimized prior to their usage to supplement regulatory monitors. Still, low-cost sensor-based monitors need to be integrated with regulatory monitors to provide higher spatio-temporal observed data for regulatory and policy purposes. They are great tools at local community levels to assess air quality and build awareness amongst citizens on risks of air pollution. This is evident in this study, as seen in the substantial increase in sensors across California over the years. Although there is an overall decrease in PM_2.5 concentrations, there are still problem areas due to wildfires in Northern California and local air pollution in Southern California which require further thinking and the development of mitigation strategies to retrieve the situations. The high number of sensors would help in enhancing the spatial density of observations. Overall, this study revealed that, despite its shortcomings, low-cost PurpleAir sensor-based measurements could be an effective tool for ambient air quality monitoring. The efficacy of the application of low-cost sensors in this study implies that sensor networks may be broadened worldwide, especially in developing countries where there is a scarcity of regulatory air quality monitors to investigate high PM_2.5 concentrations. This would entail building a global roadmap for the scientific community on the usage of these sensors for air quality assessments and their subsequent impact on human health.
