Noise-Aware UAV Path Planning in Urban Environment with Reinforcement Learning ^†

Abstract

This research presents a comprehensive approach for mitigating noise pollution from Unmanned Aerial Vehicles (UAVs) in urban environment by using Reinforcement Learning (RL) for flight path planning. Focusing on the city of Turin, Italy, the study utilizes its diverse urban architecture to develop a detailed 3D occupancy grid map, and a population density map. A dynamic noise source model adjusts noise emissions based on the UAV velocity, while acoustic ray tracing simulates noise propagation in the environment. The Deep Deterministic Policy Gradient (DDPG) algorithm optimizes flight paths, minimizing the noise impact, and balancing both the path length and the population density located under the UAV path. The simulation results demonstrate significant noise reduction, suggesting scalability and adaptability for global urban environments, contributing to sustainable urban air mobility by addressing noise pollution.

1. Introduction

The advent of Unmanned Aerial Vehicles (UAVs) has revolutionized many sectors including surveillance, search and rescue, delivery [1,2], environmental monitoring, etc. [3]. Urban Air Mobility (UAM) aims to utilize the urban airspace for efficient transportation of goods and passengers, thereby reducing ground traffic congestion. However, public acceptance of UAVs is hindered by concerns over privacy, safety, and noise pollution [4]. Addressing UAV noise is crucial for the successful implementation and acceptance of UAM services. Mitigation strategies encompass structural modifications, such as sound-proofing, the use of porous materials [5] and biologically inspired blade designs, as well as active noise cancellation techniques [6] employing digital signal processing.

Optimizing UAV flight paths is another strategy for reducing the UAV noise impact. One study utilizes the “iNoise” software to simulate and calculate noise, proposing flight paths that minimize the noise impact [7]. Another study uses the A* algorithm to compute various paths with different levels of “quietness”, overlaying a grid to designate obstacles and “quiet zones” [8]. Agent-based modelling is employed in [9] to guide the UAV away from noisy, heavily used paths. The work in [10] integrates Gaussian beam tracing and the A* algorithm with a noise-based objective function to mitigate urban noise pollution from UAVs. A method introduced in [11] leverages a noise assessment platform to generate noise maps and uses an improved cost-based A* algorithm to find optimal UAV flight paths with minimal sound exposure. Additionally, authors in [12] exploit a simulated annealing algorithm to balance noise reduction and energy efficiency, prioritizing noise abatement in residential zones by incorporating noise sensitivity levels. This work focuses on the development of a noise-aware UAV path planning strategy in urban environment by means of a Reinforcement Learning (RL). This paper contributes to the development of sustainable UAM by addressing the critical issue of noise pollution in populated environments, enhancing the potential for UAV operations to be publicly acceptable and regulatory compliant. Section 2 describes the methodology employed in the study, divided into several key components: creation of obstacles and population density maps for the study area, modelling of the noise source, modeling of noise propagation using ray tracing, and development of a RL-based approach for noise-aware UAV flight path planning. The implementation details are presented in Section 3. In Section 4, the model is validated by means of simulation results with maps unseen during training, and a discussion is proposed.

2. Noise-Aware UAV Path Planning in Urban Environment

2.1. Obstacles and Population Density Maps

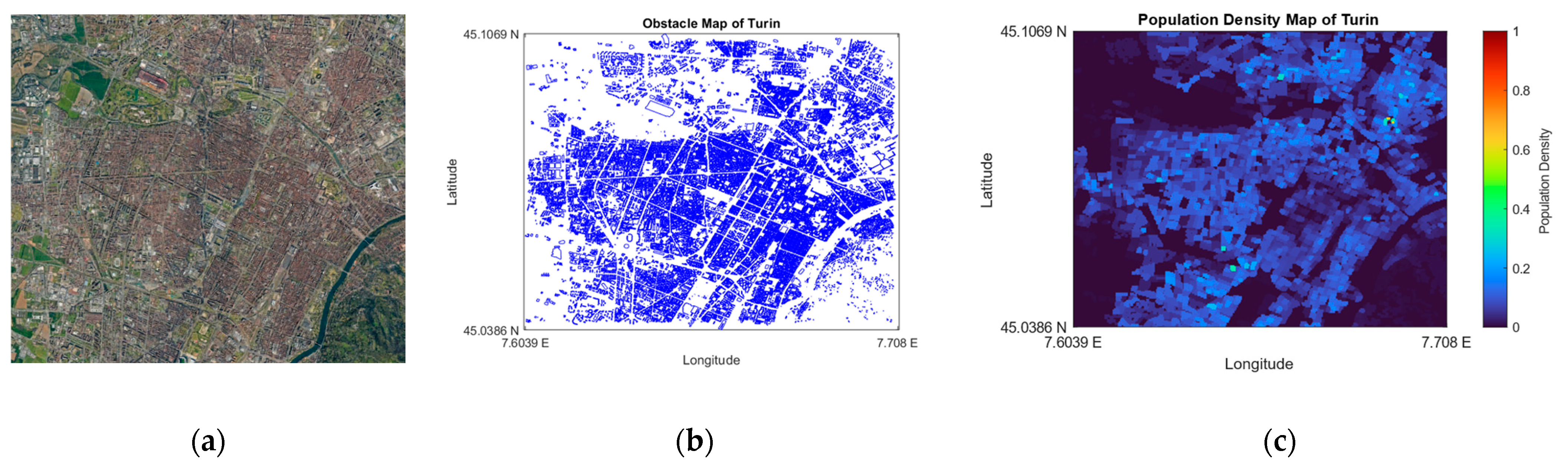

Buildings’ location and dimension data is sourced from OpenStreetMap (OSM) for constructing a 3D occupancy grid of Turin, Italy. The study area is defined within the longitude range of [7.6039°, 7.708°] E, and the latitude range of [45.0386°, 45.1069°] N. Building heights are randomly assigned values between 12 m and 18 m. The area was represented by a 3D tensor, with each point indicating occupancy (1) or vacancy (0). Population density data is obtained from Meta, filtered to match the coordinates of the obstacles map. Figure 1 shows the satellite picture of the area as well as the obstacle map and the population density map. Both the maps were subdivided into manageable maps, each 200 × 200 cells, enabling consistent training and simulation. Each cell has a length of 2 m.

2.2. Noise Source Modelling

A point-source spherical propagation model is employed to simulate the UAV noise. This model simplifies calculations while remaining representative of established findings. Although multi-rotor UAVs produce highly directional noise in their immediate vicinity, it’s assumed that the noise propagates isotropically at the distances considered in this study. Consequently, as the UAV traverse its routes, the noise pattern generated on the ground does not distort when turning.

Typically, a constant noise source is assumed in such models; however, the noise levels of the drone is correlated with its velocity, and since the RL agent can adapt its velocity, it is beneficial to incorporate this variable into the noise model. Since Sound Pressure Level (SPL) at a distance of 1 m from the ‘DJI Inspire 2’ quadrotor was measured at speeds of 5, 10, and 20 km/h in [13], an exponential curve is fit to these data points. This results in $L_0=60.24·\mathrm{e}\mathrm{x}\mathrm{p}(0.003379·v)$ which allows dynamic noise level adjustment based on UAV velocity during flight. $L_0$ denotes the source SPL (in dB), and $v$ denotes the velocity (in km/h). The apparently overly simplified drone’s noise model introduced by the relation between $L_0$ and $v$ can be re-addressed quite easily in the future by interpolating data resulting from extensive experimental results and/or introducing new parameters and functions for the assessment of the impact of drone-generated noise on people based on the operating conditions [14]. In the context of minimizing UAV noise impact, accurately modelling noise propagation is critical. This process involves generating acoustic rays emitted from a noise source, which are utilized in the ray tracing algorithm. The source altitude is set to 40 m and direction vectors from the source to 46 predefined ground points are computed and normalized to unit vectors, as illustrated in Figure 2.

2.3. Acoustic Ray Tracing

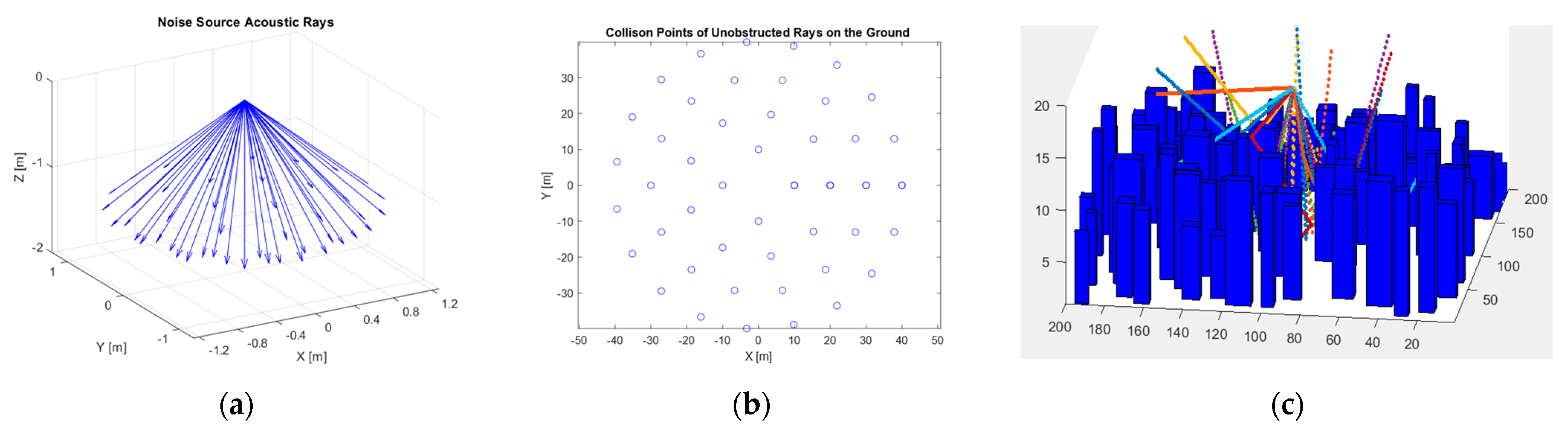

The ray tracing algorithm models UAV noise propagation considering geometric divergence, atmospheric absorption, and reflections. The assumptions include homogeneous medium properties such as temperature, pressure and relative humidity, linear propagation, specular reflection, and negligible diffraction. The algorithm initializes arrays for each ray, propagating them through the medium and updating their positions based on the direction. Reflections off surfaces are assumed to follow the law of specular reflection, where the angle of incidence equals the angle of reflection. The SPL attenuations due to geometric divergence $A_{div}$ and atmospheric absorption $A_{atm}$ are aligned with ISO 9613-2 standards [15], and these attenuations are subtracted from the source SPL. The overall SPL at a height of 2 m, $L_{tot}$, is then computed by summing contributions from all the rays, providing a comprehensive method for evaluating ground-level noise impact. $A_{div}$, $A_{atm}$, and $L_{tot}$ are compued as $A_{div}=20\log \left({\displaystyle \frac{d}{d_0}}\right)+11$, $A_{atm}={\displaystyle \frac{\alpha d}{1000}}$, and $L_{tot}=10\log \left(\sum _i^N{10}^{{\displaystyle \frac{L_i}{10}}}\right)$. In particular, $d$ is the distance travelled from the source (in m), $d_0$ is the reference distance ($d_0$ = 1 m); $L_i$ is the attenuated SPL at the ground for each ray, and $\alpha$ is the coefficient of atmospheric attenuation (in dB/km). Given a temperature of 10 degrees Celsius, Relative Humidity (RH) of 70%, and assuming a nominal median frequency of 200 Hz (drones typically operate between 100–300 Hz), the atmospheric absorption coefficient, $\alpha$, is set to 0.76 dB/km as per ISO 9613-2. The effect of wind on sound propagation is neglected since it depends on frequencies and distances, and established models currently lack in the literature [16]. This issue may be addressed in future works.

2.4. Reinforcement Learning

RL is a paradigm of Machine Learning (ML) that trains an agent to accomplish tasks in uncertain environments. At each discrete time step, the agent receives observations and rewards from the environment, and sends actions back. The reward provides immediate feedback on the success of the agent’s previous action relative to the task’s goal. An RL agent consists of two main components: a policy and a learning algorithm. The policy maps current environment observations to a probability distribution over possible actions, implemented by a function approximator with tuneable parameters. The learning algorithm continuously updates the policy parameters based on the agent’s actions, observations, and received rewards. RL is typically modelled as a Markov Decision Process (MDP). The primary objective of the agent is to maximize the return, $G$, which is defined as the expected sum of the discounted future rewards: $G\left(t\right)=E\left[\sum _{k=0}^{\infty }{\gamma }^k{R}_{t+k+1}\right]$; where γ is the discount factor, and $R$ is the reward. The agent gradually updates its policy, $\pi$, towards the optimal policy, ${\pi }^{*}$, via action-value methods or policy gradient methods, which are the two principal approaches. The detriment of sample efficiency of policy-based approaches can be improved by combination with value-based methods. For this reason, the DDPG algorithm [17] has been implemented in this work.

2.5. Deep Deterministic Policy Gradient (DDPG)

The DDPG algorithm is a model-free, off-policy RL method that concurrently learns a Q-function and a policy, optimizing both using off-policy data and the Bellman equation. DDPG utilizes an actor and a critic. The actor represents a deterministic policy that maps states to actions, and the critic evaluates the action-value function.

During training, the agent stores past experiences in a replay buffer, and mini-batches of experiences are sampled from this buffer to update the critic by minimizing the mean squared error between the predicted and target Q-values. The actor is updated using the policy gradient, which involves calculating the gradient of the Q-value with respect to the action, and adjusting the policy parameters to increase the expected return. The DDPG algorithm maintains four function approximators to estimate the policy and the value functions: Actor $\pi (S;\theta )$ takes observation S as input and returns the corresponding action that maximizes the long-term reward; Critic $Q(S,A;\varphi )$ takes observation S and action A as inputs, and returns the expected long-term reward; Target Actor ${\pi }_t(S;{\theta }_t)$ and Target Critic $Q_t(S,A;{\varphi }_t)$ are both periodically updated using the latest actor and critic parameters (θ and ϕ) to maintain stability.

DDPG trains a deterministic policy using an off-policy approach. Since the policy is deterministic, on-policy exploration at the start may not cover a sufficiently diverse range of actions to obtain useful learning signals. To enhance exploration, noise is added to actions during training using the Ornstein-Uhlenbeck noise model. The noise scale can be reduced over the course of training using a decaying factor to balance the exploration-exploitation tradeoff. The noise value v(t) at each time step $t$ is updated as $v\left(t+1\right)=v\left(t\right)+{Mean}_{ac}·\left(Mean-v\left(t\right)\right)·T+std\left(t\right)·\mathcal{N}\left(\mathrm{0,1}\right)·\surd T$, the standard deviation decays at each time step as $std\left(t+1\right)=std\left(t\right)·\left(1-Decay Rate\right)$. ${Mean}_{ac}$ is the mean attraction constant which specifies how quickly the noise model output is attracted to the mean, $Mean$ is the mean of the noise value, $std$ is the standard deviation, T is the sampling time and $\mathcal{N} \left(\mathrm{0,1}\right)$ represents a normal random variable.

3. Implementing the RL Framework

The MATLAB’s 2024 Deep Learning and Reinforcement Learning Toolboxes facilitated the development, training, and testing of the DDPG agent in a structured environment. The training setup involves configuring the environment, and initializing both the actor and the critic neural networks. Some of the main hyperparameters meticulously tuned to optimize the training process are reported in

Table 1. Key tuned hyperparameters associated with the algorithm, and the scaling factors of the reward function of the RL model.

	Hyperparameter	Value
DDPG Algorithm	Mini batch size	128
	Discount factor γ	0.99
	Smoothing factor τ	10−3
	Learning rate α	10−5
Actor/Critic	Number of hidden layers	3
	Number of nodes in each hidden layer	256
Reward Function	${\lambda }_1, {\lambda }_2, {\lambda }_3, {\lambda }_4, {\lambda }_5, {\lambda }_6$	0.02, 0.07, 0.43, 0.01, 0.47, 1

. Also, ${Mean}_{ac}=0.15$, $Mean=0$, $std=0.85$, and $Decay Rate={10}^{-4}$. The Adam algorithm is used for optimization, with gradient clipping to mitigate the exploding gradient problem.

During training, a random obstacle and a population density map are selected at the beginning of each episode, and the agent’s starting and target positions are specified randomly. Training proceeds with the episode termination condition being either the agent reaching the target within a radius of 2 m or exhausting the maximum number of episode steps (280). The agent is trained until converging to the optimal policy by monitoring the learning curves.

3.1. State Representation and Action Space

The state representation is a critical component in the RL approach, providing a detailed snapshot of the drone’s current situation to the neural network. The state is represented as a 24-dimensional vector, encapsulating various features of the drone and its environment such as: cartesian coordinates of the drone and the target in the XY plane, distance from the drone to the target, orientation of the target with respect to the drone represented as an angle in the XY plane, population density at the drone’s current location, mean population density across two sub grids (15 × 15 and 51 × 51 cells) centred on the drone, orientation of the maximum population density in the sub grid with respect to the drone, overall SPL value on the ground, distances and orientations of the three closest and three furthest obstacles. To ensure stability during training, each of these values is normalized to the range [0, 1]. Normalizing input features ensures balanced gradients, and improves the generalization capability of the RL agent.

The agent operates within a fixed height airspace, navigating in any direction across the continuous XY plane. The sampling time, $T$, for the agent is set to 0.3 s, balancing decision frequency and computational efficiency. The range of movement at each time step, calibrated to match the maximum velocity of commercial drones (approximately 101 km/h), is set to 6 m for both X and Y directions.

3.2. Reward Function

The reward function plays a pivotal role in achieving the desired behavior from the model. It is crucial to set the components of the reward function to guide it towards achieving optimal path and policy. At any timestep, if the episode terminates (the agent reaches the target), a reward of 2 is given. Otherwise, the reward is calculated by the weighted sum of the following terms, which are all individually normalized in the range of [0, −1]:

• Idle penalty $P_{Idle}\left(t\right)$: penalizes the drone for remaining stationary. A penalty of −1 is applied if the drone’s position has not changed in between timesteps.
• Distance penalty $P_{Distance}\left(t\right)$: encourages the drone to reduce the distance to the target. The penalty is based on the change in Euclidean distance to the target.
• Population density penalty $P_{Density}\left(t\right)$: discourages navigation through high-density areas. A penalty of −1 is applied if the population density increases from the previous timestep; otherwise, a smaller penalty of −0.1 is applied.
• Noise penalty $P_{Noise}\left(t\right)$: penalizes high noise levels. If the SPL exceeds the threshold (maximum possible SPL on the ground), a penalty of −1 is applied. Below the threshold, the penalty decreases exponentially to 0 as the SPL decreases to 0.
• Cumulative noise penalty $P_{Cumu\_Noise}\left(t\right)$: encourages lower cumulative noise and, indirectly, shorter flight time. The penalty increases based on the cumulative noise up to the current timestep.
• Smoothness penalty $P_{Smooth}\left(t\right)$: prevents erratic behaviour and encourages smooth navigation. The penalty is based on the angular difference in the movement vector between consecutive timesteps.

The total reward at each timestep, $R\left(t\right)$, is calculated as $R\left(t\right)={\lambda }_1{P}_{Idle}\left(t\right)+{\lambda }_2{P}_{Distance}\left(t\right)+{\lambda }_3{P}_{Density}\left(t\right)+{\lambda }_4{P}_{Noise}\left(t\right)+{\lambda }_5{P}_{Cumu\_noise}\left(t\right)+{\lambda }_6{P}_{Smooth}\left(t\right)$, where $\lambda$ is the scaling factor.

4. Results and Discussion

In order to validate the accuracy of the agent’s learned policy, the trained agent is tested on a map different from the testing dataset. To compare its performance, this trajectory is compared with the direct path to the target and the optimal path found from the A* algorithm. The heuristic function in the A* algorithm is configured to account for both distance (40%) and population density (60%). Since the noise model is velocity-dependent, defining a velocity for the alternative methods is essential to evaluate their noise impact accurately. For a fair comparison, the average velocity of the RL path is used as a constant velocity along the entire path computed by the other methods. The flight paths are depicted in Figure 3, and the results are tabulated in

Table 2. Performance metrics of the test for the 3 methods along with the comparison of the RL model’s performance with respect to both the A* and the direct paths.

Path	Path Length (m)	Average Velocity (km/h)	Minimum SPL (dB)	Maximum SPL (dB)	Total SPL (dB)	SPL per Unit Length (dB)
Direct A* RL	332.97	84.04	47.89	52.87	16,782.8	50.41
	335.99	84.04	47.47	52.8	16,974.2	50.52
	356.2	84.04	44.76	56.13	17,652.2	49.55
RL vs. Direct RL vs. A*	6.98%	0%	−6.54%	6.17%	5.18%	−1.71%
	6.02%	0%	−6.02%	6.31%	5.11%	−1.92%

.

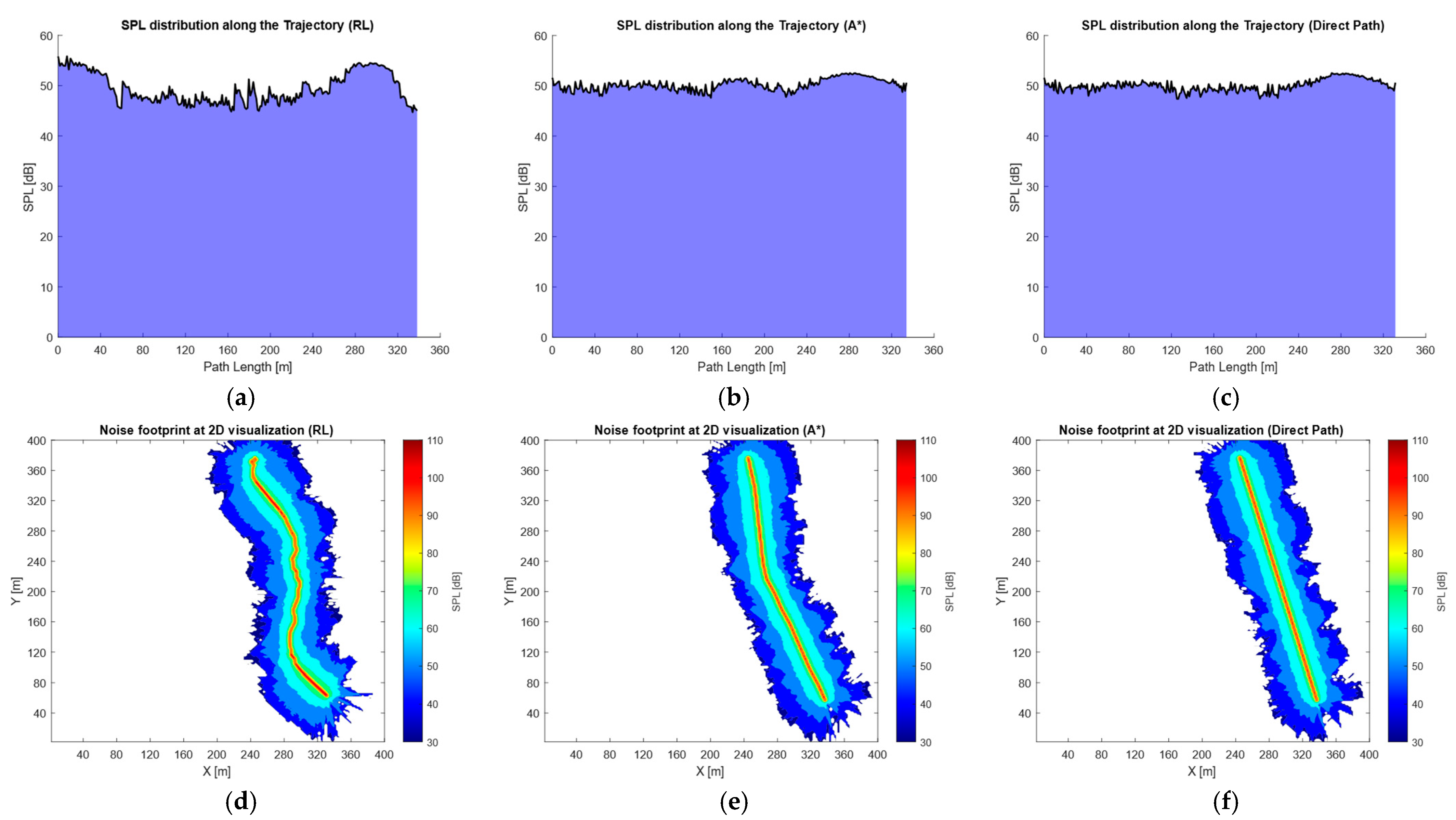

The RL agent follows a trajectory of 356.2 m, which is 6.98% and 6.02% longer than the direct and the A* paths, respectively. Despite its longer path, the RL agent achieves the lowest SPL per unit length, indicating a prioritization of noise reduction over travel efficiency. The RL agent records the lowest minimum SPL level among the paths at 44.76 dB. This ~2.7 dB reduction demonstrates the agent’s ability to effectively reduce noise in specific segments of its path, which is valuable for noise-sensitive environments. However, the RL agent’s maximum SPL is the highest at 56.13 dB. This suggests that the agent dynamically adjusts its speed, accelerating in less sensitive areas and slowing down in noise-sensitive ones, balancing time and noise constraints. The total SPL for the RL agent is the highest at 17,652.2 dB, reflecting its longer path. Nonetheless, the RL agent excels in noise management with the lowest SPL per unit length at 49.55 dB/m, indicating an efficient noise distribution along its trajectory. The SPL distribution along the flight paths and the noise impact in the environment for the 3 methods are shown in Figure 4.

The comparative analysis reveals that while the RL model generates a longer path and higher overall noise levels, it minimizes SPL per unit length and achieves lower minimum SPL values. The increased path length suggests a deliberate trade-off to prioritize noise reduction. The higher maximum SPL indicates occasional noise peaks due to dynamic velocity adjustments. These findings highlight the RL model’s potential for minimizing noise pollution in noise-sensitive environments, despite not always producing the shortest or fastest path. To rigorously evaluate the generalization capability of the RL model, 20 tests were conducted on ten different maps, each featuring random start and target locations. The statistical analysis, presented as the median and Standard Deviation (Std) values for each performance metric are reported in the

Table 3. Median and standard deviations of the performance metrics for the 3 methods.

Path	Path Length (m)		Minimum SPL (dB)		Maximum SPL (dB)		Total SPL (dB)		SPL per Unit Length (dB)
	Median	Std	Median	Std	Median	Std	Median	Std	Median	Std
Direct A* RL	295.44	122.1	47.89	3.82	53.19	2.58	14,925.4	6446	52.9	2.91
	336	128.28	47.47	3.65	54.19	2.7	16,588.8	6794.9	52.78	2.73
	333.18	138.8	45.57	3.88	56.61	1.91	17,625.4	7363.5	51.77	2.97
RL vs. Direct RL vs. A*	12.78%	13.68%	−4.84%	1.68%	6.44%	−25.97%	18.09%	14.2%	−2.14%	2.13%
	−0.8%	8.2%	−4.01%	6.24%	4.49%	−29.26%	6.25%	8.37%	−1.92%	8.84%

. The validation results confirm that the RL model demonstrates strong generalization capability as well as accuracy across diverse map layouts.
