Fix-Wavelength Multi-Analyte Detection with Serial SOI Ring Resonators

1
Department of High Frequency Technology/Photonics, Technische Universität Berlin, Einsteinufer 25, 10587 Berlin, Germany
2
Institute of Medical Immunology, Charité—Universitätsmedizin Berlin, Lindenberger Weg 80, 13125 Berlin, Germany
*
Author to whom correspondence should be addressed.
Presented at the 8th International Symposium on Sensor Science, 17–28 May 2021; Available online: https://i3s2021dresden.sciforum.net/.
Academic Editors: Gianaurelio Cuniberti and Larysa Baraban
Published: 17 May 2021
(This article belongs to the Proceedings of The 8th International Symposium on Sensor Science)

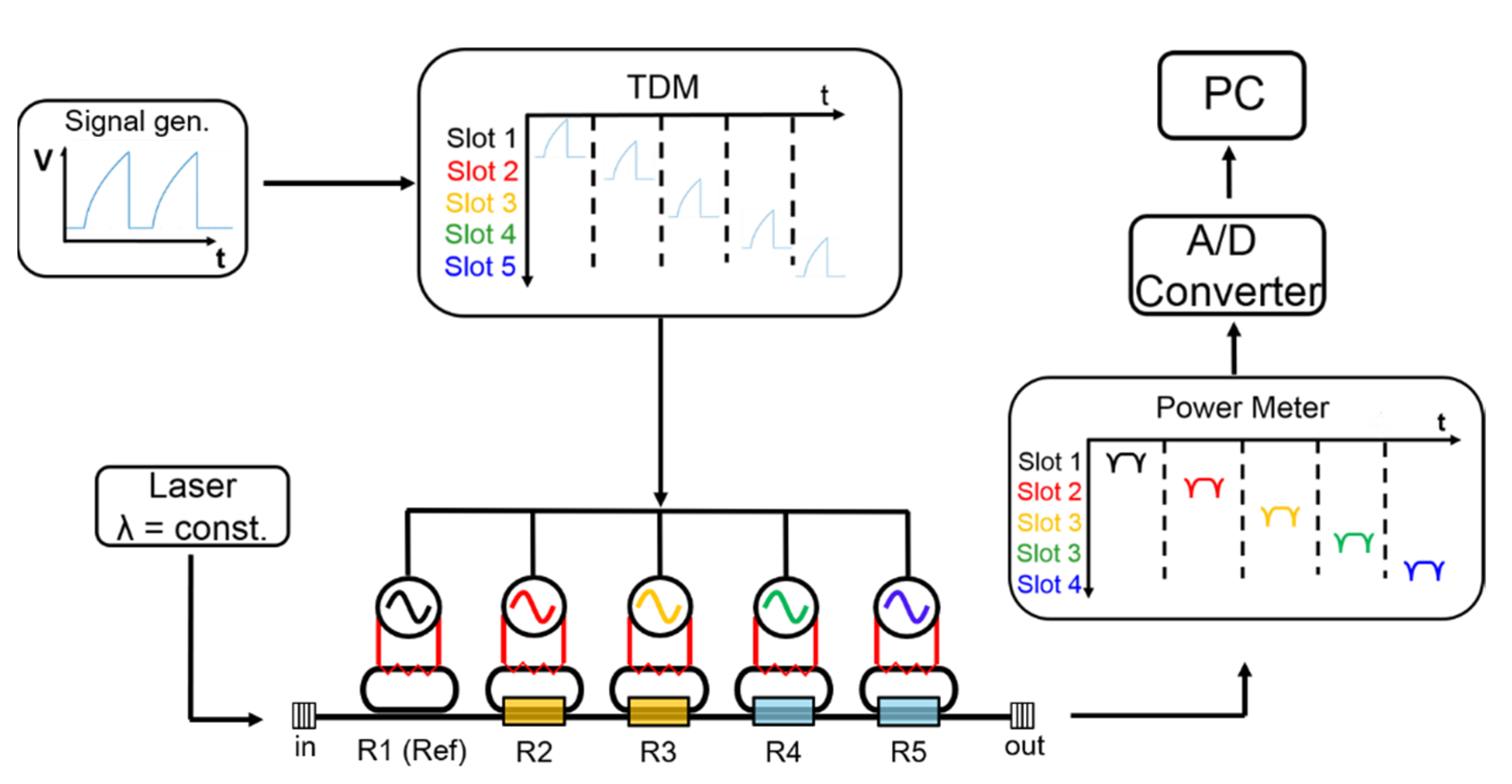

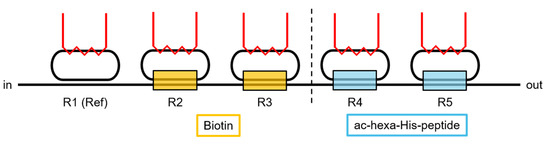

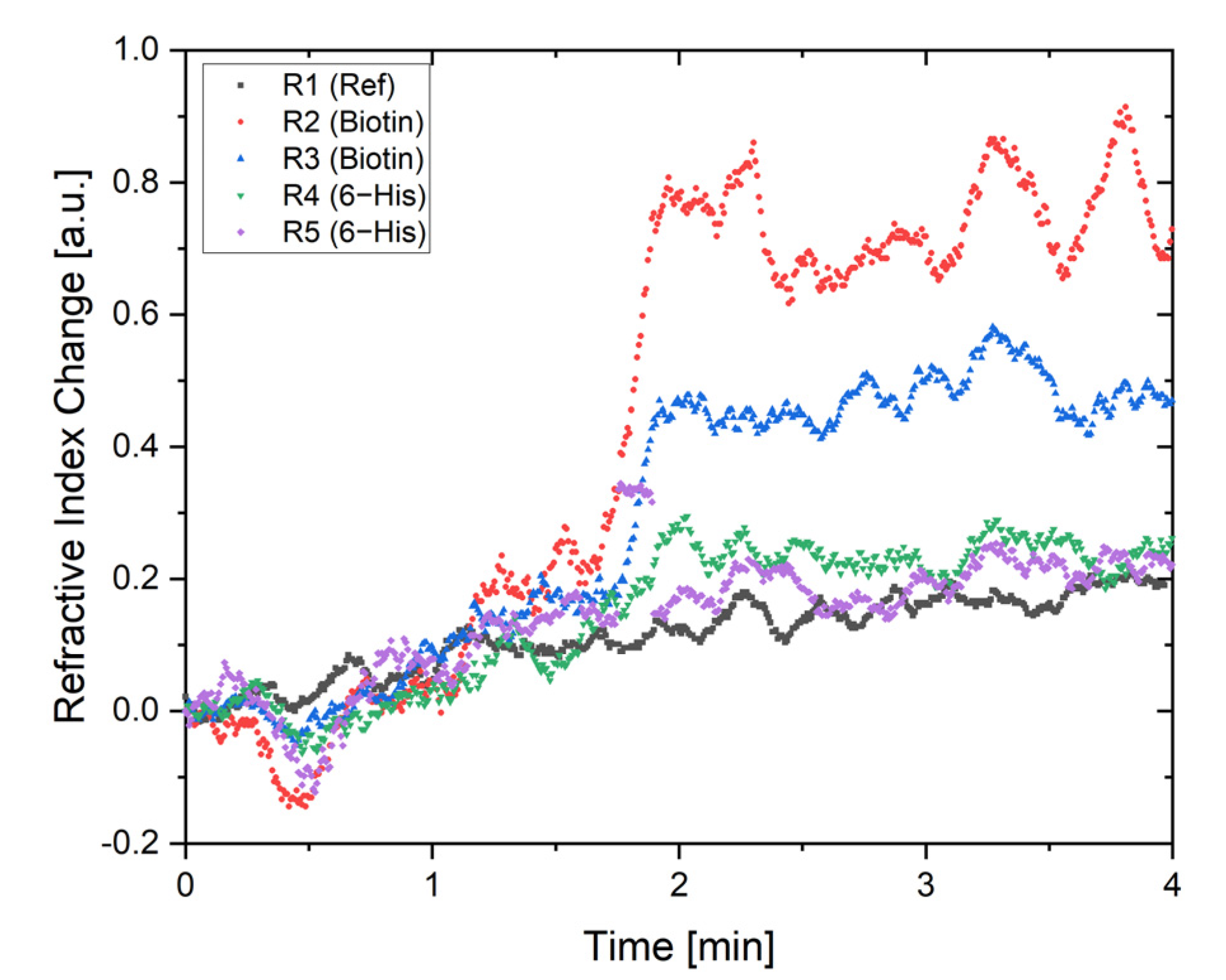

We present a method for the read-out of five serially arranged SOI ring resonator-based biosensors at a speed of 3 Hz/sensor and a fixed wavelength of 1550 nm. The system uses the high thermo-optical coefficient of silicon by applying AC voltages to periodically heat up electrodes adjacent to each sensor. A time-division multiplex scheme allows the allocation of the measured optical output from the mutual spectrum to each specific resonator. We demonstrate our system by immobilizing two different antibodies (biotin and a hexa-His-peptide) at the surface of selected resonators and successfully showing the selective binding characteristics of analyte probing in a microfluidics supported experiments. View Full-Text
Keywords: biosensors; ring resonators; silicon-on-insulator; thermo-optical tuning; sensor multiplexing; microfluidics biosensors; ring resonators; silicon-on-insulator; thermo-optical tuning; sensor multiplexing; microfluidics
Show Figures

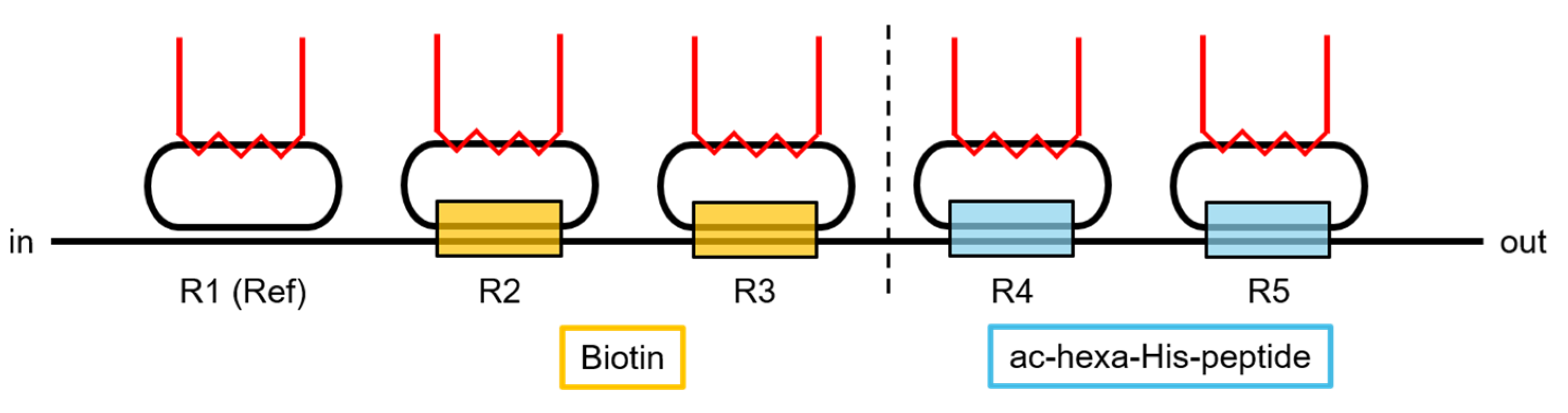

Figure 1

MDPI and ACS Style

Kasper, L.; Zein Al-Din, A.; Bruns, J.; Volkmer, R.; Petermann, K. Fix-Wavelength Multi-Analyte Detection with Serial SOI Ring Resonators. Eng. Proc. 2021, 6, 22. https://doi.org/10.3390/I3S2021Dresden-10108

AMA Style

Kasper L, Zein Al-Din A, Bruns J, Volkmer R, Petermann K. Fix-Wavelength Multi-Analyte Detection with Serial SOI Ring Resonators. Engineering Proceedings. 2021; 6(1):22. https://doi.org/10.3390/I3S2021Dresden-10108

Chicago/Turabian Style

Kasper, Laura, Abbas Zein Al-Din, Jürgen Bruns, Rudolf Volkmer, and Klaus Petermann. 2021. "Fix-Wavelength Multi-Analyte Detection with Serial SOI Ring Resonators" Engineering Proceedings 6, no. 1: 22. https://doi.org/10.3390/I3S2021Dresden-10108
