Analysis of Derivatized N-Acyl Amino Acid Surfactants Using HPLC and HPLC/MS

Abstract

A method for the analysis of weak anionic surfactants based on N-acyl amino acids was developed. The surfactants were derivatized using 2,4′-dibromoacetophenone yielding 4′-bromophenacyl esters suitable for spectrophotometric detection. Surfactants containing glycine, threonine and glutamic acid were analyzed after derivatization using reversed-phase liquid chromatography with UV/Vis and MS detection. The gradient profile was optimized using isocratic retention data of N-acyl-linked fatty acid homologues. The relative content of the homologues of N-acyl-linked fatty acids was expressed using the determined method. The intraday repeatability and stability of the prepared derivatives was tested. The relative content of fatty acids in the surfactants was correlated with the most common sources of fatty acids, showing high Pearson’s correlation coefficients with the typical fatty acids profile of a coconut oil.

1. Introduction

Surfactants are the generally main components of cosmetics, cleaning detergents, emulsions, and other products for household and industrial use. In the case of cosmetic products desired for contact with a human skin, the compounds should possess low irritation potential, hypoallergenicity, and very low cell toxicity. In recent years, biodegradable surfactants based on amino acids have become the major concern for the production of cosmetics. Amino acid surfactants are part of the formulations of shampoos, rinses, body soaps, facial cleansers and many other products, as well as baby care products, due to their ability to create non-irritating creamy foams [1].

The most commonly used amino acid surfactants comprise of an amino acid or a peptide head group residue, responsible for the ionicity of the surfactant and thus its biological activity, and the nonpolar hydrophobic part. The nonpolar part usually represents long chain fatty acids, originated from coconut oil. The majority of the representative fatty acid in coconut oil is lauric acid (C12:0, 49.5%), followed by myristic acid (C14:0, 19.5%), palmitic acid (C16:0, 8.5%), caprylic acid (C8:0, 6.5%), capric acid (C10:0, 6.0%), and oleic acid (C18:1, 6.0%) [2]. These substances are generally used in cosmetics, keeping skin more moistened and healthier hair. Fatty acids used in the production of the surfactants are typically derived from coconut oil or palm oil [3,4]. Some other substrates were reported too, including soybean, corn and olive oils [5], or recently silkworm pupae [6]. The bacterial production of amino acid surfactants can be used for production from sustainable resources, like using the fermentation of cellulosic carbohydrates, i.e., soy hulls as an abundant waste material [7].

Typically, the surfactants produced from natural substrates are complex mixtures, which can contain tens to hundreds of isomers, homologues, or oligomers. Besides the challenging task of the purification of the surfactants for some applications including cosmetics [1], the diverse composition is also challenging for the development of methods for their analysis. Due to the complexity of surfactants, separation techniques are usually applied. The nonvolatile nature of most classes of surfactants restricts the direct use of gas chromatography. Consequently, the most analytical methods use high performance liquid chromatography (HPLC), or HPLC coupled with mass spectrometry (LC/MS), as it permits the separation of complex mixtures with a wide distribution of homologues, e.g., alkyl- or ethoxy-ones [8]. In the most research work, atmospheric pressure chemical ionization (APCI) and electrospray ionization (ESI) have been used [9]. Some compounds may, however, partly co-elute and tandem mass spectra can further improve their identification [10]. For the analysis of surfactants, both normal phase and reversed-phase (RP) systems can be used [11,12,13]. The study of the retention behavior of sulphated oligoethyleneglycol nonylphenyl ether anionic surfactants was presented by Jandera [12]. For the tuning of the retention and solubility of strongly acidic sulphated surfactants, tetraalkylammonium salts were used. Alternatively, the aminopropyl silica gel stationary phase can be used [11]. The most common synthetic anionic surfactants are linear alkylbenzene sulfonates (LAS). These compounds have been found in water from sewage treatment plants and can migrate into the environment. Microwave-assisted extraction and HPLC coupled with fluorescence detection and capillary electrophoresis were used for the analysis by Villar et al. [14]. LC/MS with ESI was used for the identification and quantification of LAS, alkyl ethoxysulfates and alkylsulfates by Lara-Martin et al. [15]. The most often used mobile phases for the analyses of surfactants are acetonitrile with the addition of trifluoroacetic acid, ammonium acetate, or methanol in mixture with water; octadecyl silica gel stationary phases are the most used. Lots of studies have been made with domestic and industrial detergents [14], shampoo and hair conditioners [13], or among the environmentally important samples, in pollutants of leafy and root vegetables [9], or in the sediment and river water samples [15].

In this work, we developed a method for the analysis of N-acyl-linked amino acid weak anionic surfactants after its derivatization with 2,4′-dihydroxyacetophenone. Derivatives of surfactants were qualitatively analyzed using reverse-phase liquid chromatography with UV/Vis and MS detection with a gradient profile optimized using the isocratic retention data of N-acyl-linked fatty acid homologues. The relative content of homologues was correlated with the composition of different types of seed oils, which can be used for the fast screening of the origin of analyzed surfactants.

2. Materials and Methods

The anionic surfactants used for the study were Amisoft CS-11, Amisoft CS-22, Amisoft CT-12S, Amisoft ECS-22SB (sodium and triethanolamine salts of N-cocoyl-l-glutamate), Amilite ET-CS-12 (mixture of sodium salts of N-cocyl-l-glutamate and N-cocoyl-l-threoninate), Amilite GCK-12H (potassium salts of N-cocoyl-glycinate and cocoate), and Amilite GCS-12K (sodium salt of N-cocoyl-glycinate). All the surfactants were produced by Ajinomoto (Tokyo, Japan) and kindly donated by the Safic-Alcan Czech Republic. The structures of the surfactants used are shown in Figure 1a. Acetonitrile and 2,4′-dibromoacetophenone were from Sigma-Aldrich (St. Louis, MO, USA), denaturated ethanol and phenolphthalein were from Penta Chemicals (Prague, Czech Republic), and sodium hydroxide was from LachNer (Neratovice, Czech Republic). Deionized water was prepared using the Milli-Q Purification Reference Water System (Millipore, Molsheim, France).

Samples of weak anionic surfactants were derivatized to obtain UV-absorbing compounds by the following procedure (three replicates were prepared from each sample): 0.5 mL of liquid samples or 125 mg of solid surfactant was dissolved in 2 mL of distilled water and 0.5 mL of ethanol was added to each sample. One hundred and twenty-five milligrams of 2,4′-dibromoacetophenone was added to the samples and closed vials were vigorously shaken and placed for 15 min in the 70 °C water bath. After the reaction (Figure 1b), the vials were cooled down to the laboratory temperature and precipitated derivatives were filtered, washed with distilled water and re-dissolved in 1 mL of acetonitrile before the analysis. The spiked sample of tap water was prepared by mixing of 1 L of tap water with 0.5 mL of liquid sample Amilite GCK-12H and sonicated for 15 min. After ultra-sonication, 0.5 mL of emulsion was derivatized using the aforementioned procedure.

Separations of weak anionic surfactants after derivatization was performed on an Agilent 1200 Rapid Resolution liquid chromatograph equipped with DAD detector (Agilent, Palo Alto, CA, USA). For the LC/MS analysis, Agilent 1260 Infiniti II Prime LC system was used coupled directly with LC/MSD iQ detector (single quadrupole type mass spectrometer). The mass spectrometer was operated in positive ionization mode with the following conditions: capillary voltage 3500 V, gas temperature 325 °C, gas flow 11 L/min and nebulizer pressure 50 psi. The scan range was 70–1200 m/z, targeted points per second were 3.8 Hz and the estimated cycle time was 257 ms/cycle.

The separation of the derivatives of anionic surfactants was performed on a Luna Omega C18 column (100 × 2.1 mm, 1.6 μm fully porous particles; Phenomenex, Torrance, CA, USA) maintained at 40 °C. The mobile phase consisted of water (A) and acetonitrile (B) with the flow rate of 0.5 mL/min, and an injection volume of 5 μL. Both the isocratic experiments with 70, 80 and 90% of B for the determination of retention characteristics of the derivatives and the gradient elution with an optimized profile were used. Optimized gradient profile was as follows: 0 min—70% B, 20 min—100% B, 27 min—100% B, 28 min—70% B, 30 min—70% B. Each sample was analyzed in three replicative runs and the results presented are given as the average value and standard deviation.

3. Results

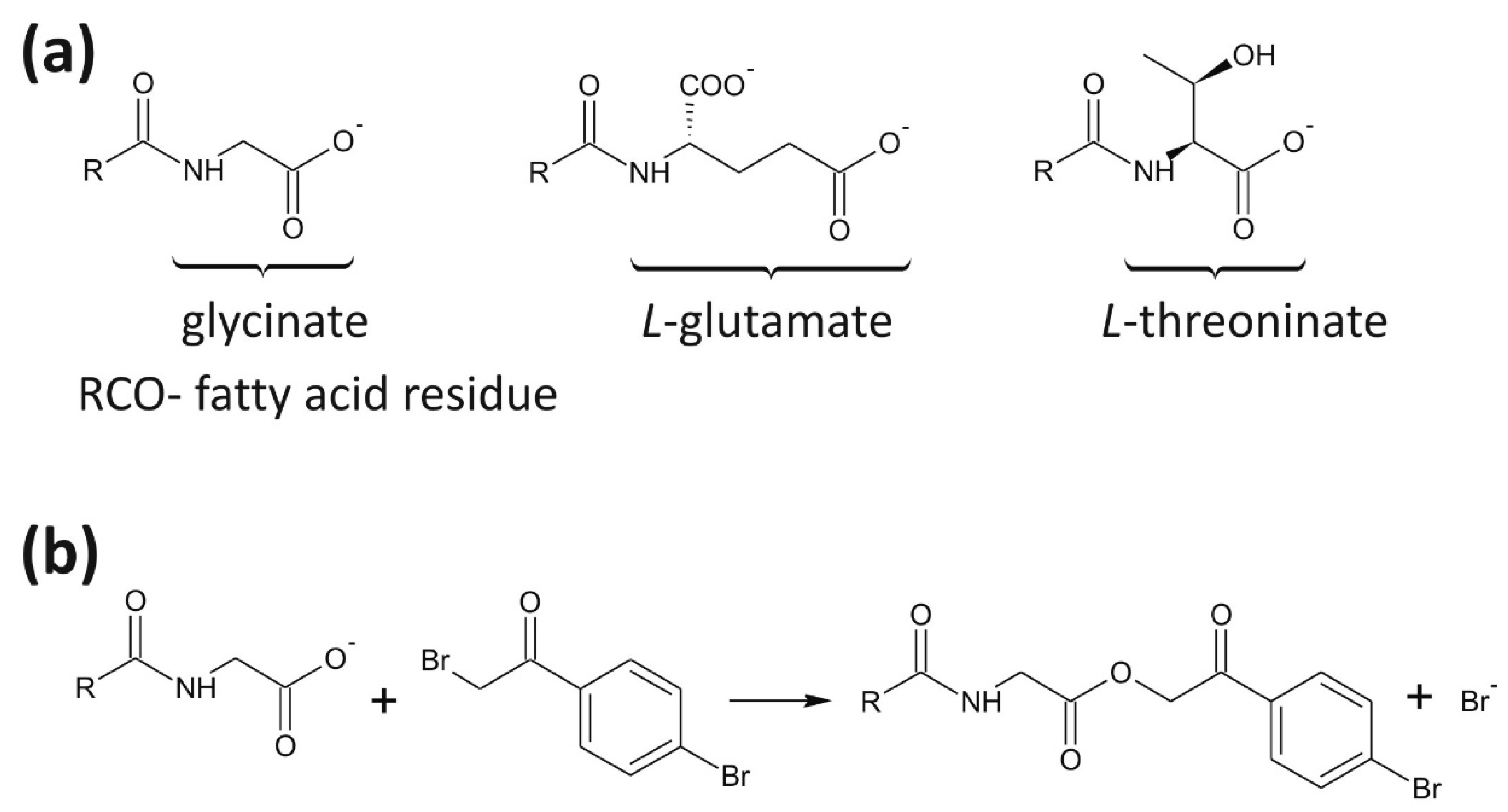

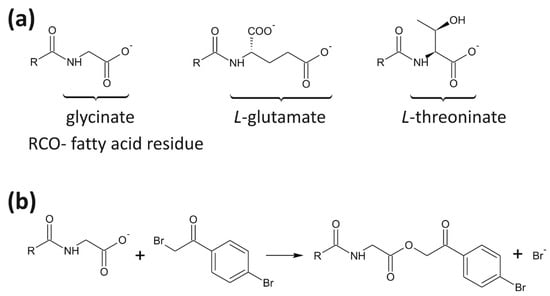

Weak anionic surfactants derived from amino acids and fatty acids originated from seed oils are mild and non-irritative compounds. In this work, we focused on the development of a simple method for screening purposes comprising the qualitative analysis of such samples, which are composed of N-acyl-glycinate, N-acyl-glutamate and N-acyl-threoninate (Figure 1a). Because of a lack of chromophores necessary for UV/Vis spectrometric detection, we used 2,4′-dibromoacetophenone as a derivatization agent for the preparation of the corresponding 4′-bromophenacyl esters (Figure 1b).

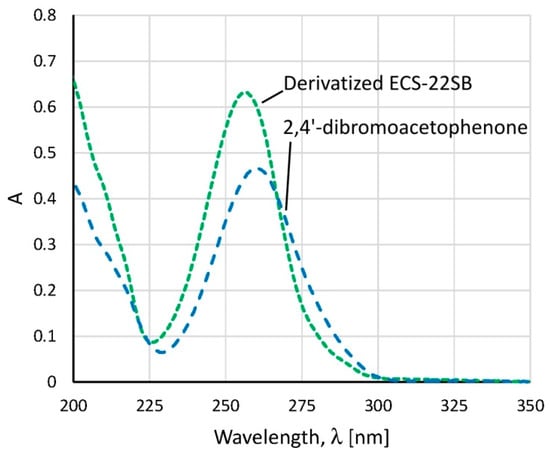

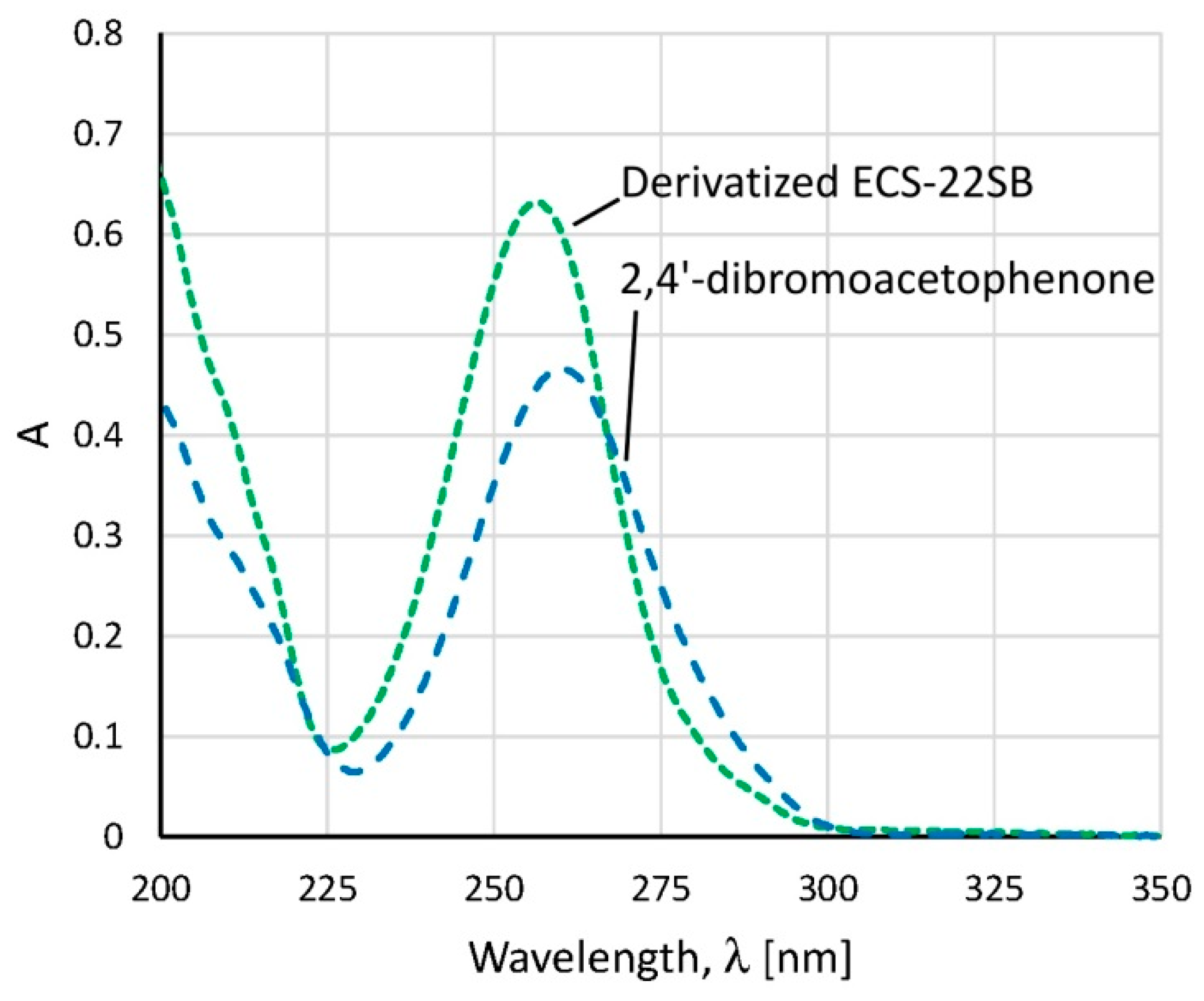

Reaction of carboxylic acid group with 2,4′-dibromoacetophenone yielding corresponding 4′-bromophenacyl esters is well known for the quantitative determination of fatty acids in several matrices [16,17], however, it is not commonly applied to amino acids samples. In UV spectra, the phenacyl esters exhibit strong absorption bands between 230 and 290 nm, due to the presence of a benzene ring in conjugation with the carbonyl group, and an electronegative bromine atom in para-position on the benzene ring. Based on the obtained spectra, we selected 260 nm as the detection wavelength of derivatized samples (Figure 2). Within the derivatization process, the samples were typically neutralized using sodium hydroxide solution on phenolphthalein. We tested both the derivatization reaction with and without the neutralization step. Because the surfactants have a very weak acidic character, we obtained similar results for the derivatives prepared after the neutralization of the sample and without neutralization. In the following experiments, the samples were thus derivatized without a neutralization step.

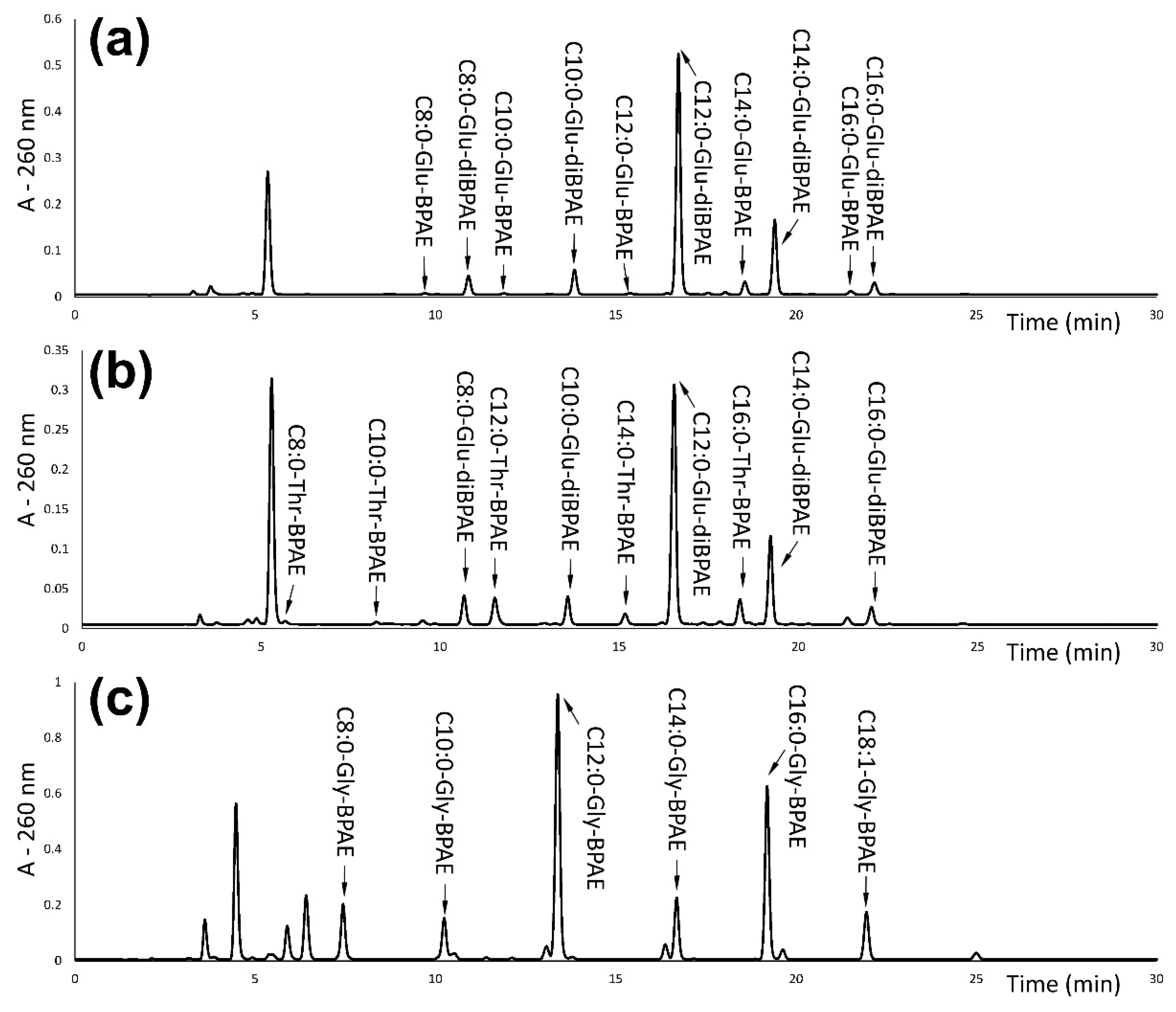

Derivatized samples of the N-acyl-amino acid surfactants were analyzed using reversed-phase LC. In the LC/UV chromatograms of the derivatized N-acyl-amino acid surfactants, the derivatives of glycinate and threoninate resulted in the separation of mono-4′-bromophenacyl esters (BPAE) of the surfactants according to the length of their fatty alkyl chains. Surfactants containing caprylic, capric, lauric, myristic, palmitic and oleic fatty acid moieties were identified (Figure 3). For the N-acyl-glutamate derivatives, di-4′-bromophenacyl esters (di-BPAE) of the surfactants were found as well, due to the presence of two carboxylic groups susceptible to the reaction with 2,4′-dibromoacetophenone (Figure 3a). In the chromatogram of a sample containing both N-acyl threoninate and N-acyl-glutamate, two series of derivatives corresponding to the threoninate BPAE and glutamate di-BPAE were found (Figure 3b).

The identification of fatty acid N-acyl-linked amino acid surfactants after the derivatization was based on the evaluation of mass spectra and the corresponding protonated molecules of BPAE (i.e., m/z signals 470.2; 498.2; 526.2; 554.2; 582.2 and 610.3 for a series of caprylic to oleic acids linked with glutamic acid), and diBPAE were found (i.e., m/z signals 668.1; 696.1; 724.2; 752.2; 780.2 and 808.2 for the same series). The values of the m/z are shown in the Supplementary Materials in Tables S1–S3. For some derivatives, adducts with formic acid [M + HCOOH + H]⁺ were found as well, with the minor intensity in comparison to the protonated molecule [M + H]⁺ (approx. 10%). The signals of derivatives BPAE and diBPAE also show typical isotopic distribution for the presence of bromine atoms with a ratio of intensities of [M + H]⁺ and [M + H]⁺ + 2 signals approx. 1:1 (Figure S1).

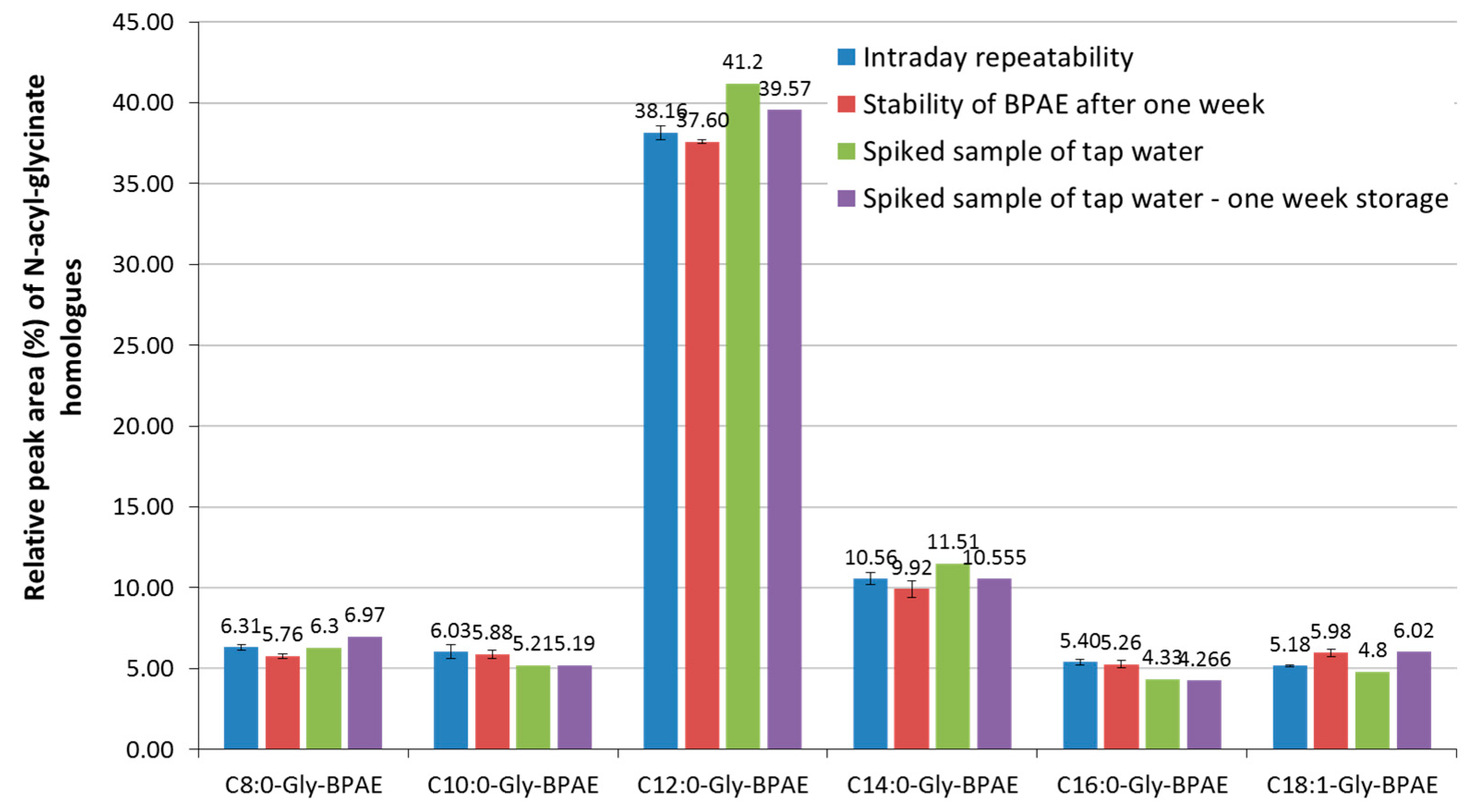

Each sample derivative was prepared three times, analyzed by three replicative measurements, and the repeatability of the derivatization reaction was tested. The results of intraday repeatability for using the Amilite GCK-12H sample and tap water spiked with the same sample. The results of the intraday repeatability are shown in Figure 4 as the average relative content of N-acyl-glycinate homologues with the standard deviations. The relative content of the homologues in the sample of the surfactant was expressed as the relative peak area with respect to the sum of peaks of all surfactant homologues observed in the chromatogram. The stability of the derivatives stored one week in a fridge was tested as well for both, GCK-12H sample and the tap water spiked with the GCK-12H sample. Results of the analyses of other surfactants tested are summarized in the Supplementary Materials, Figures S2 and S3.

4. Discussion

The samples of fatty acid N-acyl-linked amino acid weak anionic surfactants can be separated in reversed-phase LC, however, due to the lack of chromophoric groups, the detection with the most commonly used UV/Vis detectors is difficult. With the prepared BPAEs of the surfactants, we achieved separation according to the alkyl chain length of the fatty acid moiety, but also according to the nature of the amino acid presented in the molecule (Figure 3). For the N-acyl-glutamate, two carboxylic groups were available for the reaction with 2,4′-dibromoacetophenone yielding both BPAEs and diBPAEs of the N-acyl-glutamate. According to the achieved results, the surplus presence of the derivatization agent led to the prevailing occurrence of diBPAEs with only minor peaks for the BPAEs of N-acyl-glutamate. The reversed-phase separation of the derivatized surfactants exhibited a typical retention order, i.e., increasing retention times with respect to the increasing length of the fatty acid alkyl chain. The retention of the same length of fatty acid and different amino acid type was observed in the order of threoninate < glycinate < glutamate.

Because the absorption in UV/Vis is mainly due to the chromophores of the derivatization agent, prepared derivatives with a different length of fatty acids will exhibit approximately the same molar absorption coefficients, and thus the relative peak areas of the homologues can be considered as corresponding to the relative content of homologues in the samples (relative peak area with respect to all peaks in a chromatogram). According to the peak areas presented in the chromatograms, we constructed a graph shown in Figure 4, describing the relative content of fatty acids. All surfactants studied contained the most abundant peak of N-lauroyl amino acids, followed by the fatty acids with lower (caprylic and capric acid) and higher numbers of carbons in the alkyl chain (myristic, palmitic and oleic acids), as shown also in Figures S2 and S3. Such composition corresponds to the typical content of fatty acids in the coconut oil [2,18].

For the developed derivatization method, we also tested the intraday repeatability of the preparation of derivatives and its stability after one week of storage (Figure 4). The mean values of the relative content of different homologues of N-acyl-glycinate was compared and the statistical significance of the differences was tested using the analysis of variance at the probability level p = 0.05. Statistically significant differences between the values of the relative content of N-acyl-glycinate homologues after one week of storage were found only for caprylic acid (C8:0-Gly-BPAE) and oleic acid (C18:1-Gly-BPAE), which indicate the high stability of the derivatives.

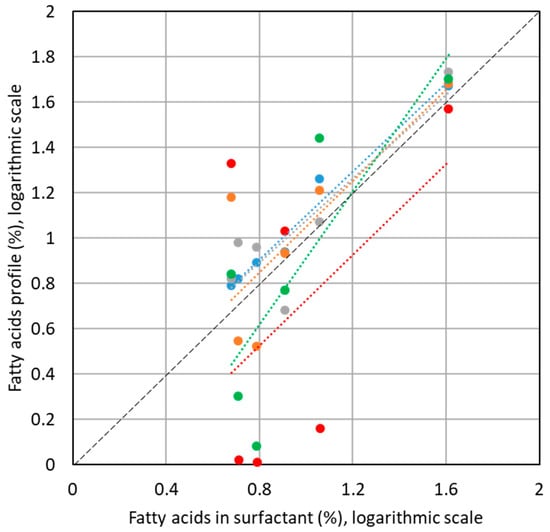

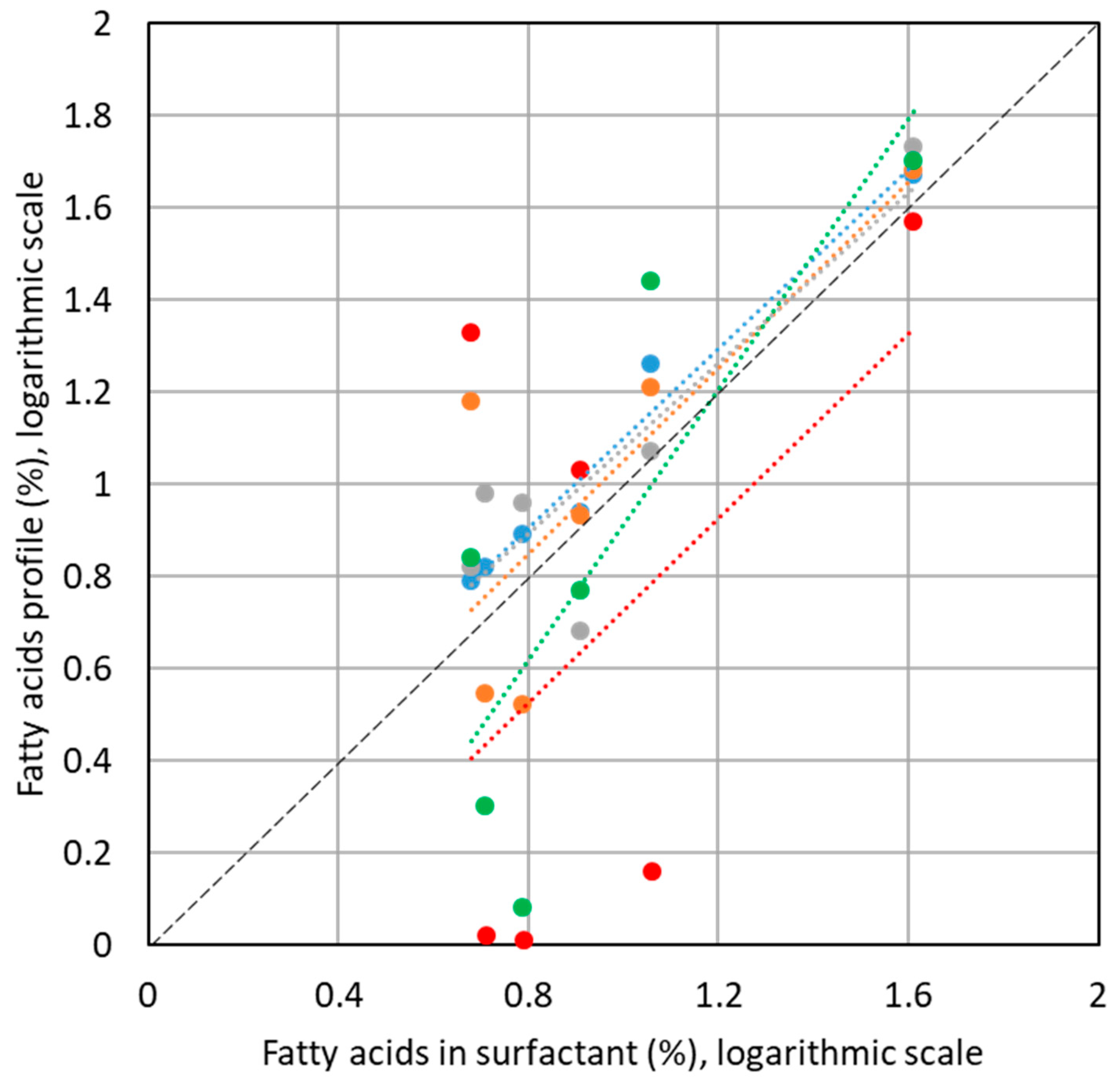

In the last part of the work, we focused on the comparison of the results of relative content of N-acyl-amino acid surfactants with different types of sources of fatty acids, which may be potentially used for the synthesis of such compounds. Thus, we plotted the achieved data of the relative content of homologues (relative peak areas of the homologues, Figure 4) with respect to the relative content of fatty acid homologues in coconut oil, palm kernel oil, babasu oil, nut virgin butter and laurel oil, which were found in the literature [18,19,20,21,22]. The correlation of the values is presented in the logarithmic scale, which contributes less to the discrimination of the low abundant fatty acids (Figure 5).

For the source of the fatty acids, which corresponds to the best with the studied surfactants, the highest correlation should be obtained with the regression line being closest to the diagonal line of the figure. From the comparison of the plotted data, coconut oil, babasu oil and laurel oil showed the best match of the regression line with the diagonal (blue, red and gray line in the figure). The coefficients of determination for the linear regression line as well as the Pearson’s correlation coefficients, however, suggested that the best correlation of the experimentally determined relative content of fatty acid homologues in the N-acyl-amino acid surfactants is achieved with respect to the coconut oil composition. Coefficients of determination yielded 0.9724 for coconut oil, 0.6304 for palm kernel oil, 0.7793 for babasu oil, 0.6591 for nut virgin butter and 0.2435 for laurel oil, respectively. Pearson’s correlation coefficients in the same order were 0.9861, 0.7940, 0.8829, 0.8119, and 0.4935. Such a fast and simple comparison method can be used for the verification of the origin of surfactant production source.
