Cyclodextrin Polymers and Cyclodextrin-Containing Polysaccharides for Water Remediation

Coimbra Chemistry Centre, Department of Chemistry, University of Coimbra, 3004-535 Coimbra, Portugal
Authors to whom correspondence should be addressed.
Polysaccharides 2021, 2(1), 16-38;
Submission received: 13 November 2020 / Revised: 13 December 2020 / Accepted: 4 January 2021 / Published: 13 January 2021
(This article belongs to the Collection Current Opinion in Polysaccharides)


Chemical pollution of water has raised great concerns among citizens, lawmakers, and nearly all manufacturing industries. As the legislation addressing liquid effluents becomes more stringent, water companies are increasingly scrutinized for their environmental performance. In this context, emergent contaminants represent a major challenge, and the remediation of water bodies and wastewater demands alternative sorbent materials. One of the most promising adsorbing materials for micropolluted water environments involves cyclodextrin (CD) polymers and cyclodextrin-containing polysaccharides. Although cyclodextrins are water-soluble and, thus, unusable as adsorbents in aqueous media, they can be feasibly polymerized by using different crosslinkers such as epichlorohydrin, polycarboxylic acids, and glutaraldehyde. Likewise, with those coupling agents or after substituting hydroxyl groups with more reactive moieties, cyclodextrin units can be covalently attached to a pre-existing polysaccharide. In this direction, the functionalization of chitosan, cellulose, carboxymethyl cellulose, and other carbohydrate polymers with CDs is vastly found in the literature. For the system containing CDs to be used for remediation purposes, there are benefits from a synergy that arises from (i) the ability of CD units to interact selectively with a broad spectrum of molecules, forming inclusion complexes and higher-order supramolecular assemblies, (ii) the functional groups of the crosslinker comonomers, (iii) the three-dimensional structure of the crosslinked network, and/or (iv) the intrinsic characteristics of the polysaccharide backbone. In view of the most recent contributions regarding CD-based copolymers and CD-containing polysaccharides, this review discusses their performance as adsorbents in micropolluted water environments, as well as their interaction patterns, addressing the influence of their structural and physicochemical properties and their functionalization.

Graphical Abstract

1. Introduction

The exponential degradation of water quality is a major challenge facing both developing and developed countries, recently addressed in The Zero Pollution Ambition plan launched by the European Commission. This plan is a key pillar of the European Green Deal, which is committed to promoting initiatives in strategic fields of energy, industry, mobility, agriculture, biodiversity, and climate towards a zero-pollution strategy by better preventing, remedying, monitoring, and reporting on pollution [1]. These actions have been strongly reiterated by experts in environmental agencies: “Something has really changed in the past year. Everyone is talking about water quality. Local interest groups are attracting not just local media interest but national media interest. Rivers and beaches are all our shop windows. People notice and people care.” [2].
Currently, researchers working in different areas of chemistry, materials science, and engineering are focusing on developing greener, safer, and more cost-effective materials for water remediation. Moreover, an assessment of energy efficiency and the respective environmental benefits and risks are being considered.
Extensive research has been performed to develop new nanotechnologies for remediating water pollution by inorganic and organic contaminants [3]. These include advanced materials, such as those of a polymeric nature, which have been explored with great success for remediation purposes at different functional scales [4,5,6,7,8,9,10]. The most recent contributions have emphasized the use of nanobiomaterials to improve the detection, capture, and degradation of emergent and persistent contaminants [11,12,13].
Specifically, the adsorption of toxic compounds by modified polysaccharides and cyclodextrins (CDs) has evidenced an increasing interest in the synthesis of new low-cost adsorbents for removing contaminants from natural water and wastewater [8,14]. Lately, the number of contributions addressing CD-based polymers and CD-containing polysaccharides, in particular, and CD-grafted and/or CD-coated materials to deal with the remediation of micropolluted water environments has grown exponentially. However, the formulation and understanding of a complete, integrated picture of the major targeted environmental needs and research objectives and the spotting of cutting-edge synthetic routes, analytical techniques, and scaling-up trends in the design of multifunctional CD materials are still critical tasks [4,15,16,17,18,19,20].
By assessing the multiple facets of CDs and CD-based polymers in environmental remediation, considering specific target contaminants (e.g., dyes, pesticides, pharmaceutical compounds, heavy metals) and target matrices (e.g., water and wastewater), it is possible to identify the most relevant types of pollutants, the removal of which has benefited from the application of CD-based adsorbents. This is particularly important to (i) understanding the dynamics of persistent and emerging contaminants, (ii) developing effective remediation strategies based on CD polymers and CD-containing polysaccharides, and (iii) giving rise to promising research directions. Some reviews have already been published on this matter, targeting a specific kind of CD polymer, such as those crosslinked with epichlorohydrin [4]. However, the present review seeks to provide a comprehensive view, addressing the potential and limitations of CDs, both as backbone constituents and as pendant groups, and the role of different crosslinkers, anchoring groups, and polysaccharides attached to these cyclic oligosaccharides.

2. Cyclodextrin-Based Polymers in Pollutant Removal

Bibliometric indicators have shown an increasing interest in polymers of natural origin as an alternative to conventional adsorbents such as activated carbon, silica gels, and zeolites [14,19,21]. More specifically, oligo-and polysaccharides have been effectively used for pollution remediation on the basis of their high availability, biodegradability, biocompatibility, nontoxicity, and high chemical functionality, allowing researchers to synthesize sustainable, green, and, if desired, selective adsorbents [14,19,21].
In general, polysaccharides are highly hydrophilic polymers whose structure (fundamentally containing hydroxyl groups and, in some cases, acetamido and primary amino groups) confers not only preferential adsorption sites but also reactive sites for the development of new materials. On the other hand, certain oligosaccharides, in particular cyclodextrins, offer more sites for pollutant molecule adsorption. Due to the hydrophobic cavity of cyclodextrins, host–guest assemblies, mainly based on hydrophobic interactions, may occur [14,21,22,23]. It should, however, be stressed that not only amphiphilic or hydrophobic compounds interact with cyclodextrins. As will be discussed below, metal ions also interact with the protonated or deprotonated hydroxyl groups of CDs, located at both rims of the CD structure, thus allowing their removal from the environment. Therefore, the synergy obtained by the use of CD-containing polysaccharides enlarges their effectiveness in water remediation. It should be expected that the sorption of pollutants on CD-based materials benefits from the formation of the CD–pollutant complex and from other interactions external to the cavity, which are influenced by the contact time, the type of sorbent, and the chemical structure of the pollutant.
Another strategy that takes advantage of the versatile properties of CDs is based on the polymerization or copolymerization of the CDs by using crosslinkers and other grafting agents [9,24,25,26,27,28,29,30,31,32,33,34,35]. Furthermore, the alkylation, hydroxyalkylation, and carboxymethylation of natural CDs help broaden the spectrum of guest molecules that can be effectively bound and, thus, the variety of pollutants to be removed [36,37].
Recently, Valente and coworkers [14] provided a summary of the key progress in developing CD-based materials, which include polymers, hydrogels, and nanocomposites, used as sorbents for removing toxic compounds from wastewater. CDs have been modified in different ways to produce derivatives with high affinity towards targeted contaminants in aqueous solutions. Modification relies, e.g., on the direct linkage of β-CD by crosslinking with a coupling agent or on the covalent binding of β-CD molecules to a pre-existing insoluble matrix, including polysaccharides such as chitosan and alginates, nanofibers, textiles, silica beads, and zeolites [14].
One of the most popular crosslinkers is epichlorohydrin (EPI). The existence of two reactive groups in EPI allows its bivalent binding to cyclodextrins, generating hydrophilic polymeric networks (hydrogels) with multiple CD molecules linked by repeating glyceryl moieties [24,25,28,35,38,39,40,41,42,43,44,45]. These materials display high adsorption capability, are efficient in the removal of water contaminants present at trace levels, and show relatively fast kinetics [9,25,26,29,30,33,46,47,48,49,50,51,52].

2.1. Synthesis and Properties of CD-Based Materials

CDs can be considered polyfunctional monomers since they possess several reactive hydroxyl groups at the 2, 3, and 6 positions of each anhydroglucose unit, susceptible to substitution and elimination. The primary hydroxyl groups at the C6 position are usually more reactive than the secondary ones (C2 and C3 positions), although this reactivity order can be reversed by manipulating reaction conditions such as temperature and alkalinity [53]. Due to these intrinsic characteristics, CDs can be directly copolymerized with other monomers or attached to a myriad of materials. Different types of architecture can thus be obtained, including linear, branched, and crosslinked networks. Moreover, CDs can be modified in order to obtain derivatives with other functionalities, from amino to carboxyl groups.
Two main types of CD-based polymers can be prepared: the first involves the use of CDs or CD derivatives such as monomers and their reaction with a coupling agent in order to obtain linear polymers or crosslinked structures; in the second type, CDs are attached to a matrix (organic or inorganic) via chemical or physical interaction [54,55]. It should be noted that in this work, only polysaccharides are surveyed. Consequently, in this work, CD-based materials will be divided into two main groups, depending on whether CDs constitute or coconstitute the backbone of the polymer (polycyclodextrins) or are bound to polymeric matrices.

2.1.1. Polycyclodextrins

As it was discussed before, the reactivity of CDs is mainly based on their hydroxyl groups. They can behave as nucleophiles or electrophiles and react with a variety of other functional groups, resulting in, e.g., ethers, esters, and halides. CD hydroxyl groups can be deprotonated using strong bases, thus originating alkoxide ions, strong nucleophiles that can readily undergo SN2 reaction. On the other hand, CD ethers can be prepared by protonation of the hydroxyl groups using acids, converting the poor leaving group OH- to H2O, a better leaving group, and thus acting as electrophiles in the reaction with other alcohols.
CD crosslinked polymers are particularly important in the context of water remediation due to the cooperative effect between the CD cavity and the polymeric network. Depending on the type of CD, the crosslinking agent, and the reaction conditions, materials with different characteristics can be prepared [15]. Among the diverse choices of crosslinker, epichlorohydrin (EPI) clearly stands out. In fact, CD–EPI polymers were one of the first to be used for pollutant removal [56,57,58]. These polymers are easily prepared by reacting CDs with EPI under heating, catalyzed by NaOH in a one-pot reaction (Scheme 1).

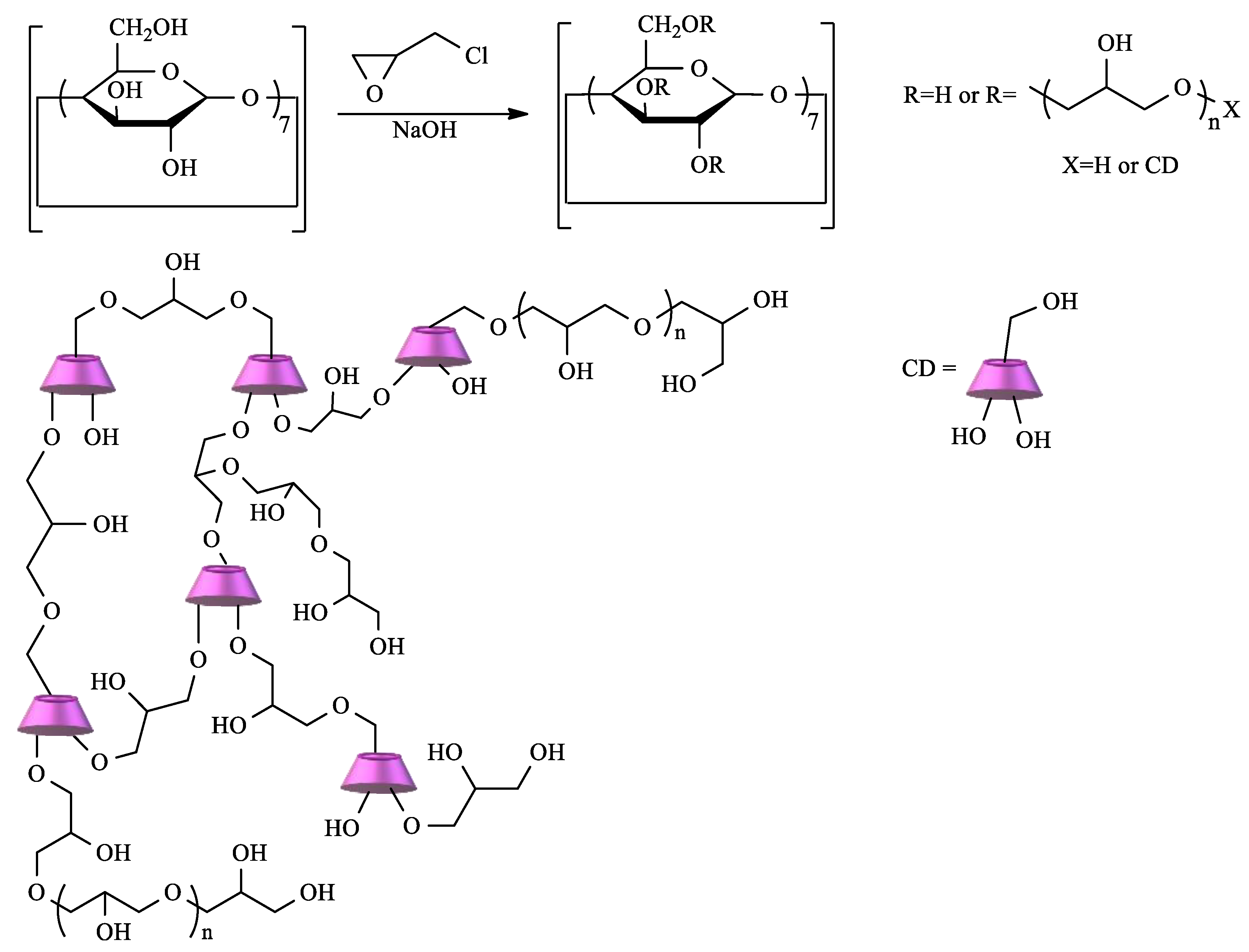

The mechanism of this reaction is well-known, and, depending on the conditions, polymers with different degrees of crosslinking can be obtained. Thus, soluble or insoluble polymers can be prepared, and, in the latter case, it is possible to obtain the polymer as gels, fine particles, or nanoparticles [56,58].
Since the first papers reporting the use of CD–EPI in the removal of dyes and aromatic pollutants, several other publications have appeared in the literature, using these polymers for the removal of contaminants, namely, metals, pesticides, surfactants, aromatic pollutants (including PHAs and PCBs), and pharmaceuticals, among others [44,59,60,61,62,63,64,65]. The sorption mechanism is, in general, of chemisorption, essentially based on host–guest interactions, but physisorption interaction also occurs once the swelling degree/crosslinking degree has an influence on the sorption removal [4]. The success of EPI–CD materials as adsorbents is embodied in the number of cyclodextrin derivatives, such as hydroxypropyl, carboxymethyl, aminoethyl, methyl, and sulfonyl, used to polymerize with EPI and evaluated for pollutant removal [65,66,67,68].

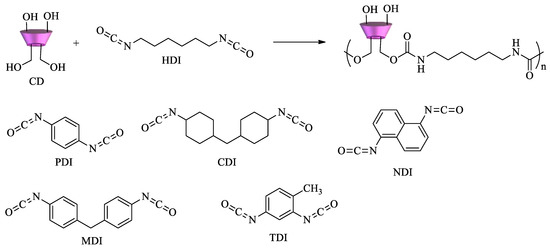

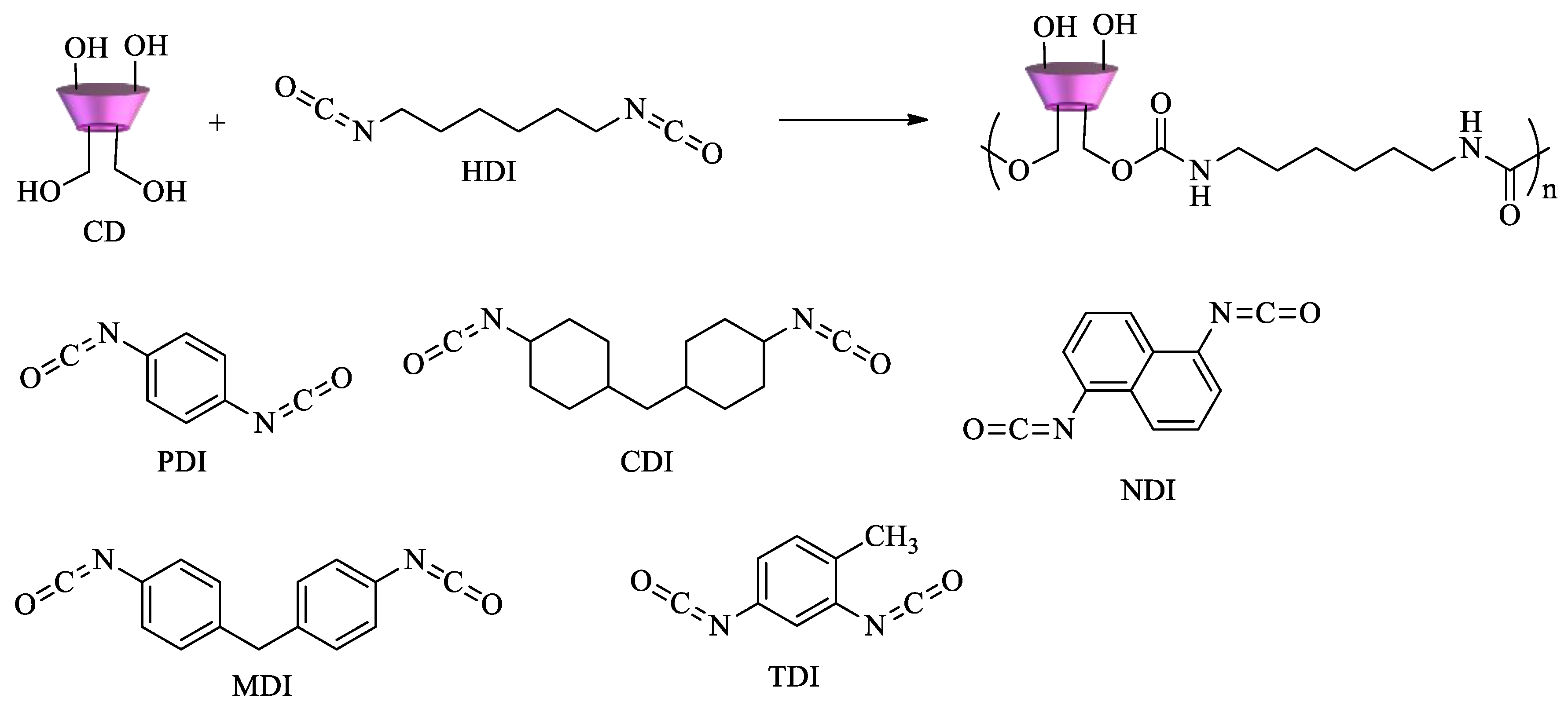

However, EPI is not the only crosslinker used to polymerize cyclodextrins. Diisocyanates can react with CDs to form polyurethanes (Scheme 2). Depending on the structure and the relative molar ratio of the diisocyanate, materials with different surface areas, pore size distribution, mechanical properties, and sorption ability can be obtained. Various diisocyanates can be used as crosslinking agents, namely, 1,6-hexamethylene diisocyanate (HDI), 2,4-toluene diisocyanate (TDI), 1,4-phenylene diisocyanate (PDI), 4,4′-dicyclohexylmethane diisocyanate (CDI), 4,4′-diphenylmethane diisocyanate (MDI), and 1,5-naphtalene diisocyanate (NDI), as shown in Scheme 2 [69,70].
If an excess of diisocyanate is used, highly crosslinked polymers can be obtained. Nanosponge CD polyurethanes have proven to be effective in the removal of several pollutants. Dyes and aromatic amines [71,72], organic matter, p-nitrophenol, pentachlorophenol and 2-methylisoborneol [73,74], perfluorinated compounds (PFCs) and pesticides [75,76] are among the pollutants tested.

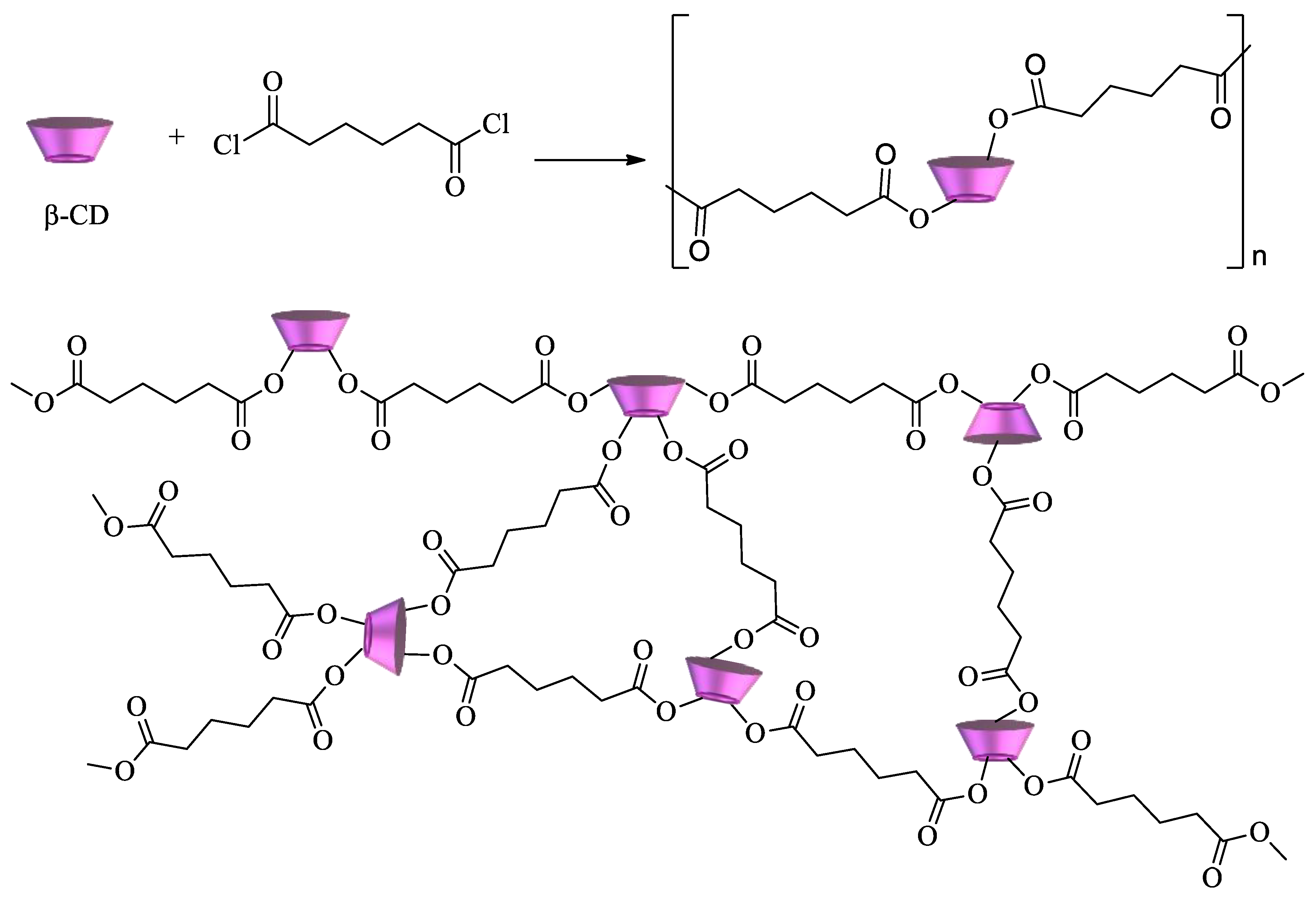

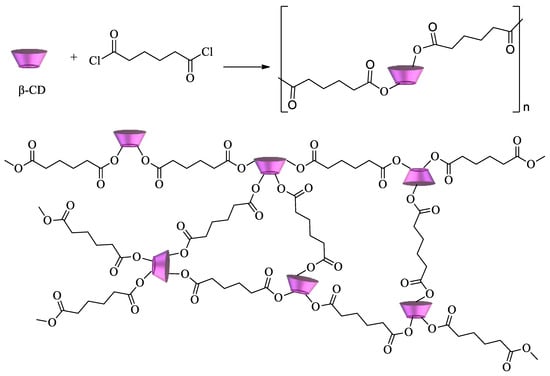

Cyclodextrin polyesters constitute another important class of CD polymers. They can be obtained by reaction of the oligosaccharides with diacids, diacid chlorides, or dianhydrides. Some of the first examples of these polymers were developed by reacting CDs with succinyl chloride, glutaryl chloride, and adipoyl chloride (Scheme 3) [77,78].
Another approach for the synthesis of cyclodextrin copolymers consists of using polycarboxylic acids (e.g., citric acid, succinic acid, 1,2,3,4-butanetetracarboxylic acid, and poly(acrylic acid)) as crosslinking agents [79,80,81]. Scheme 4 shows the synthesis of CD–polycarboxylic polymers using ethylenediamine tetraacetic acid (EDTA) [46,82]. The obtained polymer shows a significant number of sites available to interact with a multitude of pollutants, from metal ions to dyes and herbicides, regardless of their hydrophilic/hydrophobic character.
Due to the success of this strategy for the synthesis of amphiphilic polymers, other crosslinkers like 4,4-difluorodiphenylsulfone, tetrafluoroterephthalonitrile, 4,4′-bipyridine, decafluorobiphenyl, bis(4-hydroxyphenyl)sulfone, and 4,4′-bis(chloromethyl)biphenyl have been tested [49,83,84].

2.1.2. Polysaccharides Having CDs as Pendant Groups

The immobilization of CDs onto natural polymers has been equally described for remediation purposes. Usually, low-cost natural polymers like cellulose, starch, or chitosan are chosen. Several synthetic procedures can be used with this objective, including the previous functionalization of CDs with appropriate reactive groups and the use of linkers. The former is achieved by substituting at least one hydroxyl group of CD with groups such as amino, tosyl, carboxyl, and carbonyl. The latter involves using coupling agents like the ones described above for CD–CD binding, including polyacids, diisocyanates, and, once again, epichlorohydrin [85].

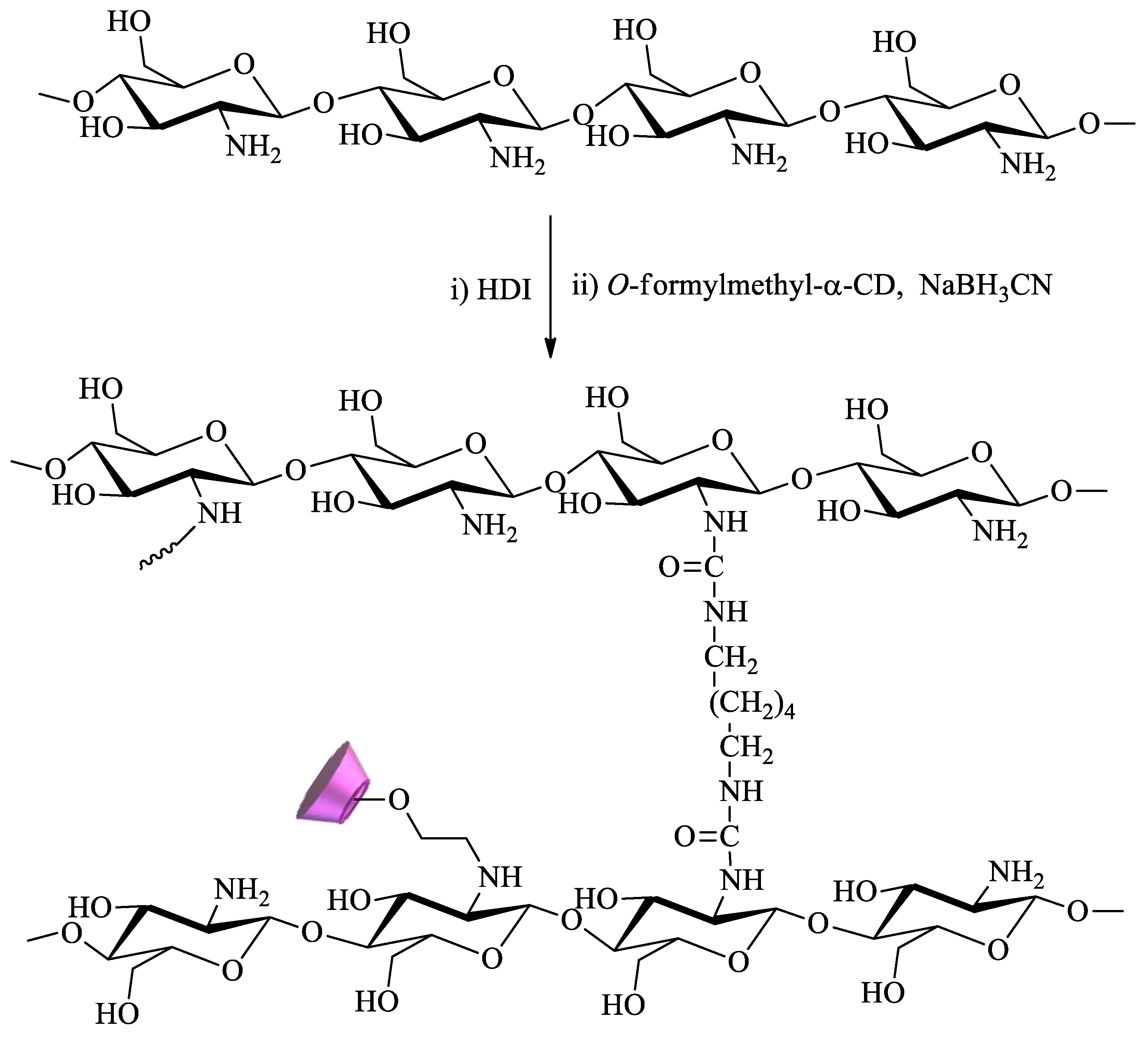

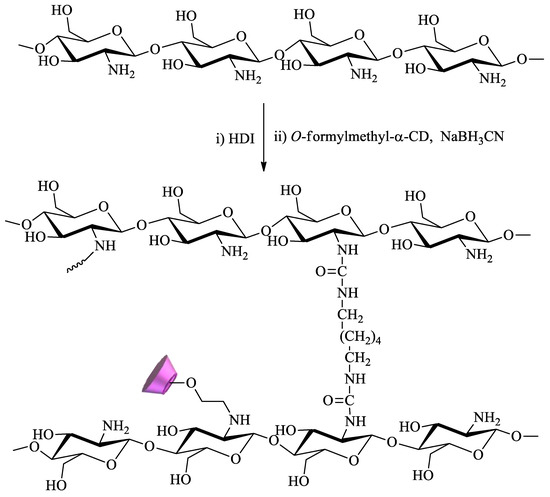

Chitosan, a cationic biopolymer, can be easily obtained through the deacetylation of chitin, a natural polymer found in crustaceans. The presence in this compound of primary amine groups, which exhibit extensive reactivity, is a determining factor for its wide range of applications, including remediation. Owing to this, chitosan is probably the polysaccharide most commonly functionalized with CDs for water remediation. For example, Tojima et al. prepared water-insoluble chitosan beads using 1,6-hexamethylene diisocyanate as a crosslinker (Scheme 5). To this polymer, α-CD was anchored through reaction with 2-O-formylmethyl-α-CD in the presence of sodium cyanoborohydride [86,87].
A more complex strategy involves the use of magnetic nanoparticles to improve the reuse of adsorbent materials and the recycling of pollutants. Based on these advantages, chitosan functionalized with β-CD can be prepared by reaction of maleoyl-β-CD with chitosan via activation with 3-(ethyliminomethyleneamino)-N,N′-dimethylpropan-1-amine (EDC) and 4-dimethylaminopyridine. Then, β-CD–chitosan is linked to magnetic nanoparticles, namely, Fe3O4, using glutaraldehyde (Scheme 6). The obtained polymer provides an enhanced surface area, leading to higher removal efficiency of pollutants [88]. Graphene oxide (GO) has also been commonly used for the synthesis of new materials, taking advantage of its properties, which include high surface area, a negatively charged surface, and water solubility [89]. Having that in mind, based on the previous description, new GO adsorbents containing CD–chitosan have also been synthesized using the route described in Scheme 7. In brief, maleoyl-β–CD reacts initially with chitosan and subsequently with magnetic particles (pH 8.0–9.0, 55 °C, 1.5 h) in the presence of glutaraldehyde. The carboxylic groups of GO are then reacted with EDC/N-hydroxysuccinimide, and the generated amide groups are crosslinked once again by using glutaraldehyde with β-CD–chitosan–Fe3O4 [90].
Other strategies have been used for similar objectives. For instance, β-CD can be functionalized with monochlorotriazinyl groups and then reacted with chitosan via a substitution reaction [91]. In another study, Aoki et al. prepared crosslinked chitosan modified with β-CD by amidation of the former with succinic anhydride, followed by reaction with mono-6-amino-mono-6-deoxy-β-CD and a carbodiimide [92].
The availability of cellulose is much higher than that of chitin, but the lack of functional groups other than hydroxyl limits its usefulness. Crosslinked networks of carboxymethyl cellulose (CMC), one of the most common and easily synthesized cellulose derivatives, have been widely used as an absorbent in remediation. The grafting of CDs on CMC, achieved with epichlorohydrin in a basic medium, offers even greater versatility, reaching adsorption capacities of 8.55 mg g−1 for copper(II) ions [93].
Although chitosan and CMC are among the most cited polysaccharides, reference is also made in the literature to the use of other natural materials such as starch, wood flour, sawdust, and cotton for the removal of various pollutants [94]. Recently, we published a review on the ways to combine CDs and cellulose, with emphasis on pharmaceutical technology, textiles, and sensors, and, consequently, this topic will not be mentioned here [14,19,21].

3. Removal of Pollutants from Water and Wastewaters

In this section, we summarize the most important information related to the application of CD polymers (or copolymers) and CD-containing polysaccharides to the removal of four classes of water and wastewater pollutants: metal ions, dyes, pharmaceutical compounds, and pesticides. The appearance or persistence of such contaminants in natural water and wastewater, along with the respective adverse environmental effects, has boosted the number of studies focused on the adsorption of water pollutants by modified CDs [14].
Water and wastewater comprise a plethora of chemical species and organisms, including emergent and priority pollutants, antibiotic-resistance genes, and emerging pathogens. These entities are, in general, rarely monitored and controlled, toxic or carcinogenic, and nonbiodegradable [14].
The major classical concern about the effect of contaminants on the environment and human health has been associated with heavy metal ions, active ingredients in pesticides, and other persistent organic pollutants. Those detected in water and wastewater comprise (i) inorganic pollutants, including metal and arsenic ions [95], and (ii) organic pollutants composed of polycyclic aromatic compounds, benzene and dibenzofuran derivatives, phenol derivatives (encompassing naphthol derivatives), polychlorobiphenyls, surfactants, pharmaceutical residues, endocrine disruptors, and household and industrial chemicals [40]. Within the latter, organic dyes have been discharged into the environment by paper, textile, and cosmetics manufacturers.

3.1. Metal Ions

Heavy metal pollution is a concerning issue that humanity has struggled to deal with. The term “heavy metal” is defined rather vaguely: elements with specific gravity greater than four, regardless if they are considered metals or, as in the case of arsenic, metalloids [95]. Though naturally occurring, with some being biologically essential (e.g., copper and chromium are micronutrients [96]), industrial and domestic emissions have raised the concentration of these elements in natural environments to dangerous levels [97,98]. Recently, comprehensive reviews on the remediation of heavy-metal-containing residues have highlighted the priority of this topic in terms of the sources of pollution and different available technologies for their treatment [99,100,101].
Due to its relevance, the application of CDs to heavy metal treatment has challenged many researchers. However, as we will note later, the effect of CDs on the retention and treatment of heavy metals is not remarkable. This is due to the molecular structure of CDs, i.e., the hydroxyl groups found at both rims of CDs, which have a low ability to coordinate with predominant cations [102,103,104]. This process depends on the pH; for example, the interaction between Pb(II) and β-CD is characterized by a high association constant (logKa = 15.5) at a pH around 10.5 [105]. Against all setbacks, CD-based materials have been developed and assessed for metal ion removal from aqueous media [14].

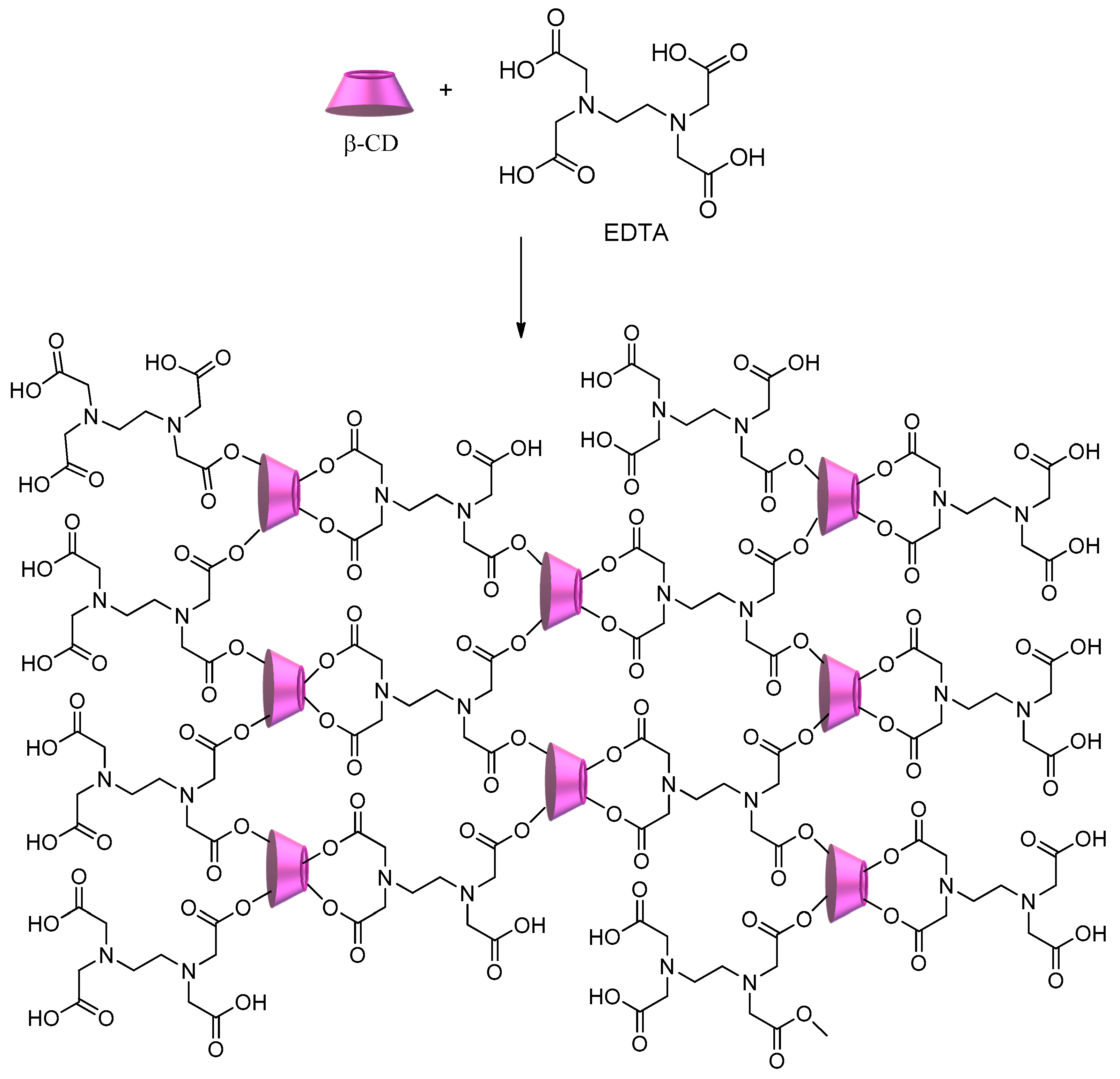

The use of a polycarboxylic acid to polymerize CDs has been referred to as a promising strategy for the treatment of not only organic but also inorganic pollutants. One common choice of polyacid to perform this crosslinking is citric acid [106]. Poly(β-cyclodextrin-co-citric acid) was evaluated in terms of its removal capabilities towards Cu(II), showing a maximum removal efficiency (RE) of 58.6% at pH 6.1 and a maximum adsorption capacity, qmax, of 31.4 mg g−1 [46]. However, by testing the effect of different aromatic compounds (bisphenol A and methylene blue (MB)) on simultaneous removal with Cu(II), while the maximum adsorption capacity of Cu(II) remained similar in the presence of bisphenol A, it decreased to 24.8 mg g−1 in the presence of MB. This is justified by a competitive interaction between MB and Cu(II) for the carboxylic groups of citric acid, highlighting the weak role of CD cavities in the removal process of the metal ion.
These CD polymers show some drawbacks in the adsorption process as a consequence of their low surface area and high swelling degree. A quick method to overcome that is the preparation of magnetic materials. Taking that into consideration, Badruddoza et al. [107] grafted a copolymer of carboxymethyl–β-CD and epichlorohydrin to the surface of Fe3O4 nanoparticles. The adsorption of metal ions (Pb(II), Cd(II), and Ni(II)) onto those nanocomposites led to the following qmax: 64.5, 27.7, and 13.2 mg g−1, respectively, at pH 5.5. These examples clearly suggest that the metal ion adsorption mechanism of CD-based materials is not based on host–guest interactions.
Another approach is the functionalization of polymers with CDs, chitosan being the most common candidate among polysaccharides. This is a consequence of the presence of amino and hydroxyl groups in its structure (Scheme 8), which can readily bind to some pollutants or, alternatively, be modified in order to improve its versatility [108,109]. Heavy metals are among the pollutants well adsorbed by chitosan or chitosan blends/composites [110,111].

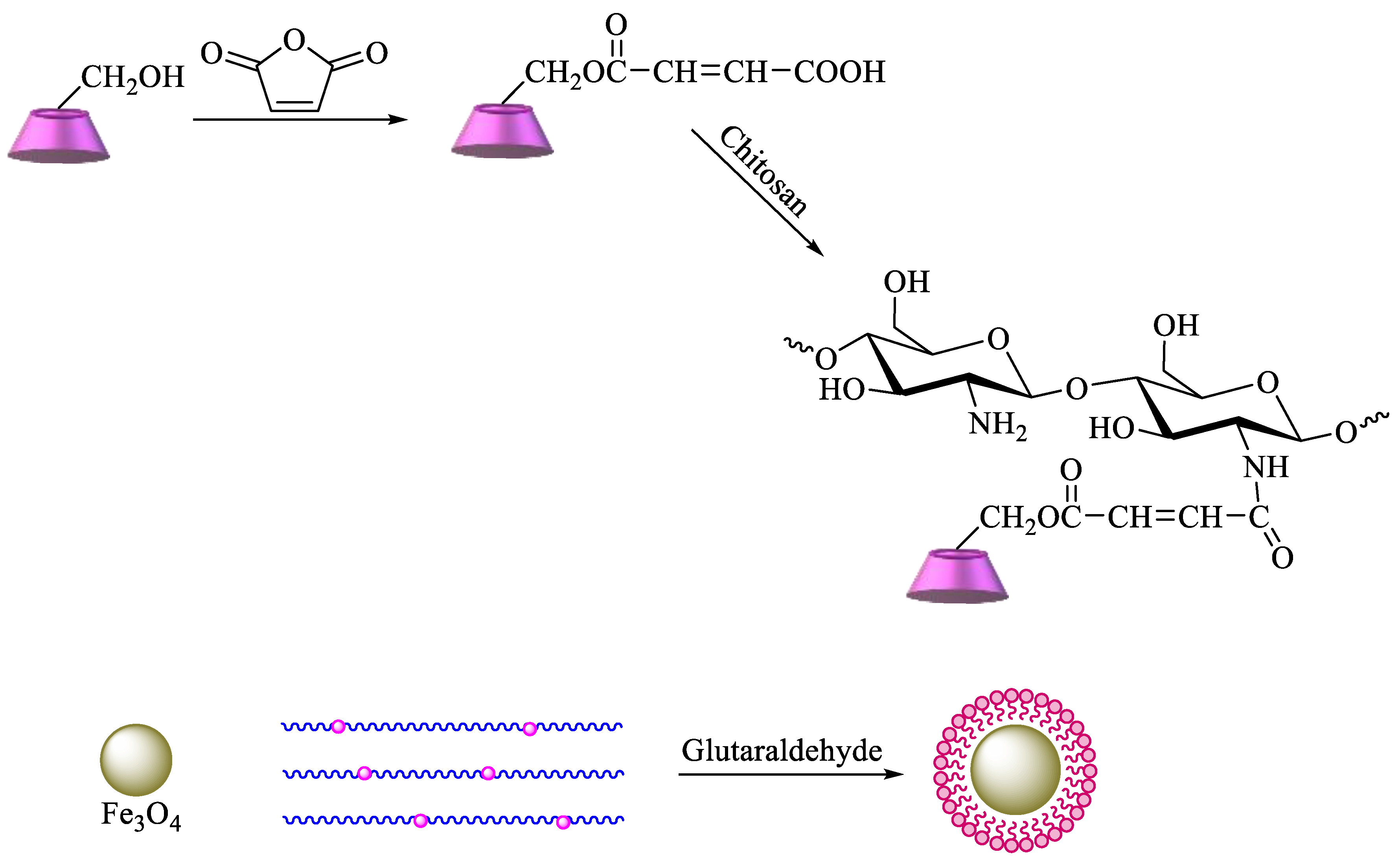

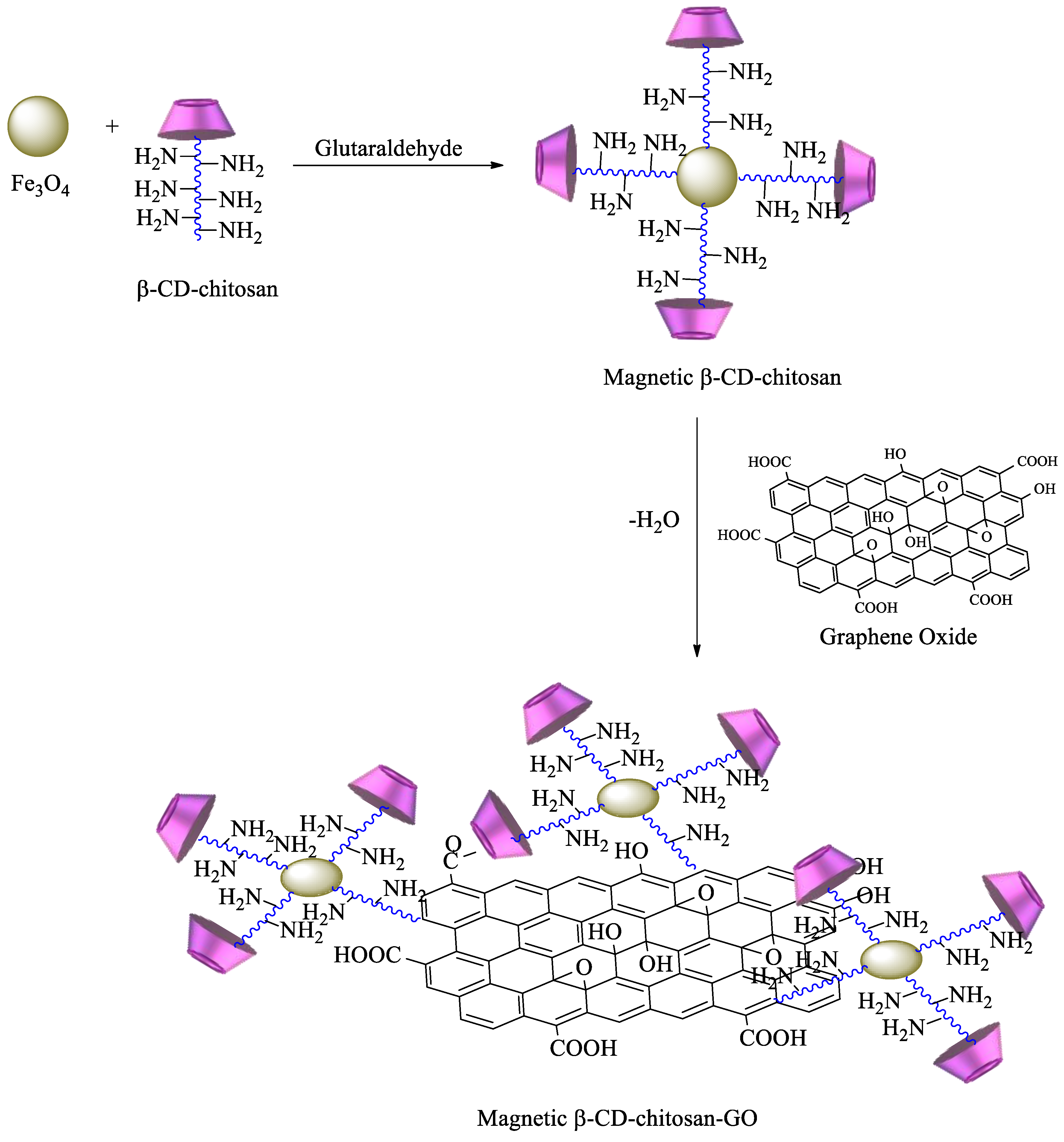

Magnetic β-CD–chitosan nanoparticles were synthesized by Fan et al. [112]. Initially, by using maleic acid in the presence of 4-dimethylaminopyridine, β-CD is functionalized to form maleoyl–β-CD [113]. The latter compound is then grafted to the chitosan backbone. Following that, Fe3O4 nanoparticles are coated by β-CD–chitosan. A peculiar contribution was provided by Elanchezhiyan and Meenakshi [114], who synthesized chitosan–β-CD using glutaraldehyde as a crosslinker in the presence of lanthanum, zirconium, or cerium ions. These metal ions were integrated into the adsorbent.
The use of chitosan also shows some drawbacks, including a low compressive strength and the difficulty of producing monoliths. Such limitations can be overcome by the incorporation of graphene oxide onto the polymer structure [115,116]. This hydrophilic derivative of graphene (Scheme 8b,c) has a lower content of carbon in favor of a higher amount of oxygen in the form of hydroxyl, carboxyl, and epoxy groups. This modification of the graphene structure makes GO easily dispersible in aqueous media. Furthermore, GO retains much of the properties of the highly valued pristine graphene, being easier to prepare and process, cheaper [117], and a good candidate for an adsorbent of different types of pollutants [115,118]. It should be stressed that the grafting of CD to GO sheets can also result in a satisfactory adsorbent for metal ions [119,120].
In order to improve the stability of chitosan, as described above, β-CD–chitosan/GO materials have been prepared by Li et al. [121]. The procedure consists of reacting the amine group of chitosan with GO’s carboxyl group, forming an amide. The obtained material shows good sorption ability towards Cr(VI). Clearly, the sorption process of this metal ion is slightly different from others, given that Cr(VI) is present in the solution as oxyanions, i.e., CrO42−, Cr2O72−, or HCrO4 [122]. The maximum adsorption capacity for Cr(VI), taking into account all the three anionic species, is 67.66 mg g−1. The mechanism of adsorption is not straightforward since it initially involves electrostatic interactions between the protonated amine groups of chitosan and the chromium-containing anions, followed by the reduction of Cr(VI) to Cr(III) and the consequent interaction with either the carboxylic groups of GO or the β-CD [123].
Cellulose–CD materials have also been studied for the absorption of metal ions. Li et al. [124] modified filter paper with β-CD, using citric acid as a crosslinker. This way, the hydroxyl groups of cellulose and those of β-CD underwent simultaneous esterification with the polyacid. The functionalized filter paper showed a significant adsorption capacity for Cu(II) (39.1 mg g−1) when compared to unmodified filter paper (0.62 mg g−1). As was previously discussed, citric acid, and not the CD cavity, had the main role in the sorption process [124].

3.2. Dyes

More than 100 tons of organic dyes are produced annually [125,126]. This demand is due to the need for colorants for a broad number of industries, including textile [127], leather [128], food [129], and solar cells [130], with a significant part being wasted in the dyeing process [131]. Organic dyes are, in general, nonbiodegradable, toxic, and carcinogenic contaminants present in water, leading to a significant impact on biotic systems and ecosystems [132,133].
Due to its relevance in wastewater, there are several methods that may be used for the removal of dyes from industrial wastewater. They include advanced oxidation [134,135], electrochemical processes [136], and adsorption [137]. The latter method has been extensively used for the discoloration and removal of dyes from wastewater due to its low price, easy availability, and efficiency [138].
Cyclodextrins are among the most used compounds for the removal of dyes and other contaminants from different waste sources [139,140].

3.2.1. CD Polymers

One material successfully proven to act as a sorbent of some dyes is the polymerized β-CD derivative 2,3-di-O-methacrylated-6-tert-butyldimethylsilyl)-β-CD, using 1-vinylimidazole as a crosslinker [52]. This polymer presents high adsorption removal efficiencies for congo red (CR) and rhodamine B (RB), above 80%, with qmax equal to 712 and 175 mg g−1, respectively. Here, in contrast to the metal ion adsorption mechanism, the dyes interact with the CD cavities by forming stable host–guest supramolecular complexes, characterized by stability constants of 1667 and 4266 M−1 [141,142], respectively. However, whilst hydrophobic and π-π interactions are the predominant mechanism for RB adsorption, for CR, electrostatic interactions between the sulfonate groups of the dye also occur [52].
Based on the high ability of CDs to interact with dyes via hydrophobic interactions, the polymerization of CDs is a logical way to synthesize highly efficient adsorbents. Among the different possibilities, the use of epichlorohydrin (EPI) or 4,4′-bis(chloromethyl)biphenyl as a crosslinker is the most common route [9,18].
Recently, β-CD and hydroxypropyl–β-CD (HP–β-CD) were polymerized with EPI. The adsorption of Direct Red 83:1 and Direct Blue 78 onto those polymers was analyzed [16,17]. For an initial concentration of dye equal to 300 ppm, the maximum adsorption capacity for β- and HP–β-CD polymers were, respectively, 13.4 and 3.3 mg g−1. The mechanism of interaction between the dye and different CDs is still unclear. However, a similar trend of adsorption capacity was found for the adsorption of the same dye onto polymeric adsorbents based on α-CD and HP–α-CD [68]. The adsorption of Direct Blue 78 onto a poly(β-cyclodextrin-co-EPI) copolymer also showed high efficiency, with a qmax of 23.47 mg g−1. However, the study was complemented by the use of advanced oxidation processes (AOPs) to remove the remaining dyes. By using the techniques in a sequential way, the removal efficiency of Direct Blue 78 was higher than 99%.
The development of adsorbents for the simultaneous adsorption of dyes (or other pollutants) is always challenging since it depends, in general, on different types of interactions. Following that, the development of poly(β-CD) with the ability of simultaneous sorption of dyes with an opposite charge was carried out by Zhou et al. [143]. The adsorbent was synthesized in a two-step sequence: initially, the β-CD is polymerized via esterification with citric acid; in a second step, the grafting of 2-dimethylamino ethyl methacrylate takes place. The obtained material contains, besides the hydrophobic cavity of the CD, carboxylic groups and tertiary amino groups, providing, in this way, a multitude of sites for the interaction of both cationic and anionic dyes, respectively. The adsorption studies of methylene blue (MB, a cationic dye) and methyl orange (MO, an anionic dye) onto the PCD grafted with 2-dimethylamino ethyl methacrylate showed high qm values: 335.5 and 165.8 mg g1, respectively. However, these values were obtained at different pH conditions: 11, 4, and 6.5, respectively. This dependence on environmental conditions hinders the broad use of this pH-responsive material.

3.2.2. Chitosan-Based Sorbents

In a similar way to what was observed for the adsorption of metal ions, chitosan was tested as a polymeric matrix for the adsorption of a large number of different dyes. Zhao et al. measured the removal efficiency of blends of chitosan with poly(β-CD-co-citric acid) for the following set of dyes: C.I. Reactive Blue 49, Reactive Yellow 176, Reactive Blue 14, Reactive Black 5, and Reactive Red 141 [144]. It was found that this blend is highly effective for dye removal, with an RE higher than 90%, besides attaining higher qmax values (e.g., for Reactive Blue 49, qmax = 498 mg g−1). Such performance is due to the occurrence of electrostatic interactions between the sulfonate groups of all dyes and the protonated ammonium groups of chitosan (pKa ca. 6.5) [145], along with hydrogen bonding between the amine groups of dyes and the hydroxyl groups of chitosan.
Another blend composed of chitosan and poly(β-CD)/vinyltriethoxysilane copolymer was prepared as a membrane. This membrane was shown to possess high porosity as a consequence of electrostatic repulsion (or steric hindrance) between the CD units and chitosan [146]. Maximum adsorption capacity (13.4 mg g−1) was reached for Acid Red 299. That lower value, associated with an endothermic adsorption process, which might be related to the need to overtake a polymer interface to reach the binding sites, makes the use of membranes rather limited.
The use of γ-CD is not very common because it is expensive and the size of the inner cavity is too large, leading to weak host–guest interactions [147]. Even so, some works report combinations of the largest natural CD with polysaccharides. For example, γ-CD can be grafted onto starch (from corn) by using epichlorohydrin as an anchor. The adsorption capacity of the material was tested towards Methylene Blue (MB), Methyl Purple, and Congo Red (CR); the former two dyes are cationic and the latter (CR) is anionic. Despite the association constants for the formation of complexes between γ-CD and CR and MB being 3800 M−1 [148] and 2.95 × 107 M−2 [149], respectively, REs for all three dyes were around 60% [150].

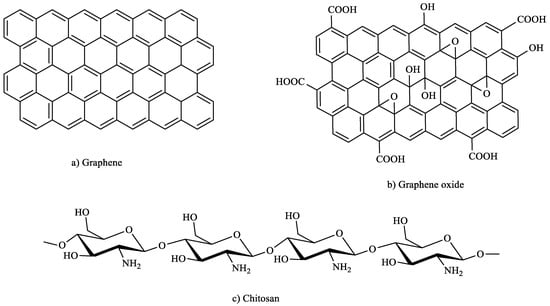

A different method was followed to prepare a graphene-oxide-containing chitosan/β-CD hydrogel [151] that consists of mixing β-CD, chitosan, and GO in the presence of genipin and sodium ascorbate as reducing agents [50]. Genipin is a well-known crosslinking agent, widely used for the crosslinking of chitosan; it exhibits reduced toxicity when compared to, for example, glutaraldehyde. Therefore, genipin can promote the linkage between the hydroxyl groups of GO and CD and the amino groups of chitosan. By using MB as a dye model, it has been found that with an initial MB concentration equal to 50 ppm, the adsorption capacity of the CD-containing gel is ca. 225 mg g−1, 50% higher than the hydrogel without CD [151]. However, the maximum adsorption capacity found for chitosan is ca. 5 times higher (1134 mg g−1). This significant adsorption capacity is due to the occurrence of a mesoporous structure associated with the electrostatic interactions between the dye and the adsorbent. In fact, a relevant dependence of the adsorption capacity of MB on pH and ionic strength has been found. This may indicate the occurrence of a screening effect on electrostatic interactions [152].

3.2.3. Cellulose-Based Sorbents

Cellulose chains, although insoluble in water [153], have many active hydroxyl groups. Hence, this linear homopolymer can be chemically modified so as to be capable of forming supramolecular interactions with organic dyes [154].
In the previous section, the use of modified filter paper for adsorption of Cu(II) was described [124]. The success of that type of material is of utmost importance, given that the paper companies are incessantly looking for new innovative products and markets. Additional to Cu(II), the adsorption of MB, Brilliant Green, and Rhodamine-B onto modified filter paper has also been evaluated [154]. The modified filter paper was able to adsorb 124.5, 130.4, and 99.7 mg g−1 of MB, RB, and BG, respectively. These values drastically decreased to 41.4 and 29.6 mg g−1 (for MB and RB, respectively) when the adsorbent material contained 70% of pristine (nonmodified) filter paper, clearly indicating the importance of CD in the adsorption process.
Cotton fiber, a natural fiber consisting almost entirely of cellulose, is a renewable, degradable, cheap, and nonpolluting material. Furthermore, cotton fiber presents a large specific surface area and a hollow, flat-banded structure, which is beneficial for adsorption. Based on that, Yue et al. [155] grafted an amino-terminated hyperbranched polymer, obtained by melt polycondensation of methyl acrylate, diethylene triamine [156], and β-CD onto cotton.
In summary, the chemical modification of cotton occurs after initial oxidation with sodium metaperiodate to obtain dialdehyde–cotton. Subsequently, the modified cotton reacts with β-CD in the presence of EPI. At the end of the process, the hyper-branched polymer is added, and the reaction with the modified cotton occurs between amino groups of the former and the aldehyde groups of cotton. The resulting polymer shows high RE and high qmax for Congo Red (94% and 300.8 mg g−1, respectively); however, for MB, the performance is more modest, leading to 42% and 98.7 mg g−1, respectively. Such behavior is explained by the possibility of MB aggregation [155], which hampers adsorption.

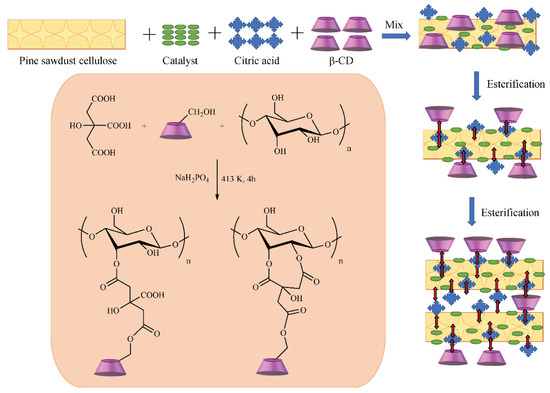

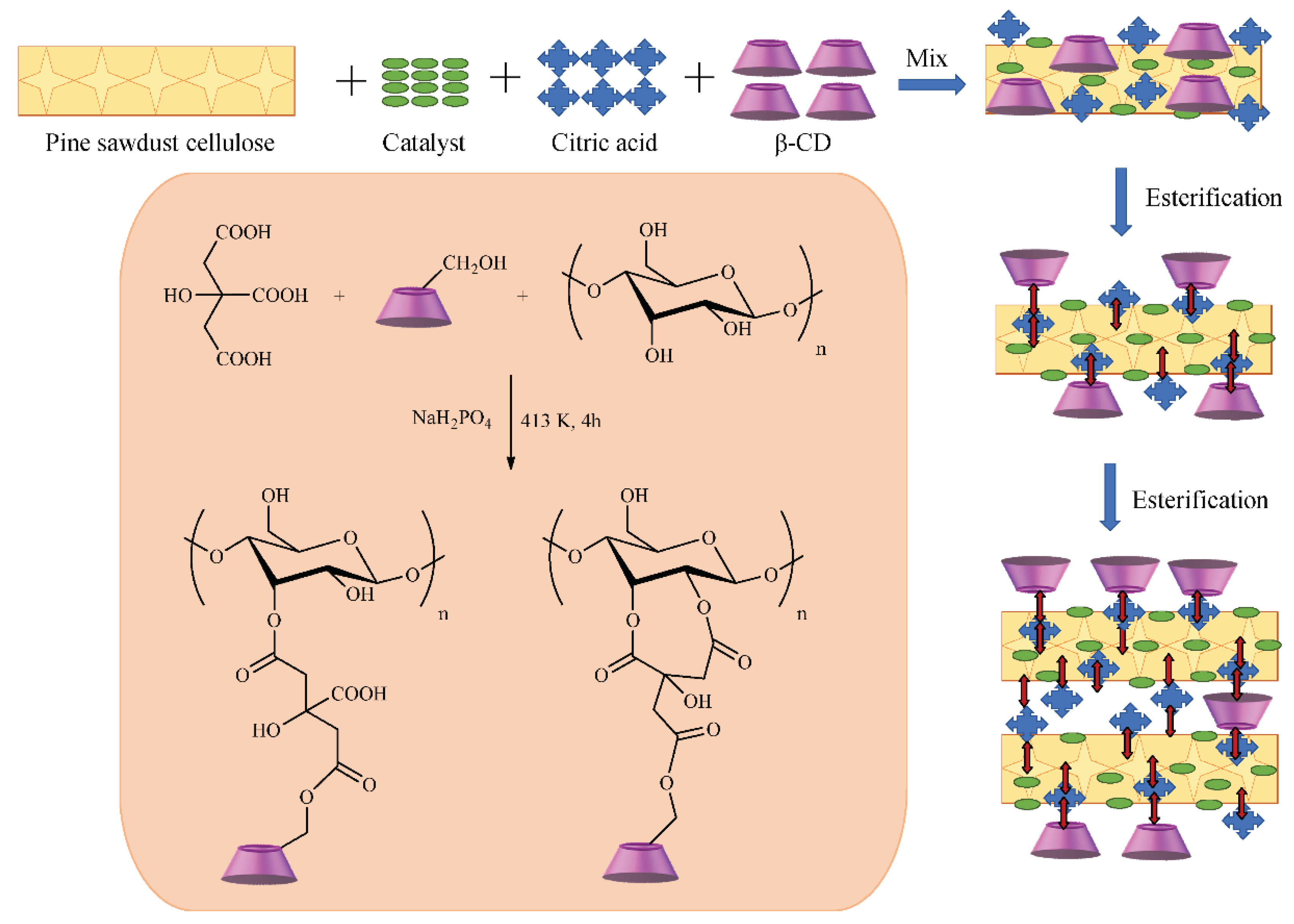

As described before, citric acid is commonly used as a crosslinker for the binding of CDs to cellulose-based materials by forming an ester linkage. Zhou et al. [106] have studied the functionalization of pine sawdust (PS) with β-CD by esterification with citric acid (CA) for aniline remediation (Scheme 9). Aniline and derivatives (Scheme 10) are frequently used as organic intermediates in the process of producing dyes, rubber, medicine, and paint. Due to its toxicity and recalcitrant properties, it is highly necessary to develop strategies for removing aniline from aquatic media [157]. The qmax of PS–citric acid–CD towards aniline is 12.3 mg g−1, more than twice the adsorption capacity of PS functionalized with citric acid (5.8 mg g−1). Such improvement is due to the structure of the sawdust; i.e., cell walls of sawdust mainly consist of cellulose and lignin, and many hydroxyl groups are present in tannins or other phenolic compounds. Moreover, the presence of CD improves the sorption capacity through host–guest hydrophobic interactions and hydrogen-bonding via carboxylic groups, whereas PS–citric acid only contains carboxyl groups. In addition, aniline can be protonated, and its pKa strongly depends on the substituents [158], promoting a further sorption process: the ion-exchange mechanism.
A possible approach was reported by Ghemati and Aliouche [159]. The authors modified β-CD through its reaction with N-methylol acrylamide to form acrylamidomethyl–β-CD. After that, the modified CD was grafted onto cellulose. The obtained polymer presents a qmax for MO and MB ca. 11 and 14 mg g1 at pH 3 and 11, respectively.

3.3. Pesticides

Pesticides are the main organic pollutants used worldwide; they are applied to prevent plant diseases and to improve food quality. Although their initial impact is on soil pollution, by leaching and desorption mechanisms, they end up contaminating water bodies. In general, pesticides are not soluble in water, which limits the choice of remediation. For this reason, removal strategies based on cyclodextrins have a great advantage in solubilizing and removing such contaminants [7,160]. However, few studies have involved the design and application of CD-based adsorbents for pesticides.
In an attempt to develop highly efficient CD polymers for the separation and removal of ten different pesticides, polycyclodextrins involving only one type of CD or equimolar mixtures of two cyclodextrins, using EPI as a crosslinker, were synthesized as spherical porous particles [44]. The adsorption kinetics and isotherms of the pesticides on the polycyclodextrins showed that adsorbents with a homogeneous open network structure were able to absorb pesticides through multiple adsorption interactions, including inclusion in the CDs, loading into swelling water, and even physical adsorption on the network. Furthermore, the removal efficiency is dependent on the CD content, swelling degree, and surface area. Butenefipronil and fipronil, pesticides with a high octanol–water partition coefficient, showed higher REs, proving that hydrophobic interactions with the CD are of paramount importance in the adsorption mechanism.
Another valuable contribution involves the use of poly(β-CD-co-EPI) for packing a bed for the removal (“trapping”) of pesticides [62]. Using 2-naphtol as a pesticide model, the authors found that the trapping efficiency was around 70%. This removal efficiency is dependent on the acid-base equilibria occurring in natural waters. It was also found that the best trapping efficiencies were obtained for beads with polymers containing a high percentage of EPI, i.e., polymers with a nominal CD/epichlorohydrin ratio of 1:29.
CDs inside nanoporous carbon have also displayed great efficiency for removing the p,p’-substituted diphenyl class of pesticides (e.g., DDT, DDD, and DDE). These pesticides showed significant adsorption due to their suitable geometric fit within the cavity of the CD, leading to the formation of stable inclusion complexes (Zolfaghari 2016).
The sorption of two halogenated monophenolic pesticides, 4-chlorophenoxyacetic acid and 2,3,4,6-tetrachlorophenol, by CD polymers in the form of nanosponges has also been assessed and its performance compared with other materials, namely, granulated activated carbon [12]. These designed nanosponges have displayed favorable sorption capacities for chlorinated aromatic guests. The sorption capacity and binding affinity of the sorbents were greater for nanosponges, despite granulated activated carbon possessing a greater surface area. It was suggested that nanosponges possess additional properties, such as serving as stabilization enhancers of nanoparticles.
Among the various methods employed to remove paraquat (a toxic herbicide commonly used for weed and grass control) from aqueous systems, adsorption has demonstrated higher efficiency, straightforward operation, and low cost. Junthip et al. [161] have proposed and tested the adsorption of paraquat in aqueous solutions using a textile coated with anionic polycyclodextrin, with citric acid as an anchor agent. The removal performance was assessed considering different conditions, including an initial concentration of pesticide, pH of the solution, and adsorption temperature. It was found that neutral pH and lower temperatures favored the adsorption of the pesticide on the functionalized textile. The reusability of the material was also relevant, reaching 78.6% of the maximum adsorption capacity after 6 regeneration cycles [161].

3.4. Pharmaceutical Compounds

Pharmaceuticals, including analgesics, anti-inflammatory drugs, and antibiotics, have been introduced into the environment via several routes, including farming, households, medical facilities, hospitals, and pharmaceutical industries. Specifically, these include those compounds that are frequently used and found in wastewater, including ibuprofen, acetaminophen, amoxicillin (β-lactams), streptomycin (amino-glycosides), ciprofloxacin (fluoroquinolones), azithromycin and clarithromycin (macrolides), penicillin, penicillin/streptomycin combinations, and tetracyclines, just to name a few examples [14].
Among the most consumed pharmaceuticals worldwide, ibuprofen is a nonsteroidal anti-inflammatory drug, largely distributed without prescription. Its occurrence in environmental matrices has been markedly observed in industrial and agricultural waste streams, municipal/hospital wastewater, and surface water. In another context, high concentrations of veterinary drugs, such as ionophore antibiotics, have been detected in sediments and in water (in lower concentrations). Ibuprofen, diclofenac, and gemfibrozil have also been identified in sewage sludge.
Insoluble CD polymers have been employed as cost-effective adsorbents in these scenarios due to their attractive removal performances and the higher number of cycles when compared to conventional strategies [9].
Shahgaldian’s group [162] prepared three water-insoluble CD-based polymers aimed at removing three selected pharmaceutically active ingredients—levofloxacin, aspirin, and acetaminophen—in aqueous solutions. The highest sorption capacity was obtained with β-CD polymer, which displayed a higher affinity for aspirin. In general, the interaction kinetics were proved to be fast, reaching 70% of equilibrium sorption capacity within only 10 min.
Moulahcene et al. [163] have proposed insoluble CD-based polymers with high adsorption capacities, containing different types of CD molecules crosslinked with citric acid, towards the removal of ibuprofen in aqueous solutions. Ibuprofen retention in the CD polymers decreased in the following order: α-γ-CD > α-CD > γ-CD > β-CD > α-γ-β-CD. The effect of various operating variables, such as pH, ionic strength, contact time, drug concentration, and mass of adsorbent was evaluated. Maximum adsorption capacity was achieved in acidic pH, in which ibuprofen was in its molecular form, favoring electrostatic interaction and the formation of an inclusion complex. Ionic strength also contributed to increasing the removal performance of the CD polymers. In a similar study [164], the progesterone removal capacity in aqueous solutions of various polycyclodextrins crosslinked with citric acid was investigated. Adsorption capacities up to 20 mg g−1 and removal efficiencies over 80% were obtained. The authors concluded that (i) poly(β-cyclodextrin) showed the best adsorption capacities, a larger number of reuse cycles than activated carbon, and fast adsorption kinetics; (ii) no significant effect of initial pH, initial concentration, and adsorbent amount on the adsorption capacity was observed; (iii) adsorption increased with ionic strength and temperature.
The detection and quantification of diclofenac, a highly efficient and widely consumed anti-inflammatory drug, in water and wastewater samples (in the range 0.3–15.9 mg L−1) have also been developed [165] by resorting to a polycyclodextrin containing a fluorescent dye. The optimal concentration of the sorbent was found to be 50 g mL−1, and the limit of quantification of diclofenac was 0.3 mg L−1.
The nucleophilic substitution of β-CD with tetrafluoroterephthalonitrile (TFP) has been conducted by Zhou et al. [166], aiming at preparing a poly(β-CD) for removing bisphenol A (BPA), chloroxylenol (PCMX), and carbamazepine (CBZ). The maximum adsorption capacities of that poly(β-CD) were shown to be 164.4, 144.1, and 136.4 mg g−1 for BPA, PCMX, and CBZ, respectively. The polymer was able to be regenerated for 5 cycles by methanol soaking, and the removal efficiency of BPA, PCMX, and CBZ was 98.1%, 90.8%, and 65.0%, respectively. The authors found no significant effect of pH, fulvic acid concentration, or ionic strength on the adsorption of the drugs onto the CD polymer.

4. Conclusions

Several strategies have been explored to remediate water pollution by different contaminants, taking advantage of the versatile properties of CD polymers and CD-containing polysaccharides. The most promising combination of CD materials for water remediation must be scaled-up and tested in the field. The selection of the best CD adsorbing materials should be based on the specificity of the target environmental matrix, the nature and concentration of the contaminants, the applicability in situ, removal efficiency, and economic feasibility.
Contaminant removal with CD-based materials should be prioritized over ongoing studies on a lab-scale by considering systematic procedures for assessing the performance of CD polymers, CD-containing polysaccharides, and other conventional materials, allowing the achievement of effective environmental applications.
Theoretical and/or computational models of the involved interaction patterns/mechanisms are still very scarce; however, they could provide comprehensive rationales for improving the knowledge on the underlying mechanisms that govern the structural modification, performance, and recycling of CD adsorbing materials and on the solubilization and recognition of contaminants.

Author Contributions

All authors contributed equally to the conceptualization, resources, writing—original draft preparation and writing—review and editing, visualization, and funding acquisition. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.


The Coimbra Chemistry Centre (CQC) is supported by the Portuguese Agency for Scientific Research, “Fundação para a Ciência e a Tecnologia” (FCT), through Project UID/QUI/00313/2020. R.A. acknowledges postdoc grant BPD 02 | POCI-01-0247-FEDER-021874.

Conflicts of Interest

The authors declare no conflict of interest.


BPAbisphenol A
EDTAethylenediamine tetraacetic acid
GOgraphene oxide
HDI1,6-hexamethylene diisocyanate
MBmethylene blue
MDI4,4′-diphenylmethane diisocyanate
NDI1,5-naphtalene diisocyanate
PDI1,4-phenylene diisocyanate
PSpine sawdust
TDI2,4-toluene diisocyanate


  1. European Commission. Commission Outlines Road to Zero Pollution Action Plan; European Commission: Brussels, Belgium, 2020. [Google Scholar]
  2. Wakeham, H. Zero Pollutions Conference 2020. Available online: (accessed on 2 November 2020).
  3. Corsi, I.; Fiorati, A.; Grassi, G.; Bartolozzi, I.; Daddi, T.; Melone, L.; Punta, C. Environmentally sustainable and ecosafe polysaccharide-based materials for water nano-treatment: An eco-design study. Materials 2018, 11, 1228. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Morin-Crini, N.; Winterton, P.; Fourmentin, S.; Wilson, L.D.; Fenyvesi, É.; Crini, G. Water-insoluble β-cyclodextrin–epichlorohydrin polymers for removal of pollutants from aqueous solutions by sorption processes using batch studies: A review of inclusion mechanisms. Prog. Polym. Sci. 2018, 78, 1–23. [Google Scholar] [CrossRef]
  5. Morin-Crini, N.; Fourmentin, M.; Fourmentin, S.; Torri, G.; Crini, G. Synthesis of silica materials containing cyclodextrin and their applications in wastewater treatment. Environ. Chem. Lett. 2019, 17, 683–696. [Google Scholar] [CrossRef]
  6. Alaba, P.A.; Oladoja, N.A.; Sani, Y.M.; Ayodele, O.B.; Mohammed, I.Y.; Olupinla, S.F.; Daud, W.M.W. Insight into wastewater decontamination using polymeric adsorbents. J. Environ. Chem. Eng. 2018, 6, 1651–1672. [Google Scholar] [CrossRef]
  7. Marican, A.; Durán-Lara, E.F. A review on pesticide removal through different processes. Environ. Sci. Pollut. Res. 2018, 25, 2051–2064. [Google Scholar] [CrossRef] [PubMed]
  8. Wang, Z.; Cui, F.; Pan, Y.; Hou, L.; Zhang, B.; Li, Y.; Zhu, L. Hierarchically micro-mesoporous β-cyclodextrin polymers used for ultrafast removal of micropollutants from water. Carbohydr. Polym. 2019, 213, 352–360. [Google Scholar] [CrossRef]
  9. Yang, C.; Huang, H.; Ji, T.; Zhang, K.; Yuan, L.; Zhou, C.; Tang, K.; Yi, J.; Chen, X. A cost-effective crosslinked β-cyclodextrin polymer for the rapid and efficient removal of micropollutants from wastewater. Polym. Int. 2019, 68, 805–811. [Google Scholar] [CrossRef]
  10. Zhang, S.; He, Y.; Wu, L.; Wan, J.; Ye, M.; Long, T.; Yan, Z.; Jiang, X.; Lin, Y.; Lu, X. Remediation of Organochlorine Pesticide-Contaminated Soils by Surfactant-Enhanced Washing Combined with Activated Carbon Selective Adsorption. Pedosphere 2019, 29, 400–408. [Google Scholar] [CrossRef]
  11. Guerra, F.D.; Attia, M.F.; Whitehead, D.C.; Alexis, F. Nanotechnology for Environmental Remediation: Materials and Applications. Molecules 2018, 23, 1760. [Google Scholar] [CrossRef] [Green Version]
  12. Salazar, S.; Guerra, D.; Yutronic, N.; Jara, P. Removal of aromatic chlorinated pesticides from aqueous solution using β-cyclodextrin polymers decorated with Fe3O4 nanoparticles. Polymers 2018, 10, 1038. [Google Scholar] [CrossRef] [Green Version]
  13. Liu, Y.; Liu, M.; Jia, J.; Wu, D.; Gao, T.; Wang, X.; Yu, J.; Li, F. β-Cyclodextrin-based hollow nanoparticles with excellent adsorption performance towards organic and inorganic pollutants. Nanoscale 2019, 11, 18653–18661. [Google Scholar] [CrossRef] [PubMed]
  14. Cova, T.F.G.G.; Murtinho, D.; Pais, A.A.C.C.; Valente, A.J.M. Cyclodextrin-based Materials for Removing Micropollutants From Wastewater. Curr. Org. Chem. 2018, 22, 2150–2181. [Google Scholar] [CrossRef]
  15. Landy, D.; Mallard, I.; Ponchel, A.; Monflier, E.; Fourmentin, S. Remediation technologies using cyclodextrins: An overview. Environ. Chem. Lett. 2012, 10, 225–237. [Google Scholar] [CrossRef]
  16. Murcia-Salvador, A.; Pellicer, J.A.; Fortea, M.I.; Gómez-López, V.M.; Rodríguez-López, M.I.; Núñez-Delicado, E.; Gabaldón, J.A. Adsorption of Direct Blue 78 Using Chitosan and Cyclodextrins as Adsorbents. Polymers 2019, 11, 1003. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Pellicer, J.; Rodríguez-López, M.; Fortea, M.; Lucas-Abellán, C.; Mercader-Ros, M.; López-Miranda, S.; Gómez-López, V.; Semeraro, P.; Cosma, P.; Fini, P.; et al. Adsorption Properties of β- and Hydroxypropyl-β-Cyclodextrins Cross-Linked with Epichlorohydrin in Aqueous Solution. A Sustainable Recycling Strategy in Textile Dyeing Process. Polymers 2019, 11, 252. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Morin-Crini, N.; Crini, G. Environmental applications of water-insoluble β-cyclodextrin–epichlorohydrin polymers. Prog. Polym. Sci. 2013, 38, 344–368. [Google Scholar] [CrossRef]
  19. Crini, G.; Fourmentin, S.; Fenyvesi, É.; Torri, G.; Fourmentin, M.; Morin-Crini, N. Fundamentals and applications of cyclodextrins. In Cyclodextrin Fundamentals, Reactivity and Analysis; Springer: Berlin/Heidelberg, Germany, 2018; pp. 1–55. [Google Scholar]
  20. Crini, G. Recent developments in polysaccharide-based materials used as adsorbents in wastewater treatment. Prog. Polym. Sci. 2005, 30, 38–70. [Google Scholar] [CrossRef]
  21. Cova, T.F.; Murtinho, D.; Pais, A.A.C.C.; Valente, A.J.M. Combining Cellulose and Cyclodextrins: Fascinating Designs for Materials and Pharmaceutics. Front. Chem. 2018, 6. [Google Scholar] [CrossRef]
  22. Cova, T.F.; Milne, B.F.; Pais, A.A.C.C. Host flexibility and space filling in supramolecular complexation of cyclodextrins: A free-energy-oriented approach. Carbohydr. Polym. 2019, 205, 42–54. [Google Scholar] [CrossRef]
  23. Cova, T.F.G.G.; Milne, B.F.; Nunes, S.C.C.; Pais, A.A.C.C. Drastic Stabilization of Junction Nodes in Supramolecular Structures Based on Host–Guest Complexes. Macromolecules 2018, 51, 2732–2741. [Google Scholar] [CrossRef]
  24. Kono, H.; Onishi, K.; Nakamura, T. Characterization and bisphenol A adsorption capacity of beta-cyclodextrin-carboxymethylcellulose-based hydrogels. Carbohydr. Polym. 2013, 98, 784–792. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, Z.; Zhang, P.; Hu, F.; Zhao, Y.; Zhu, L. A crosslinked beta-cyclodextrin polymer used for rapid removal of a broad-spectrum of organic micropollutants from water. Carbohydr. Polym. 2017, 177, 224–231. [Google Scholar] [CrossRef] [PubMed]
  26. Jiang, Y.; Liu, B.; Xu, J.; Pan, K.; Hou, H.; Hu, J.; Yang, J. Cross-linked chitosan/beta-cyclodextrin composite for selective removal of methyl orange: Adsorption performance and mechanism. Carbohydr. Polym. 2018, 182, 106–114. [Google Scholar] [CrossRef]
  27. Wycisk, A.; Döring, A.; Schneider, M.; Schönhoff, M.; Kuckling, D. Synthesis of β-cyclodextrin-based star block copolymers with thermo-responsive behavior. Polymers 2015, 7, 921–938. [Google Scholar] [CrossRef] [Green Version]
  28. Bhattarai, B.; Muruganandham, M.; Suri, R.P.S. Development of high efficiency silica coated beta-cyclodextrin polymeric adsorbent for the removal of emerging contaminants of concern from water. J. Hazard. Mater. 2014, 273, 146–154. [Google Scholar] [CrossRef] [PubMed]
  29. Morales-Sanfrutos, J.; Javier Lopez-Jaramillo, F.; Elremaily, M.A.A.; Hernandez-Mateo, F.; Santoyo-Gonzalez, F. Divinyl Sulfone Cross-Linked Cyclodextrin-Based Polymeric Materials: Synthesis and Applications as Sorbents and Encapsulating Agents. Molecules 2015, 20, 3565–3581. [Google Scholar] [CrossRef] [Green Version]
  30. Wang, H.; Wang, Y.; Zhou, Y.; Han, P.; Lu, X. A Facile Removal of Phenol in Wastewater Using Crosslinked beta-Cyclodextrin Particles with Ultrasonic Treatment. Clean-Soil Air Water 2014, 42, 51–55. [Google Scholar] [CrossRef]
  31. Alsbaiee, A.; Smith, B.J.; Xiao, L.; Ling, Y.; Helbling, D.E.; Dichtel, W.R. Rapid removal of organic micropollutants from water by a porous beta-cyclodextrin polymer. Nature 2016, 529, 190-U146. [Google Scholar] [CrossRef]
  32. Kayaci, F.; Aytac, Z.; Uyar, T. Surface modification of electrospun polyester nanofibers with cyclodextrin polymer for the removal of phenanthrene from aqueous solution. J. Hazard. Mater. 2013, 261, 286–294. [Google Scholar] [CrossRef]
  33. Li, C.; Klemes, M.J.; Dichtel, W.R.; Helbling, D.E. Tetrafluorotereplithalomtrile-crosslinked beta-cyclodexfrin polymers for efficient extraction and recovery of organic micropollutants from water. J. Chromatogr. A 2018, 1541, 52–56. [Google Scholar] [CrossRef]
  34. Zhao, F.; Repo, E.; Yin, D.; Meng, Y.; Jafari, S.; Sillanpää, M. EDTA-Cross-Linked β-Cyclodextrin: An Environmentally Friendly Bifunctional Adsorbent for Simultaneous Adsorption of Metals and Cationic Dyes. Environ. Sci. Technol. 2015, 49, 10570–10580. [Google Scholar] [CrossRef] [PubMed]
  35. Sikder, M.T.; Rahman, M.M.; Jakariya, M.; Hosokawa, T.; Kurasaki, M.; Saito, T. Remediation of water pollution with native cyclodextrins and modified cyclodextrins: A comparative overview and perspectives. Chem. Eng. J. 2019, 355, 920–941. [Google Scholar] [CrossRef]
  36. Skold, M.E.; Thyne, G.D.; Drexler, J.W.; McCray, J.E. Solubility enhancement of seven metal contaminants using carboxymethyl-β-cyclodextrin (CMCD). J. Contam. Hydrol. 2009, 107, 108–113. [Google Scholar] [CrossRef] [PubMed]
  37. Badruddoza, A.Z.M.; Hazel, G.S.S.; Hidajat, K.; Uddin, M.S. Synthesis of carboxymethyl-β-cyclodextrin conjugated magnetic nano-adsorbent for removal of methylene blue. Colloids Surf. A Physicochem. Eng. Asp. 2010, 367, 85–95. [Google Scholar] [CrossRef]
  38. Olteanu, A.A.; Arama, C.-C.; Bleotu, C.; Lupuleasa, D.; Monciu, C.M. Investigation of Cyclodextrin based Nanosponges Complexes with angiotensin I converting enzyme inhibitors (enalapril, captopril, cilazapril). Farmacia 2015, 63, 492–503. [Google Scholar]
  39. Okoli, C.P.; Adewuyi, G.O.; Zhang, Q.; Diagboya, P.N.; Guo, Q. Mechanism of dialkyl phthalates removal from aqueous solution using gamma-cyclodextrin and starch based polyurethane polymer adsorbents. Carbohydr. Polym. 2014, 114, 440–449. [Google Scholar] [CrossRef] [Green Version]
  40. Nojavan, S.; Yazdanpanah, M. Micro-solid phase extraction of benzene, toluene, ethylbenzene and xylenes from aqueous solutions using water-insoluble beta-cyclodextrin polymer as sorbent. J. Chromatogr. A 2017, 1525, 51–59. [Google Scholar] [CrossRef]
  41. Kopperi, M.; Riekkola, M.-L. Non-targeted evaluation of selectivity of water-compatible class selective adsorbents for the analysis of steroids in wastewater. Anal. Chim. Acta 2016, 920, 47–53. [Google Scholar] [CrossRef]
  42. Danquah, M.K.; Aruei, R.C.; Wilson, L.D. Phenolic Pollutant Uptake Properties of Molecular Templated Polymers Containing beta-Cyclodextrin. J. Phys. Chem. B 2018, 122, 4748–4757. [Google Scholar] [CrossRef]
  43. Sikder, M.T.; Islam, M.S.; Kikuchi, T.; Suzuki, J.; Saito, T.; Kurasaki, M. Removal of Copper Ions from Water Using Epichlorohydrin Cross-Linked beta-Cyclodextrin Polymer: Characterization, Isotherms and Kinetics. Water Environ. Res. 2014, 86, 296–304. [Google Scholar] [CrossRef]
  44. Liu, H.; Cai, X.; Wang, Y.; Chen, J. Adsorption mechanism-based screening of cyclodextrin polymers for adsorption and separation of pesticides from water. Water Res. 2011, 45, 3499–3511. [Google Scholar] [CrossRef] [PubMed]
  45. Sevillano, X.; Isasi, J.R.; Penas, F.J. Feasibility study of degradation of phenol in a fluidized bed bioreactor with a cyclodextrin polymer as biofilm carrier. Biodegradation 2008, 19, 589–597. [Google Scholar] [CrossRef] [PubMed]
  46. Huang, W.; Hu, Y.; Li, Y.; Zhou, Y.; Niu, D.; Lei, Z.; Zhang, Z. Citric acid-crosslinked β-cyclodextrin for simultaneous removal of bisphenol A, methylene blue and copper: The roles of cavity and surface functional groups. J. Taiwan Inst. Chem. Eng. 2018, 82, 189–197. [Google Scholar] [CrossRef]
  47. Tu, Y.; Xu, G.; Jiang, L.; Hu, X.; Xie, X.; Li, A. Amphiphilic hyper-crosslinked porous cyclodextrin polymer with high specific surface area for rapid removal of organic micropollutants. Chem Eng. J. 2020, 382, 123015. [Google Scholar] [CrossRef]
  48. Trotta, F.; Tumiatti, W. Cross-Linked Cyclodextrins for Decontamination of Liquid, Gaseous or Solid Matrices, Is Obtainable by Reacting Cyclodextrin with Carbonyl Compound. US2005154198-A1, 1 July 2005. [Google Scholar]
  49. Nagy, Z.M.; Molnár, M.; Fekete-Kertész, I.; Molnár-Perl, I.; Fenyvesi, E.; Gruiz, K. Removal of emerging micropollutants from water using cyclodextrin. Sci. Total Environ. 2014, 485–486, 711–719. [Google Scholar] [CrossRef]
  50. Mak, Y.W.; Leung, W.W.-F. Crosslinking of genipin and autoclaving in chitosan-based nanofibrous scaffolds: Structural and physiochemical properties. J. Mater. Sci. 2019, 54, 10941–10962. [Google Scholar] [CrossRef]
  51. Bezerra, F.M.; Lis, M.J.; Firmino, H.B.; Silva, J.G.D.; Valle, R.C.S.C.; Valle, J.A.B.; Scacchetti, F.A.P.; Tessaro, A.L. The role of β-cyclodextrin in the textile industry-review. Molecules 2020, 25, 3624. [Google Scholar] [CrossRef]
  52. Qin, X.; Bai, L.; Tan, Y.; Li, L.; Song, F.; Wang, Y. β-Cyclodextrin-crosslinked polymeric adsorbent for simultaneous removal and stepwise recovery of organic dyes and heavy metal ions: Fabrication, performance and mechanisms. Chem. Eng. J. 2019, 372, 1007–1018. [Google Scholar] [CrossRef]
  53. Folch-Cano, C.; Yazdani-Pedram, M.; Olea-Azar, C. Inclusion and functionalization of polymers with cyclodextrins: Current applications and future prospects. Molecules 2014, 19, 14066–14079. [Google Scholar] [CrossRef] [Green Version]
  54. Krause, R.W.; Mamba, B.B.; Bambo, F.M.; Malefetse, T.J. Cyclodextrin polymers: Synthesis and application in water treatment. In Cyclodextrins: Chemistry and Physic; Transworld Research Network: Trivandrum, India, 2010; pp. 1–25. [Google Scholar]
  55. Mocanu, G.; Vizitiu, D.; Carpov, A. Cyclodextrin polymers. J. Bioact. Compat. Polym. 2001, 16, 315–342. [Google Scholar] [CrossRef]
  56. Renard, E.; Sebille, B.; Barnathan, G.; Deratani, A. Polycondensation of cyclodextrins with epichlorohydrin. Influence of reaction conditions on the polymer structure. Macromol. Symp. 1997, 122, 229–234. [Google Scholar] [CrossRef]
  57. Renard, E.; Deratani, A.; Volet, G.; Sebille, B. Preparation and characterization of water soluble high molecular weight β-cyclodextrin-epichlorohydrin polymers. Eur. Polym. J. 1997, 33, 49–57. [Google Scholar] [CrossRef]
  58. Gidwani, B.; Vyas, A. Synthesis, characterization and application of Epichlorohydrin-β-cyclodextrin polymer. Colloids Surf. B: Biointerfaces 2014, 114, 130–137. [Google Scholar] [CrossRef] [PubMed]
  59. Crini, G.; Exposito Saintemarie, A.; Rocchi, S.; Fourmentin, M.; Jeanvoine, A.; Millon, L.; Morin-Crini, N. Simultaneous removal of five triazole fungicides from synthetic solutions on activated carbons and cyclodextrin-based adsorbents. Heliyon 2017, 3, e00380. [Google Scholar] [CrossRef]
  60. Chen, Q.; Wen, Y.; Cang, Y.; Li, L.; Guo, X.; Zhang, R. Selective removal of phenol by spherical particles of α-, β- and γ-cyclodextrin polymers: Kinetics and isothermal equilibrium. Front. Chem. Sci. Eng. 2013, 7, 162–169. [Google Scholar] [CrossRef]
  61. Pratt, D.Y.; Wilson, L.D.; Kozinski, J.A.; Mohart, A.M. Preparation and sorption studies of β-cyclodextrin/epichlorohydrin copolymers. J. Appl. Polym. Sci. 2010, 116, 2982–2989. [Google Scholar] [CrossRef]
  62. Orprecio, R.; Evans, C.H. Polymer-immobilized cyclodextrin trapping of model organic pollutants in flowing water streams. J. Appl. Polym. Sci. 2003, 90, 2103–2110. [Google Scholar] [CrossRef]
  63. Zhang, K.-D.; Tsai, F.-C.; Ma, N.; Xia, Y.; Liu, H.-L.; Guo, X.; Yu, X.-Y.; Jiang, T.; Chiang, T.-C.; Chang, C.C.-J. Removal of azo dye from aqueous solution by host-guest interaction with β-cyclodextrin. Desalination Water Treat. 2017, 86. [Google Scholar] [CrossRef] [Green Version]
  64. Hu, X.; Hu, Y.; Xu, G.; Li, M.; Zhu, Y.; Jiang, L.; Tu, Y.; Zhu, X.; Xie, X.; Li, A. Green synthesis of a magnetic β-cyclodextrin polymer for rapid removal of organic micro-pollutants and heavy metals from dyeing wastewater. Environ. Res. 2020, 180, 108796. [Google Scholar] [CrossRef]
  65. Zhang, X.M.; Peng, C.S.; Xu, G.C. Synthesis of modified β-cyclodextrin polymers and characterization of their fuchsin adsorption. J. Incl. Phenom. Macrocycl. Chem. 2012, 72, 165–171. [Google Scholar] [CrossRef]
  66. Zhao, D.; Zhao, L.; Zhu, C.-S.; Wang, J.; Lv, X.-H. A novel β-cyclodextrin polymer modified by sulfonate groups. J. Incl. Phenom. Macrocycl. Chem. 2012, 73, 93–98. [Google Scholar] [CrossRef]
  67. Mallard Favier, I.; Baudelet, D.; Fourmentin, S. VOC trapping by new crosslinked cyclodextrin polymers. J. Incl. Phenom. Macrocycl. Chem. 2011, 69, 433–437. [Google Scholar] [CrossRef]
  68. Pellicer, J.A.; Rodríguez-López, M.I.; Fortea, M.I.; Gabaldón Hernández, J.A.; Lucas-Abellán, C.; Mercader-Ros, M.T.; Serrano-Martínez, A.; Núñez-Delicado, E.; Cosma, P.; Fini, P.; et al. Removing of Direct Red 83:1 using α- and HP-α-CDs polymerized with epichlorohydrin: Kinetic and equilibrium studies. Dye. Pigment. 2018, 149, 736–746. [Google Scholar] [CrossRef]
  69. Wilson, L.D.; Mohamed, M.H.; Headley, J.V. Surface area and pore structure properties of urethane-based copolymers containing β-cyclodextrin. J. Colloid Interface Sci. 2011, 357, 215–222. [Google Scholar] [CrossRef]
  70. Mohamed, M.H.; Wilson, L.D.; Headley, J.V. Design and characterization of novel β-cyclodextrin based copolymer materials. Carbohydr. Res. 2011, 346, 219–229. [Google Scholar] [CrossRef]
  71. Ozmen, E.Y.; Yilmaz, M. Use of β-cyclodextrin and starch based polymers for sorption of Congo red from aqueous solutions. J. Hazard. Mater. 2007, 148, 303–310. [Google Scholar] [CrossRef]
  72. Ozmen, E.Y.; Sirit, A.; Yilmaz, M. A Calix [4] arene Oligomer and Two Beta-cyclodextrin Polymers: Synthesis and Sorption Studies of Azo Dyes. J. Macromol. Sci. Part A 2007, 44, 167–173. [Google Scholar] [CrossRef]
  73. Nkambule, T.I.; Krause, R.W.; Mamba, B.B.; Haarhoff, J. Removal of natural organic matter from water using ion-exchange resins and cyclodextrin polyurethanes. Phys. Chem. EarthParts A/B/C 2009, 34, 812–818. [Google Scholar] [CrossRef]
  74. Mamba, B.B.; Krause, R.W.; Malefetse, T.J.; Nxumalo, E.N. Monofunctionalized cyclodextrin polymers for the removal of organic pollutants from water. Environ. Chem. Lett. 2007, 5, 79–84. [Google Scholar] [CrossRef]
  75. Shabtai, I.A.; Mishael, Y.G. Polycyclodextrin–clay composites: Regenerable dual-site sorbents for bisphenol A removal from treated wastewater. ACS Appl. Mater. Interfaces 2018, 10, 27088–27097. [Google Scholar] [CrossRef]
  76. Leudjo Taka, A.; Pillay, K.; Yangkou Mbianda, X. Nanosponge cyclodextrin polyurethanes and their modification with nanomaterials for the removal of pollutants from waste water: A review. Carbohydr. Polym. 2017, 159, 94–107. [Google Scholar] [CrossRef]
  77. Zemel, H.; Koch, M.B. Preparation of Crosslinked Cyclodextrin Resins with Enhanced Porosity. US4958015A, 18 September 1990. [Google Scholar]
  78. Flores, J.; Jiménez, V.; Belmar, J.; Mansilla, H.D.; Alderete, J.B. Inclusion Complexation of Phenol Derivatives with a β-Cyclodextrin Based Polymer. J. Incl. Phenom. Macrocycl. Chem. 2005, 53, 63–68. [Google Scholar] [CrossRef]
  79. Weltrowski, M.; Morcellet, M.; Martel, B. Cyclodextrin Polymers and/or Cyclodextrin Derivatives with Complexing Properties and Ion-Exchange Properties and Method for the Production Thereof. US6660804B1, 9 December 2003. [Google Scholar]
  80. Martel, B.; Ruffin, D.; Weltrowski, M.; Lekchiri, Y.; Morcellet, M. Water-soluble polymers and gels from the polycondensation between cyclodextrins and poly(carboxylic acid)s: A study of the preparation parameters. J. Appl. Polym. Sci. 2005, 97, 433–442. [Google Scholar] [CrossRef]
  81. Girek, T.; Kozlowski, C.A.; Koziol, J.J.; Walkowiak, W.; Korus, I. Polymerisation of β-cyclodextrin with succinic anhydride. Synthesis, characterisation, and ion flotation of transition metals. Carbohydr. Polym. 2005, 59, 211–215. [Google Scholar] [CrossRef]
  82. Zhao, D.; Zhao, L.; Zhu, C.-S.; Huang, W.-Q.; Hu, J.-L. Water-insoluble β-cyclodextrin polymer crosslinked by citric acid: Synthesis and adsorption properties toward phenol and methylene blue. J. Incl. Phenom. Macrocycl. Chem. 2009, 63, 195–201. [Google Scholar] [CrossRef]
  83. Xiao, L.; Ling, Y.; Alsbaiee, A.; Li, C.; Helbling, D.E.; Dichtel, W.R. β-Cyclodextrin Polymer Network Sequesters Perfluorooctanoic Acid at Environmentally Relevant Concentrations. J. Am. Chem. Soc. 2017, 139, 7689–7692. [Google Scholar] [CrossRef] [Green Version]
  84. Li, X.; Zhou, M.; Jia, J.; Jia, Q. A water-insoluble viologen-based β-cyclodextrin polymer for selective adsorption toward anionic dyes. React. Funct. Polym. 2018, 126, 20–26. [Google Scholar] [CrossRef]
  85. Yang, J.S.; Yang, L. Preparation and application of cyclodextrin immobilized polysaccharides. J. Mater. Chem. B 2013, 1, 909–918. [Google Scholar] [CrossRef]
  86. Tojima, T.; Katsura, H.; Nishiki, M.; Nishi, N.; Tokura, S.; Sakairi, N. Chitosan beads with pendant α-cyclodextrin: Preparation and inclusion property to nitrophenolates. Carbohydr. Polym. 1999, 40, 17–22. [Google Scholar] [CrossRef]
  87. Chen, C.-Y.; Chen, C.-C.; Chung, Y.-C. Removal of phthalate esters by α-cyclodextrin-linked chitosan bead. Bioresour. Technol. 2007, 98, 2578–2583. [Google Scholar] [CrossRef]
  88. Fan, L.; Zhang, Y.; Luo, C.; Lu, F.; Qiu, H.; Sun, M. Synthesis and characterization of magnetic β-cyclodextrin–chitosan nanoparticles as nano-adsorbents for removal of methyl blue. Int. J. Biol. Macromol. 2012, 50, 444–450. [Google Scholar] [CrossRef]
  89. Ali, I.; Basheer, A.A.; Mbianda, X.Y.; Burakov, A.; Galunin, E.; Burakova, I.; Mkrtchyan, E.; Tkachev, A.; Grachev, V. Graphene based adsorbents for remediation of noxious pollutants from wastewater. Environ. Int. 2019, 127, 160–180. [Google Scholar] [CrossRef]
  90. Fan, L.; Luo, C.; Sun, M.; Qiu, H.; Li, X. Synthesis of magnetic β-cyclodextrin–chitosan/graphene oxide as nanoadsorbent and its application in dye adsorption and removal. Colloids Surf. B: Biointerfaces 2013, 103, 601–607. [Google Scholar] [CrossRef] [PubMed]
  91. Martel, B.; Devassine, M.; Crini, G.; Weltrowski, M.; Bourdonneau, M.; Morcellet, M. Preparation and sorption properties of a β-cyclodextrin-linked chitosan derivative. J. Polym. Sci. Part. A Polym. Chem. 2001, 39, 169–176. [Google Scholar] [CrossRef]
  92. Aoki, N.; Nishikawa, M.; Hattori, K. Synthesis of chitosan derivatives bearing cyclodextrin and adsorption of p-nonylphenol and bisphenol A. Carbohydr. Polym. 2003, 52, 219–223. [Google Scholar] [CrossRef]
  93. Xia, Y.; Wan, J. Preparation and adsorption of novel cellulosic fibers modified by β-cyclodextrin. Polym. Adv. Technol. 2008, 19, 270–275. [Google Scholar] [CrossRef]
  94. Sancey, B.; Trunfio, G.; Charles, J.; Badot, P.M.; Crini, G. Sorption onto crosslinked cyclodextrin polymers for industrial pollutants removal: An interesting environmental approach. J. Incl. Phenom. Macrocycl. Chem. 2011, 70, 315–320. [Google Scholar] [CrossRef]
  95. Duffus, J.H. “Heavy metals” a meaningless term? (IUPAC Technical Report). Pure Appl. Chem. 2002, 74, 793–807. [Google Scholar] [CrossRef] [Green Version]
  96. Bolan, N.; Choppala, G.; Kunhikrishnan, A.; Park, J.; Ravi, N. Microbial Transformation of Trace Elements in Soils in Relation to Bioavailability and Remediation. In Reviews of Environmental Contamination and Toxicology; Whitacre, M.D., Ed.; Springer: New York, NY, USA, 2013. [Google Scholar] [CrossRef]
  97. Adriano, D.C.; Wenzel, W.W.; Vangronsveld, J.; Bolan, N.S. Role of assisted natural remediation in environmental cleanup. Geoderma 2004, 122, 121–142. [Google Scholar] [CrossRef]
  98. Adriano, D.C. Trace Elements in Terrestrial Environments: Biogeochemistry, Bioavailability, and Risks of Metals; Springer: New York, NY, USA, 2001. [Google Scholar] [CrossRef]
  99. Vareda, J.P.; Valente, A.J.M.; Durães, L. Assessment of heavy metal pollution from anthropogenic activities and remediation strategies: A review. J. Environ. Manag. 2019, 246, 101–118. [Google Scholar] [CrossRef]
  100. Vareda, J.P.; Valente, A.J.; Durães, L. Erratum to “Heavy metals in Iberian soils: Removal by current adsorbents/amendments and prospective for aerogels” [Adv. Colloid Interf. Sci. 237 (2016) 28–42]. Adv. Colloid Interface Sci. 2016, 237, 76–77. [Google Scholar] [CrossRef]
  101. Na, Y.; Lee, J.; Lee, S.H.; Kumar, P.; Kim, J.H.; Patel, R. Removal of heavy metals by polysaccharide: A review. Polym.-Plast. Technol. Mater. 2020, 59, 1770–1790. [Google Scholar] [CrossRef]
  102. Buvári, Á.; Barcza, L. β-cyclodextrin complexes of different type with inorganic compounds. Inorg. Chim. Acta 1979, 33, L179–L180. [Google Scholar] [CrossRef]
  103. Buvári, Á.; Barcza, L. Complex formation of inorganic salts withβ-cyclodextrin. J. Incl. Phenom. Mol. Recognit. Chem. 1989, 7, 379–389. [Google Scholar] [CrossRef]
  104. Ribeiro, A.; Lobo, V.; Valente, A.; Simões, S.; Sobral, A.; Ramos, M.; Burrows, H.D. Association between Ammonium Monovanadate and β-Cyclodextrin as seen by NMR and Transport Techniques. Polyhedron 2006, 25, 3581–3587. [Google Scholar] [CrossRef]
  105. Norkus, E.; Grincien, G.; Vaitkus, R. Interaction of lead(II) with β-cyclodextrin in alkaline solutions. Carbohydr. Res. 2002, 337, 1657–1661. [Google Scholar] [CrossRef]
  106. Zhou, Y.; Gu, X.; Zhang, R.; Lu, J. Removal of Aniline from Aqueous Solution using Pine Sawdust Modified with Citric Acid and β-Cyclodextrin. Ind. Eng. Chem. Res. 2014, 53, 887–894. [Google Scholar] [CrossRef]
  107. Badruddoza, A.Z.M.; Shawon, Z.B.Z.; Tay, W.J.D.; Hidajat, K.; Uddin, M.S. Fe3O4/cyclodextrin polymer nanocomposites for selective heavy metals removal from industrial wastewater. Carbohydr. Polym. 2013, 91, 322–332. [Google Scholar] [CrossRef]
  108. Kyzas, G.; Bikiaris, D. Recent Modifications of Chitosan for Adsorption Applications: A Critical and Systematic Review. Mar. Drugs 2015, 13, 312–337. [Google Scholar] [CrossRef]
  109. Martins, A.F.; Bueno, P.V.A.; Almeida, E.A.M.S.; Rodrigues, F.H.A.; Rubira, A.F.; Muniz, E.C. Characterization of N-trimethyl chitosan/alginate complexes and curcumin release. Int. J. Biol. Macromol. 2013, 57, 174–184. [Google Scholar] [CrossRef] [Green Version]
  110. Malayoglu, U. Removal of heavy metals by biopolymer (chitosan)/nanoclay composites. Sep. Sci. Technol. 2018, 53, 2741–2749. [Google Scholar] [CrossRef]
  111. Zhang, L.; Zeng, Y.; Cheng, Z. Removal of heavy metal ions using chitosan and modified chitosan: A review. J. Mol. Liq. 2016, 214, 175–191. [Google Scholar] [CrossRef]
  112. Fan, L.; Li, M.; Lv, Z.; Sun, M.; Luo, C.; Lu, F.; Qiu, H. Fabrication of magnetic chitosan nanoparticles grafted with β-cyclodextrin as effective adsorbents toward hydroquinol. Colloids Surf. B Biointerfaces 2012, 95, 42–49. [Google Scholar] [CrossRef]
  113. Binello, A.; Cravotto, G.; Nano, G.M.; Spagliardi, P. Synthesis of chitosan–cyclodextrin adducts and evaluation of their bitter-masking properties. Flavour Fragr. J. 2004, 19, 394–400. [Google Scholar] [CrossRef]
  114. Elanchezhiyan, S.S.D.; Meenakshi, S. Facile Fabrication of Metal Ions-Incorporated Chitosan/β-Cyclodextrin Composites for Effective Removal of Oil from Oily Wastewater. ChemistrySelect 2017, 2, 11393–11401. [Google Scholar] [CrossRef]
  115. Kyzas, G.Z.; Deliyanni, E.A.; Matis, K.A. Graphene oxide and its application as an adsorbent for wastewater treatment. J. Chem. Technol. Biotechnol. 2014, 89, 196–205. [Google Scholar] [CrossRef]
  116. Zhang, N.; Qiu, H.; Si, Y.; Wang, W.; Gao, J. Fabrication of highly porous biodegradable monoliths strengthened by graphene oxide and their adsorption of metal ions. Carbon 2011, 49, 827–837. [Google Scholar] [CrossRef]
  117. Cruz, S.; Marques, P.; Valente, A. Supramolecular Graphene-Based Systems for Drug Delivery. In Handbook of Graphene; Ozkan, C., Ed.; Scrivener Publishing LLC: New York, NY, USA, 2019; pp. 443–480. [Google Scholar]
  118. Duru, İ.; Ege, D.; Kamali, A.R. Graphene oxides for removal of heavy and precious metals from wastewater. J. Mater. Sci. 2016, 51, 6097–6116. [Google Scholar] [CrossRef]
  119. Hu, X.-j.; Liu, Y.-g.; Wang, H.; Zeng, G.-m.; Hu, X.; Guo, Y.-m.; Li, T.-t.; Chen, A.-w.; Jiang, L.-h.; Guo, F.-y. Adsorption of copper by magnetic graphene oxide-supported β-cyclodextrin: Effects of pH, ionic strength, background electrolytes, and citric acid. Chem. Eng. Res. Des. 2015, 93, 675–683. [Google Scholar] [CrossRef]
  120. Cukierman, A.L.; Platero, E.; Fernandez, M.E.; Bonelli, P.R. Potentialities of Graphene-Based Nanomaterials for Wastewater Treatment. In Smart Materials for Waste Water Applications; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2016; 2p. [Google Scholar]
  121. Li, L.; Fan, L.; Sun, M.; Qiu, H.; Li, X.; Duan, H.; Luo, C. Adsorbent for chromium removal based on graphene oxide functionalized with magnetic cyclodextrin–chitosan. Colloids Surf. B Biointerfaces 2013, 107, 76–83. [Google Scholar] [CrossRef]
  122. Weckhuysen, B.M.; Wachs, I.E.; Schoonheydt, R.A. Surface Chemistry and Spectroscopy of Chromium in Inorganic Oxides. Chem. Rev. 1996, 96, 3327–3350. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  123. Zhu, J.; Wei, S.; Gu, H.; Rapole, S.B.; Wang, Q.; Luo, Z.; Haldolaarachchige, N.; Young, D.P.; Guo, Z. One-Pot Synthesis of Magnetic Graphene Nanocomposites Decorated with Core@Double-shell Nanoparticles for Fast Chromium Removal. Environ. Sci. Technol. 2012, 46, 977–985. [Google Scholar] [CrossRef] [PubMed]
  124. Li, Y.; Zhou, Y.; Zhou, Y.; Lei, J.; Pu, S. Cyclodextrin modified filter paper for removal of cationic dyes/Cu ions from aqueous solutions. Water Sci. Technol. 2018, 78, 2553–2563. [Google Scholar] [CrossRef] [PubMed]
  125. Tan, K.B.; Vakili, M.; Horri, B.A.; Poh, P.E.; Abdullah, A.Z.; Salamatinia, B. Adsorption of dyes by nanomaterials: Recent developments and adsorption mechanisms. Sep. Purif. Technol. 2015, 150, 229–242. [Google Scholar] [CrossRef]
  126. Forgacs, E.; Cserhati, T.; Oros, G. Removal of synthetic dyes from wastewaters: A review. Environ. Int. 2004, 30, 953–971. [Google Scholar] [CrossRef]
  127. Yaseen, D.; Scholz, M. Textile dye wastewater characteristics and constituents of synthetic effluents: A critical review. Int. J. Environ. Sci. Technol. 2019, 16, 1193–1226. [Google Scholar] [CrossRef] [Green Version]
  128. Sivaram, N.; Barik, D. Toxic Waste from Leather Industries. In Energy from Toxic Organic Waste for Heat and Power Generation; Elsevier: Amsterdam, The Netherlands, 2019; pp. 55–67. [Google Scholar]
  129. Yamjala, K.; Nainar, M.S.; Ramisetti, N.R. Methods for the analysis of azo dyes employed in food industry–a review. Food Chem. 2016, 192, 813–824. [Google Scholar] [CrossRef]
  130. Yu, Z.; Li, F.; Sun, L. Recent advances in dye-sensitized photoelectrochemical cells for solar hydrogen production based on molecular components. Energy Environ. Sci. 2015, 8, 760–775. [Google Scholar] [CrossRef]
  131. Wong, Y.; Szeto, Y.; Cheung, W.; McKay, G. Adsorption of acid dyes on chitosan—equilibrium isotherm analyses. Process. Biochem. 2004, 39, 695–704. [Google Scholar] [CrossRef]
  132. Mani, S.; Chowdhary, P.; Bharagava, R.N. Textile wastewater dyes: Toxicity profile and treatment approaches. In Emerging and Eco-Friendly Approaches for Waste Management; Springer: Berlin/Heidelberg, Germany, 2019; pp. 219–244. [Google Scholar]
  133. Mahmoud, H.R.; Ibrahim, S.M.; El-Molla, S.A. Textile dye removal from aqueous solutions using cheap MgO nanomaterials: Adsorption kinetics, isotherm studies and thermodynamics. Adv. Powder Technol. 2016, 27, 223–231. [Google Scholar] [CrossRef]
  134. Asghar, A.; Raman, A.A.A.; Daud, W.M.A.W. Advanced oxidation processes for in-situ production of hydrogen peroxide/hydroxyl radical for textile wastewater treatment: A review. J. Clean. Prod. 2015, 87, 826–838. [Google Scholar] [CrossRef] [Green Version]
  135. Babuponnusami, A.; Muthukumar, K. A review on Fenton and improvements to the Fenton process for wastewater treatment. J. Environ. Chem. Eng. 2014, 2, 557–572. [Google Scholar] [CrossRef]
  136. Martinez-Huitle, C.A.; Rodrigo, M.A.; Sires, I.; Scialdone, O. Single and coupled electrochemical processes and reactors for the abatement of organic water pollutants: A critical review. Chem. Rev. 2015, 115, 13362–13407. [Google Scholar] [CrossRef] [PubMed]
  137. Mezohegyi, G.; van der Zee, F.P.; Font, J.; Fortuny, A.; Fabregat, A. Towards advanced aqueous dye removal processes: A short review on the versatile role of activated carbon. J. Environ. Manag. 2012, 102, 148–164. [Google Scholar] [CrossRef]
  138. Beslin, L. Textural Features-Indicators of Pollution. J. Environ. Anal. Toxicol. 2017, 7, 2161-0525.1000505. [Google Scholar] [CrossRef]
  139. Fei, Y.; Dexian, C.; Jie, M. Synthesis of Cyclodextrin-based Adsorbents and its Application for Organic Pollutant Removal from Water. Curr. Org. Chem. 2017, 21, 1976–1990. [Google Scholar] [CrossRef]
  140. Dsouza, R.N.; Pischel, U.; Nau, W.M. Fluorescent dyes and their supramolecular host/guest complexes with macrocycles in aqueous solution. Chem. Rev. 2011, 111, 7941–7980. [Google Scholar] [CrossRef]
  141. Liu, Y.; Chen, Y.; Li, B.; Wada, T.; Inoue, Y. Cooperative Multipoint Recognition of Organic Dyes by Bis (β-cyclodextrin) s with 2, 2′-Bipyridine-4, 4′-dicarboxy Tethers. Chem.–A Eur. J. 2001, 7, 2528–2535. [Google Scholar] [CrossRef]
  142. Hirai, H.; Toshima, N.; Uenoyama, S. Inclusion complex formation of cyclodextrin with large dye molecule. Polym. J. 1981, 13, 607. [Google Scholar] [CrossRef] [Green Version]
  143. Zhou, Y.; Hu, Y.; Huang, W.; Cheng, G.; Cui, C.; Lu, J. A novel amphoteric β-cyclodextrin-based adsorbent for simultaneous removal of cationic/anionic dyes and bisphenol A. Chem. Eng. J. 2018, 341, 47–57. [Google Scholar] [CrossRef]
  144. Zhao, J.; Zou, Z.; Ren, R.; Sui, X.; Mao, Z.; Xu, H.; Zhong, Y.; Zhang, L.; Wang, B. Chitosan adsorbent reinforced with citric acid modified β-cyclodextrin for highly efficient removal of dyes from reactive dyeing effluents. Eur. Polym. J. 2018, 108, 212–218. [Google Scholar] [CrossRef]
  145. Wang, Q.Z.; Chen, X.G.; Liu, N.; Wang, S.X.; Liu, C.S.; Meng, X.H.; Liu, C.G. Protonation constants of chitosan with different molecular weight and degree of deacetylation. Carbohydr. Polym. 2006, 65, 194–201. [Google Scholar] [CrossRef]
  146. Yu, D.; Wu, L.L.; Wang, J.F.; Tao, Y.W.; Shen, Y.T.; Liang, B.Y.; Wang, H. Preparation of β-Cyclodextrin/Chitosan Membranes and its Application in the Wastewater Treatment of Acid Dyes. Adv. Mater. Res. 2013, 726′731, 2558–2562. [Google Scholar] [CrossRef]
  147. Cova, T.F.; Cruz, S.M.; Valente, A.J.; Abreu, P.E.; Marques, J.M.; Pais, A.A. Aggregation of Cyclodextrins: Fundamental Issues and Applications. In Cyclodextrin Fundamentals, Reactivity and Analysis; Springer Nature Switzerland AG Basel: Basel, Switzerland, 2018; 10.5772/intechopen.73532. [Google Scholar]
  148. Mourtzis, N.; Cordoyiannis, G.; Nounesis, G.; Yannakopoulou, K. Single and Double Threading of Congo Red into γ-Cyclodextrin. Solution Structures and Thermodynamic Parameters of 1:1 and 2:2 Adducts, as Obtained from NMR Spectroscopy and Microcalorimetry. Supramol. Chem. 2003, 15, 639–649. [Google Scholar] [CrossRef]
  149. Hamai, S.; Satou, H. Inclusion complexes of cyclodextrins with Methylene Blue and Acid Orange 7 in aqueous solutions. Bull. Chem. Soc. Jpn. 2000, 73, 2207–2214. [Google Scholar] [CrossRef]
  150. Hao, Z.; Yi, Z.; Bowen, C.; Yaxing, L.; Sheng, Z. Preparing γ-Cyclodextrin-Immobilized Starch and the Study of its Removal Properties to Dyestuff from Wastewater. Pol. J. Environ. Stud. 2019, 28, 1701–1711. [Google Scholar] [CrossRef] [Green Version]
  151. Liu, Y.; Huang, S.; Zhao, X.; Zhang, Y. Fabrication of three-dimensional porous β-cyclodextrin/chitosan functionalized graphene oxide hydrogel for methylene blue removal from aqueous solution. Colloids Surf. A: Physicochem. Eng. Asp. 2018, 539, 1–10. [Google Scholar] [CrossRef]
  152. Fennell Evans, D.; Wennerstrom, H.; Rajagopalan, R. The colloidal domain: Where physics, chemistry, biology, and technology meet. J. Colloid Interface Sci. 1995, 172, 541. [Google Scholar]
  153. Lindman, B.; Karlstrom, G.; Stigsson, L. On the mechanism of dissolution of cellulose. J. Mol. Liq. 2010, 156, 76–81. [Google Scholar] [CrossRef]
  154. O’Connell, D.W.; Birkinshaw, C.; O’Dwyer, T.F. Heavy metal adsorbents prepared from the modification of cellulose: A review. Bioresour. Technol. 2008, 99, 6709–6724. [Google Scholar] [CrossRef]
  155. Yue, X.; Huang, J.; Jiang, F.; Lin, H.; Chen, Y. Synthesis and characterization of cellulose-based adsorbent for removal of anionic and cationic dyes. J. Eng. Fibers Fabr. 2019, 14, 155892501982819. [Google Scholar] [CrossRef] [Green Version]
  156. Zhang, F.; Chen, Y.; Lin, H.; Lu, Y. Synthesis of an amino-terminated hyperbranched polymer and its application in reactive dyeing on cotton as a salt-free dyeing auxiliary. Coloration Technol. 2007, 123, 351–357. [Google Scholar] [CrossRef]
  157. An, F.; Feng, X.; Gao, B. Adsorption of aniline from aqueous solution using novel adsorbent PAM/SiO2. Chem. Eng. J. 2009, 151, 183–187. [Google Scholar] [CrossRef]
  158. Gross, K.C.; Seybold, P.G. Substituent effects on the physical properties and pKa of aniline. Int. J. Quantum Chem 2000, 80, 1107–1115. [Google Scholar] [CrossRef]
  159. Ghemati, D.; Aliouche, D. Study of the Sorption of Synthetic Dyes from Aqueous Solution onto Cellulosic Modified Polymer. J. Water Chem. Technol. 2014, 36, 265–272. [Google Scholar] [CrossRef]
  160. Gao, S.; Jiang, J.-Y.; Liu, Y.-Y.; Fu, Y.; Zhao, L.-X.; Li, C.-Y.; Ye, F. Enhanced Solubility, Stability, and Herbicidal Activity of the Herbicide Diuron by Complex Formation with β-Cyclodextrin. Polymers 2019, 11, 1396. [Google Scholar] [CrossRef] [Green Version]
  161. Junthip, J.; Jumrernsuk, N.; Klongklaw, P.; Promma, W.; Sonsupap, S. Removal of paraquat herbicide from water by textile coated with anionic cyclodextrin polymer. SN Appl. Sci. 2018, 1, 106. [Google Scholar] [CrossRef] [Green Version]
  162. Xiao, P.; Dudal, Y.; Corvini, P.F.X.; Shahgaldian, P. Polymeric cyclodextrin-based nanoparticles: Synthesis, characterization and sorption properties of three selected pharmaceutically active ingredients. Polym. Chem. 2011, 2, 120–125. [Google Scholar] [CrossRef]
  163. Moulahcene, L.; Kebiche-Senhadji, O.; Skiba, M.; Lahiani-Skiba, M.; Oughlis-Hammache, F.; Benamor, M. Cyclodextrin polymers for ibuprofen extraction in aqueous solution: Recovery, separation, and characterization. Desalination Water Treat. 2016, 57, 11392–11402. [Google Scholar] [CrossRef]
  164. Moulahcene, L.; Skiba, M.; Senhadji, O.; Milon, N.; Benamor, M.; Lahiani-Skiba, M. Inclusion and removal of pharmaceutical residues from aqueous solution using water-insoluble cyclodextrin polymers. Chem. Eng. Res. Des. 2015, 97, 145–158. [Google Scholar] [CrossRef]
  165. Xiao, P.; Weibel, N.; Dudal, Y.; Corvini, P.F.X.; Shahgaldian, P. A cyclodextrin-based polymer for sensing diclofenac in water. J. Hazard. Mater. 2015, 299, 412–416. [Google Scholar] [CrossRef] [PubMed]
  166. Zhou, Y.; Cheng, G.; Chen, K.; Lu, J.; Lei, J.; Pu, S. Adsorptive removal of bisphenol A, chloroxylenol, and carbamazepine from water using a novel β-cyclodextrin polymer. Ecotoxicol. Environ. Saf. 2019, 170, 278–285. [Google Scholar] [CrossRef] [PubMed]
Scheme 1. Polymerization of cyclodextrin (CD) by crosslinking with epichlorohydrin (EPI).
Scheme 1. Polymerization of cyclodextrin (CD) by crosslinking with epichlorohydrin (EPI).
Polysaccharides 02 00002 sch001
Scheme 2. Diisocyanates for the synthesis of CD–polyurethane copolymers.
Scheme 2. Diisocyanates for the synthesis of CD–polyurethane copolymers.
Polysaccharides 02 00002 sch002
Scheme 3. β-CD polyester using adipoyl chloride as a crosslinking agent.
Scheme 3. β-CD polyester using adipoyl chloride as a crosslinking agent.
Polysaccharides 02 00002 sch003
Scheme 4. CD–polycarboxylic polymer using ethylenediamine tetraacetic acid (EDTA) as a crosslinker.
Scheme 4. CD–polycarboxylic polymer using ethylenediamine tetraacetic acid (EDTA) as a crosslinker.
Polysaccharides 02 00002 sch004
Scheme 5. Chitosan crosslinked with 1,6-hexamethylene diisocyanate (HDI) and modified with α-CD.
Scheme 5. Chitosan crosslinked with 1,6-hexamethylene diisocyanate (HDI) and modified with α-CD.
Polysaccharides 02 00002 sch005
Scheme 6. Synthesis of β-CD–chitosan–Fe3O4.
Scheme 6. Synthesis of β-CD–chitosan–Fe3O4.
Polysaccharides 02 00002 sch006
Scheme 7. Synthesis of magnetic β-CD–chitosan–graphene oxide (GO).
Scheme 7. Synthesis of magnetic β-CD–chitosan–graphene oxide (GO).
Polysaccharides 02 00002 sch007
Scheme 8. Structures of (a) graphene, (b) graphene oxide, and (c) chitosan.
Scheme 8. Structures of (a) graphene, (b) graphene oxide, and (c) chitosan.
Polysaccharides 02 00002 sch008
Scheme 9. Pine sawdust modified with β-CD. Adapted with permission from [106]. Copyright (2020) American Chemical Society.
Scheme 9. Pine sawdust modified with β-CD. Adapted with permission from [106]. Copyright (2020) American Chemical Society.
Polysaccharides 02 00002 sch009

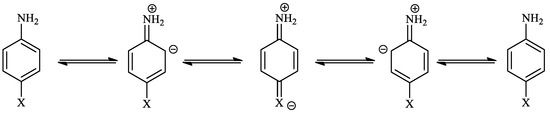

Scheme 10. Resonance structures for aniline derivatives.
Scheme 10. Resonance structures for aniline derivatives.
Polysaccharides 02 00002 sch010
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Cova, T.F.; Murtinho, D.; Aguado, R.; Pais, A.A.C.C.; Valente, A.J.M. Cyclodextrin Polymers and Cyclodextrin-Containing Polysaccharides for Water Remediation. Polysaccharides 2021, 2, 16-38.

AMA Style

Cova TF, Murtinho D, Aguado R, Pais AACC, Valente AJM. Cyclodextrin Polymers and Cyclodextrin-Containing Polysaccharides for Water Remediation. Polysaccharides. 2021; 2(1):16-38.

Chicago/Turabian Style

Cova, Tânia F., Dina Murtinho, Roberto Aguado, Alberto A. C. C. Pais, and Artur J. M. Valente. 2021. "Cyclodextrin Polymers and Cyclodextrin-Containing Polysaccharides for Water Remediation" Polysaccharides 2, no. 1: 16-38.

Article Metrics

Back to TopTop
