Experimental Design for the Propagation of Smoldering Fires in Corn Powder and Cornflour

Programa de Engenharia Ambiental, Escola Politécnica da Universidade Federal do Rio de Janeiro, Av. Athos da Silveira Ramos, 149-Ilha do Fundão-Centro de Tecnologia-Bloco D, Rio de Janeiro 21941-909, Brazil
Departament d’Enginyeria Mecànica, Universitat Rovira i Virgili, Av. Paisos Catalans 26, 43007 Tarragona, Spain
Barcelona School of Building Construction, Universitat Politècnica de Catalunya, Av. Doctor Marañon 44, 08028 Barcelona, Spain
Pós-Graduação em Engenharia Civil, Universidade Federal Fluminense, Niterói 24210-240, Brazil
School of Engineering, Design and Built Environment, Western Sydney University, Locked Bag 1797, Penrith, NSW 2751, Australia
Departamento de Construção Civil, Escola Politécnica da Universidade Federal do Rio de Janeiro, Athos da Silveira Ramos, 149-Ilha do Fundão-Centro de Tecnologia-Bloco D, Sala 207, Rio de Janeiro 21941-909, Brazil
Author to whom correspondence should be addressed.
Eng 2023, 4(1), 15-30;
Submission received: 17 October 2022 / Revised: 8 December 2022 / Accepted: 19 December 2022 / Published: 24 December 2022
(This article belongs to the Special Issue Feature Papers in Eng 2022)


Corn is an example of an agricultural grain with a specific combustibility level and can promote smoldering fires during storage. This paper conducts an experimental design to numerically evaluate how three parameters, namely particle size, moisture, and air ventilation, influence the smoldering velocity. The work methodology is based on Minitab’s experimental design, which defined the number of experiments. First, a pile of corn is heated by a hot plate and a set of thermocouples registers all temperature variations. Then, a full-factorial experiment is implemented in Minitab to analyze the smoldering, which provides a mathematical equation to represent the smoldering velocity. The results indicate that particle size is the most influential factor in the reaction, with 35% and 45% variation between the dried and wet samples. Moreover, comparing the influence of moisture between corn flour and corn powder samples, a variation of 19% and 31% is observed; additionally, analyzing the ventilation as the only variant, we noticed variations of 15% and 17% for dried and wet corn flour, and 27% and 10% for dried and wet corn powder. Future studies may use the experimental design of this work to standardize the evaluation methodology and more effectively evaluate the relevant influencing factors.

1. Introduction

Smoldering is a term used to define the process of flameless burning within the material pores, with slow and low-temperature reactions [1], which is quite common in the storage of agricultural materials [2]. It can be defined as a process composed of two steps: pyrolysis and oxidation. The heat released by the oxidation step feeds the pyrolysis step, and if the pile height of the stored material is large enough not to dissipate heat and keep it stored, the reaction may be sustained for days or weeks. According to Ohlemiller [3], smoldering constitutes a severe fire hazard for two reasons: smoldering yields a higher fuel conversion to toxic compounds and allows a pathway to flaming combustion. A combustible powder or dust can react with oxygen and propagate the reaction without flaming, with velocities of mm/hour or cm/hour, evolving to glowing, flaming, or even explosive combustion [4]. Therefore, comprehensive knowledge of smoldering is essential to prevent facility accidents.
Some materials are susceptible to smoldering hazards triggered by self-heating or by an external source during storage [5]. Some grains, such as corn, have characteristics that may develop a smoldering reaction due to their level of combustibility. The physical and chemical features of the material and external conditions directly influence smoldering development [6]. The most evaluated characteristics of these materials are particle size and moisture; their variations may increase or decrease the propagation speed rate [2,7].
Although smoldering combustion is a common hazard in agricultural storage, there are few studies regarding the smoldering propagation phenomena and a lack of studies in agricultural materials, especially on corn grains. Most studies focus on other materials with a higher level of combustibility, such as sawdust, biomass, foam, and coal. This paper aims to fill this gap by developing an upward smoldering reaction in a corn pile. The novelty of this work lies in proposing a framework to develop a design of experiments (DoE) to understand the variables’ impact and characterize the smoldering velocity inside the pile. Since the reaction propagation depends on material characteristics and external conditions, this work evaluates the influence of three factors in a full factorial experiment—particle size, moisture content, and air ventilation. The present study investigates how granularity, moisture, and ventilation affect smoldering fire propagation. In order to make the problem reliable and reproducible, DoE was designed and developed via Minitab software, which can offer a statistical representation for the extrapolation of the experiments and provide a mathematical equation with the three dependent variables. Following that, it allows the determination of smoldering velocity for different conditions.

2. Theoretical Foundation

Faced with the constant risk in industrial facilities, researchers have perceived the need to assess the hazard level of particulate materials igniting and developing smoldering combustion or flaming combustion. Furthermore, if accumulated on surfaces with high temperatures, even small layers of particulate material, such as powder or dust, may undergo thermal ignition, further leading to smoldering [8]. Over the years, this subject has been approached theoretically as well as experimentally. Palmer [9] was one of the pioneers and experimentally investigated the evolution of smoldering propagation within dust deposits up to 85 cm deep of cork dust, wood dust, and grass dust and measured the smoldering velocities and the temperatures along with the sample height. Another important study was done by Leish et al. [10], who investigated the spread of smoldering on grain, grain dust (corn and soybean), and wood dust under the influence of forced horizontal airflow.
As depicted by Ogle [11], smoldering requires four necessary conditions: a porous fuel that forms a solid char, an oxidizer, an ignition source with minimum ignition energy, and a minimum thickness for the deposit focusing on the thermal insulation to store the energy released by oxidation, which will increase the temperature within the fuel mass. Therefore, any changes in these four conditions or the external conditions will affect the smoldering propagation rate [12]. For this reason, many authors aimed to study the variations in the characteristics of both stored materials and external conditions. The essential features studied are particle size, moisture content, sample height, and oxygen supply [13,14,15]; their variations may increase or decrease the propagation speed. For example, El-Sayed and Abdel-Latif [4] investigated the critical temperature and critical flux for igniting a layer of corn flour dust and a mixture of wheat flour and corn flour (80% wheat flour + 20% corn flour) on a hot plate. In another work, El-Sayed e Khass [13] determined the minimum hot surface temperature for dust ignition, the ignition temperature of dust itself, and the ignition times and evaluated the effects of the dust particle size and the rice sample size on ignition parameters. Chunmiao et al. [16] in their studies proved that increasing the particle size of magnesium powder from 6 to 173 µm increased the minimum ignition temperature and increasing the thickness of the dust layer decreased this temperature as well. Sesseng et al. [17] performed some experiments with wood chips to evaluate how the granularity affects smoldering fire. All the aforementioned studies and other similar works elucidated the importance of studying the particle size and the minimum temperature at which dust layers or material piles ignite and can lead to smoldering fires.
Regarding the experiments assessing the spread progress, only a limited number of studies addressed the smoldering propagation in fuel beds, which can be divided according to the location of the ignition source and the direction of the spread rate: upward and downward. Palmer’s study [9] concluded that sustained upward smoldering could be obtained inside dust deposits up to 85 cm deep. The propagation time was approximately proportional to the square of the depth of the dust. Torero and Fernandez-Pello [18] conducted an experimental study of upward smoldering of polyurethane foam and evaluated the smoldering velocity and reaction temperature as a function of the fuel height. He and Behrendt [19] compared theoretically natural upward and downward smoldering of piled sawdust char powder. Their results showed that upward smoldering was more than ten times faster, and the temperature inside the fuel bed was significantly higher lower than downward. Then, they experimentally investigated the natural smoldering of wood char granules in a packed bed and concluded that downward smoldering was stable.
In contrast, upward smoldering was affected by many factors like the fuel bed height, particle size, and ambient conditions [20]. He et al. experimentally investigated the effects of fuel type, moisture content, and particle size on the natural downward smoldering of biomass powder. Hagen et al. [21] studied the ignition temperature for smoldering in cotton for several densities both experimentally and theoretically, and showed that the ignition temperature decreases with increasing density.
Throughout the years, the mechanisms that affect the spread of smoldering fire have been studied. Agricultural materials are studied in smaller proportions when compared with these other materials because they are not considered as combustible. However, this fact does not negate the possibility of smoldering during storage. Therefore, the present study aims to experimentally evaluate a particular corn pile while varying three variables used in previous works with other materials. Two material variables were considered, particle size and moisture and an external variable referring to air ventilation on the sample. For the analysis, a full factorial experiment was carried out via Minitab (v. 17). Three influencing variables were chosen to evaluate the smoldering propagation velocity, and each factor was varied to identify the most influential factor.

3. Experimental Methodology

The methodology of this work consisted of five steps: planning, preliminary, performance, graph plots, and Minitab evaluation, as exemplified in Figure 1.

3.1. Smoldering Schematic Setup

The experimental setup adopted in this study is based on previous works that investigated the upward smoldering process with other combustible materials on a similar experimental setup [22,23,24], depicted in Figure 2.
The setup comprises an electric panel, a hot plate, a cylindrical reactor, eight thermocouples, and a data logger. The reactor consisted of a perforated cylindrical structure made of steel, 80 mm in diameter (D) and 120 mm in high (L), controlled by the electric panel. The panel is set to achieve a power of 550 W, and this can approximately elevate the hot plate temperature to 350 °C. Preliminary experiments that do not consider the use of the electric panel demonstrate that results could be impacted. Therefore, it ensures that there were no significant variations in hot plate temperature throughout the experiment.
During the tests, temperatures at different heights along the central axis of the reactor are measured with seven type K thermocouples, which are placed 3, 15, 30, 45, 60, 75, and 90 mm away from the hot plate. Furthermore, another thermocouple was positioned directly on the hot plate. After recording the temperatures, the smoldering velocities and the maximum temperature achieved in the burning process are determined.

3.2. Material Preparation

In order to perform the experimental planning, corn grains produced in Spain were used for these experiments, which were then crushed and sieved in different diameters. Thus, two samples were selected, and their particle diameter and particle distribution were estimated by laser diffraction (Table 1).
Before the onset of the experiments, the material was separated into two environments to acquire two levels of moisture content. The first environment was a climatic chamber with a temperature of 16 °C that allowed moisture of 15%. The other one was a desiccator with a temperature of 100 °C that eliminated the moisture content of the corn samples. All samples were maintained at both environments for at least three days.

3.3. Design of Experiments

The objective of the experimental design is to perform a sequence of tests with some changes in the input variables of a process, which allows one to observe and identify corresponding changes in the output response. The core of this work was developed based on DoE defined by Minitab. As shown in Figure 3, its procedure is envisioned as a combination of influencing factors affecting a process and transforming an input material into an output product.
The sixteen experiments were performed, varying the three influencing factors chosen. For each particle diameter, two moisture content conditions were evaluated (named as dried and wet), and with and without a ventilation system. Table 2 shows the eight experiments that were conducted twice.

4. Results and Discussion

4.1. Smoldering Combustion Analysis

Many specific behaviors of propagation development were noticed during the experiment, similar to those observed by other authors [19,22]. Figure 4 depicts a sequence of images taken during the test development of the corn flour sample. First, the fuel material was gently packed into the cylindrical reactor, avoiding the mass compaction located on the hot plate, and the thermocouples were connected to it (A). After the heating onset, some displacement, a contraction at the bottom and cracks on the top, indicated the drying step progress and the shrinkage of the material (B). Once the plate heating started, the heat generated by the plate began to heat the first layer by conduction, then the following layers were heated by the previous layers as the reaction front moved upwards. The occurrence of three basic steps can explain the smoldering process: pre-heating and drying of corn material, pyrolysis reaction transforming the fuel into char, and char oxidation reaction releasing more heat to the sample material. After 4 h, the electrical panel was turned off, and the heating source was interrupted. If the heat generated by the oxidation step is sufficient, the heat propagation continues, and the upward smoldering process remains active. However, the smoldering process ceases if the heat released is not higher than the heat absorbed by the heating and pyrolysis steps. As illustrated in some works [17], the appearance of a glowing mass may occur during the smoldering process, which was also observed during some experiments (C), especially experiments with dry corn flour. Additionally, the presence of smoke (D) was observed during the whole process. After the burning process, part of the material turned to ashes and char residue (E) or if the burning was incomplete, unburnt material.
As previously mentioned, seven thermocouples measured the evolution of the temperatures inside the corn bed. For each case, a graph was plotted indicating the temperature variation along the central axis of the reactor. As the heating, pyrolysis, and oxidation steps progressed, the heat was propagated toward the top of the sample, and temperatures at different heights of the corn bed were recorded. Subsequently, the graphs exhibited this temporal variation of the seven thermocouples within the sample and some differences and patterns could be observed.
Figure 5 displays four graphs showing the temporal evolutions registered in the tests with corn flour; each graph varied the moisture content and the ventilation condition. Figure 5A,B show the temporal evolutions of the temperature of the thermocouples obtained in an experiment with dried (CF-Dried) and wet corn flour (CF-Wet), while Figure 5C,D show the experiment with the air ventilation system for dried (CF-Dried-V) and wet corn flour (CF-Wet-V).
In all cases, it is possible to verify three specific zones. First, the pre-heating and drying zone is characterized by constant temperatures around 100 °C, followed by a temperature increase relative to the pyrolysis step. Finally, the sustained high temperatures due to the oxidation step ensure the smoldering propagation. Although comparing the wet and dried samples, this pre-heating zone is apparently shorter than the wet ones. This difference is more expressive in the layers of the corn flour bed closer to the top. After the pre-heating step, the propagated heat feeds the pyrolysis reaction in the lower layers. As the reaction rises toward the top, the layers underneath the top initiate the oxidation step. The temporal evolution of the temperatures registers a more significant development in the dried samples. However, the wet samples remain burning for longer.
Some researchers describe smoldering as a slow process, i.e., temperatures within a pile of particulate material take time to reach the temperature at which heat will be sufficient to self-sustain the propagation. For this reason, the corn flour layers packed in the cylindrical structure took a long time to reach the temperature to initiate the ignition and maintain the burning process. With the addition of the ventilation system to the samples with the two different moisture levels, a slight reduction in heat propagation is observed, which slows the temperature rise along the central axis of the fuel bed. At the initial pre-heating and drying phase, air ventilation influences the propagation time of the wet sample (CF-Wet-V), which extends the drying phase of the sample. Another critical point is the burning extension after switching off the heating plate. Ventilated samples increase the burning time at both moisture levels, approximately 1 h for dried corn flour (CF-Dried-V) and nearly 2 h for wet corn flour (CF-Wet-V).
At the sample’s middle point (60 mm), it is observed that the temperature of the CF-Dried and CF-Wet samples at this point only reached the temperature of the hot plate at 2 h and 19 min, and 2 h and 42 min, respectively. With the addition of the ventilation, the values increase to 2 h and 38 min and 3 h and 21 min. The heat-dissipating effect is noted for this particle size and not the reaction acceleration due to more oxygen supplied. Another point that can be compared and evaluated is the point located 90 mm away from the heating plate, where the last thermocouple is placed. Regarding the influence of the ventilation system, there is a one-hour increase in the burning process for the dried corn flour sample and a one-hour and thirty-minute increase for the wet corn flour sample.
The graphs of corn flour exhibit differences in the maximum temperature achieved and the extension of the smoldering process. Although the CF-Dried (A) presents higher temperatures, CF-Wet-V (D) indicates the most extensive spread of smoldering propagation. After the hot plate shutdown, it can be noticed that smoldering propagation continued until the top of both samples, which indicates that all the fuel material is consumed.
Similar to what is presented and discussed above, Figure 6 also shows the temporal variation of temperature along the central axis of a corn powder bed, with a larger particle diameter than corn flour samples. Figure 6A,B show the temporal evolutions of the temperature of the thermocouples obtained in an experiment with dried (CP-Dried) and wet corn powder (CP-Wet), while Figure 6C,D show the experiment with the air ventilation system for dried (CP-Dried-V) and wet corn powder (CP-Wet-V).
These tests also present the pre-heating and drying, pyrolysis, and oxidation phases similar to the corn flour tests. The dried samples (CP-Dried and CP-Dried-V) show a less-defined drying phase than the wet samples (CP-Wet and CP-Wet-V). After the drying phase, unlike the corn flour samples, the temperatures of these corn powder samples slowly increase until they reach the hot plate temperature. Due to the larger particle size, the heat is not propagated at the same velocity as corn flour. In the case of dried corn powder, smoldering spread only up to 60 mm and 75 mm, while in the case of wet corn powder, the spread does not reach half of the fuel bed. This fact indicates that the upper layers of the fuel bed cannot sustain the reaction because the heat generated by the oxidation step is not sufficient to maintain the pyrolysis reaction in the upper layers. The addition of the air ventilation system does not extend the samples’ burning time, which is not observed in the corn flour samples (CF-Dried-V and CF-Wet-V). However, the air ventilation affects the rise in temperatures in the CP-Dried-V case, which makes it difficult to reach the temperature of the hot plate as well, while in the CP-Wet-V case, there is very little influence of this factor. Therefore, the dissipative effect of the heat has more impact on the dried sample, being almost inexpressible in the wet sample.
Evaluating the sample’s middle-point for the corn powder graphs, the temperatures of CP-Dried and CP-Dried-V cases only reach the hot plate temperature at 3 h and 3 h and 47 min, respectively. However, the middle-point of the wet samples does not achieve the hot plate temperature, and they approximately reach 200 °C.
The graphs show that the smoldering ceases before it reaches the sample top. Comparing the two cases with the dried sample (CP-Dried and CP-Dried-V), we observe that the burning time is approximately the same, which ends almost 7 h after the hot plate shutdown. However, the height attained by smoldering propagation differs by at least 15 mm, i.e., the distance between thermocouples T5 and T6. In the cases with wet samples (CP-Wet and CP-Wet-V), the smoldering process extends to 45 mm upwards and remains burning for almost 4 h after the plate has been turned off.
These results exhibit similarities in propagation and extension of the smoldering, indicating the low influence of ventilation on this particle size. Although the CP-Dried sample (A) has the highest temperatures and longest burning time, the combustion process is incomplete, and the reaction does not entirely consume the corn powder.
The propagation rate of a smoldering process is more shallow than the rate of a flame combustion process. In the tests performed, the corn bed layers take a long time to reach the hot plate temperature, but they generate enough heat to continue feeding the process. Half of the sample takes more than 2 h to exceed the hot plate temperature, as with the CF-Dried sample, and more than 3 h with CP-Dried. In addition, the wet corn flour samples take a long time to reach high temperatures close to the hot plate’s temperatures, as they remain longer in the drying phase. In contrast, wet corn powder samples do not develop smoldering in the layers located in the middle of the sample. Thus, the smoldering propagation is complete only for the corn flour samples, while the corn powder develops a partial smoldering.
The velocity at which smoldering propagates was defined according to the data gathered from the temperature evolution graphs. First, for each thermocouple positioned along the central axis of the fuel bed, the time taken to reach a temperature of 350 °C was verified. Then, with all the points of each thermocouple, a regression line was built, and the slope of the regression line quantifies the smoldering velocities. This process was repeated for each test, allowing us to achieve each condition’s smoldering velocity.
Comparisons of the smoldering velocities acquired varying the three factors adopted to evaluate the process show that the smaller the particle size, the greater the smoldering velocity, as depicted in Figure 7. The corn flour propagation rates for dried and wet cases are 0.55 and 0.45 mm/min. In the meantime, the velocities of the corn powder samples achieve 0.36 and 0.25 mm/min, respectively. A comparison between the two-particle size samples with the same moisture content shows a variation of 35% for the dried samples and 45% for the wet samples. When comparing the influence of moisture, a variation of 19% for corn flour and 31% for corn powder is observed, indicating a more significant impact of this factor in corn powder samples. The air ventilation reduces the velocities of all samples. The corn flour samples, CF-Dried-V and CF-Wet-V, show velocity values of 0.47 and 0.37 mm/min, and the corn powder samples, CP-Dried-V and CP-Wet-V, registered 0.26 and 0.23 mm/min. This ventilation leads to 15% and 17% variations for dry and wet corn flour, and 27% and 10% for dry and wet corn powder. Although adding an airstream can provide more oxygen and thus promote a more intense combustion scenario, the tested cases indicate the opposite showing a slower propagation velocity.
Rein [1] pointed out that a burning reaction usually spreads around 1 mm/min despite the variation between the chemical and physical properties of the fuel, which is utterly slower than flame propagation. The experiments performed in this work present slightly slower smoldering velocities between 0.23 mm/min and 0.55 mm/min. Although these values are lower than the value Rein pointed out, smoldering remains a hazard when storing corn materials.
As previously described in this work and by several authors, the smoldering process is known to have a slow burn propagation compared with flaming combustion. For this reason, temperatures along the central axis of the fuel bed take a long time to reach the hot plate temperature and then to sustain the reaction through heat-generating and storage. The temporal evolution of the temperatures inside the corn bed presents a behavior very similar to that shown by Hagen et al. in their experiments in cotton samples, which required an extended period for smoldering development [21]. In the first minutes of the experiments, the graphs have a drying step with little temperature change, followed by the pyrolysis and oxidation step with a rapid temperature increase sustained even after the hot plate shutdown. The temperature decay finally indicates the termination of the char oxidation.
Inside the corn fuel bed, the heat generated by the hot plate is responsible for the beginning of the drying of the sample material and then for the pyrolysis reaction in the first layers at the bottom of the sample, and finally followed by the oxidation reaction that releases more heat to the corn material. The smoldering process requires sufficient heat to turn all the material into reactive char for the oxidation step. As the reaction spreads upwards, the heat generated by the hot plate and pyrolysis step is stored, and thus the smoldering process continues to transfer heat to the upper layers. If the heat generated by the hot plate and the oxidation step of the lower layers is insufficient, the process ceases. Thus, part of the experiments conducted in this work develops total smoldering. Another part has partial smoldering because the heat stored in the material is insufficient to continue feeding the pyrolysis step.

4.2. Minitab Analysis

The tests of this work were elaborated according to DoE in Minitab to evaluate the smoldering velocity behavior in a corn bed. As previously mentioned, a full factorial experiment was selected, and three influencing factors were defined as the variables to evaluate the smoldering velocity. Each of these factors received two values. In addition, it was determined that each test would be reproduced twice. Therefore, the minimum number of tests required for this full factorial experiment was sixteen tests. Table 3 indicates the values of the selected factors, the smoldering velocity, and the smoldering level. During the tests and the graphs of the temporal evolution of the thermocouple temperatures, not all tests showed a complete smoldering level to the top of the corn bed. Only the corn flour samples developed a complete reaction. At the end of the tests, it could be visually verified that some samples were burned entirely, leaving only ash remaining. In contrast, others were partially burnt, with char and unburnt material as the residue.
The tests were performed, varying the selected factors according to the values specified. After running the tests and calculating smoldering velocity in each case, all data were inserted in Minitab to continue with the DOE analysis. Afterward, it was possible to produce some graphs in this software to analyze the influencing factors and smoldering velocity.
The data set inserted in Minitab assisted in formulating a mathematical equation characterizing the smoldering phenomenon in corn material with the three variables chosen. However, as the linear regression model is not always appropriate for the specified data set, it is advisable to evaluate the model’s suitability by examining residual plots. One of the first graphs produced in Minitab was the residual plots, which indicate the dataset’s quality to specify smoldering velocity (Figure 8).
The normal probability plot of these residuals is one of the four graphs presented in Figure 8. Most of the points in this plot fit precisely along the straight line, even though some do not fall precisely above the line, which indicates minor problems with the normality assumption. Still, no severe abnormality in the data set is suspected. Therefore, the data can be considered satisfactory for the analysis. Another graph related to residual plots is the histogram that shows a distribution similar to a Gaussian curve. This graph allows us to conclude that the number of tests reproduced is sufficient to guarantee that a normal distribution can represent the smoldering process. Finally, the last two graphs of residuals versus fitted values and residuals versus the observation order do not reveal any unusual or diagnostic pattern.
Figure 9 shows the Pareto Chart of the standardized effects that evaluate the effects of each influencing factor on smoldering velocity, which compares the relative magnitude and the statistical significance of both main and interaction effects. The standardized effect compares the t-statistic from each factor to the value corresponding to the error. This graph defines the particle diameter as factor A, the moisture content as factor B, and the air ventilation system as factor C. This graph evaluates the effects of each factor alone and the effects of more than one factor acting on the process. The factor with the most significant influence on smoldering propagation is the particle diameter, followed by the moisture content of the material. It is worth emphasizing that the impact of the material size is almost twice more significant than the influence of the moisture content. Additionally, according to the Pareto Chart, the effect of two or more factors together is not so relevant. This fact can also be verified in the set of interaction plots for the smoldering velocity (Figure 10). No factor presents an interaction between them.
Figure 10 presents a set of three graphs with interactions between two factors (particle diameter versus moisture content, particle diameter versus air ventilation, and moisture content versus air ventilation). There is an absence of interactions between the factors that can be observed in the three plots. As shown in the temporal evolution of temperatures graphs, this factor interaction graph indicates that small particle diameters, low moisture content, and low air ventilation provided higher smoldering propagation velocities. Additionally, it can be observed that when the particle diameter or the moisture of the material achieves higher values, the two levels of ventilation system values tend to come closer and have closer smoldering velocities.
Figure 11 depicts the contour plots showing the relationship between two factors. Similar to the interaction plot, this graph also analyzes the interactions of two factors in the desired response, which is the smoldering velocity. Moreover, this set of plots presents a color degree, indicating ranges with different velocity values, which allows the evaluation of the extent of each range and even the specification of other cases between the limits of each level of the influencing factors. For example, the moisture content versus particle diameter plot shows more bands than the other two contour plots. It can be explained by the fact that these two factors are the most expressive in velocity.
These contour plots can analyze how variations between the factors’ levels influence the smoldering and predict the best and worst cases where the smoldering propagation presents smaller values. The best case is in the dark blue band with greater diameter particles, higher moisture content, and higher air ventilation levels that exhibit bands of areas with lower velocities. Additionally, it is also possible to find out other values of the factors that fit in the same band. In the three graphs, we can see that slight variations in the axis regarding particle diameter lead to significant velocity changes and thus change the velocity bands. However, when evaluating the axes of the other two factors (moisture and air ventilation), it was observed that only a few velocity bands covered almost all values between the upper and lower levels of these two factors.
The moisture versus diameter plot has lower and higher velocity ranges, less than 0.25 mm/min and higher than 0.5 mm/min. In the meantime, the ventilation versus humidity plot indicates a smaller number of bands and a larger length than the other graphs. As it is possible to notice in the first contour plot, we can obtain the same velocity inferior to 0.25 mm/min if we have a level of moisture superior to 10% and a particle diameter slightly smaller than 0.5 mm. The following bands are broader and include moistures varying from 0% until 15% and a diameter greater than 0.300 mm. In the second and third contour plots, fewer bands appeared, and the blue bands are more vertical, i.e., for the same value on the x-axis, we get the same velocity if we change the values of the y-axis. The ventilation versus diameter plot shows that for a given range of diameter higher than 0.3 mm, ventilation may vary within the specified limits between 0 and 0.1 m/s, and the smoldering velocity will achieve the same value. The ventilation versus moisture plot indicates that with moisture higher than 7%, air ventilation can also change between the upper and lower limit levels. However, only the first allows the best factor combination to find the lowest smoldering velocity.
In addition to the plots, running the experimental design in Minitab provides a linear regression equation (Equation (1)) based on the data plugged into the software. The equation represents the contributions of the three influenced factors (Diameter—D, Moisture—M, Air ventilation—V) along with the three two-factor interactions (DM, MV, DV) and one three-factor interaction (DMV). Thus, this linear regression equation provided by the full-factorial experiment can be used to represent the smoldering process. Therefore, considering these factors, it will be possible to obtain the value of the smoldering rate for corn material from any set of values of these parameters. That can be helpful for future studies investigating the smoldering process with this material and similar conditions.
V = 7.445 × 10−2 − 7.740 × 10−2 × D − 0.380 × 10−3 × M − 0.790 × 10−1 × V − 0.960 × 10−3 × D × M + 2.60 × 10−2 × D × V − 0.273 × 10−2 × M × V + 1.160 × 10−2 × D × M × V
In this work, three factors are analyzed to evaluate the development of the smoldering process. First, the smaller the particle size, the larger the surface area and the greater the oxygen attack to the oxidation step. Therefore, the smoldering reaction in corn flour samples develops faster than in corn powder samples, which perfectly agrees with other literature experiments, demonstrating that granularity significantly affects the smoldering dynamics [17].
Second, regarding the material moisture, the dried samples do not need to absorb the initial heat of the drying stage. Instead, this heat was conducted to the next step (pyrolysis stage), which promoted higher temperatures throughout the corn bed. Correspondingly, the work performed by Huang et al. [14] also concluded that smoldering spread decreases with moisture content, and above a specific threshold, the experiment exhibited an incomplete burning reaction. Furthermore, another work also corroborates that increasing the moisture content reduces the propagation reaction during the drying step [23].
Third, the air ventilation system applied in the experiments had more dissipative heat than supplying oxygen to the oxidation reaction, reducing the velocity propagation. Experiments by Urban et al. [24] used an airflow of 0.5 m/s above the fuel bed. It demonstrated the importance of this factor and how it can affect the ignition process and establish a smoldering process.
The plots obtained by the experimental design indicate the influence and interactions of each adopted factor. Furthermore, it is possible to evaluate all the variations and impacts of the factors on the smoldering velocity. For example, the particle size is more influenceable on smoldering velocity than the other two factors. This work focused on applying an experimental design to investigate the behavior of smoldering combustion in corn grain. As a limitation and a suggestion for future works, one can consider different conditions and other factors to evaluate the smoldering velocity, which can be compared with the main outcomes of this paper.

5. Conclusions

This work proposed a new methodological framework evaluating the effects of the influencing factors on smoldering propagation—particle diameter, moisture content, and air ventilation, which was performed using the Design of Experiments in Minitab software. The experiments showed that upward propagation succeeded vertically from the base sample until insufficient heat exchange tried to sustain the process. The results plotted on the temperature evolution graphs and the graphs generated by the full factorial experiment indicated that the factor with the most significant influence on the propagation rate was the particle diameter, which represented a variation of 35% among the dried samples and 45% among the wet samples.
Moreover, comparing the influence of moisture between the corn flour and corn powder samples, a variation of 19% and 31% was observed, which indicated a more significant influence of this factor in corn powder samples. Regarding the ventilation influence as the only variant, 15% and 17% variations were noticed for dried and wet corn flour, and 27% and 10% for dried and wet corn powder. Additionally, the proposed framework considering the experimental planning developed a linear regression equation to represent the smoldering process in corn grain particles with the three influencing factors chosen, which can be used to extrapolate the results and obtain the smoldering velocities for other cases. Future work may use the proposed methodology to study other material properties that affect the propagation rate.

Author Contributions

Conceptualization, formal analysis, investigation, data curation, validation, writing—original draft, writing—review & editing: A.C.R., Writing—review & editing: I.T.; Writing—review & editing: A.M.L.; Writing—review & editing: L.H.; Writing—review & editing: C.A.P.S., Writing—review & editing: V.W.Y.T.; Formal analysis, investigation, data curation, writing—original draft, Writing—review & editing, validation, funding acquisition, project administration, supervision: A.H. All authors have read and agreed to the published version of the manuscript.


This research received financial support from CNPq (Brazilian National Council for Scientific and Technological Development) and CNE FAPERJ 2019-E-26/202.568/2019 (245653) Fundação de Amparo à Pesquisa do Estado do Rio de Janeiro.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Some or all data used are proprietary or is confidential in nature and thus may only be provided with restrictions, stated clearly in the article.


The authors want to acknowledge the financial support from CNPq and CNE FAPERJ.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Rein, G. SFPE Handbook of Fire Protection Engineering, 5th ed.; Springer: Berlin/Heidelberg, Germany, 2016. [Google Scholar]
  2. Wang, J.; Xing, W.; Huang, X.; Jin, X.; Yu, H.; Wang, J.; Song, L.; Zeng, W.; Hu, Y. Smoldering of Storage Rice: Effect of Moldy Degree and Moisture Content. Combust. Sci. Technol. 2022, 194, 1395–1407. [Google Scholar] [CrossRef]
  3. Ohlemiller, T. Smoldering Combustion; Springer: New York, NY, USA, 1986; Volume 38. [Google Scholar]
  4. El-Sayed, S.; Abdel-Latif, A. Smoldering combustion of dust layer on hot surface. J. Loss Prev. Process Ind. 2000, 13, 509–517. [Google Scholar] [CrossRef]
  5. Liang, Z.; Lin, S.; Huang, X. Smoldering ignition and emission dynamics of wood under low irradiation. Fire Mater. 2022, 1–11. [Google Scholar] [CrossRef]
  6. Ross, A.; Blunck, D. The Influence of Particle Size in Influencing Smoldering Behavior Through Porous Woody Fuel Beds. Combust. Sci. Technol. 2022, 1–23. [Google Scholar] [CrossRef]
  7. Rosa, A.; Hammad, A.; Qualharini, E.; Vazquez, E.; Haddad, A. Smoldering fire propagation in corn grain: An experimental study. Results Eng. 2020, 7, 100151. [Google Scholar] [CrossRef]
  8. Joshi, K. Factors Governing Spontaneous Ignition of Combustible Dusts. Worcest. Polytech. Inst. 2012. [Google Scholar]
  9. Palmer, K. Smouldering Combustion in Dusts and Fibrous Materials. Combust. Flame 1957, 1, 129–154. [Google Scholar] [CrossRef]
  10. Leisch, S.; Kauffman, C.; Sichel, M. Smoldering Combustion in Horizontal Dust Layers; Elsevier: Amsterdam, The Netherlands, 1984; pp. 1601–1610. [Google Scholar]
  11. Ogle, R. Dust Explosion Dynamics; Butterworth-Heinemann: Oxford, UK, 2016. [Google Scholar]
  12. Cobian-Iñiguez, J.; Richter, F.; Carmignani, L.; Liveretou, C.; Xiong, H.; Stephens, S.; Finney, M.; Gollner, M.; Fernandez-Pello, C. Wind Effects on Smoldering Behavior of Simulated Wildland Fuels. Combust. Sci. Technol. 2022, 1–18. [Google Scholar] [CrossRef]
  13. El-Sayed, S.; Khass, T. Smoldering Combustion of Rice Husk Dusts on a Hot Surface. Combust. Explos. Shock Waves 2013, 49, 159–166. [Google Scholar] [CrossRef]
  14. Huang, X.; Rein, G.; Chen, H. Computational Smoldering Combustion: Predicting the Roles of Moisture and Inert Contents in Peat Wildfires. Proc. Combust. Inst. 2015, 35, 2673–2681. [Google Scholar] [CrossRef] [Green Version]
  15. Wu, D.; Schmidt, M.; Huang, X.; Verplaetsen, F. Self-Ignition and Smoldering Characteristics of Coal Dust Accumulations in O2/N2 and O2/CO2 Atmospheres. Proc. Combust. Inst. 2017, 36, 3195–3202. [Google Scholar] [CrossRef]
  16. Chunmiao, Y.; Dezheng, H.; Chang, L.; Gang, L. Ignition behavior of magnesium powder layers on a plate heated at constant temperature. J. Hazard. Mater. 2013, 246–247, 283–290. [Google Scholar] [CrossRef] [PubMed]
  17. Sesseng, C.; Reitan, N.; Storesund, K.; Mikalsen, R.; Hagen, B. Effect of particle granularity on smoldering fire in wood chips made from wood waste: An experimental study. Fire Mater. 2020, 44, 540–556. [Google Scholar] [CrossRef]
  18. Torero, J.; Pello, A.F. Natural Convection Smolder of Polyurethane Foam, Upward Propagation. Fire Saf. J. 1995, 24, 35–52. [Google Scholar] [CrossRef]
  19. He, F.; Behrendt, F. Comparison of natural upward and downward smoldering using the volume reaction method. Energy Fuels. 2009, 23, 5813–5820. [Google Scholar] [CrossRef]
  20. He, F.; Behrendt, F. Experimental investigation of natural smoldering of char granules in a packed bed. Fire Saf. J. 2011, 46, 406–413. [Google Scholar] [CrossRef]
  21. Hagen, B.; Frette, V.; Kleppe, G.; Arntzen, B. Onset of smoldering in cotton: Effects of density. Fire Saf. J. 2011, 46, 73–80. [Google Scholar] [CrossRef] [Green Version]
  22. Ramírez, Á.; García-Torrent, J.; Tascón, A. Experimental determination of self-heating and self-ignition risks associated with the dusts of agricultural materials commonly stored in silos. J. Hazard. Mater. 2010, 175, 920–927. [Google Scholar] [CrossRef] [PubMed]
  23. He, F.; Yi, W.; Li, Y.; Zha, J.; Luo, B. Effects of fuel properties on the natural downward smoldering of piled biomass powder Experimental investigation. Biomass Bioenerg. 2014, 67, 288–296. [Google Scholar] [CrossRef]
  24. Urban, J.; Zak, C.; Song, J.; Fernandez-pello, C. Smoldering spot ignition of natural fuels by a hot metal particle. Proc. Combust. Inst. 2017, 36, 3211–3218. [Google Scholar] [CrossRef]

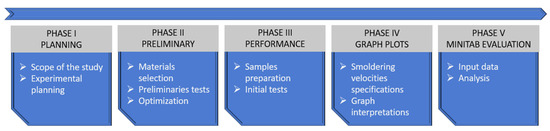

Figure 1. Work methodology.
Figure 1. Work methodology.
Eng 04 00002 g001

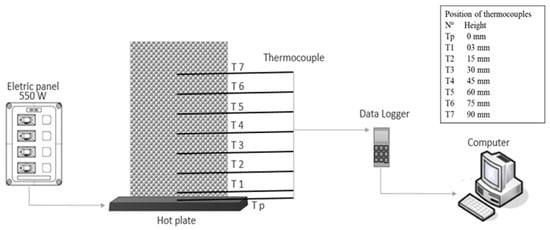

Figure 2. Schematic of the experimental setup.
Figure 2. Schematic of the experimental setup.
Eng 04 00002 g002

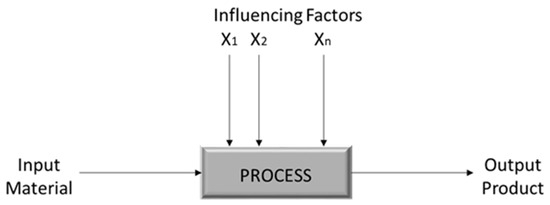

Figure 3. Schematic process of Minitab.
Figure 3. Schematic process of Minitab.
Eng 04 00002 g003

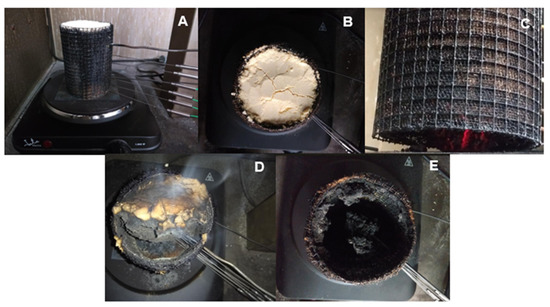

Figure 4. The sequence of images taken during the experiments.
Figure 4. The sequence of images taken during the experiments.
Eng 04 00002 g004

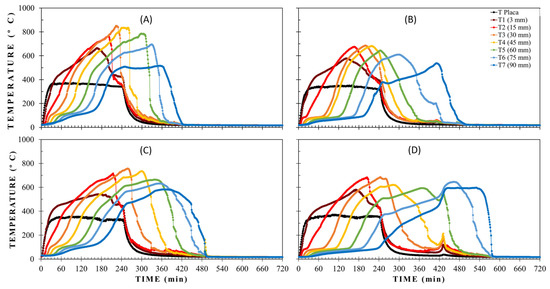

Figure 5. Temperature evolution of CF-Dried (A), CF-Wet (B), CF-Dried-V (C), and CF-Wet-V (D).
Figure 5. Temperature evolution of CF-Dried (A), CF-Wet (B), CF-Dried-V (C), and CF-Wet-V (D).
Eng 04 00002 g005

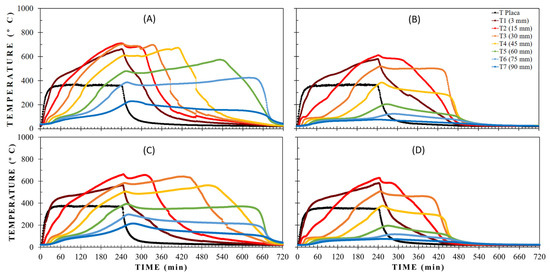

Figure 6. Temperature evolution of CP-Dried (A), CP-Wet (B), CP-Dried-V (C), and CP-Wet-V (D).
Figure 6. Temperature evolution of CP-Dried (A), CP-Wet (B), CP-Dried-V (C), and CP-Wet-V (D).
Eng 04 00002 g006

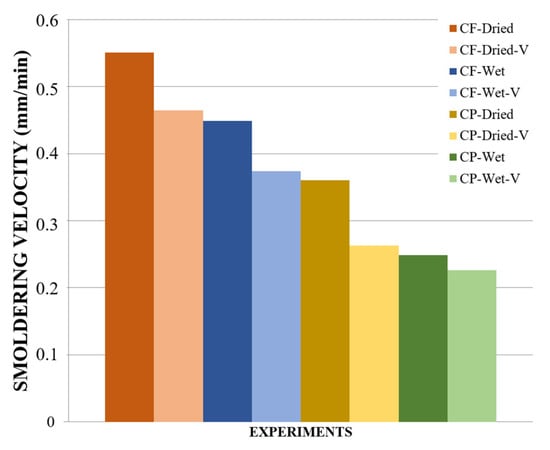

Figure 7. Smoldering velocities of the samples with different particle diameter, moisture, and ventilation system.
Figure 7. Smoldering velocities of the samples with different particle diameter, moisture, and ventilation system.
Eng 04 00002 g007

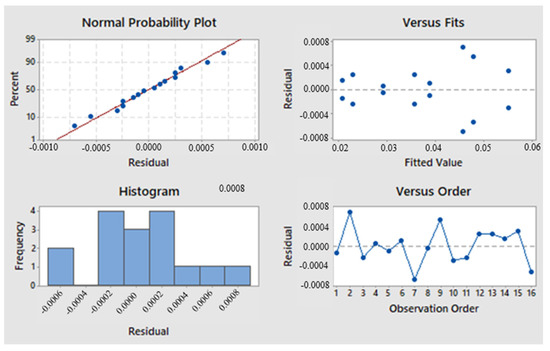

Figure 8. Residual plots for smoldering velocity.
Figure 8. Residual plots for smoldering velocity.
Eng 04 00002 g008

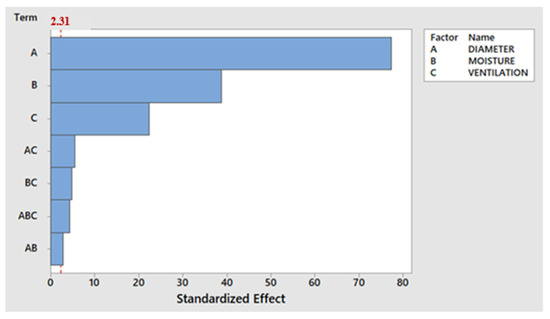

Figure 9. Pareto chart of the standardized effects.
Figure 9. Pareto chart of the standardized effects.
Eng 04 00002 g009

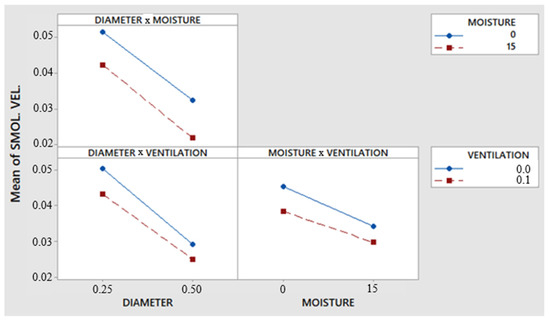

Figure 10. Interaction plot for smoldering velocity.
Figure 10. Interaction plot for smoldering velocity.
Eng 04 00002 g010
Figure 11. Contour plots of smoldering velocity.
Figure 11. Contour plots of smoldering velocity.
Eng 04 00002 g011
Table 1. Particle distribution of the corn materials.
Table 1. Particle distribution of the corn materials.
CodeSampled10 (µm)d50 (µm)d90 (µm)
CFCorn flour18.62181.6408.7
CPCorn powder253.3776.41199
Table 2. Experiments performed.
Table 2. Experiments performed.
CodeSampled50 (µm)Humidity (%)Ventilation (m/s)
CF-DriedCorn flour181.600
CF-Dried-VCorn flour181.600.1
CP-DriedCorn powder776.400
CP-Dried-VCorn powder776.400.1
CF-WetCorn flour181.6150
CF-Wet-VCorn flour181.6150.1
CP-WetCorn powder776.4150
CP-Wet-VCorn powder776.4150.1
Table 3. Experiment results.
Table 3. Experiment results.
Exp.TypeParticle Diameter (µm)Moisture(%)Vent. ConditionVentilation (m/s)Smoldering VelocityLevel of Smoldering
