An Analytical Method to Estimate Supersaturation in Gas–Liquid Systems as a Function of Pressure-Reduction Step and Waiting Time

Abstract

When the concentration of a gas exceeds the equilibrium concentration in a liquid, the gas–liquid system is referred as a supersaturated system. The supersaturation can be achieved by either changing the pressure and/or temperature of the system. The gas from a supersaturated liquid escapes either through bubble nucleation that usually occurs on solid surface and/or gas diffusion through the gas–liquid interface. The bubble nucleation requires a minimum threshold supersaturation. A waiting time is required to observe whether the applied supersaturation is sufficient to initiate bubble nucleation. When the supersaturation is not sufficient to cause bubble nucleation, some or all of the supersaturated gas may diffuse out from the liquid through the gas–liquid interface before further reducing the pressure in order to increase the supersaturation. In this article, using Fick’s second law of diffusion and Henry’s law, an analytical method is proposed to estimate the level of supersaturations generated in three gas–liquid systems at different step-down pressures. Characteristic times of the gas–liquid systems were estimated to validate whether the waiting times used in this study are in accordance with the semi-infinite diffusion model used to estimate the supersaturations generated.

1. Introduction

A gas–liquid system is referred to as supersaturated when the concentration of the solute phase (gas) exceeds the equilibrium concentration in the solvent phase (liquid). A supersaturated solution can be achieved by changing either the temperature and/or pressure of the system [1,2]. Thermodynamically, the degree of supersaturation can be described by chemical potential (${\mu }_i$), which represents the deviation from equilibrium at a given temperature and pressure for a component i.

For a component $i$ in a mixture, the chemical potential in an isothermal–isobaric ensemble is given by:

$${\mu }_i\left(T, P, x_i\right)={\left(\frac{\partial G}{\partial N_i}\right)}_{T,P,N_{j,j\ne i}}$$

where $G$ is the free energy of the system $j$, $N_i$ is the number of moles of the $i\mathrm{th}$component, $T$ is the temperature, $P$ is the pressure, $j$ refers to the number of remaining components, and $x_i$ is the molar fraction of the $i\mathrm{th}$ component in the mixture [3]. For a supersaturated system, the change in chemical potential of the component $i$ ($\Delta {\mu }_i)$ w.r.t. temperature and pressure is >0.

Dissolution and exsolution of CO₂ in and from water/brine are relevant in CO₂ sequestration. Depending on whether the CO₂ exsolution proceeds with or without bubble nucleation, the pressure response and relative permeability characteristics of the fluids in the porous media would be influenced [4]. Bubble nucleation and growth are important in sparkling beverages that are weakly supersaturated with CO₂ [5]. During limnic eruptions, which are natural calamities, high concentrations of gas slowly built up in the water column of a lake suddenly erupt after a trigger mechanism leads to local supersaturation [6]. For example, disproportionate accumulations of magmatic CO₂ in the bottom layers of Lakes Monoun and Nyos in Cameroon and their eruptions in 1984 and 1986, respectively, caused a sudden release of huge quantities of CO₂ into the atmosphere causing the loss of thousands of lives. In addition, Lake Kivu located in the Democratic Republic of the Congo is known to have about 2 and 10 trillion cubic feet of high concentrations of CH₄ and CO₂ gas, respectively, in its deep water [7,8,9]. The presence of high concentrations of such gases in the lake and the high population density in the nearby area pose a similar risk. The CH₄-water system is also relevant to nucleation of methane gas hydrates [10]. Nitrogen removal from wastewater streams is necessary to limit eutrophication and algal blooms [11].

When the pressure of a gas-saturated liquid is reduced at a constant temperature, the liquid becomes supersaturated with the gas and it may lead to bubble nucleation [12]. In our study on the influence of wettability on pressure-driven bubble nucleation of sparingly soluble gases CH₄ and N₂ in water, we observed that when a supersaturation is created with a higher (500 mbar) step-down pressure, the liberation of dissolved gas occurred through bubble nucleation on a hydrophobic solid surface. However, with a smaller (100 mbar) step-down pressure, the dissolved gas separation occurred only via diffusion of gas molecules from the liquid to the free gas through the gas–liquid interface, as there is not enough supersaturation to cause bubble nucleation even when the pressure is reduced to atmospheric pressure. In the case where bubble nucleation occurs with the available supersaturation, a certain waiting time is required for the gas bubbles to nucleate and grow in order to be observed using a microscope or naked eye, before applying further step-down pressure for generating higher supersaturation. Therefore, in order to know whether a given supersaturation is sufficient for bubble nucleation or not, it is important to estimate the supersaturation level at different step-down pressures [2]. In this study, we present a simple analytical method developed based on Fick’s second law of diffusion and Henry’s law to estimate the supersaturations generated in three gas–liquid systems (CO₂-water, CH₄-water, and N₂-water) with two step-down pressures (100 and 500 mbar). The three gas–liquid systems were chosen based on their importance in many natural and industrial applications. Moreover, we also had conducted experimental investigations to study the influence of wettability and step-down pressure on bubble nucleation of these gases in water [2,13].

Gas liberation from its dissolved state (in the liquid) to free gas state requires supersaturation. In our previous experimental study, we observed that bubble nucleation did not occur in a CO₂-supersaturated water in a hydrophilic container, even when the pressure was reduced in one step from the saturation pressure (6000 mbar) to atmospheric pressure (0 mbar) [13]; whereas in the case of hydrophobic container, the incipiation pressure for bubble nucleation and hence, the required supersaturation was observed to be influenced by the surface wettability of the container for all the three gases (CO₂, CH₄, and N₂) and the step-down pressure for the sparingly soluble gases (CH₄ and N₂). A certain waiting time is required at each pressure reduction step to ensure either enough time is given for the bubbles to nucleate and grow, or to conclude that the supersaturation is not sufficient to initiate the bubble nucleation. However, during the waiting time, some (or all) of the supersaturated gas may diffuse out before initiating the next step-down pressure. Therefore, it is important to know the actual supersaturation (which is the difference in the gas saturations at the initial and current pressures minus the gas diffused out until that point of time) in the system as a function of time during the waiting time in order to quantify the actual supersaturation required to initiate the bubble nucleation. Therefore, in this study, we investigated the influence of step-down pressure, and the waiting time between the pressure reduction steps on supersaturation.

2. Methodology

2.1. Derivation of Supersaturation Equation

The Fick’s second law of diffusion given below describes the one-dimensional diffusion equation for binary mixtures of species A and B under transient condition [14,15]:

$$\frac{\partial C}{\partial t}=D_{AB}\frac{{\partial }^{2}C}{\partial x^2}$$

(1)

where $D_{AB}$ is the diffusion coefficient of species A (gas) in species B (liquid), $C$ is the solute concentration, $t$ is the time, and $x$ is the position.

The derivation to solve Equation (1) is briefly demonstrated below; however, the detailed derivation of the differential equation can be found out in the supplementary section provided with this paper.

$y=f\left(x,t\right)$ defined by the following dimensionless characteristic equation:

$$y=\frac{x}{2\sqrt{D_{AB}t}}$$

(2)

$$\frac{\partial y}{\partial x}=\frac{1}{2\sqrt{D_{AB}t}}, \mathrm{and} \frac{\partial y}{\partial t}=\frac{-x}{4\sqrt{D_{AB}{t}^3}}$$

(3)

$$\frac{\partial C}{\partial t}=\frac{\partial C}{\partial y}\times \frac{\partial y}{\partial t}$$

(4)

$$\frac{\partial C}{\partial t}=\frac{-x}{4\sqrt{D_{AB}{t}^3}}\times \frac{\partial C}{\partial y}$$

(5)

$$\frac{{\partial }^{2}C}{\partial x^2}=\frac{1}{4D_{AB}t}\times \frac{{\partial }^{2}C}{\partial y^2}$$

(6)

From the Gaussian integral [16], we have

$${{\displaystyle \int }}_0^{\infty }\exp \left(-y^2\right) dy=\frac{\sqrt{\pi }}{2}$$

(7)

The following error function and the boundary conditions were used to solve Fick’s second law of diffusion [14]:

$$\mathrm{erf} \left(y\right)=\frac{2}{\sqrt{\pi }}{{\displaystyle \int }}_0^y\exp \left(-y^2\right) dy$$

(8)

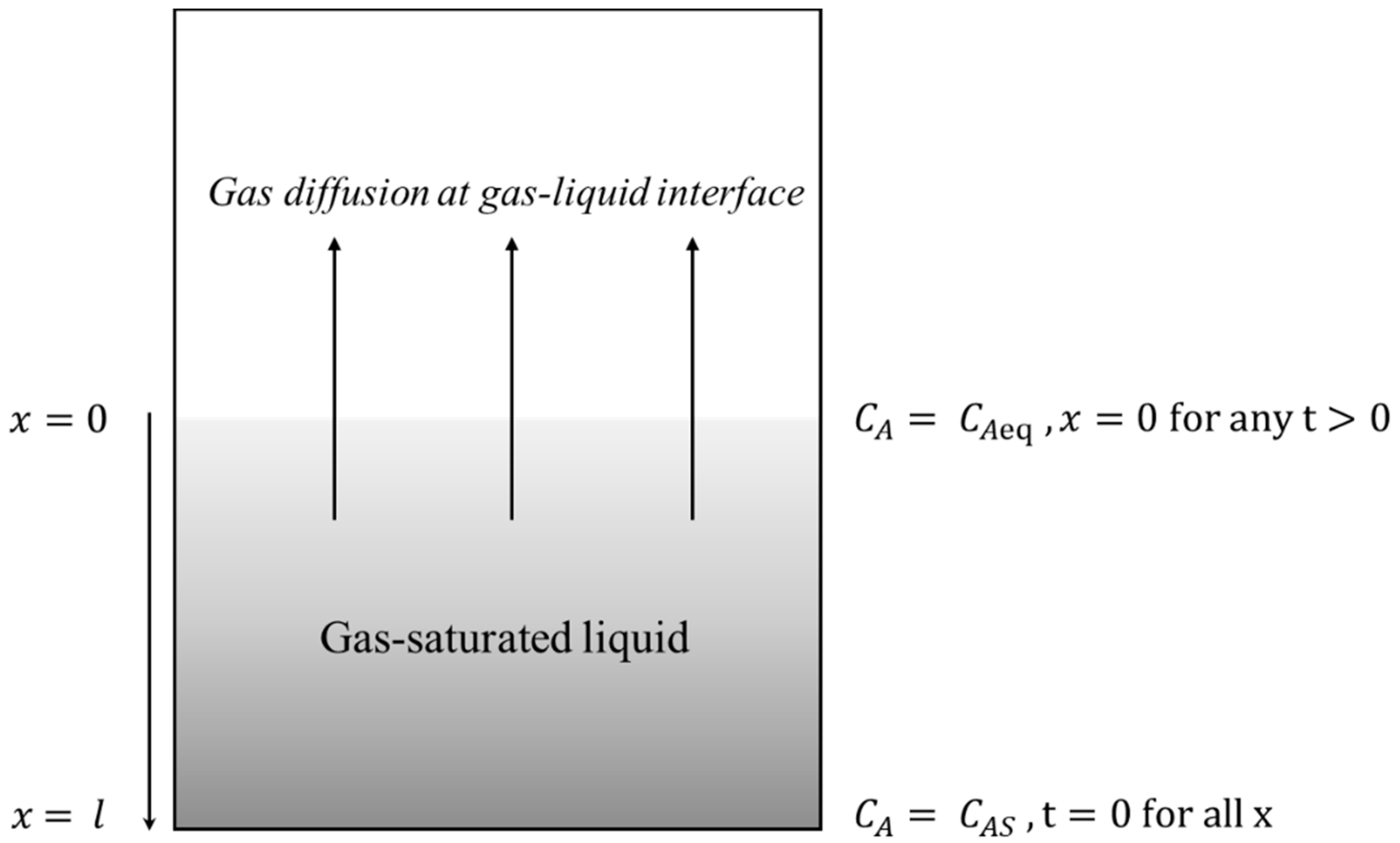

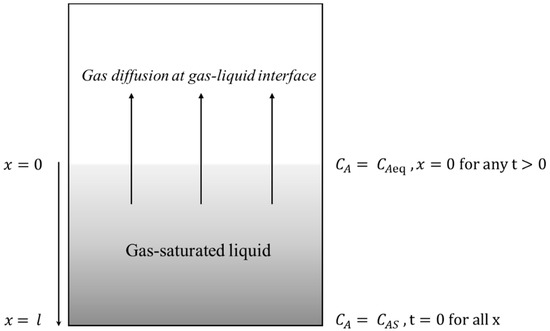

The initial and boundary conditions for the gas–liquid system shown in Figure 1 are given below:

$$C_A=C_{Aeq}, \mathrm{at} \mathrm{x}=0 \mathrm{and} \mathrm{for} \mathrm{any} \mathrm{t}$$

$$C_A=C_{AS}, \mathrm{at} \mathrm{t}=0 \mathrm{and} \mathrm{for} \mathrm{all} \mathrm{x}$$

where $C_{AS}$ is the saturated gas concentration in mol/L (after complete saturation), $C_A$ is the gas concentration after any time $t$, $C_{Aeq}$ is the gas concentration at the gas–liquid interface at equilibrium (with the current gas pressure) in mol/L. As mentioned earlier, $y=f\left(x,t\right)$; therefore, it is required to redefine x and y in Figure 1. In Figure 1, x is an independent variable and it is a position in the liquid column, which is taken as 5 mm (total height of the liquid column) for estimating $C_A$ in Tables S2–S7 in the Supplementary Material. y is a dependent variable that varies with position in the liquid column, and the waiting time after each pressure reduction step.

Solving the differential equation mentioned in Equation (1) and applying the boundary conditions, we get the following:

$$\frac{C_A-C_{Aeq}}{C_{AS}-C_{Aeq}}=\mathrm{erf}\left(\frac{x}{2\sqrt{D_{AB}t}}\right)$$

(9)

Equation (11) is the solution to the problem for time-dependent diffusion assuming a semi-infinite system.

For a given $x$, $D_{AB}$, and $t$, assuming $erf\left(\frac{x}{2\sqrt{D_{AB}t}}\right)$ as $\eta$, Equation (11) reduces to:

$$\frac{C_A-C_{Aeq}}{C_{AS}-C_{Aeq}}=\eta$$

(10)

The gas concentration $C_A$ in water at any given time can be determined using the following equation:

$$C_A=\eta \times \left(C_{AS}-C_{Aeq}\right)+C_{Aeq}$$

(11)

The equilibrium concentration of gas can be calculated by using Henry’s law for low-pressure systems, which is given by:

$$C_{Aeq}=H_{g}P$$

(12)

where $H_g$ is the Henry’s constant in mol/L/Pa and $P$ is the partial pressure of the gas [17].

The saturation time for carbon dioxide, methane and nitrogen gases in water can be estimated using the one-dimensional bounded diffusion equation, given below [14].

$$t_s=\frac{\tau l^2}{D_{AB}}$$

(13)

where τ is the dimensionless time, $D_{AB}$ is the diffusion coefficient in mm²/s, $t_s$ is the diffusion time in seconds, and 𝑙 is the height of the water column in mm.

For this study, $\tau$ is taken as 4 to achieve 99.99% gas saturation, and the height of the water column 𝑙 is 5 mm. The saturation times required to achieve 99.99% saturation of carbon dioxide, methane, and nitrogen gases in water at the initial pressure, and constant $\left(\eta \right)$ in the diffusion equation, are given in Table S1, in the Supplementary Material provided with this paper.

2.2. Validation of Waiting Time after Each Pressure Reduction Step with ‘Characteristic Time’

Since semi-infinite diffusion solution is used to estimate the supersaturations in this study, therefore, it is important to validate whether the waiting time, i.e., 15 min, after each pressure reduction step satisfies the semi-infinite diffusion model. The characteristic diffusion time $\left({\tau }_s\right)$ for a gas to diffuse on a liquid column of height $\left(L\right)$ and diffusion co-efficient $\left(D\right)$ is given by [18]:

$${\tau }_s=\frac{L^2}{4D_{AB}}$$

(14)

3. Results and Discussion

The saturation times for CO₂-water, CH₄-water, and N₂-water systems are 62,500 s (17.4 h), 56,497 s (15.7 h), and 52,910 s (14.7 h), respectively (ref.: Table S1). The details of characteristic time for all the three gases used in this study are given in

Table 1. Characteristic time and $\eta$ calculations for carbon dioxide, methane, and nitrogen gases.

Type of Gas	Diffusion Coefficient ${\mathit{D}}_{\mathit{A}\mathit{B}} ({\mathbf{mm}}^2/\mathbf{s})$	$\mathit{\eta }$	Characteristic Time (s)
Carbon dioxide	0.0016 [19]	0.99678	3906 (1.09 h)
Methane	0.00177 [20]	0.99491	3531 (0.98 h)
Nitrogen	0.00189 [21]	0.99329	3307 (0.92 h)

.

Since the time allowed after each pressure reduction step (15 min) is much less than the characteristic time, a semi-infinite diffusion model is applicable for this study. For 15 min waiting time, the supersaturation generated, remaining CO₂ concentration, and amount of CO₂ diffused out from water after each pressure reduction step, for 500 mbar and 100 mbar step-down pressures, are given in Tables S2 and S3, respectively. The corresponding calculations for two sparingly soluble gases, methane and nitrogen, are given in Tables S4–S7, respectively, in the Supplementary Material provided with this paper.

Effect of Waiting Time on Supersaturation after Each Pressure Reduction Step

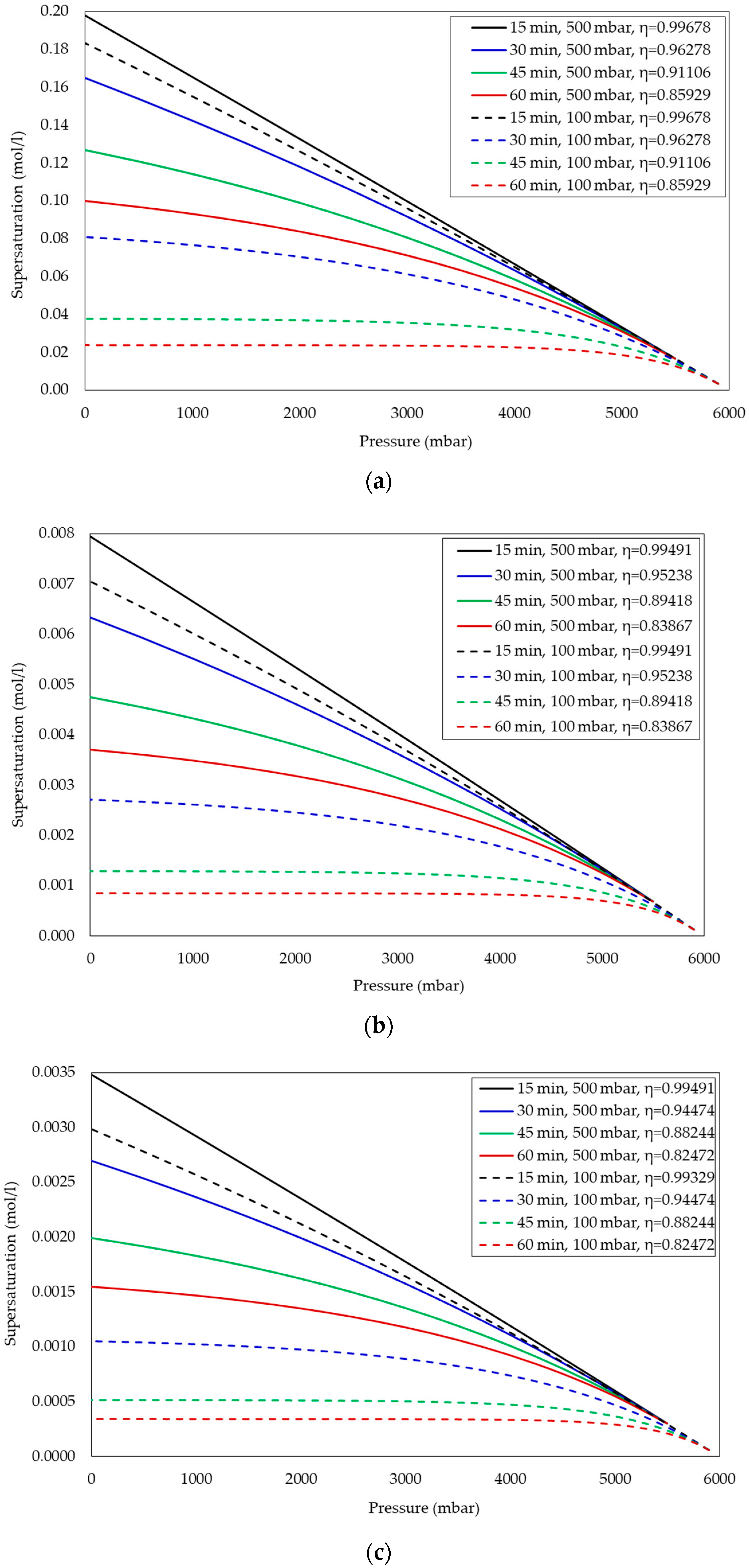

To study the effect of waiting time on supersaturation in CO₂-water, CH₄-water, and N₂-water systems, the supersaturations were estimated at four different waiting times (15, 30, 45, and 60 min) for 100 and 500 mbar step-down pressures. Figure 2a–c represent the effect of waiting time on supersaturation in CO₂-water, CH₄-water, and N₂-water systems, respectively. From the figures, it can be observed that as the waiting time increases, at a given pressure, the supersaturation decreases as the consequence of the decrease in the actual concentration of gas in the liquid phase for both the step-down pressures. In addition, from the figures, it can be observed that the supersaturations generated in the CO₂-water system are an order of magnitude higher compared to those of CH₄-water and N₂-water systems. This is due to fact that the Henry’s law constants for CO₂ (3.36 × 10⁻⁷ mol/L/Pa) are approximately 25- and 56-times higher than CH₄ (1.36 × 10⁻⁸ mol/L/Pa) and N₂ (6.02 × 10⁻⁹ mol/L/Pa) gases, respectively. Hence, the dissolved gas concentration of CO₂ in water is much higher compared to the sparingly soluble gases CH₄ and N₂ in the pressure range considered in this work. The supersaturation calculations for both 100 and 500 mbar step-down pressures for the aforementioned gas–liquid systems are tabulated in Tables S8–S13 (100 mbar), in the Supplementary Material provided with this paper. It is important to note that the mathematical model presented in this study is not applicable at the onset nucleation pressure for bubble nucleation or any pressure below that.

4. Conclusions

In this study, an analytical method to estimate the supersaturations generated with two different step-down pressures from an initial saturation pressure is presented. The proposed method estimates supersaturation by integrating Fick’s second law of diffusion and Henry’s law. The semi-infinite diffusion model was used to estimate the supersaturations generated in gas–liquid systems. Since a certain waiting time is required to observe bubble nucleation after creating a supersaturation, the waiting times used in this study were validated with the characteristic times. In addition, we analyzed the effect of waiting time on supersaturation and found that, at a given pressure, as the waiting increases, the supersaturation decreases due to the decrease in the actual concentration of gas in the liquid. The supersaturation is higher with the higher step-down pressure. The dissolved gas concentration of CO₂ in water is much higher compared to CH₄ and N₂, in the pressure range of this work; therefore, the supersaturations generated in the CO₂-water system are correspondingly higher compared to CH₄-water and N₂-water systems.
