Micromolar Levofloxacin Sensor by Incorporating Highly Crystalline Co₃O₄ into a Carbon Paste Electrode Structure

Abstract

In this work, we successfully prepared a modified cobalt oxide (Co₃O₄) carbon paste electrode to detect Levofloxacin (LEV). By synthesizing Co₃O₄ nanoparticles through the chemical coprecipitation method, the electrochemical properties of the electrode and LEV were thoroughly investigated using CV, SWV, and EIS, while material properties were scrutinized using ICP-OES, TEM, SEM, and XRD. The results showed that the prepared electrode displayed a better electrocatalytic response than the bare carbon paste electrode. After optimizing SWV, the electrode exhibited a wide linear working range from 1 to 85 μM at pH 5 of BRBS as the supporting electrolyte. The selectivity of the proposed method was satisfactory, with good repeatability and reproducibility, strongly suggesting a potential application for determining LEV in real samples, particularly in pharmaceutical formulations. The practicality of the approach was demonstrated through good recoveries, and the morphology of the materials was found to be closely related to other parameters, indicating that the developed method can provide a cost-effective, rapid, selective, and sensitive means for LEV monitoring. Overall, this project has made significant progress towards developing a reliable method for detecting LEV and has opened up new opportunities for future research in this field.

1. Introduction

Antibiotics are widely used in human medicine worldwide because they treat bacterial infections effectively. Studies conducted since the 1980s have shown that fluoroquinolines are highly effective antibacterial drugs with wide application in both human and veterinary practice [1]. These compounds have been found to be particularly effective at treating various diseases, such as infections of the skin, respiratory tract, urinary tract, and nervous system, as well as bones and joints. The experimental findings have established that fluoroquinolines are an important class of antibiotics, and their effectiveness makes them a valuable treatment option for many bacterial infections [2,3,4]. Levofloxacin, namely (S)-9-fluoro-2, 3-dihydro-3-methyl-10-(4-methyl-1-piperazinyl)-7-oxo-7H-pyrido [1,2,3-de]-1, 4-benzoxazine-6-carboxylic acid is one of the most promising fluoroquinolones, and its antibacterial activity is much higher than the activity of other drugs of the fluoroquinolone family [5]. Levofloxacin (LEV) directly inhibits bacterial DNA synthesis, and it promotes the breakage of DNA strands by inhibiting DNA-gyrase in susceptible organisms, which inhibits the relaxation of supercoiled DNA [6]. Considering the importance of these compounds, and their prevalence in the environment and aquatic systems [7], the existence of methods for the control and monitoring of these compounds is of crucial importance. Several different methodological approaches have been developed so far for monitoring the concentration of LEV and they are based on spectrophotometry [8,9], high-performance liquid chromatography (HPLC) [10,11], and chemiluminescence [12]. These methods also have drawbacks such as high cost, extended analysis time, and sample preparation such as derivatization and extraction, while purification is often necessary. Electrochemical methods have been shown to have numerous advantages over traditional methods of analysis, including simplicity of handling, cost-effectiveness, sensitivity, and rapid analysis [13]. They also offer an easy way to transfer technology and facilitate device miniaturization and in vivo and in vitro process monitoring, which are additional parameters that highlight their advantages [14]. Electrochemical methods are simpler and more reasonable, with excellent reproducibility, short assay time, and cost less compared to other conventional approaches. Additionally, the modification of electrochemical reactions by altering the value of the oxidation and/or reduction potential promotes their existence [15]. The modification step also allows us to avoid some of the problems of surface contamination [16,17].

A proposed study has been put forward that aims to prepare a modified cobalt oxide carbon paste electrode for the purpose of detecting LEV. The key components of this electrode are Co₃O₄ nanoparticles, which were synthesized via the chemical coprecipitation method. For analyzing the electrochemical properties of LEV at this electrode, the study utilized a range of techniques including cyclic voltammetry, square wave voltammetry, and differential pulse voltammetry. In addition, electrochemical impedance spectroscopy, inductively coupled plasma-optical emission spectrometry, transmission and scanning electron microscopy, and X-ray diffraction were employed to characterize the synthesized material. The ultimate goal of this study was to provide a comprehensive understanding of the electrochemical properties of both LEV and the synthesized material, with potential applications in a wide range of fields.

2. Materials and Methods

2.1. Reagents and Apparatus

In this study, all reagents used were of analytical grade and were manufactured by Sigma Aldrich. The reagents were used without further purification, including Cobalt (II) chloride hexahydrate (CoCl₂∙6H₂O), sodium hydroxide (NaOH), paraffin oil, and carbon powder (glassy carbon, spherical powder, 2–12 µm, 99.95%). Britton Robinson buffer solution (BRBS) was used as the supporting electrolyte. To prepare initial pH2, appropriate amounts of boric acid, phosphoric acid, and acetic acid were dissolved in 1 L of ultrapure water (all concentrations were 0.04 M). Other pHs were adjusted using 0.5 M NaOH. For EIS and CV measurements, the Fe^2+/3+ redox couple was used, which was prepared from 5 mM potassium hexacyanoferrate(III) (K₃[Fe(CN)₆]) and potassium hexacyanoferrate(II) trihydrate (K₄[Fe(CN)₆]∙3H₂O) in 0.1M KCl solution. Interference and LEV solutions were prepared freshly on the day of use.

The crystal structure of cobalt oxide nanoparticles was determined using X-ray powder-diffraction (XRD) data measured on dried powders in a high-resolution SmartLab^® diffractometer (Rigaku, Japan), equipped with a Cu Kα radiation source (λ = 1.5406 Å) under a voltage of 40 kV and a 30 mA current. The patterns were collected within the 10–70° 2θ range at a scan rate of 1°/min and a 0.02° step size.

A transmission electron microscope Jeol JEM-2100F (JEOL, Tokyo, Japan) and a scanning electron microscope Jeol JSM-7001F (JEOL, Tokyo, Japan) were used to scrutinize the morphological properties of the material. The accelerating voltage of the electron gun was set to the 20 kV required for quantitative EDX analysis.

All electrochemical measurements were performed using a PalmSens4 analyzer (Houten, Utrecht, The Netherlands) running PSTrace voltammetry software (Version 5.8). A three-electrode system was used with un- or modified CP electrodes, an Ag/AgCl electrode, and a platinum electrode as working, reference, and counter electrode, respectively. Measurements were performed in BRBS at pH 5. Cyclic voltammetry (CV) measurements, square wave voltammetry (SWV) and electrochemical impedance spectroscopy (EIS measurements were performed according to the procedures listed in the appropriate section.

2.2. Material Preparation

The coprecipitation method is an established technique for the synthesis of mixed metal oxides, and has been shown to be effective for the preparation of cobalt oxide. By using this method, we aim to produce a high-quality sample of mixed cobalt oxide that can be used for a variety of applications. This work involves the preparation of mixed cobalt oxide using the coprecipitation method. To achieve this, we will dissolve the appropriate amount of cobalt(II) chloride in water, adjust the pH of the resulting solution to 13 using sodium hydroxide, and heat the solution for 4 h at 60 °C. The solution will then be washed with water until the reaction is neutral, and the resulting cobalt oxide precipitate will be dried for 16 h at 100 °C and annealed at 700 °C for 4 h.

2.3. Electrode Preparation

The bare carbon paste electrode was prepared using a standard procedure, mixing 80% glassy carbon powder with 20% silicon oil for 30 min. The resulting paste was left overnight before use. A modified carbon paste electrode was also prepared using the same procedure, but with the addition of an appropriate amount of cobalt oxide in percentages of 2, 5, 7, and 15 to the carbon powder. The working electrode was housed in a homemade Teflon body.

3. Results

3.1. Morphology and Structure Characterization

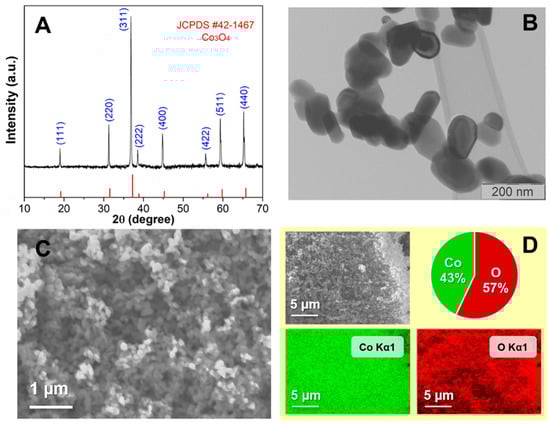

The morphology and the structure of prepared Co₃O₄ nanoparticles were analyzed by X-ray diffraction data (XRD), transmission electron microscopy (TEM), and scanning electron microscopy (SEM) (Figure 1). Figure 1A presents the diffraction pattern of synthesized cobalt oxide, pointing to the excellent crystallinity of the sample. Crystal reflections occur in the same position as those for cobalt oxide of the spinel structure type, indicating that all the reflections can be indexed to the same space Fdm group and match the simulated diffraction data (JCPDS#42-1467) from the literature [18]. The cobalt oxide nanoparticles are hexagonally elongated in one dimension, as shown in Figure 1B. The average length of nanoparticles is about (130 ± 30) nm, while the average width is (70 ± 20) nm. The SEM micrographs and EDS elemental mapping of a wider area of the sample are displayed in Figure 1C,D. SEM figures reveal the homogeneous distribution of the sample while EDS elemental mapping shows that cobalt oxide was formed along the entire sample with the proportion of cobalt and oxygen, 43% and 57% respectively. The prepared cobalt oxide nanoparticles exhibited potential for use as electrochemical sensors due to their small crystallite size and large specific surface area. These properties provide active sites for the accumulation of ions.

Based on the ICP-OES method, the concentration of cobalt in the material used for the electrode preparation was found to be 591.27 mg/g with an RSD of 0.32%. This result is indicative of a high concentration of cobalt in the material, which could potentially have implications for the performance of the electrode. Further investigation may be necessary to fully understand the impact of this concentration on the overall function of the electrode.

3.2. Electrochemical Characterization of Materials

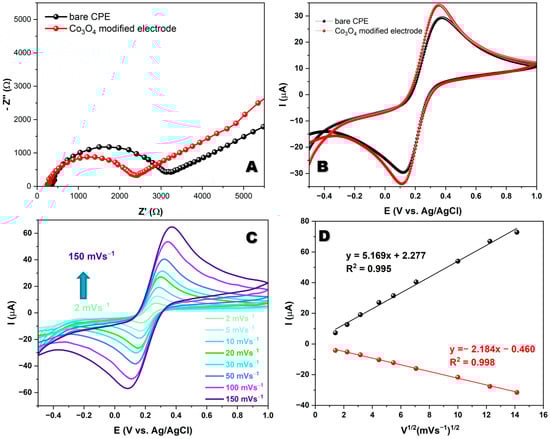

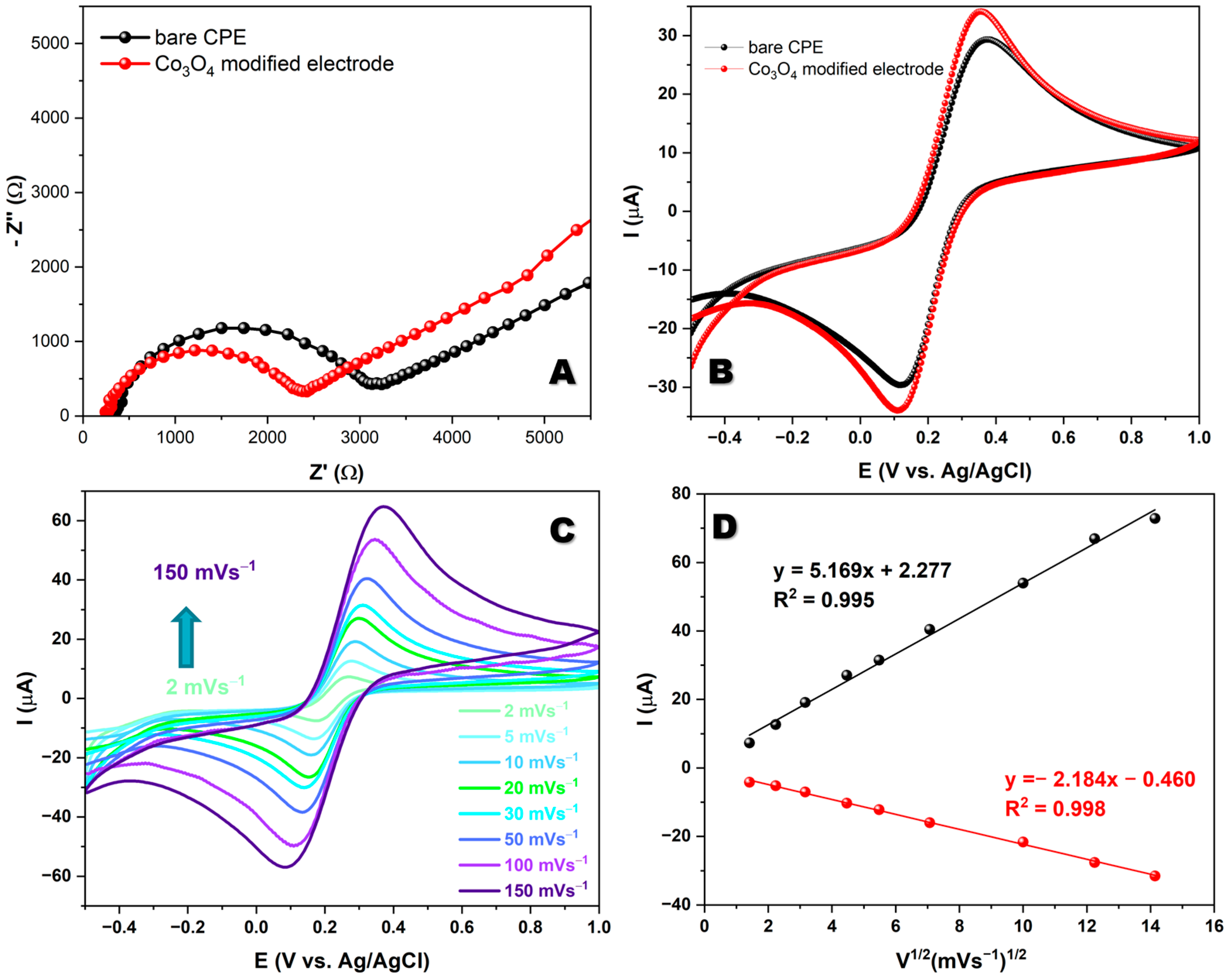

When studying electron transport between the electrolyte and the electrode’s active surface, researchers employed electrochemical impedance spectroscopy. The resulting EIS spectra consisted of a semicircular high-frequency region and a linear low-frequency region. The semicircle’s diameter reflected the resistance to charge transfer, while the linear region indicated mass transfer and the diffusion of electroactive species. These observations provide valuable insights regarding the system’s behavior under investigation. EIS measurements were performed in a 5 mM redox system K₃[Fe(CN)₆]/K₄[Fe(CN)₆] and 0.1 M KCl as the supporting electrolyte, using an electrode modified with synthesized material and an unmodified carbon paste electrode. The results obtained using electrochemical impedance spectroscopy show a regular behavior, and the obtained spectra consist of two parts: a semicircular (high-frequency) and a linear (low-frequency) spectral region. Figure 2A shows that the Rct value of the modified electrode is lower than the Rct value of the bare electrode. The Rct values indicate that the modified electrode has a low resistance compared with the bare carbon paste electrode. It appears that the low resistance of the Co₃O₄ modified electrode can be attributed to its nanocomposite structure, which possesses superior electronic conductivity and remarkable electrocatalytic activity [19]. To determine the electron transfer behavior of the bare CPE and Co₃O₄-modified electrode, CV measurements were performed in 5 mM K₃[Fe(CN)₆]^3−/4− in a 0.1 M KCl system. The CV profile of the modified electrode exhibits good redox peaks during forward and backward scans at potentials ranging from −0.5 V to 1 V with a scan rate of 50 mV s⁻¹ (Figure 2B). Figure 2C shows the redox peaks for the Co₃O₄-modified electrode with different scan rates of 2–150 mVs−1 in [Fe(CN)₆]^3−/4−. Increasing the scan rate also expands the anodic and cathodic peak current. The analysis of the current peaks in the electrochemical reaction at the electrode/testing solution interface has revealed an interesting linear correlation between the currents and the square root of the scan rate, as depicted in Figure 2D. This correlation suggests that the electrochemical reaction at the interface is diffusion-controlled, which provides valuable insights into the mechanisms of the reaction.

3.3. Detection of LEV

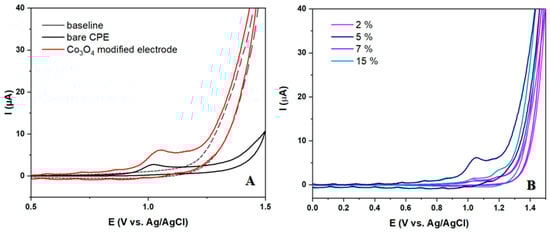

In this section, we conducted a thorough investigation of the capability of prepared electrodes to detect 50 μM LEV. The findings revealed a distinct and precise peak resulting from the precipitated analyte at potentials just above 1 V, signifying its oxidation. The modified electrode exhibited a significantly higher peak current in comparison to the unmodified electrode (Figure 3A). The impact of various modification percentages (2, 5, 7 and 15 wt%) on the intensity and shape of the oxidation peak of LEV was thoroughly examined (Figure 3B). At low catalyst loadings below 5 wt%, the amount of active material is likely insufficient to make full use of the high surface area CPE. This limits the number of electrochemically active sites for the redox reactions. As the catalyst loading increases, more active sites become available, leading to higher redox peak currents [20]. However, above the 5 wt% loading of Co₃O₄, the catalyst particles may begin to aggregate. This reduces the exposed catalyst surface area and limits the electrolyte’s access to the active sites. This is observed from the data we obtained for the material with a high catalyst content of 15 wt%. Furthermore, electrical conductivity through the electrode may be impeded at a high content of the aggregated catalyst particles, which is observed from the CV data. In summary, 5 wt% appears to strike an optimal balance between increasing the number of active sites, while decreasing unwanted catalyst particle aggregation effects. This electrode was utilized for all additional studies and the development of an analytical procedure for LEV detection.

3.4. Optimization of pH of the Supporting Electrolyte

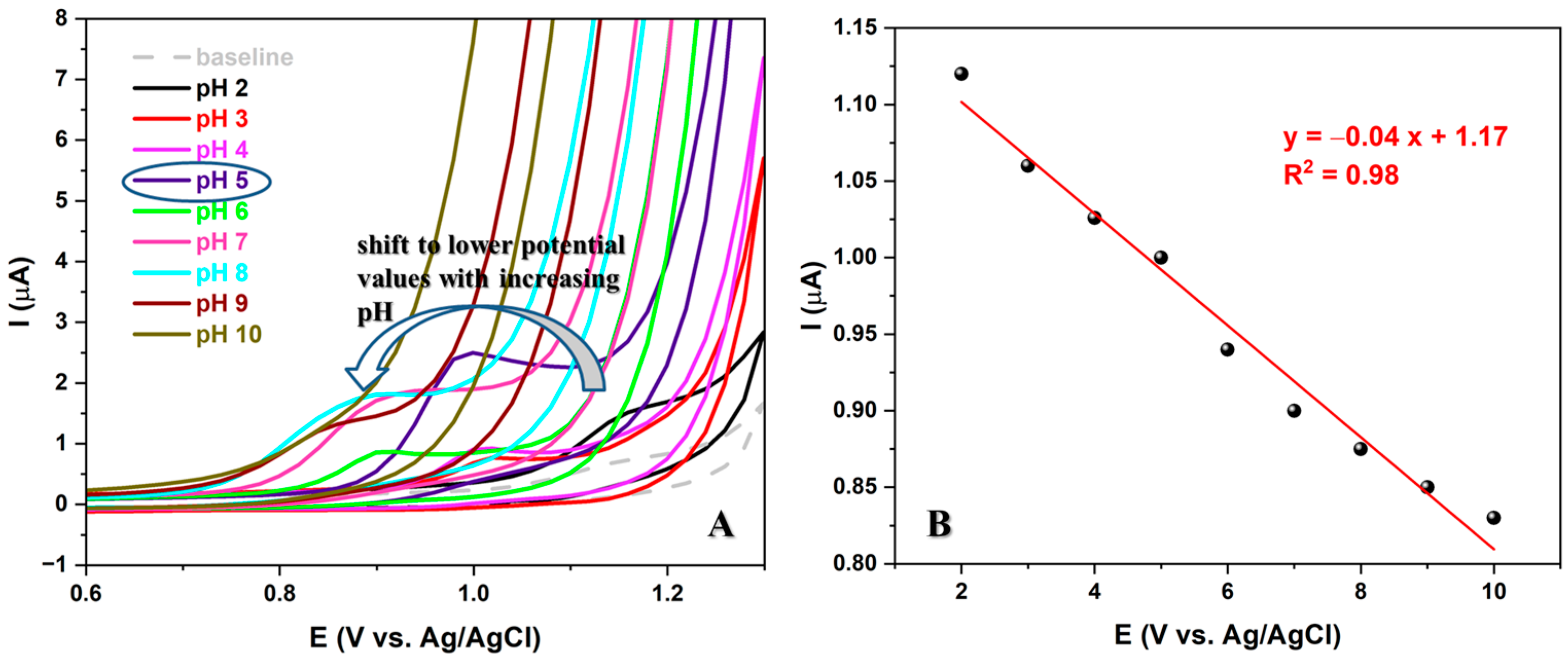

The electrode selected to test the optimal pH value of the supporting electrolyte produced interesting results. As seen in Figure 4A, when using a scan rate of 50 mV/s in BRBS buffer with a range of pH values from 2 to 10 and a constant concentration of 50 µM of LEV, an increase in pH from 2 to 5 resulted in a double effect of an increase in peak current and a shift of the peak to less positive values. However, a further increase in pH resulted in a peak shift in the same direction, but with a decrease in peak current. Therefore, pH 5 of the BRBS buffer was selected for further recordings, which showed a well-defined and oval peak with the most intense current.

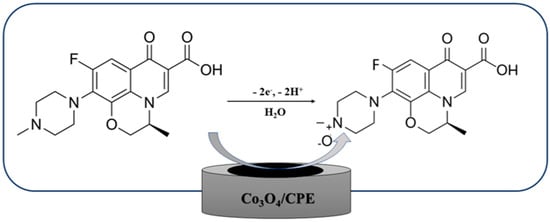

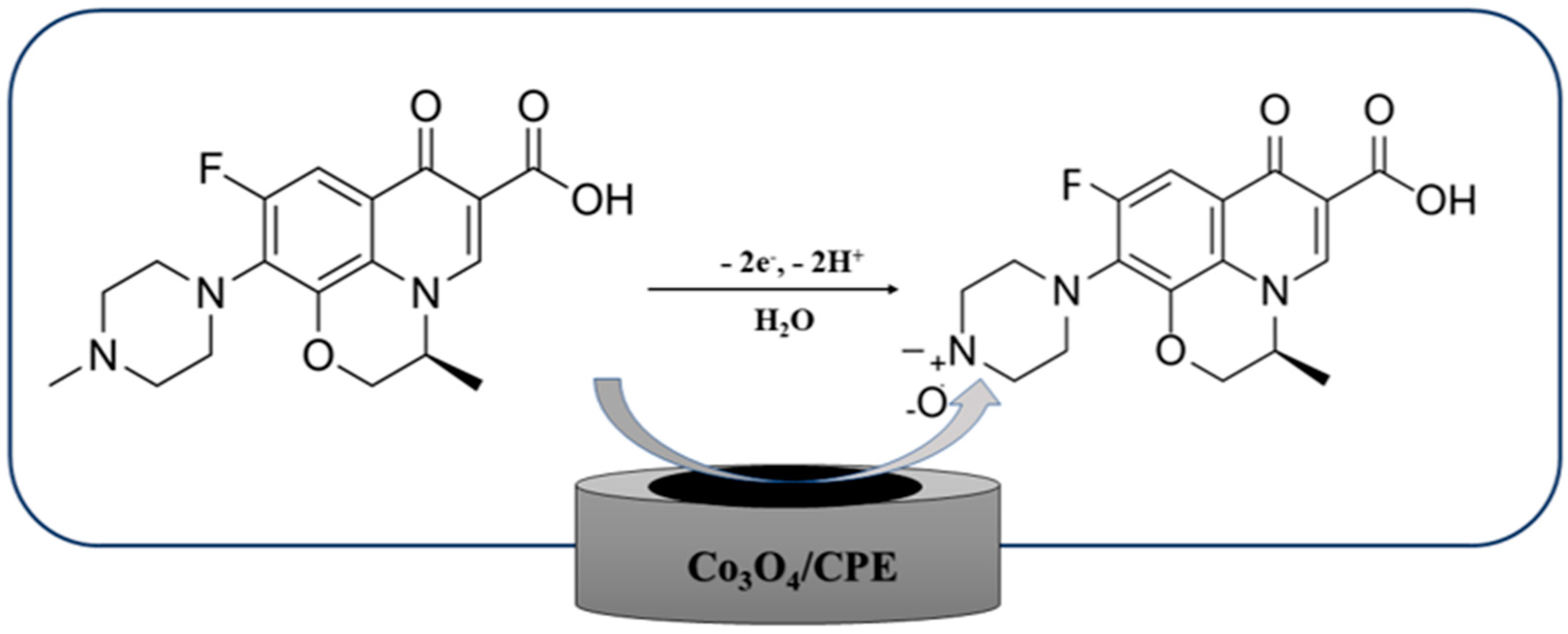

The peak potential shifts linearly with the increasing pH of the supporting electrolyte. This correlation can be expressed with the following equation: Ep = 1.17 − 0.04 pH. The slope obtained for the LEV oxidation process is close to the theoretical one (0.059), which suggested that the same number of protons and electrons are involved in the studied electrochemical reaction. According to the cyclic voltammetry theory for irreversible systems, the number of electrons in the LEV oxidation (n) was determined using the following equation: Ep − Ep_1/2 = 47.7 mV/αn, where Ep, Ep_1/2, α, and n are potential peak, potential peak at half-height, electronic transfer coefficient (0.5), and the number of electrons, respectively [21]. The number of electrons for the oxidation of LEV can be calculated as n = 1.6 ≈ 2 electrons per molecule of LEV. These findings suggested that the electrochemical oxidation of LEV on the Co₃O₄/CPE surface could follow the reaction depicted in Scheme 1, which is consistent with data from the literature on the reaction mechanism [1,22].

3.5. Electrochemical Behavior of LEV at Different Scan Rates over Co₃O₄/CPE Sensor

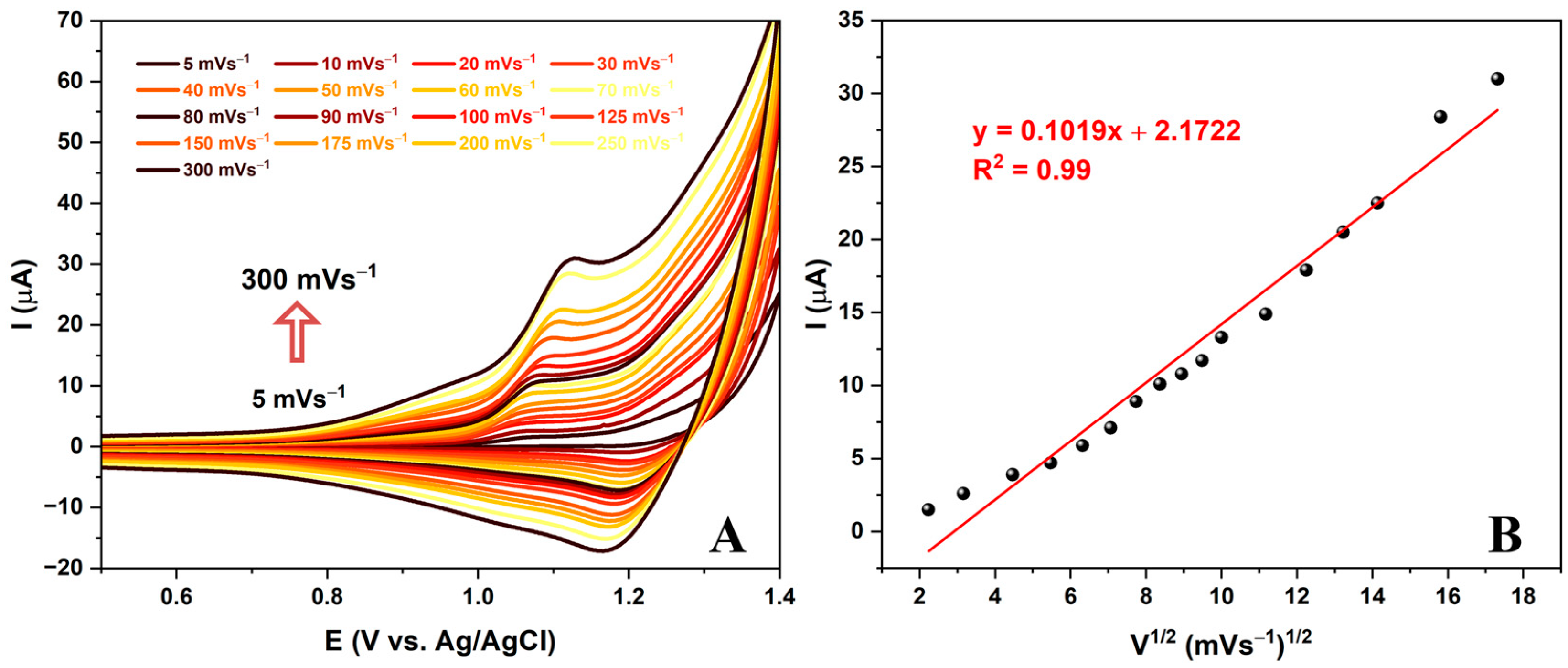

The recent study on the electrochemical behavior of LEV has yielded promising results. By examining the kinetics of the electrode reaction at the electrode/test solution interface at different scan rates, it was found that a higher scan speed led to an increase in Faraday and capacitive current (Figure 5A). The oxidation current, in particular, displayed a linear dependence on the square root of the scan rate (Figure 5B), indicating that the process occurring at the electrode is diffusion-controlled. This finding is significant, as it makes the synthesized nanomaterial a strong contender for the development of an electroanalytical method for LEV detection. The study’s results suggest that the nanomaterial’s diffusion-controlled behavior could be leveraged to create a reliable and efficient method for detecting LEV.

3.6. Quantification of LEV

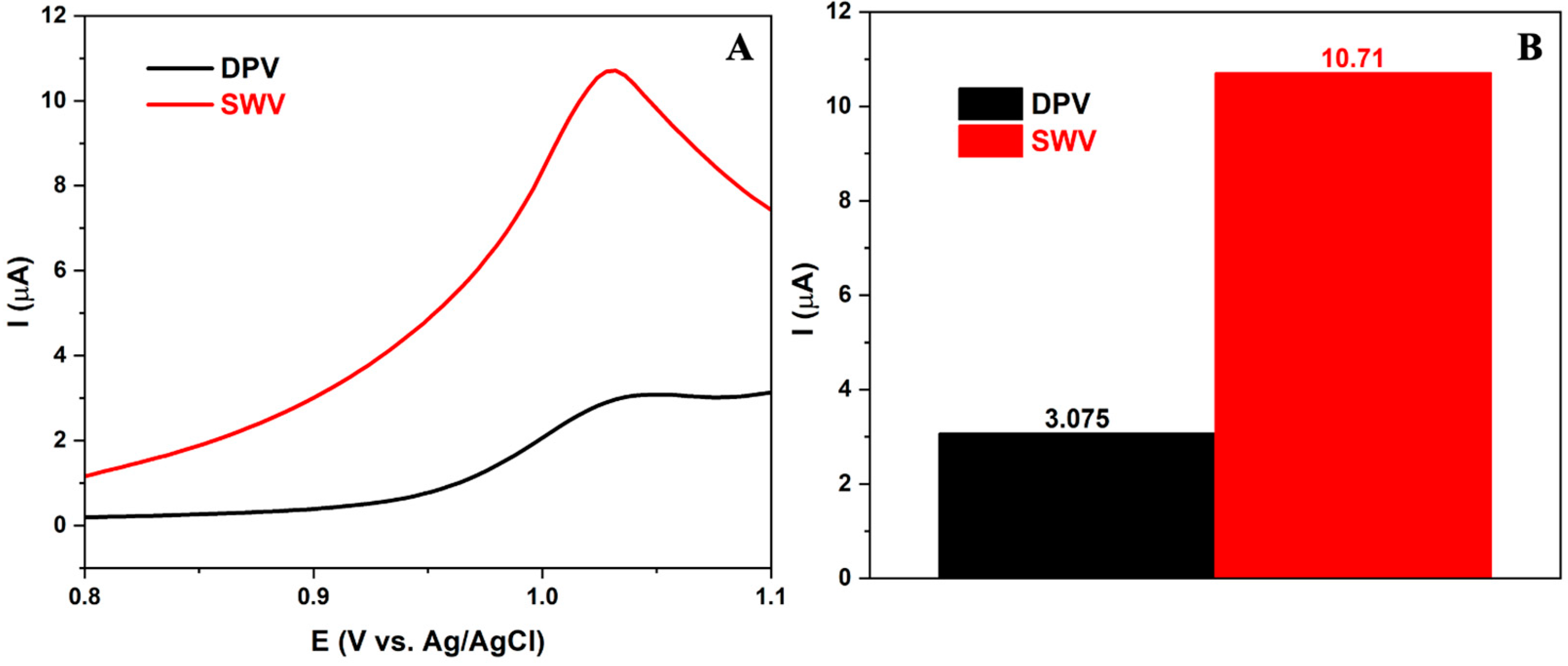

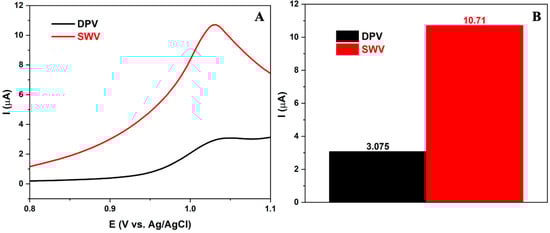

Our thorough investigation has revealed that square wave voltammetry (SWV) and differential pulse voltammetry (DPV) are the two most efficient techniques for quantitative analysis in voltammetry. Upon conducting a detailed comparison of the voltammograms acquired through DPV and SWV (Figure 6A), we have determined that the SWV method provides a superior peak with higher current and resolution (Figure 6B). Therefore, we have decided to employ the SWV method for all our subsequent measurements as it offers faster measurement speed, improved detection limits, wider linear working ranges, and better measurement signal processing.

We conducted extensive research to optimize the working parameters for the SWV method, with the goal of improving the method’s detection limit and signal discrimination. We used CPE with a 5% Co₃O₄-modified electrode in BRBS at pH 5, within a potential range of 0 to 1.1 V. To determine the optimal working parameters, we tested various potential increments ranging from 2 mV to 20 mV, as well as varied the frequency value from 10 to 90 Hz and the amplitude from 10 to 90 mV. After conducting these tests, we found that the ideal working parameters for the SWV method were a potential step of 5 mV, an amplitude of 70 mV, and a frequency of 5 Hz. These optimized working parameters will significantly enhance the accuracy and precision of the SWV method. By implementing these parameters, we expect to achieve superior results in future experiments and further advance the field of electrochemical analysis.

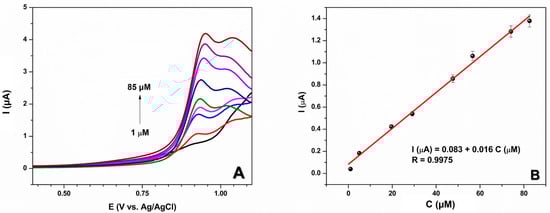

The positive results obtained on the improvement of the characteristics of the electrode made of carbon paste were confirmed by examining the influence of different concentrations of analyte, using previously optimized parameters. Figure 7 shows the dependence of the oxidation current on the added amount of standard LEV solution. A linear dependence was obtained for a wide range of concentrations from 1 to 85 μM. The calibration curve can be described by the equation Ap (VμA) = 0.003 + 0.001 × C (μM) with a linear regression coefficient (R) of 0.9975. The limit of detection (LOD) and the limit of quantification (LOQ) were calculated as 3S/b and 10S/b, respectively, where S is the standard deviation of three repeated blank measurements and b is the slope value of the calibration curve [23]. The found values were 0.39 μM for LOD and 1.30 μM for LOQ. The sensitivity of the proposed sensor was found to be 0.51 µAµM⁻¹cm⁻², calculated from the slope of the calibration curve and the apparent surface area of the CPE.

An investigation of the repeatability of the LEV sensor was conducted. This study was carried out using LEV in BRBS pH 5 with 50 μM of analyte. The obtained results revealed that the relative standard deviation (RSD) for five consecutive measurements was 3.5%, indicating excellent repeatability. These data are immensely informative and provide a significant insight into the performance of the LEV sensor. It also highlights the potential applications of this sensor in various fields. Going forward, we aim to continue with our research and testing to further explore the capabilities of the LEV sensor and the potential impact it can make in different areas.

3.7. Interference Measurement

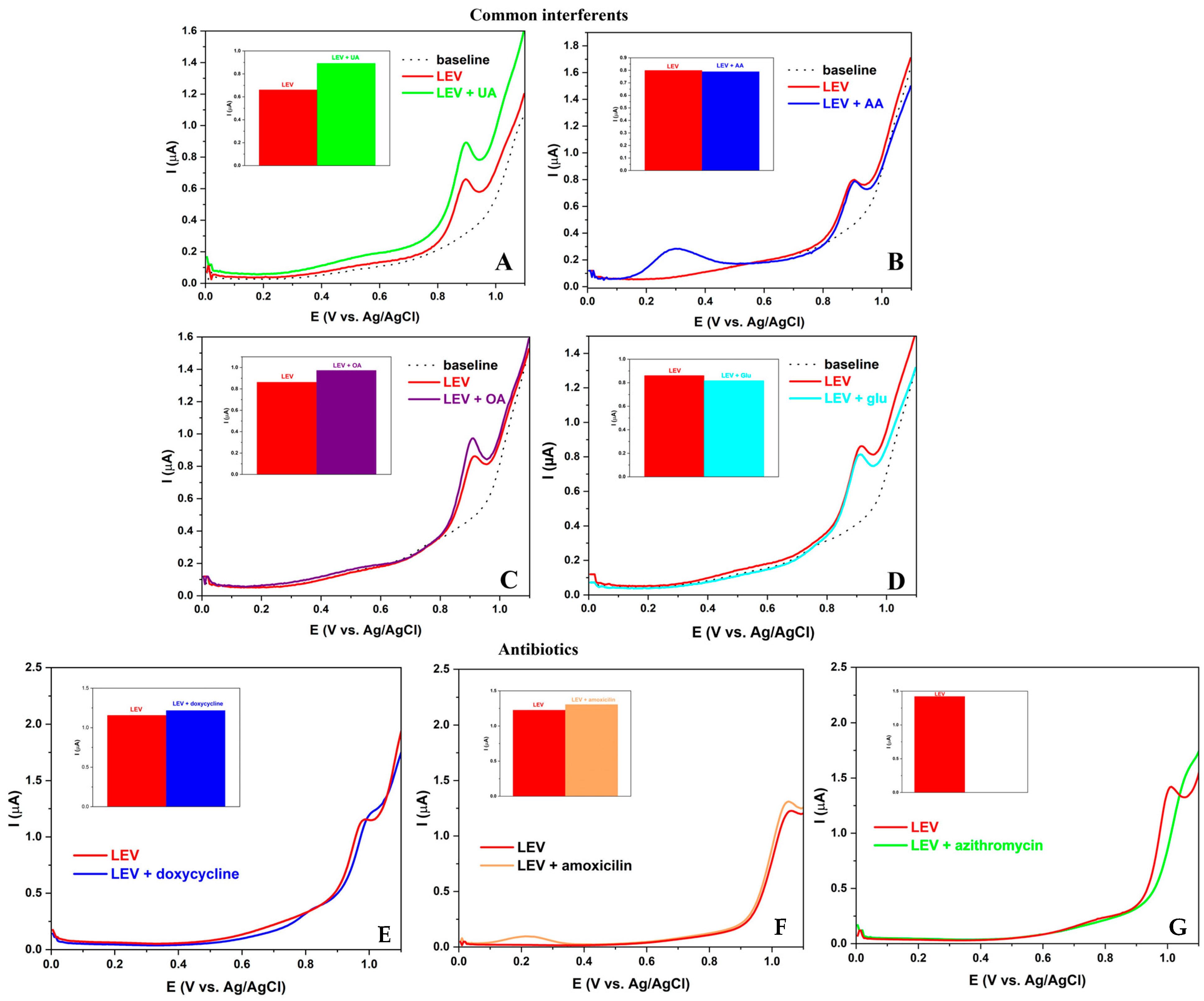

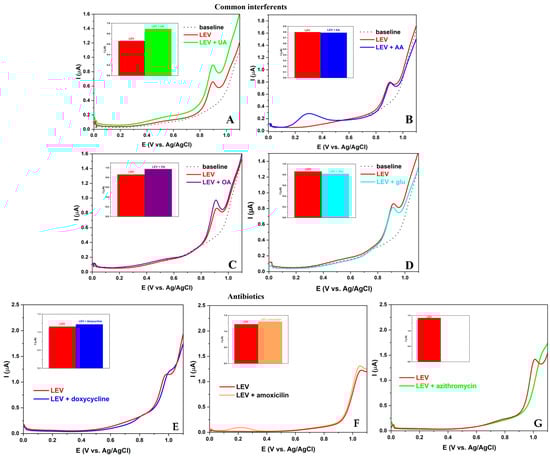

To evaluate the selectivity of our method for detecting LEV, we conducted tests by introducing a standard solution of interfering substances to solutions containing 50 μM of LEV. Our findings (Figure 8) revealed that the presence of ascorbic acid (AA) and glucose (Glu) did not interfere with the quantification of LEV, resulting in changes in the current signal that were less than 2% and 5%, respectively. On the other hand, the presence of oxalic acid (OA) and uric acid (UA) caused significant signal reduction, with changes of 11% and 25%, respectively. However, it is important to note that our proposed sensor can still be effectively utilized for determining the concentration of analytes in pharmaceutical formulations where the presence of OA and UA is not expected. Also, we investigated the influence of antibiotics on the determination of LEV. Our results (Figure 8E–G) show that doxycycline and amoxicillin changes the current signal by less than 3%, but in the presence of azithromycin, we lose the LEV signal. Our sensor can be used for analysis in samples where the investigated antibiotics are present. Consequently, our results indicate a high degree of accuracy and reliability of our method in detecting LEV.

3.8. Application of a Modified Electrode for the Determination of LEV

In order to test the practical applicability of the method for the quantification of LEV, we used tap water as real samples. The pH value of real water samples was 5.8. In order to obtain the best possible electrode response, the pH value of the real sample was adjusted to pH 5. In water samples, three different concentrations of LEV (13.56; 21.67 and 37.96 µM) were added, and corresponding SWV voltammograms were recorded. For each sample, the obtained current values and analyte concentrations were determined, with the help of a previously constructed calibration line. The results are presented in

Table 1. Recovery studies for real sample analysis.

	Added (µM)	Found (µM)	RSD (%)	Recovery (%)
Real water sample	13.56	13.93	4.2	103
	21.67	20.45	3.2	94
	37.96	40.13	1.5	106

. Recovery values were calculated as the ratio of the found and added concentration of Levofloxacin in real water samples. The values were multiplied by 100 to present results in percentages (%). The obtained recovery values were in range of 94–106%, indicating that the proposed method is both reliable and reproducible, making it a promising tool for the analysis of LEV in water samples. Overall, the results of this study highlight the potential of the proposed method for the analysis of LEV in water samples. Further research is certainly recommended to fully explore the capabilities and potential applications of this method. However, the initial findings indicate that this method is a reliable and reproducible tool for the quantification of LEV in real-time water samples.

4. Discussion

The use of nanomaterials plays a key role in the selectivity and sensitivity of the method. A simple synthesis of Co₃O₄ gives uniformly distributed and highly crystalline spherical nanoparticles. The co-precipitation synthesis method used in this work does not require the use of organic solvents, which makes it green, eco-friendly, and in accordance with the requirements of modern science. The material thus prepared showed excellent electrocatalytic abilities in the Fe^2+/3+ couple using cyclic voltammetry and impedance spectroscopy. These catalytic properties can be associated with the presence of Co²⁺ and Co³⁺, which are known to occupy tetrahedral and octahedral positions, respectively, in the structure of the material, thus significantly contributing to the catalytic axis of the material. The presence of this catalyst in the structure of the material significantly affects the detection of levofloxacin. A significant increase in the peak current compared to the unmodified electrode is observed, and this can be related to the improvement of the interaction between the tested analyte and the electrode surface, through the improvement of diffusion on the electrode surface and the number of active sites (effective electrode surface). Additional confirmation of this is the dependence of the levofloxacin oxidation current on the amount of modifier. Electroanalytical detection methods are based on the use of the pulse SWV method. The parameters of the method were optimized and, as a final result, the sub-micromolar limit of detection was achieved. The excellent compatibility of the material with the target analyte was demonstrated through studies of the influence of interfering compounds, while the influence of the matrix effect was shown to be minimal through the practical use of the method for the detection of levofloxacin in real samples, recovery, reproducibility, and repeatability. The innovative and ecologically conscious sensing techniques devised by our research team possess the ability to establish a solid groundwork for subsequent breakthroughs in this domain. The successful implementation of these methods could eventually culminate in a revolutionary transition, in which the principle we have established can be seamlessly adapted into an online system that can be operated and controlled remotely, enabling efficient monitoring and analysis. Moreover, this advancement holds great promise for facilitating real-time and continuous detection and measurement of levofloxacin, thereby enhancing the effectiveness and reliability of this analytical process in various industries and applications.

5. Conclusions

We have developed a highly effective method for detecting and measuring levofloxacin using cobalt oxide (Co₃O₄) nanomaterial as a support for the carbon paste electrode. We have carefully examined the nanomaterial’s morphological properties using advanced imaging techniques such as TEM, SEM, and XRD. The detection method we employed, SWV, proved to be exceptional, with a linear correlation concentration/current ranging from 1 to 85 μM, and a detection limit of 0.39 μM. We utilized this optimized method to analyze a real sample and obtained highly satisfactory results. The developed sensor has low sensitivity (0.51 µAµM⁻¹ cm⁻²) and selectivity, a quick response time (<2 s), all while being more cost-effective than standard analytical methods for LEV determination and quantification. This method can be readily applied in routine research with the use of a calibration line or the standard addition method.
