NiFeOx and NiFeCoOx Catalysts for Anion Exchange Membrane Water Electrolysis

Department of Chemical Engineering, University of Waterloo, Waterloo, ON N2L 3G1, Canada
*
Authors to whom correspondence should be addressed.
Electrochem 2022, 3(4), 843-861; https://doi.org/10.3390/electrochem3040055
Submission received: 2 October 2022 / Revised: 8 November 2022 / Accepted: 6 December 2022 / Published: 14 December 2022

Abstract

:
Hydrogen production using an Anion exchange membrane (AEM) electrolyzer allows the use of non-platinum group metal catalysts for oxygen evolution reaction (OER). Nickel and Cobalt-based oxides are active in an alkaline environment for OER and are relatively inexpensive compared to IrO2 catalysts used in Polymer electrolyte membrane (PEM) electrolysis. Mixed metal oxide catalysts NiFeOx and NiFeCoOx catalysts were synthesized by the coprecipitation method using NaOH. X-ray diffraction results showed mainly NiO diffraction peaks for the NiFeOx catalyst due to the low concentration of Fe, for the NiFeCoOx catalyst, NiCo2O4 diffraction peaks were observed. NiFeCoOx catalysts showed a higher Anion exchange membrane water electrolysis (AEMWE) performance compared to NiFeOx and commercial NiO, the highest current density at 2 V was 802 mA cm−2 at 70 °C using 1 M KOH as an electrolyte. The effect of electrolyte concentration was studied by using 0.01 M, 0.1 M and 1 M KOH concentrations in an electrolysis operation. Electrochemical Impedance spectroscopy was performed along with the equivalent circuit fitting to calculate ohmic and activation resistances, the results showed a decrease in ohmic and activation resistances with the increase in electrolyte concentration. Commercially available AEM (Fumasep FAA-3-50 and Sustainion dioxide membrane X-37-50 grade T) were tested at similar conditions and their performance was compared. EIS results showed that X-37-50 offered lower ohmic resistance than the FAA-3-50 membrane.

1. Introduction

AEM electrolyzers are a new generation of water electrolyzers with solid polymer electrolyte membranes replacing the diaphragm and are receiving much attention due to their several advantages, such as low ohmic resistance, good gas separation, and use of non-platinum group metal (PGM) catalysts [1]. The thin anion quaternary ammonium ion exchange membrane is used to conduct OH ions, which is cheaper than the polymer electrolyte membrane (PEM) [2,3,4].
Anion exchange membrane water electrolysis (AEMWE) has the advantage of being able to operate in low concentrations of electrolytes, such as 1% KOH or distilled water compared to conventional Alkaline water electrolysis (AWE), which makes it possible to use inexpensive Ni and Co-based electrocatalysts [4,5]. It also reduces the accumulation of K2CO3 precipitates by the reaction of KOH with CO2 in the atmosphere. To improve the current density and efficiency of AEMWE, a cell structure similar to polymer electrolyte membrane water electrolysis (PEMWE) is available [6,7,8,9]. AEMWE using a zero-gap alkaline electrolysis cell has been reported to perform better than 3 A cm−2 at 1.8 V using 1 M KOH [10,11].
For OER in alkaline conditions, the reaction involved the consumption of OH ions at the anode. The OH ions are transported through the membrane from the cathode side. The OER reaction is the main reaction in water electrolysis and has a higher overpotential than the HER [12]. The mechanism of oxygen evolution involves several intermediate steps, and it is kinetically unfavorable due to the four-electrons process for the evolution of one molecule of oxygen gas. This resulted in the formation of energy barriers and cause slower kinetics and high overpotential [13]. Due to this, the development of active, stable, and cost-effective OER catalysts is necessary to achieve higher electrolysis efficiencies.
Several materials and different compositions have been used for the OER, in alkaline conditions, first-row transition metals showed high activity, in addition, they have good stability in alkaline environments [14]. Ni, Fe, and Co-based catalysts have been known to decrease the OER overpotential [8,15,16,17]. Transition metal oxides, hydroxides, and oxyhydroxides have been studied for the OER and their activities have been reported in the literature. The general trend in the activity for these catalysts is Ni > Co > Fe [18,19,20,21].
Nickel has been proposed to be the most efficient catalyst for OER based on adsorption energies and bond strength of the reaction intermediates [19,20,21,22]. To further improve the activity of Ni hydroxides and oxyhydroxides, other transition metals are incorporated in a small amount to enhance the activity of the catalyst. The incorporation of transition metals has been shown to significantly affect the electronic properties of the catalyst [23,24]. In theory, the addition of the transition metal to metal oxide or hydroxide, affects the d-d intermetallic bonding between the metallic phases, and it could result in lower intermediate adsorption energy of the intermediates in the reaction [25]. This results in weaker adsorption of the intermediates and faster kinetics of the reaction. The addition of transition metals as impurities into Nickle oxide is reported to improve the conductivity, increase the active sites, and decrease the binding energy of the intermediates. [26,27,28].
The performance of AEMWE is highly dependent on the AEM and concentration of electrolytes as well as the electrocatalysts [4]. In AEMWE, various electrolytes such as KOH, K2CO3 and KHCO3 are used to improve the performance [4,29]. Higher concentrations of electrolyte generally ensure higher ionic conductivity of the OH, which can be expected to improve performance. However, DI water can also be used as an electrolyte to prevent the corrosion of components [30,31].
In this study, we compared three different OER catalysts NiO, NiFeOx, and NiFeCoOx for AEMWE. The effect of electrolytes was also studied by varying the concentration of KOH. Electrochemical impedance spectroscopy (EIS) was performed to investigate different resistances during the operation of the electrolyzer. In addition, two different membranes (Fumasep FAA-3-50 and Sustainion dioxide membrane X-37-50 grade T) were compared. EIS with the equivalent circuit fitting was performed to evaluate the reason for different performances under similar conditions. The catalyst performance for the electrolysis was in the order of NiFeCoOx > NiFeOx > NiO. Unlike other studies performed on these catalysts at lower current densities and in three-electrode systems, this work evaluated the catalyst at higher current densities in AEMWE. EIS was also measured at higher temperatures and at high current densities in AEM electrolysis which are not always included in AEM electrolysis literature.

2. Experimental

2.1. Synthesis of Catalyst

The NiFeCoOx catalyst was synthesized by the coprecipitation method at room temperature. Ni(NO3)2·6H2O, Co(NO3)2·6H2O, and Fe(NO3)3·9H2O were used as a precursor of Ni, Co, and Fe, respectively. The mole fraction of Ni, Co, and Fe were 0.648, 0.324, and 0.027, respectively. Precursors were dissolved in water and kept at 25 °C. The precipitation step was carried out by adding 1 M NaOH dropwise for 1 h until precipitation stops. After the precipitation, the suspension was stirred for 2 h, and the catalyst suspension was centrifuged to get the solid catalyst. The solids obtained after centrifuging were washed with plenty of water to remove excess NaOH. The solid obtained after washing was dried in an oven overnight and then calcined/annealed in the furnace at 300 °C for 5 h to convert the catalyst into oxide form. NiFeOx catalyst was also developed by the same method with Ni and Fe mole fractions of 0.85 and 0.15. All the chemicals used in the synthesis were from Sigma Aldrich, Saint Louis, MI, USA.

2.2. Preparation of the Membrane Electrode Assembly

NiO, NiFeOx, and NiFeCoOx catalysts were deposited on the nickel foam (thickness 1.7 mm), which is used as the anode. The catalyst slurry was made by dispersing 100 mg of catalyst in water and Nafion solution (Nafion™ 1100 W from Sigma Aldrich), if the slurry is too thick, an additional amount of water was added dropwise using a micropipette to get the proper consistency, the Nafion content was 10 wt% of the catalyst amount. After making the slurry, it was sonicated for 30 min to make a uniform mix. The thick catalyst slurry was then pasted on the surface of nickel foam and hot pressed to get the catalyst-coated gas diffusion electrode (GDE). In all cases, the catalyst loading at the anode was 25 mg·cm−2. The final thickness of the electrode was 0.75 mm. Figure 1a,b shows nickel foam which is a gas diffusion layer (GDL) at the anode side and carbon paper coated with Pt/C catalyst which is used at the cathode side. Nickel foam coated with the catalyst and AEM on top of carbon paper is shown in Figure 1c,d. The dimensions of the GDLs are 1.8 cm × 1.8 cm. Figure 2a,b shows the Membrane electrode assembly (MEA) from the cathode side and anode side, with AEM sandwiched in between them.
Commercial Pt/C (40 wt%, HISPEC 4000, Johnson Matthey, London, UK) catalyst was used for HER at the cathode, and 1 mg of Pt was deposited by drop casting method on the carbon paper (Sigracet 29BC) which has a thickness of 235 µm. The catalyst ink was prepared by adding the catalyst to water, ethanol, and a Nafion solution. For a typical ink composition, 50 mg of Pt/C was dispersed in 5 mL of ethanol and 1 mL of water with 0.22 g of Nafion solution. The Nafion content was 20 wt% of the catalyst amount. After the fabrication of the gas diffusion electrodes, the MEA was formed by adding AEM (Fumasep FAA-3-50 or dioxide membrane X-37-50 grade T) between the anode and cathode. The commercial AEM is in Cl or Br form, to use them in AEM electrolyzer, they are soaked in a 1.0 M KOH solution overnight (about 24 h) and rinsed with distilled water. The final activated membrane was used for the fabrication of MEA. The MEA was not pressed because it was possible to puncture the membrane due to the nickel foam. The MEA was formed by inserting the components in the MEA plastic casing, A porous transport layer made by pressing 3 nickel foams which were pressed to the thickness of 2 mm was first put into the casing; then, a nickel foam anode is inserted in the casing followed by the AEM and then, the carbon paper cathode. The MEA was pressed during the tightening of the electrolyzer.

2.3. AEM Electrolyzer Single-Cell Tests

The performance of AEMWE was evaluated by using a potentiostat connected with 100 A Booster VMP3B-100. The AEM electrolyzer had a water inlet and water and oxygen outlet on the anode side and hydrogen outlet at the cathode side. The total active area of the MEA was 3.24 cm2 with dimensions of 1.8 cm × 1.8 cm. The catalyst was activated by performing cyclic voltammetry (CV) in the range of 1.3 V to 2.2 V at a scan rate of 5 Mv·s−1. The operation was also performed by using linear sweep voltammetry (LSV) and chronoamperometry (CA). KOH was used as an electrolyte and was circulated with a flow rate of 90 mL/min. A hot plate was used to heat the electrolyte and the electrolyzer at the desired temperature, the temperature range used in electrolysis was from 45 to 70 °C.
EIS measurements were carried out to get the impedance of the electrolyzer cell during the operation. Potentiostatic EIS was performed at the voltage range of 1.7 V to 2 V, with a frequency range of 100 kHz to 100 mHz, the data were analyzed by Nyquist curves and further equivalent circuit fitting.
Half-cell reactions at the anode and cathode are shown in Equations (1) and (2), the overall reaction in AEM electrolyzer is shown in Equation (3). The theoretical voltage required to split water is 1.23 V, in practical cases, it is higher than 1.23 V due to the overpotential of these reactions at the anode and cathode.
Figure 3 shows a schematic of the AEM electrolyzer, in which the anode and cathode are separated by a thin polymeric AEM. In this work, the KOH aqueous solution is circulated from the anode side only. The reduction of water takes place at the cathode to form hydrogen, the OH transports through the AEM and oxidized to give O2 at the anode.
Anode 4OH →O2 +2H2O +4e      E = 0.401V
Cathode 4H2O + 4e→ 2H2 +4OH       E = −0.828 V
Overall 2H2O → 2H2 + O2        E = 1.23 V

3. Results

The morphology of the catalyst coating and nickel foams was performed by scanning electron microscope (SEM, Leo 1550, Zeiss, Jena, Germany). The morphology of nickel foam which acts as a GDL at the anode was analyzed by SEM. Figure 4a,b shows nickel foam before it was coated with the catalyst layer. The pore size was in the range of 100 to 500 μm. Figure 4c shows nickel foam coated with NiFeCoOx catalyst; the catalyst layer was pressed with nickel foam to get a compact layer of catalyst on top of the nickel foam. From SEM it was observed that the catalyst layer completely covered the nickel foam. There were some cracks in the catalyst layer which are due to the high loading of the catalyst. Figure 4d shows the cross-sectional image of a catalyst-coated nickel foam gas diffusion electrode (GDE), the overall thickness of GDE was 785 μm.
X-ray diffraction studies were performed (Rigaku Miniflex 600) using Cu-Kα radiation (λ = 1.54184 Å). Catalysts were analyzed by XRD, commercial NiO and NiFeOx (15% Fe) show mainly NiO phase with five distinct peaks at 2θ which are at 37.36, 43.36, 60, 75.54 and 79.56, which are assigned to (111), (200), (220), (311) and (222), respectively. All peaks are indexed to NiO (JCPDS card no. 78-0643) as shown in Figure 5. The dashed lines are the corresponding JCPDS standard. NiO has a rock salt structure with a lattice constant of 4.17 Å. Due to the low concentration of Fe in the NiFeOx catalyst any peaks related to NiFe2O4 or Fe2O3 were not observed. The XRD of NiFeCoOx catalyst which has 2.7 wt.% Fe and Ni to Co molar ratio of 2:1, showed NiCo2O4 spinel crystal structure with a most intense peak at 2θ 36.8 assigned to (311), all peaks are indexed to NiCo2O4 (JCPDS card no. 20-0781).
Equation (4) is listed in the following, where λ is the wavelength of the X-ray, β is the full width at half Maximum (FWHM) peak intensity in radian, and θ is the diffraction angle and k is the Scherrer’s constant, which is 0.94 for crystalline nanoparticles. The calculated particle sizes for NiO, NiFeOx, and NiFeCoOx were 17, 4, and 6 nm, respectively.
D = k λ β cos θ

4. Water Electrolysis over NiO, NiFeOx and NiFeCoOx

Three different OER catalysts, commercial NiO, lab-made NiFeOx, and NiFeCoOx were tested for AEMWE operation with Pt/C catalyst for the HER at the cathode. The polarization curve was taken at a temperature range of 45 °C to 70 °C. LSV was used as a preferred method to evaluate the activity of the catalyst.
NiFeCoOx showed the highest activity among all the catalysts tested, the catalyst showed a current density of 802 mA cm−2 at 2 V with the temperature of the electrolyte and the electrolyzer at 70 °C.
Figure 6 shows polarization curves using NiFeCoOx, at 70 °C when the voltage was further increased to 2.2 V, the current density increased to 1100 mA cm−2, which is an enhancement of about 37% in current density. The current density also increased with the increase in electrolyte temperature, for electrolysis operation at 45 °C and 55 °C at 2 V. The current density was 532 and 656 mA cm−2, which increased to 802 mA cm−2 at 70 °C, which is an increase of 53% and 22% in the current density. The increase in temperature decreases the overpotential at the cathode and anode side for OER and hydrogen evolution reaction (HER). Moreover, the conductivity of the electrolyte also increased with the temperature and improves the overall activity of the electrolysis [4]. In another study, electrolysis performance was evaluated from 30 °C to 50 °C, at the current density of 470 mA cm−2. The electrolyzer potential decreased with the increase in temperature [29]. The effect of temperature was also investigated with a novel integrated inorganic membrane electrode assembly at the temperature range of 50–70 °C, the performance of the electrolyzer improves with the increase in temperature. The enhancement in the performance was mainly due to the higher conductivity of OH and the reduction in the overpotential of the catalyst [32]. It has been reported that the addition of cobalt in NiO lattice results in the formation of conductive NiIIIOOH. Fe content in the range of 10–20% has been shown to improve the NiO catalyst performance for OER. Fe was proposed to stabilize Ni in the Ni2+ Oxidation state and Co helps in the formation of Ni3+ [33].
Chronoamperometry was used to analyze the activity of the catalyst at constant voltage for a fixed period of time. Figure 7 shows the chronoamperometry at 70 °C. The voltage increased from 1.5 V to 2.2 V with a time step of 60 s. The electrolysis operation was stable during the analysis and had minimum current fluctuations at the fixed voltage. At 2.2 V the maximum current density was 1140 mA cm−2.
Figure 8 shows the LSV of NiO, NiFeOx, and NiFeCoOx catalysts at 70 °C using 1 M KOH electrolyte. NiFeCoOx had a higher current density followed by NiFeOx and NiO, the current density with NiFeOx catalyst was 551 and with NiO was 509 mA cm−2. When comparing the performance of NiO and NiFeOx, there was not much enhancement due to the addition of Fe in the NiFeOx catalyst. In this study, very high loading of Fe was used which might have decreased the performance of the NiFeOx catalyst. NiFe-based catalysts are reported to have higher catalytic activity in basic electrolyte medium [34,35]. Nickel is proposed to be an active site for OER and Fe is considered to improve the conductivity of the catalyst. In other research works, the addition of Fe is linked to stabilize Ni in Ni2+ form [36]. Ni-Fe binary catalyst modified with third metal (Cr, Mo, and V) showed higher activity compared to the Ni-Fe oxide catalyst [37,38,39].
Emily Cossar et al. studied the AEMWE performance over Ni-Fe nanoparticles as anodes using 1 M KOH, Ni0.9Fe0.1 showed the cell voltage of 1.72 V at 0.8 A.cm−2. Ni0.80Fe0.1 with 10% CeO2 had a voltage of 1.67 V with 0.4 A.cm−2 using 0.1 M KOH. In durability testing, Ni0.9Fe0.1 showed stability of 12 h at 0.5 A.cm−2 [40]. In another study, NiFe bimetallic anodes were fabricated using the magnetron sputtering technique. The work showed the enhancement in electrochemical activity with the addition of Fe to Ni-based catalysts. The highest performance was on Ni/Fe catalyst with an atomic ratio of 10/1, on that catalyst at 2 V the current density was 0.6 A.cm−2 and 0.4 A.cm−2 at 60 °C and 40 °C, respectively [41]. Dongyu Xu et al. synthesized transition metal (oxy) hydroxide for OER and tested it in the AEM electrolyzer. Among the catalysts NiCoOx:Fe showed the highest activity with a current density of 900 mA cm−2 at 2.4 V [42]. The catalyst was designed to be oxyhydroxide because the active sites for OER are proposed to be transition metal oxyhydroxide.
EIS measurements were carried out to get the impedance of the electrolyzer cell during the operation. Potentiostatic EIS was performed at the voltage range of 1.7 V to 2 V, with a frequency range of 100 kHz to 100 mHz, the data was analyzed by Nyquist plots and equivalent circuit fitting. Figure 9 shows the Nyquist plot for electrolysis operation performed at 1.7 V at two different temperatures of 45 °C and 70 °C. The first x-intercept is at a high-frequency region and shows the ohmic resistance (Rohm), the second intercept at the x-axis subtracted by the first intercept gives the activation resistance (Ract). As can be seen in Figure 9, the diameter of the semicircle for the Nyquist plot at 45 °C is higher which shows that there is higher activation resistance at this temperature compared to 70 °C operation. To further evaluate the contribution of different components to the resistance, the equivalent circuit fitting is performed. The circuit given in Figure 9 shows the whole electrolyzer element, where L is the inductance due to the wires, R1 is the ionic resistance due to the AEM, R2, and R3 are the activation resistance due to the anode and cathode, respectively. Q1 and Q2 at anode and cathode are the constant phase element (CPE) and are used to simulate resistors, capacitors, and inductors, and capture the effects of surface roughness, porosity, reactivity, and surface inhomogeneity that are due to the electrical double layer [43]. EC-Lab software was used to fit the Nyquist plot with Randomize simplex method and the results are given in Table 1.
Equivalent circuit results are tabulated in Table 1. As the electrolyzer was operated at a higher temperature of 70 °C, the ohmic resistance decreased from 0.125 to 0.105 Ω. This was mainly due to the increase in the conductivity of OH at higher temperatures, which also results in a decrease in membrane resistance. The ohmic losses are due to the resistance in the flow of electrons from different components of the electrolyzer, such as the anode, cathode, and membrane.
The total activation resistance at the anode and cathode were also evaluated using equivalent circuit fitting. With the increase in temperature, the total activation resistance at both electrodes decreased from 0.186 to 0.116 Ω. This is mainly due to the improvement of reaction kinetics of OER and improved conductivity of OH with the increase in temperature. The membrane resistance also decreased with the increase in temperature and there was a reduction of about 33%, when the temperature was increased from 45 to 70 °C. One of the reasons for the decrease in ohmic resistance is the decrease in the membrane resistance with the temperature. It was reported that the membrane resistance decreased from 75.3 to 52.5 mΩ.cm2 for polycarbazole-based anion exchange membrane (QPC-TM) [10].
The EIS measurement at a voltage of 1.9 V was performed by Immanuel Vincent et al., the ohmic resistance was reported to decrease with the increase in temperature. The reported ohmic resistance at 1.9 V was 17.8, 16, 15.8, and 15.6 mΩ at 30, 40, 50, and 60 °C [44]. In PEM electrolysis, an increase in temperature is also reported to decrease the ohmic contact, one of the reasons being the thermal expansion of the components which causes the decrease in interfacial contact resistance [45,46]. The interfacial contact resistance decreases with the thermal expansion due to the increased compression pressure in the PEM electrolyzer [47].

5. Effect of Electrolyte Concentration

The concentration of the electrolyte is an important parameter that needs to be understood in detail to optimize the electrolysis conditions. It is desirable to operate the electrolyzer at low electrolyte concentrations or only with water. However, using only water or using low concentrations of the electrolyte can significantly affect the performance of the electrolyzer, due to the decreased conductivity of OH ions.
In this work, the electrolyzer was tested at three different concentrations of KOH. The molarity of KOH was 0.01, 0.1, and 1 M used in this study, all other parameters were the same as mentioned earlier. Briefly, 25 mg/cm2 NiFeCoOx catalyst at the anode side and 1 mgPt/cm2 Pt/C were used at the cathode, the anion membrane was 50 µm Faumsep FAA-3-50. Figure 10 shows the LSV curves, the highest activity was achieved when 1 M KOH was used, and the electrolyzer reached the current density of 951, 681, and 513 mA cm−2 for 1 M, 0.1 M and 0.01 M electrolyte at 2.1 V. The current density increased to about 39%, when electrolyte concentration increased from 0.01 M to 0.1 M, and there was an increase of 85% in current density when KOH concentration increased from 0.01 to 1 M. It was also observed that at 0.01 M concentration, the polarization curve did not remain linear after 1.9 V and slightly bend downwards. This is the indication that at a higher voltage, more OH is required for the OER, but due to the lower concentration of OH, the current density did not remain linear and started to decrease. This trend was not observed for 0.1 M and 1 M concentration electrolyzer performance. Electrolysis with DI water has shown lower current density compared with other results obtained with KOH, the highest current density achieved was 254 mA cm−2 at 2.1 V. At 2.3 V, which is considered high for electrolysis, the current density was 400 mA cm−2.
An increase in pH is reported to improve the conductivity of AEM, which reduces the ohmic resistance and increases the activity of AEMWE operations [48]. Higher pH is reported to decrease the overpotential of the reaction. At lower concentrations of KOH there is a lower number of OH available, which causes slower reaction kinetics of OER [4]. In other works, DI water was used in AEM electrolyzer with a current density of 399 mA cm−2 at 1.8 V [30]. At a current density of 400 mA cm−2 with ultra-pure water, an electrolyzer voltage of 1.8 V is reported [31].
Nyquist plot for KOH concentration of 0.01 M to 1 M and DI water are shown in Figure 11a,b. The EIS was performed at 2 V and 70 °C for all electrolyte concentrations. There is a big difference between the DI water Nyquist plot, which has a higher x-intercept and a bigger diameter, which are indicative of ohmic resistance and activation resistance, respectively. The ohmic resistance for DI water-fed electrolyzer was very high at 0.56 Ω. For KOH-fed electrolyzer the ohmic resistance decreased with the increase in concentration. Lower ohmic resistance with increased KOH concentration was due to the increased conductivity of the anion exchange membrane.
For comparison, the ohmic resistance using 1 M KOH was 0.12 Ω, which was 4.66 times lower compared to the DI water-fed electrolyzer. For EIS measurement at 1.5 V, ohmic resistance is reported to decrease from 170.4 to 18 mΩ, when the concentration of KOH increased from 0 to 1 M KOH [44]. The decrease in ohmic resistance was attributed to the increase in the conductivity of the membrane.
To evaluate individual resistances due to the components of the electrolyzer, equivalent circuit fitting was performed with the same circuit as discussed earlier. The results from the equivalent circuit fitting are shown in a bar graph in Figure 12. The Figure shows the activation resistance at the anode and cathode along with membrane resistance, the resistances as a function of electrolyte are shown along with DI water. In all cases, DI water shows the highest resistances at each component of the electrolyzer, followed by 0.01 M and 0.1 M KOH. These results showed that two main components which can control the activity of the electrolyzer are the anion exchange membrane and the anode catalyst. For the membrane, a lower thickness and higher conductivity can reduce these resistances. For the resistance at the anode, where an oxygen evolution reaction takes place, there is still room for improving the OER catalyst to reduce the overpotential of the catalyst. Another trend that was observed was membrane resistance and activation resistance at the anode decreased with the increase in KOH concentration, but activation resistance at the cathode did not change much with the increase in KOH concentration.

6. Comparison of AEM Membranes

The AEM is the main component of the electrolysis cell. It is made up of a polymer backbone and functionalized with anion exchange groups, mostly with quaternary ammonium salts [49,50]. AEM membrane should have the properties of high ionic conductivity, good thermal and mechanical stability, gas impermeability and stability in long-term usage [51,52,53]. Its main role is to transport OH from the cathode to the anode side, and to avoid gas crossover. To be considered for commercial use, AEM should be of low cost to increase its feasibility. Membrane conductivity is shown to increase with the nucleophilic substitution of the ammonium group and by the substitution of a methyl group to hydroxyl ions. High conductivity can be achieved with the increase in the incorporation of the anion exchange group, but it may also increase the water uptake and deteriorate the mechanical strength of the membrane [11].
Commercially available AEM membranes are widely used in AEM electrolysis research, which are Sustainion® 37-50 (dioxide membrane), Tokuyama A201, Fumasep® FAA-3, OrionTM, and AemionTM. These AEM needs to be pretreated because they are usually shipped in bromide and chloride forms. The AEM can be activated by keeping the membrane in the KOH solution for about 24 to 48 h. Table 2 provides the properties of the commercially available membrane [42,54,55,56].
Membranes from Fumatech, such as the FAA3 type, are polyaromatic polymers with ether bonds and quaternary ammonium group present at the main chain. The reported electrolysis work with these membranes in the presence of a noble metal catalyst (Pt/C cathode and IrO2 anode) showed the activity of 1.5 A.cm−2 at 2 V with 1 M KOH at 50 °C [59]. The durability testing of the FAA3-40 membrane showed a lifetime of 31 h, due to poor mechanical stability caused by the excessive swelling of the membrane [4]. Whereas, the FAA3-50 AEM membrane shows the stability of 1000 h, with the NiMnOx anode and Pt/C cathode catalyst [60]. Sustainion membranes X-37-50 from dioxide materials are based on 4-vinylbenzyl chloride-co-styrene [51,52,61]. The membranes take some water for crosslinking which reduces the swelling of the membrane during the electrolysis operation [52].
For the comparison of electrolyzer activity commercially available Dioxide membrane X-37-50 was used, the MEA preparation method was similar as mentioned earlier. The operation was performed at three temperatures of 45, 55, and 70 °C as shown in Figure 13a–c. The X-37-50 MEA had a higher current density at each temperature compared to the FAA-3-50 membrane with the same thickness of 50 μm. At 2.2 V the current density for X-37-50 MEA was 1390, 1590, and 1815, for FAA-3-50 MEA it was 794, 937, and 1121 mA cm−2 at 45, 55, and 70 °C, respectively. The higher activity could be correlated with the X-37-50 higher conductivity compared to the FAA-3-50 membrane. With a non-precious catalyst, Sustainion 37–50 membrane showed stability for 2000 h while maintaining the current density of 1 A.cm−2 at 1.9 V [51,52]. With Platinum and IrO2 catalysts at the cathode and anode, respectively, 2 A.cm−2 of current density was reported at a very low voltage of 1.7 V [52,62].
Figure 14 shows EIS results at 70 °C for both membrane electrode assemblies at 2 V. There is a big difference between both results. The ohmic resistance for the X-37-50 was 0.064 Ω and for FAA-3-50 it was 0.12 Ω. This shows that the conductivity of the X-37-50 is higher in similar conditions, higher conductivity decreases the resistance caused by the membrane. This also demonstrated that the X-37-50 membrane has better charge transfer ability between the catalyst layer and the membrane compared to FAA-3-50. The diameter of the semicircle which is indicative of activation resistance is also lower for X-37-50, the corresponding activation resistance was 0.037 and 0.054 Ω. These results showed that lower ohmic resistance and activation resistance resulted in higher performance for X-37-50.
There are few studies where Sustainion X-37-50 is reported to be a better membrane in terms of stability and performance. Electrochemical impedance comparison at different membranes showed Sustainion® 37-50 had lower resistance compared to Fumasep® FAS-50, Fumasep® FAPW, AMI 7001, and Nafion 115. When it was compared with AemionTM and Tokuyama A201 membranes at different temperatures, electrolyte, and current density, the Sustainion membrane showed higher performance with 3 A cm−2 current density with 1 M KOH at 60 °C [63]. Sustainion® membrane had higher stability in the test with a degradation rate of 5µV.h−1 for 2000 h operation at a fixed current density of 1 A.cm−2 [50]. Tokuyama A201 had a degradation rate of 150 µV.h−1 for 1000 h at 470 mA cm−2 [29], Fumapsep® FAA-3-50 had a degradation rate of 800 µV h−1 in 1000 h [60].

7. Conclusions

NiO, NiFeOx, and NiFeCoOx catalysts were tested for AEMWE using Fumasep FAA-3-50 membrane, NiFeCoOx showed higher performance than other catalysts, due to the promotion effect of Co and Fe in Ni-based catalysts. The highest activity at 2 V with NiFeCoOx catalysts was 802 mA cm−2 at 70 °C. The performance of the AEM electrolyzer was found to be highly dependent on the electrolyte concentration, the activity was 954 mA cm−2 at 2.1 V with 1 M KOH whereas with DI water it was 254 mA cm−2 at 70 °C. EIS results showed that there is a decrease in ohmic resistance with the increase in electrolyte concentration, mainly due to the increased conductivity of the membrane. The membrane conductivity increased due to more OH ions available at higher concentrations of KOH. The activation resistance of the anode also decreased with the increase in electrolyte concentrations, which is due to the availability of more OH ions at higher pH, which improved the reaction kinetics of OER. A comparison of the FAA-3-50 and X-37-50 membranes, which have the same thickness of 50 μm showed higher AEM electrolyzer performance with the X-37-50 membrane. For comparison, the highest activity on FAA-3-50 and X-37-50 membrane was 1121 and 1815 mA cm−2 at 2.2 V, 70 °C, which shows X-37-50 had 1.62 times higher current density at the same operating conditions. EIS results showed that the X-37-50 membrane had lower ohmic resistance than the FAA-3-50 membrane.

Author Contributions

K.W.A.: Conceptualization, Methodology, Data curation, Writing—original draft, Visualization. M.J.J.: Reviewing and modifying the original draft. S.H. performing SEM analysis, Z.C.: Review and editing, Supervision, Project administration, Funding acquisition. M.F.: Conceptualization, Methodology, Supervision, Project administration, Funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Open source.

Acknowledgments

This work was supported by the Department of Chemical Engineering at the University of Waterloo, Canada Research Chair Tier I—Zero-Emission Vehicles and Hydrogen Energy Systems Grant number: 950-232215. The authors acknowledge the support from the University of Waterloo and Waterloo Institute for Nanotechnology, Natural Sciences and Engineering Research Council of Canada (NSERC).

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Yang, J.; Jang, M.J.; Zeng, X.; Park, Y.S.; Lee, J.; Choi, S.M.; Yin, Y. Non-precious electrocatalysts for oxygen evolution reaction in anion exchange membrane water electrolysis: A mini review. Electrochem. Commun. 2021, 131, 107118. [Google Scholar] [CrossRef]
  2. Motealleh, B.; Liu, Z.; Masel, R.I.; Sculley, J.P.; Ni, Z.R.; Meroueh, L. Next-generation anion exchange membrane water electrolyzers operating for commercially relevant lifetimes. Int. J. Hydrog. Energy 2021, 46, 3379–3386. [Google Scholar] [CrossRef]
  3. Faid, A.Y.; Barnett, A.O.; Seland, F.; Sunde, S. NiCu mixed metal oxide catalyst for alkaline hydrogen evolution in anion exchange membrane water electrolysis. Electrochim. Acta 2021, 371, 137837. [Google Scholar] [CrossRef]
  4. Vincent, I.; Kruger, A.; Bessarabov, D. Development of efficient membrane electrode assembly for low cost hydrogen production by anion exchange membrane electrolysis. Int. J. Hydrog. Energy 2017, 42, 10752–10761. [Google Scholar] [CrossRef]
  5. Marini, S.; Salvi, P.; Nelli, P.; Pesenti, R.; Villa, M.; Berrettoni, M.; Zangari, G.; Kiros, Y. Advanced alkaline water electrolysis. Electrochim. Acta 2012, 82, 384–391. [Google Scholar] [CrossRef]
  6. Ahmed, K.W.; Jang, M.J.; Park, M.G.; Chen, Z.; Fowler, M. Effect of Components and Operating Conditions on the Performance of PEM Electrolyzers: A Review. Electrochem 2022, 3, 581–612. [Google Scholar] [CrossRef]
  7. Wu, X.; Scott, K. CuxCo3−xO4 (0≤ x < 1) nanoparticles for oxygen evolution in high performance alkaline exchange membrane water electrolysers. J. Mater. Chem. 2011, 21, 12344–12351. [Google Scholar]
  8. Jang, M.J.; Yang, J.; Jeong, J.; Kim, G.H.; Kwon, C.Y.; Myung, N.V.; Lee, K.H.; Choi, S.M. Promotion Effect of Modified Ni/C by La–Ce Oxide for Durable Hydrogen Evolution Reaction. ACS Sustain. Chem. Eng. 2021, 9, 12508–12513. [Google Scholar] [CrossRef]
  9. Jang, M.J.; Yang, J.; Lee, J.; Park, Y.S.; Jeong, J.; Park, S.M.; Jeong, J.; Yin, Y.; Seo, M.; Choi, S.M. Superior performance and stability of anion exchange membrane water electrolysis: pH-controlled copper cobalt oxide nanoparticles for the oxygen evolution reaction. J. Mater. Chem. A 2020, 8, 4290–4299. [Google Scholar] [CrossRef]
  10. Jang, M.J.; Yang, S.H.; Park, M.G.; Jeong, J.; Cha, M.S.; Shin, S.; Lee, K.H.; Bai, Z.; Chen, Z.; Lee, J.Y. Efficient and Durable Anion Exchange Membrane Water Electrolysis for a Commercially Available Electrolyzer Stack using Alkaline Electrolyte. ACS Energy Lett. 2022, 7, 2576–2583. [Google Scholar] [CrossRef]
  11. Vincent, I.; Bessarabov, D. Low cost hydrogen production by anion exchange membrane electrolysis: A review. Renew. Sustain. Energy Rev. 2018, 81, 1690–1704. [Google Scholar] [CrossRef]
  12. Bockris, J.O. Kinetics of activation controlled consecutive electrochemical reactions: Anodic evolution of oxygen. J. Chem. Phys. 1956, 24, 817–827. [Google Scholar] [CrossRef]
  13. Song, F.; Bai, L.; Moysiadou, A.; Lee, S.; Hu, C.; Liardet, L.; Hu, X. Transition metal oxides as electrocatalysts for the oxygen evolution reaction in alkaline solutions: An application-inspired renaissance. J. Am. Chem. Soc. 2018, 140, 7748–7759. [Google Scholar] [CrossRef] [PubMed]
  14. Lu, F.; Zhou, M.; Zhou, Y.; Zeng, X. First-row transition metal based catalysts for the oxygen evolution reaction under alkaline conditions: Basic principles and recent advances. Small 2017, 13, 1701931. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Lyons, M.E.; Brandon, M.P. The oxygen evolution reaction on passive oxide covered transition metal electrodes in alkaline solution. Part III–Iron. Int. J. Electrochem. Sci. 2008, 3, 1463–1503. [Google Scholar]
  16. Lyons, M.E.; Brandon, M.P. The oxygen evolution reaction on passive oxide covered transition metal electrodes in alkaline solution part II-cobalt. Int. J. Electrochem. Sci. 2008, 3, 1425–1462. [Google Scholar]
  17. Lyons, M.E.; Brandon, M.P. The oxygen evolution reaction on passive oxide covered transition metal electrodes in aqueous alkaline solution. Part 1-Nickel. Int. J. Electrochem. Sci. 2008, 3, 1386–1424. [Google Scholar]
  18. Subbaraman, R.; Tripkovic, D.; Chang, K.; Strmcnik, D.; Paulikas, A.P.; Hirunsit, P.; Chan, M.; Greeley, J.; Stamenkovic, V.; Markovic, N.M. Trends in activity for the water electrolyser reactions on 3 d M (Ni, Co, Fe, Mn) hydr (oxy) oxide catalysts. Nat. Mater. 2012, 11, 550–557. [Google Scholar] [CrossRef]
  19. Trotochaud, L.; Ranney, J.K.; Williams, K.N.; Boettcher, S.W. Solution-cast metal oxide thin film electrocatalysts for oxygen evolution. J. Am. Chem. Soc. 2012, 134, 17253–17261. [Google Scholar] [CrossRef]
  20. Lyons, M.E.; Brandon, M.P. A comparative study of the oxygen evolution reaction on oxidised nickel, cobalt and iron electrodes in base. J. Electroanal. Chem. 2010, 641, 119–130. [Google Scholar] [CrossRef]
  21. Li, X.; Walsh, F.C.; Pletcher, D. Nickel based electrocatalysts for oxygen evolution in high current density, alkaline water electrolysers. Phys. Chem. Chem. Phys. 2011, 13, 1162–1167. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Oliva, P.; Leonardi, J.; Laurent, J.; Delmas, C.; Braconnier, J.; Figlarz, M.; Fievet, F.; De Guibert, A. Review of the structure and the electrochemistry of nickel hydroxides and oxy-hydroxides. J. Power Sources 1982, 8, 229–255. [Google Scholar] [CrossRef]
  23. Diaz-Morales, O.; Ledezma-Yanez, I.; Koper, M.T.; Calle-Vallejo, F. Guidelines for the rational design of Ni-based double hydroxide electrocatalysts for the oxygen evolution reaction. ACS Catal. 2015, 5, 5380–5387. [Google Scholar] [CrossRef]
  24. Wang, P.; Lin, Y.; Wan, L.; Wang, B. Autologous growth of Fe-doped Ni(OH)2 nanosheets with low overpotential for oxygen evolution reaction. Int. J. Hydrog. Energy 2020, 45, 6416–6424. [Google Scholar] [CrossRef]
  25. Suib, S.L. New and Future Developments in Catalysis: Hybrid Materials, Composites, and Organocatalysts; Newnes: London, UK, 2013. [Google Scholar]
  26. Cordoba, S.; Carbonio, R.; Teijelo, M.L.; Macagno, V. The electrochemical response of binary mixtures of hydrous transition metal hydroxides co-precipitated on conducting substrates with reference to the oxygen evolution reaction. Electrochim. Acta 1986, 31, 1321–1332. [Google Scholar] [CrossRef]
  27. Corrigan, D.A. The catalysis of the oxygen evolution reaction by iron impurities in thin film nickel oxide electrodes. J. Electrochem. Soc. 1987, 134, 377. [Google Scholar] [CrossRef]
  28. Stevens, M.B.; Enman, L.J.; Korkus, E.H.; Zaffran, J.; Trang, C.D.; Asbury, J.; Kast, M.G.; Toroker, M.C.; Boettcher, S.W. Ternary Ni-Co-Fe oxyhydroxide oxygen evolution catalysts: Intrinsic activity trends, electrical conductivity, and electronic band structure. Nano Res. 2019, 12, 2288–2295. [Google Scholar] [CrossRef]
  29. Pavel, C.C.; Cecconi, F.; Emiliani, C.; Santiccioli, S.; Scaffidi, A.; Catanorchi, S.; Comotti, M. Highly efficient platinum group metal free based membrane-electrode assembly for anion exchange membrane water electrolysis. Angew. Chem. Int. Ed. 2014, 53, 1378–1381. [Google Scholar] [CrossRef]
  30. Leng, Y.; Chen, G.; Mendoza, A.J.; Tighe, T.B.; Hickner, M.A.; Wang, C. Solid-state water electrolysis with an alkaline membrane. J. Am. Chem. Soc. 2012, 134, 9054–9057. [Google Scholar] [CrossRef]
  31. Parrondo, J.; Arges, C.G.; Niedzwiecki, M.; Anderson, E.B.; Ayers, K.E.; Ramani, V. Degradation of anion exchange membranes used for hydrogen production by ultrapure water electrolysis. Rsc. Adv. 2014, 4, 9875–9879. [Google Scholar] [CrossRef]
  32. Zeng, L.; Zhao, T. Integrated inorganic membrane electrode assembly with layered double hydroxides as ionic conductors for anion exchange membrane water electrolysis. Nano Energy 2015, 11, 110–118. [Google Scholar] [CrossRef]
  33. Bates, M.K.; Jia, Q.; Doan, H.; Liang, W.; Mukerjee, S. Charge-transfer effects in Ni–Fe and Ni–Fe–Co mixed-metal oxides for the alkaline oxygen evolution reaction. ACS Catal. 2016, 6, 155–161. [Google Scholar] [CrossRef]
  34. Trotochaud, L.; Young, S.L.; Ranney, J.K.; Boettcher, S.W. Nickel–iron oxyhydroxide oxygen-evolution electrocatalysts: The role of intentional and incidental iron incorporation. J. Am. Chem. Soc. 2014, 136, 6744–6753. [Google Scholar] [CrossRef]
  35. Gong, M.; Li, Y.; Wang, H.; Liang, Y.; Wu, J.Z.; Zhou, J.; Wang, J.; Regier, T.; Wei, F.; Dai, H. An advanced Ni–Fe layered double hydroxide electrocatalyst for water oxidation. J. Am. Chem. Soc. 2013, 135, 8452–8455. [Google Scholar] [CrossRef] [PubMed]
  36. Li, Y.; Selloni, A. Mechanism and activity of water oxidation on selected surfaces of pure and Fe-doped NiOx. ACS Catal. 2014, 4, 1148–1153. [Google Scholar] [CrossRef]
  37. Bo, X.; Li, Y.; Hocking, R.K.; Zhao, C. NiFeCr hydroxide holey nanosheet as advanced electrocatalyst for water oxidation. ACS Appl. Mater. Interfaces 2017, 9, 41239–41245. [Google Scholar] [CrossRef]
  38. Jin, Y.; Huang, S.; Yue, X.; Du, H.; Shen, P.K. Mo-and Fe-modified Ni(OH)2/NiOOH nanosheets as highly active and stable electrocatalysts for oxygen evolution reaction. ACS Catal. 2018, 8, 2359–2363. [Google Scholar] [CrossRef]
  39. Dinh, K.N.; Zheng, P.; Dai, Z.; Zhang, Y.; Dangol, R.; Zheng, Y.; Li, B.; Zong, Y.; Yan, Q. Ultrathin porous NiFeV ternary layer hydroxide nanosheets as a highly efficient bifunctional electrocatalyst for overall water splitting. Small 2018, 14, 1703257. [Google Scholar] [CrossRef]
  40. Cossar, E.; Barnett, A.O.; Seland, F.; Safari, R.; Botton, G.A.; Baranova, E.A. Ionomer content optimization in nickel-iron-based anodes with and without ceria for anion exchange membrane water electrolysis. J. Power Sources 2021, 514, 230563. [Google Scholar] [CrossRef]
  41. López-Fernández, E.; Gómez-Sacedón, C.; Gil-Rostra, J.; Espinós, J.; González-Elipe, A.; Yubero, F.; de Lucas-Consuegra, A. Ionomer-Free Nickel-Iron bimetallic electrodes for efficient anion exchange membrane water electrolysis. Chem. Eng. J. 2021, 433, 133774. [Google Scholar] [CrossRef]
  42. Xu, D.; Stevens, M.B.; Cosby, M.R.; Oener, S.Z.; Smith, A.M.; Enman, L.J.; Ayers, K.E.; Capuano, C.B.; Renner, J.N.; Danilovic, N. Earth-abundant oxygen electrocatalysts for alkaline anion-exchange-membrane water electrolysis: Effects of catalyst conductivity and comparison with performance in three-electrode cells. ACS Catal. 2018, 9, 7–15. [Google Scholar] [CrossRef]
  43. Kang, Z.; Yu, S.; Yang, G.; Li, Y.; Bender, G.; Pivovar, B.S.; Green Jr, J.B.; Zhang, F. Performance improvement of proton exchange membrane electrolyzer cells by introducing in-plane transport enhancement layers. Electrochim. Acta 2019, 316, 43–51. [Google Scholar] [CrossRef]
  44. Vincent, I.; Lee, E.; Kim, H. Comprehensive impedance investigation of low-cost anion exchange membrane electrolysis for large-scale hydrogen production. Sci. Rep. 2021, 11, 293. [Google Scholar] [CrossRef] [PubMed]
  45. Yang, G.; Mo, J.; Kang, Z.; Dohrmann, Y.; List, F.A., III; Green, J.B., Jr.; Babu, S.S.; Zhang, F. Fully printed and integrated electrolyzer cells with additive manufacturing for high-efficiency water splitting. Appl. Energy 2018, 215, 202–210. [Google Scholar] [CrossRef]
  46. Han, B.; Mo, J.; Kang, Z.; Zhang, F. Effects of membrane electrode assembly properties on two-phase transport and performance in proton exchange membrane electrolyzer cells. Electrochim. Acta 2016, 188, 317–326. [Google Scholar] [CrossRef] [Green Version]
  47. Ge, J.; Higier, A.; Liu, H. Effect of gas diffusion layer compression on PEM fuel cell performance. J. Power Sources 2006, 159, 922–927. [Google Scholar] [CrossRef]
  48. Li, D.; Motz, A.R.; Bae, C.; Fujimoto, C.; Yang, G.; Zhang, F.; Ayers, K.E.; Kim, Y.S. Durability of anion exchange membrane water electrolyzers. Energy Environ. Sci. 2021, 14, 3393–3419. [Google Scholar] [CrossRef]
  49. Pham, T.H.; Olsson, J.S.; Jannasch, P. Poly (arylene alkylene) s with pendant N-spirocyclic quaternary ammonium cations for anion exchange membranes. J. Mater. Chem. A 2018, 6, 16537–16547. [Google Scholar] [CrossRef] [Green Version]
  50. Olsson, J.S.; Pham, T.H.; Jannasch, P. Poly (arylene piperidinium) hydroxide ion exchange membranes: Synthesis, alkaline stability, and conductivity. Adv. Funct. Mater. 2018, 28, 1702758. [Google Scholar] [CrossRef]
  51. Liu, Z.; Sajjad, S.D.; Gao, Y.; Yang, H.; Kaczur, J.J.; Masel, R.I. The effect of membrane on an alkaline water electrolyzer. Int. J. Hydrog. Energy 2017, 42, 29661–29665. [Google Scholar] [CrossRef]
  52. Henkensmeier, D.; Najibah, M.; Harms, C.; Žitka, J.; Hnát, J.; Bouzek, K. Overview: State-of-the art commercial membranes for anion exchange membrane water electrolysis. J. Electrochem. Energy Convers. Storage 2021, 18, 024001. [Google Scholar] [CrossRef]
  53. Ayers, K.; Danilovic, N.; Ouimet, R.; Carmo, M.; Pivovar, B.; Bornstein, M. Perspectives on low-temperature electrolysis and potential for renewable hydrogen at scale. Annu. Rev. Chem. Biomol. Eng. 2019, 10, 219–239. [Google Scholar] [CrossRef] [PubMed]
  54. Price, S.; Ren, X.; Savage, A.; Beyer, F. Synthesis and characterization of anion-exchange membranes based on hydrogenated poly (norbornene). Polym. Chem. 2017, 8, 5708–5717. [Google Scholar] [CrossRef]
  55. Truong, V.M.; Duong, N.B.; Yang, H. Comparison of Carbon Supports in Anion Exchange Membrane Fuel Cells. Materials 2020, 13, 5370. [Google Scholar] [CrossRef]
  56. Razmjooei, F.; Reißner, R.; Gago, A.S.; Ansar, A. Highly active binder free plasma sprayed non-noble metal electrodes for anion exchange membrane electrolysis at different reduced KOH concentrations. ECS Trans. 2019, 92, 689. [Google Scholar] [CrossRef]
  57. López-Fernández, E.; Sacedón, C.G.; Gil-Rostra, J.; Yubero, F.; González-Elipe, A.R.; de Lucas-Consuegra, A. Recent Advances in Alkaline Exchange Membrane Water Electrolysis and Electrode Manufacturing. Molecules 2021, 26, 6326. [Google Scholar] [CrossRef]
  58. Masel, R.I.; Liu, Z.; Sajjad, S. Anion exchange membrane electrolyzers showing 1 A/cm2 at less than 2 V. ECS Trans. 2016, 75, 1143. [Google Scholar] [CrossRef]
  59. Lim, A.; Kim, H.; Henkensmeier, D.; Yoo, S.J.; Kim, J.Y.; Lee, S.Y.; Sung, Y.; Jang, J.H.; Park, H.S. A study on electrode fabrication and operation variables affecting the performance of anion exchange membrane water electrolysis. J. Ind. Eng. Chem. 2019, 76, 410–418. [Google Scholar] [CrossRef]
  60. Carbone, A.; Zignani, S.C.; Gatto, I.; Trocino, S.; Aricò, A. Assessment of the FAA3-50 polymer electrolyte in combination with a NiMn2O4 anode catalyst for anion exchange membrane water electrolysis. Int. J. Hydrog. Energy 2020, 45, 9285–9292. [Google Scholar] [CrossRef]
  61. Kutz, R.B.; Chen, Q.; Yang, H.; Sajjad, S.D.; Liu, Z.; Masel, I.R. Sustainion imidazolium-functionalized polymers for carbon dioxide electrolysis. Energy Technol. 2017, 5, 929–936. [Google Scholar] [CrossRef] [Green Version]
  62. Kaczur, J.J.; Yang, H.; Liu, Z.; Sajjad, S.D.; Masel, R.I. Carbon dioxide and water electrolysis using new alkaline stable anion membranes. Front. Chem. 2018, 6, 263. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Pushkareva, I.; Pushkarev, A.; Grigoriev, S.; Modisha, P.; Bessarabov, D. Comparative study of anion exchange membranes for low-cost water electrolysis. Int. J. Hydrog. Energy 2020, 45, 26070–26079. [Google Scholar] [CrossRef]

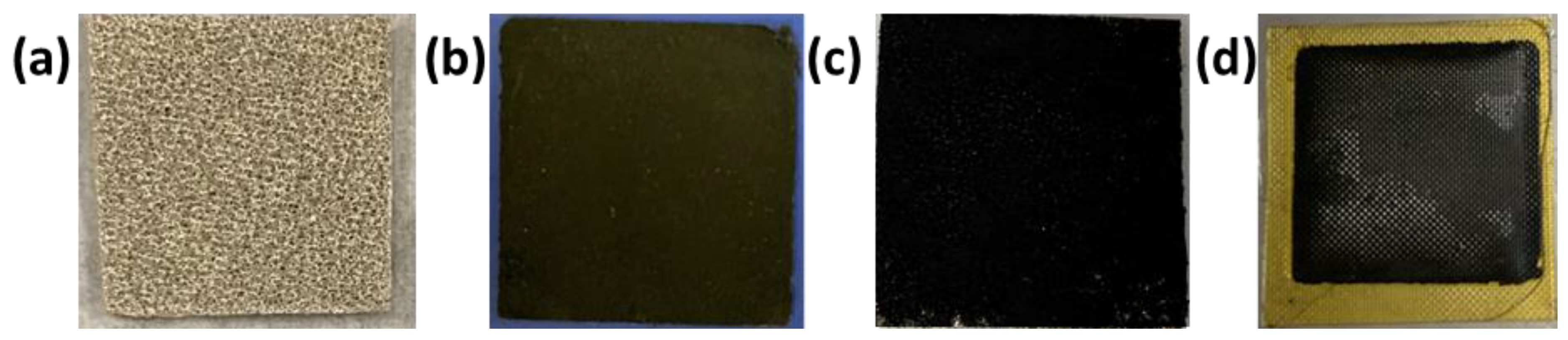

Figure 1. (a) Nickel foam (b) carbon paper coated with Pt/C catalyst, (c) Nickel foam anode coated with NiFeCoOx catalyst and (d) AEM with carbon paper cathode attached on one side. The dimensions of the electrodes were 1.8 cm × 1.8 cm.
Figure 1. (a) Nickel foam (b) carbon paper coated with Pt/C catalyst, (c) Nickel foam anode coated with NiFeCoOx catalyst and (d) AEM with carbon paper cathode attached on one side. The dimensions of the electrodes were 1.8 cm × 1.8 cm.
Electrochem 03 00055 g001

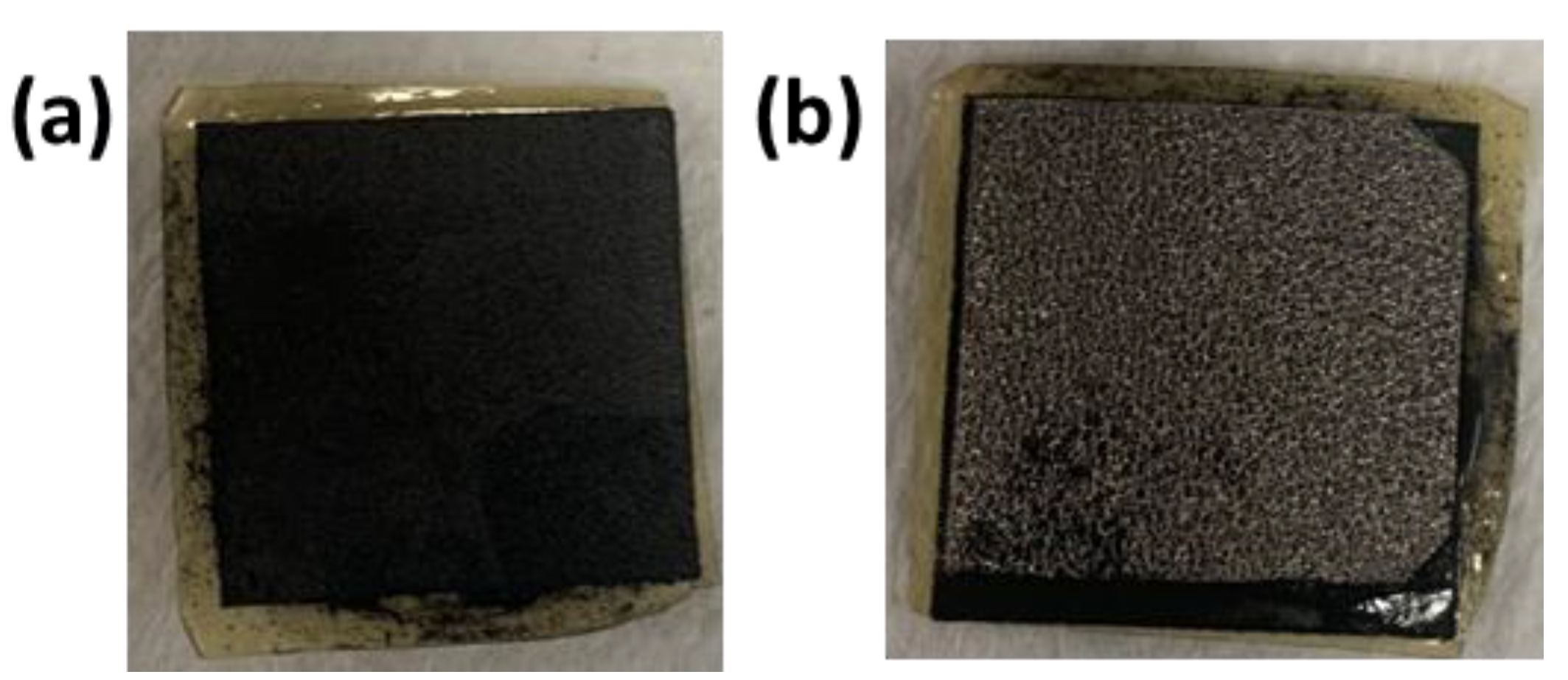

Figure 2. MEA after the electrolysis operation (a) MEA with cathode side (carbon paper) on top and (b) MEA with anode side (nickel foam) on top. The dimensions of the electrodes were 1.8 cm × 1.8 cm.
Figure 2. MEA after the electrolysis operation (a) MEA with cathode side (carbon paper) on top and (b) MEA with anode side (nickel foam) on top. The dimensions of the electrodes were 1.8 cm × 1.8 cm.
Electrochem 03 00055 g002

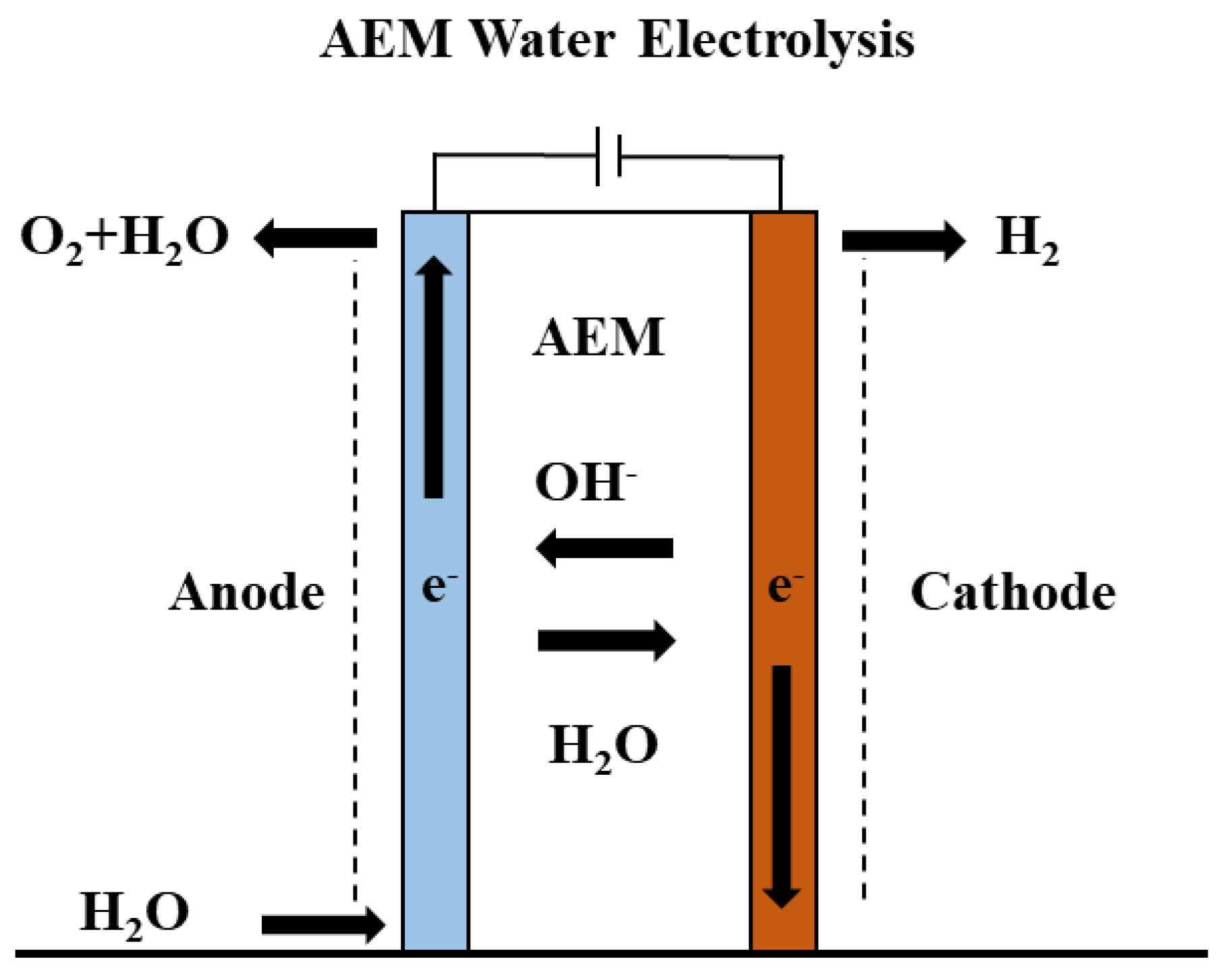

Figure 3. AEM electrolyzer configuration with AEM transporting the OH to the anode.
Figure 3. AEM electrolyzer configuration with AEM transporting the OH to the anode.
Electrochem 03 00055 g003

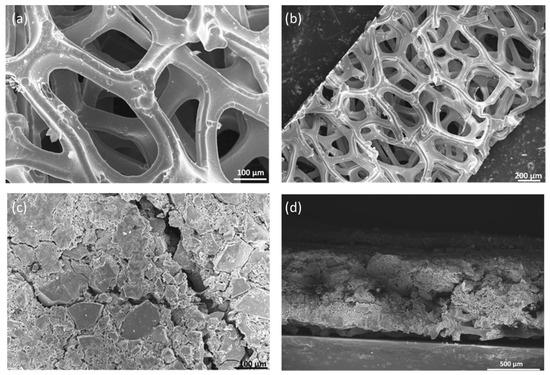

Figure 4. SEM images of (a,b) Nickel Foam without catalyst (c) NiFeCoOx coated on nickel foam and (d) Cross section image of nickel foam coated with NiFeCoOx catalyst.
Figure 4. SEM images of (a,b) Nickel Foam without catalyst (c) NiFeCoOx coated on nickel foam and (d) Cross section image of nickel foam coated with NiFeCoOx catalyst.
Electrochem 03 00055 g004

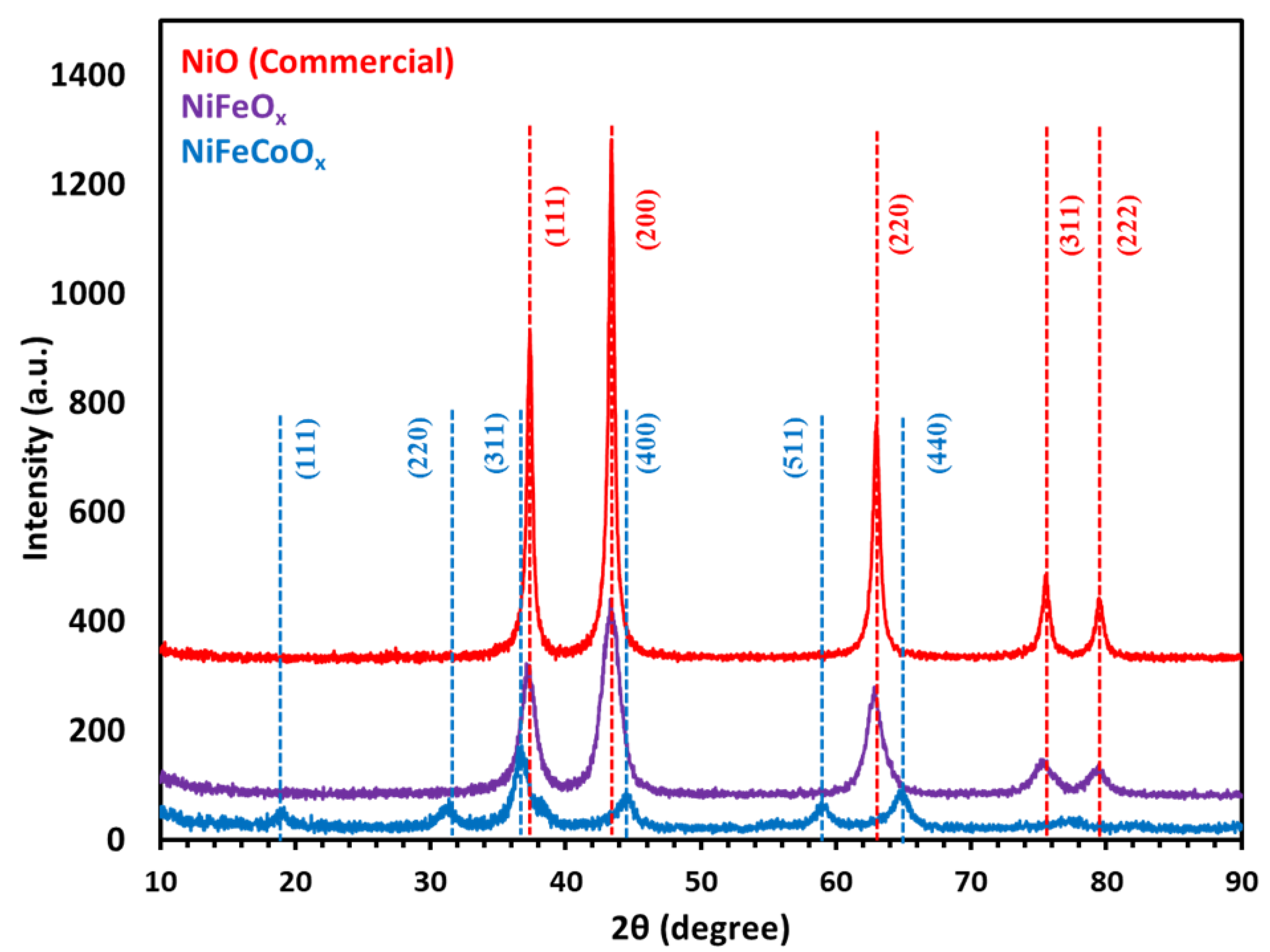

Figure 5. XRD of NiFeOx, NiFeCoOx catalyst calcined at 300 °C, commercial NiO is for reference.
Figure 5. XRD of NiFeOx, NiFeCoOx catalyst calcined at 300 °C, commercial NiO is for reference.
Electrochem 03 00055 g005

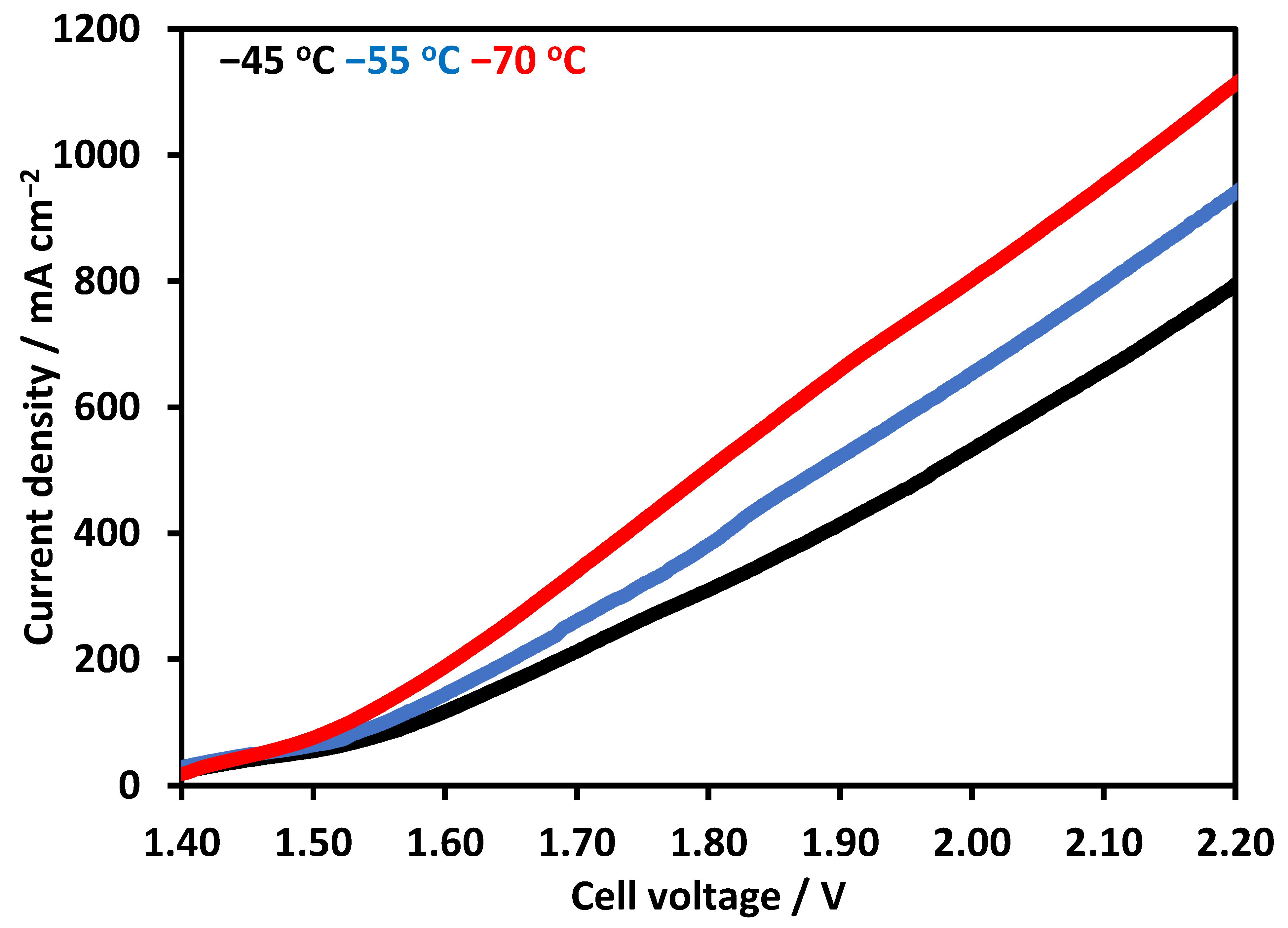

Figure 6. Linear Sweep Voltammetry at temperature range of 45 to 70 °C. Pt/C was used at cathode and synthesized NiFeCoOx was used at anode. FAA-3-50 membrane with a thickness of 50 µm was used in electrolysis operation.
Figure 6. Linear Sweep Voltammetry at temperature range of 45 to 70 °C. Pt/C was used at cathode and synthesized NiFeCoOx was used at anode. FAA-3-50 membrane with a thickness of 50 µm was used in electrolysis operation.
Electrochem 03 00055 g006

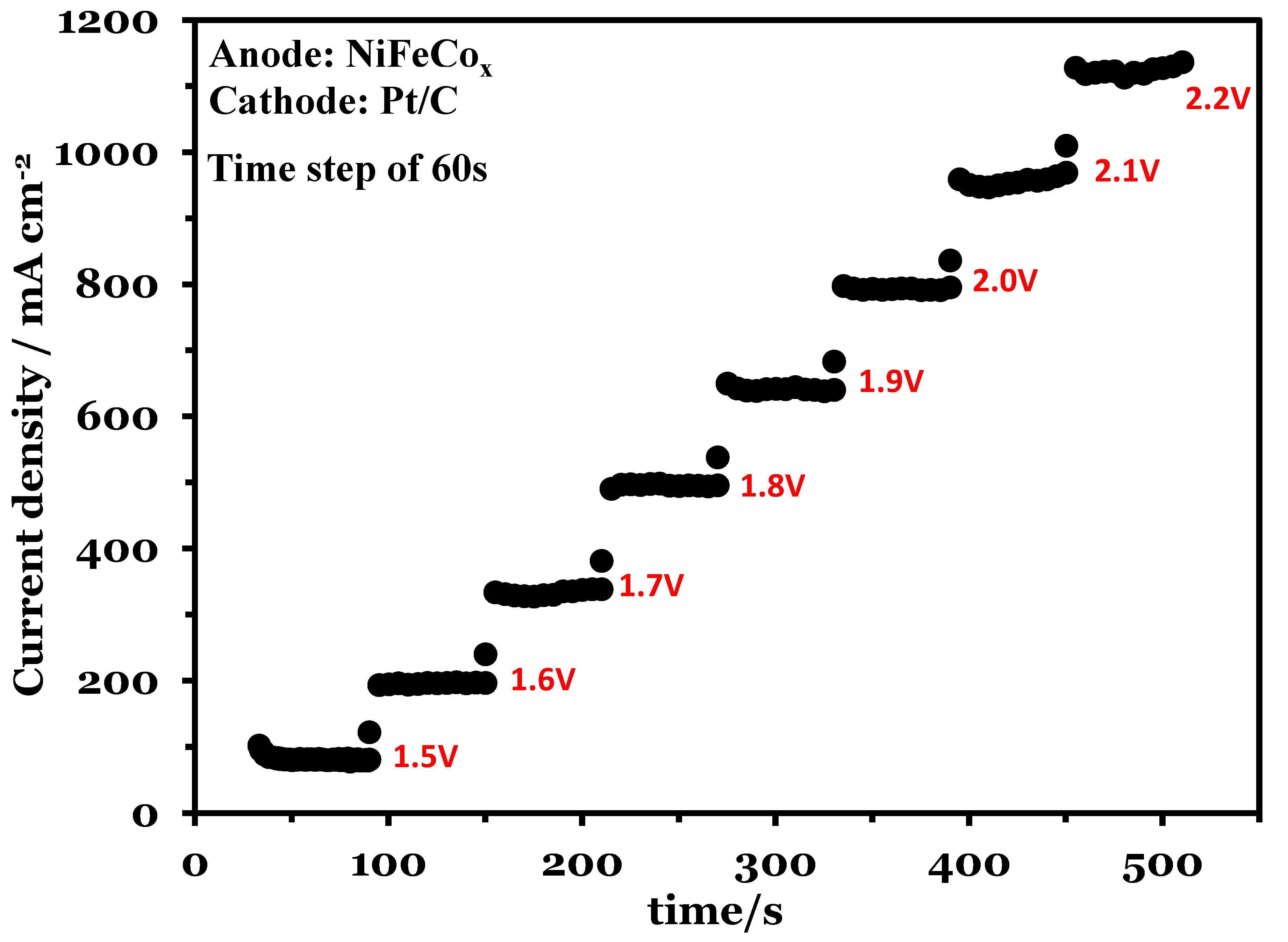

Figure 7. Chronoamperometry at a voltage range of 1.5 to 2.2 V, Pt/C was used at the cathode and NiFeCoOx was used at anode.
Figure 7. Chronoamperometry at a voltage range of 1.5 to 2.2 V, Pt/C was used at the cathode and NiFeCoOx was used at anode.
Electrochem 03 00055 g007

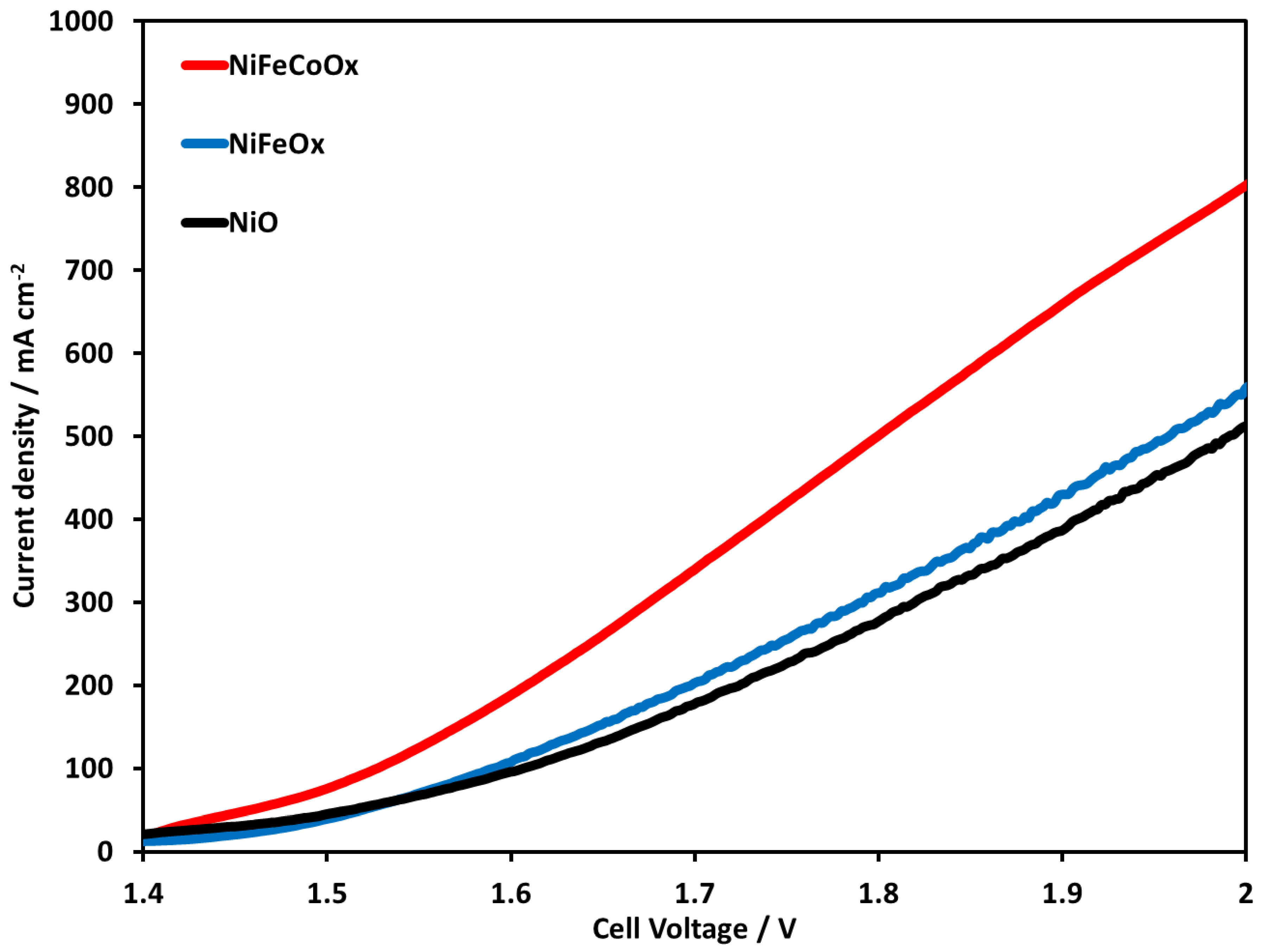

Figure 8. Linear Sweep Voltammetry at temperature of 70 °C. Pt/C was used at the cathode and NiO, NiFeOx, and NiFeCoOx were used at anode. FAA-3-50 membrane with a thickness of 50 µm was used in electrolysis operation.
Figure 8. Linear Sweep Voltammetry at temperature of 70 °C. Pt/C was used at the cathode and NiO, NiFeOx, and NiFeCoOx were used at anode. FAA-3-50 membrane with a thickness of 50 µm was used in electrolysis operation.
Electrochem 03 00055 g008

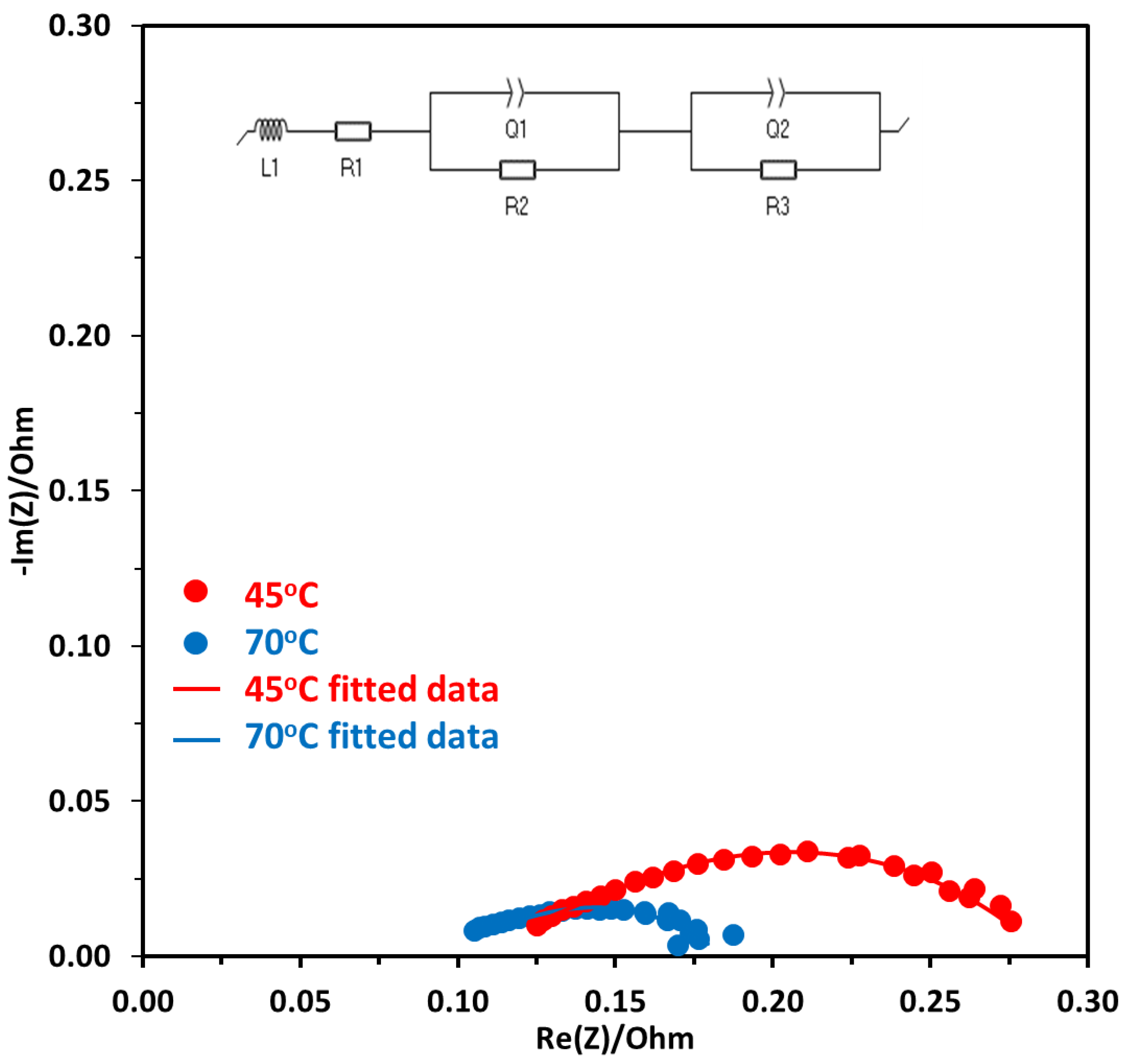

Figure 9. Nyquist plot at a constant voltage of 1.7 V at two different temperatures of 45 °C and 70 °C, Pt/C was used at the cathode and NiFeCoOx was used at the anode.
Figure 9. Nyquist plot at a constant voltage of 1.7 V at two different temperatures of 45 °C and 70 °C, Pt/C was used at the cathode and NiFeCoOx was used at the anode.
Electrochem 03 00055 g009

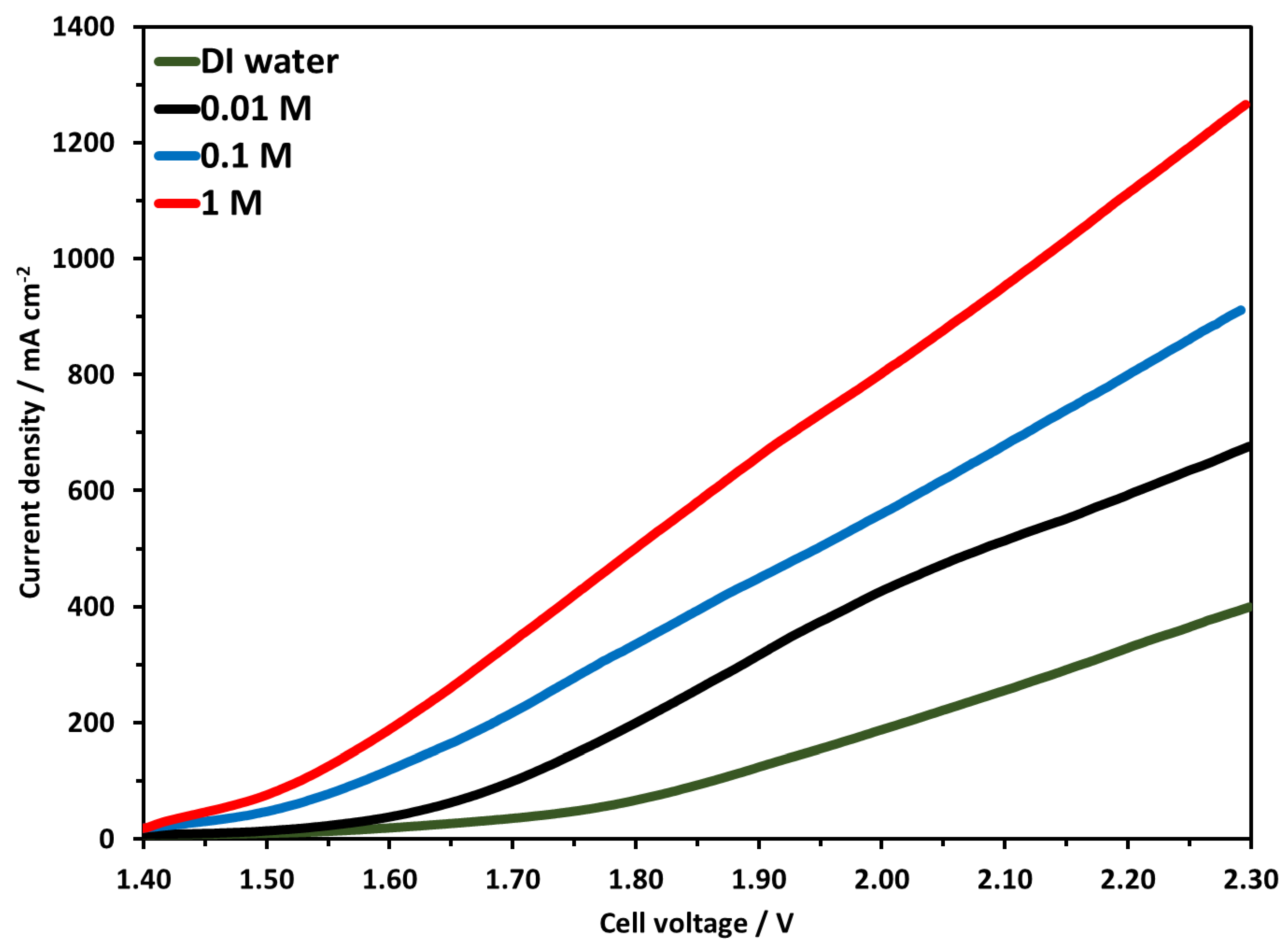

Figure 10. Linear Sweep Voltammetry at temperature of 70 °C with 0.01 M to 1 M KOH concentration. Pt/C was used at the cathode and NiFeCoOx was used at anode.
Figure 10. Linear Sweep Voltammetry at temperature of 70 °C with 0.01 M to 1 M KOH concentration. Pt/C was used at the cathode and NiFeCoOx was used at anode.
Electrochem 03 00055 g010

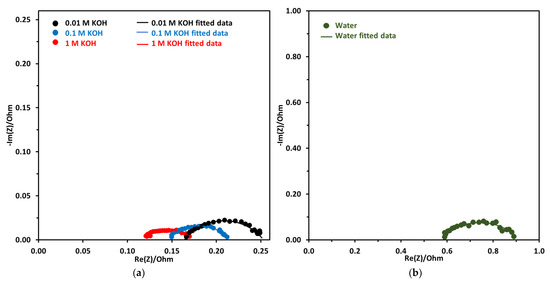

Figure 11. (a) Nyquist plot at a constant voltage of 2 V at 70 °C, the concentration of electrolyte was from 0.01 M to 1 M. (b) Nyquist plot using DI water. Pt/C was used at the cathode and NiFeCoOx was used at anode with FAA-3-50 membrane.
Figure 11. (a) Nyquist plot at a constant voltage of 2 V at 70 °C, the concentration of electrolyte was from 0.01 M to 1 M. (b) Nyquist plot using DI water. Pt/C was used at the cathode and NiFeCoOx was used at anode with FAA-3-50 membrane.
Electrochem 03 00055 g011

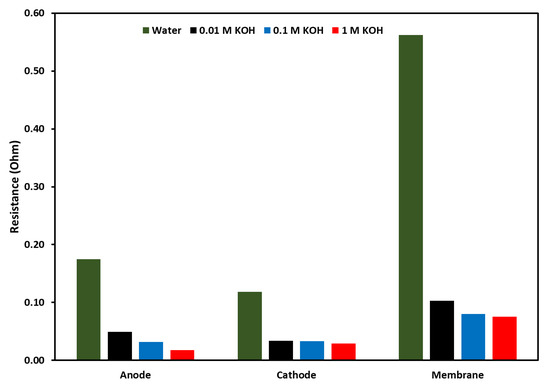

Figure 12. Comparison of resistances at anode, cathode, and membrane, the resistances were evaluated by using equivalent circuit fitting. The applied voltage was 2 V at 70 °C.
Figure 12. Comparison of resistances at anode, cathode, and membrane, the resistances were evaluated by using equivalent circuit fitting. The applied voltage was 2 V at 70 °C.
Electrochem 03 00055 g012

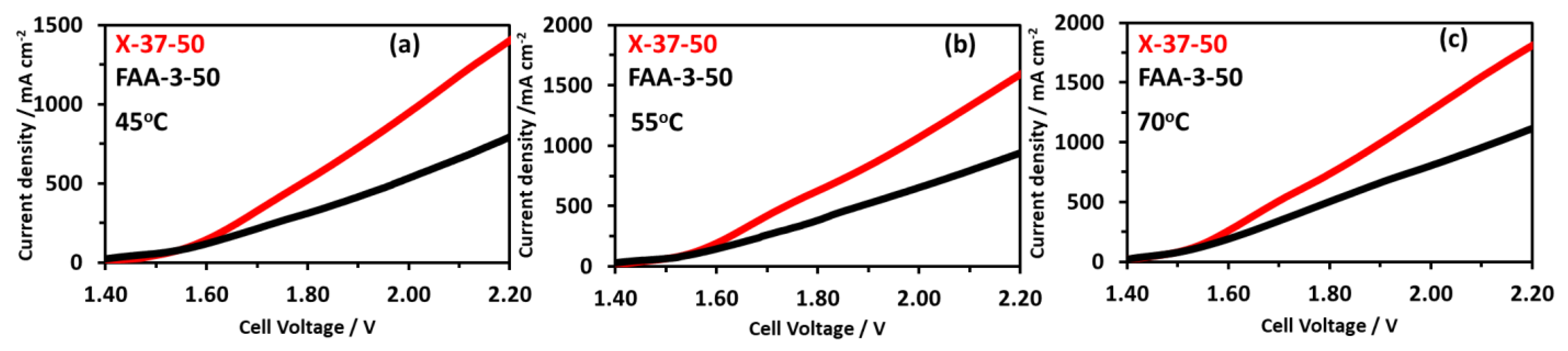

Figure 13. Comparison of electrolysis performance using X-37-50 and FAA-3-50 membranes at different temperatures using NiFeCoOx catalyst; (a) 45 °C, (b) 55 °C, (c) 70 °C.
Figure 13. Comparison of electrolysis performance using X-37-50 and FAA-3-50 membranes at different temperatures using NiFeCoOx catalyst; (a) 45 °C, (b) 55 °C, (c) 70 °C.
Electrochem 03 00055 g013

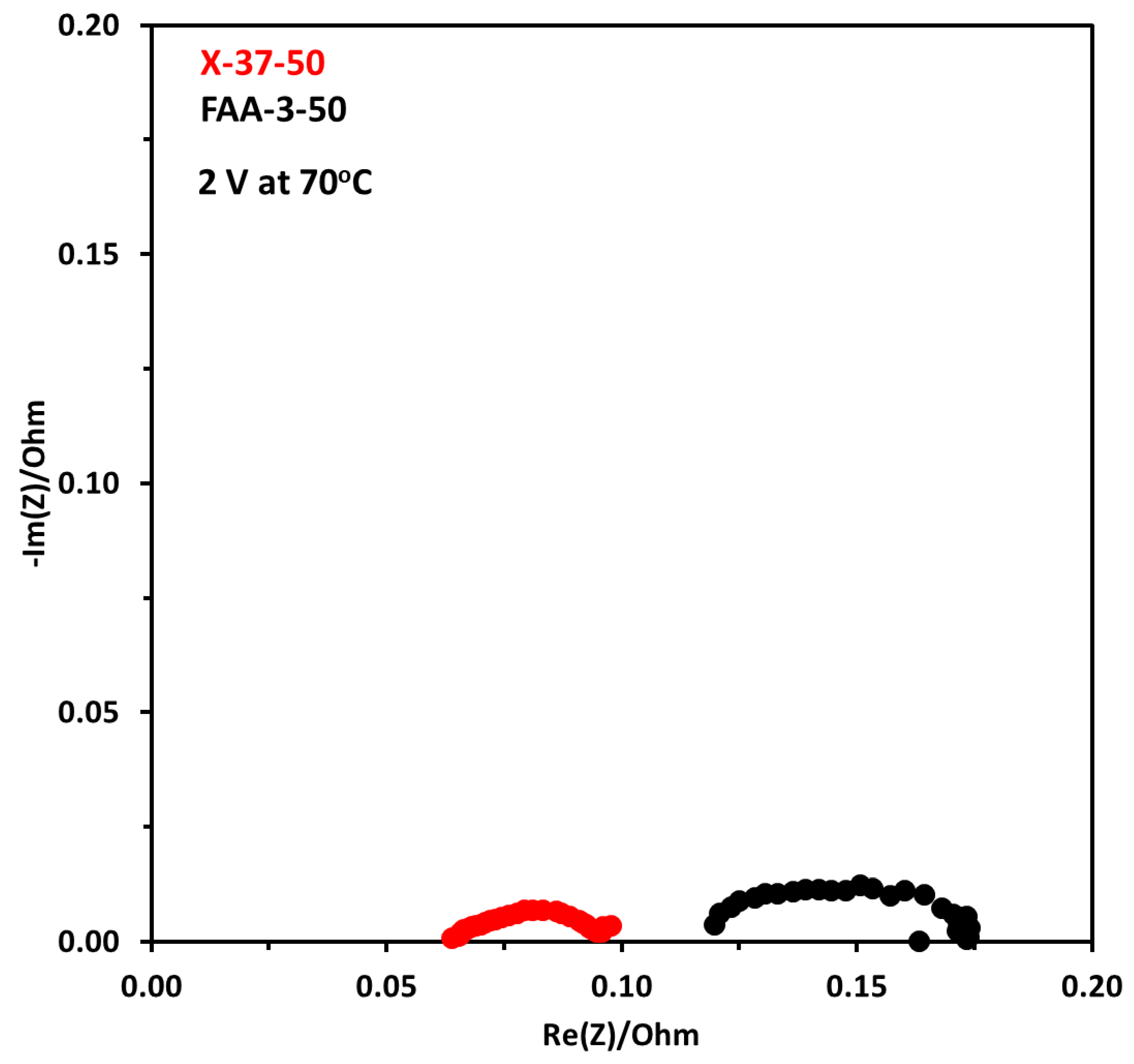

Figure 14. Nyquist plot at constant voltage of 2 V at 70 °C with FAA-3-50 and X-37-50 anion exchange membranes, the concentration of electrolyte was 1 M. Pt/C was used at the cathode and NiFeCoOx was used at anode.
Figure 14. Nyquist plot at constant voltage of 2 V at 70 °C with FAA-3-50 and X-37-50 anion exchange membranes, the concentration of electrolyte was 1 M. Pt/C was used at the cathode and NiFeCoOx was used at anode.
Electrochem 03 00055 g014
Table 1. Resistances evaluated from equivalent circuit fitting.
Table 1. Resistances evaluated from equivalent circuit fitting.
ResistanceTemperature
45 °C70 °C
Rohm0.1250.105
Rmembrane0.1020.068
Ranode + Rcathode0.1860.116
Table 2. Commercially available membranes and their properties [52,57,58].
Table 2. Commercially available membranes and their properties [52,57,58].
MembraneThickness (µm)Conductivity (ms·cm−1)
Sustainion® 37–50 (dioxide membrane)5070
Fumasep® FAA-345–5040–45
Fumasep® FAB-PK-130110–14042
Tokuyama A20128-
AemionTM5080
OrionTM5060
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ahmed, K.W.; Jang, M.J.; Habibpour, S.; Chen, Z.; Fowler, M. NiFeOx and NiFeCoOx Catalysts for Anion Exchange Membrane Water Electrolysis. Electrochem 2022, 3, 843-861. https://doi.org/10.3390/electrochem3040055

AMA Style

Ahmed KW, Jang MJ, Habibpour S, Chen Z, Fowler M. NiFeOx and NiFeCoOx Catalysts for Anion Exchange Membrane Water Electrolysis. Electrochem. 2022; 3(4):843-861. https://doi.org/10.3390/electrochem3040055

Chicago/Turabian Style

Ahmed, Khaja Wahab, Myeong Je Jang, Saeed Habibpour, Zhongwei Chen, and Michael Fowler. 2022. "NiFeOx and NiFeCoOx Catalysts for Anion Exchange Membrane Water Electrolysis" Electrochem 3, no. 4: 843-861. https://doi.org/10.3390/electrochem3040055

Article Metrics

Back to TopTop
