Developments of the Electroactive Materials for Non-Enzymatic Glucose Sensing and Their Mechanisms

Abstract

A comprehensive review of the electroactive materials for non-enzymatic glucose sensing and sensing devices has been performed in this work. A general introduction for glucose sensing, a facile electrochemical technique for glucose detection, and explanations of fundamental mechanisms for the electro-oxidation of glucose via the electrochemical technique are conducted. The glucose sensing materials are classified into five major systems: (1) mono-metallic materials, (2) bi-metallic materials, (3) metallic-oxide compounds, (4) metallic-hydroxide materials, and (5) metal-metal derivatives. The performances of various systems within this decade have been compared and explained in terms of sensitivity, linear regime, the limit of detection (LOD), and detection potentials. Some promising materials and practicable methodologies for the further developments of glucose sensors have been proposed. Firstly, the atomic deposition of alloys is expected to enhance the selectivity, which is considered to be lacking in non-enzymatic glucose sensing. Secondly, by using the modification of the hydrophilicity of the metallic-oxides, a promoted current response from the electro-oxidation of glucose is expected. Lastly, by taking the advantage of the redistribution phenomenon of the oxide particles, the usage of the noble metals is foreseen to be reduced.

1. Introduction

According to the International Diabetes Federation (IDF), diabetes, which is a serious and long-term health care issue, is among the top 10 causes of death in adults [1]. Possible complications, including retinopathy, nephropathy, neuropathy, and so forth [2,3,4], could take place and have a great influence on the quality of life (QoL). It was also reported that diabetes has brought about 4 million deaths globally and the expenditure on diabetes care was estimated to be up to USD 727 billion in 2017 [1]. The early detection of the glucose concentration in the human body and the continuous monitoring of glucose concentration in patients by the glucose sensor, which possesses high sensitivity, high selectivity, good long-term stability, and so forth, have thus become critical issues.

From the materials point of view, the glucose sensors are generally categorized into two types: (1) enzymatic glucose sensors [5,6,7] and (2) non-enzymatic glucose sensors [8,9,10]. From the device point of view, on the other hand, the glucose sensors could be typically divided into two different classifications: (1) invasive glucose sensors and (2) non-invasive glucose sensors. The introductions to the various classifications of the glucose sensors in terms of both the materials and the devices are as follows.

The first material for the enzymatic glucose sensor was developed by Clark and Lyons [7] in 1962. Thereafter, the realization of the glucose sensor electrode was achieved by Updike and Hicks [6] in 1967. From then on, much effort has been made to enhance the performances of the enzymatic glucose sensors in those few decades [11,12,13,14,15,16]. In the case of the enzymatic type glucose sensor, for the detection of glucose concentration in different human physiological fluids, glucose oxidase (GOx) [17,18,19,20] and glucose dehydrogenase (GDH) [21,22,23,24] are frequently utilized enzymes. However, based on the reports from Wilson and Turner [25] and other literature [26,27], the activity of the GOx deteriorated immediately as the operating pH went below 2 or beyond 8. In addition, fatal damages were also brought to GOx when the operating temperature was higher than 40 °C. Similar to the GOx enzyme, there is also a stability issue in the GDH enzyme as the pH and temperature are out of stable ranges of the GDH enzyme [28,29]. In addition to the aforementioned stability dilemma, immobilizations of enzymes are essential requirements but could be complicated, time-consuming, and expensive [30,31,32,33]. Therefore, the non-enzymatic glucose sensor, which possesses high stability, high sensitivity, low cost, good long-term stability, and proper selectivity, has attracted much attention in the glucose-sensing community. The selectivity, which is strongly dependent on the detection potential, is further discussed in Section 7.3 and Section 7.5.

In this article, the non-enzymatic glucose sensors are further classified into five major systems: (1) mono-metallic-based [34,35], (2) bi-metallic-based [36,37], (3) metallic-oxide-based [38,39,40], (4) metallic-hydroxide-based [41], and (5) mixtures of the metal/metal derivative-based electrodes [42,43,44,45,46]. Besides the aforementioned metal and/or metal derivative-based catalysts, supporting materials, which could enhance the overall electrode stability, the overall electrical conductivity of the electrode, the surface area of active materials, and the strength of the electroactive sites, have been often utilized [47,48,49,50,51]. Among the supporting materials, multi-walled carbon nanotube (MWCNT) [36,48,50,51], graphene sheet [35], polyaniline (PANI) [42,47], graphene oxide [49], and so on, are often seen materials. In the consideration of the functionality, carbon materials provide a higher surface area of the electroactive materials, while PANI promoted the overall electrical conductivity. Furthermore, surface chemistry, which strongly affects the performance of the electrodes, could be fine-tuned via the manipulation of the functional groups on the supporting materials. In addition to the abovementioned materials, by controlling the microstructures of the electroactive materials and the supporting materials, the variety and the possibilities for the performance enhancement of the glucose-sensing electrodes could be almost unlimited. For example, Pd nanocubes [34], CuO nanowires [38], NiO hollow spheres [39], Fe₂O₃ nanowire arrays [52], Au@Cu₂O core-shell structure [43], AgNPs/CuO nanofibers [44], and NiO-Ag nanofibers [46] have been claimed to promote the performances, such as the detection sensitivity, selectivity, long-term stability, detection potential, and so on.

Most of the commercialized glucose sensors are enzymatic ones [8]. However, non-enzymatic glucose sensors are expected to have high potential because of their relatively high environmental stability [53,54,55], good sensitivity [56,57], high long-term stability [58], and time-efficient manufacture [42,59]. Literature reporting the non-enzymatic glucose sensor published between 2000 and 2020 is shown in Figure 1.

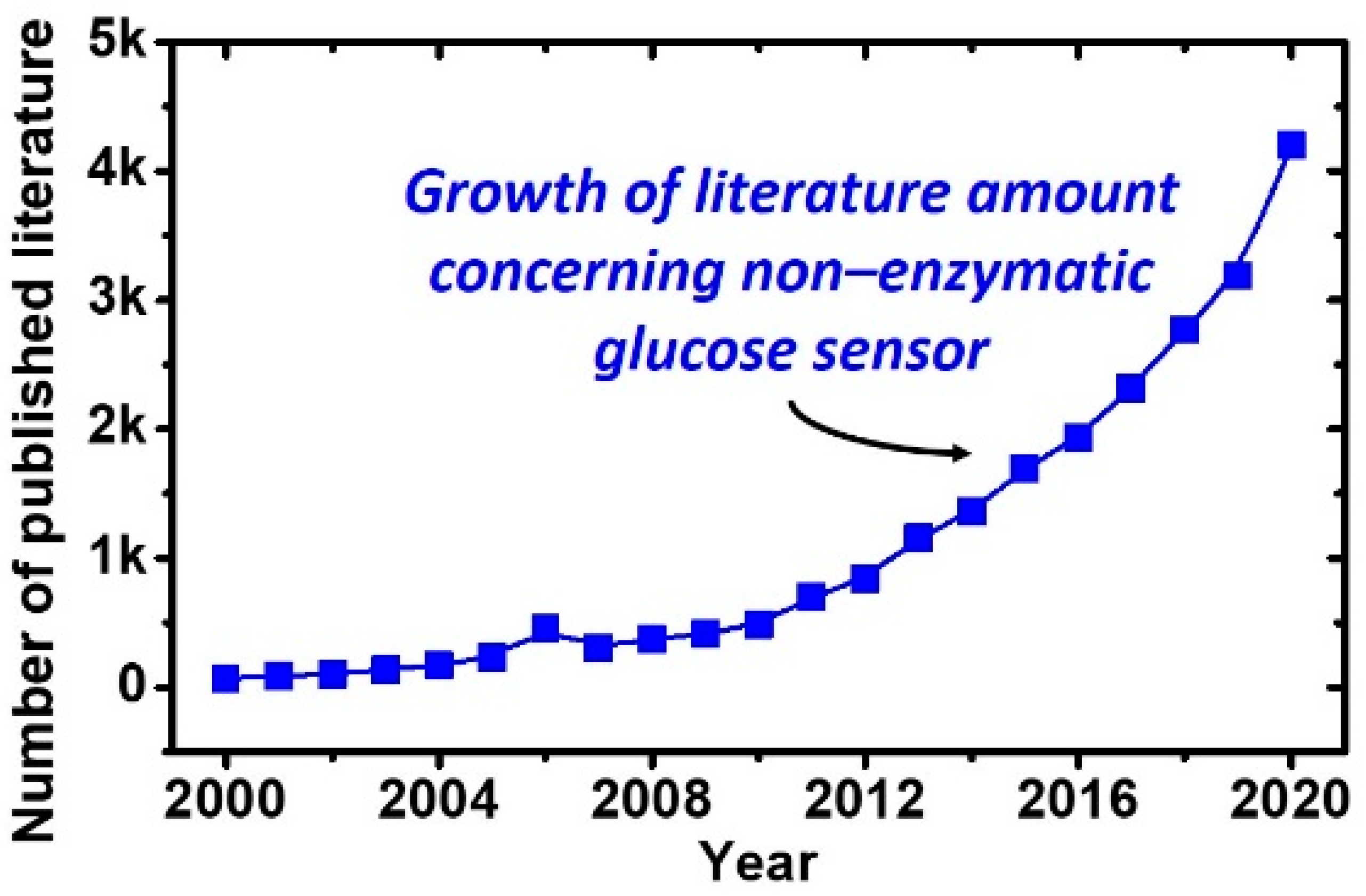

It is obvious that the literature amount of the non-enzymatic glucose sensors increased year by year due to the critical applications in the health care and medical fields. Although it was reported that there might be a selectivity issue in the non-enzymatic glucose sensors compared with the enzymatic ones [60], it has been revealed that the selectivity issue could be overcome by various approaches [61,62,63]. Strategies for the enhancement of the selectivity of the non-enzymatic glucose sensors are explained in detail in Section 7.3 and Section 7.5.

In addition, the detection of the glucose concentration in the human physiological fluids could be simply accomplished by the facile electrochemical technique [64,65,66,67], which is utilized in cooperation with the non-enzymatic glucose electrodes. An illustration of the glucose concentration detection system via the electrochemical technique is shown in Figure 2. Firstly, in Figure 2a, the yellow spheres on the dark blue square electrode plate indicate the electroactive sites, which are the most critical materials for the electro-oxidation of glucose in the electrochemical cells. The green target materials showing polygon structure suggest glucose molecules in the electrolyte, such as human physiological fluids. The target materials are thus electro-oxidized on the surface of the electroactive materials. Secondly, the current generated from the electro-oxidation reactions flows out of the electrochemical cell, enters the external circuit, and is processed by the transducer and amplifier (Figure 2b). Finally, the detected current is processed by the signal processor and is transformed into meaningful information, such as glucose concentration (Figure 2c). Therefore, under such a premise, a comprehensive review article of the non-enzymatic electrodes for the glucose sensor toward the health care and medical applications was conducted.

2. Types of Glucose-Sensing Devices

To date, the devices for the glucose sensors could be divided into two major different types [21,68,69]: (1) the conventional invasive glucose sensor and (2) the advanced non-invasive glucose sensor. Brief introductions to these two different types of glucose sensors are described in the following sections.

2.1. Invasive Glucose Sensor Devices

It is widely known that, in the past, for the detection of glucose concentration in the human blood, it was necessary to invasively stab into fingertips and place the blood on the disposable strip of the glucometer [70]. For reducing the repeated acquiring of the human blood in the aforementioned method, an implantable glucometer, which detects and transmits the glucose concentration along with a wireless monitor, was developed [71]. This could reduce the irritating, multifarious, and repeated processes of fingertip stabbing. However, surgery is necessary for the implantation of the glucometer into the human body. Therefore, non-invasive glucose sensors are greatly required for the replacement of invasive glucose sensors in the glucose-sensing community.

2.2. Non-Invasive Glucose Sensor Devices

Advanced non-invasive glucose sensors have been developed for solving the abovementioned problems in conventional invasive glucose sensors. Firstly, soft contact lens, which were equipped with integrated circuit (IC) chips, antenna, and glucose sensor, have been developed for the detection of the glucose concentration in the tears [72,73,74]. Secondly, a wireless module and saliva glucose monitoring strip, which are attached to the mouthguard, has also been developed for the detection of the glucose concentration from human saliva [75,76,77,78,79]. The aforementioned two non-invasive glucose sensors not only overcame the painful, time-consuming, and repeated processes, but also achieved the semi-continuous detection of glucose concentration in the human body.

Thirdly, a painless microneedle-type glucose sensor patch has also been developed for the continuous detection of glucose from human physiological fluids merely by attaching the patch to the skin [80,81,82,83,84]. Finally, a stretchable and wearable glucose monitoring patch, which could measure the glucose concentration from human sweat, was developed as the simplest and most painless way for the detection of glucose concentration in the human body [85,86,87,88,89]. Accordingly, with the development of the above-mentioned third and fourth non-invasive glucose sensors, the conventional problems in the invasive glucose sensors, such as the non-user-friendliness and non-continuous detection issues, have been overcome.

Many advantages of the non-invasive glucose sensor devices have been mentioned and explained in this section. However, some of the issues, such as long-term stability, evaluations concerning cytotoxicity, and biocompatibility, have become new challenges in non-invasive glucose sensor devices. Further researches and clinical evaluations should be dealt with prior to the applications to the human body.

3. Electrochemical Technique for Glucose Sensing

3.1. Three-Electrode System of the Electrochemical Technique

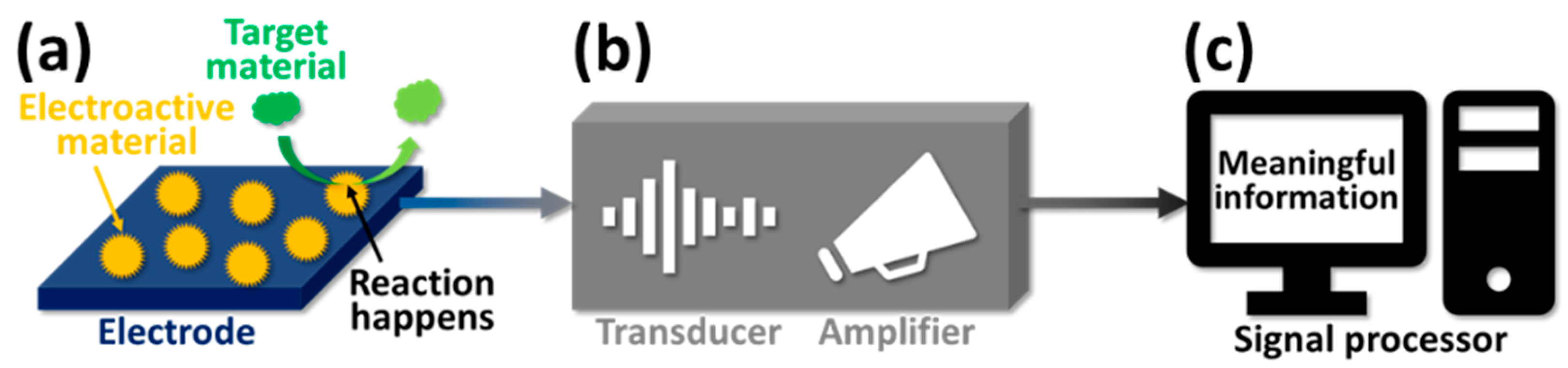

Generally, the electrochemical technique for the detection of glucose concentration is conducted by the three-electrode system, which is composed of (1) a working electrode (WE), (2) a counter electrode (CE), and (3) a reference electrode (RE) [90,91,92]. For an accurate measurement of the current and potential, the first circuit, which is composed of the WE and the CE, is used for the loop of the current flow. On the other hand, the second circuit, which consists of the WE and the RE, is for the loop of the measurement of the potential between the WE and the RE.

3.2. Various Measurements via the Electrochemical System for Glucose-Sensing

With the manipulation of various parameters in the electrochemical techniques, such as current, potential, time, and so forth, a series of electrochemical measurement methods could be realized. For example, cyclic voltammetry (CV), linear sweep voltammetry (LSV), electrochemical impedance spectroscopy (EIS), amperometric response, and other electrochemical techniques are often utilized for the characterization, detection, and quantification of the glucose in the electrolyte. The examples of the aforementioned techniques are shown in Figure 3 [93].

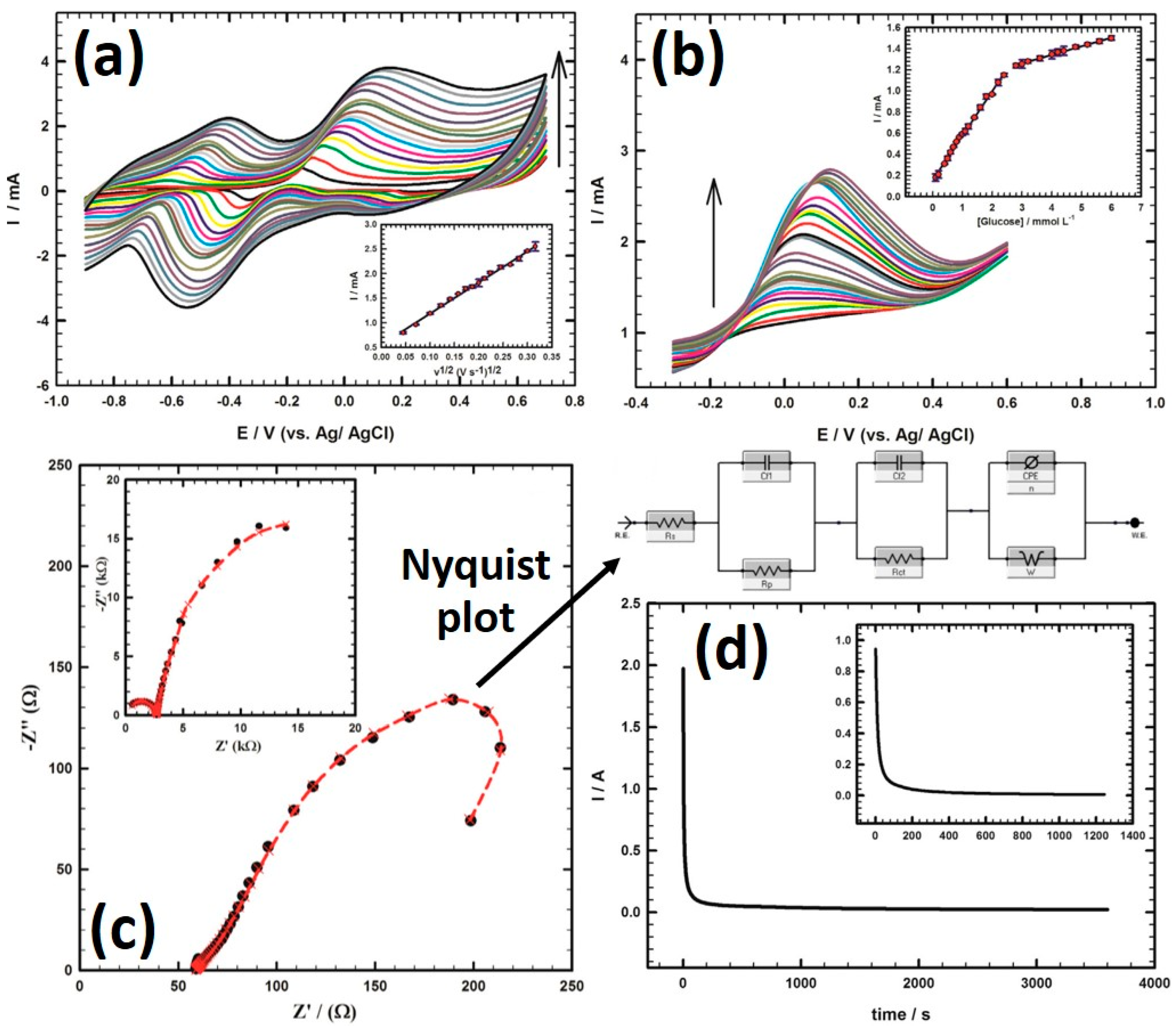

In the case of the CV method (Figure 3a [93]), a specific function of the potential is applied to the aforementioned three-electrode electrochemical system, and the information of the electrochemical reactions in the electrolyte are known by analyzing the corresponding current response. This CV method is considered as a fundamental technique in the electrochemical community and is widely used for investigations of the mechanisms of the electrochemical reactions and the kinetic parameters of electrode processes. In the studies of the glucose sensors, the CV technique is usually utilized for the characterization of the glucose-sensing materials, and also for the investigation of the kinetic reactions of the electroactive materials at the WE. In addition, whether the electrochemical reactions belong to diffusion control or reaction control could be recognized by simply alternating the potential scan rate in the CV method.

On the other hand, the LSV method (Figure 3b [93]), which is similar to the CV method, scans the potential monotonically on the WE. With the LSV method, the corresponding polarization current at different potentials could be detected. The Randles-Sevcik equation [94,95], which is used to describe the effect of scan rate on the peak current, is used for the analysis of the LSV method. However, the LSV method is less often conducted for the characterization and investigation of the non-enzymatic glucose sensors compared to the aforementioned CV method.

In the case of the EIS method (Figure 3c [93]), the electrochemical impedance is usually measured by applying an AC potential to an electrochemical cell and the corresponding current through the cell is measured. A small sinusoidal potential excitation is often used as the applied AC potential, and the response to this applied potential would be an AC current signal, which can be analyzed as a sum of sinusoidal functions. Therefore, by manipulating the alternating potential of the electrode to make the alternating current change in accordance with the sinusoidal wave function in a small amplitude, the alternating current impedance of the electrode could be measured. The impedance of the examined electrode could be obtained for the determination of its electrical conductivity via the EIS method. The EIS method is usually utilized to characterize the assembly of the sensing materials. Whether the functional materials are properly synthesized on the substrate surface or not could be recognized by this EIS method via the analysis of the change of impedance. The effects of each material on the electrical conductivity of the electrode are also available. Since the impedance also indicates the efficiency of electron transfer, the EIS method could also be a facile method to evaluate the performance of the synthesized sensing electrode.

The amperometric technique (Figure 3d [93]), which is widely used in the field of non-enzymatic glucose-sensing, is based on the measurement of electric current as a function of time (i-t) when a constant electric potential is applied to the electrochemical cell. The dynamic reaction process of the electrode could be obtained via amperometric techniques, which are frequently utilized for the examination of various performances of the glucose-sensing materials. Firstly, for example, the sensitivity of the sensing material could be investigated by continuously introducing glucose into the electrochemical cell while maintaining the potential of the WE at a specific constant potential. Secondly, the selectivity of the sensing materials could also be analyzed by reading the corresponding responses caused by the introduction of glucose and interfering molecules into the electrochemical cell. Thirdly, the response time could also be determined by reading the current plateau after introducing glucose molecules into the electrolyte. Lastly, further analysis could also be achieved by the amperometric technique, which is considered a promising method for the investigation and examination of the non-enzymatic glucose sensor.

4. Mechanisms for Glucose-Sensing in Non-Enzymatic Electrodes

The fundamental concept for glucose-sensing is the electro-oxidation reactions of glucose on the electroactive materials, which are synthesized on the electrode substrate. Hence, the flow of the electrons from the glucose to the external circuit is detected [96,97,98]. In the case of the enzymatic glucose sensors, enzymes, such as GOx or GDH, play an important role in the aforementioned oxidation of glucose [99,100,101]. On the other hand, in the case of the non-enzymatic glucose sensor, non-organic materials, such as metals, alloys, and/or their derivatives (i.e., oxides, hydroxides, etc.), trigger the oxidation reactions of glucose [34,35,36,37,38,39,40,41,42,43,44,45,46].

The mechanisms for the non-enzymatic glucose sensor could be generally classified into two different manners. The first model, which is known as the “Activated Chemisorption Model”, was proposed by Pletcher [102] in 1984. An illustration of the mechanism is shown in Figure 4. Here, C₁ indicates the hemiacetalic carbon atom, while R suggests the remaining part of the glucose molecule.

4.1. Activated Chemisorption Model (First Model)

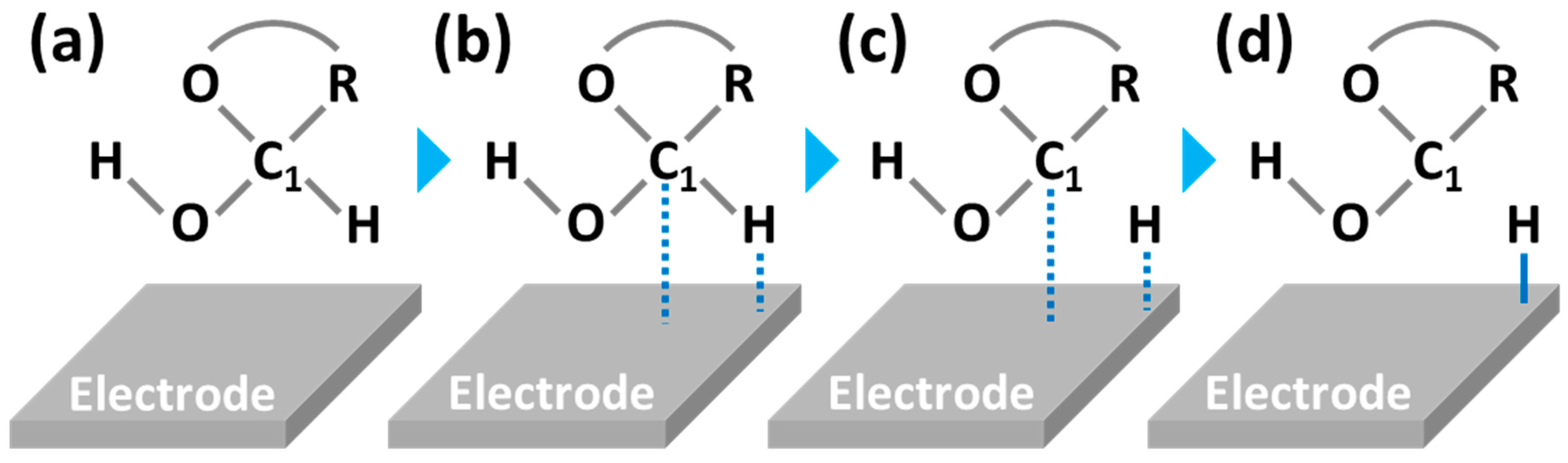

In the case of the “activated chemisorption model”, it was claimed that the oxidation reaction of glucose molecule is firstly initiated through the adsorption of the glucose on the surface of the electrode (Figure 4a), which is an electroactive material. Secondly, a weak bonding between the glucose molecule and the substrate surface (dotted blue line) is formed. Meanwhile, the hydrogen atom in the glucose molecule, which is connected to the hemiacetal carbon, is extracted (dotted blue line) (Figure 4b). Thirdly, after the weak bonding between the hemiacetal carbon and the electrode surface as well as the weak bonding between the hydrogen atom and the electrode surface are both formed (dotted blue lines), the bonding between the hemiacetal carbon and the hydrogen atom is broken (Figure 4c). Finally, desorption of the dehydrogenated glucose takes place since there is a change in the oxidation state of the glucose molecule, and the glucose-metal bond strength is mitigated (Figure 4d). Since the adsorption (formation of bond) and the desorption (breaking of bond) take place in the overall reactions, the moderate bonding strength between the glucose molecule and the surface of the electrode material is favored.

4.2. Incipient Hydrous Oxide Adatom Mediator (IHOAM) (Second Model)

The second model, which was reported by Burke [103] in 1994, is known as the “incipient hydrous oxide adatom mediator (IHOAM) model”. It was claimed that the reactivity of the electroactive material on the electrode surface could be attributed to its low lattice stabilization [103,104,105]. The hydroxide ion (OH⁻) in the electrolyte adsorbs on the electrode (i.e., metallic electrode) forming an incipient hydrous oxide (M-OH_ads), which is believed to be the crucial mediator for the electro-oxidation reactions of glucose molecule in the electrolyte. The glucose molecule is thereafter oxidized by the M-OH_ads mediator, while the M-OH_ads is transformed back to its metallic state. Therefore, the overall reactions could be divided into the oxidation reaction (red area on the left side) and the reduction reaction (blue area on the right side), which are shown in Figure 5. Glucose molecules are oxidized in the red area (left side), the oxidation-reduction reactions are repeatedly cycled in the electroactive materials (middle), and the corresponding reduction reactions are shown in the blue area (right side).

5. Systems of Electroactive Materials for the Sensing of Glucose

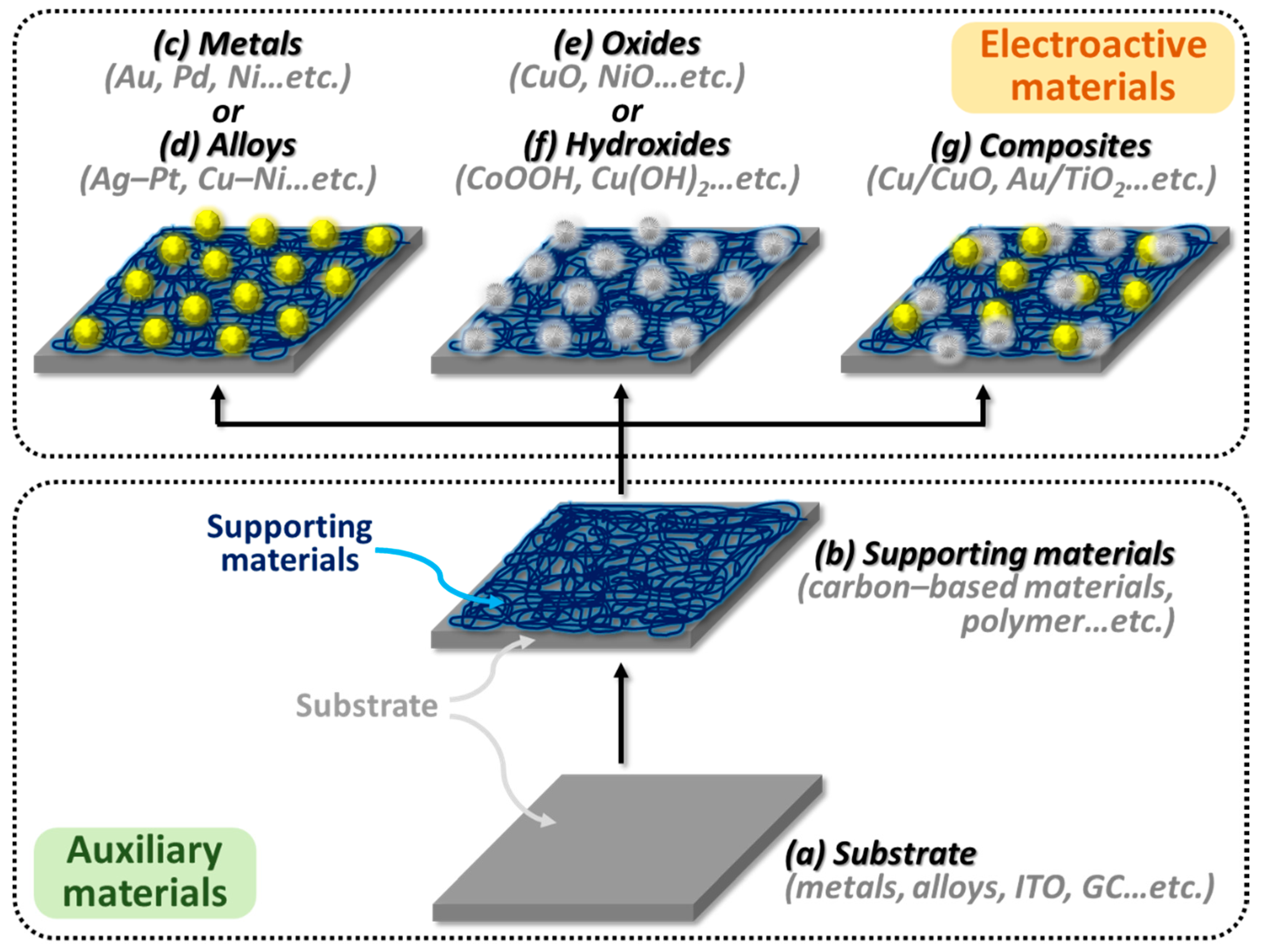

An illustration for the classification of the active materials in the glucose-sensing electrode is shown in Figure 6. Firstly, proper substrates for the synthesis of the active materials were chosen (Figure 6a). Metallic substrates, such as Ni [37], Cu [106], Pt [107], Au [108], and alloys [109], are often utilized, while other non-metallic substrates, such as indium-tin-oxide (ITO) [110] and glassy carbon (GC) [34], are also other choices. Some of the substrates themselves (i.e., Pt, Au, and so forth) possess an electroactivity to the sensing of glucose via electrochemical techniques. The electrocatalytic activity of the substrate could be further improved by decorating the specific substrates with high electroactive materials. It is also known that the crystal orientation affects the performances of the electrodes [34,107]. Therefore, the selection of substrates for the growth of crystalline materials could be a critical issue.

Secondly, for the purposes of the high surface area, supporting, and stability, supporting materials are usually fabricated for the enhancement of the performances of the electroactive materials (Figure 6b). The carbon-based materials, such as graphene sheets [111], graphene oxide (GO) [112], reduced graphene oxide (rGO) [113,114], and carbon nano-based materials [115,116,117,118], are frequently used. Electrically conductive polymers, such as polyaniline (PANI) [119,120] and polypyrrole (PPy) [121] are also promising candidates for the supporting materials due to their low cost, large surface area, and manipulatable properties by functionalization treatments [122]. On the other hand, inorganic materials, such as TiO₂ nanotube array [123] and the CoOOH nanosheets [124], are also widely utilized. In some of the studies, the substrate and the supporting material were not thoroughly independent. Instead, the substrates and the supporting materials could be identical material.

The aforementioned substrates and supporting materials were classified as the “auxiliary materials” in Figure 6a,b. Meanwhile, the “electroactive materials”, which are listed and discussed in the following sections, were categorized into five major different types in Figure 6c–g. Finally, the crucial materials, which determine the performance of the glucose-sensing electrodes, would be the electroactive materials (Figure 6c–g). There are many types of electroactive material for the sensing of glucose by the electrochemical methods, such as (1) metal materials and (2) alloy materials [34,35,36,37,48,49,50,53,61,125,126,127,128,129,130,131,132] (Figure 6c,d), (3) oxide materials and (4) hydroxide materials [39,40,51,52,54,55,58,59,64,65,66,133,134,135,136,137,138,139] (Figure 6e,f), as well as (5) composite materials [38,42,43,44,45,46,47,56,57,62,63,67,140,141,142,143,144] (Figure 6g). In this review article, the sensing materials, performances, and mechanisms of the aforementioned five major types of classifications are described separately in the following sections.

6. Electroactive Materials of Mono-Metallic Materials

6.1. Crystal Structure Controlled Pd Nanocubes

The mono-metallic materials are considered to be the simplest materials for the electro-oxidation of glucose. It is widely known that the electroactivity alters with the crystalline planes [145,146,147,148,149,150,151,152]. For the effective utilization of the electrocatalytic activity of the electroactive materials, controlling the growth of the crystalline for promoting the electrocatalytic activity has attracted much attention. Ye et al. [34] worked on a comparison between the uncontrolled polyhedral Pd nanoparticles (PdNPs) and the controlled mono-metallic Pd nanocubes (PdNCs) with (100) plane.

Figure 7 shows the TEM images of morphologies and crystalline of (a) the PdNCs and (b) the PdNPs. It is observed that the PdNCs possessed a cubic structure (Figure 7a), while the PdNPs (Figure 7b) demonstrate a polygonal structure.

Figure 8 shows the CV measurements for the explanation of the mechanisms of the PdNCs and the PdNPs. Since glucose was not introduced into the 0.1 M NaOH electrolyte in the CV measurement in Figure 8a, merely the reduction and oxidation reactions of the PdNCs and the PdNPs electrodes could be observed in the CV curves. At peak R1 in the negative scan (E = −0.76 V vs. Ag/AgCl) (Figure 8a), the reduction peak indicated the chemical adsorption reaction of hydrogen on the metallic Pd surface (Equation (1)) [34], which could be expressed by

$$\mathrm{Pd}+{\mathrm{H}}_2\mathrm{O}+{\mathrm{e}}^{-}\to \mathrm{Pd}-{\mathrm{H}}_{\mathrm{ads}}+{\mathrm{OH}}^{-}$$

(1)

On the other hand, in the positive sweep, the oxidation peak O1 at approximately −0.8 V can be ascribed to the oxidation of the hydrogen atoms, which adsorbed on Pd in the negative scan [153]. This could be expressed by Equation (2):

$$\mathrm{Pd}-{\mathrm{H}}_{\mathrm{ads}}+{\mathrm{OH}}^{-}\to \mathrm{Pd}+{\mathrm{H}}_2\mathrm{O}+{\mathrm{e}}^{-}$$

(2)

With the increment of the scanning potential in the positive sweep, a small oxidation peak at approximately −0.42 V (peak O2) could be assigned to the desorption of the absorbed H atoms, which diffused from the inner part of Pd to the surface of Pd [154]. Continuous oxidation reactions, which took place, with the increment of the potential from −0.28 V to 0.25 V (oxidation reaction of O3), could be attributed to the following three reactions (Equations (3)–(5)) [155]

$$\mathrm{Pd}+{\mathrm{OH}}^{-}\to \mathrm{Pd}-{\mathrm{OH}}_{\mathrm{ads}}+{\mathrm{e}}^{-}$$

(3)

$$\mathrm{Pd}-{\mathrm{OH}}_{\mathrm{ads}}+{\mathrm{OH}}^{-}\to \mathrm{Pd}-\mathrm{O}+{\mathrm{H}}_2\mathrm{O}+{\mathrm{e}}^{-}$$

(4)

$$\mathrm{Pd}-{\mathrm{OH}}_{\mathrm{ads}}+\mathrm{Pd}-{\mathrm{OH}}_{\mathrm{ads}}\to \mathrm{Pd} \mathrm{oxides}+{\mathrm{H}}_2\mathrm{O}$$

(5)

Lastly, the electro-reduction reaction, which occurred at approximately −0.24 V (peak R2) in the negative scan, could correspond to the electro-reduction reaction of the Pd-oxide film on the Pd nanomaterials [156,157].

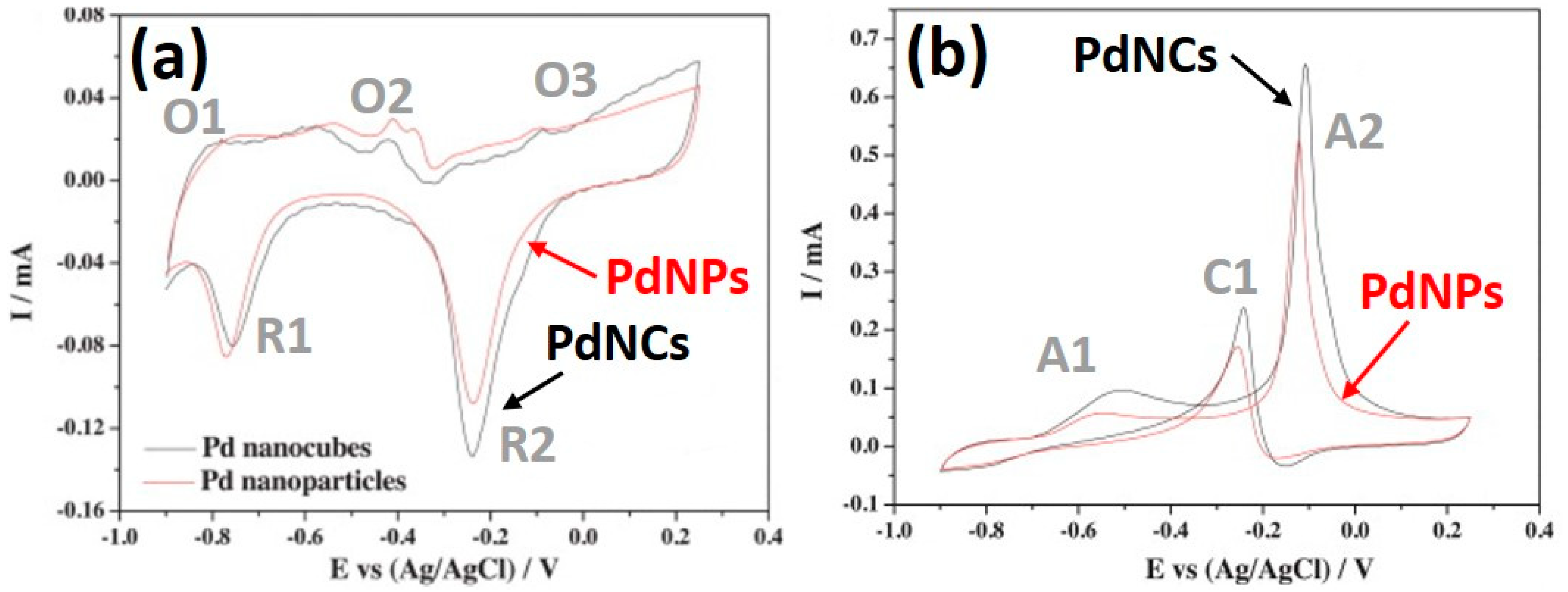

Figure 8b shows the results of the current responses of the PdNCs (black curve) and the PdNPs (red curve) electrodes under a certain potential range in 5 mM glucose in 0.1 mM NaOH solution. Two anodic peaks (i.e., A1 and A2) were observed in the positive sweep of the CV method. Oxidation peak A1 indicates the electro-adsorption of glucose to the surface of the Pd nanomaterials along with a release of one proton per glucose molecule, which becomes to the Pd-glucose_ads intermediate [158,159]. The reaction equation could be described in Equation (6):

$$\mathrm{Pd}+\mathrm{Glucose}\to \mathrm{Pd}-{\mathrm{Glucose}}_{\mathrm{ads}}+{\mathrm{H}}^{+}+{\mathrm{e}}^{-}$$

(6)

With a further increment of the sweeping potential, another A2 oxidation peak is observed at approximately −0.11 V in the positive scan. This oxidation reaction could be attributed to the following reaction [49,160], which is expressed by Equation (7):

$$\mathrm{Pd}-\mathrm{OH}+\mathrm{Glucose}\to \mathrm{Pd}+\mathrm{Gluconolactone}$$

(7)

The Pd-OH intermediate in Equation (7) was the electroactive site for the electro-oxidation of glucose. It has also been reported that the product after the electrochemical glucose oxidation on the Pd electrode would be gluconolactone [161]. Therefore, the gluconolactone was assigned to Equation (7). According to Equation (7), the large A2 oxidation peak could be considered as a criterion for the comparison of the electroactivity of the PdNCs and the PdNPs. An enhanced current in the PdNCs indicated the promoted electrocatalytic activity of the PdNCs than the PdNPs.

On the other hand, in the negative scan, the glucose in the electrolyte was oxidized immediately upon the reduction reaction from the palladium oxide (i.e., PdO) to the metallic Pd (i.e., Pd nanomaterials). Therefore, the C1 peak was a combination of the aforementioned two reactions (i.e., the reduction reaction of PdO and Equation (7)) [158].

6.2. Mechanisms and Comparisons of the Mono-Metallic Materials

The aforementioned mechanisms for the series of the electro-oxidation of glucose by the Pd nanomaterials could also be applied to other mono-metallic materials, such as the Au micropillar array [162], Au nanoparticles [163], Pt nanoparticles [164], Co-based metal-organic framework (Co-MOF) [165], Co-phosphate nanomaterials [166], Cu-based metal-organic framework (Cu-MOF) [167], Cu nanoflowers [168], porous Ni foam [169], and Ni nanowire array [170]. Generally, the noble metals, such as Au, Pd, and Pt, are used in their metallic state while the transition metals, such as Co, Cu, and Ni, are mostly used in their oxidation forms, which are discussed in the following sections. The mechanisms of the frequently seen mono-metallic (a) Au [162,163], (b) Pd [34,171], (c) Pt [164], (d) Co [110,165,166], (e) Cu [167,168], and (f) Ni [169,170] materials are summarized in

Table 1. The formation mechanisms of the electroactive intermediates and the electro-oxidation of glucose in the alkaline solution by the electroactive materials of the mono-metallic (a) Au [162,163], (b) Pd [34,171], (c) Pt [164], (d) Co [110,165,166], (e) Cu [167,168], and (f) Ni [169,170]. The general mechanisms for the formation of the electroactive intermediates and the electro-oxidation of glucose in the alkaline solution are also summarized and shown in (g).

Electrodes	Chemical Reactions and Mechanisms
(a) Au [162,163]	• Formation of electroactive intermediate $\mathrm{Au}+{\mathrm{OH}}^{-}\to \mathrm{Au}-{\mathrm{OH}}_{\mathrm{ads}}+{\mathrm{e}}^{-}$
	• Electro-oxidation of glucose $\mathrm{Au}-{\mathrm{OH}}_{\mathrm{ads}}+\mathrm{Glucose}\to \mathrm{Au}+\mathrm{Gluconolactone}$
(b) Pd [34,171]	• Formation of electroactive intermediate: step 1 (Pd(0)) → Pd(I)) $\mathrm{Pd}+{\mathrm{OH}}^{-}\to \mathrm{Pd}-{\mathrm{OH}}_{\mathrm{ads}}+{\mathrm{e}}^{-}$ • Electrooxidation reaction of Pd: step 2 (Pd(I)) → Pd(II)) $\mathrm{Pd}-{\mathrm{OH}}_{\mathrm{ads}}+\mathrm{Pd}-{\mathrm{OH}}_{\mathrm{ads}}\to \mathrm{Pd} \mathrm{oxides}+{\mathrm{H}}_2\mathrm{O}$
	• Electro-oxidation of glucose $\mathrm{Pd}-{\mathrm{OH}}_{\mathrm{ads}}+\mathrm{Glucose}\to \mathrm{Pd}+\mathrm{Gluconolactone}$
(c) Pt [164]	• Electro-oxidation reaction of Pt: step 1 (Pt(0) → Pt(II)) $\mathrm{Pt}+2{\mathrm{OH}}^{-}\to \mathrm{Pt}{\left(\mathrm{OH}\right)}_2+2{\mathrm{e}}^{-}$ • Formation of electroactive intermediate: step 2 (Pt(II) → Pt(IV)) $\mathrm{Pt}{\left(\mathrm{OH}\right)}_2+2{\mathrm{OH}}^{-}\to \mathrm{PtO}{\left(\mathrm{OH}\right)}_2+{\mathrm{H}}_2\mathrm{O}+2{\mathrm{e}}^{-}$
	• Electro-oxidation of glucose $\mathrm{PtO}{\left(\mathrm{OH}\right)}_2+\mathrm{Glucose}\to \mathrm{Pt}{\left(\mathrm{OH}\right)}_2+\mathrm{Gluconolactone}$
(d) Co [110,165,166]	• Electro-oxidation reaction of Co: step 1 (Co(0) → Co(II)) $\mathrm{Co}+2{\mathrm{OH}}^{-}\to \mathrm{Co}{\left(\mathrm{OH}\right)}_2+2{\mathrm{e}}^{-}$ • Formation of electroactive intermediate: step 2 (Co(II) → Co(III)) $\mathrm{Co}{\left(\mathrm{OH}\right)}_2+{\mathrm{OH}}^{-}\to \mathrm{CoOOH}+{\mathrm{H}}_2\mathrm{O}+{\mathrm{e}}^{-}$ • Formation of electroactive intermediate: step 3 (Co(III) → Co(IV)) $\mathrm{CoOOH}+{\mathrm{OH}}^{-}\to {\mathrm{CoO}}_2+{\mathrm{H}}_2\mathrm{O}+{\mathrm{e}}^{-}$
	• Electro-oxidation of glucose $\mathrm{CoOOH}+\mathrm{Glucose}\to \mathrm{Co}{\left(\mathrm{OH}\right)}_2+\mathrm{Gluconolactone}$ or ${\mathrm{CoO}}_2+\mathrm{Glucose}\to \mathrm{CoOOH}+\mathrm{Gluconolactone}$
(e) Cu [167,168]	• Electro-oxidation reaction of Cu: step 1 (Cu(0) → Cu(II)) $\mathrm{Cu}+2{\mathrm{OH}}^{-}\to \mathrm{CuO}+{\mathrm{H}}_2\mathrm{O}+2{\mathrm{e}}^{-}$ or $\mathrm{Cu}+2{\mathrm{OH}}^{-}\to \mathrm{Cu}{\left(\mathrm{OH}\right)}_2+2{\mathrm{e}}^{-}$ • Formation of electroactive intermediates: step 2 (Cu(II) → Cu(III)) $\mathrm{CuO}+{\mathrm{OH}}^{-}\to \mathrm{CuOOH}+{\mathrm{e}}^{-}$ or $\mathrm{CuO}+{\mathrm{H}}_2\mathrm{O}+2{\mathrm{OH}}^{-}\to \mathrm{Cu}{\left(\mathrm{OH}\right)}_4^{-}+{\mathrm{e}}^{-}$
	• Electro-oxidation of glucose $\mathrm{Cu}\left(\mathrm{III}\right)+\mathrm{Glucose}\to \mathrm{Cu}\left(\mathrm{II}\right)+\mathrm{Gluconic} \mathrm{acid}$
(f) Ni [169,170]	• Electro-oxidation reaction of Ni: step 1 (Ni(0) → Ni(II)) $\mathrm{Ni}+2{\mathrm{OH}}^{-}\to \mathrm{NiO}+{\mathrm{H}}_2\mathrm{O}+2{\mathrm{e}}^{-}$ or $\mathrm{Ni}+2{\mathrm{OH}}^{-}\to \mathrm{Ni}{\left(\mathrm{OH}\right)}_2+2{\mathrm{e}}^{-}$ • Formation of electroactive intermediates: step 2 (Ni(II) → Ni(III)) $\mathrm{NiO}+{\mathrm{OH}}^{-}\to \mathrm{NiOOH}+{\mathrm{e}}^{-}$ or $\mathrm{Ni}{\left(\mathrm{OH}\right)}_2+{\mathrm{OH}}^{-}\to \mathrm{NiOOH}+{\mathrm{H}}_2\mathrm{O}+{\mathrm{e}}^{-}$
	• Electro-oxidation of glucose $\mathrm{NiOOH}+\mathrm{Glucose}\to \mathrm{Ni}{\left(\mathrm{OH}\right)}_2+\mathrm{Gluconolactone}$
(g) General	• Formation of electroactive intermediates $\mathrm{M}\left(\mathrm{LOS}\right)+{\mathrm{OH}}^{-}\to \mathrm{M}\left(\mathrm{MOS}\right)+{\mathrm{e}}^{-}$ and/or $\mathrm{M}\left(\mathrm{MOS}\right)+{\mathrm{OH}}^{-}\to \mathrm{M}\left(\mathrm{HOS}\right)+{\mathrm{e}}^{-}$
	• Electro-oxidation of glucose $\mathrm{M}\left(\mathrm{HOS}\right)+\mathrm{Glucose}\to \mathrm{M}\left(\mathrm{LOS}\right)+\mathrm{Products}$ where M = Mono-metal LOS = Low oxidation state MOS = Medium oxidation state HOS = High oxidation state Products = Glucose derivatives

. Besides, the general reaction mechanisms for the formation of the electroactive intermediates and the electro-oxidation of glucose are also shown and compared in Table 1g.

In Table 1, it can be found that, although there are some differences among the formation of the electroactive intermediates, the general chemical reaction is the oxidation of the metals from their metallic state to the oxidized state, which could be the metal-oxide and/or the metal-hydroxide compounds. Besides the reaction from the metallic form to the oxidized form, some of the metal-oxide and/or the metal-hydroxide compounds could be further oxidized into their high oxidation state. For example, CuO could be further oxidized into CuOOH or Cu(OH)₄⁻ compounds [167,168], while NiO and Ni(OH)₂ could be further oxidized to the NiOOH compound [169,170]. In the case of Cu, the electroactive intermediate for glucose oxidation would be the Cu(III) molecules. Similarly, the electroactive intermediate would be the Ni(III) in the case of Ni. Again, the oxidized transition metals, such as Co₃O₄, CuO, Fe₂O₃, NiO, and so forth, which were often utilized as the electrocatalyst directly due to the stability issues, are discussed in Section 8 and Section 9.

It was also found that the products could vary while the electroactive materials altered. For example, gluconolactone was obtained as the product when the electroactive materials are Au, Pd, Pt, Co, and Ni, while gluconic acid has been claimed as the product when Cu was used as the electroactive material.

In Section 6.1, the mechanisms for the series of the electro-oxidation of the glucose in the alkaline solution by the Pd nanomaterials [34] are reviewed. In addition, the similar mechanisms of the noble metals and the transition metals in their mono-metallic forms are also listed, summarized, and compared [34,110,162,163,164,165,166,167,168,169,170]. A general reaction mechanism was summarized and expressed in Table 1g. Moreover, the performances of the non-enzymatic glucose sensors, which were composed of the noble metals (i.e., Au, Pd, and Pt) and transition metals (i.e., Co, Cu, and Ni), within this decade are listed and compared in

Table 2. Electrodes for the sensing of glucose by the noble mono-metallic (a) Au, (b) Pd, and (c) Pt materials within this decade. The performances are compared in terms of sensitivity, linear range, limit of detection (LOD), and working potential. The working potentials were based on the reference electrode of Ag/AgCl.

Electrode [Electrolyte]	Sensitivity (μA mM−1 cm−2)	Linear Range (mM)	LOD (μM)	Working Potential (V) *	Year [Reference]
(a) Mono-metallic Au electrodes
Dendrite Au/paper fiber [0.1 M NaOH]	30.0	0.01–15	0.6	+0.60	2020 [172]
Au NP/N-doped GCNTs/GCE [0.1 M NaOH]	0.98	0.002–19.6	0.5	+0.20	2018 [173]
Mesoporous Au/Au-Si electrode [0.1 M NaOH]	291.6	0.0–10	4.13	+0.20	2017 [174]
Au NPs-MWCNTs/AuE [0.05 M NaOH]	27.7	0.001–1.0	0.5	+0.20	2017 [116]
Au nanocages/GCE [0.2 M NaOH]	2131	1–9	100	--	2016 [175]
Pine-like nano-Au/AuE [0.1 M NaOH]	776.9	0.02–0.24	3.39	+0.07	2016 [176]
Au NPs/GCE [1 M NaOH]	87.5	0.1–25	50	+0.24	2014 [177]
Au NPs-GO nanoribbons/Carbon sheet [0.1 M PBS]	59.1 31.4	0.005–4.92 4.92–10	5	+0.20	2014 [178]
Nano Au-CNTs/GCE [0.01 M PBS]	25	0–50	100	+0.39	2014 [179]
Au MPA/Si [0.01 M PBS]	13.2	0.5–9	60	--	2012 [162]
(b) Mono-metallic Pd electrodes
PBTh-Pd particles/ITO [0.1 M NaOH]	5620	0.04–0.4	7	+0.60	2020 [180]
Pd NPs-GN-MWCNTs/GCE [0.1 M NaOH]	83.0 52.9	0.025–10 10–100	8	−0.1	2019 [181]
GO-PAA-Pd NPs/SPCE [0.1 M NaOH]	75 37	0.05–15 15–60	22	−0.1	2019 [171]
Pd NPs-CSP/GCE [0.1 M NaOH]	17.7	1–8	237	−0.05	2018 [182]
Pd NPs-halloysite nanotubes/GCE [0.1 M NaOH]	362.9 86.3	0.0005–2 2–15	0.43	+0.45	2016 [183]
Porous Pd NTs/GCE [0.1 M NaOH]	6.58	0.005–10	1	+0.45	2015 [184]
Pd NPs-IFMC/GCE [0.15 M NaOH]	--	1–55	200	+0.40	2015 [185]
Pd nanocubes/GCE [0.1 M NaOH]	34	1–10	--	−0.05	2015 [34]
Pd NPs-MWCNTs/GCE [0.1 M NaOH]	1275	1–22	0.2	−0.4	2014 [186]
Pd NPs-MWCNTs/GCE [1 M NaOH]	11	1–10	--	+0.025	2013 [187]
(c) Mono-metallic Pt electrodes
GFs Pt/GCE [0.1 M NaOH]	46,060.9 205.2	0.0001–0.01 0.01–20	0.03	−0.15	2019 [164]
Pt CNs/FTO [0.1 M NaOH]	20.75	0.33–12.5	0.7	+0.2	2018 [188]
Pt particles-PANI/PtE [0.1 M NaOH]	215.8	0.1–12	10	+0.02	2018 [189]
Nanoporous Pt/PtE [0.5 M H2SO4]	5.67	1–10	800	+0.4	2017 [190]
Pt NPs-GOH/GCE [0.1 M NaOH]	137.4	5–20	--	+0.1	2015 [131]
Pt nanoclusters-graphene/GCE [0.1 M PBS]	1.21	1–25	30	+0.05	2015 [111]
Pt NFs-GO/GCE [0.05 M PBS]	1.26 0.64	0.002–10.3 10.3–20.3	2	+0.52	2013 [112]
Pt-PGA/GCE [0.2 M PBS]	0.88	0.05–5.95	11	+0.35	2013 [191]
Pt-MWCNTs/GCE [0.1 M NaOH]	106	Up to 2.4	--	−0.25	2013 [192]
Pt NFs-MWCNT/AuE [0.2 M PBS]	1.87	1–16	48	--	2012 [193]

* All potentials are with respect to the Ag/AgCl reference electrode. Abbreviation: AuE: Au electrode; CNTs: Carbon nanotubes; CSP: Cynomorium songaricum polysaccharides; FTO: Fluorine-doped tin oxide; GCE: Glassy carbon electrode; GCNTs: Graphene-carbon nanotube; GF: Graphene framework; GN: Graphene nanoplates; GO: Graphene oxide; GOH: Graphene oxide hydrogel; LOD: limit of detection; MPA: Micropillar array; MWCNTs: Multiwalled carbon nanotubes; NCs: Nanocubes; NFs: Nano flowers; NPs: Nanoparticles; NTs: Nanotubes; PAA: Poly(acrylic acid); PANI: Polyaniline; PBS: Phosphate-buffered saline; PBTh: Polybithiophene; PtE: Pt electrode; SPCE: Screen-printed carbon electrode.

and

Table 3. Electrodes for the sensing of glucose by the transition mono-metallic (a) Co, (b) Cu, and (c) Ni materials within this decade. The performances are compared in terms of sensitivity, linear range, limit of detection (LOD), and working potential. The working potentials are based on the reference electrode of Ag/AgCl.

Electrode [Electrolyte]	Sensitivity (μA mM−1 cm−2)	Linear Range (mM)	LOD (μM)	Working Potential (V) *	Year [Reference]
(a) Mono-metallic Co electrodes
Co-MOF/GCE [0.1 M NaOH]	2860	1.0–1300.0	0.19	--	2021 [194]
Co-PO-MA/NF [0.1 M NaOH]	3550	0.001–1.16	1	+0.55	2020 [195]
CoPc-graphene-IL/SPCE [0.1 M NaOH]	--	0.01–1.3	0.67	--	2018 [196]
Co3N NA/TM [0.1 M NaOH]	3325.6	0.0001–2.5	0.05	+0.54	2018 [197]
Co-phosphate nanostructures/GCE [0.1 M PBS]	7900	1–30	3 × 10−4	+0.65	2018 [166]
Co4N-NSs/GCE [0.1 M NaOH]	1137.2	0.6–10	0.1	+0.55	2018 [198]
Co-phosphide NA/TM [0.1 M NaOH]	5168.6	5 × 10−4–1.5	0.1	+0.54	2017 [199]
Co-MWCNTs nanocomposite/MSPs [0.1 M NaOH]	727.4	0.005–0.1 0.2–3.6	0.009 0.3	+0.43	2015 [200]
Co NPs/graphene [0.1 M NaOH]	4700	0.00167–0.47	0.05	+0.54	2015 [201]
Co NPs/ITO [1 M NaOH]	1720	0.005–0.18	0.25	+0.59	2014 [110]
(b) Mono-metallic Cu electrodes
Cu NPs-LIG/PIFs [0.1 M NaOH]	495	0.001–6	0.39	+0.50	2020 [125]
Cu-MOF/GCE [0.01 M NaOH]	89	0.01–3.5	0.0105	+0.55	2018 [167]
Cu NPs-N-graphene/GCE [0.1 M NaOH]	4846.9	1 × 10−5–0.1	0.01	+0.60	2017 [128]
Cu framework/Sandpaper [0.1 M NaOH]	2165.5	0.001–4.6	0.03	+0.45	2017 [202]
Cu NWs/rGO [0.1 M NaOH]	1625	Up to 11	0.2	+0.58	2016 [203]
Cu-PSi/CPE [0.1 M NaOH]	--	0.001–0.19 0.19–2.3	0.2	+0.55	2014 [143]
Cu-N-graphene/GCE [0.1 M NaOH]	48.1	0.004–4.5	1.3	+0.55	2014 [204]
Cu NWs-MWCNTs/GCE [0.1 M NaOH]	1995	Up to 3	0.26	+0.55	2013 [205]
Cu NWs-Nafion/GCE [0.05 M NaOH]	420.3	Up to 3	0.035	+0.60	2012 [139]
Cu NPs-graphene/GCE [0.1 M NaOH]	607	0.005–1.4	0.2	+0.55	2012 [206]
(c) Mono-metallic Ni electrodes
Ni-C/SPCE [0.1 M KOH]	670	0.02–0.5	8	--	2018 [127]
Ni plasma-modified graphene/GCE [0.1 M NaOH]	2213	0.1–3	1	+0.60	2017 [207]
Ni3S2/NF [0.5 M NaOH]	16,460	5 × 10−4–3	0.82	+0.55	2016 [208]
NiS/ITO [0.1 M NaOH]	7430	0.005–0.045	0.32	+0.50	2015 [209]
CNT-Ni/SiO2 [0.1 M NaOH]	813	0.001–0.11	1	+0.50	2015 [210]
3D Ni3S2 NSs arrays/NF [0.5 M NaOH]	6148	0.005–3	1.2	+0.49	2014 [211]
Ni3S2/MWCNTs [0.1 M NaOH]	3345	0.03–0.5	1	+0.54	2014 [212]
3D porous Ni-SPCE/ITO [0.1 M NaOH]	2900	5 × 10−4–4	0.07	+0.50	2013 [213]
Ni-MWCNTs/GCE [0.1 M NaOH]	67.2	0.0032–17.5	0.89	+0.60	2012 [132]
Ni NPs-MWCNTs/GCE [0.1 M NaOH]	1438	0.001–1	0.5	+0.45	2011 [214]

* All potentials are with respect to the Ag/AgCl reference electrode. Abbreviation: CNT: Carbon nanotube; CPE: Carbon paste electrode; GCE: Glassy carbon electrode; IL: Ionic liquid; ITO: Indium tin oxide; LIG: Laser-induced graphene; MA: Micro-sheet arrays; MOF: Metal-organic framework; MSPs: Mild steel plates; MWCNTs: Multiwalled carbon nanotubes; NA: Nanowire array; NF: Ni foam; NPs: Nanoparticles; NSs: Nanosheets; NWs: Nanowires; PBS: Phosphate-buffered saline; Pc: Phthalocyanine; PIFs: Polyimide films; PO: Phosphate; PSi: Porous silicon; rGO: Reduced graphene oxide; SPCE: Screen-printed carbon electrode; TM: Titanium mesh.

, respectively. Here, it was found that although the transition metal series performed relatively high sensitivity, the operation potential is three times higher than that of the noble metals. The average operation potential of the transition metal series (Table 3) is 0.54 V (with respect to Ag/AgCl), while the average operation potential of the noble metal series (Table 2) is 0.17 V. One could also discover that the linear range of the transition metal series is narrower than that of the noble metal series. For balancing the various performances, such as sensitivity, linear range, limit of detection (LOD), and other behaviors, bi-metallic electrodes have been also widely studied. The bi-metallic (alloy) electrodes are reviewed in Section 7.

7. Electroactive Materials of Bi-Metallic Materials (Alloys)

As mentioned in the previous sections, to date, the mono-metallic electrocatalysts for the electro-oxidation of glucose have been widely investigated due to their relatively simple fabrication method, time-effective procedures, and proper electrocatalytic activity for the detection of glucose by the electrochemical technique. However, there still remains some dilemma in the mono-metallic electrocatalysts for the electro-oxidation of glucose. For example, Pt performs high electrocatalytic activity to the electro-oxidation of glucose. Nevertheless, the surface of the Pt active sites would be poisoned by the intermediates, which are generated from the electro-oxidation of glucose molecules [105,215,216]. Transition metal-based materials, such as Co, Cu, and Ni, demonstrate high sensitivity. However, a high detection potential is necessary for triggering the electro-oxidation of glucose [132,207,208].

Given that there remain some difficulties in the mono-metallic electrocatalysts, the bi-metallic electrocatalysts have also been studied to solve the aforementioned dilemma [217,218,219,220,221,222,223,224,225,226,227,228]. Various combinations of the metals are present, such as Ag-Cu [217], Ag-Pd [218], Ag-Pt [219], Au-Pt [220], Co-Pt [221], Cu-Ni [222,223], Ni-Fe [224], Ni-Pt [225,226], Pd-Pt [227], and Pt-Ru [228]. According to the references, the integrations of different metals could be noble-noble, noble-transition, and transition-transition for tailoring each other. An example is shown in Section 7.1 to reveal the enhancements of the electrocatalytic activity by taking the advantage of the bi-metallic material. It is necessary to mention that the term “bi-metallic” indicates the materials, which are composed of more than one metal regardless of the structures of the materials. For example, the often-seen core-shell structure is also classified as a bi-metallic electroactive material in this review article.

7.1. Bi-Metallic Pt-Au Alloy Nanomaterials

Bi-metallic Pt-Au nanomaterials have been studied by Lin et al. [229] to overcome the difficulties in the mono-metallic materials. Again, Pt has been widely practiced in the non-enzymatic glucose sensor. However, it is well-known that Pt-based electrodes suffer from the drawbacks of poisoning effect because of the adsorption of the chloride ions from the human body fluid or blood and also the chemisorption of the intermediates from the products of electro-oxidation of glucose [230]. These chemical species are unavoidable in the reactions of the electro-oxidation of glucose. On the other hand, it is also known that the non-enzymatic glucose sensors possess relatively low selectivity than that of the enzymatic glucose sensors due to the possible interferences caused by simultaneous oxidation of various substances [231]. Integration of the Pt element with other materials could be a facile method to overcome the poisoning drawback of the Pt catalyst to promote the overall electrocatalytic activity, and also to enhance the selectivity for the non-enzymatic glucose sensors.

As mentioned in Section 7, the combination variety of the materials could be wide [217,218,219,220,221,222,223,224,225,226,227,228]. Among them, the bi-metallic Pt-Au nanomaterials are one of the promising candidates due to the following reasons, firstly, the anti-poisoning effect is realized effectively by the combination of the Pt-Au binary system. Secondly, the electrocatalytic activity could also be enhanced by the integration of Pt and Au metals. Thirdly, the performance of the non-enzymatic glucose sensor could be simply tailored via the fine-tuning of the size [232], shape [233], chemical composition [234], and structure [235] of the binary materials. Besides the abovementioned advantages, the current response and the selectivity [220] were reported to be greatly enhanced due to the synergistic effect [236]. Lastly, since Pt and Au both possess highly electrical conductivity, relatively low applied potential is required compared to other materials [237]. Based on the aforementioned truths, the electrode composed of the bi-metallic Pt-Au is considered as a potential material for the electro-oxidation of glucose by the electrochemical technique.

7.2. Mechanisms of Electro-oxidation of Glucose by Pt and Pt-Au Electrocatalysts

The mechanisms of the electro-oxidation of glucose by different electrocatalysts are listed in Table 1. Lin et al. [229] also illustrated the reaction mechanisms, which are shown in Figure 9, and the descriptions for the overall electro-oxidation of glucose are elucidated and summarized in the following steps.

Step 1: The chemisorption of the C-OH functional group to the surface of the Pt electrocatalyst and the C-OH functional group produces the C-OH_ads-Pt showing a weak bonding between the C-OH functional group and the Pt surface.

Step 2: The adsorbed C-OH functional group on the Pt electrode is oxidized on the Pt surface while the potential is raised. After electro-oxidation, glucose thus turns into the intermediate of gluconolactone and remains adsorbed on the Pt surface.

Step 3: The desorption of the adsorbed gluconolactone molecule takes place, and more or less, the surface of the Pt electrode is freed from the adsorption of the intermediate molecules.

Step 4: Gluconolactone, which is one of the products from the electro-oxidation of the glucose, could further react with OH⁻ in the electrolyte and turn into its ionic state, such as the C-OOR⁻ species.

There is a small difference between the mechanism described by Lin et al. [229] and Table 1. In Table 1, the active site of the Pt-OH_ads is generated by the adsorption of the OH⁻ ion in the electrolyte, while the Pt-OH_ads is generated by the adsorption of the C-OH functional group in the glucose to the Pt surface. The critical step for the formation of the Pt-OH_ads active site is well explained in both Table 1 and Figure 9.

It is known that Pt is a promising material for the electro-oxidation of glucose due to its high electroactivity. However, some conventional problems still remain. There are a few reasons for the explanation of the inactivated Pt electrode. Firstly, since a certain potential should be applied to the working electrode, the formation of the Pt metallic oxide layer could bring the inactivation to the working electrode. Secondly, since the C=O functional group shows high affinity to the Pt electrode, the Pt active sites are blocked by the intermediates and lose their electrocatalytic activity. The (1) passivation phenomenon caused by the formation of metal oxides on the electroactive sites at certain potential and the (2) poisoning effect from the aforementioned adsorption of the C=O functional group on the electroactive sites resulted in the deteriorated performance of the electrocatalytic activity in the electro-oxidation of glucose. Therefore, a solution to the dilemma should be found.

In contrast with the Pt catalyst, although Au shows less electrocatalytic activity to the electro-oxidation of glucose than Pt [238], the anti-poisoning effect of Au is known to be outstanding [61,239]. With the introduction of Au into the Pt electrode as the secondary element, the surface energy could be effectively regulated and a remarkable anti-poisoning effect could be realized [230,240]. Hence, the overall electrocatalytic activity to the electro-oxidation of glucose was promoted. In addition, due to the enhanced electrocatalytic activity of the electrode, the detection potential for glucose could be lowered and the undesired oxidation of the electrode thereby suppressed. The performances of the electrocatalytic activity and the resistance to the poisoning are greatly affected by the surface energy of the electrode, which could be further tuned by tailoring the chemical composition [220,234], the atomic ratio between Pt and Au [234,241], and structure [235,242]. Based on the abovementioned premise, the performances of the electro-oxidation of glucose, such as the electrocatalytic activity, sensitivity, and detection potential, are foreseen to be promoted by the integration of Au into Pt electrode.

7.3. Characterizations of the Bi-Metallic Pt-Au Electrocatalysts

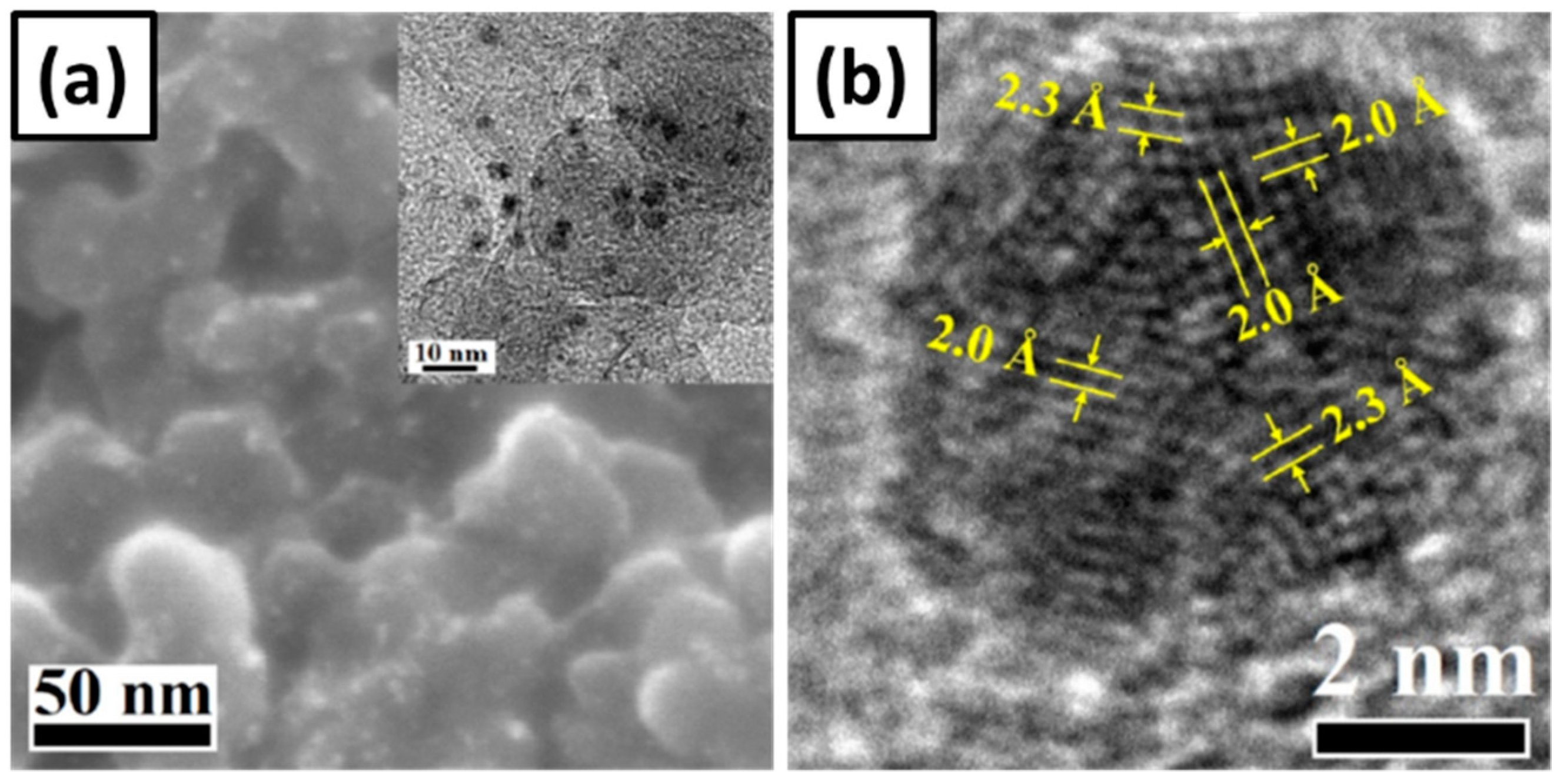

The microstructure images of the bi-metallic Pt-Au electrocatalysts are shown in Figure 10. The SEM micrograph of the PtAu (1:1)/C electrode is shown in Figure 10a and the TEM image is inserted into the upper-right corner. Judging from the SEM and TEM images, the spherical nanoparticles of the bi-metallic Pt-Au alloy, which were homogeneously dispersed, possessed an average diameter of 3–5 nm. The d-spacing of the adjacent fringes for the cores of the spherical Pt-Au alloy NPs, which were 2.3 Å and 2.0 Å, respectively, corresponded to the (111) and (200) planes of the face-centered cubic (fcc) PtAu (1:1) alloy (Figure 10b) [243,244,245].

The electro-oxidation of glucose analyzed by the LSV method on the (a) Pt/C, (b) Au/C, and (c) PtAu (1:1)/C electrodes are shown in Figure 11. In the Pt/C electrode (Figure 11a), two oxidation peaks, which indicated the electro-oxidation of glucose at −0.13 V and +0.12 V, were observed as the glucose was introduced into the alkaline electrolyte (i.e., blue and red curves). In the case of the Au/C electrode (Figure 11b), two similar oxidation peaks were also observed at approximately −0.13 V and +0.27 V, possessing a relatively high current response. On the other hand, different from these two pure Pt and Au metallic electrodes, the PtAu (1:1)/C electrode exhibited a significantly enhanced current response to the electro-oxidation of glucose (Figure 11c). The well-defined two oxidation peaks were observed at relatively negative potentials of −0.33 V and +0.06 V, respectively. The significant enhancement of the current response could be attributed to the promoted catalytic properties and the anti-poisoning effect of this bi-metallic Pt-Au alloy electrode during the process of the electro-oxidation of glucose.

An illustration of the synergistic effect of metallic Pt and Au was shown in Figure 12. In the bi-metallic Pt-Au electrode, Pt plays a role in the dehydrogenation of glucose (step 1 in Figure 9), which leads to a strong electrocatalytic activity for the electro-oxidation of glucose. With the integration of Au to Pt, Au shifted the d-band center of Pt outward to the Fermi level [246]. Therefore, the surface energy of Pt was reduced [247,248]. The lowered surface energy of Pt could weaken the adsorption strength between Pt and gluconolactone. Hence, the anti-poisoning effect was achieved.

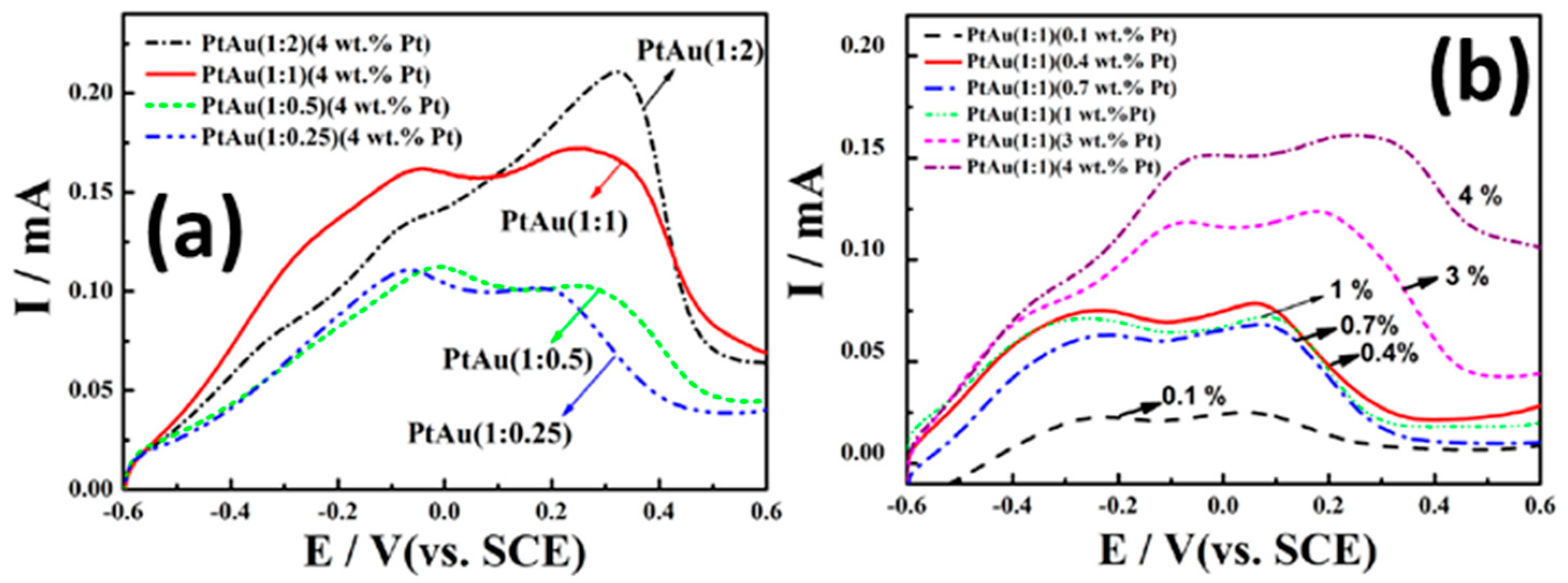

The bi-metallic Pt-Au in different ratios of Pt:Au = 1:2, 1:1, 1:0.5, and 1:0.25 on the nano-carbon carrier were also examined (Figure 13a). The well-defined two oxidation peaks at approximately −0.10 and +0.27 V were found in all LSV curves in Figure 13a. The current response increased with the augmentation of the Au ratio and the results agreed well with those examinations in Figure 11. The oxidation peak at around +0.27 V shifted positively with the increment of the Au ratio due to the weaker electrocatalytic activity of Au than that of Pt to the electro-oxidation of glucose. These results also followed the analysis in Figure 11 well. On the other hand, the oxidation peak at approximately −0.10 V increased as the Au amount increased, reached its maximum current response as the Pt:Au ratio was 1:1, and decreased again with further augmentation of the Au concentration. The maximum current response of this oxidation peak at −0.10 V of the PtAu (1:1) electrode was due to the balance between the Pt and Au. Therefore, the PtAu (1:1)/C electrode was considered to be the optimized one.

Different loading amounts of metals at the ratio of Pt:Au = 1:1 were also examined for further optimization of the electrocatalytic activity of the electrode by similar LSV measurements (Figure 13b). The loading amounts of 0.1, 0.4, 0.7, 1, 3, and 4 wt.% Pt were conducted.

7.4. Comparison of the Mono-Metallic and the Bi-Metallic Electrodes

The comparison amongst the bi-metallic materials is shown in

Table 4. The electrodes for the sensing of glucose by the (a) noble-noble, (b) noble-transition, and (c) transition-transition bi-metallic materials within this decade. The performances are compared in terms of sensitivity, linear range, limit of detection (LOD), and working potential. The working potentials are based on the reference electrode of Ag/AgCl.

Electrode [Electrolyte]	Sensitivity (μA mM−1 cm−2)	Linear Range (mM)	LOD (μM)	Working Potential (V) *	Year [Reference]
(a) Noble-noble bi-metallic electrodes
Pt-Au-Carbon/GCE [0.08 M NaOH]	--	0.01–10	3	−0.28	2020 [229]
Pd@Pt CINPs [0.1 M PB]	15.14	1–8.5	1.92	−0.10	2019 [249]
Honeycomb-like Au-Pt films/Si [0.5 M KOH]	109.3	0.02–10	12.9	−0.01	2016 [250]
Ag-Pt hollow NPs/rGO [0.2 M PBS]	129.3	0.003–7.72	1.8	+0.30	2016 [251]
Pd-Pt NCbs-rGO/GCE [0.1 M NaOH]	170	0.3–6.8	41.1	−0.05	2016 [252]
Hollow Ag-Pt NPs/Carbon [0.2 M PBS]	7	1–12	13	+0.30	2015 [219]
Mesoporous Au-Pt NDs/GCE [0.1 M NaOH]	--	1 × 10−5–0.1	0.001	−0.35	2015 [253]
Pt3Pd NPs-rGO/GCE [0.5 M H2SO4]	1.52	0.03–3	0.002	+0.11	2015 [254]
Pt-Pd NCbs-GNSs/GCE [0.05 M PBS]	1.4	0.5–24.5	--	+0.30	2014 [227]
Pt-Pd NTAs/Au electrode [0.1 M PBS]	41.5	Up to 10	--	+0.20	2014 [255]
(b) Noble-transition bi-metallic electrodes
Cu-Ag NCs/GCE [0.1 M NaOH]	1340	0.01–30	0.6	+0.40	2020 [217]
Pd-Mn NPs-rGO/GCE [0.1 M NaOH]	52.2 22.6	0.02–1.15 1.15–4.88	1.25	−0.05	2020 [256]
Pt-Ni@AC/GCE [0.1 M NaOH]	40,900	0.025–12	0.052	--	2020 [257]
Pd-Ni NPs-rGO/GCE [0.1 M NaOH]	37,500	0.05–1.1	0.15	--	2019 [258]
Ni@Pt-rGO/GCE [0.1 M NaOH]	--	0.008–10	8	+0.60	2018 [226]
Stone-like Pt-Ni NPs/GCE [0.01 M PB]	40.17	0.5–40	0.35	+0.48	2018 [259]
Au-Ni multilayer NWA/ITO [0.2 M NaOH]	3372 1906	2.5 × 10−4–2 2–5.5	0.1	+0.60	2017 [260]
Cu-Ag/NF [0.5 M NaOH]	7745.7	0.005–3.5	0.08	+0.49	2015 [37]
Co@Pt core-shell NPs/GCE [0.1 M PB]	2.26	1–30	300	0	2015 [261]
Pt-Ni NWs-PC/GCE [0.1 M NaOH]	920	0.002–2	1.5	+0.50	2011 [225]
(c) Transition-transition bi-metallic electrodes
Ni-Fe NPs-PANI/FTO [0.1 M NaOH]	1050	0.02–1	0.5	+0.55	2021 [224]
Ni@Cu-MOF/GCE [0.1 M NaOH]	1703.3	0.005–2.5	1.67	--	2020 [262]
Cu-Ni/graphene sheets [0.1 M NaOH]	314,285 17,857 1678	5 × 10−5–2.4 × 10−4 2.4 × 10−4–0.00233 0.00233–2.174	0.003	+0.66	2019 [263]
Ni-Co-MOF-NSA/Au electrode [0.1 M NaOH]	684.4	0.001–8	0.29	+0.55	2019 [264]
Cu-Ni-NF/CNSA [0.1 M NaOH]	17,120	0.2–2.72	0.067	+0.54	2018 [126]
PANI@Cu-Ni NCs/GCE [0.1 M NaOH]	1030	0.1–5.6	0.2	+0.55	2018 [222]
Cu-Ni bi-metallic NCs/GCE [0.1 M NaOH]	63.87	0.01–18	8	+0.51	2017 [223]
Cu-Ni thin film/Cu substrate [0.1 M NaOH]	240.1	0–10	--	+0.50	2017 [265]
Ni-Co NWs-MWCNTs/GCE [0.1 M NaOH]	695	0.005–10	1.2	+0.45	2016 [129]
Ni-Co-MSN/GCE [0.1 M NaOH]	536.6	0.001–5	0.39	+0.50	2015 [142]

* All potentials are with respect to the Ag/AgCl reference electrode. Abbreviation: AC: Activated carbon; CINPs: Concave island nanoparticles; CNSA: Carbon nanosheet array; FTO: Fluorine tin oxide; GCE: Glassy carbon electrode; GNSs: Graphene nanosheets; ITO: Indium tin oxide; MOF: Metal-organic frameworks; MSN: Mesoporous silica nanoparticles; NCbs: Nanocubes; NCs:Nanocomposites; NDs: Nanodendrites; NF: Nickel foam; NPs: Nanoparticles; NSA: Nanosheets array; NTAs: Nanotube arrays; NWA: Nanowire array; NWs: Nanowires; PANI: Polyaniline; PB: Phosphate-buffer; PBS: Phosphate-buffered saline; PC: Polycarbonate; rGO: reduced graphene oxide.

. It was found that, with the integration of the noble metals, the average detection potential of the (b) noble-transition bi-metallic electrodes at +0.38 V was lower than that of the (c) transition-transition bi-metallic electrodes at +0.48 V, while the (a) noble-noble bi-metallic electrodes demonstrate the lowest average detection potential at +0.04 V. The average sensitivity of the (c) transition-transition bi-metallic electrodes was also enhanced compared to those in Table 3. The LOD was greatly enhanced by integrating the mono-noble metals (Table 2) into the (a) noble-noble bi-metallic electrodes (Table 4a). To conclude, the performances of the electrodes were generally enhanced by the integration of mono-metallic materials (Table 2 and Table 3) into the bi-metallic materials (Table 4). On the other hand, since the mechanisms for the electro-oxidation of glucose are similar to those in the mono-metallic ones (Table 2 and Table 3), they are not explained in this section.

7.5. A Prospective Approach to the Bi-Metallic Electrodes

Jonke et al. [266,267] and Schwartz et al. [268] have reported that the deposition of the bi-metallic Au-Pd on the polyaniline (PANI) supporting material could be controlled at the atomic level. In addition, the deposition sequence of the Au and Pd elements could also be manipulated by the flow cell system, which was controlled by the flow regulator and the potentiostat. It is further presented that the current response of the electro-oxidation of the 2-propanol (C₃H₇OH) altered with the different configurations of the atomic Au-Pd clusters [266,267]. The discrimination between the alcohol series, such as methanol, ethanol, propanol, and butanol, has also been reported [269,270,271,272]. Although the articles were concerned with the electro-oxidation of the alcohol series in the alkaline solution, the reaction mechanisms are very similar to those of the electro-oxidation of glucose and the interfering molecules, such as ascorbic acid (AA), uric acid (UA), dopamine (DA), fructose, and so on. Therefore, it is considered that the atomic bi-metallic catalysts deposited supporting material of PANI could be a promising material for the electro-oxidation of glucose in the alkaline solution. In addition, according to the literature [266,267,268,269,270,271,272], the isomers of the propanol, such as 1-propanol and 2-propanol, could also be recognized by the atomic metal and/or alloy electrodes. It is thus deduced that the isomers of the glucose, such as the α-D-glucose and the β-D-glucose are also expected to be recognized by the atomic metal and/or alloy electrodes.

According to the aforementioned results, it is highly possible to enhance the electrocatalytic activity, promote the anti-poisoning effect, and improve the selectivity of the electrode materials for the electro-oxidation of glucose by combining the atomic deposition of alloy systems via the flow cell system [266,267,268,269,270,271,272]. In addition, a great variety of the metals, similar to those in Table 4, is considered to be realized by simply altering the compounds of the metal salts in the electrolyte, such as KAuCl₄, K₂PdCl₄, K₂PtCl₄, K₂CoCl₄, and KNiCl₄. Based on the abovementioned techniques, it cannot only reduce the usage of the metal salts but also increase the electroactive surface area by shrinking down the size of the electroactive catalysts.

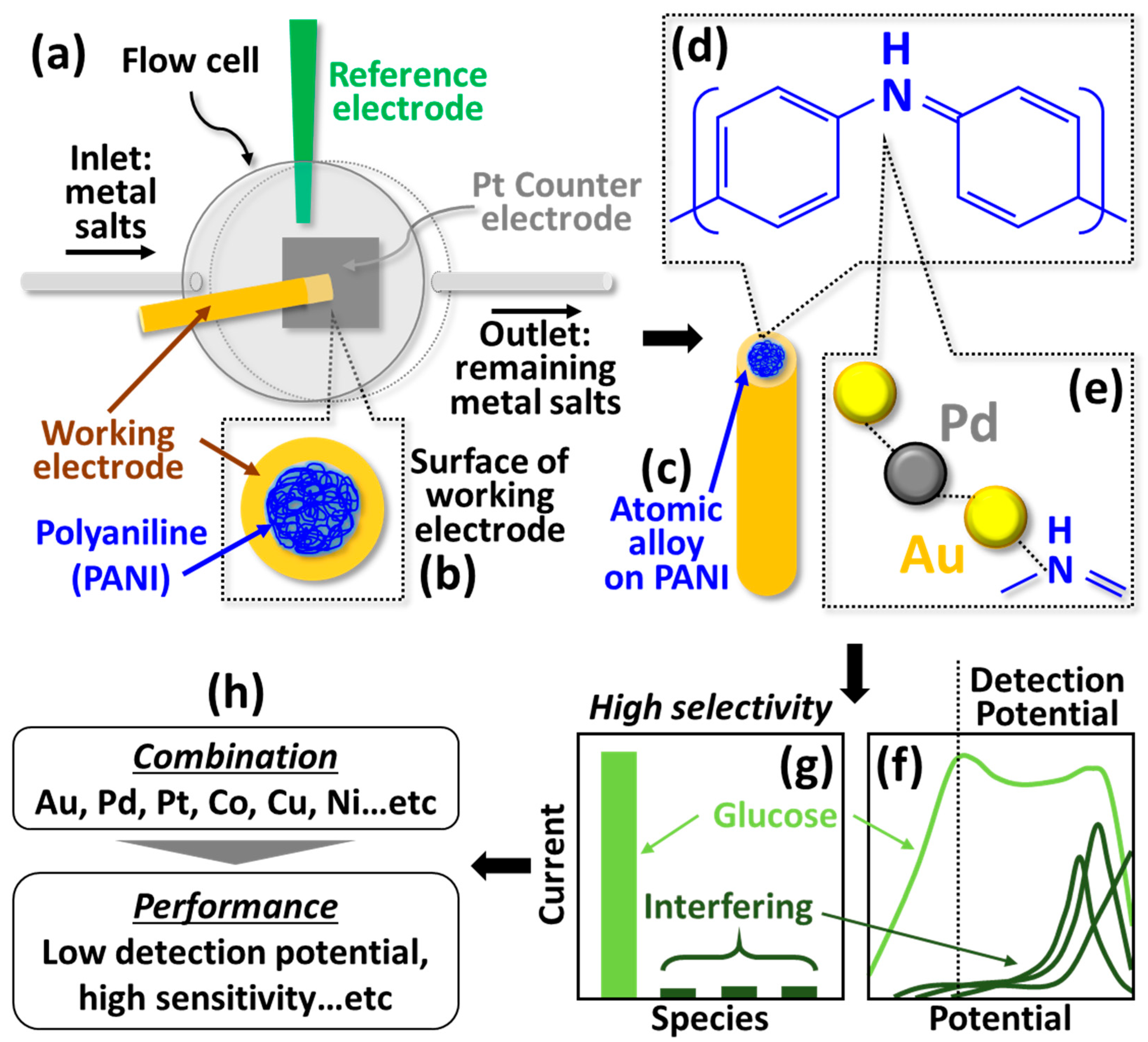

A flow chart for the proposed research and the foreseen outcomes is shown in Figure 14. The flow cell (transparent, light gray, and disk-shaped container), which is connected to the flow rate controller and the potentiostat, is used for the deposition of the atomic clusters of the metals or alloys (Figure 14a). The metal salt, such as KAuCl₄, K₂PdCl₄, K₂PtCl₄, K₂CoCl₄, and KNiCl₄, flows in from the left-hand side inlet and the remaining unconsumed metal salt flows out from the right-hand side outlet (light gray tubes represent the inlet and outlet). The reference electrode (green bar) is inserted into the flow cell from the top. The Pt counter electrode (dark gray square sheet) is clamped into the flow cell. The glassy carbon electrode (GCE) is used as the working electrode (yellow stick in the front), which is inserted from the front side of the flow cell. Prior to the deposition of the atomic clusters of the metals or alloys, a thin PANI film (blue network structure) is electro-polymerized on the surface of GCE (Figure 14b). The aforementioned components describe the flow cell system.

After the electro-deposition of PANI on GCE, the atomic clusters of metals or alloys are deposited on the surface of PANI/GCE by the flow cell system ((Figure 14c). A close-up figure around the functional group of PANI is shown in Figure 14d. A further close-up figure at the functional group of PANI and the atomic cluster is shown in Figure 14e. The atomic clusters of metals or alloys are bonded to the functional group of PANI. Here, two atoms of Au (golden sphere) and Pd (gray sphere) were used as an example. Some expected LSV curves of the glucose (light green curve) and the interfering molecules (dark green curves), such as AA, DA, and UA, are shown in Figure 14f. The current responses from the glucose (light green bar) and the interfering molecules (dark green bars), which are read and quantified into numbers from the LSV curves of Figure 14f, are shown in Figure 14g. High selectivity could be expected from the combination of the atomic Au-Pd clusters. Finally, by integrating different elements, the promoted performances (i.e., low detection potential and high sensitivity) are foreseen to be realized (Figure 14h).

8. Electroactive Materials of Oxide Compounds

In Section 6, some of the transition metals are listed and elaborated. However, the long-term stability of transition metals is considered to be low while the transition metals are in their metallic states. This could be ascribed to the oxidation reaction of these transition metals. Therefore, the electrocatalysts, which are composed of transition metals, are usually coupled with carbon, nitrogen, sulfur, phosphorus, and so forth. For example, the electrocatalysts of the Co₃N [197], Co₄N [198], Co-P [166,199], Cu-N [128,204], Ni-C [127], Ni₃S₂ [207,211,212], and NiS [209] are often investigated compounds. Hence, transition metals are usually utilized in their oxidized states such as Co₃O₄, CuO, NiO, and Fe₂O₃, for solving the long-term stability difficulty. According to the mechanisms in Table 1, it is also found that the metal-oxides are the necessary media for the electro-oxidation of glucose. The mechanisms for the electro-oxidation of glucose by the transition metals have been already discussed in Section 6.2. Therefore, the explanation was left out in this section. Some of the literature concerning transition metal oxides within this decade are listed and compared in

Table 5. The electrodes for the sensing of glucose by the transition metal oxides of (a) Co, (b) Cu, and (c) Ni materials within this decade. The performances are compared in terms of sensitivity, linear range, limit of detection (LOD), and working potential. The working potentials are based on the reference electrode of Ag/AgCl.

Electrode [Electrolyte]	Sensitivity (μA mM−1 cm−2)	Linear Range (mM)	LOD (μM)	Working Potential (V) *	Year [Reference]
(a) Electrodes containing Co oxides
Co3O4 HAA/GCE [0.1 M NaOH]	839.3	5.3 × 10−4–19	0.53	+0.60	2018 [273]
Co3O4-rGO/SPCE [0.1 M KOH]	1315	0.001–0.5	0.4	+0.35	2018 [274]
Co3O4@graphene/GCE [0.1 M NaOH]	628	0.02–8	0.04	+0.55	2017 [275]
Co3O4 porous film/GCE [0.1 M NaOH]	366	Up to 3	1.0	+0.60	2016 [276]
Co3O4-HND/GCE [0.1 M KOH]	708.4	2–6.06	0.58	+0.55	2016 [277]
Co3O4 NFs-GOH/GCE [0.1 M NaOH]	492.8	0.25–10	--	+0.62	2016 [278]
Co3O4/GCE-Nafion [0.1 M NaOH]	1618.7	0.1–50	0.1	+0.5	2015 [279]
Co3O4 OMC/GCE [0.1 M NaOH]	955.9	0.9–7	1.0	+0.55	2015 [280]
Co3O4 NWs/GCE [0.1 M NaOH]	45.8	0.001–12	0.27	+0.20	2015 [281]
Co3O4 NFs/GCE [0.5 M NaOH]	1440	0.005–12	0.08	+0.47	2013 [40]
(b) Electrodes containing Cu oxides
CuO MTs/GCE [0.05 M NaOH]	992.1 541.8	0.001–1.164 1.164–5.664	0.31	+0.70	2019 [282]
CuO nanodisk/SPCE [0.1 M KOH]	627.3	0.002–2.5	0.2	+0.60	2019 [283]
Cu3(BTC)2-derived CuO nanorod/GCE [0.1 M NaOH]	1523.5	Up to 1.25	1	+0.60	2019 [62]
Petal-like nano CuO/GCE [0.05 M NaOH]	2634.4	5 × 10−4–2.67	0.26	+0.65	2018 [284]
CuO-PANI-NF/FTO [0.1 M NaOH]	2800 1359	2.5 × 10−4–0.28 0.28–4.6	0.24	+0.6	2018 [120]
CuO biscuits/SPCE [0.1 M NaOH]	308.7	Up to 4.03	0.1	+0.50	2017 [285]
CuO NWs/GCE [0.05 M NaOH]	648.2	--	2	+0.55	2014 [286]
CuO-Cu2O/GCE [0.1 M NaOH]	830	0.5–10	0.7	+0.60	2014 [287]
Dandelion-like CuO film/Cu foils [0.1 M NaOH]	5368	0.005–1.6	1.2	+0.60	2014 [55]
CuO NSs/Au-coated glass [0.1 M NaOH]	520	0.1–10	--	+0.50	2013 [288]
(c) Electrodes containing Ni oxides
NiO nanostructures/Ni sheets [0.1 M KCl + 0.5 M NaOH]	206.9	0.1–10	1.16	+0.55	2019 [134]
NiO-HAC/GCE [0.1 M NaOH]	199.9	0.01–3.3	1.0	+0.55	2017 [289]
NiO NPs graphene NSs/GCE [0.1 M NaOH]	666.7	0.005–4.2	5	+0.50	2016 [54]
Mesoporous NWas NiO/3D NF-G [0.1 M NaOH]	3230	0.01–0.2	1 × 10−4	+0.55	2016 [290]
NiO-PPy/GCE [0.1 M PBS]	1094.8 62.9	0.01–0.5 1–20	5.8	+0.58	2015 [122]
NiO NSks/GCE [0.1 M NaOH]	1915	0.1–5.0	0.7	+0.48	2015 [291]
NiO HCs/GCE [0.1 M NaOH]	2476.4	0.1–5.0	0.1	--	2015 [292]
3D NiO/NF [0.5 M NaOH]	6657.5	0.005–5.5	0.46	+0.47	2013 [293]
NiO-SWCNT/ITO [0.1 M NaOH]	907	0.001–0.9	0.3	+0.55	2013 [294]
NiO NF-GO/GCE [0.1 M NaOH]	1100	0.002–0.6	0.77	+0.60	2012 [295]

* All potentials are with respect to the Ag/AgCl reference electrode. Abbreviation: 3D NF-G: reduced graphene oxide nanosheets coated 3D nickel foams; BTC: Benzene tricarboxylate; GCE: Glassy carbon electrode; GOH: graphene oxide hydrogels; HAA: Hollow hierarchical architecture; HAC: Heteroatom-enriched activated carbon; HCs: Hollow cage-like nanostructures; HND: Hollow nanododecahedra; ITO: Indium tin oxide; MTs: Microtubes; NF: Nickel foam; NFs: Nanofibers; NPs: Nanoparticles; NSk: Nanoskein; NSs: Nanosheets; NWas: Nanowalls; NWs: Nanowires; PANI: Polyaniline; PBS: Phosphate-buffered saline; PPy: Polypyrrole; OMC: Ordered mesoporous carbon; SPCE: Screen-printed carbon electrode; SWCNT: Single-walled carbon nanotubes.

.

According to Table 5, generally, Co₃O₄, CuO, and NiO compounds were used due to the stability issue and these three compounds are the necessary media as the electroactive sites for the electro-oxidation of glucose (please refer to the mechanisms in Table 1). In addition to the aforementioned three most-seen major compounds, other compounds, such as Fe₂O₃ and SnO₂, are also used as the electrocatalysts for the electro-oxidation of glucose. Moreover, some of the studies integrated various metallic oxides, such as the CuO-NiO compound [296] and the Co₃O₄-NiCo₂O₄ [297] compound, which are used for further enhancing the performance of the electrodes for the electro-oxidation of glucose.

9. Electroactive Materials of Hydroxide Compounds

Not only the aforementioned metallic oxides widely were used for the electro-oxidation of glucose, but also the metallic hydroxide compounds. According to the reaction mechanisms in Table 1, it could be found that the metallic hydroxide compounds are also crucial media for the electro-oxidation of glucose by the electrochemical technique. The metallic hydroxide compounds are therefore utilized directly as the electrocatalysts for the electro-oxidation of glucose. Since the reaction mechanisms are already shown and explained in Table 1, the explanations for the reaction mechanisms are left out in this section. Some of the literature concerning the metallic hydroxide compounds within this decade are listed and compared in

Table 6. The electrodes for the sensing of glucose by the transition metal hydroxides. The performances are compared in terms of sensitivity, linear range, limit of detection (LOD), and working potential. The working potentials are based on the reference electrode of Ag/AgCl.

Electrode [Electrolyte]	Sensitivity (μA mM−1 cm−2)	Linear Range (mM)	LOD (μM)	Working Potential (V) *	Year [Reference]
Co(OH)2 NTAs/CC [0.1 M NaOH]	2770	0.001–0.6	0.5	+0.50	2017 [298]
CoOOH NSAs/GCE [0.1 M NaOH]	526.8	0.003–1.11	1.37	+0.52	2015 [299]
CoOOH NSs/Co foil [0.1 M NaOH]	967 341	0.01–0.5 0.03–0.7	10.6 30.9	+0.50 +0.40	2012 [124]
Cu(OH)2 NTs [0.1 M NaOH]	418	Up to 3.0	0.5	+0.45	2013 [300]
Cu(OH)2 NFs/Cu foil [0.1 M NaOH]	2159.2	0–6.0	9.0	+0.50	2012 [301]
Ni(OH)2/3DGF [0.2 M NaOH]	2366	Up to 2.2	0.32	+0.46	2019 [302]
Ni(OH)2 NSs-NF/GCE [0.2 M NaOH]	1097 1130	0.1–2.5 2–40	1.0	+0.51	2015 [303]
Ni(OH)2 NFks@oPPyNW/Graphite [0.1 M NaOH]	1049	0.001–3.86	0.3	+0.54	2015 [304]
Ni(OH)2 NPs/graphene [0.1 M NaOH]	2400	0.001–15	0.53	+0.53	2014 [305]
Ni(OH)2 NPs/NF [0.2 M NaOH]	1950.3	Up to 6.0	0.16	+0.45	2014 [41]

* All potentials are with respect to the Ag/AgCl reference electrode. Abbreviation: 3DGF: Three-dimensional graphene@nickel foam; NF: Nickel foam; NFs: Nanoflowers; NFks: Nanoflakes; NPs: Nanoparticles; NSAs: Nanosheet arrays; NSs: Nanosheets; NTAs/CC: Nanotube arrays grown on carbon cloth; NTs: Nanotubes; oPPyNW: Over-oxidized polypyrrole nanowires.

.

Metallic hydroxides, such as Co(OH)₂, CoOOH, Cu(OH)₂, and Ni(OH)₂, are frequently used materials. Similar to the transition metals and the transition metallic oxides, the transition metallic hydroxide compounds (i.e., M(OH)₂ and MOOH) also possess high sensitivity. However, the operation potential is higher than that of the noble metal ones (Table 2) due to the low electrical conductivity of these materials. In addition to the single-phase of the transition metallic hydroxides, some dual-phase compounds, such as Ni(OH)₂-NiO [306], Ni(OH)₂-TiO₂ [307], CuO-Ni(OH)₂ [308], Co₃O₄-Ni(OH)₂ [309], and so forth, have also been studied. The variety of the electroactive catalysts for the electro-oxidation of glucose could be greatly enhanced by integrating the (1) mono-metallic materials (Section 6), (2) bi-metallic materials (Section 7), (3) metallic oxides (Section 8), and (4) metallic hydroxides (Section 9). Therefore, the performances of the electroactive catalysts could be balanced by different synergistic effects (i.e., anti-poisoning effect) among the materials.

10. Electroactive Materials of Metals and Their Derivatives

As mentioned in the previous sections, there are a great variety of combinations of electro-catalytic active materials for enhancing the detection performances of glucose. The metallic materials and the metallic derivatives have been discussed in the previous sections. In this section, the issue presented by the metal-metallic oxide is discussed. Some of the metal-metal derivative composites have been studied, such as Ag-NiO [46,57], Cu-CuO [38], Ag-CuO [44], Cu-CuO-ZnO [45], and Co-CoOOH [124]. However, in the following section, a less studied composite of the Au-TiO₂ composite [42,47], which was synthesized on the polyaniline (PANI) supporting material, is discussed.

10.1. Electrocatalysts of the Au Nanoparticles-TiO₂

In the previous sections, the topics of (1) mono-metallic materials, (2) bi-metallic materials, (3) metallic oxides, and (4) metallic hydroxides have been reviewed. As mentioned previously, with the combination of the materials, property balance among different materials could result in a constructive synergistic effect and bring about the enhanced performances for the electro-oxidation of glucose. The Au nanoparticle (NP)-TiO₂, which is the combination between the mono-metallic material and the metallic oxide, is discussed in this section and the following sections.

As explained in Section 6, metallic Au, which is considered a promising material for the electro-oxidation of glucose, has been widely used as the electrocatalyst. On the other hand, TiO₂ is not a frequently used material for the electro-oxidation of glucose. However, by combining these two materials, the performances of the electro-oxidation of glucose have been greatly improved [42,47]. The enhanced behavior could be ascribed to the following two reasons.

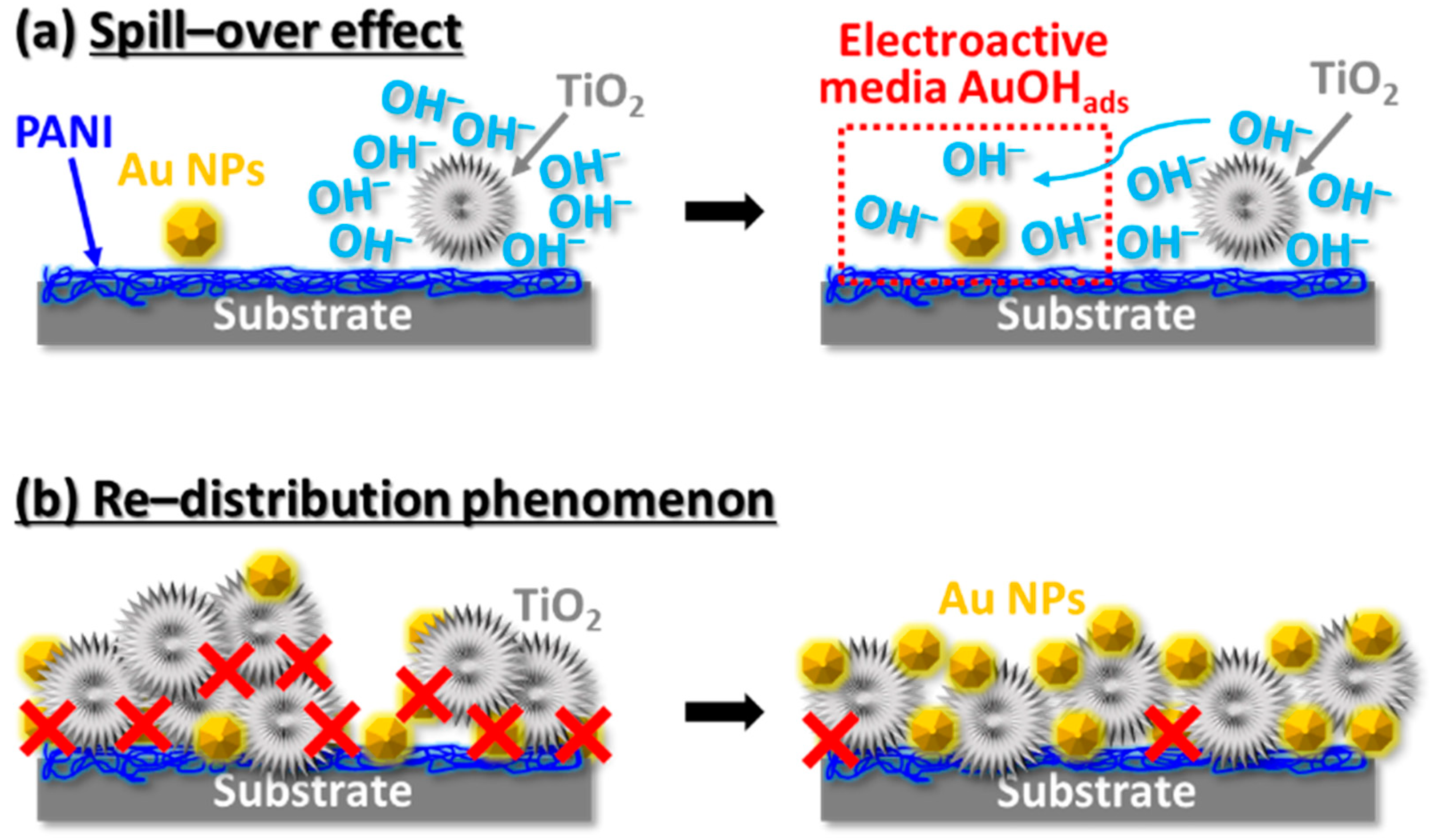

Firstly, with the decoration of TiO₂, a spill-over effect of the OH⁻ ions from the TiO₂ surface to the Au NPs was proposed since TiO₂ is known as a hydrophilic material [310]. High concentration of OH⁻ diffused from the surface of TiO₂ to the surface of Au NPs. Hence, a great amount of the crucial media AuOH_ads could be generated on the surface of the metallic Au NPs [42,47]. Secondly, it was further found that, while the TiO₂ amount went beyond its saturation concentration on the electrode surface, the redistribution of the TiO₂ particles took place on the electrode surface, revealing the electroactive sites to the glucose, and resulting in a large surface area of the electroactive catalyst. The redistribution could be ascribed to the famous coffee ring effect [311], which occurs during the drying process. Eventually, the high surface area of the electroactive sites led to the efficient usage of the noble metals by the facile immersion-drying process and brought about cost-effective processes. The abovementioned two mechanisms are illustrated and shown in Figure 15.

Since TiO₂ is known as a hydrophilic material, it could attract the OH⁻ and/or the H₂O molecules in the electrolyte (left-hand side illustration of Figure 15a). Due to the high concentration of the OH⁻ on the TiO₂ surface, the OH⁻ diffuses to the surface of the adjacent Au NPs (right-hand side illustration of Figure 15a). Hence, the amount of the crucial electroactive site AuOH_ads for the electro-oxidation of glucose could be promoted. The redistribution phenomenon of the oxide particles is illustrated in Figure 15b. Prior to the redistribution, there was an aggregation of the TiO₂ particles and the clustered TiO₂ impeded the electrochemical reactions between Au NPs and the glucose (left-hand side illustration of Figure 15b). The red cross symbols indicate the unavailable electroactive sites due to the hindrance of the TiO₂ particles. With the assistance of the redistribution, the Au NPs could be revealed to the glucose molecule in the electrolyte (right-hand side illustration of Figure 15b). The efficiency for the usage of the Au NPs could be enhanced accordingly. The aforementioned mechanisms are the possible reasons for the enhancement of the performance of the electro-oxidation of glucose.

10.2. Strategies for Enhancement of Performances of the Electrodes

To enhance the hydrophilicity of oxides and also to figure out the mechanisms, manipulating the hydrophilicity of oxides could be a practical method. It has been reported that the hydrophilicity of TiO₂ particles could be tuned by the sol-gel method [310], UV illumination [312], and ultrasonic treatment [313]. A high amount of the AuOH_ads is expected to be generated by enhancing the hydrophilicity of the adjacent TiO₂ particles. While lowering down the hydrophilicity of the TiO₂ particles, the current response from the electro-oxidation of glucose could be diminished. Hence, the mechanism could be clarified via the manipulation of the hydrophilicity of the TiO₂ particles. An illustration for elucidating the aforementioned methodology is shown in Figure 16a.

On the other hand, concerning the issue of the redistribution of the oxide particles, another strategy has been discussed in the following to enlarge the surface area of the electroactive sites by taking the advantage of the redistribution phenomenon of the oxide particles. It has been reported that the flower-like structured ZnO could be synthesized by the electrochemical deposition and its morphology could be controlled by the additives, such as the H₂O₂ and the Cl⁻ ion [314]. The methodologies used in this literature for the manipulation of the morphologies could also be applied to other oxides, such as TiO₂. By taking the advantage of the flower-like oxides, it is believed that the surface area of the electroactive sites could be promoted due to the enhanced stability and surface area of the metallic NPs on the flower-like oxides. An illustration for elucidating the mechanism is shown in Figure 16b.

The integrations of the Au NPs/ball-like oxide particles and the Au NPs/flower-like oxide particles are shown in Figure 16b. In the case of the Au NPs/ball-like particle (left-hand side illustration of Figure 16b), there is some loss of the Au NPs during the aforementioned redistribution process and the measurement processes for the electro-oxidation of glucose. The yellow arrows indicate the loss of the Au NPs from the oxide to the environment. In other words, the stability of Au NPs on the ball-like particle is insufficient. On the other hand, by manipulating the morphologies of the oxides into the flower-like structure, it is possible that the Au NPs could be stabilized between the “flower petals” (right-hand side illustration of Figure 16b). Accordingly, the loss of the Au NPs during the redistribution process and the measurement processes for the electro-oxidation of glucose could be reduced.

In addition to the aforementioned enhancement in the stabilization of the Au NPs electrocatalyst, there is a further advantage, which could be brought along with the usage of the flower-like structured oxides. Since the porosity of the flower-like oxide is higher than that of the ball-like oxide, the diffusion of glucose into the composite materials could be less interfered with. That is to say, the hindrance for the electro-oxidation of glucose from the oxide could be reduced by using flower-like oxide particles. Therefore, controlling the morphology of the oxide particles could be a promising method for the enhancement of electrode stability, reduction of the usage of noble metal, and enhancement of the current response from the electro-oxidation of glucose.

In this section, two possible strategies for the enhancement of the performances of the electro-oxidation of glucose and for the clarification of mechanisms involved have been proposed. The less-studied yet promising Au NPs-TiO₂ composites for the electro-oxidation of glucose have shown great potential in the glucose detection community.

11. Conclusions

In this article, a comprehensive review concerning the electroactive materials for the electro-oxidation of glucose has been conducted. General introductions and comparisons to the electro-oxidation of glucose in an enzymatic manner and the non-enzymatic manner were presented, and the fundamentals of the promising electrochemical technique for glucose detection have also been explained.

The classification of the electrocatalysts has been divided into five different materials, namely the (1) most fundamental materials of the prototype mono-metallic electrocatalyst (i.e., Au, Pt, Ni, and Cu), the (2) bi-metallic materials (i.e., Au-Pt, Pt-Ni, and Cu-Ni), the (3) metallic-oxide compounds (i.e., Co₃O₄, CuO, and NiO), the (4) metallic-hydroxide compounds (CoOOH, Cu(OH)₂, and Ni(OH)₂), and the (5) combinations of the metallic materials/metallic-derivative compounds (i.e., Au-TiO₂, Ag-NiO, Cu-CuO, and Co-CoOOH) have been reviewed through in this article.

Based on the different materials, the mechanisms for the electro-oxidation of glucose have been explained and compared. The performances of the aforementioned five material systems within this decade have been compared in terms of sensitivity, linear range, the limit of detection (LOD), and operation potential.

In addition, some practicable strategies and ideas have been proposed, such as (1) the atomic deposition of the metals or alloys for trading-off the various properties in the electroactive materials, (2) the manipulation of hydrophilicity and the redistribution phenomenon of oxide particles, and (3) the morphology controlling of the oxide particles for the improvement of the long-term stability of the electrodes for the electro-oxidation of glucose. In addition to the aforementioned general introductions, mechanisms, materials, and strategies, a comprehensive review of the glucose sensor devices within this decade has also been conducted.
