Experimental Proof That Bell’s Inequality Cannot Falsify Local Realism, Together with Corresponding Cause Analysis and Conjectures

Abstract

Conventional tests of Bell’s inequality rely on entangled photon pairs. Here, we replace entangled pairs with two independent photons of orthogonal polarization and demonstrate that Bell’s inequality is still violated. Given the inherent local realism of independent photons, this experiment proves that Bell’s inequality cannot falsify the local realism of photons. We thus conjecture that the violation of Bell’s inequality by entangled photon pairs originates from their orthogonal polarizations rather than the breakdown of local realism. To interpret this unexpected violation with independent photons, we further substitute the two photons with two monochromatic light beams and calculate the transmittance correlation through polarizers via Malus’s law and Karl Pearson’s correlation formula. We show that this correlation also defies Bell’s inequality. Retracing the derivation of Bell’s inequality reveals that its validity is restricted to binary events, which accounts for the observed violation with light beams. Finally, we propose a thought experiment involving the gradual attenuation of light intensity down to the single-photon regime and hypothesize that single-photon transmission through a polarizer does not constitute a binary event. This hypothesis provides a unified interpretation for both our experimental findings and all canonical Bell inequality tests reported to date.

1. Introduction

In 1935, Einstein and his collaborators introduced the concept of local realism in their paper “Can quantum-mechanical description of physical reality be considered complete?” [1], aiming to refute the Copenhagen interpretation of quantum mechanics [2]. Locality refers to the principle that no information can propagate faster than the speed of light; that is to say, for two physically separated systems with no causal connection, the measurement of one system will not instantly affect the state of the other system, which also strictly follows the basic principles of special relativity. Realism emphasizes that the existence of the physical world is independent of human subjective observation behavior. Whether we observe a physical object or not, the physical properties it possesses (such as position, momentum, and polarization state, etc.) are objectively existing and determined. The values of these physical properties will not change due to the occurrence of observation behavior; the role of observation is only to reveal these existing objective properties, not to create or change them.

For polarization measurements of entangled photon pairs, the Copenhagen school asserts that the two photons remain in a superposition state prior to measurement and collapse instantaneously to eigenstates upon measurement of one photon [3]. In contrast, Einstein argued that the polarization states of entangled photon pairs possess realism—their states are fixed at the moment of generation, albeit unknown to observers—and that instantaneous collapse of the distant photon violates locality.

To resolve the conflict between the Copenhagen interpretation and local realism, Bohm proposed the local hidden-variable theory based on de Broglie’s pilot-wave model [4]. This theory posits the existence of undiscovered hidden variables in quantum mechanics that can fully describe the evolution of all observables in a physical system without violating local realism. To experimentally distinguish between quantum mechanics (per the Copenhagen interpretation) and local hidden-variable theories, John Stewart Bell derived the iconic Bell inequality [5,6]. This inequality constrains the correlation of measurement results for specific entangled states under the framework of local hidden-variable theories; experimental violation of the inequality would invalidate such theories and demonstrate that microscopic quantum systems do not obey local realism.

For practical experimental implementation, John Clauser and colleagues developed the CHSH inequality—a modified form of Bell’s inequality—in 1969 [7], which has since become the standard for all Bell-test experiments. The derivation of the CHSH inequality is summarized as follows.

Consider repeated measurements of a continuous hidden-variable parameter, yielding outcome functions A($\mathrm{a}$,λ) and B($\mathrm{b}$,λ). Their correlation is expressed as

$$E\left(a,b\right)=\int d\lambda \rho \left(\lambda \right)\mathrm{A}\left(\mathrm{a},\lambda \right)\mathrm{B}(\mathrm{b},\lambda )$$

(1)

where ρ(λ) is the normalized probability density function of λ, satisfying $\int \rho \left(\lambda \right)\mathrm{d}\lambda =1$.

Define the parameter s as

$$\begin{gathered} s=\mathrm{A}\left(\mathrm{a},\lambda \right)\mathrm{B}\left(\mathrm{b},\lambda \right)+\mathrm{D}\left(\mathrm{d},\lambda \right)\mathrm{B}\left(\mathrm{b},\lambda \right)+\mathrm{D}\left(\mathrm{d},\lambda \right)\mathrm{C}\left(c,\lambda \right)-\mathrm{A}\left(\mathrm{a},\lambda \right)\mathrm{C}\left(\mathrm{c},\lambda \right) \\ =\mathrm{A}\left(\mathrm{a},\lambda \right)\left(\mathrm{B}\left(\mathrm{b},\lambda \right)-\mathrm{C}\left(\mathrm{c},\lambda \right)\right)+\mathrm{D}\left(\mathrm{d},\lambda \right)\left(\mathrm{B}\left(\mathrm{b},\lambda \right)+\mathrm{C}\left(\mathrm{c},\lambda \right)\right) \end{gathered}$$

(2)

Since the outcome functions A, B, C, and D only take values of ±1, the expression simplifies to

$$s\left(\lambda ,\mathrm{a},\mathrm{d},\mathrm{b},\mathrm{c}\right)=\pm 2$$

(3)

Averaging s over λ yields the bounds

$$-2\le \int d\lambda \rho \left(\lambda \right)·s\left(\lambda ,\mathrm{a},\mathrm{d},\mathrm{b},\mathrm{c}\right)\le 2$$

(4)

Substituting Equation (1) into Equation (4) gives the CHSH inequality

$$-2\le S\left(\mathrm{a},\mathrm{d},\mathrm{b},\mathrm{c}\right)\le 2$$

(5)

where the correlation parameter S is defined as

$$S\left(a,\mathrm{d},\mathrm{b},\mathrm{c}\right)=E\left(\mathrm{a},\mathrm{b}\right)+E\left(\mathrm{d},\mathrm{b}\right)+E(\mathrm{d},\mathrm{c})-E\left(\mathrm{a},\mathrm{c}\right)$$

(6)

In 1971, Bell built on the CHSH paper by Clauser et al. and incorporated CHSH into a more rigorous framework of hidden-variable theories, transforming it from an “experimental proposal” into a more solid theoretical theorem [8].

The complete derivation for calculating the polarization correlation function $E({\theta }_1,{\theta }_2)$ of entangled photon pairs using quantum mechanics was proposed by Clauser, J. et al. in 1978, as detailed below [9].

For entangled photon pairs (taking the common $|{\mathsf{\Phi }}^{+}⟩$ Bell state as an example, with the state vector $|{\mathsf{\Phi }}^{+}⟩={\displaystyle \frac{1}{\sqrt{2}}}(|H{⟩}_1|H{⟩}_2+|V{⟩}_1|V{⟩}_2)$, where $|H⟩$ stands for the horizontal polarization state, $|V⟩$ stands for the vertical polarization state, and subscripts 1 and 2 refer to the two entangled photons, respectively), the quantum mechanical correlation function $E({\theta }_1,{\theta }_2)$ in Bell inequality tests is given by

$$E({\theta }_1,{\theta }_2)=⟨{\mathsf{\Phi }}^{+}\left|{\hat{P}}_1\right({\theta }_1)\otimes {\hat{P}}_2({\theta }_2\left)\right|{\mathsf{\Phi }}^{+}⟩$$

(7)

where

${\theta }_1$ is the polarization measurement direction angle of photon 1;

${\theta }_2$ is the polarization measurement direction angle of photon 2;

${\hat{P}}_i\left({\theta }_i\right)$ (i = 1,2) is the polarization projection operator of photon i along the ${\theta }_i$ direction, expressed as ${\hat{P}}_i\left({\theta }_i\right)=|{\theta }_i⟩⟨{\theta }_i|$, where $|{\theta }_i⟩=\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_i|H⟩+\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_i|V⟩$ is the polarization state vector along the ${\theta }_i$ direction;

$\otimes$ is the tensor product symbol, which is used to form the composite system operator of the projection operators of the two photons;

$⟨\cdot |\cdot ⟩$ is the inner product symbol in quantum mechanics, which is used to compute the expectation value of the composite operator in the entangled photon pair state $|{\mathsf{\Phi }}^{+}⟩$.

After substituting the projection operator and the Bell state vector into the above formula, the simplified result of $E({\theta }_1,{\theta }_2)$ can be obtained as

$$E({\theta }_1,{\theta }_2)=\mathrm{c}\mathrm{o}\mathrm{s}\left[2\right({\theta }_1-{\theta }_2\left)\right]$$

(8)

Experimental tests of Bell’s inequality were not feasible until the 1970s, and such experiments have evolved through three key phases. In 1972, J. Clauser and S. Freedman performed the first Bell-test experiment [10], demonstrating violation of Bell’s inequality by microscopic quantum systems and invalidating local hidden-variable theories. However, this experiment suffered from two critical loopholes: low detection efficiency and insufficient spatial separation between photons, leaving both the detection efficiency and locality loopholes unclosed.

A. Aspect put forward the proposal for experimental tests of Bell’s inequality in 1976 [11], then realized a series of verification experiments from 1981 to 1982 and successfully closed the locality loophole [12,13,14]. The experimental setup is illustrated in Figure 1.

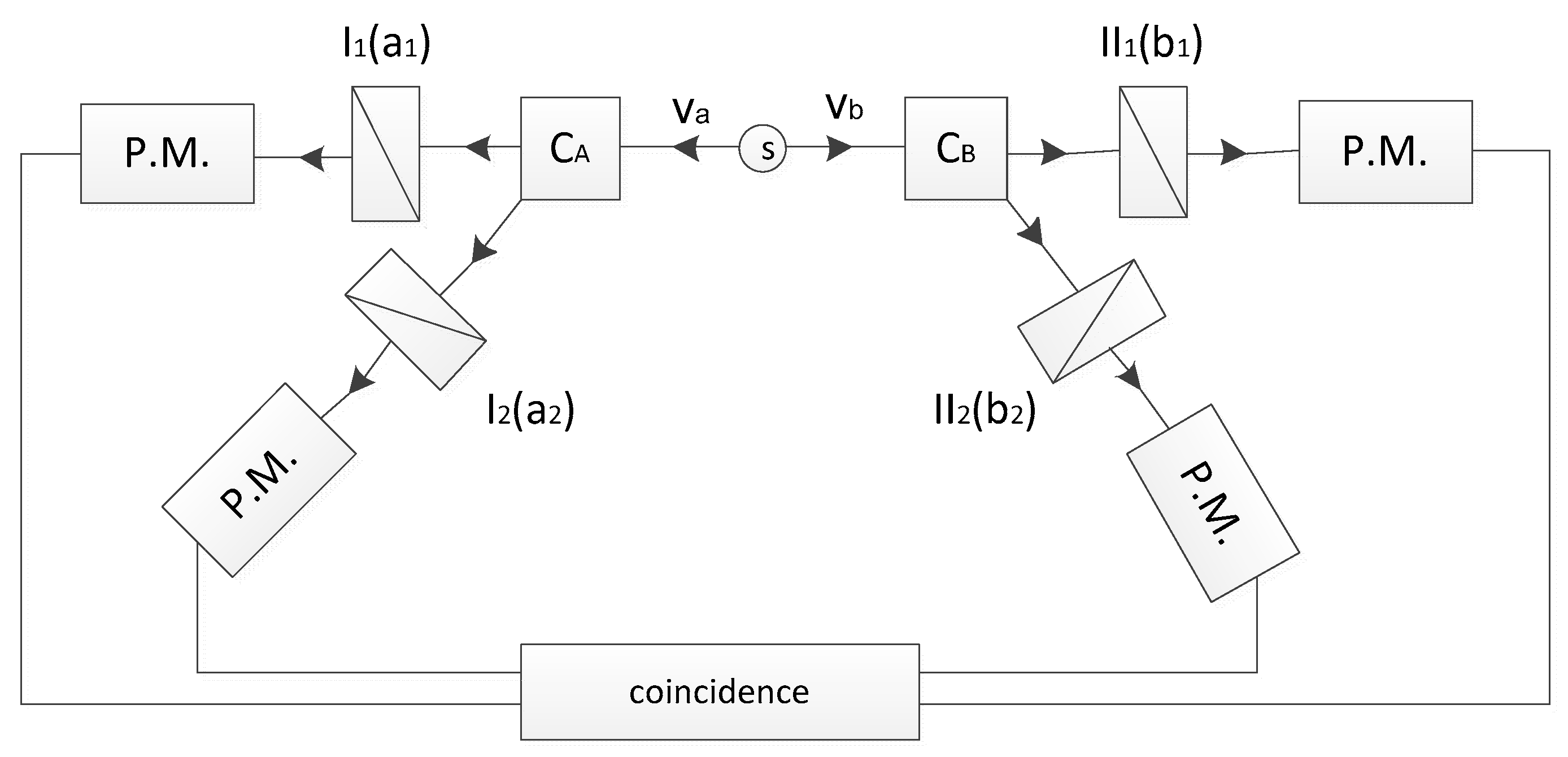

The setup consists of a calcium cascade source, two commutators ($C_A,C_B$), four polarizers with distinct orientations $I_1\left(a_1\right)$, $I_2\left(a_2\right)$, ${II}_1\left(b_1\right)$, ${II}_2\left(b_2\right)$, and four single-photon detectors (P.M.). The polarizer-detector modules on either side are separated by a sufficient distance, with rapid polarization switching to ensure no subluminal communication between the two sides, enforcing strict locality. Entangled photon pairs are generated via calcium atomic cascade radiation, with photons directed to different polarizers by randomly operating commutators.

The experiment confirmed that entangled photon pairs violate the CHSH inequality. In this context, the correlation function E(a,b) in Equations (5) and (6) describes the correlation between the transmission probabilities of photon A through polarizer $I_1\left(a_1\right)$ and photon B through polarizer ${II}_1\left(b_1\right)$, with analogous definitions for the other three correlation terms.

Despite this advance, the experiment retained a flaw: quasi-periodic (not truly random) polarization switching left the locality loophole partially unclosed [14]. Addressing this, A. Zeilinger and colleagues performed a rigorous Bell test in 1998 using entangled photon pairs generated via type-II parametric down-conversion [15], achieving strict spacelike separation and fully closing the locality loophole.

The above experiments all used entangled photon pairs, but in 2025, Kai Wang et al. conducted the Bell’s inequality verification experiment for the first time using coherent state photon pairs instead of entangled photon pairs [16], which also proved that their correlation did not satisfy the Bell’s inequality.

All canonical Bell tests to date have employed correlated photon pairs (entangled or coherent) to assess compliance with Bell’s inequality and infer adherence to local realism. A critical unanswered question remains: what outcomes arise if Bell tests are performed using truly independent photons with inherent local realism? If such pairs satisfy Bell’s inequality, it would reinforce the conclusion that entangled/coherent photon pairs violate local realism; if they violate the inequality, it would break the presumed causal link between Bell inequality violation and breakdown of local realism, meaning Bell-test results cannot falsify local realism in microscopic quantum systems.

To address this, we designed two sequential experiments. Experiment 1 uses two fully uncorrelated, independent photons from separate sources, which satisfy Bell’s inequality. Experiment 2 retains independent photons but prepares them with orthogonal polarizations, yielding a clear violation of Bell’s inequality—despite the photons’ inherent local realism. This proves that Bell inequality violation cannot be used to falsify the local realism of photons. Notably, the divergent results of the two experiments stem solely from the orthogonal polarization correlation between photons, a phenomenon incompatible with the canonical Copenhagen interpretation.

To rationalize these results, we designed Experiment 3, replacing single photons with monochromatic light beams. Using Malus’s law (classical wave optics) and the Karl Pearson correlation coefficient (statistical correlation analysis), we calculated the transmittance correlation of the two beams through polarizers, which also violates Bell’s inequality and aligns quantitatively with quantum–mechanical predictions for entangled photon pairs. By combining Experiment 3 with the CHSH derivation, we find that the inequality only applies to discrete binary events, not continuous variables—explaining the observed violation. Finally, we propose a conjecture: single-photon transmission through a polarizer is not a binary (pass/fail) event but a continuous process describable by a continuous function, unifying the interpretation of all Bell-test experiments.

2. Bell-Test Experiments with Independent Photon Pairs

2.1. Experiment 1: Bell Test with Uncorrelated Independent Photons

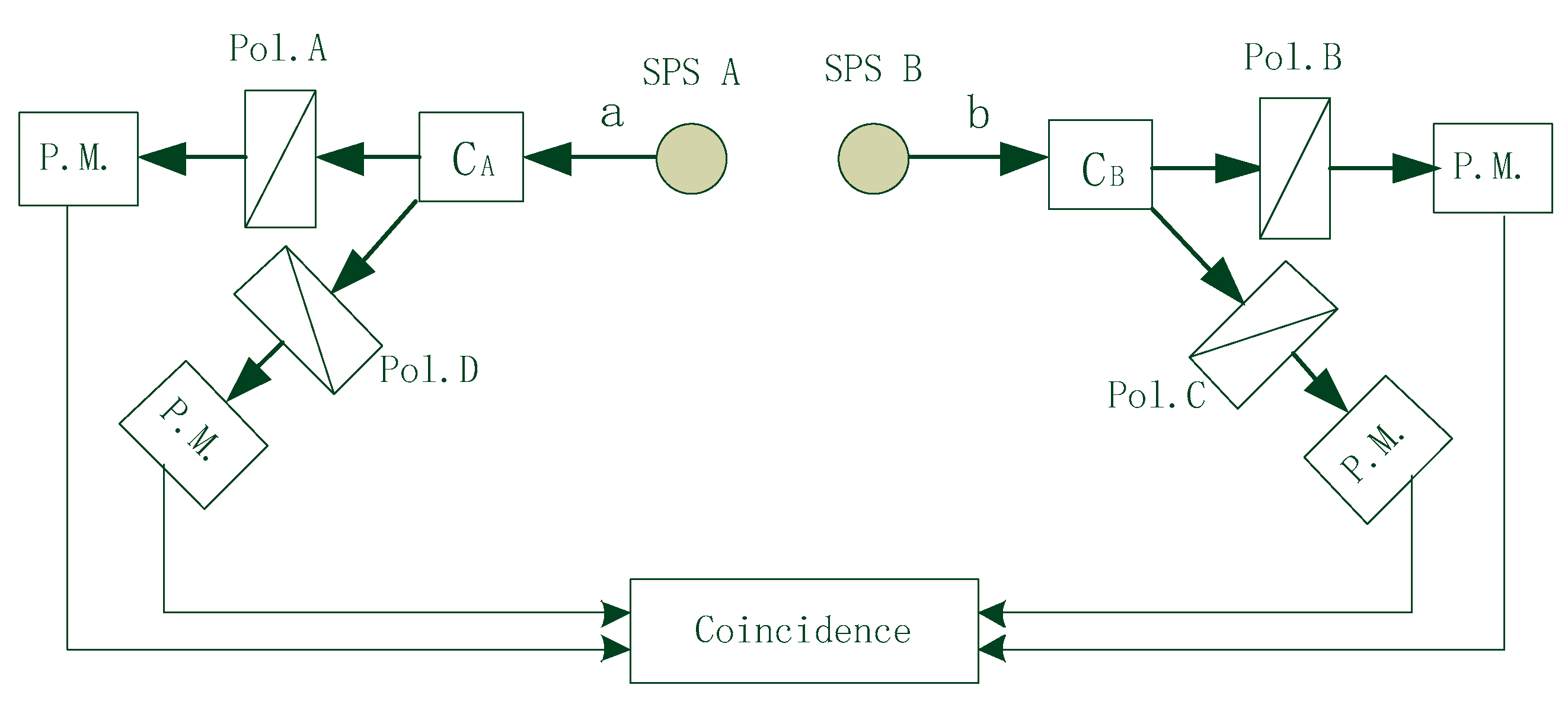

The experimental setup for Experiment 1 is identical to Aspect’s setup except for the photon source, as illustrated in Figure 2.

The source comprises two independent single-photon sources (SPS A and SPS B) emitting uncorrelated photons a and b, which exhibit inherent local realism with no mutual interaction. The locality loophole is not closed in this setup, as the independent photons inherently satisfy locality, rendering additional safeguards unnecessary.

To simplify validation, the orientations of polarizers Pol. A, Pol. B, Pol. D, and Pol. C are set to $\pi /2$, $3\pi /8$, $\pi /4$, and $\pi /8$, respectively—orientations known to yield the maximum CHSH value ($2\sqrt{2}$) in canonical Bell tests, exceeding the classical bound of 2. Violation of the CHSH inequality would be confirmed if the measured S-value exceeds 2 under these orientations.

Across 1000 correlation measurements, Experiment 1 yielded a CHSH value of 1.97, below the classical bound of 2. This confirms that fully independent, uncorrelated photons satisfy Bell’s inequality, consistent with their inherent local realism.

2.2. Experiment 2: Bell Test with Orthogonally Polarized Independent Photons

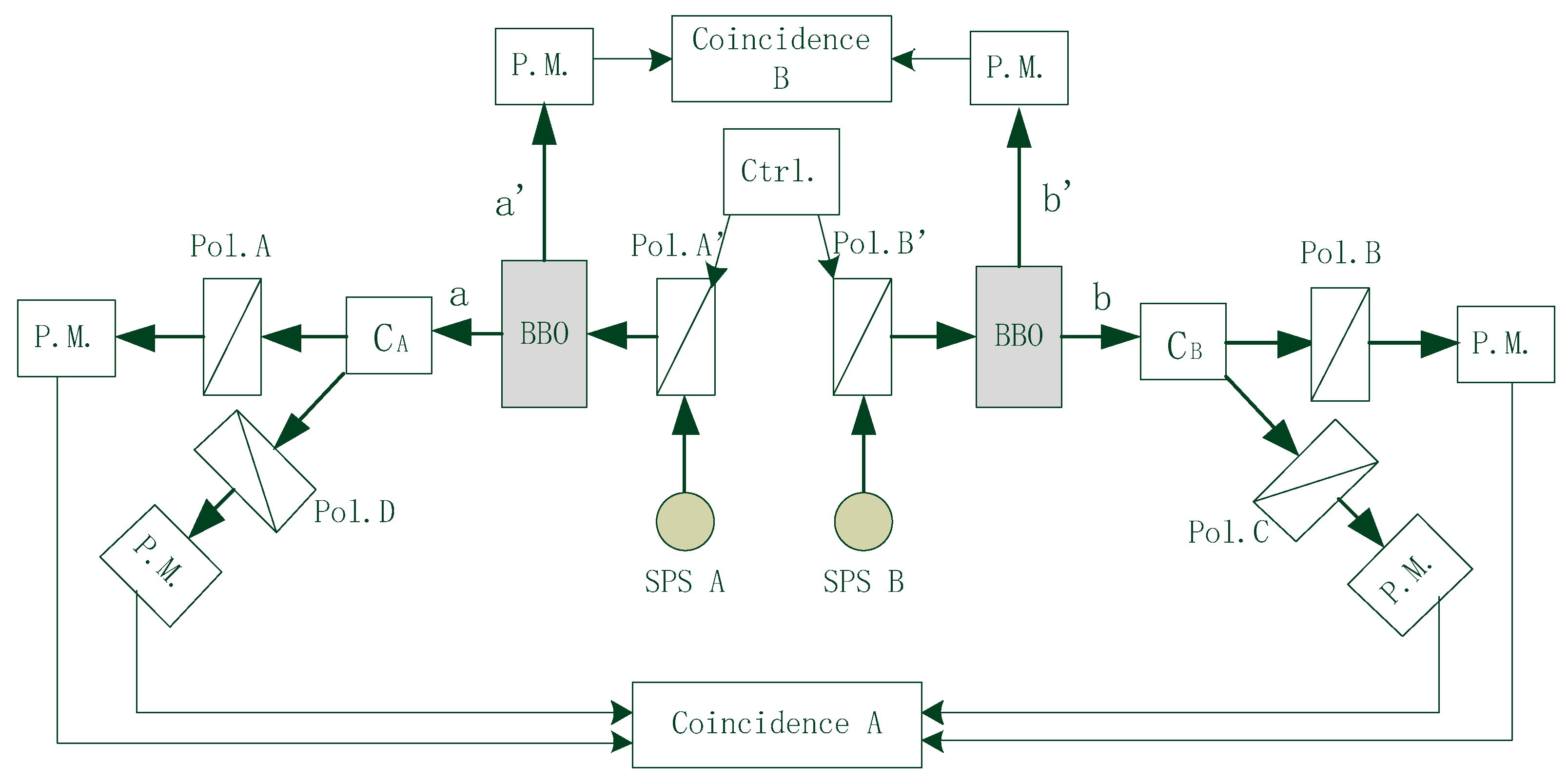

We modified Experiment 1 to prepare independent photons with orthogonal polarizations, forming the setup for Experiment 2 (Figure 3).

Two key modifications distinguish Experiment 2 from Experiment 1: (i) additional polarizers (Pol. A′, Pol. B′) act as polarizers, with a controller tuning their orientations to maintain orthogonality; (ii) BBO crystals are placed after the polarizers, splitting photons into entangled pairs (a, a′) and (b, b′). Photons a and b follow the original optical path, while a′ and b′ are directed to single-photon detectors for coincidence monitoring.

This design mitigates a critical systematic error: raw independent photons have random polarizations, so one may be blocked by the polarizer while the other transmits, invalidating correlation measurements. Coincidence detection of a′ and b′ ensures only valid photon pairs are included in correlation analysis, eliminating this bias.

During testing, the controller randomly switches the orientations of Pol. A′ and Pol. B′ while preserving their orthogonality, endowing the transmitted independent photons with the same polarization correlation as entangled photon pairs. The polarizer orientations for analysis (Pol. A, Pol. B, Pol. C, and Pol. D) match those in Experiment 1.

Across 1000 valid correlation measurements, Experiment 2 yielded a CHSH value of 2.78, clearly exceeding the classical bound of 2 and matching results from canonical entangled-photon Bell tests [14]. This confirms that orthogonally polarized independent photons violate Bell’s inequality—despite their inherent local realism, directly proving that Bell inequality violation cannot falsify photon local realism.

The divergent results of Experiments 1 and 2, despite using identical independent photon sources, stem solely from the orthogonal polarization correlation in Experiment 2. This cannot be explained by the Copenhagen interpretation, as independent photons cannot exist in a shared superposition state.

Combining these results with all prior entangled-photon Bell tests, we conjecture that Bell inequality violation by entangled photon pairs arises not from the breakdown of local realism but exclusively from their orthogonal polarization states. Analogous to a pair of shoes with inherent correlation at manufacture, entangled photons exhibit fixed polarization correlation at generation, with no violation of locality or realism.

3. Interpretation and Conjectures on Bell-Test Results with Independent Photons

To interpret the results of Experiments 1 and 2, we employ Malus’s law (classical wave optics) and the Karl Pearson correlation coefficient (statistical correlation analysis). Since Malus’s law describes continuous light beams rather than single photons, we further modified the setup to form Experiment 3 (Figure 4).

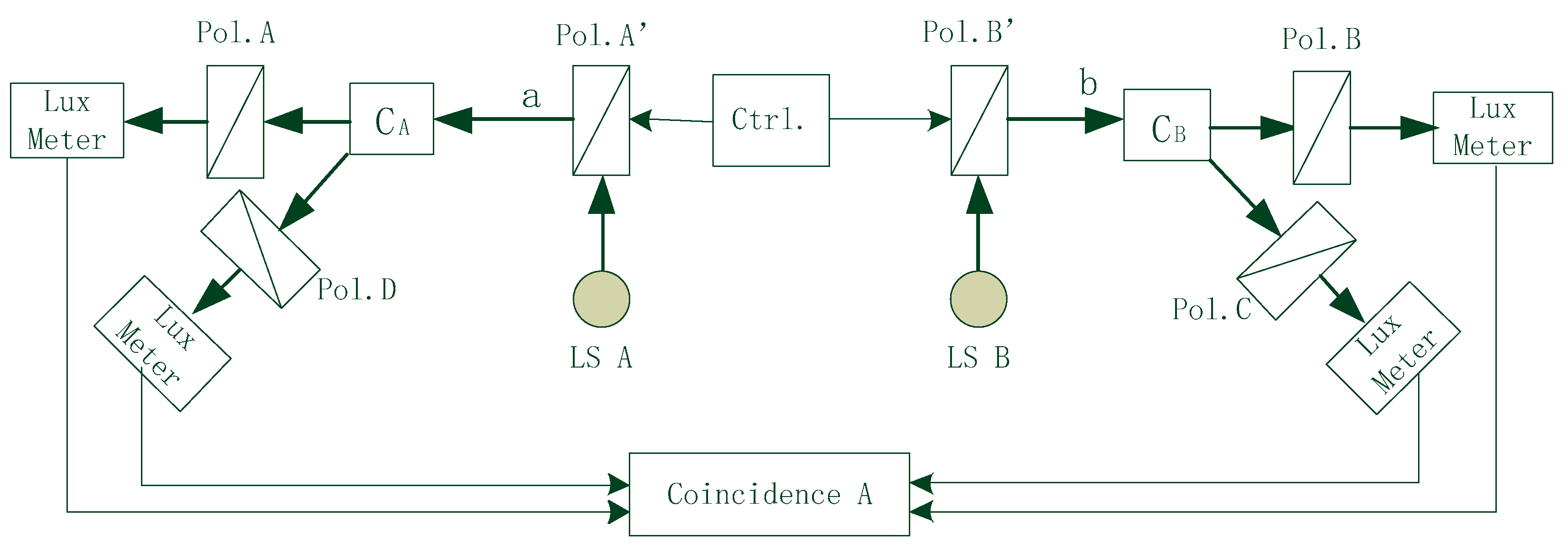

Experiment 3 differs from Experiment 2 in three key ways: (i) single-photon sources are replaced with monochromatic beam emitters; (ii) single-photon detectors are replaced with photometers to measure light intensity; and (iii) coincidence monitoring hardware is removed, as light beams cannot be “blocked” by polarizers in the same manner as single photons.

The intensity of light sources LS A and LS B is matched, with polarizers Pol. A′ and Pol. B′ maintained in orthogonal orientations via the controller. The analysis polarizers (Pol. A, Pol. B, Pol. C, Pol. D) have orientations ${\theta }_A$, ${\theta }_B$, ${\theta }_C$, ${\theta }_D$, respectively. Per Malus’s law, the transmitted light intensity measured by the photometer is

$$L\left({\theta }_x\right)=S·{cos}^2\left({\theta }_x-\alpha \right)$$

(9)

where ${\theta }_x$ denotes the orientation of the analysis polarizer, $L\left({\theta }_x\right)$ is the transmitted intensity, S is the source intensity, and $\alpha$ is the polarizer orientation.

The transmittance of light through the polarizer pair is derived as

$$P\left({\theta }_x\right)={\displaystyle \frac{L\left({\theta }_x\right)}{S}}={cos}^2\left({\theta }_x-\alpha \right)$$

(10)

The correlation between transmittance values of the two beams is quantified using the Karl Pearson correlation coefficient

$$E\left(P_A,P_B\right)={\displaystyle \frac{Cov(P_A,P_B)}{\sqrt{Var\left[P_A\right]Var\left[P_B\right]}}}$$

(11)

where $P_A$ and $P_B$ are the transmittance values of the two beams, $E\left(P_A,P_B\right)$ is their correlation (range: [−1,1]), $Cov(P_A,P_B)$ is the covariance, and $Var\left[P_A\right]$, $Var\left[P_B\right]$ are the variances. Substituting Equation (10) into Equation (11) yields

$$E\left(P_A,P_B\right)={\displaystyle \frac{{\int }_{-\pi /2}^{\pi /2}\left({cos}^2({\theta }_A-\alpha )-\overline{P\left({\theta }_A\right)}\right)·\left({cos}^2\right({\theta }_B-\alpha )-\overline{P\left({\theta }_B\right)})d\alpha }{\sqrt{{\int }_{-\pi /2}^{\pi /2}{\left({cos}^2\right({\theta }_A-\alpha )-\overline{P\left({\theta }_A\right)})}^{2}d\alpha }·\sqrt{{\int }_{-\pi /2}^{\pi /2}{\left({cos}^2\alpha \right({\theta }_B-\alpha )-\overline{P\left({\theta }_B\right)})}^{2}d\alpha }}}$$

(12)

The average transmittance $⟨P\left({\theta }_x\right)⟩=0.5$, simplifying Equation (12) to

$$E\left(P_A,P_B\right)=-\mathrm{c}\mathrm{o}\mathrm{s}\left(2\left({\theta }_A-{\theta }_B\right)\right)$$

(13)

This result demonstrates that the transmittance correlation of the two light beams equals the negative cosine of twice the polarizer angle difference—strikingly consistent with quantum-mechanical predictions for entangled photon pairs (Equation (8)).

Substituting Equation (13) into the CHSH inequality (Equation (5)) gives

$$-2\le \cos \left(2\left({\theta }_A-{\theta }_B\right)\right)+\cos \left(2\left({\theta }_D-{\theta }_B\right)\right)+\cos \left(2\left({\theta }_D-{\theta }_C\right)\right)-\mathrm{c}\mathrm{o}\mathrm{s}\left(2\left({\theta }_A-{\theta }_C\right)\right)\le 2$$

(14)

This inequality is not universally satisfied: for ${\theta }_A=\pi /2$, ${\theta }_B=3\pi /8$, ${\theta }_C=\pi /8$, ${\theta }_D=\pi /4$, the calculated S-value equals $2\sqrt{2}$, exceeding the classical bound of 2. This confirms that transmittance correlations of uncorrelated light beams also violate Bell’s inequality, consistent with experimental observations in Experiment 3.

In fact, there have been experiments verifying Bell’s inequality based on independent light beams, such as the one implemented by Partha Ghose in his paper “Intersystem Non-separability and CHSH-Bell Violations in Classical Optics” [17]. This paper also draws the conclusion that independent light beams violate the CHSH inequality, but this conclusion is derived from quantum mechanics theory. Moreover, the paper holds that because independent light beams violate the CHSH inequality, they do not possess local realism. This is completely opposite to the logic of this paper; this paper argues that independent light beams have inherent local realism, and their violation of the CHSH inequality precisely indicates that there is no necessary connection between the CHSH inequality and local realism.

The root cause of this violation lies in the derivational constraint of Bell/CHSH inequalities: they only apply to binary outcome functions (±1 values). The transmittance correlation in Equation (13) is a continuous trigonometric function, not a binary variable, violating the core premise of the CHSH inequality and rendering it inapplicable to continuous optical transmittance data.

This raises a critical question: in Experiment 2, single-photon transmission is conventionally treated as a binary event (1 for transmission, 0 for rejection), yielding ±1 correlation values—why does it still violate the CHSH inequality?

To resolve this, we propose a thought experiment: gradually attenuate the light beam intensity in Experiment 3 from the macroscopic regime to the single-photon level. From the particle perspective, attenuation reduces the photon number density n; as n decreases from infinity to just a few photons, transmission remains a continuous process (not binary), with correlations beyond ±1 values, making the CHSH inequality inapplicable. Classically, single-photon transmission is presumed to be a binary pass/fail event, but Experiment 2 contradicts this. We thus put forward a bold conjecture:

Single-photon transmission through a polarizer is not a binary event but a continuous process governed by the same correlation function (Equation (13)) as macroscopic light beams.

Notably, Equation (13) matches the Copenhagen interpretation’s prediction for entangled photon pairs, explaining the alignment between the Copenhagen framework and canonical Bell tests. This conjecture unifies the interpretation of our experiments and all prior Bell-test results.

4. Conclusions

In this work, we first demonstrate that fully independent, uncorrelated photons satisfy Bell’s inequality (Experiment 1), while orthogonally polarized independent photons clearly violate the inequality (Experiment 2)—despite their inherent local realism. This directly proves that Bell inequality violation cannot be used to falsify the local realism of photons.

We further show that replacing single photons with monochromatic light beams (Experiment 3) yields transmittance correlations that also violate Bell’s inequality, quantitatively matching quantum-mechanical predictions for entangled photon pairs calculated via Malus’s law and the Karl Pearson correlation coefficient.

Retracing the CHSH derivation reveals that the inequality only applies to binary outcome events, not continuous variables—explaining the observed violation in optical beam experiments. We propose a unifying conjecture: single-photon transmission through a polarizer is a continuous, non-binary process, eliminating the discrepancy between classical expectations and experimental Bell-test results.

Future work will focus on realizing the proposed thought experiment: attenuating macroscopic light beams to the few-photon regime and measuring correlation compliance with Bell’s inequality. Additionally, we aim to develop a novel single-photon polarization transmission model to fully rationalize our findings and all canonical Bell-test experiments.
