Cesium Heteropolyacid Salts: Synthesis, Characterization and Activity of the Solid and Versatile Heterogeneous Catalysts

Abstract

Keggin-type heteropolyacid cesium salts have been regarded as potential candidates for heterogeneous catalytic reactions. This review describes the success of Keggin-type heteropolyacids cesium salts (Cs-HPA salts) as efficient catalysts in various synthesis processes. The Cs-HPA catalysts can be synthesized as solid salts through the metathesis of a solution containing precursor HPA and another solution containing soluble Cs salt, which will give Cs-HPA salt as a solid precipitate. Alternatively, they can be also obtained from the commercial precursor HPA. In this review, all the routes to prepare the different cesium salts (i.e., saturated, lacunar, metal-doped) were described. These salts can be used in acid-catalyzed reactions (i.e., esterification, etherification, acetalization, dehydration) or oxidative transformations (oxidative esterification, oxidation, epoxidation). All of these reactions were addressed herein. Aspects related to the synthesis and characterization of these catalyst salts were discussed. This review aims to discuss the most pertinent heterogeneous catalytic systems based on Keggin HPA Cs salts. The focus was to correlate the physicochemical properties of these salts with their catalytic activity. Ultimately, the most recent advances achieved in the applications of these Cs-HPA salts as catalysts in the synthesis of industrial interest compounds were discussed. Cesium heteropoly salts are an alternative to the traditional soluble mineral acids as well as to solid-supported catalysts.

1. Introduction

The development of heterogeneous catalysts has attracted widespread attention due to economic and environmental reasons [1,2]. Important characteristics such as simple synthesis routes, uniform pore size distribution, large specific surface area, and high strength of acidity are essential to an efficient solid acid catalyst. Ideally, a heterogeneous catalyst should be stable under reaction conditions, operate for long periods without the necessity of activation steps, achieve high conversions and selectivity toward the goal product, and allow an easy recovery and reuse without loss activity [3,4]. Nonetheless, understanding the reaction mechanisms involved in the conversion of different substrates over heterogeneous catalysts to fine chemicals or fuels is still a challenge [5,6,7].

Zeolites, clays, molecular sieves, sulfonated carbon, sulfonic resins, nano-, meso-, or microstructures solids are the most common choices for acid-catalyzed reactions, however, sometimes some drawbacks hamper the use of these catalysts at the industrial scale [8,9,10]. The high cost of these heterogeneous catalysts besides the laborious syntheses and the requirements of more drastic reaction conditions comprises some challenges to be overcome [11].

Keggin heteropolyacids (HPAs) are acid solids with a high strength of Brønsted acidity [12]. They are a cluster of metal-oxygen compounds belonging to the class of polyoxometalate (POMs) and have been used in several fields in materials and catalysis science, such as energy store, photocatalyst, electrocatalysis, and as homogeneous or heterogeneous catalysts [13,14,15]. Keggin HPAs are protonated POMs with a stronger acidity strength [16]. Among them, phosphotungstic acid deserves highlighting due to its highest Brønsted acidity strength [17,18]. However, they are solid with a low surface area (<5.0 m²/g), hampering their straight use as a heterogeneous catalyst [19,20]. Moreover, they are soluble in water or polar organic solvents. However, even having a low surface area, in apolar solvents they are insoluble and can be used as solid catalysts, likewise the cesium salts.

To circumvent these drawbacks, two options have been adopted; the first one and the more traditional, which is to support the Keggin KPAs on the surface area high solids matrixes [21]. Depending on the synthesis processes, catalyst load and type of support, positive aspects have been achieved [22]. For instance, Hβ zeolite, zirconium, niobium, silica, activated carbon, and mesoporous materials (i.e., SBA, MCM) have been the most common supports selected [23,24,25,26,27,28]. Notwithstanding, these supported catalysts have the same disadvantages as other ones mentioned herein, such as undergoing leaching in a highly polar reaction medium.

The strength of acidity of Keggin HPAs can be modulated by performing modifications either in the structure of Keggin heteropolyanion or changing total or partially their protons with other metal cations [29]. This way, Keggin HPAs containing both Lewis and Brønsted acid sites have been developed. Even when all the protons are exchanged with a metal cation, remains a residual Brønsted acidity.

On the other hand, Keggin HPAs can have their composition modified by removing one unit MO (M = W, Mo) giving origin to the lacunar HPAs, or still having this vacancy filled with transition metal cations [30]. Those POMs salts can also have their Mo⁶⁺ or W⁶⁺ addenda cations replaced by V⁵⁺ ions [31]. All these modifications allow Keggin HPAs, initially used only in acid-catalyzed reactions, to become also efficient catalysts in oxidation processes [32,33].

The second approach is converting the Keggin HPAs to solid salts, which can be used as heterogeneous catalysts. Depending on the cation ionic radium, it is possible to produce materials with a reasonable surface area and porosity, and insoluble in polar solvents [34]. In particular, cesium-exchanged Keggin heteropolyacid salts have been the most used catalysts, and therefore, they are the goal of this work [35,36,37]. Although presently the supporting of Keggin Cs HPA salts on solid matrixes has also attracted attention, we judge it more profitable to address only the reactions where these salts were used as solid catalysts, avoiding this way the effects triggered by the support.

In this review, our main goal was to demonstrate how the Keggin HPAs Cs salts act as heterogeneous catalysts in a plethora of organic transformations. The main synthesis routes and characterization techniques will be discussed, aiming to correlate their impacts on the catalytic performance of these Keggin HPAs Cs salts.

2. Main Routes to Synthesize POMs Salts

2.1. Synthesis of Keggin HPAs: Phosphotungstic, Phosphomolybdic and Silicotungstic Acid Cesium Salts

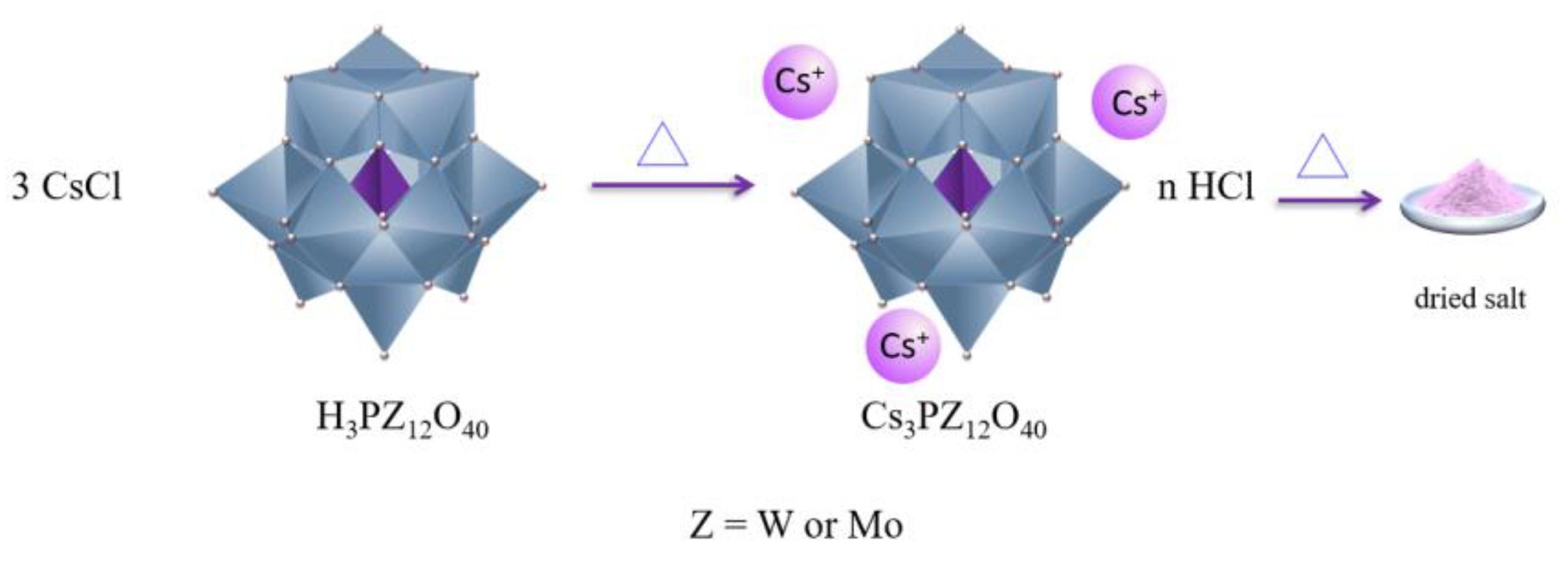

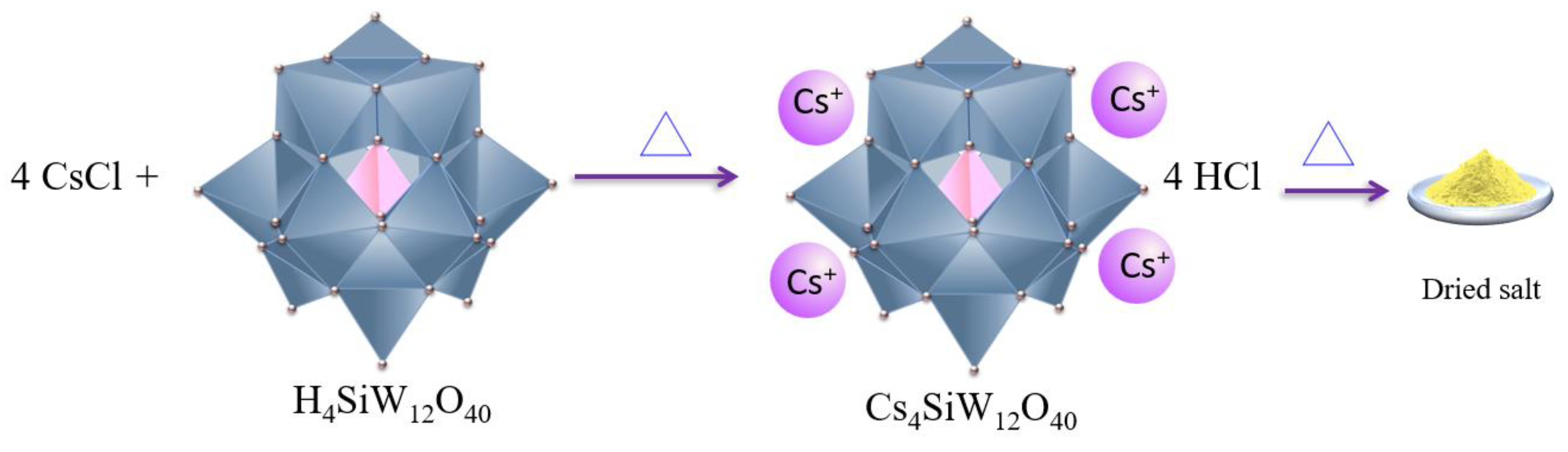

The most common synthesis route of Keggin HPA cesium salts starts from the reaction of an aqueous solution of commercial HPAs with another solution containing a stoichiometric amount of CsCl_(aq) or Cs₂CO_3(aq), which was slowly added giving a white or yellow precipitate (i.e., Cs₃PW₁₂O₄₀, O₃, Cs₄SiW₁₂O₄₀, or Cs₃PMo₁₂O₄₀) [35,36,37,38,39,40]. This method is named direct precipitation. After 3 h of magnetic stirring and heating to 333 K, the solution was vapoured under a vacuum releasing HCl_(g). Afterwards, the solid salt was dried in an oven at 423 K for 12 h. This procedure is depicted in Scheme 1 and Scheme 2 for the three Keggin HPAs.

It is important to note that no modification happens in the Keggin heteropolyanion structure; its integrity is preserved, and it maintains the same composition as the precursor acid; sometimes they are named saturated salts.

Another strategy is the partial replacement of protons with cesium, which generate salts with higher remaining acidity. In this case, stoichiometry is responsible for the level of exchange of protons [41]. In this review, cesium partially exchanged heteropolyacids salts had their catalytic activity addressed in Section 4 [35,36].

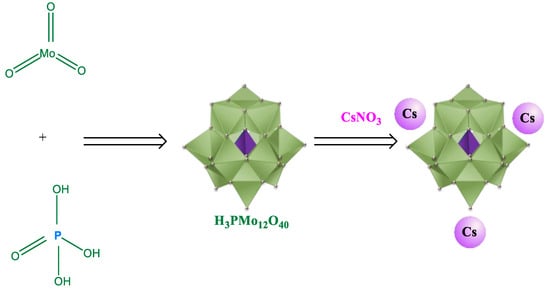

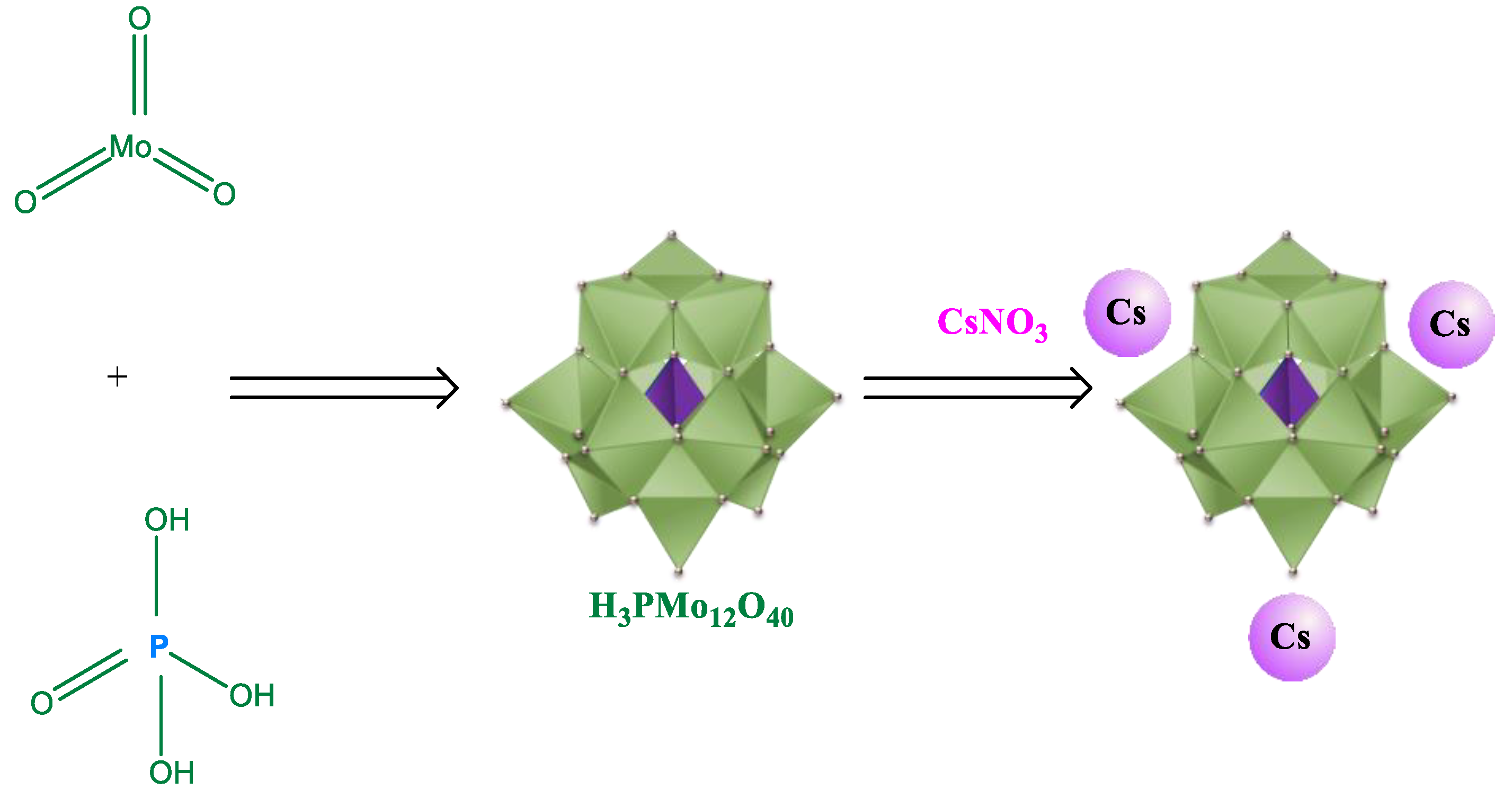

Beyond the direct precipitation method, there is also the reactive synthesis method [42]. Gu et al. synthesized cesium salts using the two methods and evaluated the catalysts in alkylation reactions of toluene with benzyl alcohol (Scheme 3) [43].

Those authors heated the slurry to 100 °C for 6 h under vigorous stirring, and then evaporated to dryness at 110 °C, obtaining the Cs₃PMo₁₂O₄₀ solid salt [43]. This same procedure can generate cesium phosphotungstate exchanging the molybdenum for tungsten oxide. Similarly, replacing the phosphoric acid with the silicic acid led to the obtention of cesium silicotungstate salt.

2.2. Synthesis of Lacunar Keggin HPA Cesium Salts

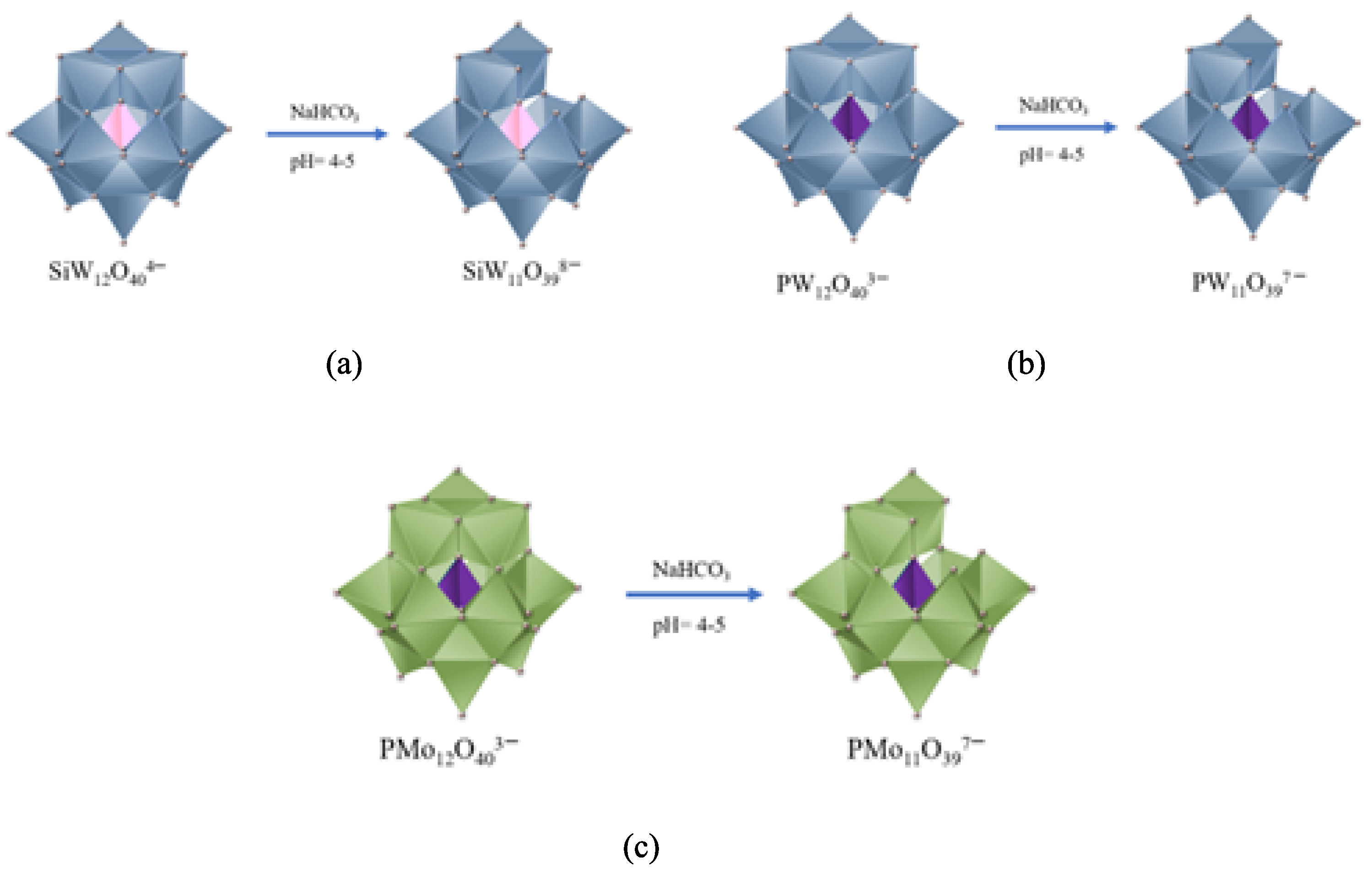

Cesium lacunar salts Cs_yXM₁₁O₃₉ (X = Si or P; M = W or Mo; y = 8 or 7, respectively) have been synthesized by precipitation according to the procedure adapted from the literature [21,41]. This procedure can be carried out in a two-step synthesis. In the first procedure, the lacunar heteropolyanion is obtained by hydrolysis saturated anion present in precursor acid (Scheme 4); after the hydrolysis, the solutions of HPAs (i.e., H₃PW₁₂O₄₀, H₃PMo₁₂O₄₀, or H₄SiW₁₂O₄₀) become solutions of unsaturated anions (Scheme 4).

In the second stage, this lacunar anion (i.e., normally a sodium salt) reacts with a solution of cesium chloride giving a lacunar cesium heteropoly salt, which is filtered and dried in an oven (Scheme 5, Scheme 6 and Scheme 7).

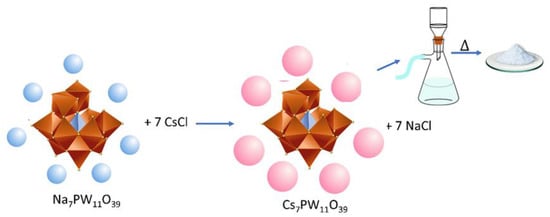

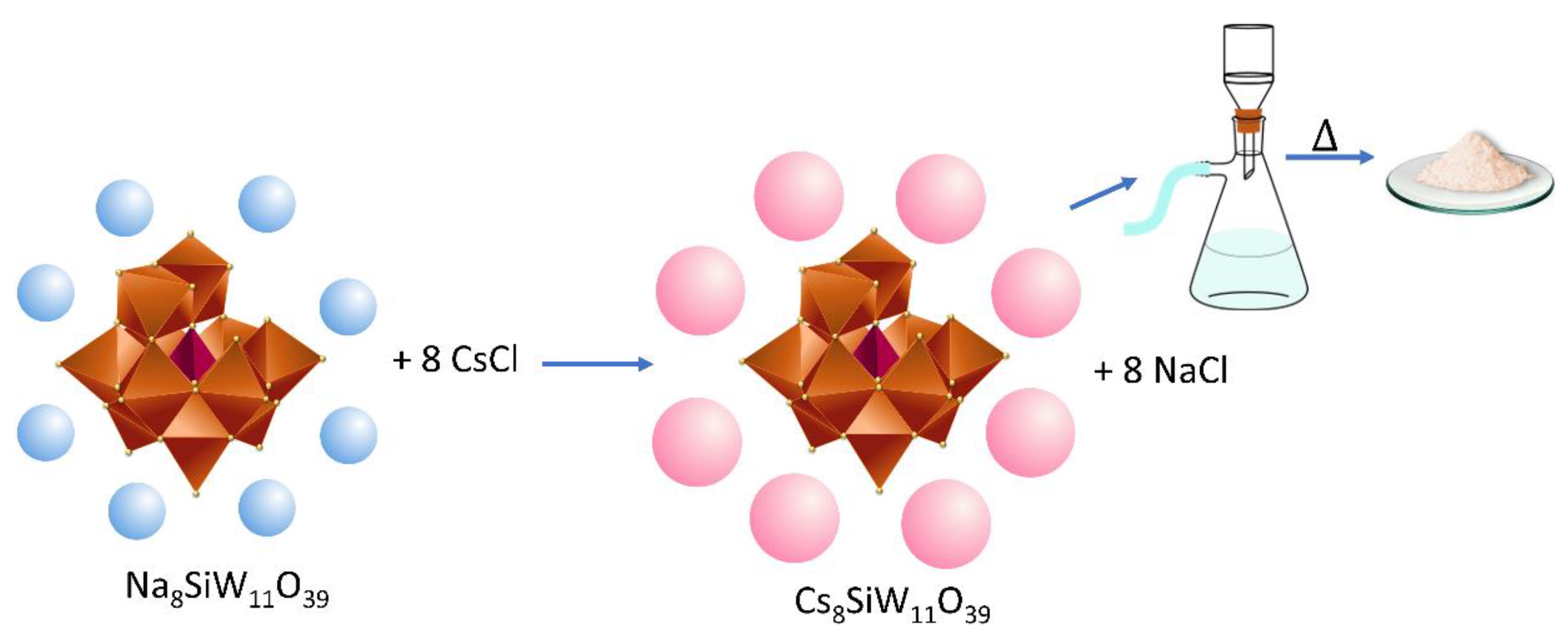

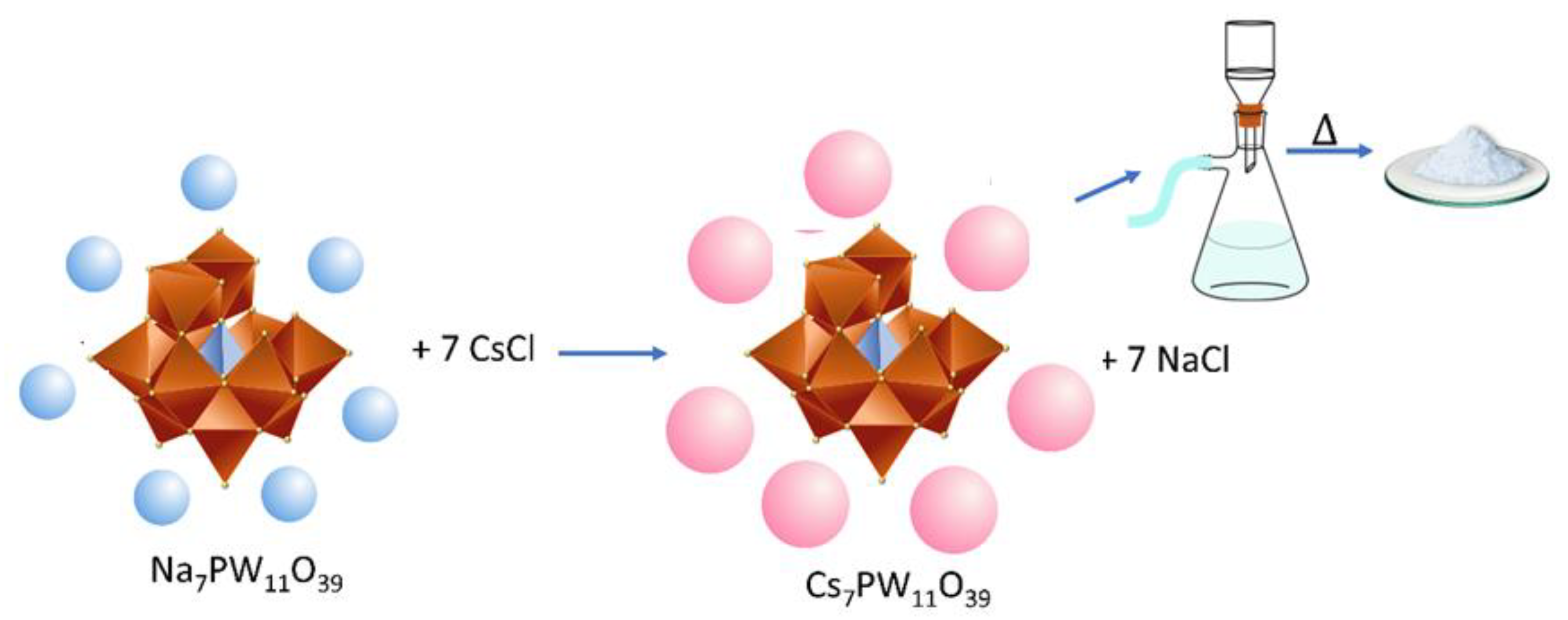

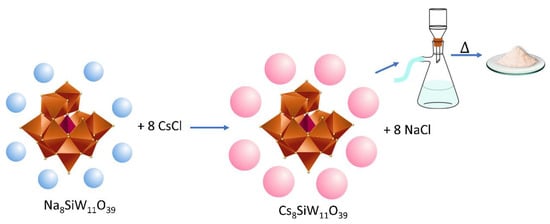

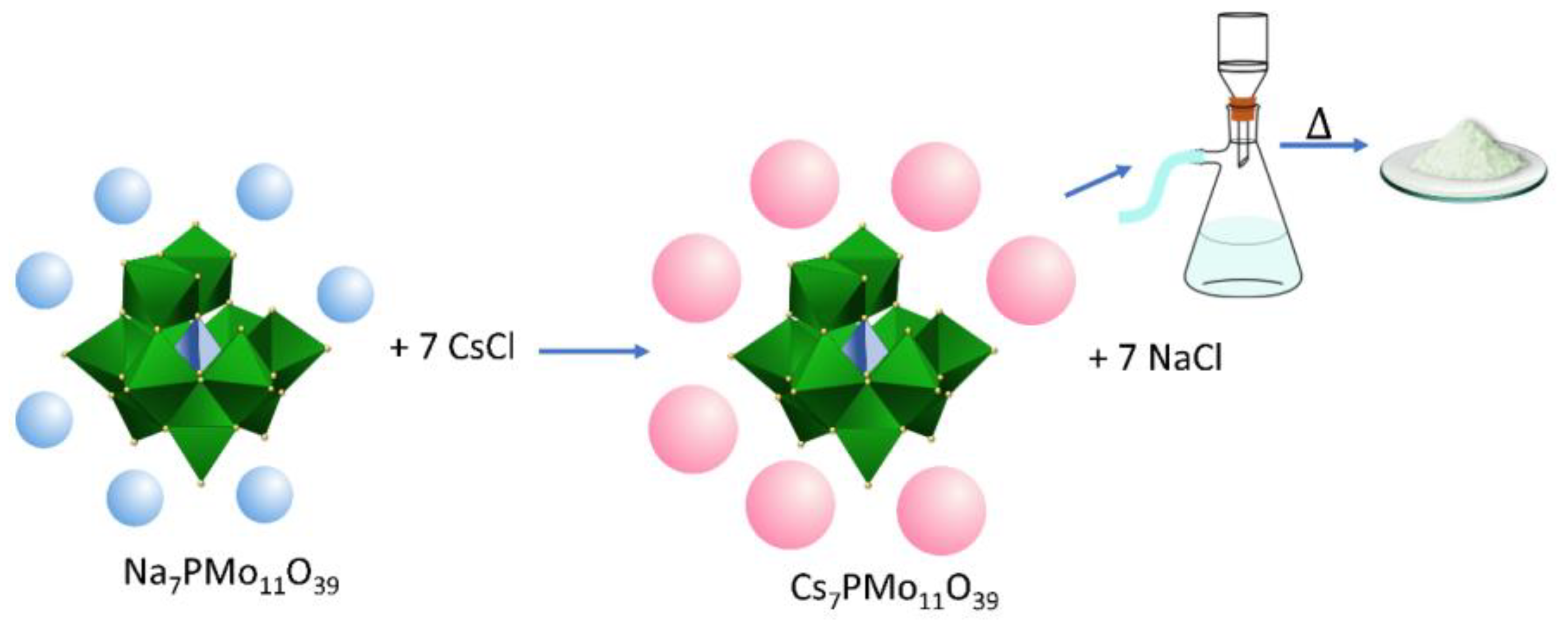

In these procedures, lacunar sodium salt reacts with cesium chloride giving a precipitated lacunar cesium salt, which is posteriorly filtered, and dried as in Scheme 1 and Scheme 2. Although simple, this is a two-step process: in the first, Keggin HPA is converted to the lacunar sodium salt, and in the second one, lacunar HPA cesium salt is precipitated.

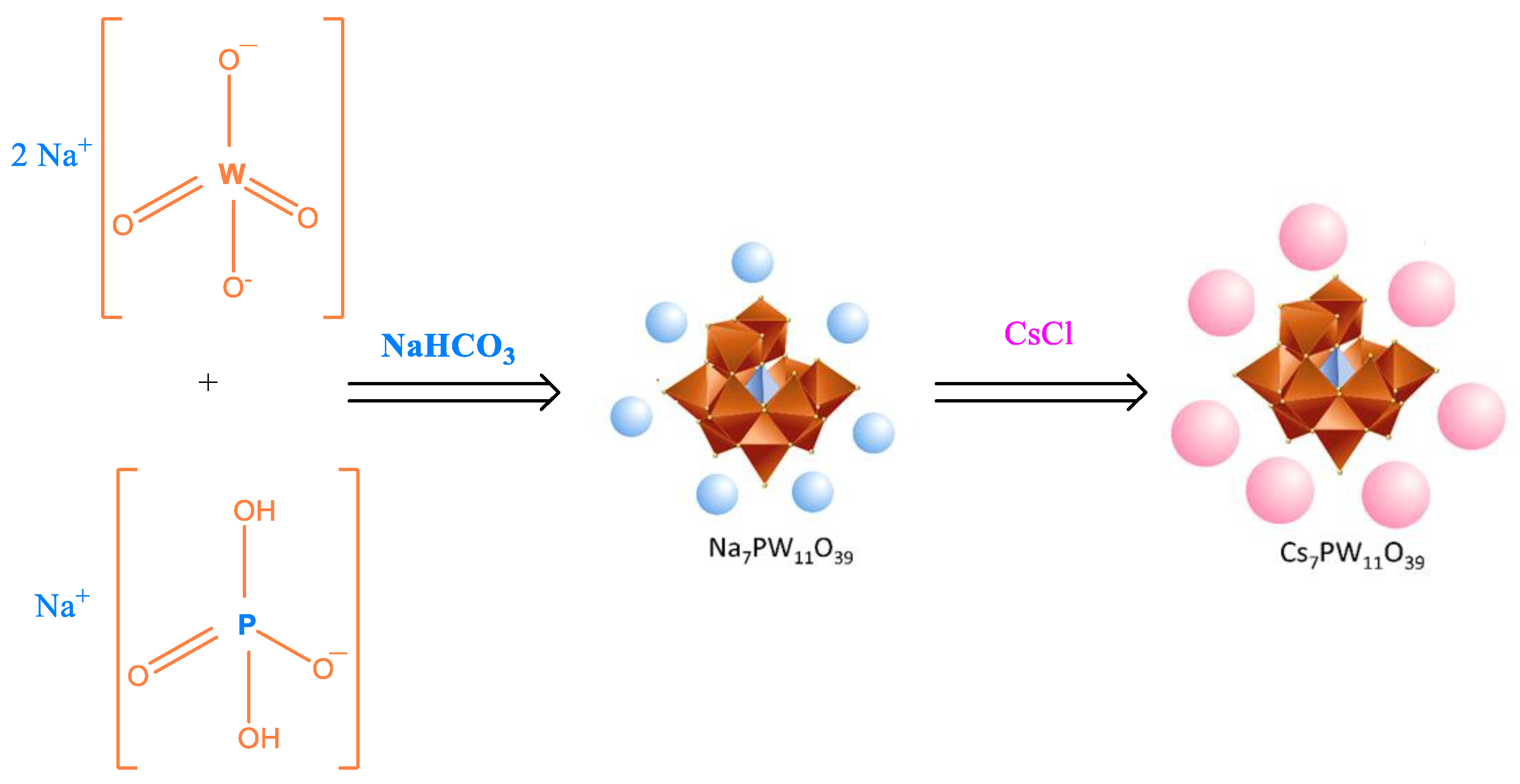

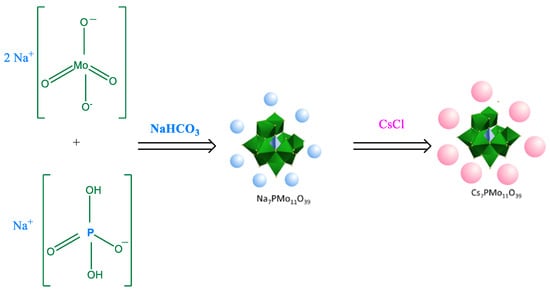

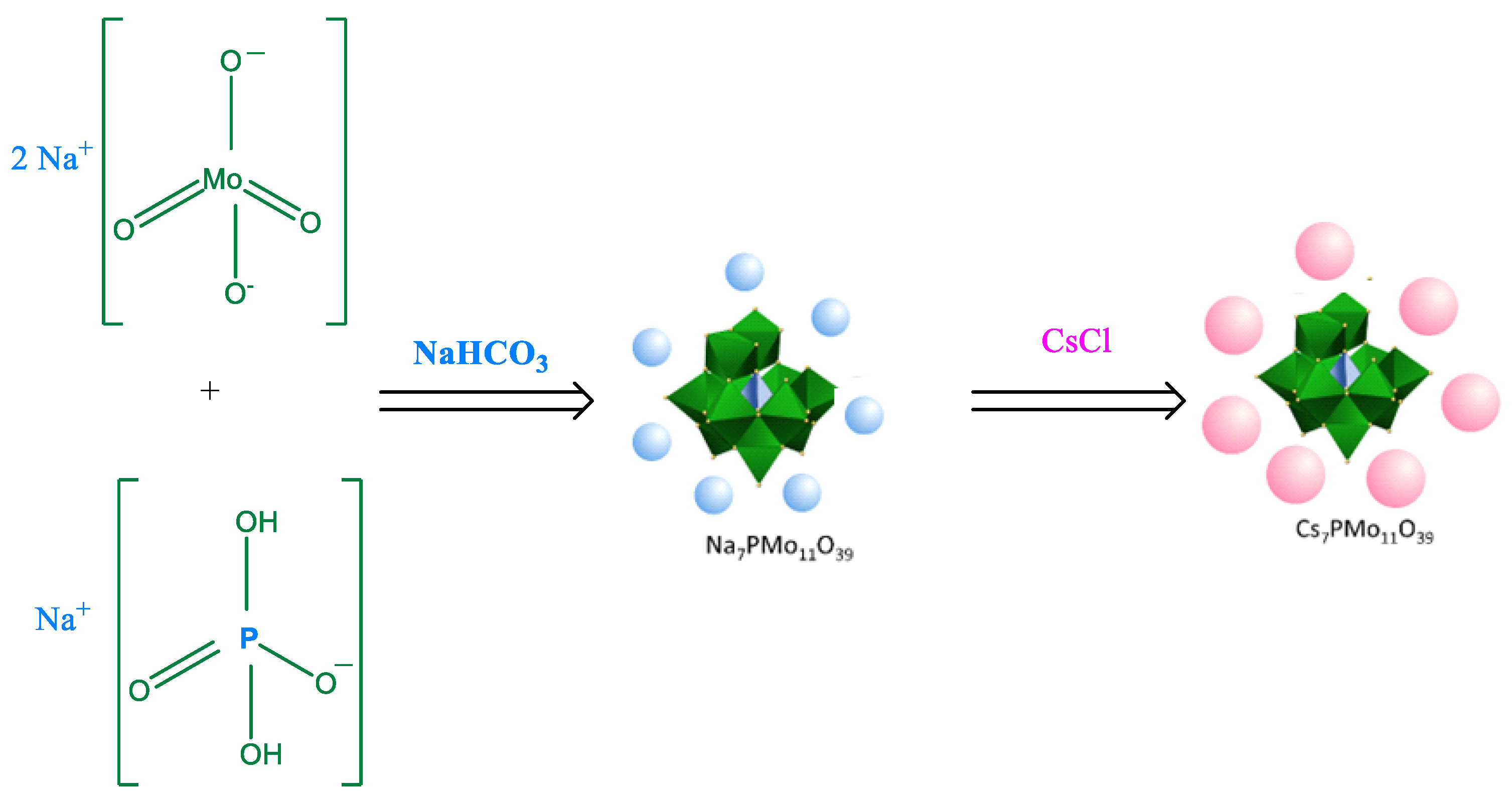

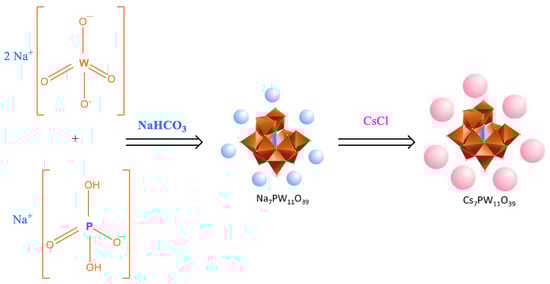

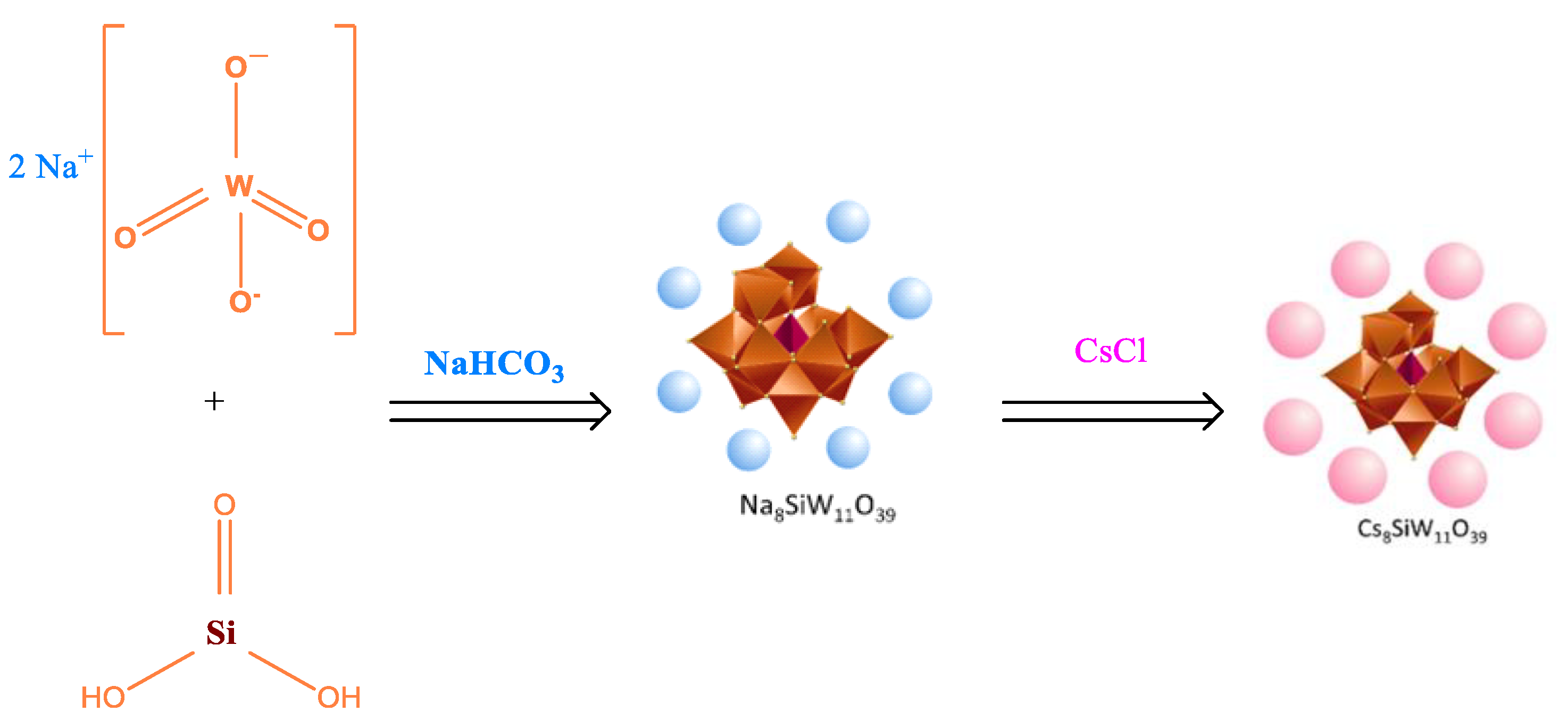

Alternatively, this route can be performed in a one-pot synthesis (Scheme 8, Scheme 9 and Scheme 10). Typically, an acidic aqueous solution of the sodium tungstate or molybdate precursor (i.e., Na₂WO₄ or Na₂MoO₄) is added to the other solution containing the silicon or phosphorus precursor salt (i.e., Na₂SiO₃ or Na₂HPO₄), depending on the goal heteropolyanion (i.e., SiW₁₂O₄₀⁴⁻, PW₁₂O₄₀³⁻ or PW₁₂O₄₀³⁻). This same procedure was previously used to synthesize lacunar potassium salts [34,44].

The addition of NaHCO₃ (ca. 0.10 mol L⁻) adjusted the pH to the adequate range (pH = 5.4, SiW₁₁O₃₉⁸⁻ and PW₁₁O₃₉⁷⁻; pH = 4.5, PMo₁₁O₃₉⁷⁻), converting the saturated anions to lacunar anions. These solutions are then stirred and heated at 353 K/60 min. Afterwards, they are cooled to room temperature, and 0.1 mol of CsCl_(s) is added to give precipitate the cesium HPA salt. The solid salt is washed twice (50 mL, 1.0 mol L⁻¹ CsCl_(aq)), and once with 50 mL of cold distilled water, being then dried in air. After this step, cesium salts were dried in an oven at 423 K/5 h.

2.3. Synthesis of Metal-Substituted Lacunar Keggin HPA Cesium Salts

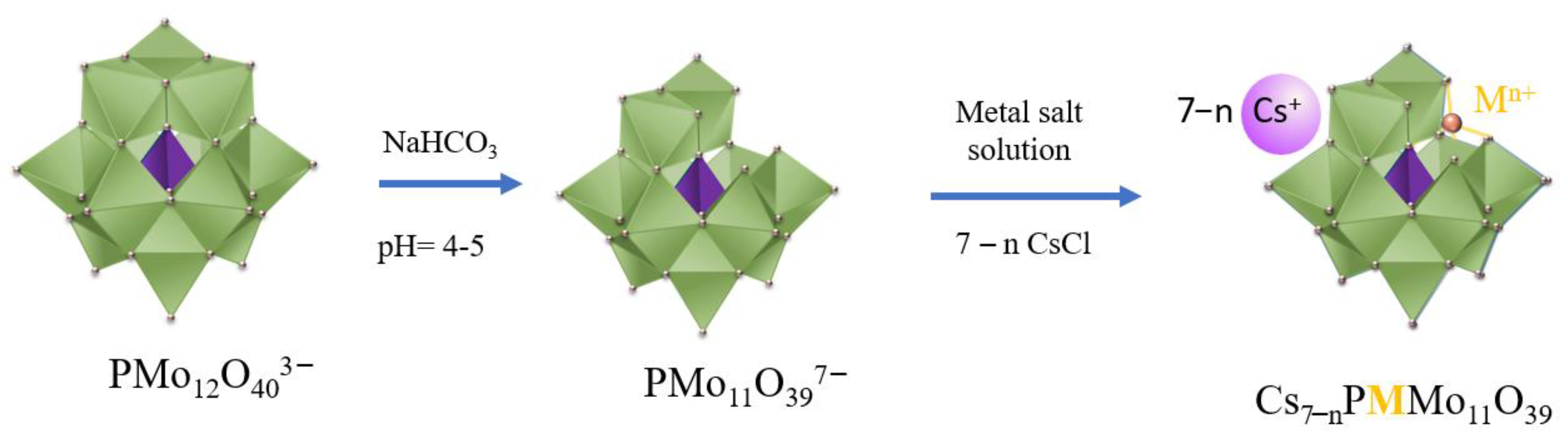

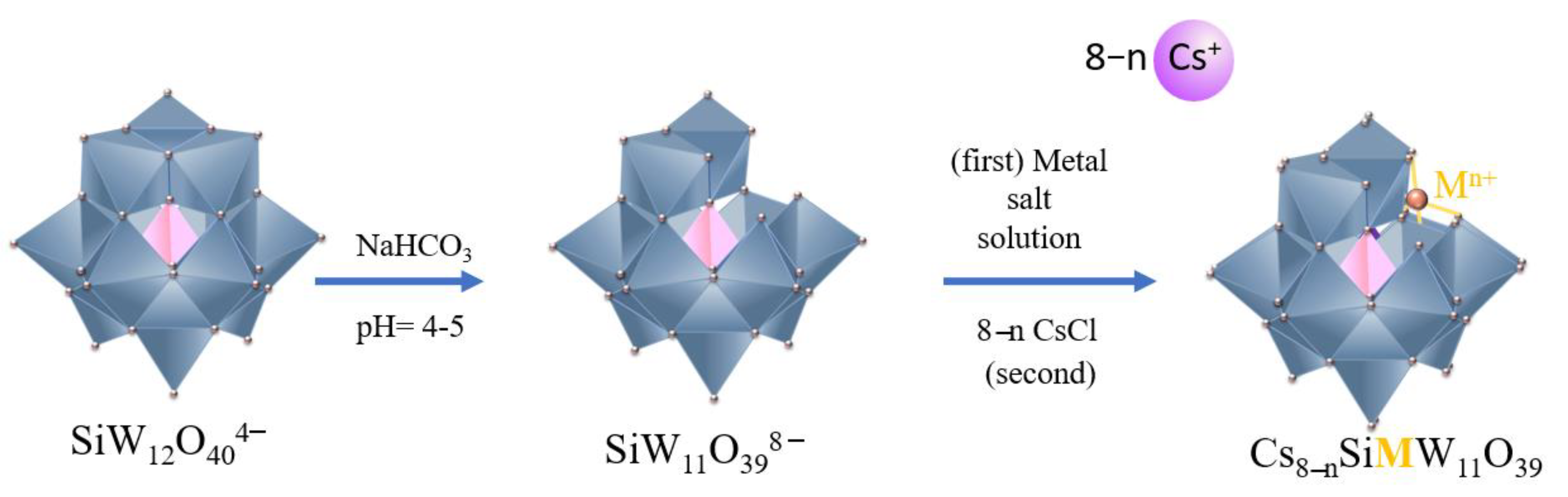

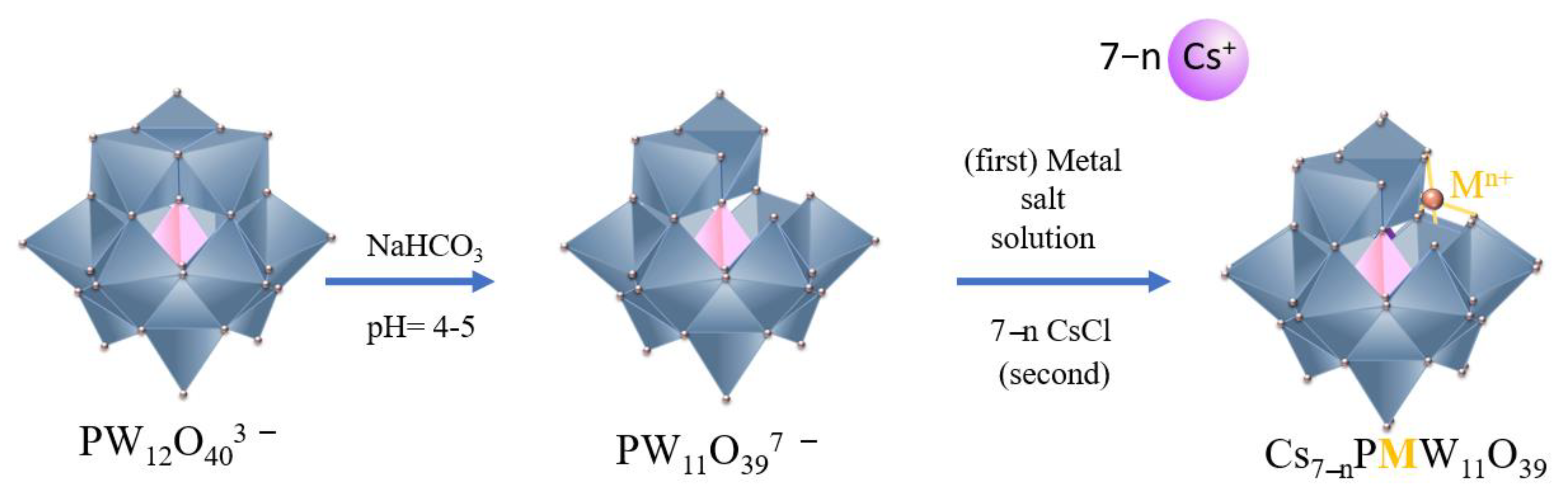

To synthesize the metal-doped cesium heteropoly salt, any one of the two procedures previously described can be used (i.e., one-pot synthesis or two-step route). Scheme 11, Scheme 12 and Scheme 13 summarize the process for the three metal-doped Keggin cesium salts. However, the solution containing the precursor metal chloride must be added before the precipitation of heteropoly with CsCl [45].

When the lacunar heteropoly sodium salt is in the solution, it acts as a “monodentate ligand” and can bind the metal cation. Therefore, the addition of CsCl precipitates this “POM complex”, which can act as a bifunctional catalyst. Besides the activity of heteropolyanion containing the addenda metal active sites (i.e., Mo or W), now the POM has yet a metal cation that frequently can trigger a synergism with the heteropolyanion, due to its catalytic activity [46].

The sodium ions of NaHCO₃ and chloride ions belonging to the metal or cesium chloride remain in the solution and are separated when the solid metal-doped cesium heteropoly salt is filtered. on the catalytic activity of cesium heteropoly salts.

All the cesium salts described until now (i.e., saturated, lacunar, metal-doped) demonstrated to be active catalysts in a plethora of reactions, which will be addressed in this review. However, before that, a brief discussion about the main characterization techniques could be useful to understand how they act.

3. Characterization Techniques of Keggin HPA Salts

There are several techniques used to characterize Keggin HPAs in a solid or liquid phase. We will focus only on the most used. The most of characterization data presented were described in the Doctorate Thesis of a researcher’s group and were partially reported in the references mentioned [35,36,37].

3.1. Infrared Spectroscopy

Infrared spectroscopy is a valuable tool to obtain information about the primary structure of Keggin HPAs (i.e., heteropolyanion). The typical chemical bonds present in the Keggin anion have their main vibrations bands placed at the fingerprint region between 400 to 1300 cm⁻¹ in the infrared spectrum. To check if the primary structure was kept constant after the synthesis of cesium salts, it needs to verify if any shoulder, new band, or strong shift has occurred in the characteristic vibration bands of main chemical bonds after the synthesis.

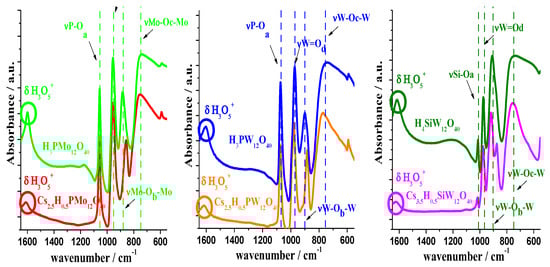

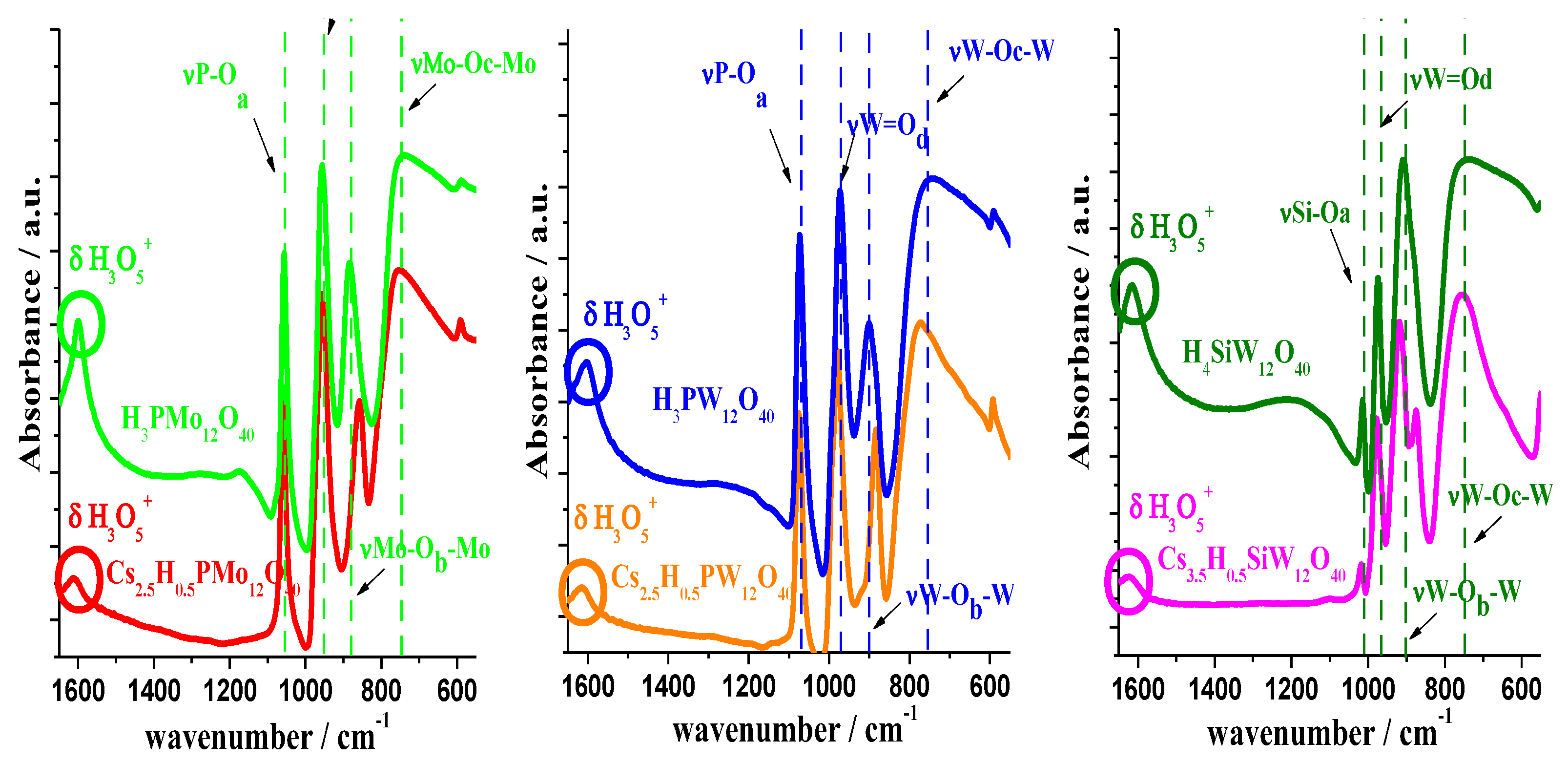

The following spectra (Figure 1) were recorded in Varian 660-IR equipment with attenuated total reflectance accessory (FT–IR/ATR), in a spectral range of 550 to 1650 cm⁻¹. The oxygen atoms were distinguished by subscripts as follows; O_a refers to the oxygen atom bonded to the phosphorous or silicon atom; O_b oxygen atoms belong to the WO₆ or MoO₆ octahedral units sharing corners; O_c oxygen atoms are in edges and O_d are terminal oxygen atoms linked to the tungsten or molybdenum atoms [35,36,37].

A comparison of typical absorption bands of the pristine Keggin HPAs with their partially cesium-exchanged salts allows concluding that only the absorption bands assigned to the vibration of W(Mo)-O_b-W(Mo) bonds of cesium salts were shifted toward a lower wavenumber. This effect can be assigned to the weakening of W(Mo)-O chemical bonds triggered by the cesium cations.

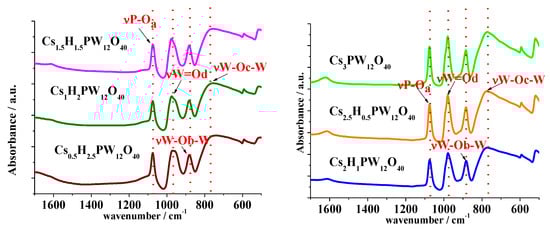

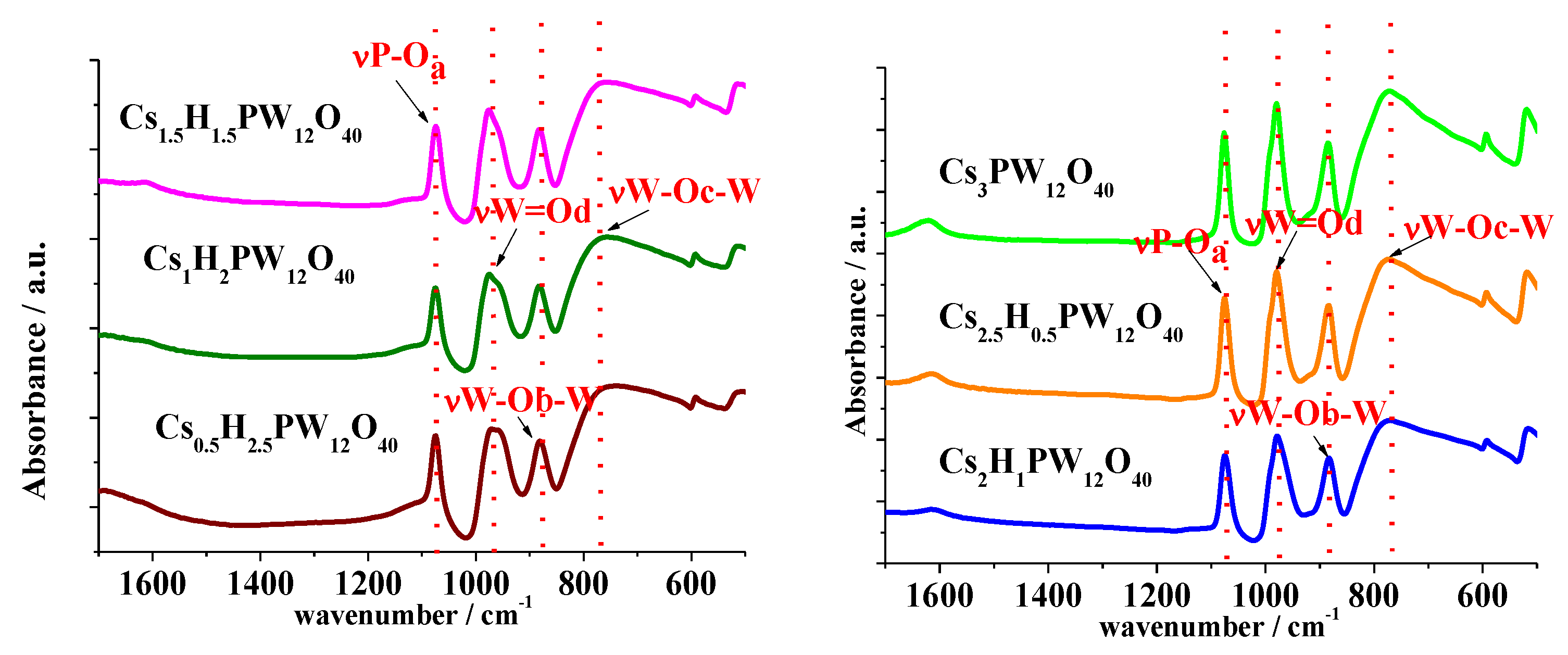

The impacts of the substitution level of cesium on the infrared spectra of phosphotungstate salts were also evaluated (Figure 2). An increase in cesium load has not triggered any noticeable change in the wavenumber of typical absorption bands of cesium salts in the range of 0.5 to 3.0 mol Cs⁺/mol heteropolyanion.

3.2. Powder XRD Patterns

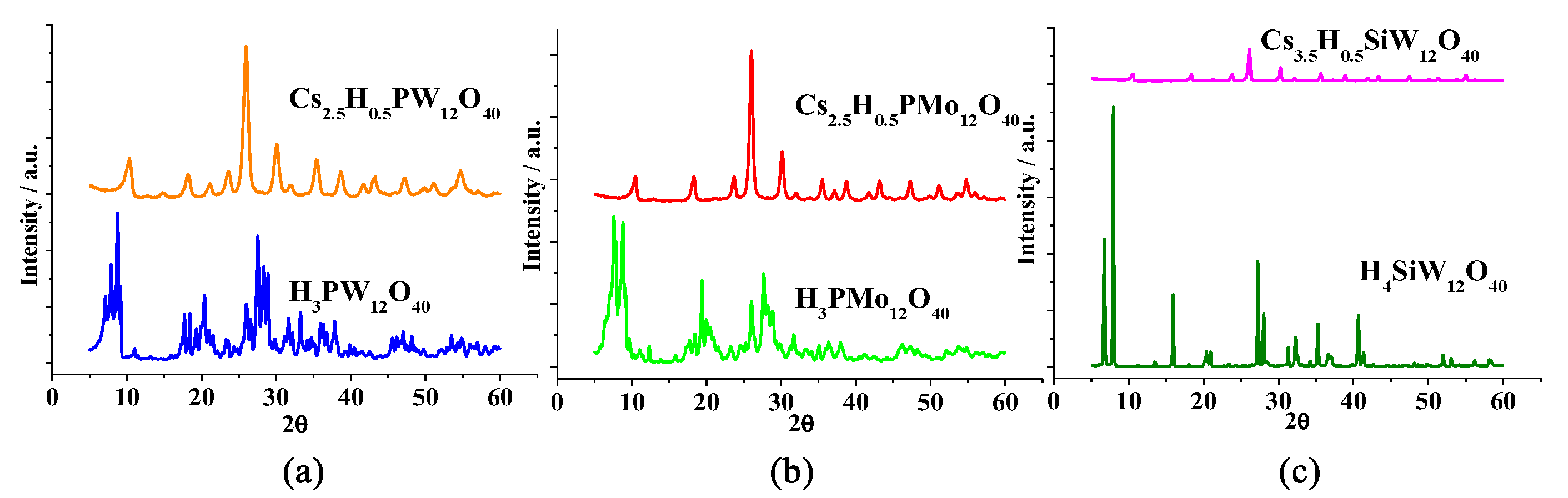

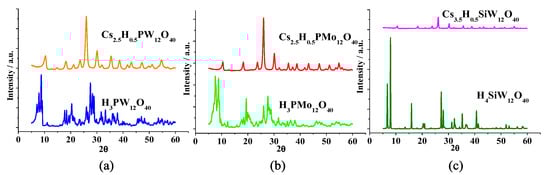

The powder X-rays diffraction patterns of the cesium salts of silicotungstic, phosphomolybdic, and phosphotungstic acids were obtained by X-ray diffraction (XRD) in a Bruker D8 Discovery diffractometer, operating at 40 kV acceleration voltage, 40 mA current, in the copper emission line (Cu-Kα, λ = 1.5406 Å), with a scanning rate of 1°/min for a 2θ angle of 5–80° [35,36,37]. The diffractograms of Keggin heteropolyacids and their cesium salts are displayed in Figure 3.

The diffractograms of phosphotungstic and phosphomolybdic acid cesium salts had diffraction peaks in a higher amount and were well-defined than pristine HPAs. Despite the similar profile, at a low angle 2θ angle (<10°) the Keggin HPAs diffractograms presented high-intensity peaks, which are characteristic of them; conversely, the XRD patterns of cesium salts have not displayed these strong peaks at this region.

From the Scherrer Equation (1), it is possible to calculate the crystallite size of a solid particle of Keggin HPAs and their cesium salts. In Equation (1), λ is the X-ray wavelength (nm), β is the peak width of the diffraction peak profile at half maximum height resulting from small crystallite size in radians, and $K$ is a constant related to crystallite shape, normally taken as 0.89.

$$L=\frac{K.\lambda }{\beta .cos\theta }$$

(1)

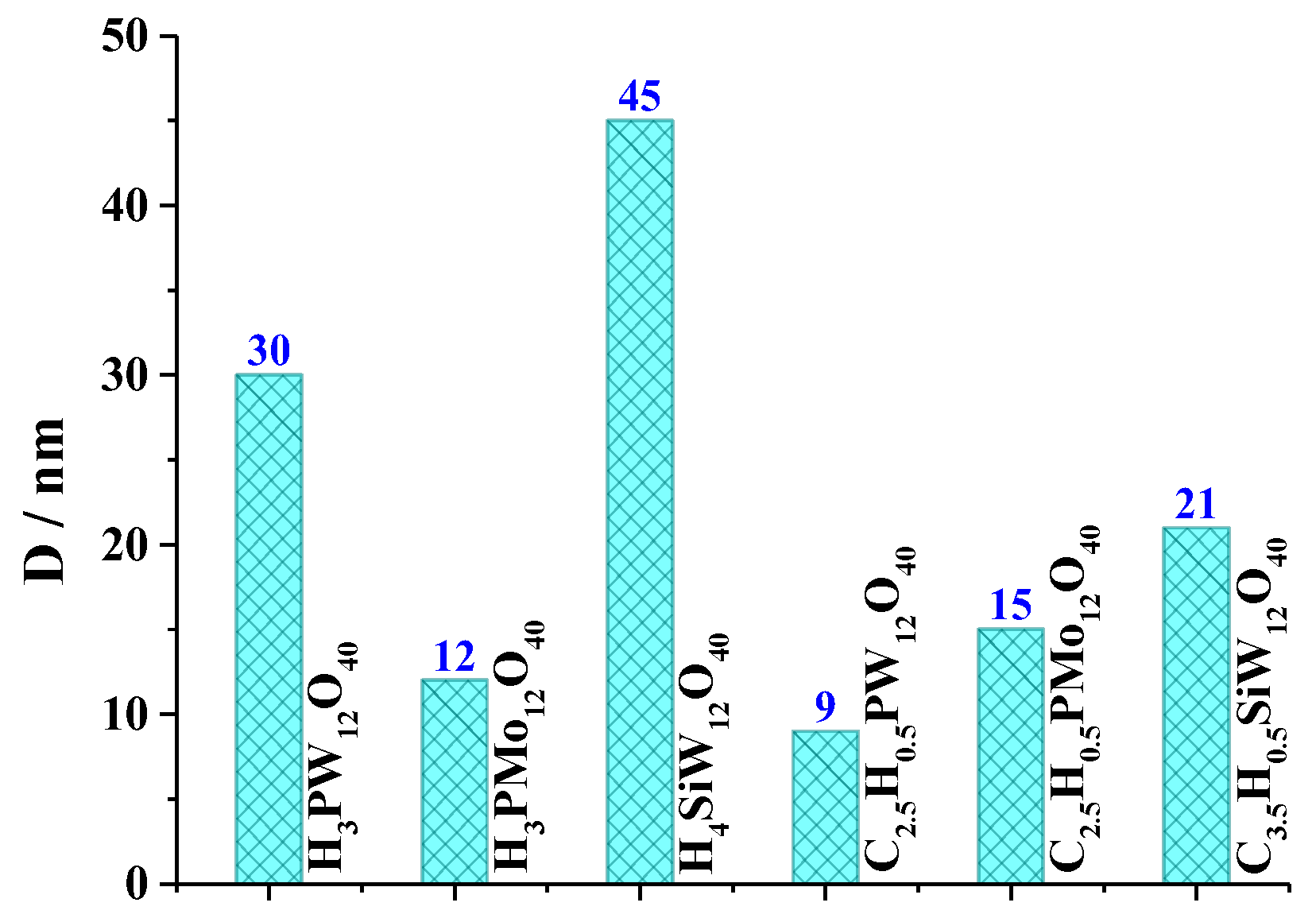

In Figure 4, it is possible to see that the doping with cesium led to a lower crystal size, mainly when comparing the silicotungstic acid with the cesium silicotungstate.

The greatest crystallite size of silicotungstic acid is confirmed by their diffractogram, which presented the most intense diffraction line close to 9.0° 2θ angle. Figure 5 shows the impact of the increase in cesium load on the crystallite size for the phosphotungstate catalysts.

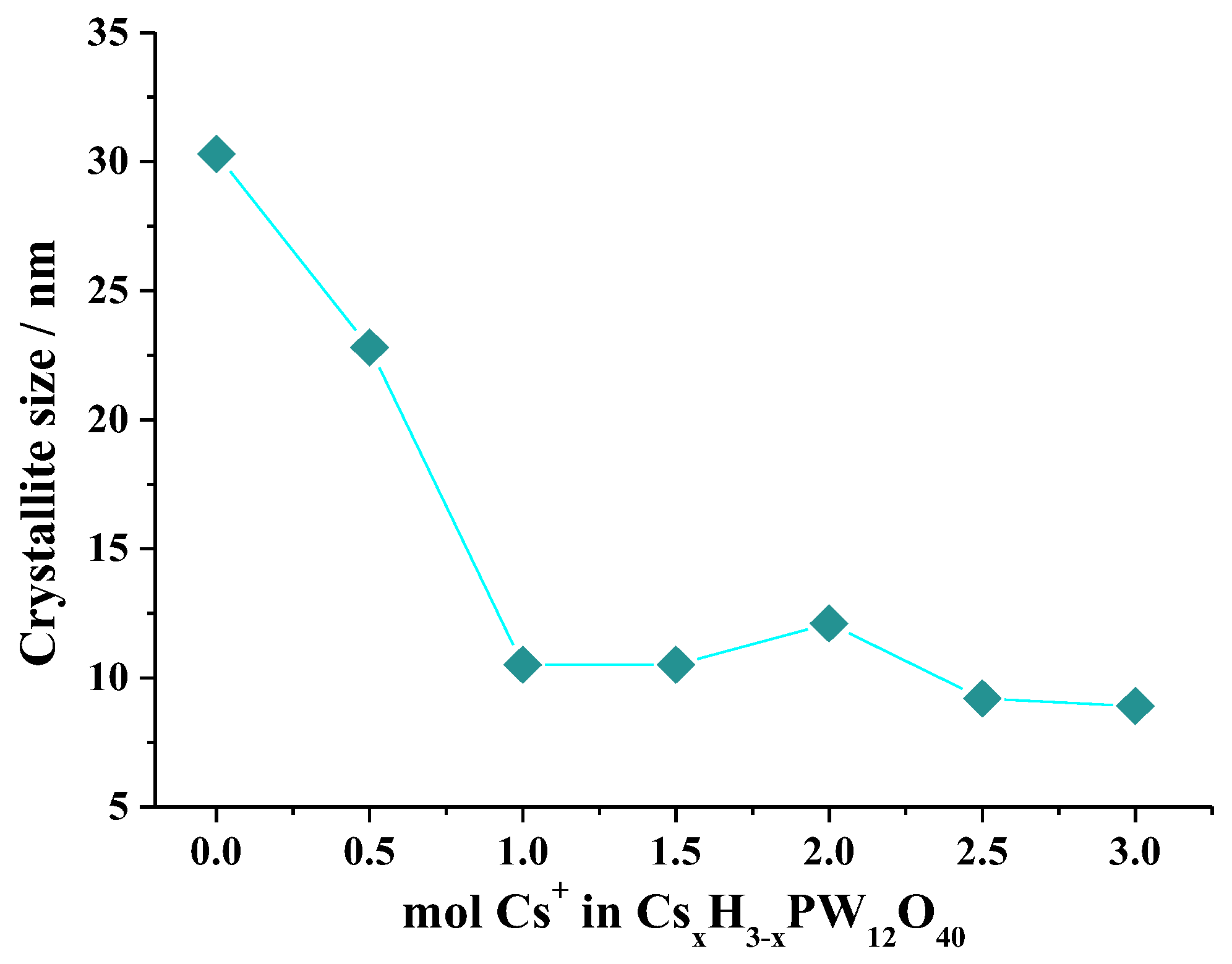

An increase in cesium load until 1. 0 mol Cs⁺/mol heteropolyanion provokes a diminishment in the crystallite size; after this proportion, no significant effect was verified when more cesium was included in heteropoly salts.

3.3. Thermal Analyses

Thermogravimetric analysis (TG–DSC) allows us to investigate the thermic stability of catalysts and determine the number of hydration water molecules. The data described herein were acquired in a Perkin Elmer simultaneous thermal analyzer (STA) 6000, using 10 mg of sample in a standard alumina crucible. The sample was heated from 298 to 973 K with a rate of 10 K min⁻¹ under nitrogen flow. Figure 6 displays results obtained from phosphotungstic, phosphomolybdic, and silicotungstic acids and their cesium-partially exchanged salts.

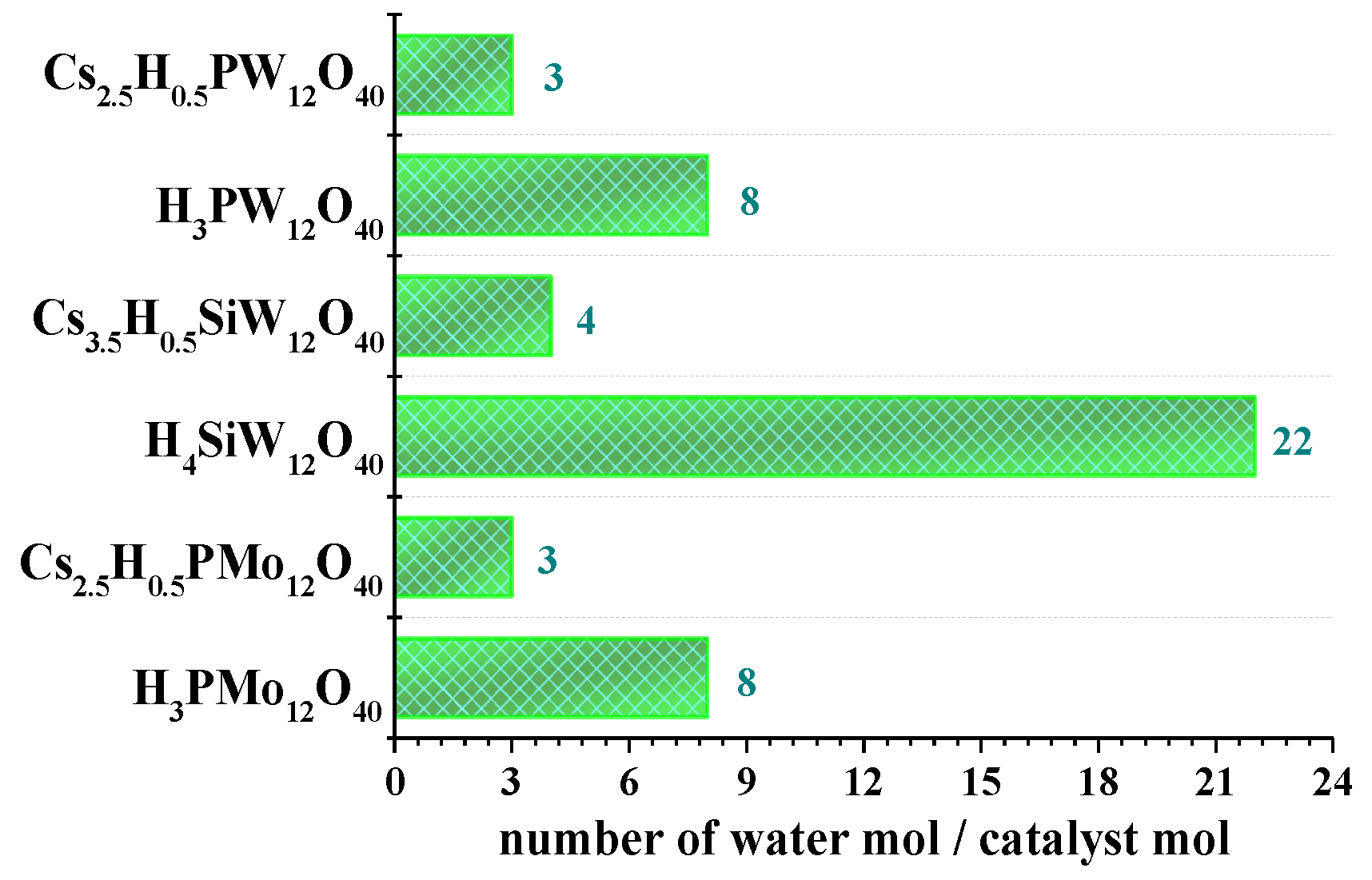

Regardless of the Keggin anion, the HPAs always presented a hydration level greater than cesium salts. It is a consequence of the thermal treatment procedure undergone by the cesium salts after the synthesis.

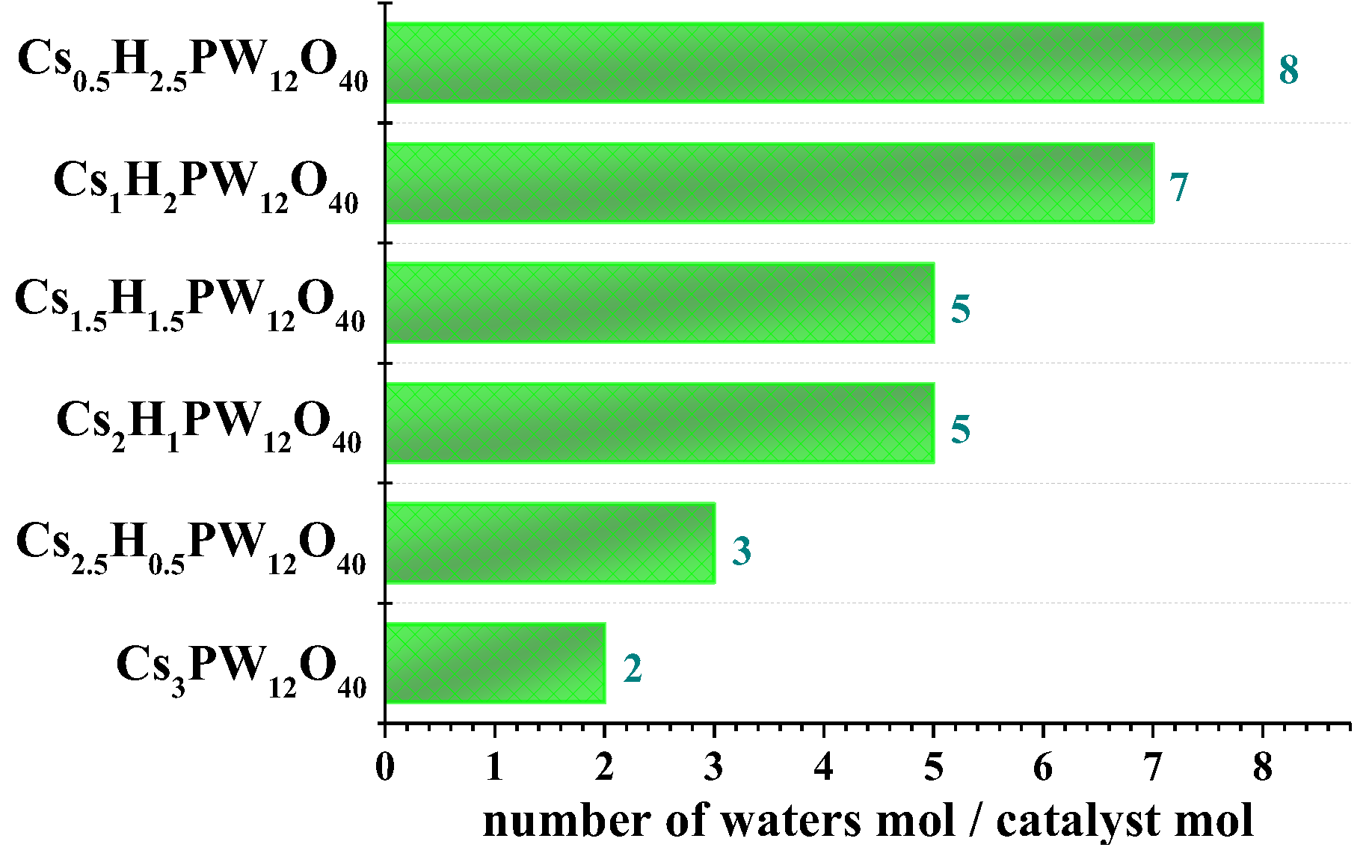

Figure 7 shows the effect of cesium load on the number of hydration water molecules. An increase in cesium load resulted in a lower number of water molecules per mol of heteropolyanion. It can be a consequence of the great ionic radium of cesium; the higher the cesium content, the more difficult was for the water molecules to interact with the Keggin anion, and, consequently, lower the hydration level.

3.4. Surface Area: Brunauer–Emmett–Teller (BET) Method

To be an effective heterogeneous catalyst, the solid should have a high surface area and adequate porosity, allowing the reactant molecules to interact, with the help of active sites, leading to the formation of a goal product with high conversion and selectivity. Herein, the surface area of Keggin HPAs and their cesium salts were analyzed by the Brunauer–Emmett–Teller (BET) method, and the diameters and distribution of pore volumes were calculated according to the Functional Density Theory (DFT). These analyses were carried out on NOVA 1200 Quantachrome, through the isotherms of physical adsorption/desorption of N₂, at 77 K [35,36,37]. Figure 8 shows the BET surface area of phosphomolybdic acid and their cesium salts.

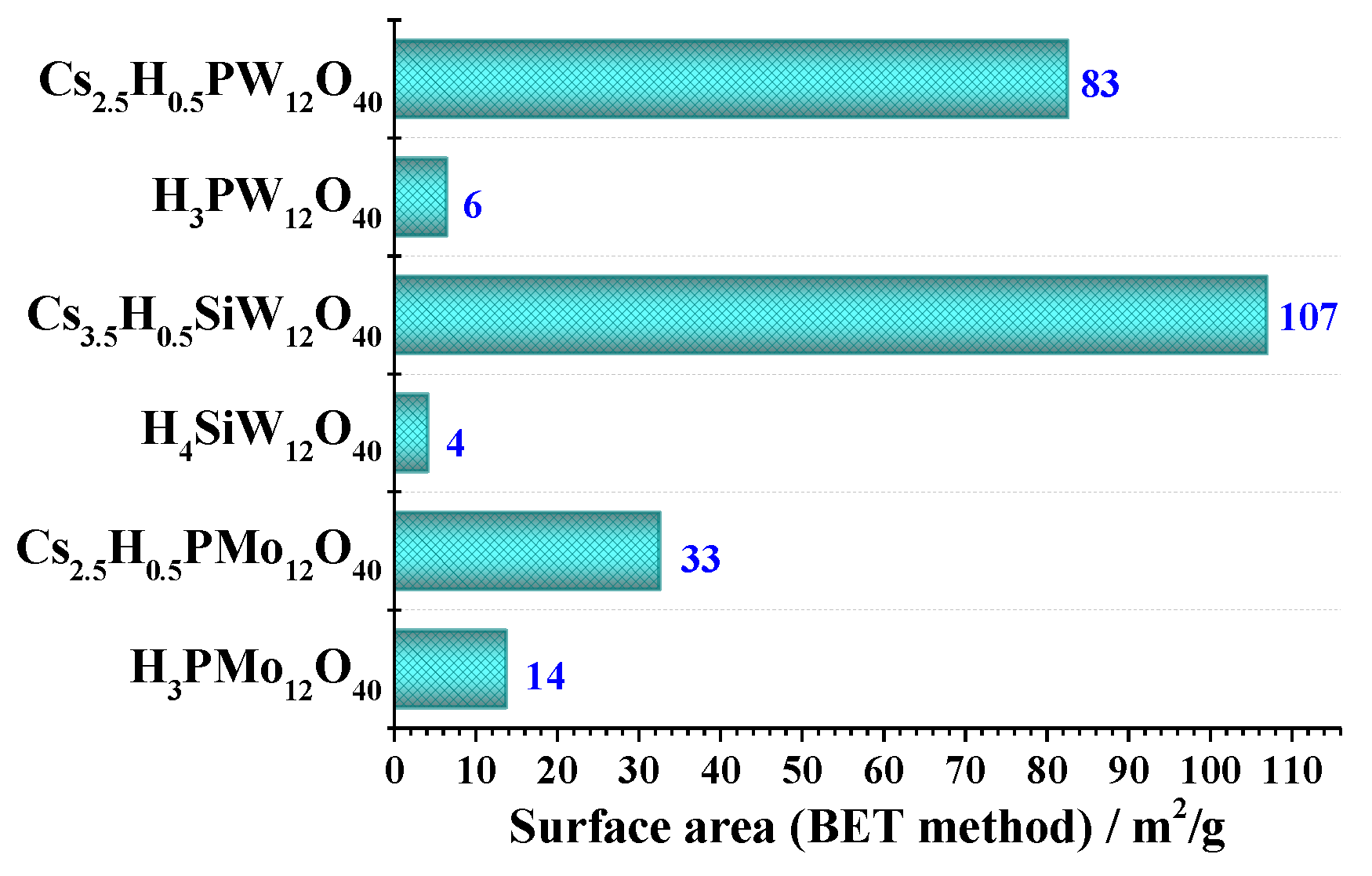

Remarkably, the surface area of cesium salts was much greater than pristine Keggin HPAs [35,36,37,40]. It is in accordance with the literature [39,41]. This effect was more noticeable in the tungsten catalysts.

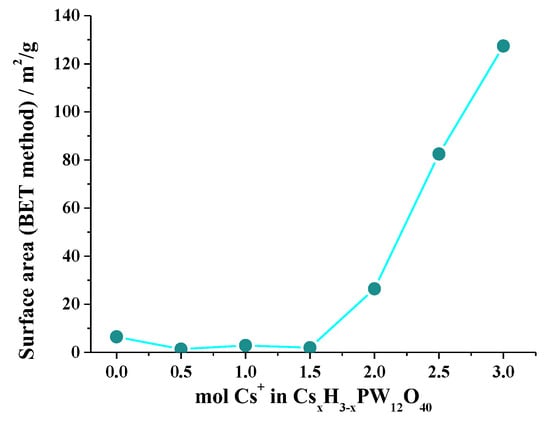

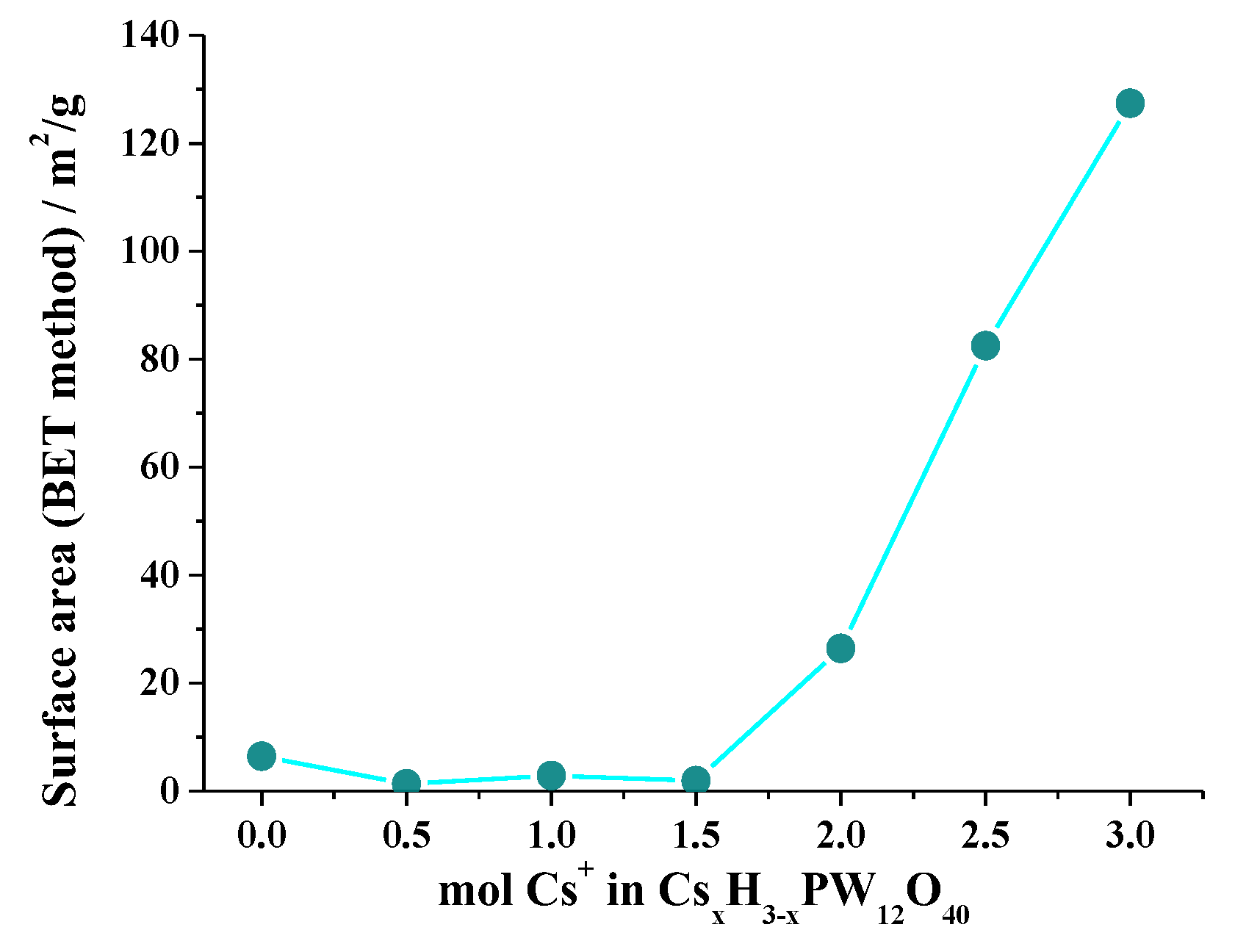

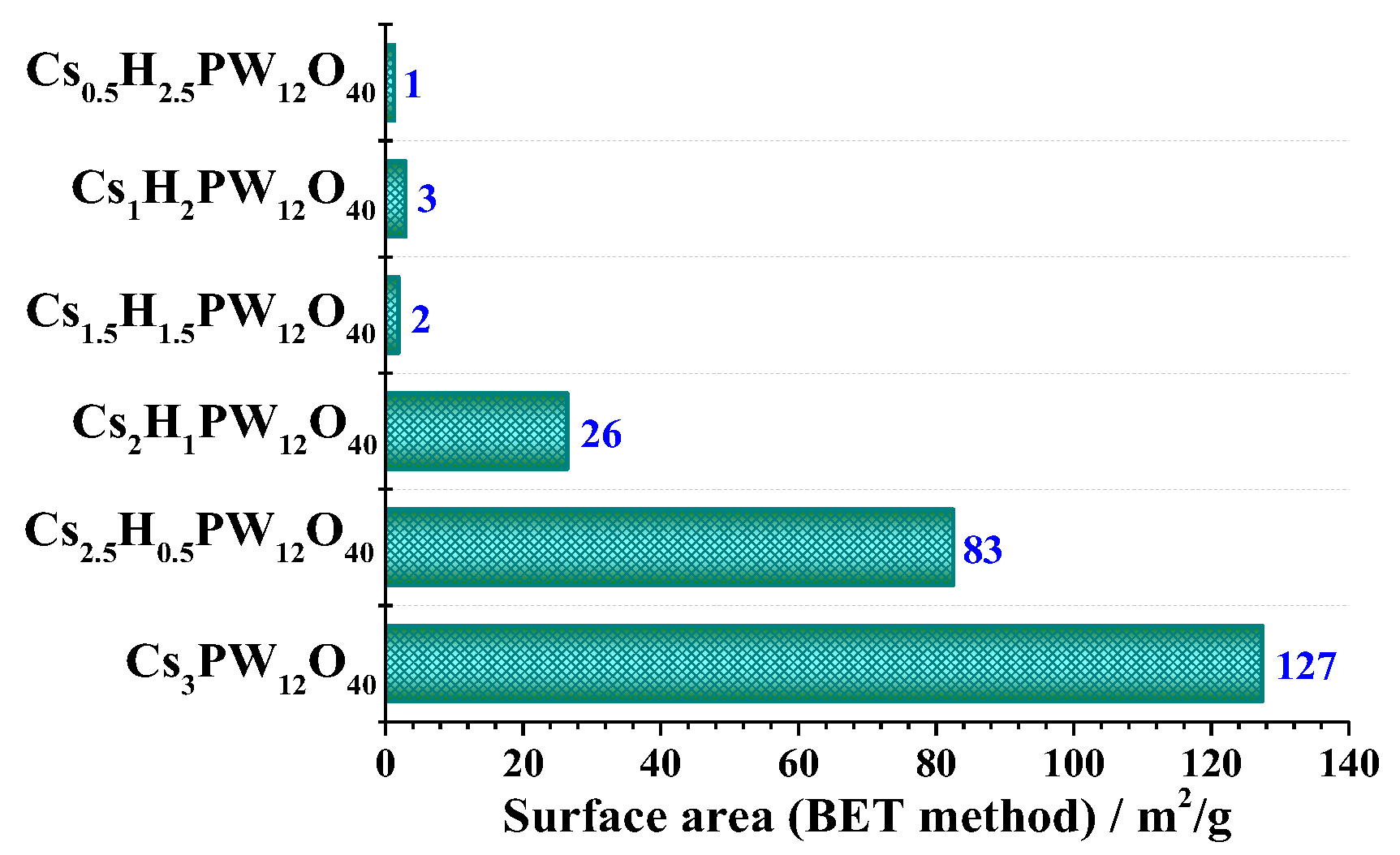

The impacts of cesium load on the surface area of cesium phosphotungstate salts catalysts were assessed the main results are displayed in Figure 9. In general, an increase in cesium load had a positive effect on the surface of tungsten heteropoly salts.

However, for lower cesium content the increase in surface area was less impacted. Conversely, when 2.0 or more Cs mol were present in the heteropolyanion, the surface was remarkably enhanced (Figure 10).

The nitrogen adsorption/desorption isotherms provide valuable information about the surface area and porosity of cesium heteropoly salts. However, Hyhoshi and Kamyhia observed the microstructure from micropores using aberration-corrected scanning transmission electron microscopy [47]. Those authors verified that although silicotungstic and phosphotungstic acids are solids with a low surface area when their protons are exchanged with cesium, rubidium, or ammonium, their surface area and porosity properties are strongly improved. They conclude the cesium content controls the pore size and pore-size distributions, using high-resolution imaging through transmission electron microscopy (TEM) and scanning transmission electron microscopy (STEM). These techniques provide direct evidence for the structures of defects and interfaces. Moreover, they used aberration-corrected TEM and STEM for atomic-scale observations. Different microstructures that form micropores of Cs_2.5H_1.5SiW₁₂O₄₀ and Cs_4.0SiW₁₂O₄₀ were visualized by using aberration-corrected STEM. Those authors demonstrated the presence of microstructures that form the microporosity of Cs_2.5H_1.5SiW₁₂O₄₀ salt and anion vacancies in both salts (i.e., Cs_2.5H_1.5SiW₁₂O₄₀, Cs_4.0SiW₁₂O₄₀).

3.5. Measurements of Acidity Strength of Cesium Heteropoly Salts

The number and strength of the acid sites of the Cs⁺ exchanged phosphotungstic acid salts were determined by n-butylamine potentiometric titration using a BEL potentiometer, model W3B, with a glass electrode [35,36,37]. For comparison, the acidity of the pristine heteropolyacid was also evaluated. To do it, a solid salt (ca. 50 mg) was suspended in CH₃CN (30 mL) and magnetically stirred for 3 h. Posteriorly, the suspension was slowly titrated with n-butylamine solution (portions of ca. 100 μL, 0.025 mol L⁻¹), until the electrode potential kept stable after the addition of the titrant.

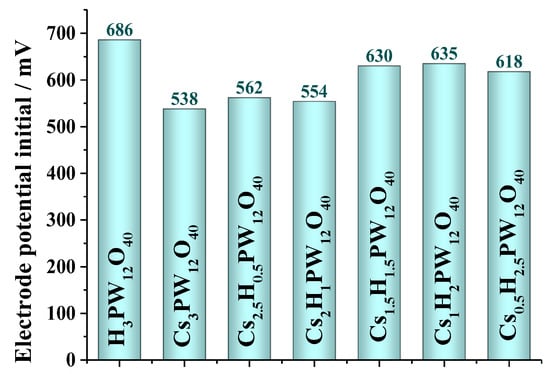

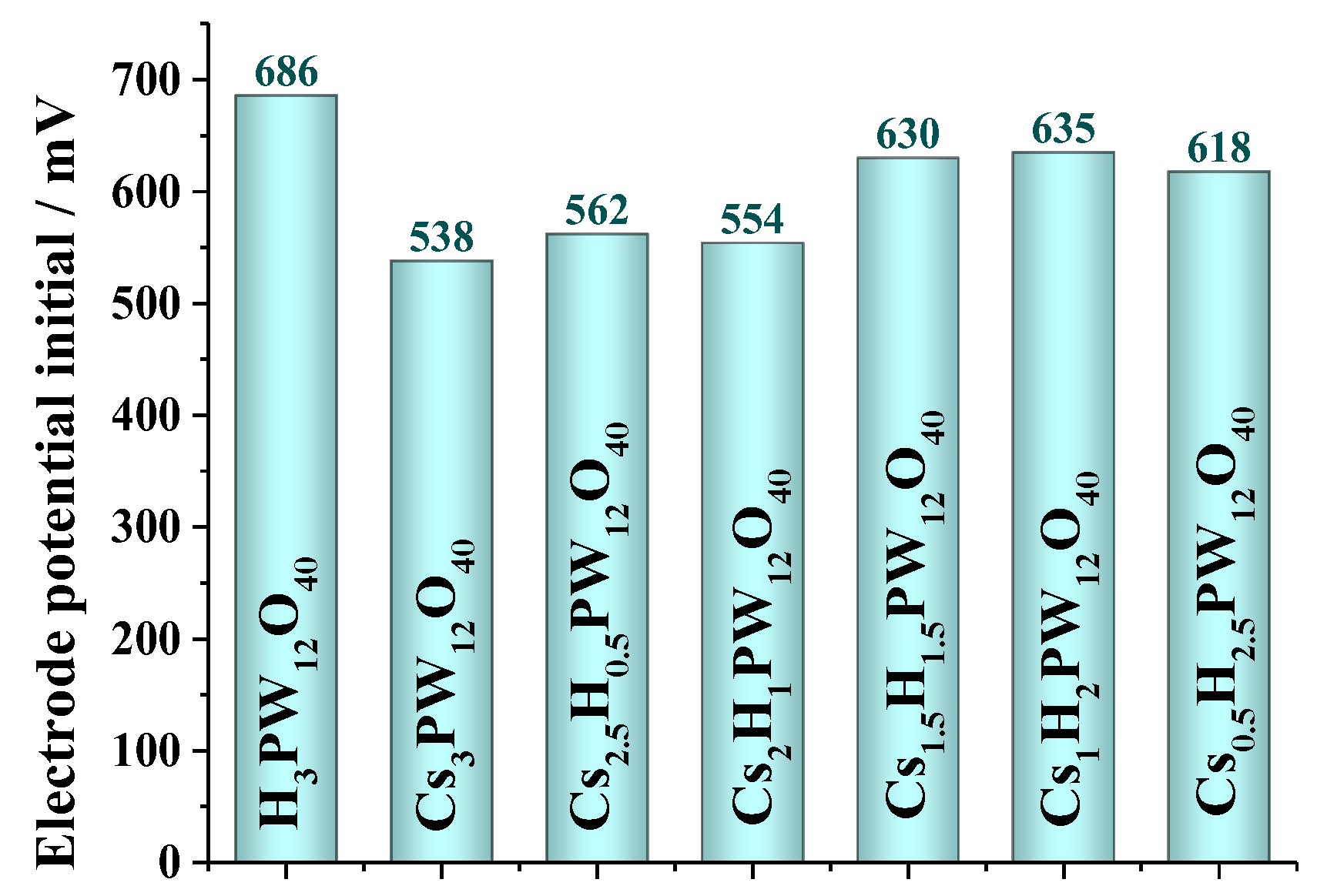

Figure 11 show the initial electrode potential values obtained from the solution or suspension of phosphotungstic catalysts. As expected, the solution of H₃PW₁₂O₄₀ and the suspension of Cs₃PW₁₂O₄₀ salt presented the highest and the lowest acidity, as showed the Ei values measured. Nonetheless, the strength of acidity of other cesium salts randomly varied, with values between 562 to 638 mV.

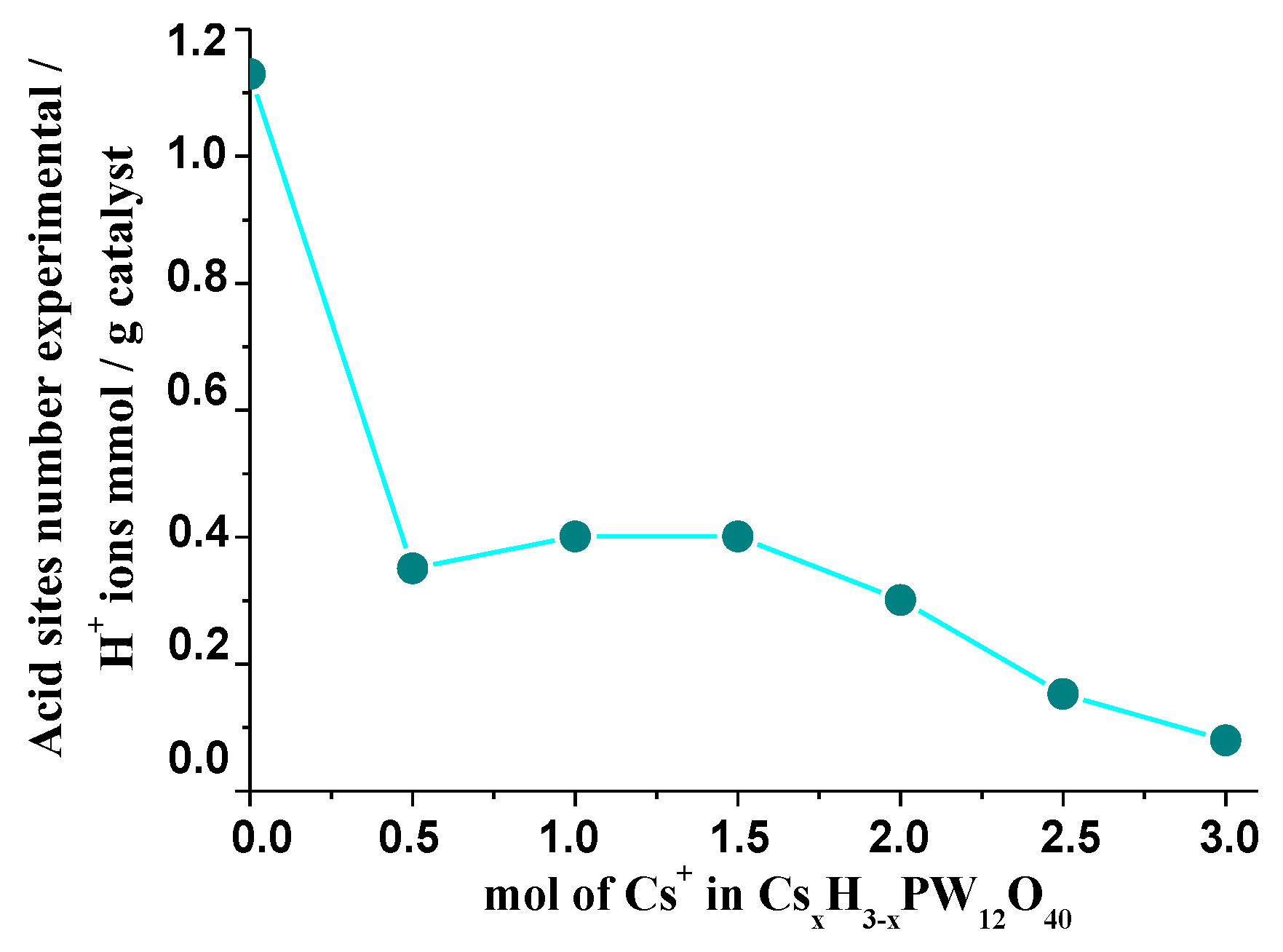

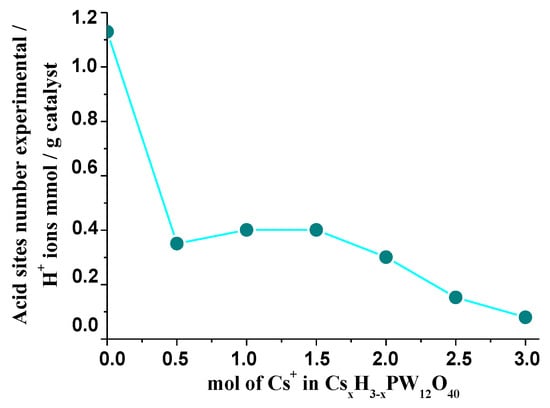

Figure 12 shows the effect of cesium load on the acid site’s number of cesium phosphotungstate catalysts.

The partial replacement of protons in Keggin-type HPAs with larger cations can make them insoluble in water. Although the amount of Brønsted acid sites in Cs_xH_3−xPW₁₂O₄₀ became lower as compared to H₃PW₁₂O₄₀, the strength of Brønsted acidity for Cs_xH_3−xPW₁₂O₄₀ was still preserved [48]. When Keggin HPAs are compared to the typical inorganic acids, their greater acidity is ascribed to the size and charge of the anion [49]. However, even cesium is included in the secondary structure of HPAs, these cations ca be hydrolyzed generating H⁺ ions that contributes to the acidity of salts [50] and, thus, weaken the attraction of the proton to the anion.

4. Keggin HPA Cesium Salts-Catalyzed Reactions

Keggin HPA cesium salts are versatile catalysts active in different reactions such as those acid-catalyzed (i.e., esterification, etherification, acetalization, ketalization, hydrolysis) or oxidative transformations (i.e., desulfurization, oxidation of alcohols, aldehydes, and olefines). In this review, we will try to separately address these two types of reactions.

4.1. Keggin HPA Cesium Salts: Acid-Catalyzed Reactions

Nowadays, glycerol esters and ethers have been considered potential bioadditives to be blended with fossil fuels, consequently, a growing interest in the development of synthesis processes of these oxygenated compounds from glycerol generated in surplus by the biodiesel industry has been observed [51]. The blending of these glycerol-derived with diesel improves internal combustion efficiency, decreases greenhouse gas emissions, and increases fuel properties such as cetane number and cloud points [52,53].

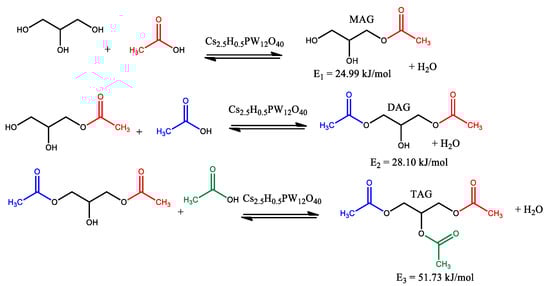

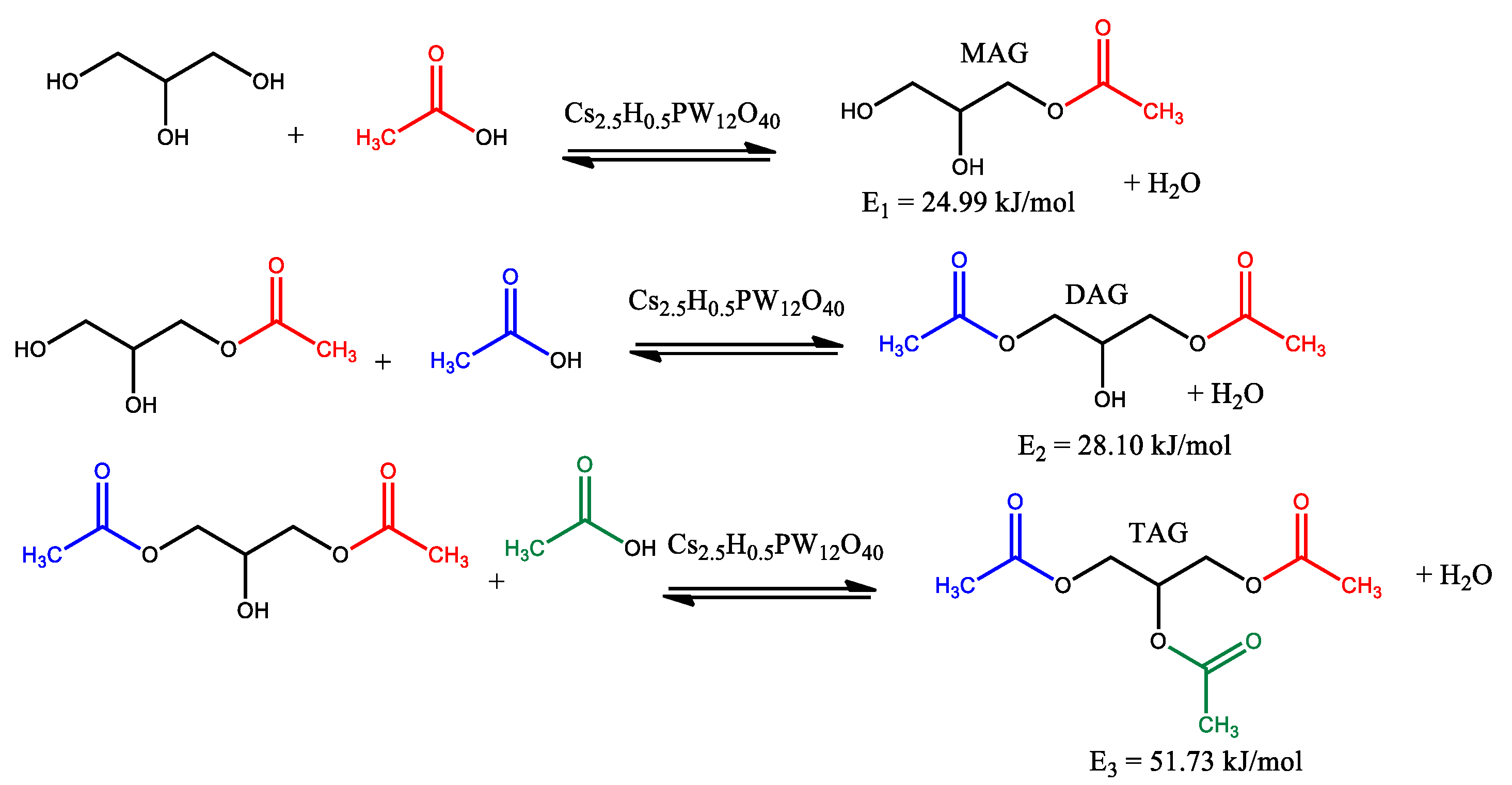

In this sense, Veluturia et al. studied the glycerol esterification over cesium partially exchanged phosphotungstic acid salts [54]. Scheme 14 shows the main reaction products of glycerol esterification; the terminal hydroxy groups are preferentially esterified. Consequently, monoacetyl glycerol, 1,3-diacetyl glycerol, and triacetyl glycerol are the main products (i.e., MAG, DAG, and TAG, respectively). The reactions were carried out over a partially exchanged-cesium phosphotungstate (Cs_2.5H_0.5PW₁₂O₄₀). Those authors determined through kinetic study that this reactivity sequence is a consequence of trends observed in the activation energy of these reactions (Scheme 15).

Terpenes are renewable, abundant, and inexpensive raw materials, which can be valorized by modifying their chemical structure and consequent conversion to compounds that have industrial applications such as polymers, solvents, pharmacies, and fragrances [47]. In this sense, the development of processes to convert monoterpenes into fine chemicals with a higher value-added has been a goal of several research groups.

In particular, terpene ethers are compounds used as traction fluid, or in the field of fragrance and solvents. In addition, terpene ethers are bioactive compounds with antimicrobial and food preservative properties that are considered as a real potential application in the food industry [55].

In this regard, partially exchanged cesium salts were also effective catalysts in monoterpenes etherification reactions with alkyl alcohols [36]. Da Silva et al. carried out the β−pinene etherification with methyl alcohol and verified that at those conditions, the monoterpene substrate undergoes skeletal rearrangement reactions giving mainly α−terpinyl methyl ether (1A) as the main product (Scheme 15). This is a product of the nucleophilic addition of methyl alcohol to the tertiary carbocation resulting from the opening of the four-membered ring of β-pinene.

Typically, the catalytic tests were performed in a glass reactor (25 mL) fitted with a sampling septum and under magnetic stirring, containing β−pinene (3.74 mmol), solved in alkyl alcohol (10 mL), heated to 333 K temperature.

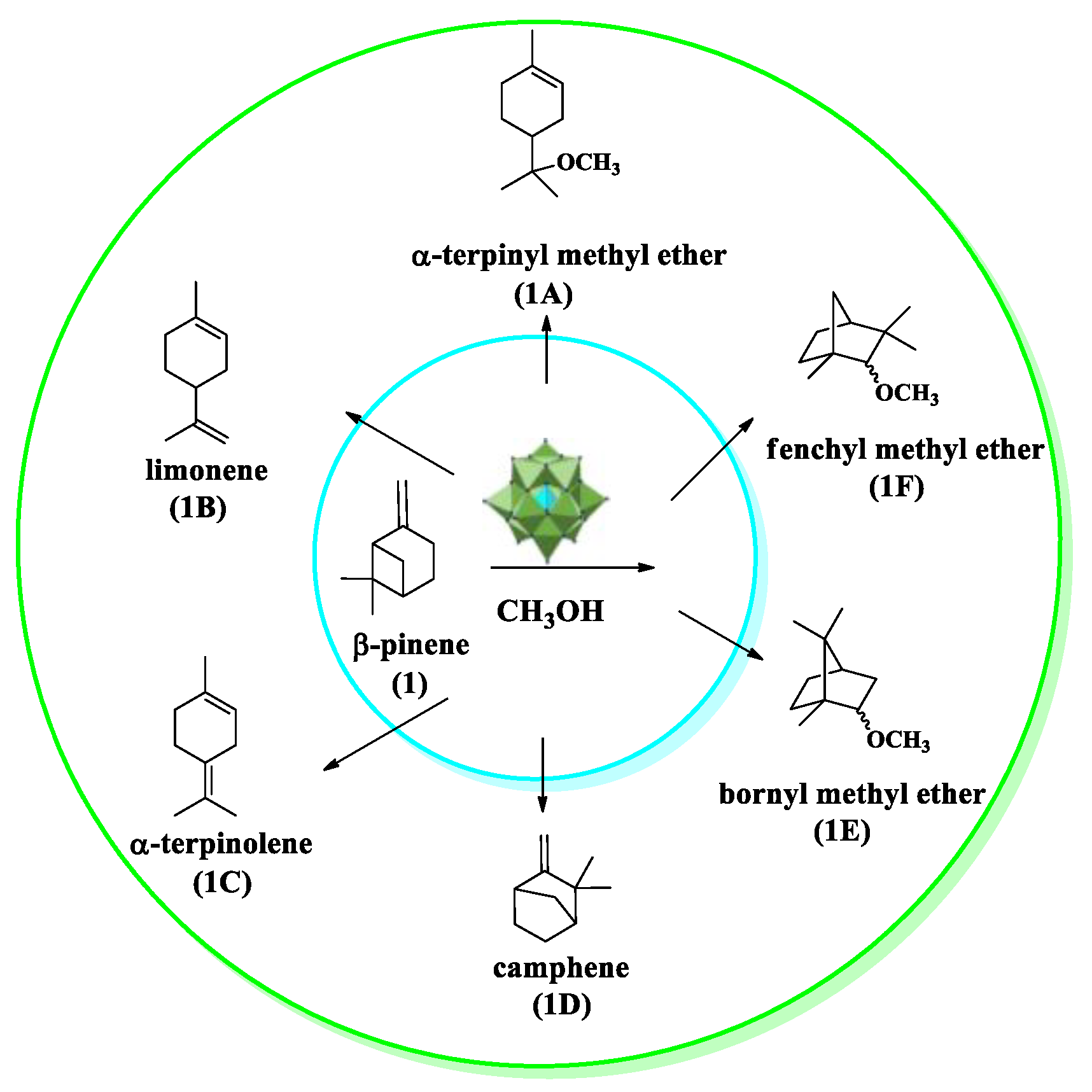

Although a high selectivity toward α−terpinyl methyl ether (1A) has been achieved (60%), other two types of products were also formed: fenchyl (1F) and bornyl (1E) methyl ethers, which were also resulting from the rearrangement of carbon skeletal followed by nucleophilic addition of methyl alcohol, and, secondly, isomerization products, such as camphene (1D), limonene (1B), α−terpinolene (1C). Figure 13 displays the conversion and selectivity reached in the reactions in the presence of Keggin HPAs or their cesium salts.

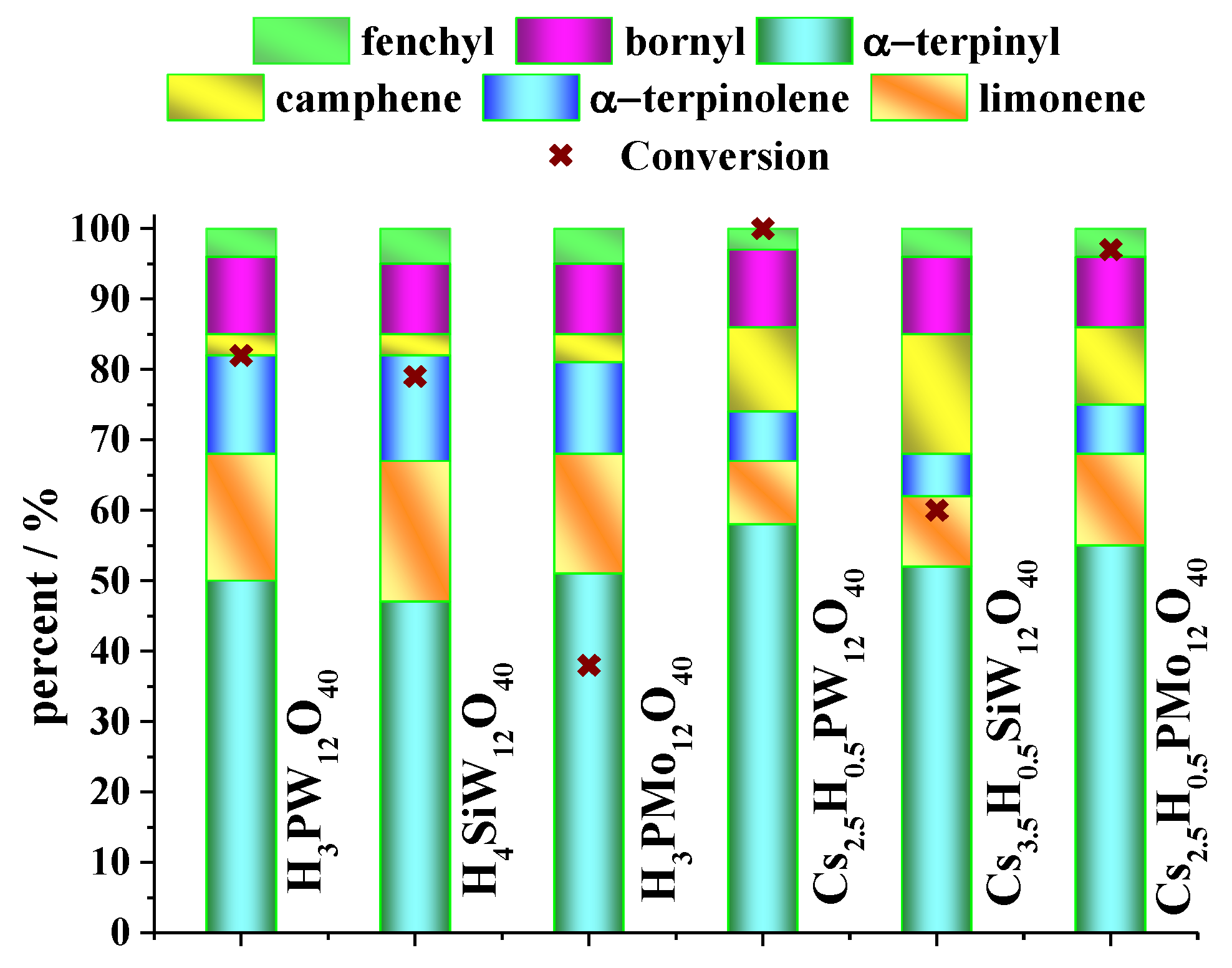

The reaction in the presence of Cs_2.5H_0.5PW₁₂O₄₀ salt achieved the highest conversion and selectivity toward α−terpinyl methyl ether (1A). This result was superior to that achieved in the presence of phosphotungstic acid, which takes place in a homogeneous phase.

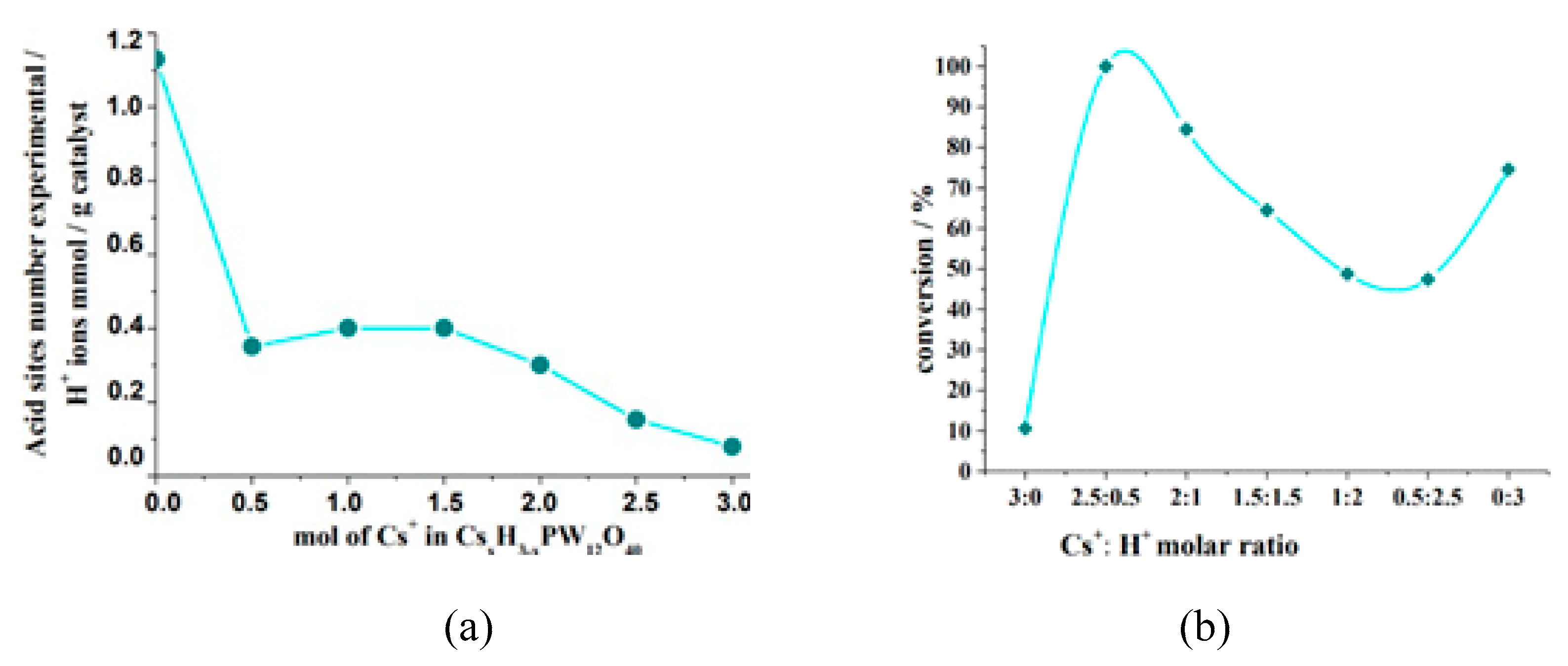

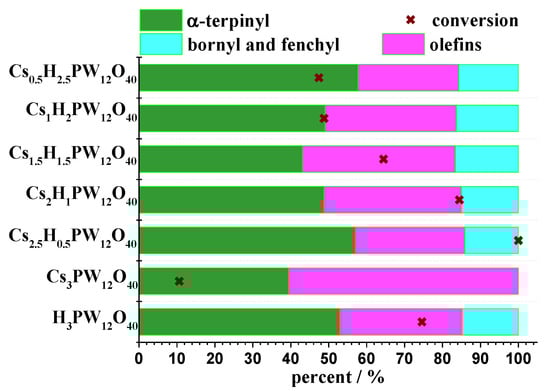

Figure 14 unequivocally shows that there is an optimum proportion between Cs⁺: H⁺ cations. This means that an excess of protons is prejudicial for the reaction; conversely, in the absence of protons (i.e., Cs₃PW₁₂O₄₀), only a poor conversion was attained.

Figure 14a shows that if a high acid sites number is present (i.e., H₃PW₁₂O₄₀), a high conversion is achieved. However, in this case, the catalyst is soluble. Moreover, it is possible to note that the presence of a minimum amount of H⁺ ions is required for the success of the catalyst (Figure 14b). It is noteworthy that the leaching of the catalyst is impacted by the cesium load. If a low cesium content is present, the catalyst is more soluble.

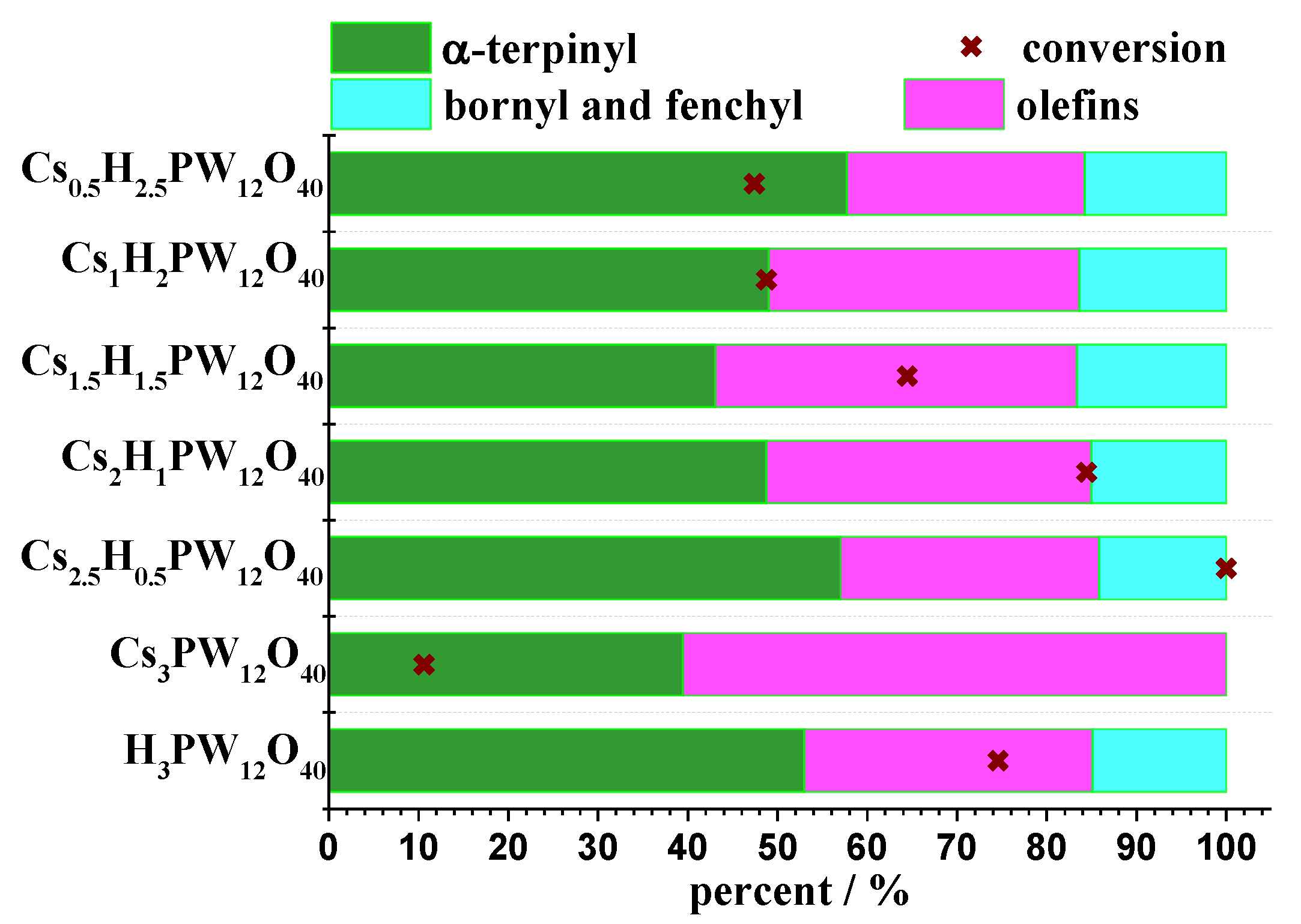

The impacts of cesium load on the conversion and selectivity of β−pinene reactions with methyl alcohol were also evaluated (Figure 15). This effect was evaluated for phosphotungstate catalysts. An increase in Cs load (i.e., 0.5 to 2.5 mol of Cs/mol catalyst) increased the reaction conversions. Nonetheless, the Cs₃PW₁₂O₄₀-catalyzed reaction reached the lowest conversion. There is no direct relation between the cesium load and reaction selectivity, however, it is possible to conclude that the 2.5: 0.5 proportion of Cs: H is that that provided the highest selectivity to goal product (α−terpinyl methyl ether (1A)).

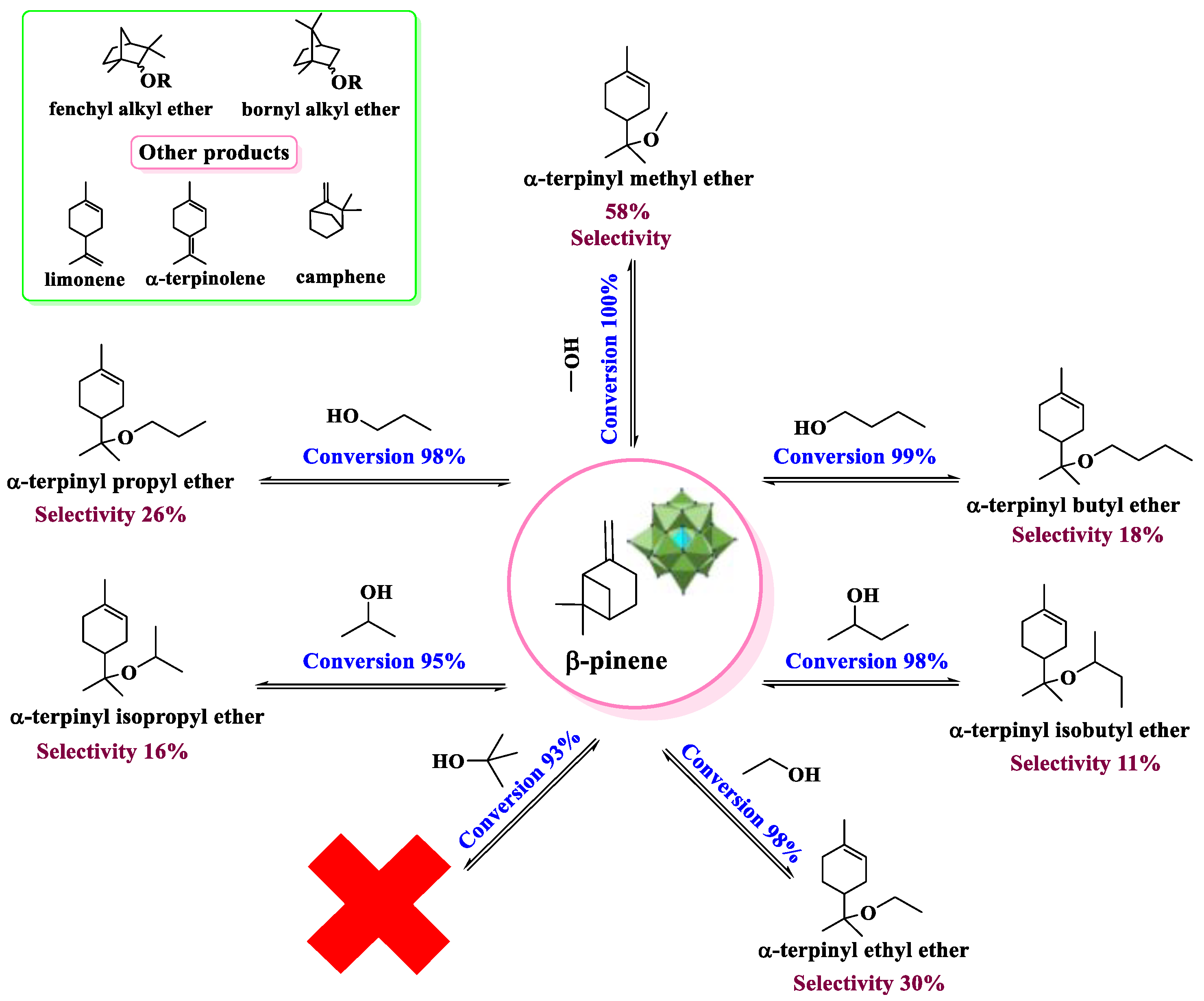

The Cs_2.5H_0.5PW₁₂O₄₀-catalyzed etherification reactions of β−pinene were carried with different alcohols (Scheme 16). High conversions, greater than 90%, were achieved regardless of the alcohol used. The reaction selectivity to terpinyl alkyl ether had a linear behaviour concerning the size of the carbon chain of alcohol: C1, C2, C3, and C4 alcohols give 58%, 30%, 26% and 18% of selectivity. Although less reactive than primary alcohols, secondary ones also provided terpinyl alkyl ether. Only the reaction with tert−butyl alcohol did not give terpinyl ether.

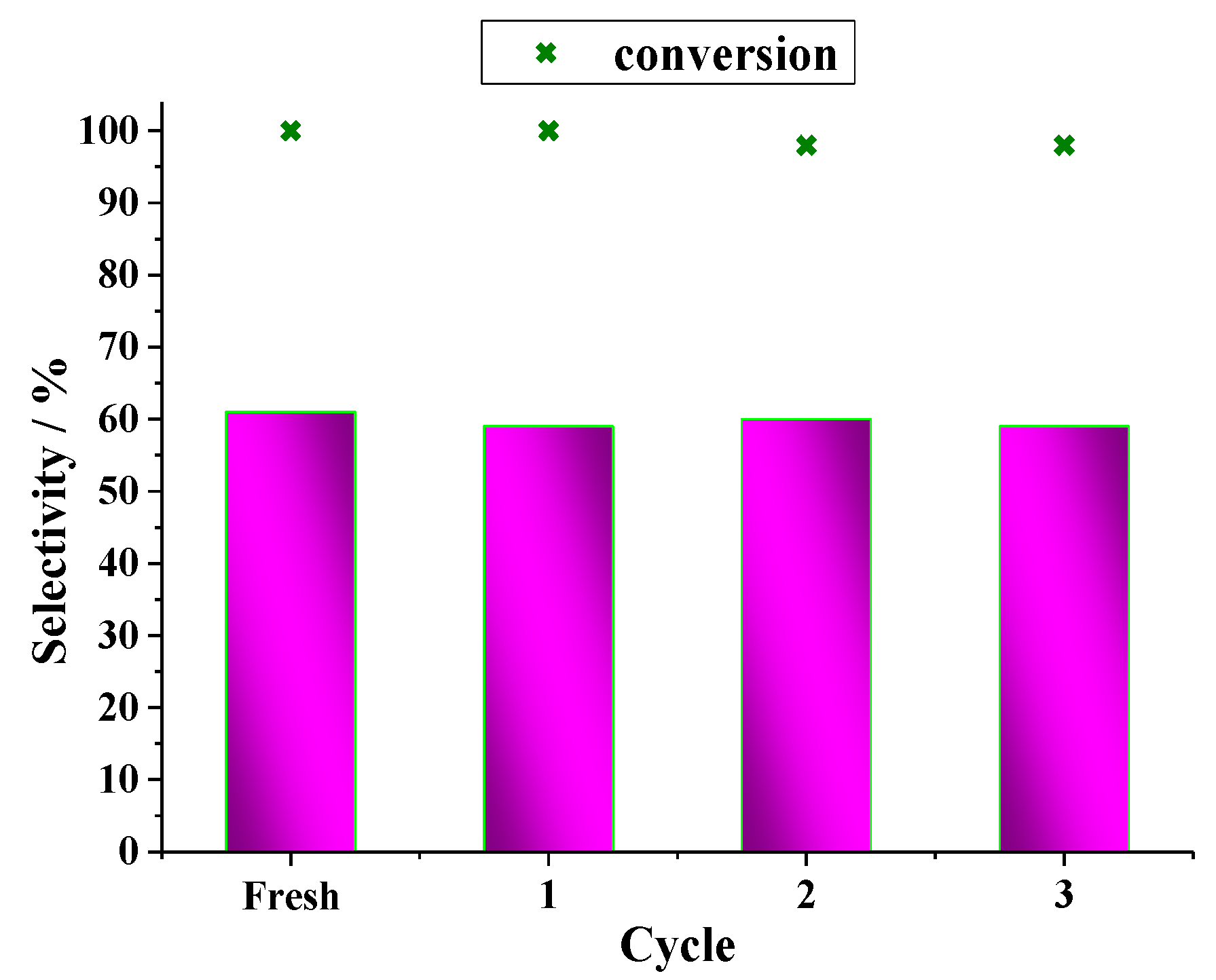

The reusability of Cs_2.5H_0.5PW₁₂O₄₀ was also evaluated (Figure 16). This catalyst was successfully recovered and reused three times in β−pinene reactions with methyl alcohol without loss of activity or selectivity.

Furfural is a valuable platform molecule readily accessible from biomass. It is the main unsaturated chemical obtained in large-volume from biomass resources. Their derived are essential to produce potential candidates to replace the fossil origin chemicals, with an annual production of about 300,000 t/year [56,57].

The furfural chemistry is well established, and various derived have been widely used in the industry, such as furfuryl alcohol, 5-hydroxymethyl furfural, decarbonylation products such as furan and tetrahydrofuran, and condensation products of furfural with alcohols [58,59].

This set of cesium catalysts was evaluated in furfural acetalization reactions with alkyl alcohols [35]. Furfuryl acetals are valuable ingredients of synthesis and can be used as solvents or bioadditives. Figure 17 shows the conversion achieved in furfural acetalization reactions with methyl alcohol carried out over Keggin HPAs or their cesium-exchanged salts.

Typically, the catalytic tests were carried out in a glass reactor (25 mL) fitted with a sampling septum, under a magnetic stirrer, containing furfural and adequate alcohol. The reactor temperature was adjusted to 298 K. Then, the reaction was started by adding of solid catalyst [35].

Different from reactions with β−pinene, where various products were formed, herein regardless of Keggin HPA or cesium salt only dimethyl furfuryl acetal was selectively obtained.

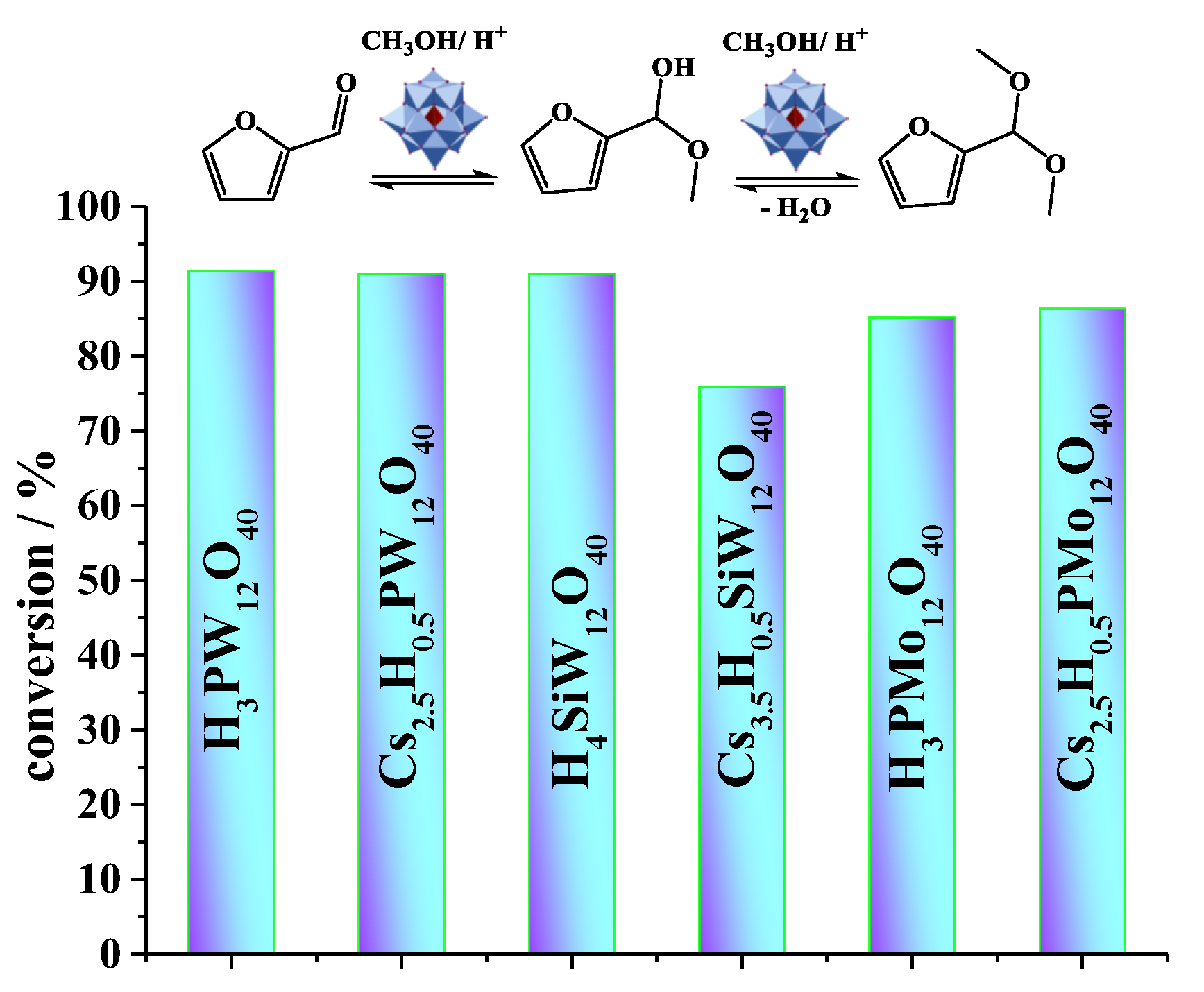

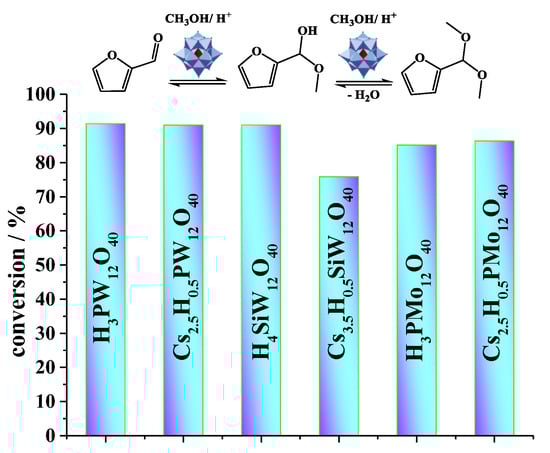

The reactions in the presence of the phosphotungstic catalysts (i.e., acid and cesium salt) reached the highest conversion, besides the silicotungstic acid-catalyzed reaction. However, only the Cs_2.5H_0.5PW₁₂O₄₀ act as a heterogeneous catalyst, while the heteropolyacids are soluble. For this reason, it was selected to evaluate other reaction parameters.

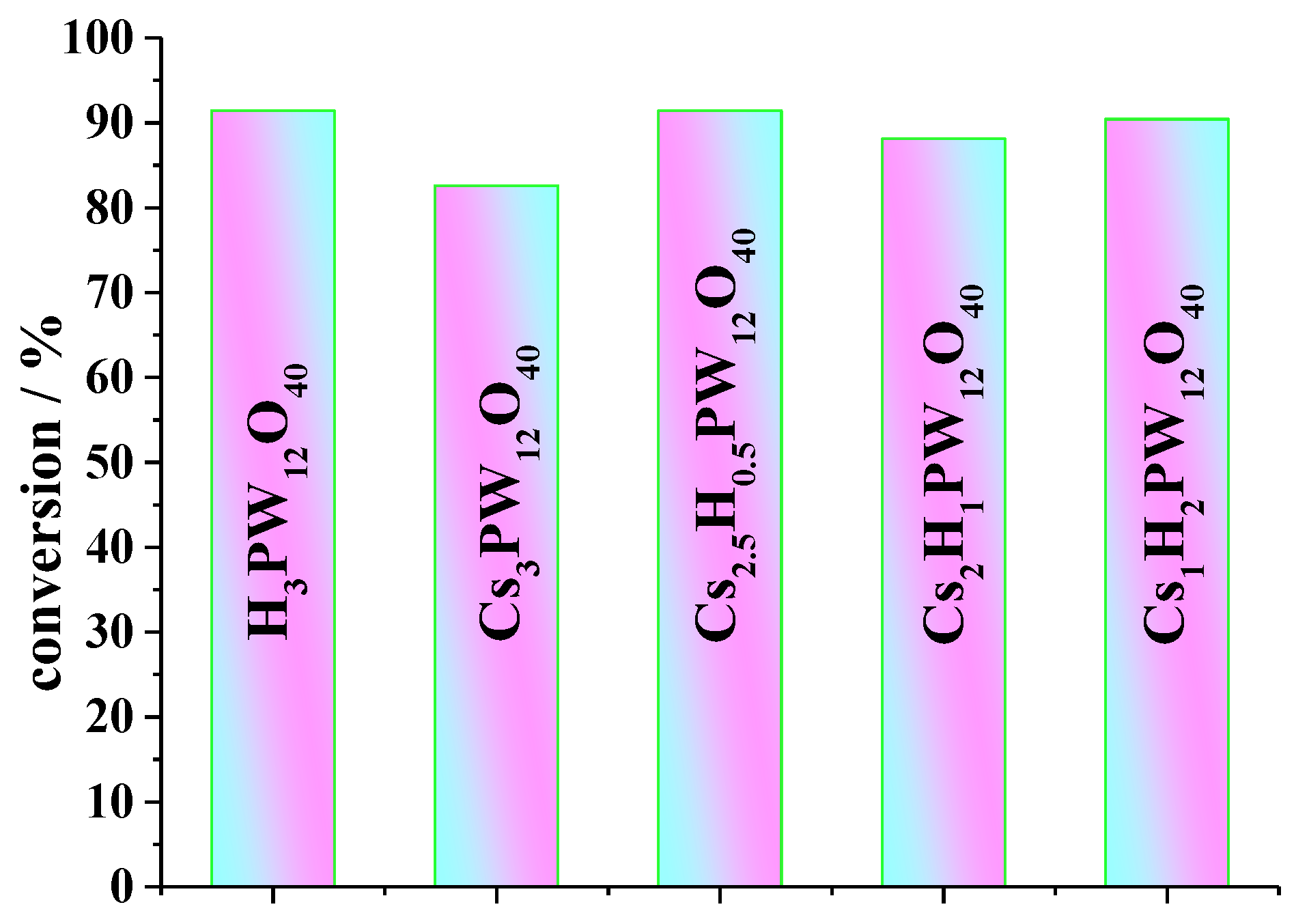

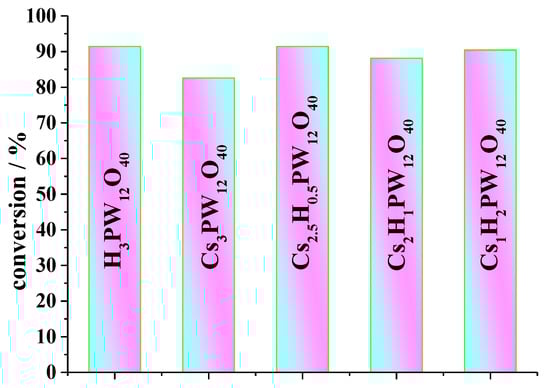

The effect of cesium load was assessed, and the main results are presented in Figure 18. It is possible to see that the reaction conversions were not significantly affected by the cesium load present in the catalyst.

Different from those observed in etherification reactions of β−pinene with methyl alcohol, the Cs₃PW₁₂O₄₀ salt was also an efficient catalyst in the condensation reaction of furfural with this alcohol [35,36].

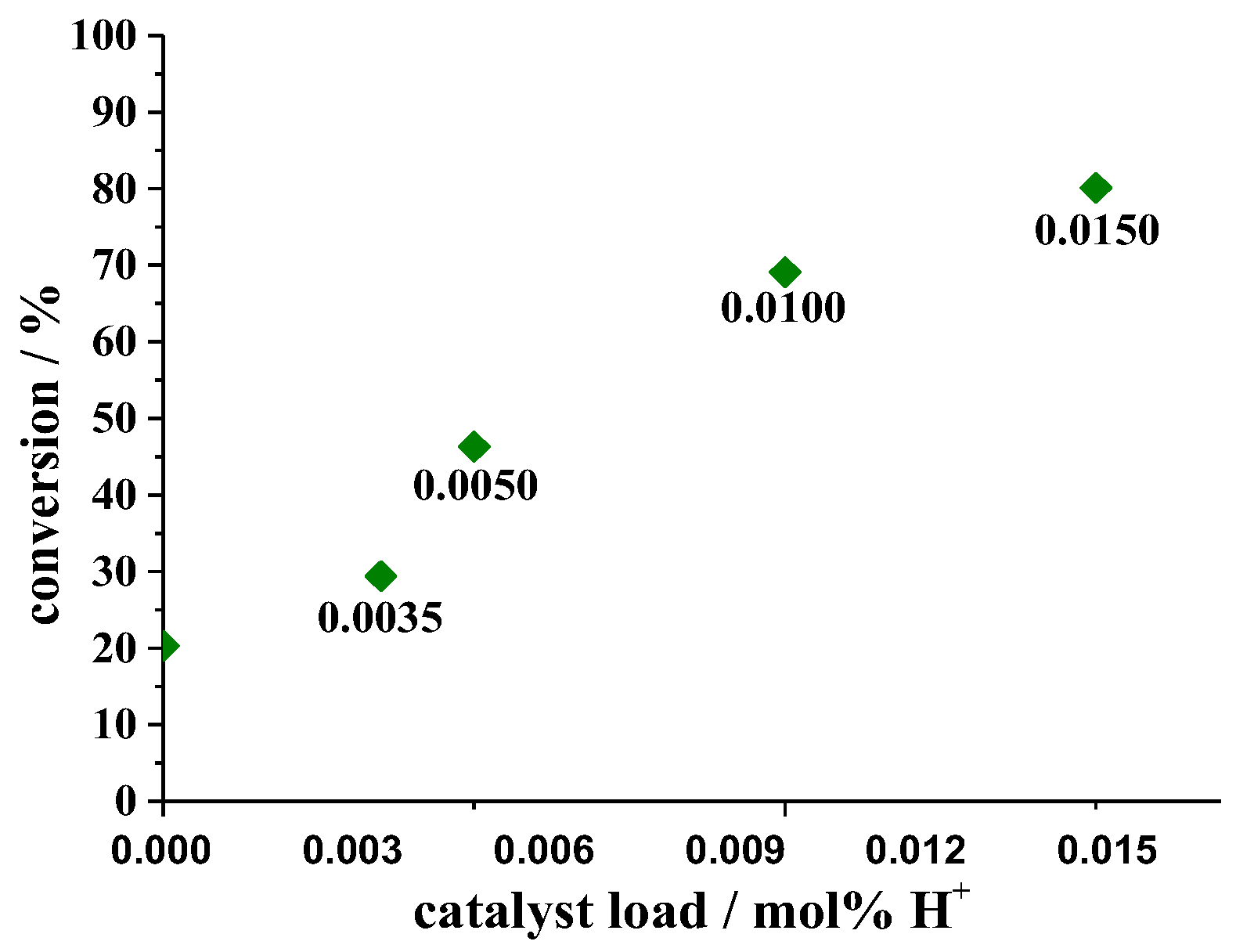

To evaluate the dependence of reaction concerning the catalyst load, a series of runs were performed, and the results are displayed in Figure 19. It is possible to see that even in the absence of catalyst, the conversion achieves 20%. It can be explained due to the alcohol excess, which shift the equilibrium toward products even without catalyst.

An increase in catalyst load had a beneficial impact on the conversion; the trends observed suggest a first-order dependence concerning H⁺ load (Figure 19).

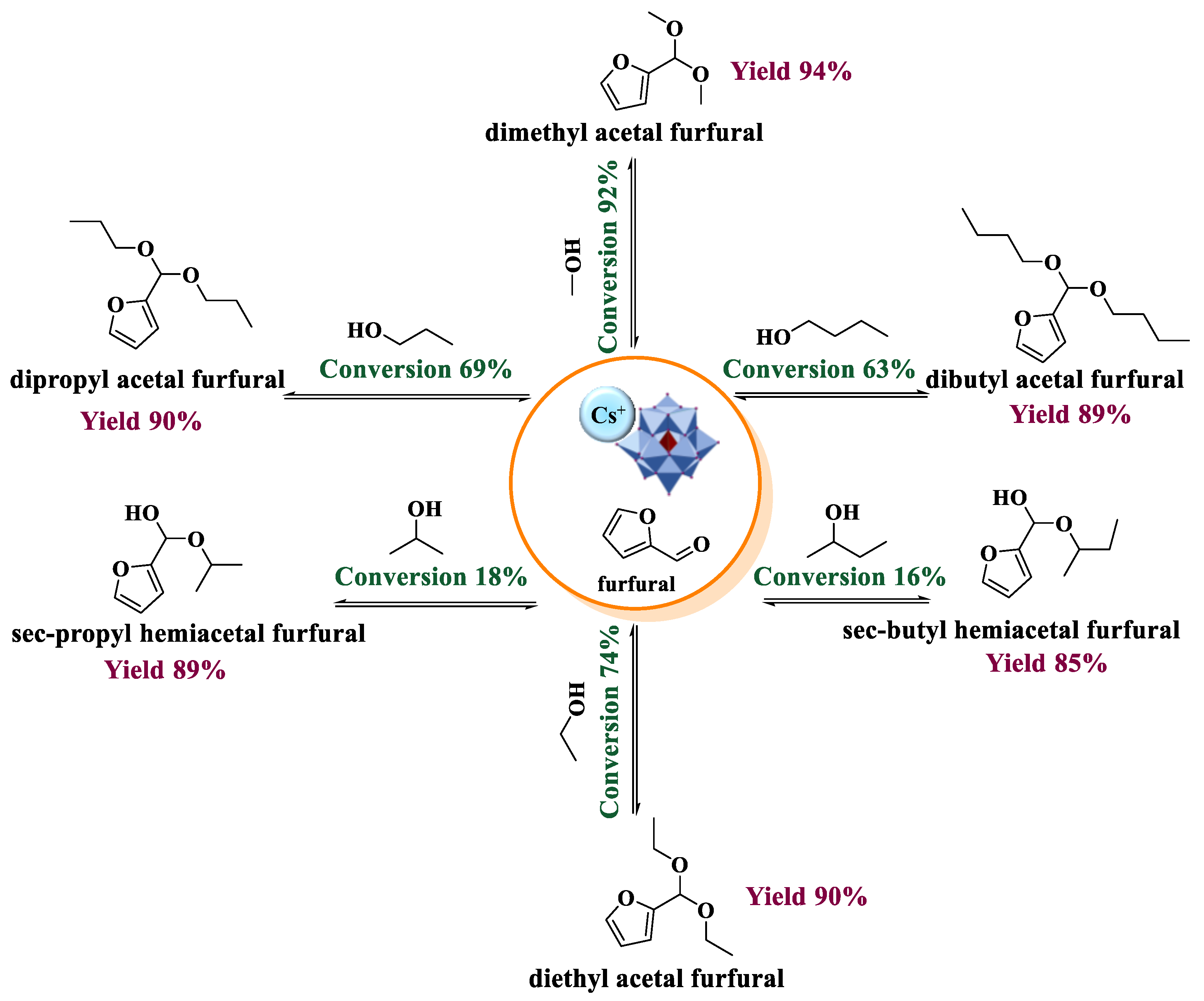

The Cs_2.5H_0.5PW₁₂O₄₀-catalyzed furfural condensation reactions were also performed with other alkyl alcohols (Scheme 17).

Different from verified in the β−pinene reactions with different alcohols, the conversions were affected by the alcohol nature. An increase in the size of the carbon chain harmed the reaction conversions; the reactions with C1, C2, C3, and C4 alcohols, achieved 92%, 74%, 69%, and 63% conversions, with furfuryl alkyl acetal yields of 94%, 90%, 90%, and 89% (Scheme 18). Due to the high steric hindrance, the secondary alcohols were less reactive, and the conversions achieved with sec-propyl and sec-butyl alcohols were 18% and 16%, respectively. In addition, different from primary alcohols, the reaction was not complete; it was stopped when the hemiacetal was obtained. It is also a consequence of steric hindrance on the hydroxyl group of alcohol.

Levulinic acid (LA) is a chemical obtained from biomass classified as one of the most promising building blocks of biorefinery, selected as one of the “Top 10” platform chemicals [60]. LA is obtained through dehydration in acidic media of hexoses (i.e., acid treatment of agricultural wastes and wastes of wood containing cellulose or hemicellulose), which gives HMF that is subsequently hydrated. It is useful as a solvent, antifreeze, resin, food flavouring agent, plasticizer, and starting material for the preparation of a variety of industrial and pharmaceutical compounds [52]. Angelica lactone, succinic acid, 1,4-pentanediol, and methyl THF are only some examples of their valuable LA derived.

Beyond these products, esters of LA are also key compounds used in the production of flavours, solvents, and plasticizers [61]. Moreover, the resulting ketoesters of the cyclization of LA are substrates for a diversity of condensation and addition reactions [62]. LA esters have properties that make them potential oxygenate additives to fossil fuels, improving their octane and cetane numbers [63,64].

The typical catalysts used for LA esterification are mineral liquid acids such as sulfuric and hydrochloric acids, however, serious drawbacks of these inexpensive catalysts are the tedious work-up procedure, the steps of neutralization and purification that result in large effluents generation, besides the difficult catalyst regeneration [65]. For these reasons, solid catalysts are preferable due to their easy separation, recycling, and lower corrosiveness [66].

Most of the time solid-supported catalysts are the option, nonetheless, the water generated as a co-product of the esterification reaction and the high polarity of the medium led to the leaching of the active phase of solid-supported catalysts and are challenging to overcome [67].

In this sense, Keggin HPAs Cs salts rise as an attractive option. Therefore, the activity of Keggin HPAs and their exchanged-partially cesium salts was evaluated in the esterification reactions of levulinic acid with alkyl alcohols. Levulinic esters are potential candidates for bioadditive of fuel or even as biofuel [37]. Previously, we have found that the homogenous acid H₄SiW₁₂O₄₀ was an effective catalyst in levulinic acid esterification reactions at room temperature [68]. However, herein as the catalyst remained solid in solution, a high reaction temperature was required.

Typically, catalytic runs were carried out in a sealed glass tube (25 mL), containing levulinic acid (2.0 mmol) dissolved in an alkyl alcohol solution (8 mL) under magnetic stirring, which was heated to 393 K in an oil bath. The addition of the acid catalyst (1.2 mol %) started the reaction [37].

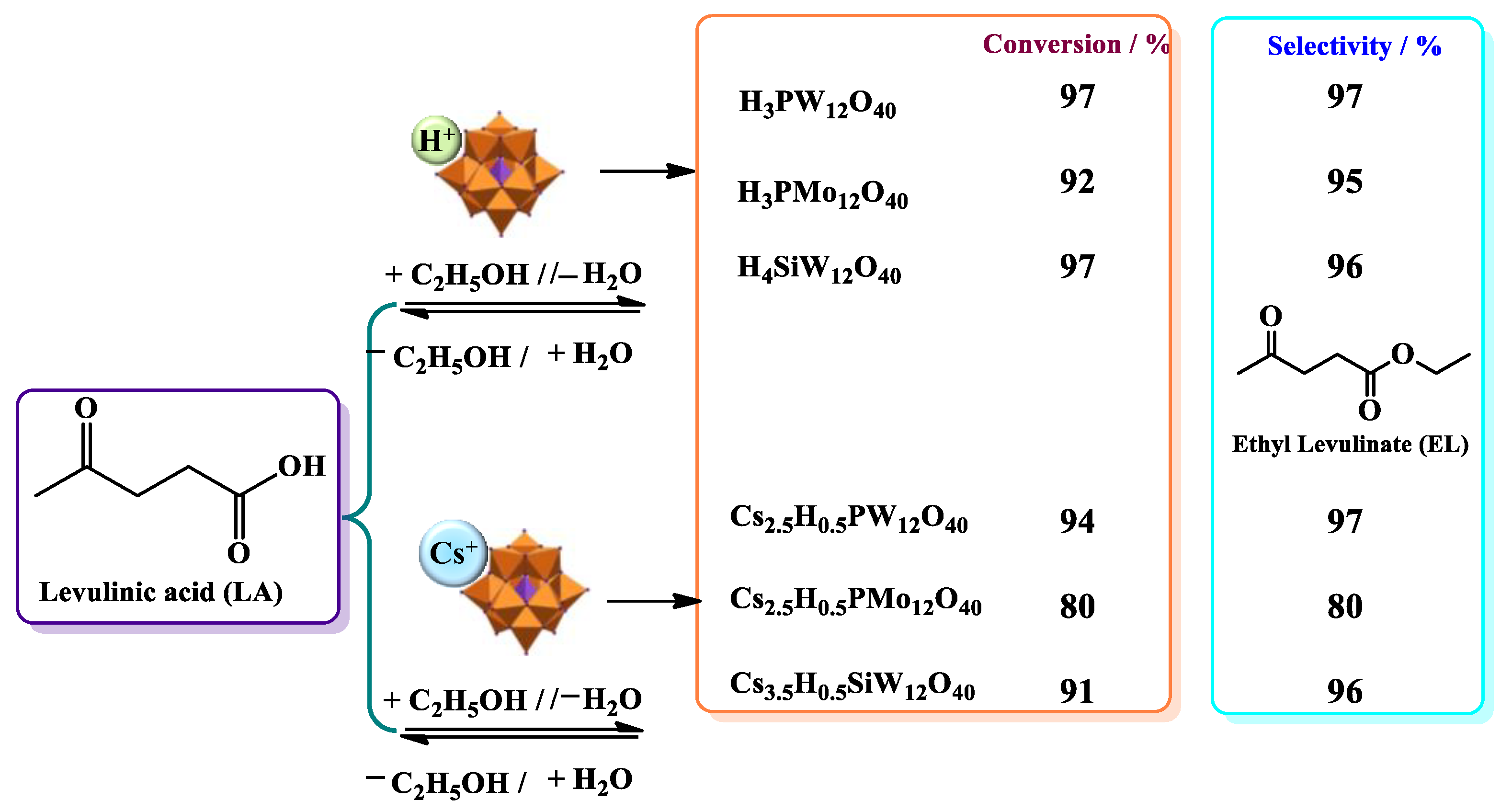

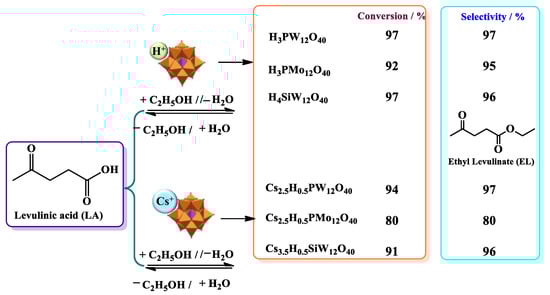

Scheme 18 summarizes the main results achieved in the esterification reactions of levulinic acid with ethyl alcohol, in the presence of Keggin HPAs or their partially exchanged cesium salts. The selectivity toward ethyl levulinate, an ester with a carbon chain in the range of automotive liquid fuel is also highlighted.

The conversions and selectivity reached were higher for the reactions in the presence of tungsten catalysts (silico- or phosphotungstic). Although the highest conversion (i.e., 97%) has been attained on the H₃PW₁₂O₄₀-catalyzed reaction, it occurred in homogenous conditions. Therefore, the Cs_2.5H_0.5PW₁₂O₄₀ catalyst was selected to study the effect of reaction variables [37].

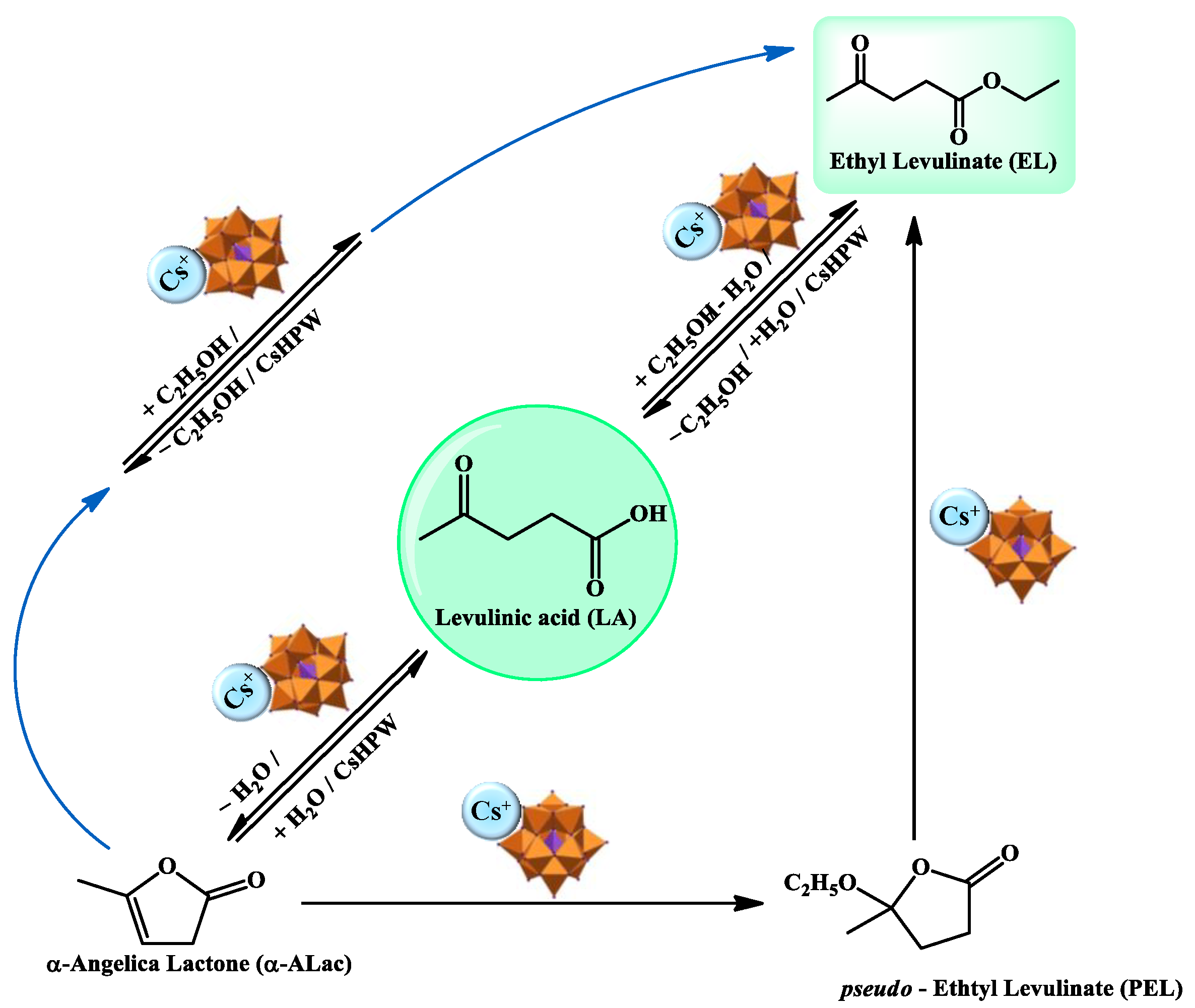

In the presence of an acidic catalyst, the levulinic acid can be converted to ethyl levulinate following the reaction pathway shown in Scheme 19 as reported in the literature [52].

Although the esterification type Fisher seems to be the most probable route, it is possible that depending on the strength of acidity of the catalyst, the levulinic acid suffers a lactonization process generating the angelic lactone or pseudo-ethyl levulinate, being then converted to ester.

The impact of cesium load on the conversion and selectivity of levulinic acid esterification reactions with ethyl alcohol was investigated, the main results are shown in

Table 1. Effects of cesium load on the conversion and selectivity of levulinic acid esterification reactions with ethyl alcohol in the presence of phosphotungstic acid or their exchanged-partially cesium salts (adapted from ref. [37]) ^a.

Catalyst	Conversion of Levulinic Acid	Ethyl Levulinate Selectivity
H3PW12O40	97	97
Cs0.5H2.5PW12O40	96	96
CsH2PW12O40	96	95
Cs1.5H1.5PW12O40	95	94
Cs2HPW12O40	94	95
Cs2.5H0.5PW12O40	94	97
Cs3PW12O40	85	87

^a Reaction conditions: levulinic acid (2 mmol), ethyl alcohol (8 mL), dodecane (internal standard), catalyst (1.2 mol%), temperature (393 K), time (6 h).

. The cesium load had a minimum impact on the conversion of Levulinic acid or ethyl levulinate selectivity. All of the cesium catalysts achieved conversions and selectivity equal to or greater than 90% (Table 1).

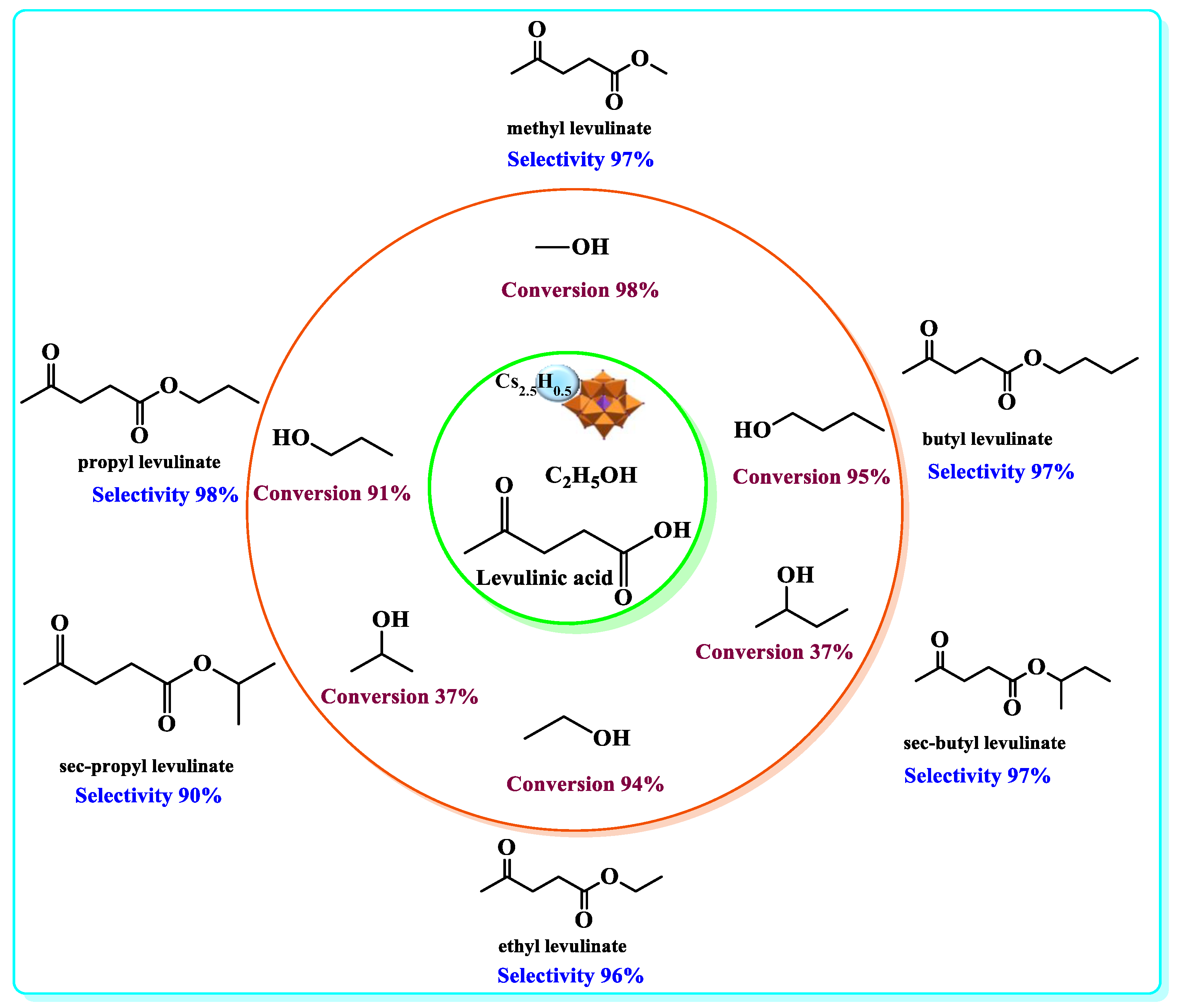

The Cs_2.5H_0.5PW₁₂O₄₀-catalyzed levulinic acid esterification reactions were also carried out with other alkyl alcohols (Scheme 20).

An increase in the size of the alcohol carbon chain had a minimum impact on the conversion of levulinic acid esterification reactions. On the other hand, the conversions achieved in the reactions with secondary alcohols were significantly lower than primary ones. Conversely, regardless of the alcohol used, the selectivity toward alkyl levulinate was always equal to higher than 90% (Scheme 20) [37].

4.2. Keggin HPA Cesium Salts as Catalysts in Oxidation Reactions

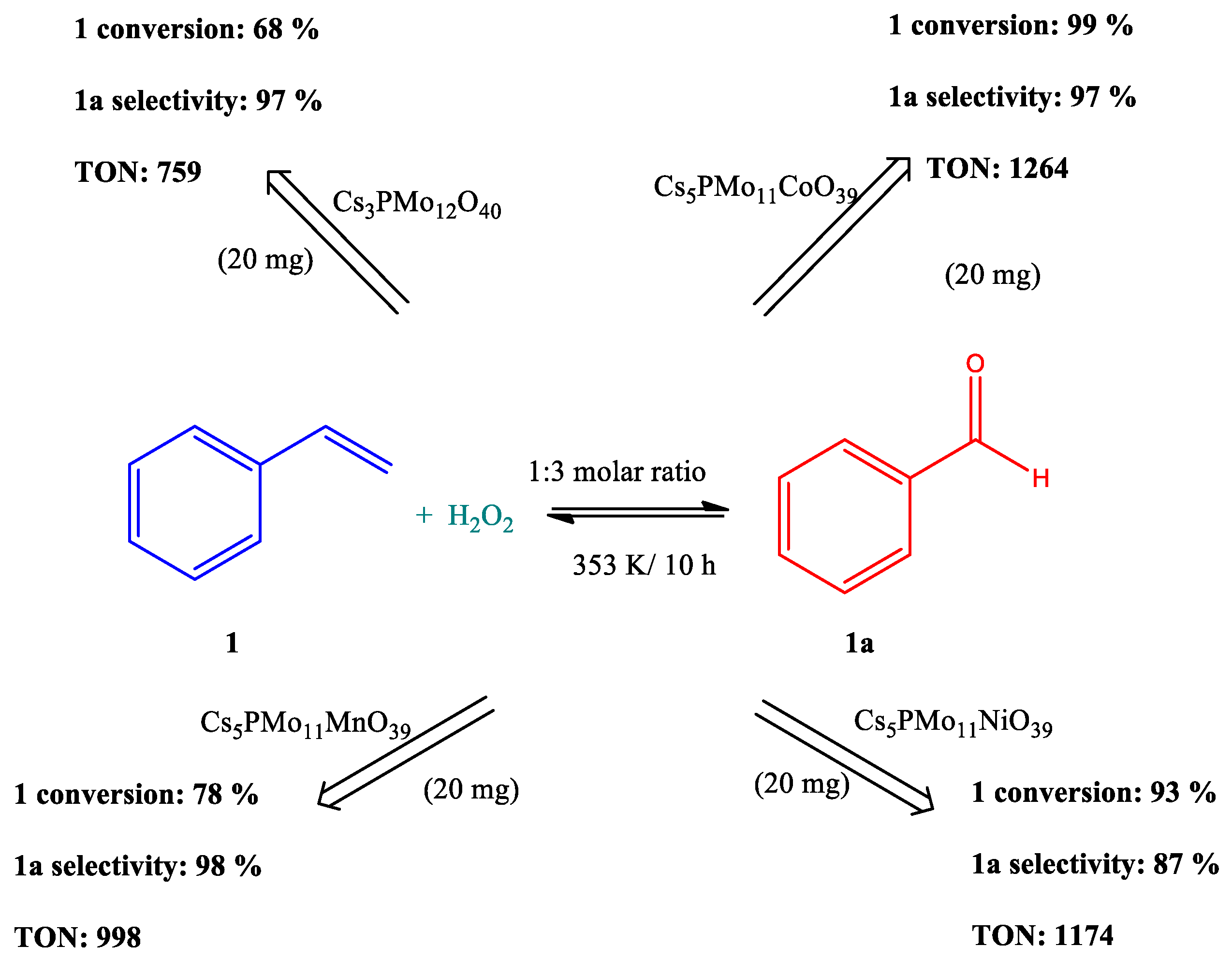

Patel and Patan reported the synthesis and detailed characterization of a Keggin-type cesium salt of transition metal-substituted phosphomolybdates, Cs₅[PCo(H₂O)-Mo₁₁O₃₉]·6H₂O and Cs₅[PMn(H₂O)Mo₁₁O₃₉]·6H₂O [69]. Those authors evaluated the catalytic activity of cesium salts in oxidation reactions in the liquid phase of styrene using hydrogen peroxide as the oxidant. Cesium salts doped with Ni, Mn or Co were the catalysts assessed. Those authors assessed the catalytic activity of these salts, and the main results are in Scheme 21.

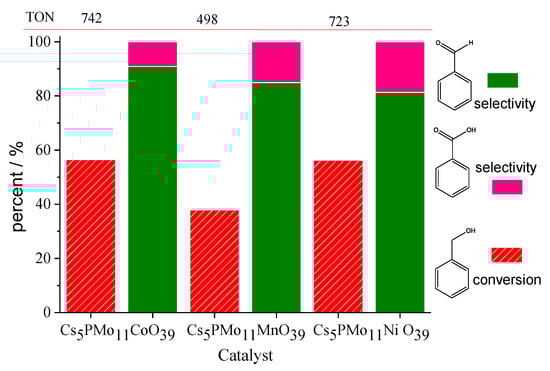

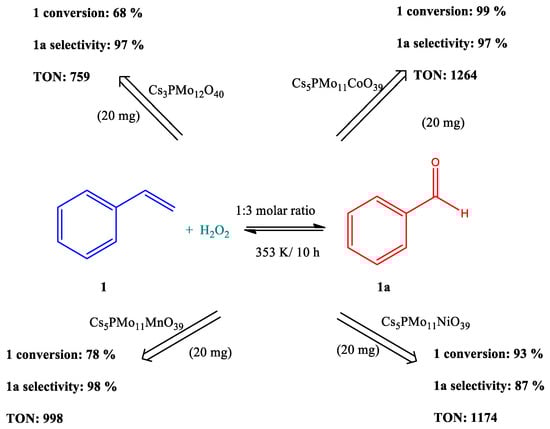

The high TON, conversion and selectivity achieved in the reactions over these salts demonstrate that they are highly efficient heterogeneous catalysts. All of these salts were stable under reaction conditions and reused without loss of catalytic activity. Kinetic studies found the values of activation energy equal to 62, 76 and 67 kJ/mol for the reactions over Cs₅PMo₁₁CoO₃₉, Cs₅PMo₁₁MnO₃₉ and Cs₅PMo₁₁NiO₃₉, respectively [52]. The same authors used manganese-doped cesium phosphotungstate salt catalysts in oxidation reactions of styrene as different oxidants [70,71].

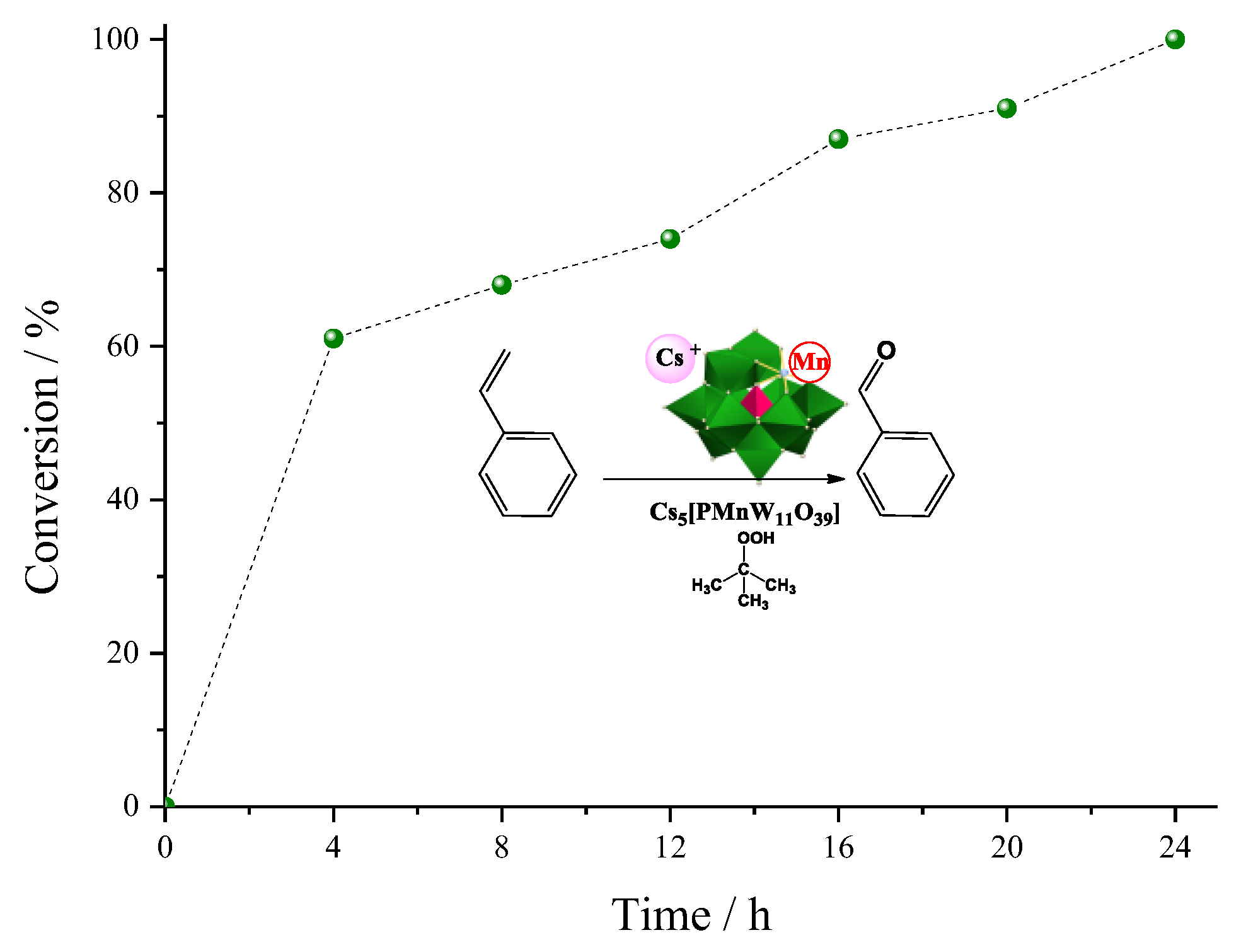

The kinetic curve in Figure 20 shows that this catalytic combination was less efficient than that using manganese-doped cesium phosphomolybdate salt and hydrogen peroxide [71].

Another example of the use of cesium salts as catalysts in oxidative transformations was reported by Li and Zhang, which asses the oxidative dehydration of glycerol to acrylic acid over vanadium-substituted cesium salts of Keggin HPAs [72]. Scheme 22 simply describes this reaction.

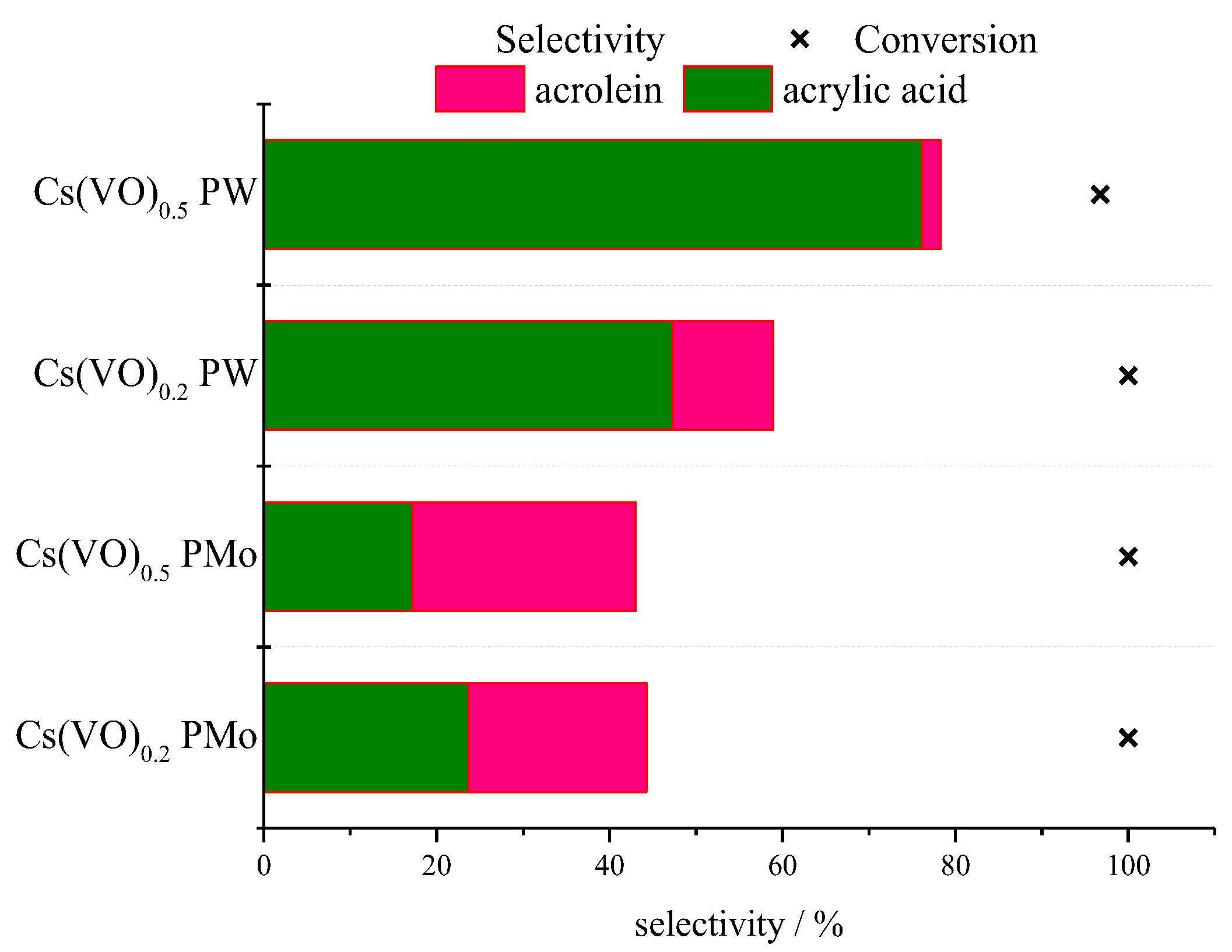

Figure 21 shows the results achieved in reactions carried out over vanadium-doped cesium phosphotungstate or phosphomolybdate. All the reactions were carried out using catalyst (0.2 g), temperature (613 K), carrier gas, 5% O₂/He (20 mL min⁻¹), feed (20 wt. % glycerol in H₂O (0.5 mL h⁻¹; WHSV: 0.5 h⁻¹). 1 h time.

The vanadium-doped cesium phosphomolybdate salts were more efficient catalysts than phosphotungstate, reaching higher conversions and selectivity to acrylic acid. Similarly, an increase in VO load had also a positive effect. It suggests that the strength of acidity of the catalyst plays a key role in these reactions.

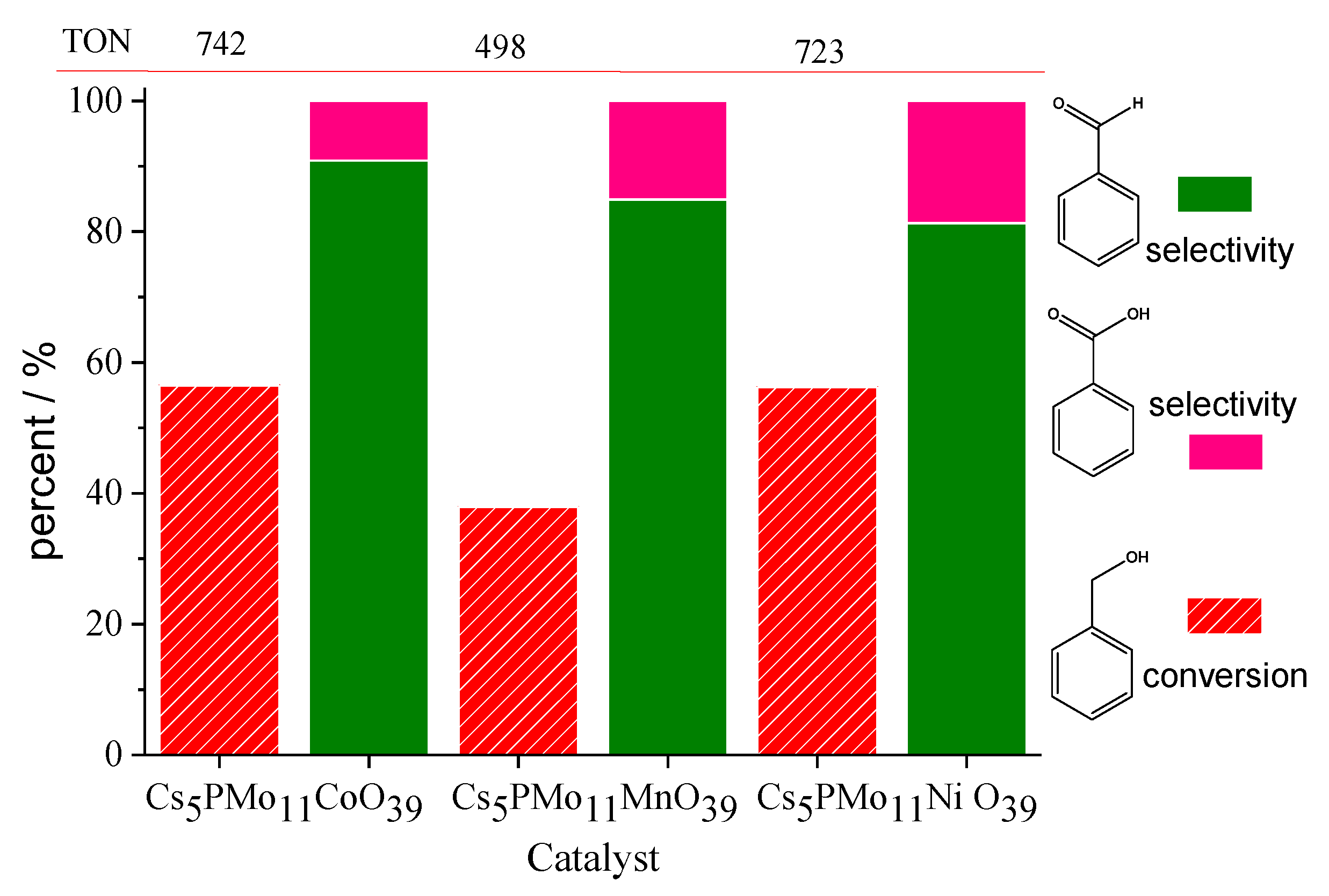

Patan and Patel assessed the oxidation of alcohols in the presence of (Co, Mn, Ni)-substituted Keggin-phosphomolybdates catalysts using hydrogen peroxide [73]. Figure 22 shows that although the reactions in the presence of Cs₅PMo₁₁CoO₃₉ or Cs₅PMo₁₁NiO₃₉ salts have achieved the same conversions and TON, the Co-doped salt was less efficient to promote the oxidation of benzaldehyde to benzoic acid.

Table 2. Application of Cs-salts HPAs in different catalytic processes.

Acidic Catalysis
Reaction	Catalysts	Reference
Furfural condensation reactions with alkyl alcohols	Cs2.5H0.5PW12O40	[35]
β−pinene etherification with alkyl alcohols	Cs2.5H0.5PW12O40	[36]
Levulinic acid esterification with alkyl alcohols	Cs2.5H0.5PW12O40	[37]
Alkylation of toluene with benzyl alcohol	Cs3PMo12O40	[43]
Hydrolysis of cellulose	Cs2.5H0.5PW12O40	[48]
Glycerol esterification with acetic acid	CsnH3−nPX12O40 (n = 1.0–2.5) and CsnH4−nSiY12O40, where X = W6+, Mo6+ and Y = W6+	[54]
Glycerol acetylation and esterification reactions with acetic anhydride and acetic acid	Cs2.5H0.5PW12O40	[74]
Transesterification of glycerol tributyrate with methanol	Bimodal cesium hydrogen salts of 12-tungstosilicic acid CsxH4−xSiW12O40	[75]
Solvent-free self-condensation of levulinic acid	CsxH4−xSiW12O40	[76]
Hydrolysis of cellulose	Cs4−xHxSiW12O40 (x = 3 and 3.5), Cs3−xHxPMo12O40 and Cs3−xHxPW12O40 (x = 2 and 2.5)	[77]
Alkylation of toluene with benzyl alcohol	Nano Cs2.5H0.5PW12O40	[78]
Prins cyclization of isoprenol and isovaleraldehyde to Florol®.	Cs2.5H0.5PW12O40/SiO2, Cs2.5H0.5PW12O40	[79]
Oxidative reactions
Styrene oxidation	Mn-doped cesium phosphomolybdate salts	[71]
Alcohols oxidation with hydrogen peroxide	(Co, Mn, Ni)-substituted Keggin-phosphomolybdates	[73]
Hydrogenation reactions
Styrene hydrogenation	Cesium salt of iron substituted phosphomolybdate	[46]
One-pot reactions

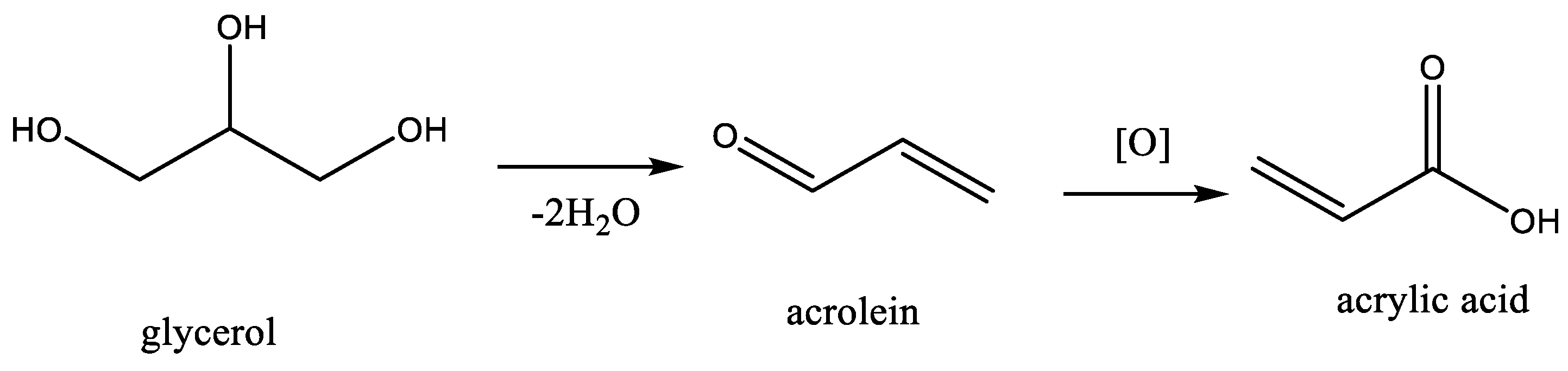

Oxidative dehydration of glycerol to acrylic acid	vanadium-doped cesium phosphotungstate or phosphomolybdate	[72]
Synthesis of one-pot two-component 1,3,4-oxadiazole derivatives	Cs3PW12O40	[80]
One-pot synthesis of formic acid via hydrolysis–oxidation of potato starch	Cs3.5H0.5PW11VO40, Cs4.5H0.5SiW11VO40, Cs3.5H0.5PMo11VO40, Cs2.5H0.5PMo12O40	[81]

summarizes the main reactions catalyzed by cesium heteropolyacid salts (i.e., acid-catalyzed, one-pot, hydrogenation, hydrolysis, esterification, acetylation, oxidation).

5. Conclusions

The main methods of synthesis, characterization and catalytic applications of Keggin-type heteropolyacid cesium salts were discussed. A detailed description of the main routes to synthesize the various types of cesium heteropoly salts was performed, including saturated, lacunar, and metal-doped salts. Afterwards, the characterization of salts total or partially cesium exchanged was addressed, with emphasis on infrared spectroscopy, powder X-rays diffraction patterns, thermal analyses, surface area, volume and pores distribution, and measurements of strength and number of acid sites through potentiometric titration curves. Phosphotungstic, phosphomolybdic, and silicotungstic acids and their cesium salts were the goal catalysts. The use of these salts as heterogeneous catalysts in acid-catalyzed reactions (i.e., esterification, etherification, acetalization, dehydration) or oxidative transformations (oxidative esterification, oxidation) was addressed herein. This review discussed the most pertinent heterogeneous catalytic systems based on Keggin HPA Cs salts. The focus was to correlate the physicochemical properties of these salts with their catalytic activity. Cesium heteropoly salts are an alternative to the traditional soluble mineral acids as well as to solid-supported catalysts.
