Cross-Frequency ECG R-Peak Detection via Low-Sampling Morphological Learning with Physiological Temporal Constraints

Abstract

Accurate R-peak detection in electrocardiogram (ECG) signals is fundamental for cardiovascular analysis. However, most existing methods address differences in sampling frequency (f_s) through signal resampling or transfer learning, which may alter the temporal definition of annotated events. In this study, we propose a f_s consistent framework for ECG R-peak detection that avoids both resampling and retraining. The proposed method is based on low-sampling morphological learning combined with physiological temporal constraints (PTC). A lightweight classifier based on Extreme Gradient Boosting (XGB) was trained on 128-Hz ECG data from the MIT-BIH Normal Sinus Rhythm Database to learn local morphological structures, and feature extraction is defined in milliseconds with time-normalized derivatives to ensure consistency across f_s. The trained model is directly applied to higher-f_s datasets (360 Hz, 500 Hz, and 1000 Hz) without modification. Final peak locations are determined through deterministic processing, including PTC and local snap processing. Experimental results demonstrated that the proposed method achieved stable detection performance across multiple sampling frequencies. When evaluated in a sample-wise manner, the proposed method achieved mean F1-scores of 0.885 on MIT-BIH Arrhythmia Database (360 Hz), 0.848 on Lobachevsky University Electrocardiography Database (LUDB, 500 Hz, sinus rhythm), 0.837 on LUDB (500 Hz, arrhythmia), and 0.953 on PTB Diagnostic ECG Database (1000 Hz), without any resampling or retraining. The integration of probabilistic candidate detection and deterministic temporal alignment enables consistent peak localization under cross-frequency conditions. These findings demonstrate that augmenting machine learning with deterministic decision mechanisms provides a principled framework for f_s-consistent ECG peak detection.

1. Introduction

Electrocardiogram (ECG) R-peak detection is a fundamental task in cardiovascular signal analysis and serves as the basis for heart rate variability (HRV) assessment, arrhythmia monitoring, and wearable health systems [1,2]. In recent years, convolutional neural networks (CNNs) and other deep learning (DL) architectures have demonstrated high classification performance in large-scale ECG classification tasks [3,4,5]. Several studies have attempted to address variations in sampling frequency (f_s) by incorporating multi-resolution inputs, signal resampling strategies, or transfer learning across datasets [6,7,8,9].

Despite these advances, most cross-dataset approaches rely on modifying either the signal representation or model parameters according to changes in f_s [10]. While such strategies may improve empirical detection performance, they implicitly alter the discrete-time structure of annotated events. Resampling changes the temporal grid on which peaks are defined, and transfer learning introduces frequency-specific information into the learned decision boundaries. In this sense, many existing methods achieve frequency adaptation rather than consistent performance across different sampling frequencies.

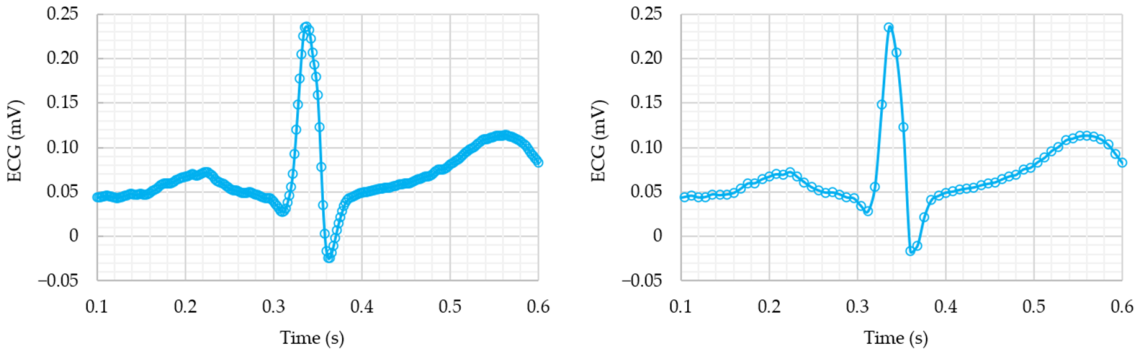

From the perspective of structural signal processing, waveforms acquired at higher sampling frequencies inherently contain the information represented at lower sampling frequencies. As shown in Figure 1, an ECG signal sampled at a higher frequency provides a denser representation of the same underlying waveform observed at a lower f_s. The f_s determines the density of observation but obviously does not alter the underlying electrical activity of the heart. The morphological composition of the waveform—its structural organization in the time domain—remains fundamentally unchanged, with higher sampling frequencies providing only a more finely discretized representation. Therefore, if detection is based on temporal features defined in absolute time rather than sample-based features, consistent performance across different sampling frequencies can be achieved in principle without modifying the signal or the model.

Conventional ECG analysis relies on features defined in discrete sample units, which depend on the f_s. However, cardiovascular signals arise from continuous physiological processes structured in absolute time. In this study, features are represented in physical time units rather than sample indices. For example, a temporal pattern corresponding to a 30 ms interval learned at 128 Hz can be consistently interpreted as the same 30 ms interval at 1000 Hz. This time-normalized representation reduces dependency on f_s and enables consistent extraction of temporal structures across different acquisition settings. The present framework assumes a fixed f_s within each recording and was not designed for adaptive or non-uniform sampling schemes. This perspective motivates the proposed framework, in which morphological learning captures the underlying “skeleton” of ECG waveforms in the time domain, enabling consistent interpretation across different sampling frequencies.

Based on this perspective, we adopt a design philosophy that deliberately avoids both resampling and retraining. Temporal features are normalized in the time domain, and derivative-based features are scaled according to the f_s. This enables the model to operate within a temporally consistent framework across signals sampled at different fixed f_s values. To evaluate this concept, ECG datasets sampled at 128 Hz, 360 Hz, 500 Hz, and 1000 Hz were analyzed. A lightweight binary classifier was trained using 128-Hz ECG data. Under the assumption that the skeletal structure of ECG waveforms is invariant across sampling frequencies, the classifier learns local morphological features around R-peak locations as discretized representations of this underlying structure. The trained model is then directly applied to higher-frequency ECG signals. Since higher-resolution waveforms can be interpreted as temporally denser representations of the same morphology, the learned features are expected to remain consistent as long as the time scale is preserved. Accordingly, the framework is designed to maintain temporal consistency of annotated peak locations by using time-based representations rather than discrete index intervals.

In our previous work, we introduced a physiology-aware detection framework based on physiological temporal constraints (PTC), in which probabilistic scoring and deterministic decision-making were explicitly separated [11]. In this architecture, a lightweight binary classifier was used solely to estimate candidate likelihoods, while the final R-peak localization was governed by physiologically interpretable temporal constraints and rule-based local refinement. By assigning the decision authority to temporally meaningful rules rather than the classifier itself, the framework improved robustness to class imbalance, reduced sample-wise false positives, and enhanced interpretability. However, the temporal behavior of this structurally decoupled framework under strict cross-frequency conditions has not yet been systematically investigated.

In this study, we evaluate ECG R-peak detection across multiple sampling frequencies without resampling or transfer learning. A model trained on 128-Hz ECG data is directly applied to higher-frequency ECG signals while preserving the principles of temporal normalization and the separation of probabilistic scoring and deterministic control. Through cross-frequency experiments and distribution-based temporal error analysis, we characterize the temporal localization behavior independently of classification performance and present a structural framework for f_s-invariant peak detection.

2. Materials and Methods

2.1. Morphological Skeleton Learning

In this study, morphological learning refers to the extraction and modeling of local waveform structures that characterize the shape of ECG signals in the time domain. Rather than learning sampling-specific discrete patterns or absolute amplitude values, the model is designed to capture essential morphological features that represent the underlying structure of the waveform.

Importantly, the use of 128-Hz ECG data does not constrain the model to sampling-specific representations. Instead, it encourages the learning of fundamental morphological structures that can be consistently interpreted across different sampling frequencies. In this sense, the learned representation can be regarded as a coarse “skeleton” of the ECG waveform, preserving its essential shape while remaining robust to variations in sampling density.

By defining feature extraction in milliseconds and normalizing time-dependent features, the proposed framework ensures that these morphological representations remain consistent across signals sampled at different frequencies. As a result, the model can generalize from 128-Hz ECG data to higher-resolution signals without modification. An overview of the proposed ECG R-peak detection framework is illustrated in Figure 2. The framework consists of two main stages: probabilistic scoring and deterministic decision-making. The probabilistic stage employs a lightweight classifier to estimate sample-wise likelihoods of R-peak candidates. The deterministic stage integrates PTC, including a refractory period constraint and a sequential selection process, with local snap processing (LSP) for temporal alignment. The final R-peak locations are determined through this rule-based decision and correction process. In the current implementation, the corrected peak location is restricted to an existing sample position. No interpolation or sub-sample peak estimation is applied.

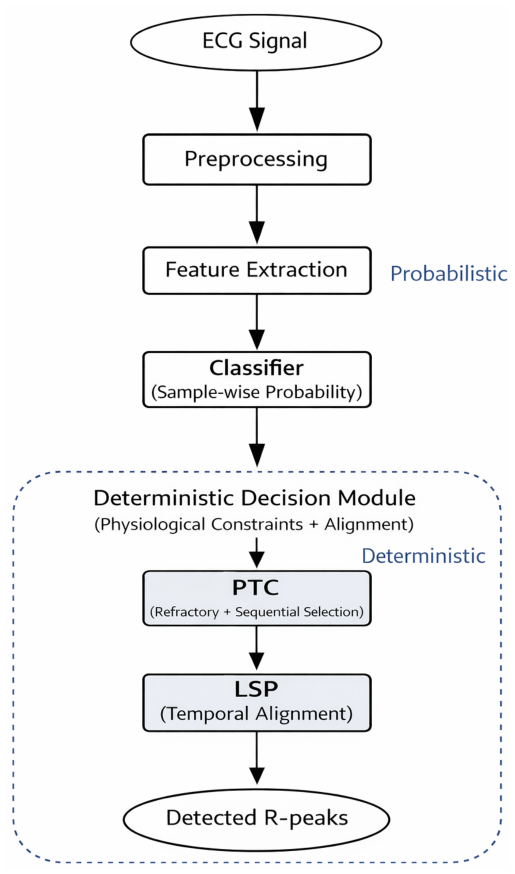

Within this framework, Section 2.1 describes the construction and training of the morphological skeleton learning model used for coarse R-peak candidate detection. The classifier is designed to learn a coarse morphological representation (skeleton) of ECG waveforms rather than precise peak locations. This design enables the model to capture fundamental waveform structures that can be consistently interpreted across different sampling frequencies.

The following subsections first define the feature representation used for morphological skeleton learning and then describe the training and evaluation procedures. The robustness and generalization performance of the learned model are subsequently assessed, followed by cross-frequency evaluation under varying sampling conditions.

2.1.1. Feature Normalization for Cross-Frequency ECG Peak Detection

The feature set used in this study was derived from the ECG peak detection framework proposed in our previous work [11]. In that framework, eleven lightweight morphological features were defined and grouped into four categories: (a) amplitude and statistical features, (b) differential and curvature features, (c) slope and energy-based features, and (d) direct amplitude information, as summarized in

Table 1. Definition of local morphological features (previous framework).

Category	Formula	Name
Amplitude/statistical	$f_1=\mathrm{m}\mathrm{e}\mathrm{a}\mathrm{n}\left(w\right)$	mean
	$f_2=\mathrm{s}\mathrm{t}\mathrm{d}\left(w\right)$	std
	$f_3=\mathrm{m}\mathrm{e}\mathrm{a}\mathrm{n}\left(w_{left}\right)-\mathrm{m}\mathrm{e}\mathrm{a}\mathrm{n}\left(w_{right}\right)$ $f_4=w_{center}-f_1$	left-right diff center-mean
Differential/curvature	$f_5=(x_{i+1}-x_{i-1})/2$	d1
	${f_6=x}_{i+1}-2x_i+x_{i-1}$	d2
Slope/energy	$f_7={\displaystyle \frac{{\displaystyle {\sum }_{k=0}^{L-1}}(t_k-\overline{t})(w_k-{\overline{w}}_k)}{{{\displaystyle {\sum }_{k=0}^{L-1}}(t_k-\overline{t})}^2}}$	slope
	$f_8={\displaystyle \frac{1}{L-1}}{\displaystyle \sum _{k=0}^{L-2}}(w_{k+1}-w_k{)}^2$	d1-energy
Amplitude	$f_9=x_i$	center value
	$f_{10}=\mathrm{m}\mathrm{a}\mathrm{x}\left(w\right)$	maximum
	$f_{11}=\mathrm{m}\mathrm{i}\mathrm{n}\left(w\right)$	minimum

.

In this study, the feature extraction window was defined in the time domain using a window length win_ms (in milliseconds). The corresponding number of samples was determined based on the f_s in order to preserve the temporal interpretation of the features across datasets. Formally, the half-window size h was defined as:

$$h=round\left({\displaystyle \frac{f_s\times win\text{\_}ms}{2\times 1000}}\right)$$

(1)

where round(x) denotes rounding to the nearest integer, f_s denotes the sampling frequency (Hz), and win_ms denotes the window length expressed in milliseconds. The total window length was given by:

$$win\text{\_}len=2h+1$$

(2)

ensuring an odd number of samples with a well-defined center.

For feature extraction, a local ECG segment centered on sample i was defined using a symmetric window:

$$w=[x_{i-h},\dots x_i,{\dots x}_{i+h}]$$

The extracted segment was used to compute 11 lightweight morphological features. These features were designed to characterize local waveform morphology associated with candidate R-wave regions while maintaining low computational complexity. Because a complete window cannot be constructed near the beginning or end of the ECG recording, samples located within ±h points from the signal boundaries were excluded from the analysis.

For the features listed in Table 1, $t_k$ denotes the relative sample index within the local window ($t_k$ = 0, 1, …, L − 1), and $w_k$ represents the ECG amplitude corresponding to tk. The quantities $\overline{t}$ and $\overline{w}$ denote the mean values of $t_k$ and $w_k$, respectively. L denotes the window length, defined as the total number of samples contained in the local segment ($L=\mid w\mid$).

In the previous framework, ECG signals were sampled at 500 Hz, and the window length was implemented as a fixed number of samples corresponding to a specified temporal duration. However, when the f_s differs across datasets, the number of samples corresponding to the same temporal window must be adjusted to preserve the temporal interpretation of the features. In our previous framework (500 Hz), a temporal window of approximately 30 ms yielded the best performance. This value was adopted as a time-domain reference and adjusted to 32 ms to maintain consistency under 128 Hz sampling. In addition, neighboring window lengths (16 ms and 48 ms) were considered to assess robustness to variations in temporal scale.

In this study, the window length was defined in milliseconds, and the corresponding number of samples was determined based on the f_s. According to the above definition, the corresponding number of samples can be calculated by converting the temporal window length into sample counts based on the f_s. For example, for a window length of 32 ms, the corresponding total window length was 5 samples at 128 Hz, 13 samples at 360 Hz, 17 samples at 500 Hz, and 33 samples at 1000 Hz, according to Equations (1) and (2). In all cases, an odd number of samples was used to ensure that each sliding window has a well-defined center sample.

Although this adjustment preserves the temporal extent of the feature extraction region, several features inherently depend on the sampling interval and therefore require additional normalization. In particular, first-order derivatives, second-order derivatives, and slope-related features are sensitive to the f_s. These features explicitly involve temporal differences between adjacent samples. Therefore, their values vary depending on the sampling interval, even when the underlying waveform morphology is identical.

To ensure comparability across sampling frequencies, these features were normalized with respect to time and expressed per millisecond. Specifically, the normalization was applied as follows:

$$f_5={\displaystyle \frac{x_{i+1}-x_{i-1}}{2\Delta t}}$$

$$f_6={\displaystyle \frac{x_{i+1}-{2x}_i+x_{i-1}}{{\Delta t}^2}}$$

where Δt denotes the sampling interval (Δt = 1/f_s). In the previous framework, the slope feature $f_7$ was defined using the sample index $t_k=k$, making it implicitly dependent on f_s. In the present study, this definition was reformulated in the time domain by replacing the sample index with the corresponding time coordinate, allowing the slope to be interpreted as a temporal rate of amplitude change (V/s). Similarly, the difference energy feature $f_8$ was reformulated to incorporate Δt by calculating the mean of (Δw/Δt)², which can be expressed as follows:

$$f_8={\displaystyle \frac{1}{L-1}}{\displaystyle \sum _{k=0}^{L-2}}{\left({\displaystyle \frac{w_{k+1}-w_k}{\Delta t}}\right)}^2$$

This ensures that $f_8$ represents the energy of the signal’s derivative in physical units (V²/s²). By defining these features in the time domain, their numerical scales remain consistent across diverse sampling frequencies, which is fundamental to the cross-frequency robustness of the proposed framework.

To train the classifier responsible for coarse R-peak candidate detection, ECG data from the MIT-BIH Normal Sinus Rhythm Database (MIT-NSRDB) were used [12]. The selection of 128-Hz ECG data was intentional. The MIT-NSRDB consists of long-term ECG recordings from subjects with stable sinus rhythm, sampled at 128 Hz.

The dataset comprises 18 subjects, including 5 males (36 ± 7 years, range: 26–45) and 13 females (34 ± 9 years, range: 20–50). Each record contains approximately 24 h of Lead II ECG data. Upon verification of the actual recording durations, the average recording length was 24.2 ± 0.8 h. These long-term sinus rhythm recordings provide stable waveform segments suitable for learning the fundamental morphological structure of the QRS complex (QRS).

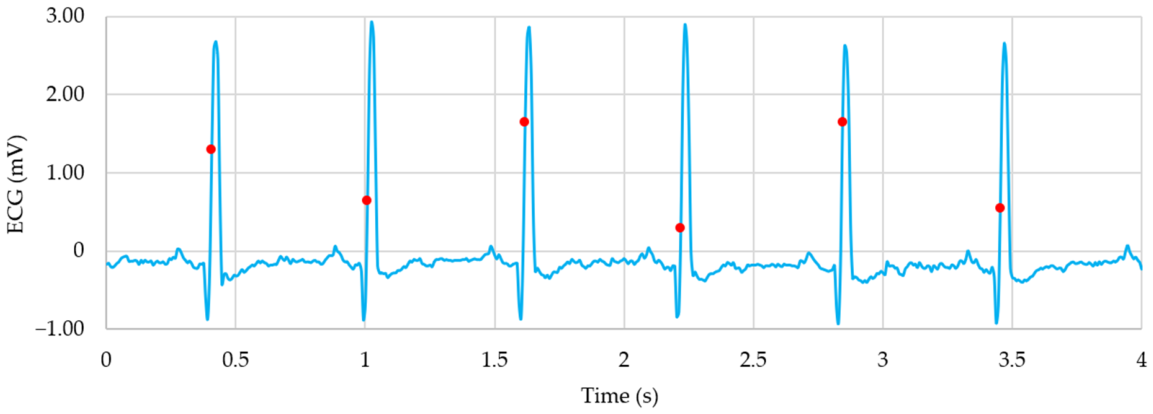

Inspection of the annotated R-wave labels revealed that the annotations were assigned not at the R-peak locations but rather to a location roughly between the Q-wave and the R-wave, as illustrated in Figure 3. However, in the proposed peak detection framework, the role of machine learning is not to determine the exact peak position, but rather to provide auxiliary scoring for identifying candidate peaks or regions near the peaks. Therefore, the presence of labels in the vicinity of the peak is sufficient for training.

On the other hand, the data volume of each record is extremely large. The number of samples per record is given by 24 h × 3600 s × 128 Hz = 11,059,200 samples. To reduce computational cost, a subsampling strategy was adopted in which 2-min segments were extracted at 8-min intervals. As a result, 2,211,840 samples were used from each record, corresponding to approximately 288 min (4.8 h) of data.

For preprocessing, a low-pass filter (LPF) with a cutoff frequency of 40 Hz was first applied to suppress power-line interference (50/60 Hz), high-frequency noise, and spike artifacts. This was followed by a high-pass filter (HPF) with a cutoff frequency of 0.1 Hz to eliminate baseline drift. Subsequently, as in the previous study [11], each record was segmented into 10-s intervals, and z-score normalization was applied to each segment such that the mean and standard deviation (SD) were set to 0 and 1, respectively.

2.1.2. Robustness Evaluation of Morphological Skeleton Learning

To evaluate the accuracy and robustness of morphological skeleton learning in the proposed framework, a record-level six-fold cross-validation (k = 6) scheme was employed. The data were partitioned based on a predefined record-level split, where each fold consisted of 12 records for training, 3 records for validation, and 3 records for testing. Care was taken to ensure that the same ECG record was not included in multiple subsets, thereby preventing data leakage. The detailed record allocation for each fold is provided in Table S1 (Supplementary Materials).

As the classifier, Extreme Gradient Boosting (XGB), which demonstrated the most stable performance in our previous study, was adopted. In the previous framework, a lightweight classifier was used to generate likelihood scores of peak candidates based on local morphological features, while the final peak determination was governed by PTC. In this study, this concept was applied to morphological skeleton learning for R-peak detection, where samples near the rising edge of the R-wave, rather than the peak itself, were treated as positive instances in a binary classification task against background samples.

The feature set consisted of the eleven local morphological features defined in the previous section. The feature extraction window length (win_len) was evaluated under three conditions: 16 ms, 32 ms, and 48 ms. The central value of 32 ms was selected based on our previous study, in which a window length of approximately 30 ms yielded optimal performance at 500 Hz. In the present study, this value was adopted as a time-domain reference and adjusted to 32 ms to maintain consistency under 128 Hz sampling. The additional conditions (16 ms and 48 ms) were included to evaluate robustness around this reference scale. For XGB, the following hyperparameters were considered:

number of estimators: n_estimators ∈ {200, 300}

maximum tree depth: max_depth ∈ {3, 4}

learning rate: learning_rate ∈ {0.05, 0.1}

The optimal combination was selected based on the highest sample-level F1-score (F1) on the validation set. The classification threshold was fixed at 0.5. Due to the severe class imbalance between positive and background samples, the scale_pos_weight parameter was computed based on the label distribution in the training data. After determining the optimal hyperparameters, the classifier was retrained using the combined training and validation datasets.

Subsequently, as a second-stage optimization, the PTC-related parameters for R-peak candidate selection—namely, the decision threshold (θ_R) and refractory period (refR) were optimized via grid search on the validation set. The search ranges were defined as:

θ_R ∈ {0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 1.00}

refR ∈ {30, 40, 50, 60, 70, 80} ms

In this second stage, candidate points near the R-wave were extracted based on the classification scores, and a sequence of candidates was constructed through sequential selection with a refractory constraint. The detected peaks were then matched to annotation labels using a one-to-one correspondence within a tolerance window of ±20 ms, and the sample-wise F1 was computed. Finally, the θ_R and refR that maximized the sample-wise F1 were selected as the optimal detection parameters for each fold.

To interpret the contribution of each feature in the trained classifier, feature importance was evaluated using the XGB built-in scoring functions. Two importance metrics were considered: gain and weight. The gain represents the average improvement in the loss function brought by a feature when it is used for splitting, while the weight indicates the number of times a feature is used in tree splits. This analysis was used to qualitatively assess which morphological features contributed most to candidate detection.

2.1.3. Fixed-Split Validation of the Morphological Skeleton Learning Classifier

In Section 2.1.2, the robustness of morphological skeleton learning in the proposed framework was evaluated using six-fold cross-validation. In addition to this, the stability of the classifier was further assessed using a fixed record-level split of the NSRDB dataset. Specifically, the 18 records were divided into 14 records for training and 4 records for validation (

Table 2. Record-level split of the NSRDB dataset. Numbers indicate record IDs.

Training set (14 records)	16,265	19,090	16,539	18,177	16,483	19,093	16,272
	19,088	16,795	16,786	16,420	19,140	19,830	18,184
Validation set (4 records)	16,273	16,773	17,453	17,052

). The partitioning was performed at the subject level to ensure that the same ECG record was not included in multiple subsets, thereby preventing data leakage.

The classifier, feature set, and hyperparameter optimization procedure were identical to those described in Section 2.1.2. The purpose of this section is to verify that the proposed method maintains stable performance on unseen records under a fixed data partition, independent of cross-validation. As shown in Table 2, the training and validation datasets were separated at the record level to prevent data leakage between subsets.

Although the number of records in the NSRDB is limited, each record contains approximately 24 h of ECG data, resulting in a large number of temporally diverse waveform segments for morphology learning. Because both the training and validation sets were derived from stable sinus-rhythm recordings within the same database, this evaluation primarily reflects the internal stability of morphology-based candidate detection under homogeneous conditions rather than true cross-dataset generalization.

2.2. Cross-Frequency Evaluation

To evaluate cross-frequency robustness, the model trained at 128 Hz was tested on ECG datasets recorded at different sampling frequencies.

2.2.1. ECG Datasets

For cross-frequency evaluation, three publicly available ECG datasets were used:

(a)

MIT-BIH Arrhythmia Database (MIT-AD)

The MIT-AD contains 48 half-hour two-channel ECG recordings obtained from 47 subjects [13]. The signals were sampled at 360 Hz. In this study, since morphological skeleton learning was performed using only Lead II, 46 records with available Lead II signals were included in the analysis (male: 64 ± 21 years, n = 26; female: 62 ± 23 years, n = 20; age unknown for 2 records). Each record has a duration of 30 min and 6 s. Reference annotations indicate the R-peak locations.

(b)

Lobachevsky University Electrocardiography Database (LUDB)

The LUDB consists of ECG recordings from 200 subjects and was analyzed separately for sinus rhythm records (male: 49 ± 18 years, n = 77; female: 55 ± 19 years, n = 65) and arrhythmia records (male: 53 ± 21 years, n = 38; female: 52 ± 21 years, n = 20) [12,14,15]. The ECG signals were sampled at 500 Hz, and each record has a duration of 10 s. Among the 12 leads, only the Lead II signal was used. Reference R-peak annotations were based on expert-annotated labels provided in the dataset.

(c)

PTB Diagnostic ECG Database (PTB)

The PTB database contains 549 ECG recordings obtained from 290 subjects [16]. Each recording includes 15 simultaneously measured channels consisting of 12 standard leads and 3 Frank leads (vx, vy, vz). The signals were sampled at 1000 Hz, and each record has a duration of approximately 120 s. In this study, 80 records corresponding to 52 healthy control subjects were extracted for analysis (male: 42 ± 14 years, n = 39; female: 48 ± 18 years, n = 13). Only the Lead II signal was used. Reference R-peak annotations are not available for this dataset.

2.2.2. LSP for Peak Alignment

The proposed morphology-based classifier learns samples around the rising edge of the R-wave as positive instances, which leads to systematic temporal bias in detected peak locations. To correct this discrepancy with respect to the true R-peak position, an LSP method was introduced. For each detected peak candidate at time t₀, a search window of width Δsnap was defined, and the sample with the maximum ECG amplitude within this window was selected as the corrected peak location:

$$t_{\mathrm{s}\mathrm{n}\mathrm{a}\mathrm{p}}={\arg \max }_{t\in [t_0-\Delta snap,t_0+\Delta snap]}x\left(t\right)$$

(3)

where x(t) represents the preprocessed ECG signal after bandpass filtering and normalization, and Δsnap denotes the search window width. This process reduces variability in peak localization caused by differences in detection algorithms, sampling frequencies, and annotation definitions. The search window width Δsnap was determined based on the empirical distribution of detection errors (detected time − reference time) prior to LSP. Specifically, Δsnap was set to approximately three times the SD of the error distribution, covering the majority of observed deviations. Based on this criterion, Δsnap was fixed at 20 ms in this study.

2.2.3. Multi-Detector-Based R-Peak Candidate Generation for Silver-Standard Construction

To construct Silver-standard annotations for the PTB dataset, a multi-detector framework integrating two complementary R-peak detectors was employed. ECG signals were first preprocessed using a bandpass filter (0.4–40 Hz, 2nd-order Butterworth) to stabilize detection while preserving QRS morphology. Two independent R-peak detectors were then applied to the preprocessed signals.

The first detector was based on the NeuroKit2 (version 0.2.12) implementation [17] of a Pan–Tompkins-type algorithm [2], which emphasizes steep QRS upslopes through differentiation and integration, enabling gradient-based peak detection. The second detector was the gqrs algorithm implemented in the WFDB Python package (version 4.3.0; PhysioNet) [12], a well-established QRS detection method based on adaptive thresholding, QRS width estimation, and refractory period control.

To reduce variability in peak localization across detectors, LSP, as defined in Section 2.2.2, was applied to the outputs of each detector prior to integration. Specifically, detected peak positions were aligned to the nearest local maximum within a ±30 ms window. This tolerance window was defined to account for temporal variability in detector outputs while preserving physiologically plausible alignment.

The aligned peak candidates from both detectors were then integrated using a detector-agreement strategy. Peaks detected by both methods within a temporal tolerance window of ±8 ms were grouped into clusters, and only clusters supported by both detectors were retained. The representative peak position for each cluster was defined as the median of the detected sample indices, ensuring robustness against minor discrepancies between detectors.

Finally, the merged peak positions were refined by applying LSP again using the same ±30 ms window, ensuring precise alignment with the local maxima of the ECG signal. Duplicate peaks were removed to obtain a unique set of R-peak candidates.

The resulting peak set was used as Silver-standard annotations, where each detected R-peak was assigned a label value of 1, and all other samples were labeled as 0. The overall procedure is summarized in Algorithm 1.

Algorithm 1. Multi-detector-based Silver-standard construction.

Input: ECG signal x_raw, fs Output: Silver-standard R-peak set R_silver 1: x ← bandpass_filter (x_raw) 2: R_NK ← NeuroKit (x, fs) 3: R_GQRS ← gqrs(x, fs) 4: R_NK ← LSP (R_NK, x, fs, 30 ms) 5: R_GQRS ← LSP(R_GQRS, x, fs, 30 ms) 6: R_merge ← detector_agreement (R_NK, R_GQRS, 8 ms) 7: R_silver ← LSP (R_merge, x, fs, 30 ms) 8: R_silver ← unique (R_silver) 9: return R_silver

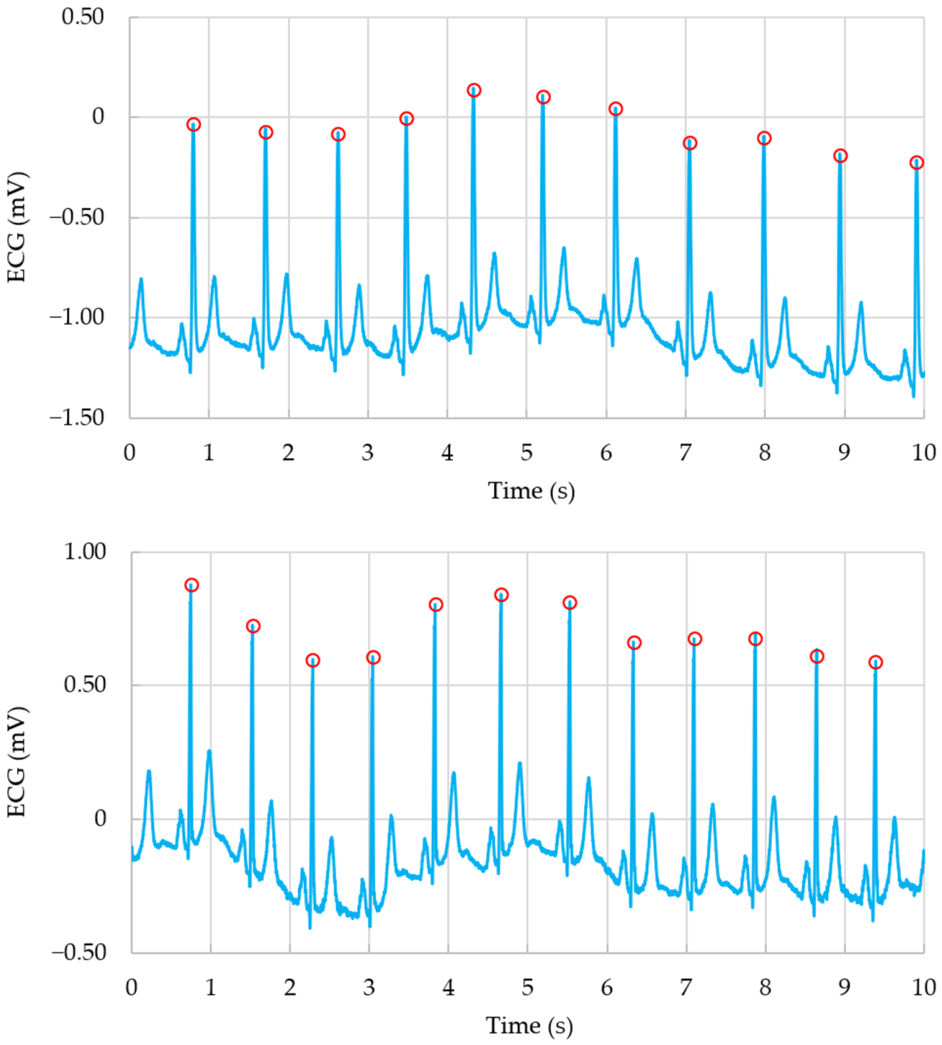

An example of the Silver-standard R-peak annotations in the PTB dataset is shown in Figure 4. The detected peaks are aligned with the local maxima of the ECG waveform after LSP, demonstrating the consistency of the annotation process. During the Silver-standard construction process, four records (patient180/s0476_re, patient239/s0467_re, patient267/s0504_re, and patient279/s0533_re) showed inconsistent R-peak detections between the two detectors (NeuroKit2 and gqrs) and were excluded from further analysis. As a result, a total of 76 PTB records were used in this study.

2.2.4. Filtering Conditions

To isolate the effect of frequency components, only the cutoff frequencies of the filters were varied during testing, while the XGB parameters and PTC-related parameters were fixed to the optimal values determined in Section 2.1.2. In addition to the default filtering condition, the cutoff frequency of the LPF was varied at 10, 20, and 30 Hz, and the cutoff frequency of the HPF was varied at 0.05, 0.2, 0.3, and 0.4 Hz. After filtering, each record was segmented into 10-s intervals. For each segment, z-score normalization was applied such that the mean and SD were set to 0 and 1, respectively.

2.2.5. Performance Metrics

Sample-wise classification performance was evaluated using sensitivity (Se), positive predictive value (PPV), and F1, computed based on sample-wise comparisons between predicted labels and reference annotations. These metrics are defined as:

$$Se={\displaystyle \frac{TP}{TP+FN}}$$

(4)

$$PPV={\displaystyle \frac{TP}{TP+FP}}$$

(5)

$$F1={\displaystyle \frac{2SePPV}{Se+PPV}}$$

(6)

where TP, FP, and FN denote the number of true positive, false positive, and false negative samples, respectively. For temporal evaluation, detected peak locations were compared with reference annotations using a tolerance window of ±20 ms. The corresponding detection results were summarized using the number of TP, FP, and FN.

Results are reported as mean ± SD across records. All experiments were conducted with and without LSP, allowing direct comparison of its contribution to cross-frequency robustness.

All analyses and evaluations were implemented in Python 3.12.7 (64-bit). Numerical computation and data handling were performed using NumPy and Pandas. ECG preprocessing was conducted using a bandpass filter implemented with the Butterworth filter and zero-phase filtering (filtfilt) functions from SciPy. R-peak detection was performed using the NeuroKit2 and WFDB toolkits. Machine learning models were implemented using scikit-learn, with XGB employed as the classifier.

3. Results

The morphological skeleton learning model described in Section 2.1 was trained using MIT-NSRDB sampled at 128 Hz, and its performance under this training condition is first presented below.

Table 3. Sample-wise R-peak detection performance (mean ± SD) across six folds for different temporal window lengths. Metrics were computed using a matching tolerance of ±20 ms.

win_len (ms)	Se	PPV	F1
16	0.941 ± 0.066	0.951 ± 0.056	0.946 ± 0.059
32	0.925 ± 0.082	0.946 ± 0.068	0.935 ± 0.073
48	0.938 ± 0.067	0.958 ± 0.051	0.948 ± 0.057

summarizes the sample-wise R-peak detection performance across six folds for three different temporal window lengths (16 ms, 32 ms, and 48 ms). Performance was evaluated using Se, PPV, and F1, with a matching tolerance of ±20 ms. Across all window lengths, the proposed method achieved high and stable performance, with mean F1 ranging from 0.935 to 0.948. The differences in performance between window lengths were small, indicating that the method is robust to the choice of temporal window duration when defined in milliseconds. Specifically, the 16 ms, 32 ms, and 48 ms windows yielded F1 of 0.946 ± 0.059, 0.935 ± 0.073, and 0.948 ± 0.057, respectively. Although the 32 ms configuration exhibited slightly higher variability, all three settings demonstrated comparable detection accuracy.

Table 4. Sample-wise R-peak detection performance on the validation set using a fixed train–validation split at MIT-NSRDB (tolerance = ±20 ms). Panel (a) reports detection metrics and optimized parameters, and panel (b) summarizes event counts. N denotes the total number of ECG samples from the 4 validation subjects.

(a) Detection metrics and optimized parameters
win_len (ms)	Se	PPV	F1	θR	refR (ms)
16	0.998	0.998	0.998	0.95	80
32	0.999	0.998	0.998	0.90	80
48	0.998	0.998	0.998	0.90	40
(b) Event counts
win_len (ms)	N (samples)	TP	FP	FN
16	8,678,400	70,482	138	154
32	8,678,400	70,532	115	104
48	8,678,400	70,517	149	119

summarizes the validation results obtained using the fixed record-level split of the MIT-NSRDB dataset. Detection performance was evaluated using Se, PPV, and F1 with a matching tolerance of ±20 ms. Across all window lengths, the proposed method demonstrated highly stable detection performance, with F1 consistently around 0.998. The differences between window lengths were minimal, indicating that the morphology-based candidate detection framework is largely robust to temporal window duration when defined in milliseconds.

The optimal decision parameters were also stable across window lengths. The decision threshold θ_R converged to 0.90–0.95, while the refractory period refR ranged from 40 to 80 ms, which is consistent with physiologically plausible R–R interval constraints. Among the evaluated configurations, the 32 ms window yielded the highest validation F1 and was selected as the final implementation configuration for subsequent cross-frequency evaluation.

Because both the training and validation sets were derived from stable sinus-rhythm recordings within the same database, the results shown in Table 4 should be interpreted primarily as an evaluation of the internal stability of morphology-based candidate detection under homogeneous recording conditions.

The optimal parameter set of the implementation model is summarized in

Table 5. Optimal parameter set of the implementation model determined based on the highest validation F1 at MIT-NSRDB.

Category	Parameter	Value
Pre-processing filters	LPF cutoff (Hz)	40
	HPF cutoff (Hz)	0.1
PTC	θR	0.9
	refR (ms)	80
	win_len (ms)	32
XGB	Number of estimators	300
	Maximum depth	4
	Learning rate	0.1

. These parameters were determined based on the highest validation F1 obtained at MIT-NSRDB and were fixed for all subsequent cross-frequency evaluations. The selected parameters were consistent across preprocessing, classifier, and decision control components. The low-pass and high-pass cutoff frequencies were set to 40 Hz and 0.1 Hz, respectively. The PTC-related parameters converged to a decision θ_R of 0.9 and a refR of 80 ms, which are physiologically plausible values for R-peak detection. The optimal temporal window length was 32 ms, providing a balance between temporal resolution and feature stability. For the XGB classifier, the number of estimators, maximum depth, and learning rate were set to 300, 4, and 0.1, respectively.

Table 6. Feature importance of the XGB classifier based on gain and weight.

Rank	Feature	Gain (%)	Rank	Feature	Weight
1	maximum	72.30	1	d1	602
2	std	13.30	2	d1-energy	500
3	d1-energy	8.90	3	minimum	496
4	left-right diff	1.80	4	slope	438
5	d1	1.80	5	d2	397
6	slope	1.20	6	maximum	389
7	center value	0.80	7	mean	373
8	mean	0.70	8	center-mean	339
9	center-mean	0.50	9	std	312
10	minimum	0.40	10	left-right diff	302
11	d2	0.30	11	center value	243

summarizes the feature importance of the trained XGB classifier in terms of both gain and weight. Gain (%) represents the relative contribution of each feature to loss reduction, while weight indicates the number of times the feature is used for splitting. In terms of gain, the maximum amplitude (max) showed the highest contribution (72.3%), followed by std (13.3%) and energy (8.9%). All other features contributed less than 2%. In terms of weight, the first-order derivative (d1) was the most frequently used feature for splitting (602), followed by energy (500), minimum value (496), and slope (438).

Cross-frequency R-peak detection performance with and without LSP is summarized in

Table 7. Sample-wise R-peak detection performance under cross-frequency evaluation with and without LSP. Se, PPV, and F1 are reported as mean ± SD across records. TP, FP, and FN are reported as median [Q1–Q3]. Matching tolerance was ±20 ms. N denotes the total number of ECG samples per record.

Condition	N	Se	PPV	F1	TP	FP	FN
(a) MIT-AD (360 Hz)
LSP off (Default)	648,000	0.606 ± 0.365	0.629 ± 0.352	0.615 ± 0.358	1550 [530–2029]	457 [130–1285]	548 [80–1573]
LSP off (LPF = 10 Hz)	648,000	0.020 ± 0.021	0.157 ± 0.227	0.032 ± 0.037	24 [12–73]	418 [202–1220]	2150 [1849–2542]
LSP off (HPF = 0.4 Hz)	648,000	0.610 ± 0.367	0.626 ± 0.355	0.616 ± 0.360	1551 [535–2031]	457 [134–1343]	545 [44–1559]
LSP on (Default)	648,000	0.860 ± 0.226	0.904 ± 0.190	0.878 ± 0.208	2040 [1705–2356]	43 [18–160]	68 [5–341]
LSP on (LPF = 10 Hz)	648,000	0.336 ± 0.355	0.744 ± 0.337	0.405 ± 0.363	405 [97–1233]	17 [6–64]	1789 [545–2285]
LSP on (HPF = 0.4 Hz)	648,000	0.871 ± 0.222	0.904 ± 0.192	0.885 ± 0.206	2040 [1772–2396]	38 [10–158]	49 [1–306]
(b) LUDB (sinus rhythm, 500 Hz)
LSP off (Default)	5000	0.845 ± 0.296	0.692 ± 0.224	0.755 ± 0.255	8 [7–9]	2 [2–4]	0 [0–1]
LSP off (LPF = 10 Hz)	5000	0.118 ± 0.197	0.279 ± 0.325	0.136 ± 0.202	0 [0–2]	2 [0–7]	8 [7–9]
LSP off (HPF = 0.4 Hz)	5000	0.88 ± 0.266	0.708 ± 0.207	0.782 ± 0.232	8 [7–9]	2 [2–3]	0 [0–1]
LSP on (Default)	5000	0.917 ± 0.219	0.754 ± 0.147	0.820 ± 0.181	8 [8–9]	2 [2–3]	0 [0–0]
LSP on (LPF = 10 Hz)	5000	0.382 ± 0.390	0.660 ± 0.322	0.400 ± 0.361	2 [0–7]	1 [0–2]	7 [2–8]
LSP on (HPF = 0.4 Hz)	5000	0.950 ± 0.167	0.772 ± 0.115	0.848 ± 0.136	9 [8–10]	2 [2–3]	0 [0–0]
(c) LUDB (arrhythmia, 500 Hz)
LSP off (Default)	5000	0.799 ± 0.325	0.640 ± 0.246	0.705 ± 0.277	7 [6–10]	3 [2–4]	0 [0–3]
LSP off (LPF = 10 Hz)	5000	0.072 ± 0.151	0.202 ± 0.307	0.082 ± 0.161	0 [0–1]	2 [0–4]	8 [6–11]
LSP off (HPF = 0.4 Hz)	5000	0.826 ± 0.309	0.660 ± 0.236	0.730 ± 0.268	7 [6–11]	3 [2–4]	0 [0–2]
LSP on (Default)	5000	0.909 ± 0.215	0.738 ± 0.162	0.808 ± 0.178	8 [7–11]	2 [2–3]	0 [0–0]
LSP on (LPF = 10 Hz)	5000	0.322 ± 0.388	0.614 ± 0.328	0.330 ± 0.353	1 [0–5]	1 [0–2]	7 [3–10]
LSP on (HPF = 0.4 Hz)	5000	0.946 ± 0.170	0.758 ± 0.116	0.837 ± 0.138	8 [7–11]	2 [2–3]	0 [0–0]
(d) PTB (control, 1000 Hz)
LSP off (Default)	120,012	0.896 ± 0.211	0.864 ± 0.201	0.876 ± 0.204	120 [110–136]	8 [2–18]	2 [0–9]
LSP off (LPF = 10 Hz)	120,012	0.169 ± 0.208	0.343 ± 0.323	0.207 ± 0.233	9 [1–36]	27 [10–50]	113 [90–131]
LSP off (HPF = 0.4 Hz)	120,012	0.910 ± 0.232	0.890 ± 0.230	0.899 ± 0.230	123 [112–142]	3 [1–12]	0 [0–3]
LSP on (Default)	120,012	0.954 ± 0.137	0.922 ± 0.127	0.935 ± 0.129	125 [114–143]	4 [1–13]	0 [0–1]
LSP on (LPF = 10 Hz)	120,012	0.320 ± 0.325	0.595 ± 0.375	0.379 ± 0.340	19 [3–80]	11 [3–23]	101 [46–125]
LSP on (HPF = 0.4 Hz)	120,012	0.963 ± 0.142	0.944 ± 0.145	0.953 ± 0.143	126 [115–145]	1 [0–4]	0 [0–0]

. Unless otherwise specified, the default bandpass filtering condition was defined as a low-pass cutoff of 40 Hz and a high-pass cutoff of 0.1 Hz. When the LPF cutoff was set to 10 Hz, the HPF cutoff was fixed at 0.1 Hz. Conversely, when the HPF cutoff was set to 0.4 Hz, the LPF cutoff was fixed at 40 Hz. Detailed results for intermediate filtering conditions (LPF = 20–30 Hz and HPF = 0.2–0.3 Hz) are provided in Table S2 (Supplementary Materials).

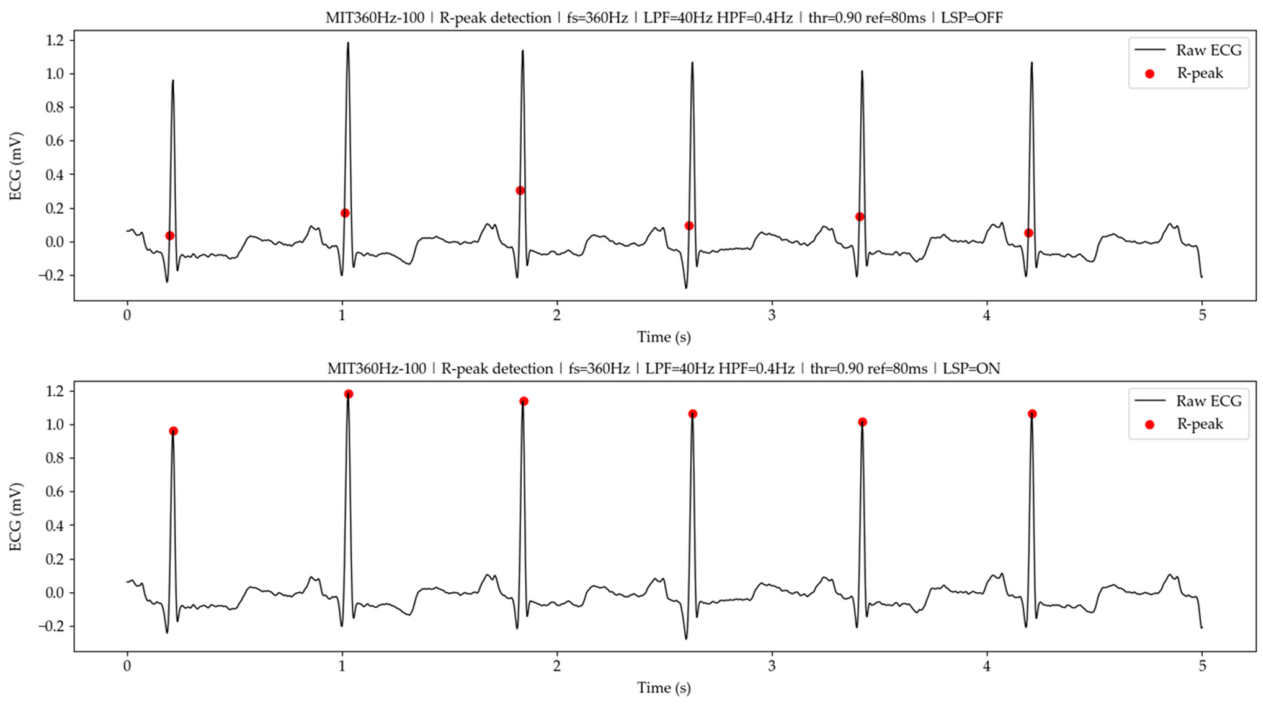

On the MIT-AD database, higher performance was obtained with LSP across most filtering conditions. Under the default condition, the mean F1 increased from 0.615 ± 0.358 (without LSP) to 0.878 ± 0.208 (with LSP), while the highest performance (F1 = 0.885 ± 0.206) was obtained under HPF = 0.4 Hz. Under LPF = 10 Hz, performance decreased substantially in both cases.

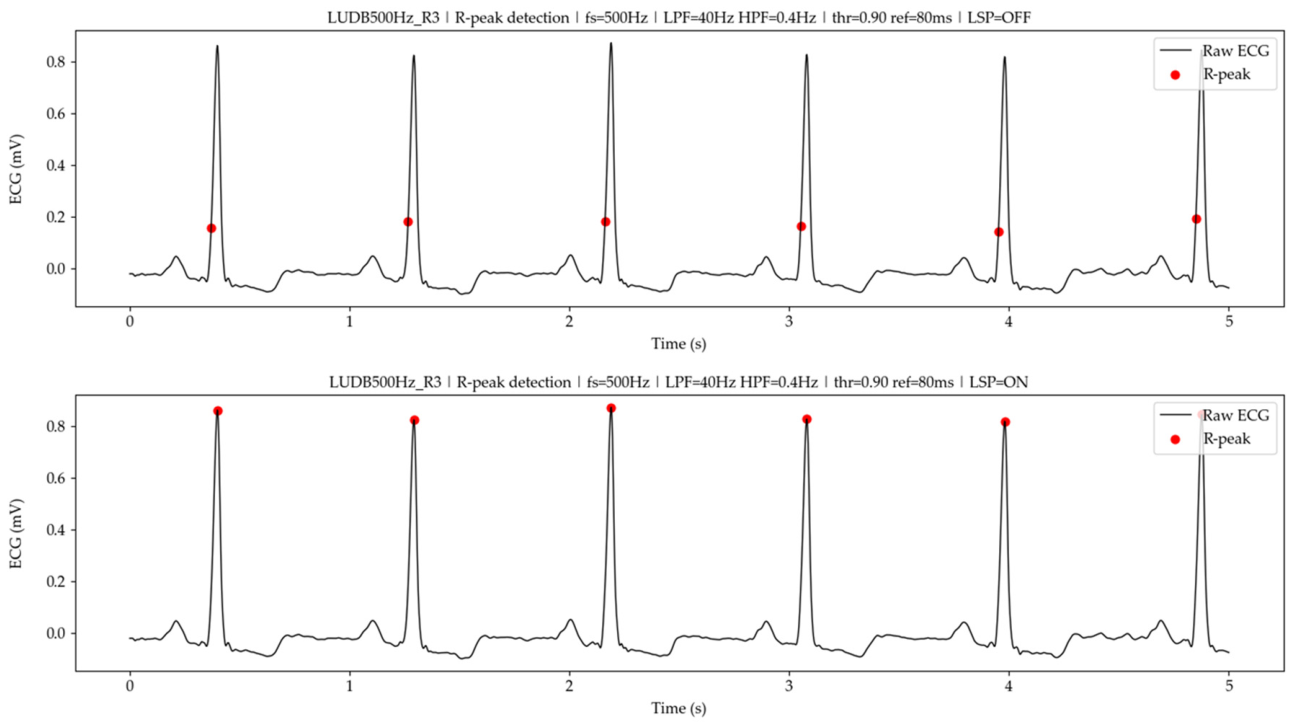

In the LUDB sinus rhythm subset (500 Hz), F1 with LSP were higher than those without LSP under all evaluated conditions. Under the default condition, F1 increased from 0.755 ± 0.255 to 0.820 ± 0.181, while the highest value (F1 = 0.848 ± 0.136) was observed under HPF = 0.4 Hz.

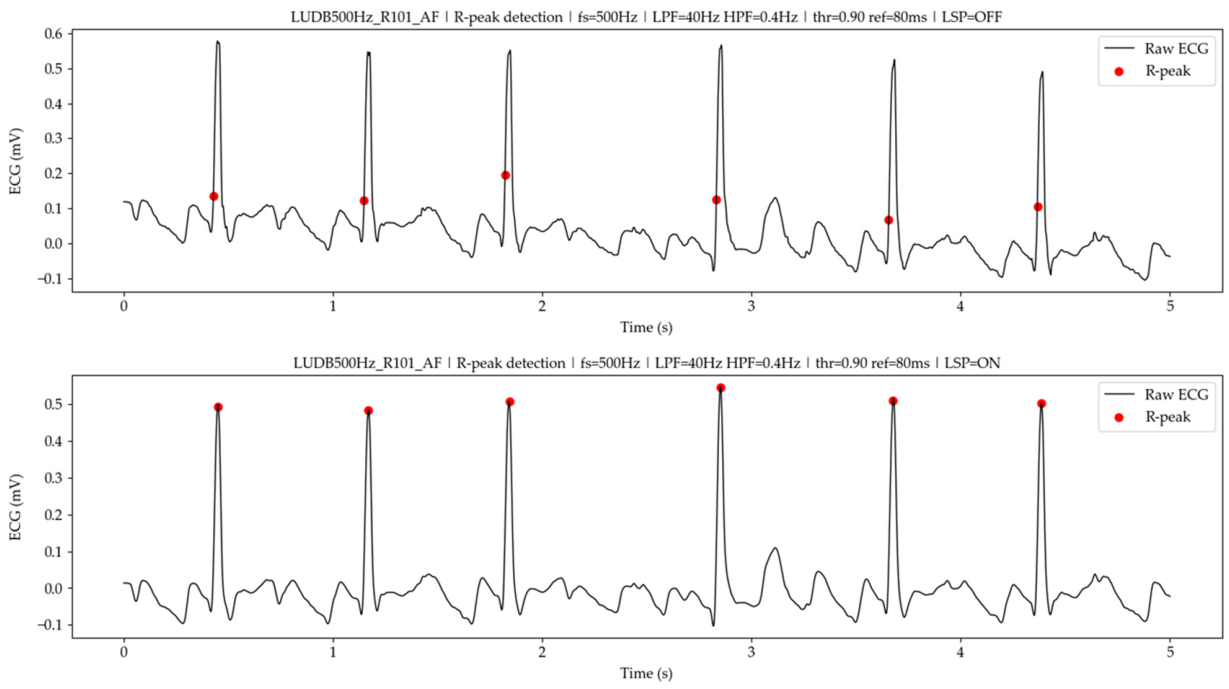

In the LUDB arrhythmia subset (500 Hz), higher F1 were consistently obtained with LSP. Under the default condition, F1 increased from 0.705 ± 0.277 to 0.808 ± 0.178, while the highest performance (F1 = 0.837 ± 0.138) was again obtained under HPF = 0.4 Hz. Performance decreased under LPF = 10 Hz for both conditions.

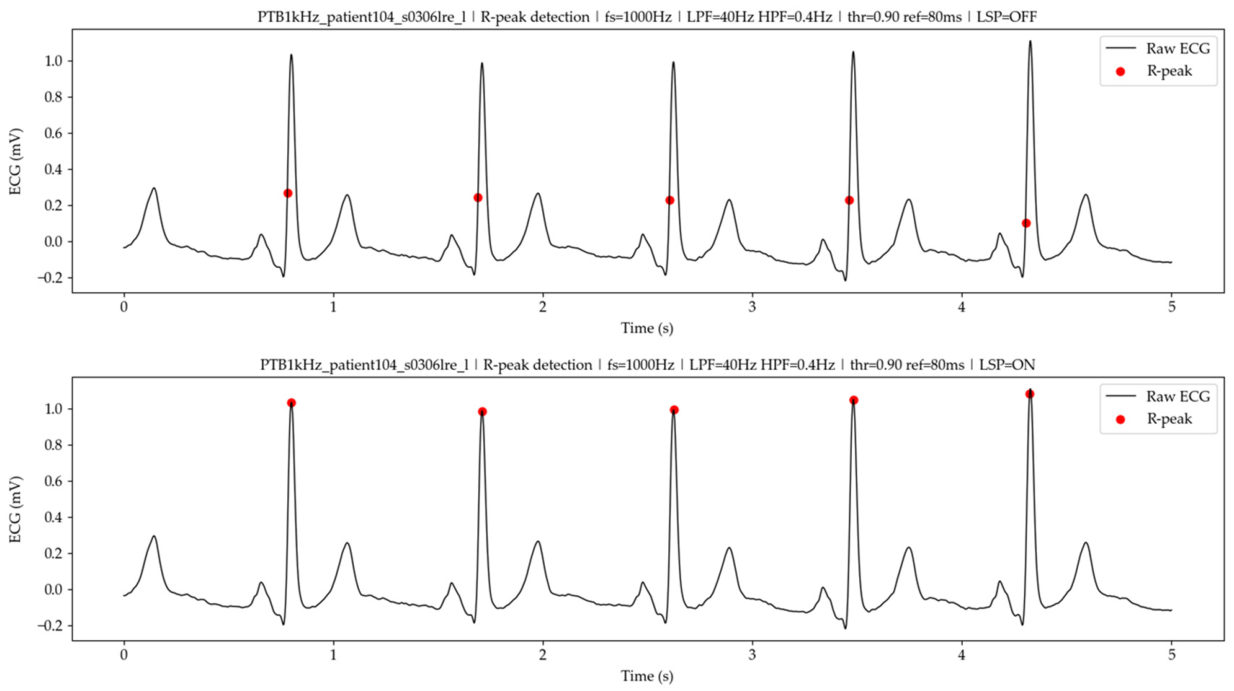

In the PTB database (1000 Hz), LSP also resulted in higher performance. Under the default condition, F1 increased from 0.876 ± 0.204 to 0.935 ± 0.129, while the highest performance (F1 = 0.953 ± 0.143) was obtained under HPF = 0.4 Hz. Across all datasets, LPF = 10 Hz consistently degraded performance.

Table 8. Temporal localization error (mean ± SD) with and without LSP. Errors are defined as the difference between detected and reference R-peak timings (detected − reference, in ms). The TP count denotes the number of true-positive matched detections within a ±20 ms tolerance window.

Dataset	Corrected LSP	Number of TP	Mean ± SD (ms)
MIT-AD (360 Hz)	Without	64,068	–14.5 ± 7.0
	With	91,050	–1.3 ± 4.4
LUDB (Sinus, 500 Hz)	Without	1084	–13.1 ± 6.1
	With	1178	1.4 ± 2.5
LUDB (Arrhythmia, 500 Hz)	Without	431	–13.0 ± 7.0
	With	491	1.4 ± 3.4
PTB (control, 1000 Hz)	Without	9006	–13.9 ± 7.3
	With	9580	–0.6 ± 3.0

summarizes the temporal localization error of detected R-peaks with and without LSP across all datasets. The error was defined as the time difference between detected and reference R-peak locations (detected − reference).

Without LSP, a negative mean error was consistently observed across all datasets. The mean error was −14.5 ± 7.0 ms for MIT-AD, −13.1 ± 6.1 ms for LUDB sinus rhythm, −13.0 ± 7.0 ms for LUDB arrhythmia, and −13.9 ± 7.3 ms for PTB.

With LSP, the mean error was reduced in all datasets. The mean error changed to −1.3 ± 4.4 ms for MIT, 1.4 ± 2.5 ms for LUDB sinus rhythm, 1.4 ± 3.4 ms for LUDB arrhythmia, and −0.6 ± 3.0 ms for PTB. In addition, the SD decreased after applying LSP in all datasets, indicating reduced variability in temporal localization.

To visually illustrate the effect of LSP on temporal alignment, representative examples of R-peak detection results with and without LSP are shown in Figure 5, Figure 6, Figure 7 and Figure 8 for different datasets and sampling frequencies. The ECG signals shown in these figures correspond to the preprocessed signals after bandpass filtering, as described in Section 2. In all cases, detections without LSP are located earlier than the reference peak positions. After applying LSP, the detected peaks are positioned closer to the local maxima of the ECG waveform. These visual results are consistent with the quantitative error values presented in Table 8, where the negative mean error observed without LSP is reduced after correction.

4. Discussion

4.1. Cross-Frequency Robustness of the Proposed Framework

The present study investigated ECG R-peak detection under cross-frequency conditions without resampling or transfer learning. A classifier trained on low-f_s ECG data (128 Hz) was directly applied to higher-f_s datasets (360 Hz, 500 Hz, and 1000 Hz), while maintaining temporal consistency through time-domain feature normalization and a structurally decoupled detection framework.

The results demonstrated that the proposed framework achieved stable detection performance across different sampling frequencies. In particular, sample-wise F1 were consistently maintained, indicating that the learned morphological representation can be applied across signals with different temporal resolutions.

4.2. Systematic Temporal Bias and Its Origin

A key finding of this study is that morphological learning based on ECG signals sampled at 128 Hz can be effectively transferred to ECG signals sampled at higher frequencies without resampling or retraining. This result supports the underlying assumption that higher-frequency ECG waveforms contain the same fundamental morphological structures as those sampled at 128 Hz, and that these structures can be captured through time-domain feature representations, as suggested in previous studies on time-scale consistency in physiological signals [18,19].

Another important observation is the systematic temporal bias observed in the initial detections. In the training data, R-wave annotations were not located at the exact peak position but rather in the intermediate region between the Q-wave and the R-wave, as described in Section 2.1.1. Accordingly, it is expected that the classifier learns to respond to waveform regions in the vicinity of the rising phase rather than to the precise R-peak location.

The proposed morphological learning does not aim to directly detect the exact R-peak location, but rather to identify waveform regions around the rising phase of the R-wave. Therefore, the observed temporal offset in the initial detections is not a failure of the model, but a natural consequence of the learning objective. In this framework, peak localization is not delegated to the classifier itself, but to the subsequent deterministic processing stage. The classifier provides coarse candidate regions based on morphological characteristics, while precise peak positions are determined through rule-based temporal alignment.

As shown in Figure 4, Figure 5, Figure 6 and Figure 7, the detected peak positions without LSP are consistently located between the onset and the peak of the R-wave rather than precisely at the annotated positions or the onset. Quantitatively, Table 8 shows that the mean error is approximately −14 ms across all datasets.

This value corresponds to approximately half of the window length (32 ms) used for feature extraction, indicating a half-window shift in the detected positions. Notably, the detected positions are not identical to the annotated points but are systematically shifted toward intermediate locations. Importantly, this behavior indicates that the classifier does not simply reproduce the annotation positions, but instead responds to structurally meaningful points defined by the feature representation. This behavior can be interpreted as a consequence of the window-based feature representation. Within each local window, large amplitude values tend to appear on the right side of the window when the window is centered near the rising phase of the R-wave, while the first-order derivative (d1) also exhibits large values in this region.

Consistent with this interpretation, the feature importance analysis (Table 6) shows that the maximum amplitude and derivative-based features strongly contribute to the classification process. As a result, the classifier preferentially responds to waveform segments where both amplitude prominence and rapid slope change are present, leading to detections located between the onset and the peak.

Therefore, the observed temporal bias does not represent a failure of the model, but rather reflects the intrinsic behavior of the window-based morphological learning process under the given feature design. In this sense, the detected positions can be interpreted as structurally consistent intermediate points between the onset and the peak of the R-wave. Although detections without LSP fall within the tolerance range (±20 ms), they exhibit a systematic temporal bias. Therefore, LSP is essential for precise peak localization rather than for improving detection sensitivity.

4.3. Effect of LSP on Temporal Alignment

The application of LSP substantially reduced the temporal bias across all datasets. After correction, the mean error approached zero, and the variability of the error decreased, indicating improved temporal consistency. Given the systematic bias identified in Section 4.2, LSP can be interpreted as a necessary deterministic step for aligning structurally detected candidate points with the true R-peak locations.

These results demonstrate that deterministic post-processing based on waveform structure can effectively refine the coarse detections provided by the classifier. The combination of probabilistic scoring and deterministic correction enables accurate peak localization across different sampling frequencies.

4.4. Methodological Implications

In the literature, several strategies have been proposed to address differences in f_s. A common strategy is to standardize ECG signal representation before model training or evaluation, for example by using unified sampling rates or preprocessing pipelines [3,4,20,21,22]. While this approach enables the application of a single model across datasets, it alters the discrete-time representation of the signal and may affect the temporal definition of annotated events.

Another approach involves transfer learning or domain adaptation, where models pretrained on source datasets are fine-tuned for target datasets or tasks [6,23,24]. Although such methods can improve performance, they rely on frequency-specific adaptation and do not provide a unified representation across sampling conditions.

More recently, hybrid frameworks combining machine learning or DL models with additional signal-processing or feature-fusion components have been explored [25,26,27,28]. Patient-specific DL models have also been proposed to further improve classification performance [29]. These approaches can improve empirical performance; however, the roles of probabilistic inference and deterministic decision-making are often not explicitly defined.

The primary objective of the present study was not to optimize R-peak detection performance through frequency-specific adaptation or signal standardization, but rather to investigate whether a model trained using the original 128-Hz annotation definition could be directly transferred to ECG signals acquired at higher sampling frequencies. In the proposed framework, the classifier learns waveform regions associated with the rising phase of the R-wave from physician-provided annotations and is subsequently applied to higher-frequency ECG signals without resampling or retraining. Therefore, the focus of this study is the preservation of temporal consistency across sampling frequencies rather than the optimization of detector performance under a unified sampling representation. From this perspective, approaches based on resampling high-frequency signals to a common f_s address a different methodological objective, namely frequency standardization rather than direct cross-frequency transfer of the learned representation.

In contrast, the proposed framework is designed to operate within a temporally consistent representation by defining features in the time domain and explicitly separating probabilistic candidate detection from deterministic decision processes. While the framework does not assume strict f_s invariance, it achieves consistent performance across a wide range of sampling conditions through time-domain normalization. From a methodological perspective, this design avoids both resampling and frequency-specific adaptation, while preserving the temporal definition of annotated events.

The sampling frequencies evaluated in this study (128 Hz, 360 Hz, 500 Hz, and 1000 Hz) correspond to representative ECG databases and span the range commonly encountered in practical Holter and clinical ECG acquisition systems. Specifically, lower sampling frequencies around 125–250 Hz are frequently used in Holter ECG monitoring due to storage and power constraints, whereas diagnostic ECG systems typically employ sampling frequencies of 500–1000 Hz. Therefore, the present study focuses on a practically relevant range of ECG sampling frequencies rather than on arbitrarily low-frequency conditions.

The feature importance analysis further indicates that amplitude-based features contribute primarily to candidate detection, while temporal precision is achieved through deterministic alignment. This result supports the interpretation that the classifier performs coarse localization based on morphological prominence, whereas the final temporal accuracy is governed by rule-based processing.

An important implication of this framework is its robustness to discrepancies between training annotations and the intended detection objective. In conventional machine learning-based peak detection, the learned decision boundary is inherently defined by the annotation scheme. Therefore, if the training annotations do not correspond exactly to the desired target timing, the model effectively learns a different task.

In the present study, the classifier learned to detect positions located between the onset and the peak of the R-wave, resulting in a systematic temporal bias. This behavior reflects the characteristics of the training annotations rather than an intrinsic failure of the model. By separating probabilistic candidate detection from deterministic decision-making, the proposed framework enables such discrepancies to be addressed through post-processing.

This structural separation provides flexibility in handling annotation-induced inconsistencies without requiring modification of the machine learning model itself. As a result, the framework offers a robust and adaptable approach for peak detection in scenarios where annotation definitions vary across datasets or differ from the desired detection objective.

Rather than replacing machine learning, the proposed framework extends its capability by explicitly separating probabilistic inference from deterministic decision-making. This perspective is consistent with prior discussions emphasizing that interpretability should not be treated as a post hoc property, but rather as an inherent aspect of model design [30]. Related perspectives have also been discussed in the context of biomedical signal analysis [31].

In the proposed framework, interpretability is not added after prediction, but is embedded in the detection process through PTC. This design enables machine learning to focus on robust candidate detection while ensuring physiologically consistent final outputs.

4.5. Limitations

Several limitations should be noted. First, the evaluation on the PTB dataset requires careful interpretation. Unlike MIT-AD and LUDB dataset, which provide expert-annotated reference R-peak locations, the PTB dataset does not include ground-truth annotations. Therefore, Silver-standard labels were constructed using a multi-detector agreement framework followed by LSP. Although detector agreement was used to improve annotation reliability, both NeuroKit2 and gqrs are QRS detection algorithms and may share common localization biases. Therefore, the resulting Silver-standard annotations cannot be considered equivalent to expert-annotated ground truth. Because LSP was also used in the proposed detection framework for final peak alignment, the evaluation on the PTB dataset is not fully independent from the proposed method. This shared alignment mechanism may partially contribute to higher F1 by reducing systematic discrepancies between detected peaks and reference annotations. Accordingly, the PTB results should not be directly compared with those obtained on datasets with expert-annotated ground truth. In contrast, the evaluations on MIT-AD and LUDB provide more independent validation of the proposed method. Nevertheless, the PTB dataset remains valuable for assessing cross-frequency robustness at high sampling rates (1000 Hz).

Second, a direct comparison with DL-based methods was not the primary focus of this study, as the objective was to investigate structural consistency across sampling frequencies rather than to maximize in-distribution performance.

Third, the current framework assumes relatively stable waveform morphology and may require further validation under conditions with severe noise or pathological variations. Additional large-scale validation is also necessary to confirm generalizability in real-world settings.

Finally, the present study relied on annotations located near the rising phase of the R-wave rather than at the exact peak position. If peak-centered annotations were used for training, the initial temporal bias observed in this study would likely be reduced. However, such an approach may increase sensitivity to local variability and sampling-dependent fluctuations around the peak, potentially affecting cross-frequency consistency. Further investigation is required to systematically evaluate the impact of annotation definitions on detection behavior and robustness.

5. Conclusions

We proposed a cross-frequency ECG R-peak detection framework that operates without resampling or retraining by combining morphological skeleton learning with PTC and LSP.

The results demonstrated stable detection performance across multiple sampling frequencies (360–1000 Hz), supporting the premise that ECG waveforms share consistent morphological structures in the time domain when features are temporally normalized. A systematic temporal bias observed in the initial detections was attributed to window-based morphological learning and was effectively corrected by LSP, resulting in accurate peak alignment.

These findings highlight that separating probabilistic candidate detection from deterministic temporal decision-making enables robust and consistent ECG peak detection across different sampling conditions.
