Ancient Egyptian Granite Graffiti of Bigeh Island, Philae Archaeological Site (Aswan, Egypt): An Archaeometric and Decay Assessment for Their Conservation
Abstract

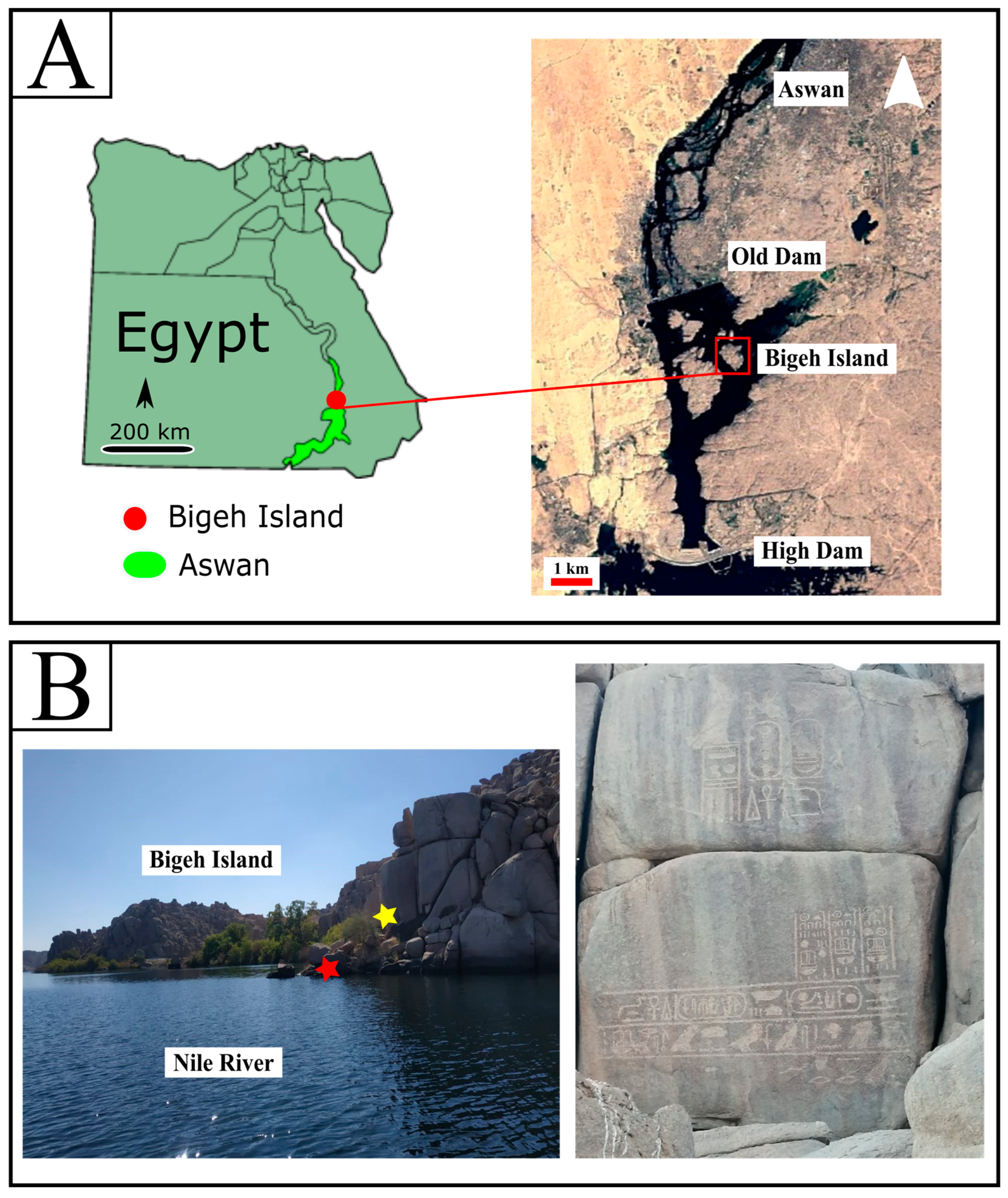

1. Introduction
- -
- Extensive site observation was conducted for documentation and visual assessment, and a multi-analytical approach was employed to analyze material composition and deterioration mechanisms.
- -
- X-ray diffraction (XRD) and X-ray fluorescence (XRF) were used for mineralogical and chemical analysis and analysis of the potential alteration of by-products due to water exposure and reaction.
- -
- Petrographic description of the rock texture, grain boundaries, and mineral relationships was used to assess weathering patterns. Additionally, microscopic analyses were carried out using digital microscopy to study surface morphology and detect microfractures, and scanning electron microscopy (SEM) with EDS was used to analyze the surface morphology and the elemental compositions at high resolution to provide a comprehensive understanding of decay processes.
2. Materials and Methods
3. Results and Discussion

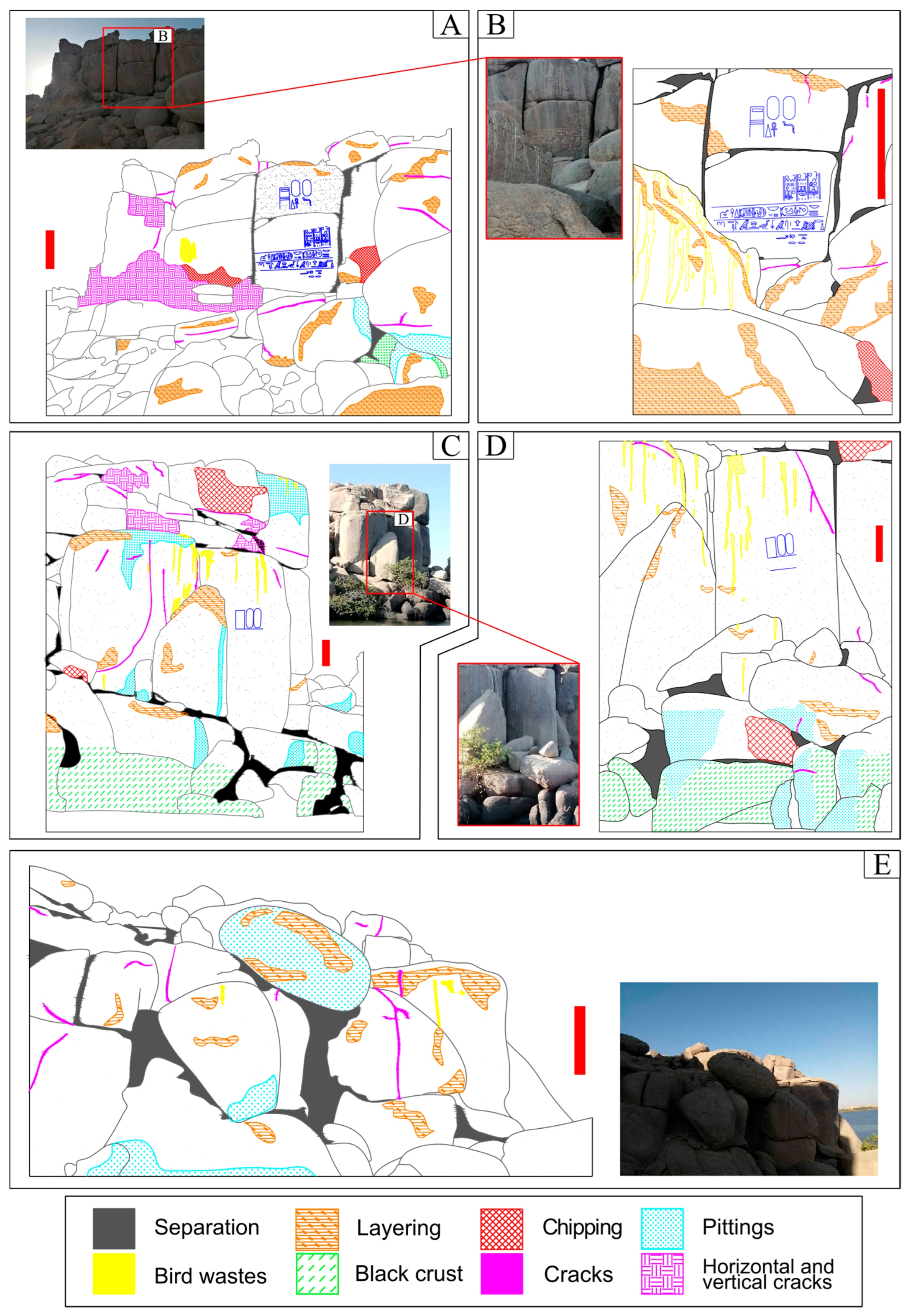

3.1. In Situ Analysis and Granite Decay

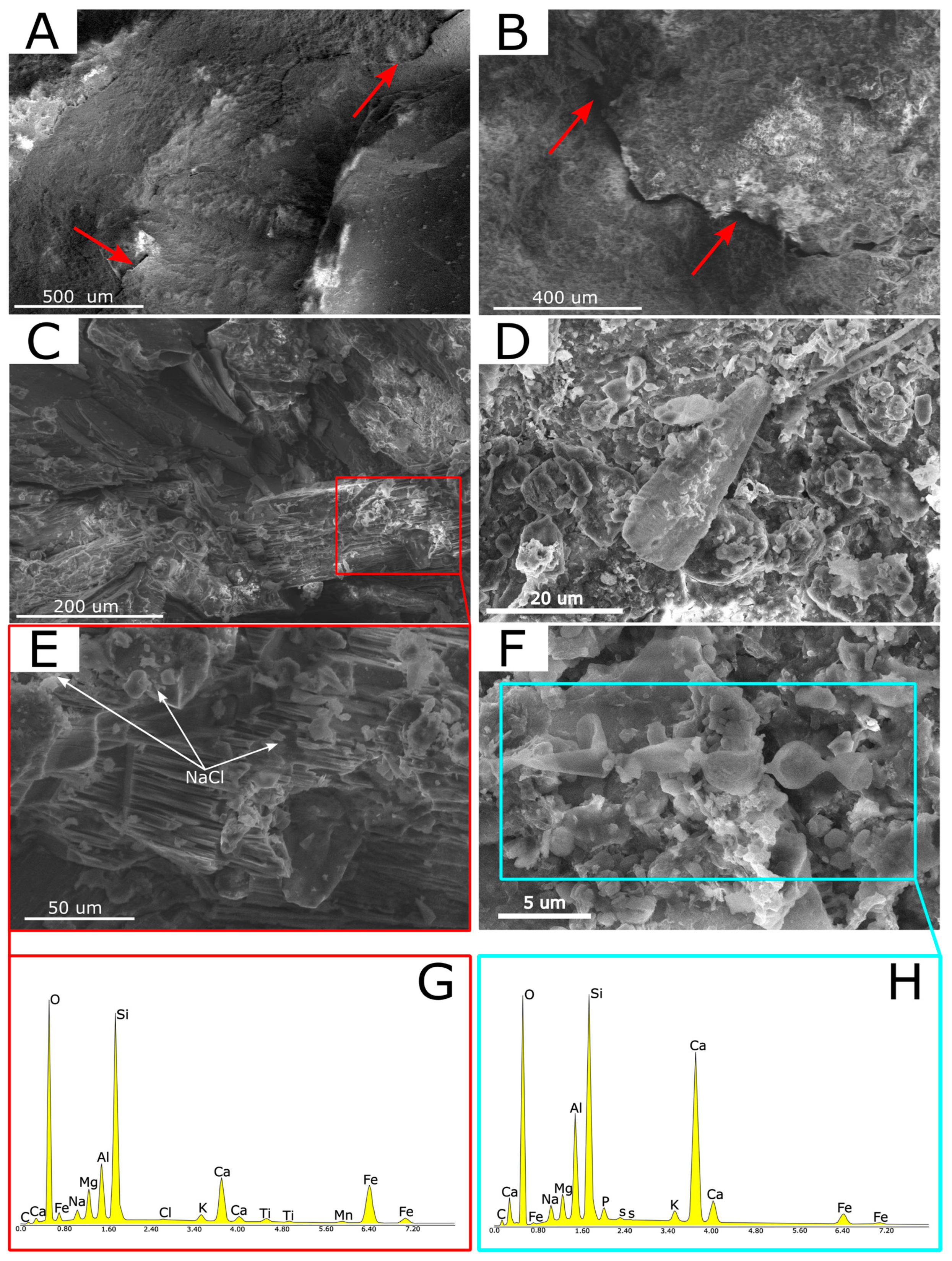

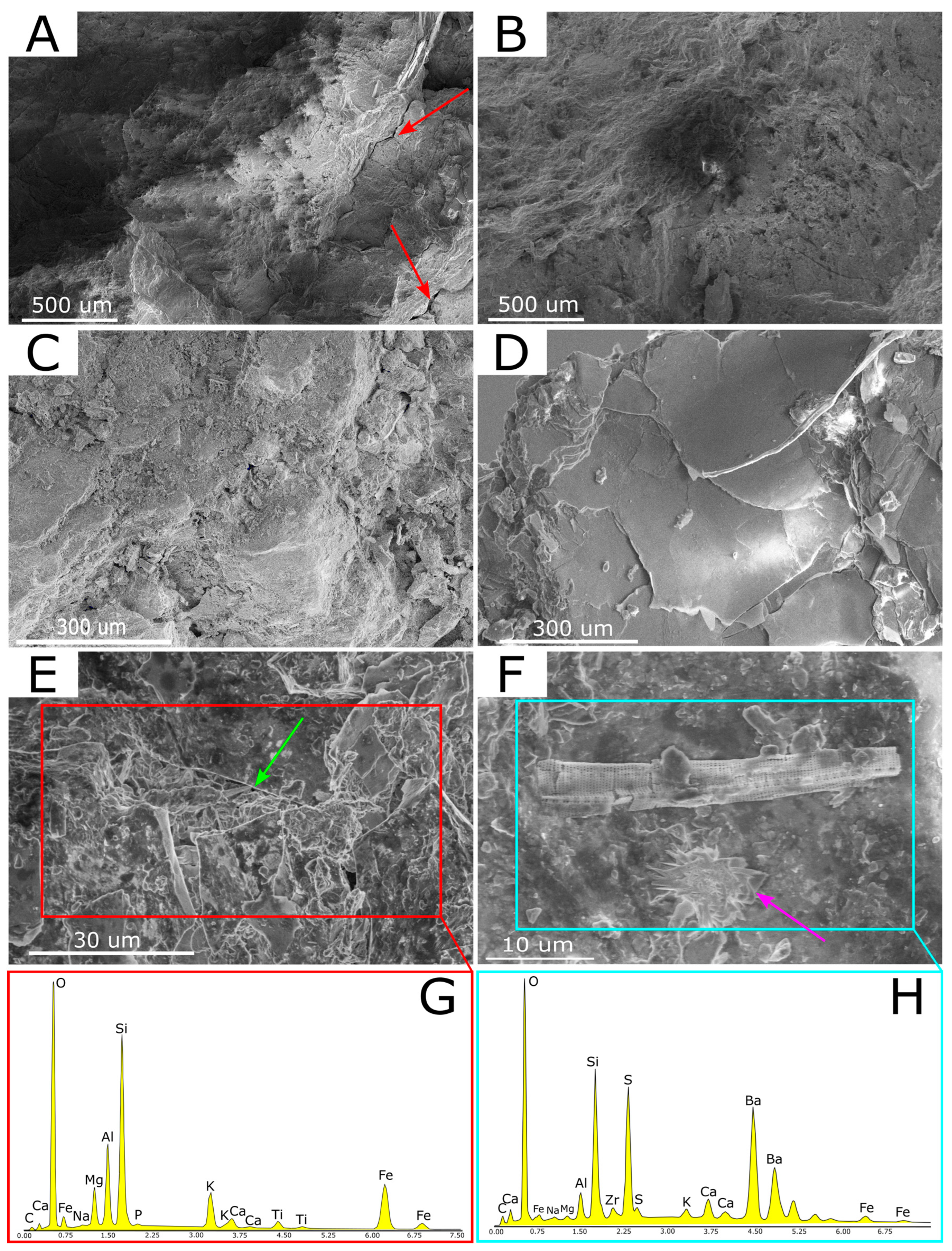

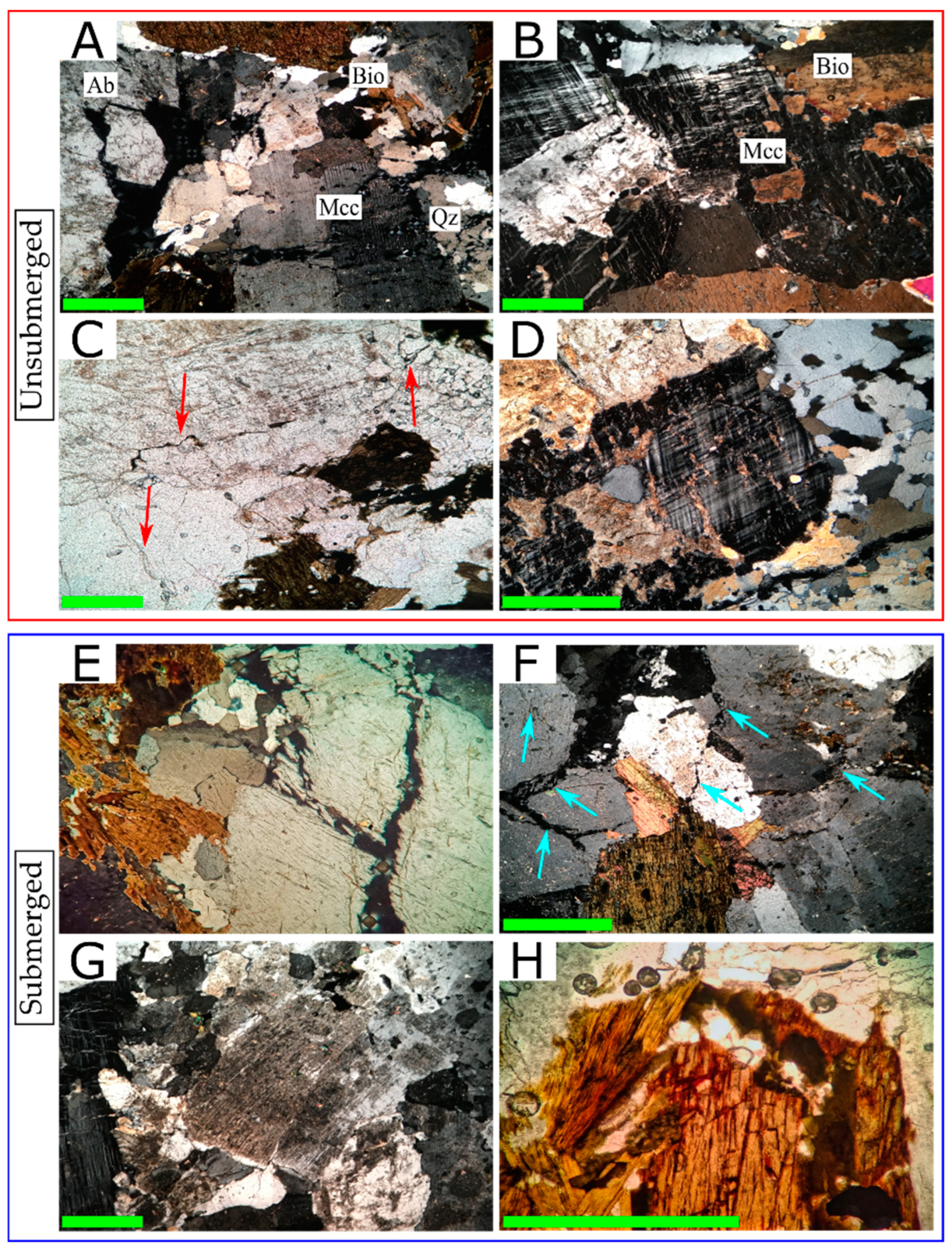

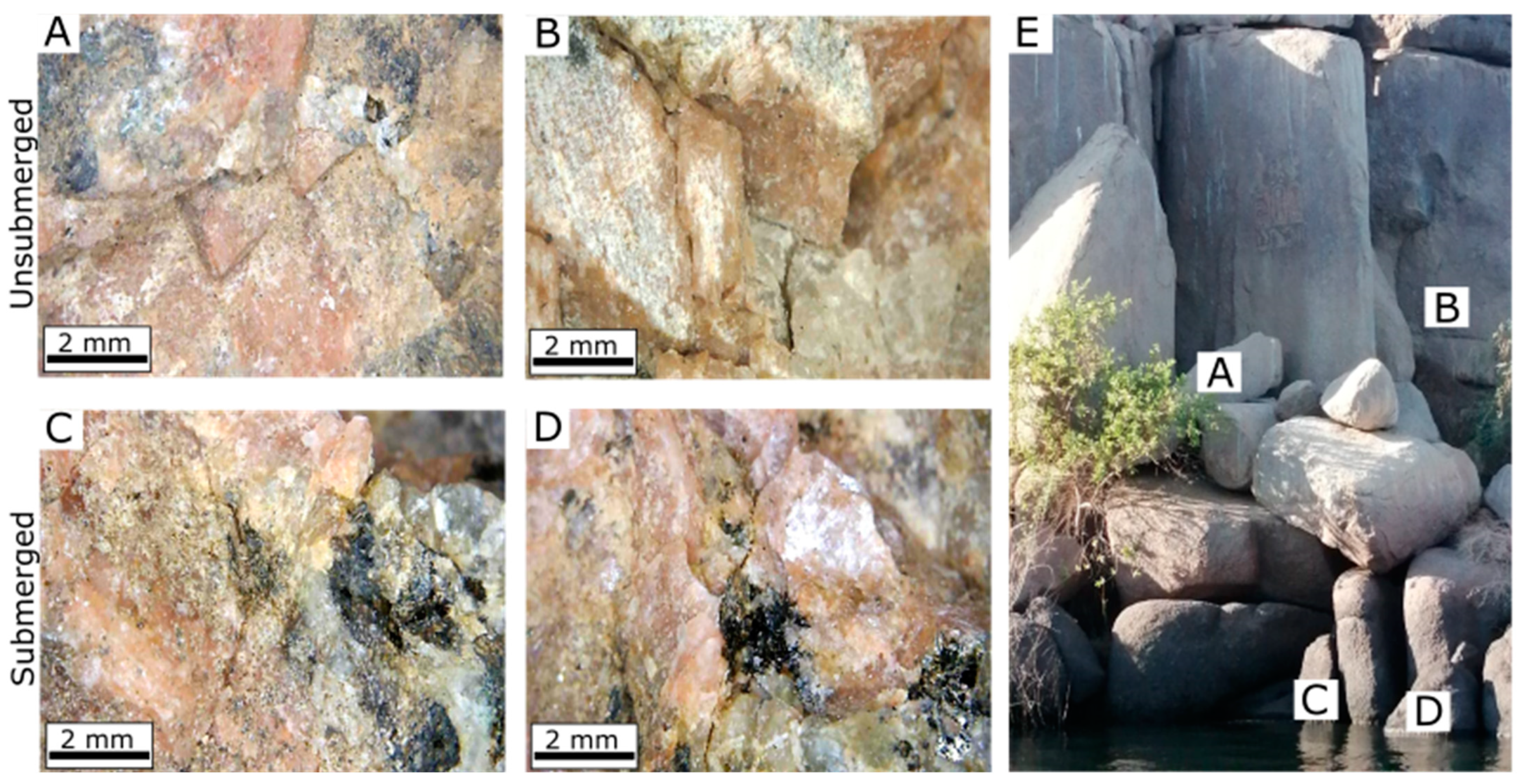

3.2. Microscopic and Petrographical Description

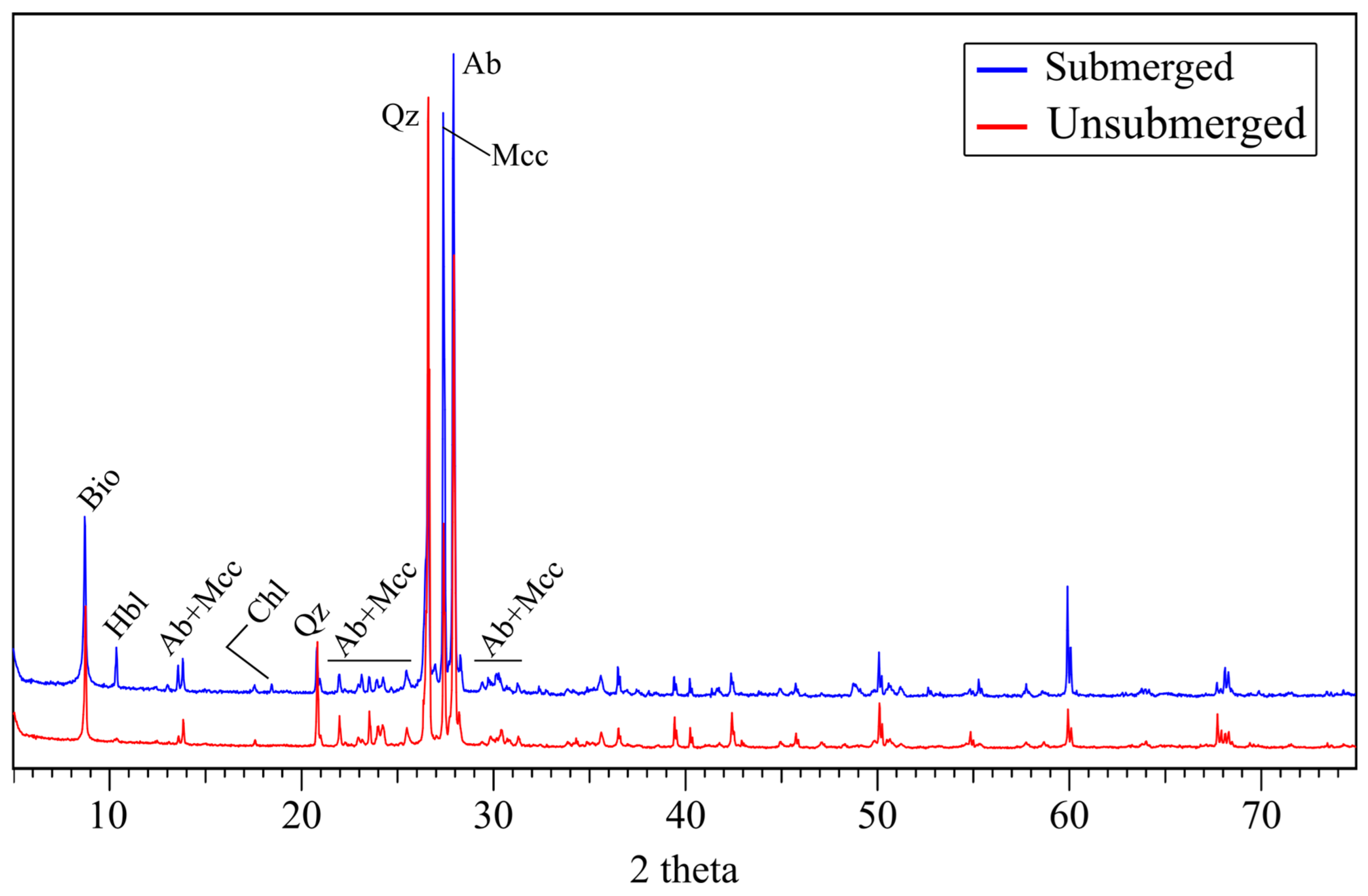

3.3. Mineralogical Composition
3.4. Safeguarding and Conservation Plan
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
Abbreviations
POM | Polarized optical microscope |
SEM | Scanning electron microscope |
EDS | Energy-dispersive spectroscopy |
XDR | X-ray diffraction |
XRF | X-ray fluorescence |
Qz | Quartz |
Ab | Albite |
Mcc | Microcline |
Bio | Biotite |
Hbl | Hornblende |
Chl | Chlorite |
Kfs | K-feldspar |
References
- Přikryl, R. Some microstructural aspects of strength variation in rocks. Int. J. Rock Mech. Min. Sci. 2001, 38, 671–682. [Google Scholar] [CrossRef]
- Gupta, A.S.; Rao, S.K. Weathering indices and their applicability for crystalline rocks. Bull. Eng. Geol. Environ. 2001, 60, 201–221. [Google Scholar] [CrossRef]
- Steiger, M.; Charola, A.E.; Sterflinger, K. Weathering and deterioration. In Stone in Architecture, 4th ed.; Springer: Berlin/Heidelberg, Germany, 2011. [Google Scholar] [CrossRef]
- Liu, R.; Chi, Y.; Xie, Y.; Kang, C.; Sun, L.; Wu, P.; Wei, Z. Characteristics and influencing factors of the granite weathering profile: A case study of a high latitude area in northeastern China. Minerals 2023, 14, 17. [Google Scholar] [CrossRef]
- White, A.F.; Brantley, S.L. The effect of time on the weathering of silicate minerals: Why do weathering rates differ in the laboratory and field? Chem. Geol. 2003, 202, 479–506. [Google Scholar] [CrossRef]
- Chabas, A.; Jeannette, D. Weathering of marbles and granites in marine environment: Petrophysical properties and special role of atmospheric salts. Environ. Geol. 2001, 40, 359–368. [Google Scholar] [CrossRef]
- Yun, M.; Ren, J.; Song, Y.; Zhang, L.; Sun, C.; Chang, P.; Cao, X. Fracture mechanism and damage constitutive model of Freeze–Thaw fissured granite subjected to fatigue loading. Appl. Sci. 2024, 14, 6324. [Google Scholar] [CrossRef]
- Qi, L.; Wang, J.; Zhang, D.; Zhang, Y.; Ma, J. Evaluation of the influence of freeze–thaw cycles on the joint strength of granite in the Eastern Tibetan Plateau, China. Sci. Rep. 2024, 14, 24085. [Google Scholar] [CrossRef]
- Song, J.; Gong, Y.; Wu, S.; Zhang, Y. Damage deterioration behavior of granite subjected to freeze-thaw cycles: Experiments and theories. Constr. Build. Mater. 2024, 450, 138540. [Google Scholar] [CrossRef]
- Weng, L.; Wu, Z.; Taheri, A.; Liu, Q.; Lu, H. Deterioration of dynamic mechanical properties of granite due to freeze-thaw weathering: Considering the effects of moisture conditions. Cold Reg. Sci. Technol. 2020, 176, 103092. [Google Scholar] [CrossRef]
- Hall, K.; Thorn, C. The historical legacy of spatial scales in freeze–thaw weathering: Misrepresentation and resulting misdirection. Geomorphology 2011, 130, 83–90. [Google Scholar] [CrossRef]
- Freire-Lista, D.; Fort, R.; Varas-Muriel, M. Freeze–thaw fracturing in building granites. Cold Reg. Sci. Technol. 2015, 113, 40–51. [Google Scholar] [CrossRef]
- Farquharson, J.I.; Kushnir, A.R.L.; Wild, B.; Baud, P. Physical property evolution of granite during experimental chemical stimulation. Geotherm. Energy 2020, 8, 14. [Google Scholar] [CrossRef]
- Winkler, E.M. Stone in Architecture; Springer Nature: Dordrecht, The Netherlands, 1997. [Google Scholar] [CrossRef]
- Gadd, G.M. Geomycology: Biogeochemical transformations of rocks, minerals, metals and radionuclides by fungi, bioweathering and bioremediation. Mycol. Res. 2007, 111, 3–49. [Google Scholar] [CrossRef] [PubMed]
- Kelany, A.; Negem, M.; Tohami, A.; Heldal, T. Granite quarry survey in the Aswan region, Egypt: Shedding new light on ancient quarrying. In Quarry Scapes: Ancient Stone Quarry Landscapes in the Eastern Mediterranean; Supreme Council of Antiquities; Geological Survey of Norway: Trondheim, Norway, 2009; Volume 12, pp. 87–98. 20p, Available online: https://www.ngu.no/upload/Publikasjoner/Special%20publication/SP12_s87-98.pdf (accessed on 3 March 2025).
- Müskens, S.; Braekmans, D.; Versluys, M.J.; Degryse, P. Egyptian sculptures from Imperial Rome. Non-destructive characterization of granitoid statues through macroscopic methodologies and in situ XRF analysis. Archaeol. Anthr. Sci. 2017, 10, 1303–1318. [Google Scholar] [CrossRef]
- Wahab, G.M.; Gouda, M.; Ibrahim, G. Study of physical and mechanical properties for some of Eastern Desert dimension marble and granite utilized in building decoration. Ain Shams Eng. J. 2019, 10, 907–915. [Google Scholar] [CrossRef]
- Serra, M.; Borghi, A.; D’amicone, E.; Fiora, L.; Mashaly, O.; Vigna, L.; Vaggelli, G. Black and red granites in the Egyptian Antiquity Museum of Turin: A minero-petrographic and provenance study. Archaeometry 2010, 52, 962–986. [Google Scholar] [CrossRef]
- Aston, B.; Harrell, J.A.; Shaw, I. Stone. In Ancient Egyptian Materials and Technology; Nicholson, P.T., Shaw, I., Eds.; Cambridge University Press: Cambridge, UK, 2000; pp. 5–77. [Google Scholar]
- Brown, V.M.; Harrell, J.A. Aswan Granite and Granodiorite. Göttinger Misz. Beiträge Ägyptologischen Diskuss; University of Göttingen: Göttingen, Germany, 1998; pp. 33–39. Available online: https://www.uni-goettingen.de/de/publikationen/470881.html (accessed on 3 March 2025).
- Stern, R.J.; Kröner, A.; Manton, W.I.; Reischmann, T.; Mansour, M.; Hussein, I.M. Geochronology of the late Precambrian Hamisana shear zone, Red Sea Hills, Sudan and Egypt. J. Geol. Soc. 1989, 146, 1017–1029. [Google Scholar] [CrossRef]
- Domede, N.; Parent, T.; Sellier, A. Mechanical behaviour of granite: A compilation, analysis and correlation of data from around the world. European Eur. J. Environ. Civ. Eng. 2017, 23, 193–211. [Google Scholar] [CrossRef]
- Peden, A.J. The Graffiti of Pharaonic Egypt. Scope and Roles of Informal Writings (c. 3100-332 B.C.). Ph.D. Thesis, University of Liverpool, Liverpool, UK, 1997. [Google Scholar]
- Blackman, A.M. The Temple of Bigeh. 1915. Available online: https://ia601308.us.archive.org/25/items/templeofbgeh00blacuoft/templeofbgeh00blacuoft.pdf (accessed on 1 March 2025).
- Fahmy, A.; Martínez-López, J.; Sánchez-Bellón, Á.; Domínguez-Bella, S.; Molina-Piernas, E. Multianalytical diagnostic approaches for the assessment of materials and decay of the archaeological sandstone of Osiris Temple (The Abaton) in Bigeh Island, Philae (Aswan, Egypt). J. Cult. Heritage 2022, 58, 167–178. [Google Scholar] [CrossRef]
- Peng, L.; Li, X.; Peng, X.; Gan, Y.; Wang, J. Analysis of physical and mechanical behaviors and microscopic mineral characteristics of thermally damaged granite. Sci. Rep. 2024, 14, 14776. [Google Scholar] [CrossRef]
- He, X.; Liu, C.; Zhang, X.; Wu, C.; Weng, Z. Disintegration Characteristics of Highly Weathered Granite under the Influence of Scouring. Water 2024, 16, 496. [Google Scholar] [CrossRef]
- Migon, P. Granite weathering. In Granite Landscapes of the World; Oxford University Press: Oxford, UK, 2006. [Google Scholar] [CrossRef]
- Fahmy, A.; Molina-Piernas, E.; Martínez-López, J.; Domínguez-Bella, S. Salt weathering impact on Nero/Ramses II Temple at El-Ashmonein archaeological site (Hermopolis Magna), Egypt. Heritage Sci. 2022, 10, 125. [Google Scholar] [CrossRef]
- Zhao, F.; Sun, Q.; Zhang, W. Combined effects of salts and wetting–drying cycles on granite weathering. Bull. Eng. Geol. Environ. 2020, 79, 3707–3720. [Google Scholar] [CrossRef]
- Wen, T.; Chen, X.; Shao, L. Effect of multiple wetting and drying cycles on the macropore structure of granite residual soil. J. Hydrol. 2022, 614, 128583. [Google Scholar] [CrossRef]
- Oliva, P.; Viers, J.; Dupré, B. Chemical weathering in granitic environments. Chem. Geol. 2003, 202, 225–256. [Google Scholar] [CrossRef]
- Yuan, G.; Cao, Y.; Schulz, H.; Hao, F.; Gluyas, J.; Liu, K.; Yang, T.; Wang, Y.; Xi, K.; Li, F. A review of feldspar alteration and its geological significance in sedimentary basins: From shallow aquifers to deep hydrocarbon reservoirs. Earth-Sci. Rev. 2019, 191, 114–140. [Google Scholar] [CrossRef]
- Papoulis, D.; Tsolis-Katagas, P.; Katagas, C. Progressive stages in the formation of kaolin minerals of different morphologies in the weathering of plagioclase. Clays Clay Miner. 2004, 52, 275–286. [Google Scholar] [CrossRef]
- Fahmy, A.; Molina-Piernas, E.; Domínguez-Bella, S. Conservation assessment of the stone blocks in the northeast corner of the Karnak temples in Luxor, Egypt. Minerals 2024, 14, 890. [Google Scholar] [CrossRef]
- Warr, L.N. IMA–CNMNC approved mineral symbols. Miner. Mag. 2021, 85, 291–320. [Google Scholar] [CrossRef]
- Hernandez, A.C.; Sanjurjo-Sánchez, J.; Alves, C.; Figueiredo, C.A.M. Study of the geochemical decay and environmental causes of granite stone surfaces in the built heritage of Barbanza Peninsula (Galicia, NW Spain). Coatings 2024, 14, 169. [Google Scholar] [CrossRef]
- Abdel-Satar, A.M.; Abdo, M.H.; Othman, A.A.; Al-Afify, A.D. Assessment of water quality in the shores of the Nile River islands, Egypt: Chemical and microbiological analysis. Ecol. Front. 2024, 44, 1002–1017. [Google Scholar] [CrossRef]
- Vlasov, D.Y.; Panova, E.G.; Zelenskaya, M.S.; Rodina, O.A.; Vlasov, A.D.; Sazanova, K.V. Changes of Granite Rapakivi under the Biofouling Influence. In Geochemistry; IntechOpen: London, UK, 2020. [Google Scholar] [CrossRef]
- Dekov, V.; Komy, Z.; Araújo, F.; Van Put, A.; Van Grieken, R. Chemical composition of sediments, suspended matter, river water and ground water of the Nile (Aswan-Sohag traverse). Sci. Total. Environ. 1997, 201, 195–210. [Google Scholar] [CrossRef] [PubMed]
- Mohallel, S.A. Hydrogeochemical tracers to assess the groundwater in El Saieda Basin, western desert, Aswan, Egypt. Applied Appl. Water Sci. 2024, 14, 157. [Google Scholar] [CrossRef]
- Olson, K.R.; Kome, G.K. The Nile River and the Aswan High Dam. Open J. Soil Sci. 2024, 14, 741–764. [Google Scholar] [CrossRef]
- El-Awamri, A. Freshwater Benthic Diatoms in the Nile Delta and El-Fayum, Egypt. Egypt. J. Phycol. 2006, 7, 265–285. [Google Scholar] [CrossRef]
Decay Type | Observations | Causes and Effects |
---|---|---|
Mechanical Weathering | ||

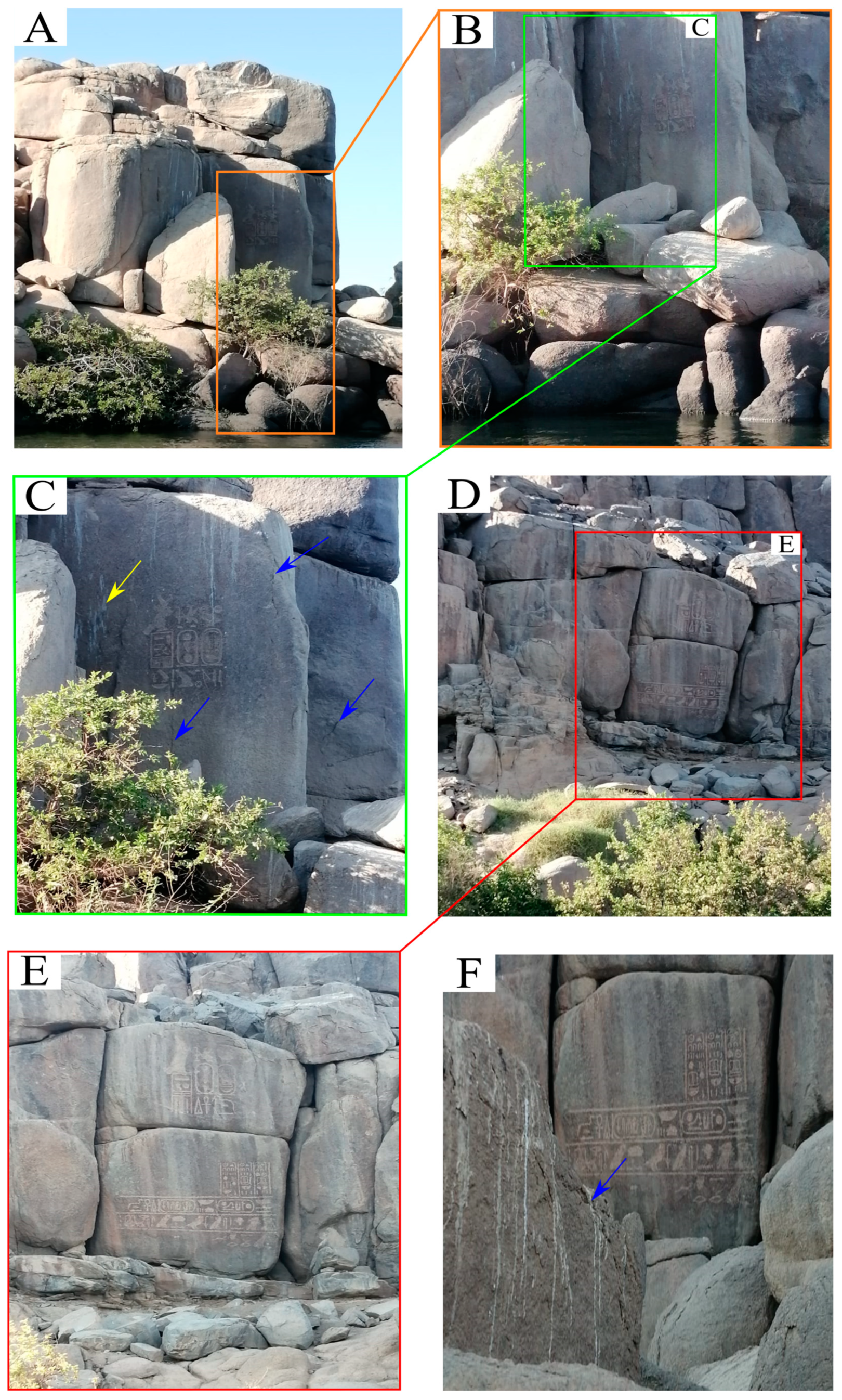

Diaclases and cracks | Found in rock formations (Figure 2A,B) | Caused by natural stress and thermal expansion/contraction due to extreme wet–dry variations; widening of fractures compromises structures. |
Granular disintegration and surface erosion | Inscriptions show loss of mineral grains (Figure 2C,F) | Wind, moisture, and water flow weaken mineral cohesion, dislodging grains over time; this is increased by salt crystallization. |
Flaking and exfoliation | Peeling rock layers (Figure 2E) | Hydration and dehydration cycles due to periodic submersion in Nile water. In addition, salt crystallization causes surface detachment. |
Mechanical erosion | Surface degradation from sediment transport (Figure 2F) | Strong water currents and suspended particles cause abrasion, accelerating decay. |
Chemical Weathering | ||
Salt crystallization | Internal stress and degradation | Dissolved salts in Nile water enter rock pores, crystallize, and expand, and this causes structural weakness. |
Chemical reactions with Nile water | Loss of granite internal fabric | Sulfates and carbonates in water that react with granite minerals can promote decay. |
Increased porosity | More porous structure due to repeated wetting and drying cycles | Water infiltration enlarges micropores and increases the susceptibility to further decay. |
Black crust formation | Surface discoloration | Accumulation of atmospheric pollutants leads to chemical weathering. |
Biological Weathering | ||
Vegetation growth (algae, moss, lichen) | High moisture retention (Figure 2B,D) | Organisms produce organic acids that chemically degrade minerals, increasing erosion. |
Bird waste accumulation | Surface damage (Figure 2C) | Organic acids from waste weaken the granite surface, contributing to further deterioration. |
Moisture retention by biological growth | Increased salt crystallization | Retained moisture accelerates chemical and mechanical weathering. |
Major Element (in %) | Trace Element (in ppm) | ||||
---|---|---|---|---|---|
Unsubmerged | Submerged | Unsubmerged | Submerged | ||
Al | 6.507 ± 0.113 | 5.816 ± 0.103 | Ba | 280 ± 20 | 490 ± 20 |
Ca | 1.738 ± 0.033 | 1.778 ± 0.034 | Cr | 80 ± 20 | 160 ± 20 |
Fe | 3.491 ± 0.024 | 4.972 ± 0.027 | Mn | 190 ± 50 | 740 ± 50 |
K | 3.305 ± 0.029 | 3.216 ± 0.029 | Nb | 50 ± 10 | 60 ± 10 |
Mg | 0.288 ± 0.151 | 0.381 ± 0.147 | Rb | 80 ± 10 | 60 ± 10 |
P | 0.156 ± 0.019 | 0.549 ± 0.137 | Sr | 240 ± 10 | 190 ± 10 |
Ti | 0.474 ± 0.007 | 0.421 ± 0.008 | V | 110 ± 30 | 150 ± 40 |
Si | 39.605 ± 0.131 | 32.628 ± 0.129 | W | 80 ± 30 | 60 ± 30 |
Bal | 44.274 ± 0.162 | 49.975 ± 0.146 | Zn | 90 ± 10 | 120 ± 10 |
Zr | 350 ± 10 | 520 ± 10 |
