Damping Identification Sensitivity in Flutter Speed Estimation

Abstract

Predicting flutter remains a key challenge in aeroelastic research, with certain models relying on modal parameters, such as natural frequencies and damping ratios. These models are particularly useful in early design stages or for the development of small Unmanned Aerial Vehicles (maximum take-off mass below 7 kg). This study evaluates two frequency-domain system identification methods, Fast Relaxed Vector Fitting (FRVF) and the Loewner Framework (LF), for predicting the flutter onset speed of a flexible wing model. Both methods are applied to extract modal parameters from Ground Vibration Testing data, which are subsequently used to develop a reduced-order model with two degrees of freedom. The results indicate that FRVF- and LF-informed models provide reliable flutter speed, with predictions deviating by no more than 3% (FRVF) and 5% (LF) from the N4SID-informed benchmark. The findings highlight the sensitivity of flutter speed predictions to damping ratio identification accuracy and demonstrate the potential of these methods as computationally efficient alternatives for preliminary aeroelastic assessments.

1. Introduction

The accurate characterisation of aircraft dynamic behaviour is critical to ensure structural safety and performance optimisation under various operational conditions. The extraction of modal parameters—natural frequencies (${\omega }_n$), damping ratios (${\zeta }_n$), and mode shapes (${\mathit{\varphi }}_n$)—via system identification (SI) techniques, allows the characterisation of the structural dynamics of the system, such that it can be used for finite element model (FEM) updating and subsequent aeroelastic analyses. Experimental modal analysis (EMA), or Ground Vibration Testing (GVT) in the aeronautics domain, provides the necessary framework to identify these parameters from experimental data. These techniques are pivotal for understanding how dynamic systems behave, offering insights that drive critical applications, such as flutter prediction [1], structural model updating [2], and vibration-based damage detection [3].

While SI techniques are well-established for modal parameter identification, their application to complex, large-scale aerostructures presents several challenges. Frequency-domain system identification is widely used in modal analysis; however, certain fitting processes—especially those relying on direct parametric and rational fraction polynomial curve-fitting [4,5]—can exhibit ill-conditioning when dealing with noisy or highly complex datasets [6]. However, several advanced frequency-domain techniques, such as the pLSCF estimator [7] have shown excellent numerical stability and robustness even in these challenging conditions [8,9].

Similarly, time-domain techniques such as Numerical Algorithms for Subspace State Space System Identification (N4SID) [10] are computationally demanding and face scalability issues when processing extensive input–output data [11]. In terms of scalability, this happens to other time-domain Stochastic Subspace Identification (SSI) techniques, such as SSI with Canonical Variate Analysis, which struggled—only a few modes out of 42 accurately identified—in the identification of high-dimensional (5 input and 21 output channels) aeronautical system [12]. Recent advances in SI, including methods such as the Fast Relaxed Vector Fitting (FRVF) [13] and the Loewner Framework (LF) [3], have sought to address these limitations by improving robustness and computational efficiency. These innovations have shown significant promise in EMA and GVT, providing a pathway for broader application for aeroelastic onset speed estimation.

Flutter analysis is a crucial aspect of aeroelastic research, representing a significant challenge at the intersection of aero- and structural engineering. Flutter occurs due to dynamic instability arising from aeroelastic coupling between aerodynamic forces and structural modes, potentially leading to catastrophic failures [14,15]. In aeronautics, flutter prediction aims to determine the critical velocity at which oscillatory instabilities occur. Established techniques, such as modal damping extrapolation [16], time-marching computational fluid dynamics [17], and semi-analytical methods like the $p-k$ approach [18], have been widely used for this purpose. Computational advancements have enhanced these approaches, improving their predictive accuracy and relevance [17]. These advances have fostered the development of integrated workflows for inexpensive flutter testing platforms, such as that in [19].

In structural engineering, similar principles are applied to the aerodynamic analysis of cable-supported bridges [20]. Both fields face shared challenges, including structural flexibility, large aspect ratios, and aeroelastic modes coupling. For instance, system identification techniques initially developed for aerostructures have been adapted to study bridge flutter in [21]. Despite progress, flutter prediction remains computationally intensive, especially for nonlinear systems or structures with significant modal coupling. Efforts to address this include the development of reduced order models (ROMs) [17], data-driven techniques, and hybrid approaches that combine physics-based and experimental data [22].

This work applies frequency-domain SI methods for preliminary flutter speed estimation of a flexible wing structure via the classical $p-k$ method and a simplified ROM. Using experimental data and results from an existing GVT campaign [11], this study evaluates the sensitivity of the GVT-identified parameters, ${\omega }_n$ and ${\zeta }_n$, for the development of the ROM for critical aeroelastic speeds prediction. In particular, ${\zeta }_n$ estimated in wind-off GVTs are considered to be solely dependent on structural effects for the sake of aeroelastic modelling, as widely accepted in the community [23]. Specifically, it examines the effect of ${\zeta }_n$—widely recognised as the most troublesome modal parameter to identify—on flutter onset speed prediction on an experimental wing model, the well-known eXperimental BeaRDS-2 (XB-2) case study [24]. Modal parameters identified with N4SID are used as a benchmark for those identified via LF and FRVF. The main contributions of this work are outlined as follows:

• First application of FRVF- and LF-identified modal parameters for a two-degree-of-freedom (2-DoF) aeroelastic model;
• Development of a reduced-order model for the XB-2 wing;
• Use of LF and FRVF results for flutter speed estimation;
• Demonstration of a simplified ROM-based approach for critical speed prediction;
• Comparative analysis of flutter speed predictions using different identification methods.

The rest of this paper is structured as follows: Section 2 introduces the experimental setup, identification methods, and ROM formulation. Section 3 presents and discusses the results. Conclusions are drawn in Section 4.

2. Materials and Methods

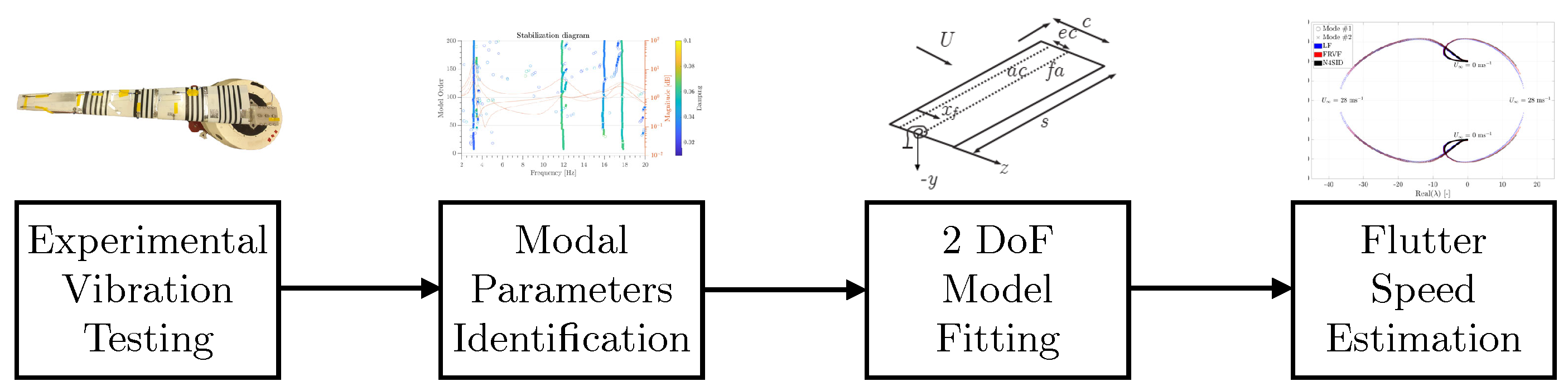

In this section, the overall strategy used in this work for studying the damping identification sensitivity on flutter speed is outlined. The overall workflow is shown in Figure 1 and outlined below.

• Experimental Vibration Testing. A specimen wing is selected to undergo a GVT campaign, potentially also with different configurations in terms of shape and mass. The specimen and the testing regime are introduced in Section 2.1.
• Modal Parameter Identification. From the recorded data, modal parameters are identified using different methods. It is not uncommon that this will result in different identified values of ${\zeta }_n$ across the methods. Here, the LF, FRVF, and N4SID are considered as identification methods; however, N4SID is not discussed in depth as it is a classical and well-known technique. On the other hand, the FRVF and LF are introduced in Section 2.2 and Section 2.3, respectively.
• 2 DoF Model Fitting. The modal parameters obtained are used for model fitting. The model itself is described in Section 2.4.
• Flutter Speed Estimation. The classical $p-k$ method is used to obtain the estimated flutter speeds for the different scenarios and methods, thus giving an idea of the relationship between ${\zeta }_n$ and the flutter speed itself. These findings are presented in Section 4.

Point 1 and the modal parameter identification part of point 2 are covered in greater detail in [11] and are only briefly touched upon in the remainder of this section.

2.1. The Flexible Wing Model

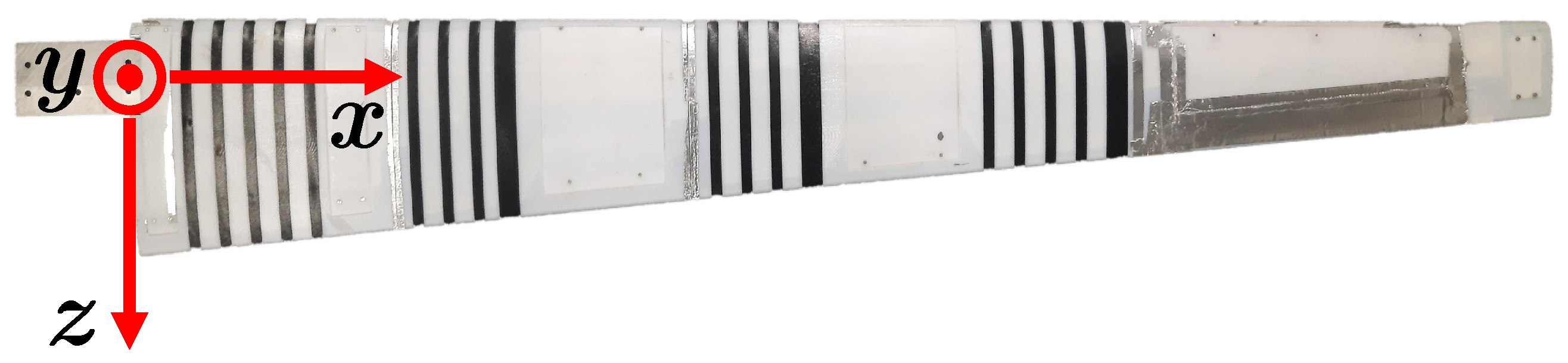

The experimental case study considered here is the XB-2 high-aspect-ratio wing (Figure 2) developed within the Beam Reduction and Dynamic Scaling (BeaRDS) project at Cranfield University [24,25,26,27]. The XB-2 wing was conceived as a dynamically scaled example of a civil jet airliner wing to be tested in the university wind tunnel. The wing comprises three components: the spar (6082-T6 aluminium), the stiffening tube (stainless steel), and the skin, which is responsible for transferring the aerodynamic loads to the underlying structure and is made of two 3D printed plastics: rigid Digital ABS and rubber-like compound, Agilus 30, visible as the white and black sections in Figure 2, respectively. Originally, additional brass masses were used to aid the scaling of mass properties; however, for the purpose of this work, the masses are removed.

The aerodynamic surface of the wing, outlined by a NACA 23015 aerofoil, has an aerodynamic span ($b_w$) of 1.385 m (1.5 m including the clamp), with a mean aerodynamic chord ($\overline{c}$) of 0.172 m, a taper ratio ($\lambda$) of 0.35, a leading edge (LE) sweep of 1.49°, and a mass of 3.024 kg. The wing has a neutral twist and dihedral angles.

The wing torque box consists of the spar and tube assembly. The spar was machined from two 6082-T6 aluminium blocks, which were welded together and secured with four bolted L-profile plates [29]. The main spar features a Saint George cross-shaped cross-section and a variable taper along its span, while the tube is a simple stainless steel tube with a 10 mm diameter and 1 mm thickness.

In this work, the GVT results obtained for the scope of damage detection in [11] are considered. To simulate damage, the wing was loaded at different locations and with different mass values, resulting in four scenarios, as shown in

Table 1. XB-2 wing loading scenarios. Distances, in mm, are from the origin.

Scenario	Characteristics	Mass [kg]
1	Baseline	3.024
2	Added masses: 75 g at 1010 mm, 12 g at 1050 mm and 61 g at 1365 mm.	3.172
3	Added masses: 88 g at 1010 mm, 51 g at 1050 mm, 83 g at 1205 mm and 61 g at 1365 mm.	3.307
4	Added masses: same as Scenario 2 plus 181 g at 570 mm and 170 g at 665 mm.	3.658

. This can also simulate different loading scenarios on the wing, such as under-wing payloads.

For each scenario, the wing was excited with a linear sine sweep excitation between 2 and 25 Hz lasting 20 min (single sweep–0.02 Hzs⁻¹ chirp rate) on a shaker table. The data were collected from a grid of 8 accelerometers placed across the wing span. The experimental data are available in [11].

The reader interested in more information on the XB-2 wing is referred to the following works: the second author’s thesis [24], outlining its design and testing in the BeaRDS project framework, a GVT campaign in [29], a further GVT campaign with a revolving clamp [30] a damping estimation from wind tunnel data in [31], the development of an updated FEM in [32], and nonlinear dynamics identification in [33].

2.2. Fast Relaxed Vector Fitting

The FRVF, first documented in its current and complete form in [34], originated as an improved version of the standard Vector Fitting (VF) algorithm, proposed by Gustavsen and Semlyen in 1999 for the modelling of large multiport electrical circuits [35]. With respect to the VF algorithm, the FRVF adds a relaxed non-trivial constraint in the pole identification step [36,37] and exploits the matrix form of the linear problem and the QR decomposition, such that $\mathbf{A}=\mathbf{QR}$, for fast computation. In the form considered here, the FRVF procedure was tested and applied for the first time for the frequency domain SI of simple mechanical systems in [6] and to large civil structures and infrastructures in [13].

The Fast Relaxed Vector Fitting (FRVF) method presented here serves as an input–output system identification approach tailored for experimental modal analysis. It is versatile, accommodating any number of input and/or output channels and applicable to different input types [38], such as random, periodic, and impulse. While its original formulation (and the one adopted in this study) is expressed in the frequency domain, a time-domain variant is also reported in the literature [39,40].

The FRVF algorithm approximates the transfer function (TF) between a measured output and a known input. This process accommodates any form of input (e.g., force, displacement, velocity, or acceleration) and output; however, for clarity, the relationship between the input force, F, and the output displacement, Y, is considered here. This specific relationship corresponds to the system receptance frequency response function (FRF). To proceed, it is essential to revisit fundamental definitions. A pole of a mechanical system with a single degree of freedom can be described in the Laplace domain, i.e., within the complex s-plane, as follows:

$$s_{1,2}=\sigma \pm i{\omega }_d$$

(1)

where, being a complex pair, $s_2=s_1^{*}$. The receptance FRF can be approximated by a partial fraction form defined as follows:

$$H\left(s\right)={\displaystyle \frac{Y\left(s\right)}{F\left(s\right)}}\approx {\displaystyle \frac{A}{s-s_1}}+{\displaystyle \frac{A^{*}}{s-s_2}}$$

(2)

where A and its complex conjugate $A^{*}$ represent the residues of $H\left(s\right)$ as follows:

$$A=+{\displaystyle \frac{1}{i2m{\omega }_d}};A^{*}=-{\displaystyle \frac{1}{i2m{\omega }_d}};$$

(3)

As the minus sign in the complex conjugate residue arises naturally from the conjugation (i becoming $-i$). Notably, if one rationalises the imaginary unit in the denominator, multiplying by $i/i$, the first half of Equation (3) becomes $A=-{\displaystyle \frac{i}{2m{\omega }_d}}$ which is a negative imaginary value that is an important characteristic of the residue of a driving point.

To express this TF in the frequency domain, note that the real part of $s_{1,2}$ can be represented as follows:

$$\sigma =-\zeta {\omega }_n$$

(4)

while the imaginary component originates from the damped natural angular frequency ${\omega }_d$ of the corresponding mode:

$${\omega }_d={\omega }_n\sqrt{1-{\zeta }^2}$$

(5)

where $\zeta$ is the damping ratio, and

$${\omega }_n=\sqrt{{\displaystyle \frac{k}{m}}}$$

(6)

is the natural frequency of the n-th mode.

By evaluating $H\left(s\right)$ for $\sigma =0$ (i.e. for a purely imaginary argument), the Laplace Transform is reduced to a Fourier Transform, and it can be shown that [41]

$$H\left(\omega \right)=\left[{\displaystyle \frac{A}{i(\omega -{\omega }_d)+\zeta {\omega }_n}}+{\displaystyle \frac{A^{*}}{i(\omega +{\omega }_d)+\zeta {\omega }_n}}\right]={\displaystyle \frac{1}{-m{\omega }^2+ic\omega +k}}$$

(7)

It is then possible to determine the physical properties of the system—such as its mass m, stiffness k, and viscous damping $\overline{c}=2m\zeta {\omega }_n$—based on its vibrational response. By monitoring these properties over time while maintaining a constant mass, frequency shifts can be attributed to variations in stiffness and, consequently, the onset of damage.

The right-hand side of Equation (2) can be generalised to multi-degree-of-freedom (MDoF) systems as a summation of partial fractions, expressed as follows:

$$f\left(s\right)=\sum _{n=1}^N{\displaystyle \frac{A_n}{s-s_n}}+H_{\infty }$$

(8)

where N is the number of modes assumed in the inspected range of the MDoF system (assumed since this is, of course, not known a priori) and $H_{\infty }$ governs the behaviour at high frequencies and can be decomposed into two components: the real quantity d and the term $se$ [35]. Concerning complex conjugate poles, VF supports both real and complex conjugate poles, thus not distinguishing automatically between vibrational (underdamped) modes, critically or overcritically (i.e., purely exponential) modes, and rigid body motions (real-valued poles at or near $s=0$). The removal of non-oscillatory modes, if needed, must be performed in post-processing after identification. Then, from Equation (8), an unknown function $\sigma \left(s\right)$ is defined as follows:

$$\sigma \left(s\right)\approx \sum _{n=1}^N{\displaystyle \frac{{\tilde{A}}_n}{s-{\tilde{s}}_n}}+1$$

(9)

Multiplying $f\left(s\right)$ by $\sigma \left(s\right)$ results in the following expression:

$$\sigma \left(s\right)f\left(s\right)\approx \left[\sum _{n=1}^N{\displaystyle \frac{A_n}{s-{\tilde{s}}_n}}+d+se\right]\left[\sum _{n=1}^N{\displaystyle \frac{{\tilde{A}}_n}{s-{\tilde{s}}_n}}+1\right]$$

(10)

The poles of $\sigma \left(s\right)f\left(s\right)$ are the same rational approximation of $\sigma \left(s\right)$. By forcing $\sigma \left(s\right)$ to approach unity at very high frequencies (that is to say, for $H_{\infty }=1$), the ambiguity is removed from the solution for $\sigma \left(s\right)$ [35]. The terms d and $se$ are heuristic approximations introduced to account for the contribution of dynamics outside the frequency band of interest—similar in spirit to the upper and lower residuals in modal theory. However, they serve a more general-purpose modelling role. The constant-value d term (constant) captures low-frequency asymptotic behavior—similar to a lower residual term $LR/s^2$. As $s\to 0$, $H\left(s\right)\to d$, it acts like a DC offset or residual representing static-like (quasi-static) gains that persists after dynamic modes are truncated. Conversely, the $se$ term (linearly proportional to frequency) dominates as $s\to +\infty$, capturing the high-frequency asymptotic behaviour. Hence, it is the counterpart to the upper residual term, accounting for the truncated higher-frequency modes not included in the modal summation. So, while both approaches serve a similar purpose—modelling contributions from modes outside the inspected frequency band—the modal residuals have a physical derivation, and the $d+se$ can be seen as empirical corrections in the rational function approximation framework. This lack of theoretical derivation makes them easily adaptable over different fields, from Electrical to Mechanical Engineering, while preserving their intended scope. Thus, Equation (10) leads to the following:

$$\sigma \left(s\right)f\left(s\right)\approx \left(\sum _{n=1}^N{\displaystyle \frac{{\tilde{A}}_n}{s-{\tilde{s}}_n}}+1\right)f\left(s\right)\approx \sum _{n=1}^N{\displaystyle \frac{A_n}{s-{\tilde{s}}_n}}+d+se$$

(11)

where

$${\left(\sigma f\right)}_{fit}\left(s\right)\approx {\left(\sigma \right)}_{fit}\left(s\right)f\left(s\right)$$

(12)

After performing the necessary mathematical derivations, it can be shown that

$$d+\sum _n{\displaystyle \frac{A_n}{s-s_n}}\approx H\left(s\right)\left(d^{\prime }+\sum _n{\displaystyle \frac{A_n^{\prime }}{s-s_n}}\right)$$

(13)

This outlines the relationship between the TF $H\left(s\right)$ and the fitted residues $[A_n,A_n^{\prime }]$, poles $[s_n,s_n^{\prime }]$, and constant terms $[d,d^{\prime }]$. The right-hand side of Equation (11) asymptotically converges to $H\left(s\right)$ as the solution is refined, which can be achieved iteratively by treating it as a least-squares (LS) optimisation problem.

This completes the fundamental definition of the VF method. Building upon this formulation, a Fast Relaxed VF (FRVF) implementation has been employed [42]. This approach specifically introduces a relaxed non-triviality constraint in the pole identification process, incorporating a real-valued free variable $\widehat{d}$:

$$\sigma \left(s\right)=\sum _{n=1}^N{\displaystyle \frac{{\tilde{A}}_n}{s-s_n}}+\widehat{d}$$

(14)

The only constraint is that the sum of the real parts of $\sigma \left(s\right)$ must remain non-zero to prevent a trivial solution. This straightforward modification provides two key benefits: it reduces the sensitivity to the initial pole placement by enabling larger shifts across the s-plane during the initial iterations and enhances the overall convergence of the solution.

The linear problem is subsequently addressed using the QR decomposition method, as proposed in [34]. This involves decomposing the LS matrix into the product of an orthonormal basis matrix, Q, and an upper triangular matrix of coefficients, R. This approach substantially decreases both computational effort and memory storage requirements [37].

In this work, we followed the initialisation process suggested in [35] (see Section 3.2), for all the reasons explained in detail in the same text (Sections 4.2, 4.3, and 4.7). In brief, it is suggested there, and implemented here, to use complex conjugate pairs of initial poles, $-{\alpha }_n\pm i{\beta }_n$, with their imaginary parts $\beta$ evenly (linearly or logarithmically) spaced across the frequency range of interest. In this work, these were linearly spaced. Regarding the real part, this is initially assumed to be always negative (i.e., stable), assuming the initial values as ${\alpha }_n={\beta }_n/100$, to ensure that the real parts are small enough to avoid numerical issues (as if initialised with overly fast decay, they can become numerically insignificant).

For what concerns the iterative process, it is important to note that, in the classic VF, there is no stopping criterion. The convergence of the fitted function over experimental data needs to be manually checked by the user. Furthermore, this does not enforce that the identified poles are stable. Theoretically, any negative, positive, and null real parts can be identified. Hence, once again, checks, this time for stability, are left to the user. The stability and system-order problems can be addressed, as commonly done in practical modal analysis application, with the implementation of stabilisation diagrams, which minimum order is equal to the expected—by experience—minimum number of modes and the maximum order by a number of states which allows for the identification of all modes of interest. Further details regarding the implementation and the associated technical considerations can be found in [35,37], for the VF and FRVF, respectively.

2.3. Loewner Framework

Previously, the LF algorithm has been employed for the modelling of multi-port electrical systems [43] and utilised for aerodynamic model order reduction in the context of aeroservoelastic modelling [44]. Later, the first and second authors applied the LF for the identification of modal parameters from SIMO mechanical systems in [3], verified its computational efficiency in [45], and assessed its robustness to noise for SHM in [11]. Further developments have included the extension of the LF for the extraction of modal parameters from multi-input multi-output [12,46] and output-only systems [47]. Nevertheless, the version considered in this work is the SIMO version first introduced in [3].

In order to properly introduce the LF, let us begin by defining the Loewner matrix $\mathbb{L}$: Given a row array of pairs of complex numbers (${\mu }_j$,$v_j$), $j=1$,…,q, and a column array of pairs of complex numbers (${\lambda }_i$,$w_j$), $i=1$,…,k, with ${\lambda }_i$, ${\mu }_j$ distinct, the associated $\mathbb{L}$, or divided-differences matrix is

$$\mathbb{L}=\left[\begin{array}{ccc}{\displaystyle \frac{{\mathit{v}}_1-{\mathit{w}}_1}{{\mu }_1-{\lambda }_1}}& \dots & {\displaystyle \frac{{\mathit{v}}_1-{\mathit{w}}_k}{{\mu }_1-{\lambda }_k}}\\ ⋮& \ddots & ⋮\\ {\displaystyle \frac{{\mathit{v}}_q-{\mathit{w}}_1}{{\mu }_q-{\lambda }_1}}& \dots & {\displaystyle \frac{{\mathit{v}}_q-{\mathit{w}}_k}{{\mu }_q-{\lambda }_k}}\end{array}\right]\in {\mathbb{C}}^{q\times k}$$

(15)

If there is a known underlying function ϕ, then ${\mathit{w}}_i=\mathit{\varphi }\left({\lambda }_i\right)$ and ${\mathit{v}}_j=\mathit{\varphi }\left({\mu }_j\right).$

Karl Löwner established a relationship between $\mathbb{L}$ and rational interpolation, often referred to as Cauchy interpolation [48]. This connection allows interpolants to be defined through the determinants of submatrices of $\mathbb{L}$. As demonstrated in [49,50], rational interpolants can be directly derived from $\mathbb{L}$. This study adopts the methodology based on the Loewner pencil, which consists of the matrices $\mathbb{L}$ and ${\mathbb{L}}_s$. Here, ${\mathbb{L}}_s$ denotes the shifted Loewner matrix, which will be introduced later.

To illustrate the working principle of the LF, consider a linear time-invariant dynamical system $\mathbf{\Sigma }$ characterised by m inputs, p outputs, and k internal variables, expressed in descriptor form as follows:

$$\mathbf{\Sigma }:\mathit{E}{\displaystyle \frac{d}{dt}}\mathit{x}\left(t\right)=\mathit{A}\mathit{x}\left(t\right)+\mathit{B}\mathit{u}\left(t\right);\mathit{y}\left(t\right)=\mathit{C}\mathit{x}\left(t\right)+\mathit{D}\mathit{u}\left(t\right)$$

(16)

where $\mathit{x}\left(t\right)\in {\mathbb{R}}^k$ represents the vector of internal variables, $\mathit{u}\left(t\right)\in {\mathbb{R}}^m$ is the input function, and $\mathit{y}\left(t\right)\in {\mathbb{R}}^p$ denotes the output vector. The following constant matrices characterise the system:

$$\mathit{E},\mathit{A}\in {\mathbb{R}}^{k\times k},\mathit{B}\in {\mathbb{R}}^{k\times m}\mathit{C}\in {\mathbb{R}}^{p\times k}\mathit{D}\in {\mathbb{R}}^{p\times m}$$

(17)

The Laplace transfer function, $\mathit{H}\left(s\right)$, associated with $\mathbf{\Sigma }$ can be formulated as a $p\times m$ rational matrix function, under the condition that the matrix $\mathit{A}-\lambda \mathit{E}$ remains non-singular for a given finite value of $\lambda$, where $\lambda \in \mathbb{C}$, as shown in the following:

$$\mathit{H}\left(s\right)=\mathit{C}{(s\mathit{E}-\mathit{A})}^{-1}\mathit{B}+\mathit{D}$$

(18)

Let us consider the general framework of tangential interpolation, often referred to as rational interpolation in tangential directions [51]. The corresponding right interpolation data is defined as follows:

$$\begin{array}{c}({\lambda }_i;{\mathit{r}}_i,{\mathit{w}}_i),i=1,\dots ,\rho \\ \begin{array}{c}\mathbf{\Lambda }=\mathrm{diag}[{\lambda }_1,\dots ,{\lambda }_k]\in {\mathbb{C}}^{\rho \times \rho }\\ \mathit{R}=[{\mathit{r}}_1\dots {\mathit{r}}_k]\in {\mathbb{C}}^{m\times \rho }\\ \mathit{W}=[{\mathit{w}}_1\dots {\mathit{w}}_k]\in {\mathbb{C}}^{\rho \times \rho }\end{array}\}\end{array}$$

(19)

In a similar manner, the left interpolation data are defined.

$$\begin{array}{c}({\mu }_j,{\mathit{l}}_j,{\mathit{v}}_j),j=1,\dots ,v\\ \begin{array}{c}\mathit{M}=\mathrm{diag}[{\mu }_1,\dots ,{\mu }_q]\in {\mathbb{C}}^{v\times v}\\ {\mathit{L}}^T=[{\mathit{l}}_1\dots {\mathit{l}}_v]\in {\mathbb{C}}^{p\times v}\\ {\mathit{V}}^T=[{\mathit{v}}_1\dots {\mathit{v}}_q]\in {\mathbb{C}}^{m\times v}\end{array}\}\end{array}$$

(20)

The values ${\lambda }_i$ and ${\mu }_j$ correspond to the points where $\mathit{H}\left(s\right)$ is evaluated, representing the frequency bins in this context. The vectors ${\mathit{r}}_i$ and ${\mathit{l}}_j$ define the right and left tangential directions, which are commonly selected randomly in practice [44], while ${\mathit{w}}_i$ and ${\mathit{v}}_j$ represent the associated tangential data. The rational interpolation problem is resolved by establishing a link between ${\mathit{w}}_i$ and ${\mathit{v}}_j$ and the transfer function $\mathit{H}$, associated with the realisation $\mathbf{\Sigma }$ in Equation (16):

$$\mathit{H}\left({\lambda }_i\right){\mathit{r}}_i={\mathit{w}}_i,j=1.\dots ,\rho \mathrm{and}{\mathit{l}}_i\mathit{H}\left({\mu }_j\right)={\mathit{v}}_j,i=1,\dots ,v$$

(21)

ensuring that the Loewner pencil satisfies Equation (21). Now, let us consider a set of points $Z=\{z_1,\dots ,z_N\}$ in the complex plane and a rational function $\mathit{y}\left(s\right)$, where ${\mathit{y}}_i:=\mathit{y}\left(z_i\right)$ for $i=1,\dots ,N$, with $Y=\{{\mathit{y}}_1,\dots ,{\mathit{y}}_N\}$. Incorporating the left and right data partitions yields the following expressions:

$$\begin{array}{c}\hfill Z=\{{\lambda }_1,\dots ,{\lambda }_{\rho }\}\cup \{{\mu }_1,\dots ,{\mu }_v\}\mathrm{and}Y=\{{\mathit{w}}_1,\dots ,{\mathit{w}}_{\rho }\}\cup \{{\mathit{v}}_1,\dots ,{\mathit{v}}_v\}\end{array}$$

(22)

where $N=p+v$. As a result, the matrix $\mathbb{L}$ is expressed as follows:

$$\mathbb{L}=\left[\begin{array}{ccc}{\displaystyle \frac{{\mathit{v}}_1{\mathit{r}}_1-{\mathit{l}}_1{\mathit{w}}_1}{{\mu }_1-{\lambda }_1}}& \dots & {\displaystyle \frac{{\mathit{v}}_1\mathit{r}\rho -{\mathit{l}}_1\mathit{w}\rho }{{\mu }_1-\lambda \rho }}\\ ⋮& \ddots & ⋮\\ {\displaystyle \frac{{\mathit{v}}_v{\mathit{r}}_1-{\mathit{l}}_v{\mathit{w}}_1}{{\mu }_v-{\lambda }_1}}& \dots & {\displaystyle \frac{{\mathit{v}}_v\mathit{r}\rho -{\mathit{l}}_v\mathit{w}\rho }{{\mu }_v-\lambda \rho }}\end{array}\right]\in {\mathbb{C}}^{v\times \rho }$$

(23)

Since ${\mathit{v}}_v{\mathit{r}}_p$ and ${\mathit{l}}_v{\mathit{w}}_p$ are scalars, the Sylvester equation for $\mathbb{L}$ is satisfied as follows:

$$\mathbb{L}\mathbf{\Lambda }-\mathit{M}\mathbb{L}=\mathit{L}\mathit{W}-\mathit{V}\mathit{R}$$

(24)

The shifted Loewner matrix, ${\mathbb{L}}_s$, is defined as the matrix $\mathbb{L}$ associated with $s\mathit{H}\left(s\right)$ as follows:

$${\mathbb{L}}_s=\left[\begin{array}{ccc}{\displaystyle \frac{{\mu }_1{\mathit{v}}_1{\mathit{r}}_1-{\lambda }_1{\mathit{l}}_1{\mathit{w}}_1}{{\mu }_1-{\lambda }_1}}& \dots & {\displaystyle \frac{{\mu }_1{\mathit{v}}_1{\mathit{r}}_{\rho }-{\lambda }_{\rho }{\mathit{l}}_1{\mathit{w}}_{\rho }}{{\mu }_1-{\lambda }_{\rho }}}\\ ⋮& \ddots & ⋮\\ {\displaystyle \frac{{\mu }_v{\mathit{v}}_v{\mathit{r}}_1-{\lambda }_1{\mathit{l}}_v{\mathit{w}}_1}{{\mu }_v-{\lambda }_1}}& \dots & {\displaystyle \frac{{\mathit{v}}_v{\mathit{r}}_{\rho }-{\mathit{l}}_v{\mathit{w}}_{\rho }}{{\mu }_v-{\lambda }_{\rho }}}\end{array}\right]\in {\mathbb{C}}^{v\times \rho }$$

(25)

Similarly, the Sylvester equation is satisfied as follows:

$${\mathbb{L}}_s\mathbf{\Lambda }-\mathit{M}{\mathbb{L}}_s=\mathit{L}\mathit{W}\mathbf{\Lambda }-\mathit{M}\mathit{V}\mathit{R}$$

(26)

Without loss of generality, $\mathit{D}$ can be assumed to be zero, as its contribution does not affect the tangential interpolation within the LF framework [50]. For simplicity, the following discussion will focus on $\mathit{H}\left(s\right)$. As a result, Equation (18) reduces to the following:

$$\mathit{H}\left(s\right)=\mathit{C}{(s\mathit{E}-\mathit{A})}^{-1}\mathit{B}$$

(27)

A minimal-dimensional realisation can be achieved only if the system is fully controllable and observable. Assuming that the data are sampled from a system with a transfer function that is described by Equation (27), the generalised tangential observability, ${\mathcal{O}}_v$, and generalised tangential controllability, ${\mathcal{R}}_{\rho }$, are defined in [52]. Consequently, Equations (23) and (25) can be reformulated as follows:

$$\begin{array}{ccc}\hfill \mathbb{L}=-{\mathcal{O}}_v\mathit{E}{\mathcal{R}}_{\rho }& \hfill & \hfill {\mathbb{L}}_s=-{\mathcal{O}}_v\mathit{A}{\mathcal{R}}_{\rho }\end{array}$$

(28)

Then, by defining the Loewner pencil as a regular pencil, such that $\mathrm{eig}\left((\mathbb{L},{\mathbb{L}}_s)\right)\ne ({\mu }_i,{\lambda }_i)$, we obtain the following:

$$\begin{array}{ccccccc}\hfill \mathit{E}=-\mathbb{L},& \hfill & \hfill \mathit{A}=-{\mathbb{L}}_s,& \hfill & \hfill \mathit{B}=\mathit{V},& \hfill & \hfill \mathit{C}=\mathit{W}\end{array}$$

(29)

Consequently, the interpolating rational function can be expressed as follows:

$$\mathit{H}\left(s\right)=\mathit{W}{({\mathbb{L}}_s-s\mathbb{L})}^{-1}\mathit{V}$$

(30)

The derivation presented applies specifically to the minimal data scenario, which is seldom encountered in practical applications. Nevertheless, the LF framework can be extended to accommodate redundant data points efficiently. To proceed, the following assumption is considered:

$$\begin{array}{c}\hfill \mathrm{rank}[\zeta \mathbb{L}-{\mathbb{L}}_s]=\mathrm{rank}\left[\mathbb{L}{\mathbb{L}}_s\right]=\mathrm{rank}\left[\mathbb{L}{\mathbb{L}}_s\right]=k,\forall \zeta \in \left\{{\lambda }_j\right\}\cup \left\{{\mu }_i\right\}\end{array}$$

(31)

Next, a short Singular Value Decomposition (SVD) is performed on $\zeta \mathbb{L}-{\mathbb{L}}_s$ as follows:

$$\mathrm{svd}(\zeta \mathbb{L}-{\mathbb{L}}_s)=\mathit{Y}{\mathbf{\Sigma }}_l\mathit{X}$$

(32)

where $\mathrm{rank}(\zeta \mathbb{L}-{\mathbb{L}}_s)=\mathrm{rank}\left({\mathbf{\Sigma }}_l\right)=\mathrm{size}\left({\mathbf{\Sigma }}_l\right)=k,\mathit{Y}\in {\mathbb{C}}^{v\times k}$ and $\mathit{X}\in {\mathbb{C}}^{k\times \rho }$. The following is noted:

$$\begin{array}{c}\hfill -\mathit{A}\mathit{X}+\mathit{E}\mathit{X}{\mathbf{\Sigma }}_l={\mathit{Y}}^{*}{\mathbb{L}}_s{\mathit{X}}^{*}\mathit{X}-{\mathit{Y}}^{*}\mathbb{L}{\mathit{X}}^{*}\mathit{X}{\mathbf{\Sigma }}_l={\mathit{Y}}^{*}({\mathbb{L}}_s-\mathbb{L}{\mathbf{\Sigma }}_l)={\mathit{Y}}^{*}\mathit{V}\mathit{R}=\mathit{BR}\end{array}$$

(33)

In a similar fashion, the relationship $-\mathit{Y}\mathit{A}+\mathit{M}\mathit{Y}\mathit{E}=\mathit{L}\mathit{C}$ holds, where $\mathit{X}$ and $\mathit{Y}$ represent the generalised controllability and observability matrices, respectively, for the system $\mathbf{\Sigma }$, assuming $\mathit{D}=0$.

After verifying that the right and left interpolation conditions are satisfied, the Loewner realisation incorporating redundant data can be formulated as follows:

$$\begin{array}{c}\hfill \mathit{E}=-{\mathit{Y}}^{*}\mathbb{L}\mathit{X},\mathit{A}=-{\mathit{Y}}^{*}{\mathbb{L}}_s\mathit{X},\mathit{B}={\mathit{Y}}^{*}\mathit{V},\mathit{C}=\mathit{W}\mathit{X}\end{array}$$

(34)

The formulation in Equation (34), which defines the Loewner realisation for redundant data, will serve as the foundation throughout this work. For a detailed explanation of each step, readers are referred to [49,50], while the MATLAB implementation (tested on version 2024b) is available in [53]. Finally, the system modal parameters can be extracted through eigenanalysis of the system matrices $\mathit{A}$ and $\mathit{C}$ in Equation (34). In its practical application to modal analysis, this is carried out for a series of model order k such that to include the minimum number of modes of interest and the maximum order at which these modes are stably identified.

2.4. The Simplified Aeroelastic Model

Aeroelasticity is concerned with the interaction between aerodynamic, elastic, and inertia loads. This interaction can arise in an unstable manner, hence generating the so-called aeroelastic phenomena [54]. In general, aeroelasticity can be divided into two subgroups: static and dynamic [23]. The former includes divergence and aileron reversal, while the latter mainly concerns flutter, sub-critical dynamics, and limit cycle oscillations. The division arises from the fact that static phenomena can depend solely on quasi-static behaviours, while flutter has a harmonic dependence. The reader interested in a more profound review on the subject is referred to [55] for a focus on flutter prediction techniques and to [56] for a practical application.

In this work, an aeroelastic model is developed to assess, respectively, the static and dynamic aeroelasticity phenomena of different experimental configurations. The main focus is to detect divergence and flutter onset speeds. The proposed model is based on the first spanwise flapping (i.e., bending) and the first twisting (torsion) modes only. For simplicity, an aeroelastic model for a rectangular flexible wing is used, so a 2 DoF model based on oscillatory aerodynamics, an extension for flexible wings of the classic binary aeroelastic model [23], is selected. Nevertheless, this should not be seen as a method limitation, but rather as a modelling choice, since more system modes can be considered by considering more DoFs. Before starting with the model description, the following assumptions need to be considered:

• The wing shape is assumed to be rectangular;
• The flexural stiffness EI, the torsional stiffness GJ, and the mass distribution are assumed to remain constant along the span;
• The identified ${\zeta }_n$ are assumed to be dependent only on structural effects in the wind-off results;
• XB-2 second mode (1st coupled mode) is assumed to be a pure twisting mode.

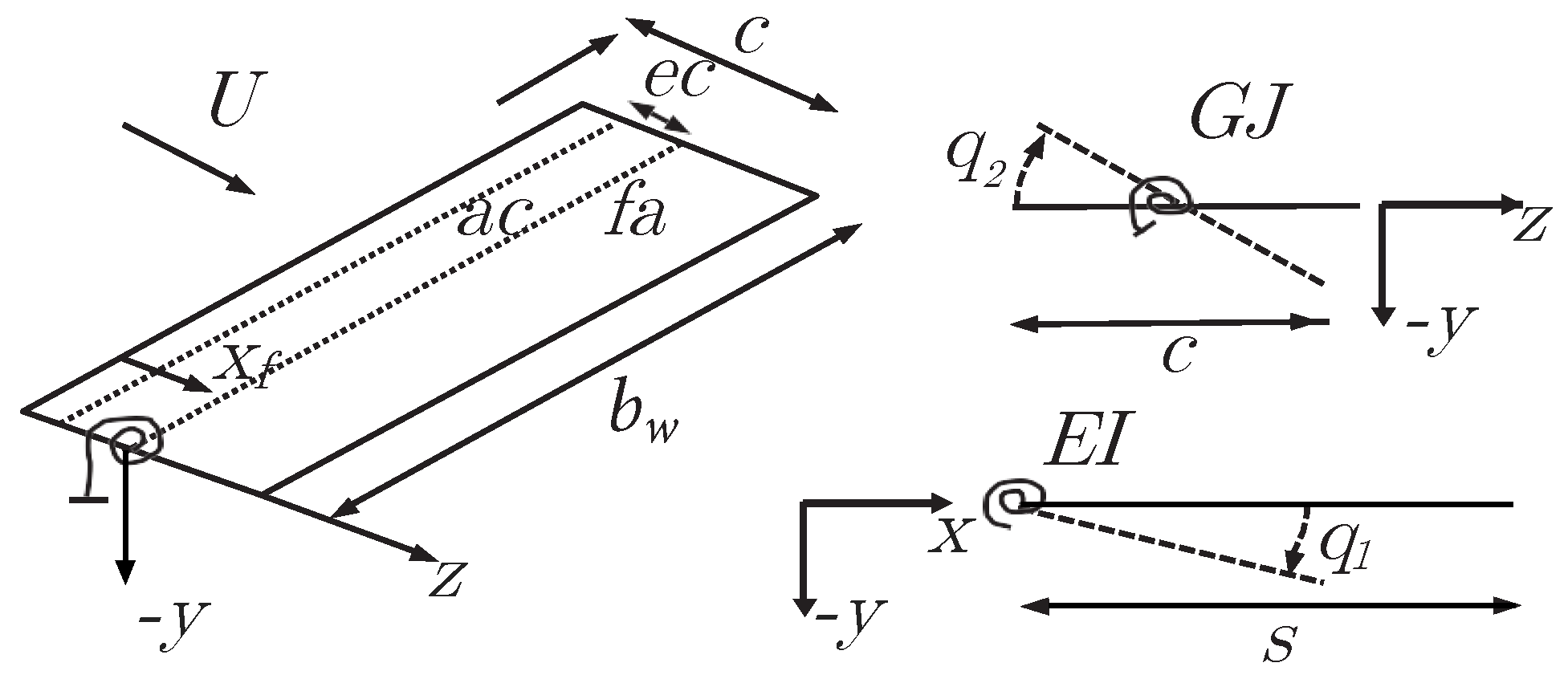

First, let us define the deflection, z, of a point (x, y) on the wing such as the following:

$$z=y^2{q}_1+y(x-x_f)q_2$$

(35)

where $q_1$ and $q_2$ are the generalised coordinates corresponding to the flapping deflection and the pitch angle. Then, by applying the Lagrangian method based on the estimation of kinetic and potential energy and incremental work, the following equations are obtained [23] from Equation (35):

$$\begin{array}{c}m\left[\begin{array}{cc}{\displaystyle \frac{\overline{c}{b}_w^5}{5}}& {\displaystyle \frac{b_w^4}{4}}\left({\displaystyle \frac{{\overline{c}}^2}{2}}-\overline{c}{x}_f\right)\\ {\displaystyle \frac{b_w^4}{4}}\left({\displaystyle \frac{{\overline{c}}^2}{2}}-\overline{c}{x}_f\right)& {\displaystyle \frac{b_w^3}{3}}\left({\displaystyle \frac{{\overline{c}}^3}{3}}-{\overline{c}}^2{x}_f+\overline{c}{x}_f^2\right)\end{array}\right]\left\{\begin{array}{c}{\ddot{q}}_1\\ {\ddot{q}}_2\end{array}\right\}+\hfill \\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}+ \rho U_{\infty }\left[\begin{array}{cc}{\displaystyle \frac{\overline{c}{a}_w{b}_w^5}{10}}& 0\\ -{\displaystyle \frac{{\overline{c}}^{2}e{a}_w{b}_w^4}{8}}& -{\displaystyle \frac{{\overline{c}}^3{b}_w^3{M}_{\dot{\theta }}}{24}}\end{array}\right]\left\{\begin{array}{c}{\dot{q}}_1\\ {\dot{q}}_2\end{array}\right\}+\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}+\left(\rho U_{\infty }\left[\begin{array}{cc}0& {\displaystyle \frac{\overline{c}{a}_w{b}_w^4}{8}}\\ 0& -{\displaystyle \frac{{\overline{c}}^{2}e{a}_w{b}_w^3}{6}}\end{array}\right]+\left[\begin{array}{cc}4EI{b}_w& 0\\ 0& GJ{b}_w\end{array}\right]\right)\left\{\begin{array}{c}{q}_1\\ q_2\end{array}\right\}=\left\{\begin{array}{c}0\\ 0\end{array}\right\}\hfill \end{array}$$

(36)

where m is mass per unit area in kgm⁻², $\overline{c}$ is the wing chord (as the XB-2 mean aerodynamic chord) in m, $b_w$ is the wing span in m, $x_f$ is the flexural axis position with respect to $\overline{c}$, $\rho$ is the air density in kgm⁻³, $U_{\infty }$ is the air speed in ms⁻¹, $a_w$ is the lift curve slope, $EI$ is the bending, or flapping, stiffness, $GJ$ is the torsional stiffness, and $M_{\dot{\theta }}$ is the non-dimensional pitch damping derivative, which is estimated following Theodorsen’s unsteady aerodynamics. Figure 3 shows the schematic for the wing ROM.

Equation (36) is a special form, for the zero viscous damping case $\mathbf{d}=0$, of the following:

$${\mathbf{a}}_{\mathbf{m}}\ddot{\mathbf{q}}+\left(\rho V\mathbf{b}+\mathbf{d}\right)\dot{\mathbf{q}}+\left(\rho V^2{\mathbf{c}}_a+\mathbf{e}\right)\mathbf{q}=\mathbf{0}$$

(37)

where ${\mathbf{a}}_{\mathbf{m}}$ is the mass, inertia, or matrix; $\mathbf{b}$ is the aerodynamic damping matrix; ${\mathbf{c}}_a$ is the aerodynamic stiffness matrix; $\mathbf{d}$ is the viscous damping; and $\mathbf{e}$ is the stiffness matrix. Now, considering the availability of modal data, it can be shown (see [57]) that for low-amplitude GVTs of beam-like structures, like wings, the viscous damping is comparable to a constant-in-frequency hysteric damping (graphically forming a perfect ellipse), which yields similar results to a structural damping model [58]. Furthermore, the identified damping value is considered constant across the frequency of interest, as the modelling approach chosen assumes small amplitudes (damping stays independent from vibration amplitude) and that the change in the aerodynamic damping along the frequency is dominant compared to a potential change in the viscous damping. The latter is a standard assumption for wind-off GVT in aeroelasticity [23]. $\mathbf{d}$ can be considered as viscous damping and built from the uncoupled modal damping assumption in [59]:

$$\mathbf{d}={\mathit{\varphi }}^{-T}{\mathbf{d}}_n{\mathit{\varphi }}^{-1}\mathrm{for}{\mathbf{d}}_n=2{\zeta }_n{\omega }_n{a}_n$$

(38)

where the subscript n identifies the uncoupled matrix, ${\omega }_n$ the natural frequency, ${\zeta }_n$ the damping ratio, and $\mathit{\varphi }$ the mode shape. Hence, Equations (36) and (38) can be combined to assemble Equation (37). Given full knowledge of the wing geometric characteristics, three properties remain to be defined: $M_{\dot{\theta }}$, $EI$, and $GJ$. $M_{\dot{\theta }}$ is the unsteady aerodynamics term, and it is defined from oscillatory aerodynamics [23]:

$$M_{\dot{\theta }}=2\pi \left[-{\displaystyle \frac{f_k}{2}}\left({\displaystyle \frac{1}{2}}-a\right)+f_{k}F\left(a+{\displaystyle \frac{1}{2}}\right)\left({\displaystyle \frac{1}{2}}-a\right)+{\displaystyle \frac{G}{f_k}}\left({\displaystyle \frac{1}{2}}+a\right)\right]$$

(39)

where $f_k$ is the reduced frequency, a is the ratio between $\overline{c}$ and the flexural axis position, and F and G are, respectively, the real and imaginary part of Theodorsen’s function, $C\left(f_k\right)$, such that the following holds:

$$C\left(f_k\right)=F\left(f_k\right)+jG\left(f_k\right)={\displaystyle \frac{H_1^{\left(2\right)}\left(f_k\right)}{H_1^{\left(2\right)}\left(f_k\right)+j{H}_1^{\left(2\right)}\left(f_k\right)}}$$

(40)

where $H_n^{\left(2\right)}\left(f_k\right)$ are Hankel functions of the second kind, and j is the imaginary number. Note that, in Equation (39), $2\pi$ represents the lift curve slope w. In this work, the actual slope value is considered rather than its approximation.

Concerning the bending and torsional stiffness, $EI$ and $GJ$, let us consider the still air case where $\mathit{b}$ and ${\mathit{c}}_a$ are zero. Equation (37) then becomes a simple mass-spring-damper system as shown in the following:

$${\mathbf{a}}_{\mathbf{m}}\ddot{\mathbf{q}}+\mathbf{d}\dot{\mathbf{q}}+\mathbf{e}\dot{\mathbf{q}}=\mathbf{0}$$

(41)

The natural frequencies can then be easily extracted through eigenanalysis. Hence, by having a set of experimental ${\omega }_n$, it is possible to define the $EI$ and $GJ$ of the equivalent system by minimising its squared difference to the experimental ${\omega }_n$. Thus, by using this and the identified ${\zeta }_n$ for Equation (38), an aeroelastic model can be defined starting from experimental data.

To study the system stability, the eigenanalysis of Equation (41) can be solved iteratively with the well-known p-k method [60] to find the divergence and flutter onset speeds. The p-k method is based on the hypothesis that pure harmonic aerodynamics can be used as a good approximation for lightly damped harmonic motions. This allows the computation of the aerodynamic transfer matrix at a complex frequency $p=\delta \pm jk$, such that $p\approx jk$. In simple terms, the real part, i.e., the damping, is neglected. A widely accepted workflow of the p-k method [23] can be summarised as follows:

• Initiate an estimation, usually the still air value, of p, said $p_0=\delta \pm j{k}_0$;
• Evaluate the aerodynamics, in our case $M_{\dot{\theta }}$;
• Solve the eigenvalue ($\lambda$) problem for Equation (37) and obtain a new set of $\lambda$, $p_1=\delta \pm j{k}_1$;
• Iterate between 2 and 3 until $k_n\approx k_{n-1}$.

From the $\lambda$ obtained after convergence, it is possible to build ${\omega }_n$, ${\zeta }_n$, real($\lambda$), and imag($\lambda$) vs. air-speed ($U_{\infty }$) plots, which can be used to graphically portray divergence or flutter speed, whichever is detected first. In particular, critical speeds are identified for ${\zeta }_n$ approaching zero or for real($\lambda$) zero crossings, since both cases are interpreted as instability in the system. In particular, for flutter, only the real($\lambda$) zero crossing condition needs to be satisfied, while, for divergence, $\mathrm{imag}\left(\lambda \right)$ must be zero.

3. Results

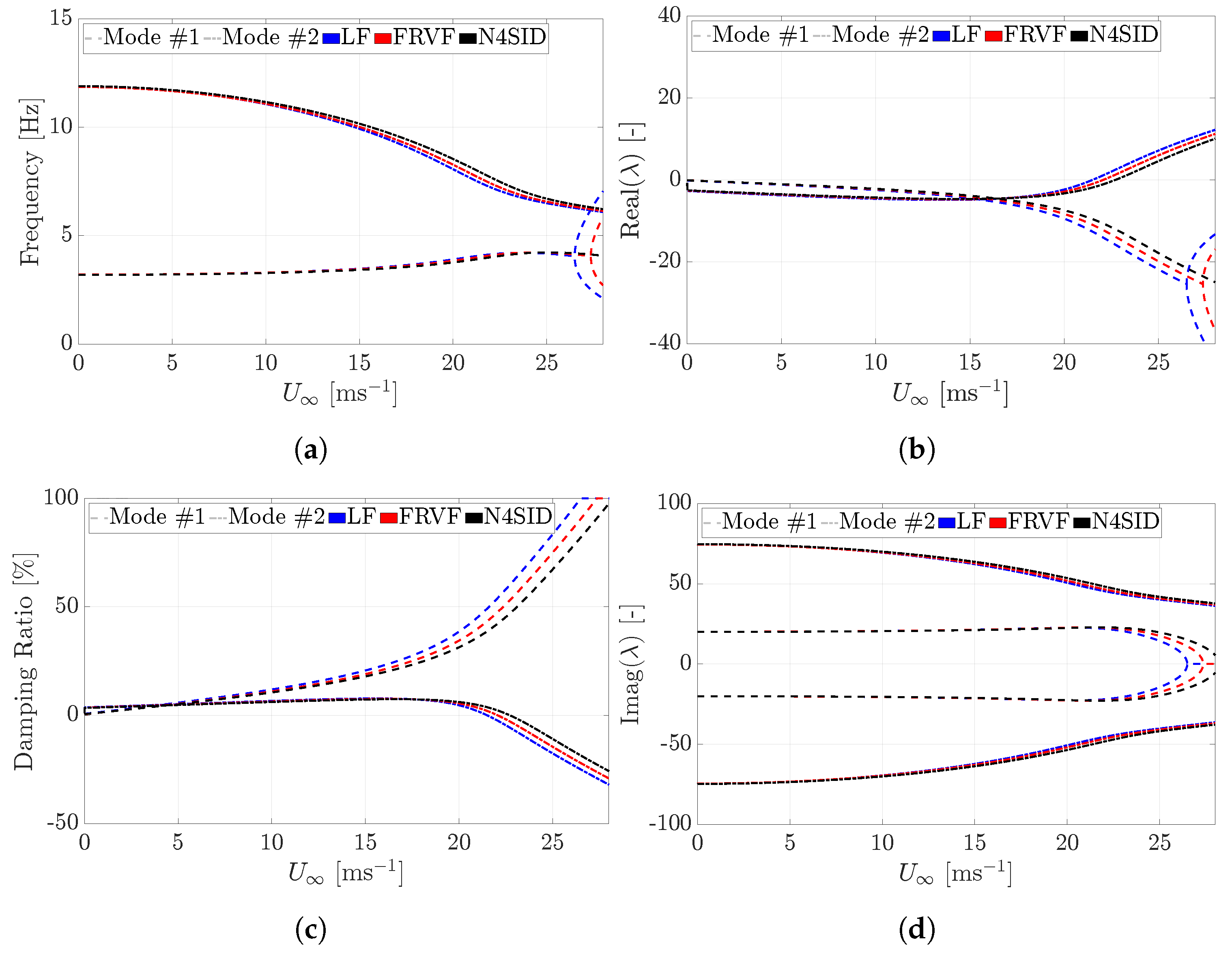

The flutter speed prediction is carried out using the model introduced in Section 2.4, which is built on the modal parameters (${\omega }_n$ and ${\zeta }_n$) identified in [11] via N4SID, FRVF, and LF and reported here in

Table 2. Natural frequencies and damping ratios identified by N4SID, LF, and FRVF for all scenarios with relative differences (in parentheses). Data retrieved from [11].

Natural Frequency [Hz] (Difference with regard to N4SID [%])
Mode	1st Bending			1st Coupled			2nd Coupled
Scenario	N4SID	LF	FRVF	N4SID	LF	FRVF	N4SID	LF	FRVF
1	3.190	3.202	3.203	11.896	11.886	11.858	17.763	17.703	17.725
	–	(0.38)	(0.41)	–	(−0.08)	(−0.32)	–	(−0.34)	(−0.21)
2	2.957	2.958	2.945	12.096	12.134	12.083	17.350	17.302	17.294
	–	(0.03)	(−0.41)	–	(0.31)	(−0.11)	–	(−0.28)	(−0.32)
3	2.775	2.769	2.788	12.002	12.025	12.014	17.079	17.101	17.023
	–	(−0.22)	(0.47)	–	(0.19)	(0.10)	–	(0.13)	(−0.33)
4	2.729	2.725	2.727	11.970	11.965	11.938	15.067	15.052	15.004
	–	(−0.15)	(−0.07)	–	(−0.04)	(−0.27)	–	(−0.10)	(−0.42)
Damping Ratio [-] (Difference with regard to N4SID [%])
Mode	1st Bending			1st Coupled			2nd Coupled
Scenario	N4SID	LF	FRVF	N4SID	LF	FRVF	N4SID	LF	FRVF
1	0.032	0.040	0.028	0.066	0.063	0.065	0.058	0.061	0.062
	–	(25.00)	(−12.50)	–	(−4.55)	(−1.52)	–	(5.17)	(6.90)
2	0.021	0.024	0.025	0.060	0.057	0.058	0.061	0.056	0.060
	–	(14.29)	(19.05)	–	(−5.00)	(−3.33)	–	(−8.20)	(−1.64)
3	0.019	0.022	0.021	0.058	0.055	0.057	0.050	0.050	0.057
	–	(15.79)	(10.53)	–	(−5.17)	(−1.72)	–	(0.00)	(14.00)
4	0.019	0.021	0.019	0.050	0.048	0.052	0.046	0.039	0.038
	–	(10.53)	(0.00)	–	(−4.00)	(4.00)	–	(−15.22)	(−17.39)

.

The comparison assumes the N4SID parameters as the benchmark values to assess the LF and FRVF performance.

To accommodate the model assumptions (see Section 2.4), the mean aerodynamic chord is taken under consideration, and, since the wing is assumed to be rectangular, the stiffnesses, EI and GJ, are also assumed to be constant along the span. The ${\zeta }_n$ assumption stands as a good approximation for small vibrations [61]. Lastly, the proposed model utilises the first bending mode exclusively for the bending component. Meanwhile, the first mode that exhibits torsional motion, even if coupled, is treated as pure torsion for the purposes of this analysis. The assumptions are motivated by the fact that the main goal of the aeroelastic investigation is to compare the LF and FRVF, rather than developing a full aeroelastic assessment. Nevertheless, similar approaches still give reasonable estimates, usually underestimating flutter onset speed by around 20% [62]. Thus, according to the wing geometry and physical properties, Equations (36) and (37) are populated with the values in

Table 3. XB-2: Properties values for the aeroelastic model.

Property	Value
m	mass divided by area
$\rho$	1.225 kgm−3
$s_f$	0.25 × c
$\overline{c}$	172 mm
$a_w$	7.143 (NACA 23015)
e	0
$b_w$	1.385 m

, resulting in the first reduced order (2-DoF) dynamical model developed for XB-2.

The aeroelastic system is then evaluated, using the $p-k$ method, between 0 and 28 ms⁻¹ $U_{\infty }$; EI and GJ are derived from still air results (the GVT results)a and $M_{\dot{\theta }}$ is a function of the reduced frequency k, being the first time that FRVF- and LF-identified modal parameters are used to inform a flutter estimation process.

Figure 4 shows the results, in terms of ${\omega }_n$, ${\zeta }_n$, and $\lambda$ vs. $U_{\infty }$ of the linear eigenvalue analysis of the aeroelastic model, respectively, from the LF, FRVF, and N4SID identified data, for the baseline case. In particular, Figure 4a shows the results for ${\omega }_n$ vs. $U_{\infty }$, and Figure 4c plots the ${\zeta }_n$ vs $U_{\infty }$ curves. To gain insights into the stability of the $\lambda$ and confirm that divergence does not proceed to the flutter process, their real part is plotted in Figure 5 against the respective imaginary part for the baseline scenario for the results obtained from LF, FRVF, and N4SID.

It should be considered that, in a real scenario, unless flutter is actively suppressed, the aircraft, or component therein, would be seriously damaged or fail at the flutter speed, making the definition of the divergence speed redundant. The stability behaviour in Figure 4 is similar to what is expected from similar implementations [63]. For the case reported in Figure 4, flutter, as expected, is related to ${\zeta }_n$ approaching zero. These phenomena can also be appreciated in Figure 5, where the zero line of the imaginary axis is crossed by $\lambda$, pointing to the occurrence of aeroelastic instability. In addition, the absence of zero-ed imaginary values in Figure 5 confirms that flutter precedes divergence for the case under scrutiny. These behaviours are also found in the cases for which plots are not presented.

The values for flutter onset speeds, reported in

Table 4. XB-2: Aeroelastic phenomena onset speeds and the difference relative to N4SID-derived values.

Flutter Onset Speed [ms−1] (Difference with Regard to N4SID [%])
Scenario	Baseline	2	3	4
N4SID	22.710	23.336	23.285	23.205
LF	21.498	22.200	22.116	21.991
	(−5.34)	(−4.87)	(−5.02)	(−5.23)
FRVF	22.057	22.743	22.727	22.590
	(−2.88)	(−2.54)	(−2.40)	(−2.65)

, show that, when compared with the N4SID-derived models, the FRVF-derived models predicted that onset speeds are much closer than those from the LF-derived model. In particular, the difference between the FRVF-derived models and those from N4SID never exceeds 2.88%. However, even in the worst case, the error of the LF-derived model does not exceed 5.34%. The minimum deviations are also different; FRVF-derived models have a minimum error of 2.36%, while for LF models, it is 4.87%. Nevertheless, it should be considered that, for the small mass changes implemented (less than 10%), the flutter onset speed change is less than 5%, with regard to the baseline case for all methods. It can be said that the LF modal identification performs worse than that via FRVF for the creation of a 2 DoF ROM for aeroelastic phenomena onset speed predictions. However, the LF-derived models are still able to translate the small changes in modal properties to changes in the predicted flutter speeds, as the expected error is 20% [62]. In order to understand this, we need to take a look at Table 2. Now, the ${\omega }_n$ identified via LF and FRVF have negligible errors (<0.5%) with regard to the N4SID values; however, this changes for ${\zeta }_n$, where the lowest, in absolute value, error is 4%. For all cases, excluding ${\zeta }_1$ from scenario 2, the ${\zeta }_n$ identified via LF have a higher, albeit small, error than those from FRVF. This small error propagates in the aeroelastic phenomena onset speed computation, resulting, for the LF-derived values, in an absolute relative error double (≈5%) that of the FRVF-derived speed.

The reduced-order model adopted in this study is based on a number of simplifying assumptions that, while effective for preliminary assessments, limit the generality of the results. First, the wing is assumed to be rectangular, with constant flexural and torsional stiffness and uniform mass distribution. These assumptions neglect structural complexity such as spanwise variation in material properties and geometric discontinuities. Second, only the first flapping and first torsional modes are considered. While suitable for capturing primary flutter dynamics, this simplification excludes higher-order modes and potential modal couplings that may become significant in more flexible or complex wings. Third, the model employs a classical linear aeroelastic approach using the $p-k$ method, which presumes harmonic motion and small damping (small amplitudes assumption). Nonlinear aerodynamic effects, which are known to influence flutter onset in real configurations, are, therefore, not captured. Moreover, its applicability to full-scale aircraft structures should be approached with caution, as it does not account for Reynolds number effects or high-speed aeroelastic phenomena. Since the experimental data were obtained for a sine sweep at a very slow chirp rate, in a controlled experimental environment, using high quality and sensitivity accelerometers, the influence of noise or other uncertainty has not been considered in this work. However, if a similar study is to be carried out using other-than-ideal experimental or operational scenarios, these should be considered. Furthermore, the computational performance and scalability of LF, FRVF, and N4SID are not addressed in this work as it has already been considered in the literature. See [11,45] for, respectively, studies on LF and N4SID; LF FRVF; and N4SID scalability and computational performance.

4. Conclusions

This study established the value of two frequency-domain system identification methods, specifically Fast Relaxed Vector Fitting (FRVF) and the Loewner Framework (LF), for preliminary aeroelastic assessments. The main findings can be summarised as follows:

• The flutter speed of the XB-2 wing is predicted using a two-degree-of-freedom reduced-order model, demonstrating reliable performance across scenarios;
• FRVF and LF reliably estimate natural frequencies and damping ratios;
• The flutter speeds predicted by the LF- and FRVF-derived models align closely with those obtained from N4SID, with deviations not exceeding 5% for LF and 3% for FRVF;
• The variation in the damping ratio induced by the methods significantly affects flutter speed predictions, emphasising the importance of accurate damping ratio identification.

In conclusion, the accuracy of the identified damping ratio is critical for precise flutter speed predictions. Nevertheless, the deviations between the FRVF- and LF-derived parameters are within the reduced-order model acceptable margin of error (20%). This highlights their potential as computationally efficient and robust alternatives to traditional modal identification methods to support preliminary flutter calculations. However, the applicability of the proposed methodology is currently limited to small-scale wings, such as those found in UAVs below 7 kg or scaled laboratory models. Extrapolating the approach to larger aircraft structures requires careful consideration of scale-dependent phenomena, particularly the influence of Reynolds number and aeroelastic coupling at higher airspeeds. Additionally, executing GVTs on small UAVs and models can result in disproportionate costs, where instrumentation, software licensing, and data acquisition may exceed the cost of fabricating the test article itself. These limitations highlight the need for future research into cost-effective testing procedures, the integration of higher-fidelity aerodynamic and structural models, and validation campaigns across a broader range of scales. Such efforts will help establish the generality and practical deployment of the proposed identification techniques within advanced aeroelastic design workflows.
