Characterization of Wildfires and Harvesting Forest Disturbances and Recovery Using Landsat Time Series: A Case Study in Mediterranean Forests in Central Italy

by
Carmelo Bonannella
1,2,3,
Gherardo Chirici
3,4,
Davide Travaglini
3,4,
Matteo Pecchi
3,
Elia Vangi
3,
Giovanni D’Amico
3 and
Francesca Giannetti
3,4,*
1
OpenGeoHub Foundation, 6708 PW Wageningen, The Netherlands
2
Laboratory of Geo-Information Science and Remote Sensing, Wageningen University & Research, 6700 AA Wageningen, The Netherlands
3
Geolab Laboratory of Forest Geomatics, Department of Agriculture Food Environment and Forestry, University of Florence, 50145 Florence, Italy
4
ForTech Laboratorio Congiunto, University of Florence, 50145 Florence, Italy
*
Author to whom correspondence should be addressed.
Fire 2022, 5(3), 68; https://doi.org/10.3390/fire5030068
Submission received: 29 March 2022 / Revised: 18 May 2022 / Accepted: 20 May 2022 / Published: 24 May 2022
(This article belongs to the Special Issue Mediterranean Fires)
Browse Figures
Review Reports Versions Notes

Abstract

:
Large-scale forest monitoring benefits greatly from change detection analysis based on remote sensing data because it enables characterizing forest dynamics of disturbance and recovery by detecting both gradual and abrupt changes on Earth’s surface. In this study, two of the main disturbances occurring in Mediterranean forests, harvesting operations and forest fires, were analyzed through the analysis of Landsat Times Series images in a case study in Central Italy (Tuscany region). Disturbances were characterized based on their distinct temporal behaviors before and after the event: a period of 20 years (1999–2018) was used to extract and analyze at pixel level spectral trajectories for each disturbance and produce descriptive temporal trends of the phenomena. Recovery metrics were used to characterize both short- (5 years) and long-term aspects of recovery for harvested and burned areas. Spectral, recovery, and trend analysis metrics were then used with the Random Forest classifier to differentiate between the two disturbance classes and to investigate their potential as predictors. Among spectral bands, the Landsat SWIR 1 band proved the best to detect areas interested by harvesting, while forest fires were better detected by the SWIR 2 band; among spectral indices, the NBR scored as the best for both classes. On average, harvested areas recovered faster in both short- and long-term aspects and showed less variability in the magnitude of the disturbance event and recovery rate over time. This tendency is confirmed by the results of the classifier, which obtained an overall accuracy of 98.6%, and identified the mean of the post-disturbance values of the trend as the best predictor to differentiate between disturbances.

1. Introduction

The Mediterranean Basin represents one of the five different regions that compose the Mediterranean eco-region area, with other regions being: California, southwestern and southern Australia, the Western Cape Region in South Africa, and central Chile [1]. Among these regions, the Mediterranean Basin is the biggest [2]. It is also estimated that this area contains more than 10% of the world’s vascular plant biodiversity with about 290 different indigenous taxa [2,3,4,5].
The Mediterranean region is historically subject to significant human pressures that have determined a profound transformation of the natural landscape [4]. In addition, during the last two decades, this pressure is further increased due to the action of the climate change phenomenon that caused an alteration in the frequency and intensity of disturbance events [6,7,8,9,10] and a possible modification of the traditionally human activities such as timber harvesting because climate change could alter species composition, physiology, and regrowth [10,11,12].
In Mediterranean areas, and Italy is not an exception, fire represents a common and important historical natural disturbance agent for Mediterranean forests. Recent statistics realized by the European Forest Fire Information System (EFFIS) showed that, during the last year, the wildfire activities increased in all Mediterranean countries, especially in Italy, where, just in 2021, a series of catastrophic events in the Sardinia, Sicily, and Calabria regions was registered [13,14,15]. The increasing of wildfire activities in Mediterranean forest ecosystems, despite forest species having adaptation mechanisms such as resprouting capacity, seed bank persistence, and better dispersal capacity of seeds [13,14,15] to survive wildfire events, can compromise the stability of slopes and the regeneration rate of forests [16,17,18].
The other typical historical disturbance of Mediterranean forests is harvesting [19,20]. In Italy, clearcut of coppices forest is the most typical forest harvesting activity [20,21,22] and the most typical human forest disturbance, since coppices represent the main forest management regime. In coppice forests, regrowth after the cut occurs thanks to the rapid asexual regeneration and the sprouting of new shoots from the stump [23]. However, due to climate change, it is important to monitor the regrowth rate of harvested forests, to reduce potential degradation. Therefore, monitoring these two different types of Mediterranean forests disturbances, their effects, and differences in recovery rates is today fundamental to support forest strategies at a national and international scale in the context of sustainable forest management [3,24], biodiversity conservation [25], and carbon sink balance [6].
Optical remote sensing data are considered one of the most efficient tools to map and monitor changes on a regular and continuous basis at different spatial scales, from the global/national [12,20,26] to the regional/local [10,22,27] level. The use of optical remote sensing tools is very common, mainly for six reasons, which are: (i) they provide a complete painting of the study area, (ii) they are always available, (iii) they have a high degree of homogeneity and there are not any influence of human actions, (iv) the images are in digital format and easily integrated with other spatial data, (v) they are available at a low price, (vi) there is an increasing trend in the production of data [28].
With about 50 years of data, the Landsat series represents the main data source for large-scale monitoring programs. This aspect, coupled with the free data policy, the high spatial resolution (30 m), and the low temporal resolution (about 16–18 days), has allowed the development of temporally dense pixel-level analysis on a large scale and across different thematic domains [29,30,31,32].
Change detection analysis allows the detection and assessment of changes occurred in a specific area by comparing images of the same area with different acquisition dates. Change detection can be conducted using a bi-temporal approach, where only two images are compared (for forest disturbances, an image before and after the disturbance event are used) or a time series approach [33]. The time series approach enables characterizing the temporal forest dynamics of disturbance and recovery by detecting both gradual and abrupt changes. In this case, the spectral trajectory of a given pixel can be interpreted as an ecological response curve whose shape reveals information about the underlying process of change [21,34,35].
TS methods can be divided into four different categories: threshold-based, curve fitting, trajectory fitting, and finally trajectory segmentation [33]. The last two approaches in particular are widely used to monitor forest disturbance [36,37]. These approaches use a dense series of images to detect a characteristic spectro-temporal signature [33,38]. Trends of forested pixels over time are described by a curve characteristic of the phenomenon occurred: trajectory fitting methods use the end year of the disturbance interval, the pre-disturbance mean reflectance, and the post-disturbance mean as parameters to build the spectral signature, with the slope representing an estimation of the rate at which degradation or recovery phenomena occur [39,40]. Slope positive or negative values indicate an increase or decrease in vegetation, respectively. In this sense, Kennedy et al. [38] hypothesized four model or disturbance classes that, fitted to observed time series at pixel level, could describe long term behavior of the spectral trajectory and the phenomenon occurred:
•
simple disturbance;
•
disturbance followed by re-vegetation;
•
ongoing re-vegetation from a disturbance event occurred before the time period analyzed;
•
re-vegetation from prior disturbance to a stable state reached during the observation period.
Following these premises, the main objective of this study was to investigate both short- (5 years) and long-term (>5 years) forests spectro-temporal responses to different types of disturbance in Mediterranean forests and characterize the behavior of such forest disturbance. The focus is on two types of disturbance: clearcut and wildfires.
These disturbance events were analyzed using a twenty-year (from 1999 to 2018) Landsat time series (LTS) composite, realized using one image per year, and two reference datasets (i.e., clearcut polygons and wildfire polygons for which the years of disturbances were known). Firstly, temporal spectral trajectories based on time series Landsat bands and vegetation indices were extracted at a pixel level, fitted and aggregated to produce a single trajectory for each type of disturbance, and then compared. Secondly, disturbances and recovery rates of a forest were characterized using existing metrics of short and long term recovery, already tested in Canadian boreal forests by White et al. [12] and in Mediterranean forests by Chirici et al. [35] with the spectral signature analyzed using spectral and trend analysis metrics. Due to the diversity of boreal and Mediterranean forests conditions, the study was conducted assuming that both disturbances and recovery phenomena in Mediterranean forests evolve differently than in the boreal forests. Therefore, information derived from the trends and the metrics were combined with the attempt to answer the following questions:
1.
Which is the most effective spectral variable regrowth trajectory to detect disturbances and recovery effects in the Mediterranean forests?
2.
Are there any differences in the spectral trends and recovery conditions among the two classes of disturbances (i.e., clearcut and wildfire) captured by LTS analysis and all derived metrics? Can these differences be used to obtain a distinct profile for each disturbance?

2. Materials and Methods

2.1. Study Area

The study was conducted in the forested area covered by a single Landsat scene (Path: 192, Row: 030); the area covered falls almost entirely in the administrative region of Tuscany, Central Italy (Figure 1).
It is mainly a hilly region (mean elevation = 320 m above sea level), characterized by large altitude differences (from sea level up to 1900 m in the topmost part) and moderate slopes (mean slope = 11%). The coast line and the immediate areas behind it have a Mediterranean climate [41], which results in a mixed sclerophyll forest dominated by Holm oak (Quercus ilex L.) and Cork oak (Quercus suber L.) with other shrubs commonly found in maquis formations; other tree species include Maritime pine (Pinus pinaster Aiton), Italian stone pine (Pinus pinea L.), and Aleppo pine (Pinus halepensis Mill.), present mainly as artificial plantations. These species are well adapted to low intensity wildfires: the Aleppo pine and the Maritime pine have fire-activated seed banks that germinate, grow, and mature rapidly following a fire in order to reproduce and renew the seed bank before the next fire, while the Holm oak resprouts vigorously after clearcut harvesting (coppices) and wildfire disturbances [15,42].
Moving inland, the climate shifts to temperate oceanic [41] and the vegetation changes towards a mixed temperate forest dominated by Turkey oak (Quercus cerris L.), Downy oak (Quercus pubescens L.), and Sweet chestnut (Castanea sativa L.) with other tree species like European beech (Fagus sylvatica L.) and European hop-hornbeam (Ostrya carpinifolia Scop.); Black pine (Pinus nigra J.F. Arnold) is present mainly as a species used for artificial plantations. These broadleaves species are less adapted to wildfire compared to the previous ones; however, they are largely used for firewood production and intensively managed as coppices, while Black pine plantations are mostly unmanaged and are characterized by a large amount of accumulated flammable organic components, which represent a potentially large fire risk [43].
Six out of the 14 European Forest Types [44,45] are represented in the study area.

2.2. Landsat Time Series Data

For this study, we enlarged the LTS used by Chirici et al. [35], spanning the period 1999–2018. The LTS used is composed by one image per year with cloud cover <5% acquired by Landsat 5 TM, Landsat 7 ETM+, and Landsat 8 OLI (Table A1). The images were downloaded from the USGS web service https://earthexplorer.usgs.gov, access on-line the 15 June 2021, (Table A1) and were pre-processed using the same methodology of Chirici et al. [35]. The images used were acquired during the summer months due to the correspondence with the growing season for most forest species in the study area [46] and to avoid phenological differences. For each image, we used the information of six Landsat bands (Blue, Green, Red, NIR, SWIR 1, and SWIR 2) and we calculated seven different spectral indices: Normalized Difference Vegetation Index (NDVI) [47], Enhanced Vegetation Index (EVI) [48], Soil Adjusted Vegetation Index (SAVI) [49], Modified Solid Adjusted Vegetation Index (MSAVI) [50], Normalized Burned Ratio (NBR) [51] and Normalized Burned Ratio 2 (NBR2) [52], and Normalized Difference Moisture Index (NDMI) [53] (Table A2).

2.3. Forest Types Classes

To focus the spectral extraction only on forested areas and to compare the disturbances among different forest types, we used two cartographic layers that cover the whole study area: (i) the National Forest mask [54] and (ii) the Tuscany Regional Forest Inventory (TRFI) dataset. The forest mask was used to derive information of undisturbed forest, while from the TRFI we extracted the information related to forest types [55].

2.4. Disturbances Reference Geodatabase

Three reference spatial polygons geodatabases, available in Tuscany, were used to compare the differences in the spectral trajectory and recovery rates over time between disturbed (i.e., wildfire and harvest) and undisturbed forest areas (Figure 2). In details, we used: (i) the geodatabase provided by Carabinieri Forestali for wildfire areas (i.e., 2005–2015) [56], which consists of a total of 3394 ha of mapped forest fire areas; (ii) the updated version of the harvesting reference geodatabase (i.e., 1999–2018) provided by Chirici et al. [35] for three sample quadrats (Figure 2) for a total of 8545 ha of harvested area, and (iii) a reference geodatabase of undisturbed forests (i.e., 1999–2018) visually interpreted for the present study by means of high-resolution orthophotos and Landsat images (1999–2018) for a total of 2902 ha of undisturbed forest. In Table 1, we report the number of pixels for each class (i.e., wildfires disturbed forest area, harvesting disturbed forest areas, undisturbed forest area).

2.5. Spectral Trajectory Extraction and Spectral Trajectory Fitting

Using the disturbances reference geodatabase described in Section 2.4, the spectral trajectories of each Landsat band and of the seven spectral indices were extracted at a pixel scale on a scene-by-scene basis. Outliers due to error measurements, clouds, haze, or other atmospheric effects were detected based on the assumption that they behave as punctual and ephemeral values (drops or spikes) in a given spectral trajectory [57]. Observations were classified as outliers if they exceeded a certain standard deviation threshold, instead of empirical fixed thresholds [58,59]. The threshold was estimated by forest type category, exploiting the differences in spectral signatures between species. Pixels were first split into different samples based on disturbance and forest type, followed by year of the image for undisturbed pixels and temporal distance for the disturbed ones.
Given the fixed response of a species to each wavelength in the same conditions (time of the year, atmospheric conditions, phenological season, water content, type of disturbance), values from each sample are inclined to converge to a central value, assuming a distribution similar enough to a normal distribution: this assumption was checked through visual inspection with Q-Q (quantile–quantile) plots, which plot the quantiles of the sample set against the quantiles of the normal distribution.
Spectral trajectories were then plotted and aggregated by disturbance and forest type to define a range of expectations that were compared with the values assumed by the standard deviation in a normal distribution; the range of expectations was established to be approximately two times the standard deviation (2σ) for all forest type classes. The arithmetic mean (μ) and the standard deviation was then computed for each sample and all observations that exceeded the μ ± 2σ value were classified as outliers and removed from the analysis (Table 1). These analyses allow also excluding mixed pixels (pixels on the edges of damaged areas) that usually introduce noises in spectral trajectories analysis [32].
The pixel trajectories extracted were then smoothed by constraining them to adhere to two predefined shape patterns, identified by the known ecological response of a forested pixel through time based on the phenomenon therein occurred. This approach was applied following the assumption of Kennedy et al. [34], where a pixel is classified as (i) undisturbed when the trajectory is characterized by a stable state (i.e., the reflectance values among the spectral variable of interest are that of a stable trajectory through time, with little or no fluctuation) or as (ii) disturbed, whether affected by low or high magnitude events, when the trajectory shows step changes in reflectance, corresponding to the disturbance event, followed in the next years by a slow recovery of the trajectory to pre-disturbance values). The R package ShapeSelectForest [60] was used to achieve this analysis. Knowing beforehand which phenomenon occurred (i.e., fires or harvest) and the relative year of change for each trajectory, only the following two shapes were used:
Flat: the pixel trajectory shows a forest in a stable condition;
Jump: the pixel trajectory shows a forest that suffers from abrupt changes in its structure or canopy cover due to a disturbance event (harvesting, fires).
Trajectories belonging to the undisturbed class (i.e., not disturbed forest) were constrained to adhere to the “flat” shape, while the disturbance classes (i.e., clearcut and wildfire) were constrained to the “jump” shape.
The fitted spectral trajectories were then grouped by type of disturbance and band or spectral index, which resulted in 13 samples (i.e., 6 Landsat Bands and 7 Vegetation indices) for each of the 3 classes (i.e., wildfires disturbed forest area, harvesting disturbed forest area, undisturbed forest area). At the end, an average trend for each Landsat band and each vegetation index was extracted from each class.
To characterize disturbances and the vegetation recovery, we used the absolute difference between the pre-disturbance value and the value recorded for the disturbance event and the recovery trend after the disturbance [61,62,63,64,65,66].

2.6. Recovery NBR-Based Metrics

The spectral trajectory of a disturbed pixel can be divided into three segments, each one representing one stage of the change event process: an undisturbed or stable segment, before the disturbance; a disturbed segment, with a consistent drop in reflectance values, which goes from the last pre-disturbance year to the year of disturbance; and a recovery segment, with reflectance values slowly coming back to to pre-disturbance levels.

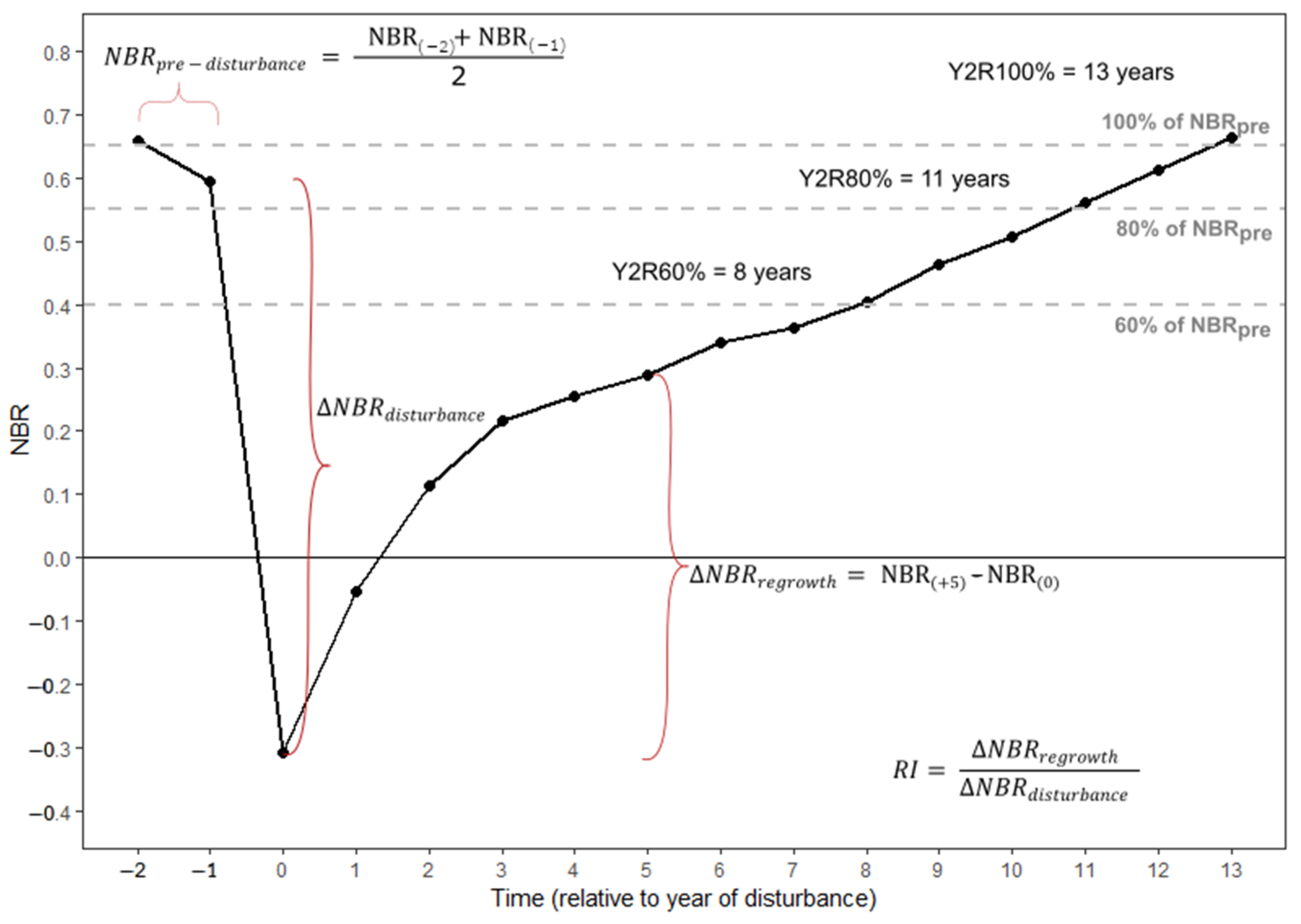

To characterize each type of disturbance, for illustrative purposes, and because NBR results as the most sensitive index in detecting harvester and fires disturbances, we used the fitted NBR spectral trajectories to extract a set of metrics, i.e., conditions before and after the change event using both information derived from spectral values and linear trend descriptors (Table 2, Figure 2).
Although there are a conspicuous number of spectral indices and derived metrics to characterize disturbances and vegetation recovery [66,67,68], in this study, the definition of recovery as “the initial establishment (or pulse of vegetation), as well as a more long-term, sustained regeneration of forests at a site” proposed by Johnstone et al. [69] was adopted and the recovery metrics used by White et al. [12] to characterize both longer and shorter term aspects of the recovery process were calculated.
On the basis of fitted trend trajectories, for each of the recovery metrics we calculated, as done by Chirici et al. [35], the Years to Recovery (Y2R) metric following the approach of White et al. [12,70]. The Y2R indicates the number of years required for a pixel to attain 60%, 80%, and 100% (i.e., Y2R60%, Y2R80%, Y2R100%) of its pre-disturbance fitted trend of the vegetation index value. In our study, the pre-disturbance value used to define the Y2R was calculated as the average of the fitted index values for the two years prior to disturbance, consistent with the approach applied in White et al. (2017) [12].

2.7. Classification Model

A Random Forest classifier [71] was used to differentiate the two disturbance classes (i.e., wildfires disturbed forest area, harvesting disturbed forest area), using the R randomForest package [72]. The final dataset containing the NBR shape-constrained trajectories, and their relative metrics, was randomly split in a 70:30 ratio, with 70% of the trajectories used for training the model and the remaining 30% used as a test set, and all computed metrics mentioned in Section 2.6 were used as predictor variables, for a total of 14 features. The most important design parameters for Random Forest are the number of trees to be generated (ntree) and the number of features to be selected randomly for growing each tree (mtry): the parametrization followed the default recommended values for the ntree parameter, while mtry was set to 14. The importance of predictor variables was assessed using the mean decrease in accuracy value returned by the algorithm instead of the mean decrease in Gini coefficient because this mechanism to compute feature importance is known to be biased, inflating the importance of continuous or high-cardinality categorical variables [73]; coefficients were normalized in a 0–100 scale of relative importance score, while the out of bag (OOB) score was used to assess the performance of the model. To obtain consistent values, the model was applied 100 times and the results averaged.

3. Results

3.1. Spectral Response of Bands and Indices

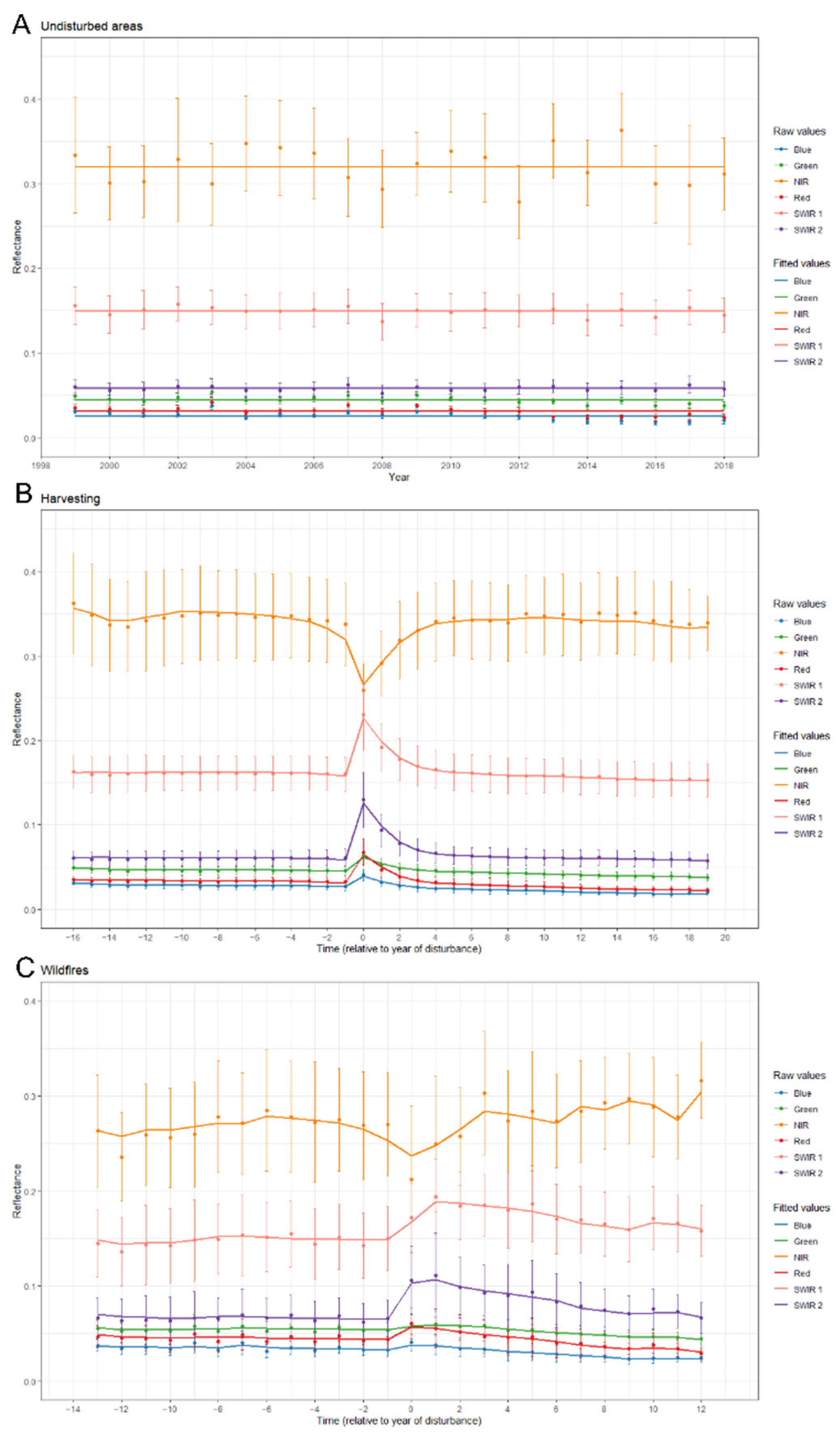

To study the differences in the spectral trajectory of the two types of disturbances, i.e., wildfires disturbed forest area, harvesting disturbed forest area, and undisturbed forest area, run charts (Figure 3 and Figure 4) were generated using the raw and shape-smoothed values of the six Landsat bands and each of the seven spectral indexes, measured, respectively, in surface reflectance or band ratio on the y-axis, change over time, displayed on the x-axis.
The trends for the bands were almost stationary for undisturbed areas. For each class of disturbance, we can see that the reflectance values in the segment before the detection of a disturbance event were equal to the ones computed for the undisturbed areas (Figure 3), while a sudden change in reflectance can be seen in the year of disturbance: every band is sensitive to the disturbance event, with the blue band recording the least significant absolute change in mean in all classes of disturbance. The SWIR 1 band recorded the highest values for the harvesting class followed by the SWIR 2, while the opposite was found for wildfires. However, both SWIR bands in the wildfires class recorded the highest value in the trend not in the year of disturbance, but the following year (y = 1). The recovery segment displayed a stable trend for all bands in the harvesting class, while more fluctuations can be seen in the wildfire class.

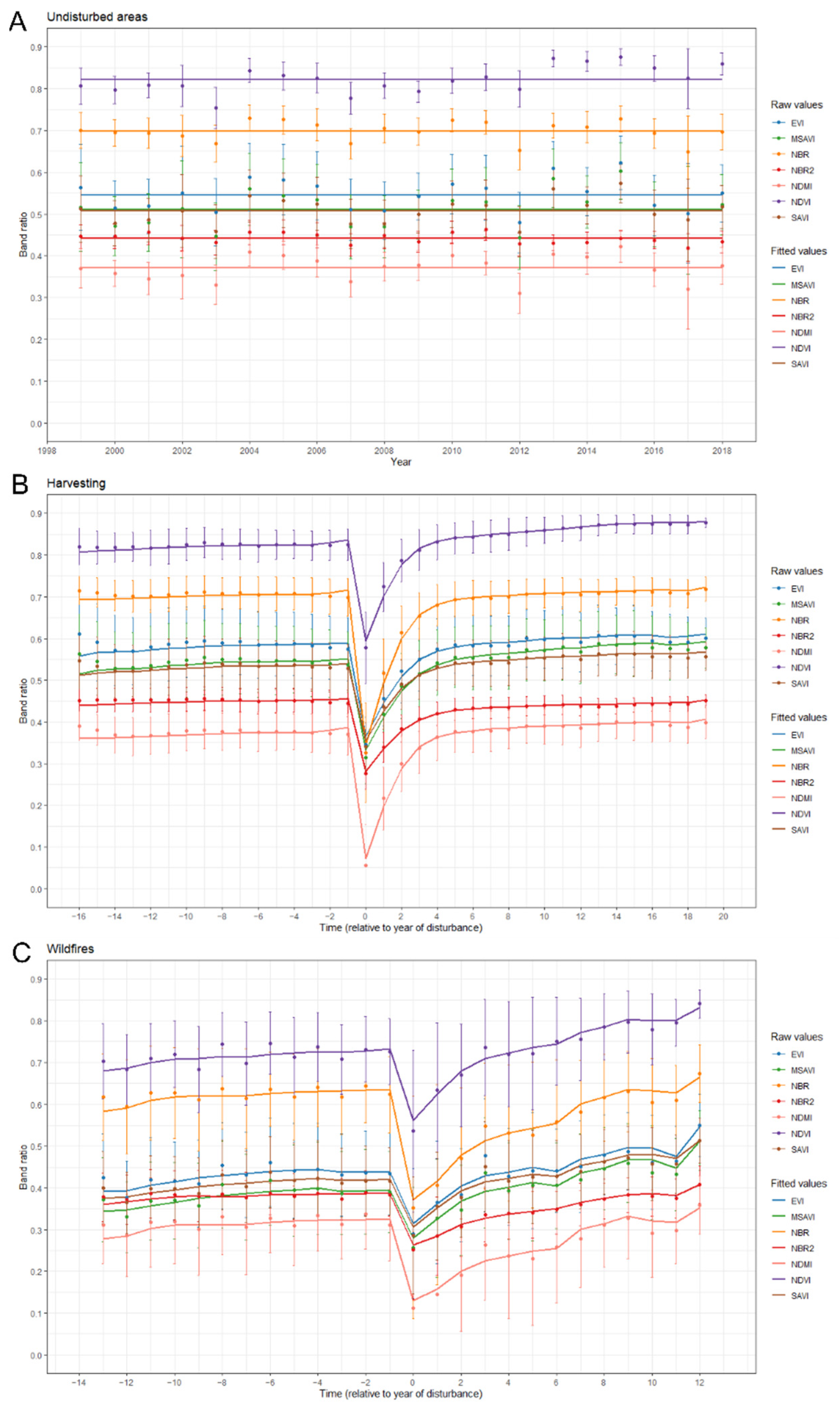

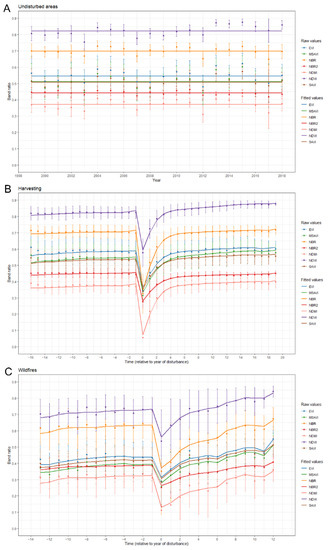

Trends in spectral indices (Figure 4) had the same pattern found for the bands: a stationary trend for the undisturbed areas and drops in the band ratio value in the year of a disturbance. However, the recovery segments showed consistent differences depending on which spectral index is considered; the NDVI index showed values that were equal to pre-disturbance levels after only three years, confirming its behavior to saturate rapidly after the detection of a disturbance event [35,74,75], while the NBR and the NDMI were the most useful spectral indices in detecting disturbances, showing values in absolute change in mean close to each other (Table 3).

3.2. Characterizing Recovery with NBR-Based Metrics

Five years after the disturbance event, 10% of the pixels belonging to the wildfires class had a value of ΔNBRregrowth ≤ 0 in contrast with the harvesting class with only 0.02%; all remaining pixels had values of ΔNBRregrowth above that threshold, which is a sign of spectral recovery.
On average, wildfires had higher absolute values and variability than harvesting, with 8% of the pixel distribution having ΔNBRregrowth > 0.6: the average value of ΔNBRregrowth for the wildfires class was 0.245 with a standard deviation of 0.224, while for the harvesting class the average was 0.357 with a standard deviation of 0.118 (Figure 5).

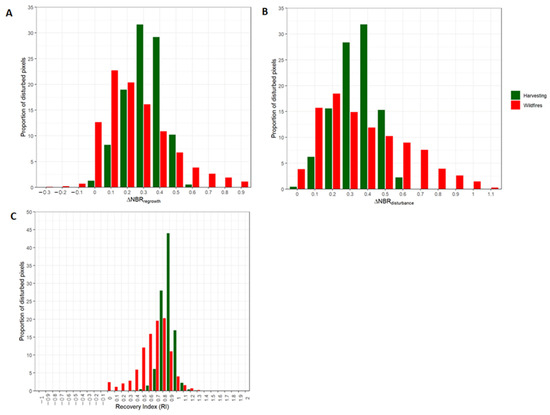

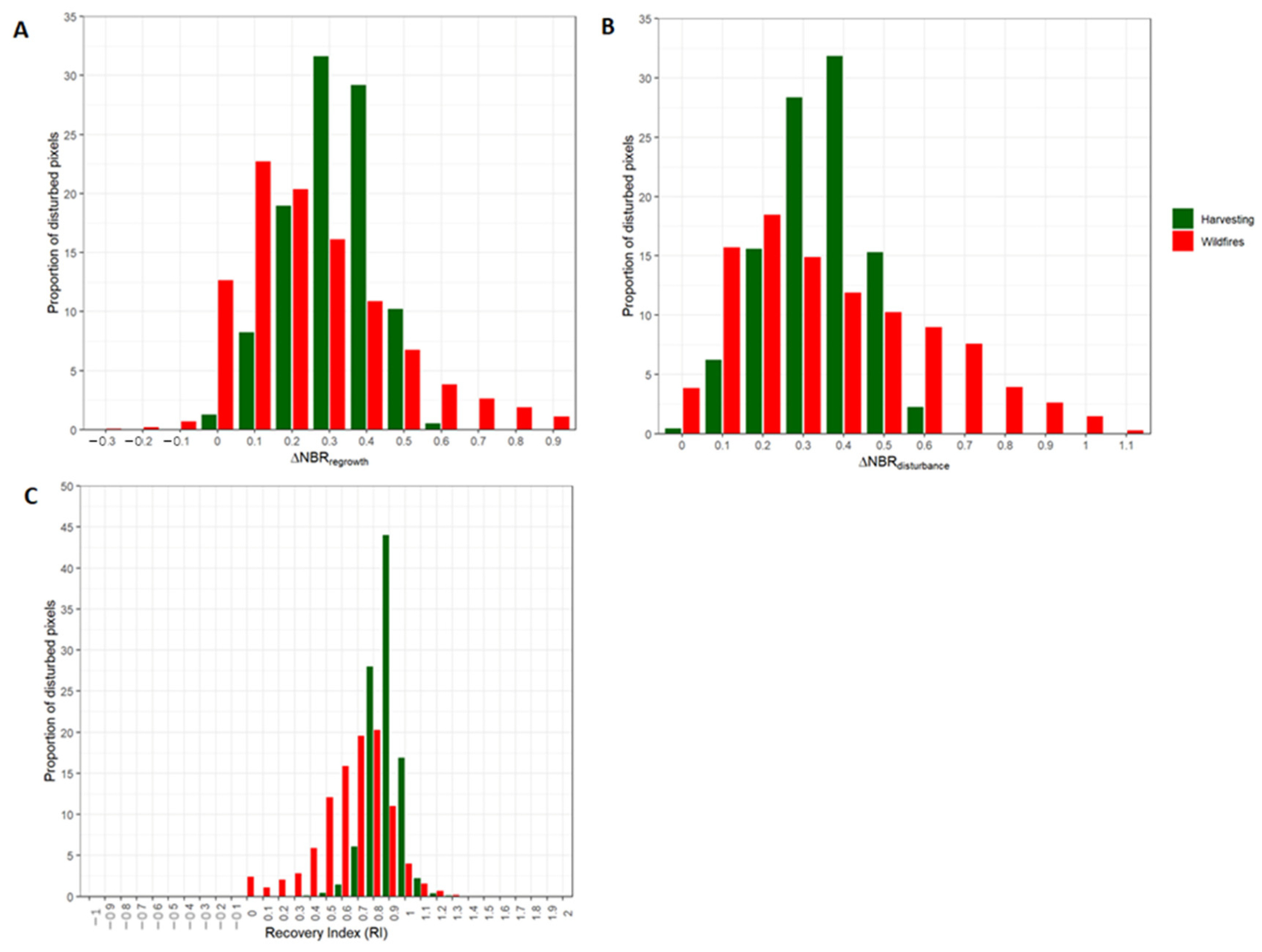

The magnitude of the disturbance event (ΔNBRdisturbance) showed values once again higher in absolute value for the wildfires class, with 20% of them scoring more than 0.6 in drop of NBR values in the year of disturbance, and a higher variability than the harvesting class. The average value for the wildfires class was 0.337 with a standard deviation of 0.277, compared to the average of 0.384 and a standard deviation of 0.124 of the harvesting class (Figure 5).
Scaling the ΔNBRregrowth by the magnitude of the disturbance event (ΔNBRdisturbance), the second metric, a relative indicator of recovery (Recovery Index, RI) is obtained. The definition of RI classifies pixels with RI values ≤ 0 as non-recovering; while all pixels of the harvesting class were recovering in the first five years after the disturbance, 11% of the wildfires class did not show signs of recovery. The same trends observed for both the ΔNBRregrowth and ΔNBRdisturbance are maintained, with lower average and higher variability values for the wildfires class (μ = 0.744, σ = 0.490) compared to the harvesting class (μ = 0.925, σ = 0.118).
To evaluate the long-term aspects of recovery, the Y2R metric was calculated with three different recovery scenarios (Figure 6). Disturbances that happened before 2001 for the harvesting class could not be included in the analysis because there was not a two-year period pre-disturbance available to compute the NBRpre-disturbance; from the 62,612 analyzed pixels, only 55,540 were included in the long-term recovery analysis.

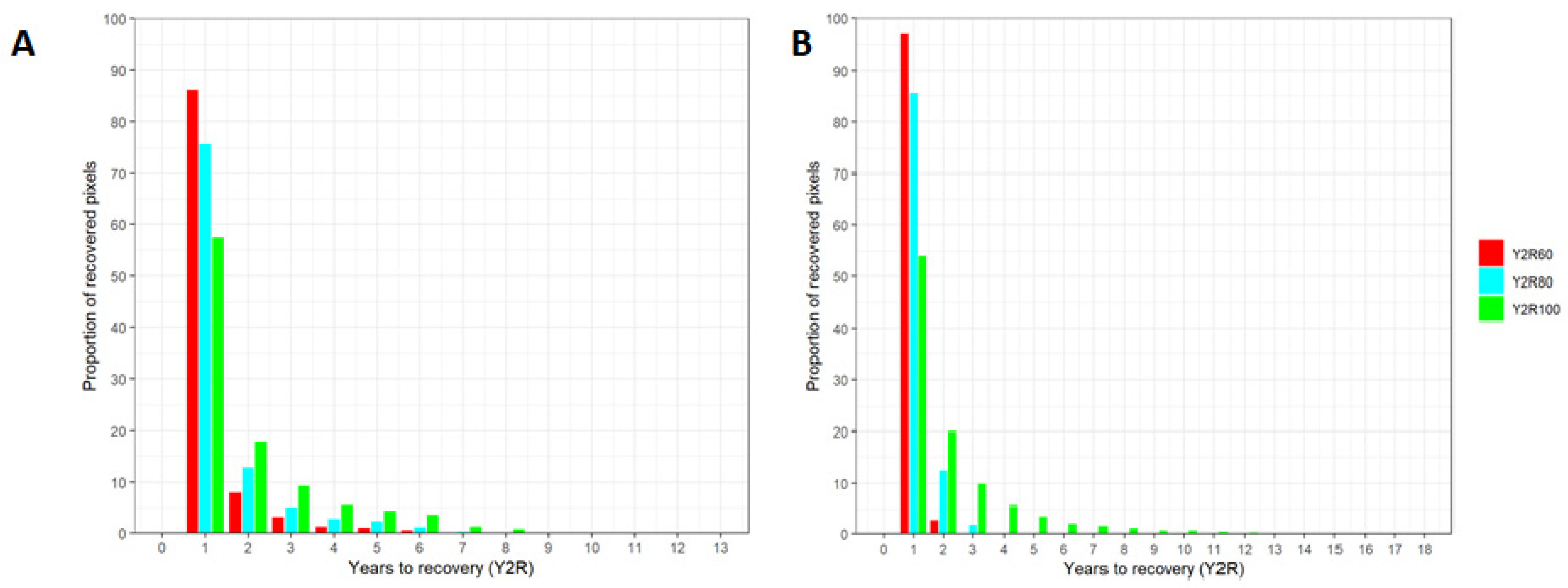

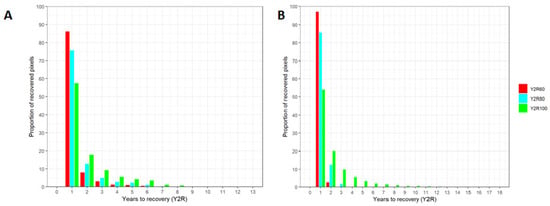

For the Y2R60% scenario (Figure 6), the recovery NBR threshold of 60% of the NBR pre-disturbance value was reached after only one year from the disturbance event by both classes, with the wildfires class being the slowest, recovering approximately 87.5% of the disturbed pixels. The first year after disturbance recorded the highest proportion of pixels recovered for both classes, value that decreased in the following years.
The harvesting class observed that 100% of the disturbed pixels were recovered by the end of 2018. A complete recovery was observed for the harvesting class after only two years from the disturbance compared to the six years of the wildfires class. The average Y2R60% value for the harvesting class was 1.02 years (σ = 0.16 years) compared to 1.21 (σ = 0.7 years) for the wildfires.
For the Y2R80% scenario (Figure 6, Table 4), the threshold was reached after the first year: once again the harvesting class observed the highest recovery rate, reaching complete recovery (>99%) after only three years from the disturbance, while by 2018 only 77% of the pixels of the wildfires class reached complete recovery, even after eight years from the disturbance. The average Y2R80% value for the harvesting class was 1.1 years (σ = 0.4 years) compared to 1.4 years (σ = 1.02 years) for the wildfires class.
For the Y2R100% scenario, the threshold was still reached after the first year by both classes (Figure 6); however, complete recovery was not reached by any of them: the harvesting class scored the highest proportion of pixels recovered (48%), with the last pixels recovering after 11 years from the disturbance event; the wildfires class recovered only 33% of the total, with the last pixels recovering after eight years from disturbance. The average Y2R100% value for the harvesting class was 2.1 years (σ = 2.02 years) compared to 1.89 years (σ = 1.50 years) for the wildfires class.
The highest proportion of recovered pixels according to all the metrics analyzed was scored by the harvesting class, with >99% of the pixels classified as recovered, compared to the 76% of the wildfires class; wildfires also recorded <2.5% of the pixels as not recovered by any of the three metrics.
The harvesting class had a <0.01% of pixels that did not attain long-term recovery by the end of 2018 and <0.2% that did not attain short-term recovery but was able to recover by the end of 2018. Wildfires had approximately 23% of the pixels that did not attain short-term or long-term recovery: the highest proportion, approximately 22%, did not attain long term recovery but observed short-term recovery signs; the lowest did not attain short-term recovery indicated by both short-term metrics, but was able to recover by the end of 2018, indicating a longer timespan needed to recovery with a slow increase and fast growing afterwards.
It is worth noting that when short-term recovery was attained, such a condition was indicated by both short-term recovery metrics: in our case study, there were not any cases with recovery indicated by only one of the two metrics.

3.3. Trajectories Classification

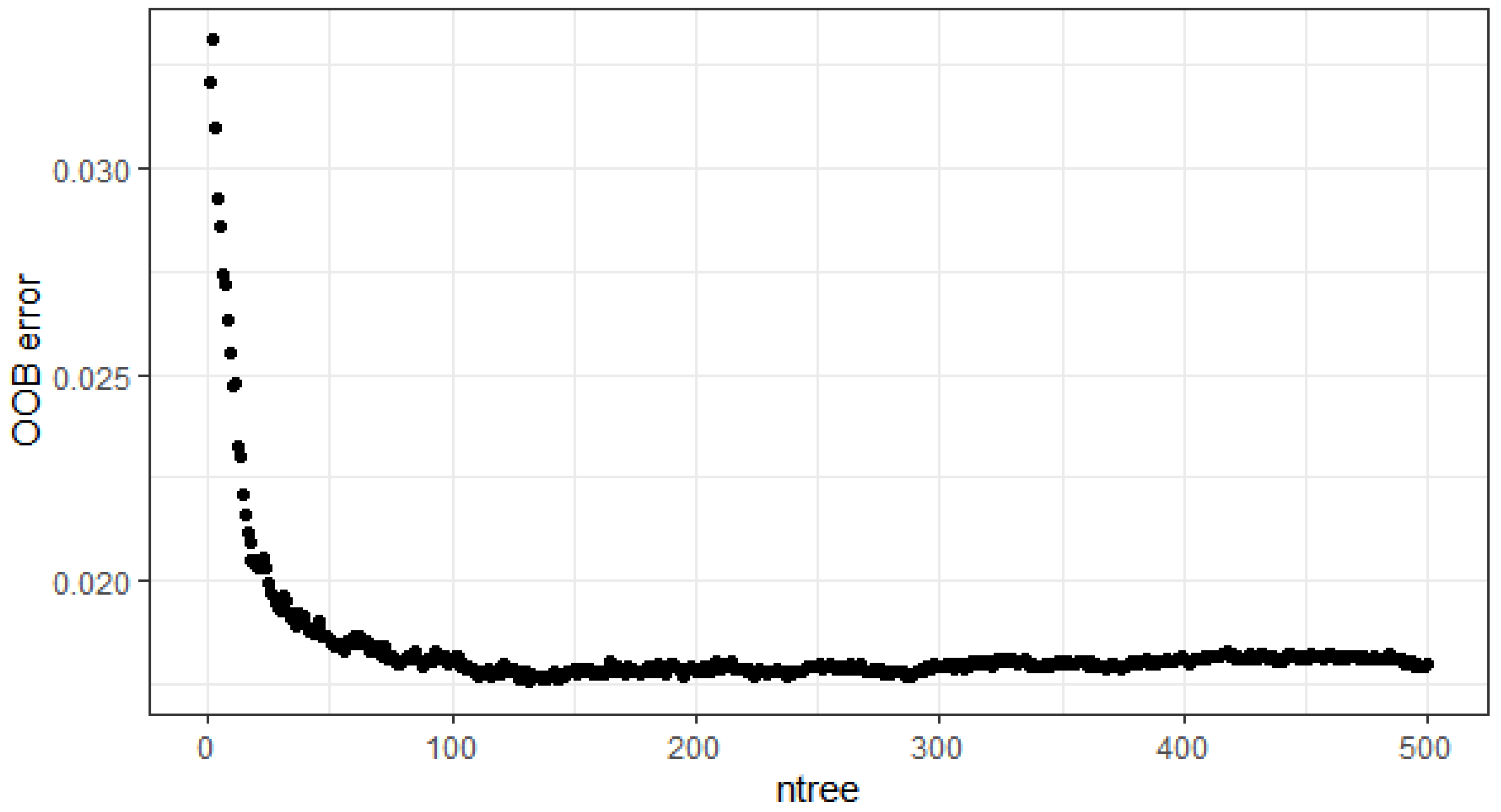

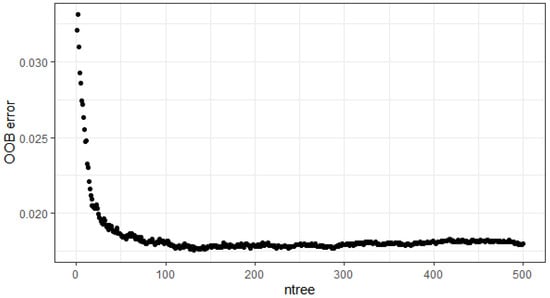

The averaged out-of-bag (OOB) error indicated a high accuracy of the model, showing the default value for the ntree parameter as optimal for the classification (Figure 7). The model had an averaged overall accuracy (OA) of 98.6%, with class errors relatively well balanced: averaged producer’s accuracy (PA) scored values ranging between 94% and 99%, while averaged user’s accuracy (UA) between 99.08% and 99.4%.

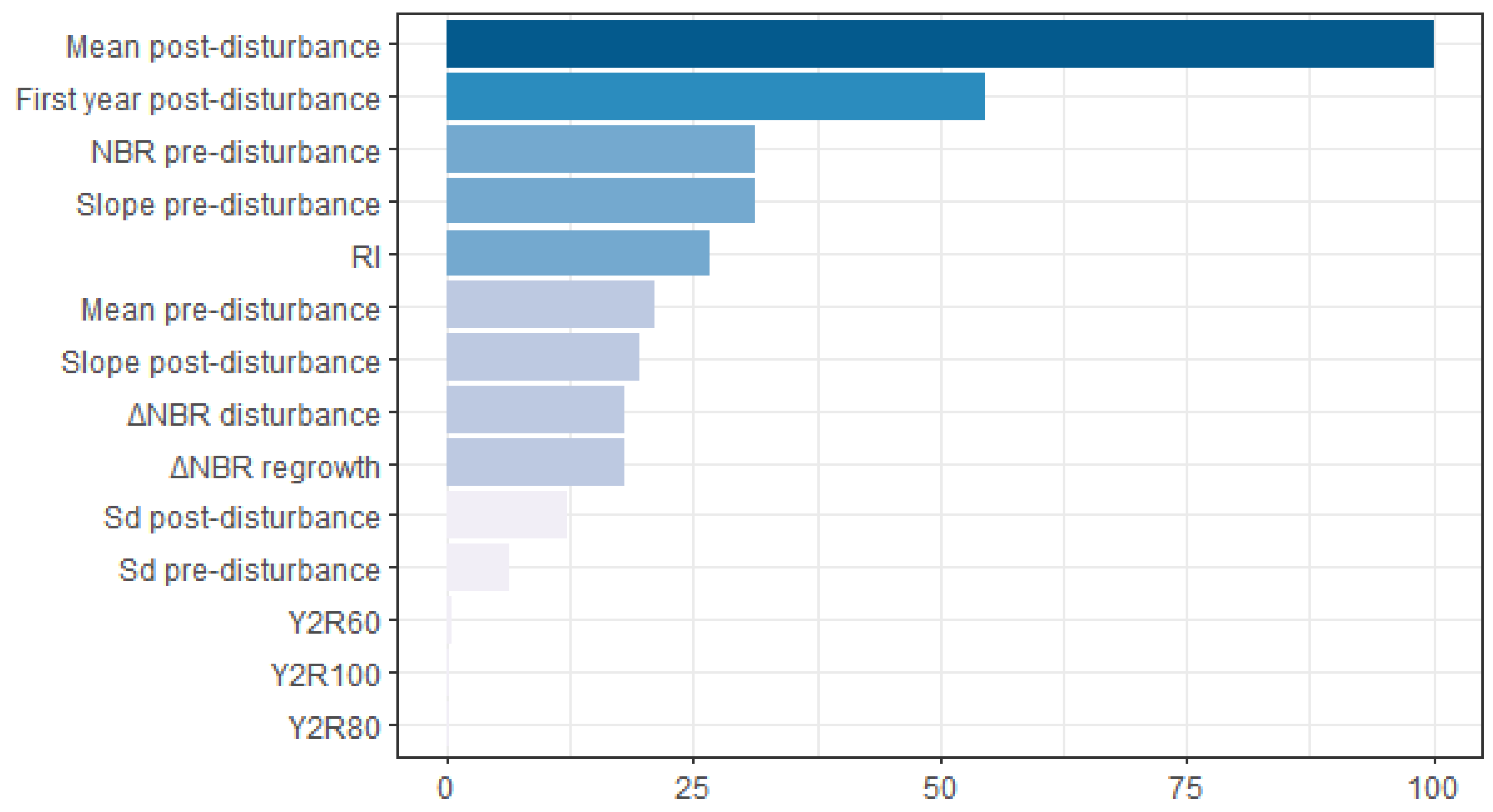

The mean decrease in accuracy values were averaged and used to evaluate the predictor variables importance: the mean post-disturbance metric scored as the most important predictor to differentiate between the two disturbance classes trajectories (Figure 8). Most of the recovery metrics scored extremely low on the scale, while metrics derived from spectral values or trend analysis occupy the highest part. It is worth noting that the first two most important metrics refer to post-change event conditions of the spectral trajectory.

4. Discussion

The aim of the study was to conduct a full temporal characterization of two disturbance agents in Mediterranean forest ecosystems. The characterization focused on the more frequent disturbances recorded for the study area, which were harvesting operations and wildfires, using a period of observation of 20 years. To provide baseline information for future disturbance monitoring and forecasting, the analysis used the widest range of spectral variables available from the Landsat archive and both short- and long-term recovery metrics used in the past to characterize similar disturbances in boreal forests.
Post-disturbance forest spectral recovery is an ongoing, continuous process described by the slow increase (indices) or decrease (bands) in the spectral variable temporal pattern. After the trajectory extraction, all spectral variables analyzed have shown a degree of sensitivity to disturbances, having different mean values before and after the year of the disturbance event even though the disturbances analyzed and their inherent dynamics are different.
Knowledge about post-disturbance recovery capacity is fundamental information for forest management and planning. Recovery capacity represents a useful indicator for ecosystem resilience, in general, a fast recovery rate means a high level of ecosystem resilience [74]. In addition, post-disturbance recovery could influence the climate due to the effect on surface radiation balance, carbon budgets, water balance, surface albedo, soil moisture, erosion, and, finally, evapotranspiration [75]. Substantial differences in absolute change in mean values between bands and indices (Table 3) confirmed the utility of the latter over the former for change detection analysis: as hypothesized, spectral indices magnified the effects of change due to disturbance events, with change in mean values for the indices differing by one order of magnitude compared to the bands (Figure 3 and Figure 4); singular bands remain useful to give insights on the location of disturbances in the spectro-temporal space, but spectral indices maintain the upper hand in detecting more subtle responses to disturbances and recovery from vegetation (Table 3). This study also confirmed for Mediterranean forests the major sensitivity of the Landsat NIR, SWIR 1 and SWIR 2 bands, among all bands, to detect forest disturbances [76].
The results indicate a similar temporal pattern for every spectral index (Figure 4), showing no sign of dispersion in mean values neither before nor after the disturbance, with the NBR2 index having the least inter-annual variability. This could be attributed to the fact that the NBR2 contrasts both SWIR bands and is not affected by fluctuations in the NIR or Red band like the other indices [77,78]; this information could be extremely useful to map long term aspects of disturbances in future studies [79]. The SAVI scored as the least sensitive index both to disturbance detection and recovery, the MSAVI and EVI reached values close to the NDVI: this reflects what was found by Storey et al. [78] in Mediterranean-type ecosystems dominated by shrublands formations (chaparral) in California. However, differences for all the indices found in this study are less enhanced and the reason could be attributable to vegetation density: chaparral vegetation is generally more open than sclerophyll forests and maquis formations of the Mediterranean Basin. It can be assumed that soil-adjusted indices gain significance in change detection analysis the denser the forests formations analyzed are.
Greenness indices (EVI, NDVI, SAVI, and MSAVI) addressed disturbances correctly but failed to portray post-disturbances conditions accordingly: wetness indices (NBR, NBR2, NDMI) patterns remarked that mean values similar to pre-disturbance conditions take some years, from three to 10 depending on the class of disturbance, to be reached; instead, all greenness indices displayed pre-disturbance mean values, and in some cases even higher, after only two or three years for every class of disturbance. This suggests a fast regain in photosynthetic activity after the disturbance that could be attributable to colonizing grasses and shrubs in clearings and epicormic shoots, but also as fast regrowth after coppicing as showed by Chirici et al. [35], being that the coppice system is the most common form of forest management in our study area.
The NBR was found to be the most sensitive index to capture disturbances, which aligns with the results obtained by Chirici et al. [35] and Giannetti et al. [27] in Mediterranean forests, and by Kennedy et al. [57] in boreal forests. However, an in-depth analysis of our results on the recovery metrics pointed out a difference between the two biomes (i.e., boral and Mediterranean forests) in magnitude of disturbance events, regrowth pattern, and rate of regrowth. In fact, the recovery of Mediterranean forests is faster than the ones observed by Kennedy et al. [57] and White et al. [80], confirming the results shown by Chirici et al. [35], Giannetti et al. [27], and Francini et al. [32].
The results of short-term recovery metrics showed that harvesting disturbances are on average of medium intensity (85% of the pixels had a ΔNBRdisturbance value comprised between 0.2 and 0.5) with scarce variability, meaning that harvesting operations had regular intensity on all forest types across all 20 years. They also indicated a high rate of recovery, with the long-term metric (Y2R80%) assessing only <0.1% of pixels recovering after five years from the disturbance. That could be expected since as with natural disturbances, forest harvesting varies in frequency, distribution, and intensity but differs from them because it is essentially driven by socioeconomic factors and human decisions [81], especially in privately owned properties. Harvesting simulates effects produced by natural disturbances [82] and management systems try to do so to sustain forest dynamics and biodiversity while still allowing harvesting operations.
In some situations, harvesting practice could create less damage to forest vegetation with respect to the action of natural disturbance agents [83]. Traditionally harvesting operations are realized on the most productive sites where the combined force of forest management and site characteristics allows harvest areas to return to the forest state in a brief period of time. These sites are strongly influenced by humans, which have strongly altered the natural fire regime and excluded fire from these ecosystems. Human actions have created a dense forest with lower structural variation and complexity that are ideal for the development of megafire [83,84,85]. In this sense, the reintroduction of the natural fire regime could be particularly useful in improving the ecological variability in forests [85].
This is especially true for coppice stands, where, after cutting, plants and shrublands grow between the stools and cover the open area, as confirmed by LiDAR analysis done by Chirici et al. [35], left by and, after five or so years, the increasing shade made by the closing coppice canopy rapidly eliminates most of the foliage beneath. There are no further changes in the forest structure until the next cut, apart from the growing coppice stems.
Overall, information derived from recovery metrics and the classification model shows that harvested areas recovered faster in both short-and long-term aspects and showed less variability in magnitude of the disturbance event and rate of recovery over time than wildfires. Even though recovery metrics did not score very high on the feature importance scale, the model identified a different behavior in the spectral pattern between disturbances based on the spectral values recorded in the recovery segment of the trajectories, from which the recovery metrics are derived. Taking the averaged NBR trend and the first two most important metric selected by the model as an example, there is a huge relative gap between mean post-disturbance and first year post-disturbance values for the two classes: higher values and a faster recovery rate for harvesting mean a different collocation of the trend in the spectro-temporal space, which allows clearly distinguishing between disturbances.
Fire intensity determines the effects of fire on vegetation: low intensity events usually leave residual vegetation on site in the form of standing snags or living trees, high intensity events can kill all living biomass; both influence regeneration processes, with residual vegetation offering protection to new saplings and seedlings, while high intensity fires can release soil nutrients to the soil, making them readily available to the soil seed bank, or help pyrophyte species seeds to germinate.
Short term recovery metrics indicated a great variability in the magnitude of observed fire events, with very different recovery rates: all pixels that suffered high intensity events (ΔNBRdisturbance ≥ 0.8) also displayed a high positive recovery rate (RI > 0.8 on average) and belonged to only three of the eleven forest types analyzed (Downy oak, Maquis formations, and Maritime pine); instead, pixels interested by low intensity events showed a wider range of behaviors, with fast recovery (RI > 1) or no recovery at all (RI < 0).
The long-term recovery metric indicated a longer period needed to achieve full recovery than harvested areas (1.4 years against 1.1 on average); pixels recovered in the first year were interested by low intensity events (ΔNBRdisturbance ≤ 0.2 on average), while all pixels interested by high intensity events, despite the displayed high recovery rate, achieved full recovery only after four years on average. However, also if fire damaged areas need in average more time to recover, compared to harvested areas, it is important to remember that most of the forest tree species present in the fire damaged areas are well adapted to fire.
These results lead to a better understanding of the dynamics of fire events in Mediterranean forests: fire events have higher variability in intensity and area coverage (the largest observed in this study covered more than 300 hectares) and need a longer period to achieve full recovery (up to nine years) than harvested areas. High intensity fire events are less likely to occur than low intensity ones and interest only certain forest types that are well-known for being adapted to fire or require fire to germinate [83]: this interpretation explains the high recovery rates found for pixels with high ΔNBRdisturbance values. The exception is the Downy oak, a species with poor resprouting capabilities, but the understory vegetation of these stands is composed of the same pyrophyte species found in the maquis formations [84]; thus, the high recovery rates observed are attributed to the understory component and not to the main species of the forest type. It is important to remember that for forest fire damaged areas from satellite, we can just understand the recovery of photosynthetic activities, and it is not possible to distinguish if the species responsible for the recovery are the previous forest tree species or invasive species. However, suppose we have a recovery of photosynthetic activities, even invasive species can have a beneficial effect on the area: for example, they can contest the erosion of the slope and start a secondary succession in the area.

5. Conclusions

This study contributed by outlining the differences among two classes of disturbance in Mediterranean forest ecosystems through the information derived by Landsat spectral trajectory analysis based on bands and vegetation indices and NBR based spectral, trend analysis, and recovery metrics. The obtained results offer opportunities for future studies in multiple directions to understand disturbance phenomena and recovery processes, including the creation and application of new NBR based recovery metrics adapted to the significative shorter temporal recovery domain of Mediterranean areas compared to boreal forests, a more accurate characterization of the disturbances using longer, more dense, and intra-annual LTS in Mediterranean areas, or the characterization of other agents of disturbance with patterns not clearly documented. With these pieces of information, the development of approaches for automating the attribution of disturbance type could not be far. Future studies need to take into consideration also other types of abiotic and biotic disturbances, such as windthrow and insect disturbances, that were considered in this study since we do not have a reference dataset useful for trajectory analysis.

Author Contributions

Conceptualization, G.C. and F.G.; methodology, C.B.; formal analysis, C.B.; photointerpretation: E.V. and G.D.; writing—original draft preparation, C.B. and F.G.; writing—review and editing, C.B., M.P., F.G., D.T., G.C., E.V. and G.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by GO-SURF Decision support to sustainable forest planning, Tuscany Rural development 2014–2020 for Operational Groups (in the sense of Art 56 of Reg.1305/2013).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table
Table A1. Specification of the Landsat images used in the study.
Table A1. Specification of the Landsat images used in the study.
SatelliteSensorProcessing LevelWRS2 AddressAcquisition DateCollectionTierProduct
Landsat 5TML1TP192/03026 June 199901T1sr
Landsat 5TML1TP192/03015 August 200001T1sr
Landsat 5TML1TP192/03002 August 200101T1sr
Landsat 5TML1TP192/03018 June 200201T1sr
Landsat 5TML1TP192/03008 August 200301T1sr
Landsat 5TML1TP192/03007 June 200401T1sr
Landsat 5TML1TP192/03026 June 200501T1sr
Landsat 5TML1TP192/03013 June 200601T1sr
Landsat 5TML1TP192/03018 July 200701T1sr
Landsat 5TML1TP192/03021 August 200801T1sr
Landsat 5TML1TP192/03023 July 200901T1sr
Landsat 5TML1TP192/03010 July 201001T1sr
Landsat 5TML1TP192/03027 June 201101T1sr
Landsat 7ETM+L1TP192/03008 August 201201T1sr
Landsat 8OLI/TIRSL1TP192/03016 June 201301T1sr
Landsat 8OLI/TIRSL1TP192/03006 August 201401T1sr
Landsat 8OLI/TIRSL1TP192/03006 June 201501T1sr
Landsat 8OLI/TIRSL1TP192/03027 August 201601T1sr
Landsat 8OLI/TIRSL1TP192/03014 August 201701T1sr
Landsat 8OLI/TIRSL1TP192/03017 August 201801T1sr

Appendix B

Table
Table A2. Landsat spectral indices used in the study.
Table A2. Landsat spectral indices used in the study.
Index TypeSpectral IndexFormula Used by USGS Processing
GreennessEnhanced Vegetation Index (EVI) G ×   ( N I R − R e d ) ( N I R + C 1 × R e d − C 2 × B l u e + L )
Where:
G = 2.5
C1 = 6
C2 = 7.5
L = 1
GreennessNormalized Difference Vegetation Index (NDVI) N I R − R e d N I R + R e d
GreennessModified Soil Adjusted Vegetation Index (MSAVI) ( 2 × N I R + 1 − ( 2 × N I R + 1 ) 2 − 8 × ( N I R − R e d ) 2
GreennessSoil Adjusted Vegetation Index (SAVI) ( N I R − R e d ) ( N I R + R e d + L ) × ( 1 + L )
Where:
L = 0.5
WetnessNormalized Burned Ratio (NBR) N I R − S W I R   2 N I R + S W I R   2
WetnessNormalized Burned Ratio 2 (NBR2) S W I R   1 − S W I R   2 S W I R   1 + S W I R   2
WetnessNormalized Difference Moisture Index (NDMI) N I R − S W I R   1 N I R + S W I R   1

References

  1. Rick, T.; Ontiveros, M.C.; Jerardino, A.; Mariotti, A.; Méndez, C.; Williams, A.N. Human-environmental interactions in Mediterranean climate regions from the Pleistocene to the Anthropocene. Anthropocene 2020, 31, 100253. [Google Scholar] [CrossRef]
  2. Fady-Welterlen, B. Is there really more biodiversity in Mediterranean forest ecosystems? Taxon 2005, 54, 905–910. [Google Scholar] [CrossRef]
  3. FAO; Plan Bleu. Food and Agriculture Organization State of Mediterranean Forests 2018; FAO: Rome, Italy, 2018; ISBN 978-92-5-131047-2. [Google Scholar]
  4. Médail, F.; Monnet, A.-C.; Pavon, D.; Nikolic, T.; Dimopoulos, P.; Bacchetta, G.; Arroyo, J.; Barina, Z.; Albassatneh, M.C.; Domina, G.; et al. What is a tree in the Mediterranean Basin hotspot? A critical analysis. For. Ecosyst. 2019, 6, 17. [Google Scholar] [CrossRef] [Green Version]
  5. Loo, J.A. The role of forest in the preservation of biodiversity. In Forests and Forest Plants; Owens, J.N., Gyde Lund, H., Eds.; EOLSS Publishers: Oxford, UK, 2009; Volume 3, p. 364. [Google Scholar]
  6. Stocker, T.F.; Qin, D.; Plattner, G.-K.; Tignor, M.; Allen, S.K.; Boschung, J.; Nauels, A.; Xia, Y. (Eds.) IPCC Climate Change 2013: The Physical Science Basis. Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2013; Volume 9781107057. [Google Scholar]
  7. Dale, V.H.; Joyce, L.A.; Mcnulty, S.; Ronald, P.; Matthew, P. Climate Change and Forest Disturbances. Bioscience 2001, 51, 723–734. [Google Scholar] [CrossRef] [Green Version]
  8. Chirici, G.; Giannetti, F.; McRoberts, R.E.; Travaglini, D.; Pecchi, M.; Maselli, F.; Chiesi, M.; Corona, P. Wall-to-wall spatial prediction of growing stock volume based on Italian National Forest Inventory plots and remotely sensed data. Int. J. Appl. Earth Obs. Geoinf. ITC J. 2020, 84, 101959. [Google Scholar] [CrossRef]
  9. Chirici, G.; Bottalico, F.; Giannetti, F.; Del Perugia, B.; Travaglini, D.; Nocentini, S.; Kutchartt, E.; Marchi, E.; Foderi, C.; Fioravanti, M.; et al. Assessing forest windthrow damage using single-date, post-event airborne laser scanning data. Forestry 2018, 91, 27–37. [Google Scholar] [CrossRef] [Green Version]
  10. Puletti, N.; Bascietto, M. Towards a Tool for Early Detection and Estimation of Forest Cuttings by Remotely Sensed Data. Land 2019, 8, 58. [Google Scholar] [CrossRef] [Green Version]
  11. Pecchi, M.; Marchi, M.; Burton, V.; Giannetti, F.; Moriondo, M.; Bernetti, I.; Bindi, M.; Chirici, G. Species distribution modelling to support forest management. A literature review. Ecol. Model. 2019, 411, 108817. [Google Scholar] [CrossRef]
  12. White, J.; Wulder, M.; Hermosilla, T.; Coops, N.C.; Hobart, G.W. A nationwide annual characterization of 25 years of forest disturbance and recovery for Canada using Landsat time series. Remote Sens. Environ. 2017, 194, 303–321. [Google Scholar] [CrossRef]
  13. Viana-Soto, A.; Aguado, I.; Salas, J.; García, M. Identifying Post-Fire Recovery Trajectories and Driving Factors Using Landsat Time Series in Fire-Prone Mediterranean Pine Forests. Remote Sens. 2020, 12, 1499. [Google Scholar] [CrossRef]
  14. Michetti, M.; Pinar, M. Forest Fires Across Italian Regions and Implications for Climate Change: A Panel Data Analysis. Environ. Resour. Econ. 2019, 72, 207–246. [Google Scholar] [CrossRef] [Green Version]
  15. Bergmeier, E.; Capelo, J.; Di Pietro, R.; Guarino, R.; Kavgacı, A.; Loidi, J.; Tsiripidis, I.; Xystrakis, F. ‘Back to the Future’—Oak wood-pasture for wildfire prevention in the Mediterranean. Plant Sociol. 2021, 58, 41–48. [Google Scholar] [CrossRef]
  16. Romano, N.; Ursino, N. Forest Fire Regime in a Mediterranean Ecosystem: Unraveling the Mutual Interrelations between Rainfall Seasonality, Soil Moisture, Drought Persistence, and Biomass Dynamics. Fire 2020, 3, 49. [Google Scholar] [CrossRef]
  17. Trucchia, A.; Meschi, G.; Fiorucci, P.; Gollini, A.; Negro, D. Defining Wildfire Susceptibility Maps in Italy for Understanding Seasonal Wildfire Regimes at the National Level. Fire 2022, 5, 30. [Google Scholar] [CrossRef]
  18. Fernández-García, V.; Marcos, E.; Huerta, S.; Calvo, L. Soil-vegetation relationships in Mediterranean forests after fire. For. Ecosyst. 2021, 8, 18. [Google Scholar] [CrossRef]
  19. Enríquez-De-Salamanca, Á. Carbon versus Timber Economy in Mediterranean Forests. Atmosphere 2021, 12, 746. [Google Scholar] [CrossRef]
  20. Francini, S.; McRoberts, R.E.; D’Amico, G.; Coops, N.C.; Hermosilla, T.; White, J.C.; Wulder, M.A.; Marchetti, M.; Mugnozza, G.S.; Chirici, G. An open science and open data approach for the statistically robust estimation of forest disturbance areas. Int. J. Appl. Earth Obs. Geoinf. ITC J. 2022, 106, 102663. [Google Scholar] [CrossRef]
  21. Chirici, G.; Giannetti, F.; Mazza, E.; Francini, S.; Travaglini, D.; Pegna, R.; White, J.C. Monitoring clearcutting and subsequent rapid recovery in Mediterranean coppice forests with Landsat time series. Ann. For. Sci. 2020, 77, 40. [Google Scholar] [CrossRef]
  22. Giannetti, F.; Pegna, R.; Francini, S.; McRoberts, R.; Travaglini, D.; Marchetti, M.; Mugnozza, G.S.; Chirici, G. A New Method for Automated Clearcut Disturbance Detection in Mediterranean Coppice Forests Using Landsat Time Series. Remote Sens. 2020, 12, 3720. [Google Scholar] [CrossRef]
  23. Bottalico, F.; Travaglini, D.; Chirici, G.; Marchetti, M.; Marchi, E.; Nocentini, S.; Corona, P. Classifying silvicultural systems (coppices vs. high forests) in Mediterranean oak forests by Airborne Laser Scanning data. Eur. J. Remote Sens. 2014, 47, 437–460. [Google Scholar] [CrossRef] [Green Version]
  24. Forest Europe. State of Europe’s Forests. 2015. Available online: https://foresteurope.org/state-europes-forests-2020/ (accessed on 15 June 2021).
  25. European Environment Agency. Streamlining European Biodiversity Indicators 2020: Building a Future on Lessons Learnt from the SEBI 2010 Process; European Environment Agency: Copenhagen, Denmark, 2012.
  26. Hansen, M.C.; Potapov, P.V.; Moore, R.; Hancher, M.; Turubanova, S.A.; Tyukavina, A.; Thau, D.; Stehman, S.V.; Goetz, S.J.; Loveland, T.R.; et al. High-resolution global maps of 21st-century forest cover change. Science 2013, 342, 850–853. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Giannetti, F.; Pecchi, M.; Travaglini, D.; Francini, S.; D’Amico, G.; Vangi, E.; Cocozza, C.; Chirici, G. Estimating VAIA Windstorm Damaged Forest Area in Italy Using Time Series Sentinel-2 Imagery and Continuous Change Detection Algorithms. Forests 2021, 12, 680. [Google Scholar] [CrossRef]
  28. Lechner, A.M.; Foody, G.M.; Boyd, D.S. Applications in Remote Sensing to Forest Ecology and Management. One Earth 2020, 2, 405–412. [Google Scholar] [CrossRef]
  29. Decuyper, M.; Chávez, R.O.; Lohbeck, M.; Lastra, J.A.; Tsendbazar, N.; Hackländer, J.; Herold, M.; Vågen, T.-G. Continuous monitoring of forest change dynamics with satellite time series. Remote Sens. Environ. 2022, 269, 112829. [Google Scholar] [CrossRef]
  30. Zhu, Z. Change detection using landsat time series: A review of frequencies, preprocessing, algorithms, and applications. ISPRS J. Photogramm. Remote Sens. 2017, 130, 370–384. [Google Scholar] [CrossRef]
  31. Gómez, C.; White, J.C.; Wulder, M.A. Optical remotely sensed time series data for land cover classification: A review. ISPRS J. Photogramm. Remote Sens. 2016, 116, 55–72. [Google Scholar] [CrossRef] [Green Version]
  32. Francini, S.; McRoberts, R.E.; Giannetti, F.; Mencucci, M.; Marchetti, M.; Mugnozza, G.S.; Chirici, G. Near-real time forest change detection using PlanetScope imagery. Eur. J. Remote Sens. 2020, 53, 233–244. [Google Scholar] [CrossRef]
  33. Hirschmugl, M.; Gallaun, H.; Dees, M.; Datta, P.; Deutscher, J.; Koutsias, N.; Schardt, M. Methods for Mapping Forest Disturbance and Degradation from Optical Earth Observation Data: A Review. Curr. For. Rep. 2017, 3, 32–45. [Google Scholar] [CrossRef] [Green Version]
  34. Kennedy, R.E.; Andréfouët, S.; Cohen, W.B.; Gómez, C.; Griffiths, P.; Hais, M.; Healey, S.P.; Helmer, E.H.; Hostert, P.; Lyons, M.B.; et al. Bringing an ecological view of change to Landsat-based remote sensing. Front. Ecol. Environ. 2014, 12, 339–346. [Google Scholar] [CrossRef]
  35. De Keersmaecker, W.; Rodríguez-Sánchez, P.; Milencović, M.; Herold, M.; Reiche, J.; Verbesselt, J. Evaluating recovery metrics derived from optical time series over tropical forest ecosystems. Remote Sens. Environ. 2022, 274. [Google Scholar] [CrossRef]
  36. Wu, L.; Li, Z.; Liu, X.; Zhu, L.; Tang, Y.; Zhang, B.; Xu, B.; Liu, M.; Meng, Y.; Liu, B. Multi-Type Forest Change Detection Using BFAST and Monthly Landsat Time Series for Monitoring Spatiotemporal Dynamics of Forests in Subtropical Wetland. Remote Sens. 2020, 12, 341. [Google Scholar] [CrossRef] [Green Version]
  37. Esteban, J.; Fernández-Landa, A.; Tomé, J.L.; Gómez, C.; Marchamalo, M. Identification of Silvicultural Practices in Mediterranean Forests Integrating Landsat Time Series and a Single Coverage of ALS Data. Remote Sens. 2021, 13, 3611. [Google Scholar] [CrossRef]
  38. Kennedy, R.E.; Cohen, W.B.; Schroeder, T.A. Trajectory-based change detection for automated characterization of forest disturbance dynamics. Remote Sens. Environ. 2007, 110, 370–386. [Google Scholar] [CrossRef]
  39. Oeser, J.; Pflugmacher, D.; Senf, C.; Heurich, M.; Hostert, P. Using Intra-Annual Landsat Time Series for Attributing Forest Disturbance Agents in Central Europe. Forests 2017, 8, 251. [Google Scholar] [CrossRef]
  40. Hermosilla, T.; Wulder, M.; White, J.; Coops, N.; Hobart, G.W. Regional detection, characterization, and attribution of annual forest change from 1984 to 2012 using Landsat-derived time-series metrics. Remote Sens. Environ. 2015, 170, 121–132. [Google Scholar] [CrossRef]
  41. Pesaresi, S.; Galdenzi, D.; Biondi, E.; Casavecchia, S. Bioclimate of Italy: Application of the worldwide bioclimatic classification system. J. Maps 2014, 10, 538–553. [Google Scholar] [CrossRef]
  42. Broncano, M.J.; Retana, J.; Rodrigo, A. Predicting the Recovery of Pinus halepensis and Quercus ilex Forests after a Large Wildfire in Northeastern Spain. Plant Ecol. 2005, 180, 47–56. [Google Scholar] [CrossRef]
  43. Fernandes, P.M.; Vega, J.A.; Jiménez, E.; Rigolot, E. Fire resistance of European pines. For. Ecol. Manag. 2008, 256, 246–255. [Google Scholar] [CrossRef]
  44. Giannetti, F.; Barbati, A.; Mancini, L.D.; Travaglini, D.; Bastrup-Birk, A.; Canullo, R.; Nocentini, S.; Chirici, G. European Forest Types: Toward an automated classification. Ann. For. Sci. 2018, 75, 6. [Google Scholar] [CrossRef] [Green Version]
  45. Barbati, A.; Marchetti, M.; Chirici, G.; Corona, P. European Forest Types and Forest Europe SFM indicators: Tools for monitoring progress on forest biodiversity conservation. For. Ecol. Manag. 2014, 321, 145–157. [Google Scholar] [CrossRef] [Green Version]
  46. Alivernini, A.; Fares, S.; Ferrara, C.; Chianucci, F. An objective image analysis method for estimation of canopy attributes from digital cover photography. Trees 2018, 32, 713–723. [Google Scholar] [CrossRef]
  47. Tucker, C.J. Red and photographic infrared linear combinations for monitoring vegetation. Remote Sens. Environ. 1979, 8, 127–150. [Google Scholar] [CrossRef] [Green Version]
  48. Huete, A.; Didan, K.; Miura, T.; Rodriguez, E.P.; Gao, X.; Ferreira, L.G. Overview of the radiometric and biophysical performance of the MODIS vegetation indices. Remote Sens. Environ. 2002, 83, 195–213. [Google Scholar] [CrossRef]
  49. Huete, A.R. A soil-adjusted vegetation index (SAVI). Remote Sens. Environ. 1988, 25, 295–309. [Google Scholar] [CrossRef]
  50. Qi, J.; Chehbouni, A.; Huete, A.R.; Kerr, Y.H.; Sorooshian, S. A modified soil adjusted vegetation index. Remote Sens. Environ. 1994, 48, 119–126. [Google Scholar] [CrossRef]
  51. Benson, N.; Key, C.H.; Northern, U.; Mountain, R.; Benson, N.C.; Glacier, U.; Park, N. Measuring and remote sensing of burn severity: The CBI and NBR. In Proceedings of the Proceedings Joint Fire Science Conference and Workshop, Boise, ID, USA, 15–17 June 1999; Volume II. [Google Scholar]
  52. Key, C.H.; Benson, N.C. Landscape Assessment: Ground Measure of Severity, the Composite Burn Index; and Remote Sensing of Severity, the Normalized Burn Ratio; USDA Forest Service, Rocky Mountain Research Station: Ogden, UT, USA, 2006.
  53. Wilson, E.H.; Sader, S.A. Detection of forest harvest type using multiple dates of Landsat TM imagery. Remote Sens. Environ. 2002, 80, 385–396. [Google Scholar] [CrossRef]
  54. D’Amico, G.; Vangi, E.; Francini, S.; Giannetti, F.; Nicolaci, A.; Travaglini, D.; Massai, L.; Giambastiani, Y.; Terranova, C.; Chirici, G. Are We Ready for a Web-Based National Forest Information System? State of the Art of for-Est Maps and Airborne Laser Scanning Data Availability in Italy. iForest-Biogeosci. For. 2021, 14, 144–154. [Google Scholar] [CrossRef]
  55. Arrigoni, P.V.; Raffaelli, M.; Rizzotto, M.; Selvi, F.; Foggi, B.; Viciani, D.; Lombardi, L.; Benesperi, R.; Ferretti, G.; Benucci, S.; et al. Carta Della Vegetazione Forestale Della Regione Toscana. Scala 1:250.000; SELCA: Firenze, Italy, 1999. [Google Scholar]
  56. Arma dei Carabinieri—Database Comando Unità per la Tutela Forestale Ambientale e Agroalimentare Catasto Incendi; Ufficio Logistico—2^ Sezione Sistemi Informativi Automatizzati e TLC via Carducci 5—00187 Roma—available by request to [email protected]. 2018. Available online: http://www.simontagna.it/portalesim/catastoincendi.jsp?pid=4093 (accessed on 15 June 2021).
  57. Kennedy, R.E.; Yang, Z.; Cohen, W.B. Detecting trends in forest disturbance and recovery using yearly Landsat time series: 1. LandTrendr—Temporal segmentation algorithms. Remote Sens. Environ. 2010, 114, 2897–2910. [Google Scholar] [CrossRef]
  58. Hagolle, O.; Lobo, A.; Maisongrande, P.; Cabot, F.; Duchemin, B.; De Pereyra, A. Quality assessment and improvement of temporally composited products of remotely sensed imagery by combination of VEGETATION 1 and 2 images. Remote Sens. Environ. 2005, 94, 172–186. [Google Scholar] [CrossRef] [Green Version]
  59. Ju, J.; Roy, D.P.; Shuai, Y.; Schaaf, C. Development of an approach for generation of temporally complete daily nadir MODIS reflectance time series. Remote Sens. Environ. 2010, 114, 1–20. [Google Scholar] [CrossRef]
  60. Moisen, G.G.; Meyer, M.C.; Schroeder, T.A.; Liao, X.; Schleeweis, K.G.; Freeman, E.A.; Toney, J.C. Shape selection in Landsat time series: A tool for monitoring forest dynamics. Glob. Chang. Biol. 2016, 22, 3518–3528. [Google Scholar] [CrossRef] [PubMed]
  61. Viedma, O.; Meliá, J.; Segarra, D.; Haro, F.J.G. Modeling rates of ecosystem recovery after fires by using landsat TM data. Remote Sens. Environ. 1997, 61, 383–398. [Google Scholar] [CrossRef]
  62. Senf, C.; Pflugmacher, D.; Wulder, M.A.; Hostert, P. Characterizing spectral–temporal patterns of defoliator and bark beetle disturbances using Landsat time series. Remote Sens. Environ. 2015, 170, 166–177. [Google Scholar] [CrossRef]
  63. Masek, J.G.; Huang, C.; Wolfe, R.; Cohen, W.; Hall, F.; Kutler, J.; Nelson, P. North American forest disturbance mapped from a decadal Landsat record. Remote Sens. Environ. 2008, 112, 2914–2926. [Google Scholar] [CrossRef]
  64. Guo, J.; Gong, P. The Potential of Spectral Indices in Detecting Various Stages of Afforestation over the Loess Plateau Region of China. Remote Sens. 2018, 10, 1492. [Google Scholar] [CrossRef] [Green Version]
  65. Gómez, C.; White, J.; Wulder, M.A. Characterizing the state and processes of change in a dynamic forest environment using hierarchical spatio-temporal segmentation. Remote Sens. Environ. 2011, 115, 1665–1679. [Google Scholar] [CrossRef]
  66. Pickell, P.D.; Hermosilla, T.; Frazier, R.J.; Coops, N.; Wulder, M. Forest recovery trends derived from Landsat time series for North American boreal forests. Int. J. Remote Sens. 2016, 37, 138–149. [Google Scholar] [CrossRef]
  67. Kennedy, R.E.; Yang, Z.; Cohen, W.B.; Pfaff, E.; Braaten, J.; Nelson, P. Spatial and temporal patterns of forest disturbance and regrowth within the area of the Northwest Forest Plan. Remote Sens. Environ. 2012, 122, 117–133. [Google Scholar] [CrossRef]
  68. Veraverbeke, S.; Gitas, I.; Katagis, T.; Polychronaki, A.; Somers, B.; Goossens, R. Assessing post-fire vegetation recovery using red–near infrared vegetation indices: Accounting for background and vegetation variability. ISPRS J. Photogramm. Remote Sens. 2012, 68, 28–39. [Google Scholar] [CrossRef] [Green Version]
  69. Johnstone, J.F.; Chapin, F.S., III; Foote, J.; Kemmett, S.; Price, K.; Viereck, L. Decadal observations of tree regeneration following fire in boreal forests. Can. J. For. Res. 2004, 34, 267–273. [Google Scholar] [CrossRef]
  70. White, J.C.; Hermosilla, T.; Wulder, M.A.; Coops, N.C. Mapping, validating, and interpreting spatio-temporal trends in post-disturbance forest recovery. Remote Sens. Environ. 2022, 271, 112904. [Google Scholar] [CrossRef]
  71. Breiman, L. Random forests. Mach. Learn. 2001, 45, 5–32. [Google Scholar] [CrossRef] [Green Version]
  72. Liaw, A.; Wiener, M. Classification and Regression by randomForest. R News 2002, 2, 18–22. [Google Scholar]
  73. Strobl, C.; Boulesteix, A.-L.; Zeileis, A.; Hothorn, T. Bias in random forest variable importance measures: Illustrations, sources and a solution. BMC Bioinform. 2007, 8, 25. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Chu, T.; Guo, X.; Takeda, K. Remote Sensing Approach to Detect Post-Fire Vegetation Regrowth in Siberian Boreal Larch Forest; Elsevier Ltd.: Amsterdam, The Netherlands, 2016; Volume 62, ISBN 1470-160X. [Google Scholar]
  75. Vila, J.P.S.; Barbosa, P. Post-fire vegetation regrowth detection in the Deiva Marina region (Liguria-Italy) using Landsat TM and ETM+ data. Ecol. Model. 2010, 221, 75–84. [Google Scholar] [CrossRef]
  76. Cohen, W.B.; Healey, S.P.; Yang, Z.; Zhu, Z.; Gorelick, N. Diversity of Algorithm and Spectral Band Inputs Improves Landsat Monitoring of Forest Disturbance. Remote Sens. 2020, 12, 1673. [Google Scholar] [CrossRef]
  77. Storey, E.A.; Stow, D.A.; O’Leary, J.F. Assessing postfire recovery of chamise chaparral using multi-temporal spectral vegetation index trajectories derived from Landsat imagery. Remote Sens. Environ. 2016, 183, 53–64. [Google Scholar] [CrossRef] [Green Version]
  78. Song, C.; Woodcock, C. Monitoring forest succession with multitemporal landsat images: Factors of uncertainty. IEEE Trans. Geosci. Remote Sens. 2013, 41, 2557–2567. [Google Scholar] [CrossRef]
  79. Morresi, D.; Vitali, A.; Urbinati, C.; Garbarino, M. Forest Spectral Recovery and Regeneration Dynamics in Stand-Replacing Wildfires of Central Apennines Derived from Landsat Time Series. Remote Sens. 2019, 11, 308. [Google Scholar] [CrossRef] [Green Version]
  80. White, J.C.; Saarinen, N.; Kankare, V.; Wulder, M.; Hermosilla, T.; Coops, N.C.; Pickell, P.D.; Holopainen, M.; Hyyppä, J.; Vastaranta, M. Confirmation of post-harvest spectral recovery from Landsat time series using measures of forest cover and height derived from airborne laser scanning data. Remote Sens. Environ. 2018, 216, 262–275. [Google Scholar] [CrossRef]
  81. Brown, M.L.; Canham, C.D.; Murphy, L.; Donovan, T.M. Timber harvest as the predominant disturbance regime in northeastern U.S. forests: Effects of harvest intensification. Ecosphere 2018, 9, e02062. [Google Scholar] [CrossRef]
  82. Nitschke, C.R. Does forest harvesting emulate fire disturbance? A comparison of effects on selected attributes in coniferous-dominated headwater systems. For. Ecol. Manag. 2005, 214, 305–319. [Google Scholar] [CrossRef]
  83. Naveh, Z. Effects of fire in Mediterranean Region. In Fire and Ecosystems; Kozlowski, T.T., Ahlgren, C.E., Eds.; Academic Press: New York, NY, USA, 1974. [Google Scholar]
  84. Hoffmann, A. I tipi forestali. In Boschi e Macchie di Toscana; Region, T., Ed.; Giunta Regionale: Firenze, Italy, 1998. [Google Scholar]
  85. Qiu, J.; Wang, H.; Shen, W.; Zhang, Y.; Su, H.; Li, M. Quantifying Forest Fire and Post-Fire Vegetation Recovery in the Daxin’ anling Area of Northeastern China Using Landsat Time-Series Data and Machine Learning. Remote Sens. 2021, 13, 792. [Google Scholar] [CrossRef]
Fire 05 00068 g001 550
Figure 1. Localization of the study area in Central Italy. The shaded area shows the footprint of the Landsat WRS-2 scene used, while in the subfigures (1–3) are reported the clearcut coppices area by years of the sample areas.
Figure 1. Localization of the study area in Central Italy. The shaded area shows the footprint of the Landsat WRS-2 scene used, while in the subfigures (1–3) are reported the clearcut coppices area by years of the sample areas.
Fire 05 00068 g001
Fire 05 00068 g002 550
Figure 2. Description of all NBR recovery metrics.
Figure 2. Description of all NBR recovery metrics.
Fire 05 00068 g002
Fire 05 00068 g003 550
Figure 3. (Panel A)—Mean value of the bands over the 20 years analyzed for undisturbed areas. (Panel B)—Mean value of the bands from 16 years prior the disturbance and 19 years after for harvested areas. (Panel C)—Mean value of the bands from 13 years prior the fire to 12 years after. Raw values (dotted line) show the averaged temporal trend as extracted from the LTS, while fitted values (full line) show the trend without noise after the shape-smoothing algorithm. The standard deviation of the value extracted for the polygon is also reported as a vertical line.
Figure 3. (Panel A)—Mean value of the bands over the 20 years analyzed for undisturbed areas. (Panel B)—Mean value of the bands from 16 years prior the disturbance and 19 years after for harvested areas. (Panel C)—Mean value of the bands from 13 years prior the fire to 12 years after. Raw values (dotted line) show the averaged temporal trend as extracted from the LTS, while fitted values (full line) show the trend without noise after the shape-smoothing algorithm. The standard deviation of the value extracted for the polygon is also reported as a vertical line.
Fire 05 00068 g003
Fire 05 00068 g004 550
Figure 4. (Panel A)—Mean values of the spectral indices over the 20 years analyzed for undisturbed areas. (Panel B)—Mean value of the spectral indices from 16 years prior the disturbance and 19 years after for harvested areas. (Panel C)—Mean value of the spectral indices from 13 years prior the fire to 12 years after. Raw values (dotted line) show the averaged temporal trend as extracted from the LTS, while fitted values (full line) show the trend without noise after the shape-smoothing algorithm. The standard deviation of the value extracted for the polygon is also reported as a vertical line.
Figure 4. (Panel A)—Mean values of the spectral indices over the 20 years analyzed for undisturbed areas. (Panel B)—Mean value of the spectral indices from 16 years prior the disturbance and 19 years after for harvested areas. (Panel C)—Mean value of the spectral indices from 13 years prior the fire to 12 years after. Raw values (dotted line) show the averaged temporal trend as extracted from the LTS, while fitted values (full line) show the trend without noise after the shape-smoothing algorithm. The standard deviation of the value extracted for the polygon is also reported as a vertical line.
Fire 05 00068 g004
Fire 05 00068 g005 550
Figure 5. (Panel A)—Distribution of ΔNBRregrowth for harvesting and wildfires. (Panel B)—Distribution of ΔNBRdisturbance for harvesting and wildfires. (Panel C)—Distribution of Recovery Index for the harvesting and wildfires.
Figure 5. (Panel A)—Distribution of ΔNBRregrowth for harvesting and wildfires. (Panel B)—Distribution of ΔNBRdisturbance for harvesting and wildfires. (Panel C)—Distribution of Recovery Index for the harvesting and wildfires.
Fire 05 00068 g005
Fire 05 00068 g006 550
Figure 6. Pixel-level distribution of the different Y2R scenarios for the wildfires (Panel A), and for the harvesting class (Panel B).
Figure 6. Pixel-level distribution of the different Y2R scenarios for the wildfires (Panel A), and for the harvesting class (Panel B).
Fire 05 00068 g006
Fire 05 00068 g007 550
Figure 7. Averaged OOB error for the Random Forest model.
Figure 7. Averaged OOB error for the Random Forest model.
Fire 05 00068 g007
Fire 05 00068 g008 550
Figure 8. Relative variable importance for the Random Forest model.
Figure 8. Relative variable importance for the Random Forest model.
Fire 05 00068 g008
Table
Table 1. Frequency of the pixels before and after the correction process, by disturbance and forest type.
Table 1. Frequency of the pixels before and after the correction process, by disturbance and forest type.
Forest TypeUndisturbed AreasHarvestingWildfiresTotal
Pre-correctionPost-correctionPre-correctionPost-correctionPre-correctionPost-correctionPre-correctionPost-correction
Abies alba (Silver fir)0018000180
Alnus glutinosa (Common alder)2240277229260527229
Castanea sativa (Sweet chestnut)22891372490429626254134813,4475682
Cupressus sempervirens (Mediterranean cypress)55433417875252171984580
Fagus sylvatica (European beech)005303006030590
Maquis formations485012628071971100237181809
Mixed plantations of non-native species 00478338780556338
Montane shrubs (Juniperus, Prunus, Spartium spp.)701508261618661165044822374
Ostrya carpinifolia (European hop-hornbeam)19141530612440952388010,4265625
Pinus nigra (Black pine)1781362239613310534242
Pinus pinaster (Maritime pine)252161117163811,225517712,6485976
Pinus pinea (Stone pine)393096696104711099540
Pseudotsuga menziesii (Douglas fir)008852008852
Quercus cerris (Turkey oak)8755566154,22437,496179862864,77743,785
Quercus ilex (Holm oak)15,184999519,49211,5843793108738,46922,666
Quercus pubescens (Downy oak)947631291517534233173580954119
Quercus suber (Cork oak)190084655247281083580
Robinia pseudoacacia (Black locust)165000761293926293
Total32,23120,32894,96562,61237,74011,950164,93694,890
Table
Table 2. Set of recovery metrics that describes conditions pre- and post-disturbance for each trajectory.
Table 2. Set of recovery metrics that describes conditions pre- and post-disturbance for each trajectory.
MetricDescription
Mean pre-disturbanceArithmetic mean of spectral values before the change event
Standard deviation pre-disturbanceStandard deviation of spectral values before the change event
Slope pre-disturbanceDirection and steepness of the trajectory before the change event
ΔNBR pre-disturbanceArithmetic mean of the first two years before the change event
ΔNBR disturbanceOr magnitude of the event, absolute change in NBR value
ΔNBR regrowthAbsolute difference between NBR values five years after the change event and NBR values of the change event
Recovery Index (RI)ΔNBR regrowth / ΔNBR disturbance
First year post-disturbanceSpectral value recorded in the first year after the change event
Mean post-disturbanceArithmetic mean of spectral values after the change event
Standard deviation post-disturbanceStandard deviation of spectral values after the change event
Slope post-disturbanceDirection and steepness of the trajectory after the change event
Table
Table 3. Absolute changes in mean values by spectral band or spectral indices and disturbances; the best results for each class of disturbance are indicated in bold.
Table 3. Absolute changes in mean values by spectral band or spectral indices and disturbances; the best results for each class of disturbance are indicated in bold.
Landsat Spectral BandsAbsolute Change in Mean
HarvestingWildfires
Blue0.01230.0050
Green0.01630.0037
NIR0.05370.0360
Red0.03360.0132
SWIR 10.06810.0184
SWIR 20.06710.0384
Landsat spectral index
EVI0.22450.1250
MSAVI0.21810.1152
NBR0.37100.2645
NBR20.17460.1233
NDMI0.31440.1947
NDVI0.24170.1706
SAVI0.18470.1149
Table
Table 4. Summary of the three recovery metrics; a “+” classifies the pixel for that metric as recovered, while the “-” as not recovered.
Table 4. Summary of the three recovery metrics; a “+” classifies the pixel for that metric as recovered, while the “-” as not recovered.
ΔNBRregrowthRIY2R80%DescriptionProportion of Disturbed Pixels for the Harvesting ClassProportion of Disturbed Pixels for the Wildfires Class
+++Recovery indicated by all 3 metrics99.75276.510
++-Short-term recovery indicated; long-term recovery not attained by 20180.07222.166
+-+Recovery indicated by ∆NBRregrowth and Y2R0.0000.000
+--Recovery indicated by ΔNBRregrowth only0.0000.000
-++Recovery indicated by RI and Y2R0.0000.000
-+-Recovery indicated by RI only0.0000.000
--+Long-term recovery indicated0.1760.493
---No recovery was indicated by any of the metrics0.0002.241
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bonannella, C.; Chirici, G.; Travaglini, D.; Pecchi, M.; Vangi, E.; D’Amico, G.; Giannetti, F. Characterization of Wildfires and Harvesting Forest Disturbances and Recovery Using Landsat Time Series: A Case Study in Mediterranean Forests in Central Italy. Fire 2022, 5, 68. https://doi.org/10.3390/fire5030068

AMA Style

Bonannella C, Chirici G, Travaglini D, Pecchi M, Vangi E, D’Amico G, Giannetti F. Characterization of Wildfires and Harvesting Forest Disturbances and Recovery Using Landsat Time Series: A Case Study in Mediterranean Forests in Central Italy. Fire. 2022; 5(3):68. https://doi.org/10.3390/fire5030068

Chicago/Turabian Style

Bonannella, Carmelo, Gherardo Chirici, Davide Travaglini, Matteo Pecchi, Elia Vangi, Giovanni D’Amico, and Francesca Giannetti. 2022. "Characterization of Wildfires and Harvesting Forest Disturbances and Recovery Using Landsat Time Series: A Case Study in Mediterranean Forests in Central Italy" Fire 5, no. 3: 68. https://doi.org/10.3390/fire5030068

APA Style

Bonannella, C., Chirici, G., Travaglini, D., Pecchi, M., Vangi, E., D’Amico, G., & Giannetti, F. (2022). Characterization of Wildfires and Harvesting Forest Disturbances and Recovery Using Landsat Time Series: A Case Study in Mediterranean Forests in Central Italy. Fire, 5(3), 68. https://doi.org/10.3390/fire5030068

Article Metrics

Back to TopTop
