Ceramic Materials in Na2O-CaO-P2O5 System, Obtained via Heat Treatment of Cement-Salt Stone Based on Powder Mixture of Ca3(C6H5O7)2∙4H2O, Ca(H2PO4)2∙H2O and NaH2PO4

by
Otabek U. Toshev
1,*,
Tatiana V. Safronova
1,2,
Tatiana B. Shatalova
1,2 and
Yulia S. Lukina
3
1
Department of Materials Science, Lomonosov Moscow State University, Building, 73, Leninskie Gory, 1, Moscow 119991, Russia
2
Department of Chemistry, Lomonosov Moscow State University, Building, 3, Leninskie Gory, 1, Moscow 119991, Russia
3
National Medical Research Center for Traumatology and Orthopedics Named after N.N. Priorov, Priorova, 10, Moscow 127299, Russia
*
Author to whom correspondence should be addressed.
Ceramics 2023, 6(1), 600-618; https://doi.org/10.3390/ceramics6010036
Submission received: 30 November 2022 / Revised: 24 January 2023 / Accepted: 10 February 2023 / Published: 26 February 2023
(This article belongs to the Special Issue Advances in Ceramics)
Browse Figures
Versions Notes

Abstract

:
Ceramic materials in Na2O-CaO-P2O5 system were obtained by firing cement-salt stone made from pastes based on powder mixtures including calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O, monocalcium phosphate monohydrate (MCPM) Ca(H2PO4)2∙H2O and/or sodium dihydrogen phosphate NaH2PO4. The phase composition of the obtained samples of cement-salt stone after adding water, hardening and drying included brushite CaHPO4∙2H2O, monetite CaHPO4 and also unreacted Ca3(C6H5O7)2∙4H2O, Ca(H2PO4)2∙H2O and/or NaH2PO4. The phase composition of ceramics in Na2O-CaO-P2O5 system obtained by firing cement-salt stone was formed due to thermal conversion of hydrated salt and heterophase reactions between components presented in samples during firing. The phase composition of ceramic samples based on powder mixture of Ca3(C6H5O7)2∙4H2O and Ca(H2PO4)2∙H2O after firing at 900 °C included β-calcium pyrophosphate (CPP) β-Ca2P2O7. The phase composition of ceramic samples based on powder mixture of Ca3(C6H5O7)2∙4H2O, and NaH2PO4 after firing at 900 °C included β-sodium rhenanite β-CaNaPO4. The phase composition of ceramic samples based on powder mixture of Ca3(C6H5O7)2∙4H2O, Ca(H2PO4)2∙H2O and NaH2PO4 after firing at 900 °C included β-Ca2P2O7, β-CaNaPO4, double calcium-sodium pyrophosphate Na2CaP2O7, and Na-substituted tricalcium phosphate Сa10Na(PO4)7. Obtained ceramic materials in Na2O-CaO-P2O5 system including biocompatible and biodegradable phases could be important for treatments of bone tissue defects by means of approaches of regenerative medicine.

1. Introduction

One of the important areas of modern inorganic materials science is the development of biomaterials based on calcium phosphates that could be used to replace or treat dam-aged bone tissue [1]. Ideally, the implant should gradually dissolve in the body’s environment, while performing its supporting functions, and new bone tissue should form in its place. In this regard, the key characteristic of the biocompatible inorganic material is the property which enables it to resorb in the body’s environment. The traditionally used hydroxyapatite Ca10(PO4)6(OH)2 (HAP) has the lowest solubility among calcium phosphates [2]. In the case of a regenerative approach to the treatment of bone tissue, bioresorbable phases are introduced into the composition of materials for bone implants. Such materials, compared to HAP, have greater resorption. Among them are Ca3(PO4)2 (tricalcium phosphate, TCP, Ca/P = 1.5) [3,4], Ca2P2O7 (calcium pyrophosphate, CPP, Ca/P = 1) [5,6], Ca4P6O19 (tromelite, Ca/P = 0.66) [7], Ca(PO3)2 (calcium polyphosphate, Ca/P = 0.5) [8], Na−substituted tricalcium phosphate Сa10Na(PO4)7, K−substituted tricalcium phosphate Сa10К(PO4)7, sodium rhenanite CaNaPO4, and potassium rhenanite CaКPO4 [9]. A necessary element of any strategy for improving the solubility of a compound with an ionic nature of the chemical bond is lowering the energy of the crystal lattice. Consistent implementation of this approach leads to two directions of increasing the resorption of calcium phosphate materials, as follows: (a) transition to calcium phosphates with a Ca/P ratio lower than that of HAP; (b) modification of the chemical composition associated with the replacement of the Ca2+ cation in the phosphate structure. Thus, ceramic materials based on CPP Ca2P2O7 and rhenanite CaMPO4, where (M = Na or K) are of great interest for different biomedical applications [10]. Ceramics based on CPP Ca2P2O7 can be obtained in various ways during firing: (1) via heterophase reaction in powder mixture or condensed systems of crystals (such as cements) with Ca/P = 1 [11,12,13], (2) using thermal decomposition of hydrated calcium phosphates with Ca/P = 1 prepared for example via synthesis from solutions [14,15] or under conditions of mechanical activation [16]. Depending on the annealing temperature, various polymorphic modifications of Ca2P2O7 can be obtained from hydrated calcium phosphates such as brushite or monetite: amorphous calcium pyrophosphate at 450 °C; γ-Ca2P2O7–at 530 °C, β-Ca2P2O7 at 700–750 °C, and α-Ca2P2O7 at 1140–1179 °C [17].
Thus, to obtain ceramics containing a phase of CPP, it is necessary to use calcium phosphate powders with a ratio of Ca/P = 1. Brushite CaHPO4∙2H2O (dicalcium phosphate dihydrate—DCPD) and monetite (dicalcium phosphate anhydrate—DCPA) can serve as a precursor for production of the ceramic materials based on CPP according to Equation (1).
Ca2P2O7 can be obtained by thermal decomposition of brushite CaHPO4∙2H2O powder, which is decomposed by rapid entry into an oven at 600 °C for 15 min [14]:
2CaHPO4∙2H2O → Ca2P2O7 + 3H2O
Monetite CaHPO4 may be present in the brushite powder as an impurity phase, since it passes into calcium pyrophosphate during heat treatment (Equation (2)) [14]:
2CaHPO4 → Ca2P2O7 + H2O
Samples of brushite or monetite cement stone can also be used as precursors for the obtaining of ceramics based on calcium pyrophosphate. Brushite or monetite cement stone can be obtained as a result of chemical bonding reactions [5,11,12,13]. Brushite cements with the possibility of varying porosity and strength, high processability, can be produced according Equation (3) [18]:
Са3(РО4)2 + Са(Н2РО4)2∙Н2О + 7Н2О → 4СаНРО4∙2Н2О
Monetite cements can be produced according Equation (4) [14]:
Са3(РО4)2 + Са(Н2РО4)2∙Н2О → 4СаНРО4 + Н2О
Brushite and monetite cements are used to close small defects in damaged teeth or bone tissues in the form of pastes or blocks of complex shape obtained from cement stone. The possibility of obtaining blocks of complex shape using cement technology, and the possibility of forming additional resorbable phases (CPP) during the firing of cement blocks allow us to consider brushite cements as the precursors for the production of ceramic materials [5,11,19].
A known method for producing rhenanite CaNaPO4, is the crystallization of glass in the system SiO2-Al2O3-Na2O-K2O-P2O5-F [20], or in SiO2-CaO-Na2O-P2O5-F-K2O [21]. However, this method does not allow us to obtain rhenanite CaNaPO4 as the only phase.
There is a method of processing phosphate ores using sodium carbonate or potassium chloride at temperatures of 300–900 °C, when the formation of sodium rhenanite CaNaPO4 occurs only when the phosphate stone interacts with sodium carbonate [22]. This method is not suitable for the synthesis of sodium rhenanite CaNaPO4 for medical uses.
It is well-known that sodium rhenanite CaNaPO4 powder can be synthesized by heating a mixture of Na2CO3 and Ca2P2O7 at 1000 °C for 10 h [23]. The solid-phase synthesis of sodium rhenanite CaNaPO4 carried out in this way, is typical of any solid-phase synthesis, giving a powder with low sintering activity which will require higher temperatures to form ceramics based on it [9,10].
The ref. [24] shows a method for obtaining a material based on sodium rhenanite CaNaPO4 from a charge containing sodium salt (sodium bicarbonate NaHCO3) and calcium phosphate (monetite CaHPO4). This process includes pressing the initial charge of powder mixture and firing at 1300 °C for 16 h. The main disadvantages of this method are the high temperature of the reaction and duration of the synthesis.
Rhenanites are very widely used to obtain phosphate fertilizers. Here, the ‘’Rhenania process’’ should be mentioned, which is a well-known procedure used in the fertilizer industry to obtain soluble phosphate materials [25]. In this process, the natural mineral fluorapatite Ca5(PO4)3F is mixed with soda Na2CO3 and silicon dioxide SiO2 while the molar ratio of Na2CO3/P2O5 is fixed at 1.0 (Equation (5)). The SiO2 is added to prevent the occurrence of free CaO in the sintered product. These powder mixtures are crushed and then calcined in a rotary kiln at around 1000–1200 °C for several hours. Sodium rhenanite, a soluble CaNaPO4, is the major phase in the final product of the Rhenania process.
Ca5(PO4)3F + 2Na2CO3 + SiO2 = 3CaNaPO4 + Ca2SiO4 + 2CO2↑+ NaF
Furthermore, CaNaPO4 can also be obtained via firing a mixture of CaO, H3PO4, and Na2CO3 at 1100 °C. Other starting components can be used for sodium rhenanite CaNaPO4 preparation (Equation (6)):
2CaCO3 + Na2CO3 + 2(NH4)2HPO4 → 2CaNaPO4 + 3CO2↑+ 4NH3↑+ 3H2O (t ~ 900 °C)
Alternatively, sodium rhenanite CaNaPO4 can be obtained by cement technology with subsequent firing [26]. The work [27] shows a method for obtaining CaNaPO4 from brushite cement, prepared by the reaction of β-TCP and, MCPM (Equation (3)), and a highly alkaline bioactive glass (composition (wt.%): SiO2—50, Na2O—25, CaO—20, P2O5—5). After mixing brushite with bioactive glass, firing was carried out at high temperatures. With an increase in the temperature to 700–800 degrees, CaNaPO4, and β-Ca3(PO4)2 phases were obtained, which indicates that the transition of bioactive glass to a visco-plastic state has occurred. The formation of the CaNaPO4 phase occurs due to thermo-chemical interactions between Na2O and CaO from the glass matrix and β-Ca2P2O7.
Up to our knowledge there were attempts to prepare ceramic composites simultaneously containing both sodium rhenanite and calcium phosphate phases [23,28,29,30]. In some examples it was composition of sodium rhenanite with the calcium phosphate i.e with hydroxyapatite [28] or tricalcium phosphate [29]. In another example ceramics was prepared from powder of brushite, containing sodium nitrate as a reaction by-product [30].
The idea of this study is as follows—it is to obtain ceramics of a given phase composition by firing a cement-salt stone, which are easy to mold using plastic molding or extrusion 3D printing.
Therefore, the present work was aimed at obtaining bioresorbable ceramic materials in Na2O-CaO-P2O5 system by firing a cement-salt stone obtained from powder mixtures including calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O, MCPM Ca(H2PO4)2∙H2O and/or sodium dihydrogen phosphate NaH2PO4. We expected that the influence of the composition of starting powder mixture and firing temperature and on the phase composition and microstructure of ceramics would be established.

2. Materials and Methods

2.1. Initial Reagents and Synthesis

Calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O (CAS No. 5785-44-4, puriss. p.a. ≥85%), MCPM Ca(H2PO4)2∙H2O (CAS No. 10031-30-8, puriss. 99%) and sodium dihydrogen phosphate NaH2PO4 (CAS No. 7558-80-7, puriss. ≥ 99%) used for synthesis of cement-salt stone samples were purchased from Sigma Aldrich, (Taufkirchen, Germany).

2.2. Preparation of the Calcium Pyrophosphate and Sodium Rhenanite Ceramics

The following Equations (7)–(9) were used to calculate the composition of the powder mixtures for preparation of cement-salt stone samples. Labeling of samples are shown in brackets and in Table 1.
Ca3(C6H5O7)2∙4H2O + 3Ca(H2PO4)2∙H2O → 3Ca2P2O7 + 2H3C6H5O7 + 4H2O (Ca)
2Ca3(C6H5O7)2∙4H2O + 3Ca(H2PO4)2∙H2O + 3NaH2PO4 → 3CaNaPO4 + 3Ca2P2O7 +
+ 4H3C6H5O7 + 14H2O (CaNa)
Ca3(C6H5O7)2∙4H2O + 3NaH2PO4 → 3CaNaPO4 + 2H3C6H5O7 + 4H2O (Na)
Each component was previously treated in a planetary mill in an acetone medium for 15 min. Then initial mixtures, consisting of powders of calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O, MCPM Ca(H2PO4)2∙H2O and/or sodium dihydrogen phosphate NaH2PO4 (Table 1), were prepared in a molar ratio corresponding to Equations (7)–(9) passing through a sieve several times. Mixing liquid (distilled water) were added to the resulting powder mixtures at a water/solid ratio (W/S) = 0.5. The resulting pastes were mixed in a porcelain bowl for 30 s. The latex mold with sizes of 10 × 10 × 30 mm was filled with prepared paste and left to harden in air for a day. The cement-salt stone samples after drying were fired in the temperature range of 500–900 °C with holding at the final temperature for 2 h, heating rate 5 °C/min, cooling with furnace.

2.3. Characterization

2.3.1. XRD

X-ray diffraction (XRD) analysis was conducted using a Rigaku D/Max-2500 (Rigaku, Tokyo, Japan) with a rotating anode (Cu-Ka radiation), with an angle interval (2Θ) of 2–70°. Phase analysis was performed using the ICDD PDF2 database [31].

2.3.2. SEM

The microstructure of the samples of cement-salt and ceramic materials was studied using a LEO SUPRA 50VP (Carl Zeiss, Jena, Germany) scanning electron microscope (SEM) with an acceleration voltage of 3–21 kV. The images were recorded using an Everhart–Thornley secondary electron detector (SE2). The surface of the cement-salt stone and ceramic samples was coated with a layer of chromium (up to 15 nm).

2.3.3. Thermal Analysis

Thermal analysis (TA) of cement-salt samples was carried out using a NETZSCH STA 409 PC Luxx thermal analyzer (NETZSCH, Selb, Germany), in the temperature range of 40–1000 °C. The composition of the gas phase formed upon decomposition of samples was studied using a QMS 403C Aëolos quadrupole mass spectrometer (NETZSCH, Selb, Germany) coupled to the NETZSCH STA 409 PC Luxx thermal analyzer. Mass spectra (MS) were recorded for m/Z = 18 (H2O), as well as for m/Z = 44 (CO2).

2.3.4. Determination of Strength Properties of the Ceramic Samples

The bending and compressive strengths of ceramic samples in form of balks were determined using universal testing machines LFV 10-T50 and P-05 (Walter + bai, Löhningen, Switzerland).

2.3.5. Determination of Shrinkage and Density of the Ceramic Samples

The shrinkage of ceramic samples was determined by measuring their dimensions (with an accuracy of ±0.05 mm) before and after firing. The geometric density of the ceramic samples was calculated by measuring their dimensions (with an accuracy of ±0.05 mm) and mass before and after firing. The relative density of ceramics was calculated as the ratio of the sample density determined from the experiment to the crystallographic density of β-Ca2P2O7 and β-CaNaPO4.

3. Results and Discussion

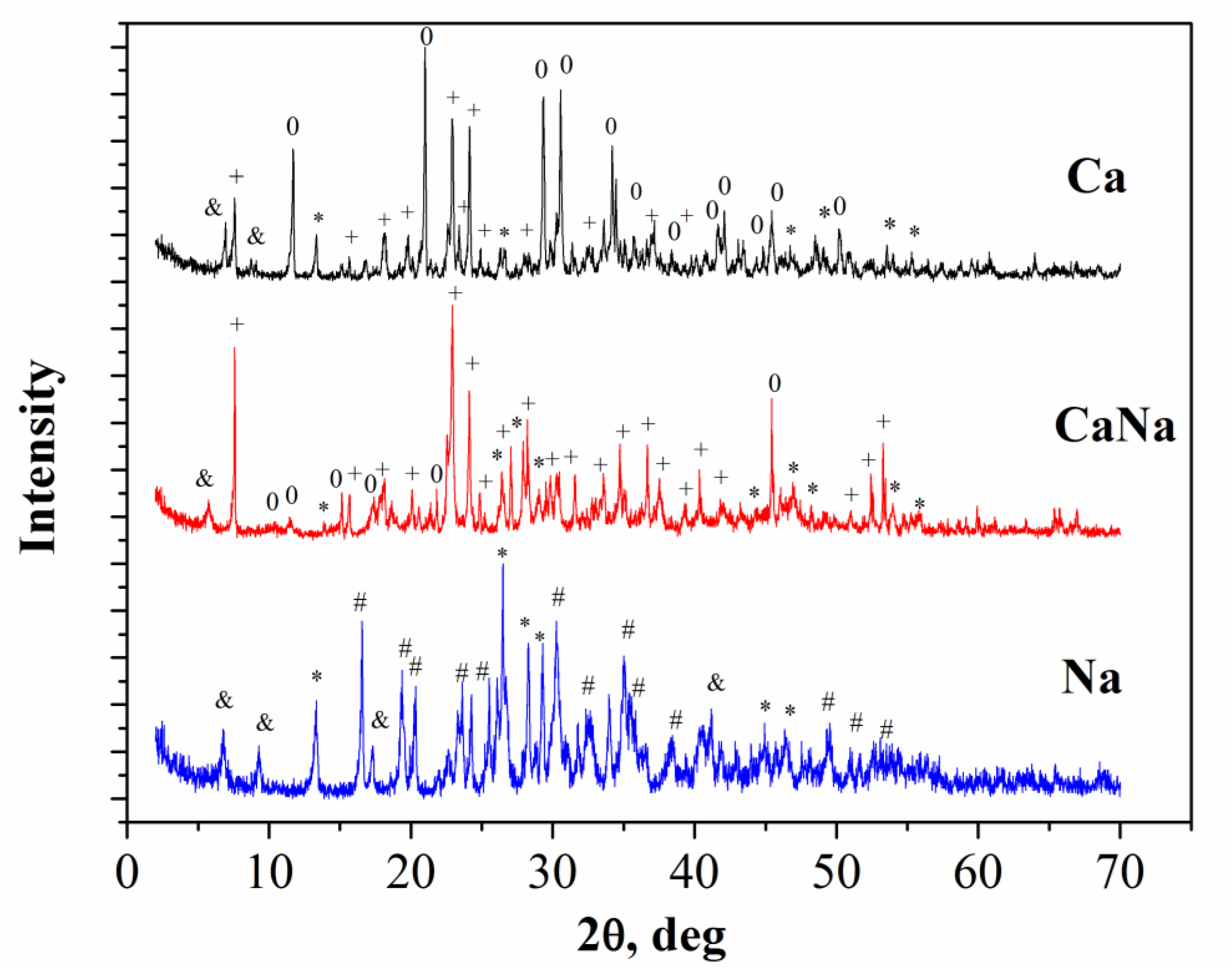

The XRD curves of the cement-salt stone based on calcium citrate tetrahydrate and MCPM (Ca); calcium citrate, tetrahydrate, MCPM and sodium dihydrogen phosphate (CaNa); and calcium citrate and sodium dihydrogen phosphate (Na) are shown in Figure 1.
The Equations (10)–(13) reflects the reaction of phase composition of cement-salt stone formation:
Ca3(C6H5O7)2∙4H2O + 3Ca(H2PO4)2∙H2O + 5H2O → 6CaHPO4∙2H2O + 2H3C6H5O7
2Ca3(C6H5O7)2∙4H2O + 3Ca(H2PO4)2∙H2O + 3NaH2PO4 + 7H2O →
→ 9CaHPO4∙2H2O + 2H3C6H5O7 + Na2HC6H5O7 + NaH2C6H5O7
2Ca3(C6H5O7)2∙4H2O + 3Ca(H2PO4)2∙H2O + 3NaH2PO4 →
→ 9CaHPO4 + 2H3C6H5O7 + Na2HC6H5O7 + NaH2C6H5O7 + 11H2O
Ca3(C6H5O7)2∙4H2O + 3NaH2PO4 → 3CaHPO4 + Na2HC6H5O7 + NaH2C6H5O7+ 4H2O
According to the XRD data, the phase composition of cement-salt stone based on calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O and MCPM Ca(H2PO4)2∙H2O (Figure 1, Ca) was represented by brushite CaHPO4∙2H2O and unreacted calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O and MCPM Ca(H2PO4)2∙H2O phases (Equation (10)) [5].
The main phases in the cement-salt stone based on calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O and sodium dihydrogen phosphate NaH2PO4 (Figure 1, Na) were monetite CaHPO4, unreacted sodium dihydrogen phosphate NaH2PO4, and calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O (Equation (13)) [26].
The phase composition of the obtained samples of cement-salt stone based on calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O, MCPM Ca(H2PO4)2∙H2O and sodium dihydrogen phosphate NaH2PO4 (Figure 1, CaNa) was included by brushite CaHPO4∙2H2O, monetite CaHPO4, unreacted calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O, MCPM Ca(H2PO4)2∙H2O and sodium dihydrogen phosphate NaH2PO4.
The formation of brushite CaHPO4∙2H2O and monetite CaHPO4 occurred as a result of acid-base interaction (Equations (10)–(13). Sodium dihydrogen phosphate NaH2PO4 (85.2 g/L) has a higher solubility than MCPM Ca(H2PO4)2∙H2O (18 g/L) and, accordingly, the concentration of hydrogen ions H+ is higher (lower pH) in the CaNa sample and even more in the Na sample than in the Ca sample. This pH level makes the formation of monetite CaHPO4 more likely [32].
The presence of unreacted components shows that the reaction has not been fully completed in the conditions given here. For Na and CaNa samples there are also peaks that probably correspond to the acidic calcium citrate salts, such as Na2HC6H5O7 and NaH2C6H5O7. We also assume that Na2HC6H5O7 and NaH2C6H5O7 phases of acidic sodium citrate are present in the preceramic sample, since they are by-products of the brushite formation reaction, which is exactly present in the X-ray pattern presented in Figure 1.
The microstructure studies of the cement-salt stone support the results of the XRD data. The micrographs of the samples demonstrated in Figure 2 show small crystals of monetite CaHPO4 and brushite CaHPO4∙2H2O with plate-like morphology [33,34,35], rhombic crystals of MCPM Ca(H2PO4)2∙H2O [36,37]. The CaHPO4∙2H2O and CaHPO4 crystals are most likely formed on the surface of the less soluble among other starting components of powder mixture calcium citrate particles. The CaHPO4 crystals have a size of less than 2 µm probably due to the action of C6H5O73− anion which slows down the reaction and inhibits the growth of calcium hydrogen phosphate crystals [38].

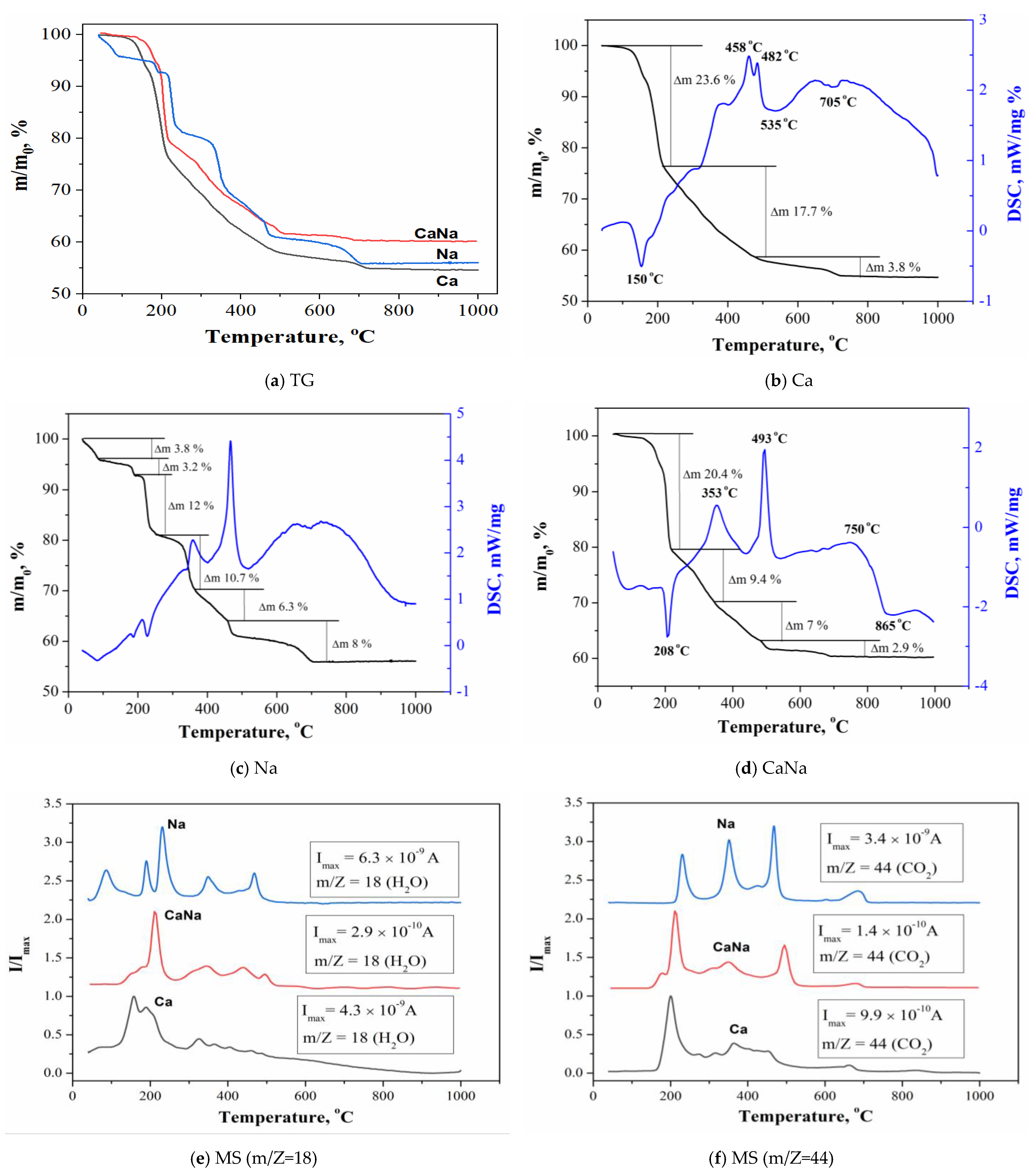

The following TA data of the obtained samples are shown in Figure 3: the temperature dependence of the mass of samples of cement-salt stone based on calcium citrate tetrahydrate and MCPM (Ca, Figure 3a,b); calcium citrate tetrahydrate and sodium dihydrogen phosphate (Na, Figure 3a,c); calcium citrate tetrahydrate, MCPM and sodium dihydrogen phosphate (CaNa, Figure 3a,d), the temperature dependence of the ion current for all samples for m/Z = 18 (H2O) (Figure 3e), and m/Z = 44 (CO2) (Figure 3f).
According to simultaneous thermal analysis (Figure 3a,b), the total weight loss of the powder mixture based on calcium citrate and MCPM when heated to 1000 °C was 46%. The mass loss curve for Ca powder mixture (Figure 3a,b) contains steps characteristic of brushite, namely, the conversion of brushite to monetite (~200 °С, Equation (14)), and then monetite to pyrophosphate (~400 °С, Equation (15)). There are two endothermic peaks on the DSC curve in the first temperature range (150 °C, and 190 °C). Three peaks can be observed on the mass spectrum curve for m/Z = 18 (H2O) in the range of 150–300 °C at the same temperatures (Figure 3e). In this temperature range, thermal decomposition of calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O and brushite CaHPO4∙2H2O with the formation of anhydrous calcium citrate Ca3(C6H5O7)2 and monetite CaHPO4 is possible. On the mass spectrum curve for m/Z = 44 in the range of 370–480 °C, reflecting the release of CO2. Thermal decomposition of anhydrous calcium citrate Ca3(C6H5O7)2 with the formation of calcium carbonate CaCO3 occurs with heat release (DSC curve) according to the equation 16. The carbon resulting from this transformation (reaction) could not naturally remain in elemental form at such a high temperature (above 340 °C), especially in the presence of atmospheric oxygen. Therefore, it must have turned into CO and/or CO2.
We can suggest the following reactions that can take place during heating:
CaHPO4∙2H2O → CaHPO4 + 2H2O
2CaHPO4 → Ca2P2O7 + H2O
Ca3(C6H5O7)2 → 3CaCO3 + 5H2O + 9C
In the temperature range of 480–705 °C, the following processes is observed: MCPM Ca(H2PO4)2∙H2O present in the samples also undergoes a series of transformations, forming calcium polyphosphate Ca(PO3)2 (Equations (17)–(19)). Also, β-CPP β-Ca2P2O7 phase was formed due to the interaction of calcium polyphosphate Ca(PO3)2 with calcium carbonate CaCO3 (Equations (20)):
Ca(H2PO4)2∙H2O → Ca(H2PO4)2 + H2O
Ca(H2PO4)2 → CaH2P2O7 + H2O
CaH2P2O7 → Ca(PO3)2 + H2O
Ca(PO3)2 + CaCO3 → Ca2P2O7 + CO2↑
The presence of unreacted starting components in the samples and the by-products of chemical bonding reaction determine the presence of additional steps of mass loss and peaks on the curves of the dependence of the ion current on temperature (Figure 3e,f) [5].
According to the TG data, the final mass loss of the Na powder after heating to 1000 °С was 44% (Figure 3a,c). At the first stage (up to 160 °C), there was a gradual decomposition of structurally unbonded water. At the next stage (up to 200 °C), the transition of brushite to monetite took place, but according to TA, the content of brushite was not significant. The further process is the transformation of monetite to γ-pyrophosphate γ-CPP (Equation (15)), generally takes place at 400 °C [5,11,12,13,16]. According to mass spectroscopy for cement-salt stone based on powder mixture of calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O and sodium dihydrogen phosphate NaH2PO4 (Figure 3b) three peaks can be observed on the mass spectrum curve for m/Z = 18 (H2O) in the range of 50–300 °С. In this temperature range, thermal decomposition of calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O with the formation of anhydrous calcium citrate Ca3(C6H5O7)2 is possible. On the mass spectrum curve for m/Z = 44, there is a peak in the range of 435–495 °С, reflecting the release of CO2. Thermal decomposition of anhydrous calcium citrate Ca3(C6H5O7)2 with the formation of calcium carbonate CaCO3 occurs with heat release according to the Equation (16) [26]. On the mass spectrum curve for m/Z = 44 in the range of 650–705 °C, reflecting the release of CO2. The formation of the CaNaPO4 phase was due to the interaction of the NaPO3 melt with calcium carbonate CaCO3 (Equation (27)) can be the reason of this CO2 release. During the heat treatment, the products obtained during the acid-base reaction thermally decomposed, and products of thermal decomposition interacted with each other to form ceramics. The processes taking place during heating can be described by the following equations:
Na2HC6H5O7 → Na2CO3 + C5H4O3 + H2O
NaH2PO4 → NaPO3 + H2O
4CaCO3 + 6CaHPO4 → Ca10(PO4)6(OH)2 + 4CO2↑ + 2H2O
Ca10(PO4)6(OH)2 + NaPO3 → CaNaPO4 + 3Ca3(PO4)2 + H2O
Na2CO3 + Ca2P2O7 → 2CaNaPO4 + CO2↑
CaCO3 + 2NaPO3 → Na2CaP2O7 + CO2↑
NaPO3 + CaCO3 → CaNaPO4 + CO2↑
Na2CaP2O7 + Ca10(PO4)6(OH)2 → Ca10Na(PO4)7 + CaNaPO4 + H2O
According to the TG data, the final mass loss of the CaNa powder after heating to 1000 °С was 40% (Figure 3a,d). Three peaks can be observed on the mass spectrum curve for m/Z = 18 (H2O) in the range of 200–400 °C. In this temperature range, thermal decomposition of calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O with the formation of anhydrous calcium citrate Ca3(C6H5O7)2 is possible. The mass loss curve for the sample based on calcium citrate tetrahydrate, monocalcium phosphate monohydrate, and sodium dihydrogen phosphate contains steps characteristic of brushite, namely the conversion of brushite to monetite (~200°C), and then the conversion of monetite to γ-CPP (~400 °C). The presence of unreacted starting components in the samples (a component taken in excess) and the accompanying reaction products determine the presence of additional steps of mass loss and peaks on the curves of the dependence of the ion current on temperature (Figure 3b). On the mass spectrum curve for m/Z = 44, there is a peak in the range of 200–495 °C, reflecting the release of CO2. Thermal decomposition of anhydrous calcium citrate Ca3(C6H5O7)2 with the formation of calcium carbonate CaCO3 occurs with heat release according to the Equation (16) [39].
The carbon formed as a result of this transformation (Equation (16)) could not remain in elemental form at such a high temperature (above 340 °C), especially in the presence of atmospheric oxygen. Therefore, it must have turned into CO and/or CO2. In the temperature range of 495–680 °C, the following process is observed: MCPM Ca(H2PO4)2∙H2O present in the samples also undergoes a series of transformations, forming calcium polyphosphate Ca(PO3)2 (Equations (17)–(19)). Also, β-CPP β-Ca2P2O7 phase was formed due to the interaction of calcium polyphosphate Ca(PO3)2 with calcium carbonate CaCO3 (Equations (20)).

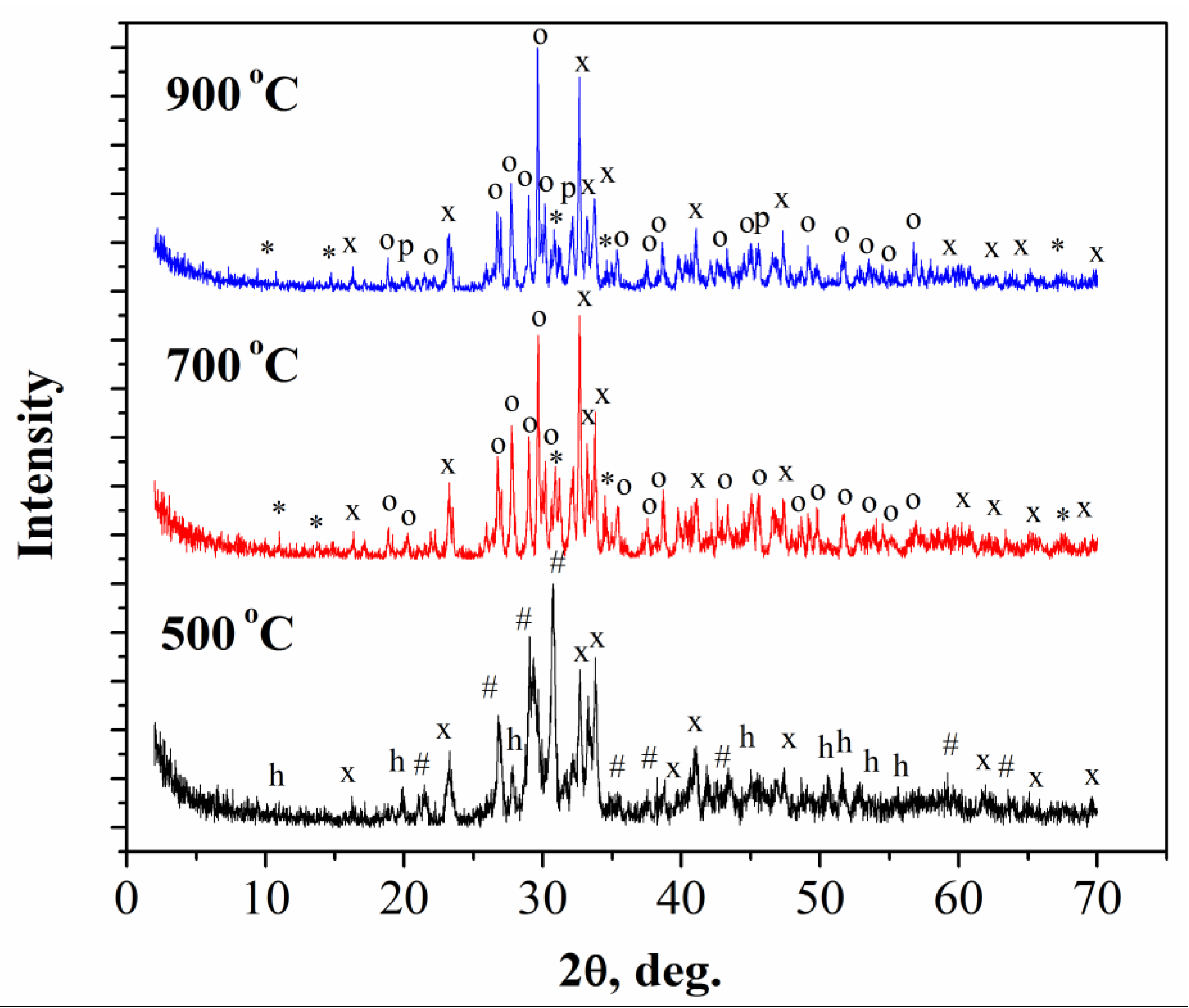

After annealing of cement-salt stone Ca at 500 °C phase composition of the ceramic materials was represented by γ-Ca2P2O7 and γ-Ca(PO3)2. In the temperature range of 700–900 °C γ-Ca(PO3)2 and γ-Ca2P2O7 phases passed into a higher-temperature modifications (β-Ca(PO3)2 and β-Ca2P2O7). And after firing at 900 oC phase composition included β-Ca2P2O7 (Figure 4). And after annealing at 1000 °C the phase composition of ceramics was presented only with β-Ca2P2O7 [5].
During the heat treatment of cement-salt stone Na at temperatures of 500 and 700 °C in addition to the target phase β-CaNaPO4, hydroxyapatite Ca10(PO4)6(OH)2 was formed. At 700 °C, in addition to β-CaNaPO4 and Ca10(PO4)6(OH)2, phases of double calcium-sodium pyrophosphate CaNa2P2O7 and β-Ca3(PO4)2 phases were formed [26]. At 900 °C, only the target phase β-CaNaPO4 was found (Figure 4).
Heat treatment of cement-salt stone CaNa at a temperature of 500 °C (Figure 5) led to the formation of a phase composition, which included the β-CaNaPO4, Ca10(PO4)6(OH)2, and γ-Ca2P2O7 phases (Equations (15) and (24)). The Ca10(PO4)6(OH)2 phase was formed due to the interaction of monetite CaHPO4 with calcium carbonate CaCO3 (Equation (23)) which was the product of the calcium citrate Ca3(C6H5O7)2 decomposition (Equation (16)). After heat treatment at temperatures of 700 °C and 900 °C, in addition to β-CaNaPO4, phases of β-Ca2P2O7, double calcium-sodium pyrophosphate Na2CaP2O7 and Na–substituted tricalcium phosphate Сa10Na(PO4)7 phases were noticed. The formation of the Na2CaP2O7 phase was due to the possible interaction of the NaPO3 melt with calcium oxide CaCO3 (Equation (26)). The Сa10Na(PO4)7 phase was formed as a result of the interaction of Na2CaP2O7 with Ca10(PO4)6(OH)2 (Equation (28)).

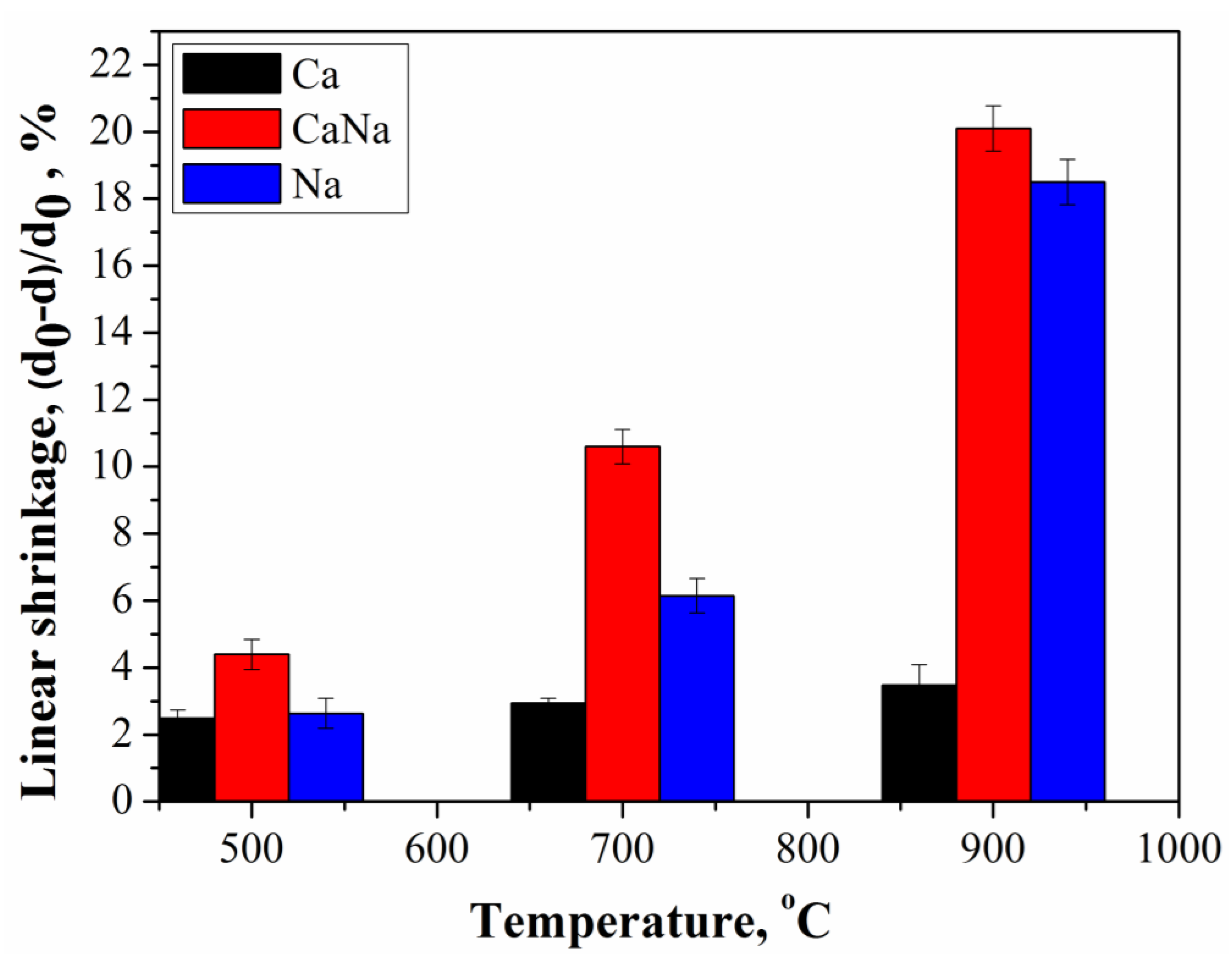

The linear shrinkage of ceramic materials is shown in Figure 6. The linear shrinkage of the Ca samples was 2.5% and 3.5% at 500 °C and 900 °C, respectively. The density of ceramics has decreased compared to the density of cement-salt stone. The decrease in the density of the samples was due to a decrease in the mass of the sample, because of the decomposition of the components of the cement-salt stone during heating (Figure 7). The density of Ca samples (Figure 7) increased from 0.52 g/cm3 to 0.59 g/cm3 with an increase in firing temperature from 500 °C to 900 °C or from 41.8% to 60% relatively to the density of β-Ca2P2O7 equal to 3.09 g/cm3 (Figure 8) [5].
The linear shrinkage of the Na samples was 2.7% and 18.5% at 500 °C and 900 °C, respectively (Figure 6). With an increase in firing temperature from 500 °C to 900 °C, the density of Na samples increased from 0.56 g/cm3 to 0.94 g/cm3 or from 18% to 30.2% relatively to the density of β-CaNaPO4 equal to 3.11 g/cm3 [26].
The linear shrinkage of the CaNa samples was 4.4% and 20.1% at 500 °C and 900 °C, respectively (Figure 6). The density of CaNa samples increased from 0.9 g/cm3 to 1.43 g/cm3 or from 30.9% to 49.1% relatively to the theoretical density of the ceramic sample calculated additively from the proportion of the following phases β-Ca2P2O7 (ρ = 3.09 g/cm3), β-CaNaPO4 (ρ = 3.11 g/cm3), Na2CaP2O7 (ρ = 2.24 g/cm3) and Сa10Na(PO4)7 (ρ = 3.02 g/cm3).
Figure 9 shows the temperature dependence of compressive and bending strengths of CaNa ceramic materials.
The compressive strength of Ca ceramic samples increased from 3.9 to 17.3 MPa and bending strength from 2.5 to 5.0 MPa increasing temperature from 600 °C to 1000 °C [5]. The compressive strength of Na ceramic samples increased from 3.5 to 10.3 MPa and bending strength from 2.5 to 3.6 MPa with increasing temperature from 500 °C to 900 °C [26]. The compressive strength of CaNa ceramic samples increase from 3.7 to 11.9 MPa and bending strength from 0.6 to 3.8 MPa with increasing temperature from 500 °C to 900 °C. This compressive and bending strength increasement is associated with the process of liquid-phase sintering, leading to the formation of more durable contacts between grains. The highest strength was in the Ca sample, the lowest is in the Na sample. Low strength is associated with a phase transition from β-CaNaPO4 to α-CaNaPO4. However, the strength of all samples is sufficient for surgical applications and for the treatment of bone tissue defects [40].

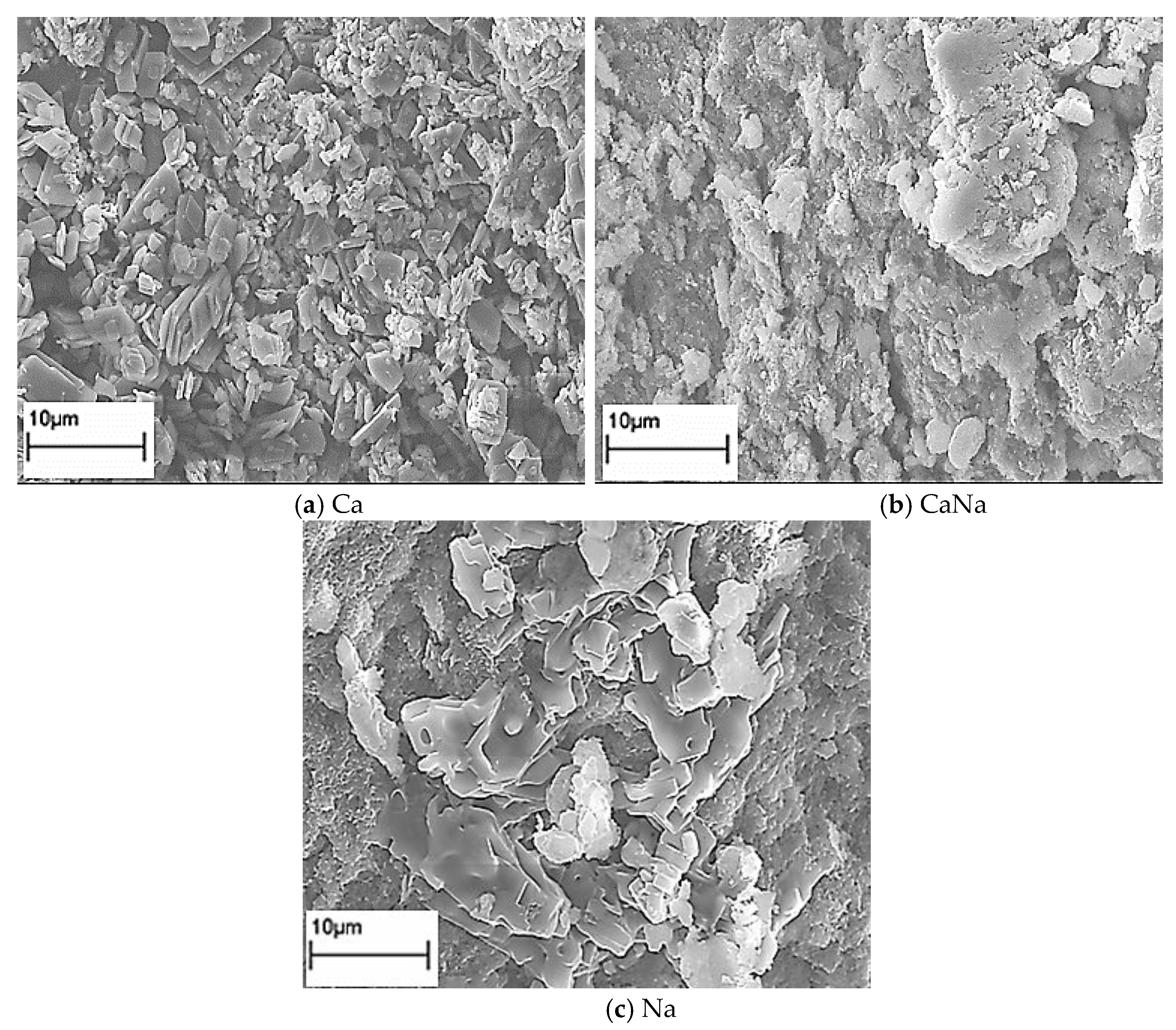

The SEM images of the Ca, CaNa, Na ceramic samples after firing at temperatures of 500 °C, 700 °C and 900 °C are shown in Figure 10.
With an increase in the firing temperature, the grain size increases and the microstructure of ceramics changed. Spherical grains of 0.5–2 µm in size were found in a sample of CaNa ceramic material fired at a temperature of 500 °C. The spherical grains sintered, forming a porous microstructure. The microstructure of the ceramic material CaNa fired at 700 °C was represented by spherical grains with a size in the range 1–2 µm. The CaNa sample fired at 900 °C was distinguished by bigger crystals with a size in the range of 1–5 µm.

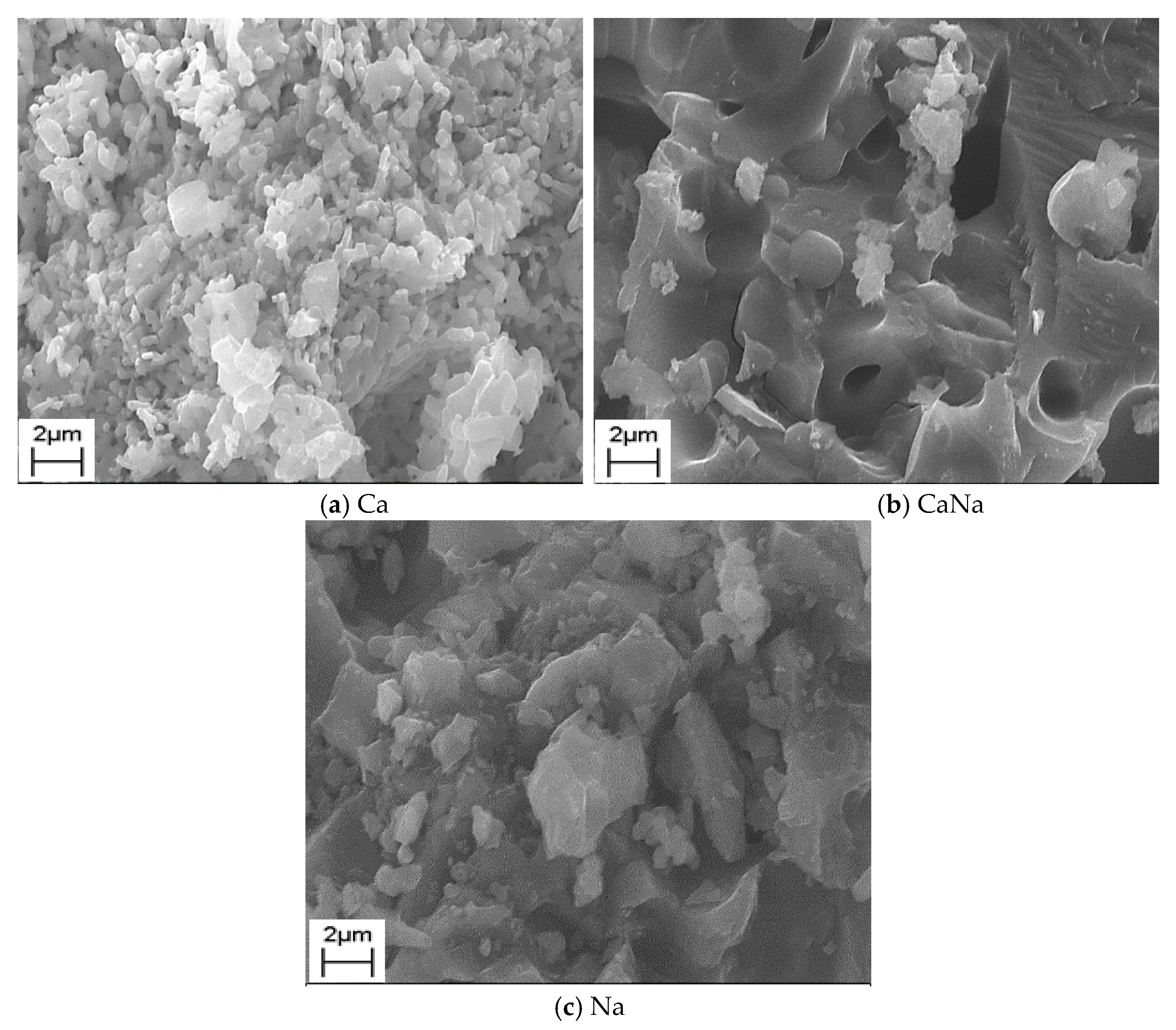

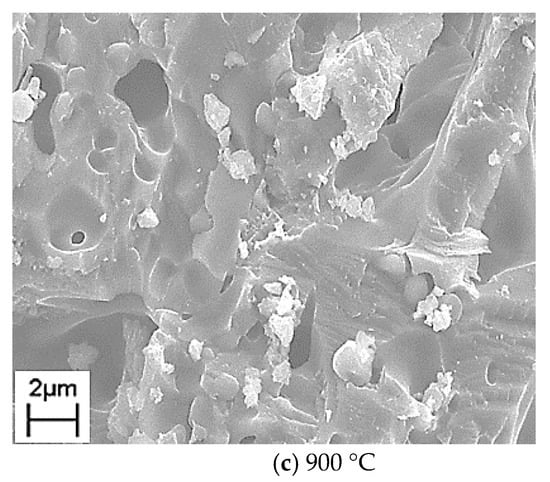

The microstructure of the obtained Ca, CaNa and Na ceramic samples after firing at 900 °C are shown in Figure 11.
With an increase in the heat treatment temperature, the sintering of the samples proceeds more efficiently. The elimination of pores and the growth of grains take place. The grains size of Ca sample of ceramic was 1–2 µm when fired at 900 °C (Ca), while the grain sizes for the other samples was 1–3 µm (Na) and 1–5 µm (CaNa) when fired at 900 °C.

4. Conclusions

1.
In the present work, an approach to obtaining bioresorbable ceramic materials in Na2O-CaO-P2O5 system with a given phase composition, including β-CPP β-Ca2P2O7, sodium rhenanite CaNaPO4, double calcium-sodium pyrophosphate Na2CaP2O7, and Na–substituted tricalcium phosphate Сa10Na(PO4)7 was obtained by firing cement-salt stone from a powder mixture including calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O, MCPM Ca(H2PO4)2∙H2O and sodium dihydrogen phosphate NaH2PO4. This approach involved the preparation of a powder mixtures with a given molar ratios of Na:Ca:P = 0:1:1(Ca), Na:Ca:P = 0.5:0.5:1(CaNa), Na:Ca:P = 1:1:1(Na), which were capable of entering into a chemical reaction; molding samples of cement-salt stone; and firing samples of cement-salt stone to obtain ceramics.
2.
The phase composition of Ca and Na cement-salt stone samples was represented by brushite (CaHPO4∙2H2O), monetite (CaHPO4) and unreacted Ca3(C6H5O7)2∙4H2O, Ca(H2PO4)2∙H2O and NaH2PO4 respectively. CaNa cement-salt stone samples were prepared from a powder mixture with a molar ratio of Na:Ca:P = 0.5:0.5:1, including calcium citrate tetrahydrate Ca3(C6H5O7)2∙4H2O, MCPM Ca(H2PO4)2∙H2O and sodium dihydrogen phosphate NaH2PO4. The phase composition of cement-salt stone samples based on Ca3(C6H5O7)2∙4H2O, Ca(H2PO4)2∙H2O and NaH2PO4 was represented mainly by brushite CaHPO4∙2H2O, monetite CaHPO4, as well as unreacted Ca(H2PO4)2∙H2O, NaH2PO4 and Ca3(C6H5O7)2∙4H2O.
3.
After annealing of cement-salt stone Ca at 500 °C phase composition of the ceramic materials was represented by γ-Ca2P2O7 and γ-Ca(PO3)2. In the temperature range of 700–900 °C γ-Ca(PO3)2 and γ-Ca2P2O7 phases passed into a higher-temperature modifications (β-Ca(PO3)2 and β-Ca2P2O7). And after annealing at 1000 °C the phase composition of ceramics was presented only with β-Ca2P2O7.
During the heat treatment of cement-salt stone Na at temperatures of 500 and 700 °C in addition to the target phase β-CaNaPO4, hydroxyapatite Ca10(PO4)6(OH)2 was formed. At 700 °C, in addition to β-CaNaPO4 and Ca10(PO4)6(OH)2, phases of double calcium-sodium pyrophosphate CaNa2P2O7 and β-Ca3(PO4)2 phases were formed. At 900 °C, only the target phase β-CaNaPO4 was found.
Heat treatment of cement-salt stone CaNa at a temperature of 500 °C led to the formation of a phase composition, which included the β-CaNaPO4, Ca10(PO4)6(OH)2, and γ-Ca2P2O7 phases. At temperatures of 700 °C and 900 °C, in addition to β-CaNaPO4, phases of β-Ca2P2O7, double calcium-sodium pyrophosphate Na2CaP2O7 and Na–substituted tricalcium phosphate Сa10Na(PO4)7 phases were formed in minor quantities.
4.

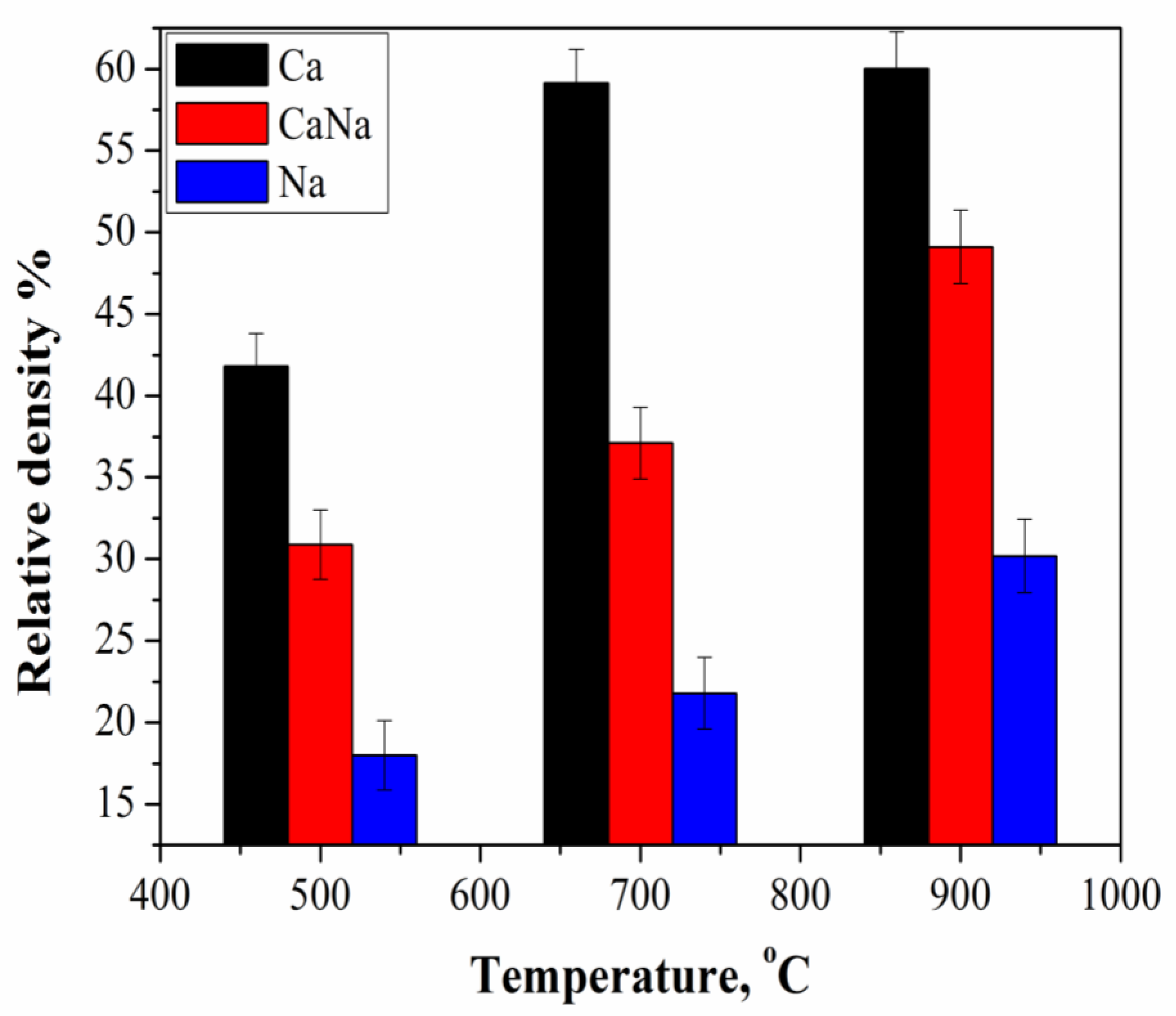

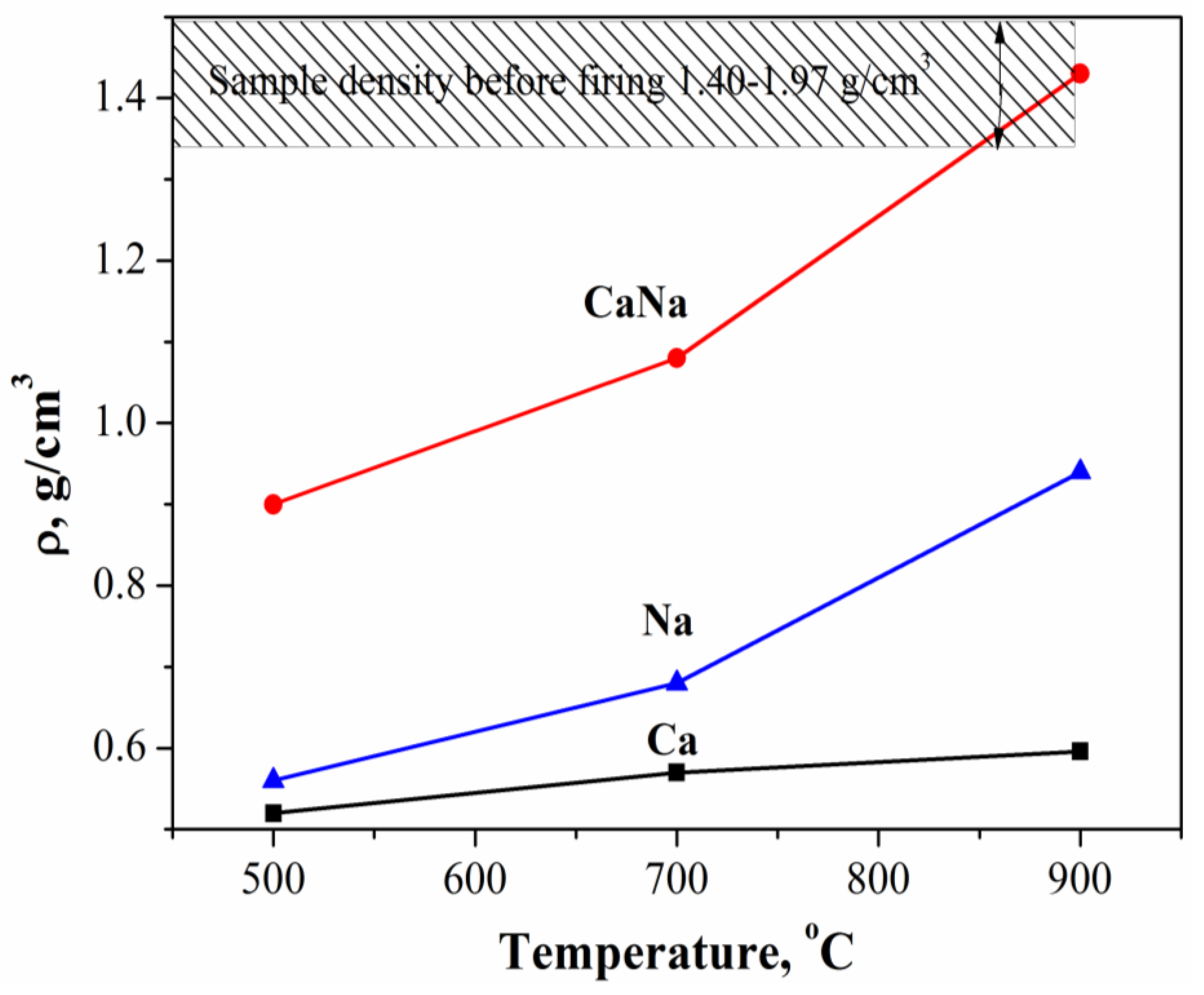

The density of Ca samples increased from 0.52 g/cm3 to 0.59 g/cm3 with an increase in firing temperature from 500 °C to 900 °C or from 41.8% to 60% relatively to the density of β-Ca2P2O7 equal to 3.09 g/cm3. The shrinkage of the Ca samples was 2.5% and 3.5% at 500 °C and 900 °C, respectively.
With an increase in firing temperature from 500 °C to 900 °C, the density of Na samples increased from 0.56 g/cm3 to 0.94 g/cm3 or from 18% to 30.2% relatively to the density of β-CaNaPO4 equal to 3.11 g/cm3. The shrinkage of the Na samples was 2.7% and 18.5% at 500 °C and 900 °C, respectively.
The density of CaNa samples increased from 0.9 g/cm3 to 1.43 g/cm3 or from 28.9% to 45.9% relatively to the density of β-CaNaPO4 equal to 3.11 g/cm3. The shrinkage of the CaNa samples was 4.4% and 20.1% at 500 °C and 900 °C, respectively.
5.
Thus, ceramic materials in Na2O-CaO-P2O5 system developed here, consisting of biocompatible and bioresorbable β-CPP β-Ca2P2O7, β-sodium rhenanite β-CaNaPO4, double calcium-sodium pyrophosphate Na2CaP2O7, and Na–substituted tricalcium phosphate Сa10Na(PO4)7 phases can be used in regenerative methods for the treatment of bone tissue defects.
