Manufacturing of Continuous Carbon Fiber Reinforced Aluminum by Spark Plasma Sintering
Abstract
:1. Introduction
- Functionalization of fiber surface; targeted selection of carbon fibers with suitable surface topography [11];
- Optimization of manufacturing parameters for the reduction of thermal exposure.
2. Materials and Methods
- Reinforcement: Carbon fiber woven fabrics in plain weave binding with an areal weight of 160 g/m2 from HT 200 tex 3k carbon rovings
- Matrix: Wires of 1.6 mm diameter supplied by Drahtwerk Elisental (Neuenrade, Germany) of aluminum alloys AlSi1MgMn, AlSi5, AlSi7Mg, and AlSi10Mg. Chemical compositions of every alloy are shown in Table 1.
3. Results

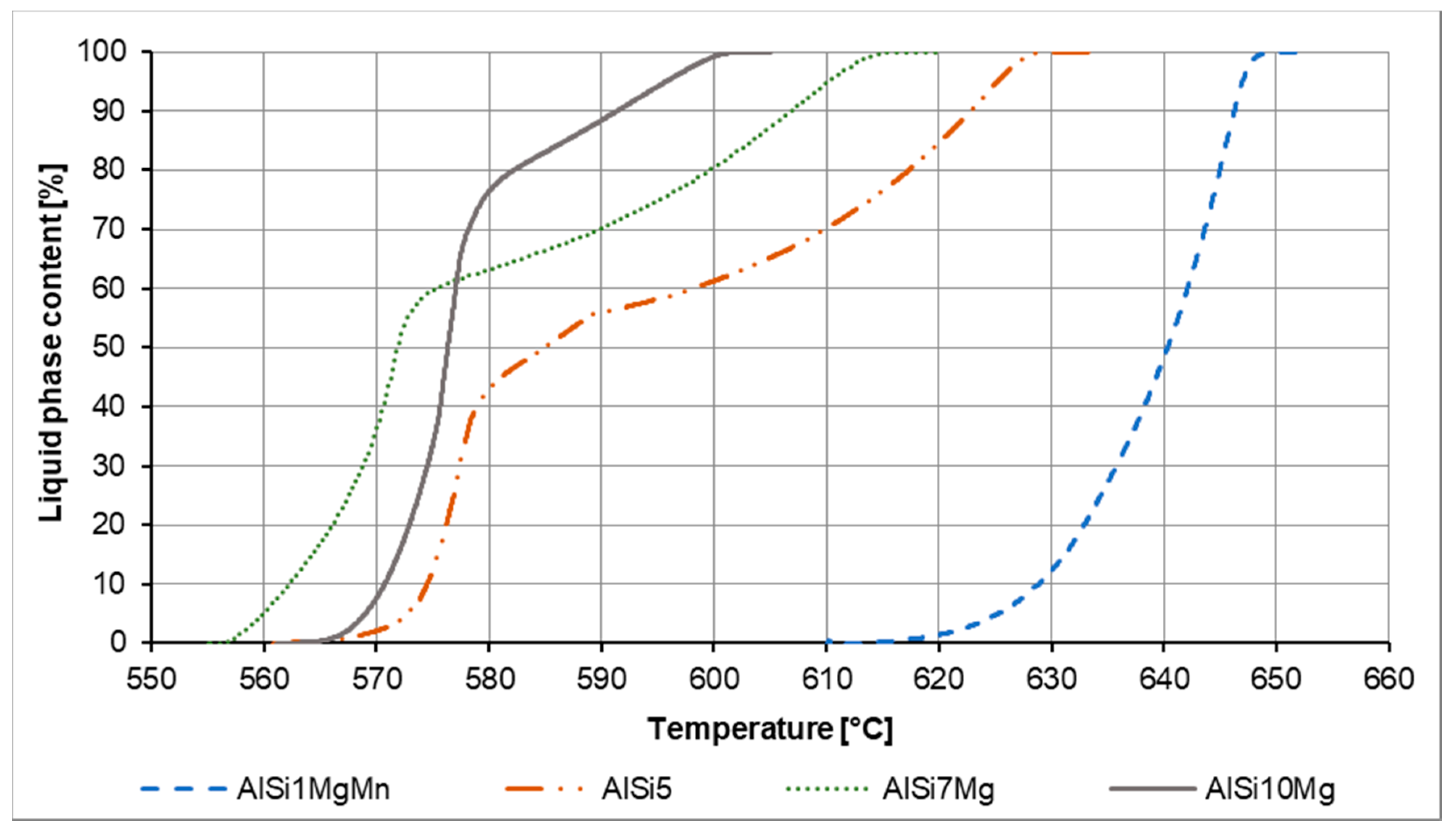

3.1. Thermal Characterization of Aluminium Alloys

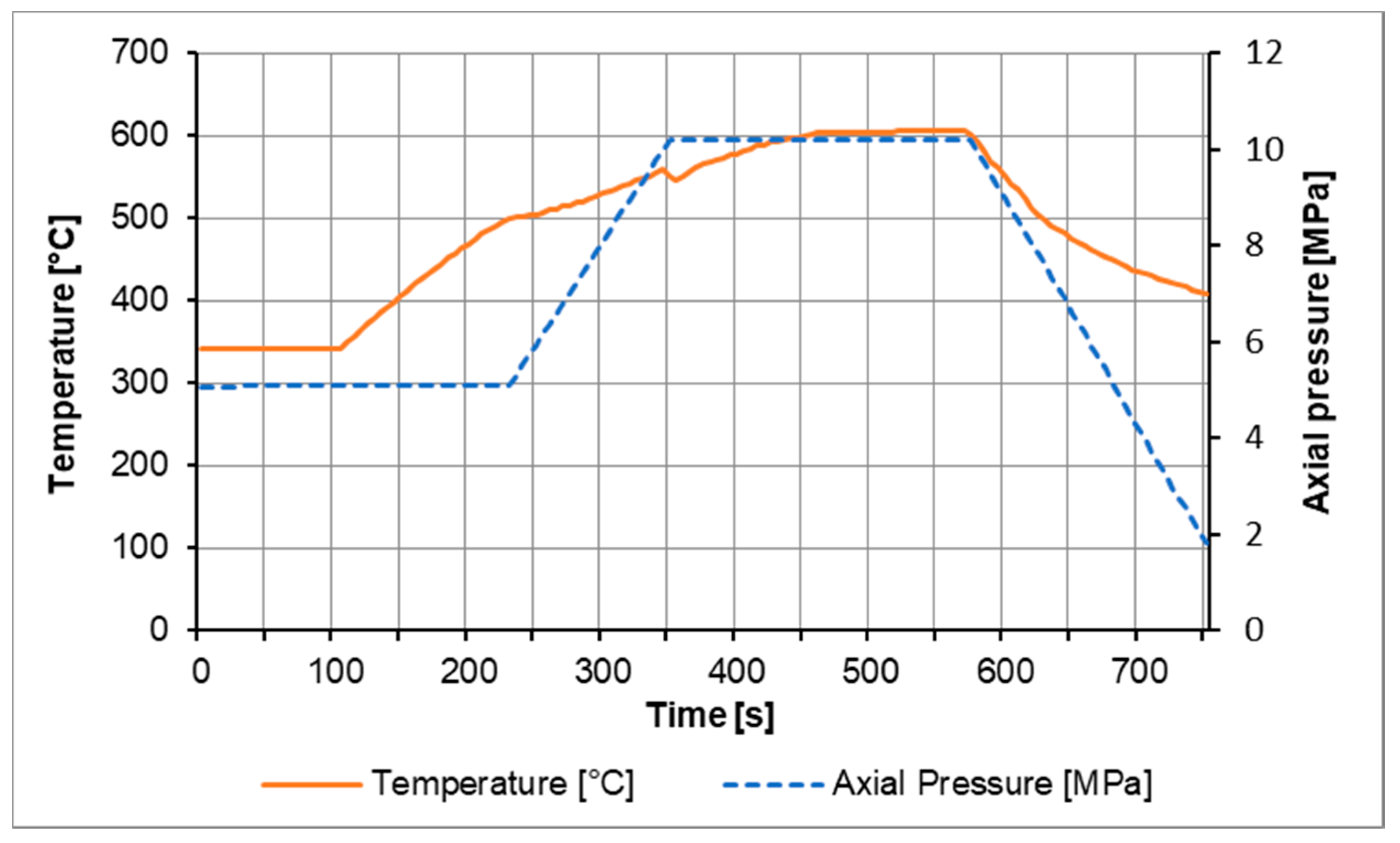

3.2. SPS Consolidation of Samples

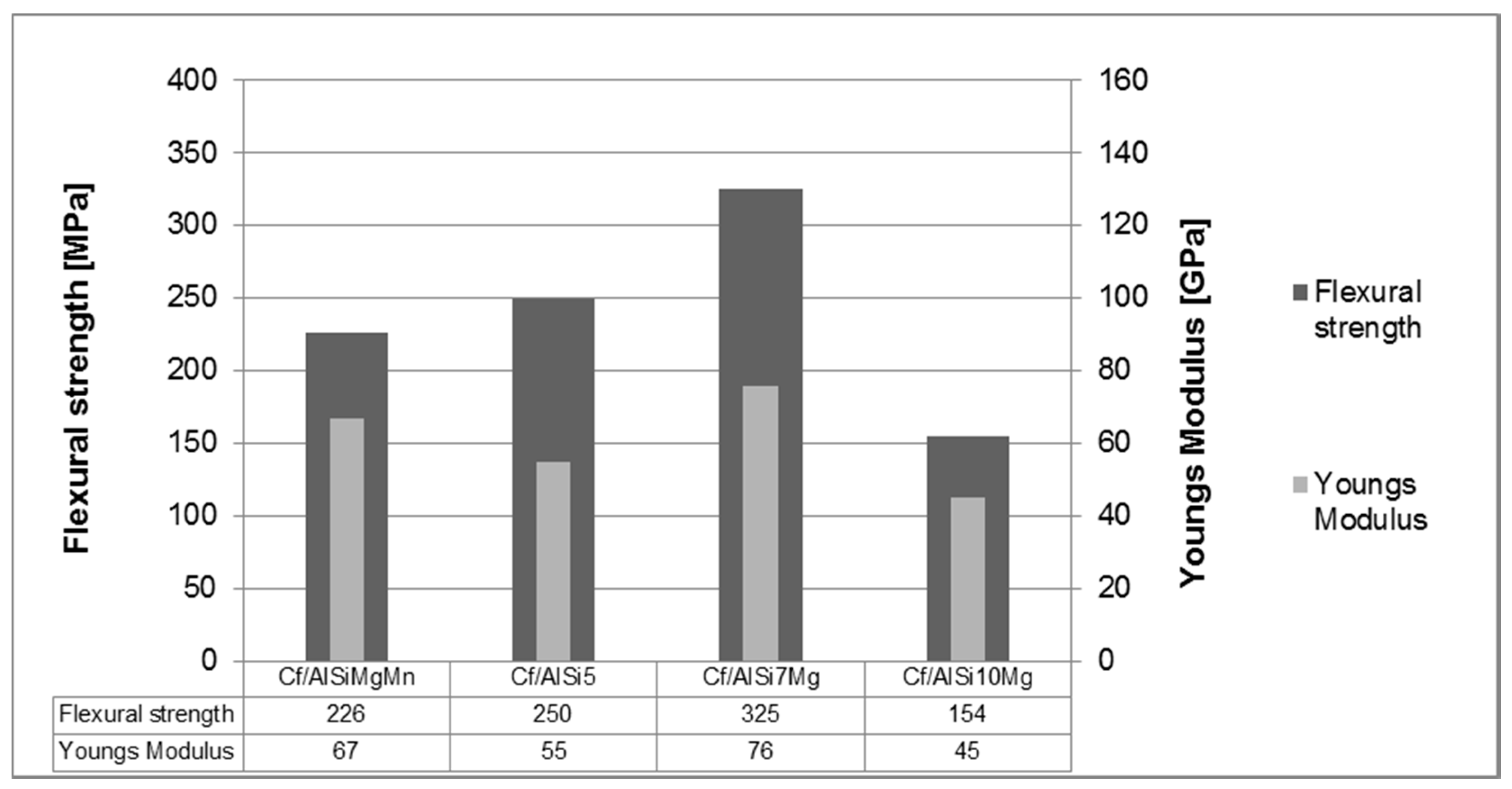

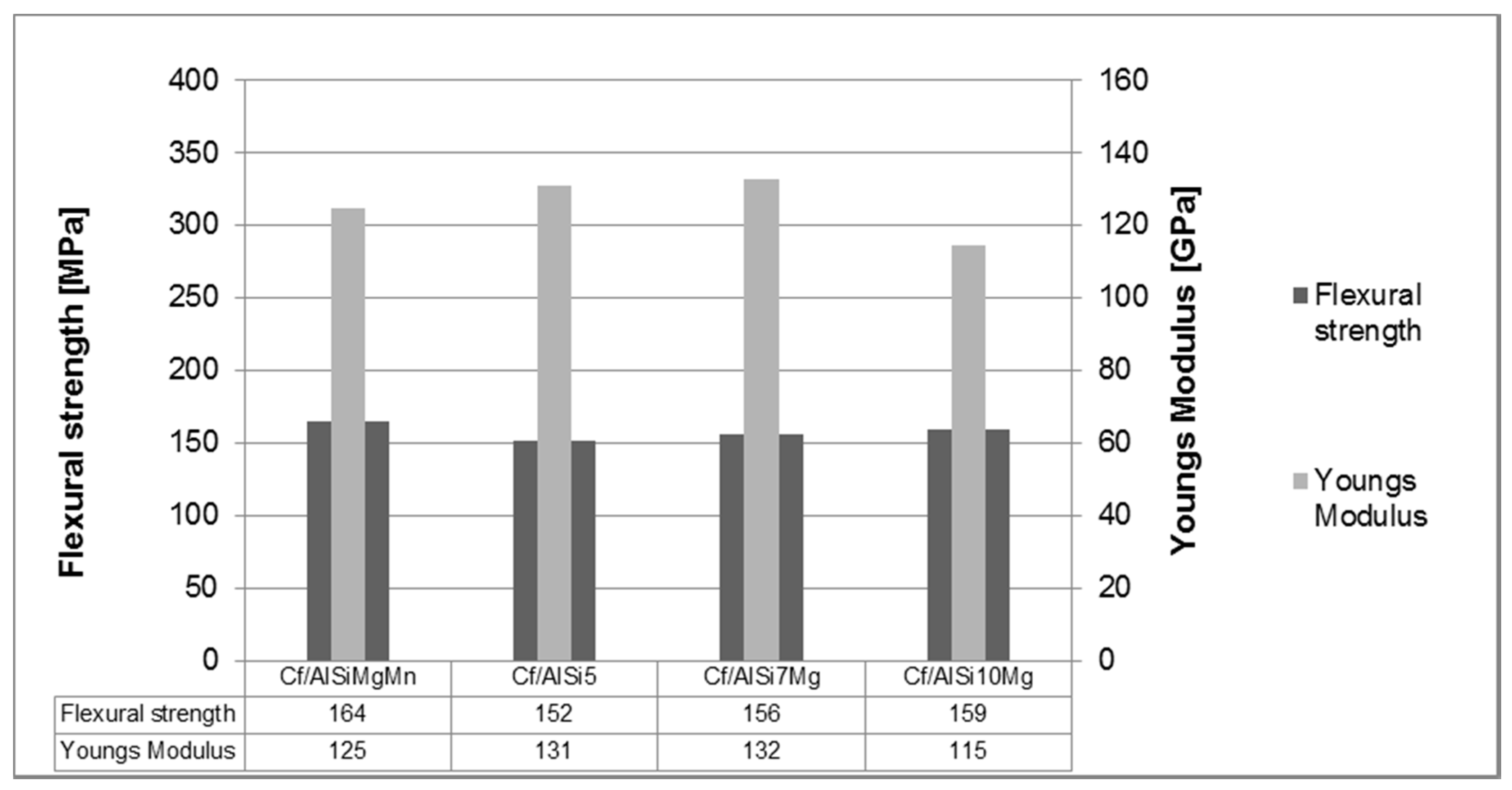

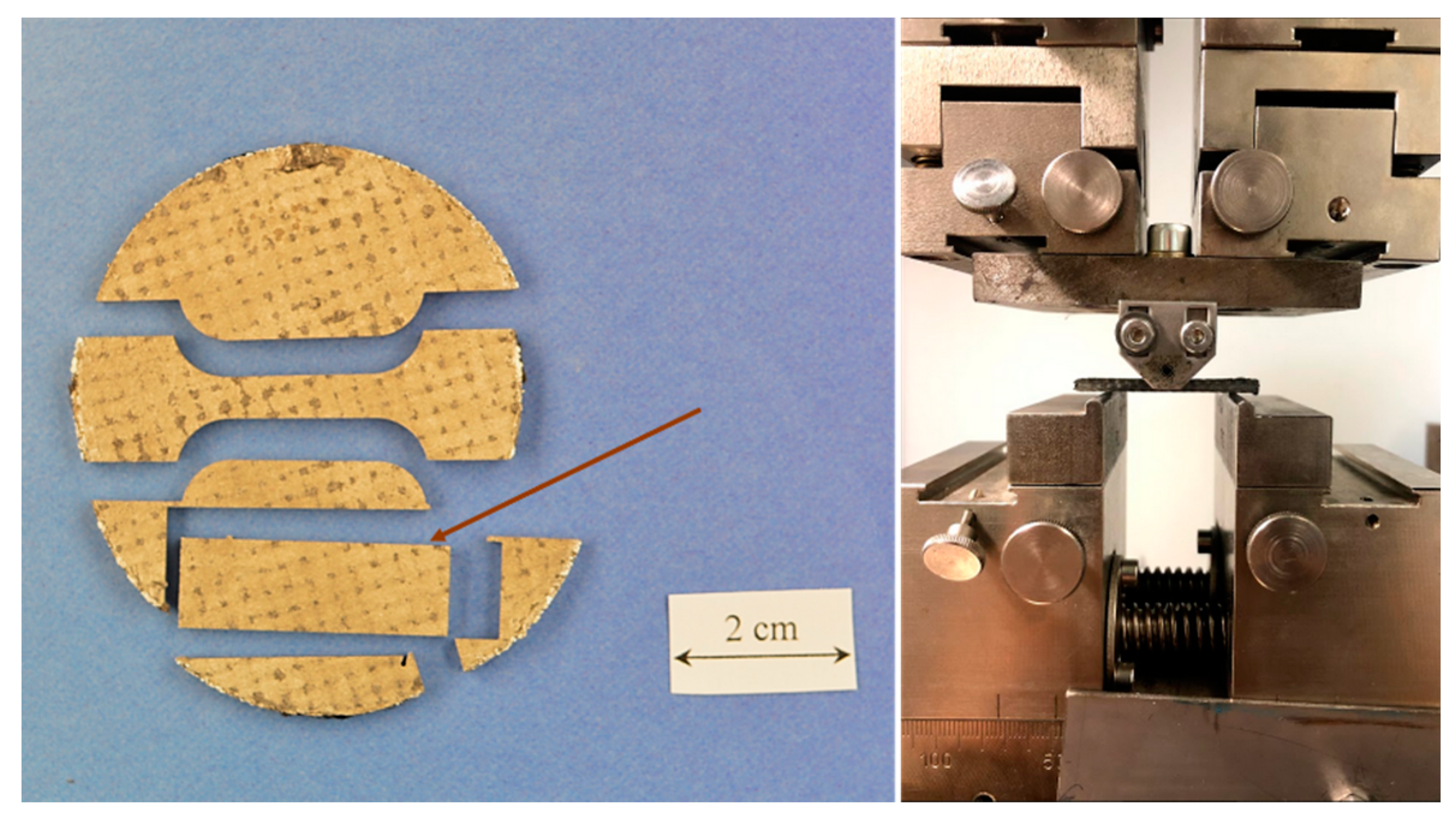

3.3. Mechanical Characterization

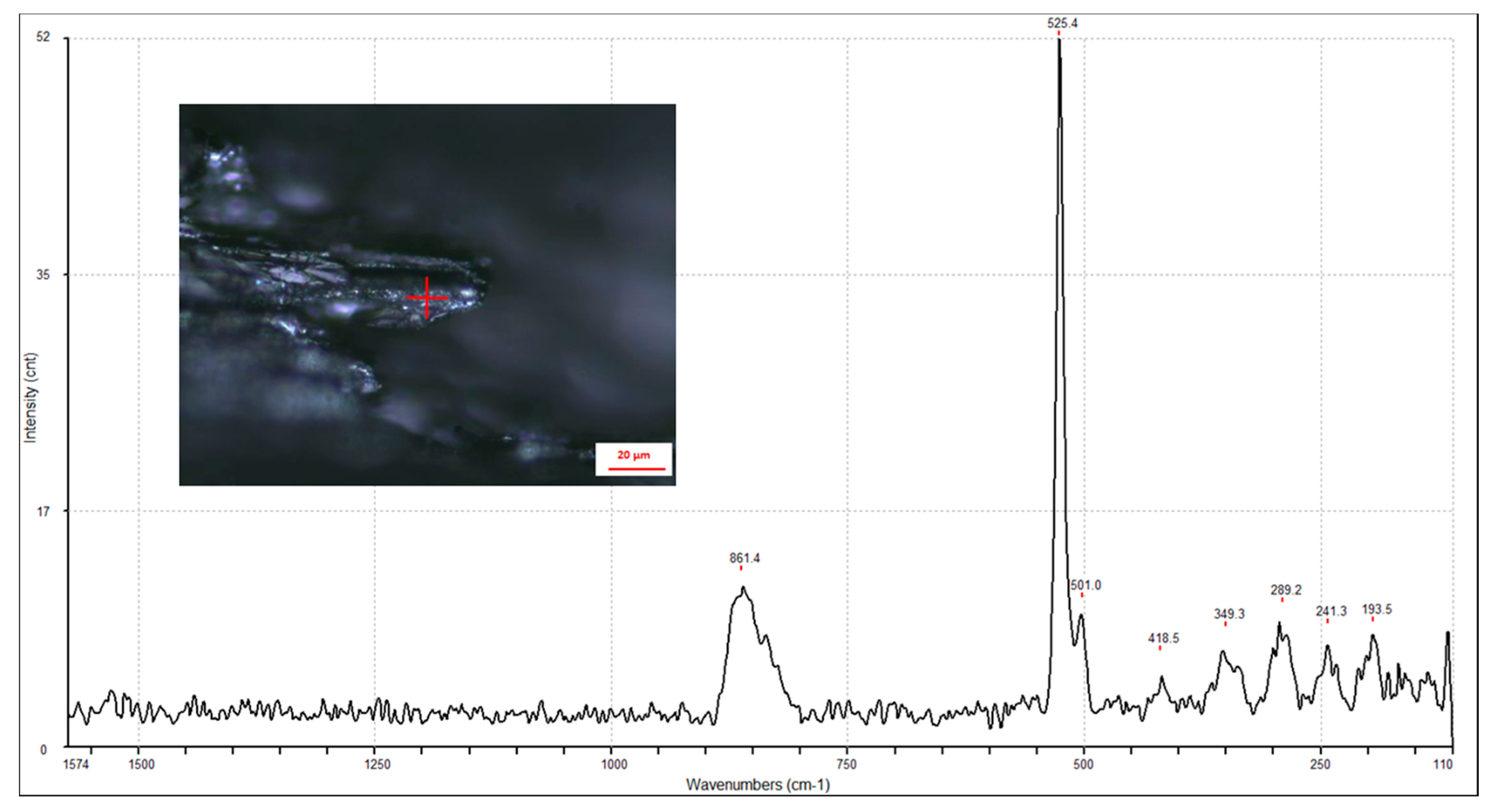

3.4. Raman Spectroscopy
4. Discussion
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Kainer, K.U. (Ed.) Basics of Metal Matrix Composites. In Metal matrix composites: Custom-made Materials for Automotive and Aerospace Engineering; Wiley-VCH: Weinheim, Germany, 2006; pp. 1–54. ISBN 9783527313600. [Google Scholar]
- Evans, A.; San Marchi, C.; Mortensen, A. Metal Matrix Composites in Industry: An Introduction and a Survey; Kluwer Academic Publishers: Dordrecht, The Netherlands, 2003; ISBN 1402075219. [Google Scholar]
- Li, S.-H.; Chao, C.-G. Effects of carbon fiber/Al interface on mechanical properties of carbon-fiber-reinforced aluminum-matrix composites. Met. Mater. Trans. A 2004, 35, 2153–2160. [Google Scholar] [CrossRef]
- Vidal-Sétif, M.H.; Lancin, M.; Marhic, C.; Valle, R.; Raviart, J.-L.; Daux, J.-C.; Rabinovitch, M. On the role of brittle interfacial phases on the mechanical properties of carbon fibre reinforced Al-based matrix composites. Mater. Sci. Eng. A 1999, 272, 321–333. [Google Scholar] [CrossRef]
- Wang, J.; Hong, T.; Li, G.; Li, P. A combined process of coating and hybridizing for the fabrication of carbon fiber reinforced aluminum matrix composites. Compos. Part A: Appl. Sci. Manuf. 1997, 28, 943–948. [Google Scholar] [CrossRef]
- Baker, S.J.; Bonfield, W. Fracture of aluminium-coated carbon fibres. J. Mater. Sci. 1978, 13, 1329–1334. [Google Scholar] [CrossRef]
- Baker, A.A. Carbon fibre reinforced metals—A review of the current technology. Mater. Sci. Eng. 1975, 17, 177–208. [Google Scholar] [CrossRef]
- Wielage, B.; Dorner, A. Veränderung des elektrochemischen Korrosionsverhaltens und der mechanischen Eigenschaften von C/Al-Verbunden durch Faserbeschichtungen aus SiC und pyrolytischem Kohlenstoff. Materialwissenschaft und Werkstofftechnik 1999, 30, 283–290. [Google Scholar] [CrossRef]
- Popovska, N.; Gerhard, H.; Wurm, D.; Poscher, S.; Emig, G.; Singer, R. Chemical vapor deposition of titanium nitride on carbon fibres as a protective layer in metal matrix composites. Mater. Des. 1997, 18, 239–242. [Google Scholar] [CrossRef]
- Aggour, L.; Fitzer, E.; Heym, M.; Ignatowitz, E. Thin coatings on carbon fibers as diffusion barriers and wetting agents in Al composites. Thin Solid Films 1977, 40, 97–105. [Google Scholar] [CrossRef]
- Suzuki, T.; Umehara, H. Pitch-based carbon fiber microstructure and texture and compatibility with aluminum coated using chemical vapor deposition. Carbon 1999, 37, 47–59. [Google Scholar] [CrossRef]
- Bakshi, S.R.; Keshri, A.; Singh, V.; Seal, S.; Agarwal, A. Interface in carbon nanotube reinforced aluminum silicon composites: Thermodynamic analysis and experimental verification. J. Alloys Compd. 2009, 481, 207–213. [Google Scholar] [CrossRef]
- Portnoi, K.I.; Zabolotskii, A.A.; Timofeeva, N.I. Effect of matrix composition on the reactions of the components of C/Al composite materials. Met. Sci. Heat Treat. 1980, 22, 813–815. [Google Scholar] [CrossRef]
- Sadeghian, Z.; Lotfi, B.; Enayati, M.H.; Beiss, P. Microstructural and mechanical evaluation of Al–TiB2 nanostructured composite fabricated by mechanical alloying. J. Alloys Compd. 2011, 509, 7758–7763. [Google Scholar] [CrossRef]
- Bathula, S.; Anandani, R.; Dhar, A.; Srivastava, A. Synthesis and Characterization of Al-Alloy/SiCp Nanocomposites Employing High Energy Ball Milling and Spark Plasma Sintering. Adv. Mater. Res. 2011, 410, 224–227. [Google Scholar] [CrossRef]
- Bakshi, S.R.; Lahiri, D.; Agarwal, A. Carbon nanotube reinforced metal matrix composites—A review. Int. Mater. Rev. 2010, 55, 41–64. [Google Scholar] [CrossRef]
- Lalet, G.; Kurita, H.; Miyazaki, T.; Kawasaki, A.; Silvain, J.-F. Thermomechanical stability of a carbon fiber-reinforced aluminum matrix composite fabricated by spark plasma sintering in various pulse conditions. Mater. Lett. 2014, 130, 32–35. [Google Scholar] [CrossRef]
- Lalet, G.; Kurita, H.; Miyazaki, T.; Kawasaki, A.; Silvain, J.-F. Microstructure of a carbon fiber-reinforced aluminum matrix composite fabricated by spark plasma sintering in various pulse conditions. J. Mater. Sci. 2014, 49, 3268–3275. [Google Scholar] [CrossRef]
- Deutsches Institut für Normung (DIN). Thermal Analysis—Determination of Melting Temperatures of Crystalline Materials by Differential Thermal Analysis; DIN 51004; German Institute for Standardisation (Deutsches Institut für Normung): Berlin, Germany, 1994. [Google Scholar]
- Wenzelburger, M.; Silber, M.; Gadow, R. Manufacturing of Light Metal Matrix Composites by Combined Thermal Spray and Semisolid Forming Process—Summary of the Current State of Technology. Key Eng. Mater. 2010, 425, 217–244. [Google Scholar] [CrossRef] [Green Version]
- Silber, M.; Wenzelburger, M.; Gadow, R. New manufacturing process for thermally sprayed prepregs with local UD fiber reinforcement for semi solid forming of light metal MMC. Int. J. Mater. Form. 2009, 2, 745–748. [Google Scholar] [CrossRef]
- Wenzelburger, M.; Nieves Alsina, M.; von Niessen, K.; Gadow, R. Thermal Spray Manufacturing of Semi-Finished Parts for Thixoforming of Fiber and Particle Reinforced Metal Matrix Composites. Solid State Phenom. 2006, 116, 375–378. [Google Scholar] [CrossRef]
- Cincotti, A.; Locci, A.M.; Orrù, R.; Cao, G. Modeling of SPS apparatus: Temperature, current and strain distribution with no powders. AIChE J. 2007, 53, 703–719. [Google Scholar] [CrossRef]
- Chen, W.; Anselmi-Tamburini, U.; Garay, J.E.; Groza, J.R.; Munir, Z.A. Fundamental investigations on the spark plasma sintering/synthesis process. Mater. Sci. Eng. A 2005, 394, 132–138. [Google Scholar] [CrossRef]
- Cutler, R.A.; Virkar, A.V. The effect of binder thickness and residual stresses on the fracture toughness of cemented carbides. J. Mater. Sci. 1985, 20, 3557–3573. [Google Scholar] [CrossRef]
Sample | Si (%) | Fe (%) | Cu (%) | Mn (%) | Mg (%) | Zn (%) | Ti (%) | Be (%) | Al (%) |
---|---|---|---|---|---|---|---|---|---|
AlSi1MgMn | 1.03 | 0.31 | 0.08 | 0.47 | 1.09 | 0.01 | 0.01 | n.s. | Rest |
AlSi5 | 5.10 | 0.11 | 0.01 | 0.00 | 0.01 | 0.00 | 0.01 | 0.001 | Rest |
AlSi7Mg | 6.90 | 0.11 | 0.001 | 0.001 | 0.67 | 0.001 | 0.09 | 0.001 | Rest |
AlSi10Mg | 9.30 | 0.16 | 0.00 | 0.00 | 0.26 | 0.00 | 0.02 | 0.001 | Rest |
AlSi1MgMn | AlSi5 | AlSi7Mg | AlSi10Mg | ||||
---|---|---|---|---|---|---|---|
Temperature (°C) | Liquid Phase Content (%) | Temperature (°C) | Liquid Phase Content (%) | Temperature (°C) | Liquid Phase Content (%) | Temperature (°C) | Liquid Phase Content (%) |
630 | 12 | 595 | 58 | 585 | 66 | 585 | 83 |
640 | 48 | 605 | 65 | 595 | 75 | 590 | 88 |
650 | 100 | 615 | 77 | 605 | 87 | 595 | 94 |
Alloy | Solidus Temperature (°C) | Liquidus Temperature (°C) | ||
---|---|---|---|---|
2 K/min | 5 K/min | 2 K/min | 5 K/min | |
Cf/AlSi1MgMn | 610 | 605 | 652 | 660 |
Cf/AlSi5 | 560 | 560 | 634 | 640 |
Cf/AlSi7Mg | 555 | 550 | 620 | 625 |
Cf/AlSi10Mg | 560 | 560 | 605 | 610 |
Sample | Fiber Volume Content (%) |
---|---|
Cf/AlSi1MgMn | 50–54 |
Cf/AlSi5 | 46–49 |
Cf/AlSi7Mg | 45–48 |
Cf/AlSi10Mg | 48–52 |
