Ceramics 2019, 2(2), 235-245; https://doi.org/10.3390/ceramics2020019

Article
Influence of a Bleaching Agent on the Color Stability of Indirect Composite Resins Immersed in Dyes
Department of Dental Materials and Prosthodontics, Aracatuba Dental School, Sao Paulo State University (UNESP), Aracatuba, Sao Paulo 16015-050, Brazil
*
Author to whom correspondence should be addressed.
Received: 31 January 2019 / Accepted: 26 March 2019 / Published: 1 April 2019

Abstract

:
This study aimed to evaluate the effect of a bleaching agent on the color of extrinsically pigmented indirect composite resins. Samples of five resins (Adoro, Resilab, Cristobal, Sinfony, Epricord) were manufactured and divided into five groups: red wine, coffee, orange juice, Coca-Cola, and artificial saliva (control). The stained samples were immersed in a 38% hydrogen peroxide solution for 30 min per week, over three weeks. Color readings were performed at the initial state (L0), after 21 days of dye immersion (ΔE1, L1), and after 7 (ΔE2, L2), 14 (ΔE3, L3), and 21 days (ΔE4, L4) of bleach immersion. Data were subjected to ANOVA and Tukey’s honestly significant difference (HSD) test (α = 0.05). The color alteration was greater in ΔE1, regardless of color solution, indicating extrinsic pigmentation. The Resilab group exhibited greater ΔE1 values than the other resins. The bleaching agent promoted bleaching action on the surfaces of the materials studied, removing the previously impregnated pigments.
Keywords:
composite resins; bleaching agents; color; staining

1. Introduction

Beauty standards directly influence dental esthetics. Therefore, dental procedures that involve esthetics, such as restorations with composite resins and bleaching treatments, are under constant development [1].
The chromatic alteration of composite resins can be caused by intrinsic or extrinsic factors. The intrinsic factors are related to chemical and physical reactions in the deepest portions of the restoration, in addition to changes in temperature and humidity. The extrinsic factors are related to the adsorption or absorption of colored substances. In addition, the presence of hydrophilic particles within the resinous matrix, with the capacity to absorb water, and the size and distribution of the particles could provoke chromatic alterations of the restoration [2,3].
A material must have a natural appearance, biocompatibility, and longevity to be used in dental applications [4]. Indirect resin composites incorporate some advantages of porcelain into the composite resins without presenting inherent limitations [5]. In addition to having lower costs than porcelains, they possess better properties than direct resins: reduced polymerization shrinkage, increased flexural strength, resistance to abrasion and fracture, and increased color stability, presenting excellent clinical results [2,3,6].
Despite mechanical polishing being able to remove superficial stains from restorations made from composite resins [7], the use of bleaching agents could give better results in the removal of stains from these materials [8,9]. Different substances can be used as bleaching agents, such as carbamide peroxide and hydrogen peroxide [9]. For in-office application, Opalescence Xtra Boost is a hydrogen peroxide gel with a chemical activation that has a neutral pH, can be used efficiently and safely, and provides appropriate results in a short period of time [10].
Therefore, the objective of this study was to evaluate the efficacy of the use of bleaching agents on the color stability of extrinsically pigmented indirect composite resins. The null hypothesis was that the bleaching agent was not effective for removing impregnated pigments, originating from staining solutions from the surfaces of the tested indirect composite resins.

2. Materials and Methods

Five different brands of B2 (dentine)-colored indirect composite resins were evaluated (Table 1): Adoro (Ivoclar Vivadent Ltda., São Paulo, São Paulo, Brazil), Resilab Master (Wilcos do Brasil, Indústria e Comércio Ltda., Petrópolis, Rio de Janeiro, Brazil), Cristobal (Dentisply Ceramco, Burlington, NJ, USA), Sinfony (3M, Campinas, São Paulo, Brazil), and Epricord (Kuraray Noritake Dental, Tokyo, Japan) (Figure 1) [11]. Twenty-five samples from each brand were manufactured and divided into five groups, according to the type of staining solution (red wine, coffee, orange juice, and Coca-Cola) or artificial saliva (control group) (Table 2).

2.1. Manufacturing of Samples

The samples were manufactured in a cast stainless steel matrix (10 mm length × 5 mm width × 1.5 mm thickness) according to the recommendations of the manufacturers (Table 1) [10]. After the final polymerization, the samples were polished in a semi-automatic polishing machine (Ecomet 300PRO, Buehler, Lake Bluff, IL, USA), running at 300 rpm, with metallographic sandpaper of 240, 400, 800, and 1200 grit (Buehler, Lake Bluff, IL, USA), under constant irrigation with water. The polishing of the samples was finalized using a felt disc with diamond solution (Buehler, Lake Bluff, IL, USA). Each sample had its thickness checked, with the assistance of a digital caliper (500-171-20B, Mitutoyo, Tokyo, Japan), in order to ensure the correct dimensions. All samples were stored in a digital bacteriologic incubator (CIENLAB Equipamento Científicos Ltda., Campinas, São Paulo, Brazil), in distilled water at 37 ± 1 °C for 24 h, before the initial color reading [3].

2.2. Process of Immersion

Each sample was placed in a flask containing 1 mL of a specific solution (Table 2), and sealed to prevent its evaporation. Immersed in the solutions, which were substituted daily, the samples were stored in an incubator at 37 ± 1 °C for 4 h per day for 21 days. When not immersed in the solution, they were stored in artificial saliva [12].
After the immersion, all samples were subjected to the 38% hydrogen peroxide bleaching agent (Opalescence Xtra Boost, Ultradent, South Jordan, Utah, USA) for 30 min per week, for 3 weeks, according to the recommendation from the manufacturer [13]. During this period, the samples continued to be stored in the incubator at 37 ± 1 °C for 21 days. When not immersed in the bleaching solution, they were stored in artificial saliva [13].

2.3. Reading of the Color Alteration

The readings of the color alteration were performed in the following periods: initial (L0), after 21 days of immersion in the color solutions (ΔE1 and L1), after 7 days of immersion in the bleaching agent (ΔE2 and L2), after 14 days of immersion in the bleaching agent (ΔE3 and L3), and after 21 days of immersion in the bleaching agent (ΔE4 and L4). The readings of the color alteration (ΔE) and luminosity (L*) of the samples were performed with the assistance of a reflection spectrophotometer (UV-2450, Shimadzu Corp., Kyoto, Japan) [14,15]. Color alterations (ΔE) were calculated by means of the L*a*b* system, as established by the CIE—Commission Internacionale de l’Eclairage [16].

2.4. Statistical Analysis

The data describing the color alteration (ΔE) and the L* (CIELab) coordinates obtained were subjected to the three-way analysis of variance (ANOVA) with repeated-measure factors, and the Tukey honestly significant difference (HSD) test (α = 0.05), in order to detect statistically significant differences between the analyzed factors.

3. Results

From the results, it was observed that interactions between the type of resin, the staining solution used, and the period of analysis significantly affected the color alteration (ΔE) (P < 0.001) (Table 3) and the L* coordinate (P < 0.001) (Table 4).
The color alteration was greatest at ΔE1, regardless of the staining solution and the composite resin analyzed, indicating pigmentation of the materials after immersion. The Resilab group exhibited the greatest values of ΔE1, when compared to the other resins. From the analyses of ΔE2, ΔE3, and ΔE4, it was concluded that the bleaching agent produced a bleaching action on the surfaces of the materials studied, removing the previously impregnated pigments (Table 5, Table 6, Table 7, Table 8 and Table 9).
By considering the L* coordinate (Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6), it was verified that the bleaching agent permitted an increase in the lightness of the materials studied, after the immersion in the coloring solutions. This indicates a bleaching action on the surface.

4. Discussion

The null hypothesis tested, that the bleaching agent was not effective for the removal of pigments originating from staining solutions from the surface of indirect resins, was rejected. This is because the bleaching agent produced a bleaching action on the surfaces of the materials studied, removing the previously impregnated pigments (Table 5, Table 6, Table 7, Table 8 and Table 9, Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6).
It can be verified, through the results (Table 5, Table 6, Table 7, Table 8 and Table 9), that the delta of the color for all samples was greater than 3.3 in all color solutions. This indicates, by spectrophotometric analysis, an alteration of color which is visually perceptible and clinically unacceptable from the point of view of esthetics (ΔE < 3.3) [17,18].
It is known that the alterations of the color of composite resins are multifactorial, involving intrinsic and extrinsic factors [19,20,21]. The intrinsic factors are related to the chemical stability of the material, which depends on the fractional conversion of the monomers present in the resinous matrix. The presence of residual monomers in the resinous material induces susceptibility to pigmentation by absorption of external substances [22].
Despite the versatility and good esthetic results of resinous materials, the absorption of staining agents is still the most prominent reason for chromatic alterations of these materials, and staining of restorations [23]. Among the liquid solutions tested in the present study, red wine (greater ΔE1 for Adoro and Sinfony), coffee (greater ΔE1 for Epricord and Cristobal), and orange juice (greater ΔE1 for Resilab) affected the color stability the most, with a statistically significant difference from the other solutions (Table 5, Table 6, Table 7, Table 8 and Table 9). According to some studies, coffee possesses a great capacity for staining, caused by absorption and adsorption of yellow pigments of low polarity, which possess a chemical affinity to the polymeric phase of the resinous material [19,24,25]. Similar to coffee, some studies demonstrate the great effect that red wine shows in pigmentation of resinous materials, due to the alcohol it contains [24,26]. Orange juice contains citric acid, which could influence the pigmentation of materials [27].
Several studies have also demonstrated a staining potential of tea, showing greater pigmentation than coffee [28] and grape juice [29], for example. The color alteration is a result of theaflavins present in tea leaves, which produce a yellowish-brown stain [16]. Therefore, this staining solution should be evaluated in further studies for a better understanding of its behavior.
Many times, dental surgeons perform superficial polishing of the material, trying to minimize staining and to remove extrinsic pigments from the surface of the restoration, thus increasing the longevity of the restoration. However, some studies affirm that bleaching agents could also be capable of removing intrinsic and extrinsic stains from restorations [8,9,30,31]. This was observed in the present study, in which the values of ΔE2, ΔE3, and ΔE4 indicated that the bleaching agent effectively decolored the surfaces of the materials (Table 5, Table 6, Table 7, Table 8 and Table 9). Nonetheless, to evaluate only the ΔE values could induce an error, since the color of these materials is affected by a combination of intrinsic and extrinsic factors, and the correlations in the results obtained by existing laboratory methods, such as the CIE L*a*b*, are poor [32], many times making it necessary to evaluate each coordinate.
Values of the L* coordinate (Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6) extend from 0 (black) to 100 (perfect white), describing the luminosity of the sample. It was observed that after the immersion in the staining solutions used, the bleaching agent produced an increase in the lightness of the resins analyzed, resembling the initial values. This indicates that removal of the pigments impregnated on the surfaces of the materials studied could have occurred.
However, this may not occur clinically, since the effects of the solutions tested could be modified by the action of bacterial biofilms and saliva. The laboratory tests, in which immersions of these restorative materials are performed in different solutions, are biased by disregarding these factors [9]. In addition, the bleaching agents could also provoke the detachment of charged particles from the surface of the resinous materials, since hydrogen peroxide can cause oxidation and reduction reactions [33,34]. This action could lead to an increase in the superficial roughness, facilitating even more staining of the material when it is again exposed to staining solutions [8,9,30]. Therefore, more in vitro studies that simulate the effects of these factors, and laboratory methods that possess a strong correlation between the laboratory tests and the results found in clinics, are necessary.
In the present study, a challenge was performed, which consisted of periods of exposure to solutions intercalated with periods of exposure to saliva, simulating oral conditions with high accuracy. The clinical implication of this study is that the greatest color alteration was observed in ΔE1, independent of color solution, indicating extrinsic pigmentation. The Resilab group exhibited greater values of ΔE1 when compared to the other resins. The 38% hydrogen peroxide-based bleaching agent effectively bleached the surfaces of the materials studied. Therefore, these findings are important to patients and can help scientists and professionals in their clinical practice.

5. Conclusions

Based on the results obtained, and considering the limitations of this study, it can be concluded that the 38% hydrogen peroxide-based bleaching agent produced a bleaching action of the surfaces of the materials studied, removing the previously impregnated pigments.

Author Contributions

In regards to the contributions of each author, all authors contributed equally to the work. M.C.G. and D.M.d.S. participated in the concepts and coordination of the study, performed the study design, and drafted the manuscript. E.V.F.d.S., J.B.M. and D.C. conceived the study, fabricated the samples, and participated in assays, as well helped draft the manuscript. F.P.d.C. performed the statistical analysis and participated in interpretation of data. All authors read and approved the final manuscript.

Funding

This research was funded the Sao Paulo Research Foundation, grant number 2012/13244-2.

Acknowledgments

This work was supported by the Sao Paulo Research Foundation [Process 2012/13244-2].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Torres, C.R.G.; Ribeiro, C.F.; Bresciani, E.; Borges, A.B. Influence of hydrogen peroxide bleaching gels of color, opacity, and fluorescence of composite resins. Oper. Dent. 2012, 37, 526–531. [Google Scholar] [CrossRef]
  2. Jain, V.; Platt, J.A.; Moore, B.K.; Borges, G.A. In vitro wear of new indirect resin composites. Oper. Dent. 2009, 34, 423–428. [Google Scholar] [CrossRef] [PubMed]
  3. Kim, S.H.; Lee, Y.K. Changes in color and color coordinates of an indirect resin composite during curing cycle. J. Dent. 2008, 36, 337–342. [Google Scholar] [CrossRef] [PubMed]
  4. Okulus, Z.; Buchwald, T.; Voelkel, A. Characterization of light-cured, dental-resin-based composites. J. Appl. Polym. Sci. 2015, 132, 42812. [Google Scholar] [CrossRef]
  5. Leinfelder, K.F. New developments in resin restorative systems. J. Am. Dent. Assoc. 1997, 128, 573–581. [Google Scholar] [CrossRef]
  6. Peutzfeldt, A.; Asmussen, E. The effect of postcuring on quantity of remaining double bonds, mechanical properties, and in vitro wear of two resin composites. J. Dent. 2000, 28, 447–452. [Google Scholar] [CrossRef]
  7. Anfe, T.E.; Agra, C.M.; Vieira, G.F. Evaluation of the possibility of removing staning by repolishing composite resins submitted to artificial again. J. Esthet. Restor. Dent. 2011, 23, 260–267. [Google Scholar] [CrossRef] [PubMed]
  8. Villalta, P.; Lu, H.; Okte, Z.; Garcia-Godoy, F.; Powers, J.M. Effects of staining and bleaching on color change of dental composite resins. J. Prosthet. Dent. 2006, 95, 137–142. [Google Scholar] [CrossRef] [PubMed]
  9. Türkün, L.S.; Türkün, M. Effect of bleaching and repolishing procedures on coffee and tea stain removal from three anterior composite veneering materials. J. Esthet. Restor. Dent. 2004, 16, 290–301. [Google Scholar] [CrossRef] [PubMed]
  10. Opalescence Boost. Available online: https://www.ultradent.com/products/categories/whitening/in-office/opalescence-boost (accessed on 10 March 2019).
  11. Dos Santos, D.M.; De Paula, A.M.; Bonatto, L.d.R.; Da Silva, E.V.; Vechiato Filho, A.J.; Moreno, A.; Goiato, M.C. Influence of colorant solutions in properties of indirect resin composites. Am. J. Dent. 2015, 28, 219–223. [Google Scholar] [PubMed]
  12. Fontes, S.T.; Fernández, M.R.; Moura, C.M.; Meireles, S.S. Color stability of a nanofill composite: Effect of different immersion media. J. Appl. Oral Sci. 2009, 17, 388–391. [Google Scholar] [CrossRef] [PubMed]
  13. Barbosa, C.M.; Sasaki, R.T.; Florio, F.M.; Basting, R.T. Influence of time on bond strength after bleaching with 35% hydrogen peroxide. J. Contemp. Dent. Pract. 2008, 9, 81–88. [Google Scholar] [PubMed]
  14. Goiato, M.C.; Zuccolotti, B.C.; Moreno, A.; Dos Santos, D.M.; Pesqueira, A.A.; de Carvalho Dekon, S.F. Colour change of soft denture liners after storage in coffee and coke. Gerondontology 2011, 28, 140–145. [Google Scholar] [CrossRef] [PubMed]
  15. Mancuso, D.N.; Goiato, M.C.; Zuccolotti, B.C.R.; Moreno, A.; Dos Santos, D.M. Evaluation of hardness and colour change of soft liners after accelerated ageing. Prim. Dent. Care 2009, 16, 127–130. [Google Scholar] [CrossRef]
  16. Oğuz, S.; Mutluay, M.M.; Doğan, O.M.; Bek, B. Color change evaluation of denture soft lining materials in coffee and tea. Dent. Mater. J. 2007, 26, 209–216. [Google Scholar] [CrossRef]
  17. Ruyter, I.E.; Nilner, K.; Moller, B. Color stability of dental composite resin materials for crown and bridge veneers. Dent. Mater. 1987, 3, 246–251. [Google Scholar] [CrossRef]
  18. Noie, F.; O’Keefe, K.L.; Powers, J.M. Color stability of resin cements after accelerated aging. Int. J. Prosthodont. 1995, 8, 51–55. [Google Scholar] [PubMed]
  19. Samra, A.P.B.; Pereira, S.K.; Delgado, L.C.; Borges, C.P. Color stability evaluation of aesthetic restorative materials. Braz. Oral Res. 2008, 22, 205–210. [Google Scholar] [CrossRef] [PubMed][Green Version]
  20. Festuccia, M.S.; Garcia, L.d.F.; Cruvinel, D.R.; Pires-De-Souza, F.d.C. Color stability, surface roughness and microhardness of composites submitted to mouthrinsing action. J. Appl. Oral Sci. 2012, 20, 200–205. [Google Scholar] [CrossRef] [PubMed][Green Version]
  21. Lee, Y.K.; Yu, B.; Lim, H.N.; Lim, J.I. Difference in the color stability of direct and indirect resin composites. J. Appl. Oral Sci. 2011, 19, 154–160. [Google Scholar] [CrossRef][Green Version]
  22. Nakazawa, M. Color stability of indirect composite materials polymerized with different polymerization systems. J. Oral Sci. 2009, 51, 267–273. [Google Scholar] [CrossRef]
  23. Domingos, P.A.; Garcia, P.P.; Oliveira, A.L.; Palma-Dibb, R.G. Composite resin color stability: Influence of light sources and immersion media. J. Appl. Oral Sci. 2011, 19, 204–211. [Google Scholar] [CrossRef]
  24. Fujita, M.; Kawakami, S.; Noda, M.; Sano, H. Color change of newly developed esthetic restorative material immersed in food-simulating solutions. Dent. Mater. J. 2006, 25, 352–359. [Google Scholar] [CrossRef]
  25. Ertaş, E.; Güler, A.U.; Yücel, A.C.; Köprülü, H.; Güler, E. Color stability of resin composites after immersion in different drinks. Dent. Mater. J. 2006, 25, 371–376. [Google Scholar] [CrossRef]
  26. Guler, A.U.; Yilmaz, F.; Kulunk, T.; Guler, E.; Kurt, S. Effects of different drinks on stainability of resin composite provisional restorative materials. J. Prosthet. Dent. 2005, 94, 118–124. [Google Scholar] [CrossRef]
  27. Catelan, A.; Briso, A.L.; Sundfeld, R.H.; Goiato, M.C.; dos Santos, P.H. Color stability of sealed composite resin restorative materials after ultraviolet artificial aging and immersion in staining solutions. J. Prosthet. Dent. 2011, 105, 236–241. [Google Scholar] [CrossRef]
  28. Khokhar, Z.A.; Razzoog, M.E.; Yaman, P. Color stability of restorative resins. Quintessence Int. 1991, 22, 733–737. [Google Scholar]
  29. Crispin, B.; Caputo, A. Color stability of temporary restorative materials. J. Prosthet. Dent. 1979, 42, 27–33. [Google Scholar] [CrossRef]
  30. Turker, S.B.; Biskin, T. Effect of three bleaching agents on the surface properties of three different esthetic restorative materials. J. Prosthet. Dent. 2003, 89, 466–473. [Google Scholar] [CrossRef]
  31. Cehreli, Z.C.; Yazici, R.; Garcia-Godoy, F. Effect of home-use bleaching gels on fluoride releasing restorative materials. Oper. Dent. 2003, 28, 605–609. [Google Scholar] [PubMed]
  32. Bayne, S.C. Correlation of clinical performance with ‘in vitro tests’ of restorative dental materials that use polymer-based matrices. Dent. Mater. 2012, 28, 52–71. [Google Scholar] [CrossRef] [PubMed]
  33. Malkondu, Ö.; Yurdagüven, H.; Say, E.C.; Kazazoğlu, E.; Soyman, M. Effect of bleaching on microhardness of esthetic restorative materials. Oper. Dent. 2011, 36, 177–186. [Google Scholar] [CrossRef] [PubMed]
  34. Durner, J.; Stojanovic, M.; Urcan, E.; Spahl, W.; Haertel, U.; Hickel, R.; Reichl, F.X. Effect of hydrogen peroxide on the three-dimensional polymer network in composites. Dent. Mater. 2011, 27, 573–580. [Google Scholar] [CrossRef] [PubMed]

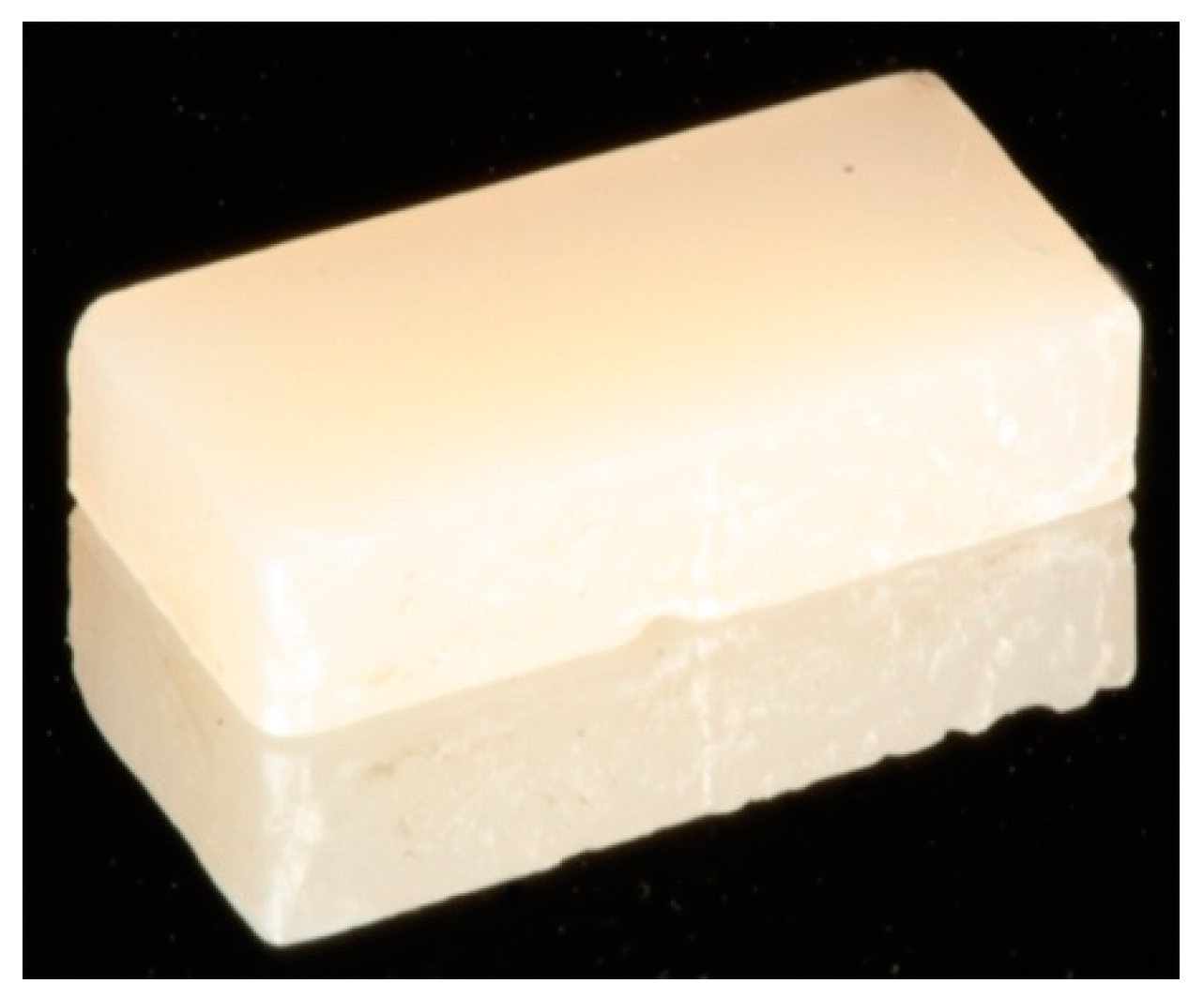

Figure 1. Indirect composite resin sample.
Figure 1. Indirect composite resin sample.
Ceramics 02 00019 g001
Figure 2. Mean values of L* coordinates of Adoro resin for each color solution used, in each period evaluated. Different small letters indicate statistically significant differences (P < 0.05) between different color solutions in the same period. Different capital letters indicate statistically significant differences (P < 0.05) between different periods for the same color solution.
Figure 2. Mean values of L* coordinates of Adoro resin for each color solution used, in each period evaluated. Different small letters indicate statistically significant differences (P < 0.05) between different color solutions in the same period. Different capital letters indicate statistically significant differences (P < 0.05) between different periods for the same color solution.
Ceramics 02 00019 g002

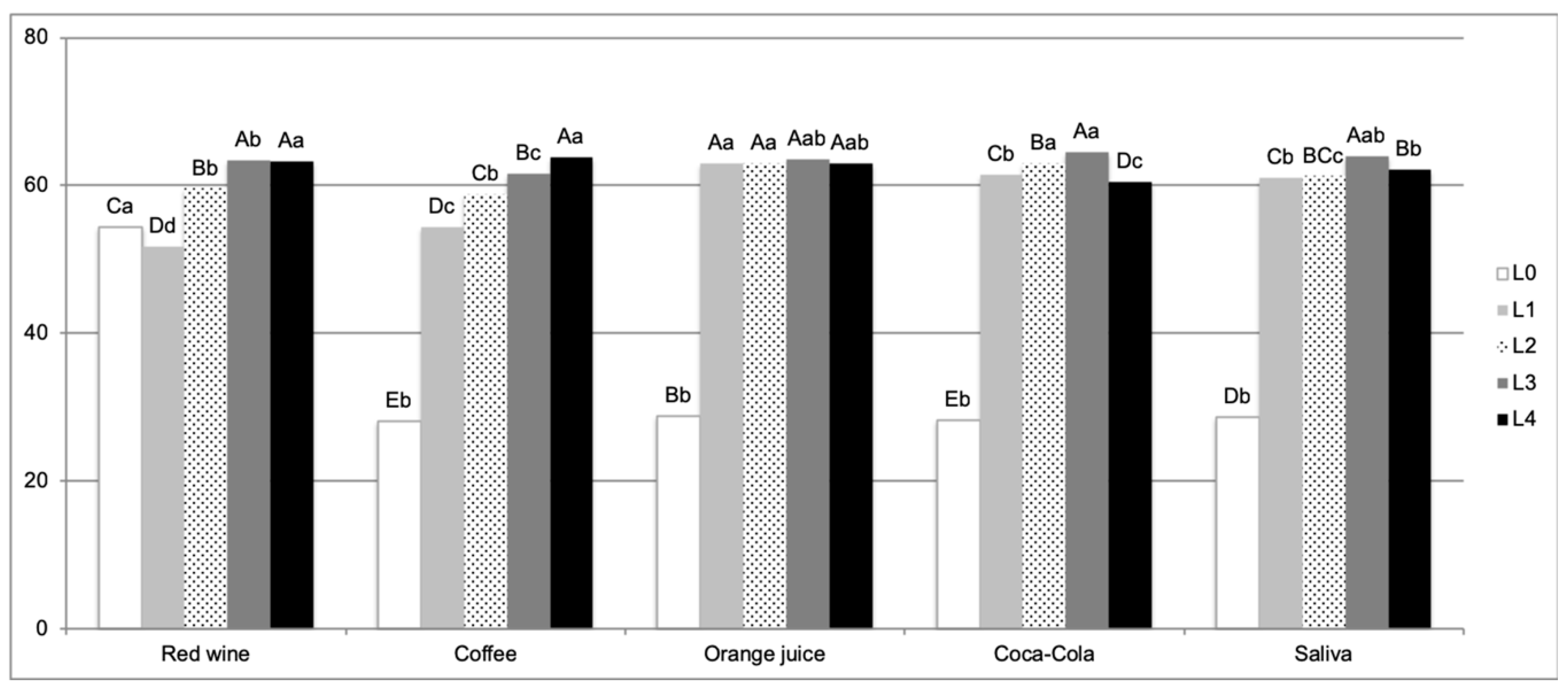

Figure 3. Mean values of L* coordinate of Resilab resin for each color solution used, in each period evaluated. Different small letters indicate statistically significant differences (P < 0.05) between different color solutions in the same period. Different capital letters indicate statistically significant differences (P < 0.05) between different periods for the same color solution.
Figure 3. Mean values of L* coordinate of Resilab resin for each color solution used, in each period evaluated. Different small letters indicate statistically significant differences (P < 0.05) between different color solutions in the same period. Different capital letters indicate statistically significant differences (P < 0.05) between different periods for the same color solution.
Ceramics 02 00019 g003

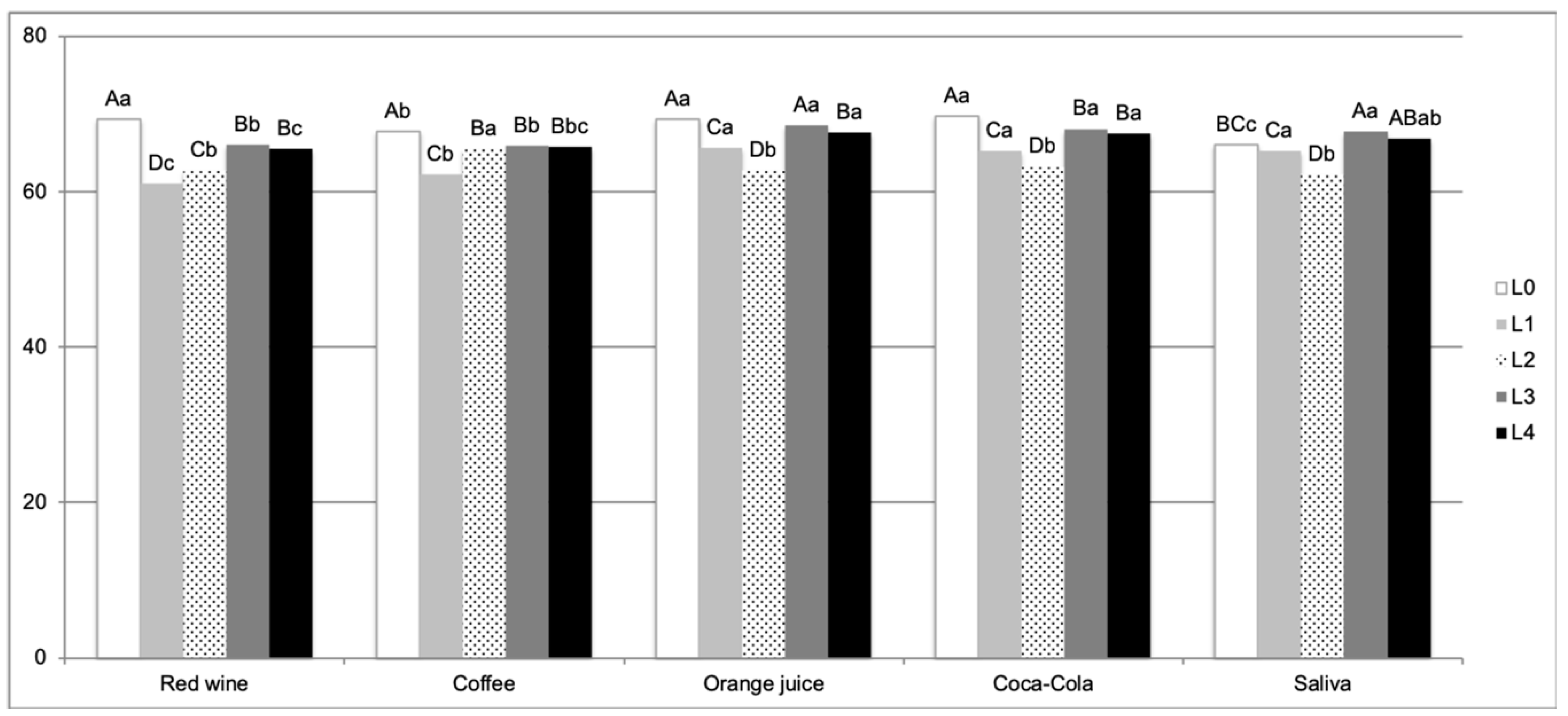

Figure 4. Mean values of L* coordinate of Epricord resin for each color solution used, in each period evaluated. Different small letters indicate statistically significant differences (P < 0.05) between different color solutions in the same period. Different capital letters indicate statistically significant differences (P < 0.05) between different periods for the same color solution.
Figure 4. Mean values of L* coordinate of Epricord resin for each color solution used, in each period evaluated. Different small letters indicate statistically significant differences (P < 0.05) between different color solutions in the same period. Different capital letters indicate statistically significant differences (P < 0.05) between different periods for the same color solution.
Ceramics 02 00019 g004

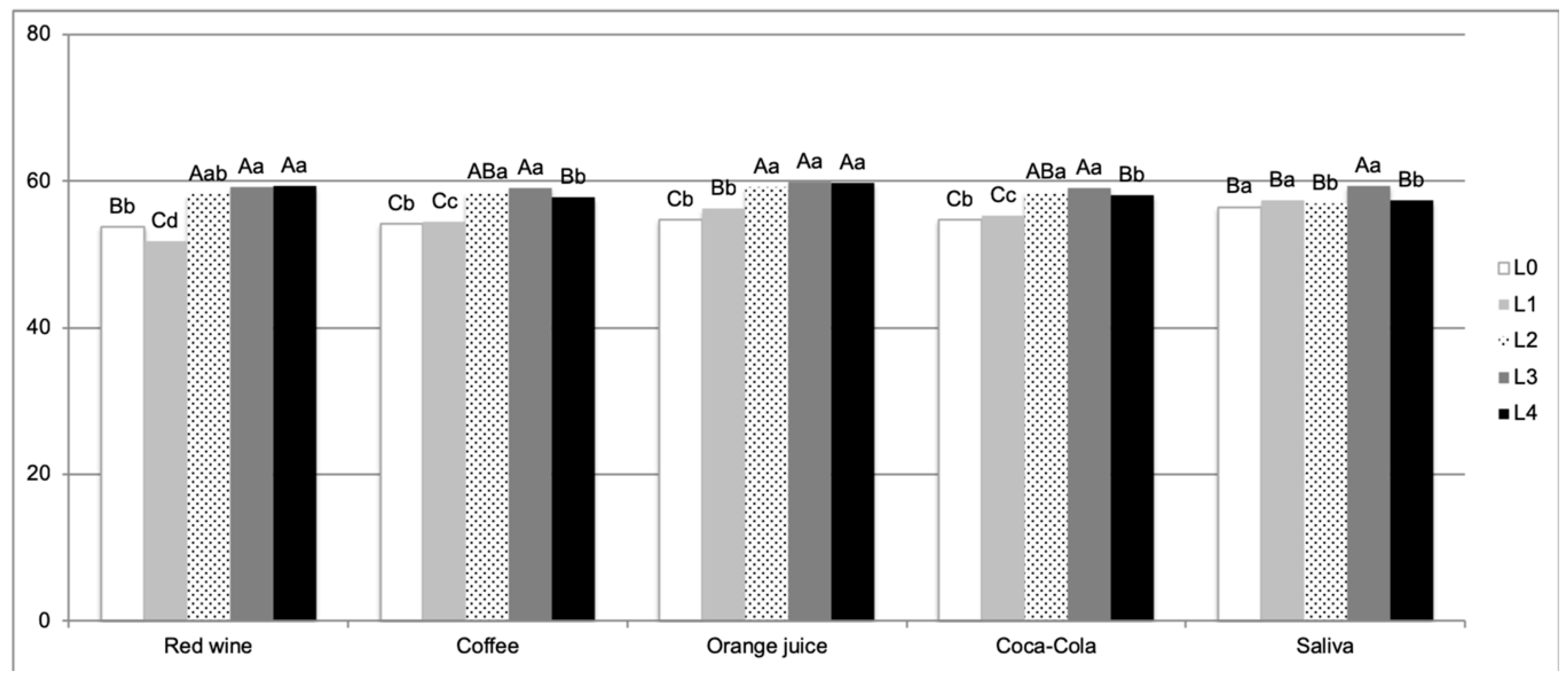

Figure 5. Mean values of L* coordinate of Cristobal resin for each color solution used, in each period evaluated. Different small letters indicate statistically significant differences (P < 0.05) between different color solutions in the same period. Different capital letters indicate statistically significant differences (P < 0.05) between different periods for the same color solution.
Figure 5. Mean values of L* coordinate of Cristobal resin for each color solution used, in each period evaluated. Different small letters indicate statistically significant differences (P < 0.05) between different color solutions in the same period. Different capital letters indicate statistically significant differences (P < 0.05) between different periods for the same color solution.
Ceramics 02 00019 g005

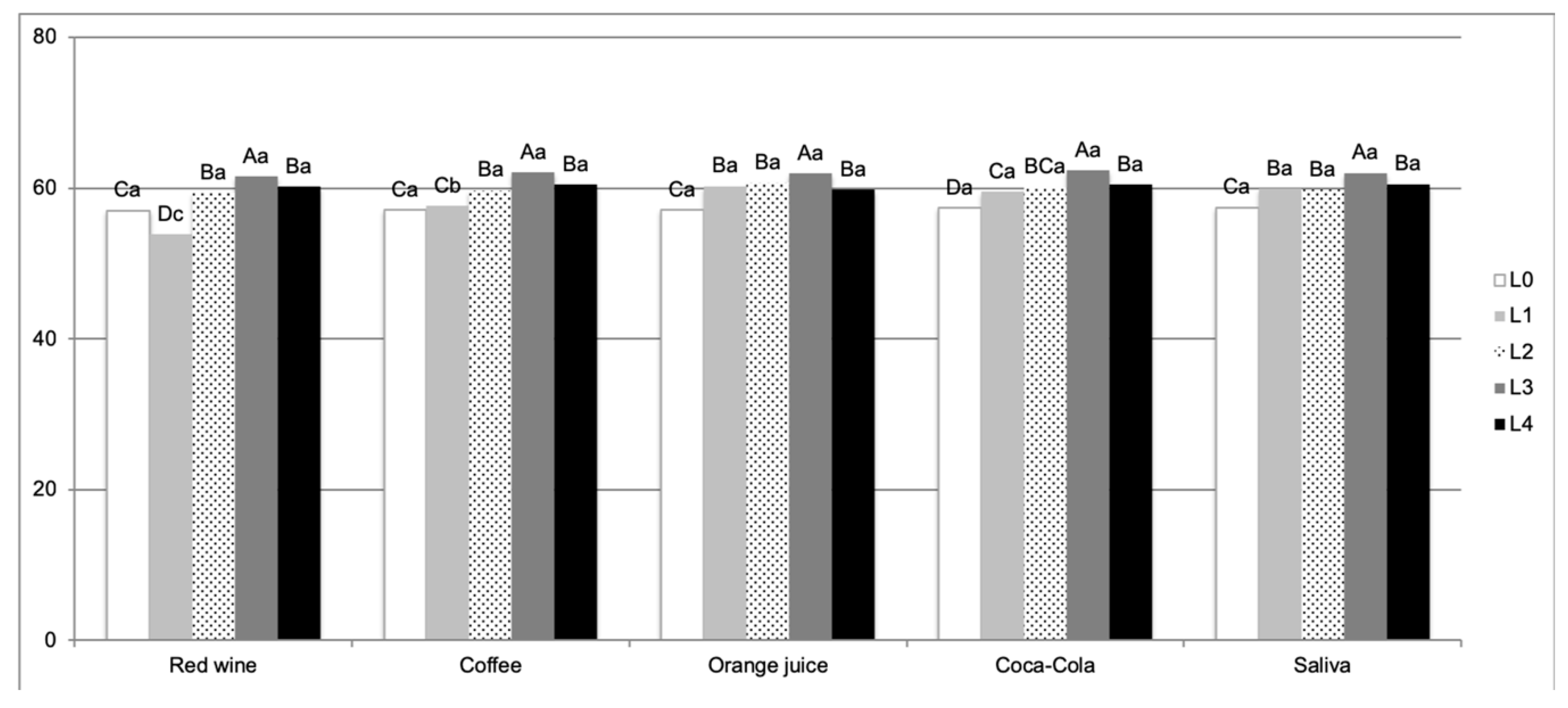

Figure 6. Mean values of L* coordinates of Sinfony resin for each color solution used, in each period evaluated. Different small letters indicate statistically significant differences (P < 0.05) between different color solutions in the same period. Different capital letters indicate statistically significant differences (P < 0.05) between different periods for the same color solution.
Figure 6. Mean values of L* coordinates of Sinfony resin for each color solution used, in each period evaluated. Different small letters indicate statistically significant differences (P < 0.05) between different color solutions in the same period. Different capital letters indicate statistically significant differences (P < 0.05) between different periods for the same color solution.
Ceramics 02 00019 g006
Table 1. Indirect composite resins used for specimen confection.
Table 1. Indirect composite resins used for specimen confection.
BrandChemical CompositionPolymerization
Adoro17–19% of dimethacrylate, 82–83% copolymers of silicon oxide, and 1% stabilizers, catalysts, and pigments.Pre-polymerization in a Targis Quick unit (halogen lamp, intensity of 600 mW/cm2). Resin impregnated with glycerin gel. Polymerization in a Lunamat 100 unit, with eight lamps emitting fluorescent light in a mirrored environment for 25 min (10 min with light, 10 min with heat at 1040 °C and 5 min with cooling unit) at a total power of 750 W.
Resilab Master Small particles with a mean size of 0.05 mm, 53% of ceramic filler particles, BisGMA (bisphenol A-glycidyl methacrylate), BisEMA (ethoxylated bisphenol A- dimethacrylate), UDMA (urethane dimethacrylate), TEGMA (tri-ethylene glycol dimethacrylate), aluminum borosilicate, highly dispersible silica, photoinitiators, inhibitors, and pigments.Pre-polymerization for 4 min in an EDG-Lux unit (400–500 mW/cm2) with temperature not exceeding 50 °C. Final polymerization for 8 min in an EDG-Lux unit (400–500 mW/cm2).
Cristobal 74% pyrogenic silica particles, barium glass, and borosilicate. Pre-polymerization in an MPa 2000 unit for 90 s (200 mW/cm2) in the first cycle and then for 75 s (800–1000 mW/cm2) in the second cycle. Final polymerization in a Post Cure unit for 8 min at 80 °C.
Sinfony48% organic matrix (UDMA), 40% strontium glass (macroparticle of 0.6 μm), 5% pyrogenic silica (microparticle of 0.06 μm), 5% glass ionomer cement particles, 1% silane and 1% initiator.Pre-polymerization for 15 s in Visio Alfa Light and Visio Beta Vario Light units used with a Visio Beta Vacuum pump (470 mW/cm2). Final polymerization in two stages: 1 minute of light emission in air followed by 14 min of light emission in vacuum in Visio Beta.
Epricord 53% ceramic filler content, 25% multifunctional polymers and 22% conventional resin photoinitiators. The mean particle size is 0.6 μm.Pre-polymerization for 30 s in a Kota unit. Final polymerization for 180 s with a halogen lamp (600 mW/cm2) in a Kota unit.
Table 2. Immersion solutions used in the study.
Table 2. Immersion solutions used in the study.
SolutionBrandChemical Composition
Red winePeriquita dry red wine, José Maria Da Fonseca Vinhos S.A., Azeitão, PortugalRed grape varieties, conservative INS 220 (sulfur dioxide, SO2), sulphurous acid, and 12.7% alcohol.
CoffeeCoffee Pilão, Sara Lee, Jundiaí, São Paulo, BrazilRoasted and ground coffee.
Orange juiceCoca-Cola, Ribeirão Preto, BrazilOrange juice, water, sugar, orange pulp, natural flavors, ascorbic acid, and citric acid.
Coca-ColaCoca-Cola, Ribeirão Preto, BrazilCarbonated water, sugar, cola nut extract, yellow dye IV, acidulant INS 338, and natural flavors.
Artificial salivaFarmácia de Manipulação Apothicário, Araçatuba, Brazil[KCl (0.4 g·L−1), NaCl (0.4 g·L−1), CaCl2·2H2O (0.906 g·L−1), NaH2PO4·2H2O (0.690 g·L−1), Na2S·9H2O (0.005 g·L−1), and urea (1 g·L−1)].
Table 3. Three-way analysis of variance (ANOVA) with repeated-measure factors for color alterations (ΔE) of indirect composite resins.
Table 3. Three-way analysis of variance (ANOVA) with repeated-measure factors for color alterations (ΔE) of indirect composite resins.
SSdfMSFP
Resin6566.38641641.5972142.478<0.001
Solution131.647432.91242.954<0.001
Resin × Solution458.5581628.66037.404<0.001
Between subjects172.3982250.766
Period19,564.5732.8456877.3705664.649<0.001
Period × Resin12,870.39411.3791131.055931.611<0.001
Period × Solution930.29111.37981.75467.338<0.001
Period × Resin × Solution3266.35445.51671.76259.108<0.001
Within subjects777.1056751.151
P < 0.05 denotes statistically significant difference.
Table 4. Three-way analysis of variance (ANOVA) with repeated-measure factors for L* coordinate of indirect composite resins.
Table 4. Three-way analysis of variance (ANOVA) with repeated-measure factors for L* coordinate of indirect composite resins.
SSdfMSFP
Resin23,185.79045796.4471693.562<0.001
Solution200.716450.17914.661<0.001
Resin × Solution829.0491651.81615.139<0.001
Between subjects770.0932253.423
Period8636.9293.0712812.8011324.969<0.001
Period × Resin25,959.11212.2822113.535995.580<0.001
Period × Solution2326.53712.282189.42289.227<0.001
Period × Resin × Solution4517.11149.12991.94343.310<0.001
Within subjects1466.6839001.630
P < 0.05 denotes statistically significant difference.
Table 5. Mean values of color alterations (∆E) of Adoro resin for each staining solution, before and after bleaching treatment.
Table 5. Mean values of color alterations (∆E) of Adoro resin for each staining solution, before and after bleaching treatment.
Resin Staining Solution
Red WineCoffeeOrange JuiceCoca-ColaSaliva
Adoro∆E16.59 Aa5.99 Aab5.42 Ab6.14 Aab0.57 Bc
∆E22.79 Bb5.05 Ba1.89 Bc2.20 Bbc0.45 Bd
∆E33.40 Ba2.47 Cb1.89 Bb2.47 Bb1.96 Ab
∆E40.76 Ca0.66 Da1.20 Ba1.22 Ca0.85 Ba
Means followed by the same capital letter in column do not differ (P < 0.05; Tukey).
Means followed by the same lowercase letter in the line do not differ (P < 0.05; Tukey).
Table 6. Mean values of color alterations (∆E) of Resilab resin for each staining solution, before and after bleaching treatment.
Table 6. Mean values of color alterations (∆E) of Resilab resin for each staining solution, before and after bleaching treatment.
Resin Staining Solution
Red WineCoffeeOrange JuiceCoca-ColaSaliva
Resilab∆E113.49 Ad29.44 Ac35.64 Aa34.53 Ab33.68 Ab
∆E28.15 Ba4.61 Bb1.18 Dc1.87 Cc1.34 Cc
∆E35.13 Ca3.19 Cb2.26 Ccd1.77 Cd2.93 Bbc
∆E44.56 Dab3.87 BCab3.53 Bb4.77 Ba1.98 BCc
Means followed by the same capital letter in column do not differ (P < 0.05; Tukey).
Means followed by the same lowercase letter in the line do not differ (P < 0.05; Tukey).
Table 7. Mean values of color alterations (∆E) of Epricord resin for each staining solution, before and after bleaching treatment.
Table 7. Mean values of color alterations (∆E) of Epricord resin for each staining solution, before and after bleaching treatment.
Resin Staining Solution
Red WineCoffeeOrange JuiceCoca-ColaSaliva
Epricord∆E112.78 Ab13.84 Aa11.54 Ac11.54 Ac11.53 Ac
∆E25.52 Bab6.16 Ba4.05 Cc4.20 Cc5.09 Cb
∆E36.32 Ba5.93 Ba6.35 Ba5.94 Ba6.28 Ba
∆E42.50 Ca0.95 Cb1.08 Db0.84 Db0.88 Db
Means followed by the same capital letter in column do not differ (P < 0.05; Tukey).
Means followed by the same lowercase letter in the line do not differ (P < 0.05; Tukey).
Table 8. Mean values of color alterations (∆E) of Cristobal resin for each staining solution, before and after bleaching treatment.
Table 8. Mean values of color alterations (∆E) of Cristobal resin for each staining solution, before and after bleaching treatment.
Resin Staining Solution
Red WineCoffeeOrange JuiceCoca-ColaSaliva
Cristobal∆E18.57 Aab9.27 Aa8.54 Aab8.58 Aab8.39 Ab
∆E26.51 Ba4.10 Bb2.91 Bc3.32 Bc0.82 Cc
∆E31.31 Cbc1.85 Cab0.74 Cc0.77 Cc2.40 Ba
∆E40.69 Cbc2.02 Ca0.58 Cc1.69 Cab2.06 Ba
Means followed by the same capital letter in column and do not differ (P < 0.05; Tukey).
Means followed by the same lowercase letter in the line do not differ (P < 0.05; Tukey).
Table 9. Mean values of color alterations (∆E) of Sinfony resin for each staining solution, before and after bleaching treatment.
Table 9. Mean values of color alterations (∆E) of Sinfony resin for each staining solution, before and after bleaching treatment.
Resin Staining Solution
Red WineCoffeeOrange JuiceCoca-ColaSaliva
Sinfony∆E111.22 Aa9.95 Ab8.83 Ac8.06 Ac8.25 Ac
∆E25.87 Ba2.76 Bb0.84 Cc1.39 Cc1.01 Cc
∆E32.24 Cab2.40 Ba1.39 Cb2.34 Ba2.48 Ba
∆E41.55 Cb2.02 Bab2.83 Ba1.89 BCab1.83 BCab
Means followed by the same capital letter in column do not differ (P < 0.05; Tukey).
Means followed by the same lowercase letter in the line do not differ (P < 0.05; Tukey).
