Colloidal Metal Oxide Nanoparticles Prepared by Laser Ablation Technique and Their Antibacterial Test

Abstract

In this article we report the production of metal oxide (TiFe₂O₄, ZnFe₂O₄) nanoparticles by pulsed laser ablation technique in a liquid environment. We used nanosecond Nd: YAG laser systems working at 532 nm and 1064 nm of wavelength and the energy of the laser beam was kept constant at 80 mJ. Absorbance spectra, surface plasmon resonance, optical band-gap, and nanoparticle morphology were investigated using ultraviolet-visible (UV-Vis) spectroscopy, Fourier transform infrared spectroscopy (FTIR), and scanning electron microscopy (SEM). Changing the wavelength of the laser for growth, nanoparticles showed shift between the absorbance and surface plasmon resonance peaks in their UV-Vis spectra, which implies that the optical properties of the colloid nanoparticles depend on laser parameters. This was confirmed with the variation of the band gap energy. Furthermore, redshift for the absorbance peak was observed for samples as-grown at 532 nm around 150 nm as a function of time preparation. Conversely, for the samples as-grown at 1064 nm there was no shift in the absorbance spectra, which could be due to agglomeration and formation of larger particles. The characterization results showed appropriate plasmonic photo-catalysts properties of the particles, hence the photoactivation of the nanoparticles was examined on antibacterial effect using colonies of Staphylococcus aureus and Escherichia coli.

1. Introduction

In recent years with the increasing applications of nanotechnology, nanomaterials like iron oxide (Fe₃O₄), titanium oxide (TiO₂), and zinc oxide (ZnO) have been observed to show great properties for applications in heavy metals removal from polluted water, industrial wastewater treatment, biomedicine and photocatalysts [1,2,3,4,5,6,7]. This feature is due to properties of nanoparticles as nano-adsorbents removing heavy ions and because of their size having the ability to interact with light, yielding the confinement of light inside the nanoparticles (NPs) which generates new non-linear phenomena such as the collective oscillations of conduction band electrons in spherical metal nanoparticles excited by external electromagnetic field, so-called localized surface plasmon resonance (LSPR). This phenomenon leads to a strong enhancement of the local electromagnetic fields surrounding the NPs at a specific wavelength. LSPR frequency can be tuned by changing the characteristics of the NPs, such as for example shape, size, and liquid environment. This is being widely used for medical applications of biological sensing systems, photovoltaic cells, and efficient catalysis processes like plasmonic solar desalination as reported by Tianyu Liu et al. 2016 [8,9].

Because the ideal plasmonic photocatalysts should simultaneously act as an absorber to capture light as well as a catalytic surface to interact properly with surface intermediates, metal nanoparticles with strong light absorption capability have been demonstrated as a new family of plasmonic photocatalysts that offer distinctly different benefits compared to conventional semiconductor photocatalysts. As an example of this, Jianlong Wang et al. 2010 have demonstrated that Fe₃O₄ magnetic nanoparticle can greatly enhance the localized surface plasmon resonance of metal nanoparticles in biological systems, and Nayareth Soltani et al. 2012 have reported the degradation of methylene blue by visible light induced in the presence of photocatalytic ZnS and CdS nanoparticles [10,11,12,13,14].

Iron oxide nanoparticles with titanium or zinc coupling can be a very promising photocatalytic system for both UV and visible light-induced reactions [15,16]. Zn and Ti NPs as surface modifiers of Fe₂O₄ can inhibit electron hole recombination under UV irradiation operating as an electron sink because the Fermi energy level of Zn and Ti lies below the conduction band of Fe₂O₄, and therefore photoexcited electrons in Fe₂O₄ can easily transfer the charge to ZnO and TiO₂ NPs [17,18]. The advantage of functionalized bimetallic systems with a noble metal or semiconductors such as TiFe₂O₄ and ZnFe₂O₄ is that they can activate Fe₂O₄ towards visible light and UV light due to localized surface plasmon resonance of the metal, which together with the catalytic property of iron oxide, has become known recently as plasmonic photocatalysts [19,20,21]. The mechanism of plasmonic photocatalysts can be used especially in processes involving chemical transformations, for example in degradation process of polluting substances or industrial wastewater treatment where it is possible to use the iron as catalyst and enhance plasmonic properties by doping with a semiconductor and adding light [20,21,22].

Pulsed laser ablation method in a liquid environment has been studied as a new alternative to the preparation of nanoparticles without contamination [23,24,25,26,27,28,29]. Moreover, this technique is being widely studied for the practical design of nanoparticle structure, the distribution of size, and morphology by changing experimental parameters such as wavelength, pulse duration, laser fluence, pulse repetition rate, and exposure time. This is very useful when modifying the optical properties of metal nanoparticles [26,27]. In this work, metal oxide nanoparticles (MO NPs) were prepared by laser ablation technique in a liquid environment. Optical properties of the colloidal NPs were investigated using UV-Vis absorbance spectroscopy and Fourier transform infrared spectroscopy (FTIR) and nanoparticle morphology was analyzed with scanning electron microscopy (SEM). In addition, in the present work, synthesized nanoparticles are proposed for use as antibacterial surfaces in a microbiological system by photoactivation of NPs. Thus, their antibacterial effect on colonies of Staphylococcus aureus and Escherichia coli was studied.

2. Materials and Methods

2.1. Synthesis of Metal Oxide Nanoparticles

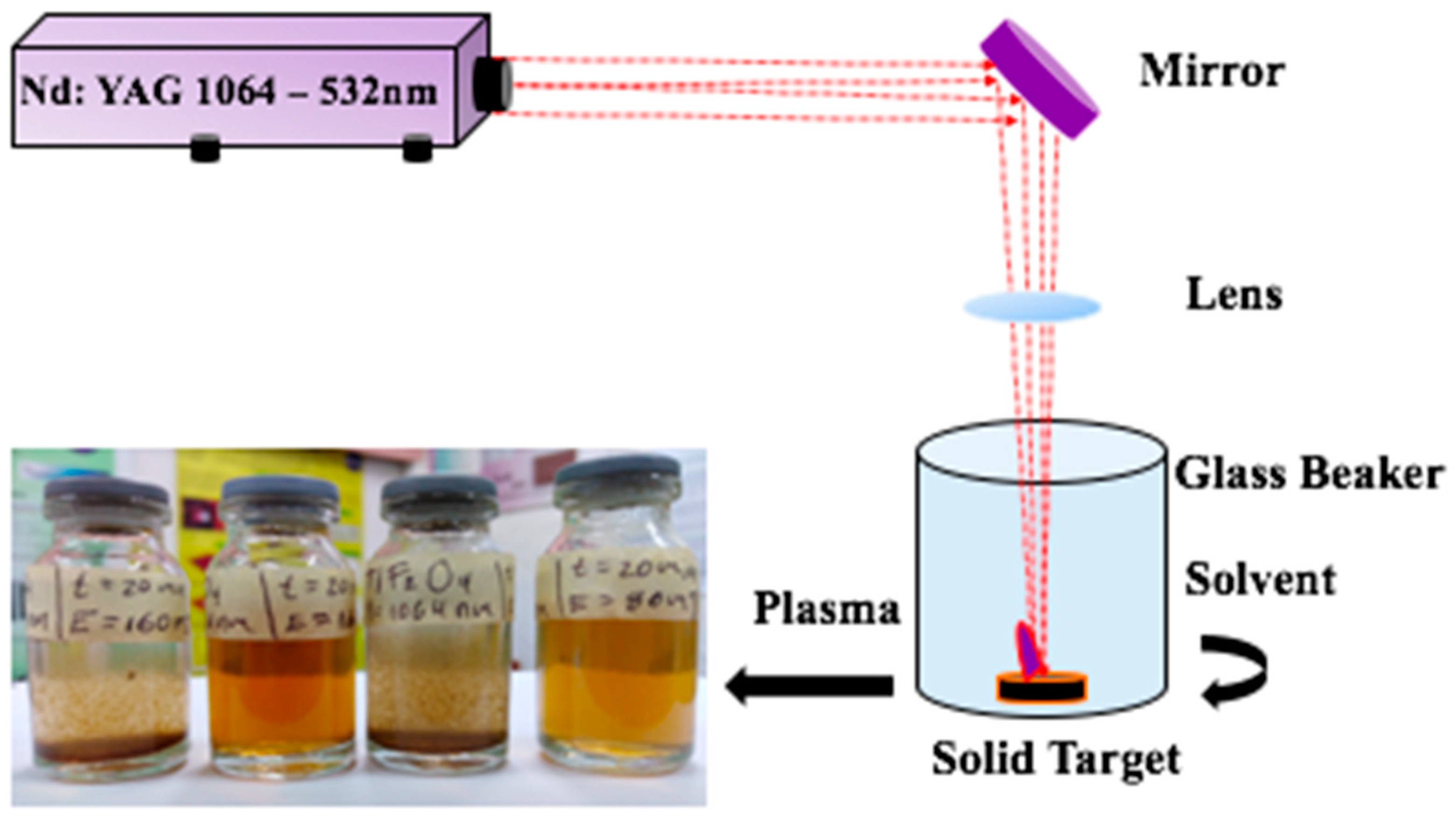

Figure 1 shows the schematic optical set-up used for pulsed laser ablation in a liquid environment and the samples prepared. Deionized water at room temperature was put in a glass beaker until 4 mm above the surface of the target. The laser beam was focused, with a semispherical lens on the surface of a solid rotating target through the solvent. We used a short-pulse, Q-Switched Nd: YAG laser (Spectra Physics, Santa Clara, CA, USA) which provided 7 ns, 80 mJ pulses at a wavelength of 1064 nm and in its harmonic 532 nm with a repetition rate of 10 Hz and 20 Hz for each wavelength respectively. The fluence was 0.8 J/cm² for 1064 nm and 532 nm. The colloidal NP samples were prepared from TiFe₂O₄ and ZnFe₂O₄ solid targets and were ablated for 15 min in 6 mL of liquid.

2.2. Characterizations of Metal Oxide Nanoparticles

The optical properties of the NPMs synthesized were investigated with UV-Vis spectroscopy using a UV-visible spectrophotometer Evolution 201/220 from the Thermo Scientific series (Thermo Electron Scientific Instruments LLC, Madison, WI, USA) of quartz cuvettes with an optical path of 1 cm. To determine vibration modes of NPs we used infrared spectroscopy by Fourier transform using an Agilent Carry 630 FTIR Infrared spectrometer (Agilent, Santa Clara, CA, USA). The SEM micrographs used to study structure and shape were obtained with a Phenom XL electronic scanning microscope (Thermo Fisher Scientific, Waltham, MA, USA) in standard mode with an acceleration voltage range between 10 kV and 15 kV.

2.3. Microbiological Experiment

The batch experiments were done in triplicate. One to three isolated colonies of S. aureus and E. coli were taken in selective media such as Baird Parker agar and EMB (Eosin and Methylene Blue) agar, then transferred to 9 mL of infusion-brain-heart (IBH) broth and incubated at 37 °C, with shaking. Dilutions were made until reaching an optical density at 540 nm between 0.4 and 0.6 using the McFarland standard method corresponding to the exponential phase of growth. Subsequently, 100 μL of the inoculum was taken and transferred to a Petri dish containing 20 mL of IBH agar and incubated at 37 °C after agitation to homogenize the growth of microorganisms in the environment.

3. Results and Discussion

3.1. UV-Vis Analysis

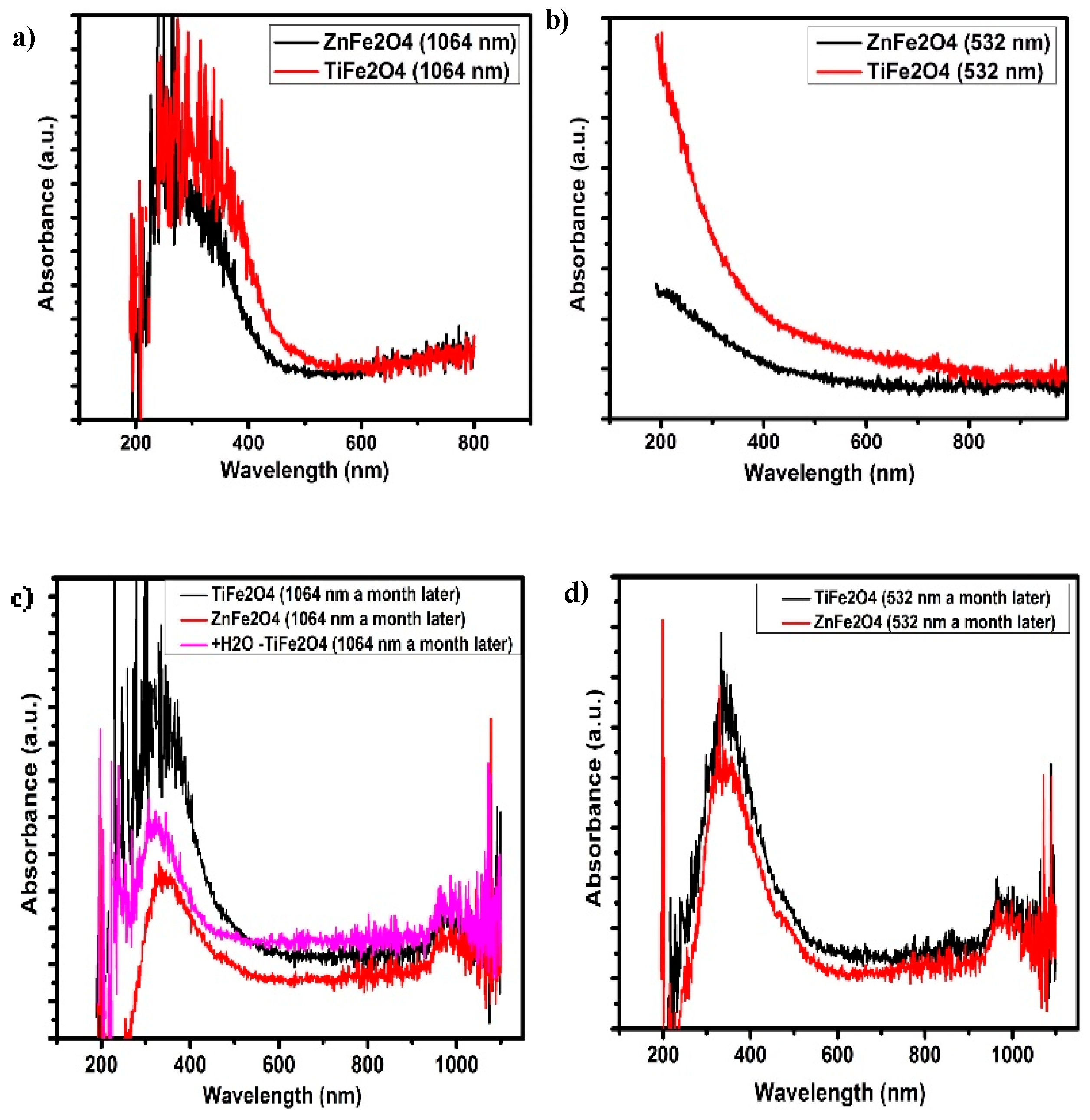

MONPs exhibit surface plasmon resonance peak in 300 nm and 271 nm for TiFe₂O₄ and ZnFe₂O₄, respectively, produced with a wavelength of 1604 nm (Figure 2a). For MONPs produced with a wavelength of 532 nm no peak formation is observed (Figure 2b). The absorption spectra of TiFe₂O₄ and ZnFe₂O₄ nanoparticles is shown in Figure 2. These spectra reveal that the maximum value appears in the UV region, which is the characteristic absorption edge of this type of ferrite NP. In addition, the sharp peak indicates the formation of stable colloidal suspension [28]. The difference between Figure 2a,b indicates a change in concentration as in the nanostructure of the nanoparticles. On the other hand, the noise that presents the spectra at 1064 nm indicates a higher production of nanoparticles than for those prepared with a wavelength of 532 nm.

The bands around 210 and 270 nm in Figure 2a may be attributed to the charge transfer bands that have the Fe³⁺ of the iron ions isolated in tetrahedral (Td) and octahedral (Oh) coordination, respectively [29]. The peak around 330 nm is assigned to Fe³⁺ isolated in any of the ulvospinel [30,31]. In addition, the absorption region between 200 and 300 nm in Figure 2b could also be assigned to the charge transfer between the oxygen ions and the Fe³⁺ ions [32]. In this range, there is a superposition of the iron and oxygen charge transfer bands. The analysis carried out by UV-Vis-DRS suggests the presence of the ulvospinel of MFe₂O₄, where M is Ti²⁺ or Zn²⁺, respectively; these are present as nanoparticles in two structures in tetrahedral coordinations and M in octahedral coordinations.

The Figure 2c,d show the spectra of colloidal MNPs a month after synthesis for 1064 nm and 532 nm. For NPs prepared with the wavelength of 532 nm, a peak around 350 nm appears, evidencing agglomeration and the formation of larger particles. This is in accordance with theory corresponding with LSPR [33,34,35]. In MONPs produced with a wavelength of 1064 nm, change is observed. For both samples, a new peak with lower intensity is observed around 970 nm, which corresponds to new modes of oscillation of the agglomerated nanoparticles. These results show enhancement of the LSPR effect since the appearance of a new peak in the near-infrared region would improve the efficiency of this nanomaterial absorbing radiation.

Table 1. Principal absorbance peak of MONPs.

Metallic Target	1064 nm Peak Positions		532 nm Peak Positions
	As− Growth	1 Month	As− Growth	1 Month
TiFe2O4	300 nm	325 nm	210 nm	342 nm
		970 nm		978 nm
ZnFe2O4	271 nm	343 nm	200 nm	346 nm
		975 nm		980 nm

shows the main parameter measured in the nanoparticle colloids of TiFe₂O₄ and ZnFe₂O associate with the LSPR₄.

From a quantum point of view, a high percentage of atoms is accumulated on the NPs’ surfaces, exhibiting a special characteristic with light surface interaction like LSPR. These special characteristics are caused by the effects of the quantum confinement effect of metallic nanoclusters of TiFe₂O₄ and ZnFe₂O₄, which cannot be seen in bulk material [25,36,37]. The extra graph in Figure 2c corresponds to the NPs of TiFe₂O₄ that present greater noise, to which more water was added and a considerable reduction of noise was evidenced, which may be attributable to the formation of more NPs than in ZnFe₂O₄ colloids. Due to the saturation of solute in the samples, their stability decreased after they were prepared.

3.2. Band Gap Estimation

The band gap is a key indicator of its light harvesting efficiency under solar illumination. To estimate the band gap energy of NPs we used Tauc’s relation given by the equation using the data from UV-Vis absorption spectra for a direct band gap n = ½ [38,39].

$${\left(\alpha h\nu \right)}^{\frac{1}{n}}\propto \left(h\nu -E_g\right)$$

Band gap energy results for MONPs are shown in

Table 2. Optical band gap of MONPs produced with laser ablation technique in water at 1064 and 532 nm wavelengths.

Target	Egap (eV) at 1064 nm	Egap (eV) at 1064 nm (1 Month)	Egap (eV) at 532 nm	Egap (eV) at 532 nm (1 Month)
TiFe2O4	2.17	2.20	2.20	2.25
ZnFe2O4	2.27	2.27	2.25	2.20

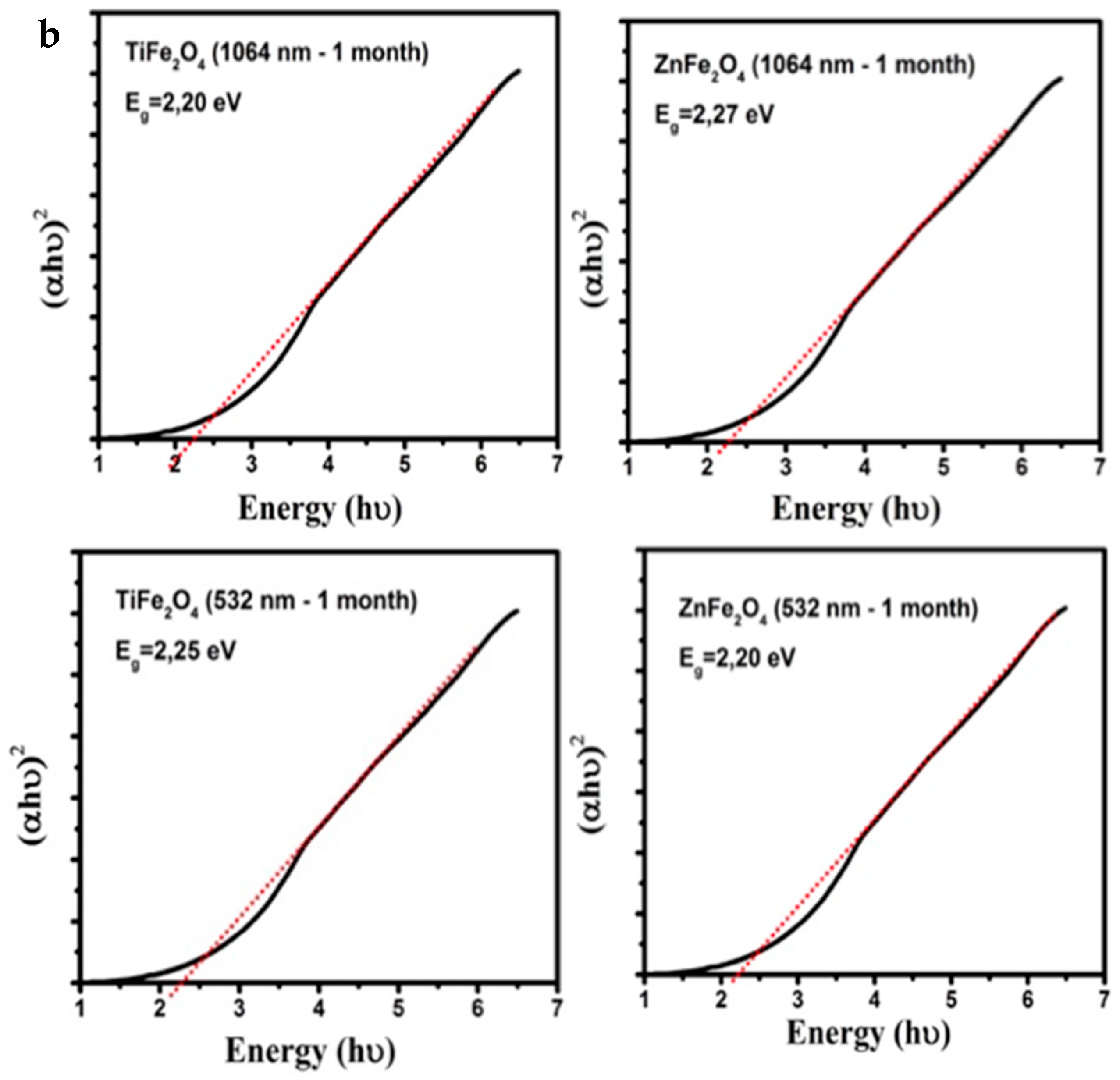

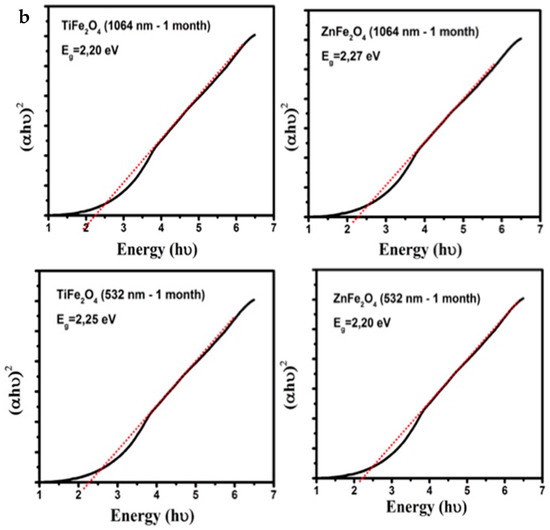

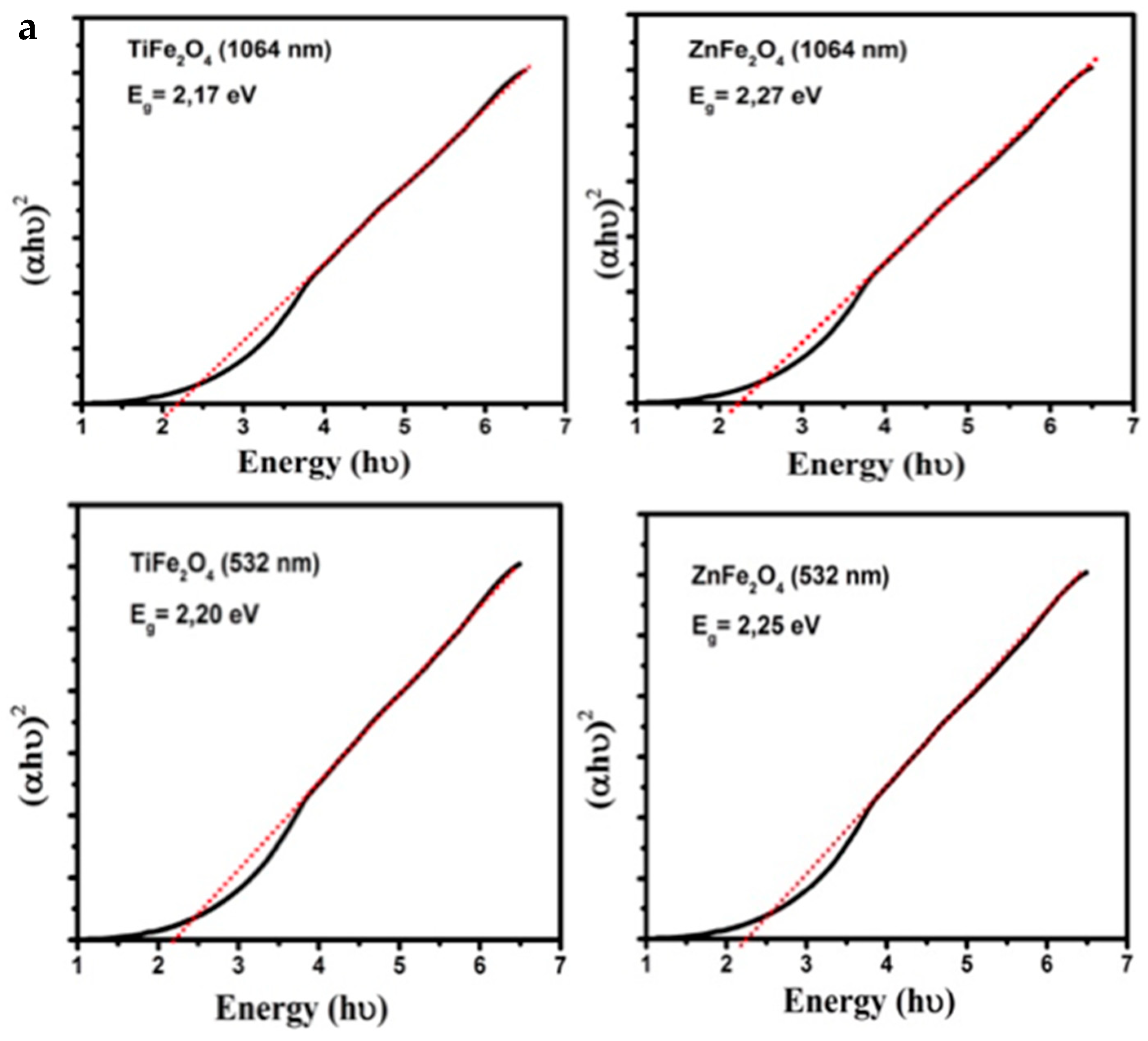

. The optical energy for TiFe₂O₄ and ZnFe₂O₄ changes slightly between 2.17 eV and 2.27 eV for 1064 nm and 532 nm and it does not present significant changes after one month of the synthesis which gives indications about the stability of the colloid over the time as can be seen in the method used, Figure 3a,b. These values are in accordance with those reported in previous works showing magnetic semiconductor behavior [40,41,42,43]. These results have a great variety of photocatalyst applications in environmental cleaning, since a small band gap is also important in any applications of NPs that involve light, as has been reported in previous works [14,34].

3.3. FTIR Analysis

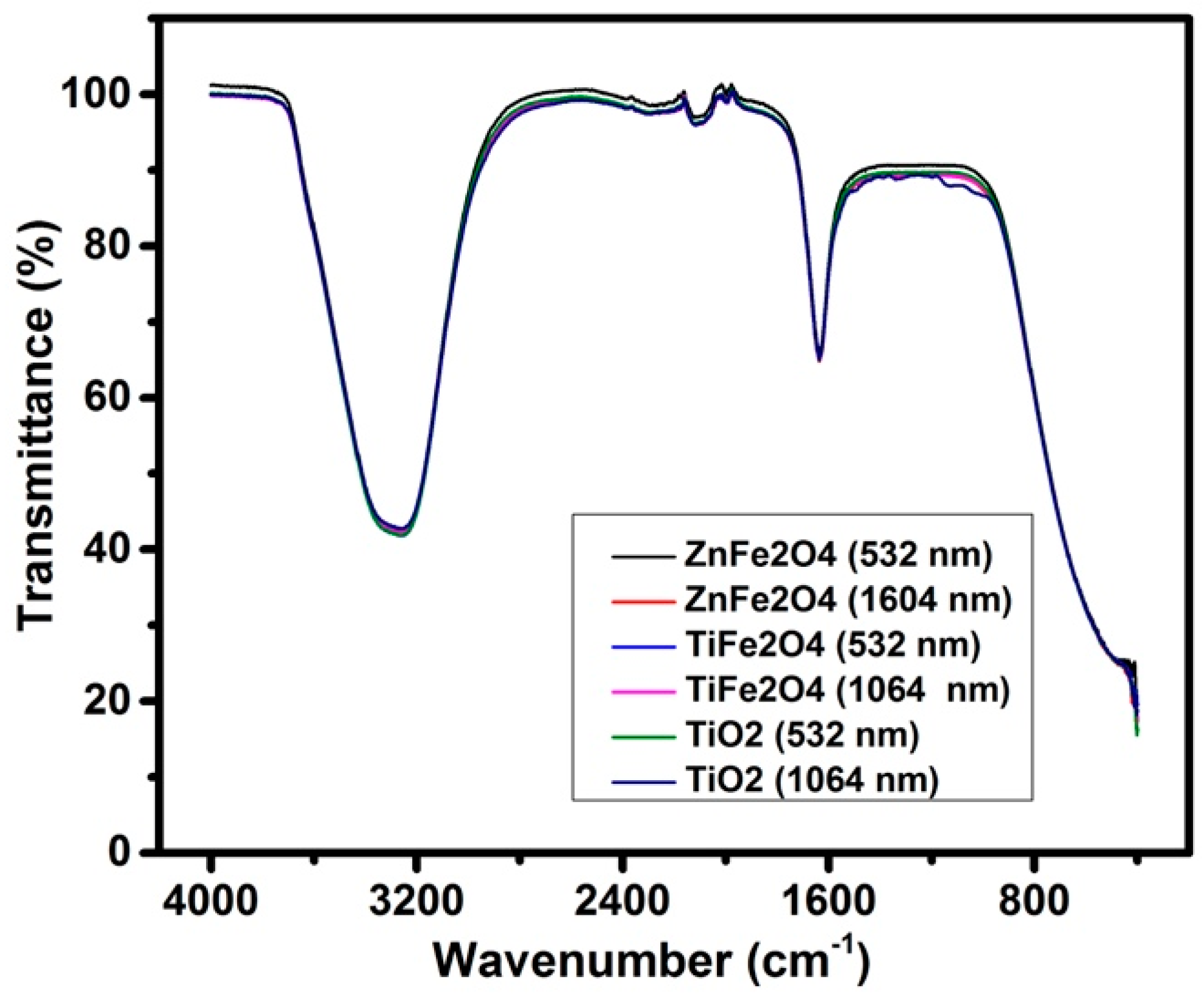

FTIR spectra of colloidal NPS are shown in Figure 4. An intense characteristic absorption band between 3300 cm⁻¹ and 3500 cm⁻¹ is observed, which can be assigned to the fundamental mode of vibration to O-H stretching and deformation, due to water absorption, on the metal surface. Moreover, there appears to be a band between 1637 cm⁻¹ and 2100 cm⁻¹ which may be attributed to the scissor bending vibration of molecular water. Vibrational peaks around 415 cm⁻¹ reveal mainly Fe–O stretching vibration bonds. Appearance of peaks around 1600 cm⁻¹ correspond to the overlapping of Ti–O, Fe–O–Ti, Zn–O, and Fe–O–Zn bonds of ferrite nanoparticles. All samples synthetized exhibit similar FTIR spectra. These results indicate that the structure of the MONPs is not altered by infrared radiation, regardless of the wavelength of synthesis [33,37].

3.4. Scanning Electron Microscopy

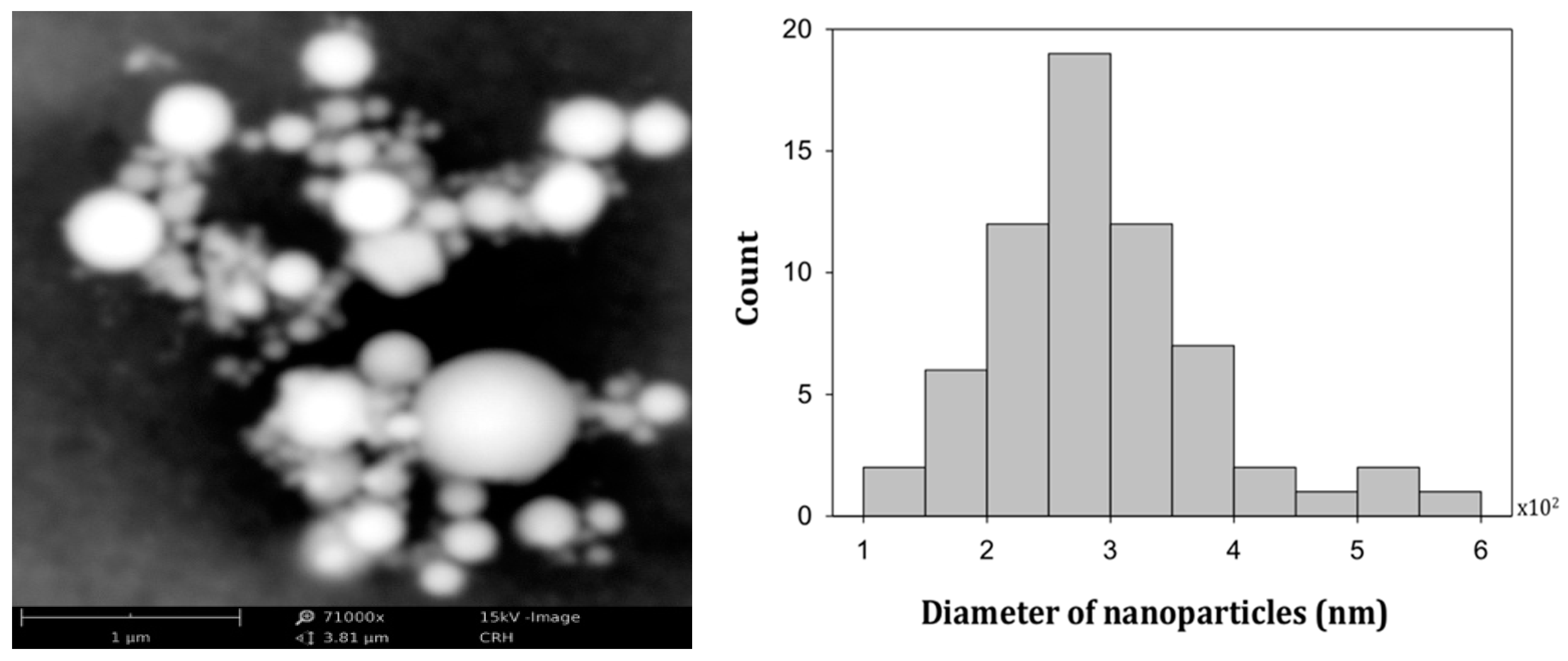

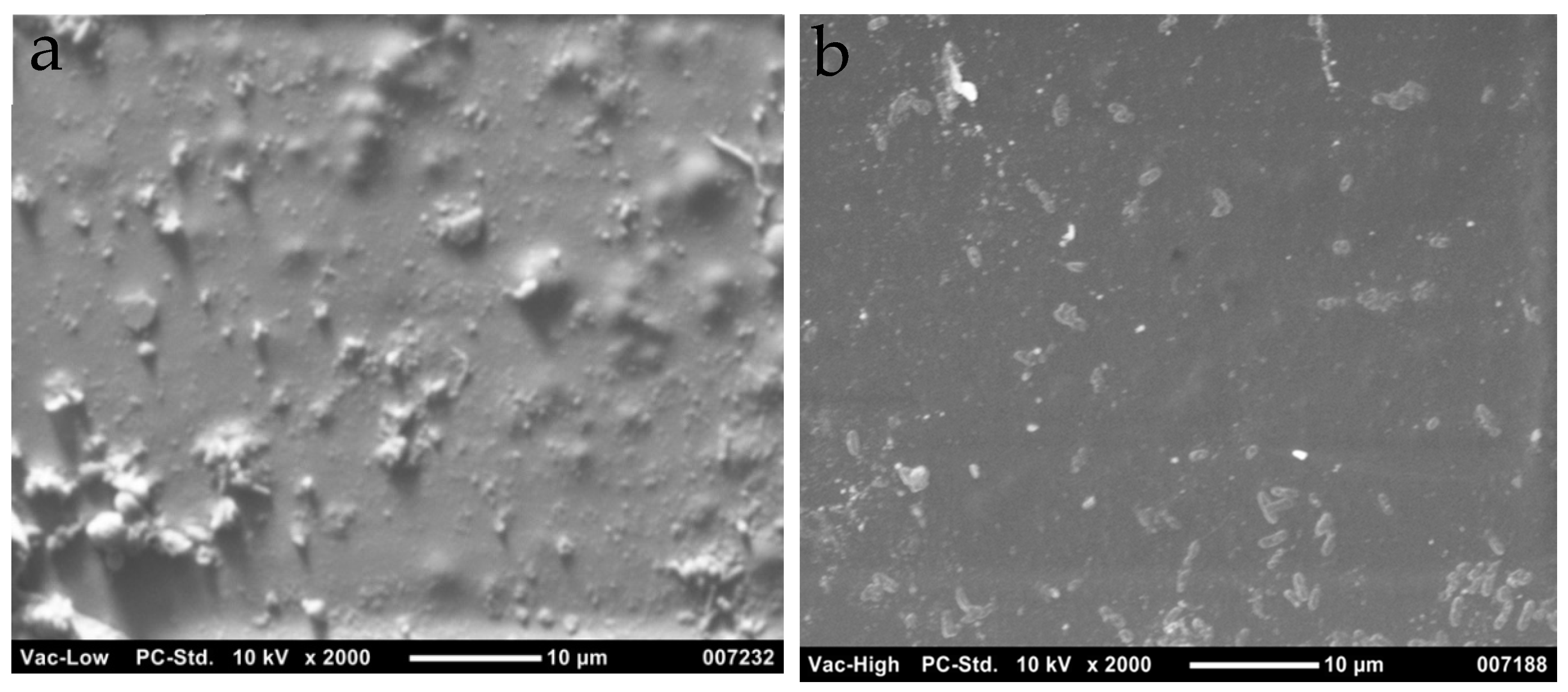

From SEM micrographs we observed that particles are spherical in shape and have a polidispersive particle size between 100 nm and 600 nm. In Figure 5 is shown an SEM image of TiFe₂O₄ (left side) and ZnFe₂O₄ (right side). These nanoparticles were deposited over a substrate. In this image it is possible to observe morphological distribution of nanoparticles with different sizes over substrates. ZnFe₂O₄ has a tendency to form bigger clusters, which indicates that ZnFe₂O₄ was instable with precipitation in the colloid before the deposition on the substrate. Furthermore, in Figure 6 is presented the magnification of TiFe₂O₄ samples which shown that Ti is incorporated with Fe to form spherical-like structures typical of the metal nanoparticles prepared by laser ablation method [26,27]. In addition, after one month, all samples exhibit agglomeration due to highly magnetic behavior of titanium or zinc ferrite nanoparticles as has been reported in the literature [28,33].

4. Application as Antibacterial Surfaces

The sensitivity of strains of S. aureus and E. coli were determined using the method of planting by depth according to the Institute of Clinical and Laboratory Standards (CLSI, 2015). Seeding was performed in triplicate in each programmed experiment, with two incubation periods of 24 and 48 h at 37 °C, modifying their exposure to visible light and UV light for 2 h in some cases. The antibiotic used as a positive control was reactive grade ampicillin, which had a concentration of 1000 ppm and DMSO as target at 5%. Three squares of residual polyethylene with an area of 0.25 cm² were placed in triplicate, with nanoparticles deposited which were labeled as follows: A (TiFe₂O₄, 1064 nm, 100 mJ), B (TiFe₂O₄, 1064 nm, 80 mJ), C (ZnFe₂O₄, 1064 nm, 80 mJ), D (TiFe₂O₄, 532 nm, 80 mJ), E (ZnFe₂O₄, 1064 nm, 84 mJ), and F (ZnFe₂O₄, 532 nm, 80 mJ). This can be seen in Figure 7. Subsequently, all samples were exposed to UV radiation at 330 nm for a time of 2 h; in comparison to antibacterial activity in the absence of light, the NPs showed enhancement of antibacterial activity when they were illuminated with UV light, which indicates the photo activation of their plasma oscillation at surface of the NPs such that it interacts strongly with the bacteria, preventing its spread via thermal effect. For interpretation of the results, the strains were classified as susceptible, intermediate, or resistant with respect to the evaluated nanoparticles, measuring the inhibition halo (CLSI, 2015). The results are displayed in

Table 3. Measurements of the inhibition ring according to the Institute of Clinical and Laboratory Standards (CLSI, 2015).

NPs	Illuminated at 330 nm (h)				Without Light (h)
	S. aureus		E. coli		S. aureus		E. coli
Incubation time at 37 °C	24	48	24	48	24	48	24	48
TiFe2O4, 1064 nm	23 mm ± 0.1 S	24 mm ± 0.1 S	23 mm ± 0.1 S	24 mm ± 0.1 S	R	R	R	R
TiFe2O4, 532 nm	30 mm ± 0.3 S	30 mm ± 0.1 S	28 mm ± 0.3 S	29 mm ± 0.3 S	R	R	R	R
ZnFe2O4, 1064 nm	17 mm ± 0.1 I	18 mm ± 0.2 I	9.7 mm ± 0.2 R	10 mm ± 0.3 R	R	R	R	R
ZnFe2O4, 532 nm	19 mm ± 0.3 I	19 mm ± 0.1 I	20 mm ± 0.1 S	21 mm ± 0.2 S	R	R	R	R
Polyethylene	R	R	R	R	R	R	R	R
Positive control (ampicillin)	23 mm	23 mm	23 mm	23 mm	23 mm	23 mm	23 mm	23 mm

S (Sensitive, ≥20 mm), I (Intermediate, 15–20 mm), R (Resistant, ≤14), (CLSI, 2015).

[44,45,46,47,48]. In this experiment, nanoparticles of TiFe₂O₄ prepared at 532 nm showed better anti-bacterial results, exhibiting an inhibition ring 30 mm in diameter in samples deposited in polyethylene substrates when they was illuminated with UV light at 330 nm.

5. Conclusions

In summary, in this study metal oxide nanoparticles were prepared by laser ablation technique. These MONPs had spherical forms with different sizes and showed the same color aspect. The TiFe₂O₄ NPs were more stable than ZnFe₂O₄ due to the last present fast agglomeration. Plasmon resonance peaks appeared at around 300 nm and 274 nm for TiFe₂O₄ and ZnFe₂O₄, respectively, and were produced at 1604 nm. For nanoparticles produced at 532 nm we did not observe the formation of a peak. The maximum absorbance of radiation in the UV range was between 200 nm and 350 nm, indicating the favorability of these NPs for applications in catalysts, photocatalysts, and surface processes. However, for both samples we found that the maximum absorbance of radiation was in the UV range but a month later we found that the NPs presented a new absorption band in the infrared range with low intensity, which is a good indicator of nanostructure modification. The optical properties of colloidal nanoparticles depends on the laser wavelength, which is manifested in the variation of the UV-Vis spectra and band gap energy. In batch experiments the TiFe₂O₄ nanoparticles prepared at 532 nm showed better anti-bacterial results, exhibiting an inhibition ring 30 mm in diameter in samples deposited in polyethylene substrates when illuminated with UV light at 330 nm.
