Investigation of Constant Shear Rate and Sample Configuration for Shear Characterization of a UHMWPE Unidirectional Cross-Ply Material System

Abstract

In-plane shear is the dominant deformation mode during thermoforming of fiber-reinforced composites, and accurate characterization of shear behavior is essential for reliable forming simulations. The present work investigates the shear response of a unidirectional cross-ply UHMWPE material system (DSM Dyneema^® HB210) using the picture-frame test, with emphasis on sample configuration, normalization methods, and shear rate effects. Three cruciform sample sizes were tested at 120 °C, along with a configuration in which cross-arm material was removed to isolate the gage region. Finite element analyses using LS-DYNA^® were performed to evaluate the shear rate distribution during forming and to validate the experimental characterization. To maintain a constant shear rate during testing, a decreasing crosshead speed profile was implemented in the test software. Results showed that normalizing by the full specimen area yielded consistent shear stiffness curves across sample sizes, indicating that the arm region contributes equally to the load. Samples with cross-arm material removed exhibited greater scatter than those specimens without cross-arm material removed, confirming that preparation of cross-arm removal complicates repeatability. Rate dependence was observed at room temperature but not at elevated processing temperatures, suggesting that rate-dependent shear models are unnecessary for forming simulations of this material system. These findings provide a practical methodology for shear characterization of UHMWPE cross-ply laminates suitable for thermoforming analyses.

1. Introduction

Thermoforming is an attractive, cost-effective, and energy-efficient process for producing high-quality, complex-shaped thermoplastic composite parts [1,2,3,4,5,6,7]. Compared to autoclave processing, it enables high-volume manufacturing with reduced energy consumption [6] and can be optimized to minimize material waste, adding environmental advantages to its economic benefits [5,7]. These attributes make thermoforming particularly appealing as industries seek manufacturing approaches that lower cost while maintaining, or even improving, product performance. The process is widely used to shape lightweight, energy-absorbing unidirectional cross-ply ultrahigh-molecular-weight polyethylene (UHMWPE) laminates into complex geometries for high-performance, impact-resistant applications such as ballistic and protective structures. Recent advances in high-rate processing and digital forming simulations for automotive composites have underscored the need for accurate material characterization data to support predictive manufacturing models [8].

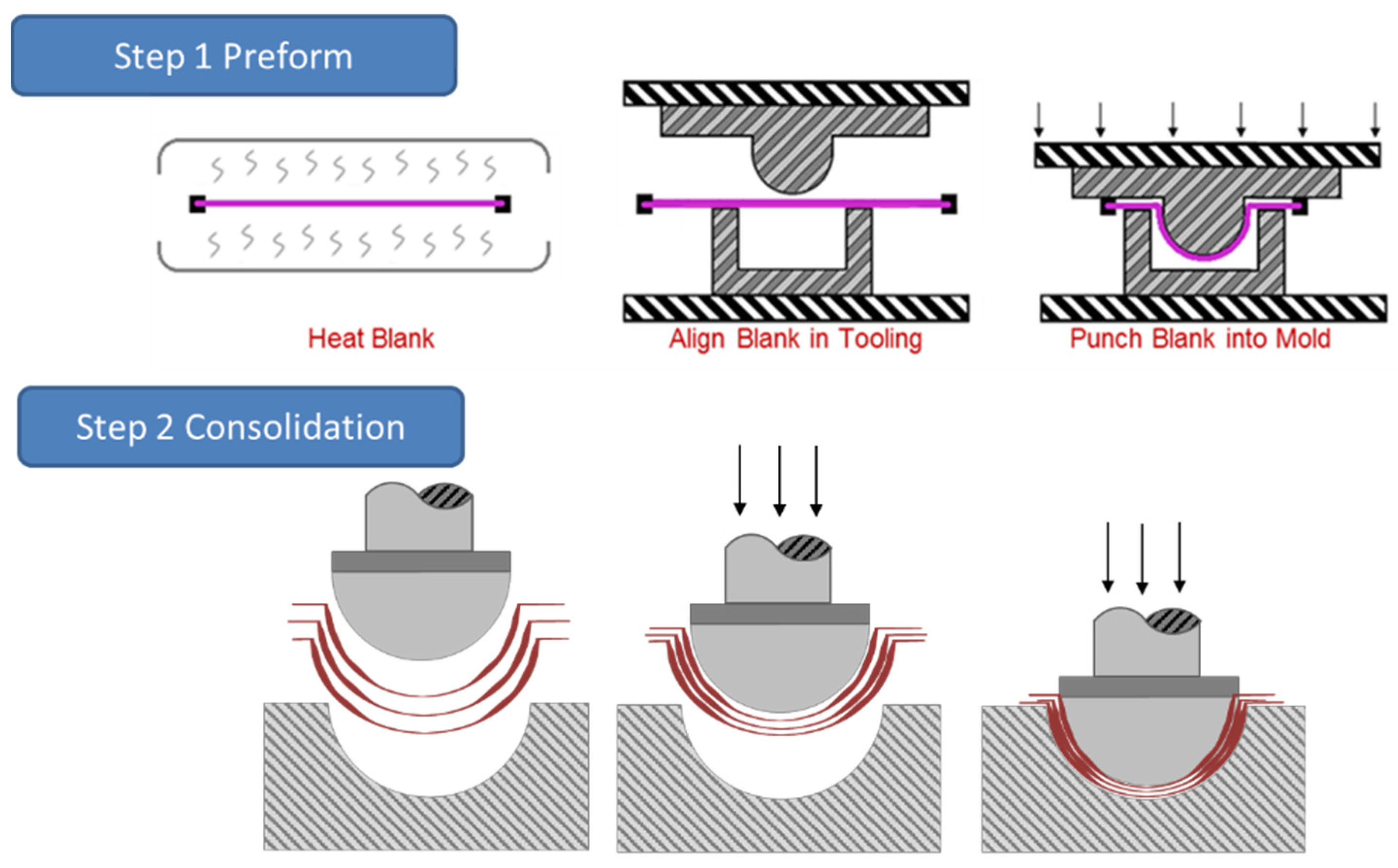

One option for thermoforming is the two-step process depicted in Figure 1. In the first step, a stack of multiple composite sheets, i.e., a blank, is punch-formed at an elevated temperature into a loosely assembled preform. In the second step, a stack of preforms is consolidated under pressure and at elevated temperature. This process bonds the loosely assembled sheets together, forming a complex-shaped laminated structural component.

The preforming step has been widely studied for woven and non-crimp fabrics, where the interactions of in-plane shear, tension, bending, and frictional slip govern the formation of a defect-free shape [9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32]. Intra-ply shearing of a woven-fabric-reinforced laminate is the primary mode of deformation during the draping over a compound curvature tool. Boise et al. [33] found that in-plane shear rigidity is the key parameter controlling fabric deformability during preforming. Earlier meso/macro-scale analyses by Boisse et al. [34] likewise demonstrated that the collective tow interactions governing in-plane shear response dictate the macroscopic forming behavior of textile reinforcements. Launay et al. [35] and Harrison et al. [36,37,38] quantified the coupling between shear and tension that influences wrinkle initiation. In-plane shear has also been shown to be the primary mode of deformation during the compound-curvature forming of unidirectional cross-plies [36,39,40,41,42,43,44,45,46,47,48,49,50,51,52]. Previous thermoforming investigations on cross-ply thermoplastic laminates, such as the deep-drawing helmet preform trials reported by Dangora et al. [53], have demonstrated the central role of in-plane shear deformation and the need for accurate material characterization to support forming simulation.

Because in-plane shear is the dominant deformation mode during the forming of compound-curvature shapes, the characterization of the intra-ply shear response of a material in an accurate and reliable manner is critical to the success of a thermoforming process simulation. This requirement for reliable input data is consistent with broader efforts to predict the mechanical response of textile composites from constituent properties and mesostructures as reviewed by Crookston et al. [54]. Early finite-element modeling of composite forming processes demonstrated the importance of including accurate in-plane shear behavior for predicting draw and wrinkling during deep-drawing and lay-up operations [55]. The bias-extension and picture-frame tests are two well-accepted methods in the composites forming community for characterizing the shear properties of textiles and cross-ply sheets [37,45,56].

The bias-extension test is widely used to characterize in-plane shear behavior of textile and cross-ply composite systems because it provides a straightforward means to relate force–displacement data to shear stiffness as a function of shear angle and to identify locking behavior and defect onset [10,12,14,15,38,57,58,59,60,61,62,63,64]. Comparative studies have shown that bias-extension tests show trends consistent with the picture-frame test while offering simpler specimen preparation and fixturing, especially when combined with digital image correlation (DIC) to capture nonuniform shear fields [42,43,57,61]. A large body of work has refined data reduction and normalization methods for the bias-extension test, including energy- and work-based approaches, addressed tension–shear coupling and compressibility effects to generate shear curves [14,15,38,42,58]. The bias-extension test has been applied across a range of reinforcement architectures and temperatures, from woven and non-crimp fabrics to unidirectional tapes, to provide key parameters for finite element forming simulations and wrinkling predictions [12,14,57,58,59,60,62]. Other studies have extended bias-extension testing with X-ray microtomography and thermomechanical analyses to link mesoscale deformation mechanisms such as tow rotation, sliding, and deconsolidation with macroscopic shear response [12,58].

The picture-frame test provides a near-uniform shear field that allows direct measurement of shear stress–strain response [15,21,25,33,35,36,37,38,46,49,52,60,61,65,66,67,68,69,70]. Early studies defined the geometric relationships between frame rotation and material shear angle, leading to normalization schemes that relate applied force to shear stress through the gage and total specimen area [35,38,46,65]. Later investigations refined the method to reduce errors from misalignment, pretension, and friction, emphasizing proper clamping and controlled boundary conditions to achieve reproducible results [21,35,68,70]. Comparative analyses by Harrison et al. [36,38] and Cao et al. [52] benchmarked the picture-frame test against the bias-extension test, confirming its ability to deliver uniform shear and reliable locking-angle prediction when properly normalized. The picture-frame test has also been extended to characterize shear-tension coupling [10,13,24,26], temperature, rate effects [14,58,71], and wrinkling or instability onset during preforming [25,49,65]. Other work has integrated picture-frame data into finite element models of forming, validating discrete mesoscopic simulations and rate-independent fabric constitutive laws [14,50,72,73].

Compared with the bias-extension test, the picture-frame test produces a near-uniform, pure in-plane shear field, giving a direct relationship between the measured load and the true shear stress [14,36]. The well-defined geometry of the PF test also supports established normalization and data-reduction schemes, reducing interpretation error relative to the nonuniform deformation zones inherent to the bias-extension test [35,38,46,65,66,67]. Although the picture-frame test requires careful alignment and clamping to avoid misalignment artifacts, best-practice guidelines have been developed to ensure high repeatability and minimize boundary effects [21,35,68,70]. Benchmark studies further demonstrate better capability of the picture-frame test for identifying locking angles and calibrating constitutive models than the bias-extension test, making it especially useful for validating finite element forming simulations [36,38,52].

Much research has been performed in developing the equations used to calculate the shear angle and normalized shear stress from picture-frame experiments [35,36,38,46,52,65,66,67]. The global shear angle, γ, of the sample is geometrically related to the length of the frame, L_F, and the displacement of the top of the frame, δ, through Equation (1),

$$\gamma ={\displaystyle \frac{\pi }{2}}-2{\cos }^{-1}\left[{\displaystyle \frac{1}{\sqrt{2}}}+{\displaystyle \frac{\delta }{2L_F}}\right]$$

(1)

Although research has shown that the shear angle of the material is not always in exact agreement with the angle of the frame, the approximation is generally accepted for the purposes of material characterization [43,70,74]. The shear force, F_Sh, on the fabric is also a function of the global shear angle and the force applied to the top of the frame, F,

$$F_{sh}={\displaystyle \frac{F}{2\cos \left(\frac{\pi }{4}-\frac{\gamma }{2}\right)}}$$

(2)

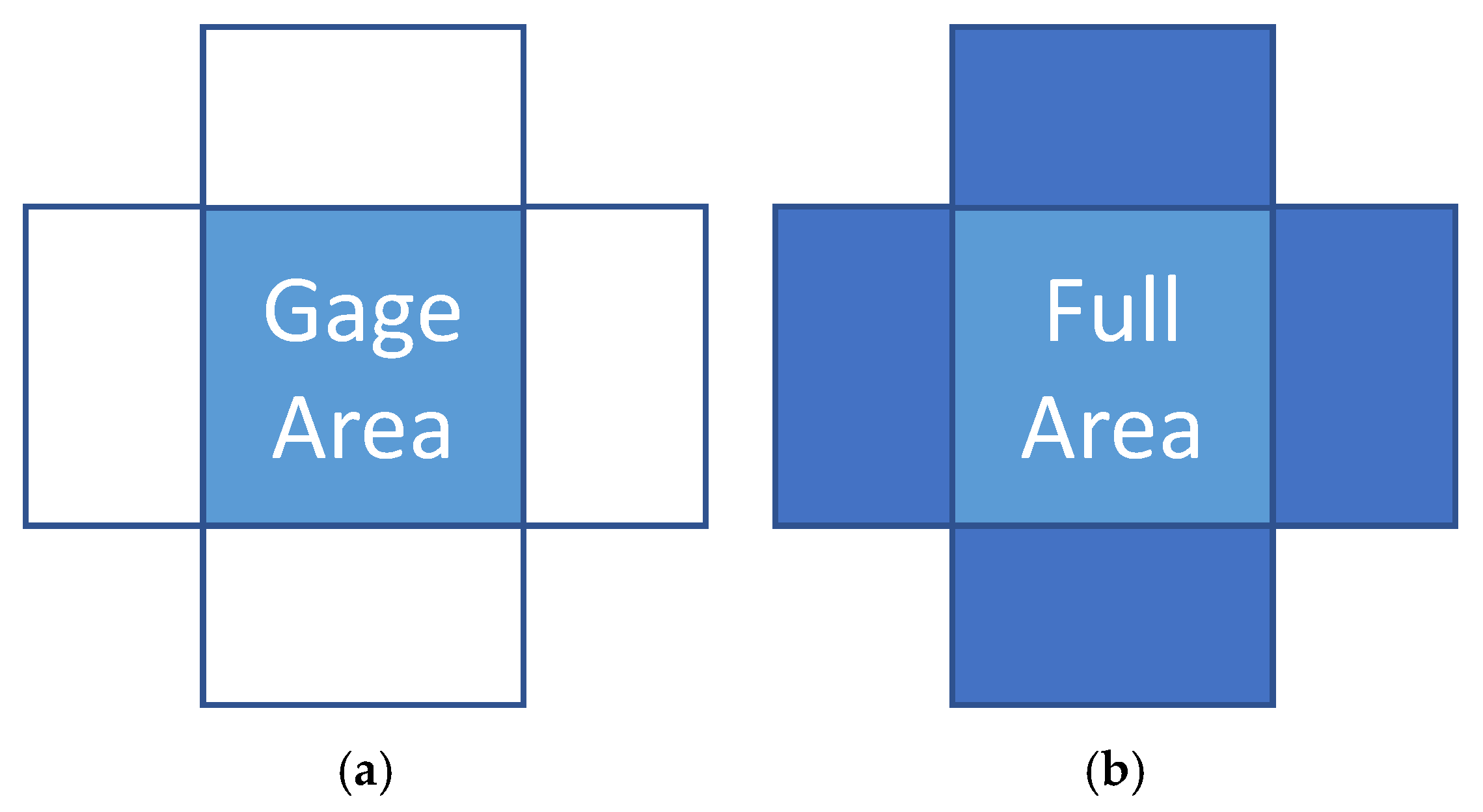

Using a method of normalization for cruciform sample testing based on energy conservation through work done per unit volume, researchers justified normalizing the force using the picture frame side length [38,46]. Work on unidirectional non-crimp fabrics by Mei et al. [75] analyzed normalization strategies and deformation uniformity in shear testing, underscoring the importance of geometric consistency when deriving shear stress–strain relationships. Assessments of normalization strategies for bias-extension testing, such as those by Härtel and Harrison [76], emphasize the importance of consistent geometric assumptions and load partitioning when deriving shear stress from experimental data. Peng et al. [46] specifically addressed using an assumption of zero contribution of load from the arms and uniform shear deformation in the gage area, the shear force can be normalized over the gage area with side length L_f and the frame side length, L_F. Combining these into a single expression yields Equation (3) [73],

$$F_{shnorm\_gage}={\displaystyle \frac{L_F}{L_f^2}}{\displaystyle \frac{F}{2\cos \left(\frac{\pi }{4}-\frac{\gamma }{2}\right)}}$$

(3)

where F_{shnorm_gage} is the shear force normalized over the gage area.

On the other hand, if the arm parts make the same load contribution as the gage area, then the load would be analyzed using the entire area of the sample, including arms, as in Equation (4) [46],

$$F_{shnorm\_entire}={\displaystyle \frac{L_F}{\left(L_f^2+2\left(L_F-L_f\right)L_f\right)}}{\displaystyle \frac{F}{2\cos \left(\frac{\pi }{4}-\frac{\gamma }{2}\right)}}$$

(4)

where F_{shnorm_entire} is the shear force normalized over the entire area of the test specimen. Both Equations (3) and (4) are divided by the thickness of the sample for normalization.

During a benchmark study completed by Cao et al. [52], researchers from seven international institutions completed shear testing on cruciform specimens of three identical woven fabrics. Some of the groups removed unclamped fringe (cross) tows from the arms of a woven-textile test specimen to eliminate the additional force contributions necessary to shear the textile in that region of the fabric, and some did not. Two extreme scenarios existed: (1) the arm region does not contribute to the load, and the central gage area is only considered in the analysis, and (2) the arm region contributes the same as the gage region, and the entire specimen area is used for analysis. A third and intermediate scenario is that the arm region partially contributes, thereby complicating the analysis in determining the partial contribution [46]. These cross-yarns were expected to contribute to the overall load. However, because they were unbounded on the sides, the contribution would not be equal to that of the gage area. In the benchmarking research, good agreement was observed among the samples using the central gage area when the cross-arms were removed; however, an increase in the measured force was found when the yarns in the arm area were not pulled out.

Dangora et al. [77] successfully used the shear-frame test for the characterization of a unidirectional cross-ply material system. They applied the same thought process of removing the arm contribution in a unidirectional cross-ply laminate, i.e., DSM Dyneema^® HB80, by removing the resin and cross fibers from the arm area to isolate the shear to the central gage area of the specimen. Five different test sample configurations were explored to determine how many slits needed to be made in a continuous sheet to isolate the shear deformation to the central square of material in the shear-frame test, thereby approximating the removal of unclamped tows in the arm region of a woven material. The “infinite” number of slits configuration had the least variation for the distribution of the shear stress across the sample. It was found that the shear–stress vs. shear–strain curve derived from the “infinite” number of slits configuration gave the best correlation between a model of the shear-frame test and the experimental results for each of the five configurations.

Krogh et al. [65] performed a similar sample preparation investigation to that of Dangora et al. [77] with a woven carbon prepreg material. DIC was used to document the shear-frame testing of two sample configurations: cruciform samples with tows in the arm area removed and samples without tows removed. The analysis showed the same average shear deformation regardless of sample preparation, even though slightly less variation was observed in the central area than in the arm areas. Based on this analysis, the same shear characterization data were achieved using either the entire sample area for normalization with full samples or the central area for samples with arms removed. Krogh et al. [65] also noted that the challenging preparation procedures for removing arm yarns and the handling of the free yarns when mounting them into the fixture led to less repeatable results due to misalignment error. Lastly, Krogh et al. [65] determined a method for controlling the crosshead rate to achieve a constant shear rate during a shear-frame test. The carbon prepreg material being investigated showed rate dependence that could be compared with bias-extension testing.

Shear rate effects were also investigated by Chen et al. [71] in a bias-extension test with constant pull velocity, resulting in a constantly changing shear rate. The rate effects were built into a simulation using resin viscosity parameters. Multiple researchers, including Guzman-Maldonado et al. [72] and Hsiao and Kikuchi [78], also built rate effects into a simulation using experimentally derived viscosities as a function of rate and temperature. Skordos et al. [79] developed a simplified rate-dependent forming model for pre-impregnated woven composites, illustrating how rate effects can influence wrinkling and deformation predictions during forming. Each of these studies coupled the mechanical properties of the material with thermal properties, creating complex models that yielded good results.

Many of the research groups that performed experimental investigations of shear behavior also used the data as inputs to various simulation methods, many of them employing discrete mesoscopic approaches that strike a balance between high fidelity of the model and computational efficiency [31,50,55,79,80,81,82,83,84,85]. The Sherwood Group [73] developed a discrete modeling approach that was successfully used to simulate the forming of a plain-weave hemisphere. In this modeling approach, conventional elements available in commercial finite element software are used in a unit cell approach of a 2D element surrounded by four 1D elements. Fiber directionality is described and tracked by beam elements that represent the tensile and flexural properties of the laminate. The shear load is carried by shell elements that capture the evolution of the in-plane shear stiffness as a function of the degree of shear. Single nodes are used to connect the beams in the corners, assuming a “no-slip” condition between layers. This “no-slip” condition has been demonstrated to be an acceptable assumption by Harrison et al. [37]. This modeling technique has been applied to a variety of textile architectures, including woven fabrics, non-crimp fabrics, cross-ply fabrics, and unidirectional fabrics [39,86,87,88,89,90]. Similar discrete frameworks have been proposed to capture the macroscopic response of woven structures through mesoscopic representations of tows and interactions [80]. Ghazimoradi et al. [91] demonstrated how accurately measured shear behavior can be used to validate and refine finite element forming simulations. Schafer [92] conducted macroscopic forming analyses that evaluated the accuracy and limitations of pure-shear modeling assumptions for biaxial fabric architectures, highlighting ongoing challenges in linking experimental shear data to predictive simulations.

Extensive research has been conducted on the shear characterization of a variety of materials for the purpose of simulating forming in manufacturing. However, with new material systems continually being developed, the need for efficient and simple evaluation of their formability needs to happen not only with simulation, but with the accompanying characterization. The current research not only aims to identify the need for strain-rate dependence in forming simulations but also takes it a step further to streamline the shear characterization method of unidirectional cross-ply systems through simple sample preparation and constant strain-rate testing.

In this paper, the technical challenges in characterizing a UHMWPE unidirectional fiber/matrix cross-ply, i.e., DSM Dyneema^® HB210, are explored. Shear characterization is performed with a shear-frame setup. Sample size and configuration, as well as normalization methods, are investigated to validate a sample configuration and normalization method that leads to reduced misalignment and repeatable results. Finite element analyses are performed using the explicit solver in LS-DYNA^® to validate the material characterization results and methodology. The effects of rate are investigated with a varying crosshead speed to achieve a constant shear rate throughout the test, with results determining if there is the need for a rate-dependent shear description in the finite element simulation. This research contributes to a larger objective of simulating the two-step thermoforming and consolidation processes.

2. Materials and Methods

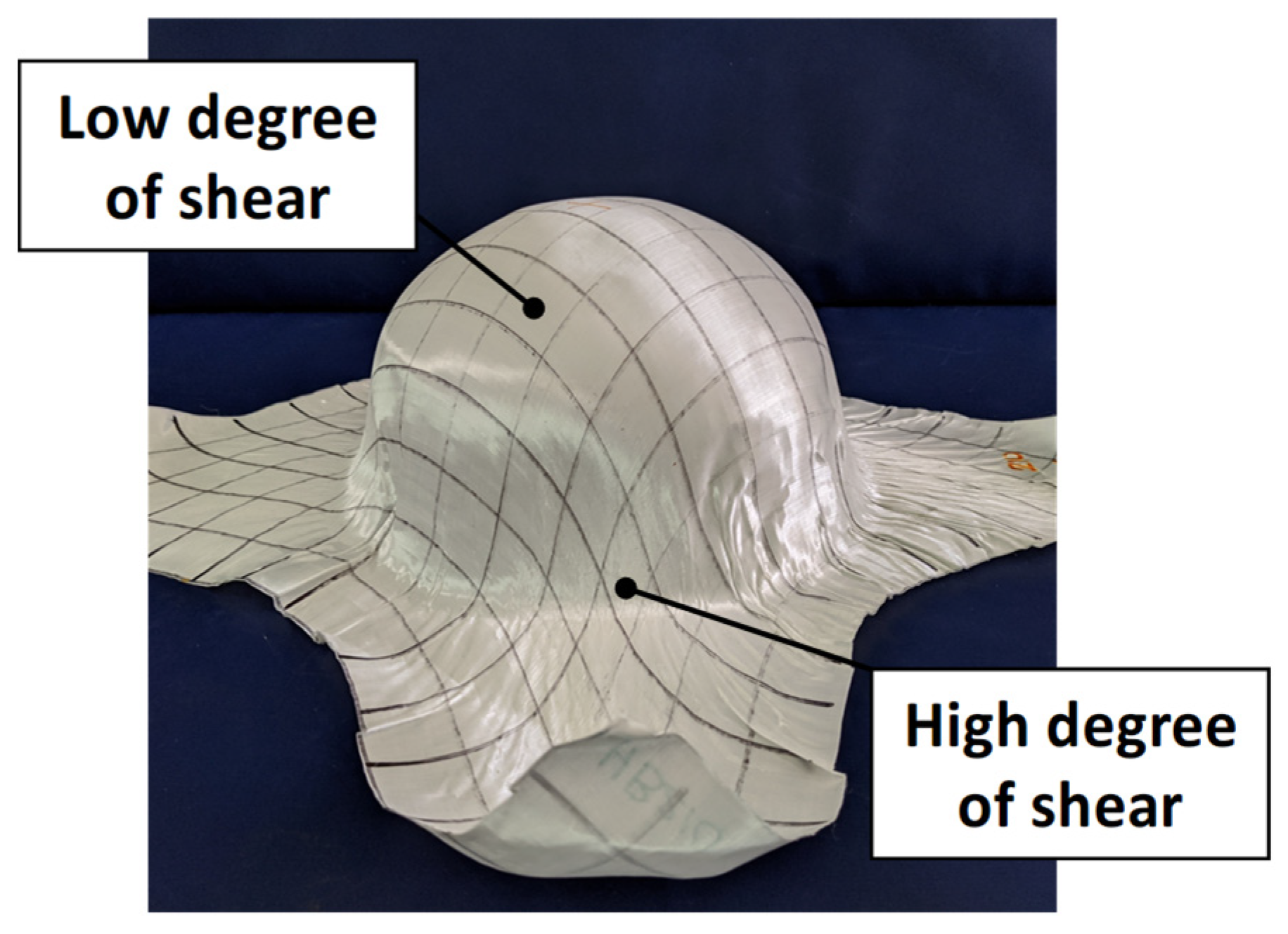

The variation in shear deformation across a compound curvature part, as shown in Figure 2, has been widely reported [1,3,5,12,17,21,32,36,37,39,40,41,42,43,44,45,46,47,48,49,50,51,52,93,94]. Likewise, the shear rate during forming will also vary across the part. Quantifying the range of shear rates experienced by the material was a required step in establishing the range of rates to perform shear characterization. From there, ascertaining reliable and repeatable methods for testing and for data normalization were required to obtain the material properties best suited for simulation input.

The material system considered in the current research is DSM Dyneema HB210 (Avient Corporation, Greenville, NC, USA). This material system is a thermoplastic cross-ply containing four highly directional layers in a [0/90]₂ configuration. Each ply comprises ultrahigh molecular weight polyethylene (UHMWPE) unidirectional fibers with a polyurethane (PUR) resin.

2.1. Determination of Shear Rate in Forming

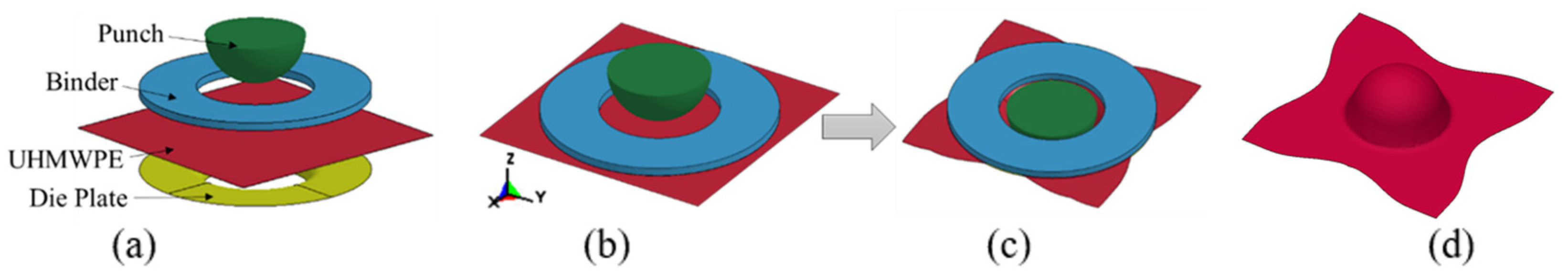

An LS-DYNA R12.0 explicit dynamics finite element model was exercised to explore shear deformation rates in the UHMWPE sheets during the thermoforming process. The model is depicted in the exploded view of Figure 3a and consists of a punch, a binder ring, a die plate, and a single sheet of the UHMWPE material. A rigid material definition was used for the binder ring, die plate, and punch. The constitutive behavior of UHMWPE was defined using a fabric model, which employed a trilinear stress–strain relationship. This fabric model has been shown to capture the shear behavior of UHMWPE accurately [95]. The in-plane axial stiffness in the x- and y-directions of the orthogonal UHMWPE sheet ([0/90]₂ architecture) was 13 GPa at 120 °C. The UHMWPE began in contact with the die plate and binder ring. A fixed boundary condition was applied to the die plate in all directions, while the binder ring and punch were only constrained in the x- and y-directions. The initial state of the model is shown in Figure 3b, and the final state is shown in Figure 3c,d. A load was applied to the binder ring in the z-direction to achieve a prescribed pressure. The punch was initially positioned 1 mm above the UHMWPE and was lowered at a constant displacement rate of 6.35 mm/s (in the z-direction) until it was fully embedded in the UHMWPE. The finite element model of the UHMWPE sheet comprised 16,129 fully integrated square shell elements (ELFORM16). Increasing the number of elements to 36,100 had a negligible influence on the shear-strain distribution. Thus, the model was concluded to be sufficiently converged for 16,129 elements.

2.2. Sample Size Variation

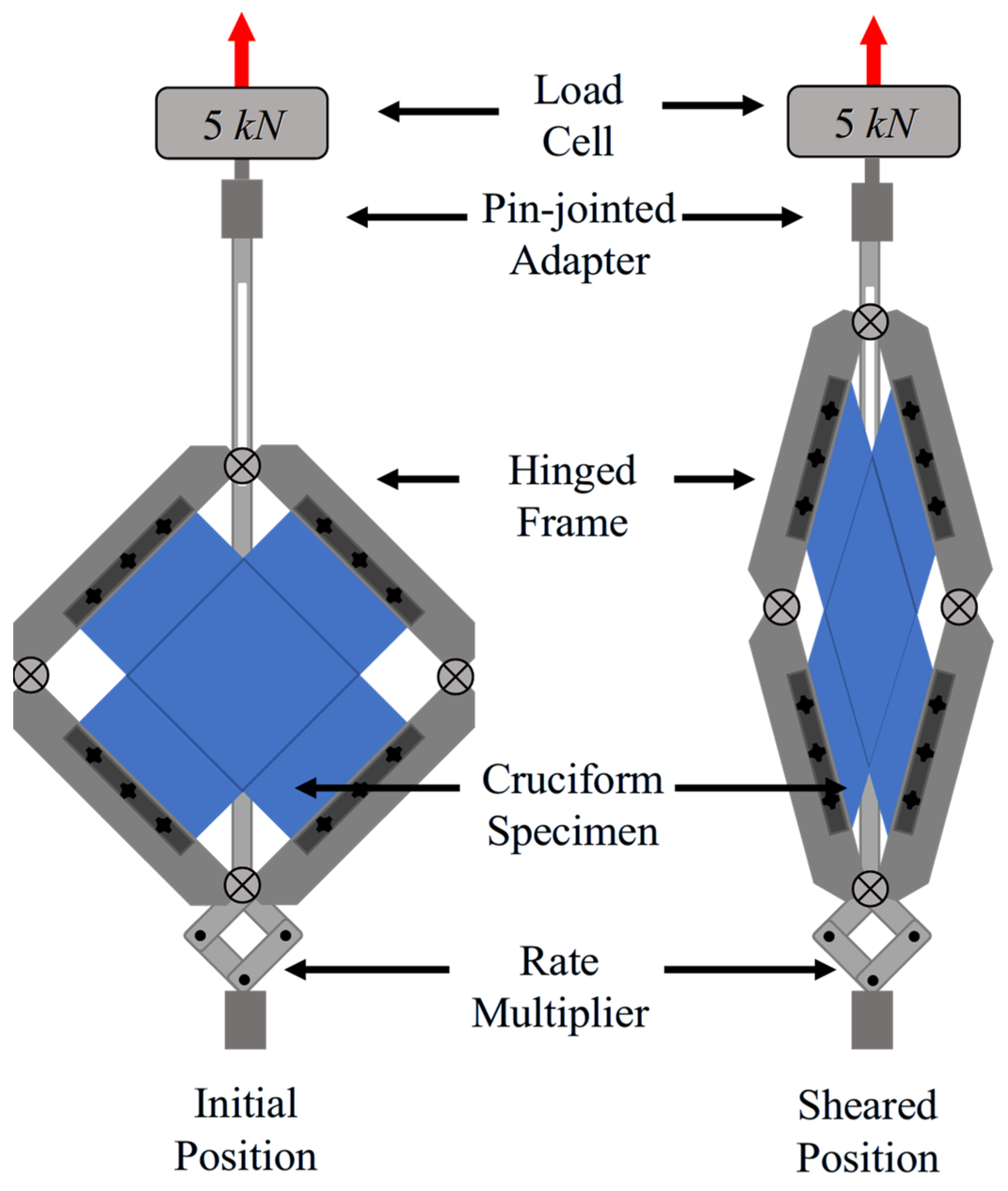

The configuration of the shear-frame fixture used in this research is shown in Figure 4. The rate multiplier is included on the frame so that the top of the frame can move approximately 4.25 times faster than the crosshead movement, allowing for higher shear rates than what could be achieved without it. The inclusion of the multiplier requires that the displacement of the top of the frame, δ, is determined by multiplying the crosshead displacement, δ_c, by the multiplier value, C. For the frame used in this study, C = 4.25. Equation (1) can be rewritten to include the multiplier,

$$\gamma ={\displaystyle \frac{\pi }{2}}-2{\cos }^{-1}\left[{\displaystyle \frac{1}{\sqrt{2}}}+{\displaystyle \frac{C{\delta }_c}{2L_F}}\right]$$

(5)

Recall that the global shear angle, γ, of the sample is geometrically related to the length of the frame, L_F. Likewise, the recorded crosshead force, F_c, must be adjusted to include the multiplier as shown in Equation (6) to find the shear force acting on the specimen.

$$F_{sh}={\displaystyle \frac{F_c/C}{2\cos \left(\frac{\pi }{4}-\frac{\gamma }{2}\right)}}$$

(6)

The current research uses some of the findings of Dangora et al. [77] and the equations developed by Peng et al. [46] to build an argument that, for this class of material systems, the arm region contributes equally to the load and can be used in the normalization. Figure 5a denotes the area generally used for normalization when the arm regions do not contribute to the load because either the cross-yarns are removed, or the cross-over friction of a woven material is considered negligible. However, for unidirectional cross-plies, the arm area will be constrained to shear with the sample, and the full area shown in Figure 5b should be considered in the normalization.

The three different shear-frame sample sizes, as summarized in

Table 1. Cruciform sample sizes for shear-frame testing.

Sample	Gage Side Length	Ratio of Arm Area/Total Area
a	125 mm	0.6
b	100 mm	0.7
c	75 mm	0.8

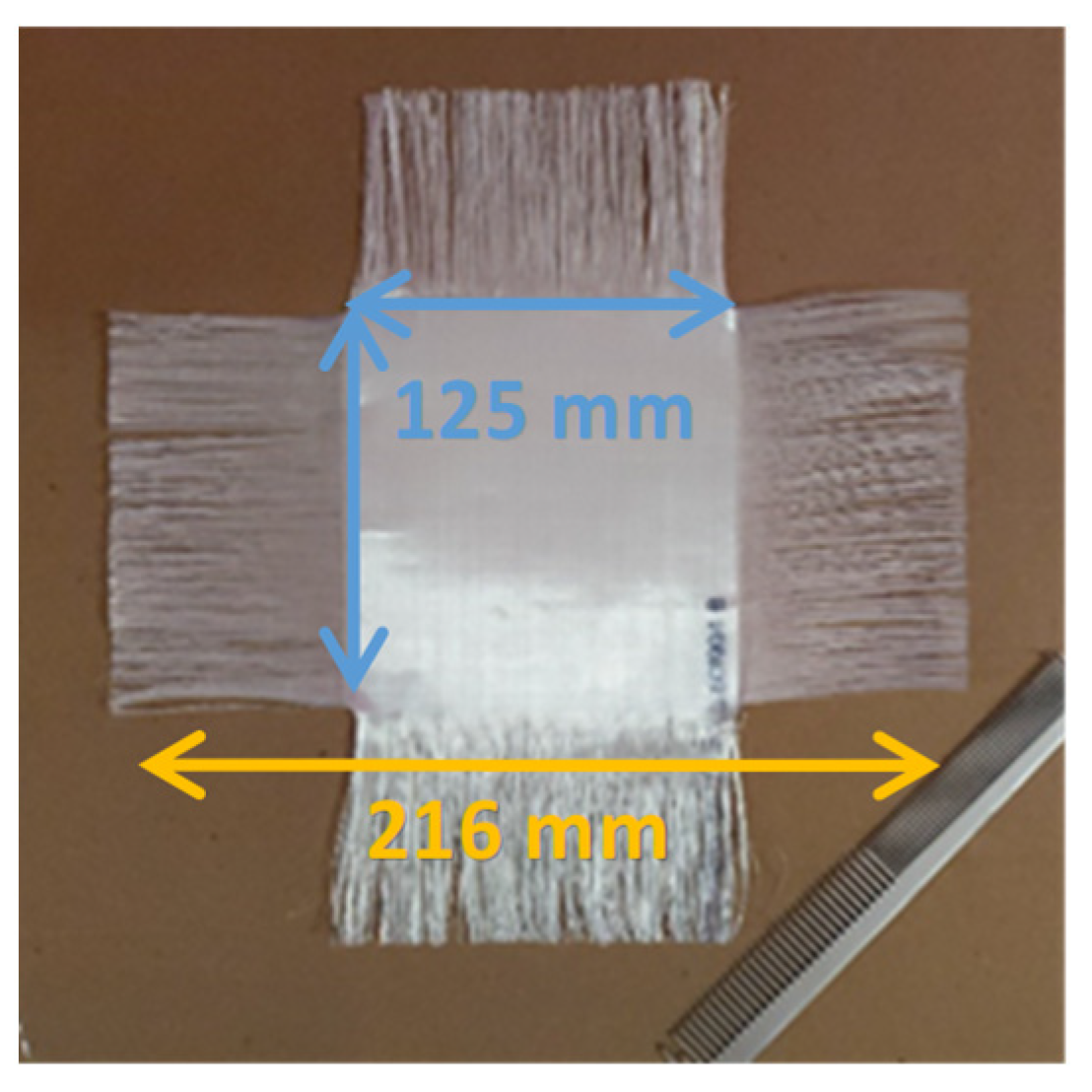

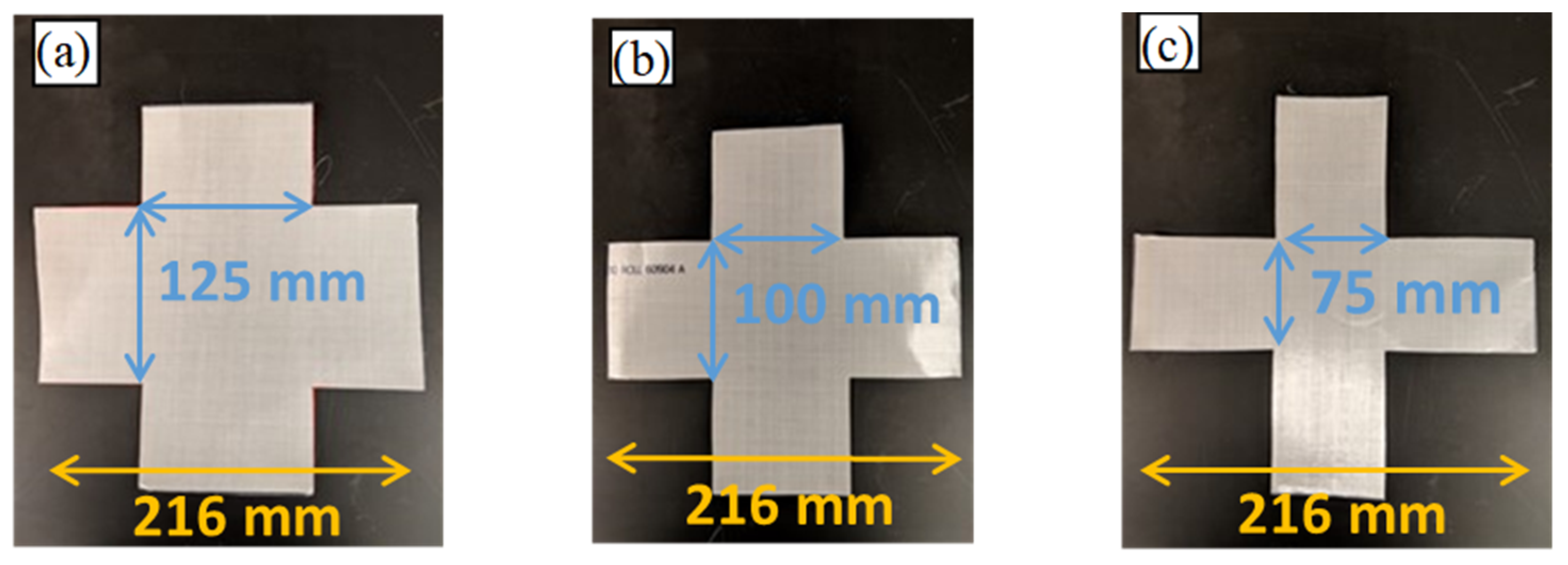

, were prepared with varying gage areas that led to a varying ratio of arm area to total area. The samples are shown in Figure 6. The assumption is that if the arm area is contributing to the shear force of the system in the same manner as the gage region, then the force normalized by the entire area will agree regardless of the ratio of arm area to the total area. Likewise, if the arm crossover material is removed, and the shear force is normalized by the central gage area, then those results should agree with the full area normalization tests. A comparison of a full-area analysis and a gage-area-only analysis was accomplished by testing a sample with the cross-arm material removed, thereby removing the contribution of the arm region to the total load. The method employed by Dangora et al. [77] was used on the Dyneema HB80 material. Acrylic templates were laser cut to fit the three different cruciform sizes and shapes shown in Figure 6, and then the outlines were marked with permanent ink. A rotary cutter, Eastman^® Chickadee D2, was used to cut the material into the cruciform shape. Acetone was applied to the arm regions to dissolve the PUR, and the cross fibers were removed with a fine-toothed comb, as shown in Figure 7.

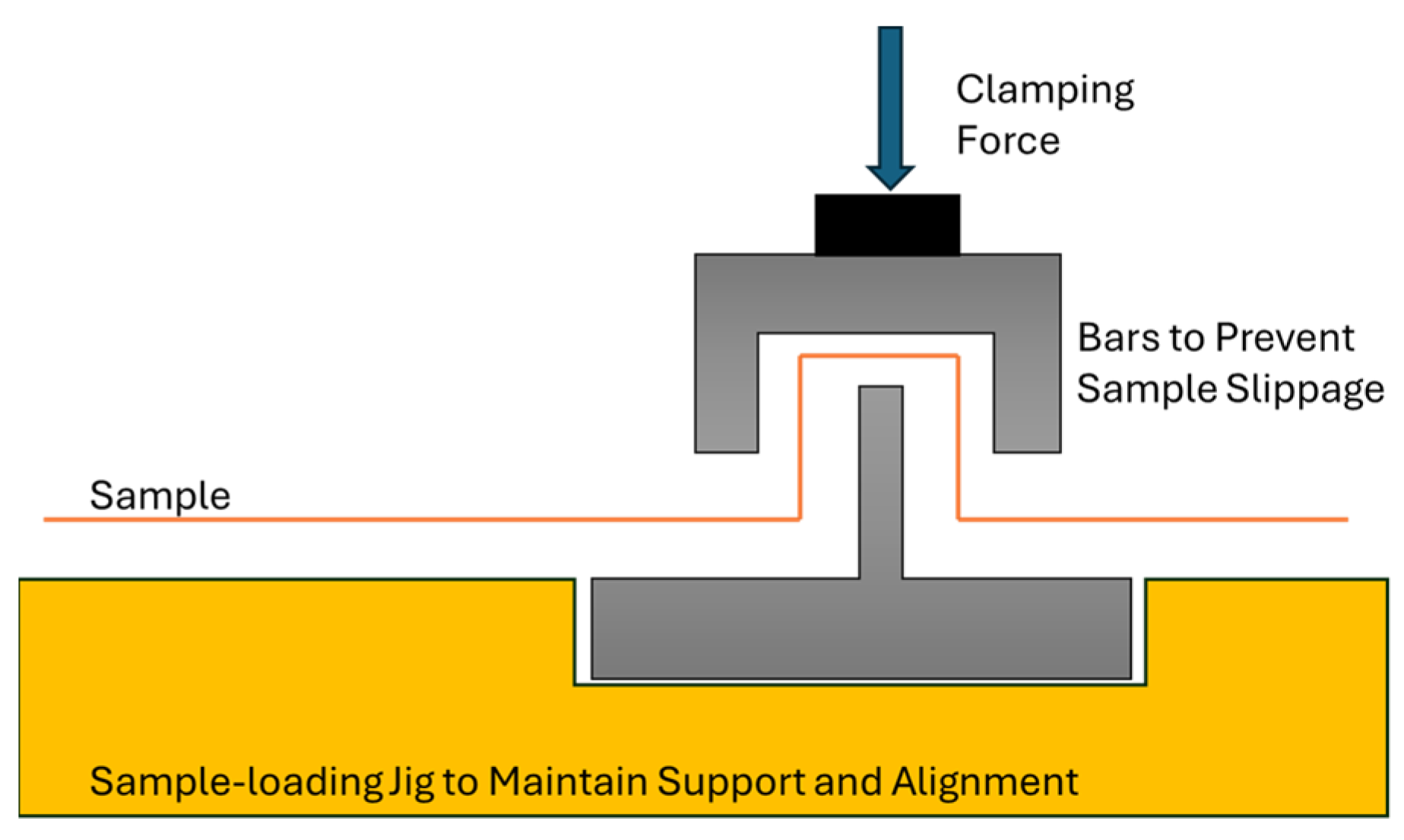

A wooden jig was created to support the middle of the sample while the arms of the sample were clamped into the frame. The entire shear-frame fixture was settled into the jig, and Figure 8 shows a cross-section of the picture frame side with the material clamped between matching bars to prevent slippage. In addition to supporting the material, markings on the jig maintained consistent alignment of the sample during testing. Once the sample was clamped, the location of the sample under the bar was marked with a permanent marker to note the initial location. If slippage occurred during a test, the run was not used in data analysis.

2.3. Constant Shear-Rate Testing

During a typical shear-frame test, the crosshead rate remains constant. However, because of the nonlinear geometric relationship between the top displacement and the shear angle, the shear-strain rate increases during such a typical test. To calculate an appropriate changing crosshead rate to achieve a specific constant shear rate, derivations of the equations relating the frame geometry to the shear angle were developed and analyzed in MATLAB^® 2020A. The details of the development by Krogh et al. can be found in [65]. The previous shear-frame testing performed in the research of this forming process used a constant crosshead rate of 2 mm/s, which mimics the tool speed in the process. Therefore, a value slightly below that was used as the lower end of the constant strain rate range.

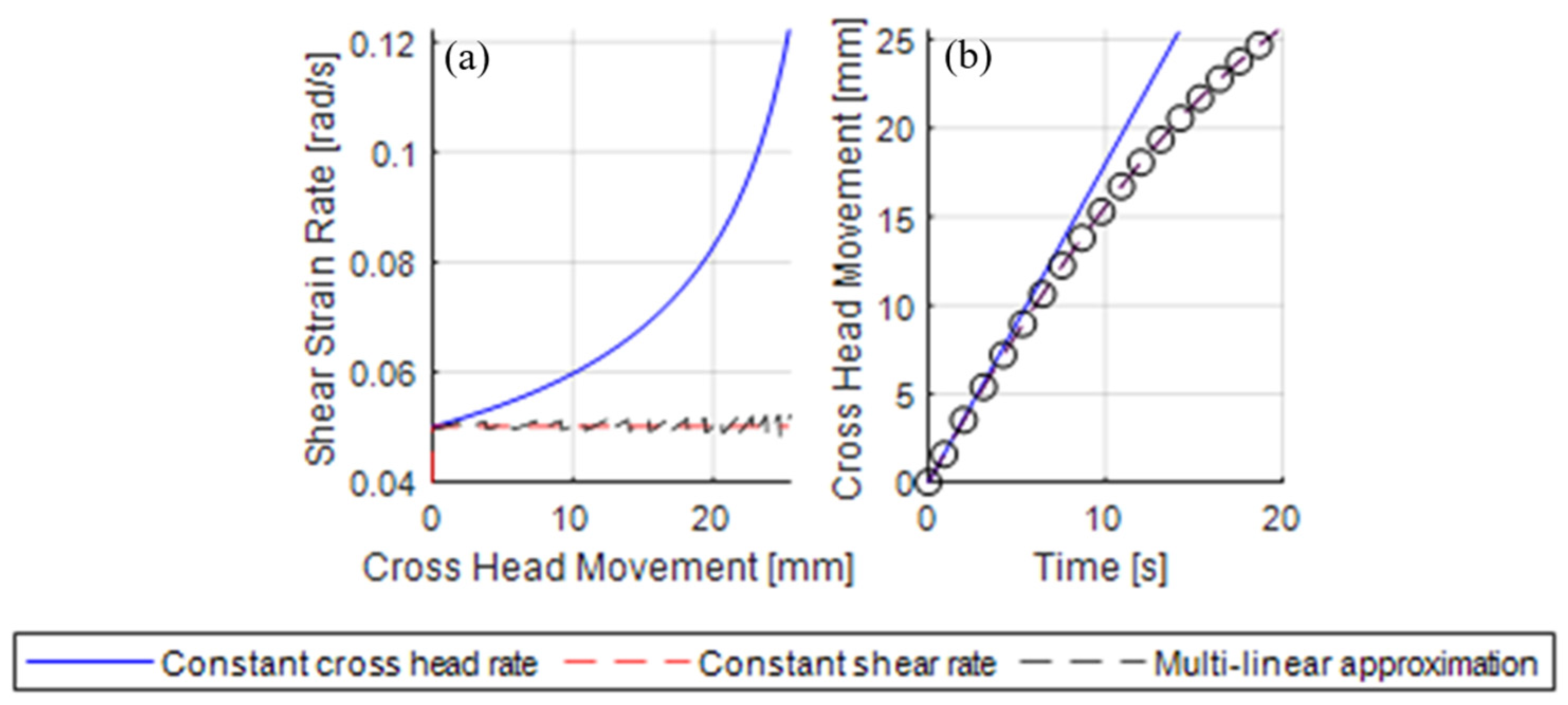

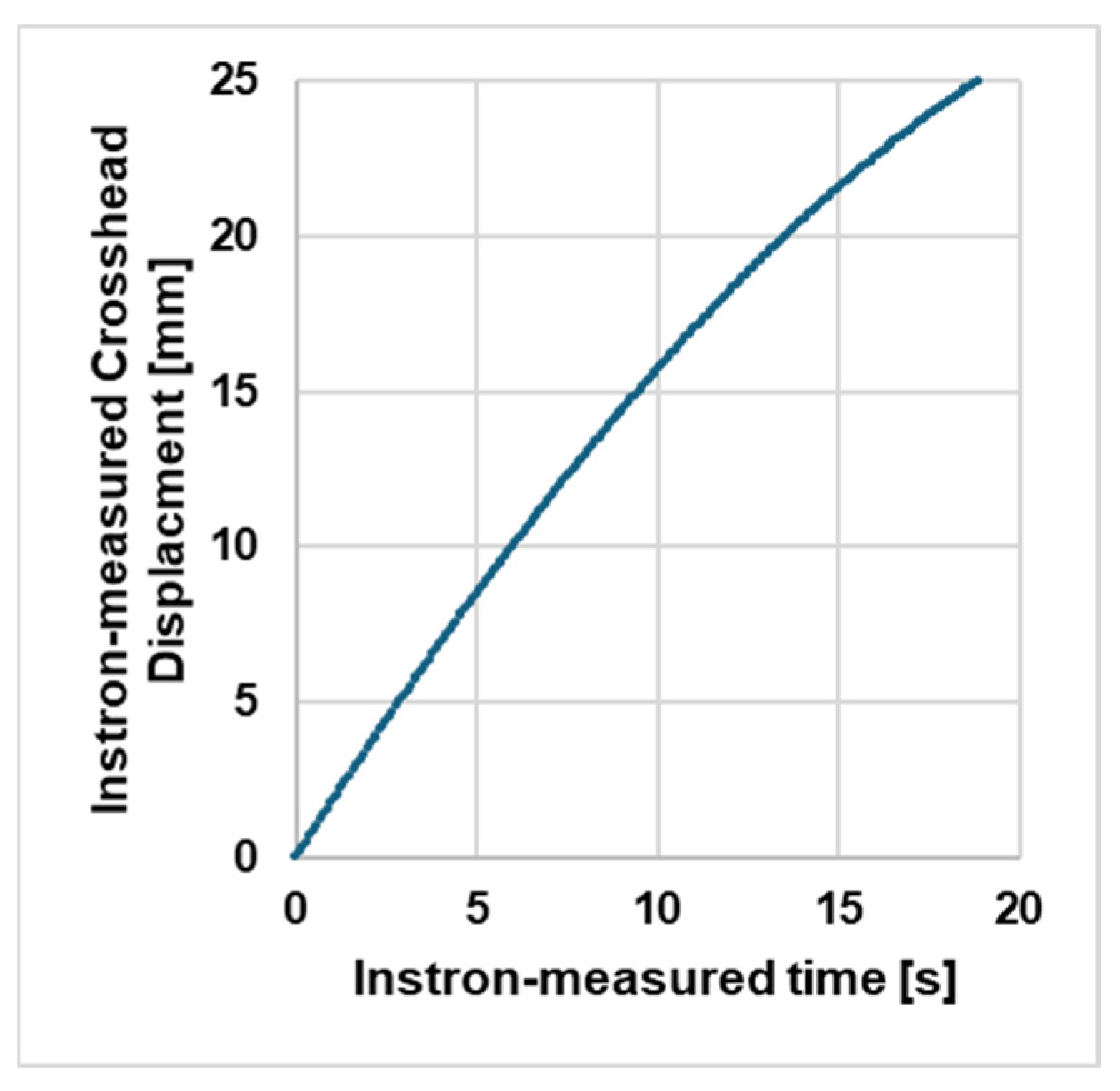

Figure 9 shows how a 20-segment multi-linear approximation of the changing crosshead rate can be used to achieve a constant strain rate. The solid blue line in Figure 9a represents how the strain rate increases with a constant crosshead rate. However, by employing the decreasing crosshead rate depicted by the black dashes, the shear rate closely matches the 0.05 rad/s solid red line for constant shear rate. Figure 9b shows the specific displacement vs. time points that can be programmed into an Instron^® Bluehill 3^® software profile to achieve the 0.05 rad/s strain rate. Twenty ramp segments were programmed in the Bluehill TestProfiler module, and the crosshead movement was confirmed with measured data in Figure 10.

3. Results

3.1. Strain Rate Variation

For the current study, the magnitude of the shear-strain rate over the UHMWPE sheet as a function of the deformed state was used to determine the range of shear-strain rates to be investigated in the shear-frame testing. During the FE analysis, the shear-strain rate is calculated for each element at each time step using,

$${{\displaystyle \frac{d\gamma }{dt}}}_{t=t_n}={\displaystyle \frac{{\gamma }_n-{\gamma }_{n-1}}{\Delta t}}$$

(7)

where Δt is the time between output states, and n denotes the time step number.

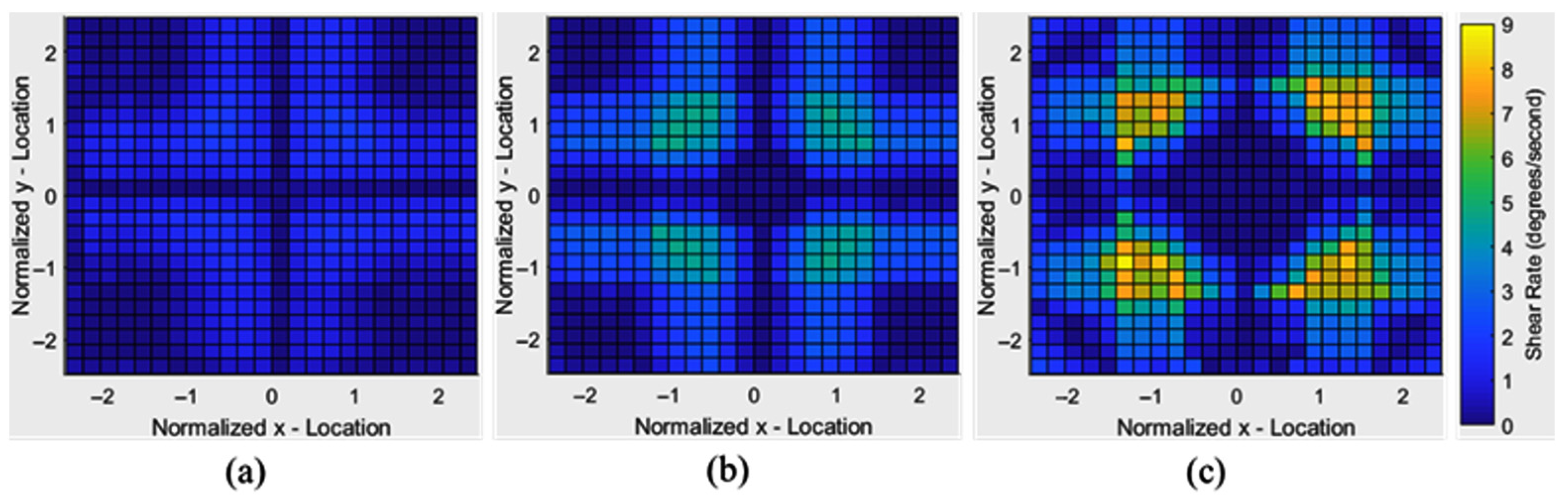

Figure 11 shows contour maps of the shear-strain rate distribution for when the punch is at 33%, 67%, and 100% embedded in the UHMWPE sheet. In this figure, the x-y location is normalized by the punch radius, meaning that a normalized x-location of 1 would be at a distance of 7.62 cm (3 in.) from the center of the plot if the punch radius were 7.62 cm (3 in.). It can be seen in these contour maps that the shear rate within the UHMWPE sheet is a function of both spatial location and time during the thermoforming process. Both the peak shear rate and shear-rate variation increase with increasing punch depth. The peak shear rate at any location during the simulation was calculated to be 8°/s. Based on the results from this analysis, an ideal range of constant shear rates to explore was found to be 2.9°/s to 8°/s.

3.2. Sample Size

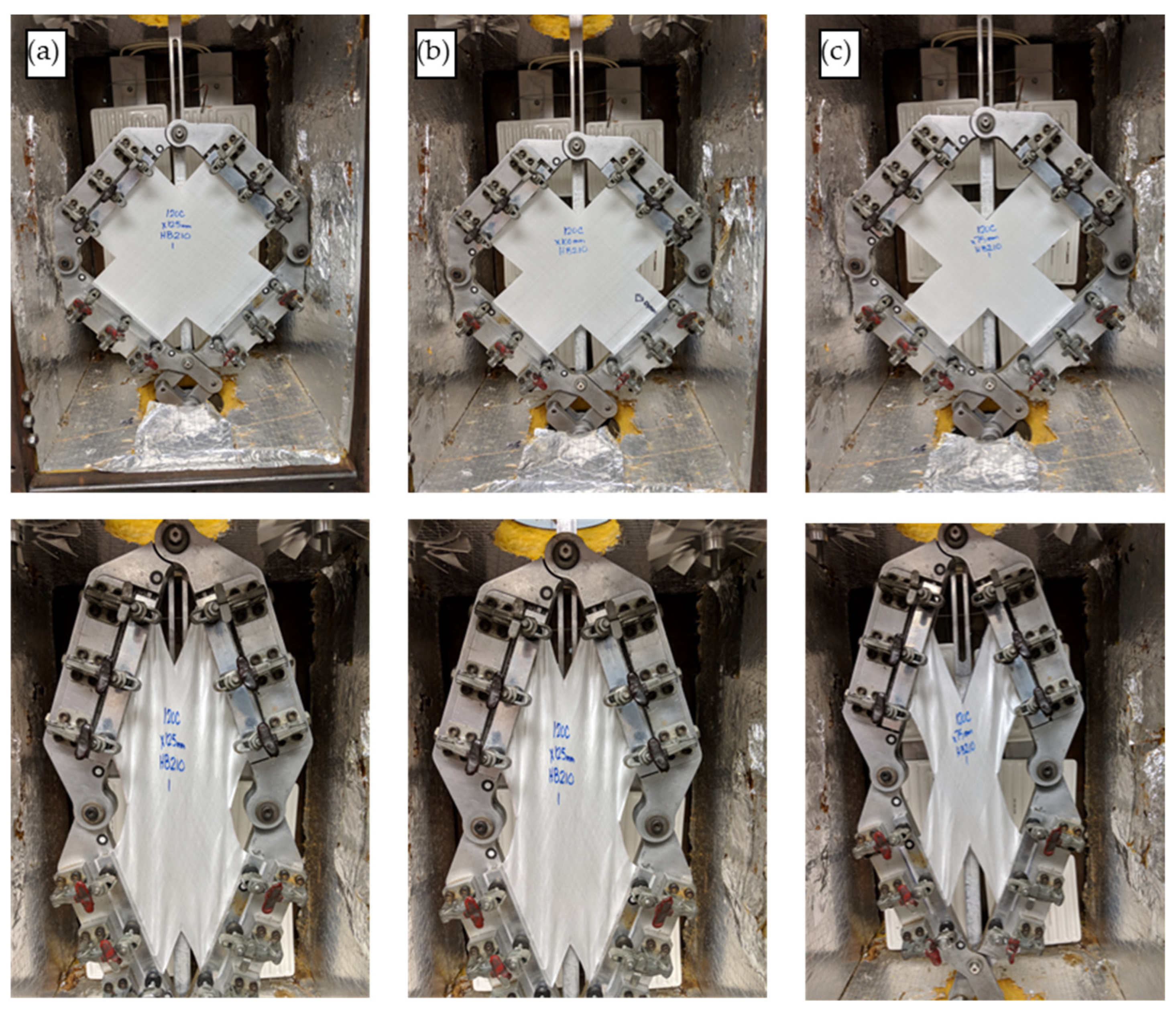

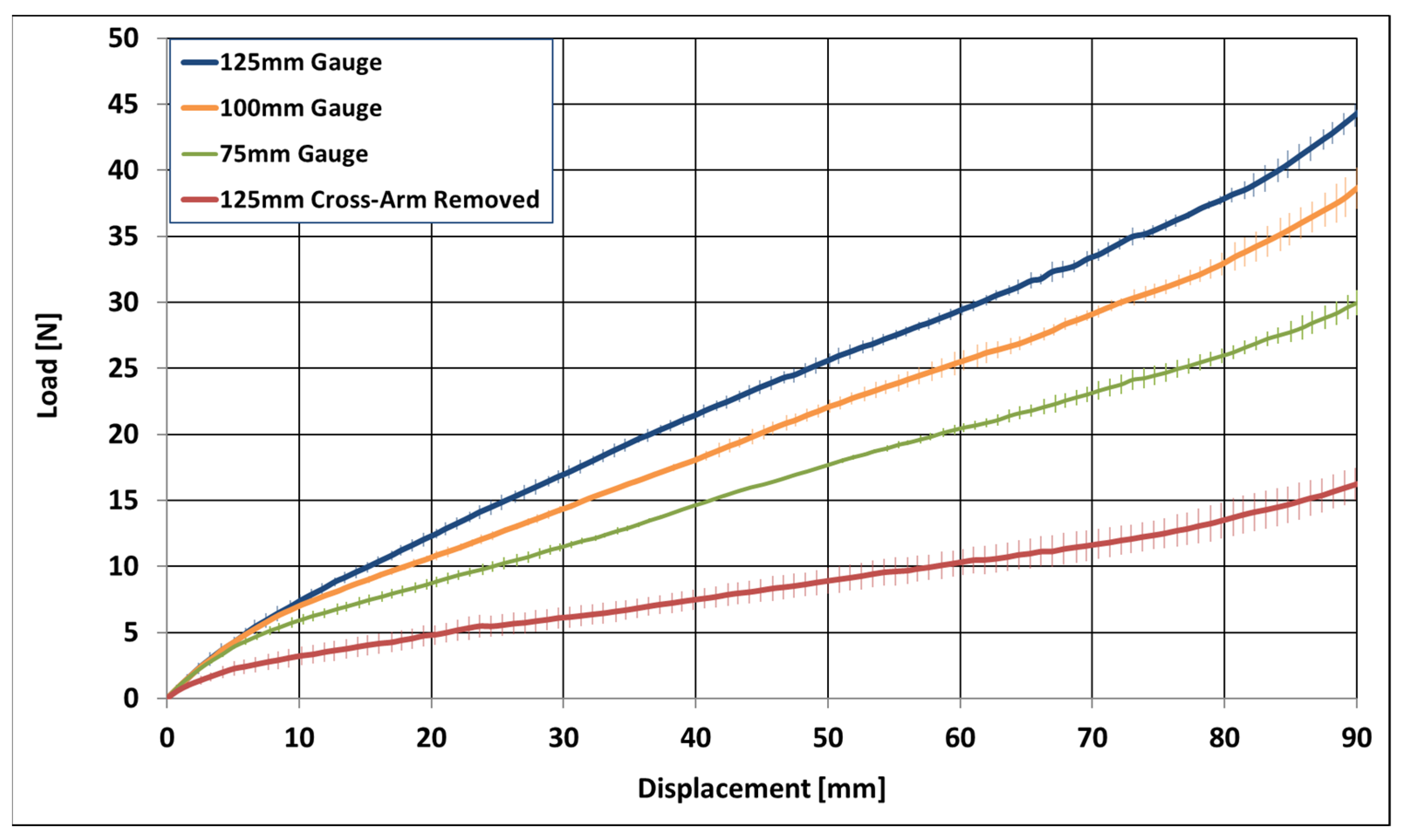

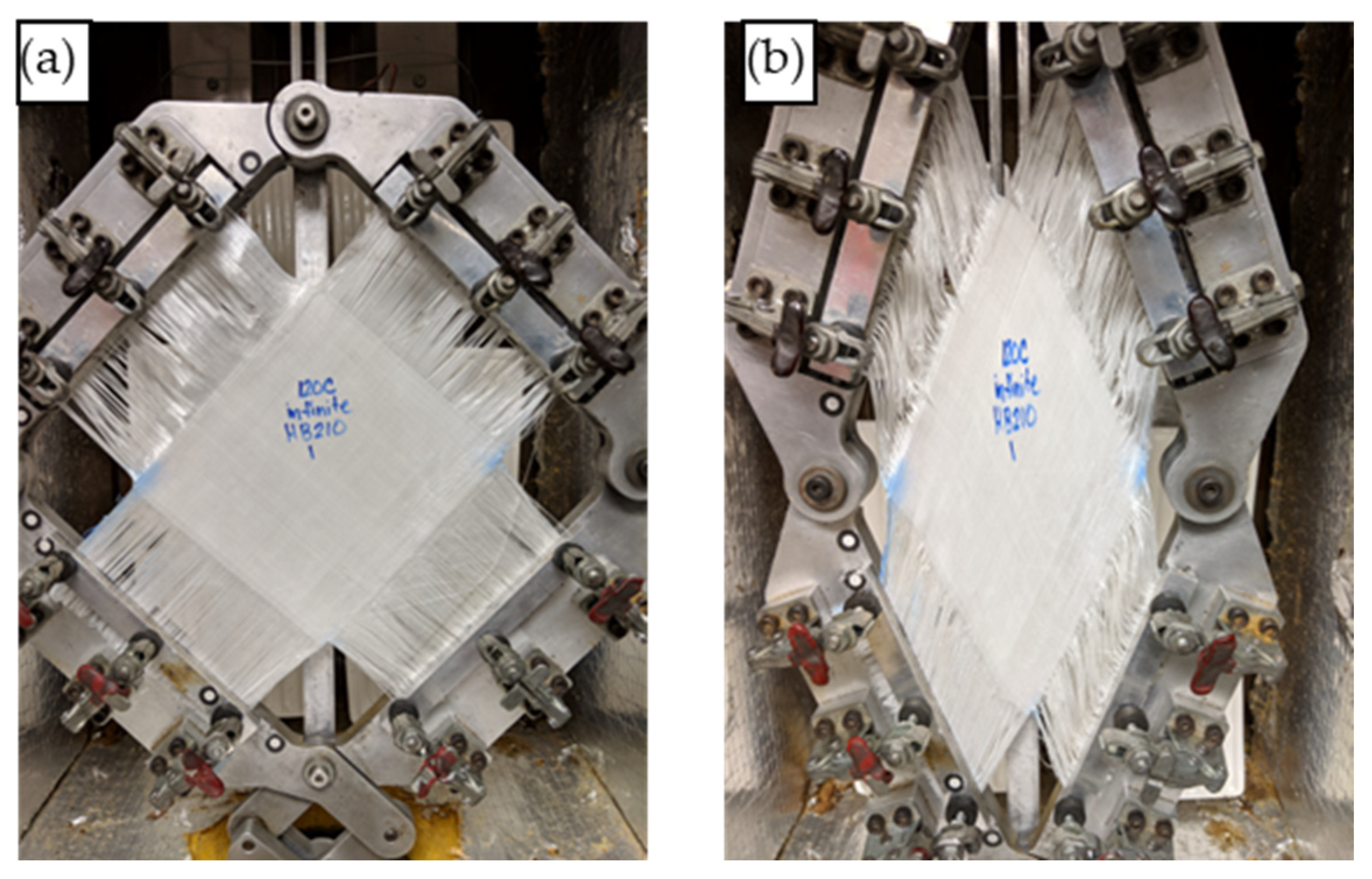

The four sample configurations were tested using an Instron^® 4464 universal testing machine with a 2 kN load cell. Crosshead displacement and force were recorded with the Instron Bluehill software during the picture-frame tests. The material was heated with infrared heating elements located behind the sample. The entire test fixture was located in a custom-built oven with a plexiglass front. The temperature of the material was monitored with a thermal imaging camera aimed through a slit in the plexiglass. A typical test setup and result are shown for each size full-arm sample in Figure 12, and the sample with the cross-arm material removed is shown in Figure 13. Equations (1) and (2) were used to calculate the shear angle as a function of the crosshead displacement and the shear force as a function of the load as measured by the crosshead, respectively. The crosshead displacement was multiplied by 4.5 to calculate the actual displacement of the top in compensation for the speed multiplier on the shear fixture, as discussed in the Section 2. Three samples of each size, as well as a 125 mm sample with cross arms removed, were tested in shear at a processing temperature of 120 °C. Figure 14 shows how the measured load decreased with the decreasing gage area of the samples. Each line in this figure is the average for three tests, and the error bars denote one standard deviation. The error bars for the sample configuration with the cross-arm fibers removed are wider than for the other three configurations. Based on the challenges with mounting the free fibers into the frame and consequently the high probability for fiber misalignment, a spread in the data was expected for the sample configuration with the cross-arm fibers removed.

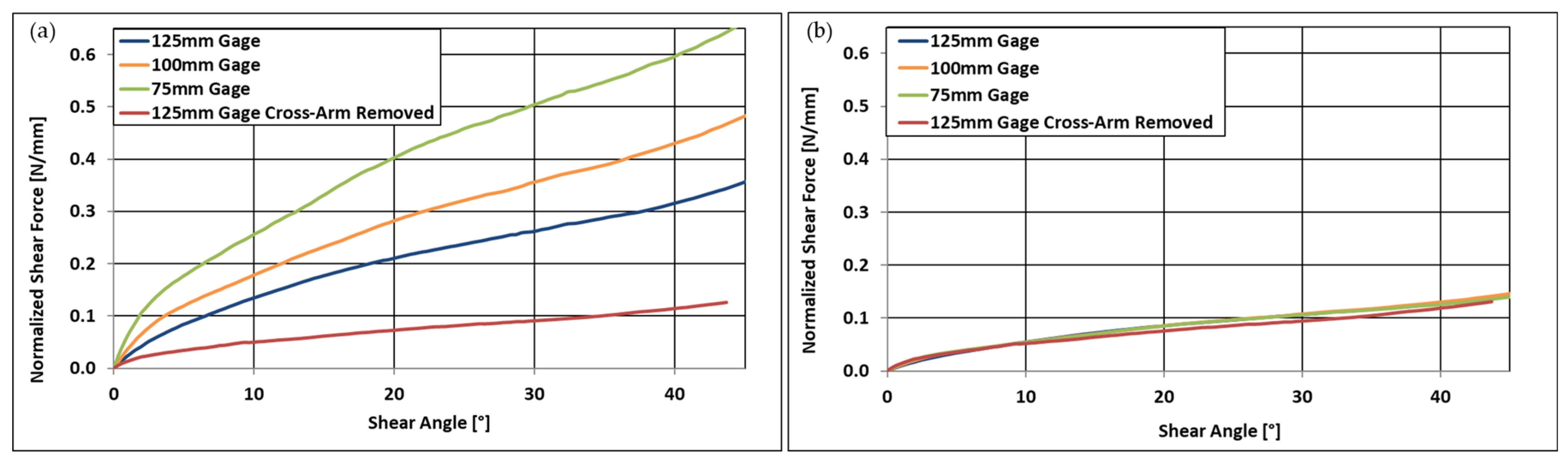

Two normalization methods were used for the full-arm samples: (1) Equation (3), which assumes only the gage area contributes, and (2) Equation (4), which assumes the arms contribute equally to that of the gage area. Figure 13a shows that normalizing with the gage area reverses the order of the results for the full-arm samples as they are shown in Figure 14, i.e., the smallest gage area having the highest normalized force. However, when the results are normalized using the full sample area, the curves come together in Figure 15b, with the samples of varying sizes converging to a single curve. That single curve is the same as the “infinite” slits configuration as concluded by Dangora et al. [77]. The convergence to a single curve in Figure 15b implies (1) that for this material system, the cross fibers and matrix in the arms do not need to be removed to find the effective stress–strain curve, and (2) the size of the “central” area of the cruciform is flexible.

3.3. Constant Shear-Rate

Three samples of Dyneema HB210 with a 125 mm gage side length (same configuration as shown in Figure 6a were tested for different combinations of rate and temperature. The test rates included two constant shear-strain rates of 2.9°/s and 5.7°/s, and one constant crosshead rate of 2 mm/s. The preferred constant strain rate of 8°/s for the peak rate reported in the analysis could not be achieved due to machine speed limitations. However, that peak rate was only reached by a small portion of the material during a short span of time during the preform process. Testing temperatures included room temperature, 80 °C, and 120 °C. These rates and temperatures were used to examine the strain-rate dependence as a function of processing temperature.

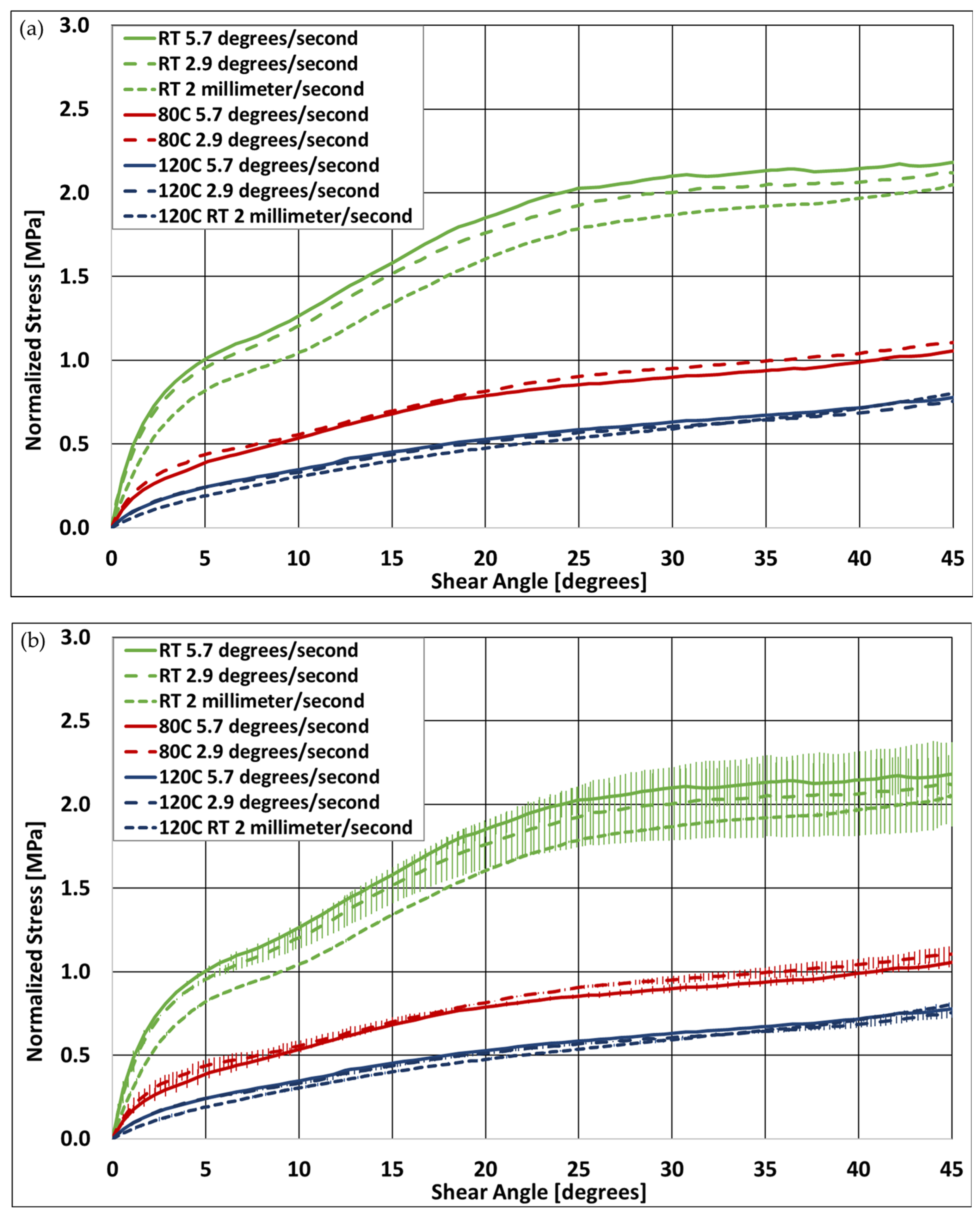

The test results are shared in Figure 16, with Figure 16b including standard deviation error bars for comparison. For this range of test temperatures and shear rates, Dyneema HB210 did show a significant variation as a function of temperature. Rate dependence is present at room temperature. At the elevated temperatures of 80 °C and 120 °C, which lie in the range of processing temperatures for this material system, there was essentially no change in the stress–strain response as a function of loading rate. Based on these results, it was concluded that shear rate dependence is not critical in the thermoforming simulation for this material system. This result is a key for thermoforming models as it ensures the process can be simulated without the need for rate-dependent material models or the amount of testing required to characterize fully the rate-dependent response of this class of material.

3.4. Finite Element Modeling Results

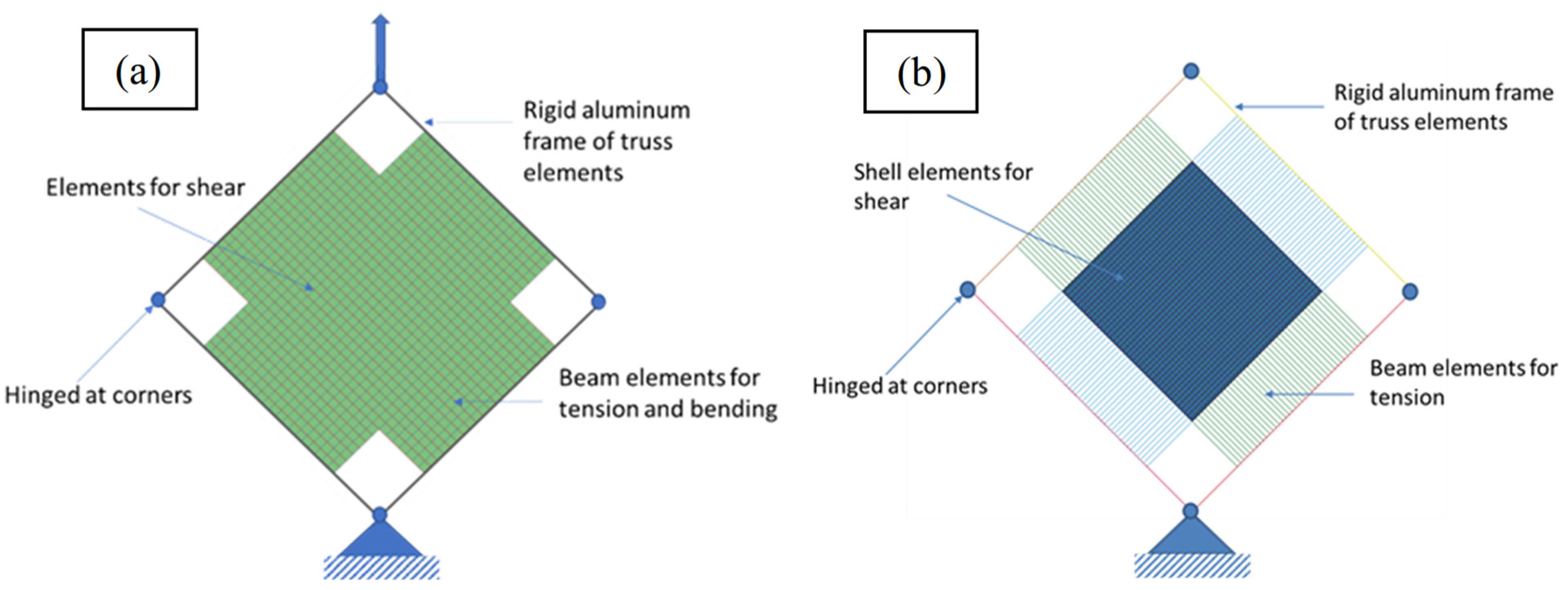

The shear-frame experiments were modeled using the discrete mesoscopic modeling approach developed by the Sherwood Group [73] with a user-defined material model (UMAT) in LS-DYNA^®. An initial analysis was performed using a built-in fabric material model, MAT 214, with a trilinear fit to the test data for calculating the shear stiffness as a function of the state of shear to estimate the range of shear rates to be explored. However, the UMAT option in LS-DYNA^® offers the ability to explore shell options that are not compatible with the built-in trilinear material. In the discrete mesoscopic modeling approach, beam elements represent the axial behavior of the fibers and the in-plane orientation of the material, while shell elements carry the shear load. Figure 17 shows the models for the full-arm and cross-arm material removed specimens. The shear curve from the data that was normalized by the full area was used for the shear behavior of the shell elements. Strain-rate dependence was not considered because the experimental results did not exhibit strain-rate dependence within the rate and temperature ranges being modeled. The tensile modulus found during previous testing was used [96]. A shell element size of 3 mm × 3 mm was found to be an efficient choice for the model. A 5 mm element led to numerical instability. Smaller element sizes (1 mm and 2 mm) yielded results similar to those of the 3 mm elements, but the processing time was more than doubled.

Four configurations (three different full-arm sample sizes and one cross-arm material removed) were modeled using the data from the full-arm 125-mm specimen shown in

Table 2. Material inputs for finite element model with UMAT at 120 °C.

Material System	Temperature (°C)	Shear Stiffness (MPa)	Tensile Modulus (MPa)
Dyneema HB210	120	${447\left|\gamma \right|}^6-{1295\left|\gamma \right|}^5+{{1473\left|\gamma \right|}^4-830\left|\gamma \right|}^3+243{\left|\gamma \right|}^2-37\left|\gamma \right|+3$	13,222

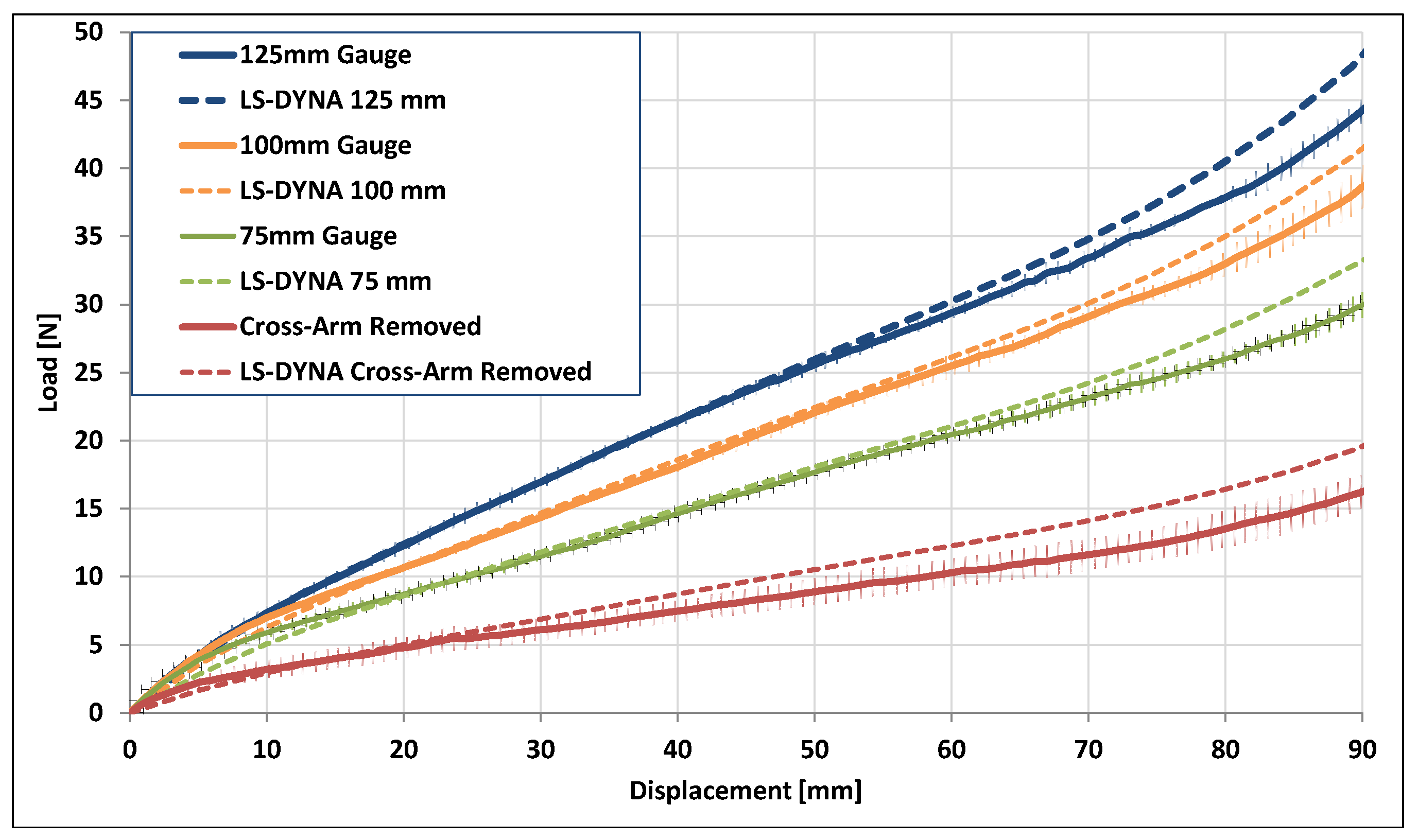

. Figure 18 shows good agreement in all four cases up to 90 mm of crosshead displacement, which corresponds to approximately 43° of shear strain. The results confirm that full-arm tests could be used to characterize this class of unidirectional cross-ply laminates.

4. Discussion

The present study investigated shear characterization of UHMWPE cross-ply laminates using the picture-frame test, with an emphasis on specimen configuration, normalization methodology, and shear-rate effects. The findings demonstrate that normalization by the full cruciform area yields consistent shear stiffness curves across sample sizes, indicating that the arm regions contribute comparably to the central gage region. This contrasts with prior research on woven composites, where removal of cross-arm yarns was often required to obtain reliable shear data [46,52,77,86]. In a woven material, there is friction at the crossovers, and this friction is reduced in the arm areas because there is no tension in the perpendicular yarns. In unidirectional cross-plies, however, the continuous fiber and matrix architecture constrains the arms to deform in shear even without the sides of the arms being clamped, eliminating the need for the more complex preparation methods previously employed.

The increased scatter observed in the arm-removed specimens highlights the practical challenges of specimen modification, including misalignment and difficulty in mounting free fibers. These results are consistent with the observations of Krogh et al. [65], who noted reduced repeatability when woven samples required yarn removal. Thus, for UHMWPE cross-ply systems, full-arm testing provides a more robust and repeatable methodology while simplifying specimen preparation.

The implementation of a constant shear-rate test protocol allowed for explicit evaluation of rate effects across processing temperatures. While rate dependence was evident at room temperature, no significant dependence was found at 80 °C or 120 °C. These results align with prior investigations of thermoplastic prepregs where elevated temperature reduced rate sensitivity [31,32,33]. The shear behavior between plies is matrix dominated and therefore has less strain-rate sensitivity near the melting temperature. Importantly, this suggests that rate-dependent constitutive models are unnecessary for thermoforming simulations of UHMWPE laminates within their processing window, thereby simplifying model calibration and reducing experimental demands.

Finite element simulations confirmed that full-arm shear-frame data could be used to represent different specimen sizes and configurations, with good agreement observed up to approximately 43° of shear strain. This validates the use of discrete mesoscopic modeling approaches [14] for cross-ply UHMWPE laminates and supports the generalizability of the proposed experimental methodology.

Overall, this work provides a practical framework for shear characterization of UHMWPE cross-ply composites that reduces specimen preparation complexity, ensures repeatability, and establishes that shear-rate effects can be neglected at processing temperatures. These contributions streamline the integration of experimental data into forming simulations and address a critical need for efficient, material-specific characterization in composite manufacturing research.

5. Conclusions

In this research, investigations into sample configuration were performed to expand the understanding of how shear-frame testing can be used to characterize the shear response of fiber-reinforced UHMWPE material systems. Shear force curves from three different cruciform sample sizes normalized with the full specimen area, as well as samples with the cross-arm area removed, converged to a single curve. This convergence implies that the arm area contributes to the force on the sample the same as the gage area and need not and should not be ignored in normalization efforts. Likewise, there was large variation in the test results from the samples with cross-arm material removed, highlighting the challenge in preparing and mounting those samples consistently to produce repeatable results and demonstrating the desire for an alternative experimental methodology. The experimental methodology and accompanying data analysis presented above fulfill this need for the UHMWPE cross-ply class of materials.

Though strain-rate dependence was demonstrated for ambient temperature testing, rate dependence was not evident at a processing temperature of 120 °C. Therefore, rate dependence was not a requirement for the shear stiffness input in a finite element forming simulation. This rate independence is critical for process modeling because it eliminates the need for a rate-dependent material model and the time required to characterize a rate-dependent material response fully. The converged data curve was used as an input into an LS-DYNA finite element model to simulate the shear-frame tests for all sample configurations. The simulation results agreed well with experimental results for the full-arm samples as well as for sample configuration with the arm material removed. This work establishes an experimental procedure and data analysis methodology for characterizing the shear response of cross-ply UHMWPE composites, which can be used as input into thermoforming models.
