Next Article in Journal
Green-Synthesized Graphene for Supercapacitors—Modern Perspectives
Previous Article in Journal
Comparative Evaluation of the Sealing Ability of a BioCeramic Sealer (iRoot SP) with AH Plus Sealer with Root Canal Dentin Using Three Different Techniques of Sealer Application: A Combined Dye Extraction and Scanning Electron Microscope Study
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:

Development and Characterization of Bioplastic Synthesized from Ginger and Green Tea for Packaging Applications

Department of Mechanical Engineering, Dhaka University of Engineering and Technology (DUET), Gazipur 1707, Bangladesh
Department of Materials and Metallurgical Engineering, Dhaka University of Engineering and Technology (DUET), Gazipur 1707, Bangladesh
Nuclear Safety Section, NSSS Division, Bangladesh Atomic Energy Regulatory Authority, Dhaka 1207, Bangladesh
Department of Mechanical Engineering, IUBAT-International University of Business Agriculture and Technology, Dhaka 1230, Bangladesh
Department of Physics, College of Science, Jazan University, P.O. Box 114, Jazan 45142, Saudi Arabia
Faculty of Engineering, University of Malaysia Sarawak, Kota Samarahan 94300, Malaysia
Center of Excellence for Advanced Materials Research (CEAMR) & Department of Chemistry, Faculty of Science, King Abdulaziz University, P.O. Box 80203, Jeddah 21589, Saudi Arabia
Center for Nanotechnology, Department of Natural Sciences, Coppin State University, Baltimore, MD 21216, USA
Authors to whom correspondence should be addressed.
J. Compos. Sci. 2023, 7(3), 107;
Received: 30 January 2023 / Revised: 22 February 2023 / Accepted: 1 March 2023 / Published: 7 March 2023
(This article belongs to the Section Polymer Composites)


The world is suffering from heavy pollution because of synthetic petrochemical plastic used in our daily activities. A possible solution is the use of bioplastic synthesized from natural renewable resources. The present work investigates the development and characterization of polymer bioplastic using ginger tea and green tea to decrease the adverse effect of petrochemical plastic waste for versatile applications. Two kinds of bioplastic samples were produced with two types of tea, ginger tea and green tea, using glycerol, vinegar, starch, and water. SEM (scanning electron microscopy), FTIR (Fourier transformed infrared spectroscopy), mechanical (tensile), TGA (thermogravimetric analysis), DSC (differential scanning calorimetry), and time tests of bioplastic degradation analysis were carried out to evaluate the morphological, mechanical, and thermal behaviors of the synthesized tea bioplastics. The research result showed ginger tea bioplastic had a maximum tensile strength of 2.9 MPa and a minimum elongation of 7.46 mm. More than 78% of degradation occurred in ginger bioplastic within 30 days. Compatible thermal and morphological characteristics are also observed in the prepared bioplastic samples.

1. Introduction

Composites regularly come full circle into lightweight structures, having great firmness and custom-made properties for applications, subsequently sparing weight [1]. Bio-composites are materials made from filaments (standard or engineered) and petroleum-inferred non-biodegradable polymers or biopolymers [2]. However, bio-composites inferred from natural plastics and fibers are eco-friendlier, hence they are among the most desired materials of the 21st century [3]. The non-renewability and non-biodegradability of petroleum resources, depletion of reliable wood products, environmental concerns, and increasing awareness of the carbon footprint are causing research to be directed into natural fiber-reinforced composites for new applications [4]. Due to waste disposal problems and strong environmental regulations, a significant proportion of scientific studies have led to biodegradable eco-composite materials [5]. Composite bioplasticis identified as an emerging material for creating maintainable materials, primarily because of the total biodegradability of composite biodegradable plastic produced for different applications [6,7,8]. Biopolymer-based materials are necessary to convert into hybrid biopolymer composites to increase their mechanical and tribological properties [9,10,11]. Biopolymer materials are available at a low price, have excellent mechanical properties, and are biodegradable [12,13]. Starch has been gaining attention since the 1970s. Numerous endeavors have attempted to create starch-based polymers for moderating petrochemical assets and diminishing their natural effects [14]. However, starch-based materials have a few downsides, including long-term steadiness caused by water assimilation, maturing caused by retro degree, and destitute mechanical properties [15]. Plasticizers such as glycerol have allowed us to make improvements in the shelf-life and versatility of items in order to overcome these restrictions [16].
Yam starch bioplastic exhibits better toughness in comparison to small flexible potato starch bioplastic [17]. Additionally, it has exceptionally tall biodegradable properties, with conventional mechanical and thermal properties [18]. Ca2þ particles in a starch–water suspension with and without warming impact its physicochemical properties [19]. Starch–water suspensions warmed without Ca2þ delivered custard without kinematic consistency; this was reflected in the immaculate flexible behavior of the mechanical test [19]. In contrast, the closeness of divalent particles of Ca2þ in these suspensions prompts the arrangement of a hydrogel [20] with a far better mechanical quality, Young’s modulus, water dissolvability, and contact point; this is accomplished with 4% energy natural product peel expansion, combined with 32 to 38 wt % glycerol from 80 to 120 rpm screw speed [21]. Its pliable quality confirms that the bioplastic of jackfruit starch, percent stretching, Young’s modulus, and glycerol produce a film with great mechanical properties [22]. Starch is suitable because of its for low cost, availability, renewability, biodegradability, on-abrasiveness, and low density [22]. However, starch-based materials have a few disadvantages, including long-term steadiness caused by water assimilation, maturing caused by retro degree, and destitute mechanical properties [23]. Plasticizers such as glycerol have allowed us to make strides in the shelf-life and versatility of items in order to overcome these impediments [15]. Filler is the foremost successful strategy to extend this inclination [16]. Some cost-effective fortifications are natural renewable assets [24], lyocell [25], brief abaca [26], paper mash [27,28], jute [29], bamboo [30], microcrystalline cellulose [31], pineapple [32], Cordenka [33], flax [34], sisal [35], and kenaf [36]. PLA is an attractive prospect due to its, renewability, biodegradability, moo thickness, non-abrasiveness, and its moo-fetched quality [37]. A selection of studies on the mixing of PLA/starches [38] such as wheat starch, corn starch, and cassava starch [39] have been investigated.
Acidification, hydrolysis, and microbial fermentation are the most common chemical or biological processes used to make bioplastic from different natural resources such as vegetable oil, potatoes, corn, and wheat [40,41]. Starch is considered one of the most-utilized sources by researchers among natural resources. Starch is basically formed by amylase and amylopectin. The linear structure of amylase provides highly flexible and strong mechanical properties. However, the branched structure of amylopectin provides lower resistance to tensile strength and elongation properties [42]. Among natural resources, starch is inexhaustible, renewable, and has a low price [43]. Different types of tea are mixed with starch nowadays to improve the quality of bioplastics. They are biodegradable and can improve the properties of bioplastics. The literature shows several examples of the preparation of bioplastic from tea [44].
Ginger is a flowering plant that is around one meter tall. Its rhizome and roots are widely consumed as a spice and folk medicine. It is traditionally used as medicine for menstrual pain, osteoarthritis, migraine, rheumatoid arthritis, diabetes, cardiovascular disease, metabolic disorder, etc. in different parts of the world, especially in China and the Indian subcontinent [45,46]. It is also popular for cooking. Edible fresh ginger contains 85–95% moisture which is sensitive to microbial damage [47,48]. It is rich in phenolic and terpene compounds [49]. Additionally, it is bio-degradable and can be converted into compost.
Green tea is a kind of non-fermented beverage and is beneficial for the health of consumers. It contributes to one fifth of global tea production. It is rich in catechins, amino acids, minerals, alkaloids, and polyphenols, which have potential health benefits [50,51]. It dominates the consumer tea market in China [52]. Based on its production method, green tea can be divided into four categories of roasted, baked, sun-dried, and steamed [53]. It has resistance to oxidation, cancer, neuro-degeneration, bacteria, and inflammation [54,55]. In addition, green tea is biodegradable, easily biodegrades in nature and is converted into compost fertilizer.
This research paper intended to use renewable natural agricultural sources such as green tea and ginger for the production of bioplastics. The novelty of this work is that it used both ginger and green tea to synthesize bioplastic, which the previous researchers did not do. Moreover, tea is a naturally renewable resource and is abundant in many parts of the world. It has excellent biodegradable properties. Besides, tons of used teas which can be reused are thrown out every day. This work may be a good source of information for the synthesis of bioplastics in order to reduce the hazards and issues of conventional plastics.

2. Materials and Methods

2.1. Materials

The raw materials used in this research work are available in the local area and are renewable. Their collection was easy and affordable. The raw materials for this research, for example corn, ginger, white vinegar, and glycerol, were collected from the nearby local market. The corn and ginger were washed three times with distilled water and dried under the sun, followed by boiling and blending to obtain starch. Distilled water was collected from the environment lab of IUBAT. Green tea was supplied by the famous tea brand Isphahani Mirzapur tea. Other researchers also used similar materials in their research to fabricate bioplastic materials [56].

2.2. Fabrication of Bioplastic

Two different types of bioplastic samples were developed with ginger and green tea, with the intention of improving the different properties of starch-based bioplastics. The ingredients, such as corn starch, distilled water, white vinegar, and glycerin, were measured carefully with the help of a precise electronic balance before being mixed with ginger. The mixture was stirred with a magnetic stirrer with the application of heat to boil. Later, the mixture was placed on aluminum foil and allowed to cool naturally [57,58]. Bubbles were removed when they formed from time to time. The same procedure was followed for green tea as well. Here, some percentages of tea have been mixed with corn starch to improve the properties of corn starch-based bioplastics. The percentages of different ingredients are shown in Table 1.

2.3. Characterization

2.3.1. Soil Burial Biodegradation Test

All the prepared bioplastics must be biodegradable, and as such a test on biodegradability must be performed. The samples were cut with dimensions of 50 mm × 30 mm × 3 mm for the soil biodegradation test. The humidity and pH of the soil was 7.6% and 6.5, respectively. Each sample was measured carefully with a precise electronic balance. Then, the samples were buried in the soil at a 10 cm depth. The samples were buried for 7, 15, and 30 days, and weights were measured again after removal from the soil, followed by drying. The biodegradation rate was calculated from the weight differences [59,60,61]. The following formula was used to measure the rate of degradation.
Loss of weight % = (Mi − Mf)/Mi × 100%
Here, Mi = the initial mass and Mf = the final mass of the bioplastic sample in a dry condition.

2.3.2. Mechanical Test

Tensile property is a crucial factor for bioplastic materials to be used in different practical applications. It determines the usability of a material based on its load-carrying capacity. Tensile tests were performed at Poly Cable Industries, Munshiganj, Dhaka, using the CHUN YEN brand Universal Testing Machine Model No.: CY-6040A4. Estimating the force–distance data at a stain rate of 2 mm/min at room temperature, the tensile strength (TS) and elongation were determined from the stress–strain curves. Each experiment was performed three times and average data were considered. The specimens before and after the tensile test are illustrated in Figure 1a and Figure 1b, respectively.

2.3.3. FTIR Analysis

The FTIR spectra analysis was carried out at the Centre for Advanced Research in Sciences (CARS) at the University of Dhaka, with Shimadzu machine Model No- IR Prestige-21. This analysis was performed on the samples of bioplastic to find the presence of different functional groups in the synthesized bioplastic samples. To identify the range of functional groups in relation to the chemical composition and physical state of the samples, this analysis is performed by an FTIR machine. The spectra were measured within the range of 500 cm−1 to 4000 cm−1.

2.3.4. SEM Analysis

Surface morphology plays a crucial role in determining the properties of bioplastics, including mechanical and biodegradable bioplastics, to discover their application in various fields. The morphology of bioplastics and filler material distribution were analyzed by a scanning electron microscopy (sEm) analyzer. The microstructure of fabricated bioplastic with the arrangement of filler materials is clearly recognized using this method. The samples were cut to dimensions of 10 mm × 10 mm × 3 mm for the test. The pictures were captured at 10 kV. SEM (Model: Hitachi SU-1510, made in Japan) was used to characterize the material surfaces in this study.

2.3.5. Thermal Analysis

Thermal property is an essential characteristic of a bioplastic material that is to identify its application at elevated temperatures. The thermal property was measured within a temperature range of 5 °C to 500 °C in a nitrogen environment, in which a 5 °C min−1 heating rate was maintained. A thermogravimetric analyzer (SDT650 Serial No 0650-0180) was used to investigate the relationship between temperature, weight loss, and heat flow. After that, DSC and TGA measurement samples were acquired from a trial specimen for measuring HDT by cutting it perpendicularly from the glass mat. It should also be mentioned that the model weighing 39–55 mg was calculated for each test.

3. Results and Discussion

3.1. Mechanical Properties Analysis

Figure 2a–c, and Table 2 specify the mechanical properties of ginger tea and green tea bioplastic. Green tea provided the highest tensile strength. In the test, the ginger tea bioplastic was able to withstand 2.9 kgf loads, whereas green tea bioplastic was able to withstand a 2.7 kgf load. Ginger tea bioplastic showed a 2.9 N/mm2 Young’s modulus, and green tea bioplastic showed 2.1 N/mm2 Young’s modulus. Elongation was observed at 7.4 mm and 8.5 mm from ginger tea and green tea bioplastic samples, respectively. The maximum stress obtained from the samples prepared by ginger tea bioplastic and green tea bioplastic was 2.5 N/mm2 and 2.6 N/mm2, respectively. Ginger tea bioplastic and green tea bioplastic samples showed maximum strains of 37.3% and 42.5%. The incorporation of green tea enhances tensile properties [17]. The improvement in the mechanical properties of green tea bioplastic may be because of the higher cross-linking of bioplastics at lower mold temperatures [62]. The higher percentage of proteins and the thermal profile of the proteins present in green tea bioplastics because of this higher cross-linking act to improve its mechanical properties. However, increased heat treatment time improves the maximum stress while decreasing the maximum strain, thus making bioplastic stiffer [63]. The standard deviation, in fact, the error obtained in this research was ±2%.Table 2 shows the tensile properties of the bioplastic samples.

3.2. FTIR Analysis

The purified bioplastic was first characterized using Fourier-transform infrared (FTIR) spectroscopy. There were several major functional groups in the FTIR spectrum of the bioplastic., i.e., FTIR investigation has been carried out to compare the spectra of ginger tea and green tea bioplastics, as shown in the spectra displayed in Figure 3a,b. Both spectra show similar types of curves, as both of the samples were prepared from similar types of ingredients such as corn starch, distilled water, white vinegar, and glycerol. The only difference was the use of ginger tea in one sample and green tea in another sample. However, both ginger tea and green tea are organic and have similarities in chemical constituents. This is why both spectra show similar characteristics. The alcohol (O-H) stretching band is at 3317.56 cm−1,which is shifted to 3305.99 cm−1 in green tea; this represents the aromatic phenolic compound of both ginger and green tea [64]. Wavenumber 1647.21 cm−1 is attributed to a hydroxyl group in ginger tea which shifted to 1645.28 cm−1 in green tea. Ginger tea has C-O stretching band at 1020.34 cm−1 which shifted to 1022.27 cm−1 in green tea. The sample prepared with tea contains strong stretching thiocyanate at 2152 cm−1, which is not available in the sample prepared with ginger [65]. In addition, the sample prepared with ginger tea contains a medium stretching alcohol O-H band at 3725 cm−1 of the gingerol [66]. The different functional groups present in the bioplastics are shown in Table 3.

3.3. Surface Morphology Analysis

The surface microstructure of the ginger tea bioplastic was examined with SEM analysis, and the results are displayed in Figure 4. Analyses of the ginger tea bioplastic’s composite surface reveal that the bioplastic composite has sporadic character, including flaws in edges and grooves [71]. The SEM image shows that the ginger tea bioplastic surfaces are exposed to air (which is undesirable), with a few grooves and closer non-gelatinized granules [72]. The surface structure affects the tensile property of the bioplastic [69]. This surface is no more compatible than morphologies with fewer voids and cracks, and is associated with poor interfacial attachment [73]. Some micropores are visible in the micrographs and may interact with the microorganism available in the soil, accelerating the biodegradation process [74].
The water evaporation during blend preparation, either by heating or in combination with mechanical stress and the lack of interface adhesion, causes void formation [75]. The smaller crack propagation of ginger tea bioplastics thus showed no better bonding between the components. The mechanical strength will be lower due to crack and void propagation from the solid particles [76].
Figure 5 shows the surface microstructure of green tea bioplastics using SEM analysis. Analyses of green tea-based bio-polymer surfaces seemed to uncover where an irregular structure existed. There are no cracks in the green tea bioplastics, but small and large air gaps are visible [77]. Because the Camellia sinensis(raw material of green tea) leaves and buds fibers are present in green bioplastics, an air gap has been created. Due to the air gap, mechanical strength will be lesser in these areas [78].
Finally, we can say that no void or crack was found in green tea bioplastic. The surfaces are filled with air gaps for both of the samples, with the presence of foreign particles.

3.4. Thermal Properties Analysis

A TA-Instrument SDT650 was used to examine the TGA and DSC analysis of the synthesized bioplastics. The specimen weight was within the range of 39–55 mg, and the heating rate was 5 °C per minute within the range of ambient to 500 °C temperature.

3.4.1. TGA Analysis

Thermogravimetric analysis of the ginger tea bioplastic’s decomposition profile is shown in Figure 6.Initially, the mass of the green tea bioplastic sample was 39 mg and the mass of the ginger tea bioplastic was 47 mg, which was the 100% weight for both of the samples. With the increase in temperature, weight decreased for both samples due to degradation. The TGA bioplastic composite indicates two stages of degradation. In the first step, 50–220 °C, the dissipation of moisture content may occur in the ginger tea bio-polymer, and this happened between 235–385 °C, which demonstrates the thermal deterioration of ginger tea bioplastics. The ginger was completely decomposed at 390 °C. In between temperatures of 25 and 100 °C, almost 5% of the weight is lost due to moisture evaporation [79,80]. At 350 °C, temperature pyrolysis of cellulose occurs, leaving only 10% of the weight of the samples [81,82].
It is well known that starch degrades at around 275 °C. In the primary step, 73–229 °C, the moisture was contained via evaporation in green tea bioplastic. In the second stage, between 250–396 °C, the thermal decomposition of green tea bioplastics was indicated.
Finally, the decomposition profiles of ginger tea bioplastic and green tea bioplastics are shown in Figure 7. Here, almost 50% of weight loss occurs around 265 °C for ginger and green tea bioplastics. After that temperature, a rapid weight loss is observed, and at around 290 °C, both samples lost more than 80% of their weight. Nurul et al. [83] also mentioned in the literature that in the case of yam and potato bioplastics, 50% of weight loss occurs between 250 °C and 310 °C, and at around 350 °C, more than 90% of their weight is lost. The decomposition temperature of ginger tea bioplastic is higher than that of green tea bioplastic. It also indicates that green tea bioplastic has more excellent heat stability compared to ginger tea bioplastic. The summarized TGA test results are displayed in Table 4.

3.4.2. DSC Analysis

A differential scanning calorimetry graph of the ginger tea and green tea bioplastic decomposition profiles is seen in Figure 7. Here, the melting point Tm and glass transition temperature Tg point of these bioplastic samples are shown. Ginger tea bioplastic has a glass transition temperature range of 48–51 °C (approximate), a melting point of 276 °C, and a crystallization temperature of 304 °C. Green tea bioplastic has a glass transition temperature range of 49 °C to 52 °C (approximate), a melting point of 275 °C, and a crystallization temperature of 303 °C. Ginger tea bioplastic significantly shifted the glass transition temperature Tg. As Tg is above room temperature, glass-like behavior in strength, stiffness, and brittleness can be observed in the developed bioplastic samples [18]. The melting point Tm of the bioplastic was affected considerably in the presence of ginger tea. Initially, low heat flow is observed from the ginger tea bioplastic compared to the green tea bioplastic, but at higher temperatures, low heat flow is observed in the green tea bioplastic compared to the ginger tea bioplastic. This indicates that green tea bioplastic is more stable at a lower temperature than ginger tea bioplastic, and ginger tea bioplastic is more stable at a higher temperature than green tea bioplastic. Ginger tea has a high gelatinization temperature because of its constituents, such as higher lipid and protein content. The functional properties of starch, for example, can change with passing properties and can be charged with lipid complexes [17]. The addition of green tea decreases the phase transition temperature and decreases thermal stability [84]. However, significant changes in properties can be observed from the prepared samples, with a change of 1 °C. A summary of the DSC results is presented in Table 5.

3.5. Soil Burial Biodegradation Analysis

The soil burial test’s degradation rate is measured from the weight differences before and after degradation. Figure 8a,b shows the samples before and after the degradation at different time intervals. From the obtained data, we can clearly observe that the biodegradability increases with the increase in time. It can also be observed that the sample containing ginger is more biodegradable compared to the samples containing green tea. This is because of the higher biodegradability properties of ginger. Both the samples followed linear biodegradation, which is in accordance with pseudo-zero-order kinetics in reaction rates and constant [85]. The rate of biodegradation was less initially because the microorganisms available in the soil were adapted to the samples and required adaptation time [86]. The biodegradation increased after 1 week for both of the samples, due to CO2 production. Bingxue Jiang et al. [87] synthesized and characterized corn starch-based bioplastic for reinforcing eggshell powder. A soil biodegradation test was performed for 3 weeks and a maximum of 58.25% degradation was obtained. After 30 days of observation, it can be seen that the bioplastic samples prepared with ginger tea are far more biodegradable than green tea bioplastic. Ginger is a highly bioactive product because of its constituents, such as monoterpenes, sesquiterpenes, diterpenes, vanilloids, and flavonoids, which make it highly biodegradable and increase the biodegradability of any product when they are mixed in [88,89]. Considering the biodegradability test, both bioplastics deteriorated very rapidly in relation to weight and quality, and are characterized as biodegradable materials. Table 6 compares the obtained biodegradable data with the data available in the literature.

3.6. Comparative Analysis

Green tea bioplastic showed better mechanical properties with 2.678 N/mm2 tensile strength and 42.5% tensile strain. The glass transition temperature for Ruhul [68] was 66.8 °C, and for ginger tea bioplastic (present study) is 63 °C, which is higher than the present study. However, the melting temperature is higher in the present study. The thermal decomposition (50% of weight loss) is comparatively low in the mentioned previous study, and high in the present study, which is shown in Table 6. This investigation demonstrates that green tea bioplastic had improved physicochemical and thermal properties compared with others mentioned in current and previous studies. In the soil biodegradation test, a maximum of 78% degradation was obtained after 30 days of burial. Ginger bioplastic showed a higher rate of biodegradation compared to tea bioplastic because ginger is more biodegradable. This study may be compared with the studies of other researchers available in the literature (Table 7).

4. Conclusions

This research focused on bioplastics developed from natural ingredients. Tensile and thermal property analysis was carried out on bioplastics prepared from ginger tea and green tea. Green tea bioplastic was found to be much more durable, with higher strength and reduced elongation. Morphological analysis indicates that green tea bioplastic has a better consistent surface finish compared to ginger tea bioplastics. No voids or cracks were found in the green tea bioplastics, and fewer voids and cracks were also observed with ginger tea bioplastic. No chemical changes have been found in the tea bioplastic. As a result, all peaks appeared in the same manner for all specimens. DSC curves showed that the melting temperature (Tm) and glass transition temperature (Tg) of the utilized tea bioplastic and ginger tea bioplastic appeared at an inclination higher than other tea bioplastics. TGA demonstrated that ginger tea bioplastics have better thermal sustainability than green tea bioplastics. Soil burial biodegradation tests have been carried out for all prepared bioplastics. All tea bioplastics were found to be highly biodegradable. The results suggest that the developed bioplastics can be used in packaging applications.

Author Contributions

Conceptualization, M.A.K.; methodology, S.M.K.H.; software, M.R.A.; validation, M.A.C.; formal analysis, N.H.; investigation, O.M.; resources, M.R.R.; data curation, M.A.K.; writing—original draft preparation, M.A.C.; writing—review and editing, N.H., O.M., A.M.A., J.U., M.M.R.; visualization, M.T.S.C.; supervision, A.M.A., M.M.R.; project administration, J.U.; funding acquisition, M.M.R. All authors have read and agreed to the published version of the manuscript.


This research work was funded by Institutional Fund Projects under grant no (IFPIP-94-961-1443).

Data Availability Statement

Data will be made available on request.


This research work was funded by Institutional Fund Projects under grant no (IFPIP-94-961-1443). The authors gratefully acknowledge technical and financial support provided by the ministry of Education and King Abdulaziz University, DSR, Jeddah, Saudi Arabia.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Sit, M.; Ling, J.; Jiang, C.; Zhang, Z.; Khalfallah, M.; Ioos, F.; Grossmann, E.; Dhakal, H.N. Influence of accelerated weathering on the properties of flax reinforced PLA biocomposites. Results Mater. 2022, 16, 100333. [Google Scholar] [CrossRef]
  2. Xu, C.; Möttönen, V.; Suvanto, S.; Kilpeläinen, P.; Brännström, H.; Turunen, O.; Kumar, A. Preparation and characterisation of biocomposites containing thermomechanical pulp fibres, poly (lactic acid) and poly(butylene-adipate-terephthalate) or poly (hydroxyalkanoates) for 3D and 4D printing. Addit. Manuf. 2022, 59, 103166. [Google Scholar]
  3. Xu, C.; Möttönen, V.; Suvanto, S.; Kilpeläinen, P.; Brännström, H.; Turunen, O.; Kumar, A. Utilization of logging residue powder as a bio-based reinforcement for injection molded poly(lactic acid) biocom-posites. Ind. Crops Prod. 2022, 187, 115370. [Google Scholar] [CrossRef]
  4. In-Na, P.; Byrne, F.; Caldwell, G.S.; Lee, J.G. Techno-economic analysis of living biocomposites for carbon capture from breweries. Algal Res. 2022, 66, 102781. [Google Scholar] [CrossRef]
  5. Brief, L. Opportunities in Natural Fiber Composites; Lucintel: Irving, TX, USA, 2011. [Google Scholar]
  6. Pradhan, S. Optimization and Characterization of Bioplastic Produced by Bacillus cereus SE1. Ph.D. Thesis, National Institute of Technology, Rourkela, India, 2014. [Google Scholar]
  7. Fabunmi, O.; Tabil, L.G., Jr.; Panigrahi, S.; Chang, P.R. Developing Biodegradable Plastics from starch. In Proceedings of the ASABE/CSBE North Central Intersectional Conference, Fargo, ND, USA, 12–13 October 2007. [Google Scholar]
  8. Chen, W.-H.; Chen, Q.-W.; Chen, Q.; Cui, C.; Duan, S.; Kang, Y.; Liu, Y.; Liu, Y.; Muhammad, W.; Shao, S.; et al. Biomedical polymers: Synthesis, properties, and applications. Sci. China Chem. 2022, 65, 1010–1075. [Google Scholar] [CrossRef]
  9. Kanmani, P.; Rhim, J.W. Properties and Characterization of Bio Nanocomposite Films Prepared with Various Biopolymers and ZnO Nanoparticles. Sci. Direct 2014, 106, 190–199. [Google Scholar]
  10. Wang, J.-W.; Chen, Q.-W.; Luo, G.-F.; Han, Z.-Y.; Song, W.-F.; Yang, J.; Chen, W.-H.; Zhang, X.-Z. A Self-Driven Bioreactor Based on Bacterium–Metal–Organic Framework Biohybrids for Boosting Chemotherapy via Cyclic Lactate Catabolism. ACS Nano 2021, 15, 17870–17884. [Google Scholar] [CrossRef] [PubMed]
  11. Luo, G.-F.; Chen, W.-H.; Zeng, X.; Zhang, X.-Z. Cell primitive-based biomimetic functional materials for enhanced cancer therapy. Chem. Soc. Rev. 2021, 50, 945–985. [Google Scholar] [CrossRef] [PubMed]
  12. Krepsztul, J.W.; Rydzkowski, T.; Borowski, G.; Szczypiński, M.; Klepka, T.; Thakur, V.K. Recent Progress in Biodegrada-ble Polymers and Nanocomposites Based Packaging Materials for Sustainable Environment. Int. J. Polym. Anal. Charact. 2018, 23, 383–395. [Google Scholar] [CrossRef]
  13. Liang, J.-L.; Luo, G.-F.; Chen, W.-H.; Zhang, X.-Z. Recent Advances in Engineered Materials for Immuno-therapy-Involved Combination Cancer Therapy. Adv. Mater. 2021, 33, 2007630. [Google Scholar] [CrossRef] [PubMed]
  14. Stepto, R.F.T. Understanding the processing of thermoplastic starch. Macromol. Symp. 2006, 245, 571–577. [Google Scholar] [CrossRef]
  15. Delville, J.; Joly, C.; Dole, P.; Bliard, C. Influence of photocrosslinking on the retrogradation of wheat starch based films. Carbohydr. Polym. 2003, 53, 373–381. [Google Scholar] [CrossRef]
  16. Khoramnejadian, S.; Zavareh, J.J.; Khoramnejadian, S. Effect of potato starch on thermal and mechanical properties on low-density polyethylene. Curr. World Environ. 2013, 8, 215–220. [Google Scholar] [CrossRef]
  17. Behera, L.; Mohanta, M.; Thirugnanam, A. Intensification of yam-starch based biode-gradable bioplastic film with bentonite for food packaging application. Environ. Technol. Innov. 2022, 25, 102180. [Google Scholar] [CrossRef]
  18. Ismaila, N.A.; Tahirb, S.M.; Yahyac, N. Synthesis and Characterization of Biodegradable Starch-based Bioplastics. Mater. Sci. Forum 2016, 846, 673–678. [Google Scholar] [CrossRef]
  19. Los, M.D.; Cornejo-Villegas, A.; Rincón-Londoño, N. The effect of Ca2þ ions on the pasting, morphological, structural, vibrational, and mechanical properties of corn starch water system. J. Cereal Sci. 2018, 79, 174–182. [Google Scholar]
  20. Omoregie, H. Chemical Properties of Starch and Its Application in the Food Industry. In Chemical Properties of Starch, March; Intech Open: London, UK, 2020. [Google Scholar]
  21. Moro, T.M.A.; Ascheri, J.L.R.; Ortiz, J.A.R.; Carvalho, C.W.P.; Meléndez-Arévalo, A. Bioplastics of Native Starches Reinforced with Passion Fruit Peel. Food Bioprocess Technol. 2017, 10, 1798–1808. [Google Scholar] [CrossRef]
  22. Santana, R.F.; Bonomo, R.C.F.; Gandolfi, O.R.R.; Rodrigues, L.B.; Santos, L.S.; Pires, A.C.D.S.; de Oliveira, C.P.; Fontan, R.D.C.I.; Veloso, C.M. Characterization of starch-based bioplastics from jackfruit seed plasticized with glycerol. J. Food Sci. Technol. 2018, 55, 278–286. [Google Scholar] [CrossRef]
  23. Karimah, A.; Ridho, M.R.; Munawar, S.S.; Adi, D.S.; Ismadi; Damayanti, R.; Subiyanto, B.; Fatriasari, W.; Fudholi, A. A review on natural fibers for development of eco-friendly bio-composite: Characteristics, and utilizations. J. Mater. Res. Technol. 2021, 13, 2442–2458. [Google Scholar] [CrossRef]
  24. Raggio, B.S.; Asaria, J. Filler Rhinoplasty. [Updated 2022 May 1]. In StatPearls; StatPearls Publishing: Treasure Island, FL, USA, 2022. [Google Scholar]
  25. Jang, W.Y.; Shin, B.Y.; Lee, T.J.; Narayan, R. Thermal properties and morphology of biodegradable PLA/starch compatibilized blends. J. Ind. Eng. Chem. 2007, 1, 457–464. [Google Scholar]
  26. Lee, S.Y.; Kang, I.A.; Doh, G.H.; Yoon, H.G.; Park, B.D.; Wu, Q. Thermal and mechanical properties of wood flour/talc-filled polylactic acid composites: Effect of filler content and coupling treatment. J. Thermoplast. Compos. Mater. 2008, 21, 209–223. [Google Scholar] [CrossRef]
  27. Shibata, M.; Ozawa, K.; Teramoto, N.; Yosomiya, R.; Takeishi, H. Biocomposites made from short abaca fiber and biode-gradable polyesters. Macromol. Mater. Eng. 2003, 288, 35–43. [Google Scholar] [CrossRef]
  28. Huda, M.S.; Drzal, L.T.; Misra, M.; Mohanty, A.K. Wood-fiber-reinforced poly (lactic acid) composites: Evaluation of the physicomechanical and morphological properties. J. Appl. Polym. Sci. 2006, 102, 4856–4869. [Google Scholar] [CrossRef]
  29. Huda, M.S.; Drzal, L.T.; Misra, M.; Mohanty, A.K.; Williams, K.; Mielewski, D.F. A study on biocomposites from recycled newspaper fiber and poly (lactic acid). Ind. Eng. Chem. Res. 2005, 44, 5593–5601. [Google Scholar] [CrossRef]
  30. Placket, D.; Andersen, T.L.; Pedersen, W.B.; Nielsen, L. Biodegradable composites based on L-polylactide and jute fibers. Compos. Sci. Technol. 2003, 63, 1287–1296. [Google Scholar] [CrossRef]
  31. Shibata, M.; Oyamada, S.; Kobayashi, S.-I.; Yaginuma, D. Mechanical properties and biodegradability of green composites based on biodegradable polyesters and lyocell fabric. J. Appl. Polym. Sci. 2004, 92, 3857–3863. [Google Scholar] [CrossRef]
  32. Mathew, A.P.; Oksman, K.; Sain, M. Mechanical properties of biodegradable composites from polylactic acid (PLA) and microcrystalline cellulose (MCC). J. Appl. Polym. Sci. 2005, 97, 10–20. [Google Scholar] [CrossRef]
  33. Liu, W.; Misra, M.; Askeland, P.; Drzal, L.; Mohanty, A.K. ‘Green’ composites from soy based plastic and pineapple leaf fiber: Fabrication and properties evaluation. Polymer 2005, 46, 2710–2721. [Google Scholar] [CrossRef]
  34. Ardente, F.; Beccali, M.; Cellura, M.; Mistretta, M. Building energy performance: A LCA case study of kenaf-fibers insulation board. Energy Build. 2008, 40, 1–10. [Google Scholar] [CrossRef]
  35. Oksman, K.; Skrifvars, M.; Selin, J.F. Natural fibers as reinforcement in polylactic acid (PLA) composites. Compos. Sci. 2003, 63, 1317–1324. [Google Scholar] [CrossRef]
  36. Álvarez, V.; Ruscekaite, R.A.; Vazquez, A. Mechanical properties and water absorption behavior of composites made from a biodegradable matrix and alkaline-treated sisal fibers. J. Compos. Mater. 2003, 37, 1575–1588. [Google Scholar] [CrossRef]
  37. Avella, M.; Buzarovska, A.; Errico, M.E.; Gentile, G.; Grozdanovaeco, A. Eco challenges of bio-based polymer composites. Materials 2009, 2, 911–925. [Google Scholar] [CrossRef]
  38. Hakeem, K.R.; Rashid, M.J.U. Biomass and Bioenergy Applications; Springer: Berlin/Heidelberg, Germany, 2014. [Google Scholar]
  39. Wang, H.; Sun, X.Z.; Seib, P. Strengthening blends of poly(lactic acid) and starch with methylene diphenyldiisocyanate. J. Appl. Polym. Sci. 2001, 82, 1761–1767. [Google Scholar] [CrossRef]
  40. Teixeira, E.M.; Da Róz, A.L.; Carvalho, A.J.F.; Curvelo, A.A.S. The effect of glycerol/sugar/water and sugar/water mixtures on the plasticization of thermoplastic cassava starch. Carbohydr. Polym. 2007, 69, 619–624. [Google Scholar] [CrossRef]
  41. Babu, R.P.; Connor, K.O.; Seeram, R. Current progress on biobased polymers and their future trends. Prog.Biomater. 2013, 2, 8. [Google Scholar] [CrossRef][Green Version]
  42. Khazir, S.; Shetty, S. Biobased polymers in the world. Int. J. Life Sci. Biotechnol. Pharma. Res. 2014, 3, 35–43. [Google Scholar]
  43. Fakhoury, F.M.; Martelli, S.M.; Bertan, L.C.; Yamashita, F.; Mei, L.H.I.; Queiroz, F.P.C. Edible flms made from blends of manioc starchand gelatin—Infuence of diferent types of plasticizer and different levels of macromolecules on their properties. LWT Food Sci. Technol. 2012, 49, 149–154. [Google Scholar] [CrossRef]
  44. Krishnamurthy, A.; Amritkumar, P. Synthesis and characterization of eco-friendly bioplastic from low-cost plant resources. SN Appl. Sci. 2019, 1, 1432. [Google Scholar] [CrossRef][Green Version]
  45. Liu, M.; Arshadi, M.; Javi, F.; Lawrence, P.; Davachi, S.M.; Abbaspourrad, A. Green and facile preparation of hydrophobic bioplastics from tea waste. J. Clean. Prod. 2020, 276, 123353. [Google Scholar] [CrossRef]
  46. Morvaridzadeh, M.; Sadeghi, E.; Agah, S.; Fazelian, S.; Rahimlou, M.; Kern, F.G.; Heshmati, S.; Omidi, A.; Persad, E.; Heshmati, J. Effect of ginger (Zingiberofficinale) supplementation on oxidative stress pa-rameters: A systematic review and meta-analysis. J. Food Biochem. 2021, 45, e13612. [Google Scholar] [CrossRef] [PubMed]
  47. Gurung, A.; Khatiwada, B.; Kayastha, B.; Parsekar, S.; Mistry, S.K.; Yadav, U.N. Effectiveness of ZingiberOffici-nale(ginger) compared with non-steroidal anti-inflammatory drugs and complementary therapy in primary dysmenorrhoea: A systematic review. Clin. Epidemiol. Glob. Health 2022, 18, 101152. [Google Scholar] [CrossRef]
  48. Osae, R.; Essilfie, G.; Alolga, R.N.; Bonah, E.; Ma, H.; Zhou, C. Drying of ginger slices—Evaluation of quality attributes, energy consumption, and kinetics study. J. Food Process. Eng. 2020, 43, e13348. [Google Scholar] [CrossRef]
  49. Zhang, D.; Huang, D.; Zhang, Y.; Lu, Y.; Huang, S.; Gong, G.; Li, L. Ultrasonic assisted far infrared drying charac-teristics and energy consumption of ginger slices. Ultrason. Sonochemistry 2023, 92, 106287. [Google Scholar] [CrossRef]
  50. Mao, Q.Q.; Xu, X.Y.; Cao, S.Y.; Gan, R.Y.; Corke, H.; Beta, T.; Li, H.B. Bioactive Compounds and Bioactivities of Ginger (Zingiberoffic-inale Roscoe). Foods 2019, 8, 185. [Google Scholar] [CrossRef] [PubMed][Green Version]
  51. Gianfredi, V.; Nucci, D.; Abalsamo, A.; Acito, M.; Villarini, M.; Moretti, M.; Realdon, S. Green tea consumption and risk of breast cancer and recurrence—A systematic review and meta-analysis of observational studies. Nutrients 2018, 10, 1886. [Google Scholar] [CrossRef] [PubMed][Green Version]
  52. Tan, H.; Moses, O.; Lee, L.; Easa, A.M. Quality characteristics of Green Tea’s Infusion as influenced by Brands and Types of Brewing Water. Heliyon 2022, 9, e12638. [Google Scholar] [CrossRef]
  53. Yang, T.; Li, H.; Hu, X.; Li, J.; Hu, J.; Liu, R.; Deng, Z. Effects of fertilizing with N, P, Se, and Zn on regulating the element and func-tional component contents and antioxidant activity of tea leaves planted in red soil. J. Agric. Food Chem. 2014, 62, 3823–3830. [Google Scholar] [CrossRef]
  54. Liu, H.; Zhuang, S.; Gu, Y.; Shen, Y.; Zhang, W.; Ma, L.; Xiao, G.; Wang, Q.; Zhong, Y. Effect of storage time on the volatile compounds and taste quality of Meixian green tea. LWT 2023, 173, 114320. [Google Scholar] [CrossRef]
  55. Wang, H.; Hua, J.; Yu, Q.; Li, J.; Wang, J.; Deng, Y.; Yuan, H.; Jiang, Y. Widely targeted metabolomic analysis reveals dynamic changes in non-volatile and volatile metabolites during green tea processing. Food Chem. 2021, 363, 130131. [Google Scholar] [CrossRef]
  56. Ye, Y.; He, J.; He, Z.; Zhang, N.; Liu, X.; Zhou, J.; Cheng, S.; Cai, J. Evaluation of the brewing characteristics, digestion profiles, and neuro-protective effects of two typical Se-enriched green teas. Foods 2022, 11, 2159. [Google Scholar] [CrossRef]
  57. Chowdhury, M.A.; Hossain, N.; Badrudduza, M.D.; Rana, M.M. Development and characterization of natural sourced bioplastic for food packaging applications. Heliyon 2023, 9, e13538. [Google Scholar] [CrossRef]
  58. Ye, Y.; Yan, W.; Peng, L.; He, J.; Zhang, N.; Zhou, J.; Cheng, S.; Cai, J. Minerals and bioactive components profiling in Se-enriched green tea and thePearson correlation with Se. LWT 2023, 175, 114470. [Google Scholar] [CrossRef]
  59. Deng, S.; Zhang, G.; Aluko, O.O.; Mo, Z.; Mao, J.; Zhang, H.; Liu, X.; Ma, M.; Wang, Q.; Liu, H. Bitter and astringent substances in green tea: Composition, human perception mechanisms, evaluation methods and factors influencing their formation. Food Res. Int. 2022, 157, 111262. [Google Scholar] [CrossRef] [PubMed]
  60. Hossain, N.; Chowdhury, M.A.; Noman, T.I.; Rana, M.; Ali, H.; Alruwais, R.S.; Alam, S.; Alamry, K.A.; Aljabri, M.D.; Rahman, M.M. Synthesis and Characterization of Eco-Friendly Bio-Composite from Fenugreek as a Natural Resource. Polymers 2022, 14, 5141. [Google Scholar] [CrossRef]
  61. Chowdhury, M.A.; Badrudduza, M.D.; Hossain, N.; Rana, M. Development and characterization of natural sourced bioplastic synthesized from tamarind seeds, berry seeds and licorice root. Appl. Surf. Sci. Adv. 2022, 11, 100313. [Google Scholar] [CrossRef]
  62. Sadeghi, A.; Razavi, S.M.A.; Shahrampour, D. Fabrication and characterization of biodegradable active films with modified morphology based on polycaprolactone-polylactic acid-green tea extract. Int. J. Biol. Macromol. 2022, 205, 341–356. [Google Scholar] [CrossRef]
  63. Yang, J.; Dong, X.; Wang, J.; Ching, Y.C.; Liu, J.; Li, C.; Baikeli, Y.; Li, Z.; Al-Hada, N.M.; Xu, S. Synthesis and properties of bioplastics from corn starch and citric acid-epoxidized soybean oil oligomers. J. Mater. Res. Technol. 2022, 20, 373–380. [Google Scholar] [CrossRef]
  64. Jim´enez-Rosado, M.; Rubio-Valle, J.F.; Perez-Puyana, V.; Guerrero, A.; Romero, A. Use of heat treatment for the development of protein-based bioplastics. Sustain. Chem. Pharm. 2020, 18, 100341. [Google Scholar] [CrossRef]
  65. Lorenzo, J.M.; Munekata, P.E.S. Phenolic compounds of green tea: Health benefits and technological application in food. Asian Pac. J. Trop. Biomed. 2016, 6, 709–719. [Google Scholar] [CrossRef][Green Version]
  66. Anesini, C.; Ferraro, G.E.; Filip, R. Total Polyphenol Content and Antioxidant Capacity of Commercially Available Tea (Camellia sinensis) in Argentina. J. Agric. Food Chem. 2008, 56, 9225–9229. [Google Scholar] [CrossRef]
  67. Abdullah, H.D.; Chalimah, S.; Primadona1, I.; Hanantyo, M.H.G. Physical and chemical properties of corn, cassava, and potato starchs. IOP Conf. Ser. Earth Environ. Sci. 2018, 160, 012003. [Google Scholar] [CrossRef][Green Version]
  68. Wei, Z.; Jiao, D.; Xu, J. Using Fourier Transform Infrared Spectroscopy to Study Effects of Magnetic Field Treatment on Wheat (Triticum aestivum L.) Seedlings. J. Spectrosc. 2015, 2015, 6. [Google Scholar] [CrossRef][Green Version]
  69. Amin, M.R.; Chowdhury, M.A.; Kowser, M.A. Characterization and performance analysis of composite bioplastics synthesized using titanium dioxide nanoparticles with corn starch. Sci. Direct 2019, 5, e02009. [Google Scholar] [CrossRef][Green Version]
  70. Sultan, N.F.K.; Johari, W. The Development of Banana Peel/Corn Starch Bioplastic Film: A Preliminary Study. Bioremediation Sci. Technol. Res. 2017, 5, 12–17. [Google Scholar] [CrossRef]
  71. Nordin, N.; Othman, S.H.; Kadir Basha, R.; Abdul Rashid, S. Mechanical and thermal properties of starch films reinforced with micro cellulose fibers. Food Res. 2018, 2, 555–563. [Google Scholar] [CrossRef]
  72. Marichelvam, M.K.; Manimaran, P.; Sanjay, M.R.; Siengchin, S.; Geetha, M.; Kandakodeeswaran, K.; Boonyasopon, P.; Gorbatyuk, S. Extraction and development of starch-based bioplastics from Prosopis Juliflora Plant: Eco-friendly and sustainability aspects. Curr. Res. Green Sustain. Chem. 2022, 5, 100296. [Google Scholar] [CrossRef]
  73. Boey, J.Y.; Lee, C.K.; Tay, G.S. Factors Affecting Mechanical Properties of Reinforced Bioplastics: A Review. Polymers 2022, 14, 3737. [Google Scholar] [CrossRef] [PubMed]
  74. Arzt, E.; Quan, H.; McMeeking, R.M.; Hensel, R. Functional surface microstructures inspired by nature—From adhesion and wetting principles to sustainable new devices. Prog. Mater. Sci. 2021, 120, 100823. [Google Scholar] [CrossRef]
  75. Chowdhury, M.; Hossain, N.; Noman, T.I.; Hasan, A.; Shafiul, A.; Abul, K.M. Biodegradable, physical and microbial analysis of tamarind seed starch infused eco-friendly bioplastics by different percentage of Arjuna powder. Results Eng. 2022, 13, 100387. [Google Scholar] [CrossRef]
  76. Bourgi, R.; Hardan, L.; Rivera-Gonzaga, A.; Cuevas-Suárez, C.E. Effect of warm-air stream for solvent evaporation on bond strength of adhesive systems: A systematic review and meta-analysis of in vitro studies. Int. J. Adhes. Adhes. 2021, 105, 102794. [Google Scholar] [CrossRef]
  77. Maragoni, L.; Carraro, P.A.; Quaresimin, M. Effect of voids on the crack formation in a [45/−45/0]s laminate under cyclic axial tension. Compos. Part A Appl. Sci. Manuf. 2016, 91, 493–500. [Google Scholar] [CrossRef]
  78. Shanmathy, M.; Mohanta, M.; Thirugnanam, A. Development of biodegradable bioplastic films from Taro starch reinforced with bentonite. Carbohydr. Polym. Technol. Appl. 2021, 2, 100173. [Google Scholar] [CrossRef]
  79. Hohimer, C.; Aliheidari, N.; Mo, C.; Ameli, A. Mechanical Behavior of 3D Printed Multiwalled Carbon Nano-tube/Thermoplastic Polyurethane Nanocomposites. Volume 1: Development and Characterization of Multifunctional Materials; Mechanics and Behavior of Active Materials; Bioinspired Smart Materials and Systems; Energy Harvesting; Emerging Technologies. In Proceedings of the ASME 2017 Conference on Smart Materials, Adaptive Structures and Intelligent Systems, Snowbird, UT, USA, 18–20 September 2017. [Google Scholar]
  80. Huang, F.-Y. Thermal properties and thermal degradation of cellulose tri-stearate (CTs). Polymers 2012, 4, 1012–1024. [Google Scholar] [CrossRef][Green Version]
  81. Fortunati, E.; Pugliaa, D.; Luzia, F.; Santulli, C.; Kenny, J.M.; Torrea, L. Binary PVAbionanocomposites containing cellulose nanocrystals extracted from different natural sources. Carbohydr. Polym. 2013, 97, 825–836. [Google Scholar] [CrossRef] [PubMed][Green Version]
  82. Melikoğlu, A.Y.; Bilek, S.E.; Cesur, S. Optimum alkaline treatment parameters for the extraction of cellulose and production of cellulose nanocrystals from apple pomace. Carbohydr. Polym. 2019, 215, 330–337. [Google Scholar] [CrossRef]
  83. Nigam, S.; Das, A.K.; Patidar, M.K. Valorization of Parthenium hysterophorus weed for cellulose ex-traction and its application forbioplastic preparation. J. Environ. Chem. Eng. 2021, 9, 105424. [Google Scholar] [CrossRef]
  84. de Oliveira, C.S.; Bisinella, R.Z.B.; Bet, C.D.; Beninca, C.; Demiate, I.M.; Schnitzler, E. Physicochemical, Thermal, Structural and Pasting Properties of Unconventional Starches from Ginger (Zingiberofficinale) and White Yam (Dioscorea sp.). Braz. Arch. Biol. Technol. 2019, 62. Available online: (accessed on 29 January 2023). [CrossRef]
  85. Peng, Y.; Wang, Q.; Shi, J.; Chen, Y.; Zhang, X. Optimization and release evaluation for tea polyphenols and chitosan composite films with regulation of glycerol and Tween. Food Sci. Technol. 2019, 40, 162–170. [Google Scholar] [CrossRef][Green Version]
  86. Sachdeva, A.; Vashist, S.; Chopra, R.; Puri, D. Antimicrobial activity of activepackaging film to prevent bread spoilage. Int. J. Food Sci. Nutr. 2017, 2, 29–37. [Google Scholar]
  87. Pathak, V.M.; Navneet. Review on the current status of polymer degradation: Amicrobial approach. Bioresour. Bioprocess. 2017, 4, 15. [Google Scholar] [CrossRef][Green Version]
  88. Jiang, B.; Li, S.; Wu, Y.; Song, J.; Chen, S.; Li, X.; Sun, H. Preparation and char-acterization of natural corn starch-based composite films reinforced by eggshell powder. CyTA J. Food 2018, 16, 1045–1054. [Google Scholar] [CrossRef]
  89. Kim, S.-y.; Choi, A.-j.; Park, J.-E.; Jang, Y.-s.; Lee, M.-h. Antibacterial Activity and Biocom-patibility with the Concentration of Ginger Fraction in Biodegradable Gelatin Methacryloyl (GelMA) Hydrogel Coating for Medical Implants. Polymers 2022, 14, 5317. [Google Scholar] [CrossRef] [PubMed]
  90. Chethana, M.; Prashantha, K.; Siddaramaiah. Studies on thermal behavior, moisture absorption, and biodegrada-bility of ginger spent incorporated polyurethane green composites. J. Appl. Polym. Sci. 2014, 132, 10. [Google Scholar]
  91. Kanagesan, K.; Abdulla, R.; Derman, E.; Sabullah, M.K.; Govindan, N.; Gansau, J.A. A sustainable approach to green algal bioplastics production from brown seaweeds of Sabah, Malaysia. J. King Saud Univ. Sci. 2022, 34, 102268. [Google Scholar] [CrossRef]
  92. Guzman-Puyol, S.; Hierrezuelo, J.; Benítez, J.J.; Tedeschi, G.; Porras-Vázquez, J.M.; Heredia, A.; Athanassiou, A.; Romero, D.; Heredia-Guerrero, J.A. Transparent, UV-blocking, and high barrier cellulose-based bioplastics with naringin as active food packaging ma-terials. Int. J. Biol. Macromol. 2022, 209, 1985–1994. [Google Scholar] [CrossRef]
  93. Nigam, S.; Das, A.K.; Patidar, M.K. Synthesis, characterization and biodegradation of bioplastic films produced from Parthenium hysterophorus by incorporating a plasticizer (PEG600). Environ. Chall. 2021, 5, 100280. [Google Scholar] [CrossRef]
  94. García-Depraect, O.; Lebrero, R.; Rodriguez-Vega, S.; Bordel, S.; Santos-Beneit, F.; Martínez-Mendoza, L.J.; Börner, R.A.; Börner, T.; Muñoz, R. Biodegradation of bioplastics under aerobic and anaerobic aqueous conditions: Kinetics, carbon fate and particle size effect. Bioresour. Technol. 2022, 344, 126265. [Google Scholar] [CrossRef]

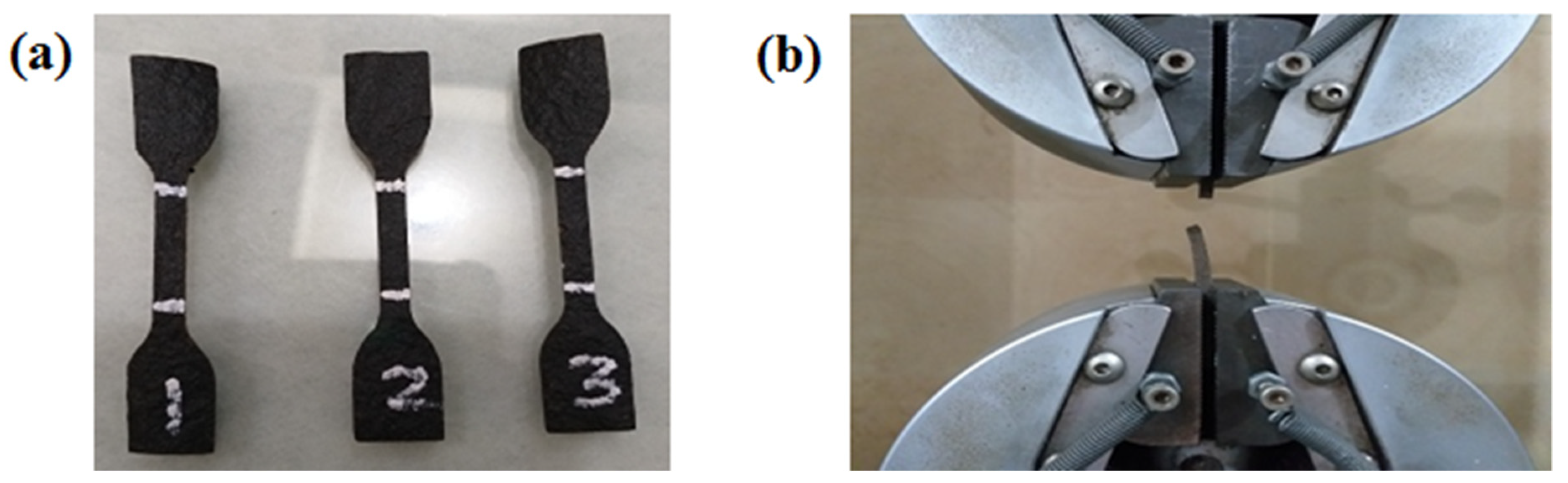

Figure 1. (a) Prepared samples for the tensile test and (b) a sample during the tensile test.
Figure 1. (a) Prepared samples for the tensile test and (b) a sample during the tensile test.
Jcs 07 00107 g001
Figure 2. Mechanical properties of the prepared bioplastic samples (a) load, (b) elongation and (c) stress vs. strain curve.
Figure 2. Mechanical properties of the prepared bioplastic samples (a) load, (b) elongation and (c) stress vs. strain curve.
Jcs 07 00107 g002

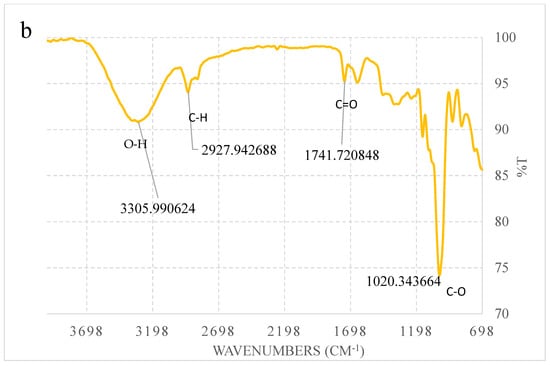

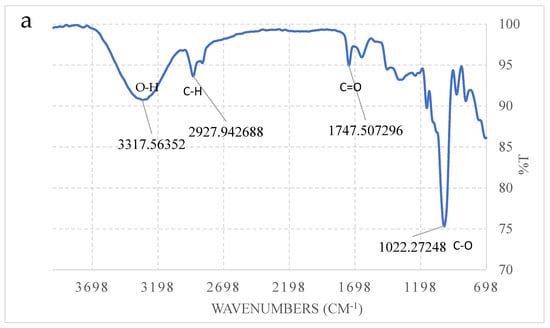

Figure 3. FTIR spectra of the prepared bioplastic samples (a) ginger tea and (b) green tea.
Figure 3. FTIR spectra of the prepared bioplastic samples (a) ginger tea and (b) green tea.
Jcs 07 00107 g003aJcs 07 00107 g003b

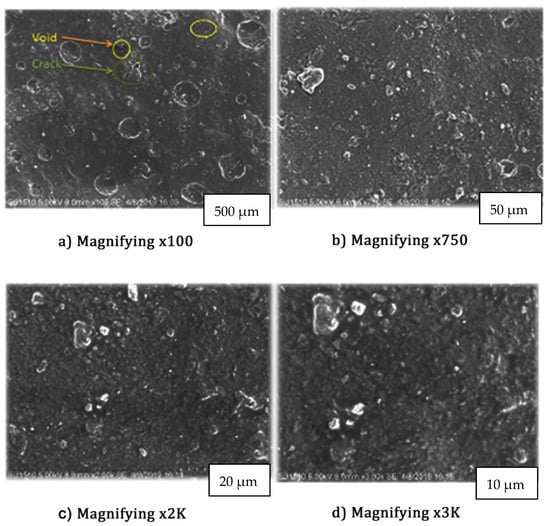

Figure 4. SEM photograph of ginger tea bioplastic at (a) 100×, (b) 750×, (c) 2000× and (d) 3000×.
Figure 4. SEM photograph of ginger tea bioplastic at (a) 100×, (b) 750×, (c) 2000× and (d) 3000×.
Jcs 07 00107 g004

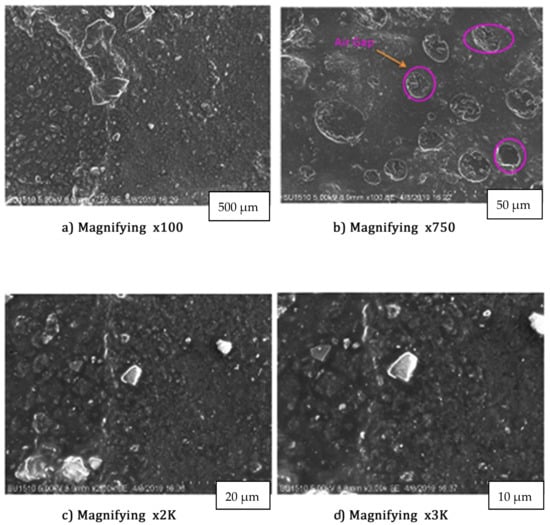

Figure 5. SEM photograph of green tea bioplastic at (a) 100×, (b) 750×, (c) 2000× and (d) 3000×.
Figure 5. SEM photograph of green tea bioplastic at (a) 100×, (b) 750×, (c) 2000× and (d) 3000×.
Jcs 07 00107 g005

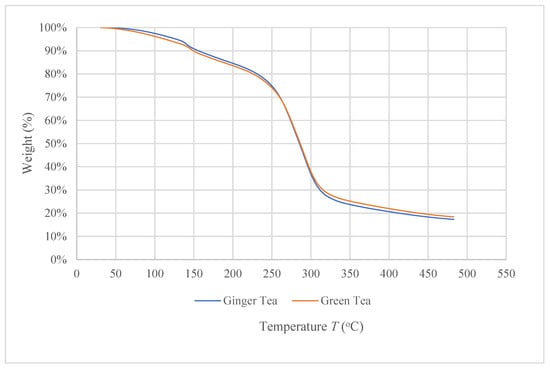

Figure 6. TGA analysis curve of the prepared bioplastic samples.
Figure 6. TGA analysis curve of the prepared bioplastic samples.
Jcs 07 00107 g006

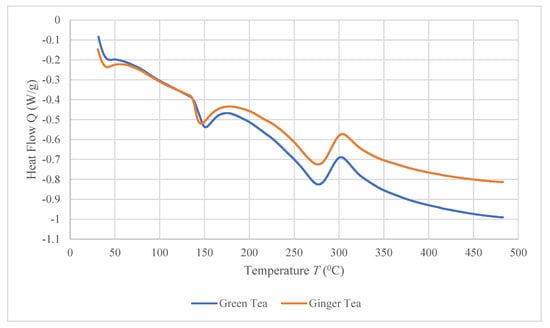

Figure 7. DSC analysis curves of the developed bioplastics samples.
Figure 7. DSC analysis curves of the developed bioplastics samples.
Jcs 07 00107 g007

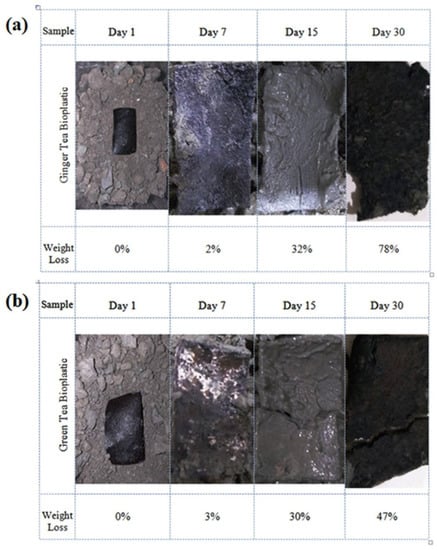

Figure 8. Bioplastic samples before and after biodegradation test synthesized by (a) ginger tea and (b) green tea.
Figure 8. Bioplastic samples before and after biodegradation test synthesized by (a) ginger tea and (b) green tea.
Jcs 07 00107 g008
Table 1. Composition of different ingredients used to fabricate the bioplastic samples.
Table 1. Composition of different ingredients used to fabricate the bioplastic samples.
IngredientWeightPercent (%)
Corn Starch60 gm11.50
Distilled water360 mL69.30
White Vinegar40 mL7.70
Glycerol40 gm7.70
Ginger/Green Tea20 gm3.80
Table 2. Tensile properties of different samples.
Table 2. Tensile properties of different samples.
SamplesLoad (kgf)Young’s Modulus (N/mm2)Elongation (in mm)Stress (N/mm2)Strain (%)
1Ginger Tea2.92.9467.462.58237.30
2Green Tea2.72.1388.502.67842.50
Table 3. Band assignment of ginger tea and green tea bioplastics.
Table 3. Band assignment of ginger tea and green tea bioplastics.
Functional GroupWave Number Literature (cm−1)Ginger TeaGreen Tea
1O–H stretching3600–3300 [50]3313.473307.92
2C–H stretching2800–3000 [67]2929.872929.87
3C=O band1743 [68]1743.651743.65
4OH hydroxyl groups bending1580–1700 [69]1647.211645.28
CH2vibration bending~1450 [70]1452.41450.47
5C–O–C asymmetric stretching1149, 1151 [70]1151.51151.5
6C–O stretching1200–800 [50]1020.341022.27
C–O–C ring vibration of carbohydrate920, 856 [50]923.9923.9
Table 4. TGA test results of bioplastics samples.
Table 4. TGA test results of bioplastics samples.
Sl. No.SampleFirst StepSecond Stage
2Ginger Tea Bioplastic50–220 °C235–385 °C
3Green Tea Bioplastic73–229 °C250–396 °C
Table 5. DSC test results of bioplastics samples.
Table 5. DSC test results of bioplastics samples.
Sl. No.DSC Test (Sample)Glass Transition Point Tg (°C)Melting Point Temp Tm (°C)Crystallization Temperature (°C)
2Ginger Tea bioplastic50276304
3Green Tea bioplastic49275303
Table 6. Biodegradation of different bioplastic samples found in the literature.
Table 6. Biodegradation of different bioplastic samples found in the literature.
SL.Degradation MediumWeight Loss (%)Time (Days)References
4Sea water3930[72]
7Aerobic conditions in aqueous medium86.868[93]
8Simulated environments20120[94]
9Soil7830This work
Table 7. The comparative investigation of different kinds of tea bioplastics and relative research.
Table 7. The comparative investigation of different kinds of tea bioplastics and relative research.
Sl. No.Test/AnalysisStarch BioplasticComposite BioplasticPresent Study
Previous Study [71]Previous Study [80]Previous Study [76]Previous Study [56,74]Ginger TeaGreen Tea
1Tensile Strength (Mpa)3.553.953.861.922.92.7
2Elongation (%)88.162.562.710.137.342.5
3Glass Transition Temperature (Tg)57.2 °C66.8 °C35.3 °C---63 °C60 °C
4Melting temperature (Tm)297 °C303 °C136.6 °C---276 °C275 °C
5Thermal decomposition (50% of weight loss) °C291 °C303 °C---310 °C285 °C287 °C
6Biodegradibility64%81% 60%78%47%
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kowser, M.A.; Hossain, S.M.K.; Amin, M.R.; Chowdhury, M.A.; Hossain, N.; Madkhali, O.; Rahman, M.R.; Chani, M.T.S.; Asiri, A.M.; Uddin, J.; Rahman, M.M. Development and Characterization of Bioplastic Synthesized from Ginger and Green Tea for Packaging Applications. J. Compos. Sci. 2023, 7, 107.

AMA Style

Kowser MA, Hossain SMK, Amin MR, Chowdhury MA, Hossain N, Madkhali O, Rahman MR, Chani MTS, Asiri AM, Uddin J, Rahman MM. Development and Characterization of Bioplastic Synthesized from Ginger and Green Tea for Packaging Applications. Journal of Composites Science. 2023; 7(3):107.

Chicago/Turabian Style

Kowser, Md. Arefin, Sikder Muhammad Khalid Hossain, Md. Ruhul Amin, Mohammad Asaduzzaman Chowdhury, Nayem Hossain, Osama Madkhali, Md. Rezaur Rahman, Muhammad Tariq Saeed Chani, Abdullah M. Asiri, Jamal Uddin, and Mohammed M. Rahman. 2023. "Development and Characterization of Bioplastic Synthesized from Ginger and Green Tea for Packaging Applications" Journal of Composites Science 7, no. 3: 107.

Article Metrics

Back to TopTop
